This document provides information on ODP NEMA Premium motors from WEG, including: - The motors are designed for use with variable frequency drives and feature an AEGIS bearing protection ring. - They are available in cast iron and rolled steel frames from 1 to 100 HP and voltages of 208-230/460V. - WEG also offers compatible variable frequency drives like the CFW11 and CFW700 which are suited for controlling the motors.

1. Motors | Automation | Energy | Transmission & Distribution | Coatings
ODP NEMA Premium Motors
with AEGIS® Bearing Protection Ring

2. www.weg.net
Cast Iron
Nema Premium® Efficiency Motors
ODP – Foot Mount
WEG Open Drip Proof motors with AEGIS® Bearing Protection Ring are designed to meet
applications where variable frequency controllers are used. These motors are specifically designed
to provide maximum ventilation and cool operation, along with bearing protection from driveinduced currents.
Rolled Steel
Features that make a difference:
• 50/60 Hz rated up to 250 HP (same Horse Power at 50 Hz with a 1.0 service factor)
• Class F insulation (impregnation Resin and Magnet wire are class H)
• Class B Rise at 1.15 Service Factor
• F1 Mounted (Cast Iron Frame motors are F2 convertible)
• Stainless Steel Nameplate – Laser etched with high contrast background (Cast Iron Frames only)
• Cast Iron Frames: Regreasable ball bearings (frames 254T and up)
• Rolled Steel Frames: ZZ ball bearings (permanently lubricated)
Inverter Rated:
1000:1 for variable torque
4:1 for constant torque
*Frame 404/5T 150HP and up 2:1CT
and 1000:1VT
• Inverter Rated
• AEGIS® Bearing Protection Ring installed externally to the motor
HP
kW
RPM
NEMA
Frame
Catalog Number
List
Price
Mult.
Symbol
Approx. Shipping
Weight (lbs)
Service
Factor
FL Amps
@ High
FL. Eff.
(%)
“C”
Dimension (in)
Voltage
(V)
Notes
1
0.75
1800
E143/5T
00118OT3E143T-G
515
N1B
36
1.15
1.45
85.5
12.047
208-230/460
9;24;34
1.5
1.1
3600
E143/5T
00156OT3E143T-G
573
N1B
34
1.15
1.90
85.5
12.047
208-230/460
9;24;34
1.5
1.1
1800
E143/5T
00158OT3E145T-G
580
N1B
43
1.15
2.20
86.5
12.047
208-230/460
9;24;34
2
1.5
3600
E143/5T
00236OT3E145T-G
618
N1B
43
1.15
2.50
86.5
12.047
208-230/460
9;24;34
2
1.5
1800
E143/5T
00218OT3E145T-G
630
N1B
43
1.15
2.90
86.5
12.047
208-230/460
9;24;34
3
2.2
3600
F143/5T
00336OT3E145T-G
680
N1B
49
1.15
3.50
86.5
12.835
208-230/460
9;24;34
3
2.2
1800
182T
00318OT3E182T-G
679
N1B
55
1.15
4.06
89.5
13.504
208-230/460
9;24;34
5
3.7
3600
182T
00536OT3E182T-G
814
N1B
57
1.15
6.17
88.5
13.504
208-230/460
9;24;34
5
3.7
1800
184T
00518OT3E184T-G
783
N1B
71
1.15
6.41
89.5
14.291
208-230/460
9;24;34
7.5
5.5
3600
184T
00736OT3E184T-G
1,105
N1B
69
1.15
8.97
88.5
14.291
208-230/460
9;24;34
7.5
5.5
1800
213/5T
00718OT3E213T-G
1,063
N1B
90
1.15
9.03
91.0
17.165
208-230/460
9;24;34
10
7.5
3600
213/5T
01036OT3E213T-G
1,249
N1B
134
1.15
11.9
90.2
17.165
208-230/460
9;24;34
10
7.5
1800
213/5T
01018OT3E215T-G
1,270
N1B
112
1.15
12.2
91.7
17.165
208-230/460
9;24;34
15
11
3600
213/5T
01536OT3E215T-G
1,668
N1B
139
1.15
17.4
91.0
17.165
208-230/460
9;24;34
15
11
1800
254T
01518OT3E254T-G
1,679
N1B
247
1.15
18.6
93.0
20.669
208-230/460
24;34;35
20
15
3600
254T
02036OT3E254T-G
1,981
N1B
205
1.15
24.6
91.0
20.669
208-230/460
24;34;35
20
15
1800
256T
02018OT3E256T-G
2,034
N1B
291
1.15
25.0
93.0
22.401
208-230/460
24;34;35
25
18.5
3600
256T
02536OT3E256T-G
2,360
N1B
269
1.15
29.8
91.7
22.401
208-230/460
24;34;35
25
18.5
1800
284T
02518OT3E284T-G
2,400
N1B
382
1.15
29.9
93.6
23.386
208-230/460
24;34
30
22
3600
284TS
03036OT3E284TS-G
2,731
N1B
373
1.15
35.2
92.4
22.000
208-230/460
24;34
30
22
1800
286T
03018OT3E286T-G
2,770
N1B
459
1.15
35.4
94.1
24.882
208-230/460
24;34
40
30
3600
286TS
04036OT3E286TS-G
3,548
N1B
457
1.15
47.1
93.0
23.504
208-230/460
24;34
40
30
1800
324T
04018OT3E324T-G
3,369
N1B
574
1.15
48.2
94.1
26.181
208-230/460
24;34;35
50
37
3600
324TS
05036OT3E324TS-G
4,132
N1B
541
1.15
59.1
93.6
24.685
208-230/460
24;34;35
50
37
1800
326T
05018OT3E326T-G
4,093
N1B
595
1.15
61.4
94.5
27.667
208-230/460
24;34;35
60
45
3600
326TS
06036OT3E326TS-G
4,955
N1B
627
1.15
71.0
93.6
26.181
208-230/460
24;34;35
60
45
1800
364/5T
06018OT3E364T-G
5,039
N1B
935
1.15
69.9
95.0
29.764
208-230/460
24;34;35
75
55
3600
364/5TS
07536OT3E364TS-G
6,436
N1B
805
1.15
81.5
94.1
27.638
208-230/460
24;34;35
75
55
1800
364/5T
07518OT3E365T-G
6,280
N1B
935
1.15
85.5
95.0
29.764
208-230/460
24;34;35
100
75
3600
364/5TS
10036OT3G365TS-G
7,412
N1B
935
1.15
111
94.5
27.638
460
24;34;35
100
75
1800
404/5T
10018OT3G404T-G
8,099
N1B
1,207
1.15
115
95.4
34.133
460
24;34;35
Notes:
9
24
34
35
2
Rolled Steel Frame
Might not be readily available. Usually ships in two weeks
AEGIS Installed. No changes in the useful “N-W” dimension
AEGIS Installed. Shortens “N-W” dimension
ODP NEMA Premium Motors with AEGIS® Bearing Protection Ring
All data subject to change without notice

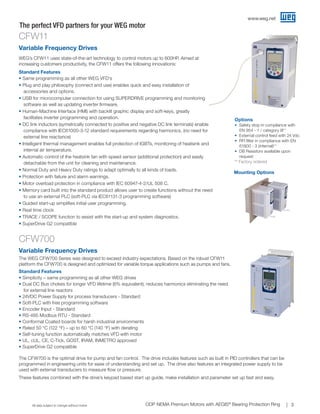

3. www.weg.net
The perfect VFD partners for your WEG motor
CFW11
Variable Frequency Drives
WEG’s CFW11 uses state-of-the-art technology to control motors up to 600HP. Aimed at
increasing customers productivity, the CFW11 offers the following innovations:
Standard Features
• Same programming as all other WEG VFD‘s
• Plug and play philosophy (connect and use) enables quick and easy installation of
accessories and options.
• SB for microcomputer connection for using SUPERDRIVE programming and monitoring
U
software as well as updating inverter firmware.
• Human-Machine Interface (HMI) with backlit graphic display and soft-keys, greatly
facilitates inverter programming and operation.
• DC link inductors (symetrically connected to positive and negative DC link terminals) enable
compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for
external line reactance)
• Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and
internal air temperature.
• Automatic control of the heatsink fan with speed sensor (additional protection) and easily
detachable from the unit for cleaning and maintenance.
• Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads.
• Protection with failure and alarm warnings.
• Motor overload protection in compliance with IEC 60947-4-2/UL 508 C.
• Memory card built into the standard product allows user to create functions without the need
to use an external PLC (soft-PLC via IEC61131-3 programming software)
• Guided start-up simplifies initial user programming.
• Real time clock
• TRACE / SCOPE function to assist with the start-up and system diagnostics.
• uperDrive G2 compatible
S
Options
•
•
•
Safety stop in compliance with
EN 954 - 1 / category III**
External control feed with 24 Vdc
RFI filter in compliance with EN
61800 - 3 (internal)**
• DB Resistors available upon
request
** Factory ordered
Mounting Options
CFW700
Variable Frequency Drives
The WEG CFW700 Series was designed to exceed industry expectations. Based on the robust CFW11
platform the CFW700 is designed and optimized for variable torque applications such as pumps and fans.
Standard Features
• Simplicity – same programming as all other WEG drives
• Dual DC Bus chokes for longer VFD lifetime (6% equivalent), reduces harmonics eliminating the need
for external line reactors
• 24VDC Power Supply for process transducers - Standard
• Soft-PLC with free programming software
• Encoder Input - Standard
• RS-485 Modbus RTU - Standard
• Conformal Coated boards for harsh industrial environments
• Rated 50 °C (122 °F) – up to 60 °C (140 °F) with derating
• Self-tuning function automatically matches VFD with motor
• UL, cUL, CE, C-Tick, GOST, IRAM, INMETRO approved
• SuperDrive G2 compatible
The CFW700 is the optimal drive for pump and fan control. The drive includes features such as built in PID controllers that can be
programmed in engineering units for ease of understanding and set up. The drive also features an integrated power supply to be
used with external transducers to measure flow or pressure.
These features combined with the drive’s keypad based start up guide, make installation and parameter set up fast and easy.
All data subject to change without notice
ODP NEMA Premium Motors with AEGIS® Bearing Protection Ring
3

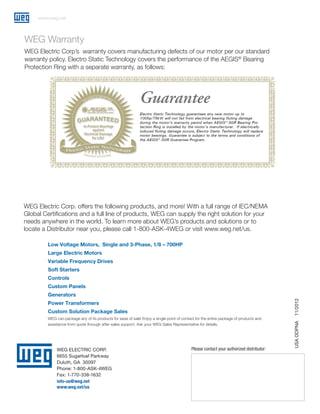

4. www.weg.net
WEG Warranty
WEG Electric Corp’s warranty covers manufacturing defects of our motor per our standard
warranty policy. Electro Static Technology covers the performance of the AEGIS® Bearing
Protection Ring with a separate warranty, as follows:
WEG Electric Corp. offers the following products, and more! With a full range of IEC/NEMA
Global Certifications and a full line of products, WEG can supply the right solution for your
needs anywhere in the world. To learn more about WEG’s products and solutions or to
locate a Distributor near you, please call 1-800-ASK-4WEG or visit www.weg.net/us.
Low Voltage Motors, Single and 3-Phase, 1/8 – 700HP
Large Electric Motors
Variable Frequency Drives
Soft Starters
Controls
Custom Panels
Power Transformers
Custom Solution Package Sales
WEG can package any of its products for ease of sale! Enjoy a single point of contact for the entire package of products and
assistance from quote through after-sales support. Ask your WEG Sales Representative for details.
WEG ELECTRIC CORP.
6655 Sugarloaf Parkway
Duluth, GA 30097
Phone: 1-800-ASK-4WEG
Fax: 1-770-338-1632
info-us@weg.net
www.weg.net/us
Please contact your authorized distributor:
USA ODPNA
11/2012
Generators
