1. PRINCIPLES OF 8085 MICROPROCESSOR
Dr.S.Barani
School of Electrical and Electronics Engineering
Sathyabama Institute of Science and Technology
Week 2 – Instruction sets
A certified Moodle Course on

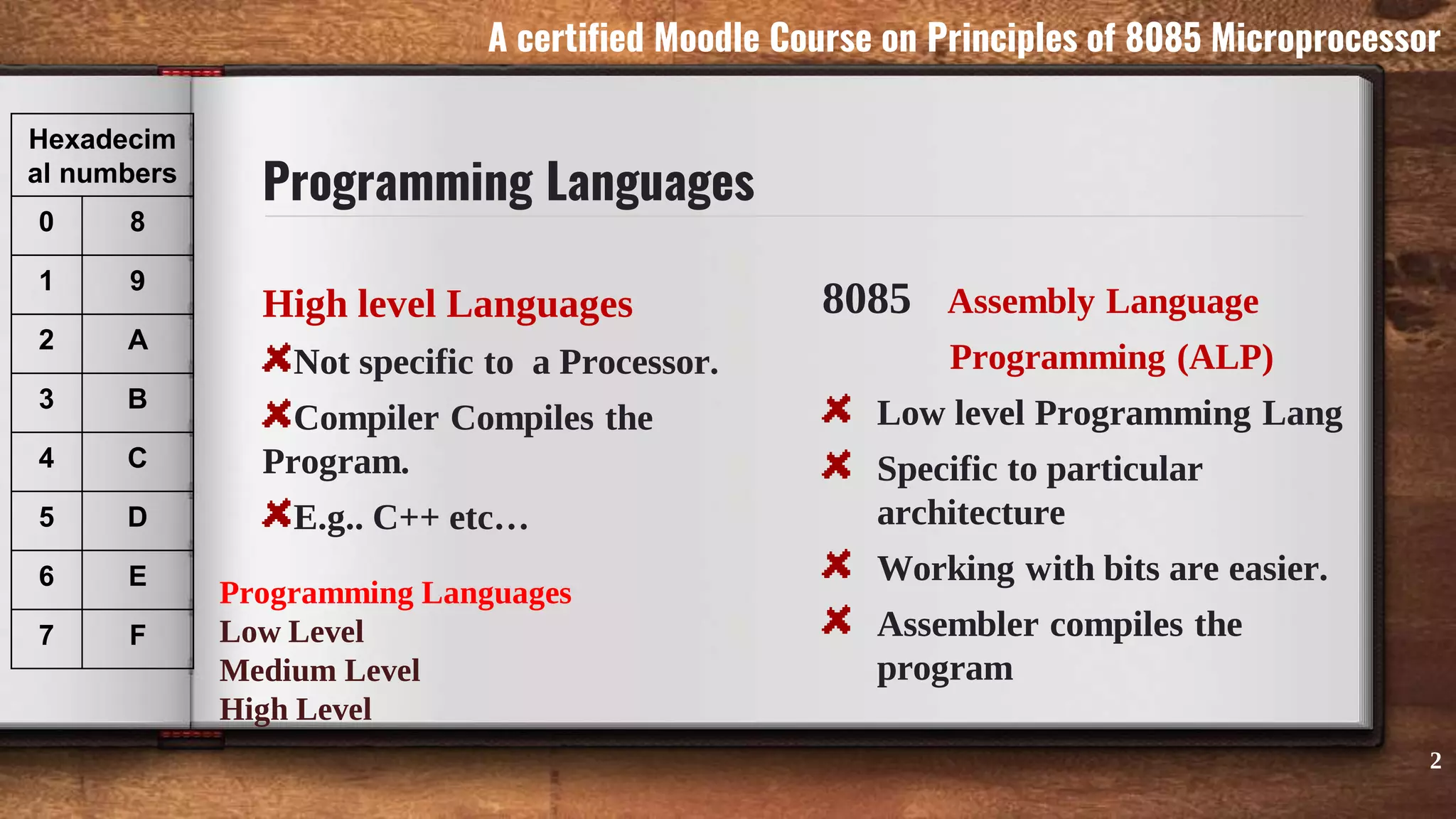

2. Programming Languages
High level Languages
Not specific to a Processor.
Compiler Compiles the
Program.
E.g.. C++ etc…
8085 Assembly Language
Programming (ALP)
Low level Programming Lang
Specific to particular
architecture
Working with bits are easier.
Assembler compiles the
program
Programming Languages
Low Level
Medium Level
High Level
2
A certified Moodle Course on Principles of 8085 Microprocessor
Hexadecim
al numbers
0 8
1 9
2 A
3 B
4 C
5 D
6 E
7 F

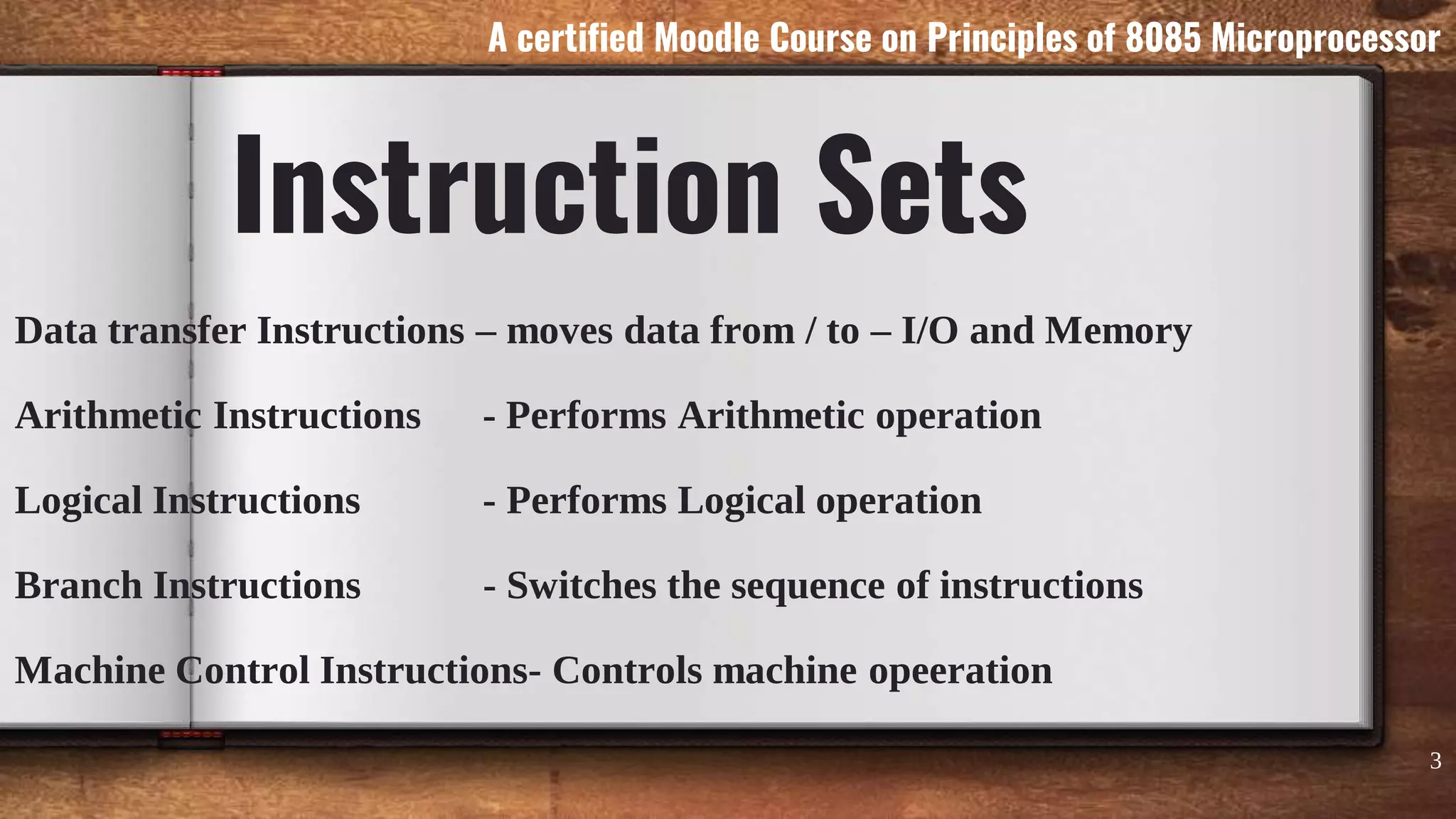

3. Instruction Sets
Data transfer Instructions – moves data from / to – I/O and Memory
Arithmetic Instructions - Performs Arithmetic operation
Logical Instructions - Performs Logical operation
Branch Instructions - Switches the sequence of instructions
Machine Control Instructions- Controls machine opeeration
3
A certified Moodle Course on Principles of 8085 Microprocessor

4. DATA TRANSFER INSTRUCTIONS
4
A certified Moodle Course on Principles of 8085 Microprocessor

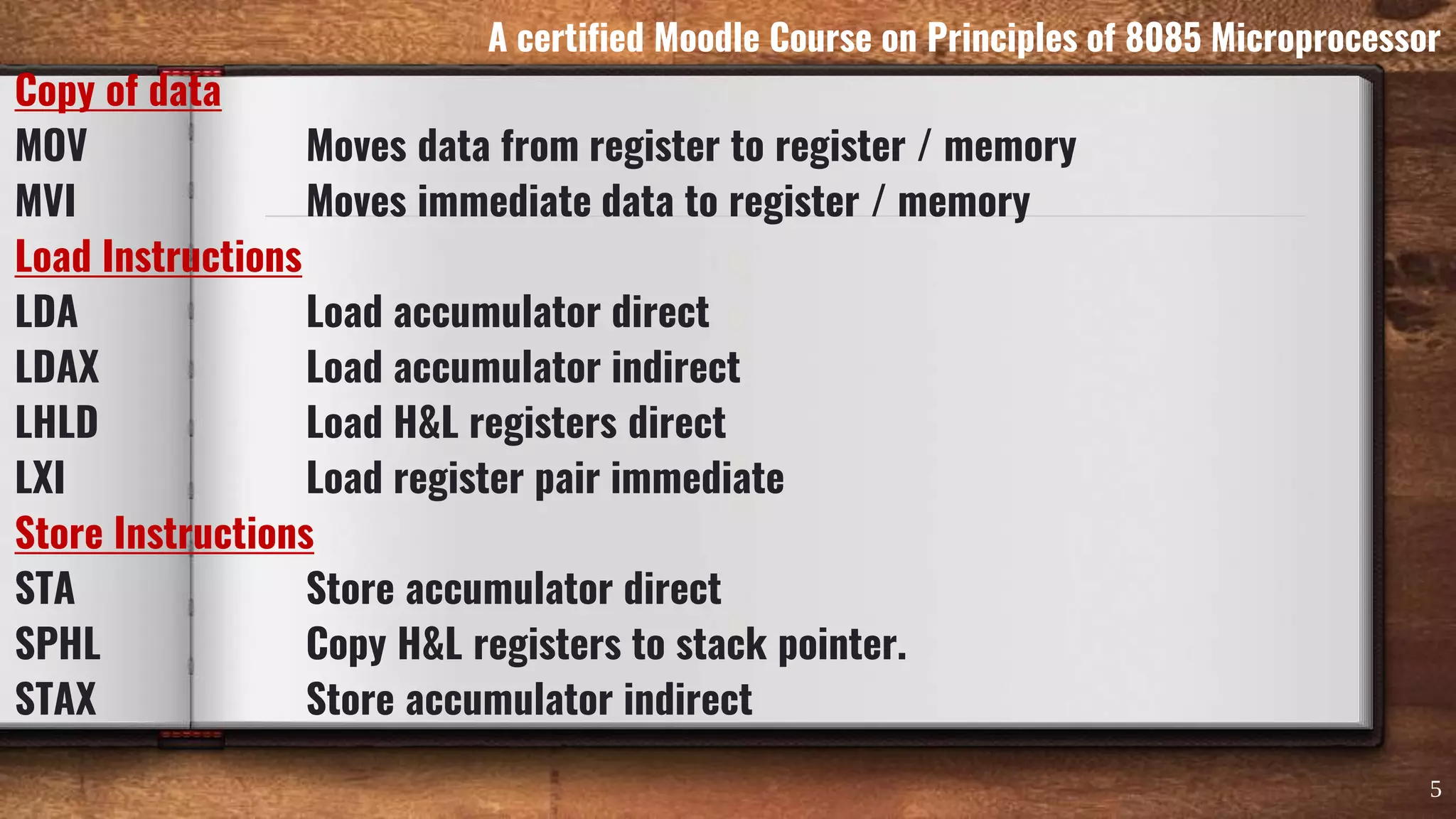

5. Copy of data
MOV Moves data from register to register / memory
MVI Moves immediate data to register / memory
Load Instructions
LDA Load accumulator direct
LDAX Load accumulator indirect
LHLD Load H&L registers direct
LXI Load register pair immediate
Store Instructions
STA Store accumulator direct
SPHL Copy H&L registers to stack pointer.
STAX Store accumulator indirect
5
A certified Moodle Course on Principles of 8085 Microprocessor

6. Copy of Data
6
A certified Moodle Course on Principles of 8085 Microprocessor

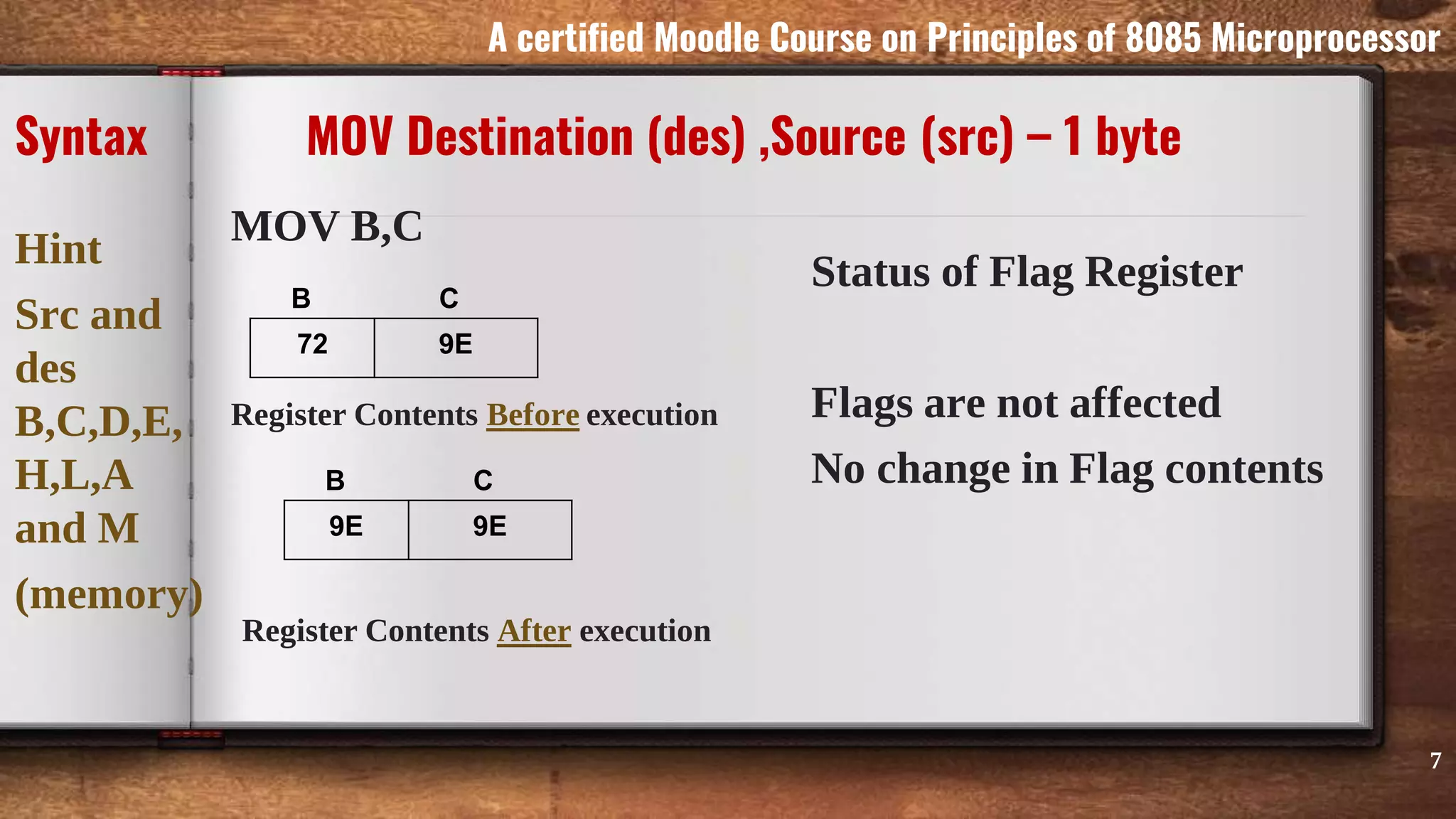

7. MOV B,C
Register Contents Before execution
Register Contents After execution
Syntax MOV Destination (des) ,Source (src) – 1 byte
Status of Flag Register
Flags are not affected
No change in Flag contents
7
A certified Moodle Course on Principles of 8085 Microprocessor
Hint
Src and
des
B,C,D,E,
H,L,A
and M
(memory)
72 9E
B C
9E 9E
B C

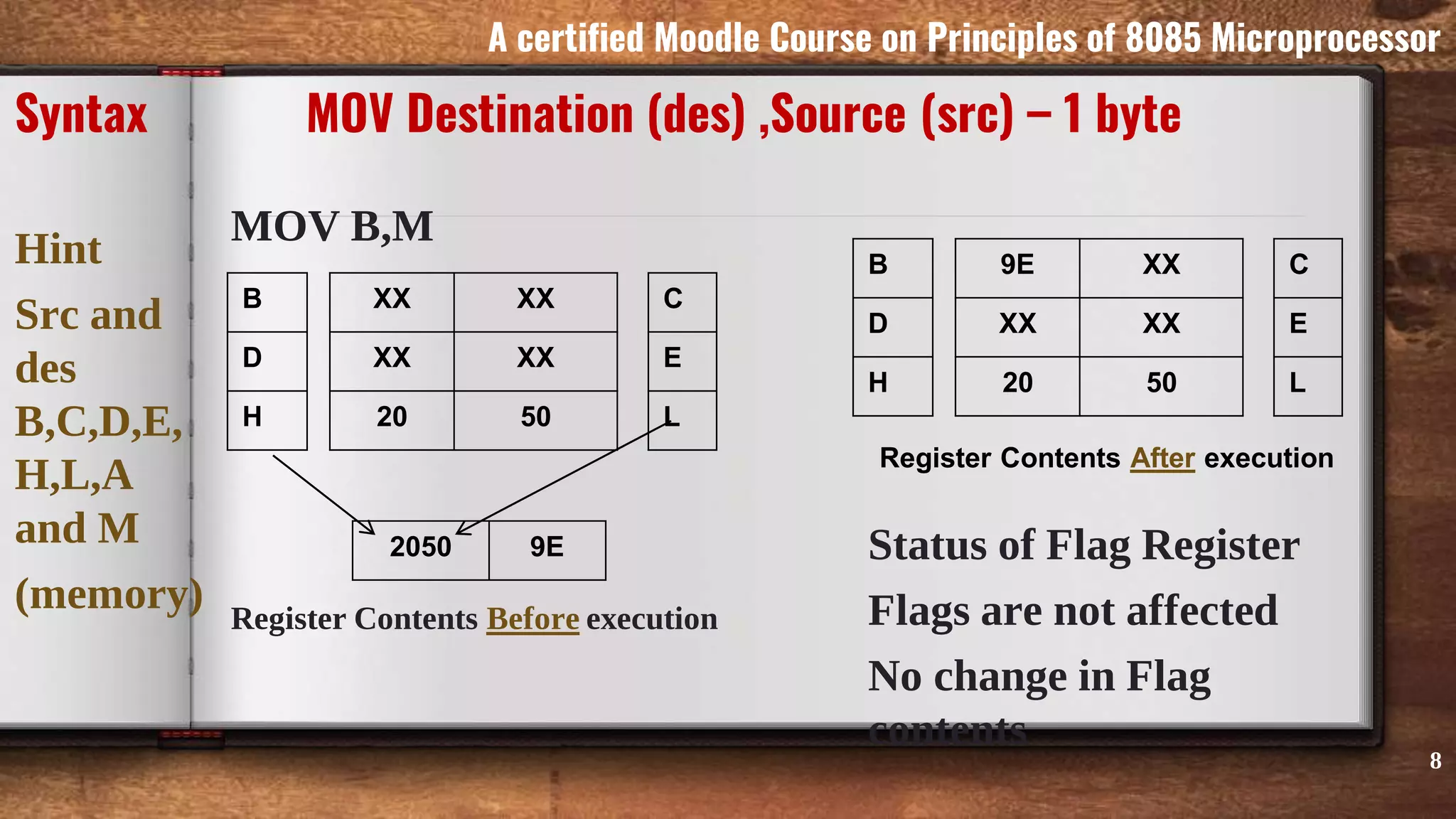

8. MOV B,M
Register Contents Before execution
Syntax MOV Destination (des) ,Source (src) – 1 byte
Status of Flag Register
Flags are not affected
No change in Flag
contents
8
A certified Moodle Course on Principles of 8085 Microprocessor
Hint
Src and
des
B,C,D,E,
H,L,A
and M
(memory)
9E XX
XX XX
20 50
Register Contents After execution
B
D
H
C
E
L
B
D
H
XX XX
XX XX
20 50
C
E
L
2050 9E

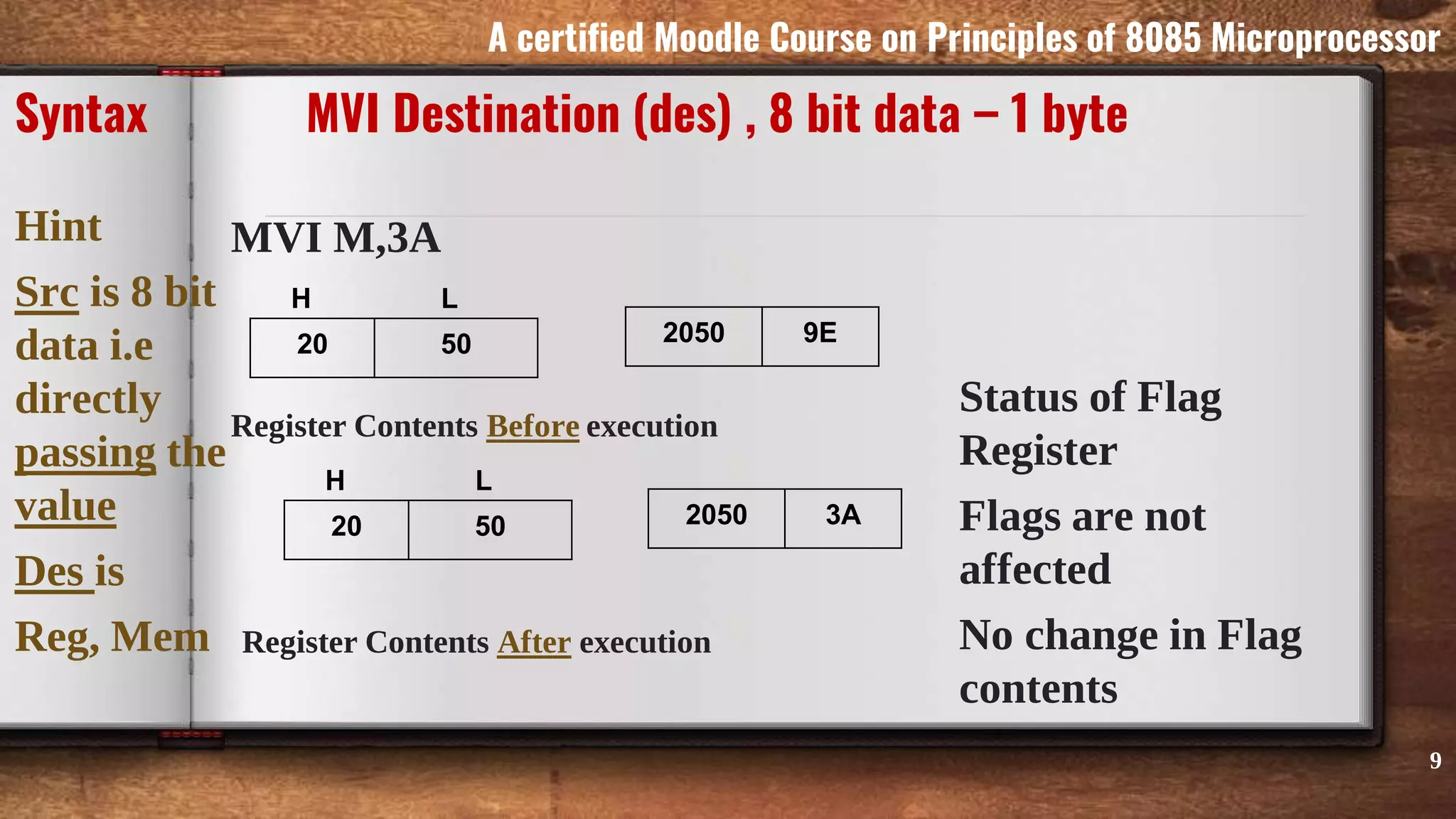

9. MVI M,3A
Register Contents Before execution
Register Contents After execution
Syntax MVI Destination (des) , 8 bit data – 1 byte
Status of Flag
Register
Flags are not
affected
No change in Flag
contents
9
A certified Moodle Course on Principles of 8085 Microprocessor
Hint
Src is 8 bit
data i.e
directly
passing the
value
Des is
Reg, Mem
20 50
H L
20 50
H L
2050 9E
2050 3A

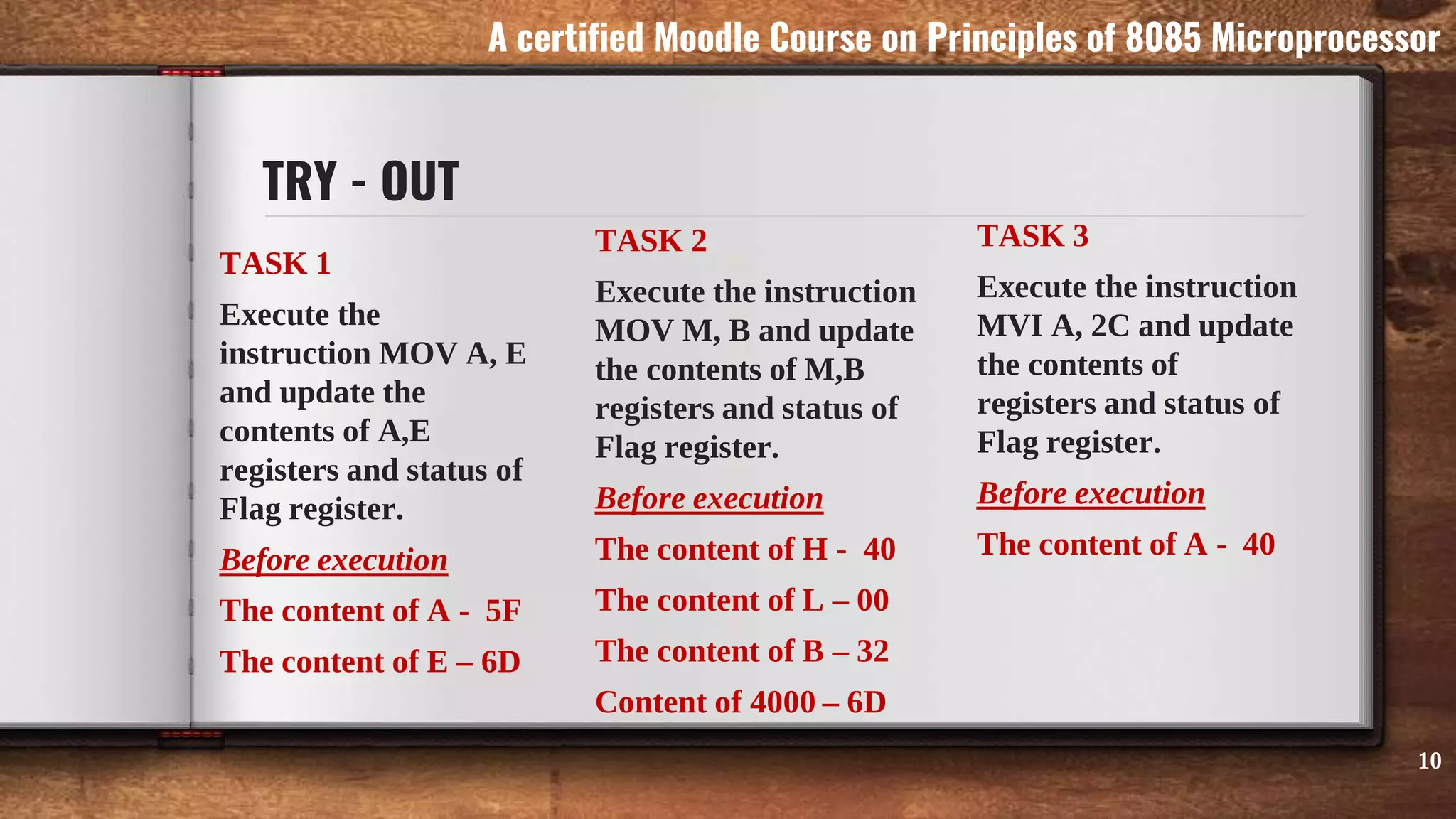

10. TRY - OUT
TASK 1
Execute the
instruction MOV A, E
and update the
contents of A,E
registers and status of
Flag register.
Before execution
The content of A - 5F
The content of E – 6D
TASK 2
Execute the instruction
MOV M, B and update
the contents of M,B
registers and status of
Flag register.
Before execution
The content of H - 40
The content of L – 00
The content of B – 32
Content of 4000 – 6D
TASK 3
Execute the instruction
MVI A, 2C and update
the contents of
registers and status of
Flag register.
Before execution
The content of A - 40
10
A certified Moodle Course on Principles of 8085 Microprocessor

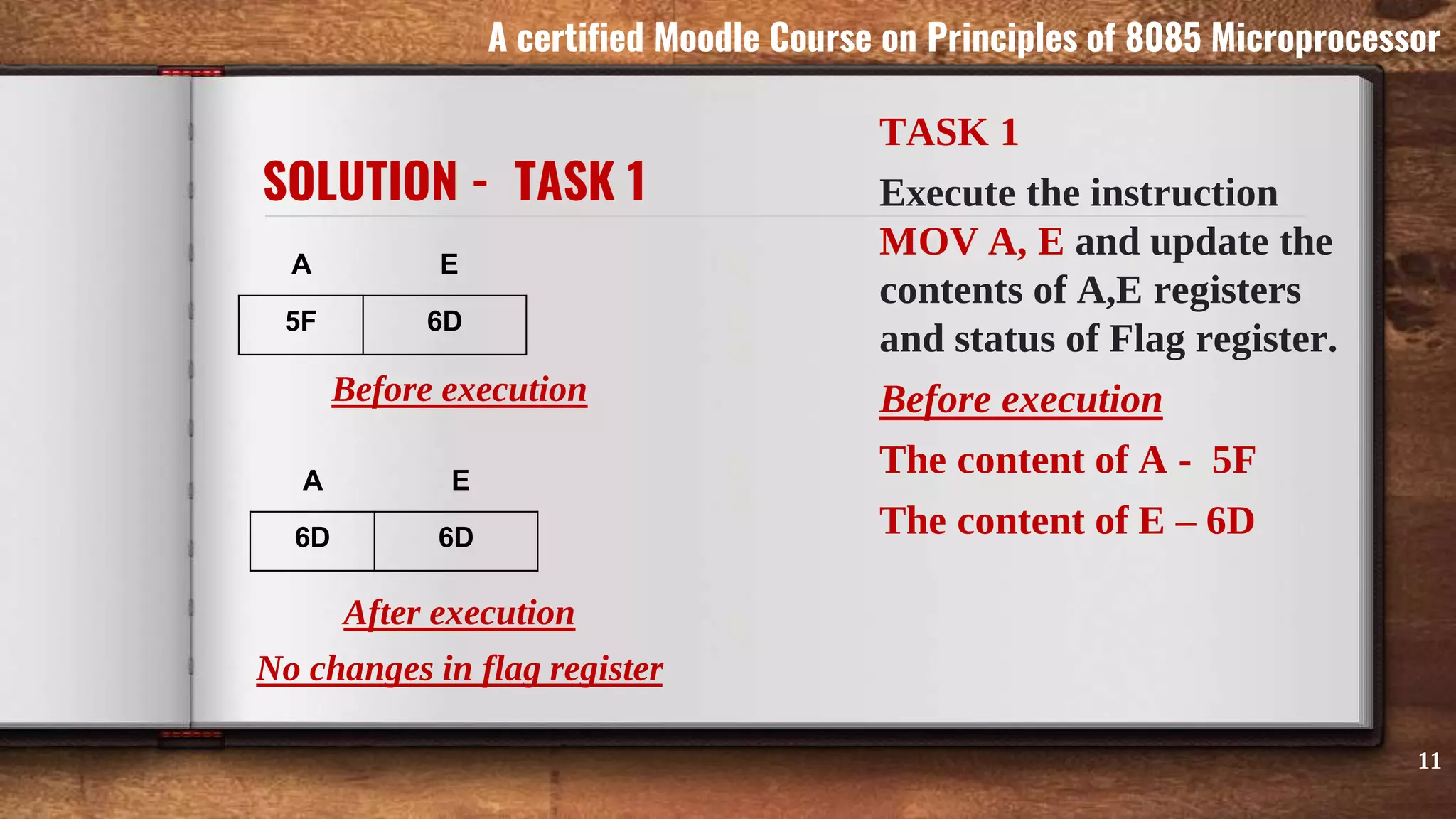

11. SOLUTION - TASK 1
Before execution
After execution
No changes in flag register
11
A certified Moodle Course on Principles of 8085 Microprocessor
TASK 1
Execute the instruction
MOV A, E and update the
contents of A,E registers
and status of Flag register.
Before execution
The content of A - 5F
The content of E – 6D
A E
5F 6D
6D 6D
A E

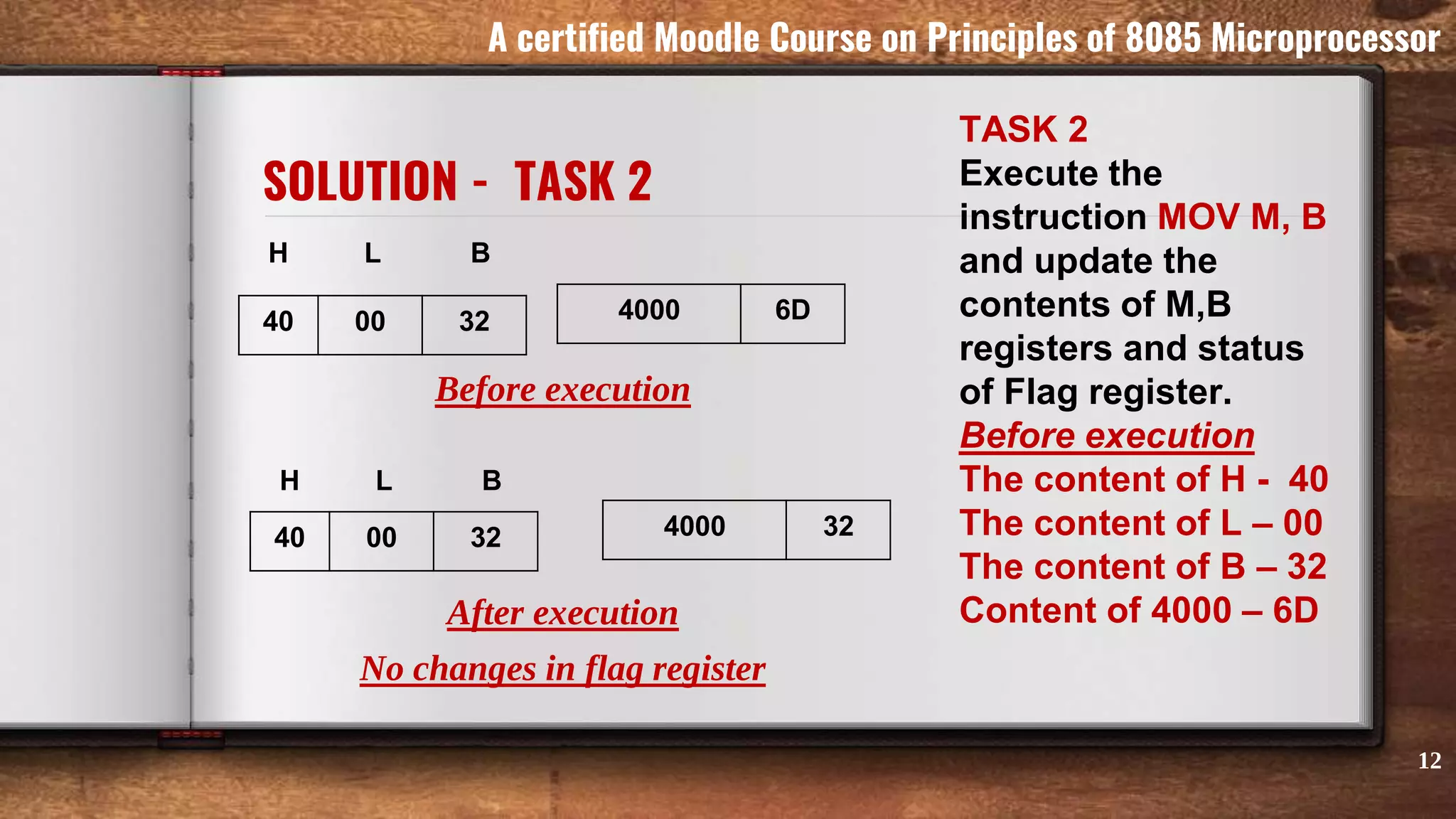

12. SOLUTION - TASK 2
Before execution
After execution
No changes in flag register
12
A certified Moodle Course on Principles of 8085 Microprocessor
H L B
40 00 32
40 00 32
H L B
TASK 2
Execute the
instruction MOV M, B
and update the
contents of M,B
registers and status
of Flag register.
Before execution
The content of H - 40
The content of L – 00
The content of B – 32
Content of 4000 – 6D
4000 6D
4000 32

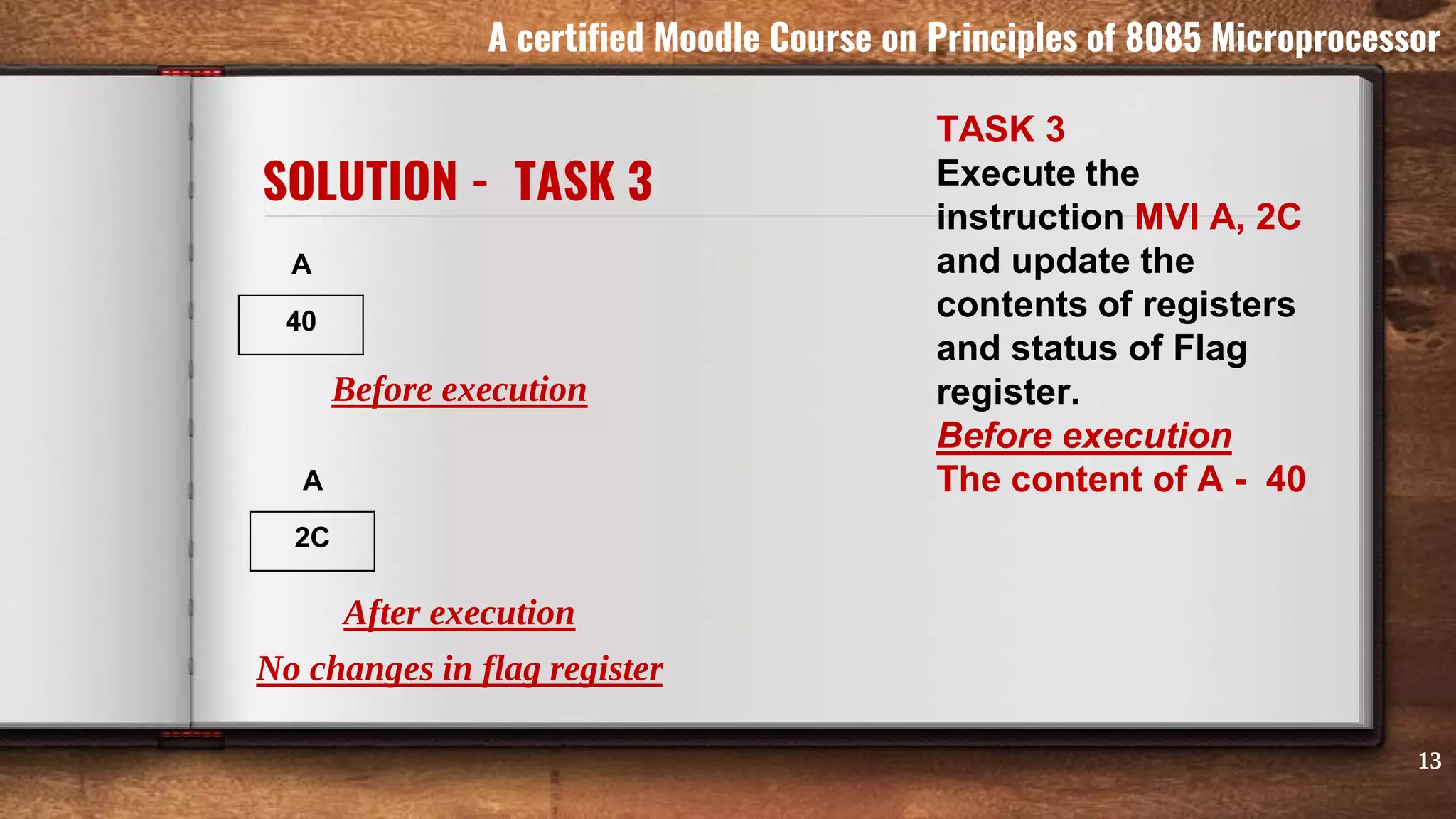

13. SOLUTION - TASK 3
Before execution
After execution
No changes in flag register
13
A certified Moodle Course on Principles of 8085 Microprocessor
A
40
2C
A
TASK 3
Execute the
instruction MVI A, 2C
and update the
contents of registers
and status of Flag
register.
Before execution
The content of A - 40

14. A certified Moodle Course on Principles of 8085 Microprocessor
