1. WebKit ContainerSDK
WebKit ContainerSDK
Patrick Griffis - Igalia
Slides - https://notes.igalia.com/p/9LOf5le3Y
1

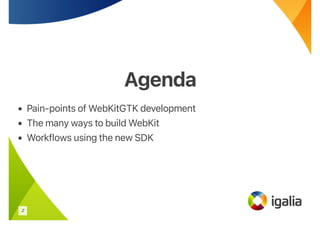

2. Agenda
Agenda
• Pain-points of WebKitGTK development
• The many ways to build WebKit
• Workflows using the new SDK
2

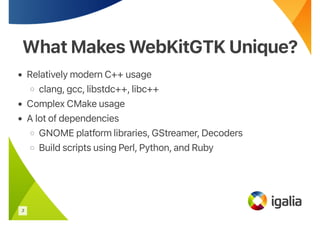

3. What Makes WebKitGTK Unique?
What Makes WebKitGTK Unique?
• Relatively modern C++ usage
◦ clang, gcc, libstdc++, libc++
• Complex CMake usage
• A lot of dependencies
◦ GNOME platform libraries, GStreamer, Decoders
◦ Build scripts using Perl, Python, and Ruby
3

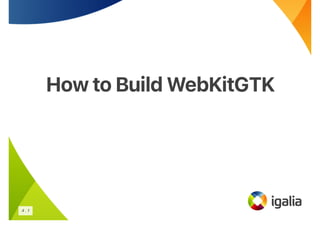

4. How to Build WebKitGTK
How to Build WebKitGTK
4 . 1

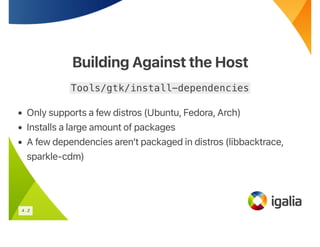

5. Building Against the Host
Building Against the Host
Tools/gtk/install-dependencies
• Only supports a few distros (Ubuntu, Fedora, Arch)
• Installs a large amount of packages
• A few dependencies aren’t packaged in distros (libbacktrace,
sparkle-cdm)
4 . 2

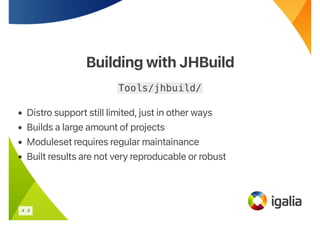

6. Building with JHBuild
Building with JHBuild
Tools/jhbuild/
• Distro support still limited, just in other ways
• Builds a large amount of projects
• Moduleset requires regular maintainance
• Built results are not very reproducable or robust
4 . 3

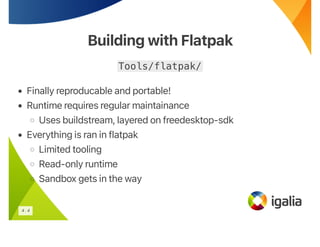

7. Building with Flatpak
Building with Flatpak
Tools/flatpak/
• Finally reproducable and portable!
• Runtime requires regular maintainance
◦ Uses buildstream, layered on freedesktop-sdk
• Everything is ran in flatpak
◦ Limited tooling
◦ Read-only runtime
◦ Sandbox gets in the way
4 . 4

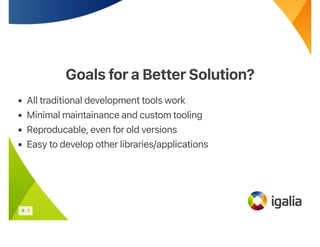

8. Goals fora BetterSolution?
Goals fora BetterSolution?
• All traditional development tools work
• Minimal maintainance and custom tooling
• Reproducable, even for old versions
• Easy to develop other libraries/applications
5 . 1

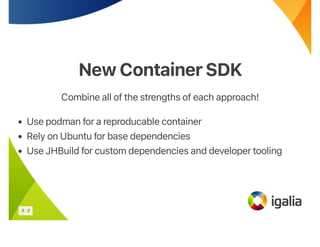

9. New ContainerSDK
New ContainerSDK
Combine all of the strengths of each approach!
• Use podman for a reproducable container
• Rely on Ubuntu for base dependencies
• Use JHBuild for custom dependencies and developer tooling
5 . 2

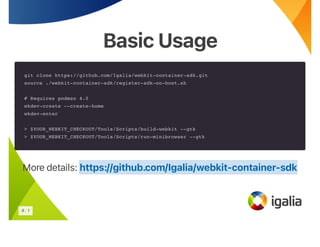

10. Basic Usage
Basic Usage
git clone https://github.com/Igalia/webkit-container-sdk.git
source ./webkit-container-sdk/register-sdk-on-host.sh
# Requires podman 4.0
wkdev-create --create-home
wkdev-enter
> $YOUR_WEBKIT_CHECKOUT/Tools/Scripts/build-webkit --gtk
> $YOUR_WEBKIT_CHECKOUT/Tools/Scripts/run-minibrowser --gtk
More details: https://github.com/Igalia/webkit-container-sdk
6 . 1

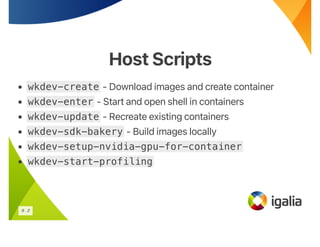

11. Host Scripts
Host Scripts
• wkdev-create - Download images and create container
• wkdev-enter - Start and open shell in containers
• wkdev-update - Recreate existing containers
• wkdev-sdk-bakery - Build images locally
• wkdev-setup-nvidia-gpu-for-container
• wkdev-start-profiling
6 . 2

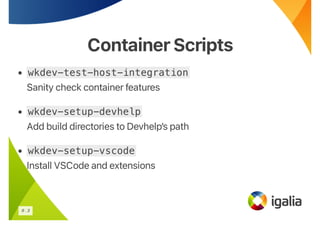

12. ContainerScripts
ContainerScripts
• wkdev-test-host-integration
Sanity check container features
• wkdev-setup-devhelp
Add build directories to Devhelp’s path
• wkdev-setup-vscode
Install VSCode and extensions
6 . 3

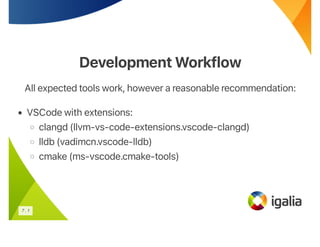

13. Development Workflow
Development Workflow
All expected tools work, however a reasonable recommendation:
• VSCode with extensions:
◦ clangd (llvm-vs-code-extensions.vscode-clangd)
◦ lldb (vadimcn.vscode-lldb)
◦ cmake (ms-vscode.cmake-tools)
7 . 1

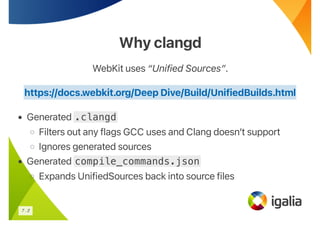

14. Why clangd
Why clangd
WebKit uses “Unified Sources”.
• Generated .clangd
◦ Filters out any flags GCC uses and Clang doesn’t support
◦ Ignores generated sources
• Generated compile_commands.json
◦ Expands UnifiedSources back into source files
https://docs.webkit.org/Deep Dive/Build/UnifiedBuilds.html
7 . 2

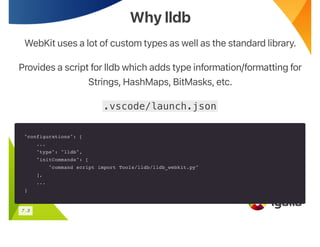

15. Why lldb
Why lldb
WebKit uses a lot of custom types as well as the standard library.
Provides a script for lldb which adds type information/formatting for
Strings, HashMaps, BitMasks, etc.
.vscode/launch.json
"configurations": [
...
"type": "lldb",
"initCommands": [
"command script import Tools/lldb/lldb_webkit.py"
],
...
]
7 . 3

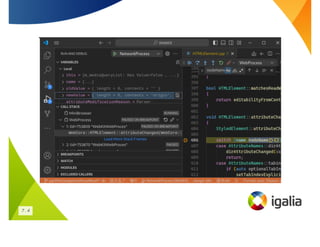

16. 7 . 4

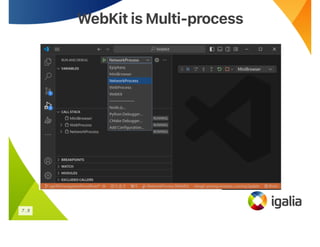

17. WebKit is Multi-process
WebKit is Multi-process
7 . 5

18. .vscode/launch.json
"configurations": [
{
"name": "MiniBrowser",
"program": "WebKitBuild/GTK/Debug/bin/MiniBrowser",
"request": "launch",
"env": {
"LD_LIBRARY_PATH": "${workspaceFolder}/WebKitBuild/GTK/Debug/lib:${env:LD_LIBRARY_PATH}",
"WEBKIT_EXEC_PATH": "${workspaceFolder}/WebKitBuild/GTK/Debug/bin",
"WEBKIT_INJECTED_BUNDLE_PATH": "${workspaceFolder}/WebKitBuild/GTK/Debug/lib"
},
...
},
{
"name": "NetworkProcess",
"request": "attach",
"program": "WebKitBuild/GTK/Debug/bin/WebKitNetworkProcess",
...
}
]
7 . 6

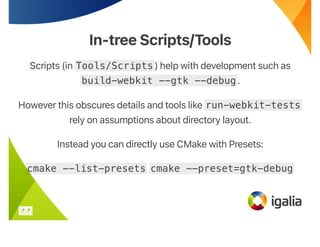

19. In-tree Scripts/Tools
In-tree Scripts/Tools
Scripts (in Tools/Scripts) help with development such as
build-webkit --gtk --debug.
However this obscures details and tools like run-webkit-tests
rely on assumptions about directory layout.
Instead you can directly use CMake with Presets:
cmake --list-presets cmake --preset=gtk-debug
7 . 7

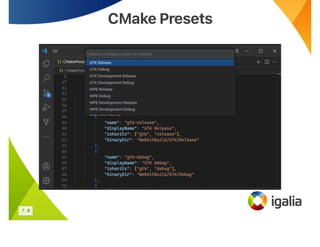

20. CMake Presets
CMake Presets
7 . 8

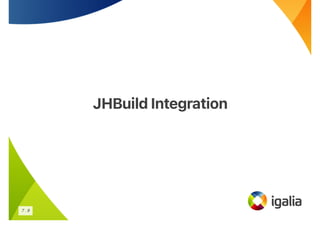

21. JHBuild Integration
JHBuild Integration
7 . 9

22. Bundled moduleset with projects such as glib, libsoup,
epiphany, gstreamer.
jhbuild list --all
Building a module is simple and can be modified easily:
jhbuild build glib
cd ~/checkout/glib
# Make changes
jhbuild make
https://gnome.pages.gitlab.gnome.org/jhbuild/index.html
7 . 10

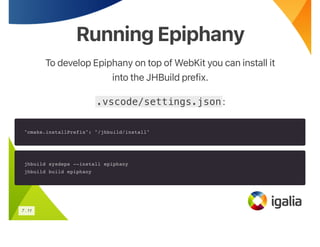

23. Running Epiphany
Running Epiphany
To develop Epiphany on top of WebKit you can install it
into the JHBuild prefix.
.vscode/settings.json:
"cmake.installPrefix": "/jhbuild/install"
jhbuild sysdeps --install epiphany
jhbuild build epiphany
7 . 11

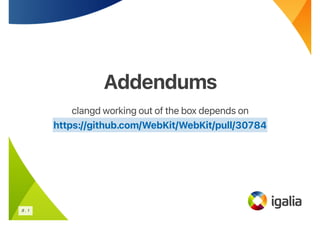

24. Addendums
Addendums
clangd working out of the box depends on
https://github.com/WebKit/WebKit/pull/30784
8 . 1

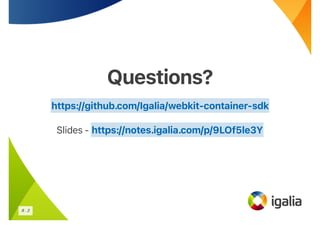

25. Questions?
Questions?
Slides -
https://github.com/Igalia/webkit-container-sdk
https://notes.igalia.com/p/9LOf5le3Y
8 . 2
