1. Washing Machine Innovation
Nurul Nasyatul Husna Bt Ismail
A132119

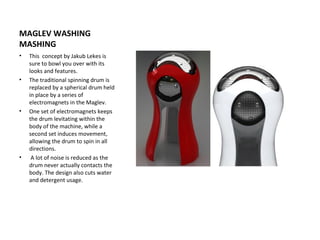

2. MAGLEV WASHING
MASHING
• This concept by Jakub Lekes is
sure to bowl you over with its
looks and features.
• The traditional spinning drum is
replaced by a spherical drum held
in place by a series of
electromagnets in the Maglev.
• One set of electromagnets keeps
the drum levitating within the
body of the machine, while a
second set induces movement,
allowing the drum to spin in all
directions.
• A lot of noise is reduced as the
drum never actually contacts the
body. The design also cuts water
and detergent usage.

3.  Another consideration is the space
that you have available for your
dryers washing machines.
 If you have a dedicated laundry
room, this isn’t really a factor, but
if you only have a closet or a small
space available in your kitchen or
bathroom, you might want to
consider smaller, space saving
models.
 Space in a closet might allow for a
washer/dryer hookup to be
installed, allowing you to put a
stackable unit in.
 On the other hand, if you don’t
even have the hookup for a
washer, a portable washing
machine might be more suitable.

4. LOUNDRY POD
 A concept that combines robust
spinning technology and an
innovative, water-management
system to clean clothes.
 Designed for the times you need
to do a small load quickly and
don't want to waste water, energy,
or a trip to the Laundromat.
 Laundry POD's spinning action
gently washes, rinses, and then
extracts water to improve drying
times.
 This ability to rid consumers of the
need to wring clothes dry,
potentially damaging them in the
process, is one of Laundry POD's
key advantages.

5.  The World-recognized strategy,
innovation, and design consultancy
RKS announced that "Laundry
POD" was awarded 4th place in
Core77's Greener Gadgets Design
Competition 2009.
 Produced by Core77 in association
with the Consumer Electronics
Association and Inhabitat, the
Greener Gadgets Design
Competition 2009 challenged
designers to create the next
generation of greener gadgets.
 Core77 described the competition
as "an amazing chance to use
design to contribute positively."

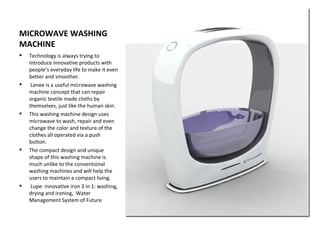

6. MICROWAVE WASHING
MACHINE
 Technology is always trying to
introduce innovative products with
people’s everyday life to make it even
better and smoother.
 Lenee is a useful microwave washing
machine concept that can repair
organic textile made cloths by
themselves, just like the human skin.
 This washing machine design uses
microwave to wash, repair and even
change the color and texture of the
clothes all operated via a push
button.
 The compact design and unique
shape of this washing machine is
much unlike to the conventional
washing machines and will help the
users to maintain a compact living.
 Lupe: innovative iron 3 in 1: washing,
drying and ironing, Water
Management System of Future

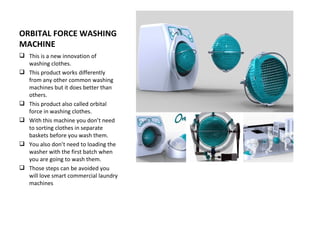

7. ORBITAL FORCE WASHING
MACHINE
 This is a new innovation of
washing clothes.
 This product works differently
from any other common washing
machines but it does better than
others.
 This product also called orbital
force in washing clothes.
 With this machine you don’t need
to sorting clothes in separate
baskets before you wash them.
 You also don’t need to loading the
washer with the first batch when
you are going to wash them.
 Those steps can be avoided you
will love smart commercial laundry
machines

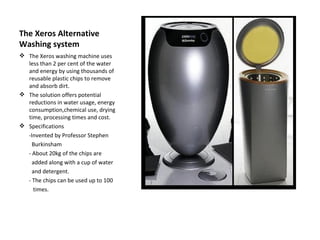

8. The Xeros Alternative
Washing system
 The Xeros washing machine uses
less than 2 per cent of the water
and energy by using thousands of
reusable plastic chips to remove
and absorb dirt.
 The solution offers potential
reductions in water usage, energy
consumption,chemical use, drying
time, processing times and cost.
 Specifications
-Invented by Professor Stephen
Burkinsham
- About 20kg of the chips are
added along with a cup of water
and detergent.
- The chips can be used up to 100
times.

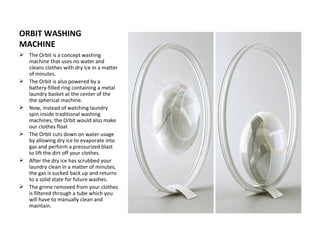

9. ORBIT WASHING
MACHINE
 The Orbit is a concept washing
machine that uses no water and
cleans clothes with dry ice in a matter
of minutes.
 The Orbit is also powered by a
battery-filled ring containing a metal
laundry basket at the center of the
the spherical machine.
 Now, instead of watching laundry
spin inside traditional washing
machines, the Orbit would also make
our clothes float
 The Orbit cuts down on water usage
by allowing dry ice to evaporate into
gas and perform a pressurized blast
to lift the dirt off your clothes.
 After the dry ice has scrubbed your
laundry clean in a matter of minutes,
the gas is sucked back up and returns
to a solid state for future washes.
 The grime removed from your clothes
is filtered through a tube which you
will have to manually clean and
maintain.

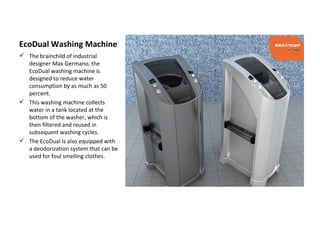

10. EcoDual Washing Machine
 The brainchild of industrial
designer Max Germano, the
EcoDual washing machine is
designed to reduce water
consumption by as much as 50
percent.
 This washing machine collects
water in a tank located at the
bottom of the washer, which is
then filtered and reused in
subsequent washing cycles.
 The EcoDual is also equipped with
a deodorization system that can be
used for foul smelling clothes.

11. Innovative washing
concept Electrolux
• The aim of Wave washing is to
optimize water and detergent
consumption according to the
contamination of the laundry.
• It controls the functions of your
washing machine with the remote
sensors reducing the washing load
of your machine.
• This wave washer works in
synchronization with your washing
machine reducing the amount of
water and detergent consumption
and providing a better quality
laundry wash.
• The wave washer is equipped with
smart ultrasound wave sensors
that can detect the severity of the
contamination or stains in your
laundry, and will consume water
and detergent accordingly to
impart a better quality laundry
wash.
