21. 21
FizzBuzz04 ~ map と高階関数~
object FizzBuzz04 {
def main(args: Array[String]) {
def fizzbuzz(i: Int): String =
if (i % 3 == 0 && i % 5 == 0)
"FizzBuzz"
else if (i % 3 == 0)
"Fizz"
else if (i % 5 == 0)
"Buzz"
else
i.toString()
1 to 20 map { fizzbuzz } foreach println
}
}
引数がInt型1つで、String型を返す
fizzbuzz という名前の関数を定義し、
map を使って処理を書いてみましょう。
22. 22
FizzBuzz04 ~ map と高階関数~
object FizzBuzz04 {
def main(args: Array[String]) {
def fizzbuzz(i: Int): String =
if (i % 3 == 0 && i % 5 == 0)
"FizzBuzz"
else if (i % 3 == 0)
"Fizz"
else if (i % 5 == 0)
"Buzz"
else
i.toString()
1 to 20 map { fizzbuzz } foreach println
}
}
23. 23
FizzBuzz04 ~ map と高階関数~ の後説
// foreach println も同じ形でした
(1 to 5) foreach { x => println(x) }
(1 to 5) foreach { println(_) }
(1 to 5) foreach println
24. 24

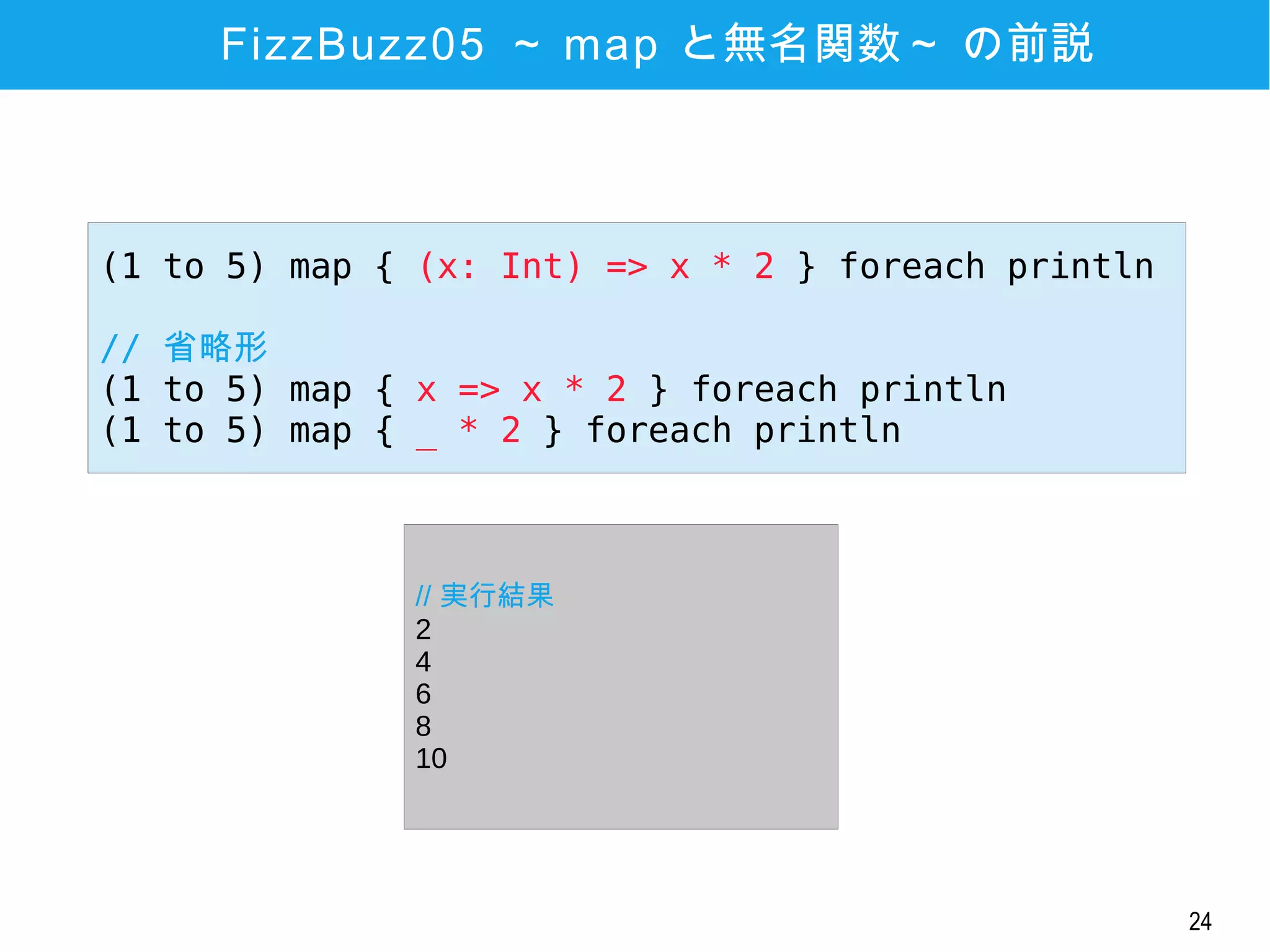

FizzBuzz05 ~ map と無名関数~ の前説
(1 to 5) map { (x: Int) => x * 2 } foreach println
// 省略形
(1 to 5) map { x => x * 2 } foreach println
(1 to 5) map { _ * 2 } foreach println
// 実行結果
2
4
6
8
10
25. 25
FizzBuzz05 ~ map と無名関数~
object FizzBuzz05 {
def main(args: Array[String]) {
(1 to 20) map { x =>
if (x % 3 == 0 && x % 5 == 0)
"FizzBuzz"
else if (x % 3 == 0)
"Fizz"
else if (x % 5 == 0)
"Buzz"
else
x.toString
} foreach println
}
}
map と無名関数を使って
処理を書いてみましょう。
26. 26
FizzBuzz05 ~ map と無名関数~
object FizzBuzz05 {
def main(args: Array[String]) {
(1 to 20) map { x =>
if (x % 3 == 0 && x % 5 == 0)
"FizzBuzz"
else if (x % 3 == 0)
"Fizz"
else if (x % 5 == 0)
"Buzz"
else
x.toString
} foreach println
}
}
27. 27

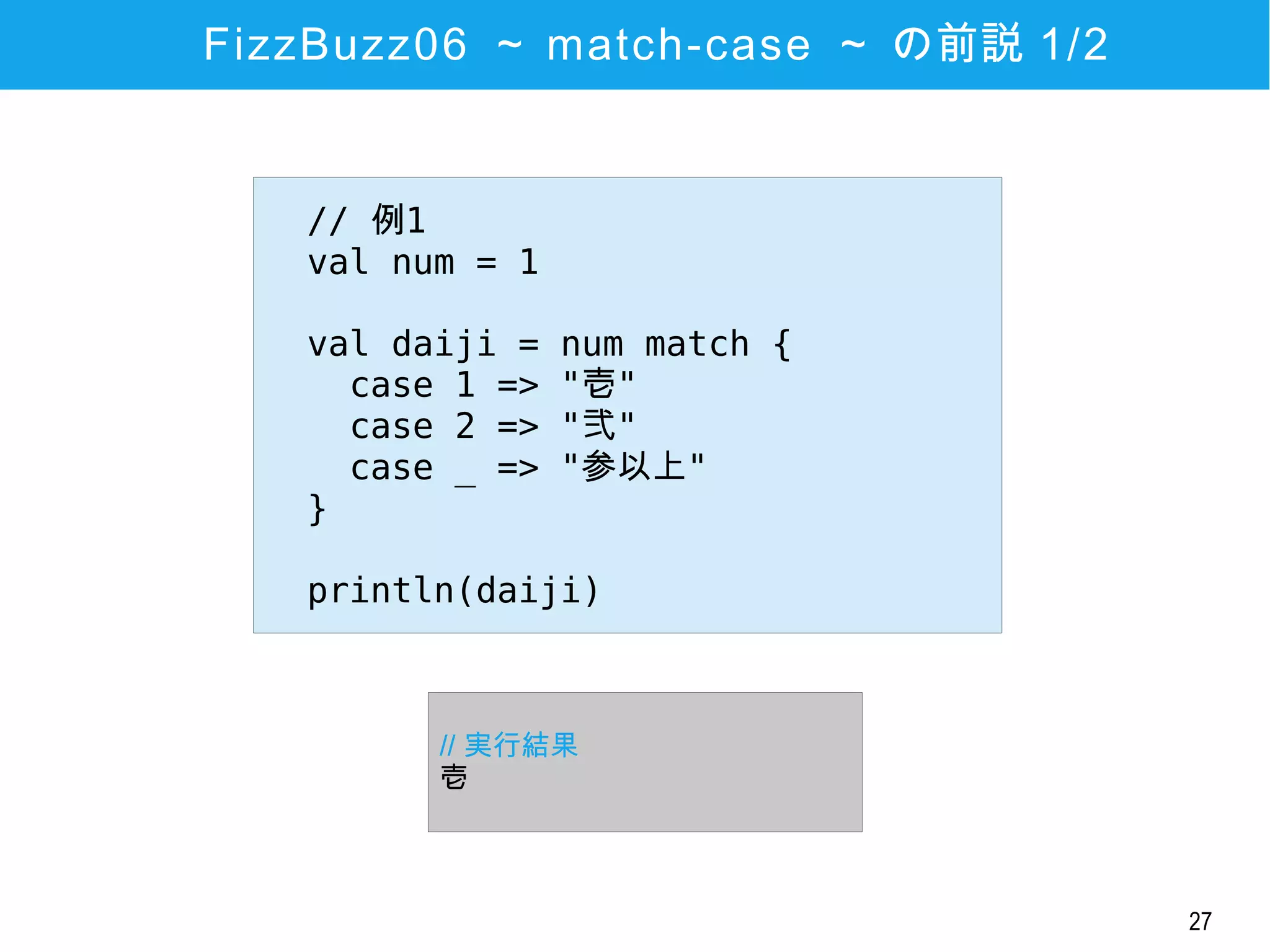

FizzBuzz06 ~ match-case ~ の前説 1/2
// 例1
val num = 1
val daiji = num match {
case 1 => "壱"
case 2 => "弐"
case _ => "参以上"
}
println(daiji)
// 実行結果
壱
28. 28
FizzBuzz06 ~ match-case ~ の前説 2/2
// 例2
val date = new Date
val msg = date.getDate match {
case d if (d % 2 == 0) => "今日は偶数日です。"
case _ => "今日は奇数日です。"
}
println(msg)
// 実行結果(27日の場合)
今日は奇数日です。
29. 29
FizzBuzz06 ~ match-case ~
object FizzBuzz06 {
def main(args: Array[String]) {
(1 to 20) map { num =>
num match {
case x if (x % 3 == 0 && x % 5 == 0) => "FizzBuzz"
case x if (x % 3 == 0) => "Fizz"
case x if (x % 5 == 0) => "Buzz"
case x => x.toString()
}
} foreach println
}
}
match-case を使って
処理を書いてみましょう。
30. 30
FizzBuzz06 ~ match-case ~
object FizzBuzz06 {
def main(args: Array[String]) {
(1 to 20) map { num =>
num match {
case x if (x % 3 == 0 && x % 5 == 0) => "FizzBuzz"
case x if (x % 3 == 0) => "Fizz"
case x if (x % 5 == 0) => "Buzz"
case x => x.toString()
}
} foreach println
}
}
31. 31
FizzBuzz07 ~ map と match の省略 ~ の前説
val daijis = (1 to 5) map { num =>
num match {
case 1 => "壱"
case 2 => "弐"
case _ => "参以上"
}
}
// 省略形
val daijis2 = (1 to 5) map {
case 1 => "壱"
case 2 => "弐"
case _ => "参以上"
}
32. 32
FizzBuzz07 ~ map と match の省略 ~
object FizzBuzz07 {
def main(args: Array[String]) {
1 to 20 map {
case x if (x % 3 == 0 && x % 5 == 0) => "FizzBuzz"
case x if (x % 3 == 0) => "Fizz"
case x if (x % 5 == 0) => "Buzz"
case x => x.toString()
} foreach println
}
}
match を省略した
処理を書いてみましょう。
33. 33
FizzBuzz07 ~ map と match の省略 ~
object FizzBuzz07 {
def main(args: Array[String]) {
1 to 20 map {
case x if (x % 3 == 0 && x % 5 == 0) => "FizzBuzz"
case x if (x % 3 == 0) => "Fizz"
case x if (x % 5 == 0) => "Buzz"
case x => x.toString()
} foreach println
}
}
34. 34
FizzBuzz08 ~ 再帰、クロージャ、コンス(分ける) ~
import scala.collection.mutable.ListBuffer
object FizzBuzz08 {
def main(args: Array[String]) {
val lines = new ListBuffer[String]
def fizzbuzzRec(numbers: List[Int]) {
numbers match {
case Nil =>
case number :: tail => {
lines.append(number match {
case x if (x % 3 == 0 && x % 5 == 0) => "FizzBuzz"
case x if (x % 3 == 0) => "Fizz"
case x if (x % 5 == 0) => "Buzz"
case x => x.toString
})
fizzbuzzRec(tail)
}
}
}
fizzbuzzRec(1 to 20 toList)
lines foreach println
}
}
35. 35
FizzBuzz09 ~ 末尾再帰、コンス(連結) ~
import scala.collection.mutable.ListBuffer
import scala.annotation.tailrec
object FizzBuzz09 {
def main(args: Array[String]) {
def fizzbuzzRec(numbers: List[Int]): List[String] = {
@tailrec
def fizzbuzzRecLocal(accumulator: List[String],
numbers: List[Int]): List[String] = {
numbers match {
case Nil => accumulator
case number :: tail => fizzbuzzRecLocal(
accumulator ::: List(
number match {
case x if (x % 3 == 0 && x % 5 == 0) => "FizzBuzz"
case x if (x % 3 == 0) => "Fizz"
case x if (x % 5 == 0) => "Buzz"
case x => x.toString
}
), tail
)
}
}
fizzbuzzRecLocal(Nil, numbers)
}
fizzbuzzRec(1 to 20 toList) foreach println
}
}
class Person { def getMessage(): String = { return "Hello world!" } def printMessage(): Unit = { println("wakuwaku Scala!") } } object Main { def main(args: Array[String]): Unit = { val person1 = new Person() println(person1.getMessage()) var person2 = new Person() person2.printMessage() person2 = new Person() person2.printMessage() } } class Person2 { def getMessage = "Hello world!" def printMessage { println("wakuwaku Scala!") } } object Main2 { def main(args: Array[String]) { val person1 = new Person println(person1.getMessage) var person2 = new Person person2.printMessage person2 = new Person person2.printMessage } }
