This document provides an overview of the W3C Device APIs and their requirements and interfaces. It lists several APIs including Calendar, Contacts, Capture, Messaging, Network Information, Battery Status, Sensors, Audio Volume, and others. For each API, it describes the requirements document, relevant interfaces, example code, and use cases. It also outlines milestones for completing standards for these APIs by 2013.

1. W3C DAP Introduction for HTML5 KIG BJ Kim , 2011/07/11

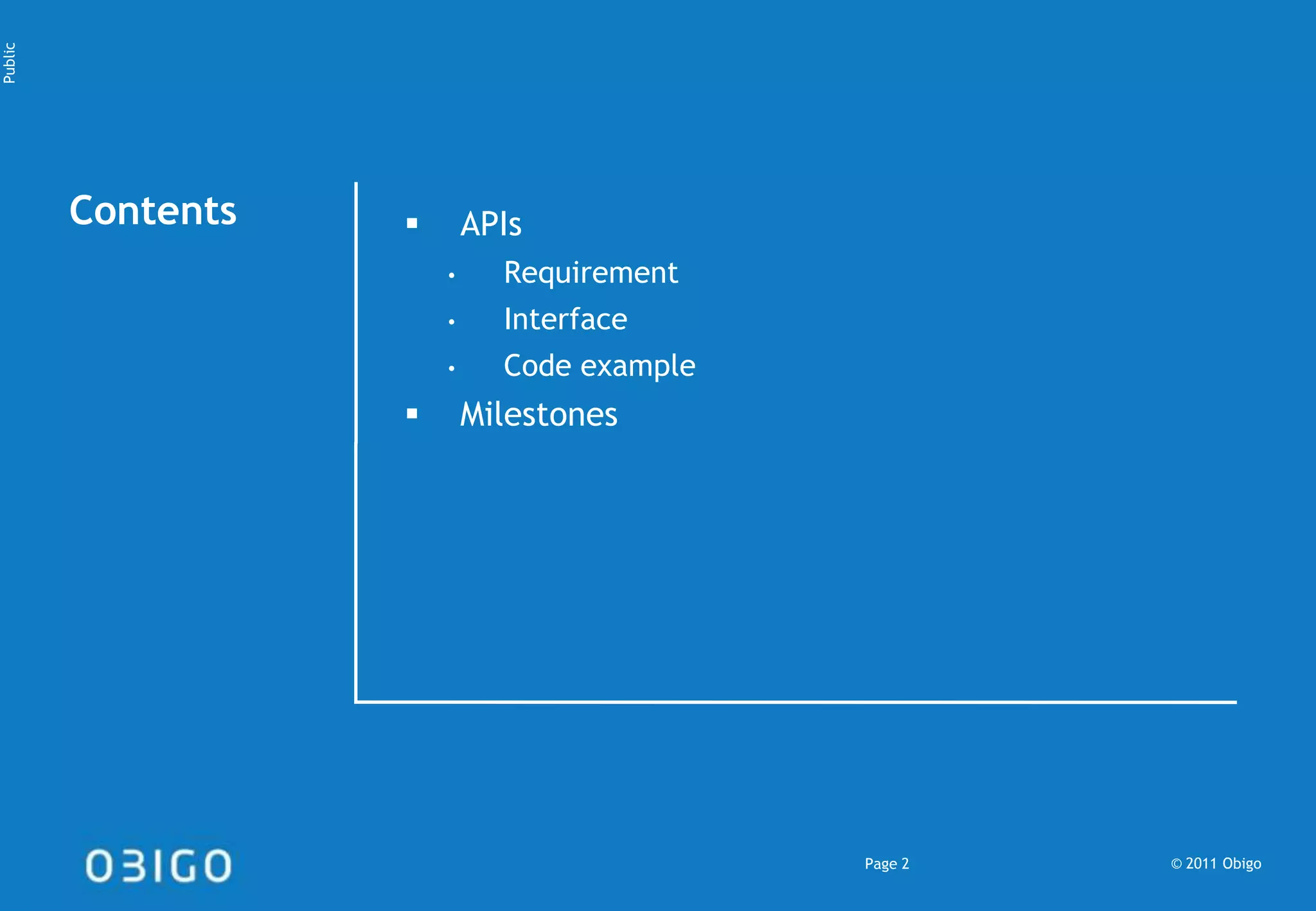

2. Contents APIs Requirement Interface Code example Milestones

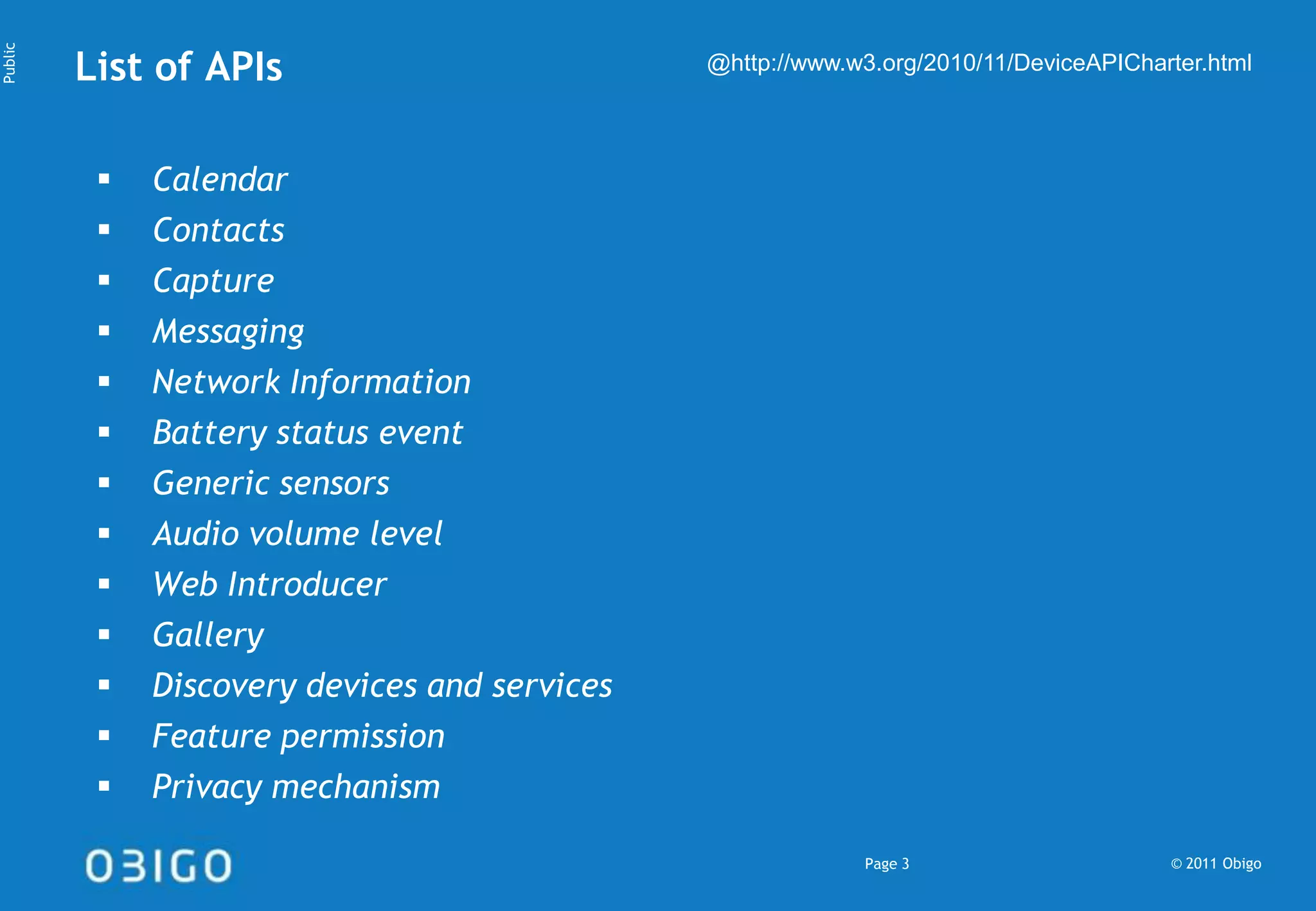

3. List of APIs @http://www.w3.org/2010/11/DeviceAPICharter.html Calendar Contacts Capture Messaging Network Information Battery status event Generic sensors Audio volume level Web Introducer Gallery Discovery devices and services Feature permission Privacy mechanism

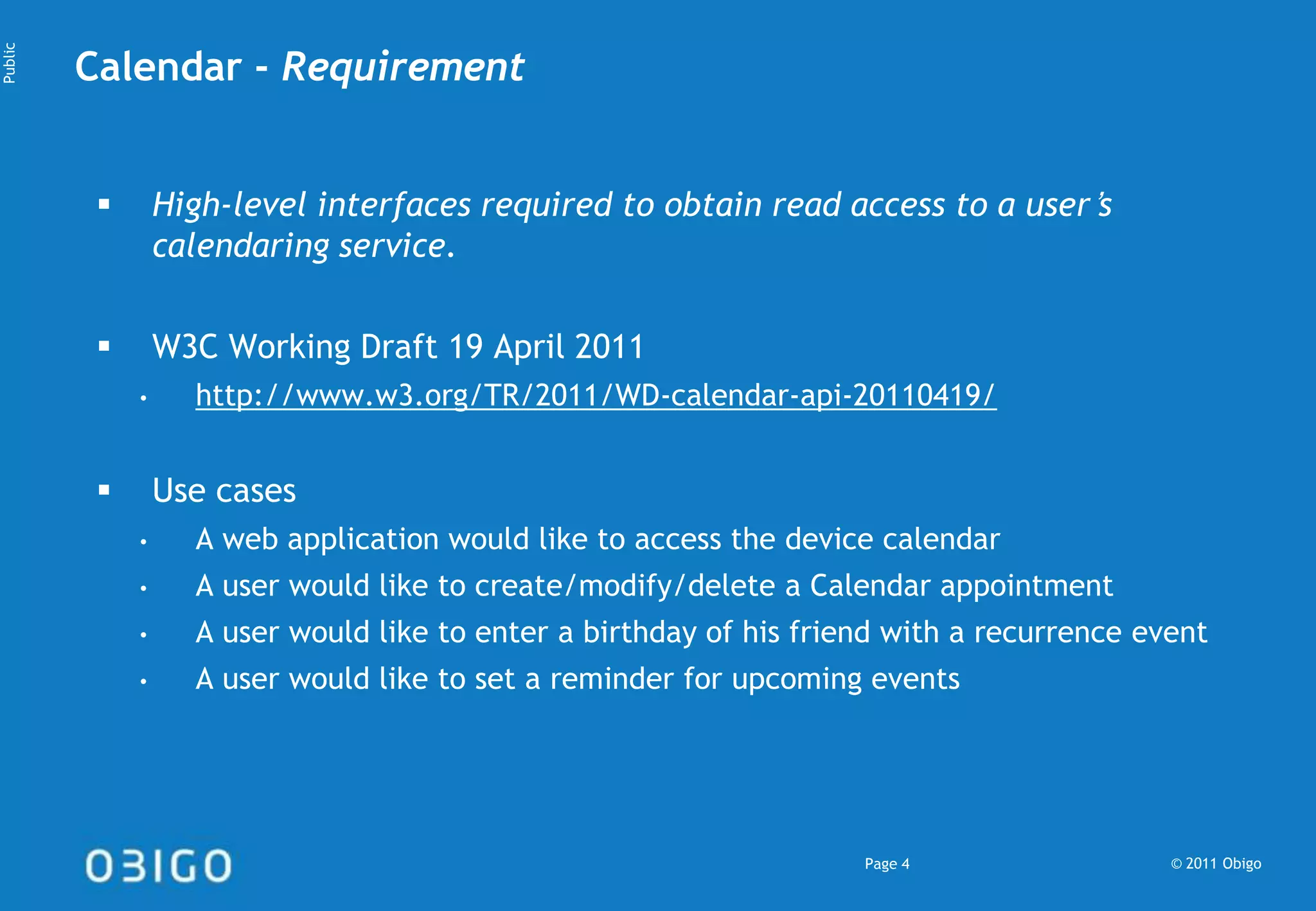

4. Calendar - Requirement High-level interfaces required to obtain read access to a user’s calendaring service. W3C Working Draft 19 April 2011 http://www.w3.org/TR/2011/WD-calendar-api-20110419/ Use cases A web application would like to access the device calendar A user would like to create/modify/delete a Calendar appointment A user would like to enter a birthday of his friend with a recurrence event A user would like to set a reminder for upcoming events

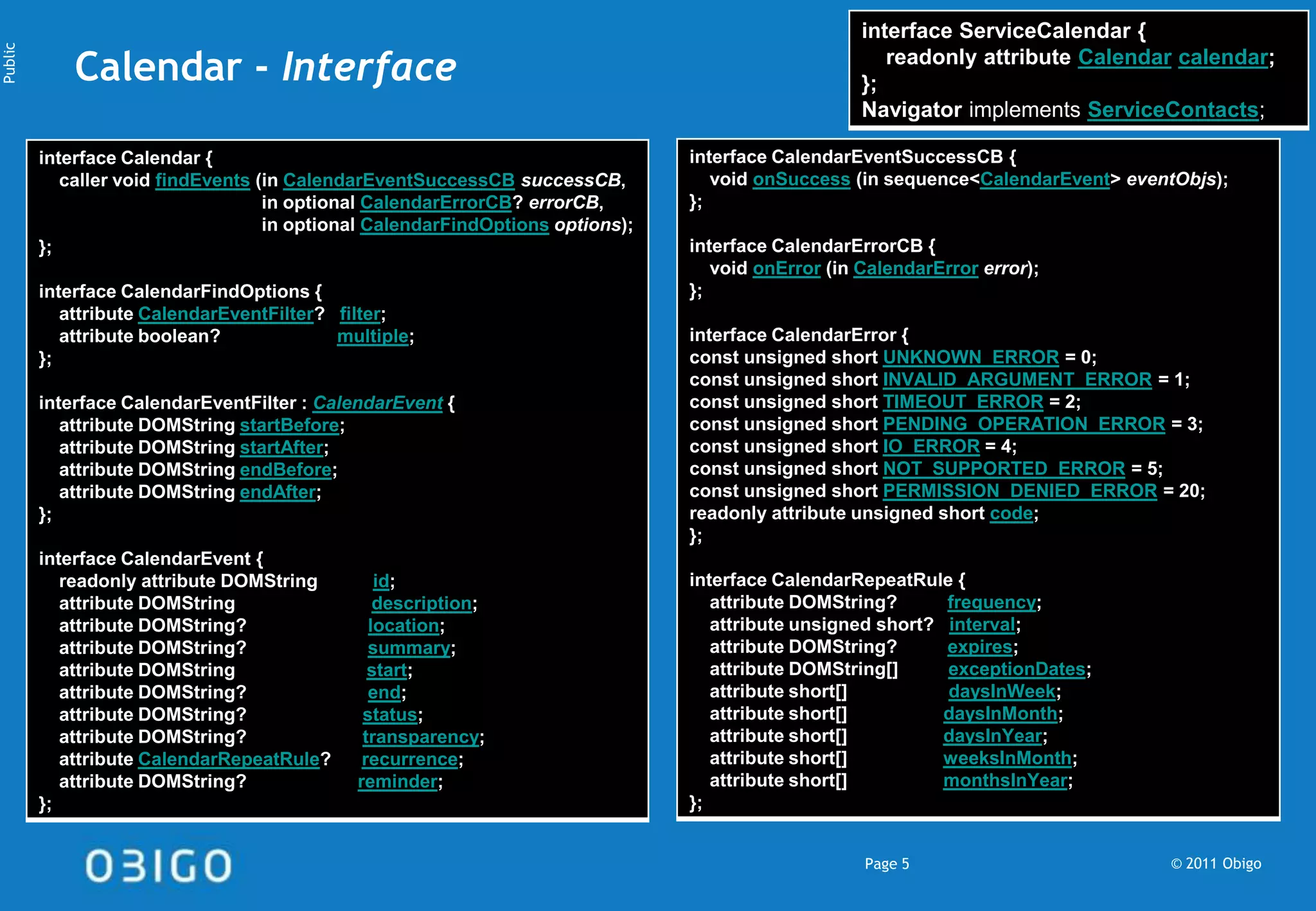

5. Calendar - Interface

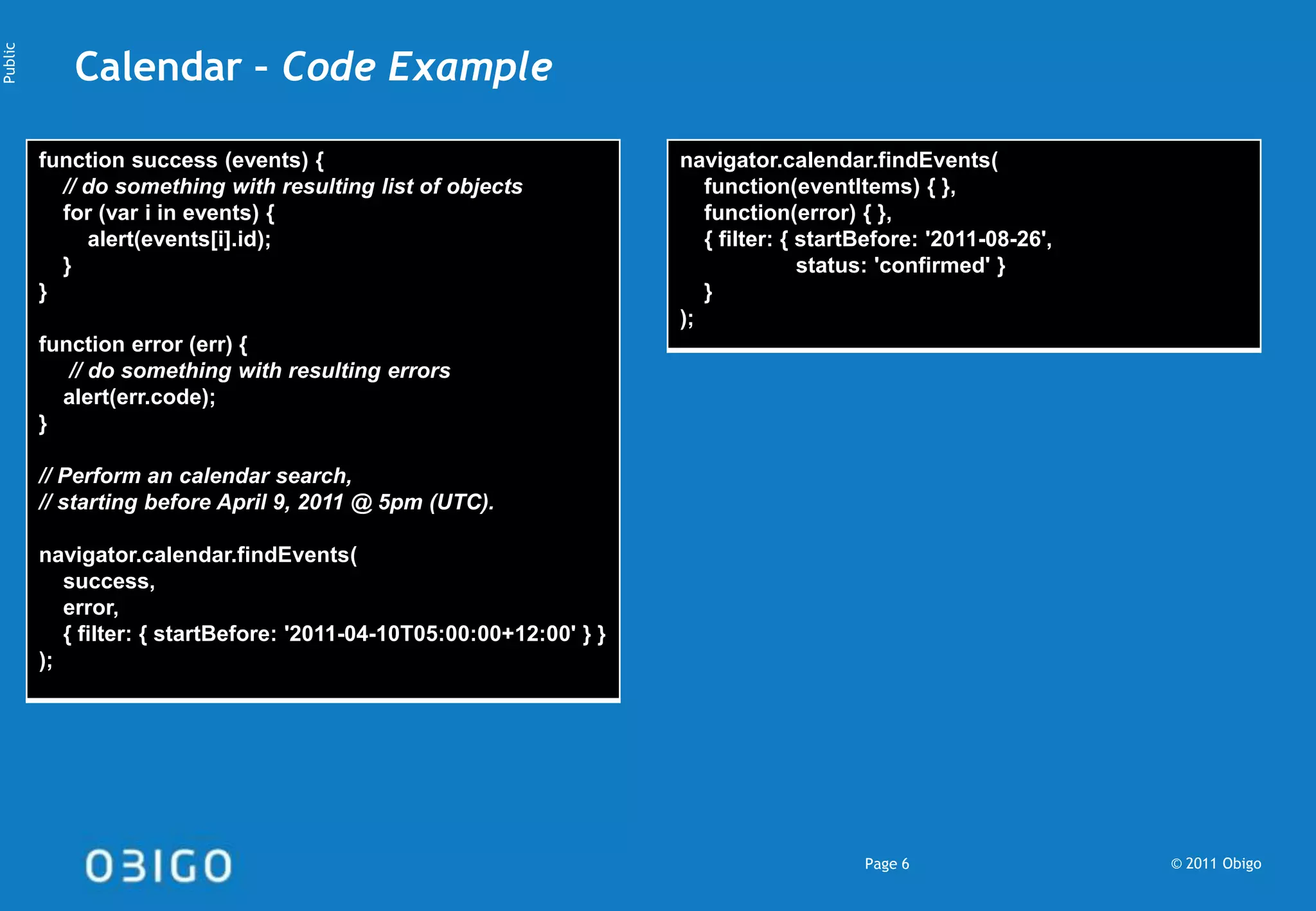

6. Calendar – Code Example

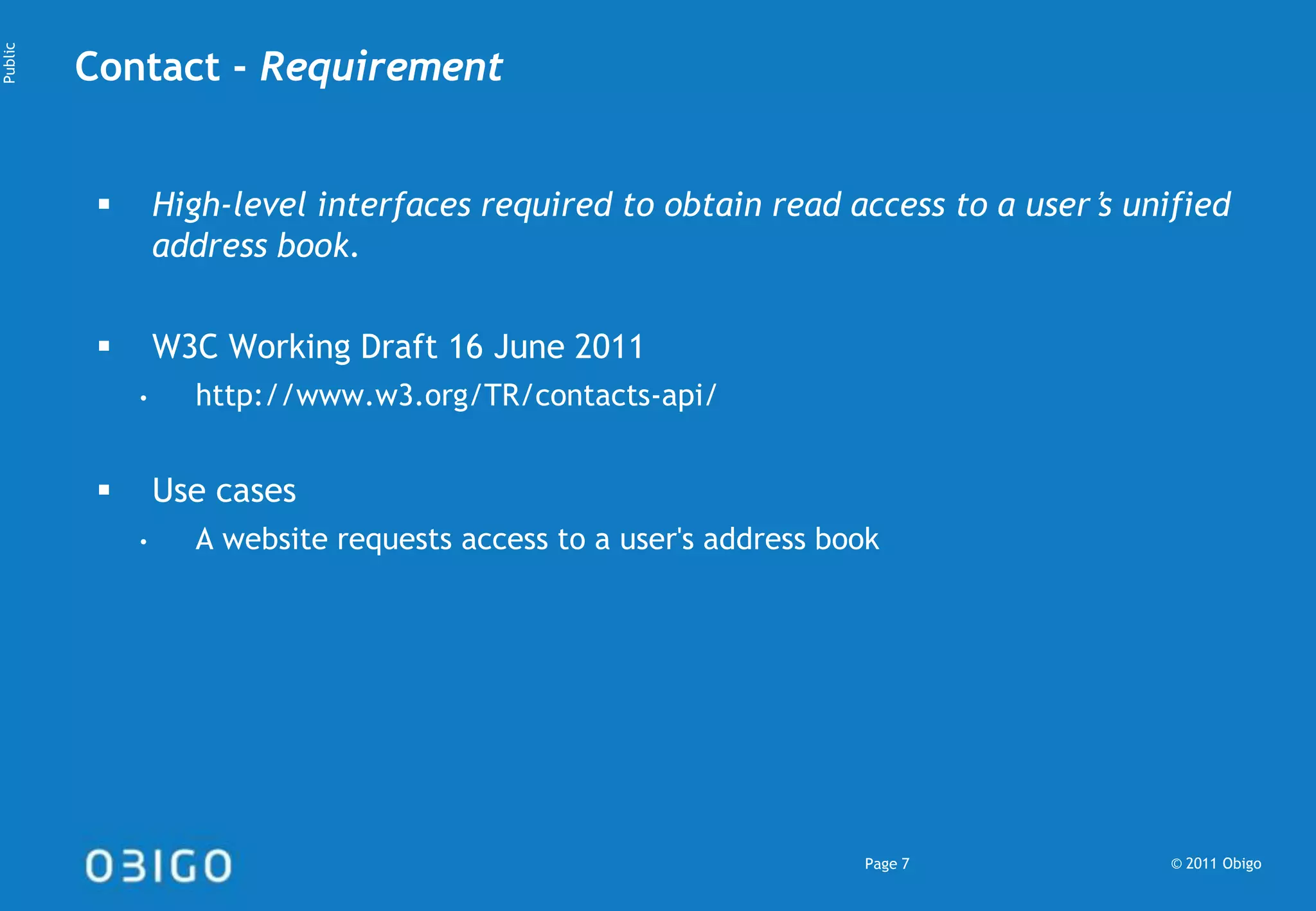

7. Contact - Requirement High-level interfaces required to obtain read access to a user’s unified address book. W3C Working Draft 16 June 2011 http://www.w3.org/TR/contacts-api/ Use cases A website requests access to a user's address book

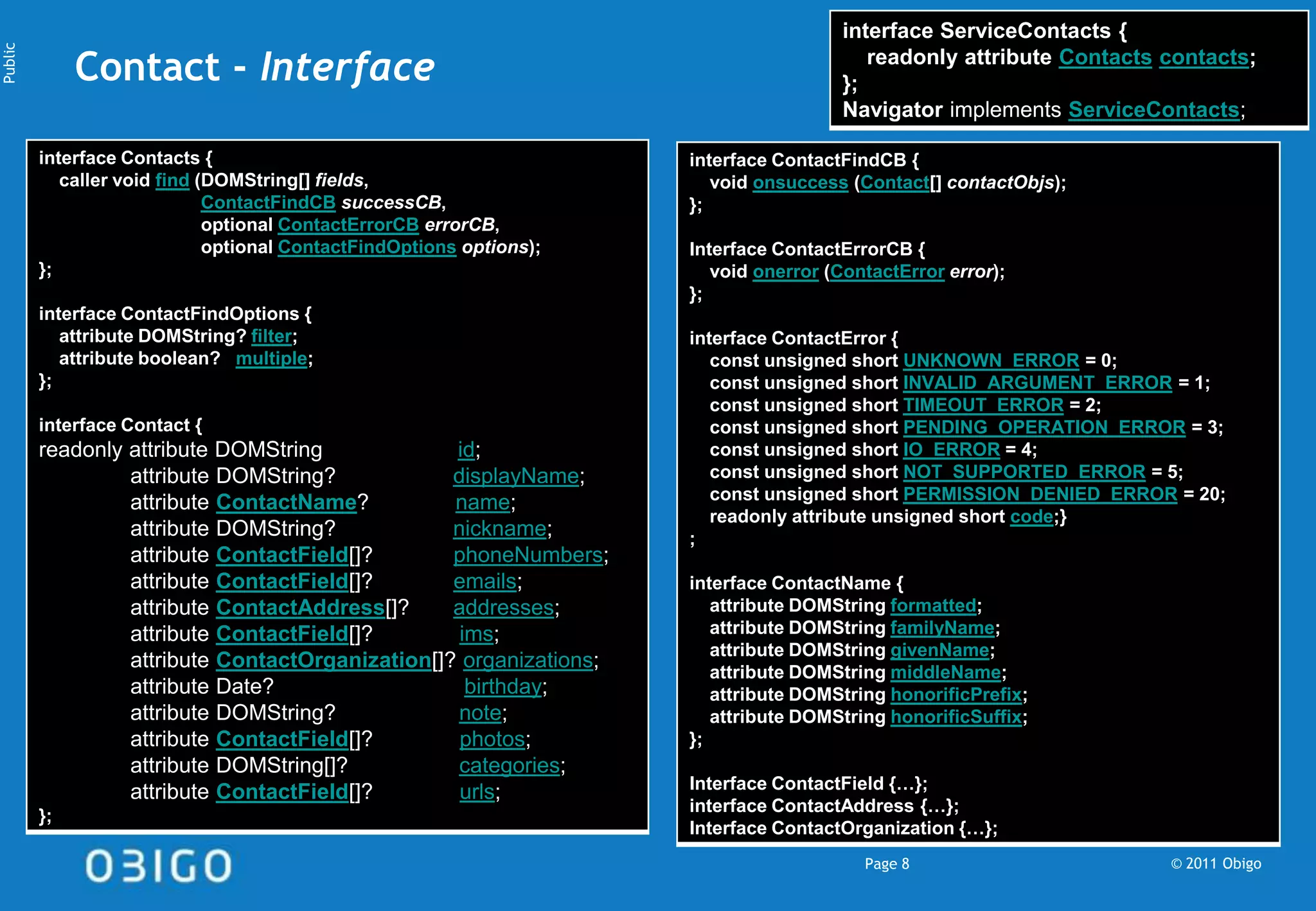

8. Contact - Interface

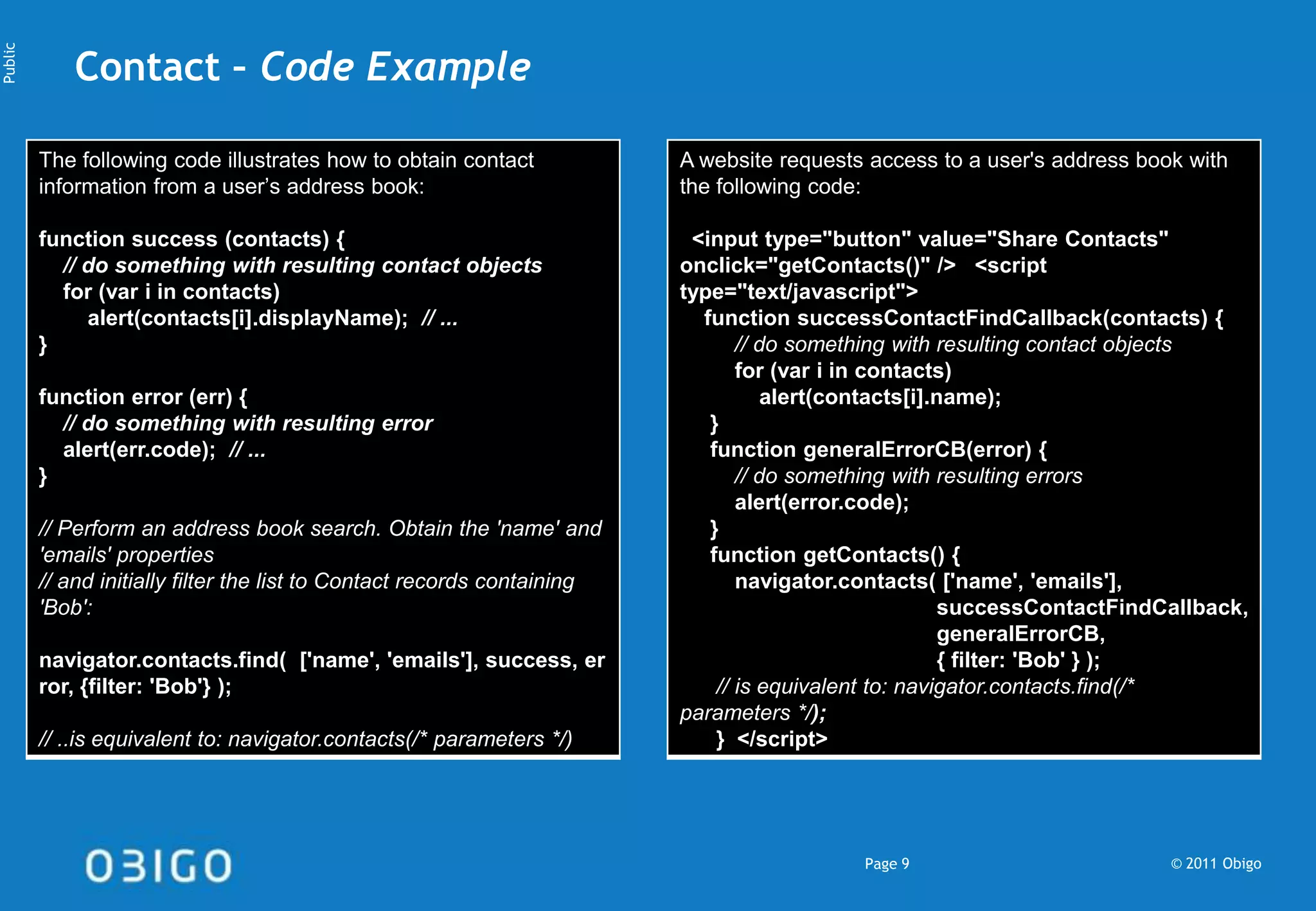

9. Contact – Code Example

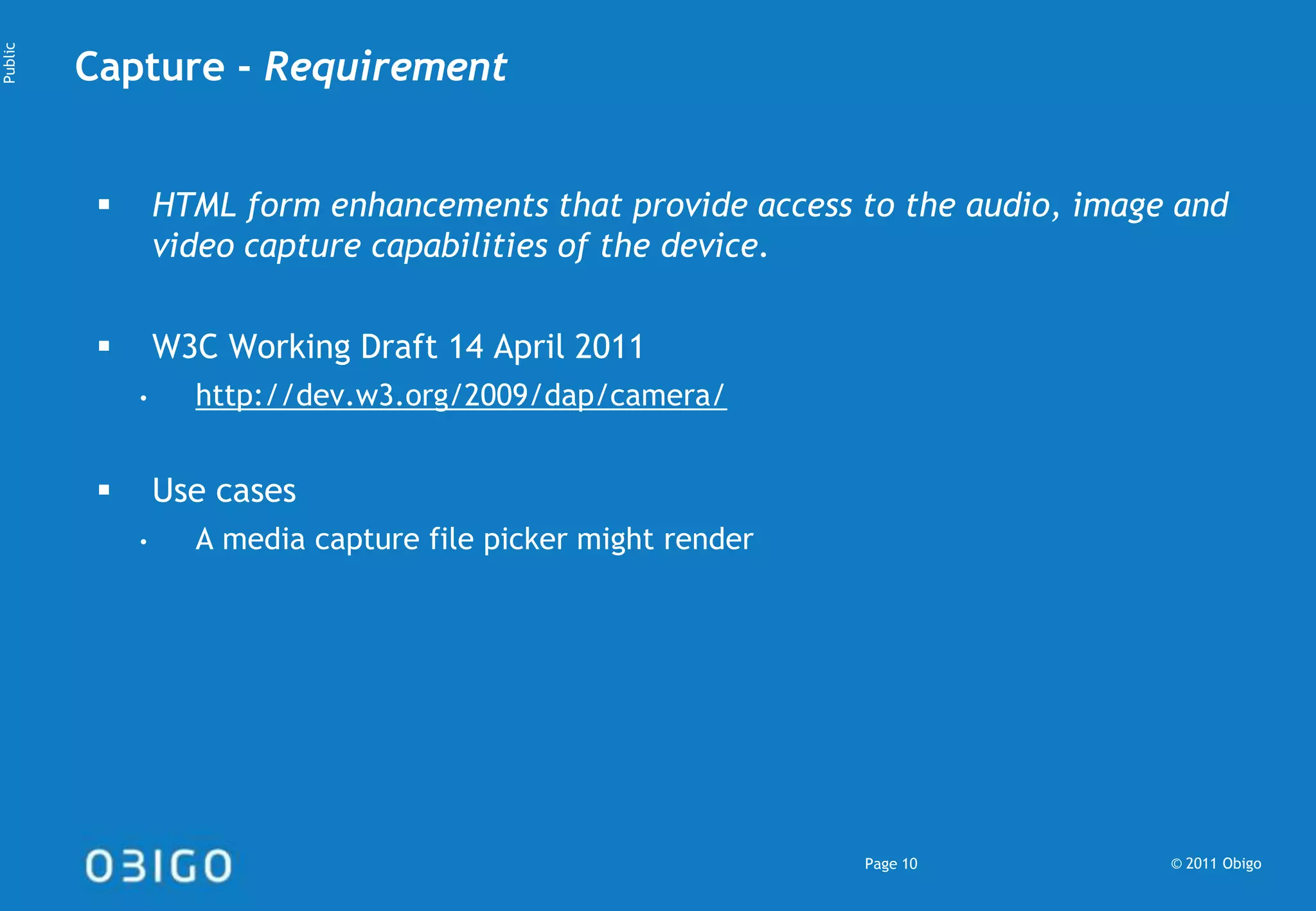

10. Capture - Requirement HTML form enhancements that provide access to the audio, image and video capture capabilities of the device. W3C Working Draft 14 April 2011 http://dev.w3.org/2009/dap/camera/ Use cases A media capture file picker might render

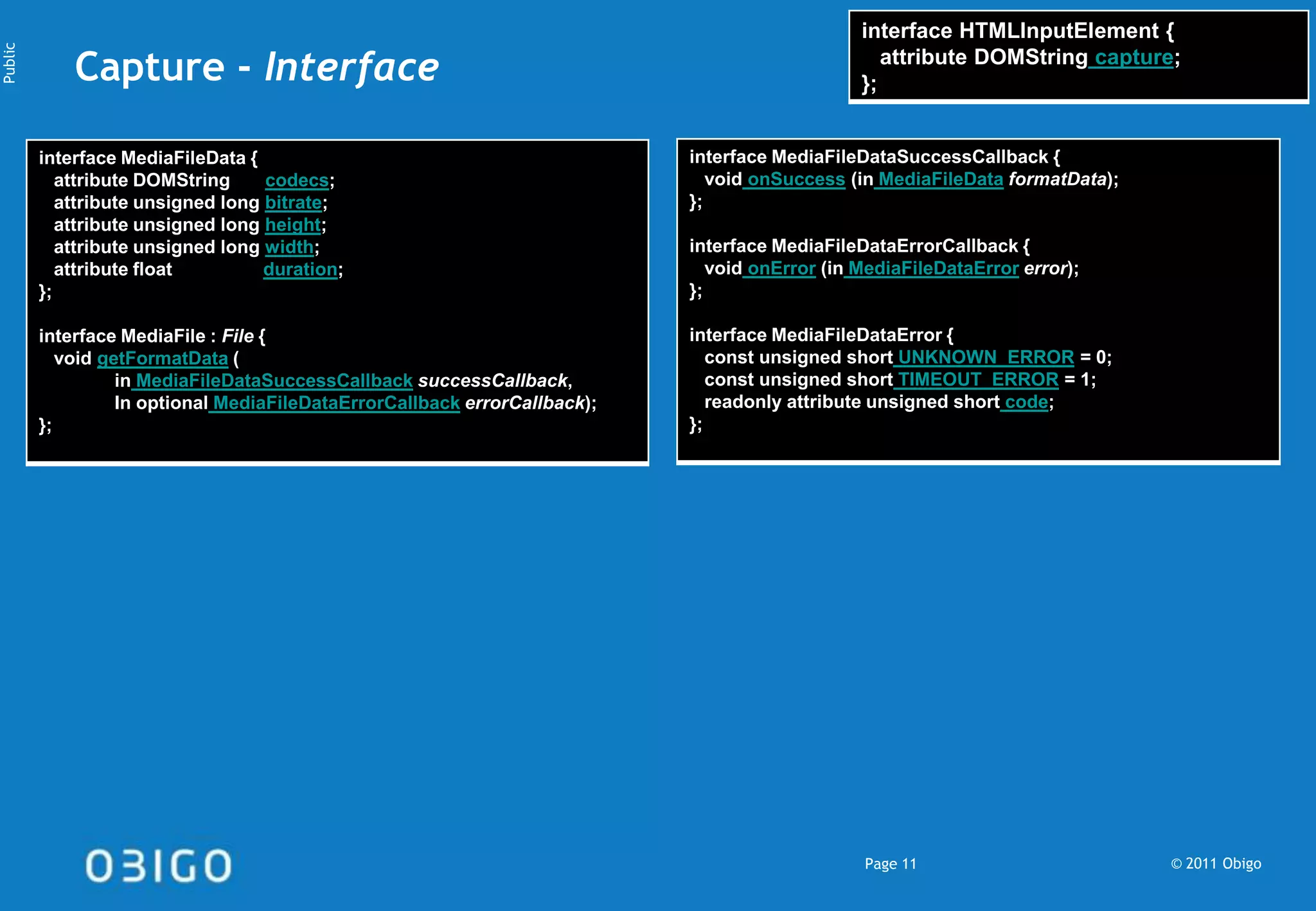

11. Capture - Interface

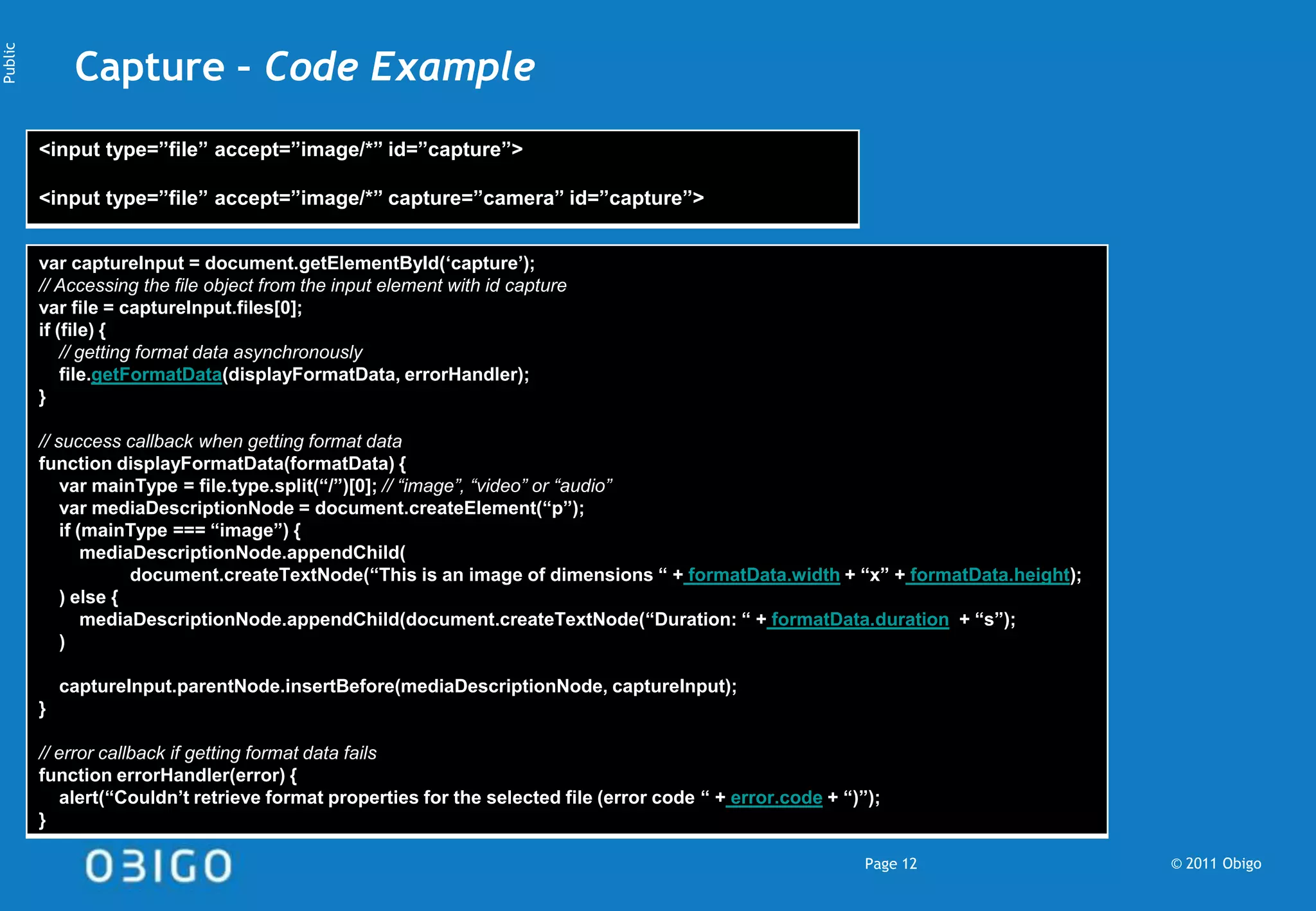

12. Capture – Code Example

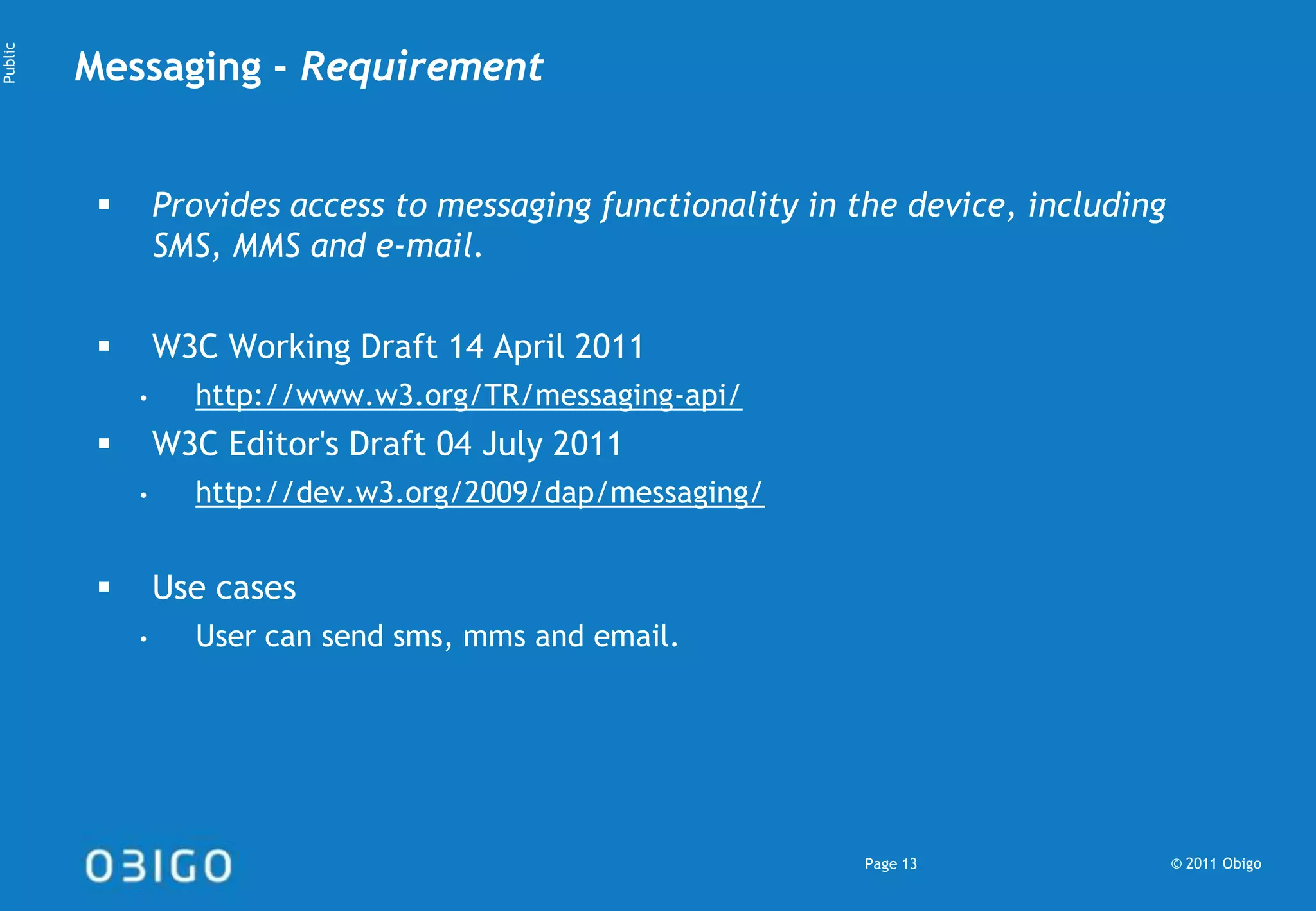

13. Messaging - Requirement Provides access to messaging functionality in the device, including SMS, MMS and e-mail. W3C Working Draft 14 April 2011 http://www.w3.org/TR/messaging-api/ W3C Editor's Draft 04 July 2011 http://dev.w3.org/2009/dap/messaging/ Use cases User can send sms, mms and email.

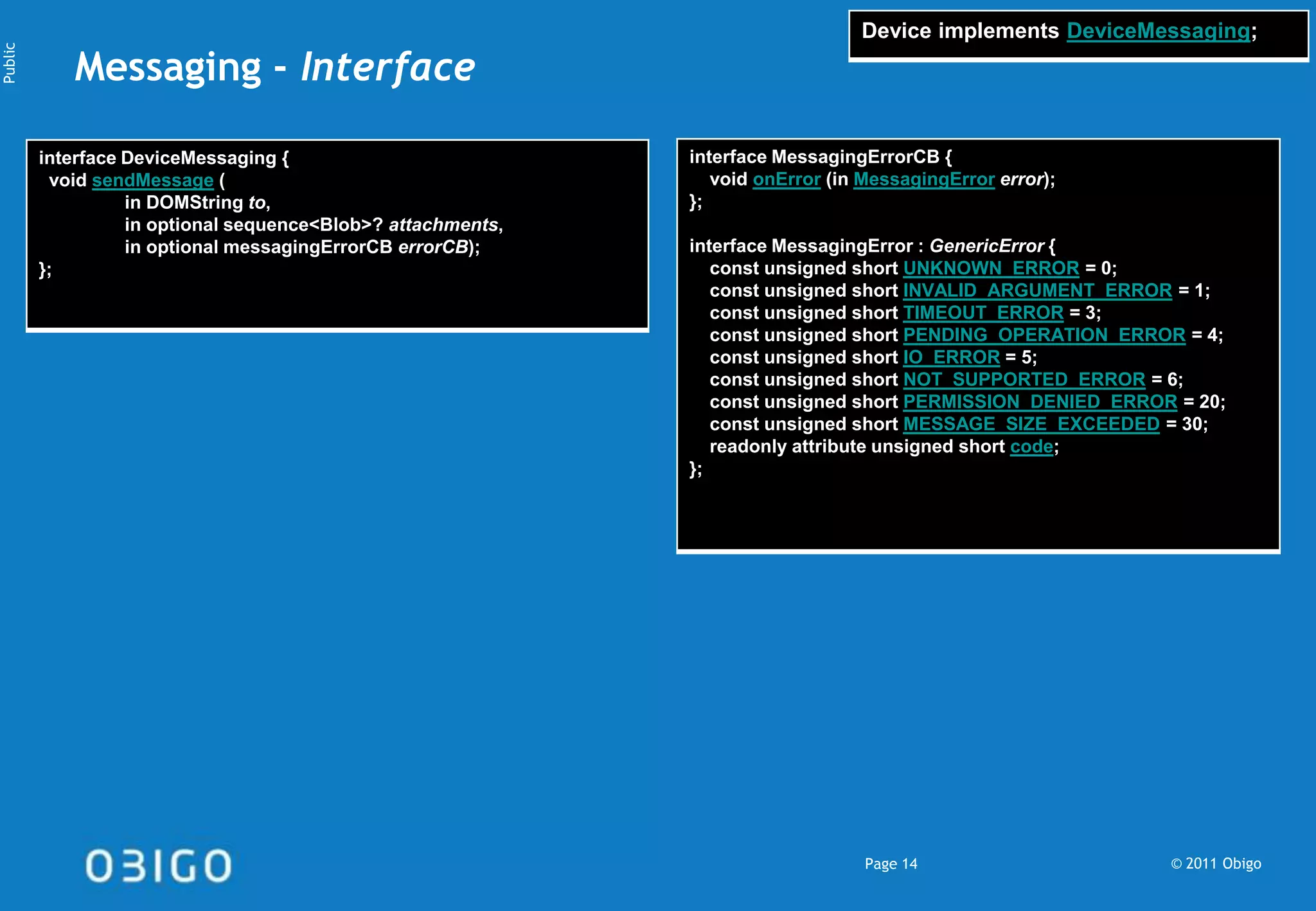

14. Messaging - Interface

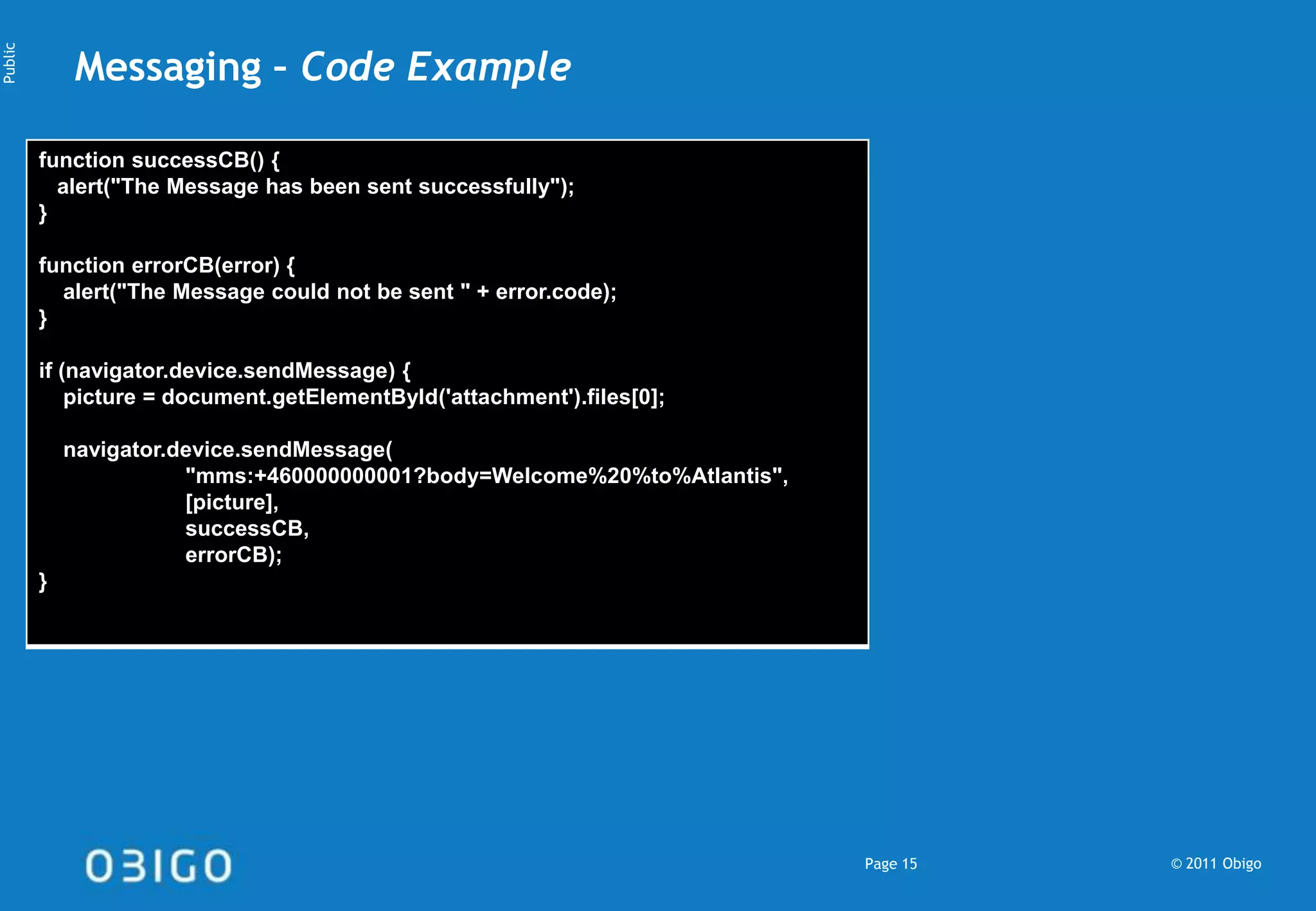

15. Messaging – Code Example

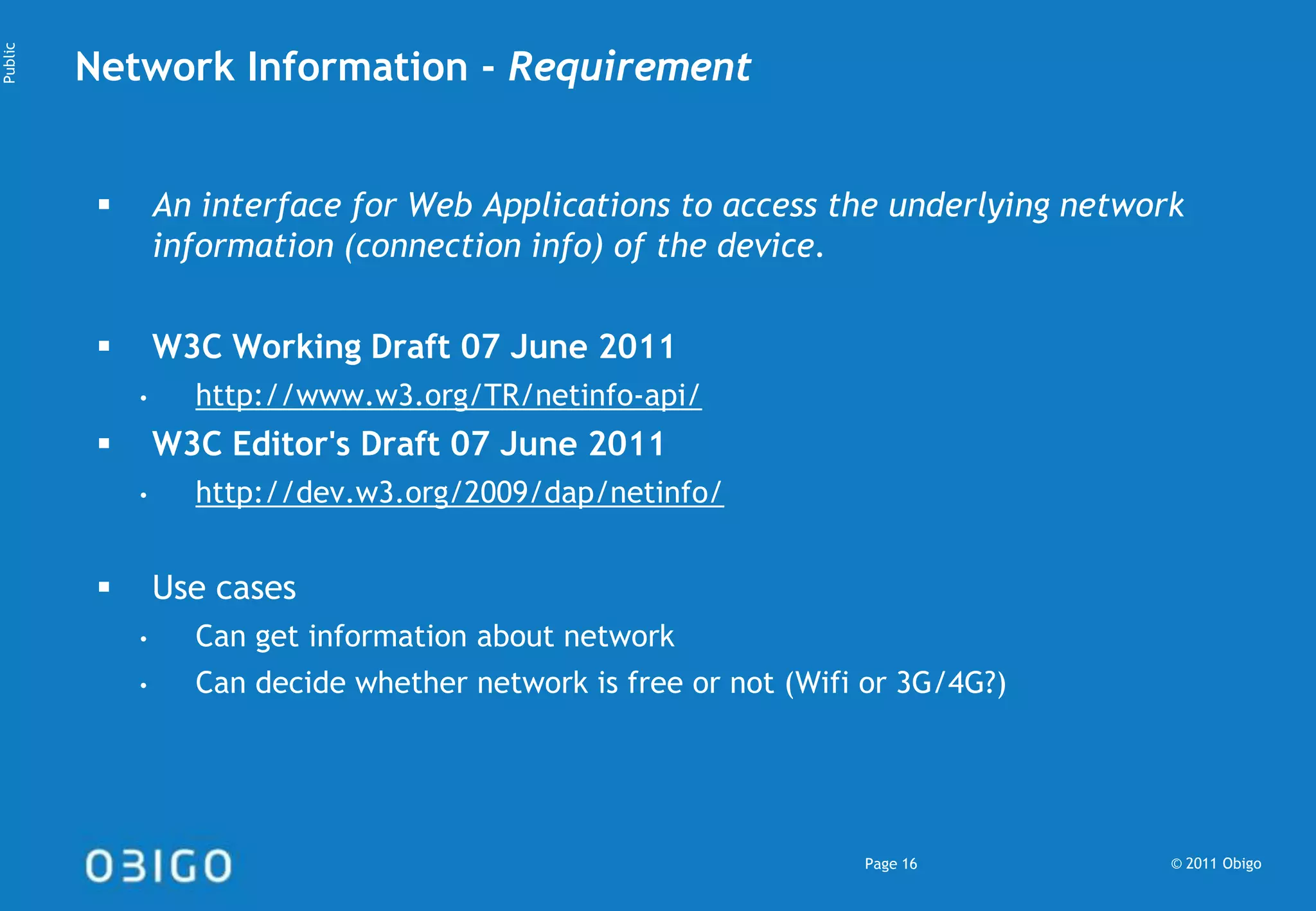

16. Network Information - Requirement An interface for Web Applications to access the underlying network information (connection info) of the device. W3C Working Draft 07 June 2011 http://www.w3.org/TR/netinfo-api/ W3C Editor's Draft 07 June 2011 http://dev.w3.org/2009/dap/netinfo/ Use cases Canget information about network Can decide whether network is free or not (Wifi or 3G/4G?)

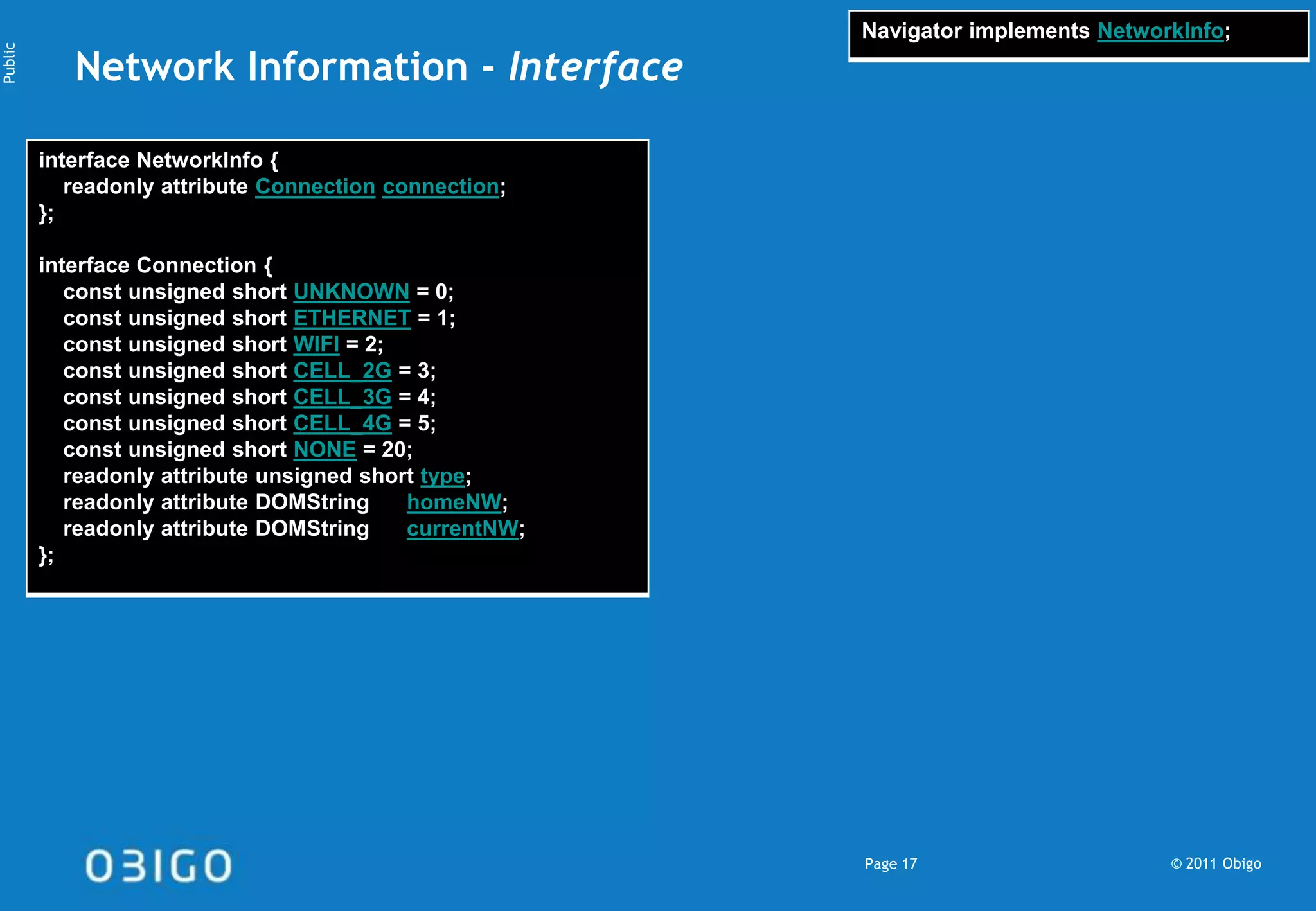

17. Network Information - Interface

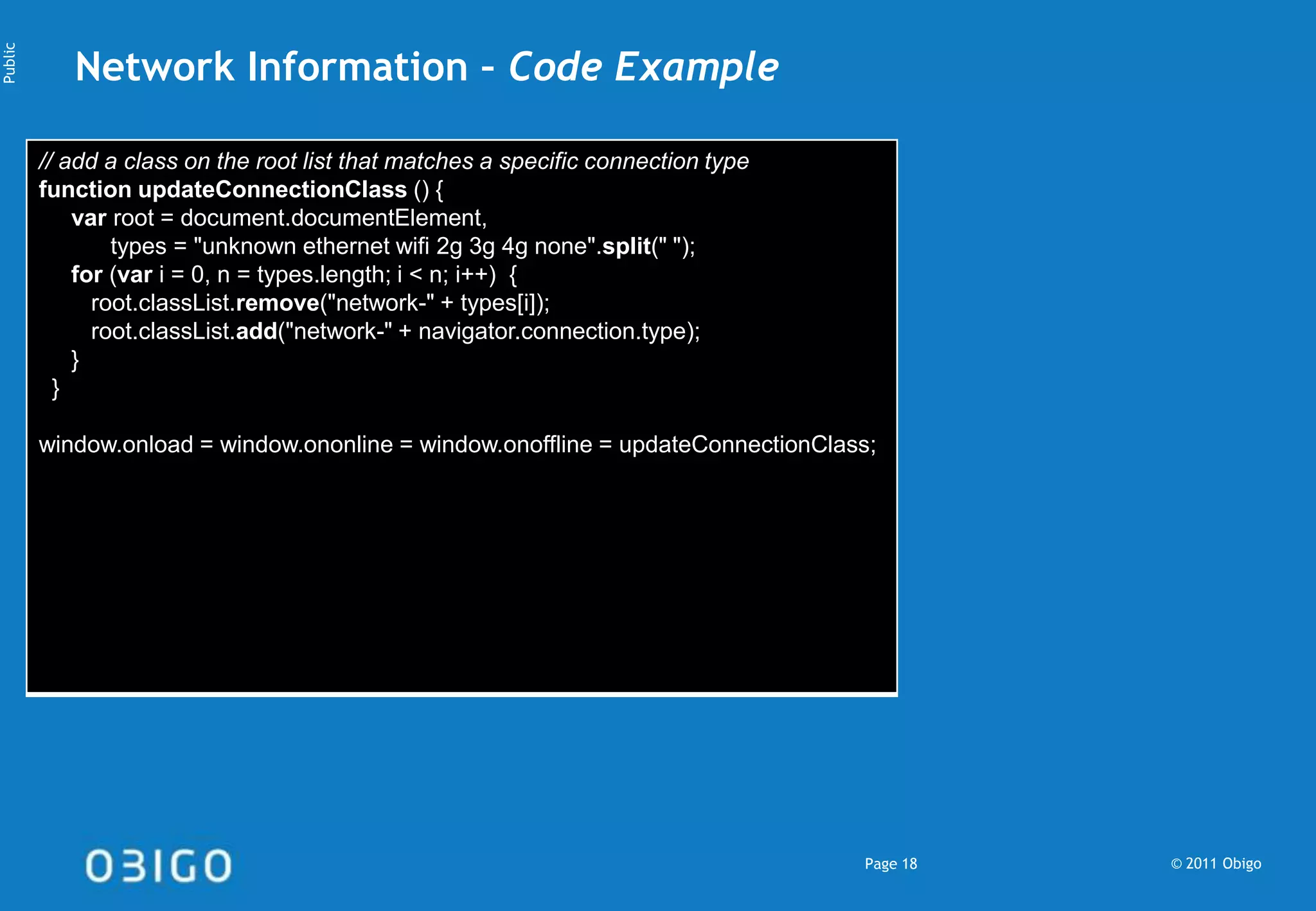

18. Network Information – Code Example

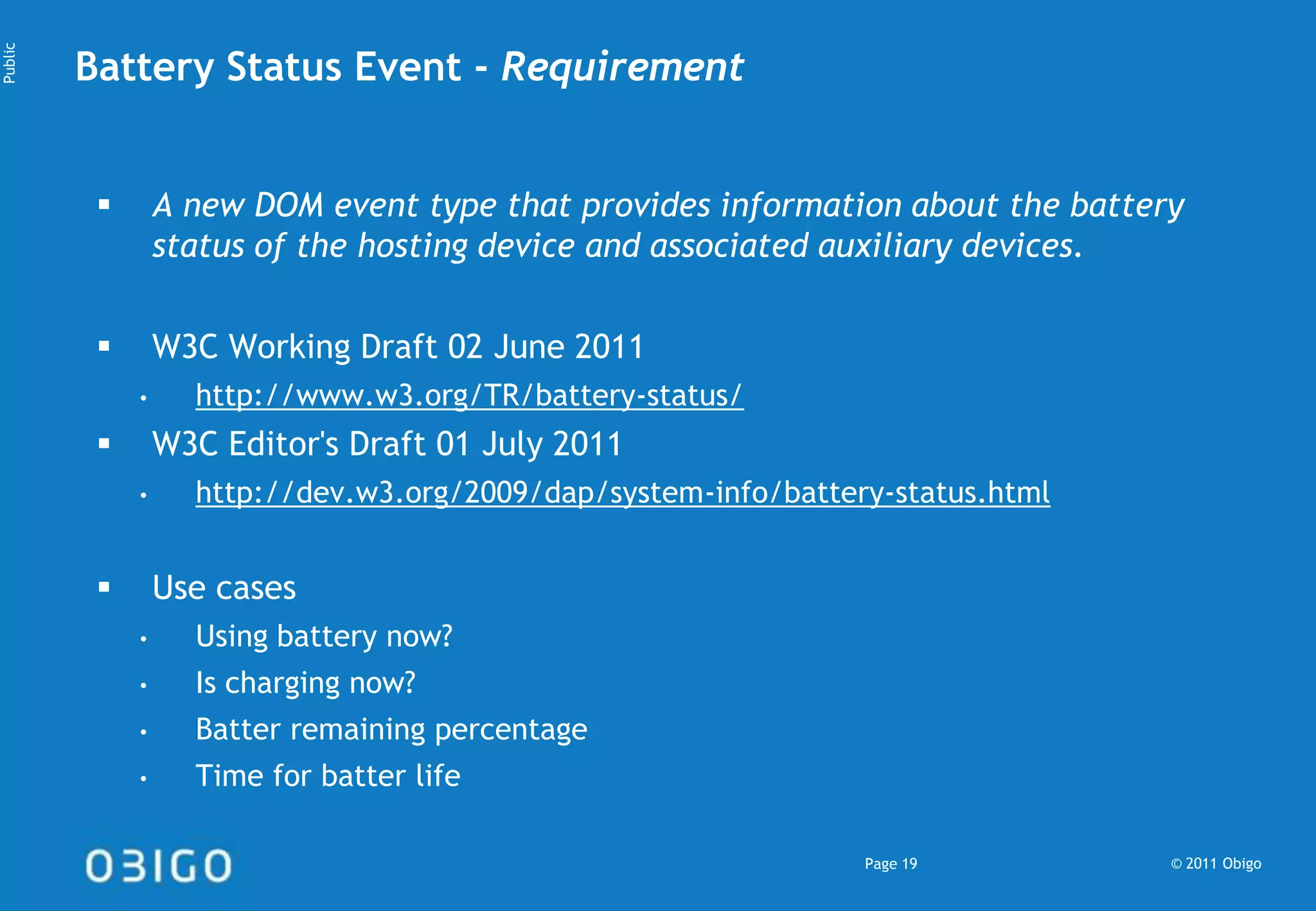

19. Battery Status Event - Requirement A new DOM event type that provides information about the battery status of the hosting device and associated auxiliary devices. W3C Working Draft 02 June 2011 http://www.w3.org/TR/battery-status/ W3C Editor's Draft 01 July 2011 http://dev.w3.org/2009/dap/system-info/battery-status.html Use cases Using battery now? Is charging now? Batter remaining percentage Time for batter life

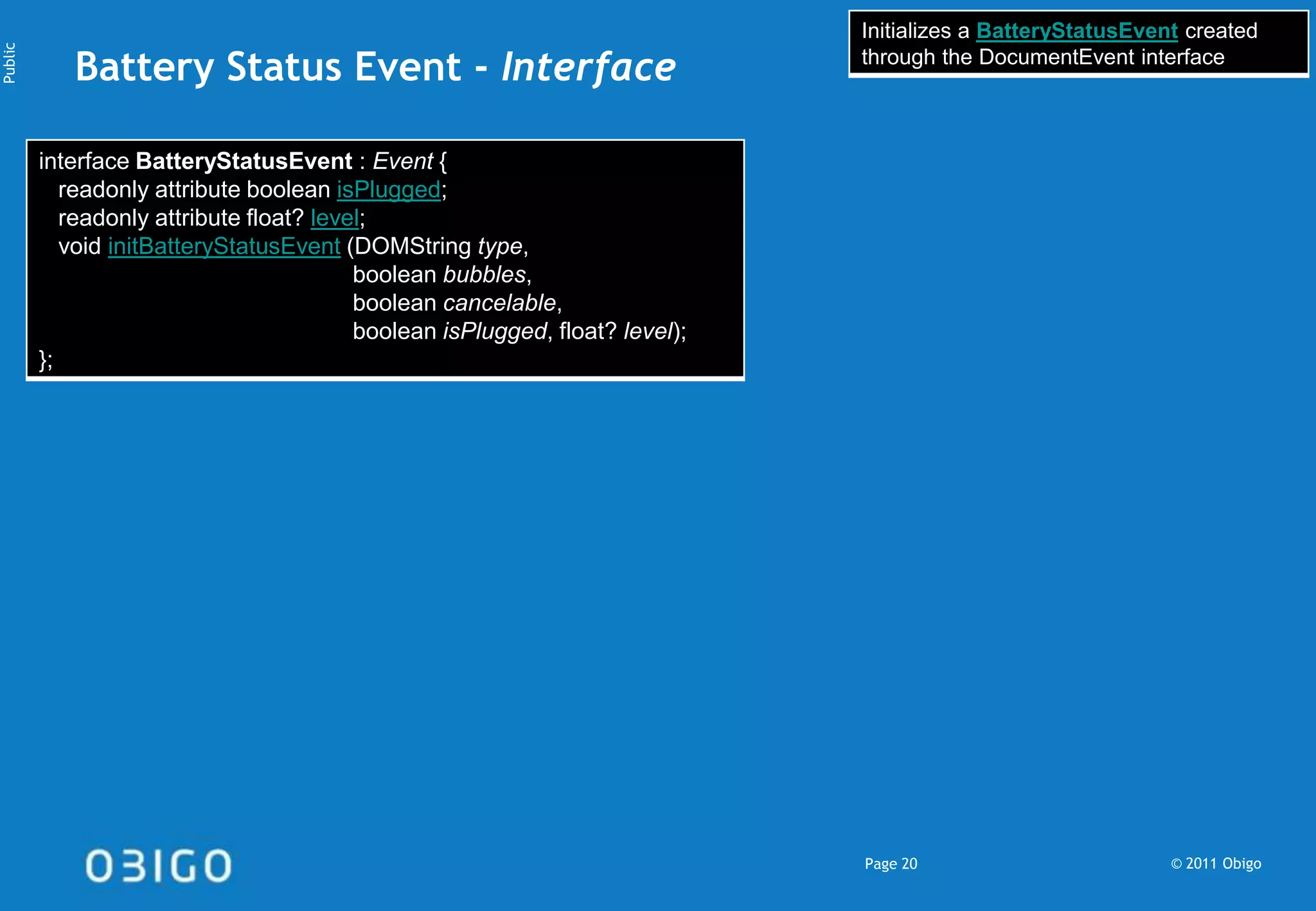

20. Battery Status Event - Interface

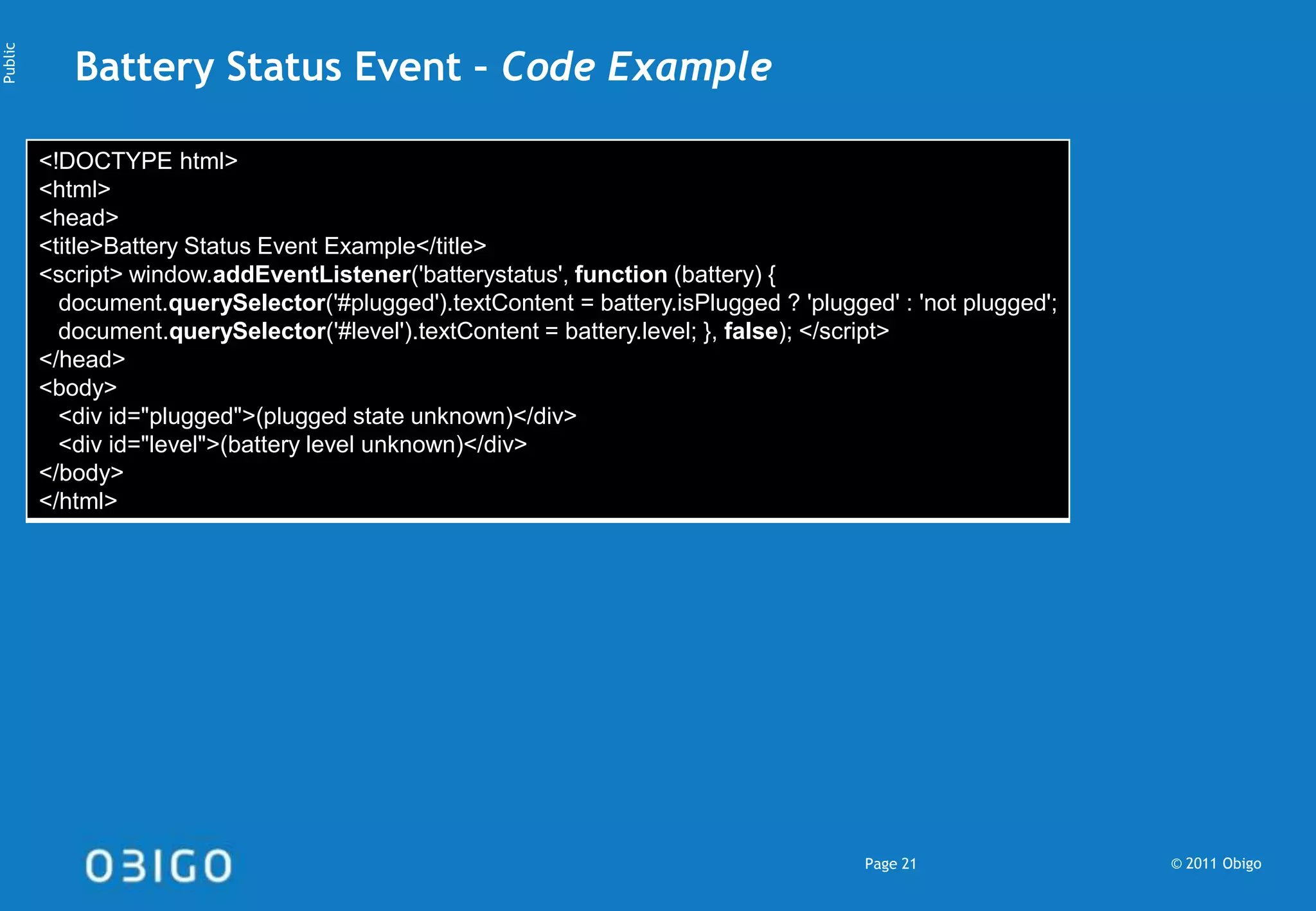

21. Battery Status Event – Code Example

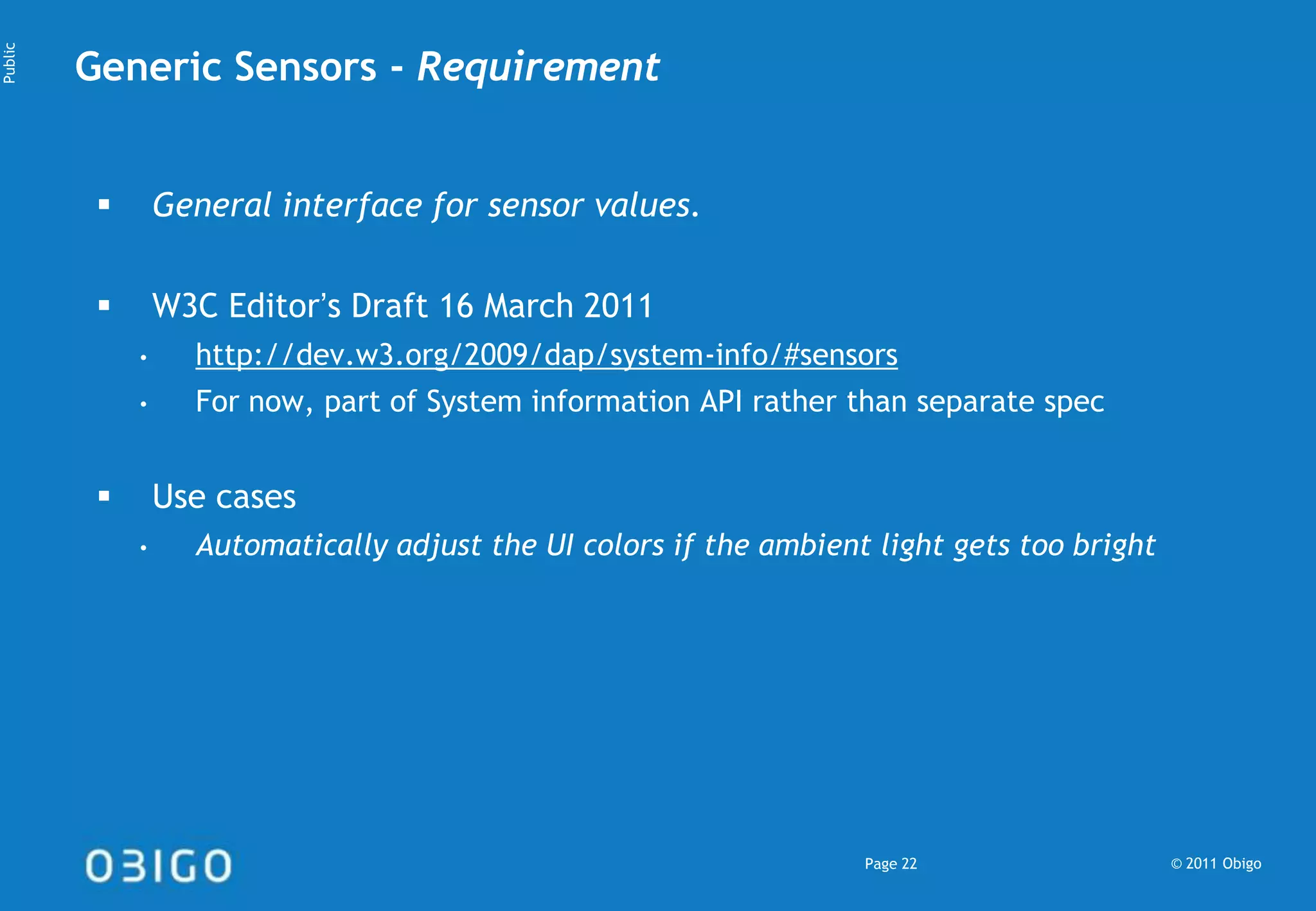

22. Generic Sensors - Requirement General interface for sensor values. W3C Editor’s Draft 16 March 2011 http://dev.w3.org/2009/dap/system-info/#sensors For now, part of System information API rather than separate spec Use cases Automatically adjust the UI colors if the ambient light gets too bright

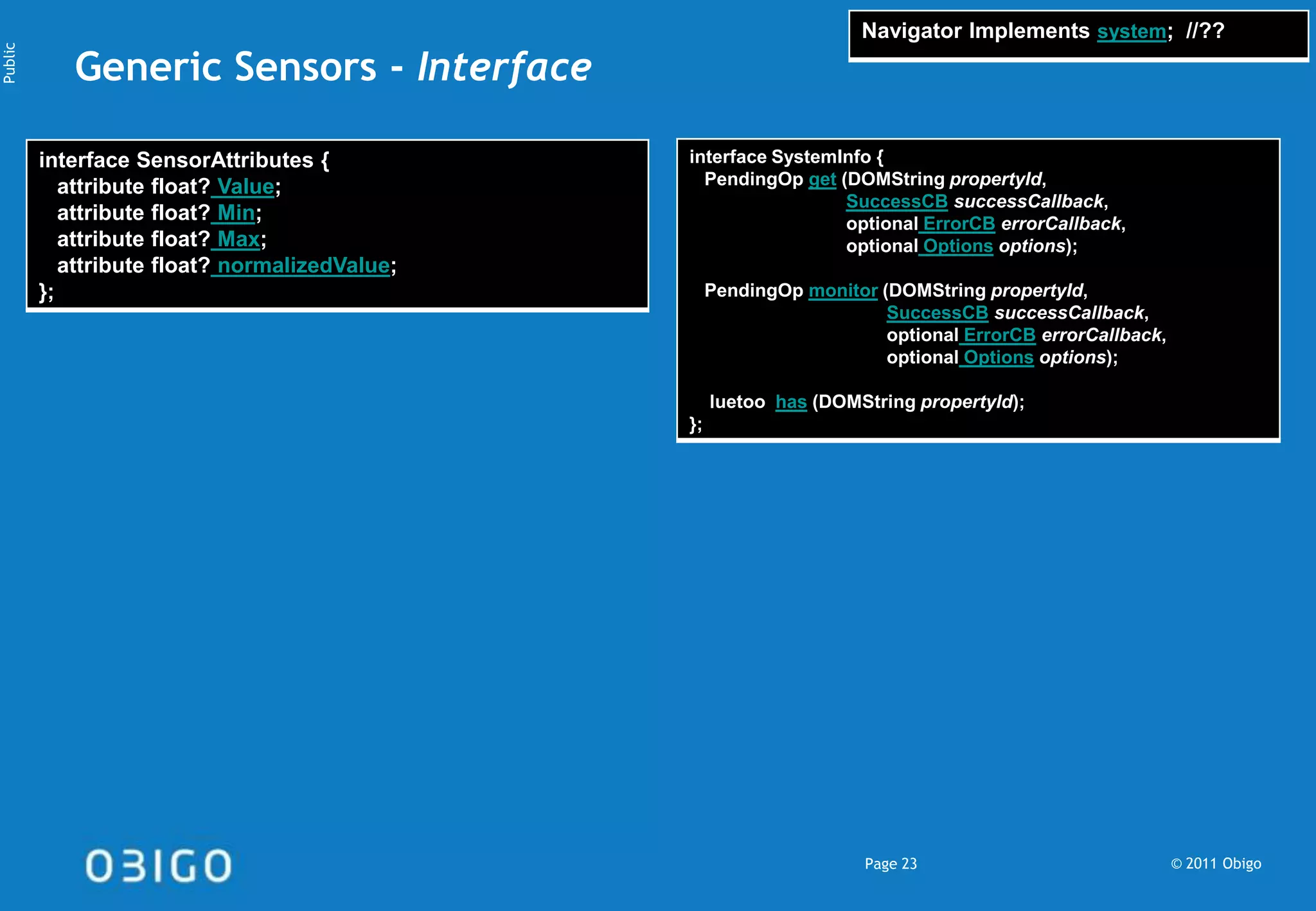

23. Generic Sensors - Interface

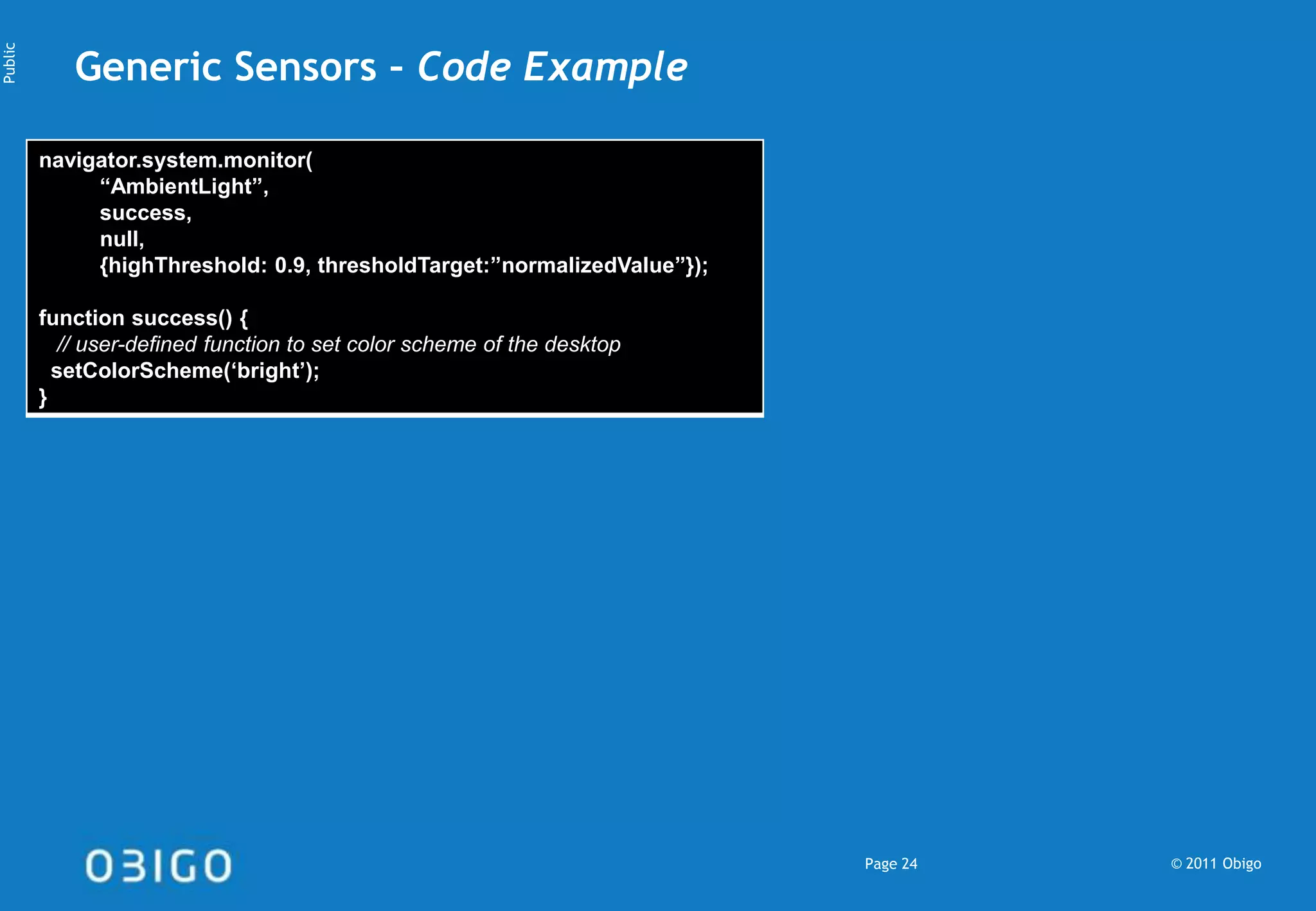

24. Generic Sensors – Code Example

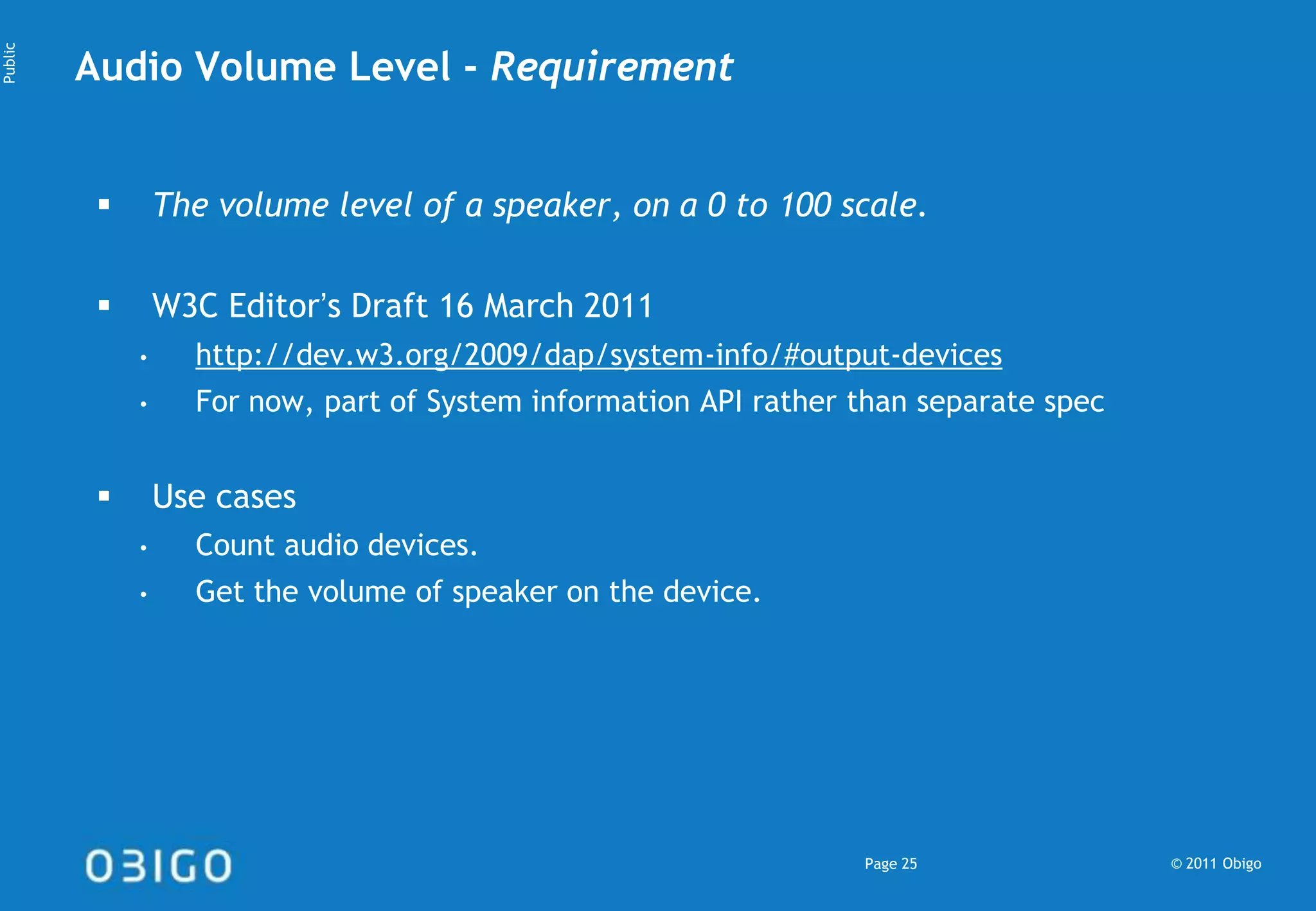

25. Audio Volume Level - Requirement The volume level of a speaker, on a 0 to 100 scale. W3C Editor’s Draft 16 March 2011 http://dev.w3.org/2009/dap/system-info/#output-devices For now, part of System information API rather than separate spec Use cases Count audio devices. Get the volume of speaker on the device.

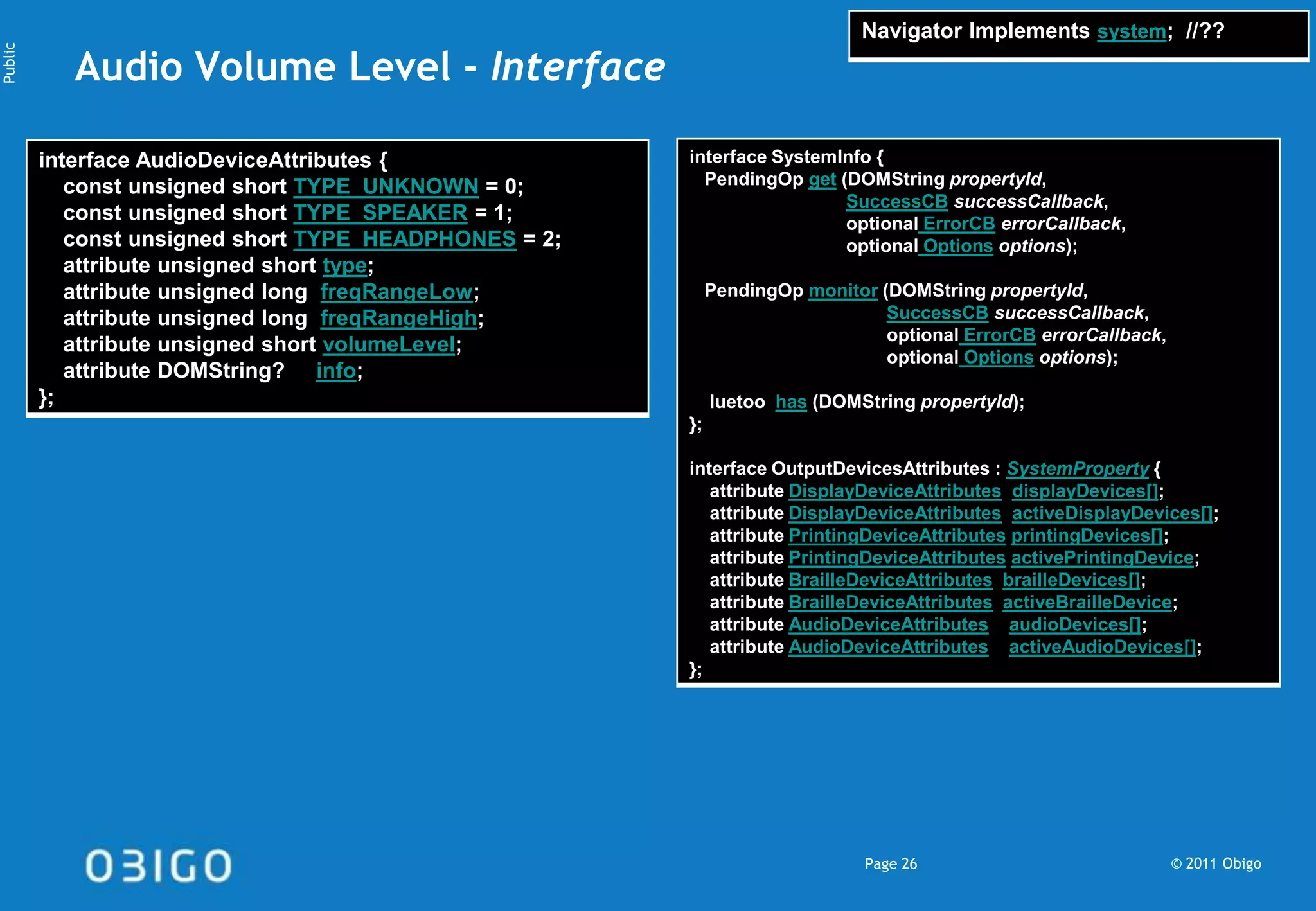

26. Audio Volume Level - Interface

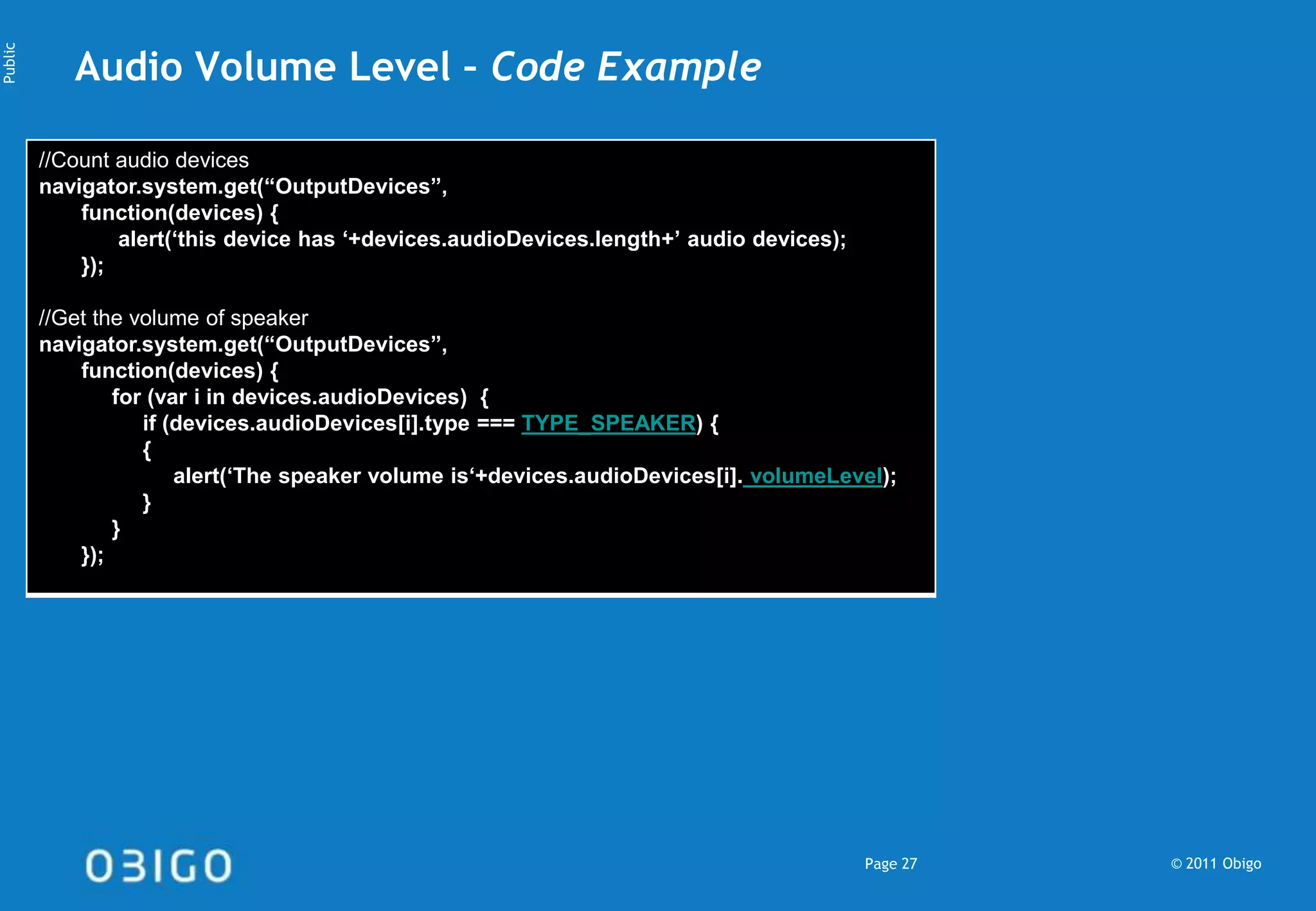

27. Audio Volume Level – Code Example

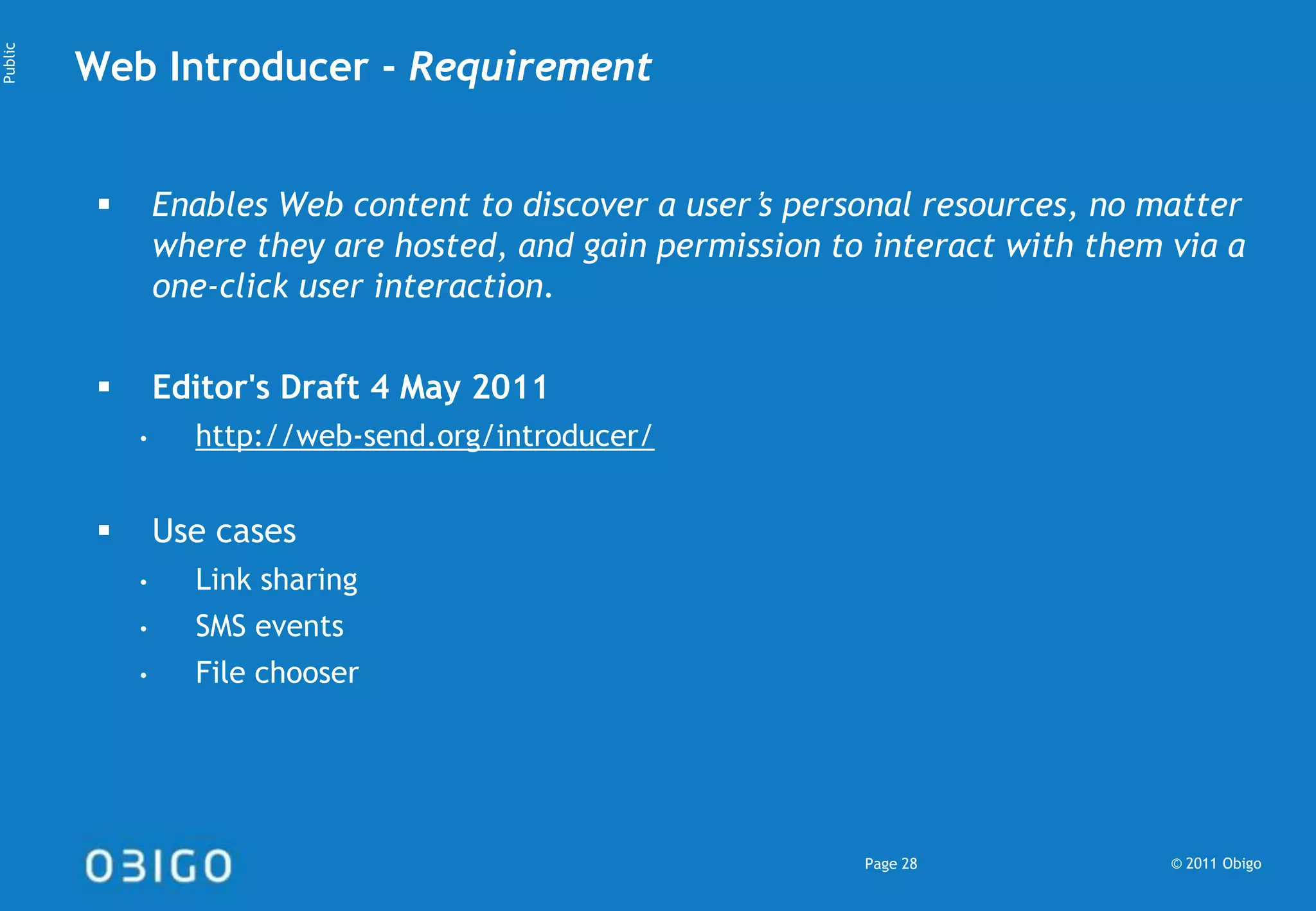

28. Web Introducer - Requirement Enables Web content to discover a user’s personal resources, no matter where they are hosted, and gain permission to interact with them via a one-click user interaction. Editor's Draft 4 May 2011 http://web-send.org/introducer/ Use cases Link sharing SMS events File chooser

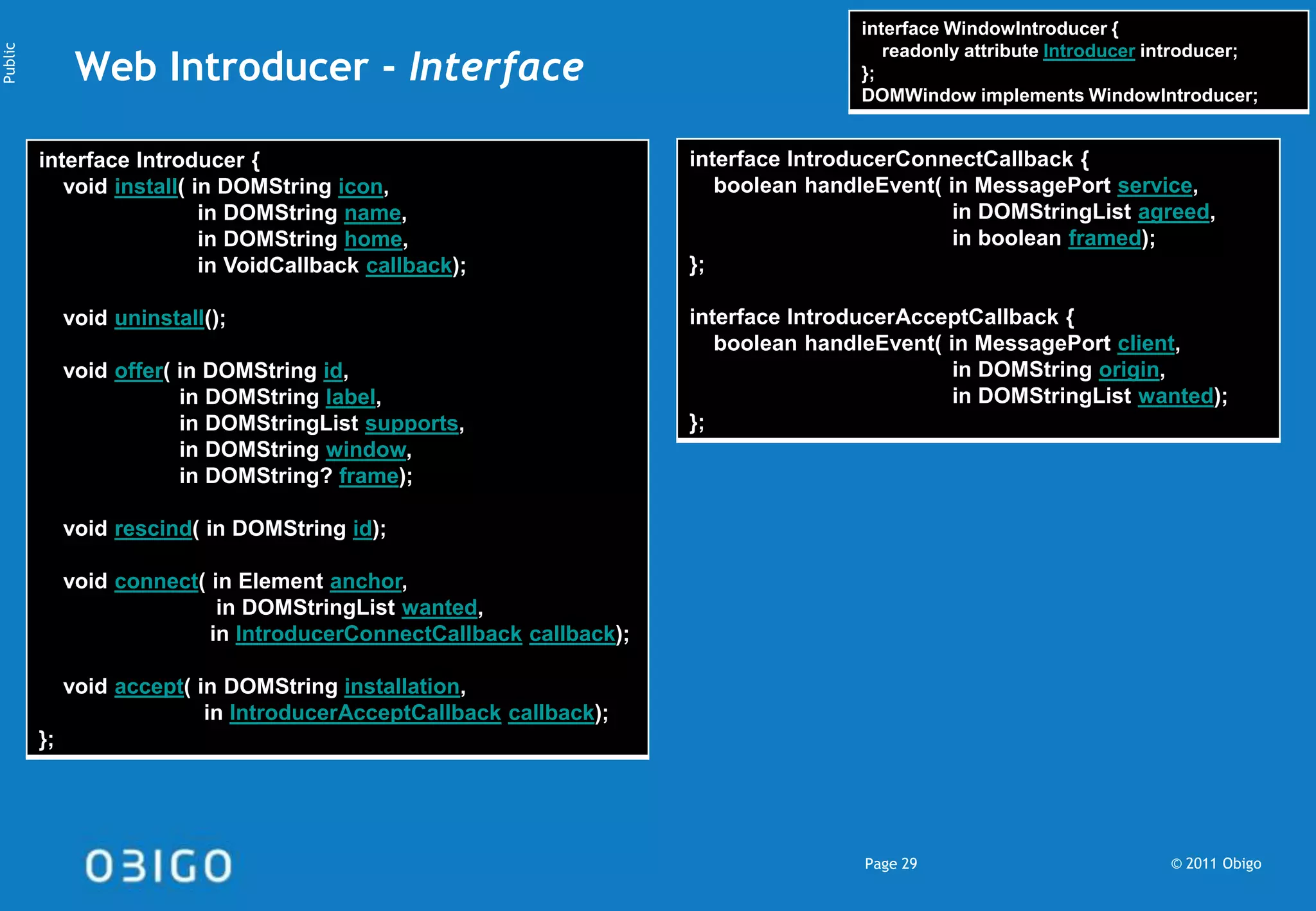

29. Web Introducer - Interface

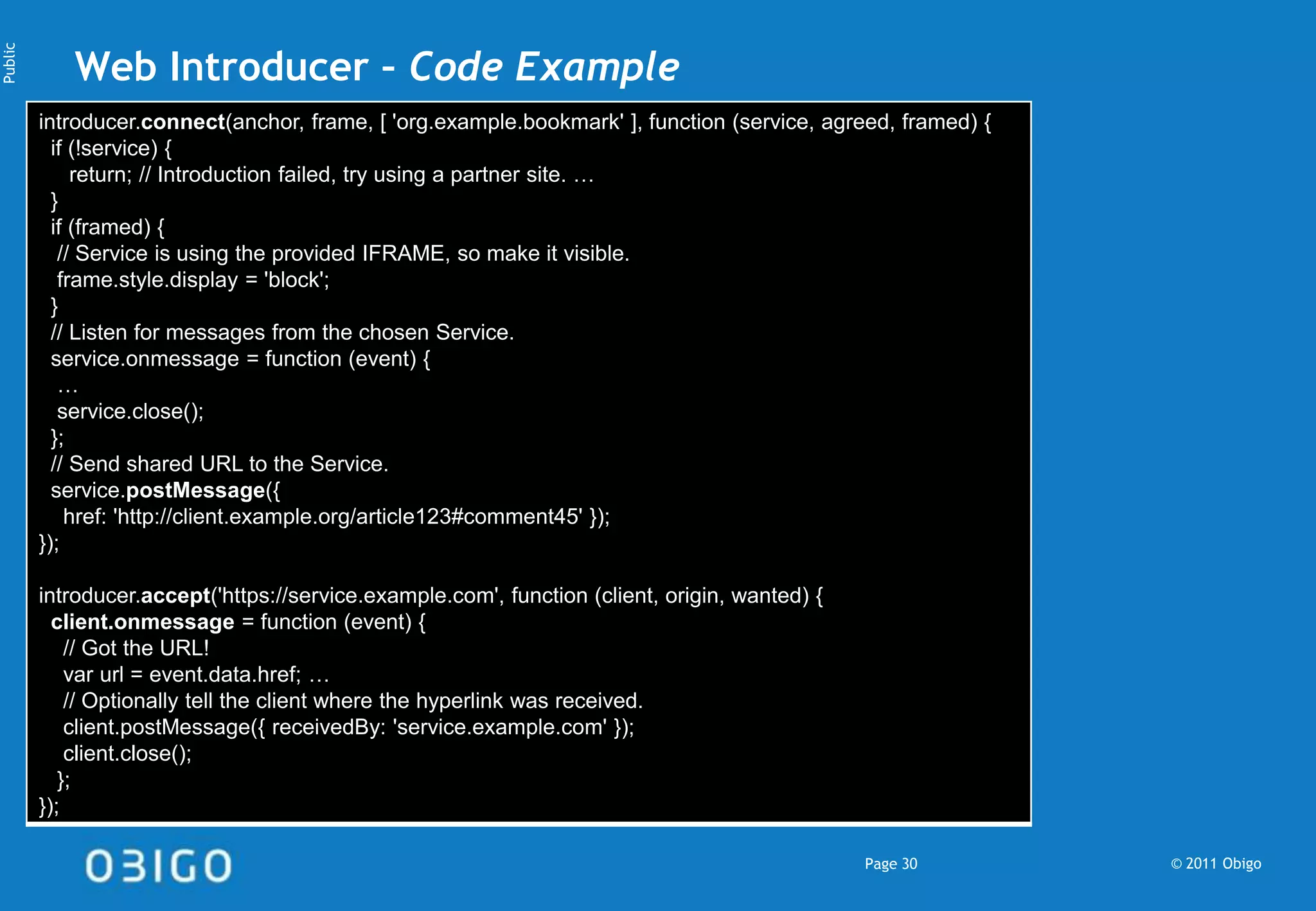

30. Web Introducer – Code Example

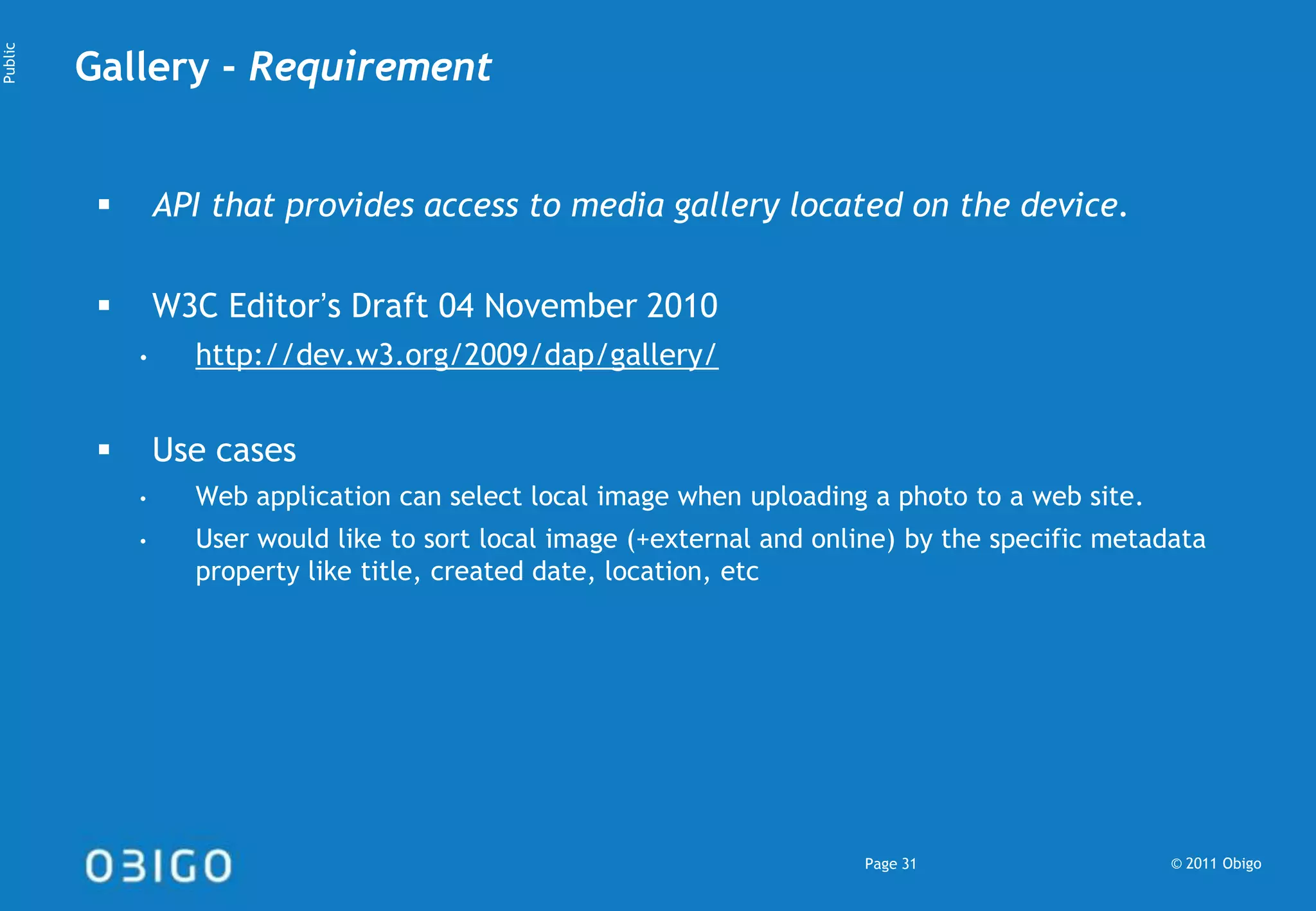

31. Gallery - Requirement API that provides access to media gallery located on the device. W3C Editor’s Draft 04 November 2010 http://dev.w3.org/2009/dap/gallery/ Use cases Web application can select local image when uploading a photo to a web site. User would like to sort local image (+external and online) by the specific metadata property like title, created date, location, etc

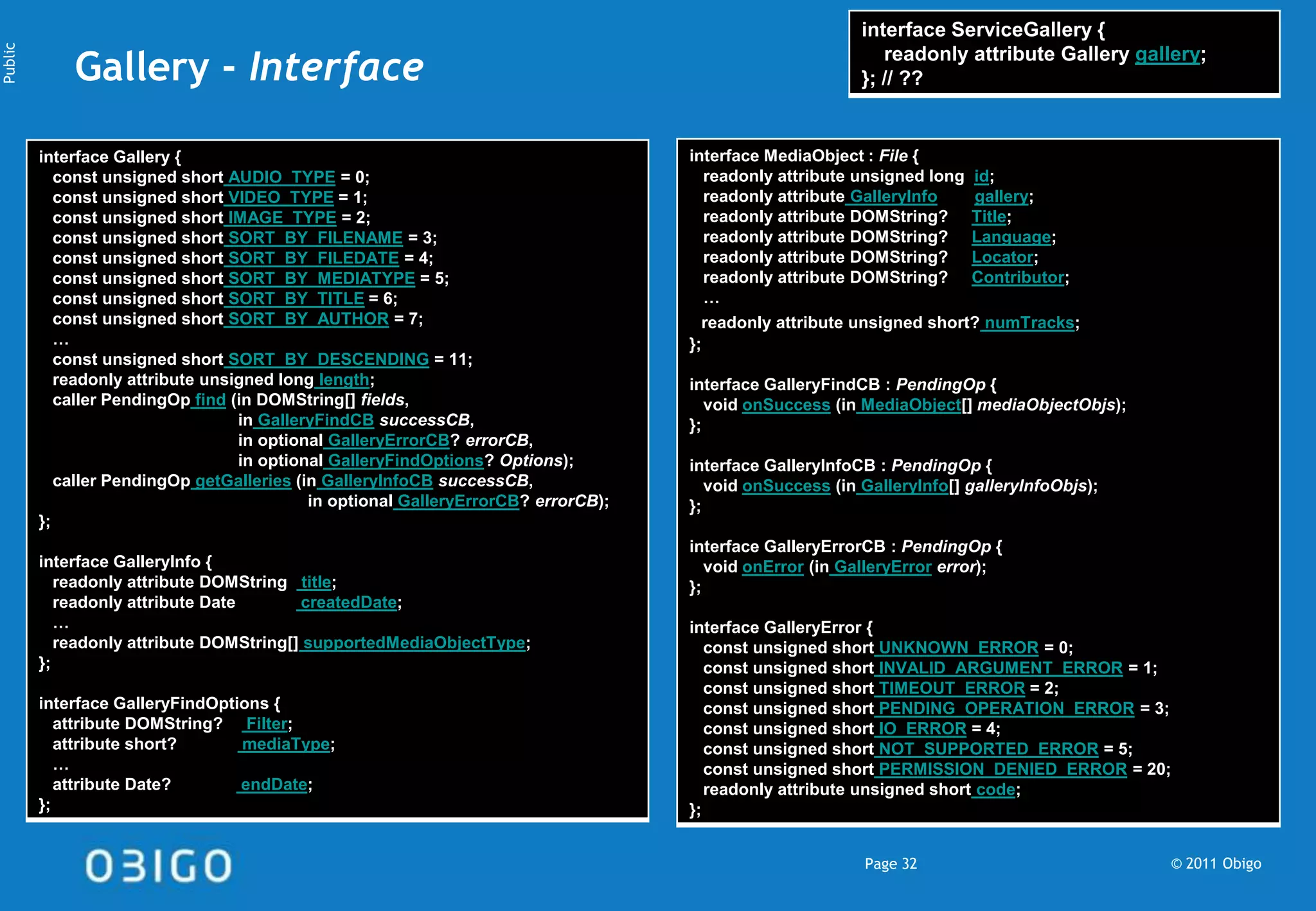

32. Gallery - Interface

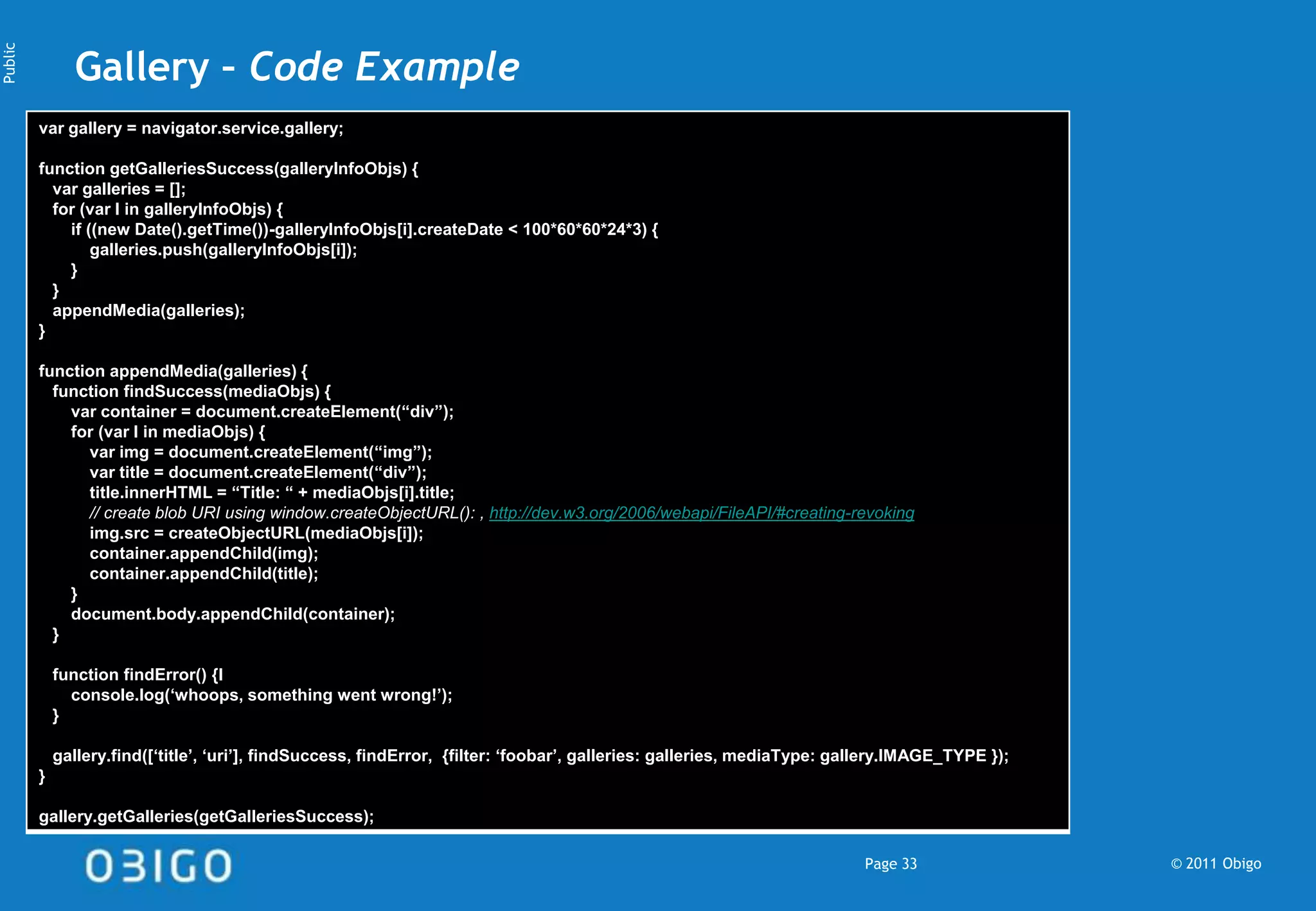

33. Gallery – Code Example

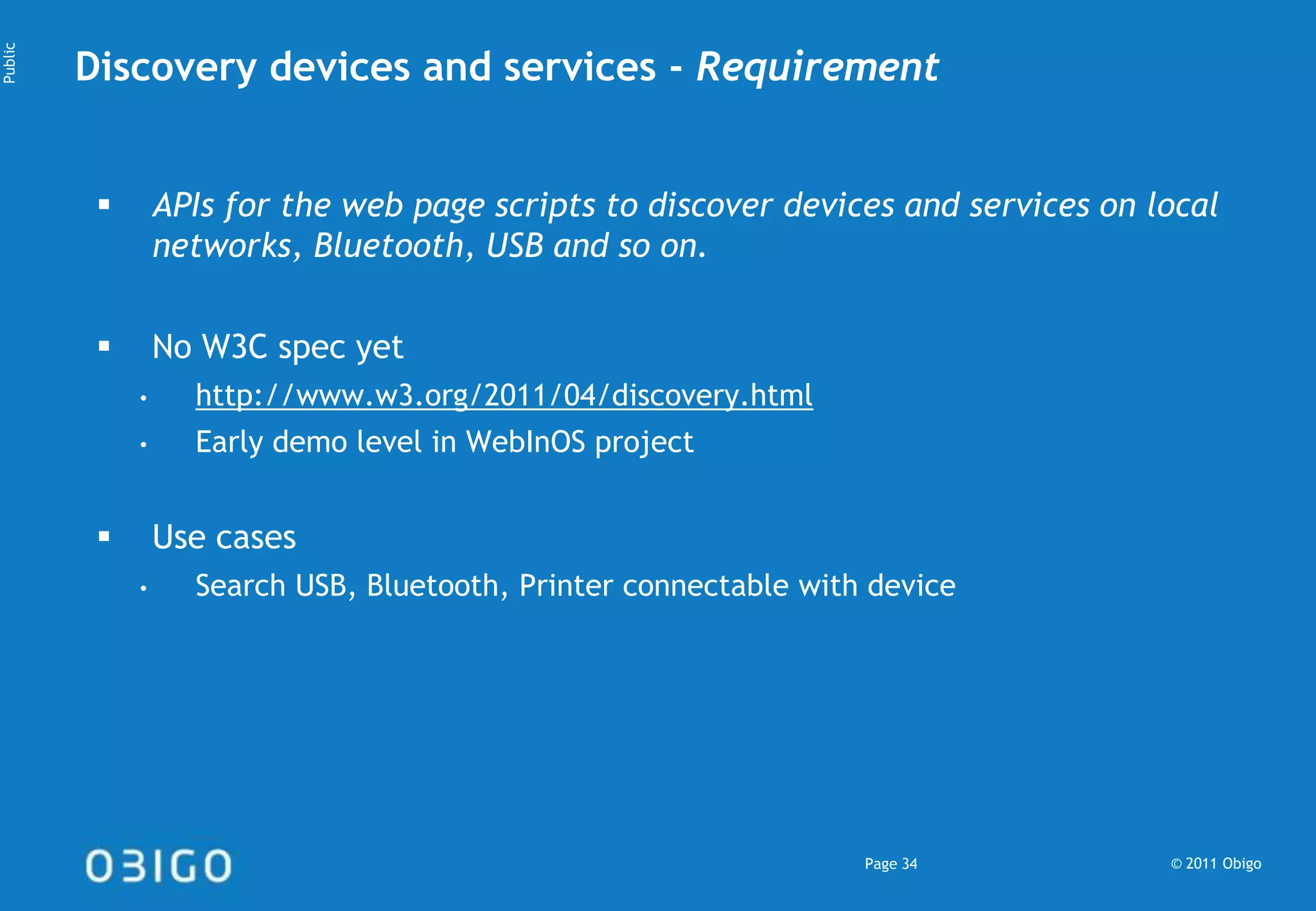

34. Discovery devices and services - Requirement APIs for the web page scripts to discover devices and services on local networks, Bluetooth, USB and so on. No W3C spec yet http://www.w3.org/2011/04/discovery.html Early demo level in WebInOS project Use cases Search USB, Bluetooth, Printer connectable with device

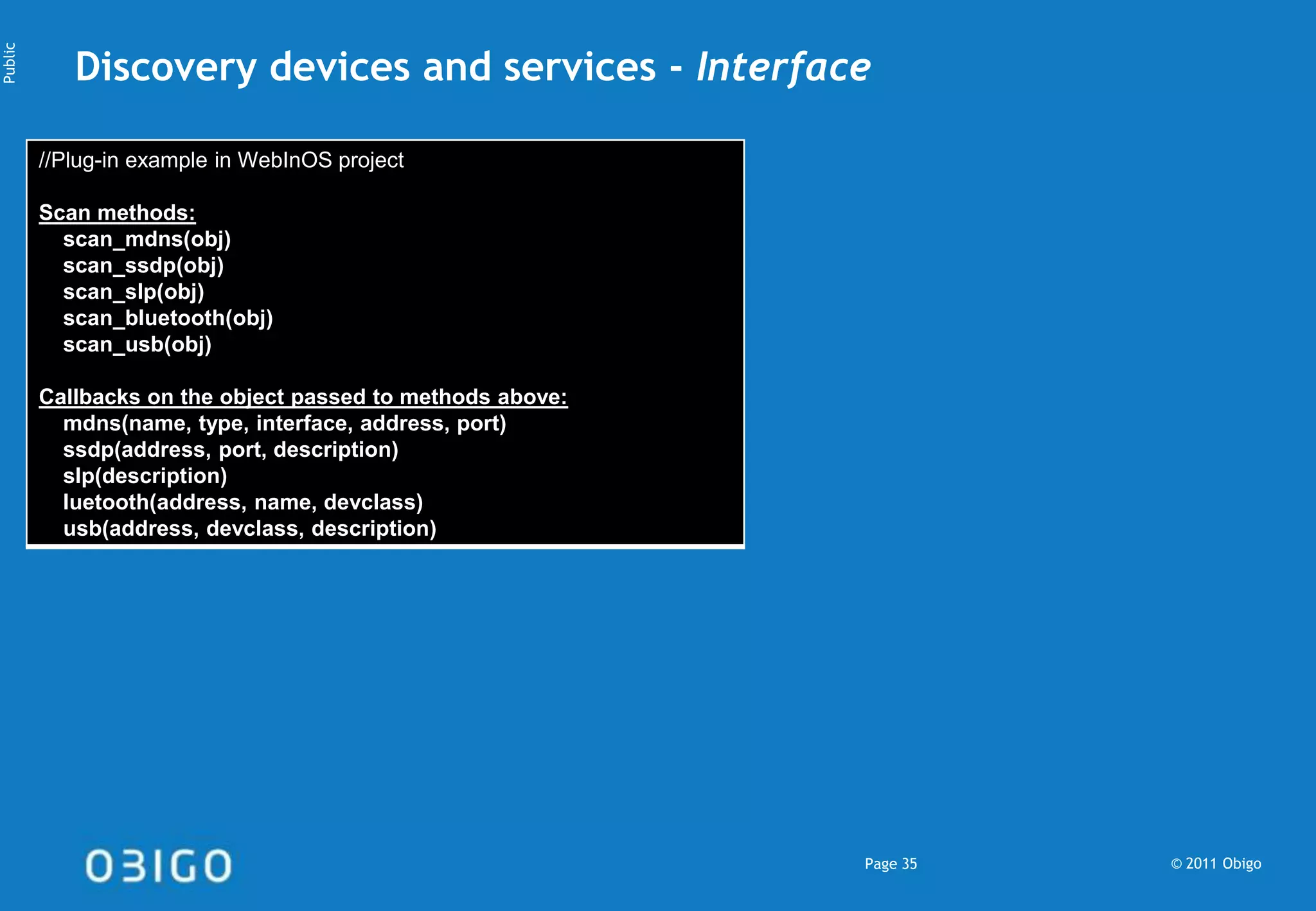

35. Discovery devices and services - Interface

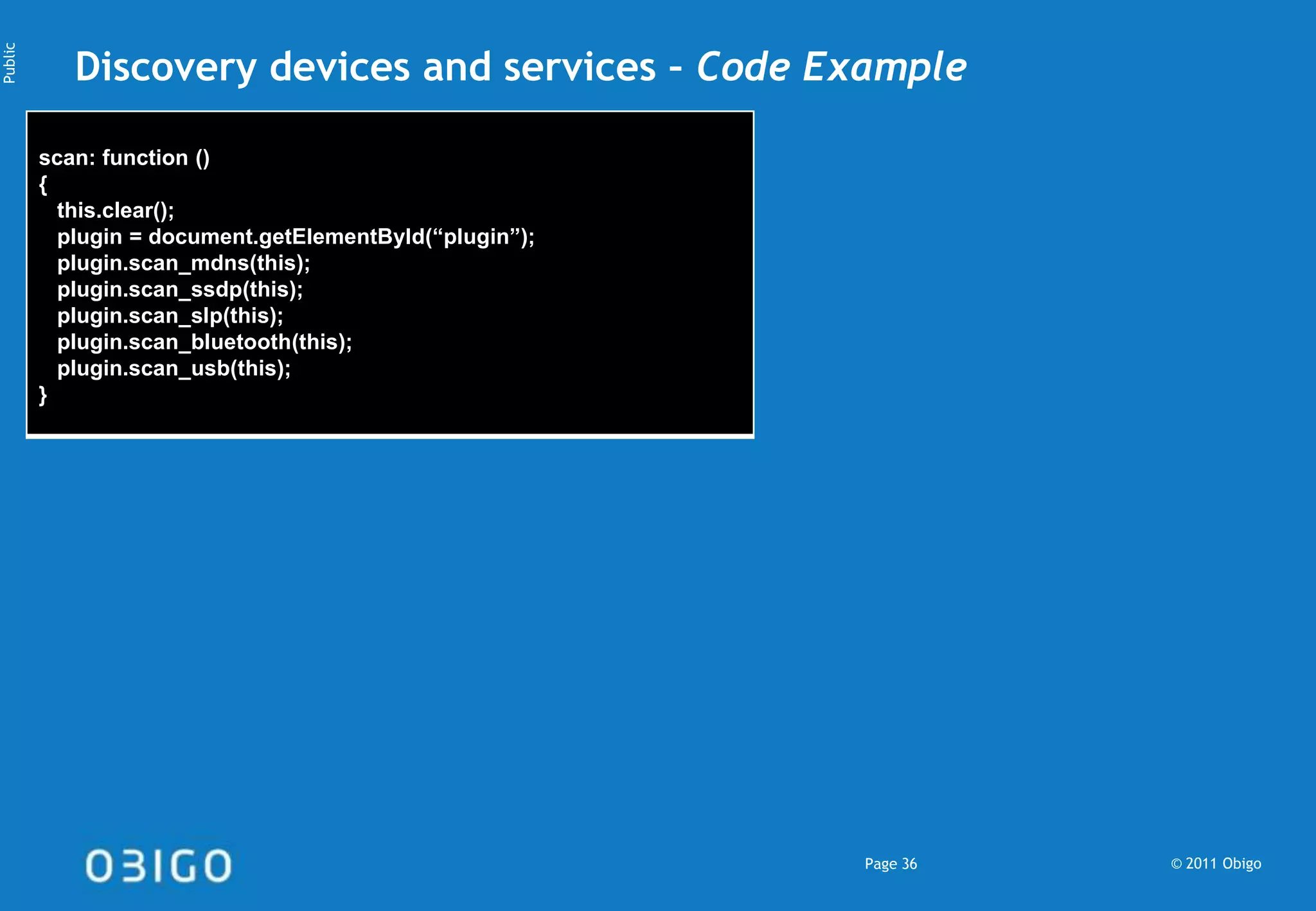

36. Discovery devices and services – Code Example

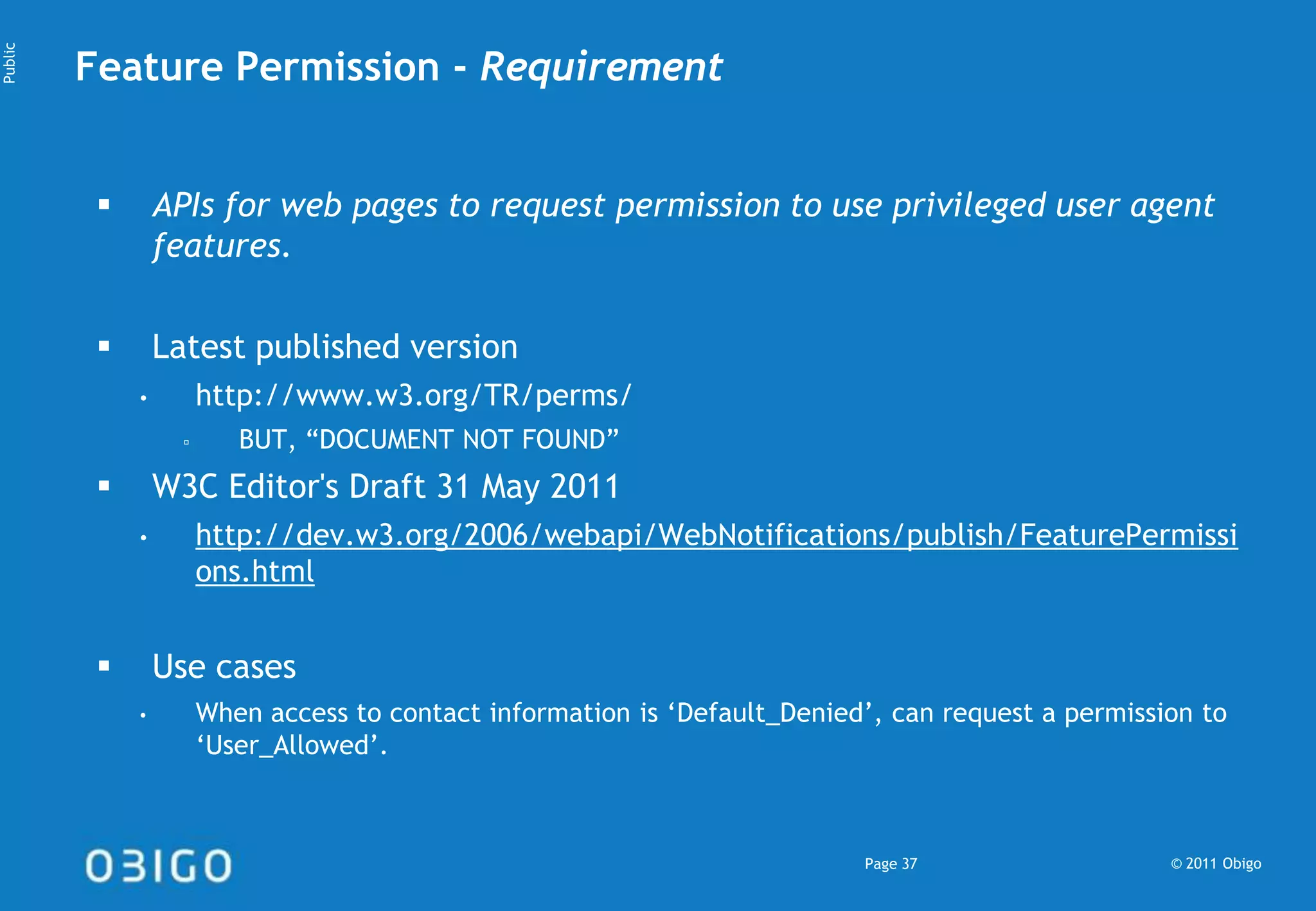

37. Feature Permission - Requirement APIs for web pages to request permission to use privileged user agent features. Latest published version http://www.w3.org/TR/perms/ BUT, “DOCUMENT NOT FOUND” W3C Editor's Draft 31 May 2011 http://dev.w3.org/2006/webapi/WebNotifications/publish/FeaturePermissions.html Use cases When access to contact information is ‘Default_Denied’, can request a permission to ‘User_Allowed’.

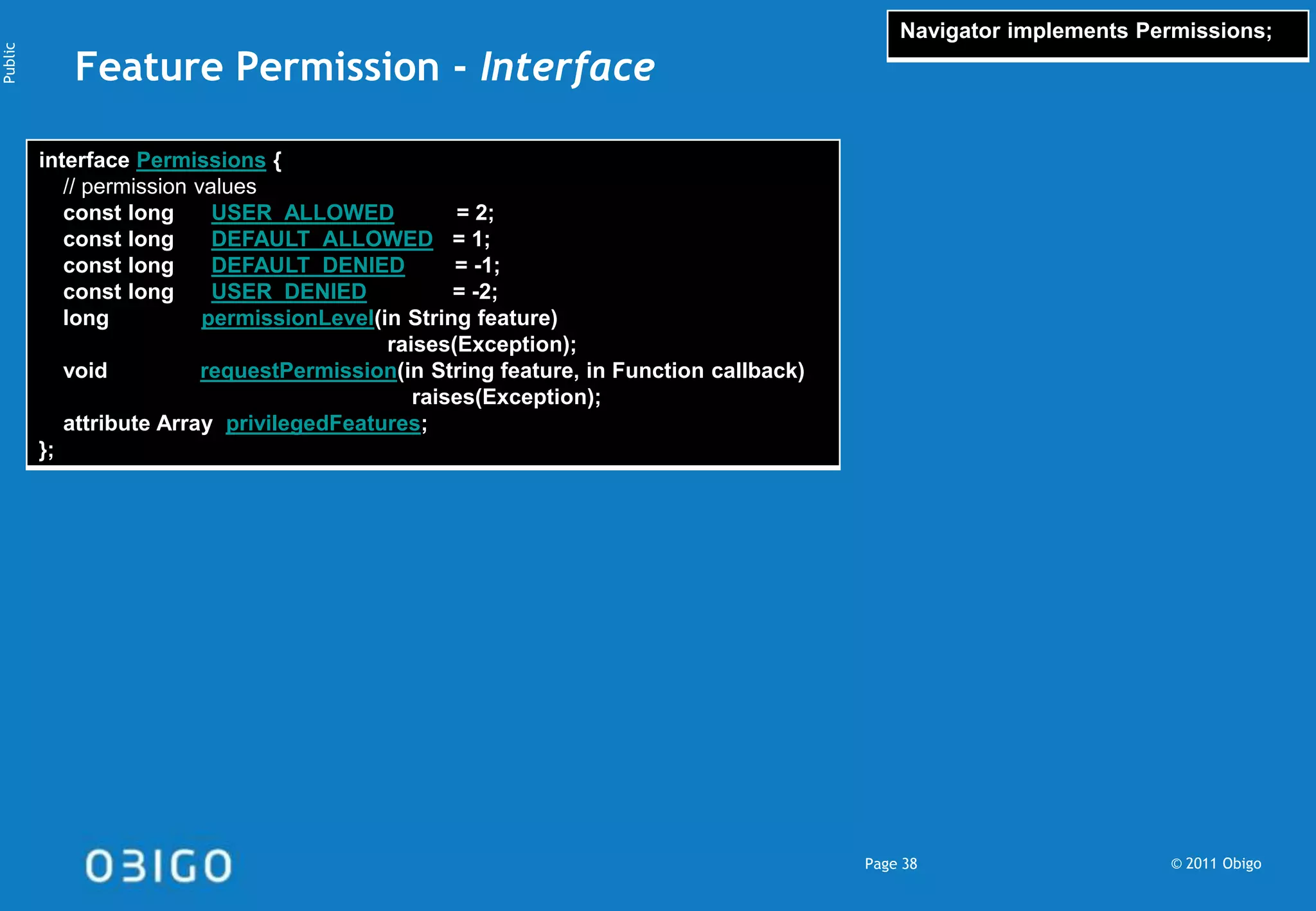

38. Feature Permission - Interface

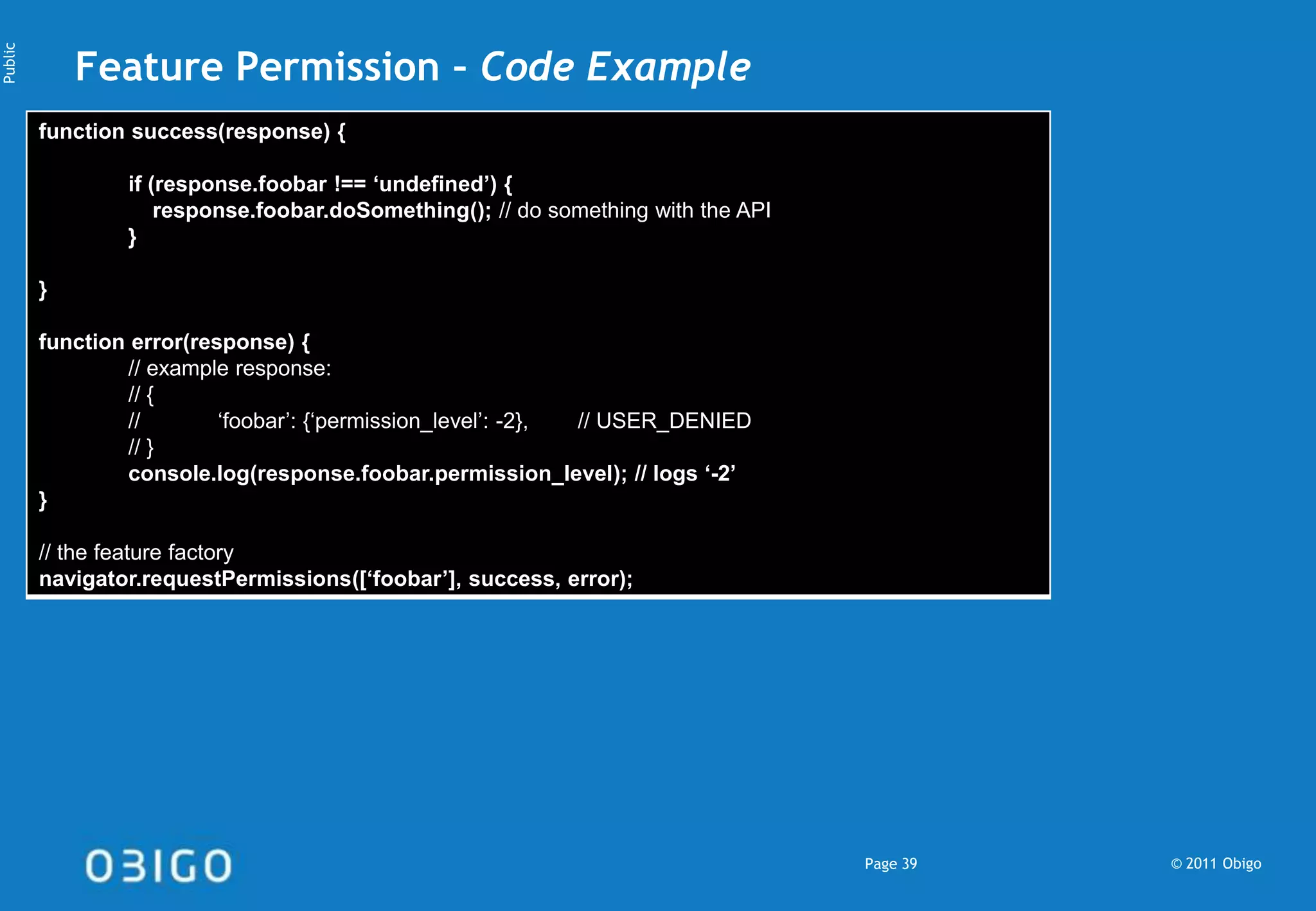

39. Feature Permission – Code Example

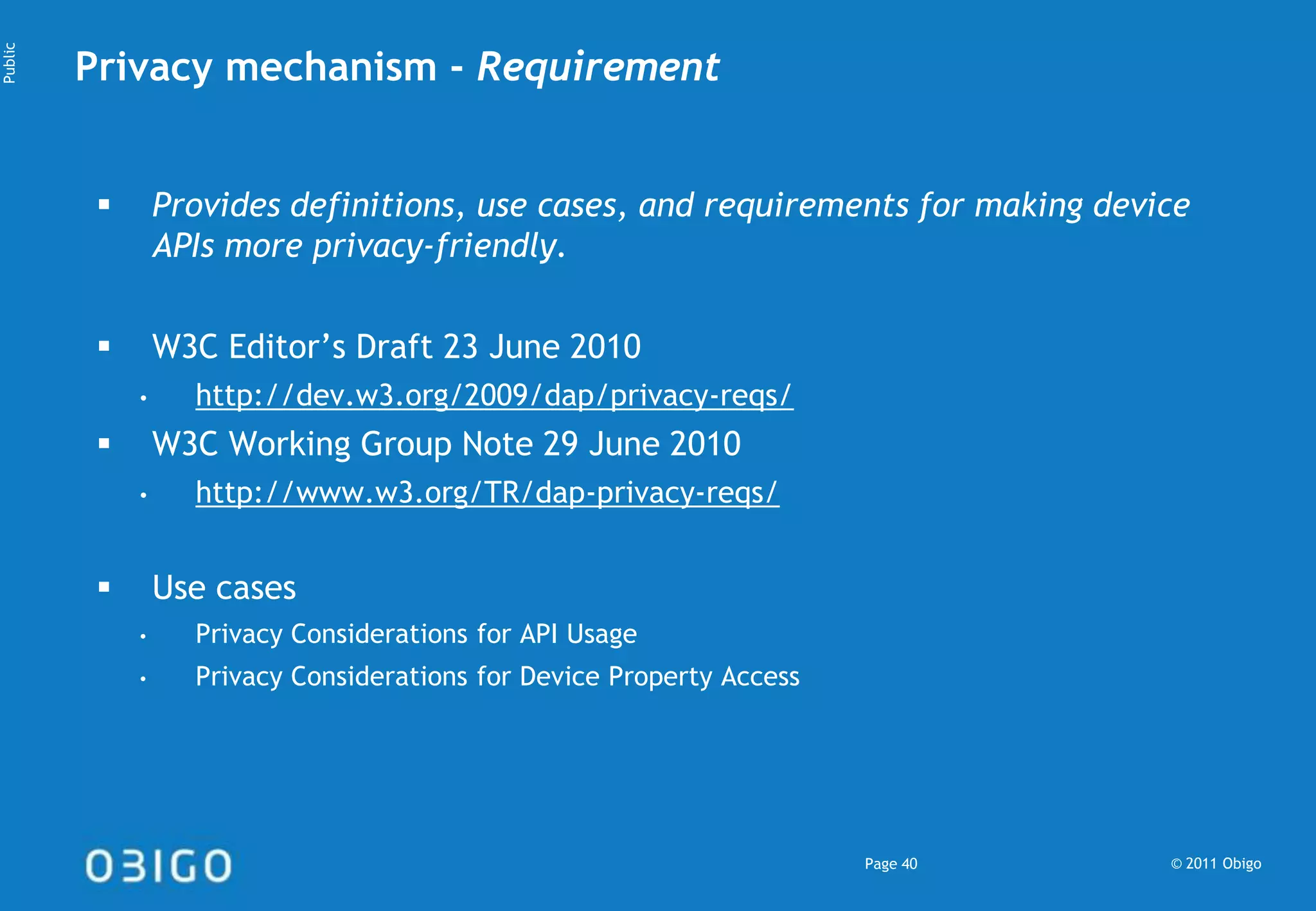

40. Privacy mechanism - Requirement Provides definitions, use cases, and requirements for making device APIs more privacy-friendly. W3C Editor’s Draft 23 June 2010 http://dev.w3.org/2009/dap/privacy-reqs/ W3C Working Group Note 29 June 2010 http://www.w3.org/TR/dap-privacy-reqs/ Use cases Privacy Considerations for API Usage Privacy Considerations for Device Property Access

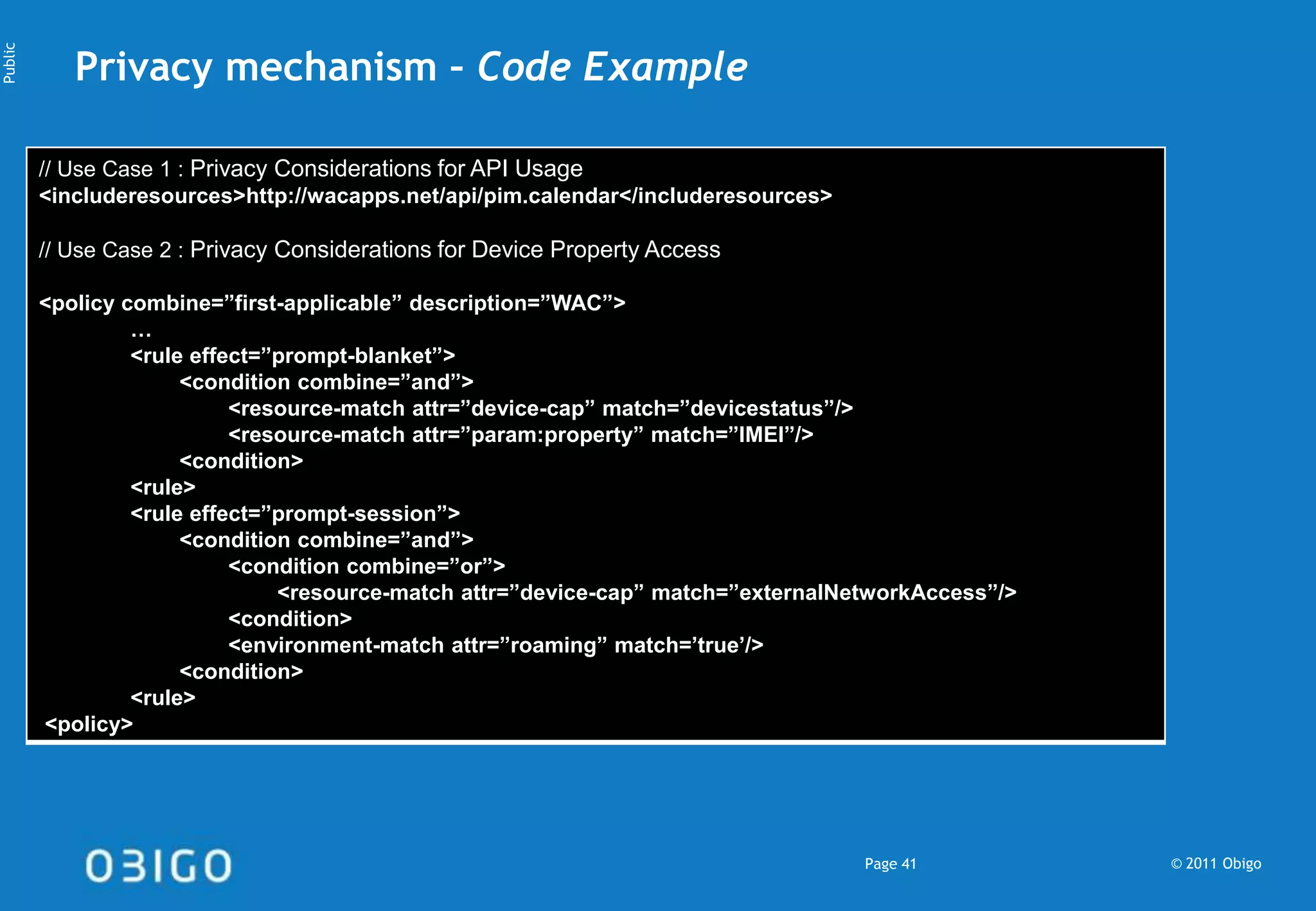

41. Privacy mechanism – Code Example

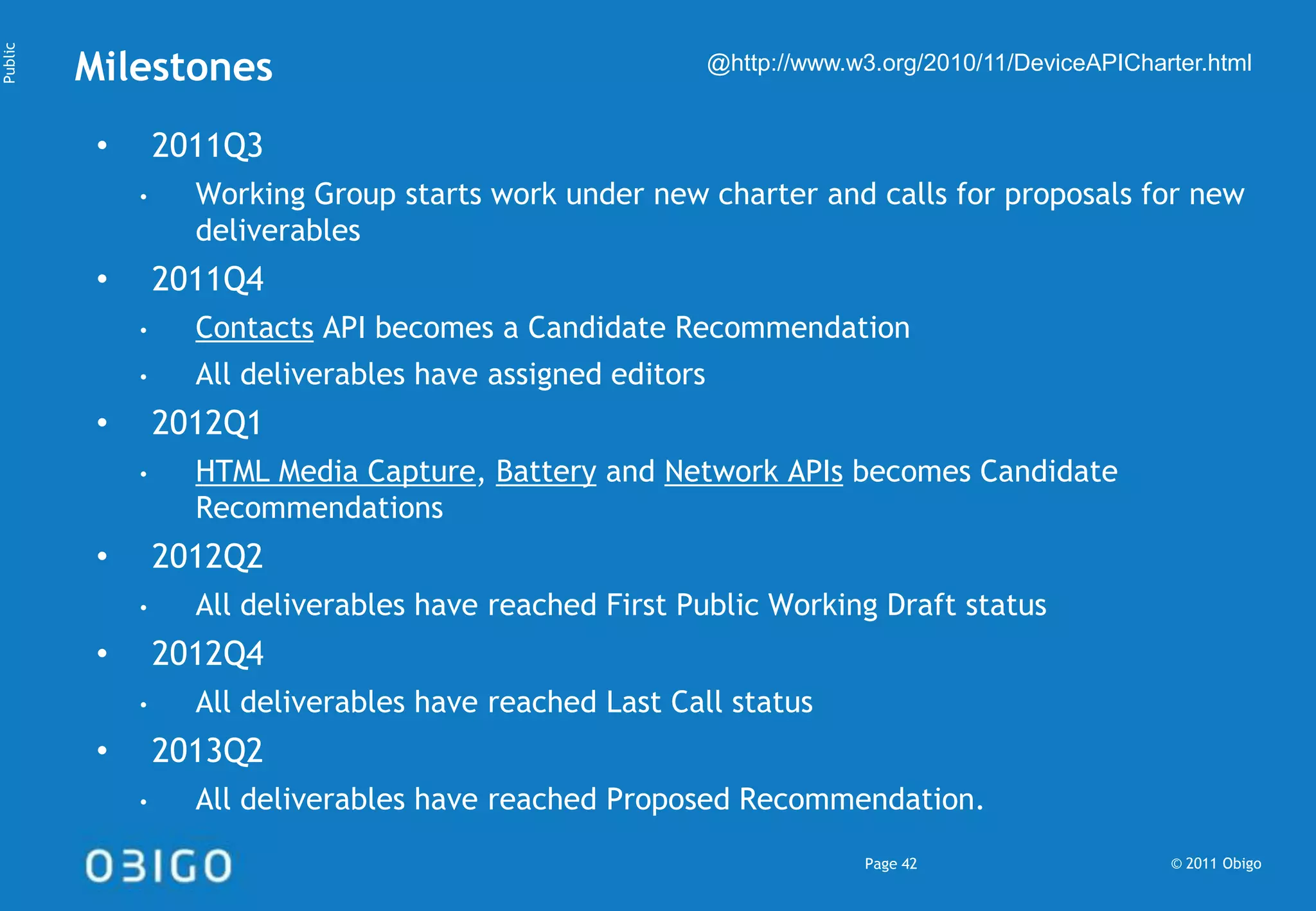

43. Working Group starts work under new charter and calls for proposals for new deliverables

44. 2011Q4

45. Contacts API becomes a Candidate Recommendation

46. All deliverables have assigned editors

47. 2012Q1

48. HTML Media Capture, Battery and Network APIs becomes Candidate Recommendations

49. 2012Q2

50. All deliverables have reached First Public Working Draft status

51. 2012Q4

52. All deliverables have reached Last Call status

53. 2013Q2
