The VPL-FE40 projector delivers 4,000 lumens of brightness at SXGA+ resolution. It uses Sony's BrightEra technology for higher quality pictures and increased reliability compared to conventional LCD panels. The projector is suitable for presentations in mid-size auditoriums and offers flexible connectivity, networking capabilities, and 3-year support.

1. VPL-FE40
SXGA+, 4,000 Lumens Installation Projector with
BrightEra technology for higher quality pictures
and increased reliability
Take the beauty and brawn of the VPL-FX40 and gives you a wider choice of content so as to increase
turbo charge it and you have the VPL-FE40, Sony’s the dynamics of your presentations.
new SXGA+ (1400 x 1050) resolution projector.
Also available: VPL-FE40L lens-less version offers a
choice of 3 bayonet lenses to meet the requirements
of your specific applications.
This product comes with PrimeSupport – fast, hassle-
free repairs and a helpline offering expert technical
advice. Which gives you the peace of mind that Sony
is looking after your equipment, and your business.
Features
Delivering an extremely bright 4,000 ANSI lumens at *Networking Presentations
SXGA+ Resolution and featuring a unique, new angu- When the VPL-FE40 projector is installed on a LAN via
lar design body, the VPL-FE40 is an excellent project- RJ45, presentations can be projected from any PC on
or for detailed high-impact multimedia presentations that network - whether connected via a LAN cable or
in almost any venue. wirelessly.
"New feature" High-Speed Image Transfer
The VPL-FE40 Installation Projector is one of the first over IP Networks: Because the VPL-FE40 projector
to incorporate our new BrightEra Inorganic alignment employs efficient compression and transmission tech-
layer 0.79-inch LCD Panels manufactured by the Sony niques, they can receive and project images via IP
Panel Group. networks for effective presentations from any net-
worked PC.
BrightEra High Temperature Polysilicon (HTPS) LCD
panels represent the very latest technology in precise Monitor Out
liquid crystal alignment, offering increased reliability The VPL-FE40 projector can display the image simul-
and higher picture quality. In comparison to conven- taneously on a large screen and on an additional
tional LCD panels, BrightEra technology greatly aug- monitor (via a 15-pin D Sub connection), so that the
ments the panel’s resistance to ultraviolet light, which user can face the audience and still see the informa-
is a key factor in panel reliability. In addition, an in- tion being shown.
crease to the aperture ratio from traditional panels
enables the projectors to produce an incredibly bright Low Fan Noise
image, while avoiding colour separation or the For an undisturbed presentation, quiet operation is
’rainbow effect’ of the final image that can affect very important. The noise level of the VPL-FE40 is
some other projection technologies. 28dB in low mode which is considered less than a
whisper.
The VPL-FE40 offers SXGA+ resolution to project clear
and crisp images even on large screens up to 600 RS-232C
inches (measured diagonally). With its outstanding
Connections include an RS-232C port for control of
functionality, simple operation and network capabilit-
the projector.
ies, the VPL-FE40 projector provides you with the
tools to perform seamless presentations.
Password Protection
The projector’s ability to accept a broad array of sig- When this function is activated a password is required
nals, including those from sources equipped with the to use the projector (if the password is lost, Sony is
latest High-Definition Multimedia Interface (HDMI), able to retrieve it).
www.pro.sony.eu/projectors 1

2. VPL-FE40
Control Panel Lock a mid-size auditorium due to its exceptional picture
This function locks the controls on the top and side of quality, multiple "ease of use" features and 4,000
the projector, to prevent unauthorised or unintention- ANSI Lumen Brightness.
al use of the controls. Functionality can be switched
"on" or "off". High Brightness
The VPL-FE40 uses BrightEra 0.79-inch 3-LCD inor-
Off and Go ganic panels to achieve a leap forward in picture qual-
No cool down time needed, just switch off and pack ity within its category for a high maximum brightness
away! The fan continues to cool the VPL-FE40 after setting of 4,000 ANSI lumens. This means neither
the power supply is removed, enabling users to un- natural nor artificial lights need to be ’blacked-out’ in
plug the projector immediately after use, without order for the images to be seen with maximum clar-
damaging the lamp or optics. Other projectors need ity. The VPL-FE40 also offers a 3,400-lumen mode for
to remain connected to the power supply to cool the more economical operation when higher brightness is
projector after use. not needed.
Direct On / Off Increased reliability & longer life
Ceiling mounted projectors notoriously remain on Sony BrightEra branded High Temperature Polysilicon
after the meeting concludes and the attendees leave (HTPS) LCD panels represent the latest technology in
the room which in turn burns unnecessary hours on precise liquid crystal alignment. In comparison to con-
the lamp and electricity. The VPL-FE40 can be set to ventional LCD panels, BrightEra technology greatly
skip the standby mode, so that it can be turned on / augments the panel’s resistance to ultraviolet light,
off directly using a main switch. which is a key factor key in panel reliability.
Power Zoom/Focus/Picture Shift (Horizontal and Flexible inputs and outputs
Vertical) A cornucopia of features - 2X RGB inputs, 5BNC,
The Zoom, Focus, and Horizontal and Vertical Picture RS232C, HDMI (HDCP), RJ45 with Network Presenta-
Shift functions available with the projector’s supplied tion*, composite video, S-Video and component video
power-operated lens and optional lenses (except and Monitor Out, the VPL-FE40 is packed.
VPLL-1008) can be controlled both from the projector
control panel and the supplied Remote Commander- The Magic of Sony 3LCD Technology
unit. Images can be easily adjusted to the desired The Sony VPL-FE40 adopts a 3-LCD system using
settings both during installation and when the project- three 0.79-inch inorganic LCD Panels, also known as
or is in use. high-temperature polysillicon or HTPS. A 3-LCD pro-
jector uses diachronic mirrors to divide white light
ID Function for Multi-Projector Installation emitted from a high-density lamp into three basic col-
Multiple Projectors, one Remote Commander! VPL- ours of Red, Green and Blue. The beams pass through
FE40 projectors have a built-in ID function, so each three LCD (HTPS) panels before being reassembled by
projector can be controlled independently from a a prism and projected onto the screen.
single Remote Commander unit.
3-LCD projectors achieve fine-gradation in dark areas
ECO INFO while the high light efficiency ensures good focus and
vivid colours, even in normal lighting conditions. 3LCD
Halogenated flame retardants are not used in cabinets
technology avoids the ’rainbow effect’ or colour separ-
or printed wiring boards.
ation to the final image that can affect some other
projection technologies, such as DLP. Images pro-
Corrugated cardboard is used for the packaging cush-
duced on a 3-LCD system are bright, create a more
ions.
natural colour and are gentle on the eye
Standby power consumption: 0.5 W.
3 Year Service & Support
All Sony business projectors come supplied with a
3-year support pack which offers unique extra ser-
vices and benefits.
• 3 years cover
Benefits • Free telephone helpdesk support in 5 languages
• Collection and delivery anywhere in EU, Norway
Versatility and Switzerland
The VPL-FE40 projector is ideal for use in the execut-
ive boardroom, large classroom, gymnasium or even
www.pro.sony.eu/projectors 2

3. VPL-FE40
Technical Specifications
Optical Operating temperature 0 to 35 °C (32 to 95 °F)
Operating humidity 35 to 85% (no
Projection system 3 LCD panels, 1 lens projec- condensation)
tion system
Storage temperature -20 to 60 °C (-4 to 140 °F)
LCD panel 0.79-inch SXGA+ panel,
Storage humidity 10 to 90%
4,410,000 (1400 x 1050 x
3) pixels
Projection lens 1.3 times power zoom lens, Inputs/Outputs
f30.6 to 39.7 mm, F1.66 to
2.18 VIDEO IN Video Composite Video (RCA
Lamp 275W ultra high pressure phono jack) S Video Y/C Mini
Lamp DIN 4-pin Audio Stereo (RCA
phono jack x2)
Screen coverage 40 to 600 inches
INPUT A Analog RGB HD D-sub
Light output 4000 ANSI lumens (lamp 15-pin
mode high) , 3200 ANSI lu- (female) Audio Stereo mini
mens (lamp mode standard) jack
INPUT B Analog RGB HD D-sub
Signals 15-pin (female) Audio, Ste-
reo mini jack
Color system NTSC3.58, PAL, SECAM, INPUT C Analog RGB/component BNC
NTSC4.43, PAL-M, PAL-N, x5 (female) Audio Stereo
PAL60 (automatically/manu- mini jack
ally selected)
INPUT D Digital RGB/Audio HDMI
Resolution Video : 750 TV lines, RGB : (HDCP)
1400 x 1050 pixels
INPUT E Network RJ45: 100BASE-TX/
Acceptable computer fH : 19 to 92KHz, fV : 48 to 10BASE-T
signals 92Hz (Up to UXGA (fV
OUTPUT Monitor out HD D-sub
60Hz))
15pin Audio Stereo mini jack
Acceptable video signals 15k RGB 50/60Hz, Progress- (variable out)
ive Component 50/60Hz,
REMOTE RS-232C: D-sub 9 pin
DTV (480/60i, 575/50i, 480/
(female)
60p, 575/50p, 720/60p,
720/50p, 1080/60i, 1080/ Control S IN Stereo mini jack (plug-in-
50i, 1080/60p, 1080/50p), power)
Composite Video, Y/C Video
Supplied Accessories
Speakers Remote Commander
Speakers 1.8 W x 2 (Stereo) Unit
Size AA (R6) batteries
Lens cap
General AC power cord
Dimensions (W x H x D) 532 x 145 x 352 mm, (21 x Operating Instructions
5 3/4 x 13 7/8 inches) and Application
Mass Approx. 9.8 kg (21 lbs 10 Software (CD-ROM)
oz) Quick Reference Manual
Power requirements AC 100 to 240 V, 4.1-1.7 A, Safety Regulations
50/60 Hz Security Label
Power consumption Max. 400 W, Standby 15 W, Warranty Card
Standby (low) 0.5 W
Heat dissipation 1365 BTU
www.pro.sony.eu/projectors 3

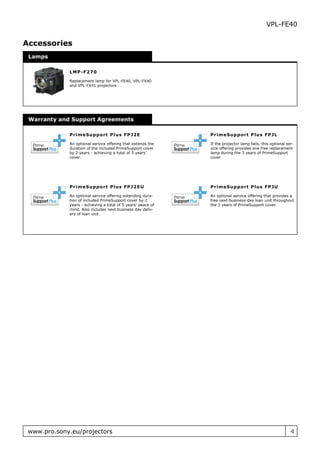

4. VPL-FE40
Accessories
Lamps
LM P - F 270
Replacement lamp for VPL-FE40, VPL-FX40
and VPL-FX41 projectors
Warranty and Support Agreements
P r im eSu ppo r t P lu s F P J 2E P r i m e S up p o r t P l us F P J L
An optional service offering that extends the If the projector lamp fails, this optional ser-
duration of the included PrimeSupport cover vice offering provides one free replacement
by 2 years - achieving a total of 5 years’ lamp during the 3 years of PrimeSupport
cover. cover
P r im eSu ppo r t P lu s F P J 2E U P r i m e S up p o r t P l us F P J U
An optional service offering extending dura- An optional service offering that provides a
tion of included PrimeSupport cover by 2 free next-business-day loan unit throughout
years - achieving a total of 5 years’ peace of the 3 years of PrimeSupport cover.
mind. Also includes next business day deliv-
ery of loan unit.
www.pro.sony.eu/projectors 4
