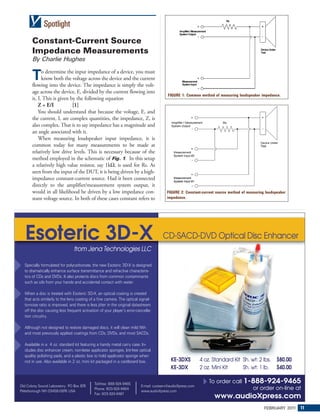

o determine the input impedance of a device, you must
know both the voltage across the device and the current
flowing into the device. The impedance is simply the volt-
age across the device, E, divided by the current flowing into
FIGURE 1: Common method of measuring loudspeaker impedance.
it, I. This is given by the following equation
Z = E/I [1]
You should understand that because the voltage, E, and
the current, I, are complex quantities, the impedance, Z, is
also complex. That is to say impedance has a magnitude and
an angle associated with it.
When measuring loudspeaker input impedance, it is
common today for many measurements to be made at
relatively low drive levels. This is necessary because of the
method employed in the schematic of Fig. 1. In this setup
a relatively high value resistor, say 1kΩ, is used for Rs. As
seen from the input of the DUT, it is being driven by a high-
impedance constant-current source. Had it been connected
directly to the amplifier/measurement system output, it
would in all likelihood be driven by a low impedance con- FIGURE 2: Constant-current source method of measuring loudspeaker
stant voltage source. In both of these cases constant refers to impedance.
Specially formulated for polycarbonate, the new Esoteric 3D-X is designed
to dramatically enhance surface transmittance and refractive characteris-
tics of CDs and DVDs. It also protects discs from common contaminants
such as oils from your hands and accidental contact with water.
When a disc is treated with Esoteric 3D-X, an optical coating is created
that acts similarly to the lens coating of a fine camera. The optical signal-
to-noise ratio is improved, and there is less jitter in the original datastream
off the disc causing less frequent activation of your player’s error-cancella-
tion circuitry.
Although not designed to restore damaged discs, it will clean mild filth
and most previously applied coatings from CDs, DVDs, and most SACDs.
Available in a 4 oz. standard kit featuring a handy metal carry case. In-
cludes disc enhancer cream, non-latex applicator sponges, lint-free optical
quality polishing pads, and a plastic box to hold applicator sponge when
not in use. Also available in 2 oz. mini kit packaged in a cardboard box.
Toll-free: 888-924-9465 To order call 1-888-924-9465
Old Colony Sound Laboratory PO Box 876 E-mail: custserv@audioXpress.com
Peterborough NH 03458-0876 USA
Phone: 603-924-9464
www.audioXpress.com
or order on-line at
Fax: 603-924-9467
www.audioXpress.com
FEBRUARY 201 11
1](https://image.slidesharecdn.com/voicecoil-111125125937-phpapp02/85/Voice-coil-11-320.jpg)

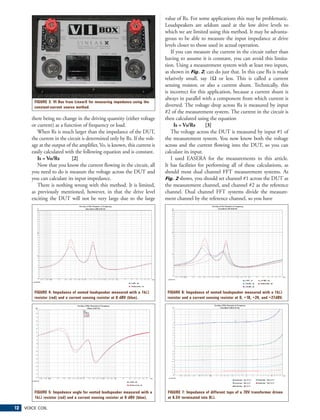

![value of Rs. For some applications this may be problematic.
