The VM-2N is a compact distribution amplifier that takes a single composite video and stereo audio signal as input and distributes it to two identical outputs while maintaining high bandwidth and low distortion. It can be rack mounted and features a bandwidth of 400MHz for video and over 100kHz for audio, with differential gain and phase of less than 0.05% and 0.1 degrees respectively. Power requirements are 230V AC/50Hz or 115V AC.

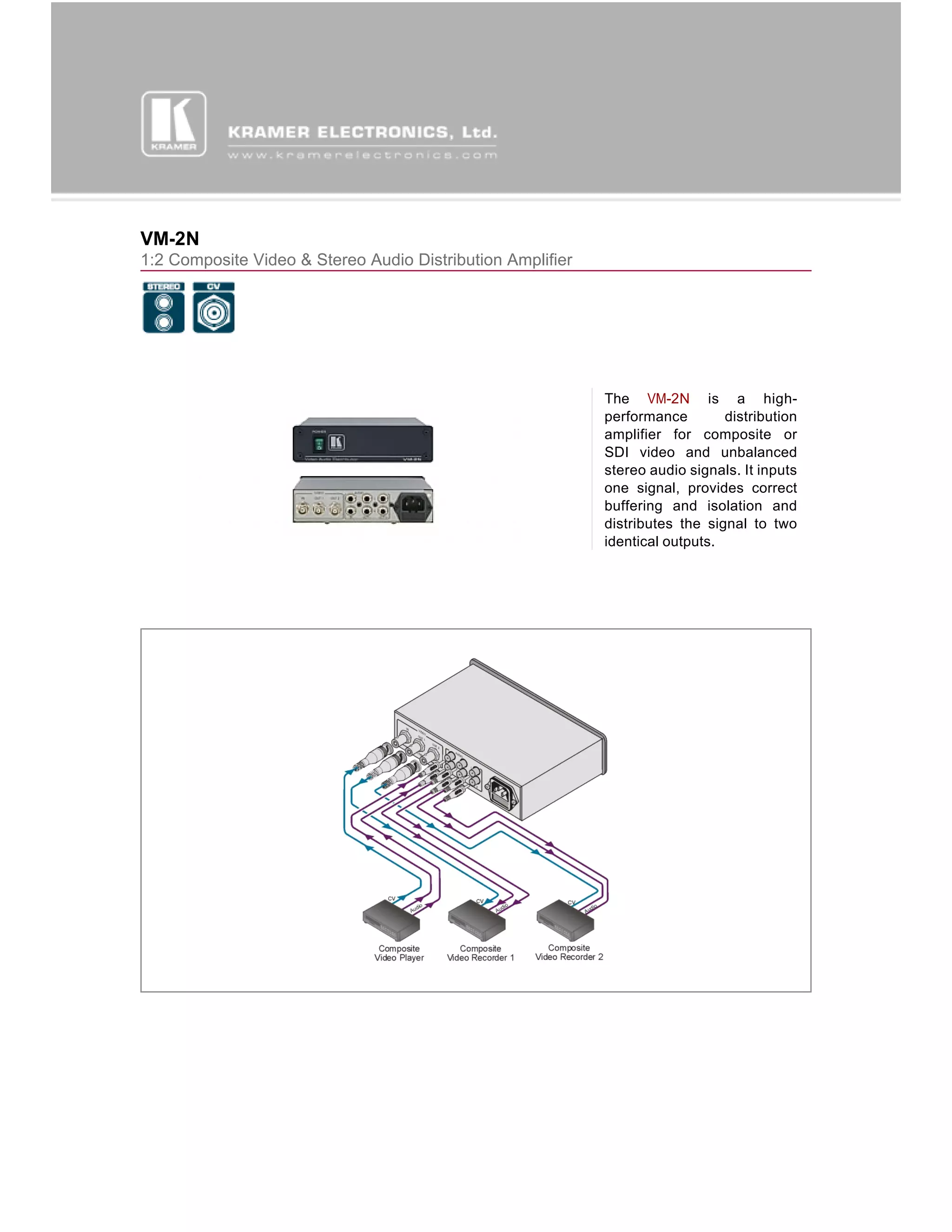

1. VM-2N
1:2 Composite Video & Stereo Audio Distribution Amplifier
The VM-2N is a high-
performance distribution
amplifier for composite or
SDI video and unbalanced
stereo audio signals. It inputs
one signal, provides correct
buffering and isolation and
distributes the signal to two
identical outputs.

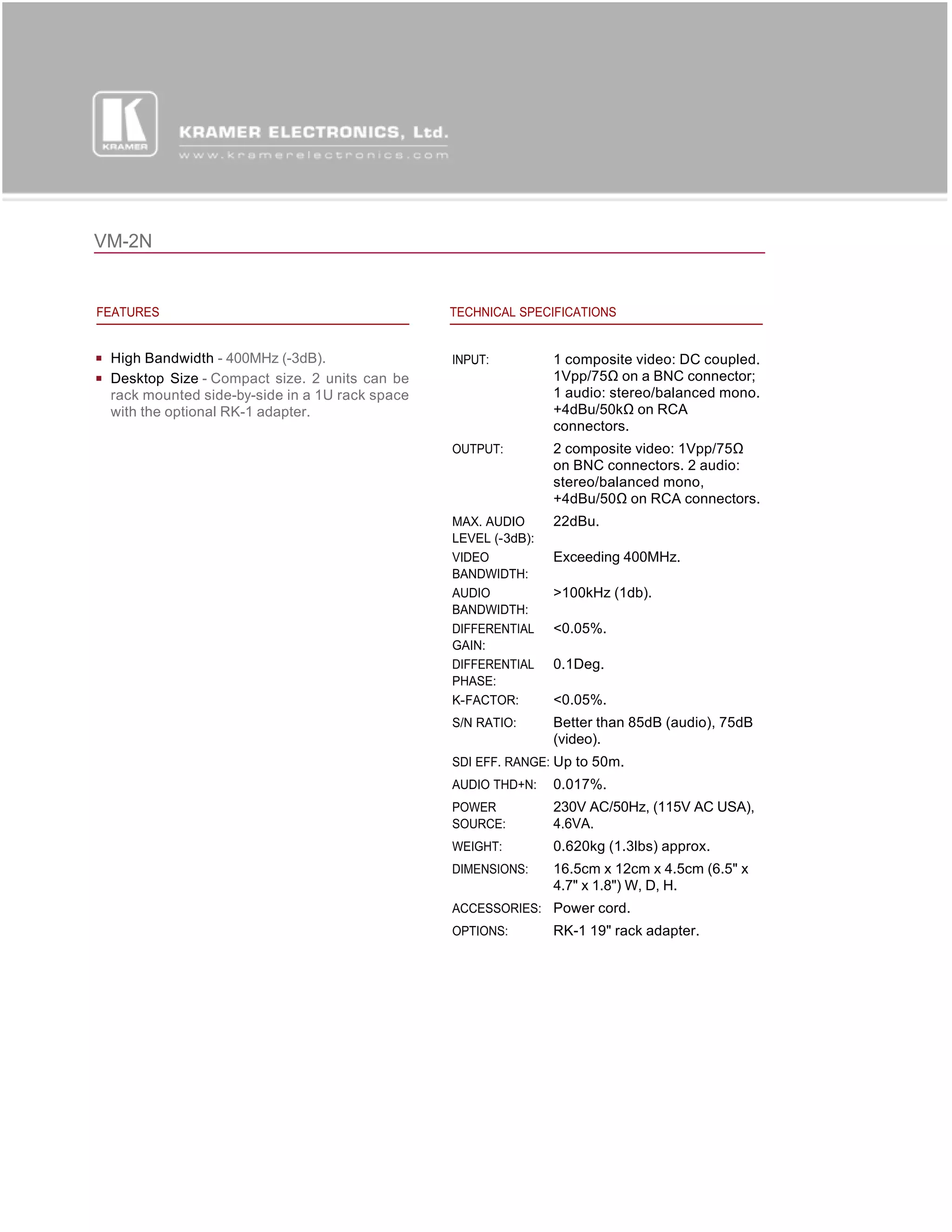

2. VM-2N
FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth - 400MHz (-3dB). INPUT: 1 composite video: DC coupled.
Desktop Size - Compact size. 2 units can be 1Vpp/75Ω on a BNC connector;
rack mounted side-by-side in a 1U rack space 1 audio: stereo/balanced mono.
with the optional RK-1 adapter. +4dBu/50kΩ on RCA
connectors.
OUTPUT: 2 composite video: 1Vpp/75Ω
on BNC connectors. 2 audio:
stereo/balanced mono,
+4dBu/50Ω on RCA connectors.
MAX. AUDIO 22dBu.
LEVEL (-3dB):
VIDEO Exceeding 400MHz.
BANDWIDTH:
AUDIO >100kHz (1db).
BANDWIDTH:
DIFFERENTIAL <0.05%.
GAIN:
DIFFERENTIAL 0.1Deg.
PHASE:
K-FACTOR: <0.05%.
S/N RATIO: Better than 85dB (audio), 75dB
(video).
SDI EFF. RANGE: Up to 50m.
AUDIO THD+N: 0.017%.
POWER 230V AC/50Hz, (115V AC USA),
SOURCE: 4.6VA.
WEIGHT: 0.620kg (1.3lbs) approx.
DIMENSIONS: 16.5cm x 12cm x 4.5cm (6.5" x
4.7" x 1.8") W, D, H.
ACCESSORIES: Power cord.
OPTIONS: RK-1 19" rack adapter.
