The VM-30AYC is a distribution amplifier that takes one s-Video and stereo audio input and distributes it to three identical outputs. It provides correct buffering and isolation for the s-Video (Y/C) and unbalanced audio signals with a bandwidth of 120MHz. It has controls for adjusting the Y, C, and audio levels and is compact in size, allowing two units to fit in a standard 1U rack space.

1. VM-30AYC
1:3 s-Video & Stereo Audio Distribution Amplifier

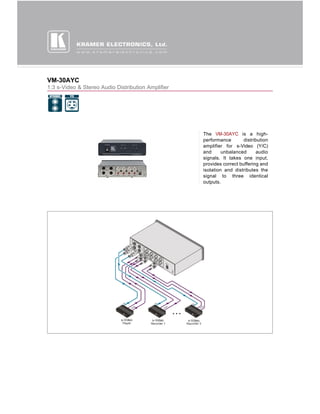

The VM-30AYC is a high-
performance distribution
amplifier for s-Video (Y/C)
and unbalanced audio
signals. It takes one input,
provides correct buffering and
isolation and distributes the
signal to three identical
outputs.

2. VM-30AYC

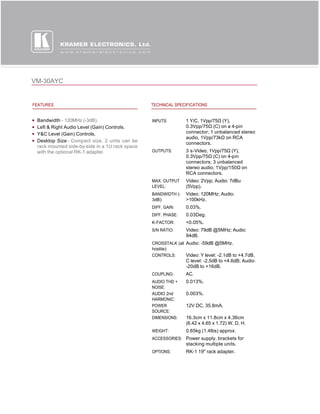

FEATURES TECHNICAL SPECIFICATIONS
Bandwidth - 120MHz (-3dB). INPUTS: 1 Y/C, 1Vpp/75Ω (Y),
Left & Right Audio Level (Gain) Controls. 0.3Vpp/75Ω (C) on a 4-pin
Y&C Level (Gain) Controls. connector; 1 unbalanced stereo
audio, 1Vpp/73kΩ on RCA
Desktop Size - Compact size. 2 units can be connectors.
rack mounted side-by-side in a 1U rack space
with the optional RK-1 adapter. OUTPUTS: 3 s-Video, 1Vpp/75Ω (Y),
0.3Vpp/75Ω (C) on 4-pin
connectors; 3 unbalanced
stereo audio, 1Vpp/150Ω on
RCA connectors.
MAX. OUTPUT Video: 2Vpp; Audio: 7dBu
LEVEL: (5Vpp).
BANDWIDTH (- Video: 120MHz; Audio:
3dB): >100kHz.
DIFF. GAIN: 0.03%.
DIFF. PHASE: 0.03Deg.
K-FACTOR: <0.05%.
S/N RATIO: Video: 79dB @5MHz; Audio:
94dB.
CROSSTALK (all Audio: -59dB @5MHz.
hostile):
CONTROLS: Video: Y level: -2.1dB to +4.7dB,
C level: -2.5dB to +4.6dB; Audio:
-20dB to +16dB.
COUPLING: AC.
AUDIO THD + 0.013%.
NOISE:
AUDIO 2nd 0.003%.
HARMONIC:
POWER 12V DC, 35.8mA.
SOURCE:
DIMENSIONS: 16.3cm x 11.8cm x 4.36cm
(6.42 x 4.65 x 1.72) W, D, H.
WEIGHT: 0.65kg (1.4lbs) approx.
ACCESSORIES: Power supply, brackets for
stacking multiple units.
OPTIONS: RK-1 19" rack adapter.
