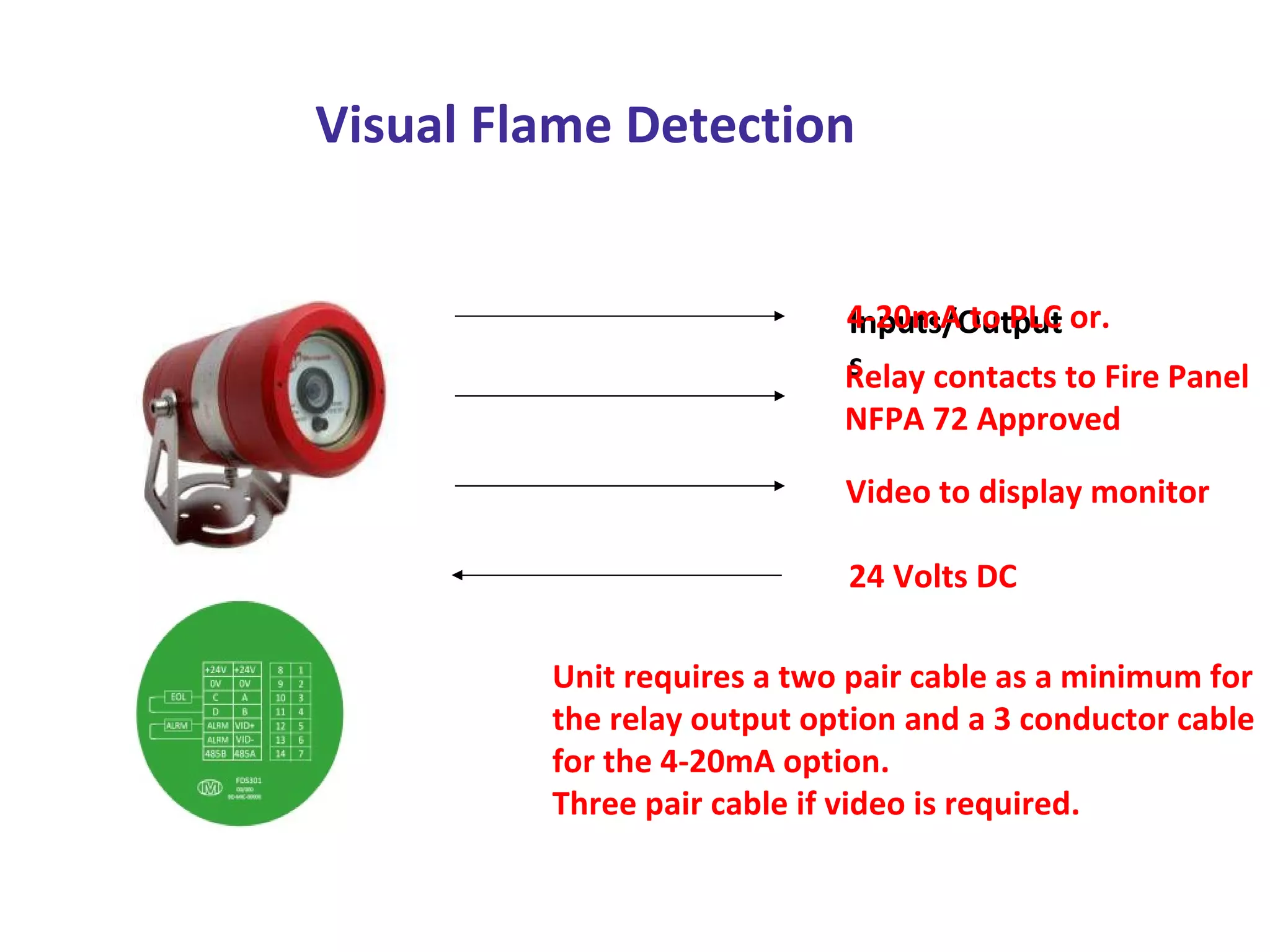

1. Visual Flame Detection Inputs/Outputs 4-20mA to PLC or. Relay contacts to Fire Panel NFPA 72 Approved Video to display monitor 24 Volts DC Unit requires a two pair cable as a minimum for the relay output option and a 3 conductor cable for the 4-20mA option. Three pair cable if video is required.

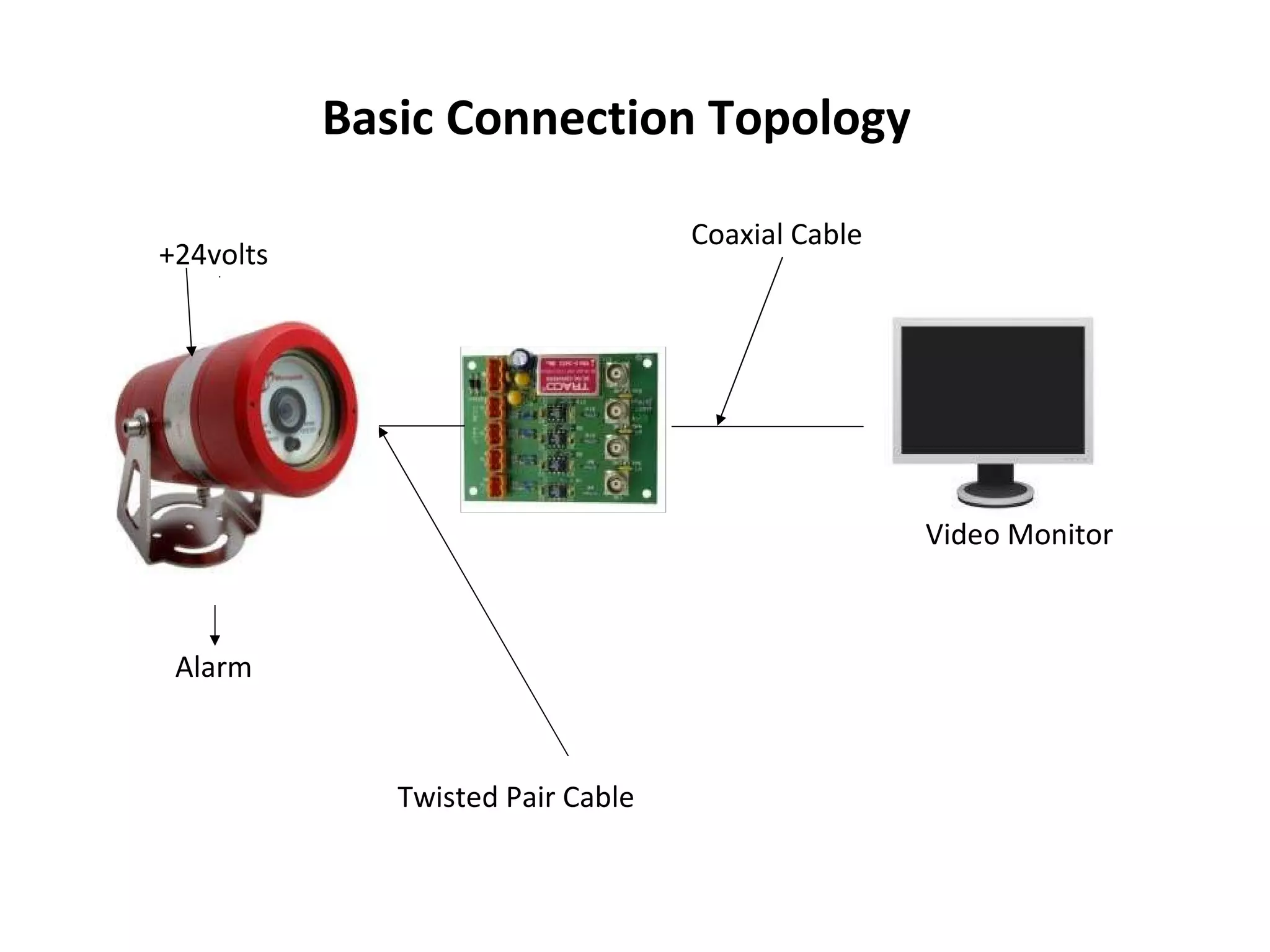

3. +24vdc +12vdc Three pair twisted, individual screen instrument cable. One pair power, one pair video, one pair 4-20mA or relay output. Coaxial cable 4-20mA to PLC/Fire & Gas Control System Internal panel wiring twisted pair Field terminals This slide shows the basic design for a Visual Flame Detection system, including the VIPX1600 that will support up to 4, 8, 12 or 16 Cameras and provide video across Ethernet. If more than 16 detectors are required, then further VIPX1600’s may be added and connected together, through a network switch to the control system, in order to display video. VIPX1600 VTP4
