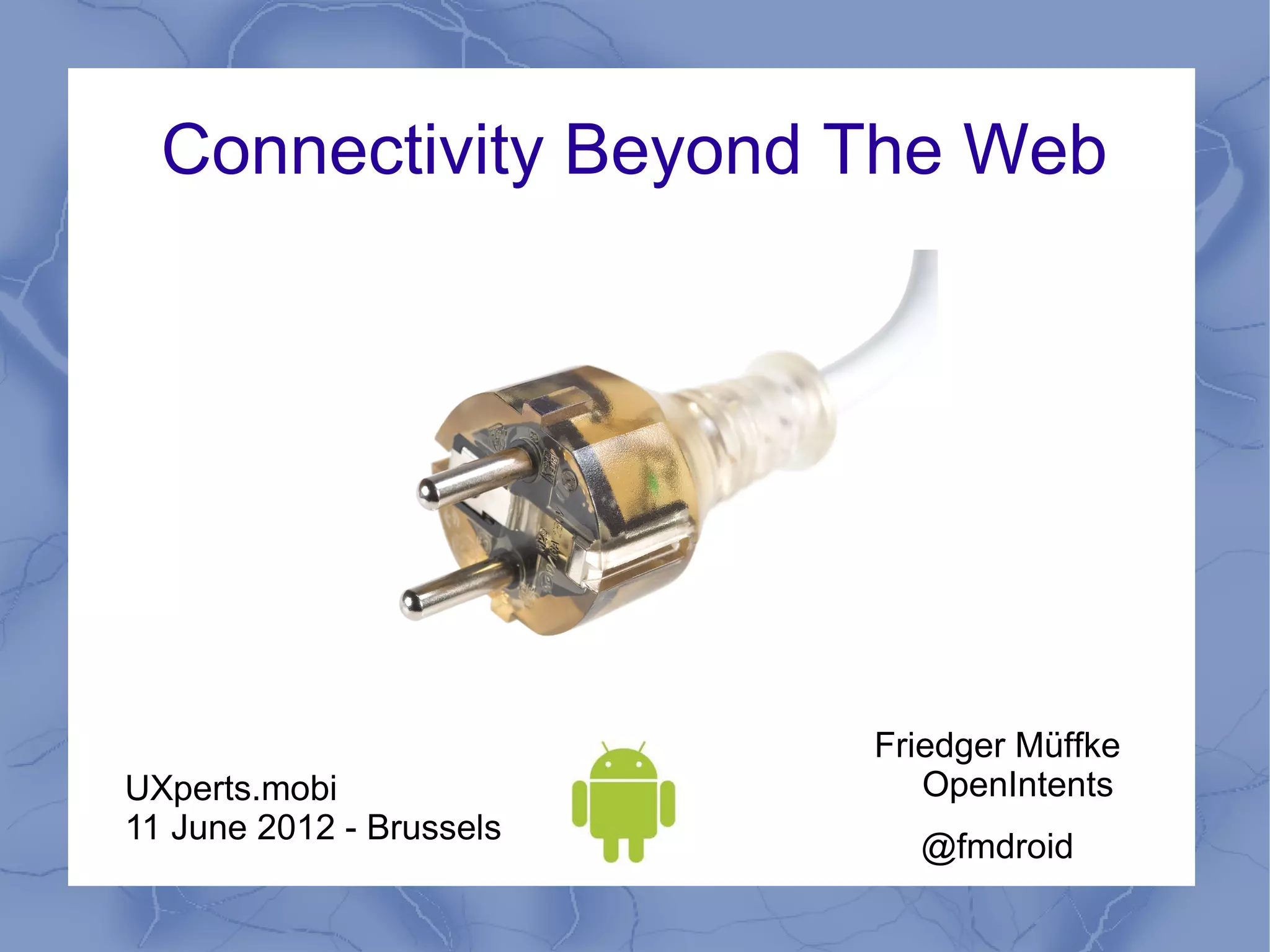

1. Connectivity Beyond The Web
Friedger Müffke
UXperts.mobi OpenIntents
11 June 2012 - Brussels
@fmdroid

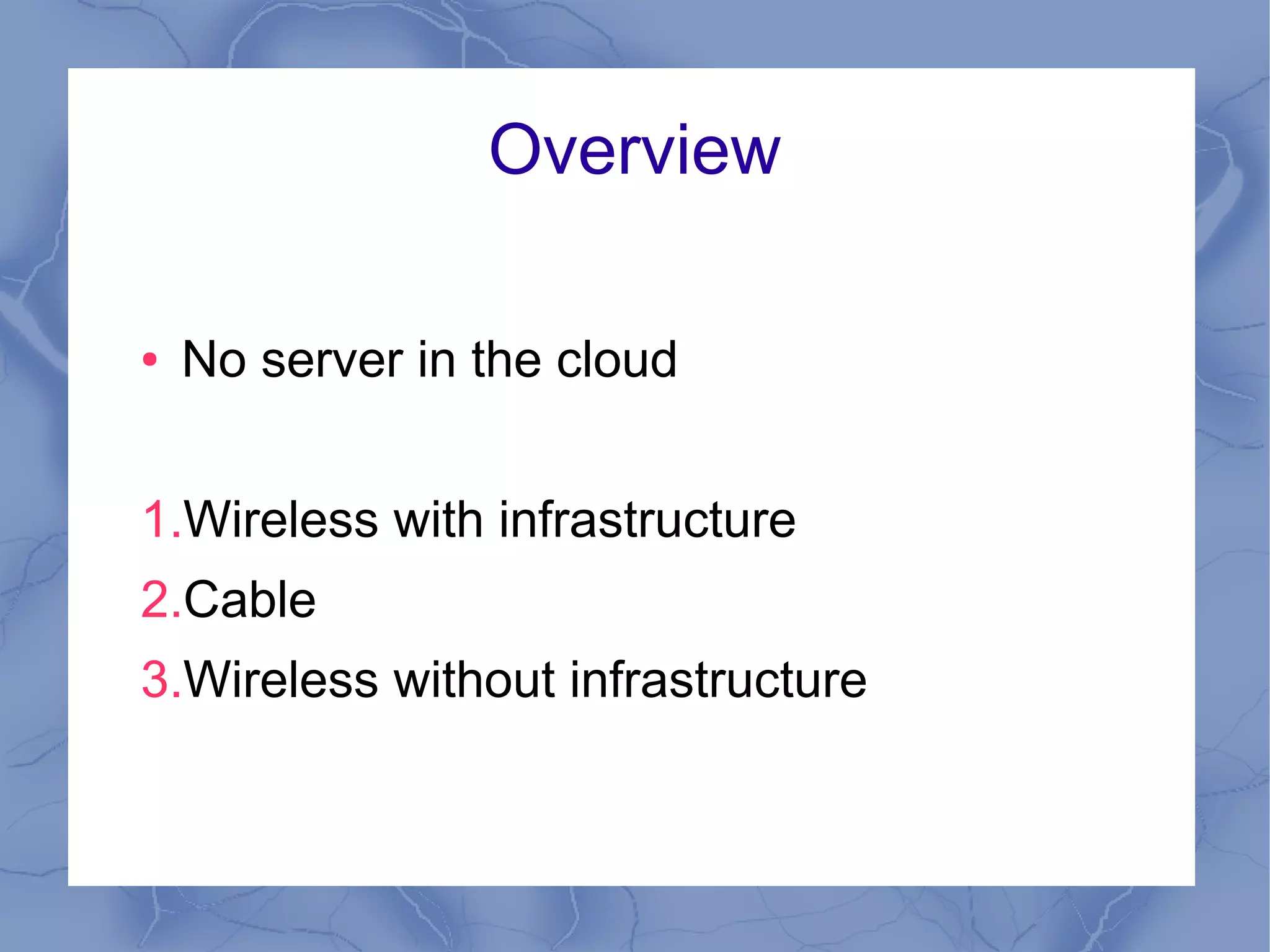

2. Overview
● No server in the cloud
1.Wireless with infrastructure
2.Cable
3.Wireless without infrastructure

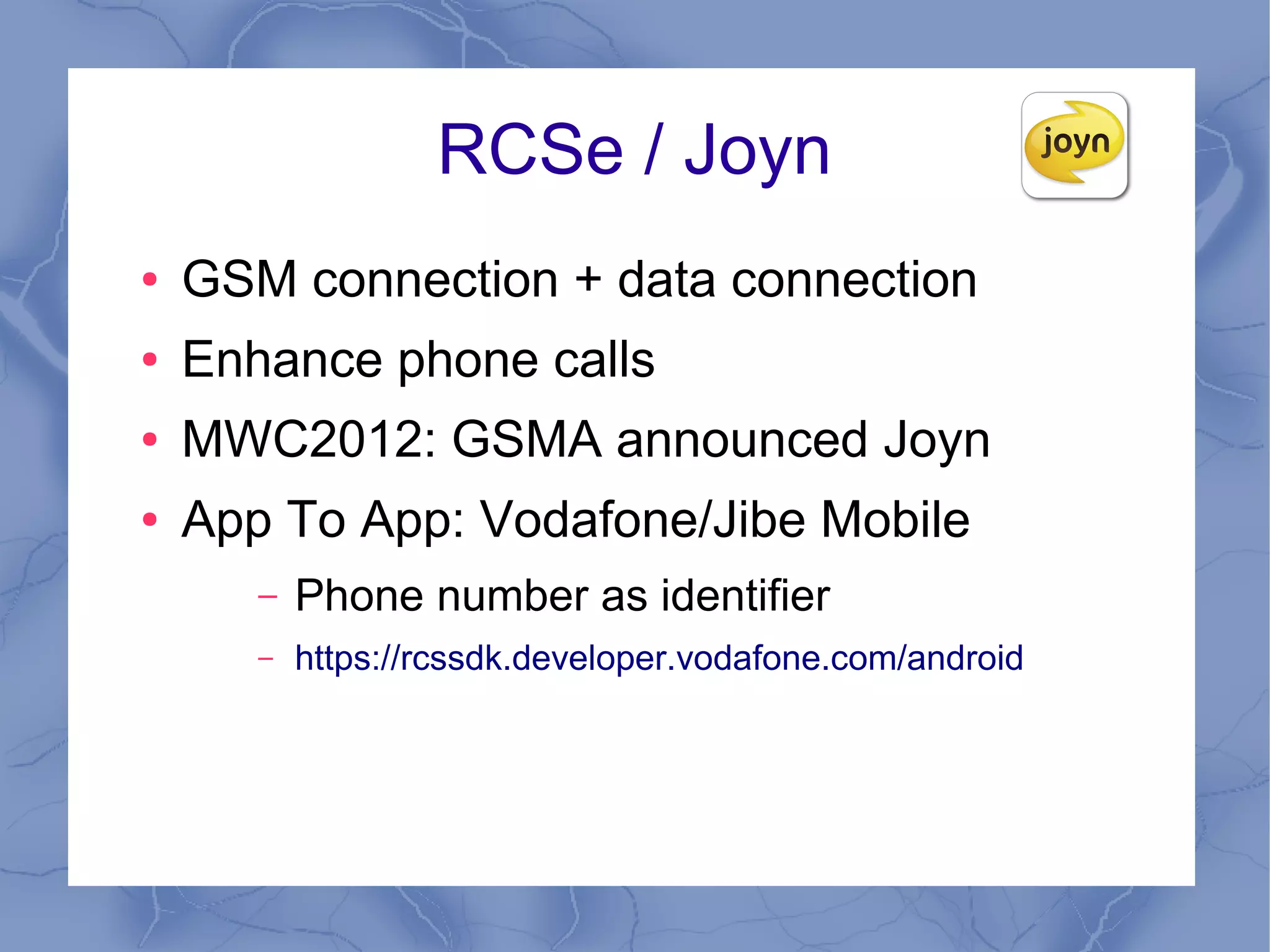

3. RCSe / Joyn
● GSM connection + data connection
● Enhance phone calls
● MWC2012: GSMA announced Joyn
● App To App: Vodafone/Jibe Mobile
– Phone number as identifier
– https://rcssdk.developer.vodafone.com/android

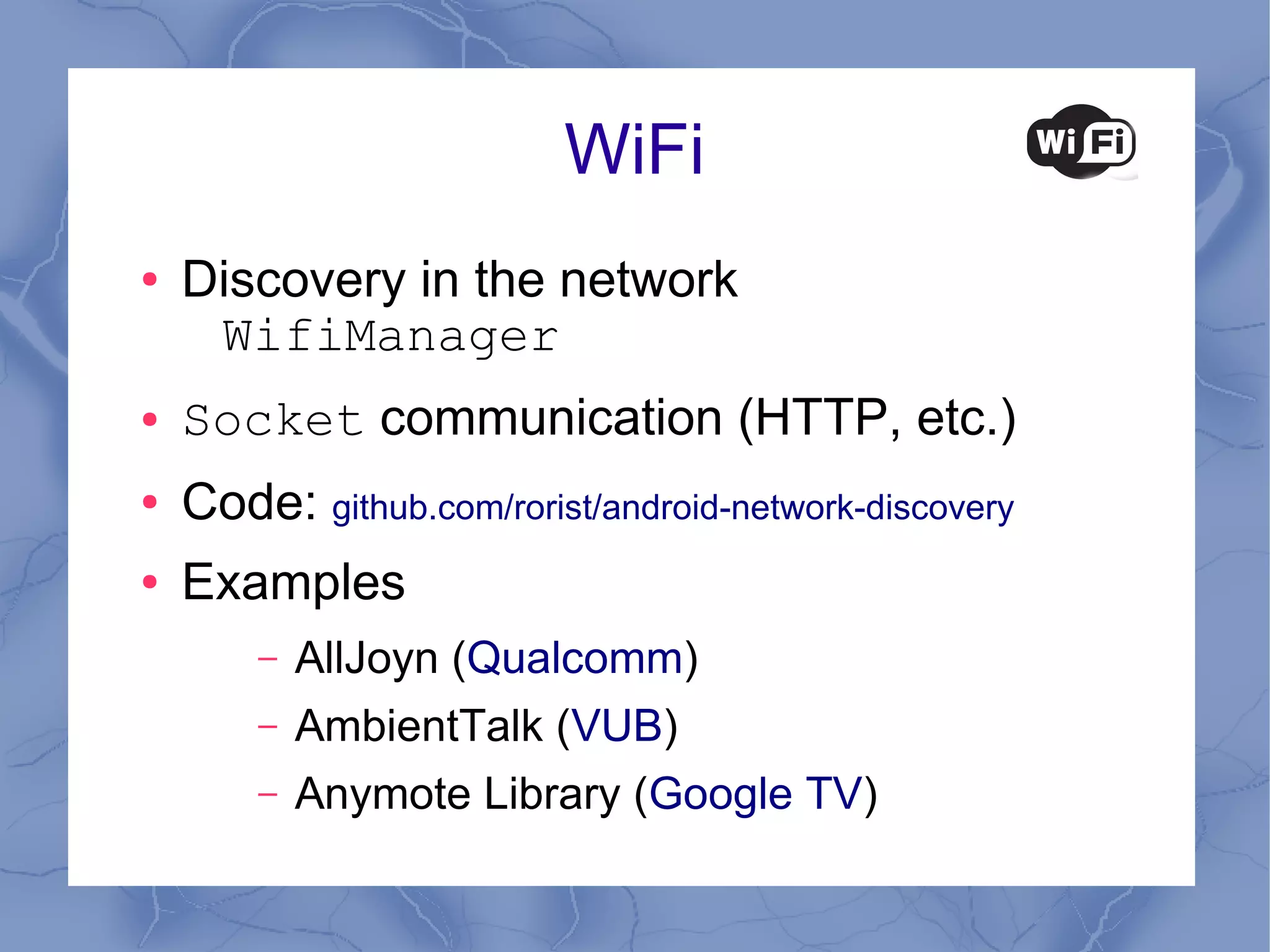

4. WiFi
● Discovery in the network
WifiManager
● Socket communication (HTTP, etc.)
● Code: github.com/rorist/android-network-discovery
● Examples
– AllJoyn (Qualcomm)
– AmbientTalk (VUB)
– Anymote Library (Google TV)

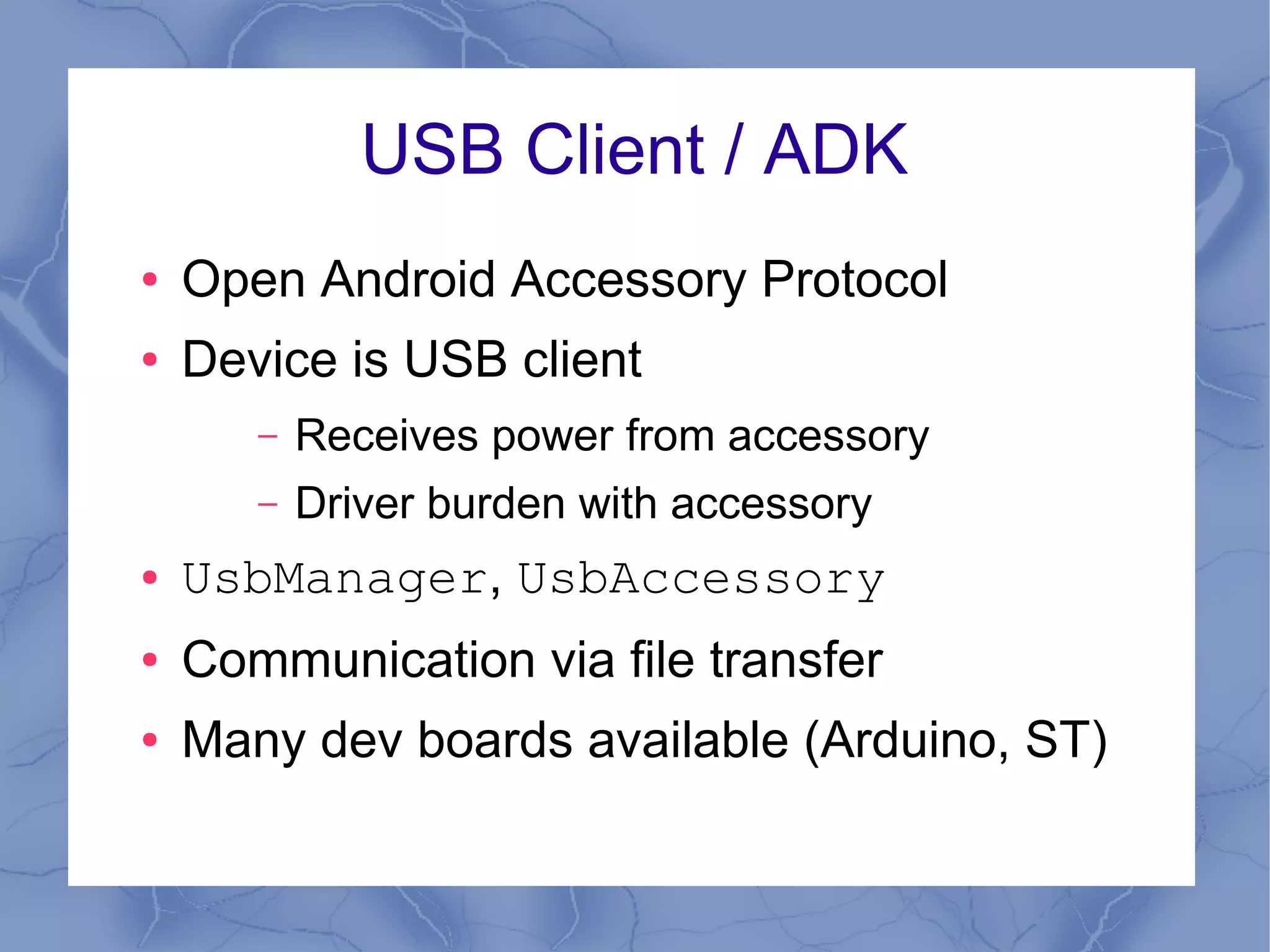

5. USB Client / ADK
● Open Android Accessory Protocol
● Device is USB client
– Receives power from accessory
– Driver burden with accessory
● UsbManager, UsbAccessory
● Communication via file transfer
● Many dev boards available (Arduino, ST)

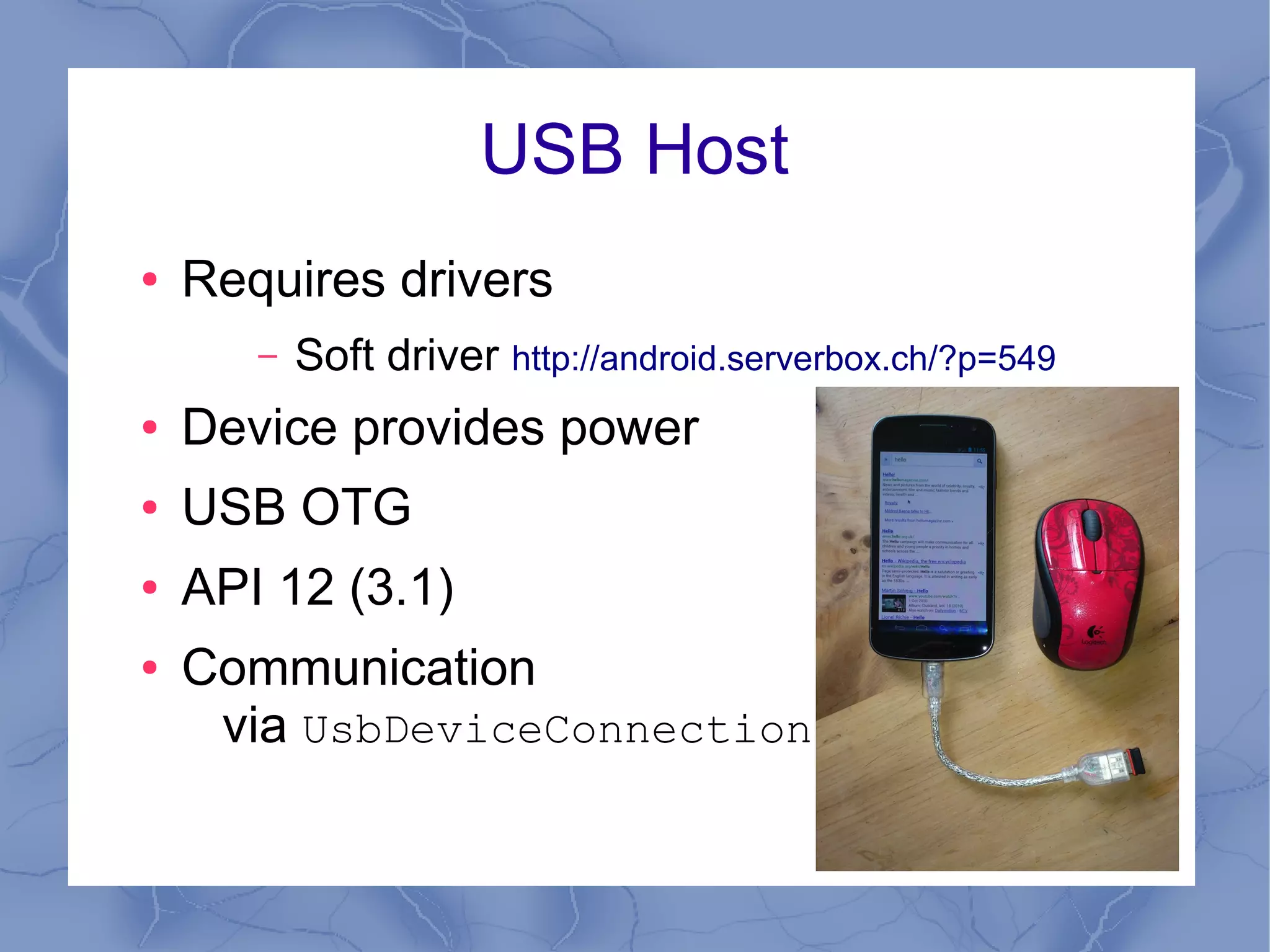

6. USB Host
● Requires drivers
– Soft driver http://android.serverbox.ch/?p=549
● Device provides power
● USB OTG
● API 12 (3.1)
● Communication
via UsbDeviceConnection

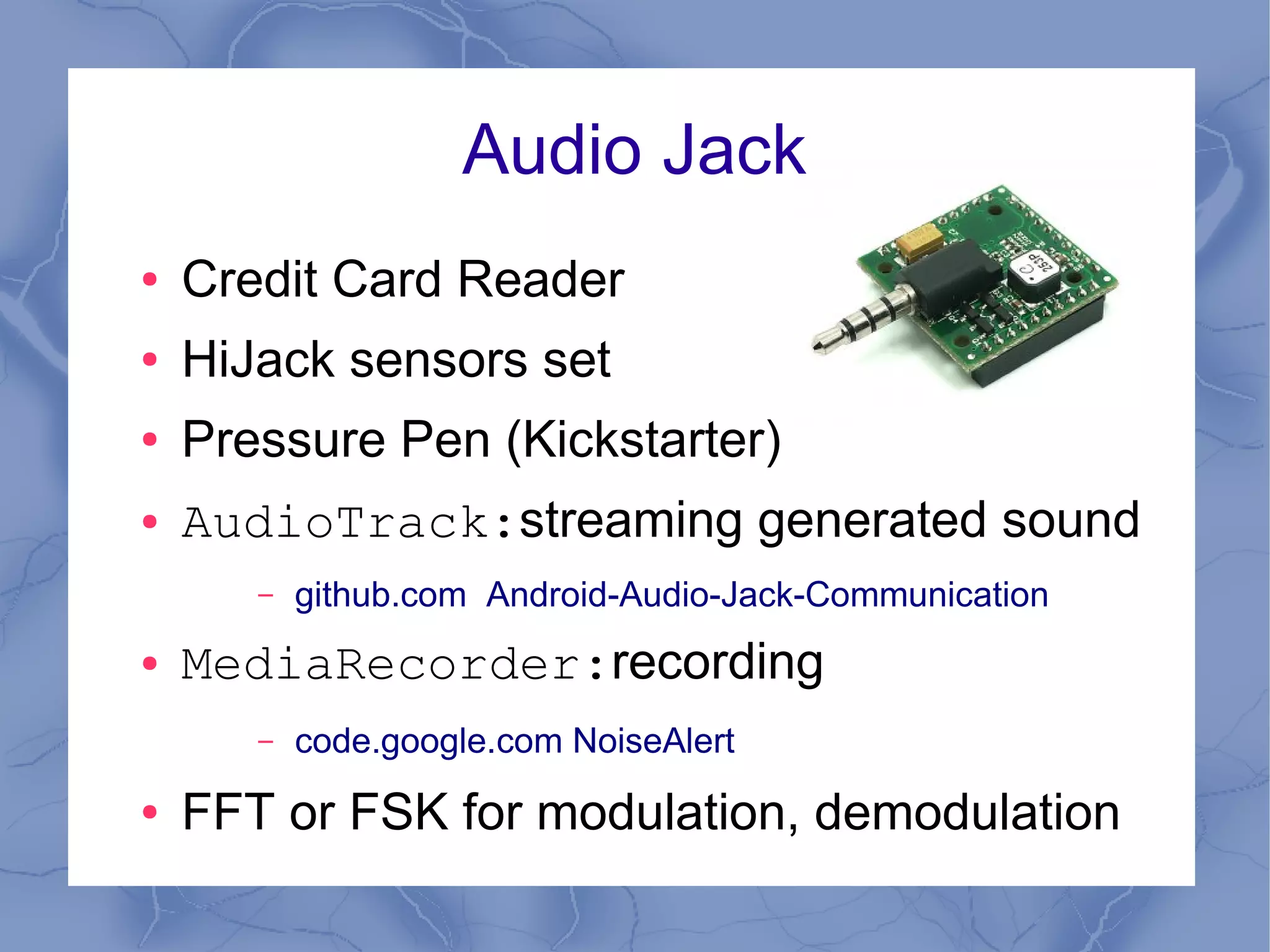

7. Audio Jack
● Credit Card Reader
● HiJack sensors set
● Pressure Pen (Kickstarter)
● AudioTrack:streaming generated sound
– github.com Android-Audio-Jack-Communication
● MediaRecorder:recording
– code.google.com NoiseAlert
● FFT or FSK for modulation, demodulation

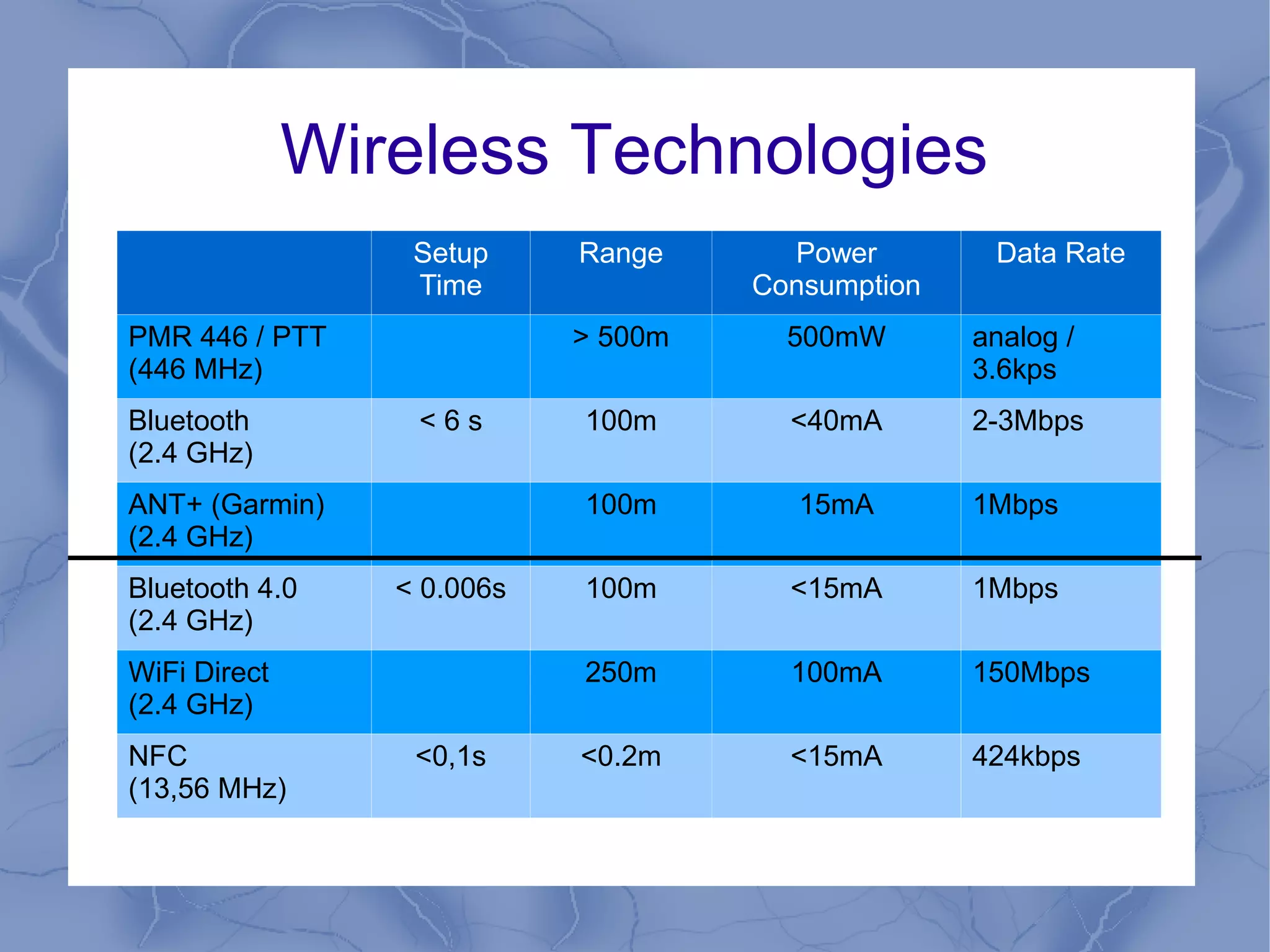

8. Wireless Technologies
Setup Range Power Data Rate
Time Consumption
PMR 446 / PTT > 500m 500mW analog /
(446 MHz) 3.6kps
Bluetooth <6s 100m <40mA 2-3Mbps
(2.4 GHz)
ANT+ (Garmin) 100m 15mA 1Mbps
(2.4 GHz)
Bluetooth 4.0 < 0.006s 100m <15mA 1Mbps
(2.4 GHz)
WiFi Direct 250m 100mA 150Mbps
(2.4 GHz)
NFC <0,1s <0.2m <15mA 424kbps
(13,56 MHz)

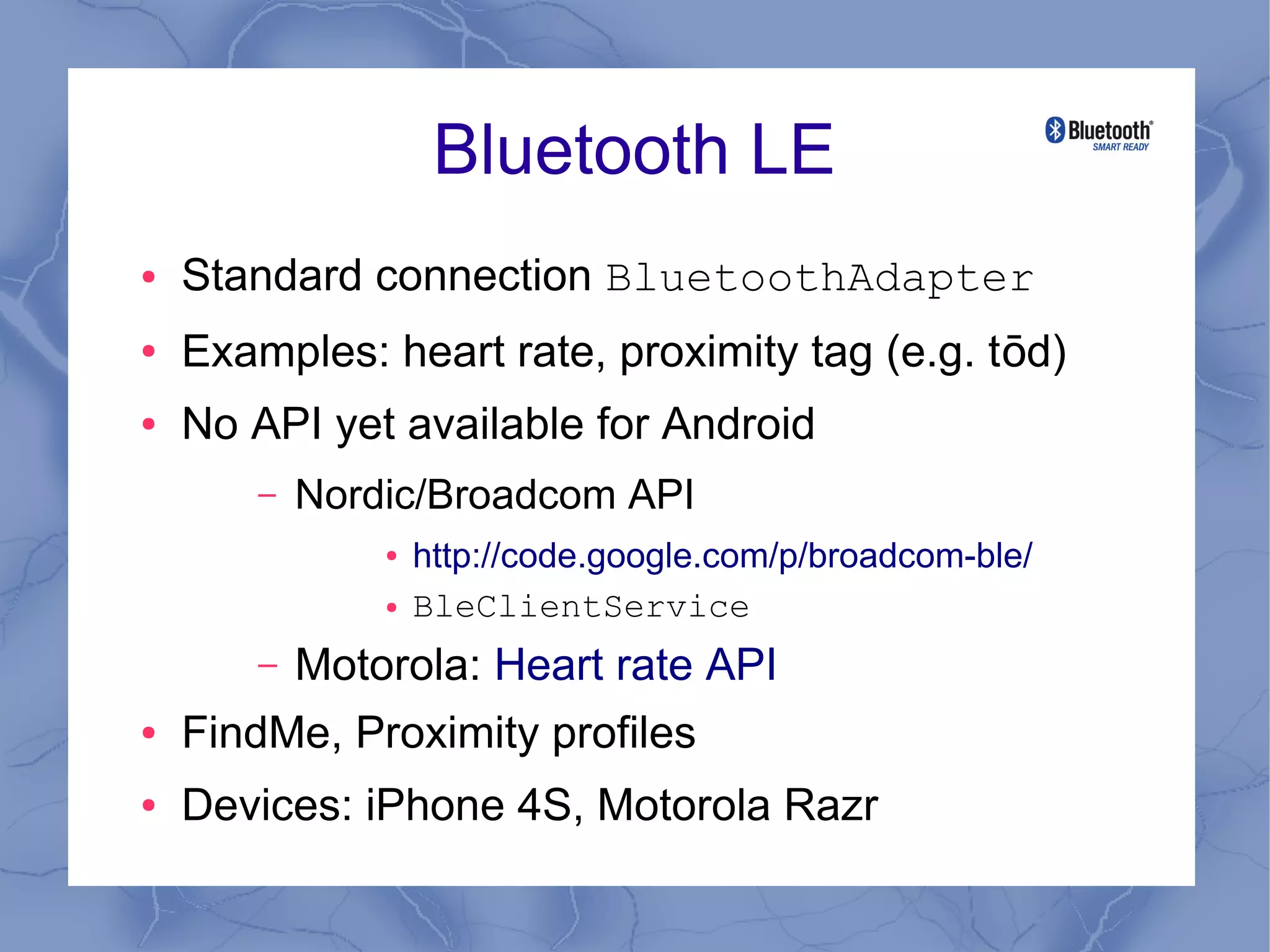

9. Bluetooth LE
● Standard connection BluetoothAdapter
● Examples: heart rate, proximity tag (e.g. tōd)
● No API yet available for Android
– Nordic/Broadcom API
● http://code.google.com/p/broadcom-ble/
● BleClientService
– Motorola: Heart rate API
● FindMe, Proximity profiles
● Devices: iPhone 4S, Motorola Razr

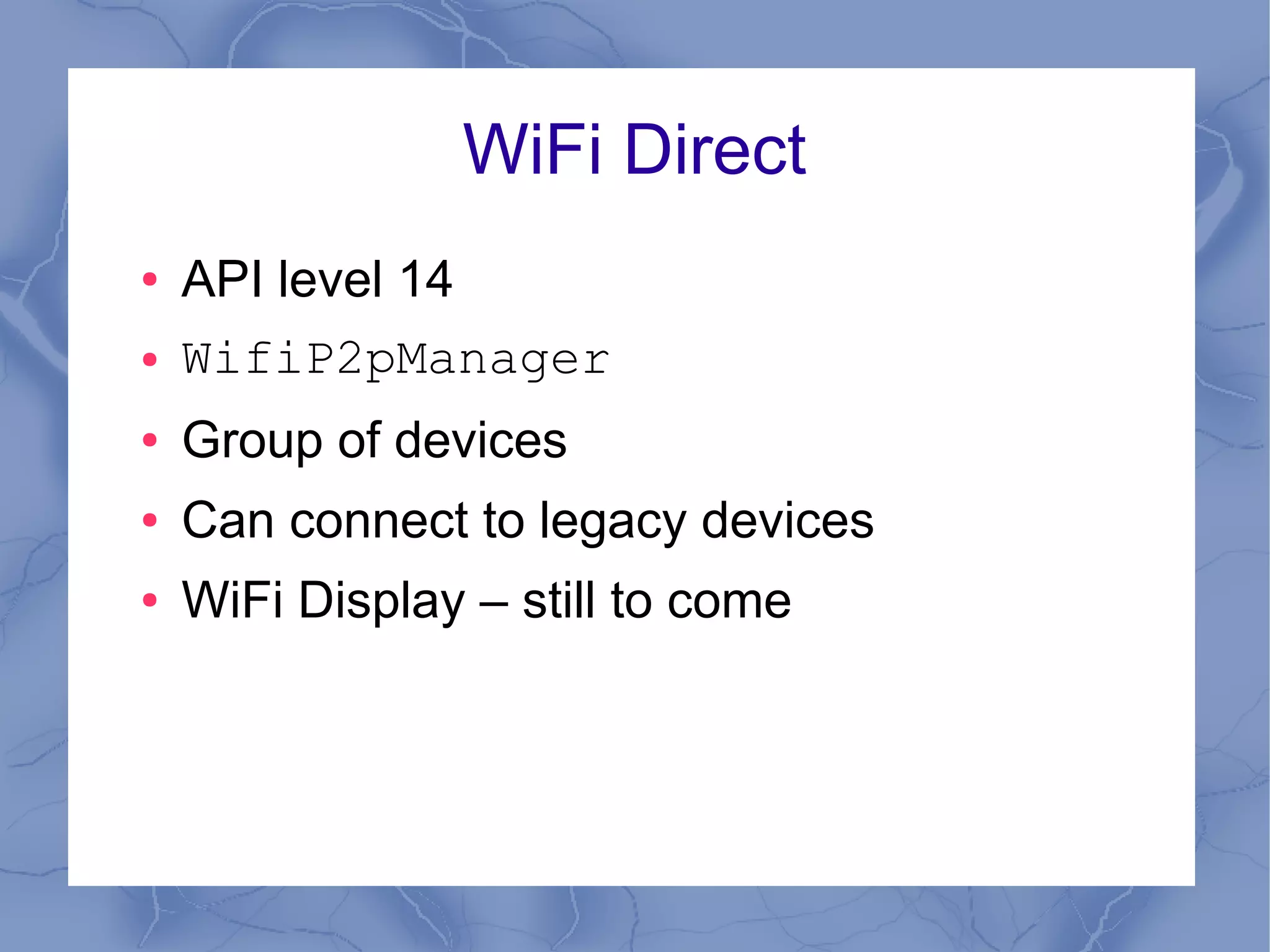

10. WiFi Direct
● API level 14
● WifiP2pManager
● Group of devices
● Can connect to legacy devices
● WiFi Display – still to come

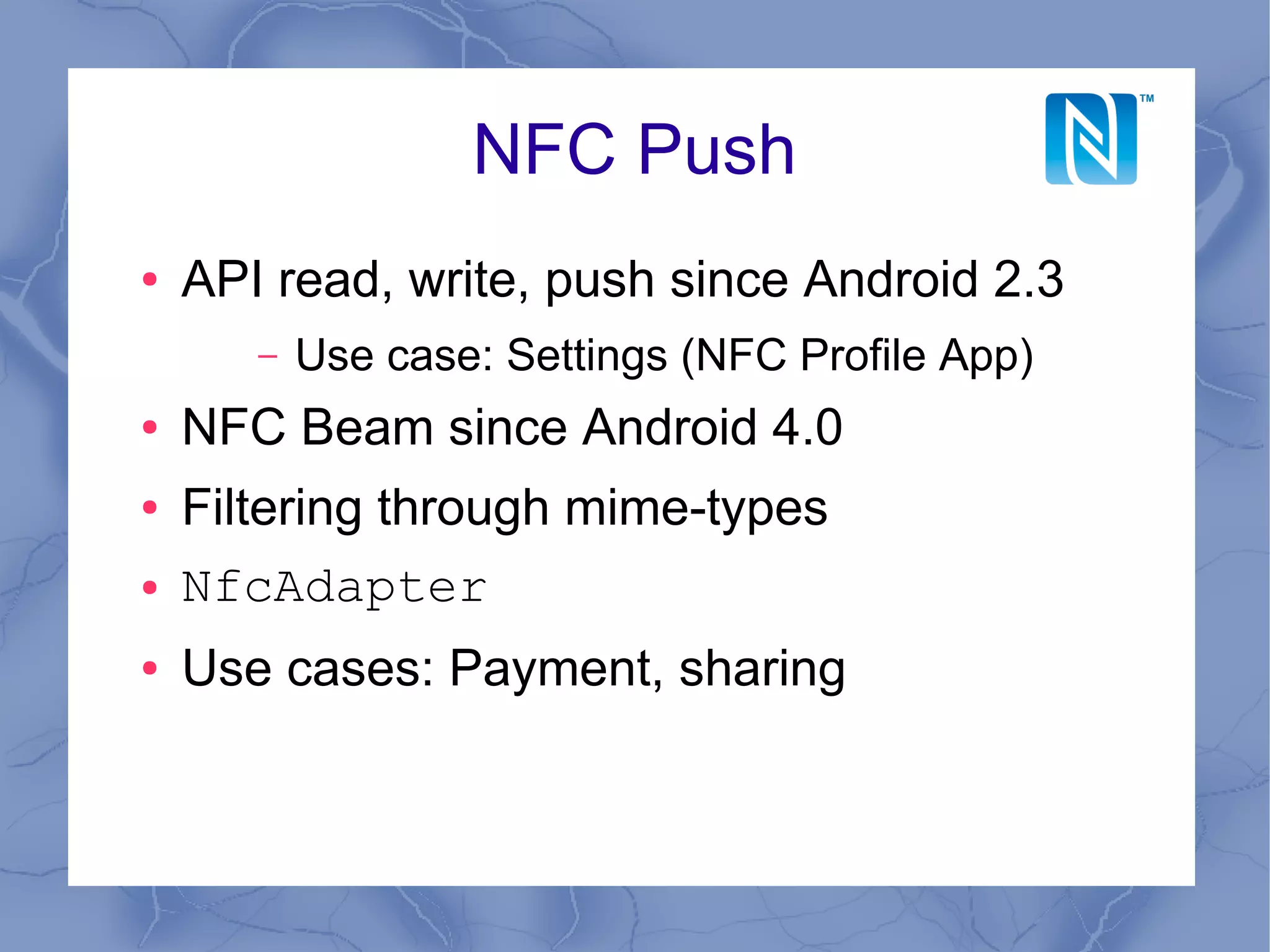

11. NFC Push
● API read, write, push since Android 2.3
– Use case: Settings (NFC Profile App)
● NFC Beam since Android 4.0
● Filtering through mime-types
● NfcAdapter
● Use cases: Payment, sharing

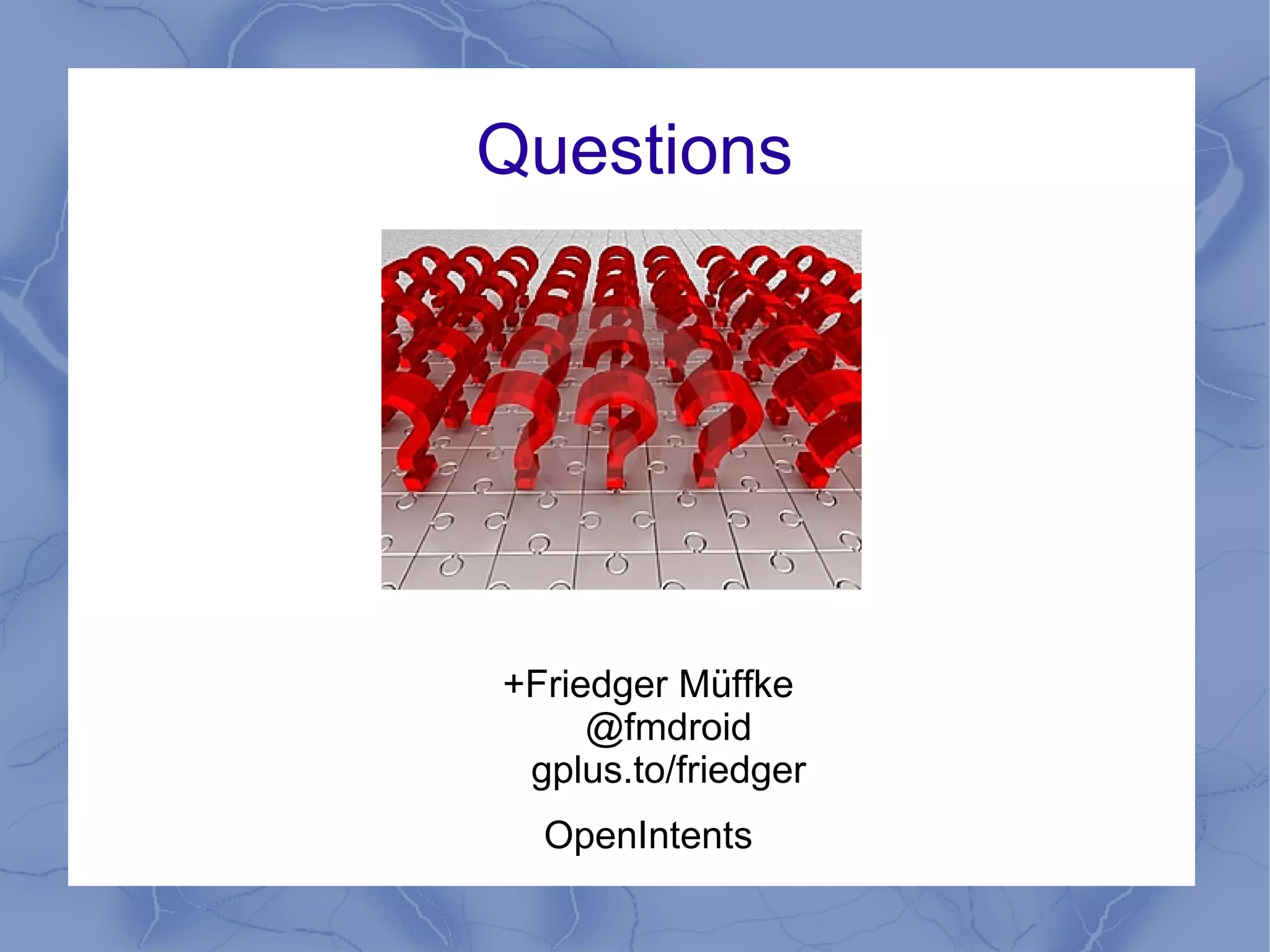

12. Questions
+Friedger Müffke
@fmdroid
gplus.to/friedger
OpenIntents
