Using text mining to inform genetic variant interpretation

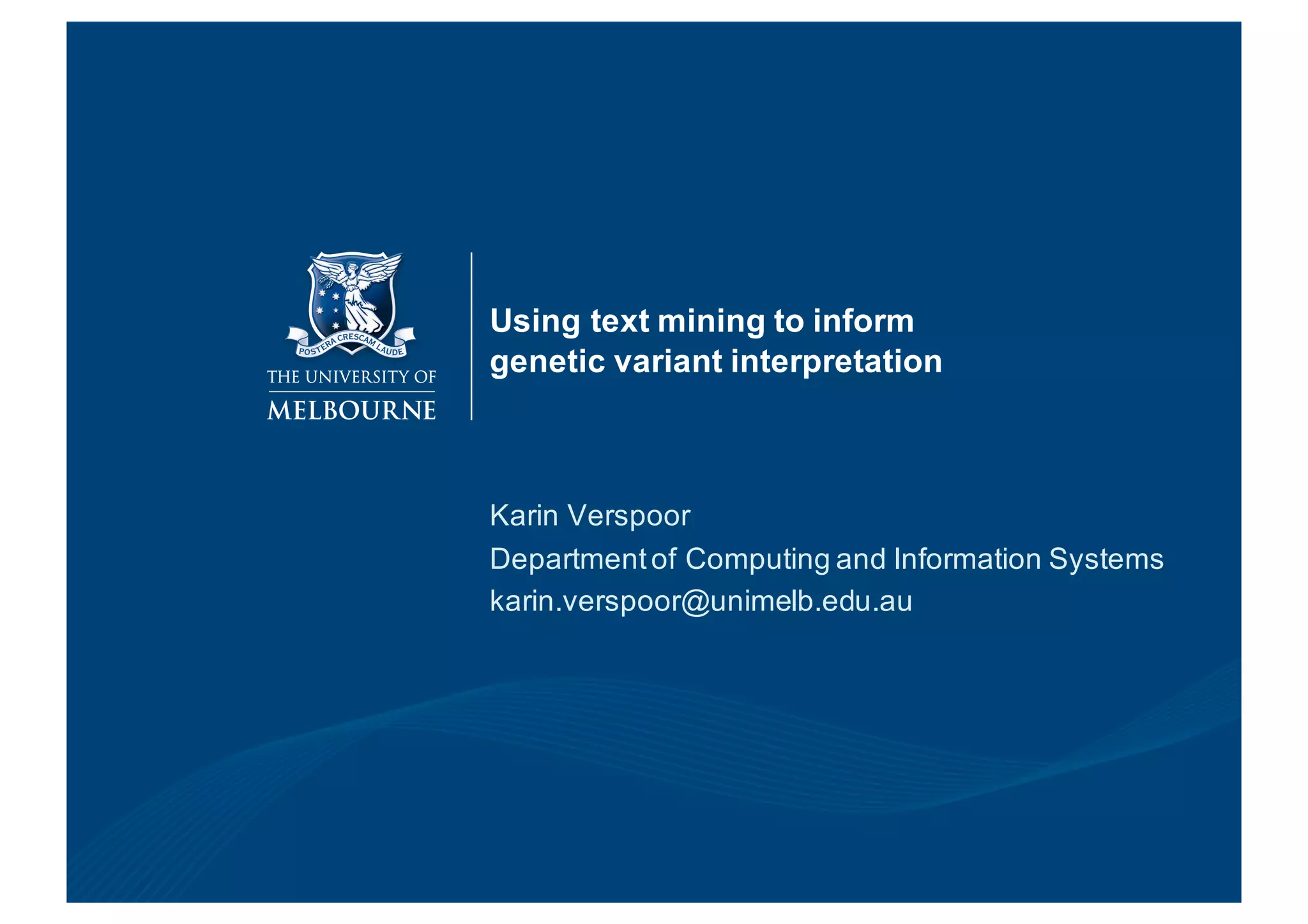

- 1. Using text mining to inform genetic variant interpretation Karin Verspoor Departmentof Computing and Information Systems karin.verspoor@unimelb.edu.au

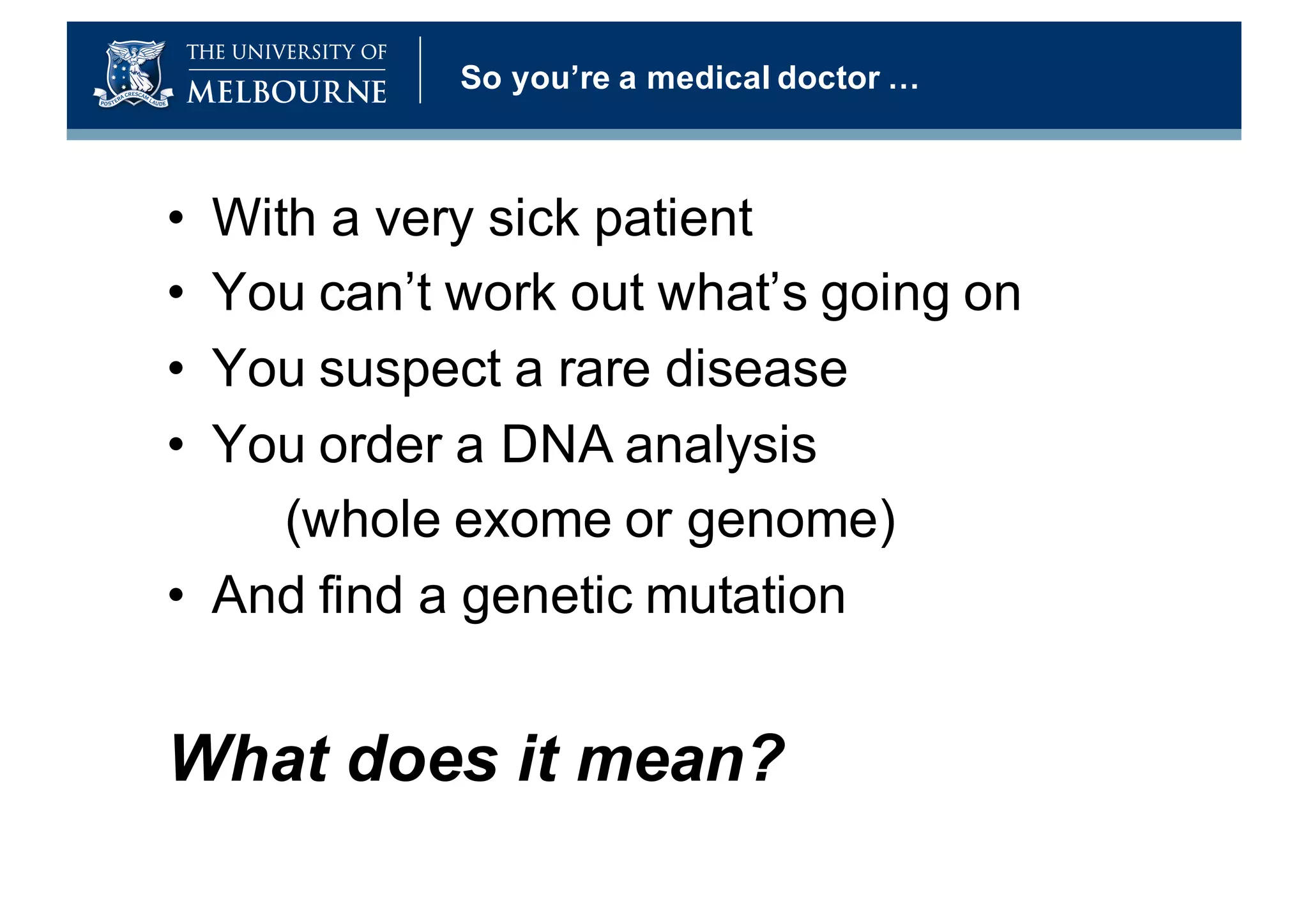

- 2. So you’re a medical doctor … • With a very sick patient • You can’t work out what’s going on • You suspect a rare disease • You order a DNA analysis (whole exome or genome) • And find a genetic mutation What does it mean?
- 3. Clinical interpretation of variants Sample Data Flow Histology DNA Extract PCR Sequencing Alignment Variant Calling Annotation DB Load Filtering Known Variant ? Publish Report Curation Peter Mac Mutation DB External and Locus Specific DBs Yes No Patient Clinical Report Document Assembly Variant Normalisation Report Editing and Signoff Manual Step Automatic Step Wet Lab Bioinformatics Clinical Informatics Patient Sample Sample Data Flow Histology DNA Extract PCR Sequencing Alignment Variant Calling Annotation DB Load Filtering Known Variant ? Publish Report Curation Peter Mac Mutation DB External and Locus Specific DBs Yes No Patient Clinical Report Document Assembly Variant Normalisation Report Editing and Signoff Manual Step Automatic StepPatient Sample Filtering Known Variant ? Publish Report Curation Peter Mac Mutation DB External and Locus Specific DBs Yes No Patient Clinical Report Document ReportImage courtesy Kenneth Doig, Peter Mac. “PipeCleaner for your NGS Pipeline” HISA Big Data 2013.
- 4. What’s a mutation? • Genomic variation: alteration in a sequence – hereditary (germ-line) mutations – acquired (somatic) mutations • Examples of variation – SNP (single nucleotide polymorphism) – Protein mutation – insertions, deletions, duplications, inversions, . . . • Types of variations – DNA variations that have no adverse effects on our cells and occur frequently in the population are called polymorphisms – DNA variations that do affect the function of the protein made from a gene and occur less often are called mutations
- 5. The Challenge: Interpreting variants § Identifying variation is becoming easier, interpreting it remains difficult • Which changes are due to normal individual variation? • Which are associated with a phenotype of interest?
- 6. Interpreting variation through context • Analysis of functional significance of variants – Predicted impact of mutations – Conservation analysis – Allele frequencies from large genomic databases • Existing knowledge captured in structured sources – UniProt site-specific protein annotations – The Cancer Gene Atlas genomic characterisation data – Disease-specific variant databases, e.g. COSMIC and InSiGHT • Techniques for annotating variants – Data aggregation from multiple sources – Data integration and inference to reveal shared pathways
- 7. Exponential knowledge growth • ~1550 peer-reviewed gene-related databases in NAR online Mol Bio collection • Over 25 million PubMed entries (> 2,000/day) • Breakdown of disciplinary boundaries makes more of it relevant to each of us
- 9. Structured resources are not enough: Literature is the primary repository of knowledge 0 20000 40000 60000 80000 100000 120000 1/02 1/03 1/04 1/05 1/06 1/07 #Swiss-ProtProteins Proteins missing a FUNCTION comment Proteins gaining a FUNCTION comment “Manual curation is not sufficient for annotation of genomic databases” Baumgartner et al ISMB 2007 “Our entire understanding of biology and medicine is really contained in the published literature. And since people write in natural language, if you can’t get computers to turn that information into databases and computable information, you’re falling behind.” -- Russ Altman, MD PhD, Stanford University
- 10. Recovery of variants from the literature using text mining Study: Jimeno Yepes A, Verspoor K. (2014) Literature mining of genetic variants for curation: Quantifying the importance of supplementary material. Database: The Journal of Biological Databases and Curation, bau003. doi:10.1093/database/bau003 [PMID:24520105]
- 11. Study: Recall of curated variants through the application of text mining • Given a curated resource of genetic variants, • with explicit links to the source literature for each variant, • and a mutation extraction tool with demonstrated good performance on intrinsic evaluation … how many variants can text mining recover?
- 13. Motivations • Assess real-world applicability of text mining tools for supporting analysis of genetic variants • Speed up curation of mutation databases
- 14. Two databases • InSiGHT, Human Variome Project – MLH1, MSH2, MSH6 and PMS2 linked to Lynch syndrome (germline mutations) • COSMIC, Sanger Institute – Somatic mutations linked to cancer Database PMIDs associated to Mutations Total Mutation Count Average Mutations per article Std Dev InSiGHT 809 7022 8.68 18.55 COSMIC 7898 198864 25.18 521.18
- 15. Literature mutation extraction • Many tools exist to perform mutation annotation – MutationMiner, MutationFinder, EMU, tmVar, SETH, ... • Research shows that they have high precision and recall on MEDLINE abstracts (> 90% F1) • There are also tools to do named entity extraction of genes, diseases, body parts … Jimeno Yepes A, Verspoor K. (2014) Mutation extraction tools can be combined for robust recognition of genetic variants in the literature. F1000Research 2014, 3:18. doi: 10.12688/f1000research.3-18.v2 [PMID:25285203]
- 16. How to extract mutations from text? • Essentially a named entity recognition task. • Early attempts focused on SNPs and protein mutations (amino acid residues). • e.g., MutationFinder1 patterns (simplified): (?P<wt_res>AminoAcid)(?P<pos>[1-9][0-9]*)(?P<mut_res>AminoAcid) Gly17Ser Ser97Pro • where AminoAcid is: (CYS|ILE|SER|GLN|MET|ASN|PRO|LYS|ASP|THR|PHE|ALA|GLY|HIS|LEU|ARG| TRP|VAL|GLU|TYR)|(GLUTAMINE|GLUTAMIC ACID|LEUCINE|VALINE| ISOLEUCINE|LYSINE|ALANINE|GLYCINE|ASPARTATE|METHIONINE| THREONINE|HISTIDINE|ASPARTIC ACID|ARGININE|ASPARAGINE| TRYPTOPHAN|PROLINE|PHENYLALANINE|CYSTEINE|SERINE|GLUTAMATE| TYROSINE) 1http://mutationfinder.sourceforge.net/
- 17. Human Genome Variation Society nomenclature (excerpt)
- 18. • Pattern-based approach to identifying genetic variants – dbSNP identifiers and standard HGVS nomenclature (e.g. SETH https://rockt.github.io/SETH) – natural language expressions of mutations o This missense mutation converts a highly conserved glycine (Gly17 of neurophysin) to a valine residue. o Killer of prune (Kpn) is a mutation in the awd gene which substitutes Ser for Pro at position 97 and causes dominant lethality in individuals that do not have a functional prune gene. o … where cysteines at positions 6, 42, 48, 90 and 393 were replaced by serine. Extraction of mutations from text
- 19. Extractor of Mutations (Kann Lab)
- 20. Study text sources • PubMed – 22M citations; title and abstract • PubMed Central – full text – 512k available from PMC-Open Access • Publisher site crawling – Availability depends on license – HTML pages can be noisy • C676T –>Arg226Stop vs. C676TâArg226Stop
- 21. Extraction with EMU over our data • EMU: Extract mutation from text and link the mutations to co-occurring genes • Normalize all mutation mentions to HGVS format – Format used in COSMIC and InSiGHT • Match {gene, HGVS variant, PMID} to curated data
- 22. Results Abstracts and Full Text NG = No Gene (ignoring gene in match) Common/Cmn = PMIDs in common between database and corpus subset (recall with respect to articles for which mutation entity recogniser had at least one positive extraction) Set Cmn art Match mutation Recall Recall NG Mutations common Recall common Recall CmnNG COSMIC Abs 2200 1884 0.0095 0.0122 12,940 0.1456 0.1875 COSMIC FT 2071 3656 0.0184 0.0215 104,756 0.0349 0.0408 COSMIC Abs + FT 3738 4754 0.0239 0.0289 114,279 0.0416 0.0503 InSiGHT Abs 195 230 0.0328 0.045 1233 0.1865 0.2562 InSiGHT FT 150 404 0.0575 0.0612 1626 0.2484 0.2644 InSiGHT Abs + FT 295 588 0.0837 0.0961 2657 0.2213 0.254
- 23. High Throughput vs non-High Throughput Set Cmn art Match mutation Recall Recall NG Recall common Recall CmnNG HT abstract 1650 1357 0.0072 0.0096 0.1209 0.1608 HT full text 1545 2719 0.0145 0.0172 0.027 0.0319 HT Abs + FT 2608 3501 0.0187 0.0231 0.032 0.0395 NHT abstract 550 530 0.0461 0.0543 0.3055 0.3597 NHT full text 526 937 0.0815 0.0915 0.235 0.2639 NHT Abs + FT 841 1259 0.109 0.1243 0.2538 0.2895 Group PMIDs Count Average mutation SD Mutation recall COSMIC 7898 198 864 25.18 521.27 100.00% COSMIC-HT 6266 187 367 29.9 584.82 94.22% COSMIC-NHT 1632 11 497 7.04 38.05 5.78%
- 24. Considering tables and Supplementary material • Subset from COSMIC and InSiGHT available as PubMed Central Open Access articles • Supplementary material: MS Word, PDF, MS Excel, PPT, images, … InSiGHT COSMIC Set Articles Matched Recall (%) Articles Matched Recall (%) Abstracts 13 1 0.4 563 140 0.41 XML Full Text (FT) 9 20 7.94 487 694 2.05 PDF FT (PDFFT) 4 7 2.78 76 23 0.07 Tables 8 18 7.14 394 466 1.38 FT+PDFFT+Tables 13 44 17.46 563 929 2.75 Supp. Mat. 1 88 34.92 138 17015 50.59 All 13 115 45.63 563 17896 52.92
- 25. Recall still only 50%: Where are the rest? • Expressed in semi-structured data sources – do not necessarily follow standard nomenclature more predictably – data spread unpredictably across columns (Wong et al. 2009) • Different reference position in text than database – curator correction or normalized to different build • Nomenclature variation – c.482_483delGA vs c.482_483del2 • Linguistic expression of mutations – deletion of exon 3 – C>T mutation at nucleotide 2131
- 26. Information in tables (spreadsheets, etc.) is expressed differently than in narrative text
- 27. Gene listed in column heading Non-standard nomenclature “Del exon 7”
- 28. Text mining over semi-structured data? • Access ? • Variability (!) – File formats – How connected to the main text? • Semantics (?!) – How to make sense of the data? – How to map to standardized nomenclature? … processing supplementary material will require new strategies. Some technical solutions. Some research.
- 29. Extraction of gene-disease- mutation relations Study: Verspoor KM, Heo GH, Kang KY, Song M. (in press) Extraction of fine-grained semantic relations for the Human Variome. BMC Medical Informatics and Decision Making.
- 30. Variant interpretation using literature • Evidence of prior significance of variants • Evidence of established connection of the variant to specific patient cohorts • Use alone or in combination with other evidence • We aim to extract the relations that connect genes, diseases and mutations • Specific Objective of the work: relation extraction over the Variome Corpus
- 31. gene-mutation-disease-phenotype relations • Variome Annotation Schema – a schema defining entities and relations of interest to curation of genetic variants • Variome Corpus – A corpus of full text articles annotated according to the Variome Annotation Schema – To be used as training and evaluation data for text mining tools for extracting genetic variation information from the published literature 31 http://www.opennicta.com.au/home/health/variome
- 32. The Variome Corpus 10 full-text publications related to colorectal cancer Entities Relations Gene Gene-has-Mutation Mutation Cohort/Patient-has-Mutation Disease Mutation-relatedto-Disease Body part Disease-relatedto-Gene Cohort/Patient Disease-relatedto-BodyPart Size Mutation-has-Size Age Cohort/Patient-has-Age Gender Cohort/Patient-has-Gender Ethnicity or Geo Location Cohort/Patient-has-EthnicityLoc Characteristic Cohort/Patient-has-Disease Cohort-has-size Verspoor K, Jimeno Yepes A, Cavedon L, McIntosh T, Herten-Crabb A, Thomas Z, Plazzer JP. (2013) Annotating the Biomedical Literature for the Human Variome. Database: The Journal of Biological Databases and Curation, bat019. § 43k words § Double- annotated § IAA varies § .88-.92 F for entities § Relations much lower; reconciled manually
- 33. The Variome Corpus annotation 33
- 34. • Recognise genetic variants • Named entity recognition for gene names – Supervised learning for recognizing characteristics and contexts – Combined with dictionaries to support normalisation • Associating variants to genes – Simple co-occurrence – Combined with sequence verification – Machine learning for relation classification (PKDE4J) Extraction of mutation relations from text
- 35. Information Extraction, Structuring text From: A subset of colorectal tumour DNA samples from 17 patients carrying the p.Lys618Ala variant … To: T60 body-part 1307 1317 colorectal T7 disease 1318 1324 tumour R17_m relatedTo Arg1:T60 Arg2:T7 (colorectal relatedTo tumour) T61_merge size 1342 1344 17 T24 cohort-patient 1345 1353 patients R46_2 has Arg1:T24 Arg2:T7 (patients has tumour) T62 mutation 1367 1378 p.Lys618Ala R18_m has Arg1:T24 Arg2:T61_merge (patients has 17) = (patient group size 17) R19_m has Arg1:T24 Arg2:T62 (patients has p.Lys618Ala)
- 36. PKDE4J: Yonsei University IE system • PKDE4J – Extensible, flexible text mining system for public knowledge discovery – Entity and relation extraction from the unstructured text data – Extension of Stanford CoreNLP (Manning et al., 2014) – http://informatics.yonsei.ac.kr/pkde4j • Differentiation of PKDE4J – Configurable system • Dictionary based entity extraction • Extensible system • Wide range of relation extraction tasks developing an extensible rule engine based on dependency parsing – Accurate performance • PKDE4J outperforms many other competing algorithms for both entity and relation extraction
- 37. PKDE4J: Yonsei University IE system • PKDE4J’s major two pipelines – Entity Extraction: Target entities based on dictionaries by extending Stanford CoreNLP – Relation Extraction: relationships among entities based on dependency tree based rules
- 38. PKDE4J – Named Entity Recognition
- 39. PKDE4J – Named Entity Recognition • Extension of Stanford CoreNLP • Three major submodules Pre-Processing Dictionary loading Entity annotation • Flexible configuration (number and format of dictionaries) • Trie data structure • Abbreviation resolution • Tokenization: Stanford PTBTokenizer • Sentence splitting, POS tagging, Lemmatization: Stanford CoreNLP • String normalization: Special characters processing • N-gram matching: Apache Lucene ShingleWrapper • Approximate string matching: Soft-TFIDF • Regex NER (Rule-based): Stanford CoreNLP • Candidate entities filtering: POS filtering, Stopword removal • Labeling: B/I/O format, Entity type
- 40. PKDE4J – Relation Extraction
- 41. PKDE4J – Relation Extraction • Based on dependency parse (grammatical structure) based rules • To extract a relation Step 1: Identify the verbs in a sentence Category Number of Verbs Type Verb Example Positive 68 Increase Lead, Contribute, Rise Transmit Shift, Move, Migrate Substitute Supplement, Alter Negative 54 Decrease Decline, Diffuse, Down-regulate Remove Deplete, Abrogate, Disassociate Neutral 111 Contain Possess, Constitute, Include Modify Methylate, Modulate , Normalize Method Bleach, Centrifuge, Spin Report Evaluate, Analyze, Examine Plain 165 Plain Return, Switch, Balance
- 42. PKDE4J - RE Step 2: Check structure of sentence • Syntactic rules based on deep parsing – Dependency tree encodes grammaticalrelations between words in a sentences. – The tree denotes syntactic dependenciesbetween two entities. – Need to spot the portion of parse tree that is useful, pertinent to location of entities in a sentence.
- 43. PKDE4J - RE • Rule Extraction – Use Strategy design pattern – Capture predefined rules (17 strategies) ①Verb in dependency path ②No verb in dependency path ③Detect nominalization ④Weak nominalization ⑤Negation ⑥Tense (active / passive) ⑦Contain clause ⑧Clause distance ⑨Negation clause ⑩Number intervening entities ⑪Entities in between ⑫Surface distance ⑬Entity counts ⑭Same head ⑮Entity order ⑯Full tree path ⑰Path length
- 44. Evaluation: PKDE4J over Variome Corpus • Experimental set-up – Data split – Features? – 10-fold cross-validation • Focus on relations: Used gold standard entities • Baseline co-occurrence system
- 45. Results of the evaluation Relation Extraction results for relations with at least 100 examples in the corpus.
- 46. Observations • By applying text mining we can transform the literature from an unstructured, difficult to use resource, to a structured resource. • We can build systems that can recognise core biological entities in the published literature. • With this, the information is more accessible – Formalised and normalised in a database – Directly query-able • and can be used to facilitate more computation: – Information retrieval in terms of entities – Predictive modeling and hypothesis generation
- 47. Conclusions • Variants are relatively easy to recognise in the literature, when the recommended nomenclature is followed (so please use it!). • The relations between variants and other entities are harder to extract, but still we can do a reasonable job. • There is lots of information that is in ancillary files associated to the literature (with some challenges for automated systems). The literature can be effectively mined to identify variant-related information to assist biocuration and clinical interpretation of variants.
- 48. © Copyright The University of Melbourne 2016
