Using Spatial Data Streams In Real-Time
The document discusses using spatial data streams in real-time applications. It describes different types of real-time spatial data, such as stationary data from sensors and dynamic data from moving objects. It then demonstrates the ArcGIS GeoEvent Extension for Server, which can integrate real-time streaming data, perform continuous processing and analytics, and respond to events in real-time by updating maps and sending alerts. The extension includes connectors to ingest data streams and output connectors to respond to events. Filters and processors can be used to analyze incoming data.
More Related Content
![Jeremy Foran [BAI Communications] | Detecting Subway Overcrowding in Real Tim...](https://cdn.slidesharecdn.com/ss_thumbnails/baicommunications-influxdbdays-200624185527-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Using Spatial Data Streams In Real-Time
Using Spatial Data Streams In Real-Time

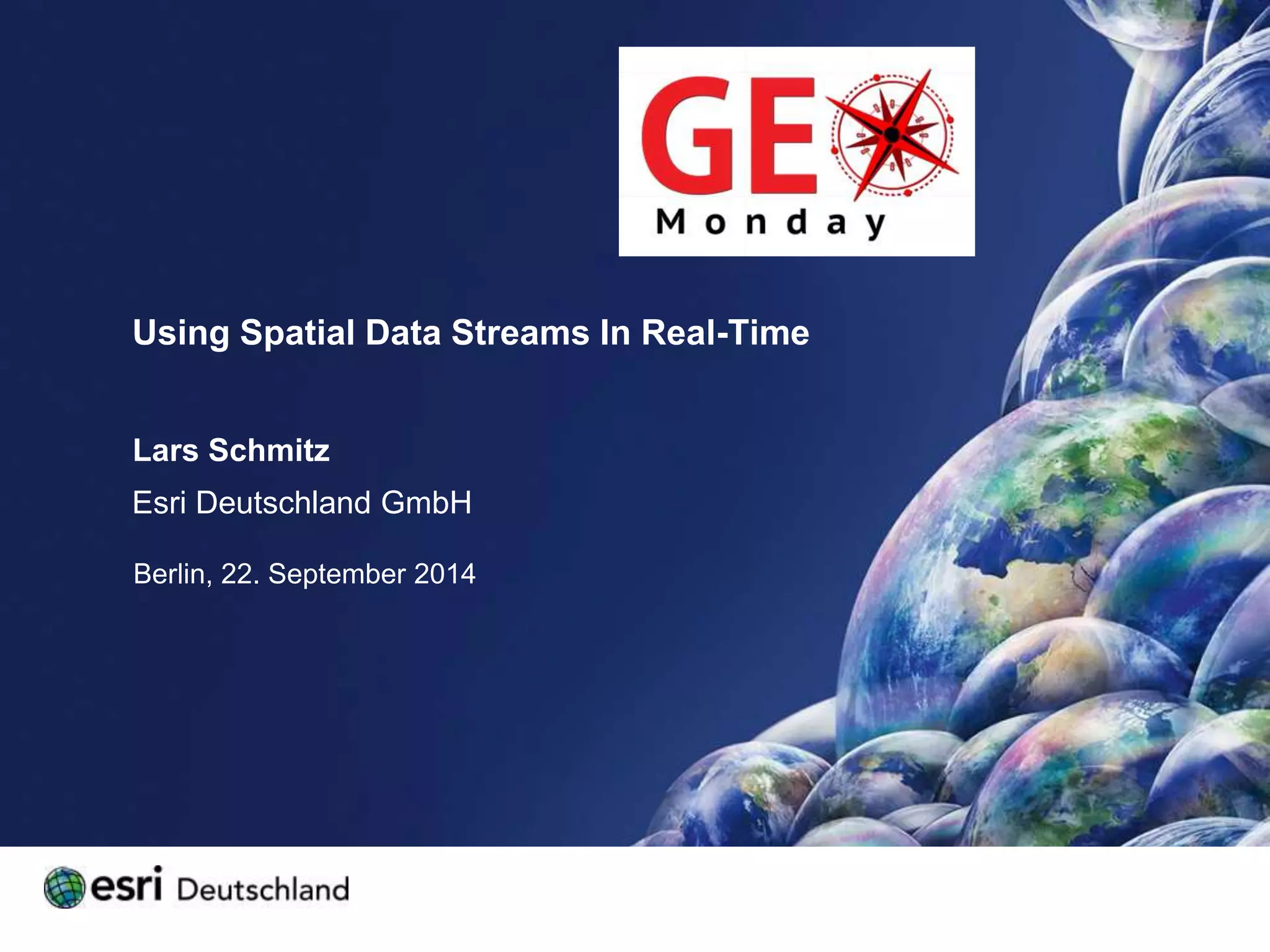

- 1. Using Spatial DataStreams In Real-Time Lars Schmitz Esri Deutschland GmbH Berlin, 22. September 2014
- 2. Real-Time GIS Data 2 © 2014 Esri Deutschland GmbH

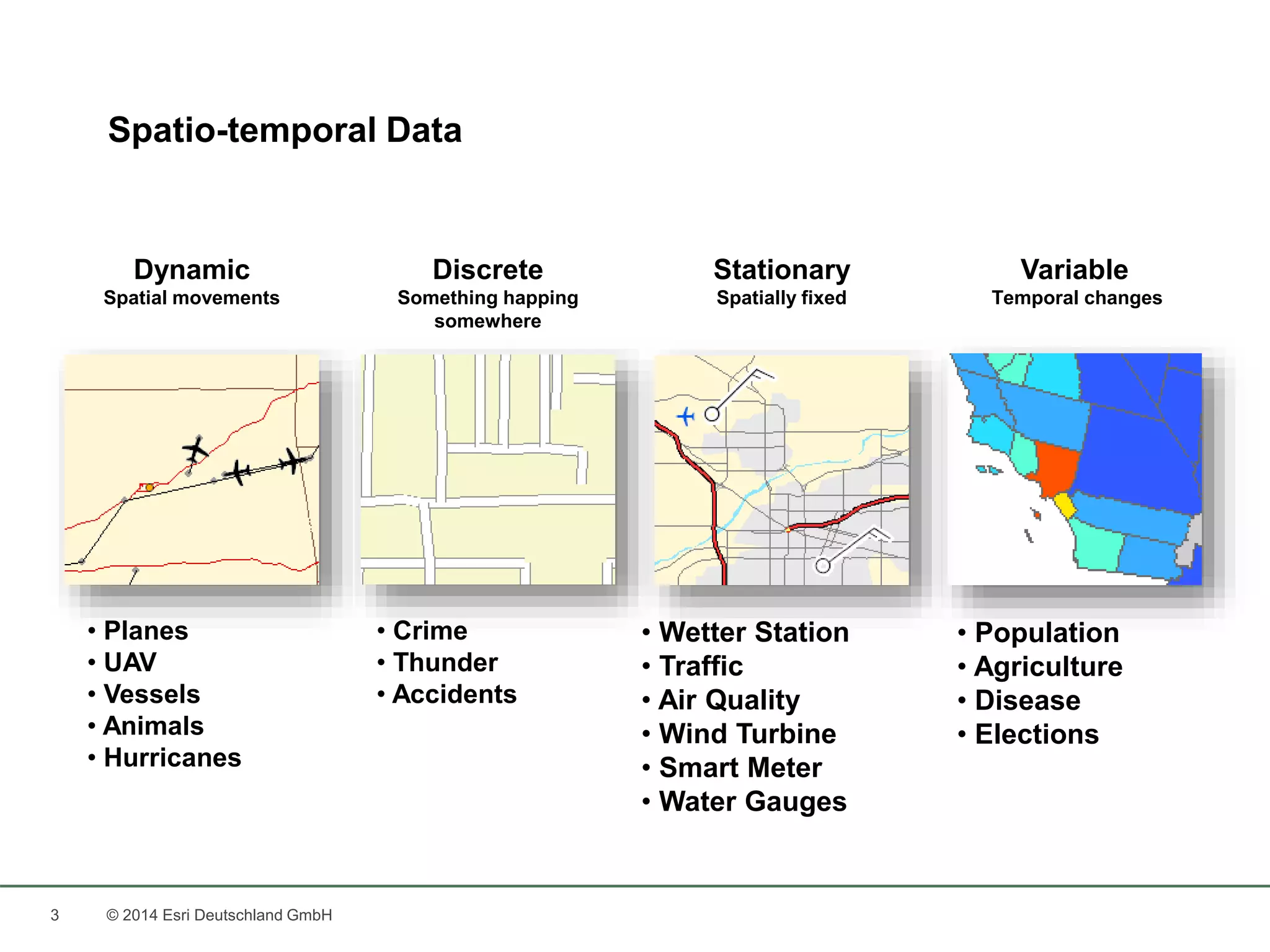

- 3. Spatio-temporal Data 3© 2014 Esri Deutschland GmbH Variable Temporal changes • Population • Agriculture • Disease • Elections Dynamic Spatial movements • Planes • UAV • Vessels • Animals • Hurricanes Discrete Something happing somewhere • Crime • Thunder • Accidents Stationary Spatially fixed • Wetter Station • Traffic • Air Quality • Wind Turbine • Smart Meter • Water Gauges

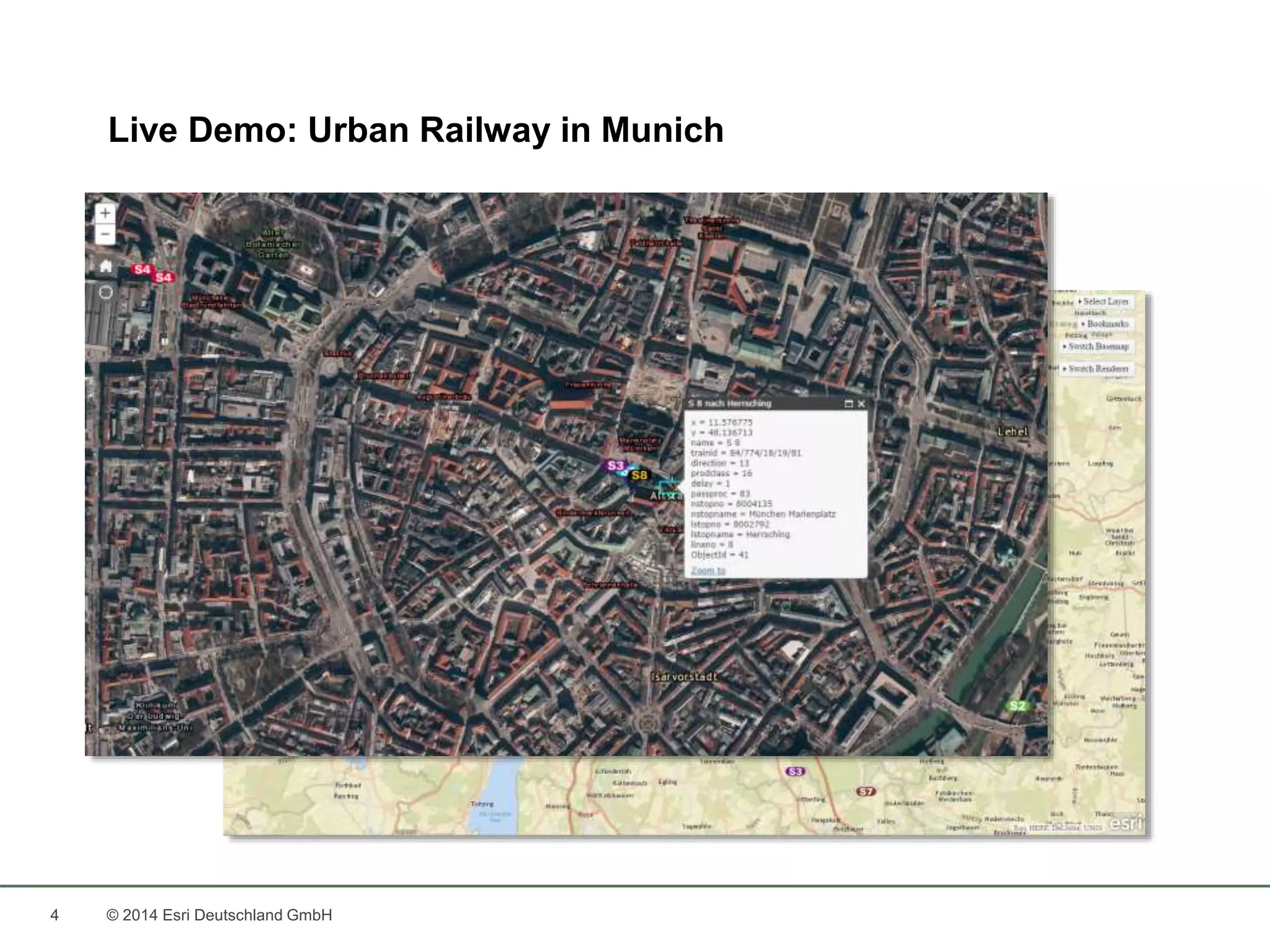

- 4. Live Demo: UrbanRailway in Munich 4 © 2014 Esri Deutschland GmbH

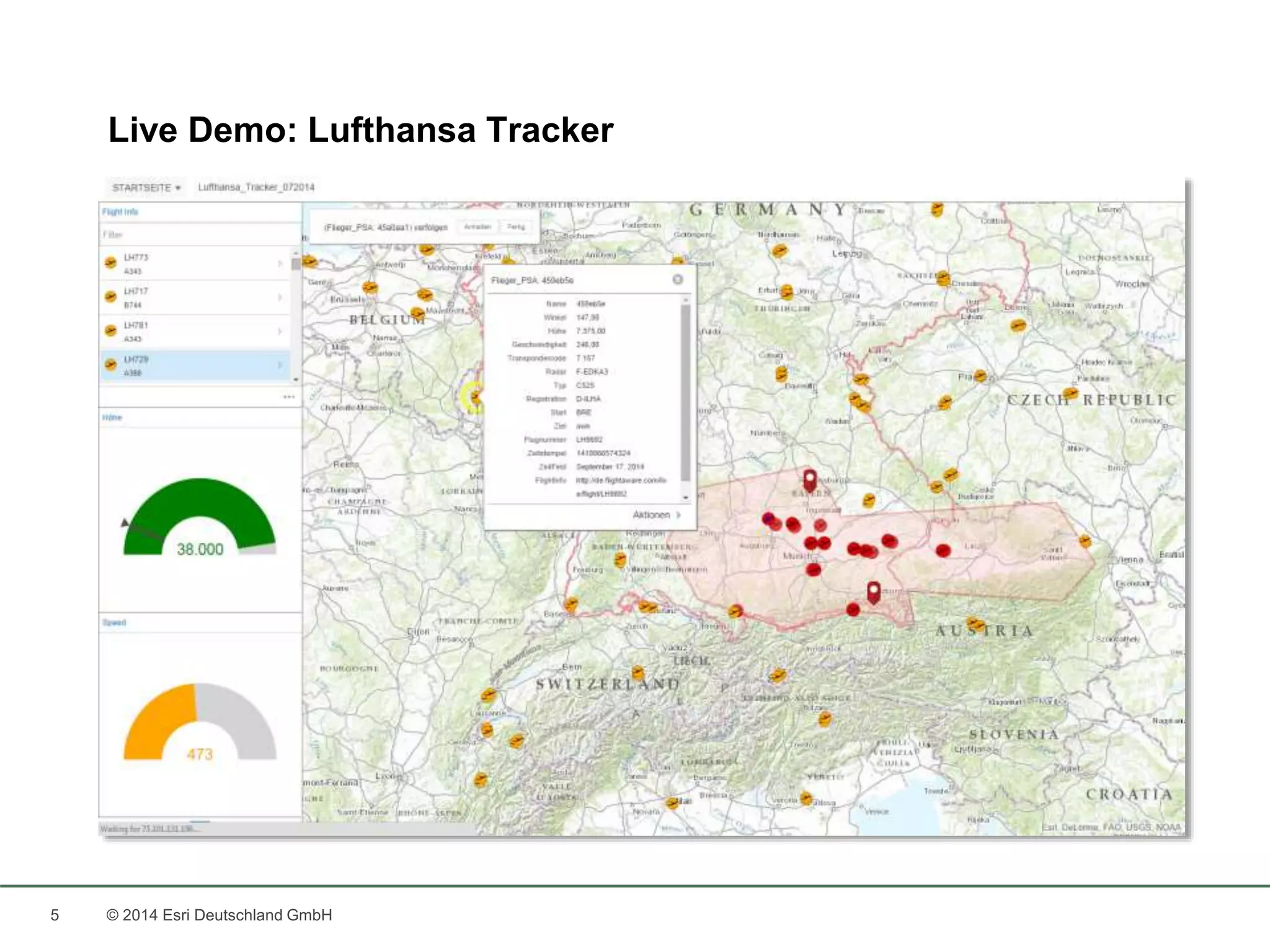

- 5. Live Demo: LufthansaTracker 5 © 2014 Esri Deutschland GmbH

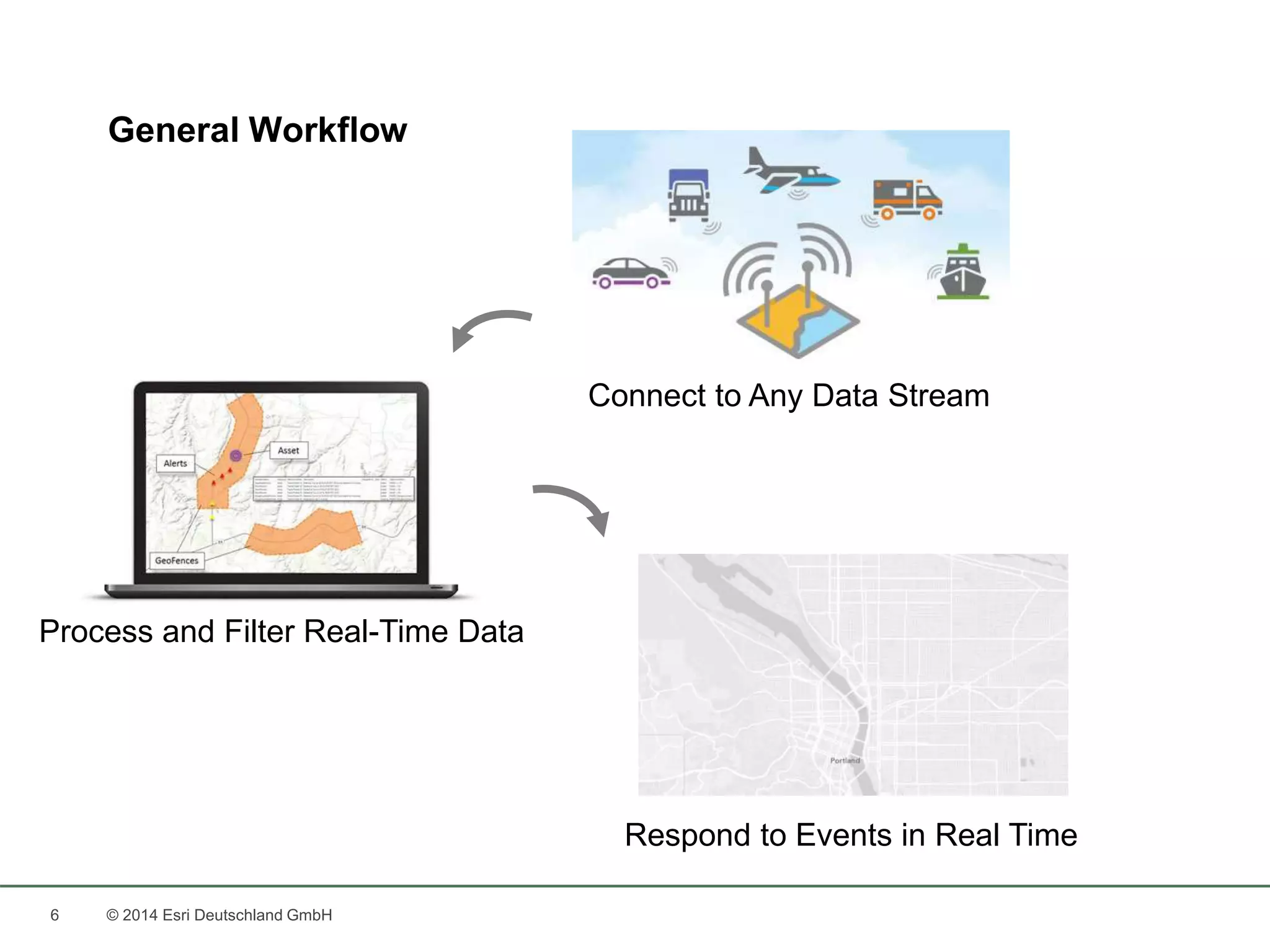

- 6. General Workflow 6© 2014 Esri Deutschland GmbH Connect to Any Data Stream Process and Filter Real-Time Data Respond to Events in Real Time

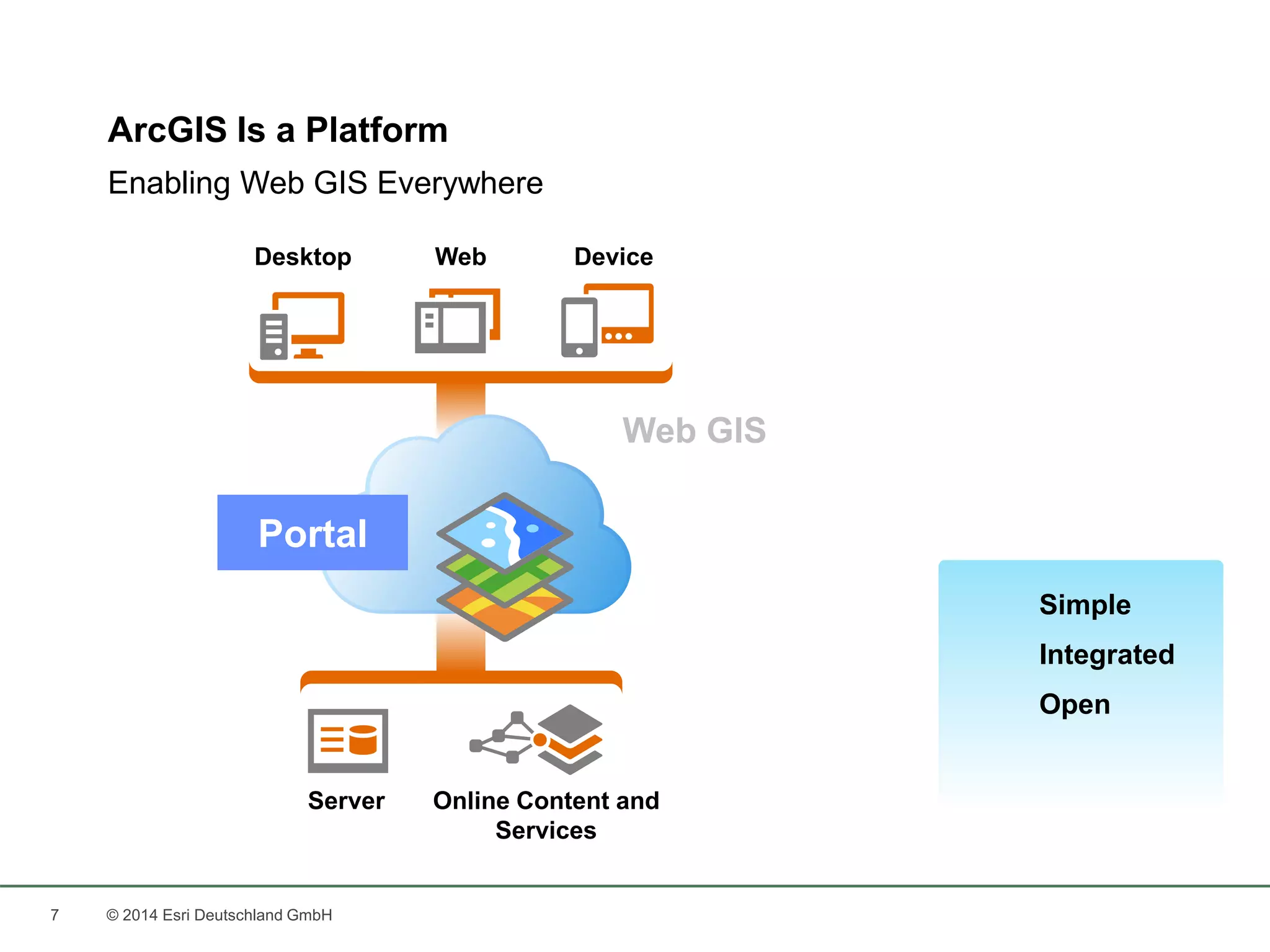

- 7. 7 ArcGIS Isa Platform Desktop Web Device Server Online Content and Services Portal © 2014 Esri Deutschland GmbH Simple Integrated Open Enabling Web GIS Everywhere

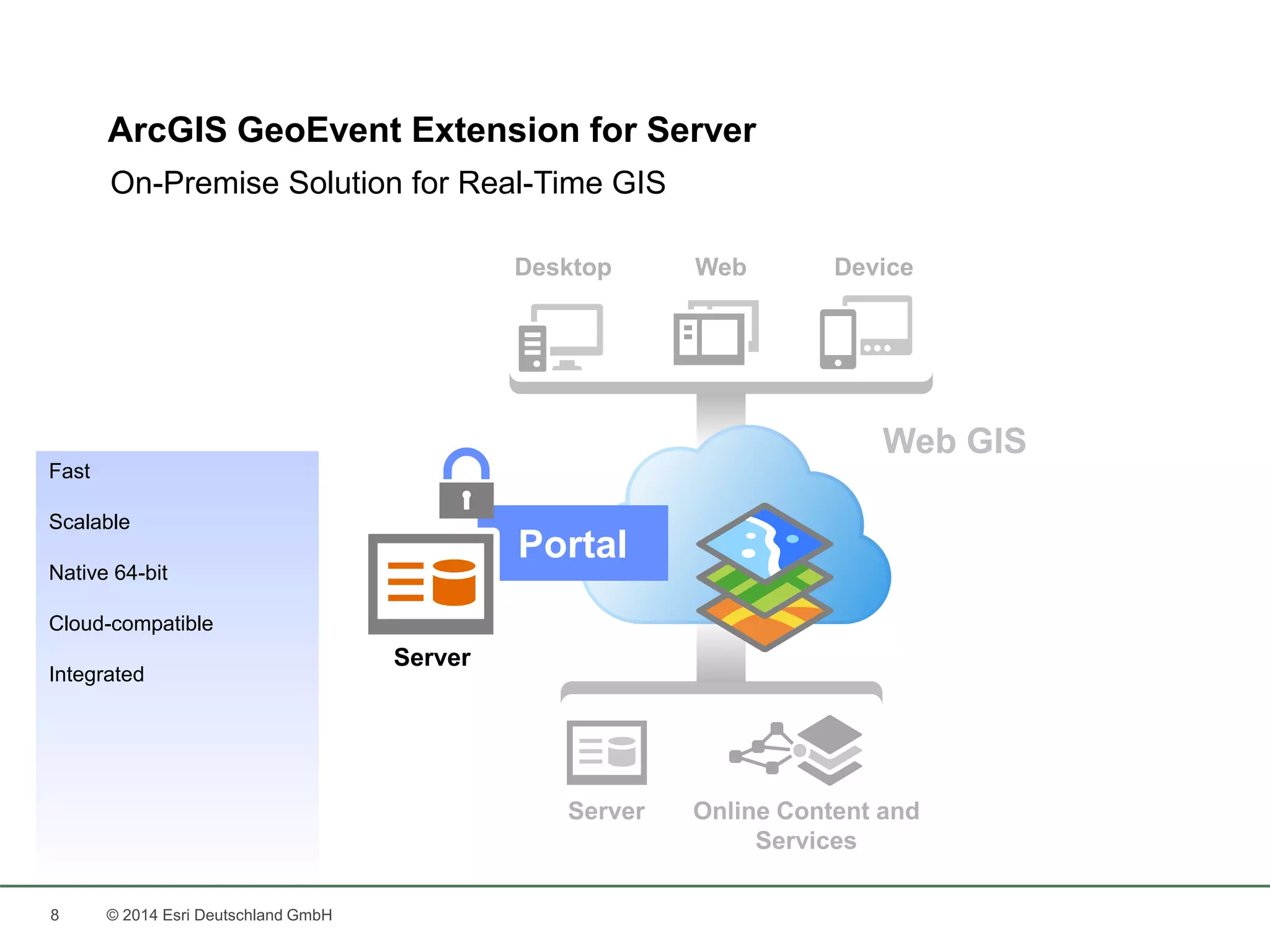

- 8. ArcGIS GeoEvent Extensionfor Server On-Premise Solution for Real-Time GIS 8 © 2014 Esri Deutschland GmbH Portal Server Fast Scalable Native 64-bit Cloud-compatible Integrated

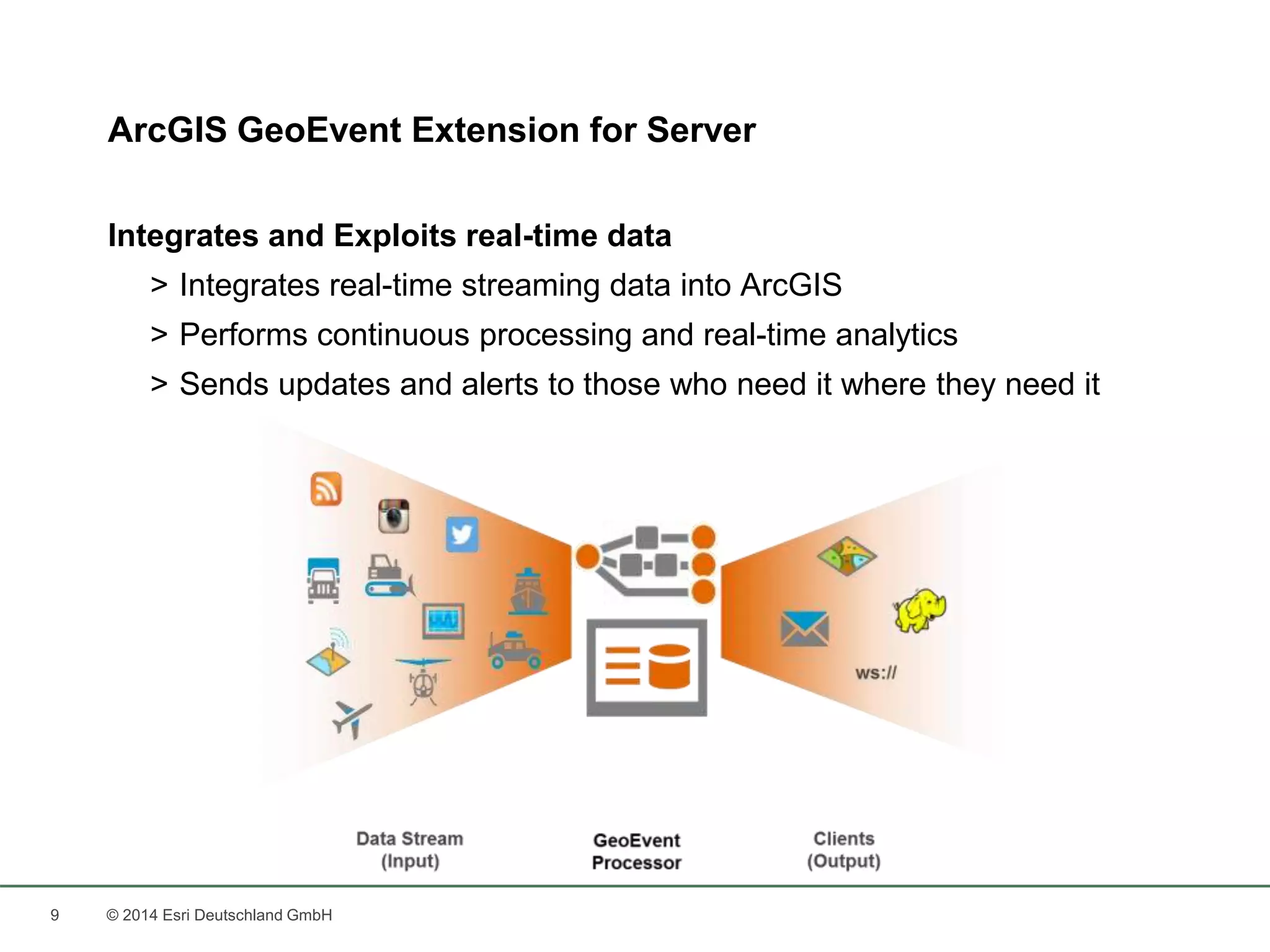

- 9. ArcGIS GeoEvent Extensionfor Server Integrates and Exploits real-time data > Integrates real-time streaming data into ArcGIS > Performs continuous processing and real-time analytics > Sends updates and alerts to those who need it where they need it 9 © 2014 Esri Deutschland GmbH

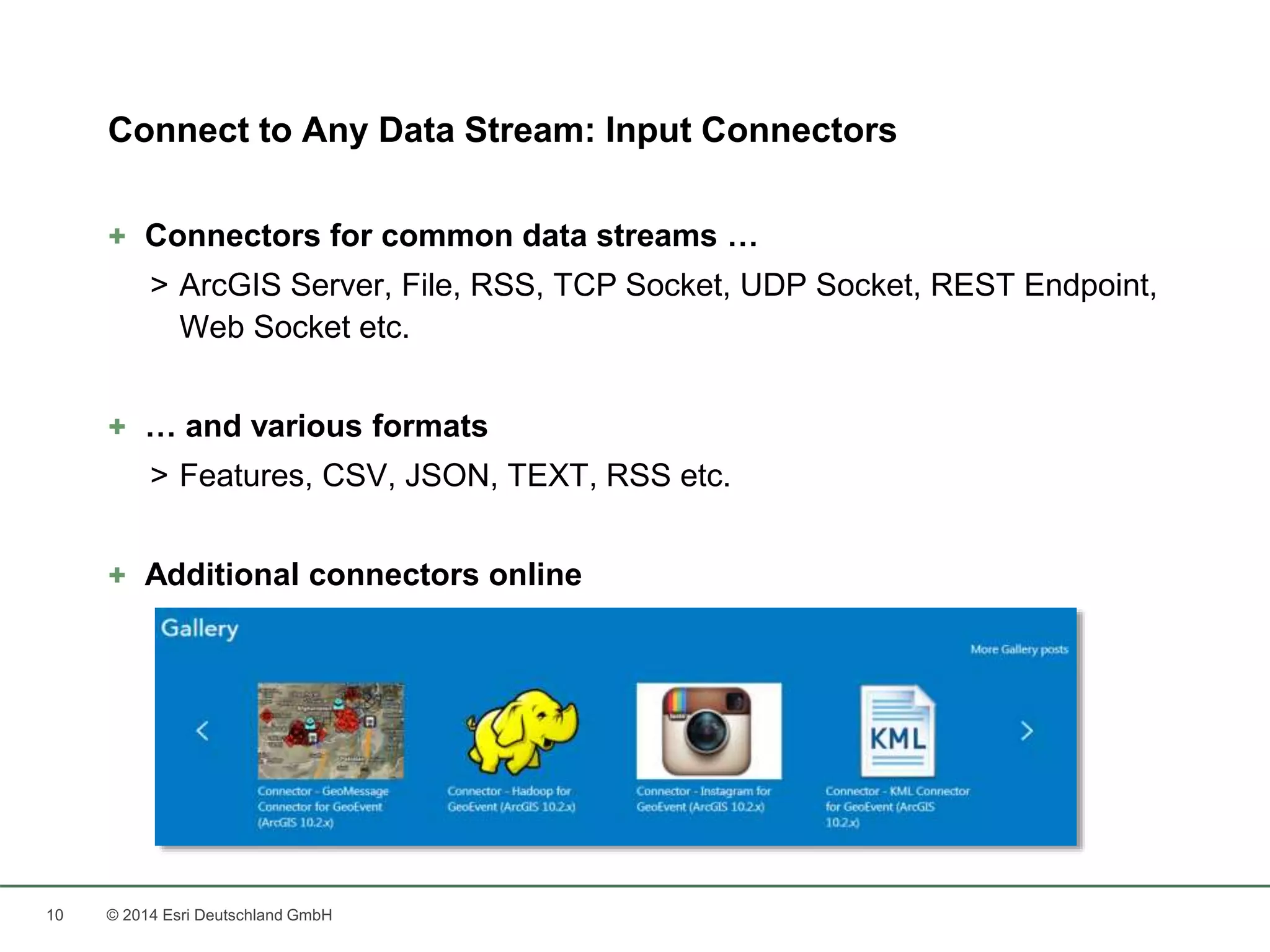

- 10. Connect to AnyData Stream: Input Connectors + Connectors for common data streams … > ArcGIS Server, File, RSS, TCP Socket, UDP Socket, REST Endpoint, Web Socket etc. + … and various formats > Features, CSV, JSON, TEXT, RSS etc. + Additional connectors online 10 © 2014 Esri Deutschland GmbH

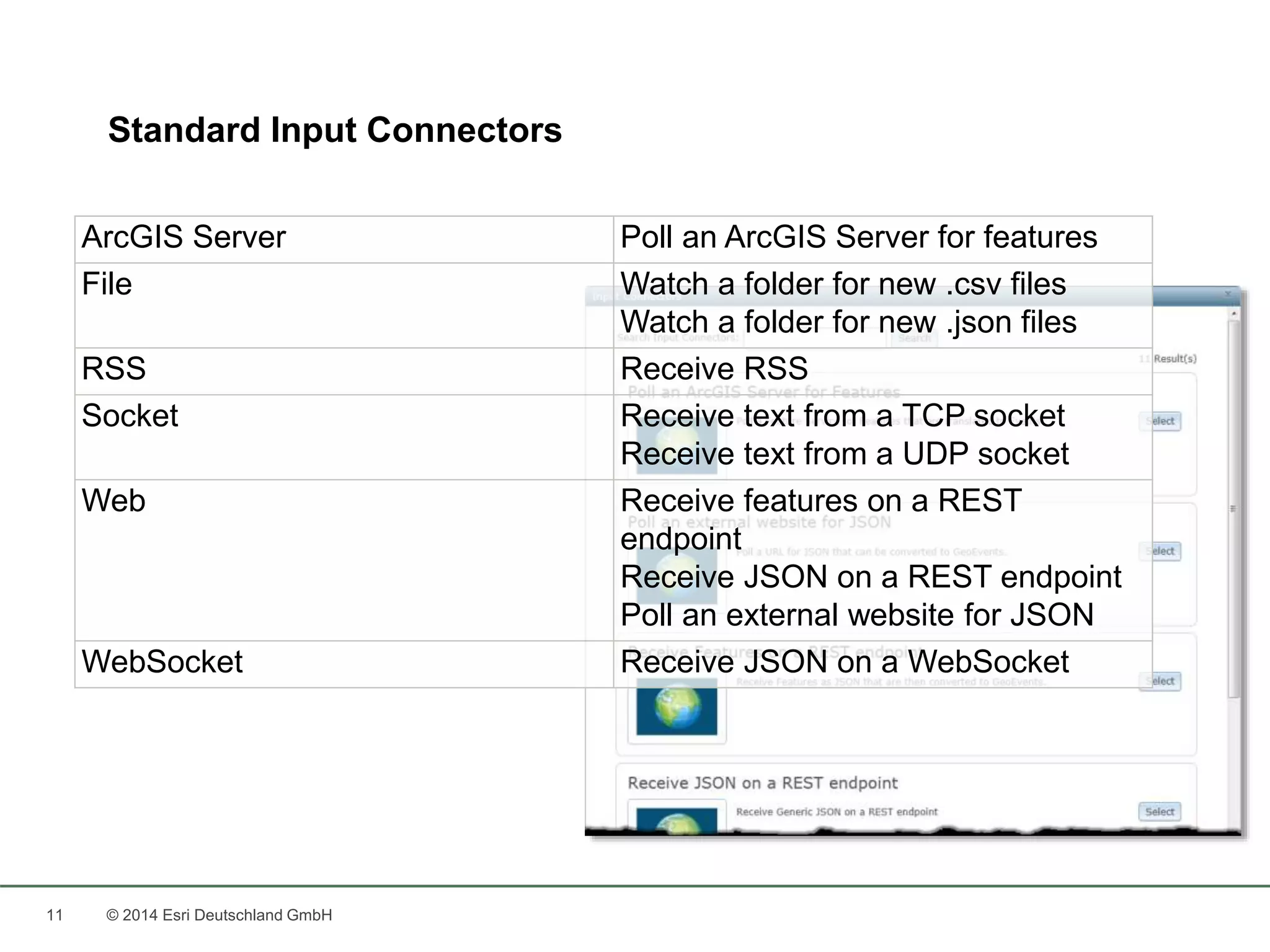

- 11. Standard Input Connectors ArcGIS Server Poll an ArcGIS Server for features File Watch a folder for new .csv files 11 © 2014 Esri Deutschland GmbH Watch a folder for new .json files RSS Receive RSS Socket Receive text from a TCP socket Receive text from a UDP socket Web Receive features on a REST endpoint Receive JSON on a REST endpoint Poll an external website for JSON WebSocket Receive JSON on a WebSocket

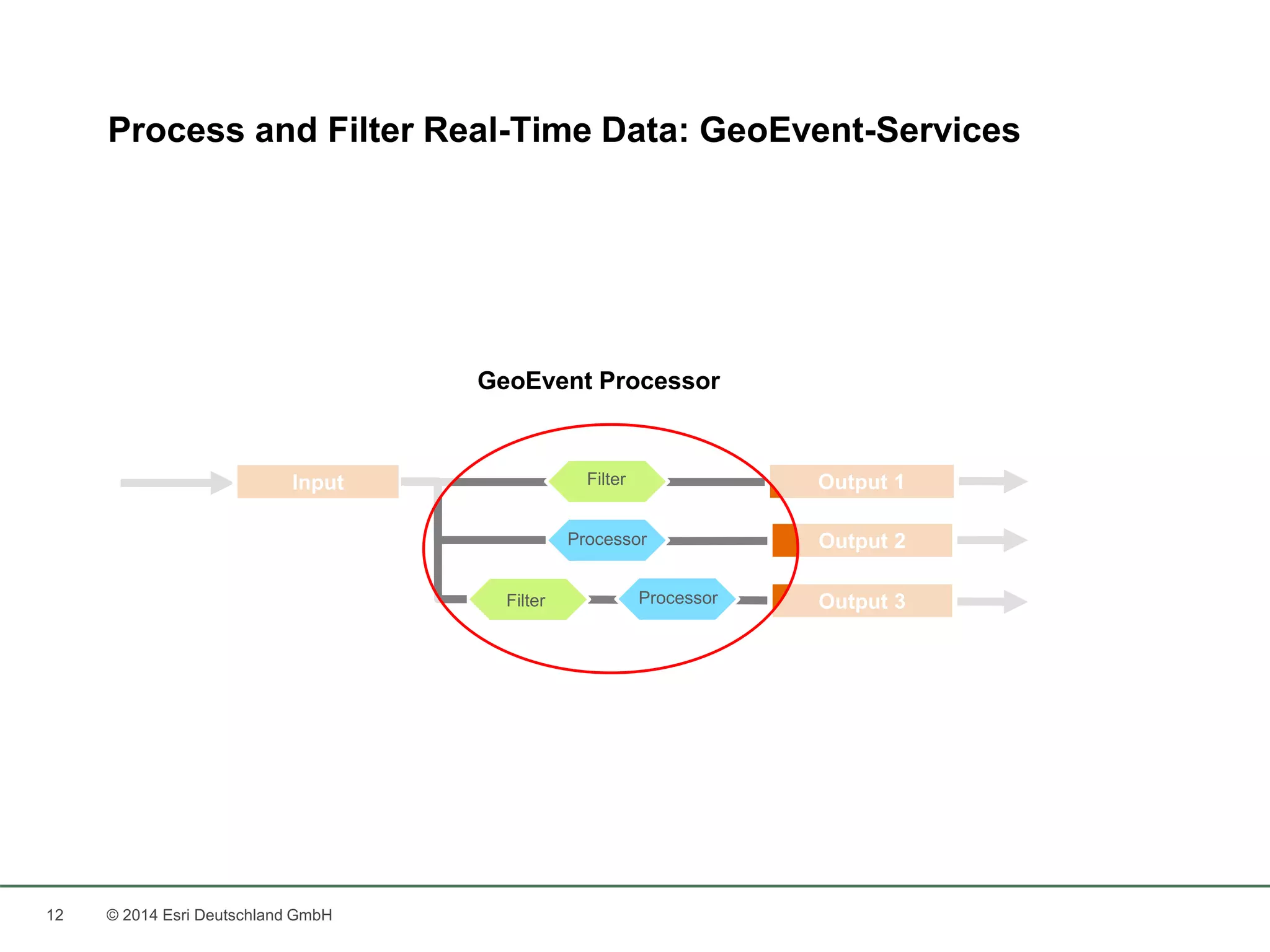

- 12. Process and FilterReal-Time Data: GeoEvent-Services GeoEvent Processor Input Output 1 12 © 2014 Esri Deutschland GmbH Output 2 Output 3 Processor Processor Filter Filter

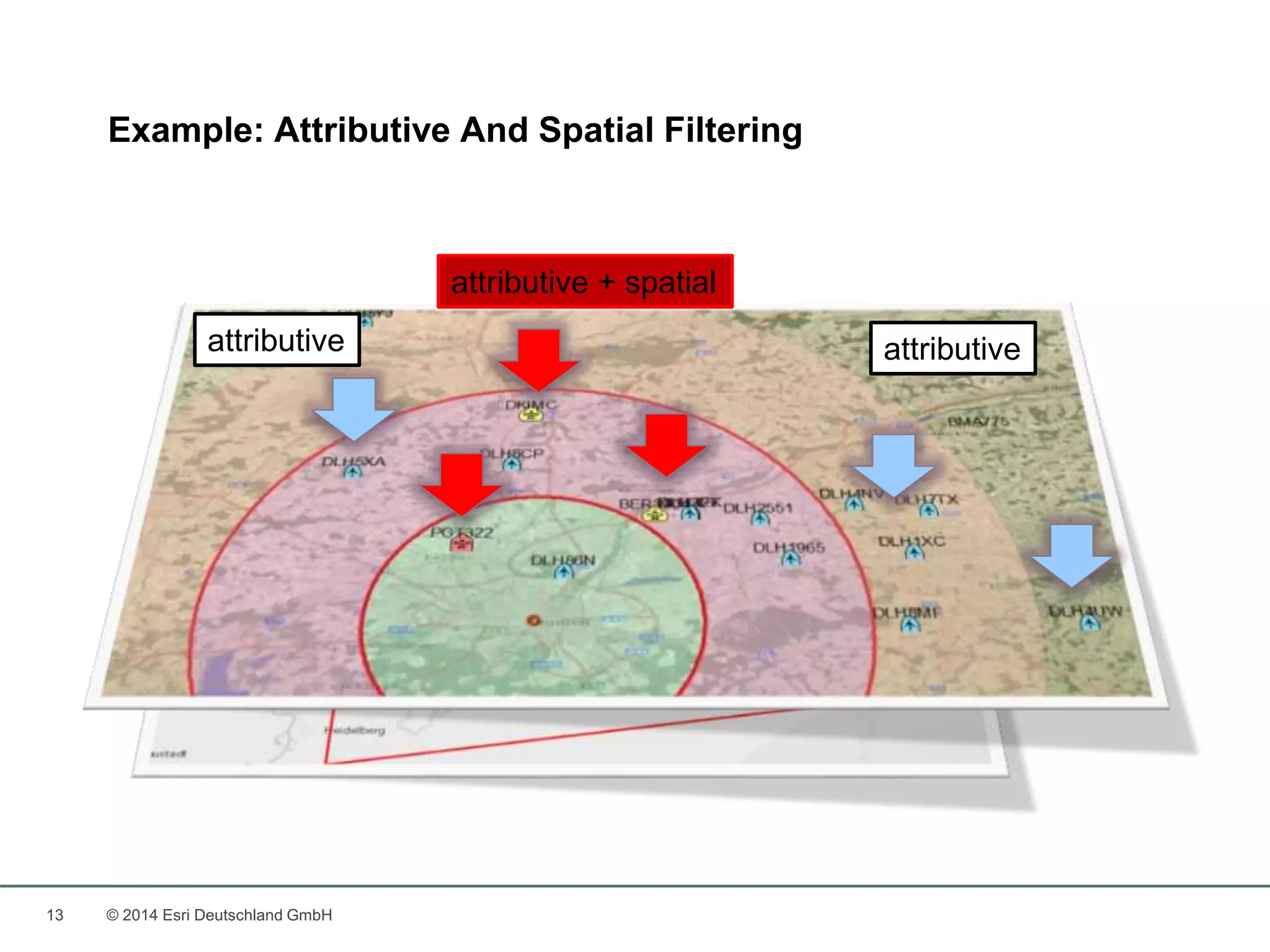

- 13. 13 Example: AttributiveAnd Spatial Filtering attributive attributive + spatial attributive © 2014 Esri Deutschland GmbH

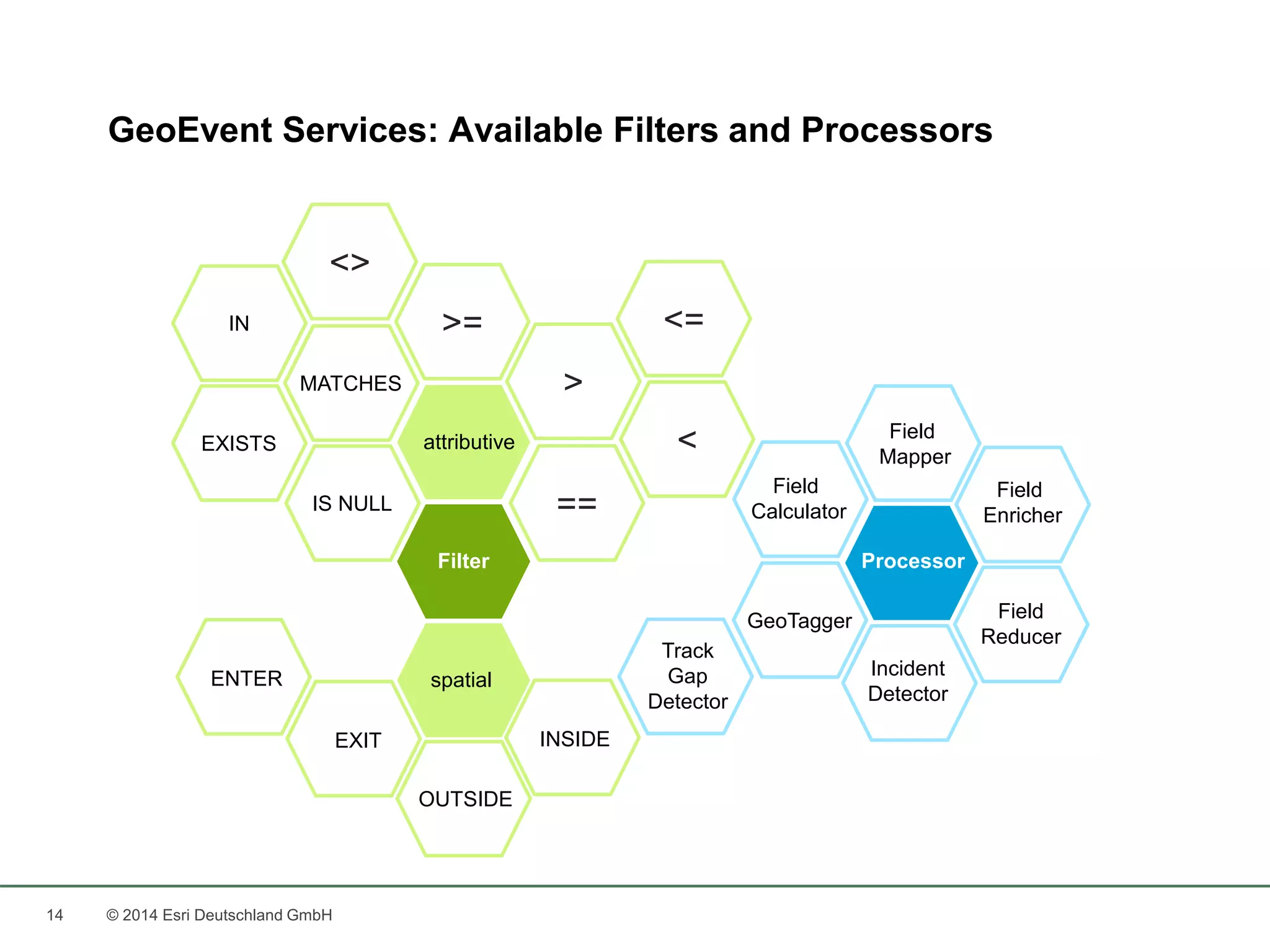

- 14. GeoEvent Services: AvailableFilters and Processors IN 14 © 2014 Esri Deutschland GmbH >= <= attributive Filter spatial > < <> MATCHES IS NULL EXISTS == EXIT OUTSIDE INSIDE ENTER Field Mapper Processor Field Enricher Field Reducer Incident Detector Field Calculator GeoTagger Track Gap Detector

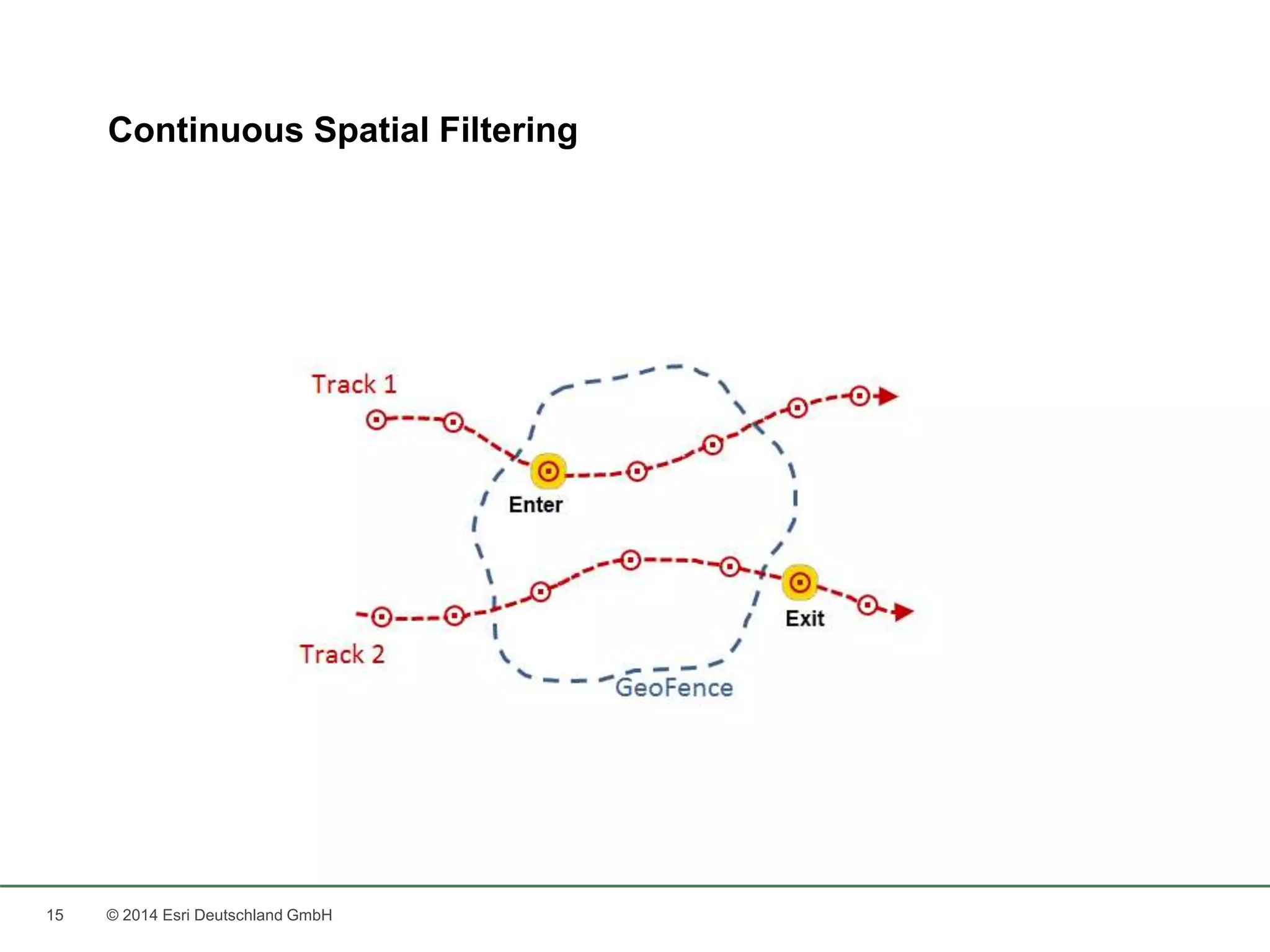

- 15. Continuous Spatial Filtering 15 © 2014 Esri Deutschland GmbH

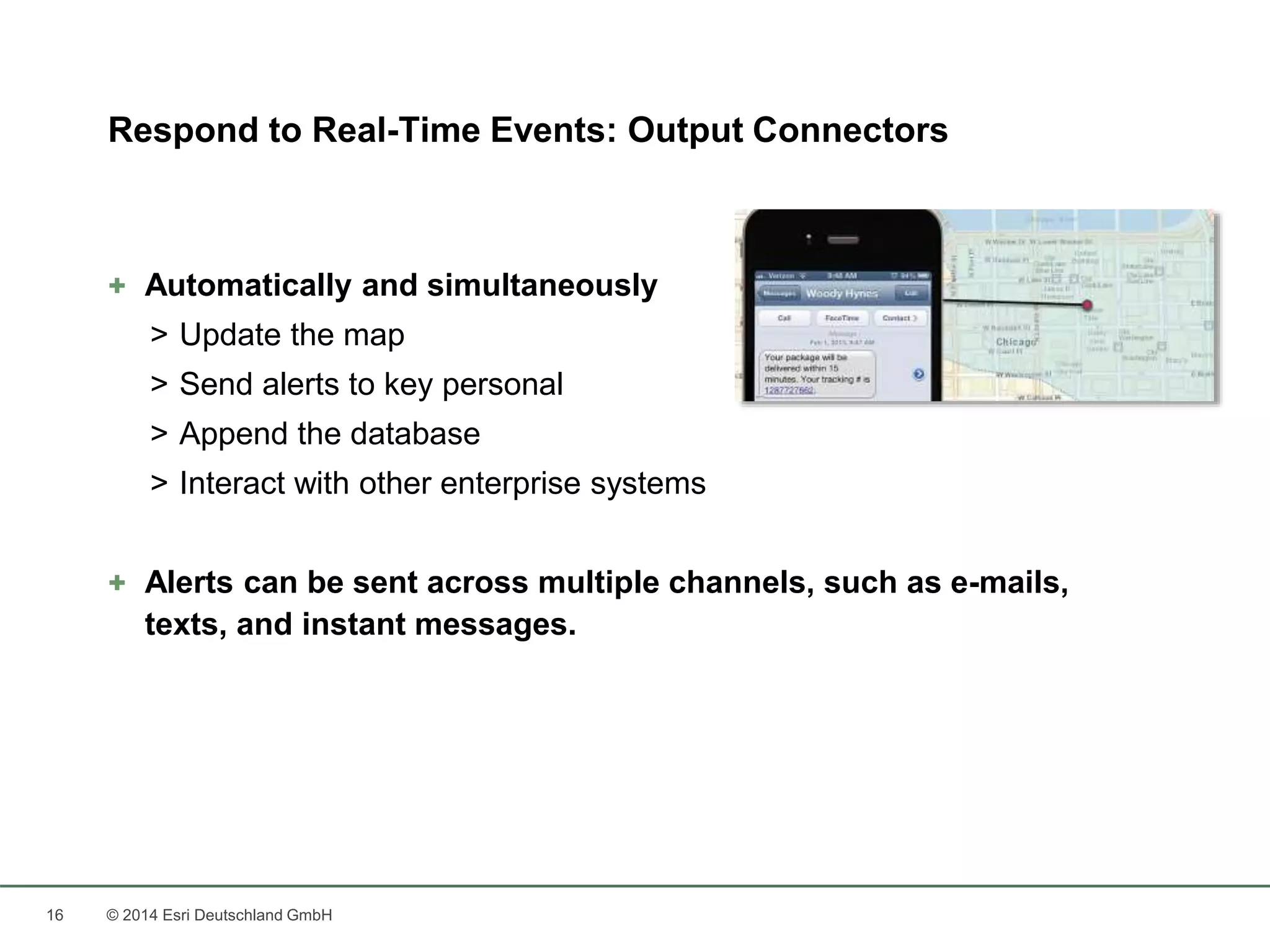

- 16. Respond to Real-TimeEvents: Output Connectors + Automatically and simultaneously > Update the map > Send alerts to key personal > Append the database > Interact with other enterprise systems + Alerts can be sent across multiple channels, such as e-mails, texts, and instant messages. 16 © 2014 Esri Deutschland GmbH

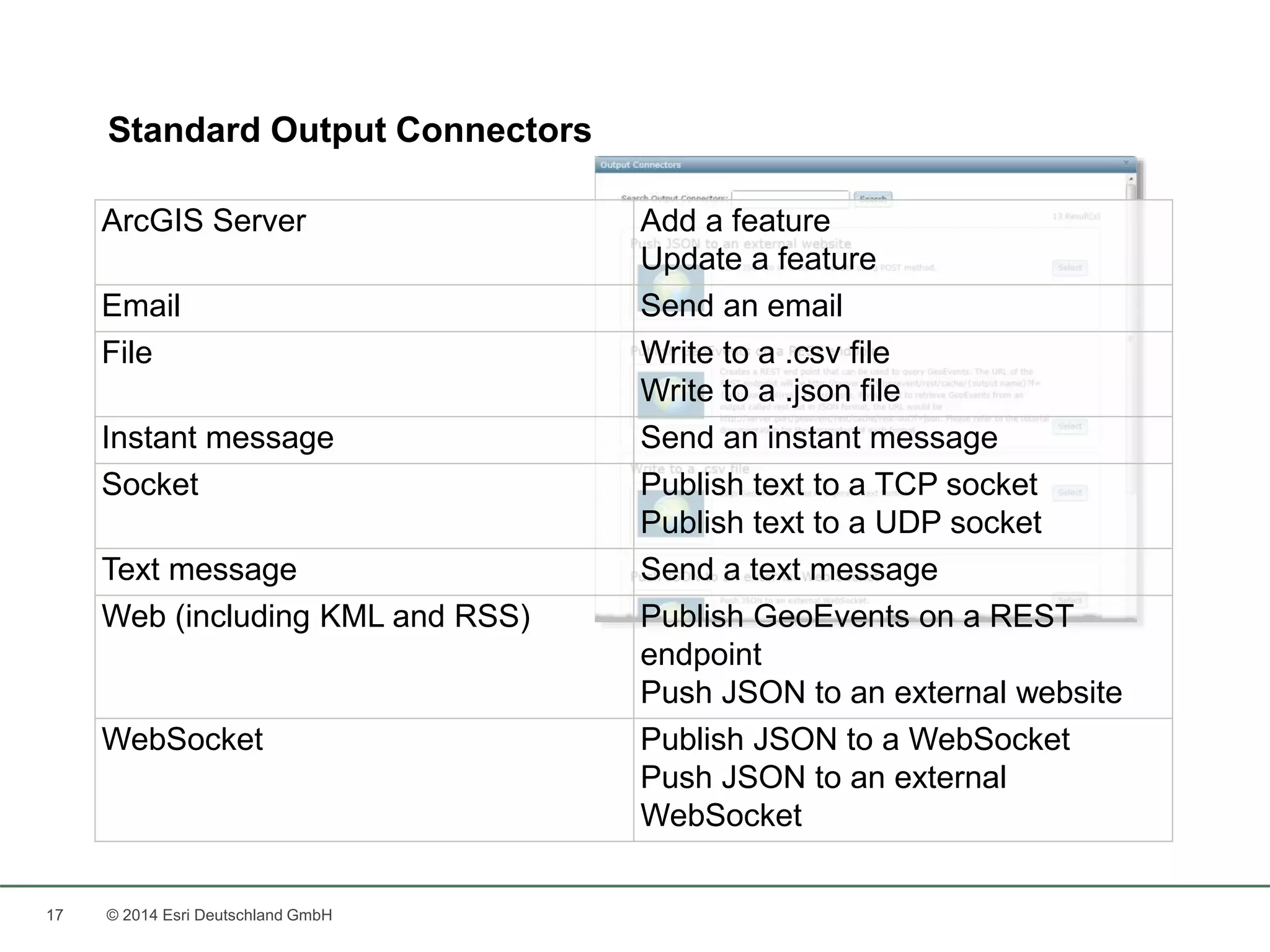

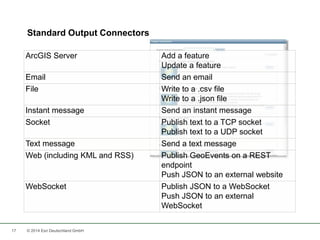

- 17. ArcGIS Server Adda feature 17 © 2014 Esri Deutschland GmbH Update a feature Email Send an email File Write to a .csv file Write to a .json file Instant message Send an instant message Socket Publish text to a TCP socket Publish text to a UDP socket Text message Send a text message Web (including KML and RSS) Publish GeoEvents on a REST endpoint Push JSON to an external website WebSocket Publish JSON to a WebSocket Push JSON to an external WebSocket Standard Output Connectors

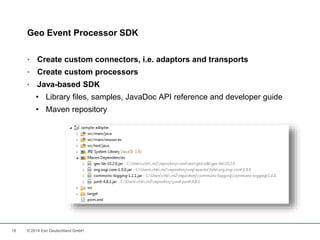

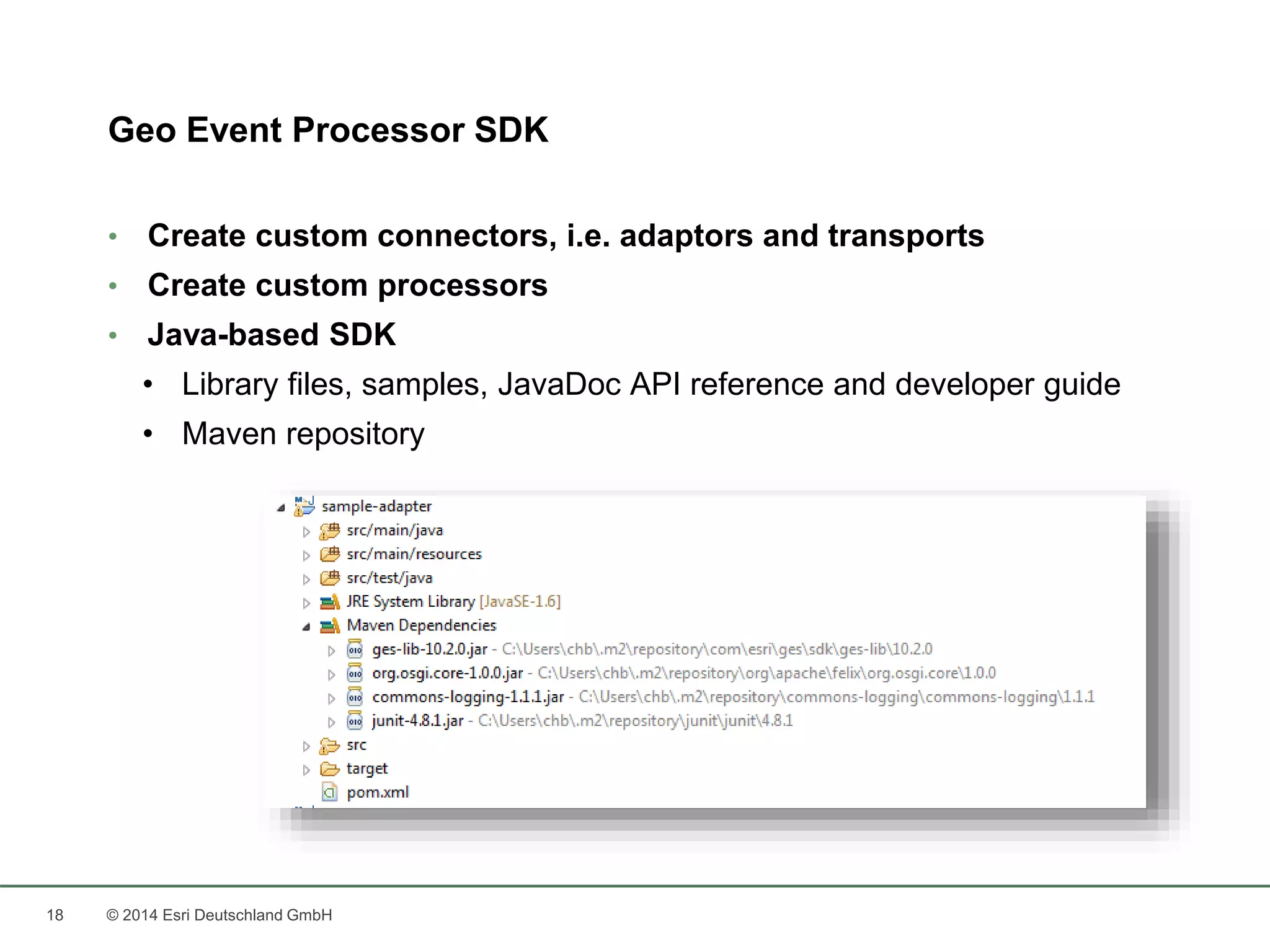

- 18. Geo Event ProcessorSDK • Create custom connectors, i.e. adaptors and transports • Create custom processors • Java-based SDK • Library files, samples, JavaDoc API reference and developer guide • Maven repository 18 © 2014 Esri Deutschland GmbH

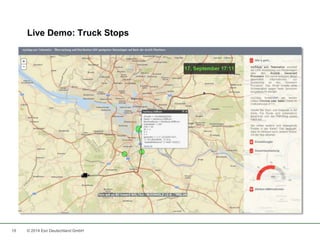

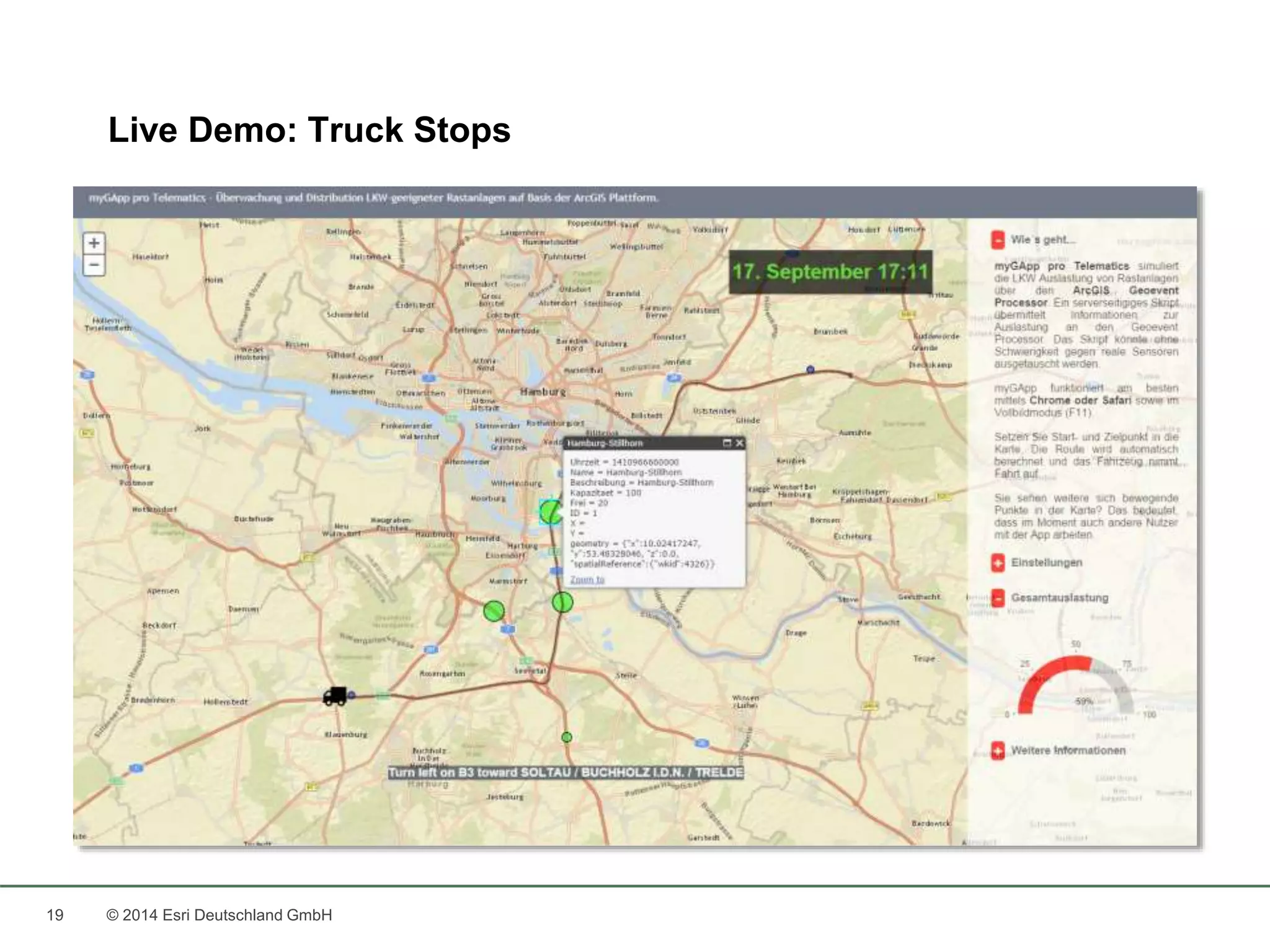

- 19. Live Demo: TruckStops 19 © 2014 Esri Deutschland GmbH

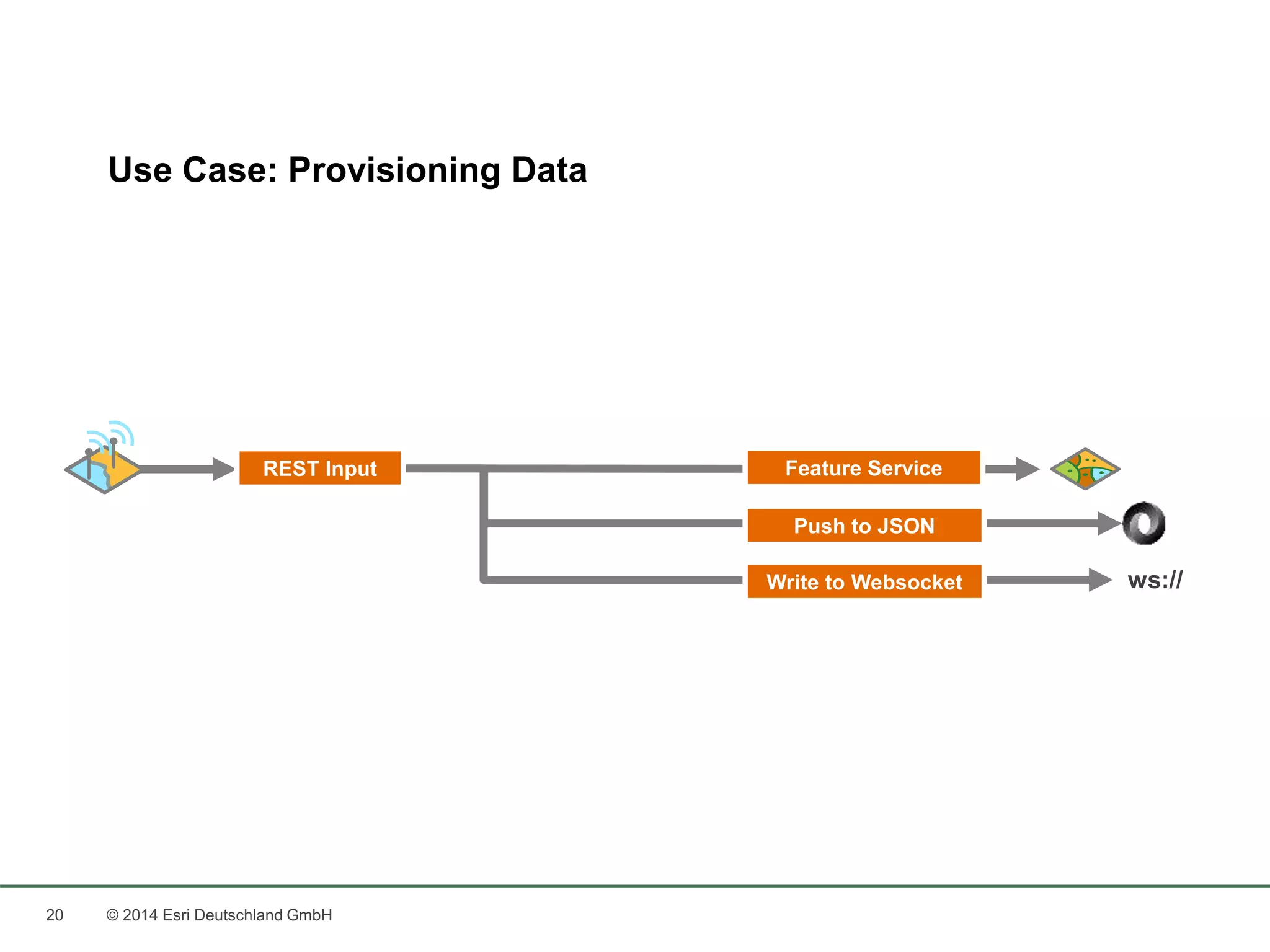

- 20. Use Case: ProvisioningData REST Input Feature Service 20 © 2014 Esri Deutschland GmbH Push to JSON Write to Websocket ws://

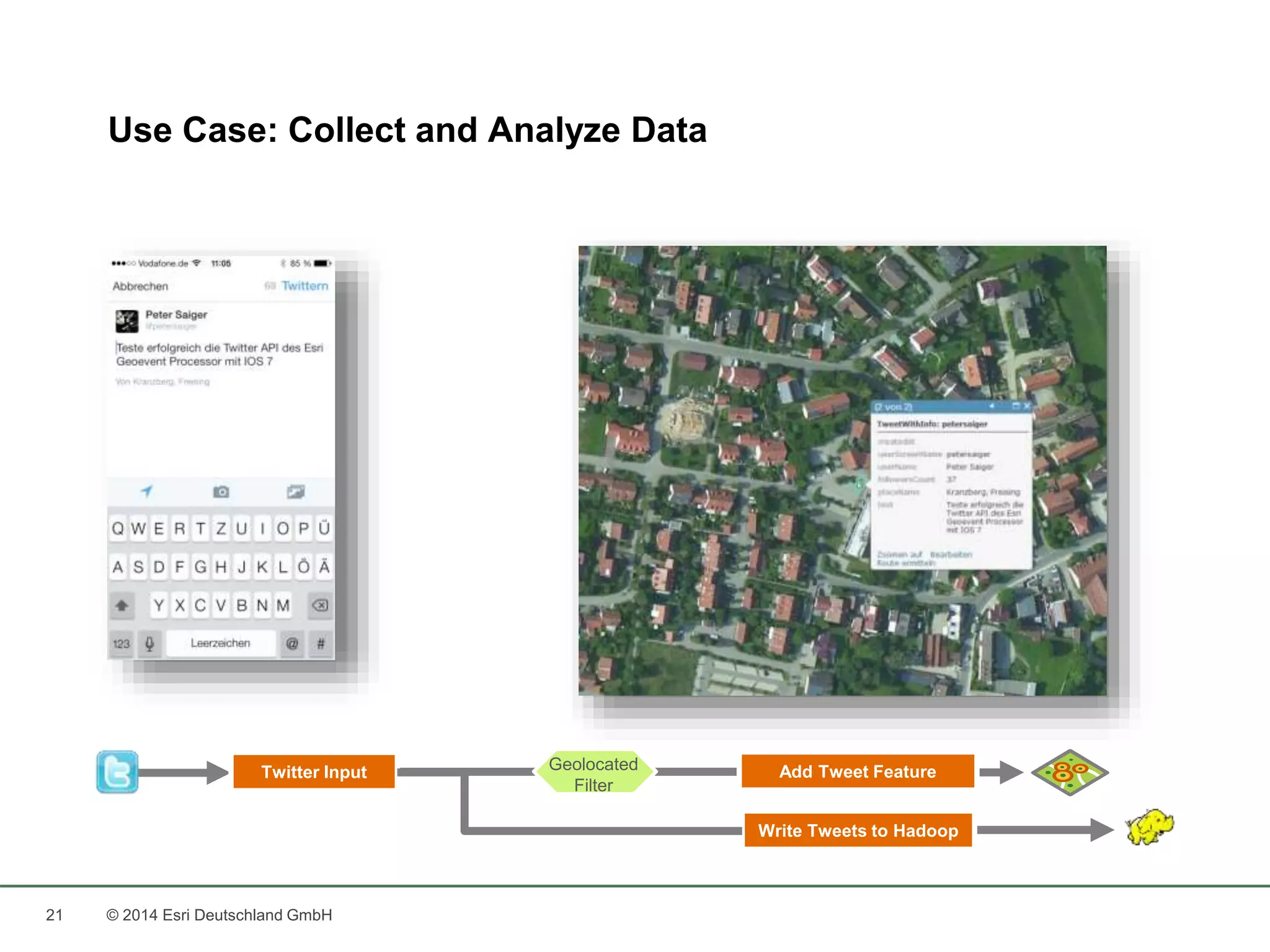

- 21. Use Case: Collectand Analyze Data Twitter Input Add Tweet Feature 21 © 2014 Esri Deutschland GmbH Write Tweets to Hadoop Geolocated Filter

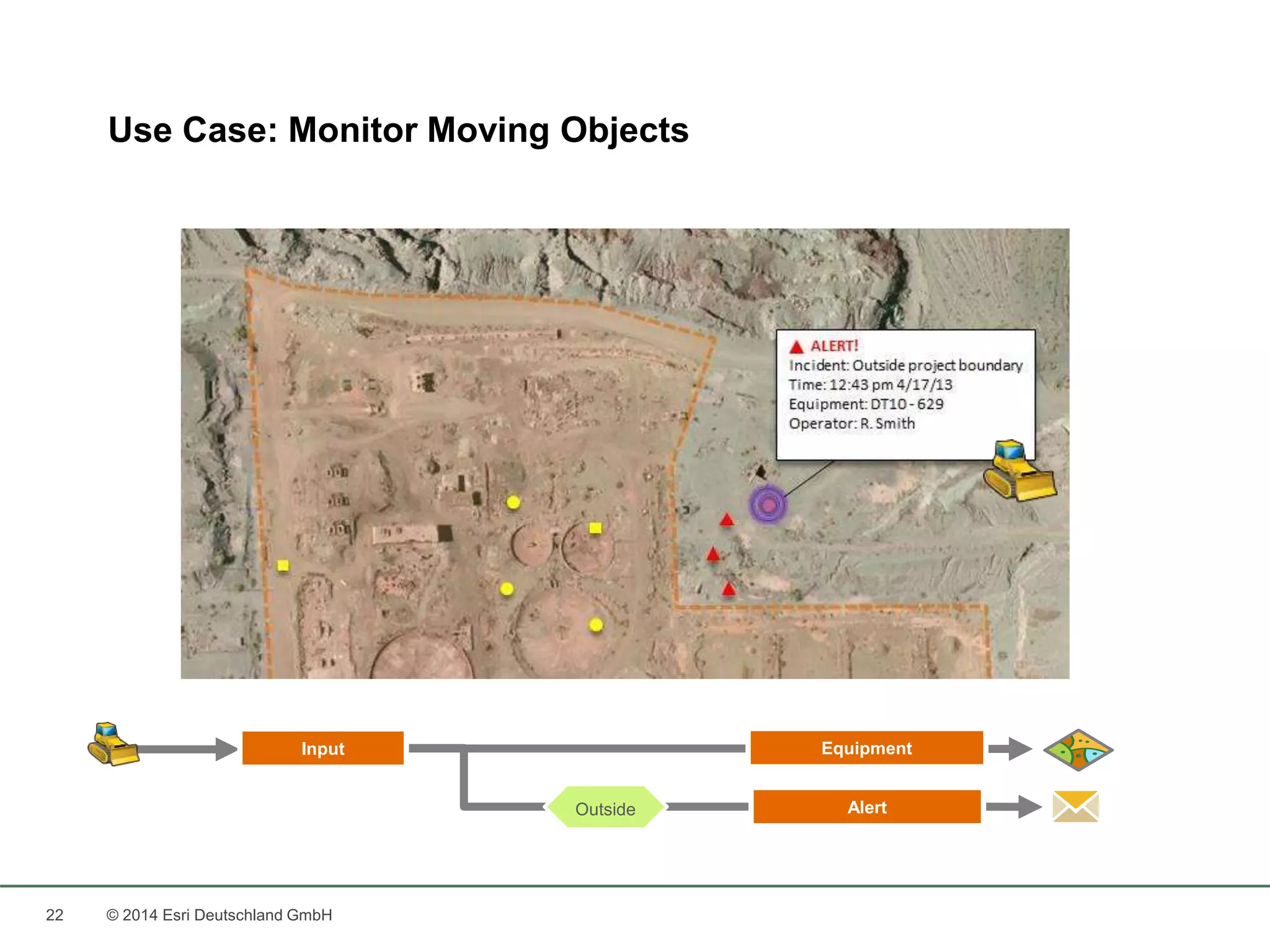

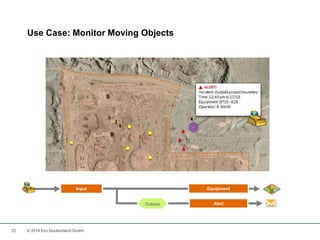

- 22. Use Case: MonitorMoving Objects Input Equipment 22 © 2014 Esri Deutschland GmbH Outside Alert

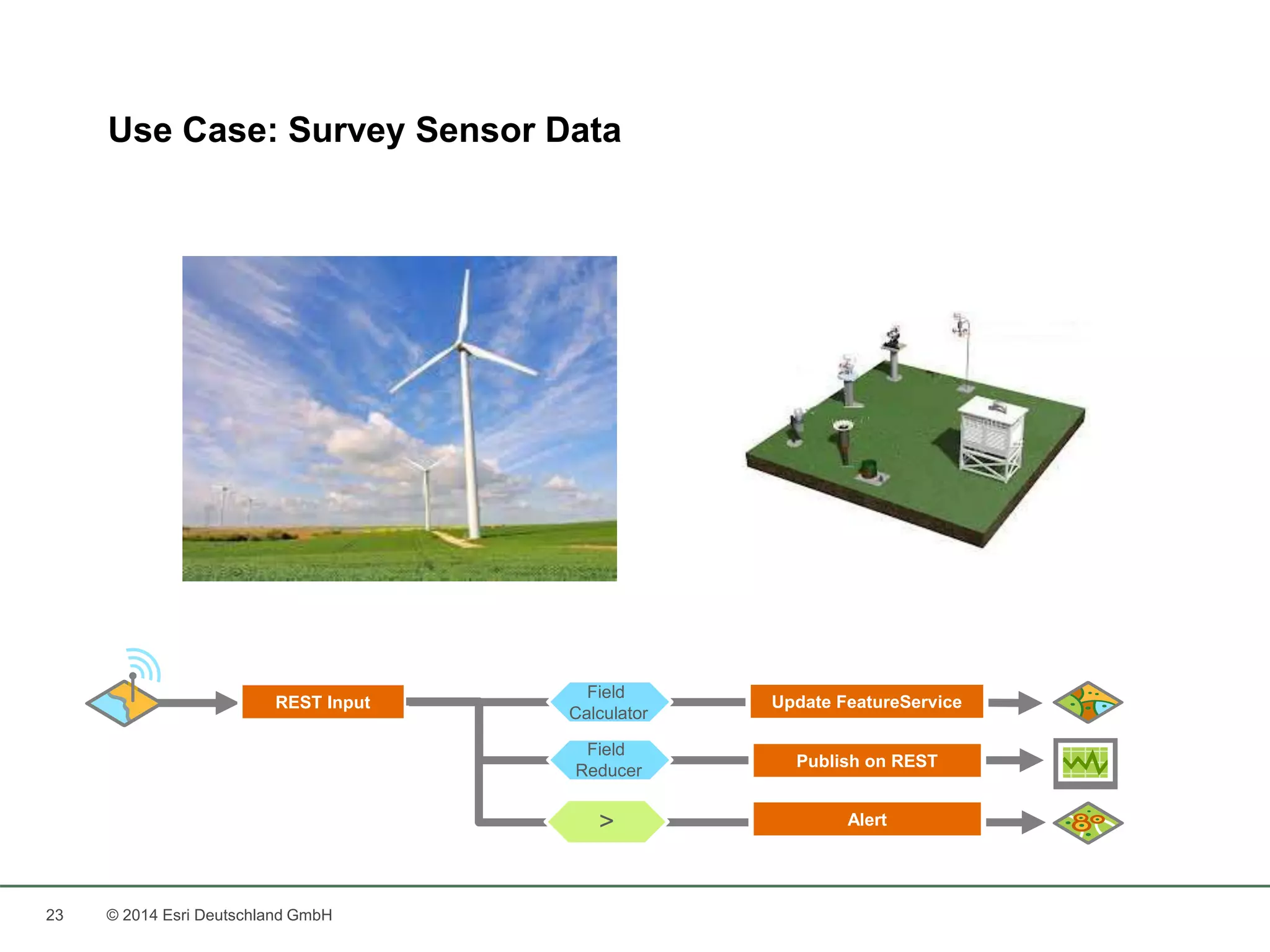

- 23. Use Case: SurveySensor Data Field REST Input Update FeatureService 23 © 2014 Esri Deutschland GmbH Publish on REST Calculator Field Reducer > Alert

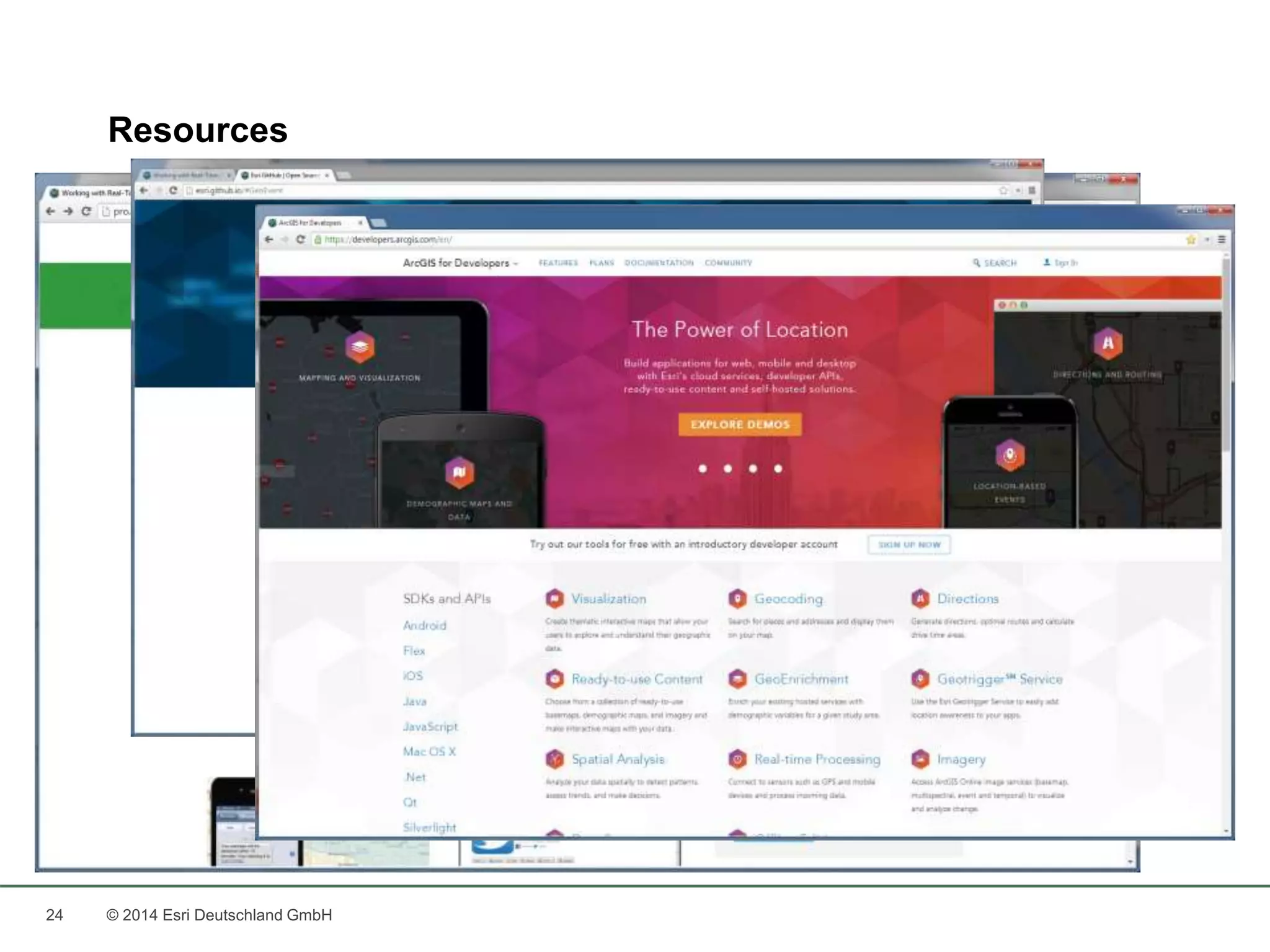

- 24. Resources 24 ©2014 Esri Deutschland GmbH

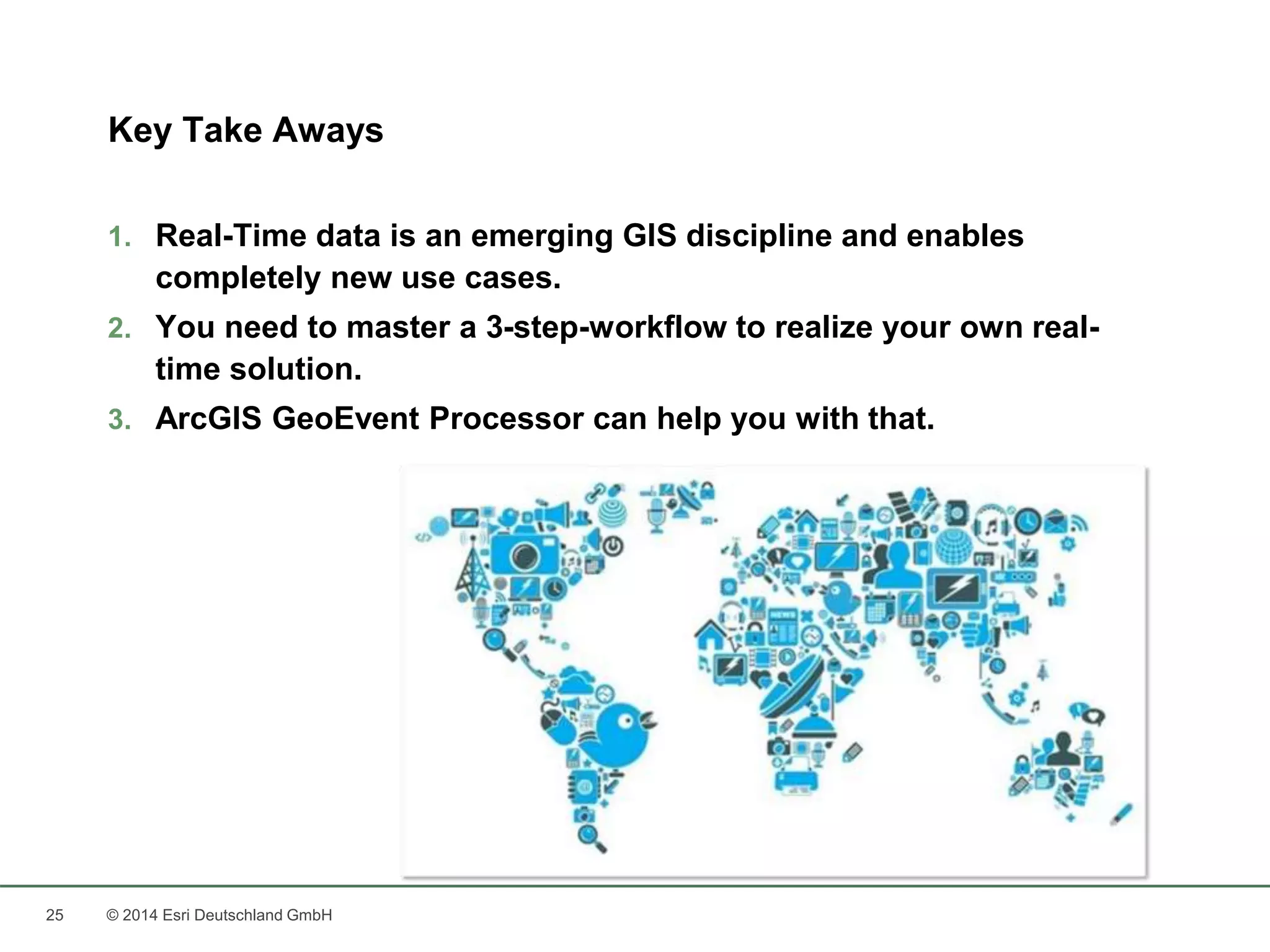

- 25. Key Take Aways 1. Real-Time data is an emerging GIS discipline and enables completely new use cases. 2. You need to master a 3-step-workflow to realize your own real-time solution. 3. ArcGIS GeoEvent Processor can help you with that. 25 © 2014 Esri Deutschland GmbH
- 26. What‘s next? 26© 2014 Esri Deutschland GmbH GeoDev Meet-up Berlin 08.10., 18.00 – 21.30 Mobile Suite Pappelallee 78/79, Berlin bit.ly/1uABqUd Entwickler-Webinare 21.10. Apps mit dem Web AppBuilder erstellen 04.11. ArcGIS spricht REST 25.11. Ortsbezogene Benachrichtigungen 09.12. Geo-Apps absichern
- 27. Thank you! LarsSchmitz, Esri Germany Product Manager Development, Head Developer & Startup Program l.schmitz@esri.de de.linkedin.com/in/larsschmitz @pilukinum 27 © 2014 Esri Deutschland GmbH
- 28. 28 Niederlassung Münster Martin-Luther-King-Weg 20 48155 Münster Telefon +49 89 207 005 1460 Niederlassung Köln Konrad-Adenauer-Ufer 41-45 50668 Köln Telefon +49 89 207 005 1760 Niederlassung Bonn Rheinallee 24 53173 Bonn Telefon +49 89 207 005 1720 Niederlassung Wiesbaden Dwight-D.-Eisenhower-Straße 9 65197 Wiesbaden Telefon +49 89 207 005 1620 Niederlassung Hannover Schiffgraben 11 30159 Hannover Telefon +49 89 207 005 1520 Niederlassung Leipzig Fechnerstraße 8 04155 Leipzig Telefon +49 89 207 005 1420 Kranzberg Ringstraße 7 85402 Kranzberg Telefon +49 89 207 005 1200 Esri Deutschland GmbH © 2014 Esri Deutschland GmbH
