![© Axiomatics 2019 - All Rights Reserved 19

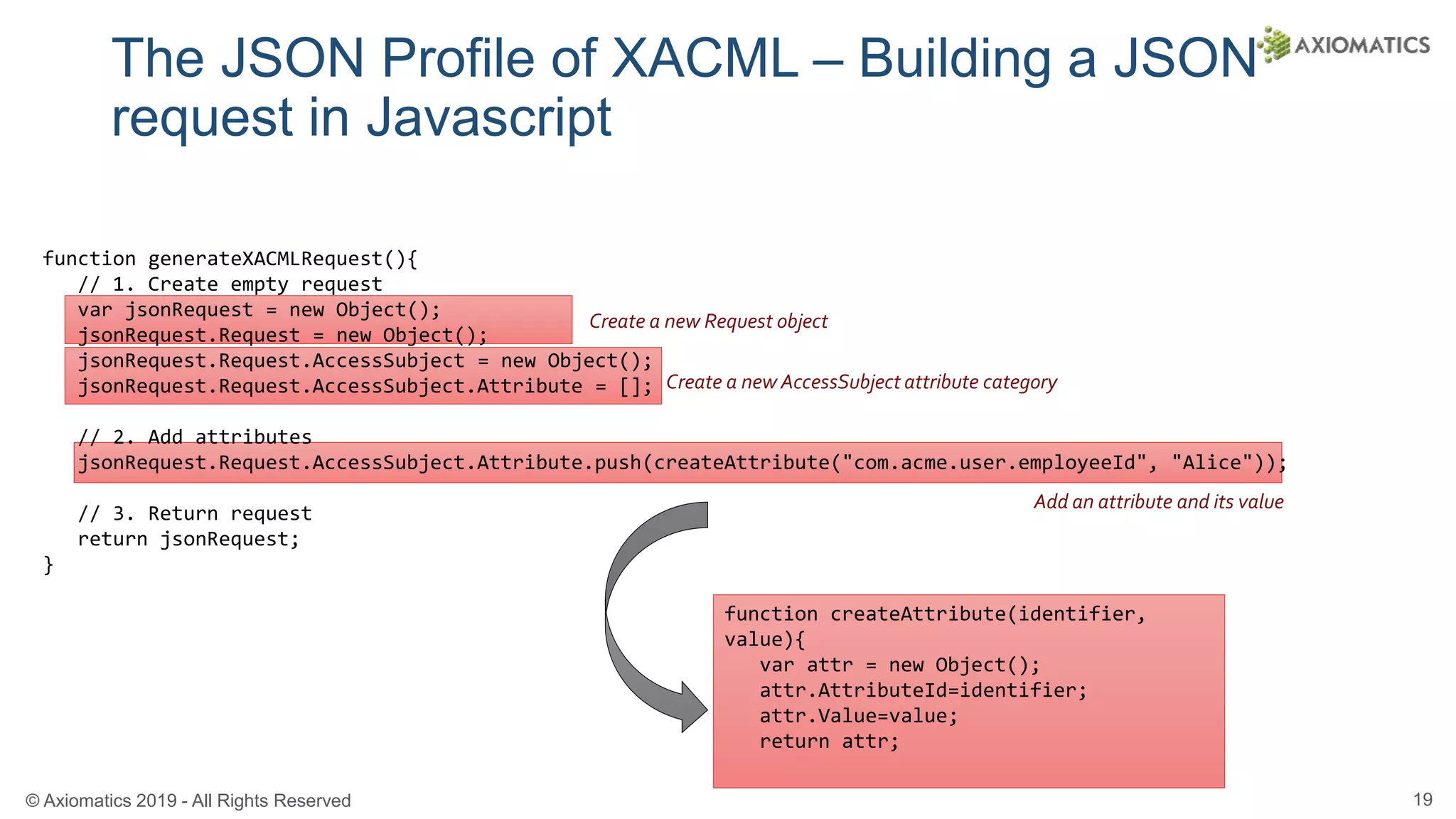

The JSON Profile of XACML – Building a JSON
request in Javascript
Create a new Request object
Create a new AccessSubject attribute category
Add an attribute and its value
function createAttribute(identifier,
value){
var attr = new Object();
attr.AttributeId=identifier;
attr.Value=value;
return attr;
function generateXACMLRequest(){
// 1. Create empty request
var jsonRequest = new Object();
jsonRequest.Request = new Object();
jsonRequest.Request.AccessSubject = new Object();
jsonRequest.Request.AccessSubject.Attribute = [];
// 2. Add attributes
jsonRequest.Request.AccessSubject.Attribute.push(createAttribute("com.acme.user.employeeId", "Alice"));
// 3. Return request
return jsonRequest;
}](https://image.slidesharecdn.com/updatesfromthexacmltc-makingauthorizationdeveloperfriendly-brossard-190909115455/75/Updates-from-the-OASIS-XACML-Technical-Committee-Making-Authorization-Developer-Friendly-using-ALFA-REST-and-JSON-19-2048.jpg)
![© Axiomatics 2019 - All Rights Reserved 20

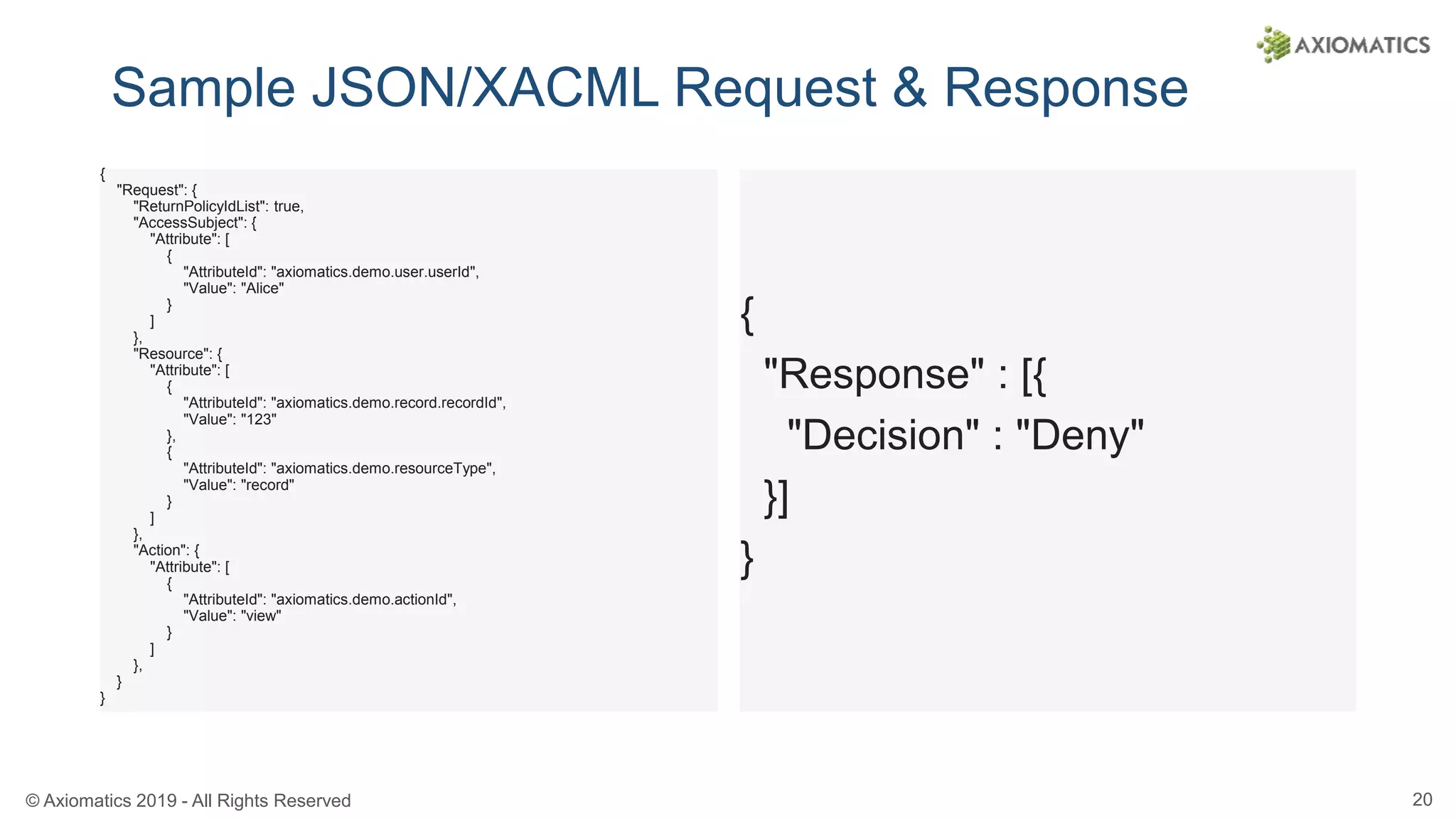

Sample JSON/XACML Request & Response
{
"Request": {
"ReturnPolicyIdList": true,
"AccessSubject": {
"Attribute": [
{
"AttributeId": "axiomatics.demo.user.userId",
"Value": "Alice"
}
]
},
"Resource": {
"Attribute": [
{
"AttributeId": "axiomatics.demo.record.recordId",
"Value": "123"
},
{
"AttributeId": "axiomatics.demo.resourceType",
"Value": "record"
}
]
},
"Action": {
"Attribute": [
{
"AttributeId": "axiomatics.demo.actionId",
"Value": "view"
}
]
},
}
}
{
"Response" : [{
"Decision" : "Deny"
}]
}](https://image.slidesharecdn.com/updatesfromthexacmltc-makingauthorizationdeveloperfriendly-brossard-190909115455/75/Updates-from-the-OASIS-XACML-Technical-Committee-Making-Authorization-Developer-Friendly-using-ALFA-REST-and-JSON-20-2048.jpg)
Uploaded byDavid Brossard
Updates from the OASIS XACML Technical Committee - Making Authorization Developer-Friendly using ALFA, REST, and JSON
This document provides a summary of a presentation about authorization using XACML, REST, JSON, and ALFA. It introduces XACML as the de facto standard for attribute-based access control and discusses how REST, JSON, and ALFA help bring XACML to developers by making it easier to integrate and use. Examples are given of how to send authorization requests via REST/JSON and how to write policies using the ALFA language. The presentation promotes using XACML to externalize and decouple authorization logic from applications for scalability and flexibility.
More Related Content
![Service Mesh in the Real World [Raleigh NC Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/service-mesh-real-world-191016164816-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Updates from the OASIS XACML Technical Committee - Making Authorization Developer-Friendly using ALFA, REST, and JSON
Updates from the OASIS XACML Technical Committee - Making Authorization Developer-Friendly using ALFA, REST, and JSON
- 1. © Axiomatics 2019- All Rights Reserved 1© Axiomatics 2019 - All Rights Reserved 1 Easy Authorization with REST, JSON, and ALFA Updates from the OASIS XACML Technical Committee September 10th, University of Oxford David Brossard, OASIS XACML TC Member, IDPro Founding Member, @davidjbrossard

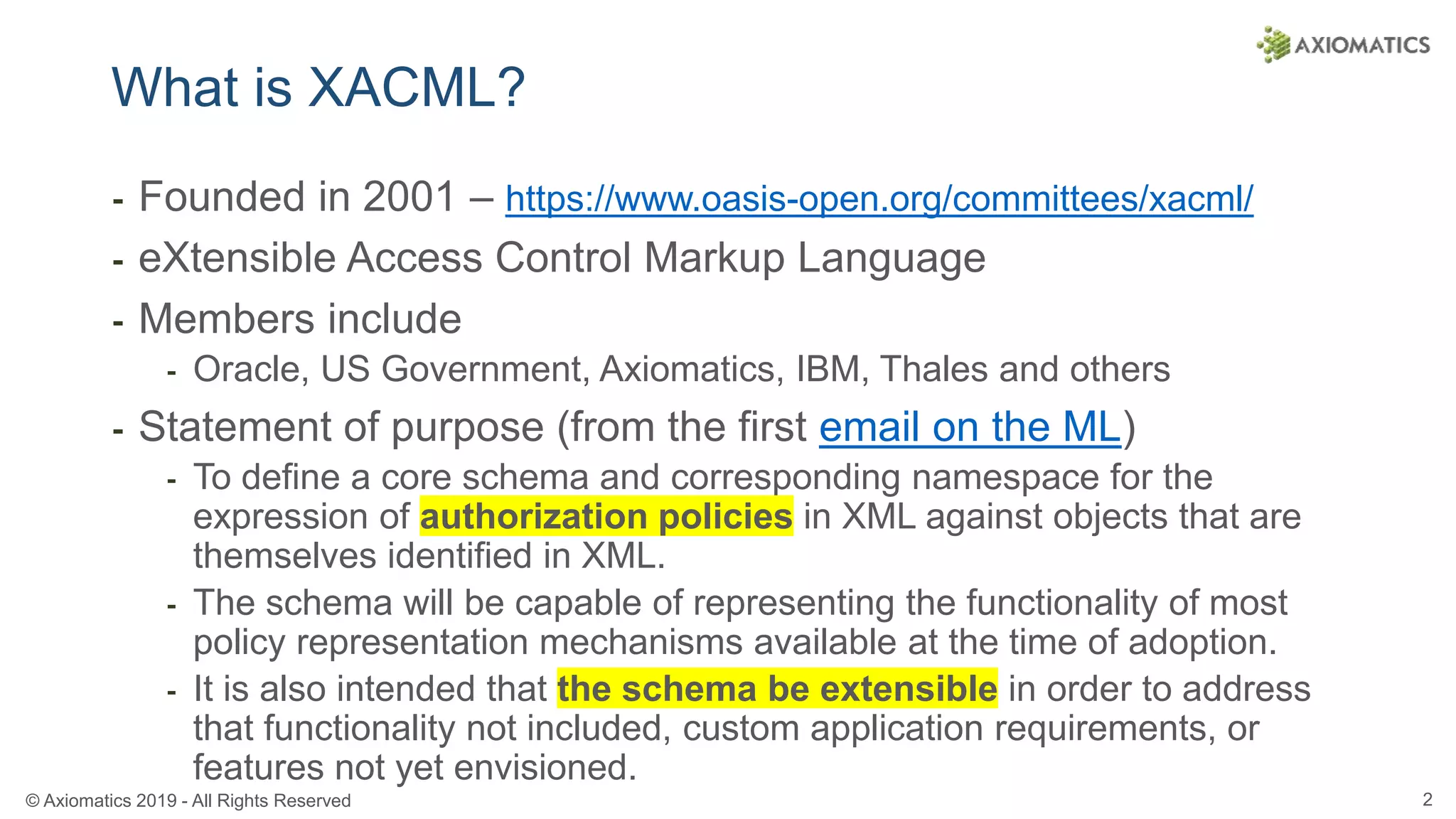

- 2. © Axiomatics 2019- All Rights Reserved 2 What is XACML? ⁃ Founded in 2001 – https://www.oasis-open.org/committees/xacml/ ⁃ eXtensible Access Control Markup Language ⁃ Members include ⁃ Oracle, US Government, Axiomatics, IBM, Thales and others ⁃ Statement of purpose (from the first email on the ML) ⁃ To define a core schema and corresponding namespace for the expression of authorization policies in XML against objects that are themselves identified in XML. ⁃ The schema will be capable of representing the functionality of most policy representation mechanisms available at the time of adoption. ⁃ It is also intended that the schema be extensible in order to address that functionality not included, custom application requirements, or features not yet envisioned.

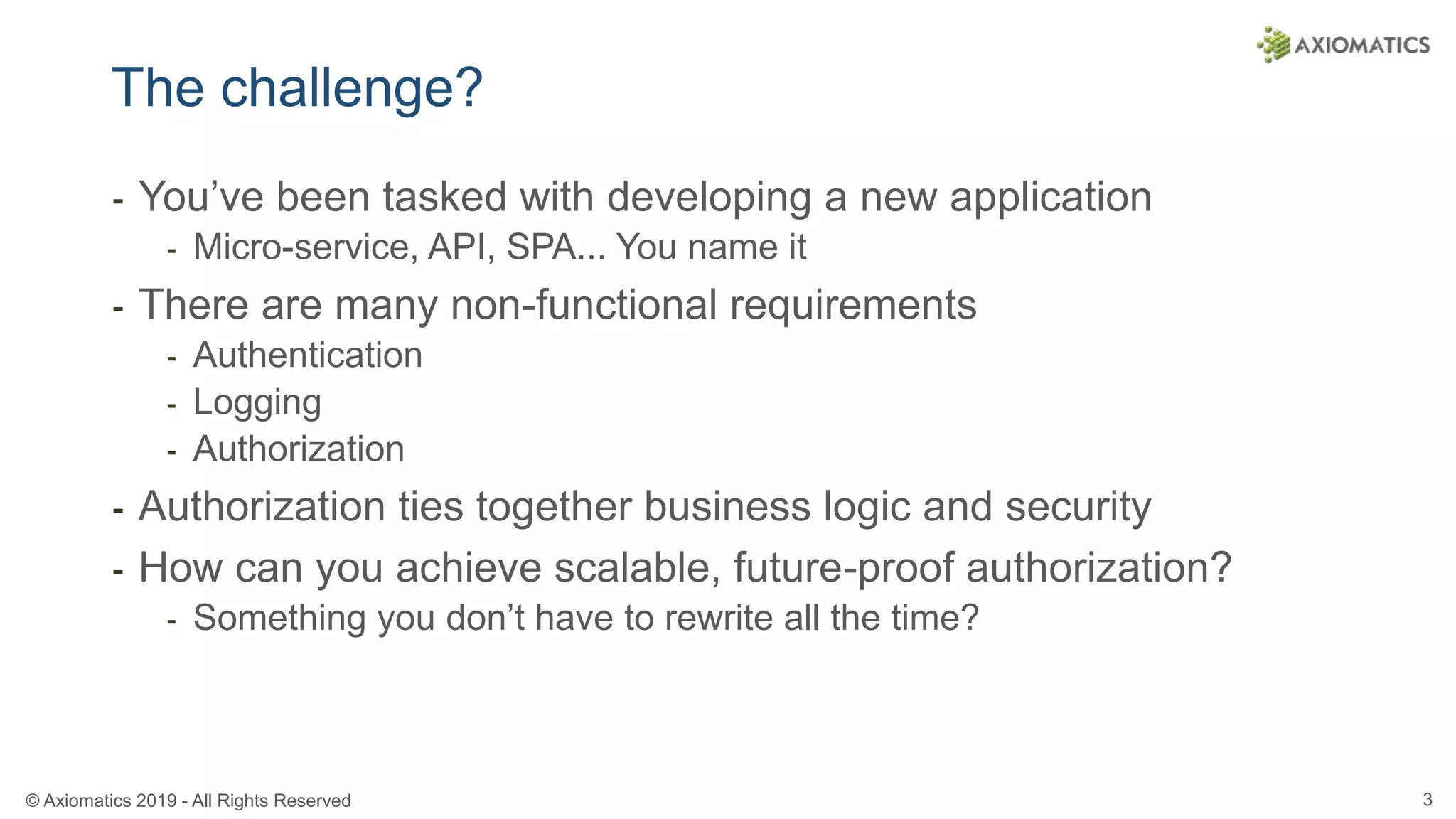

- 3. © Axiomatics 2019- All Rights Reserved 3 The challenge? ⁃ You’ve been tasked with developing a new application ⁃ Micro-service, API, SPA... You name it ⁃ There are many non-functional requirements ⁃ Authentication ⁃ Logging ⁃ Authorization ⁃ Authorization ties together business logic and security ⁃ How can you achieve scalable, future-proof authorization? ⁃ Something you don’t have to rewrite all the time?

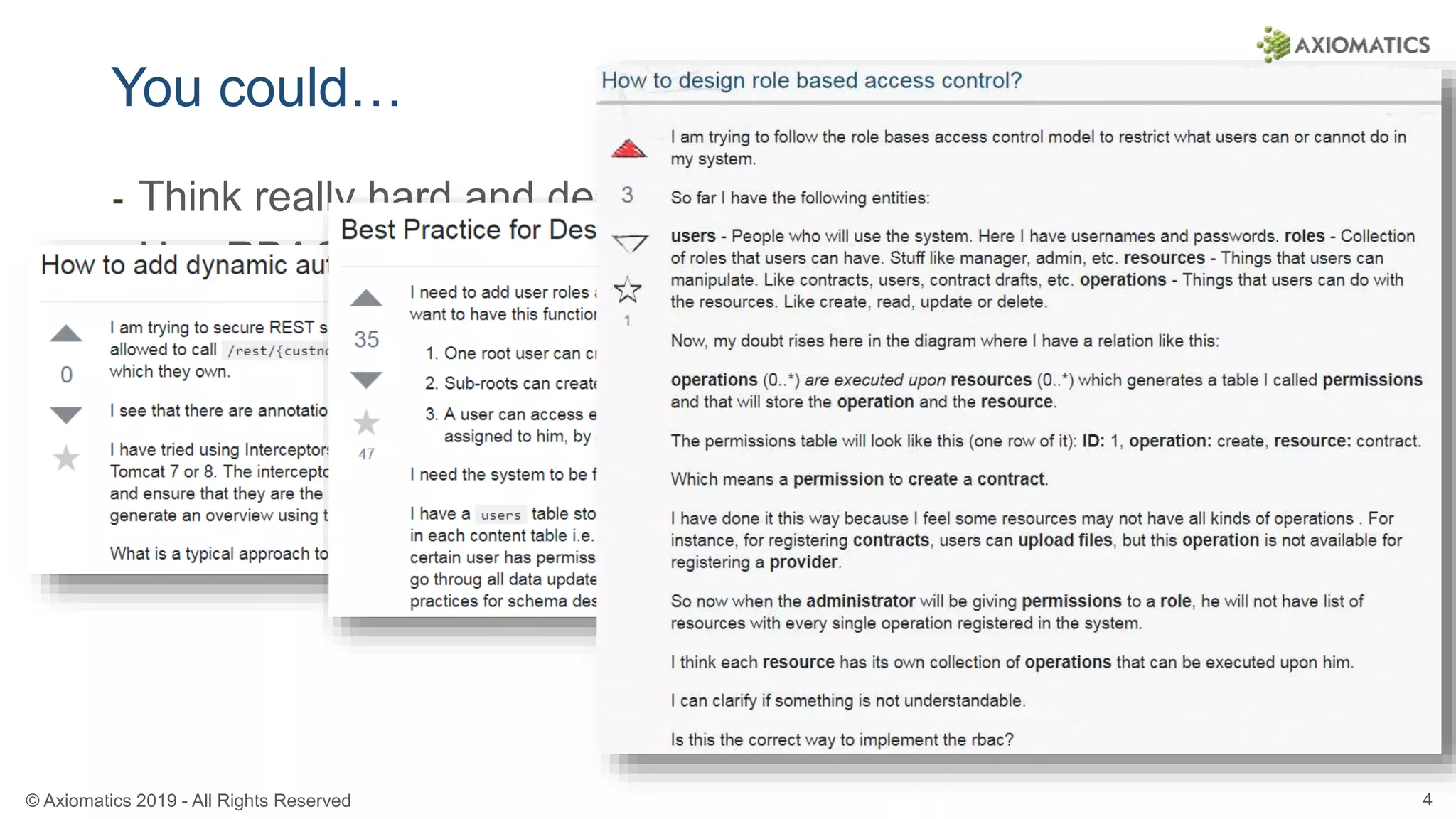

- 4. © Axiomatics 2019- All Rights Reserved 4 You could… ⁃ Think really hard and design your own model ⁃ Use RBAC ⁃ Hard-code the authorization logic within your app
- 5. © Axiomatics 2019- All Rights Reserved 5

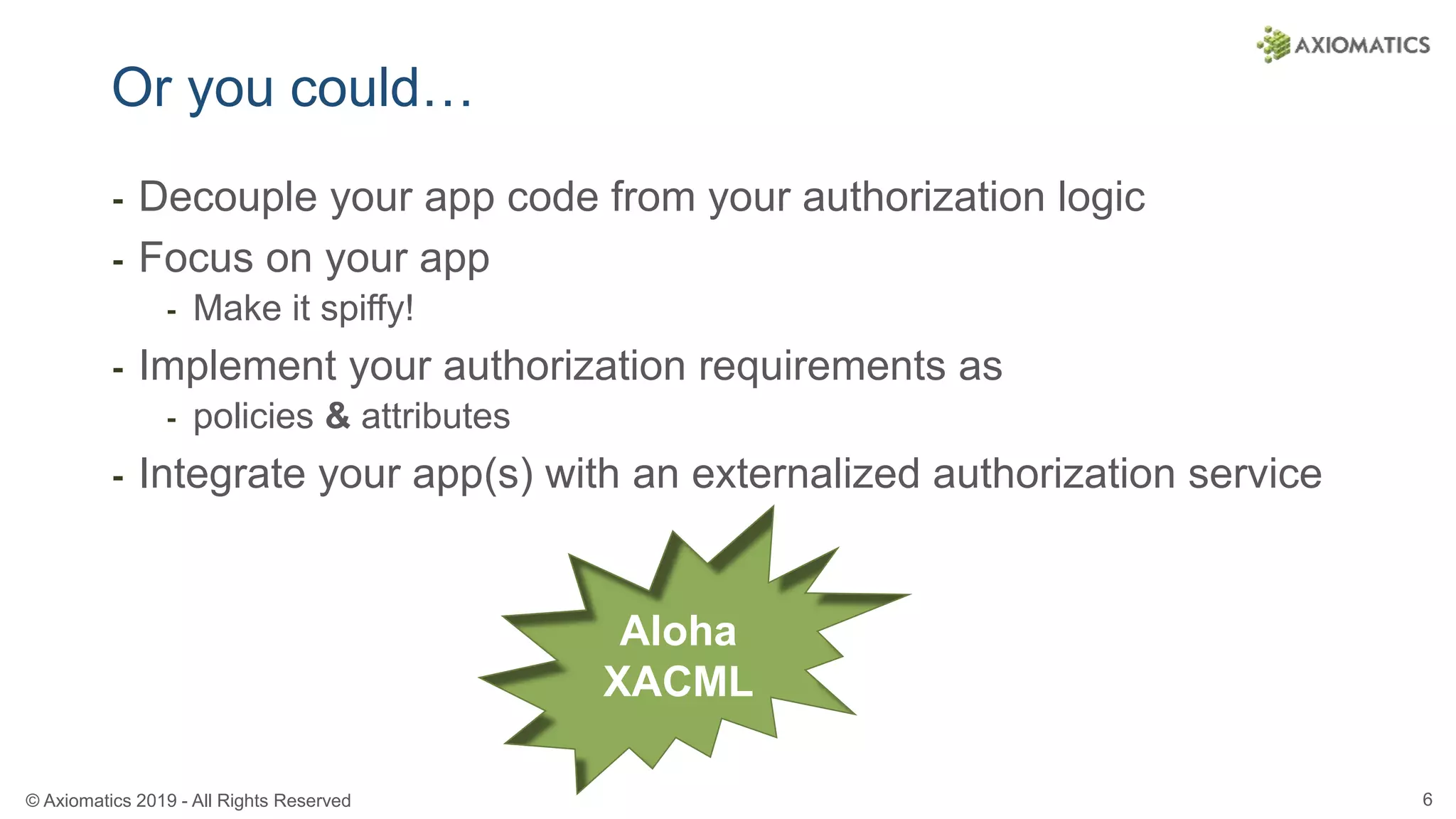

- 6. © Axiomatics 2019- All Rights Reserved 6 Or you could… ⁃ Decouple your app code from your authorization logic ⁃ Focus on your app ⁃ Make it spiffy! ⁃ Implement your authorization requirements as ⁃ policies & attributes ⁃ Integrate your app(s) with an externalized authorization service Aloha XACML

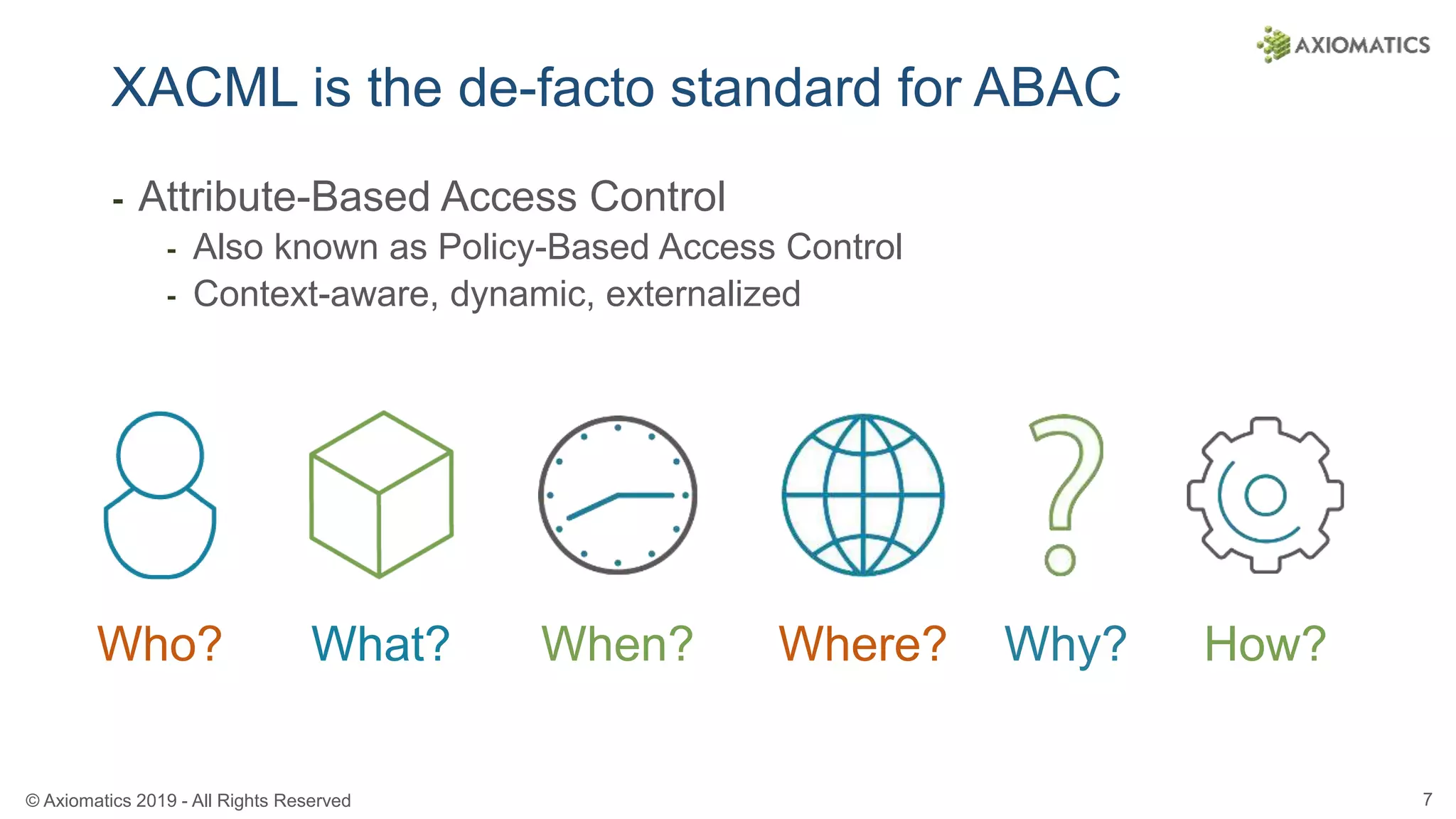

- 7. © Axiomatics 2019- All Rights Reserved 7 XACML is the de-facto standard for ABAC ⁃ Attribute-Based Access Control ⁃ Also known as Policy-Based Access Control ⁃ Context-aware, dynamic, externalized Who? What? When? Where? Why? How?

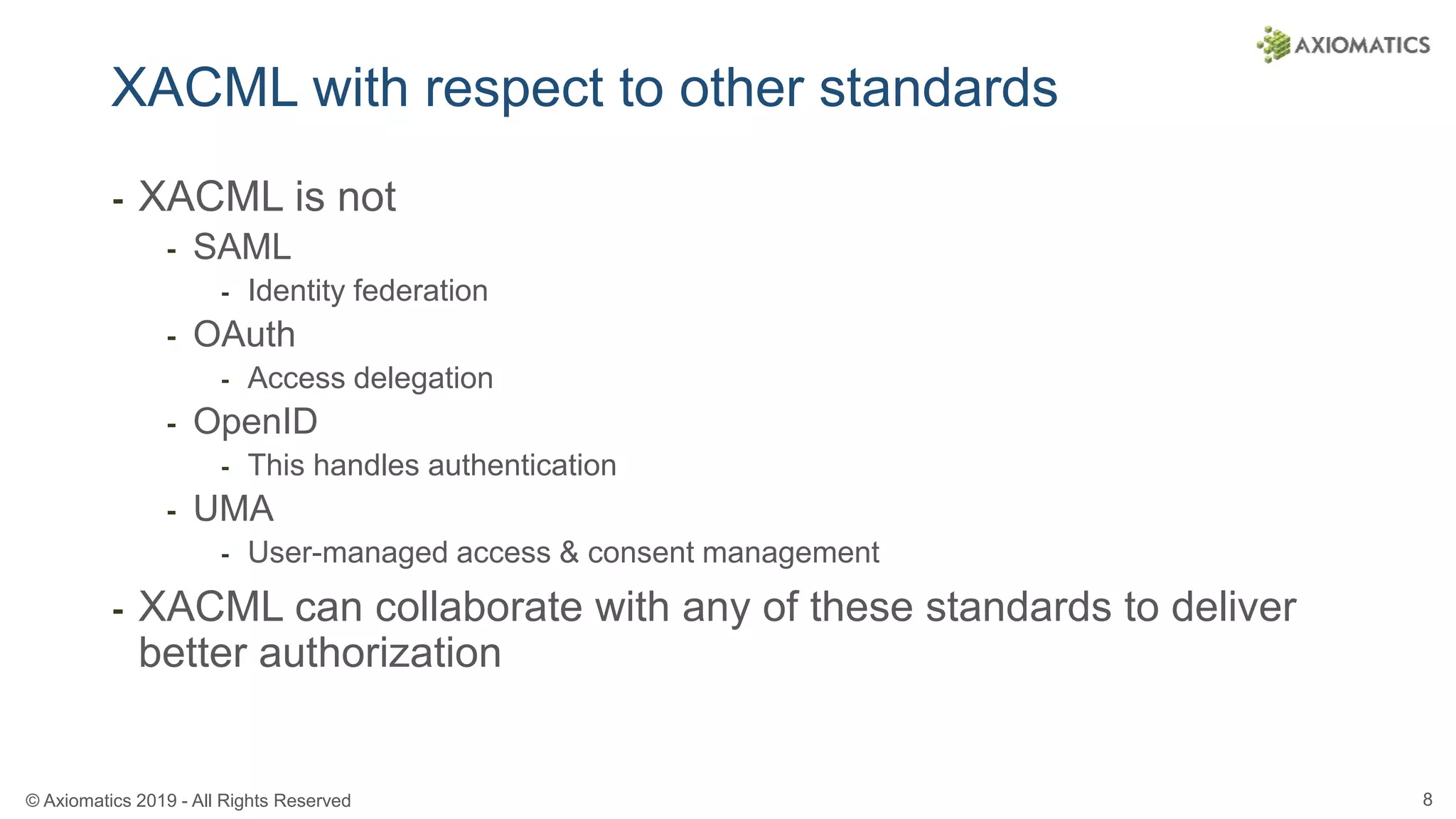

- 8. © Axiomatics 2019- All Rights Reserved 8 XACML with respect to other standards ⁃ XACML is not ⁃ SAML ⁃ Identity federation ⁃ OAuth ⁃ Access delegation ⁃ OpenID ⁃ This handles authentication ⁃ UMA ⁃ User-managed access & consent management ⁃ XACML can collaborate with any of these standards to deliver better authorization

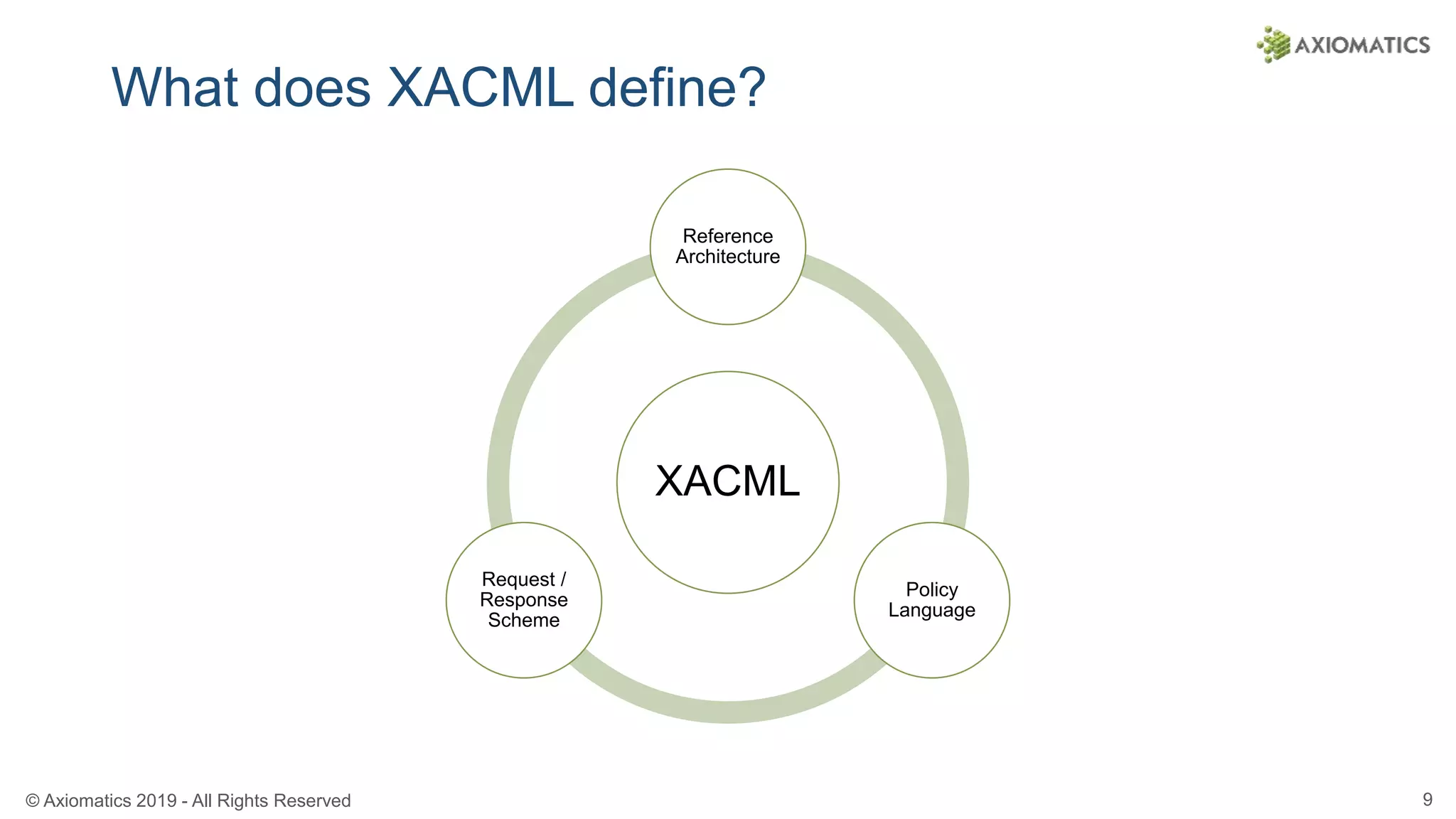

- 9. © Axiomatics 2019- All Rights Reserved 9 What does XACML define? XACML Reference Architecture Policy Language Request / Response Scheme

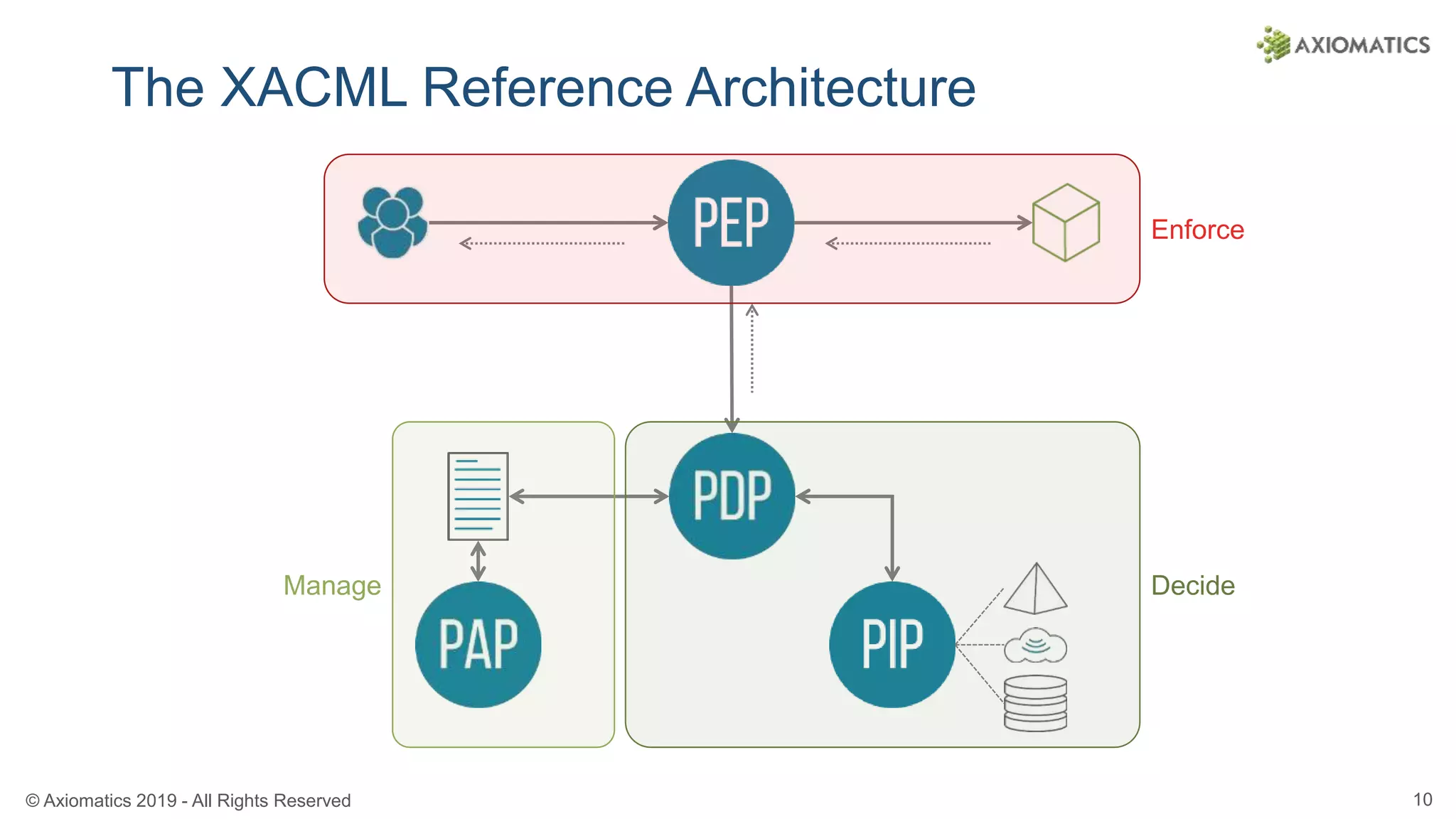

- 10. © Axiomatics 2019- All Rights Reserved 10 The XACML Reference Architecture Enforce DecideManage

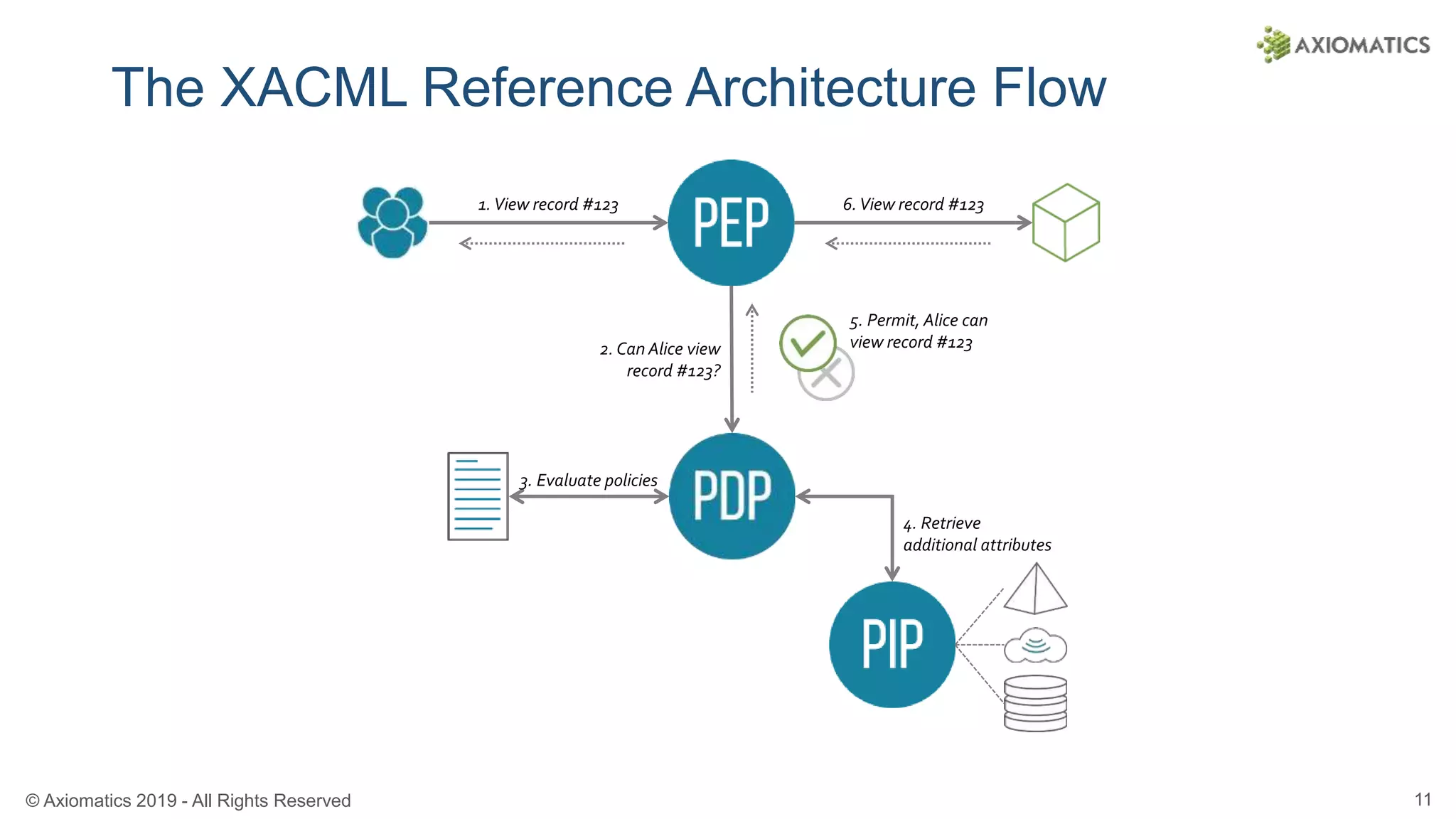

- 11. © Axiomatics 2019- All Rights Reserved 11 The XACML Reference Architecture Flow 1.View record #123 6.View record #123 2. Can Alice view record #123? 5. Permit, Alice can view record #123 3. Evaluate policies 4. Retrieve additional attributes

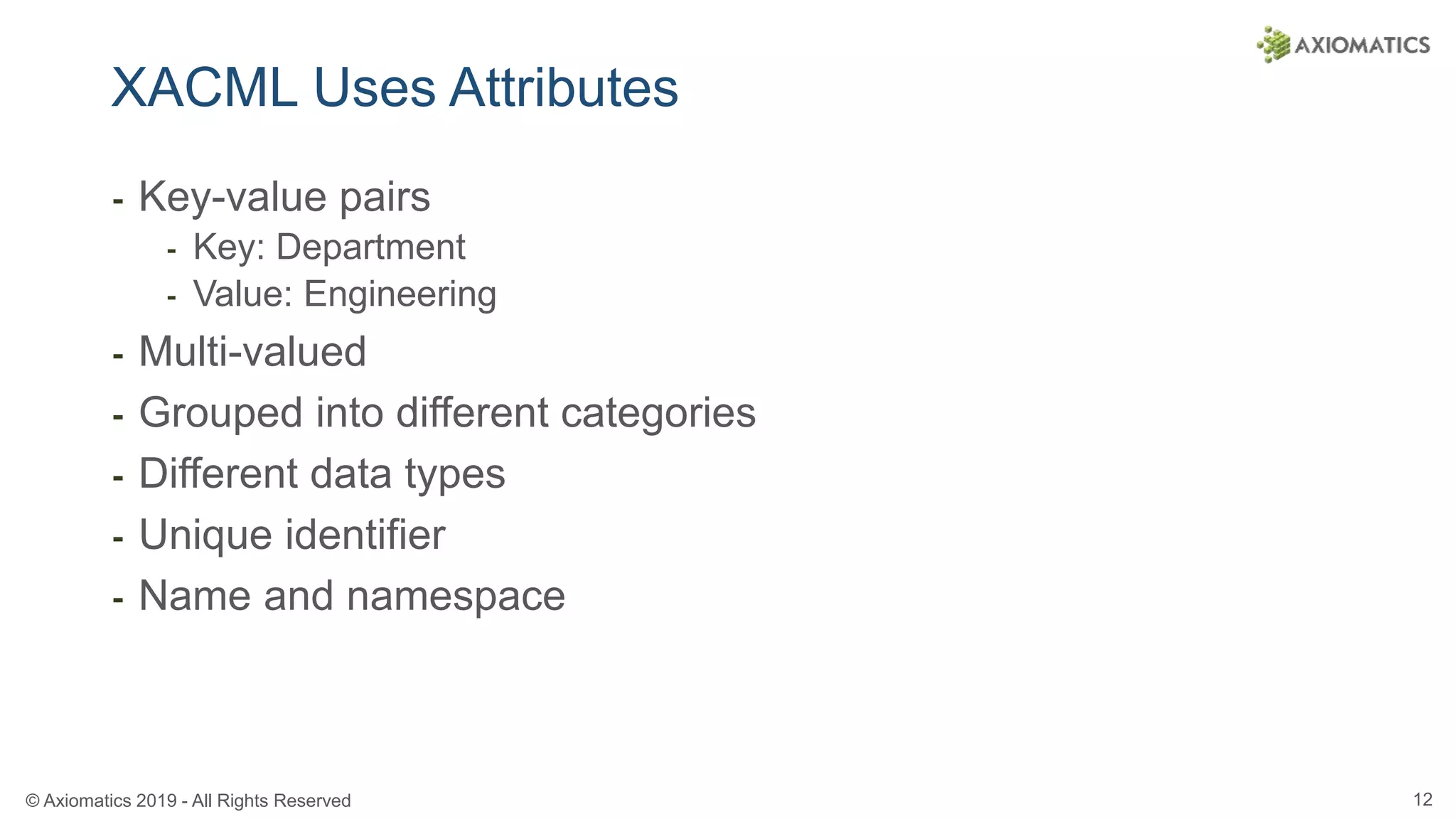

- 12. © Axiomatics 2019- All Rights Reserved 12 XACML Uses Attributes ⁃ Key-value pairs ⁃ Key: Department ⁃ Value: Engineering ⁃ Multi-valued ⁃ Grouped into different categories ⁃ Different data types ⁃ Unique identifier ⁃ Name and namespace
- 13. © Axiomatics 2019- All Rights Reserved 13 Did someone say XML?
- 14. © Axiomatics 2019- All Rights Reserved 14 Don’t get me wrong, I <love>XML</love>

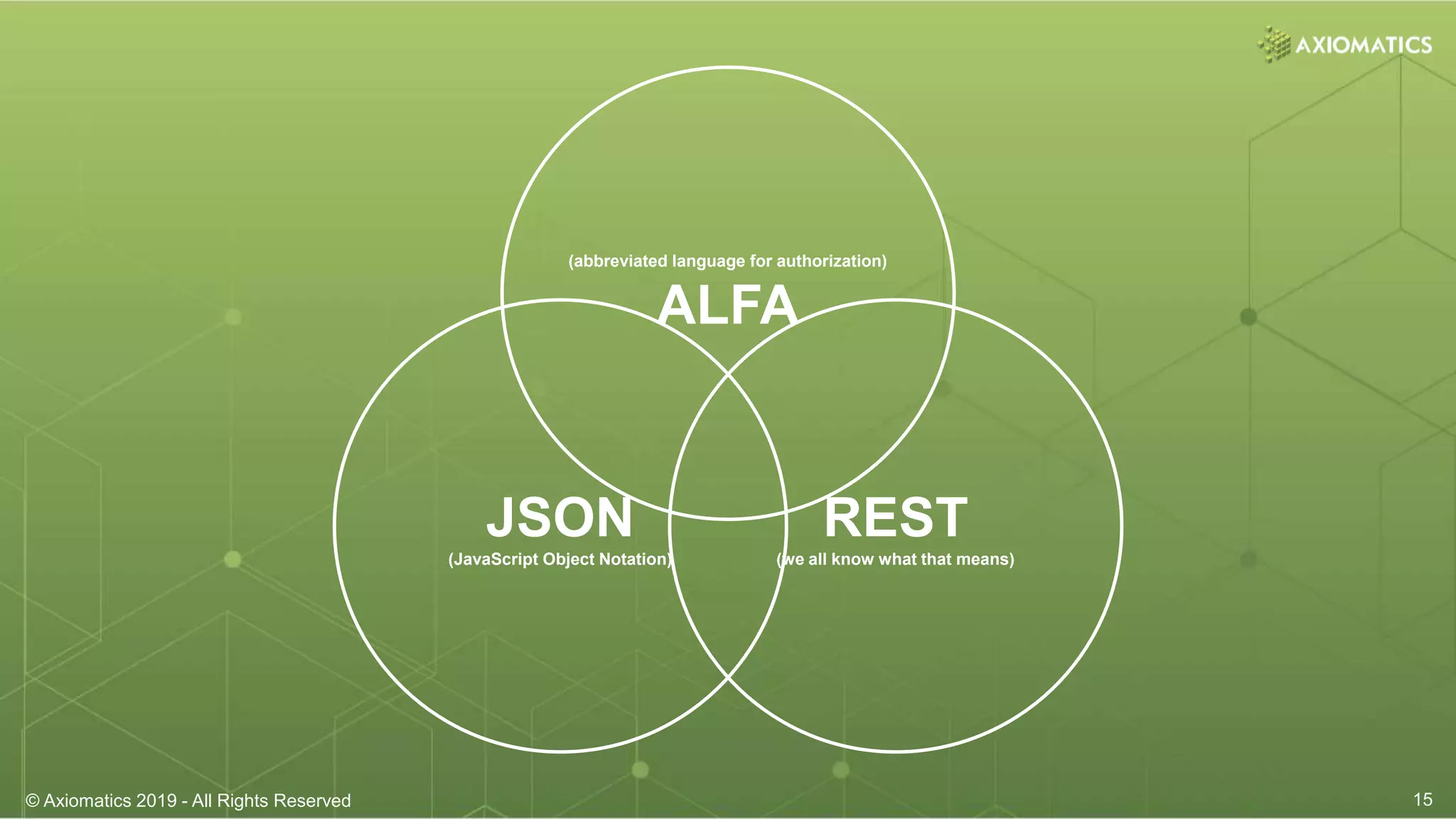

- 15. © Axiomatics 2019- All Rights Reserved 15© Axiomatics 2019 - All Rights Reserved 15 (abbreviated language for authorization) ALFA JSON (JavaScript Object Notation) REST (we all know what that means)

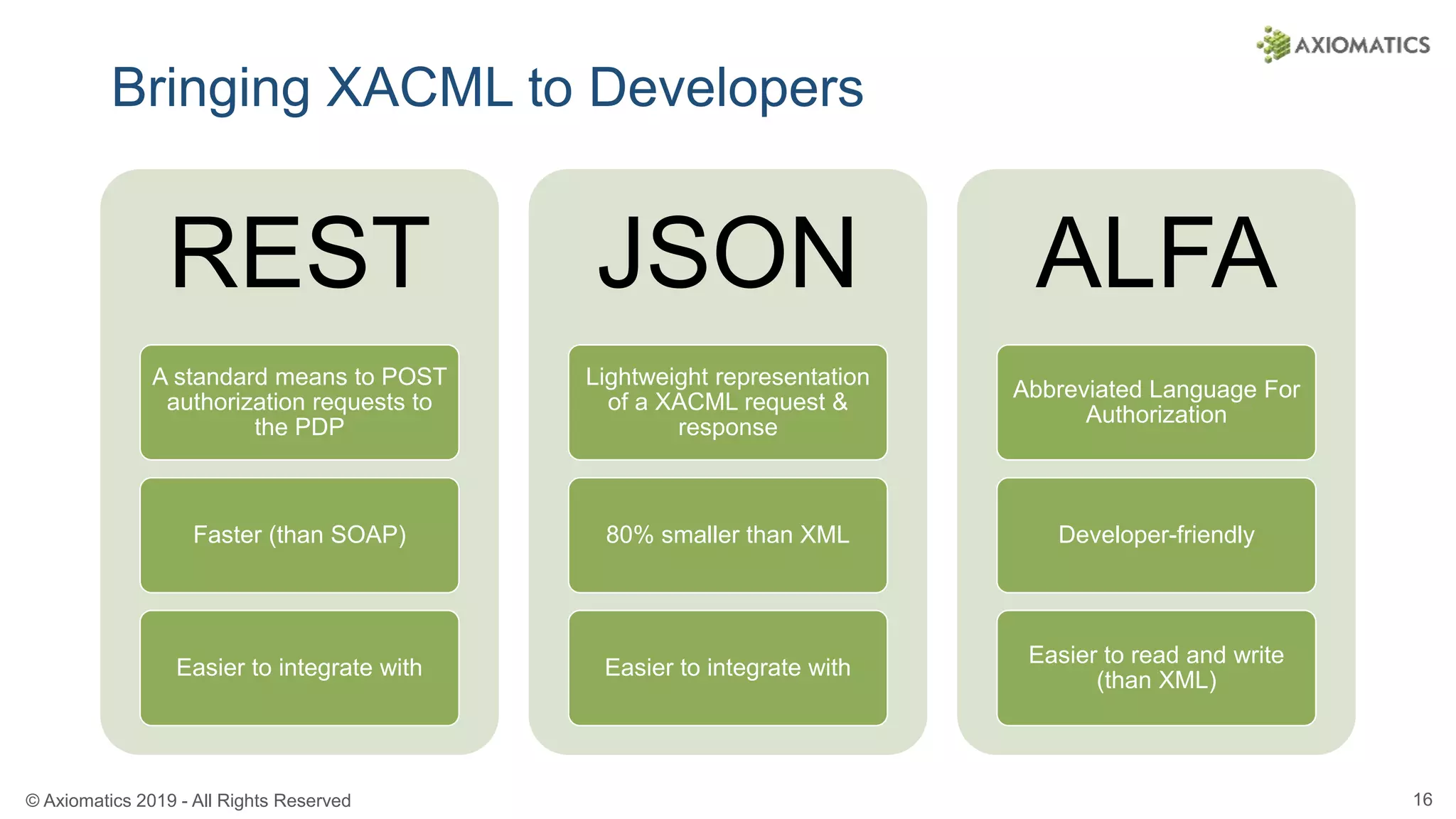

- 16. © Axiomatics 2019- All Rights Reserved 16 Bringing XACML to Developers REST A standard means to POST authorization requests to the PDP Faster (than SOAP) Easier to integrate with JSON Lightweight representation of a XACML request & response 80% smaller than XML Easier to integrate with ALFA Abbreviated Language For Authorization Developer-friendly Easier to read and write (than XML)

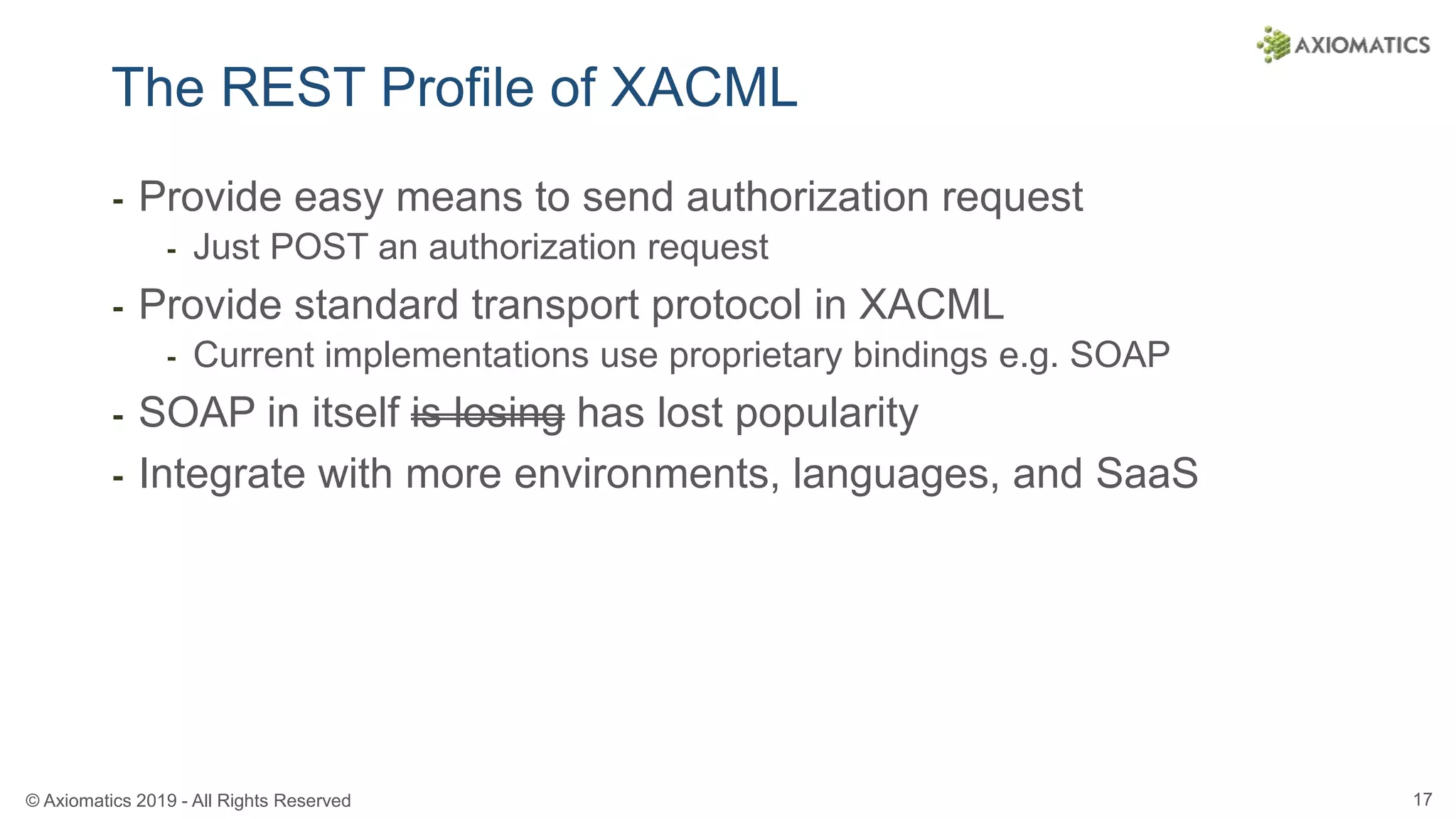

- 17. © Axiomatics 2019- All Rights Reserved 17 The REST Profile of XACML ⁃ Provide easy means to send authorization request ⁃ Just POST an authorization request ⁃ Provide standard transport protocol in XACML ⁃ Current implementations use proprietary bindings e.g. SOAP ⁃ SOAP in itself is losing has lost popularity ⁃ Integrate with more environments, languages, and SaaS

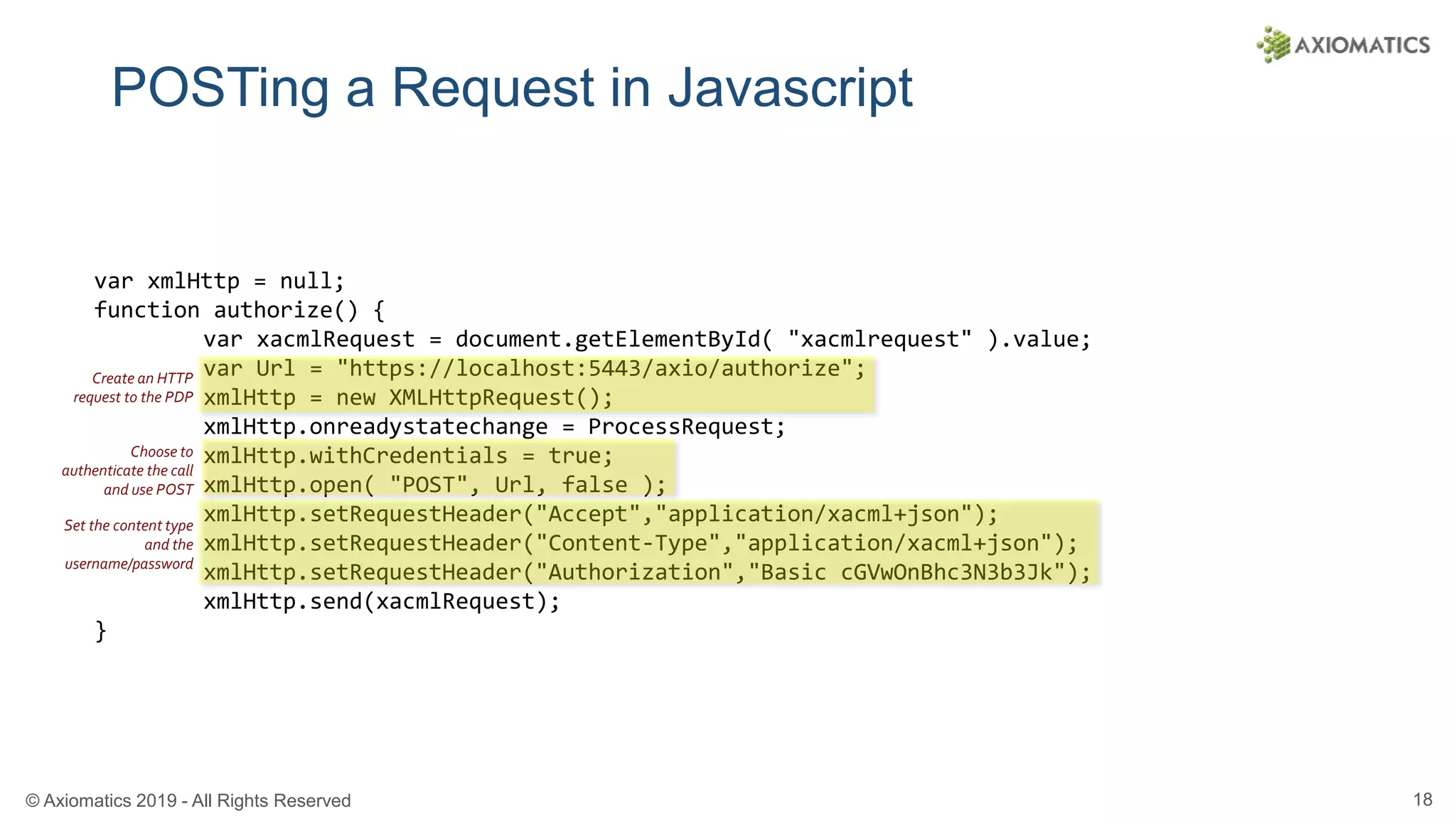

- 18. © Axiomatics 2019- All Rights Reserved 18 POSTing a Request in Javascript var xmlHttp = null; function authorize() { var xacmlRequest = document.getElementById( "xacmlrequest" ).value; var Url = "https://localhost:5443/axio/authorize"; xmlHttp = new XMLHttpRequest(); xmlHttp.onreadystatechange = ProcessRequest; xmlHttp.withCredentials = true; xmlHttp.open( "POST", Url, false ); xmlHttp.setRequestHeader("Accept","application/xacml+json"); xmlHttp.setRequestHeader("Content-Type","application/xacml+json"); xmlHttp.setRequestHeader("Authorization","Basic cGVwOnBhc3N3b3Jk"); xmlHttp.send(xacmlRequest); } Create an HTTP request to the PDP Choose to authenticate the call and use POST Set the content type and the username/password
- 19. © Axiomatics 2019- All Rights Reserved 19 The JSON Profile of XACML – Building a JSON request in Javascript Create a new Request object Create a new AccessSubject attribute category Add an attribute and its value function createAttribute(identifier, value){ var attr = new Object(); attr.AttributeId=identifier; attr.Value=value; return attr; function generateXACMLRequest(){ // 1. Create empty request var jsonRequest = new Object(); jsonRequest.Request = new Object(); jsonRequest.Request.AccessSubject = new Object(); jsonRequest.Request.AccessSubject.Attribute = []; // 2. Add attributes jsonRequest.Request.AccessSubject.Attribute.push(createAttribute("com.acme.user.employeeId", "Alice")); // 3. Return request return jsonRequest; }
- 20. © Axiomatics 2019- All Rights Reserved 20 Sample JSON/XACML Request & Response { "Request": { "ReturnPolicyIdList": true, "AccessSubject": { "Attribute": [ { "AttributeId": "axiomatics.demo.user.userId", "Value": "Alice" } ] }, "Resource": { "Attribute": [ { "AttributeId": "axiomatics.demo.record.recordId", "Value": "123" }, { "AttributeId": "axiomatics.demo.resourceType", "Value": "record" } ] }, "Action": { "Attribute": [ { "AttributeId": "axiomatics.demo.actionId", "Value": "view" } ] }, } } { "Response" : [{ "Decision" : "Deny" }] }

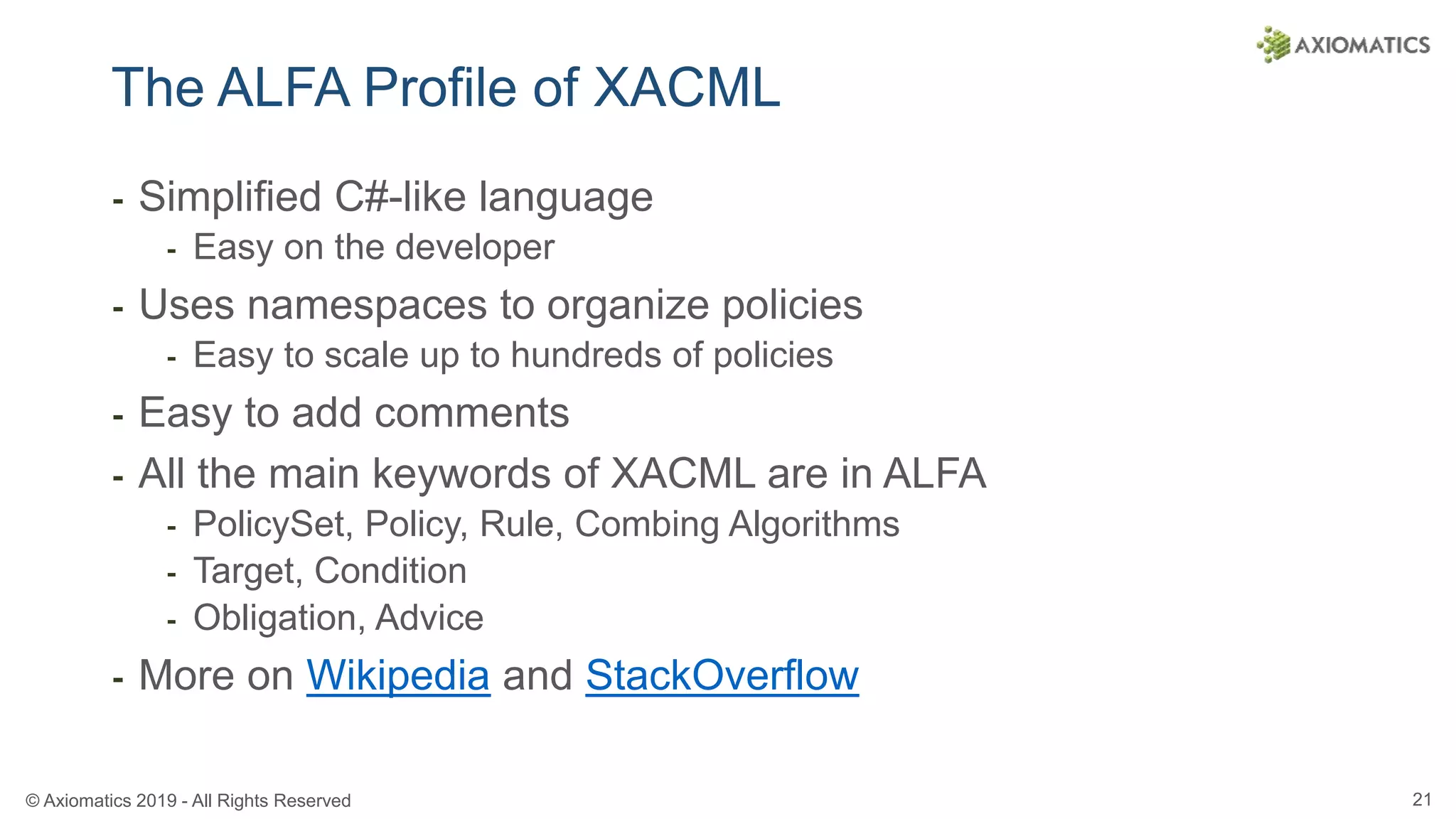

- 21. © Axiomatics 2019- All Rights Reserved 21 The ALFA Profile of XACML ⁃ Simplified C#-like language ⁃ Easy on the developer ⁃ Uses namespaces to organize policies ⁃ Easy to scale up to hundreds of policies ⁃ Easy to add comments ⁃ All the main keywords of XACML are in ALFA ⁃ PolicySet, Policy, Rule, Combing Algorithms ⁃ Target, Condition ⁃ Obligation, Advice ⁃ More on Wikipedia and StackOverflow

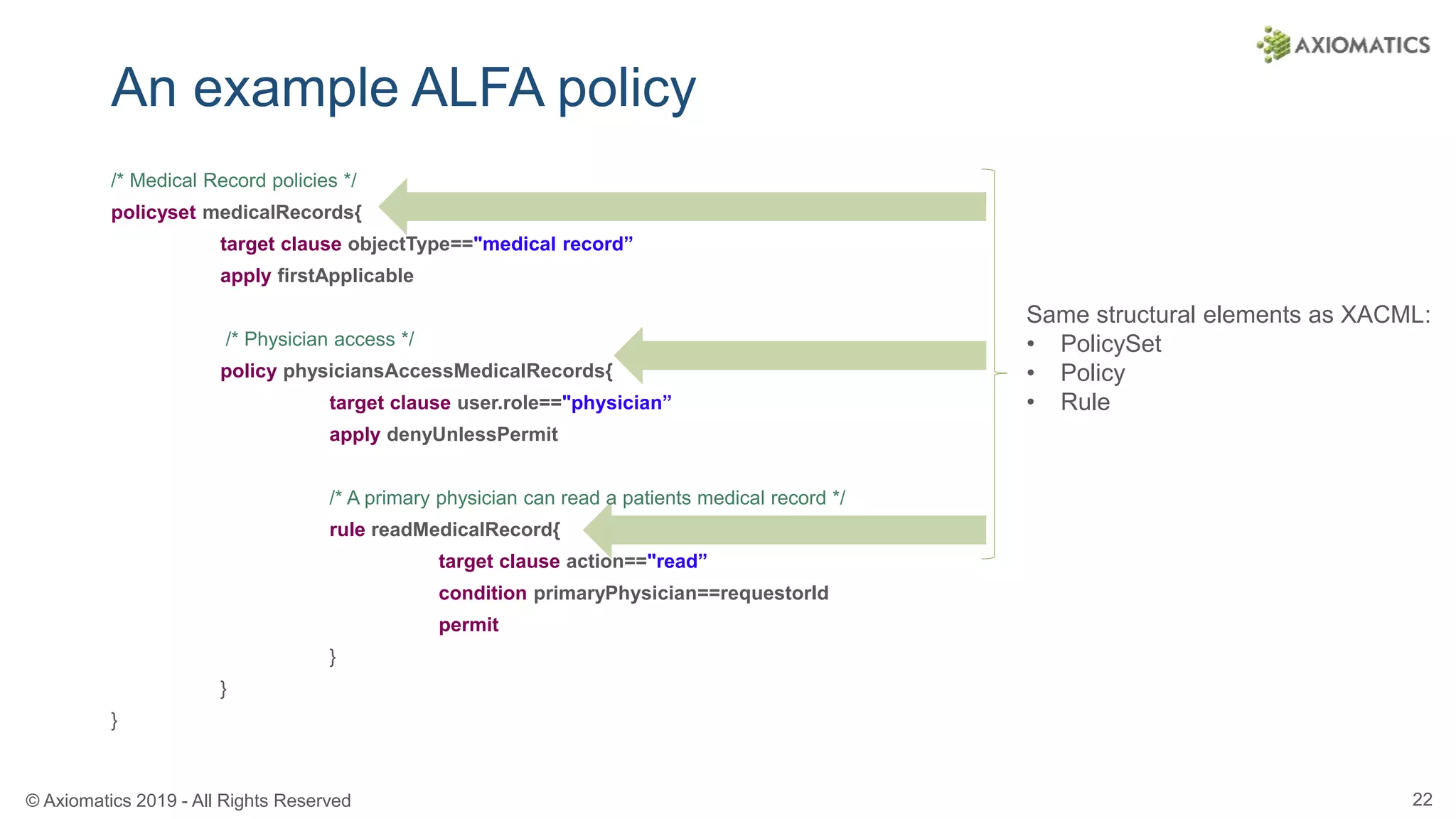

- 22. © Axiomatics 2019- All Rights Reserved 22 An example ALFA policy /* Medical Record policies */ policyset medicalRecords{ target clause objectType=="medical record” apply firstApplicable /* Physician access */ policy physiciansAccessMedicalRecords{ target clause user.role=="physician” apply denyUnlessPermit /* A primary physician can read a patients medical record */ rule readMedicalRecord{ target clause action=="read” condition primaryPhysician==requestorId permit } } } Same structural elements as XACML: • PolicySet • Policy • Rule

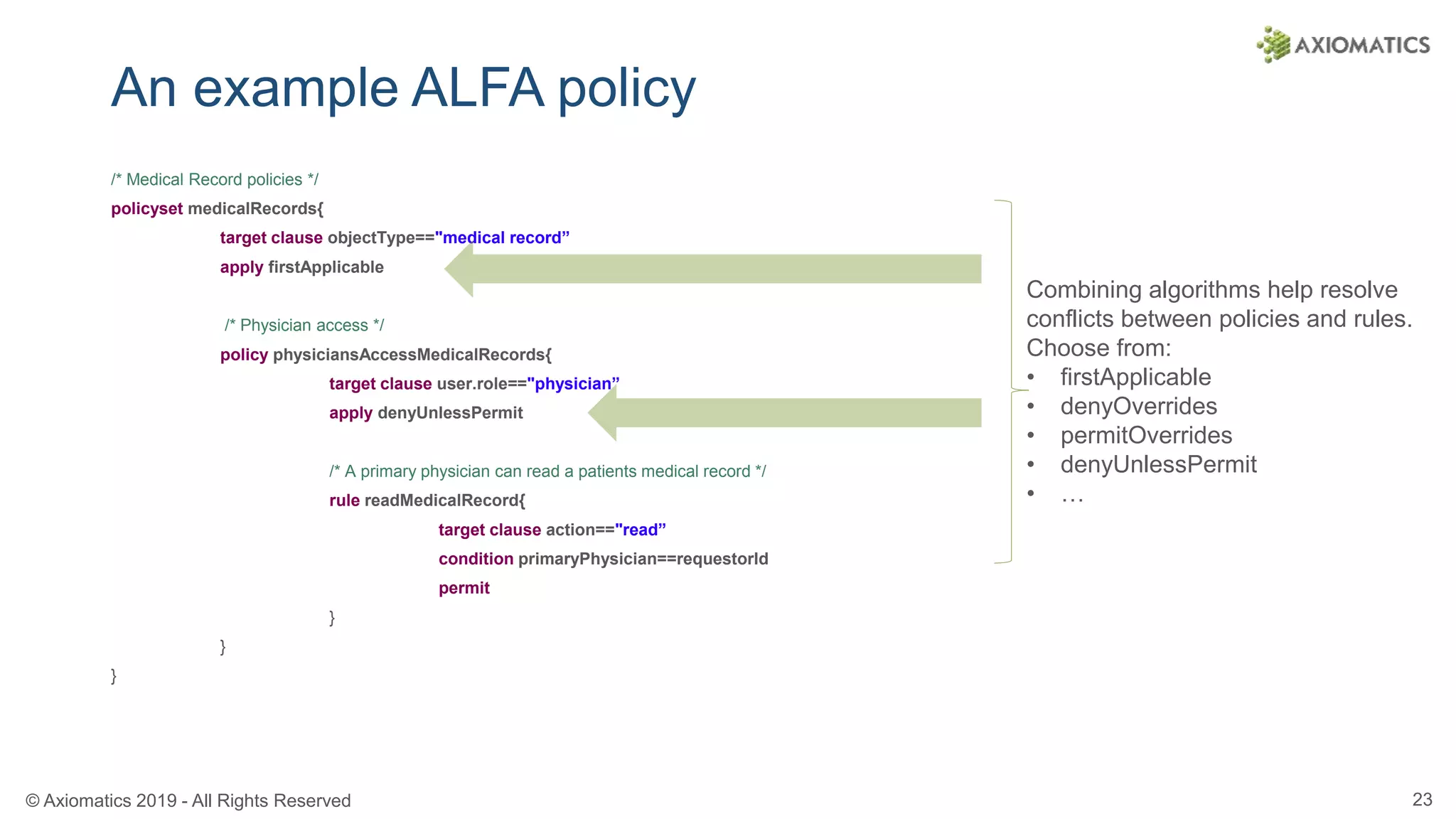

- 23. © Axiomatics 2019- All Rights Reserved 23 An example ALFA policy /* Medical Record policies */ policyset medicalRecords{ target clause objectType=="medical record” apply firstApplicable /* Physician access */ policy physiciansAccessMedicalRecords{ target clause user.role=="physician” apply denyUnlessPermit /* A primary physician can read a patients medical record */ rule readMedicalRecord{ target clause action=="read” condition primaryPhysician==requestorId permit } } } Combining algorithms help resolve conflicts between policies and rules. Choose from: • firstApplicable • denyOverrides • permitOverrides • denyUnlessPermit • …

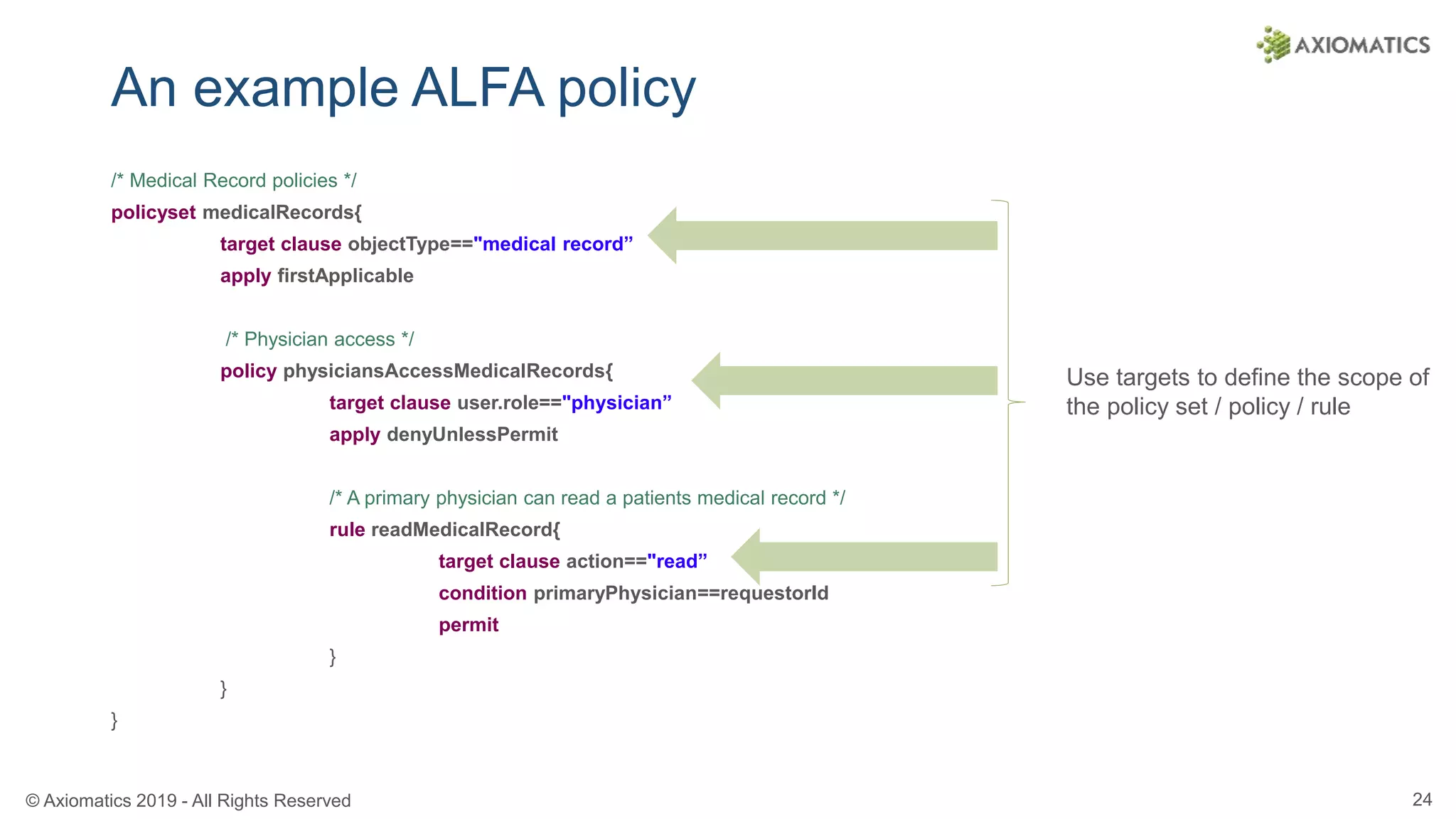

- 24. © Axiomatics 2019- All Rights Reserved 24 An example ALFA policy /* Medical Record policies */ policyset medicalRecords{ target clause objectType=="medical record” apply firstApplicable /* Physician access */ policy physiciansAccessMedicalRecords{ target clause user.role=="physician” apply denyUnlessPermit /* A primary physician can read a patients medical record */ rule readMedicalRecord{ target clause action=="read” condition primaryPhysician==requestorId permit } } } Use targets to define the scope of the policy set / policy / rule

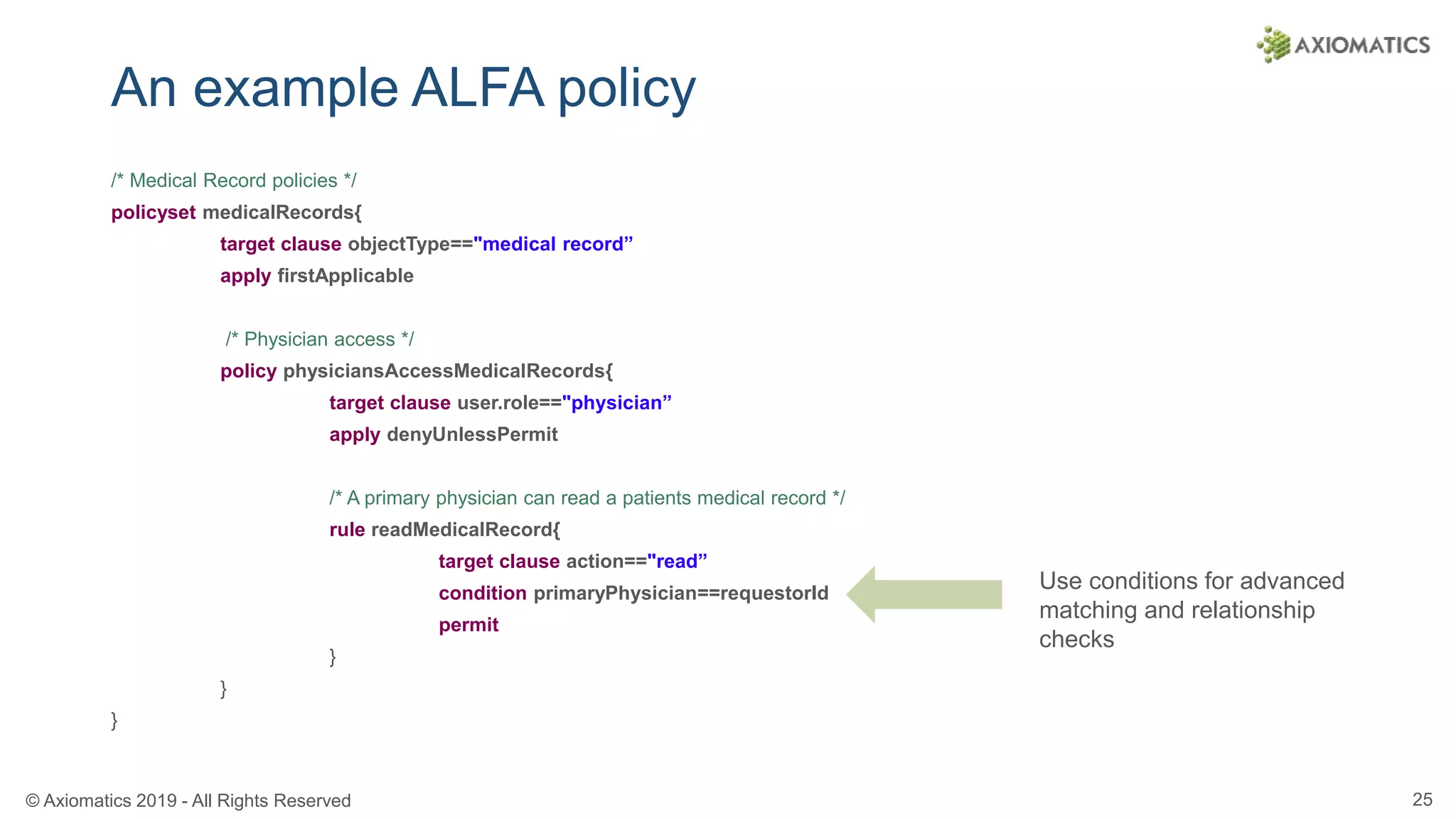

- 25. © Axiomatics 2019- All Rights Reserved 25 An example ALFA policy /* Medical Record policies */ policyset medicalRecords{ target clause objectType=="medical record” apply firstApplicable /* Physician access */ policy physiciansAccessMedicalRecords{ target clause user.role=="physician” apply denyUnlessPermit /* A primary physician can read a patients medical record */ rule readMedicalRecord{ target clause action=="read” condition primaryPhysician==requestorId permit } } } Use conditions for advanced matching and relationship checks

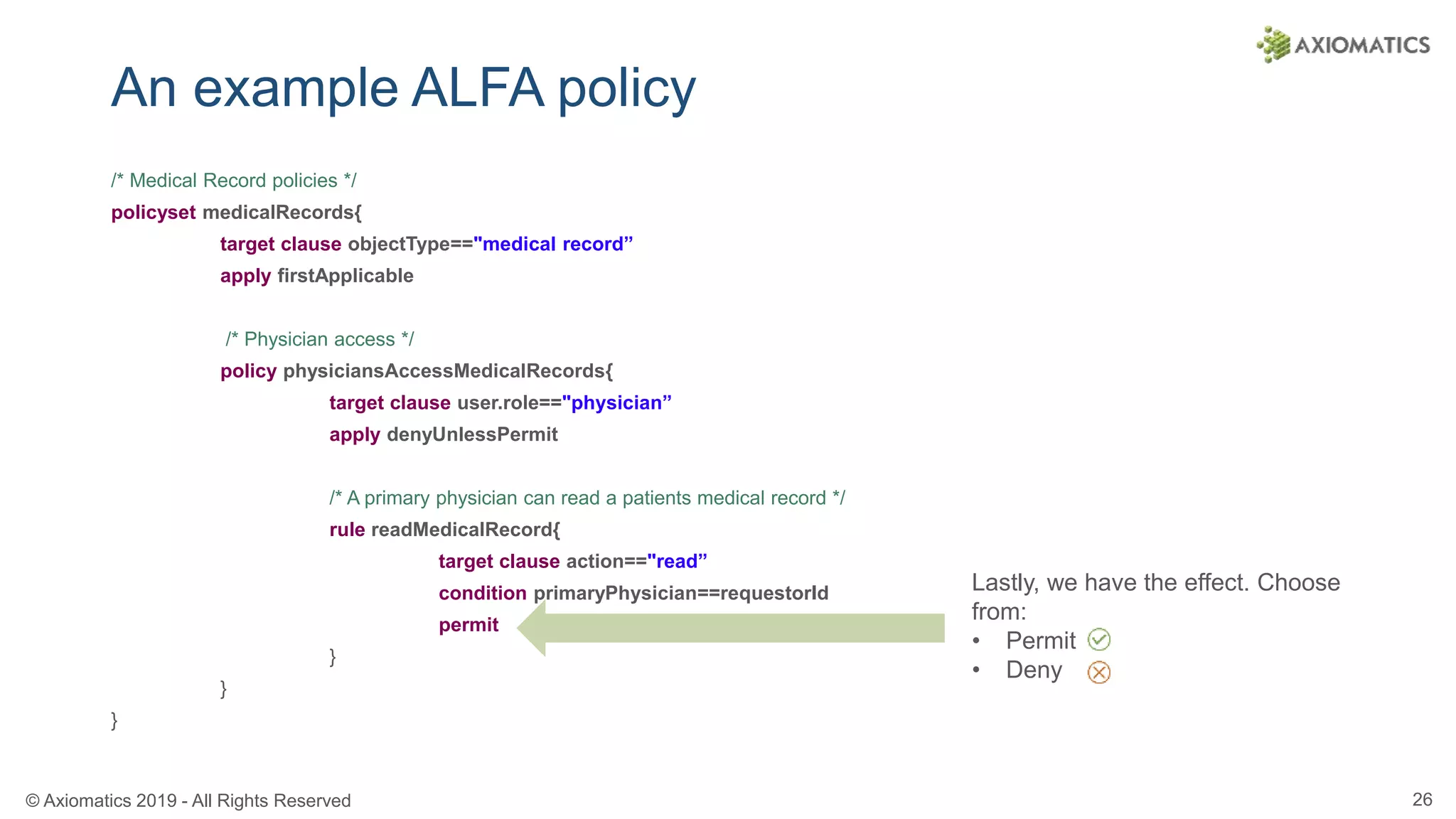

- 26. © Axiomatics 2019- All Rights Reserved 26 An example ALFA policy /* Medical Record policies */ policyset medicalRecords{ target clause objectType=="medical record” apply firstApplicable /* Physician access */ policy physiciansAccessMedicalRecords{ target clause user.role=="physician” apply denyUnlessPermit /* A primary physician can read a patients medical record */ rule readMedicalRecord{ target clause action=="read” condition primaryPhysician==requestorId permit } } } Lastly, we have the effect. Choose from: • Permit • Deny

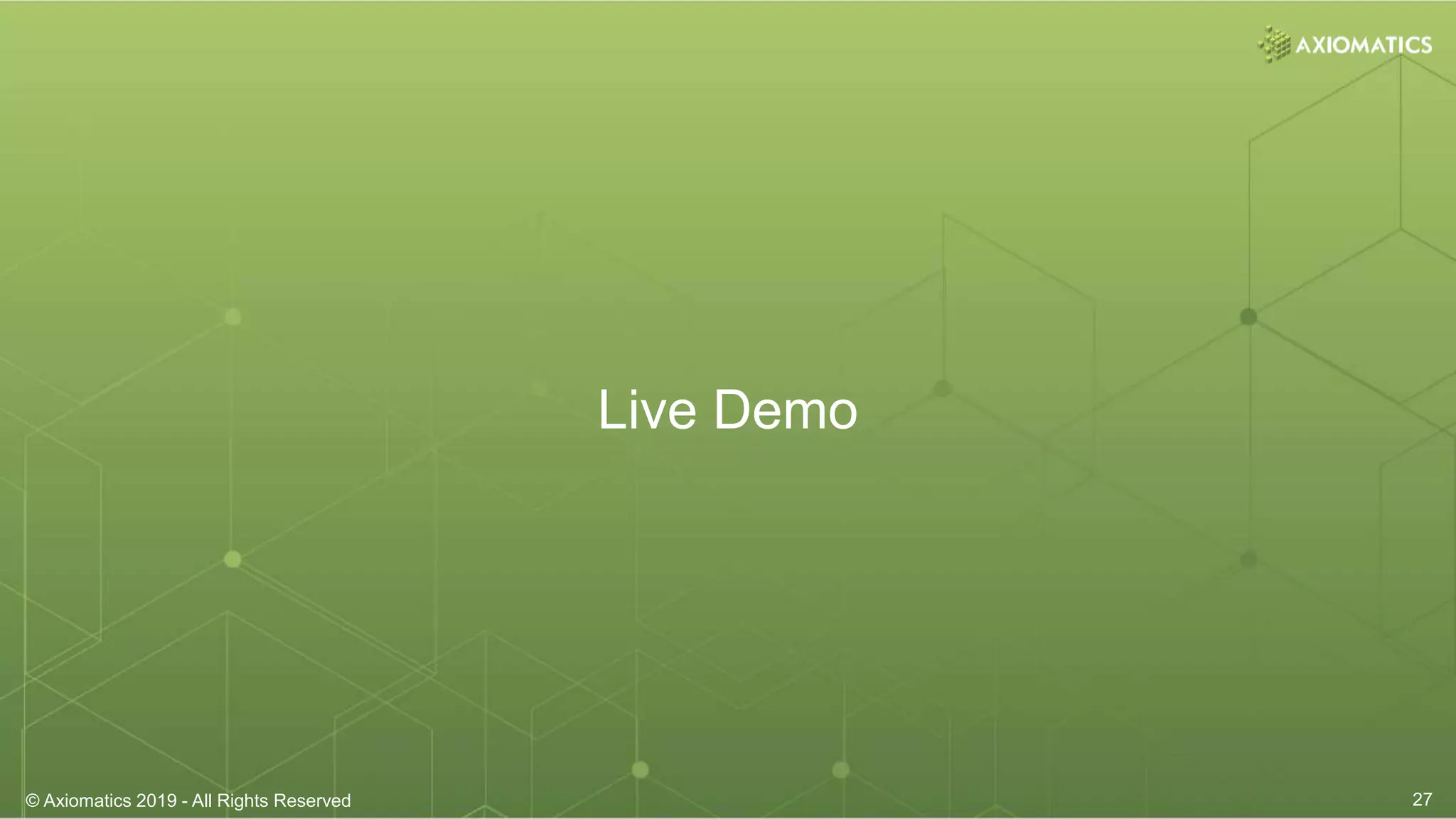

- 27. © Axiomatics 2019- All Rights Reserved 27© Axiomatics 2019 - All Rights Reserved 27 Live Demo
