The dual hydraulic power test rig comprises two main systems: the primary system with a motor and axial piston pump operating at pressures between 10 to 320 bar, and a standby system with a motor and gear pump for pressures of 5 to 200 bar. It includes flow meters, control valves, and multiple workstations for simultaneous testing. The rig is powered by a 60 hp motor and is suitable for various valve and pump testing applications.

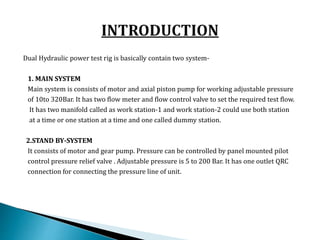

3. Dual Hydraulic power test rig is basically contain two system-
1. MAIN SYSTEM
Main system is consists of motor and axial piston pump for working adjustable pressure
of 10to 320Bar. It has two flow meter and flow control valve to set the required test flow.
It has two manifold called as work station-1 and work station-2 could use both station
at a time or one station at a time and one called dummy station.
2.STAND BY-SYSTEM
It consists of motor and gear pump. Pressure can be controlled by panel mounted pilot
control pressure relief valve . Adjustable pressure is 5 to 200 Bar. It has one outlet QRC
connection for connecting the pressure line of unit.

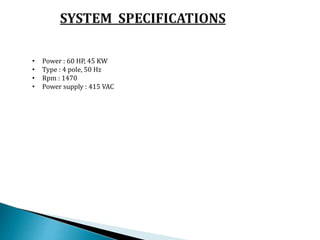

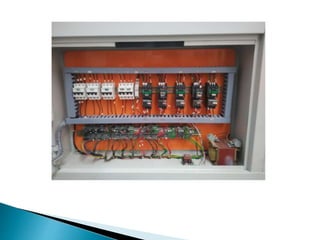

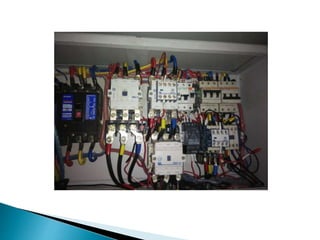

5. • Power : 60 HP, 45 KW
• Type : 4 pole, 50 Hz
• Rpm : 1470
• Power supply : 415 VAC

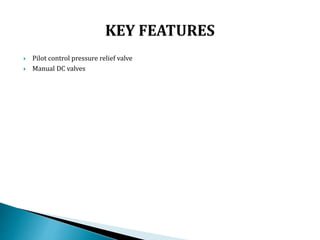

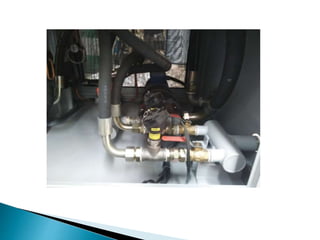

7.  Pilot control pressure relief valve
 Manual DC valves

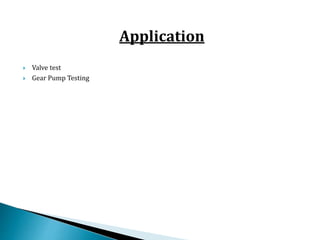

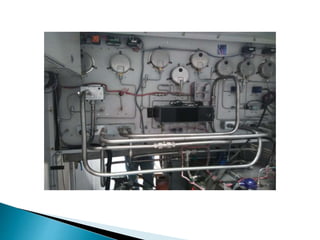

9. Application
 Valve test
 Gear Pump Testing
