Unitech
- 1. for Building &Construction Materials A member of the IKK Group of Companies Design, Fabricate & Supply for Building & Construction Materials
- 2. Contracting Services Manufacturing Trading The IKK Groupdiversified group in terms of products, services and geography for Building & Construction Materials
- 3. 60 companies 200 divisions 13countries covering major cities inthe region 14,000 employees for Building & Construction Materials
- 4. Group vision OUR ViSioNis to maintain and improve our leading position as a contractor whose reputation is built on the ability to completely satisfy customers by providing high quality services. As specialists in their respective fields, our teams of professionals are dedicated to a standard of excellence for quality and performance, through continuous development, which will set standards in our industry. We are simply providing solutions for a future of success. for Building & Construction Materials
- 5. To provide ourpart of the Arab World with local and reliable services in a variety of sectors and products. To create employment to thousands of personnel and in-house training for hundreds of young Arab graduates in crucial sectors to the benefit of the IKK Group, the graduates themselves and their own communities. To set a good example of our basic business philosophy: Group Mission Hire well, train well, pay well and treat well. 1/ 2/ 3/ for Building & Construction Materials
- 6. CONTRACTING & CONSTRUCTION MANUFACTURING SERVICES TRADING Waterproofing & InsulationDivision Construction & Maintenance Company Concrete Repair & Engineering Service Specialized Oil & Gas Engineering Company for Infrastructure & Management A-Build Egypt StructuralKabbani Construction Group KCG Emirates KCG Bahrain Electro Mechanical Contracting Company Qatar Construction Technique Company Contracting BMC Qatar Geosynthetics Trenchless Repair Solutions KCG Oman Infrastructure & Roads Construction Bridge Bearing & Expansion Joints Industrial Services Division Construction & Maintenance Services BMC Syria Kabbani for Decoration & Contracting Co. A-Build Lebanon Building & Construction Materials IKK for Supply & Trade Co. Al Hayat Building Material Co. / KSA National Textile Group / Italy Specialized Co. for Plumbing Products Isam M. Khairy Kabbani for Trade Ltd. Waterproofing & Insulation Division Sanitary & Pipes / Syria PVC, UPVC & CPVC Pipes & Fittings Trading Division Kitchen Cabinets United Professionals for Building Materials Power Tools & Fixations Specialized Construction Technologies Isam Kabbani & Partners for Technical Equipment Co. Dynamik Werkzeuge Al Kabbani for Electrical Trading Sanitary & Pipes / Syria BMC / Syria Sanitary & Pipes / Syria Marketing for Sanitary Fittings & Plumbing Co. Construction Steel Products National Textile Group / Syria Specialized Factory for Steel Products / KSA Purchasing & Supplies Smart Com Welding Certification Design, Development & Data Analysis IKB for Insurance Kitchen Cabinets Metal Fabrication Kitab Smart Boards Hassan Isam Kabbani for Furniture (Maani Venture) Sigma Factory for Steel Products - DIC / UAE Specialized Factory for Steel Products / Egypt Specialized Factory for Steel Products / Lebanon IKK GROUP COMPaNiES Chart for Building & Construction Materials
- 7. IKK Group CorporateStructure Honorary Chairmain Chairmain chief executive officer group cfo citd gm - group support functions admin. group admin.companies Legal group Legal companies hr group hr companies cfos /fms of group companies general managers of group of companies assistant to the Chairmain head of iad IAD: Internal Audit Department GM: General Manager HR: Human Resources CFO: Chief Financial Officer FM: Financial Managers CITD: Central IT Department for Building & Construction Materials
- 8. Since 1979 for Building& Construction Materials Specialized Building Materials’ Solutions Provider Designer, Fabricator, & Supplier for Building & Construction Materials
- 9. Towards its commitment to quality, the company implemented the Quality Management concept, and has acquired the ISO 9001:2008 Quality Management System, in addition to being a member of the U.S.Green Building Council (USGBC). for Building & Construction Materials

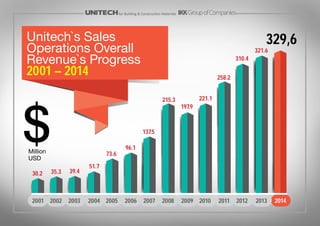

- 10. Million USD Unitech`s Sales Operations Overall Revenue`sProgress 2001 – 2014 197.9 221.1 258.2 310.4 321.6 30.2 35.3 39.4 51.7 73.6 96.1 137.5 215.3 329,6 2004200320022001 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 for Building & Construction Materials
- 11. Geographic Exposure Kingdom of SaudiArabia United Arab Emirates Qatar Bahrain Jordan Egypt Lebanon Oman Kuwait Germany China for Building & Construction Materials
- 12. Employees Progress 2004 20052006 2007 2008 2009 2010 2011 2012 2013 516 656 823 953 1147 1194 1265 1506 1634 1275 Figures in numbers Employees Progress 26Nationalitiesare distributed among the 1846 employees 1,846 2014 in for Building & Construction Materials
- 13. SFSP Is aleading manufacturer and fabricator of steel and aluminum products used for the support of equipment in industrial, commercial, utility and OEM installations. Our customers have access to the most complete support systems offered in the industry including metal framings, cable management systems, pipe hangers, slotted angles, fasteners and others. Specialized Factory for Steel Products SIGMA Factory for Steel Products for Building & Construction Materials
- 14. Specialized Factory forSteel Products SIGMA Factory for Steel Products for Building & Construction Materials
- 15. Specialized Factory forSteel Products SIGMA Factory for Steel Products for Building & Construction Materials
- 16. Doha/ Qatar Tanayel Lebanon 6th of October Cairo/ Egypt DICJeddah 1 Jeddah 2 KSA KSA UAE 27,088sqm Upcoming 6,000sqm Specialized Factory for Steel Products SIGMA Factory for Steel Products SFSP800sqm 6,200sqm 2,500sqm 10,000sqm for Building & Construction Materials
- 17. Trading Companies Beta Contech Specialized Construction Technologies Uni-metal Constructions’Steel Products United Power Fix Power & Hand Tools UNIPRo United Professionals for Building Materials for Building & Construction Materials
- 18. Manufacturing & SupportUnits Specialized / Sigma Factory for Steel Products TOSL UAE Central Purchasing, Unit B TOSL KSA Central Purchasing, Unit A Unitech China unitech deutschland Multi-D Development & Resourcing Office Design & Engineering Office Advertising, Marketing & Communication SFSP DEUTSCHLAND GmbH china for Building & Construction Materials
- 19. Uni-Metal trades steelconstruction products including expanded metals, cladding fixations, c-channel systems, clamps & hangers, block ladders, dry wall and ceiling accessories, cable management systems: cable trays, cable ladders, cable trunkings, basket trays, cable supports: steel lintels and block work accessories. Most are designed and manufactured in its Specialized (SIGMA) Factory for Steel Products (SFSP). Uni-metal Constructions’ Steel Products for Building & Construction Materials
- 20. Cable Trays &Accessories Cable Ladders (Welded & Swaged) Basket Trays & Accessories Cable Management Support Systems Cable Trunkings Underfloor Trunking C-Channel Strut Systems Expanded Metals, Plasterers` Beads Uni-metal Constructions’ Steel Products for Building & Construction Materials
- 21. Steel Lintels &Block Work Accessories Pipe Clamps & Hangers Marble & Granite Fixings Dry Wall & Ceiling Profiles Block Ladder Reinforcement Uni-metal Constructions’ Steel Products for Building & Construction Materials
- 22. Unipro versatile rangeof products is offered to suit the needs of several applications whenever and wherever needed. Our range includes concrete work supplies, insulation & protection materials, sealants, adhesives & chemicals, non metallic cable management systems, industrial tools, fixations, and partitioning products We consider safety factors before identifying the suitable system and product. UNIPRo United Professionals for Building Materials for Building & Construction Materials
- 23. PVC WaterstopsUnicrete Concrete Accessories Aluminum Levels BitumenImpregnated Wood Fiber Fillers Protection Boards Polyethylene Rolls Geotextiles UNIPRo United Professionals for Building Materials Hardened Steel Nails For Concrete Extruded Polystyrene Thermal Insulating Boards for Building Construction Materials
- 24. Polypropylene Protection Boards One-Part Polyurethane Sealant One-Part Polyurethane Sealant Two-PartsPolyurethane Sealant Two-Parts Polyurethane Sealant (SELF LEVELING) Backing Rods Caulking Guns Fluid-Applied Waterproofing Membrane Fluid-Applied Waterproofing Membrane UNIPRo United Professionals for Building Materials for Building Construction Materials
- 25. Glue for Marble Granite Tile Adhesives Tile Grouts UPVC Electrical Conduits and Trunkings Electro Concept Nylon Cable Ties Grinding / Cutting Black Discs X AKT Hand Tools Accessories Construction Silicone Sealant UNIPRo United Professionals for Building Materials for Building Construction Materials
- 26. Anchoring Systems StrutSystems ETAL Pipe Clamps Hangers Gypsum Boards Accessories Radiation Protection Studs Runners Diamond Cutting Blades Semi-Flex Abrasive Discs UNIPRo United Professionals for Building Materials for Building Construction Materials
- 27. Beta Contech Specialized ConstructionTechnologies Beta Contech is specialized in advanced architectural and industrial products through its team of engineers and specialized personnel offering their expertise to the construction market. The company which has successfully completed some major projects in the region. represents well-known European, American and Australian manufacturers for Building Construction Materials
- 28. Raised Access Floorings Beta FloorRaised Access Flooring Systems Beta Toilets: Partitions Lockers Architectural Expansion Joint Systems Architectural Industrial Impact Protection Systems Technical Profile Systems Garbage Linen Chutes uni chutes Speed Bumps Bumper Guards U-BOARDS Fire-Stopping Systems Beta Contech Specialized Construction Technologies for Building Construction Materials
- 29. Unitech Germany performs asa design office supporting the sales operations of Unitech through its well-informed cadre of engineers. Unitech Deutschland Design Engineering Office Stuttgart for Building Construction Materials
- 30. Projects` References - KingKhaled University Abha KSA - Najran University Najran KSA - King Abdullah Economic City (KAEC)(Steel Factory) Gizan KSA - 2 x 660 MW Independent Power Project Rabigh KSA - King Abdulaziz International Airport (KAIA) Jeddah KSA - Al Qassim University Al Qassim KSA - Rafha Electricity Generation Expansion Rafha KSA - King Abdullah Financial District ( KAFD ) Riyadh KSA - Khursaniyah Gas Plant ( KGP ) Khursaniyah KSA - King Faisal University Dammam KSA Project Name City Country for Building Construction Materials
- 31. - Jomo KenyattaInternational Airport Nairobi Kenya - Rotana Hotel Amman Jordan - Queen Alia International Airport Amman Jordan - Mall of Arabia Cairo Egypt - Tripoli Sports Park Tripoli Libya - Intercontinental Hotel Benghazi Libya - Sidra Hospital Doha Qatar - Qatar Science Technology Park Doha Qatar - Cleveland Clinic Abu Dhabi UAE - Masdar Institute of Technology Abu Dhabi UAE - Dubai International Airport (T2) Expansion Dubai UAE - Muscat International Airport Muscat Oman - Jabal Al Akhdar Project Jabal Al Akhdar Oman - Beirut City Center Shopping Mall Beirut Lebanon Projects` References Project Name City Country for Building Construction Materials
- 32. STANGLE CLADDING FIXATION for Building Construction Materials
- 33. Mechanical Cladding Fixation Fixing systemshave always played a fundamental role in the science of building construction, in the Cladding and facing fixing sectors, the choice of the correct system pre-conditions, the functionality, the aesthetic values, the sturdiness and the duration in time, of the entire cladding component. for Building Construction Materials
- 34. STONE TYPES The most common types of stonesare: Marble Travertine Granite Slate Limestone for Building Construction Materials
- 35. Types of FacadeBuilding Sub-Structure a- Stone fixed to concrete wall b- Stone fixed to hollow block wall c- Stone fixed to solid block d- Stone fixed to composite substructure for Building Construction Materials
- 36. TYPES OF LOADS Dead loads12 3 Wind loads Seismic loads for Building Construction Materials
- 37. Dead loads The deadload includes loads that are relatively constant over time, including the weight of the structure itself, and immovable fixtures such as walls, plasterboard or carpet. Dead Load = Height of panel x Width of panel x Thickness of panel x Density of panel. for Building Construction Materials
- 38. A = buildinglength b = building width H = Height of building q = velocity pressure Wp = wind pressure ws = wind suction wind loads Wind pressure= Wp = Cp x q (kN/m2 ) Cp = aerodynamic pressure coefficient for Building Construction Materials
- 39. Cp = -0.7 forH/b 0.5 -0.5 for H/b 0.25 wind loads for Building Construction Materials
- 40. Seismic loads Seismic loadingis one of the basic concept of earthquake engineering which means application of an earthquake generated agitation to a structure. It happens at contact surface of a structure either with the ground or with adjacent structure for Building Construction Materials
- 41. It is commonpractice to express the Seismic load as a percentage of dead load, calculating only the coefficient term. Seismic loads Seismic Zone zone Seismic Load 1 0.067 x D 2a 0.122 x D 2b 0.156 x D 3 0.2 x D 4 0.244 x D zone Damage to Structure 0 No Damage 1 Minor 2 Moderate 3 Major 4 Huge for Building Construction Materials
- 42. Types of fixings -Fixation in the horizontal joint - Fixation in the vertical joint for Building Construction Materials
- 43. Fixation in thehorizontal joint for Building Construction Materials
- 44. The brackets carryhalf the weight of the natural stone slabs in horizontal installation. Brackets bear half the weight of the slab above and also act as restraint, holding the slabs below and restraining them against wind pressure and suction. Fixation in the horizontal joint for Building Construction Materials
- 45. Fixation in thevertical joint for Building Construction Materials
- 46. The load bearingcarry the full weight of the natural stone slab in vertical installation. Each bracket bears half the weight of the slab on the right and half the weight of the slab on the left. Restraint brackets hold the slabs below and restrain them against wind pressure and suction. Fixation in the vertical joint for Building Construction Materials
- 47. Types of Fixings Anytype of cladding, once fixed, is subject to two primary types of load: - The permanent load (the dead load), due to the weight of the cladding itself; - The variable load (applied loads), due to the wind, thermal expansions, seismic motions, etc. for Building Construction Materials
- 48. Two fundamental typesof fixing systems result: Types of Fixings Load-bearing fixing: to support the permanent load and the vertical components of the loads. Restraining fixing: to support the horizontal components of the loads. for Building Construction Materials
- 49. Different types of CladdingBrackets L-Bracket Z-Returned-Brackets FHB Direct ST 800 TFT ST 850 for Building Construction Materials
- 50. L-Bracket (Standard Serrated) With Pin Economic for cavity 20-80mm 1cm vertical adjustment 1cm cavity adjustment due shims Simple and economic bracket if wall is plane or in front of c-channels. Types of fixings for Building Construction Materials
- 51. L-Bracket (Standard Serrated) Up and Down Economic for cavity 20-80mm 1cm vertical adjustment 1cm cavity adjustment due shimms Simple and economic bracket if wall is plane or in front of c-channels. Types of fixings for Building Construction Materials
- 52. L-Bracket (Standard Serrated) Economic for cavity 20-80mm 1cm vertical adjustment 1cm cavity adjustment due shims Simple and economic bracket if wall is plane or in front of c-channels Types of fixings for Building Construction Materials
- 53. L-Bracket (Standard Serrated) Economic for cavity 20-80mm 1cm vertical adjustment 1cm cavity adjustment due shims Simple and economic bracket if wall is plane or in front of c-channels Types of fixings for Building Construction Materials
- 54. L-Bracket (Standard Serrated) With Two Pins Economic for cavity 20-80mm 1cm vertical adjustment 1cm cavity adjustment due shims Simple and economic bracket if wall is plane or in front of c-channels. Types of fixings for Building Construction Materials
- 55. L-Bracket (Standard Serrated) Double Up and Down Economic for cavity 20-80mm 1cm vertical adjustment 1cm cavity adjustment due shims Simple and economic bracket if wall is plane or in front of c-channels. Types of fixings for Building Construction Materials
- 56. L-Bracket (Standard Serrated) With Curved Leg Types of fixings for Building Construction Materials

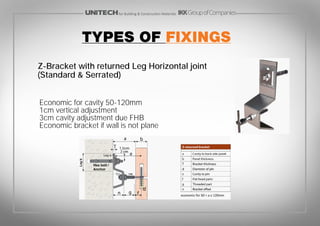

- 57. Z-Bracket with returnedLeg Horizontal joint (Standard Serrated) Economic for cavity 50-120mm 1cm vertical adjustment 3cm cavity adjustment due FHB Economic bracket if wall is not plane Types of fixings for Building Construction Materials
- 58. Omega Bracket (Standard Serrated) Economic for cavity 90-180mm 1cm vertical adjustment 3cm cavity adjustment due FHB Economic bracket with big cavity if wall is not plane For heavy duty panels Types of fixings for Building Construction Materials
- 59. Fishtail with PinType Economic for cavity 40-80mm 1cm cavity adjustment For light panels For reinforced.-concrete wall or block work Types of fixings for Building Construction Materials
- 60. Fishtail Up Down Type Economic for cavity 10-30mm For very light panels For reinforced.-concrete wall or block work Types of fixings for Building Construction Materials
- 61. Corrugated dowel Type Economicfor cavity 10-30mm For very light panels For reinforced.-concrete wall or block work Types of fixings for Building Construction Materials
- 62. Body Bracket Economic forcavity 50-100mm Economic bracket with big cavity if wall is not plane For heavy duty panels Types of fixings for Building Construction Materials
- 63. Body Bracket Economic forcavity 80-135mm Economic bracket with big cavity if wall is not plane For heavy duty panels Types of fixings for Building Construction Materials
- 64. Flat-Head-Bolt direct inwall. Types of fixings for Building Construction Materials
