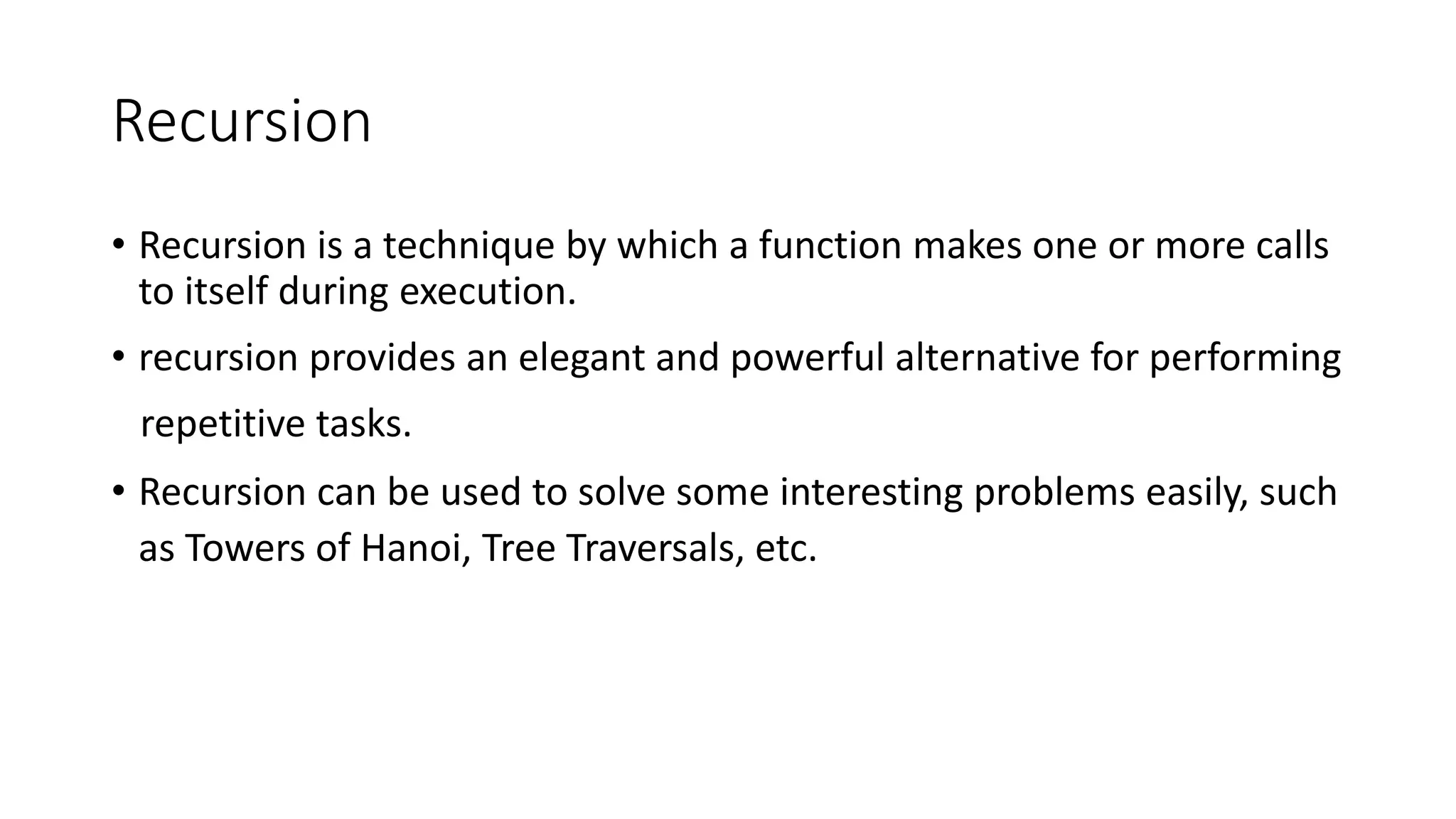

1. Recursion
• Recursion is a technique by which a function makes one or more calls
to itself during execution.
• recursion provides an elegant and powerful alternative for performing
repetitive tasks.
• Recursion can be used to solve some interesting problems easily, such
as Towers of Hanoi, Tree Traversals, etc.

2. Illustrative Examples: Recursion is an important technique in the study of
data structures and algorithms. Below are the four illustrative examples
of the use of recursion:
• The factorial function (commonly denoted as n!) is a classic mathematical
function that has a natural recursive definition.
• An English ruler has a recursive pattern that is a simple example of a fractal
structure.
• Binary search is among the most important computer algorithms. It allows
us to efficiently locate a desired value in a data set with upwards of billions
of entries.
• The file system for a computer has a recursive structure in which directories
can be nested arbitrarily deeply within other directories. Recursive algorithms
are widely used to explore and manage these file systems.

3. The Factorial Function
• The factorial of a positive integer n, denoted n!, is defined as the
product of the integers from 1 to n.
• If n = 0, then n! is defined as 1 by convention. More formally, for any
integer n ≥ 0

4. A Recursive Implementation of the Factorial Function
1 def factorial(n):
2 if n == 0:
3 return 1
4 else:
5 return n * factorial(n−1)

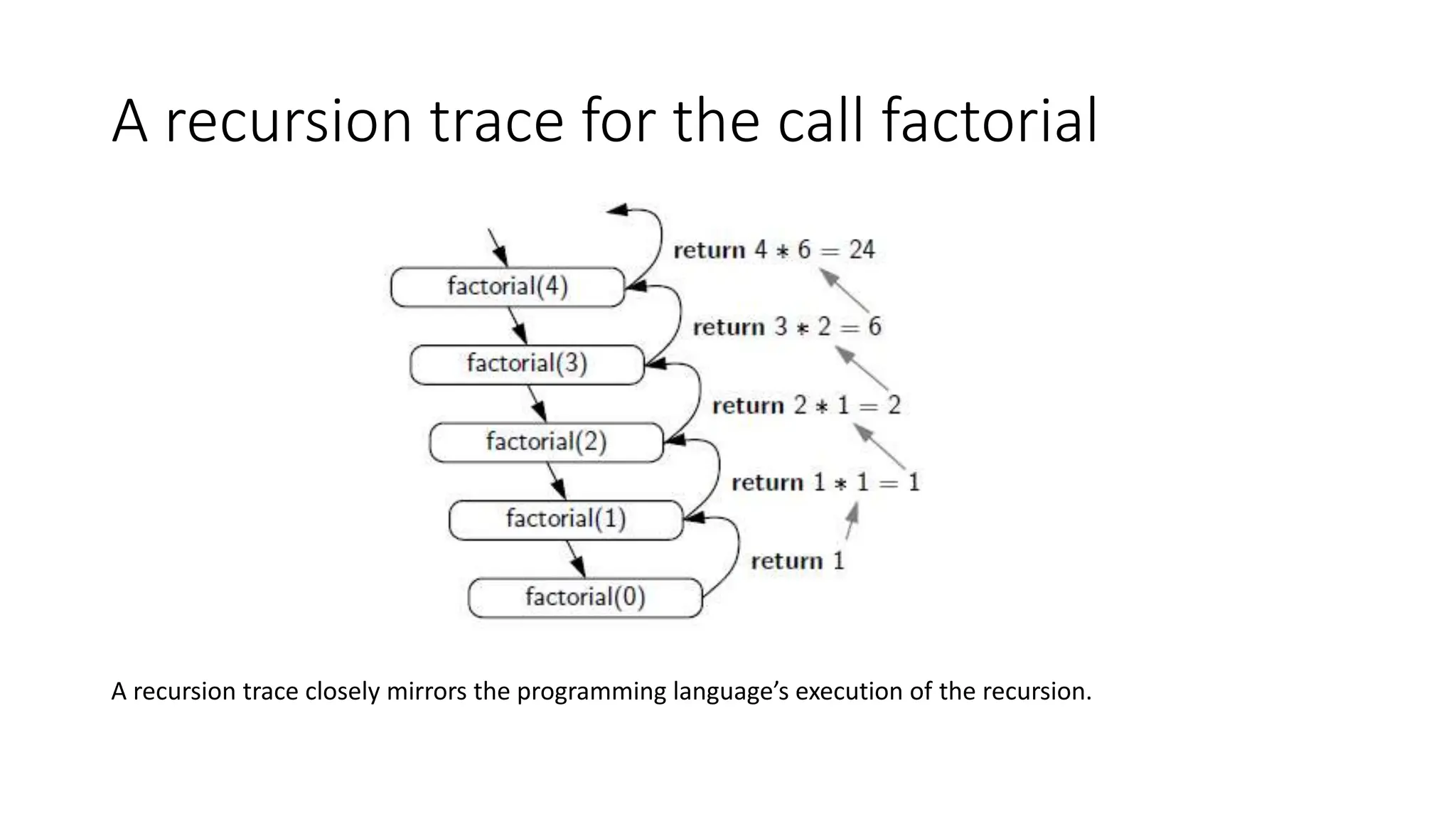

5. A recursion trace for the call factorial
A recursion trace closely mirrors the programming language’s execution of the recursion.

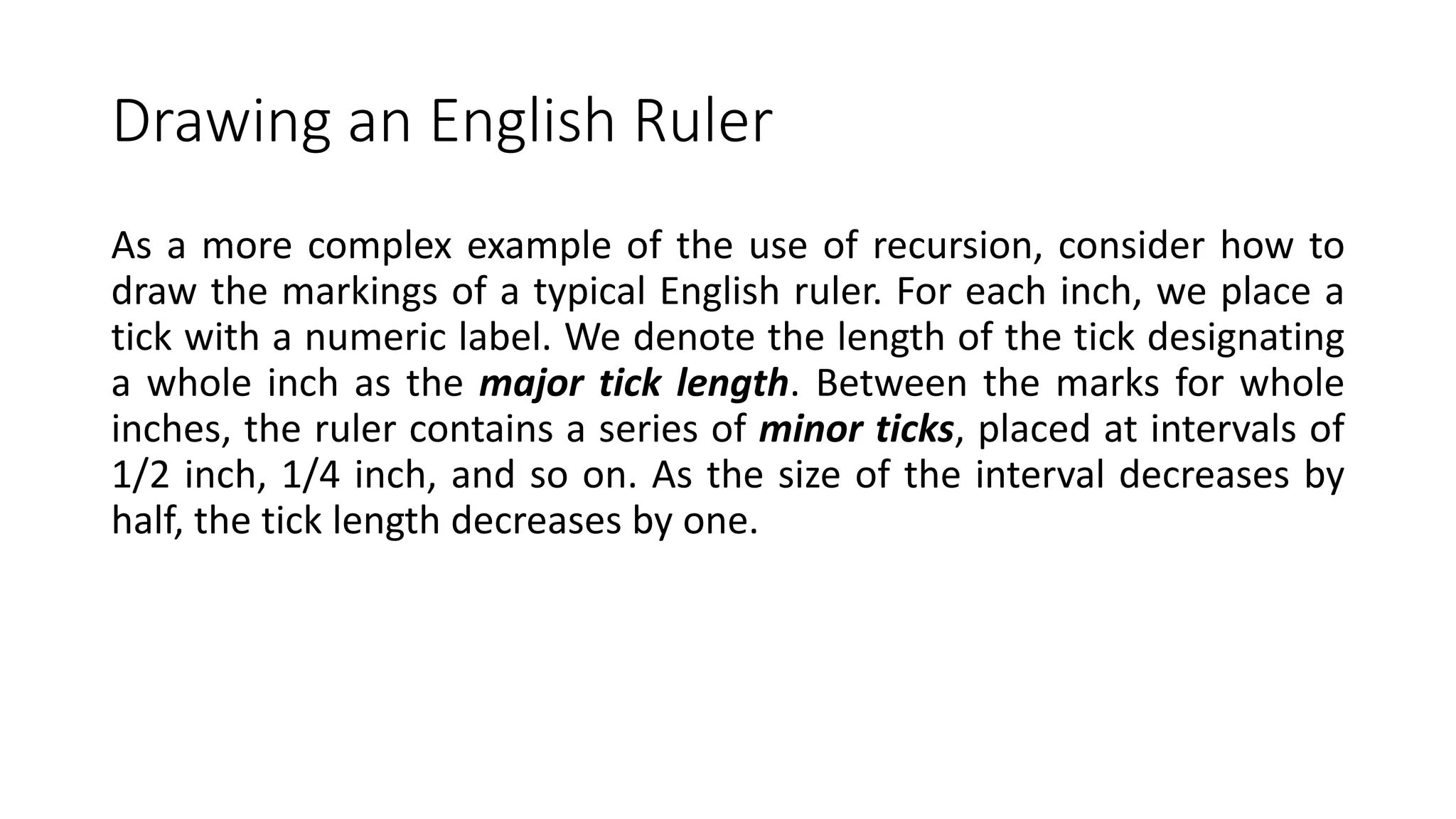

6. Drawing an English Ruler
As a more complex example of the use of recursion, consider how to
draw the markings of a typical English ruler. For each inch, we place a
tick with a numeric label. We denote the length of the tick designating
a whole inch as the major tick length. Between the marks for whole
inches, the ruler contains a series of minor ticks, placed at intervals of
1/2 inch, 1/4 inch, and so on. As the size of the interval decreases by
half, the tick length decreases by one.

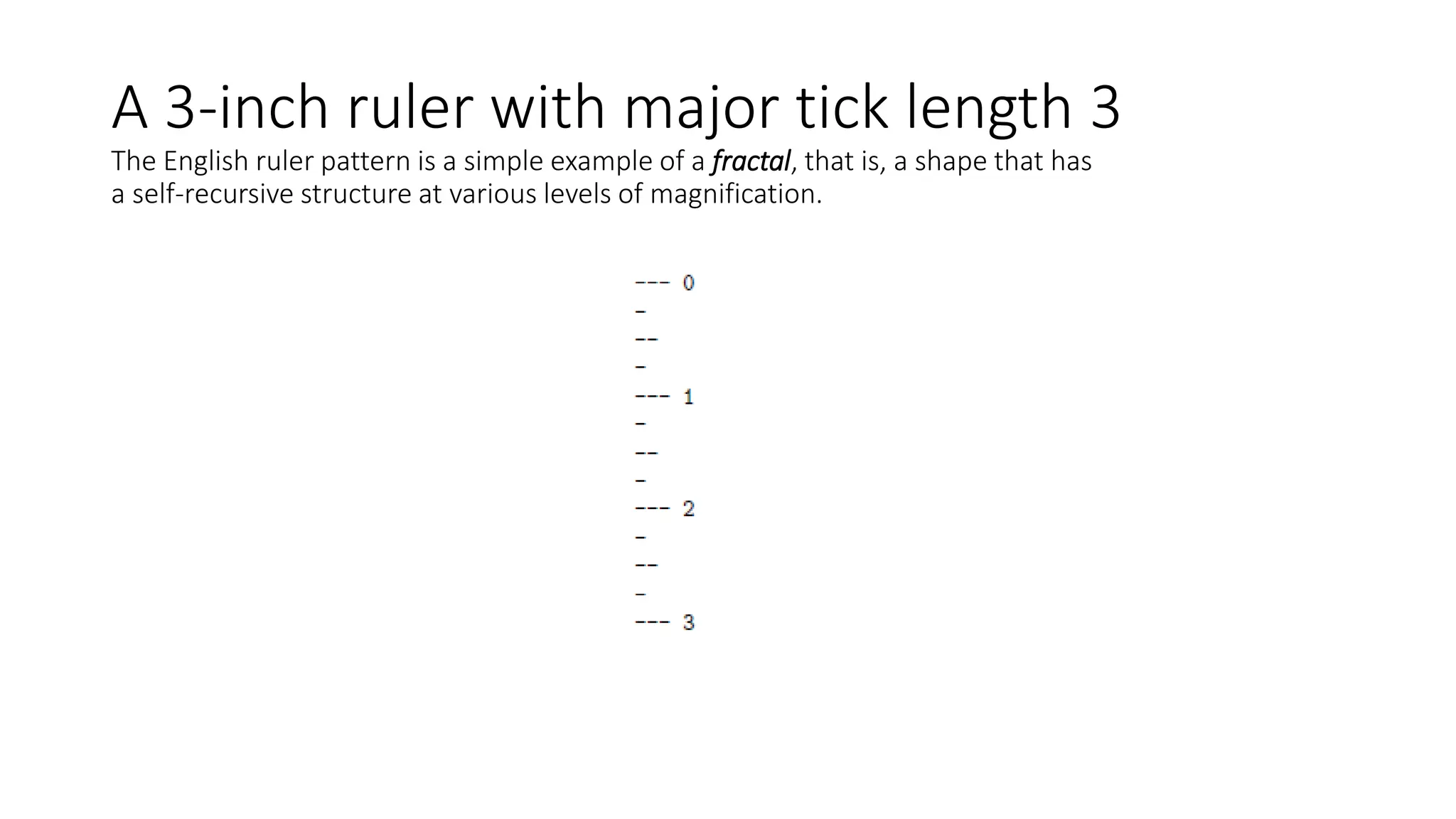

7. A 3-inch ruler with major tick length 3
The English ruler pattern is a simple example of a fractal, that is, a shape that has
a self-recursive structure at various levels of magnification.

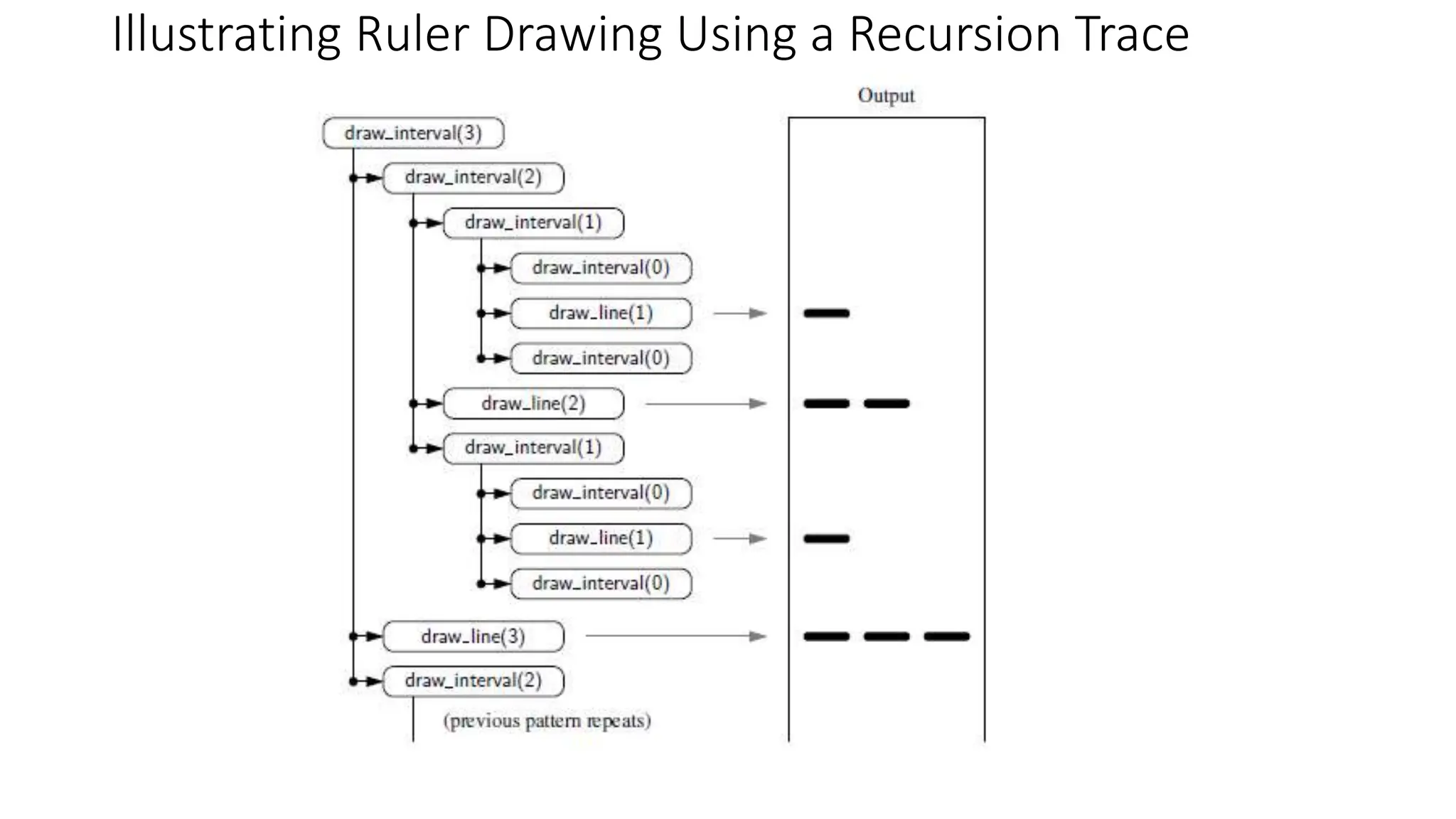

8. Illustrating Ruler Drawing Using a Recursion Trace

9. Recursive Approach to Ruler Drawing
In general, an interval with a central tick length L ≥ 1 is composed of:
• An interval with a central tick length L−1
• A single tick of length L
• An interval with a central tick length L−1

10. Python code to draw an English Ruler
class EnglishRuler:
def __init__(self, num_inches,
major_length):
self.__num_inches = num_inches
self.__major_length = major_length
def draw_line(self,tick_length,tick_label=''):
line = '-' * tick_length
if tick_label:
line += '' + tick_label
print(line)
def draw_interval(self, center_length):
if center_length > 0:
self.draw_interval(center_length-1)
self.draw_line(center_length)
self.draw_interval(center_length-1)
def draw_ruler(self):
self.draw_line(self.__major_length,'0')
for j in range(1, 1+self.__num_inches):
self.draw_interval(self.__major_length-1)
self.draw_line(self.__major_length,str(j))
if __name__ == '__main__':
ruler = EnglishRuler(5,4)
ruler.draw_ruler()

11. Binary Search
• Binary search is a divide-and-conquer algorithm that can be used to
find the position of a target value within a sorted array. The algorithm
works by repeatedly dividing the search interval in half until the target
value is found or the search interval is empty.
• Binary search is a very efficient algorithm, and it is often used in real-
world applications such as searching for a word in a dictionary or
finding a customer record in a database.

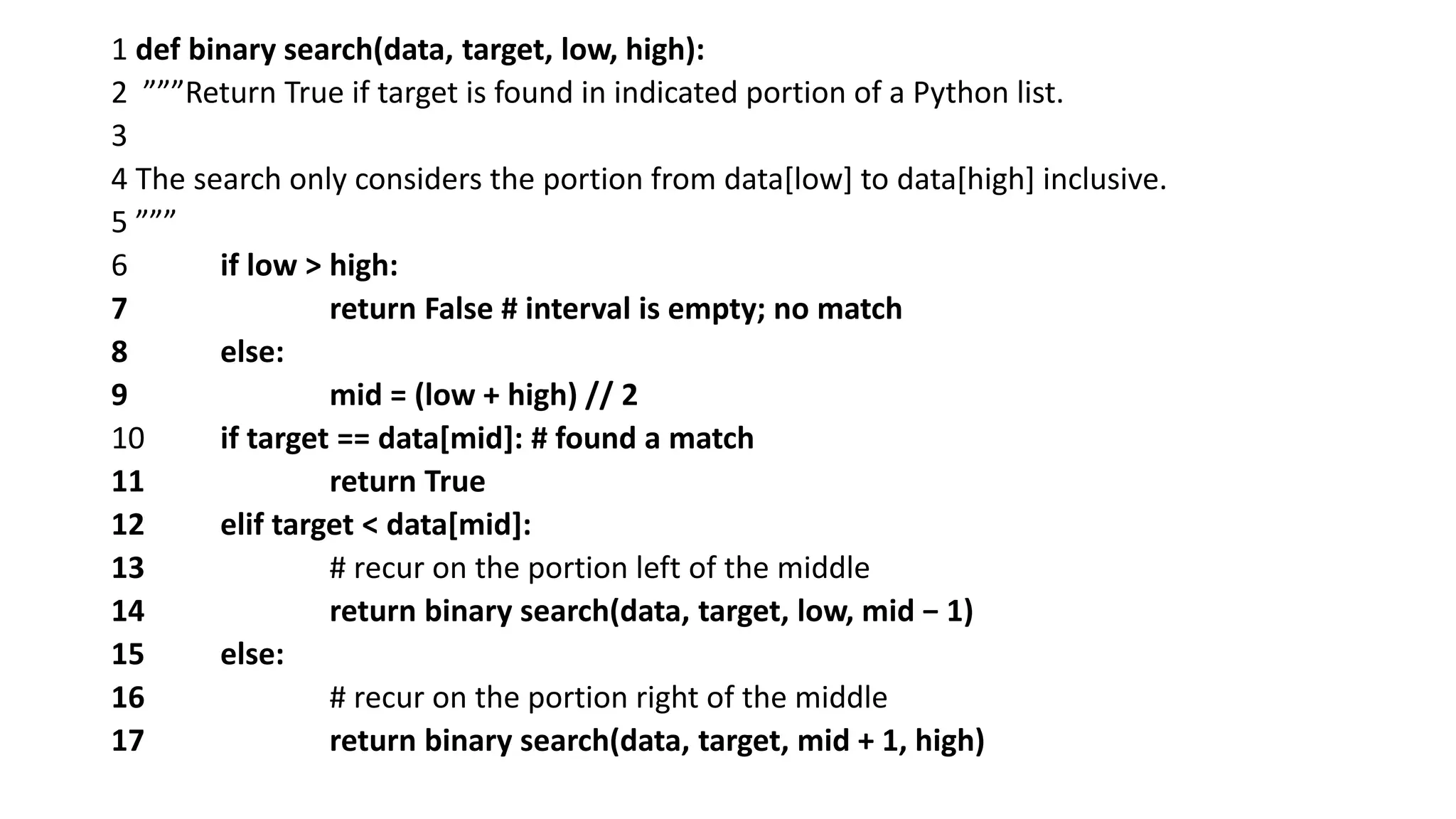

13. 1 def binary search(data, target, low, high):
2 ”””Return True if target is found in indicated portion of a Python list.
3
4 The search only considers the portion from data[low] to data[high] inclusive.
5 ”””
6 if low > high:
7 return False # interval is empty; no match
8 else:
9 mid = (low + high) // 2
10 if target == data[mid]: # found a match
11 return True
12 elif target < data[mid]:
13 # recur on the portion left of the middle
14 return binary search(data, target, low, mid − 1)
15 else:
16 # recur on the portion right of the middle
17 return binary search(data, target, mid + 1, high)

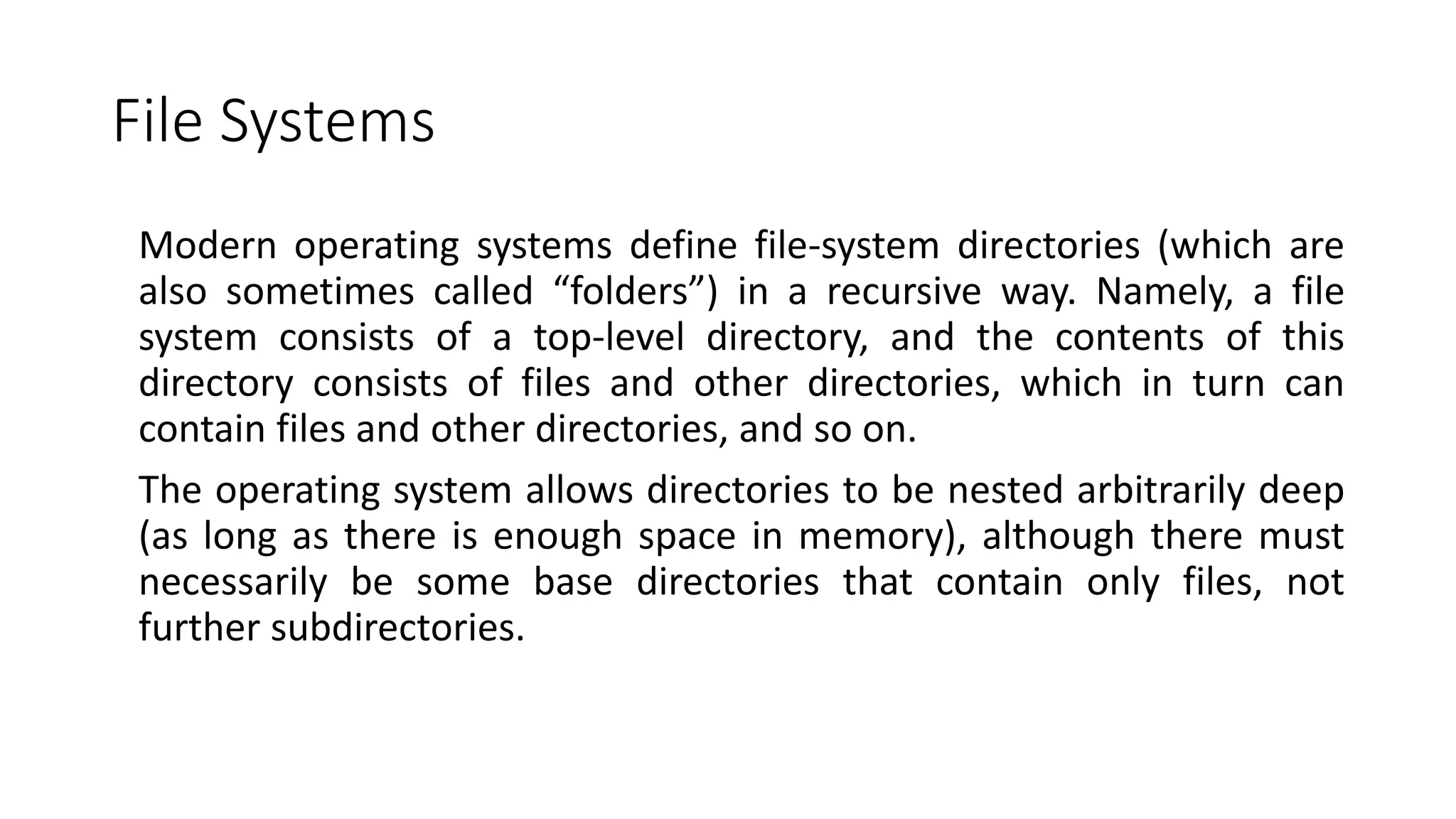

15. File Systems
Modern operating systems define file-system directories (which are
also sometimes called “folders”) in a recursive way. Namely, a file
system consists of a top-level directory, and the contents of this
directory consists of files and other directories, which in turn can
contain files and other directories, and so on.
The operating system allows directories to be nested arbitrarily deep
(as long as there is enough space in memory), although there must
necessarily be some base directories that contain only files, not
further subdirectories.

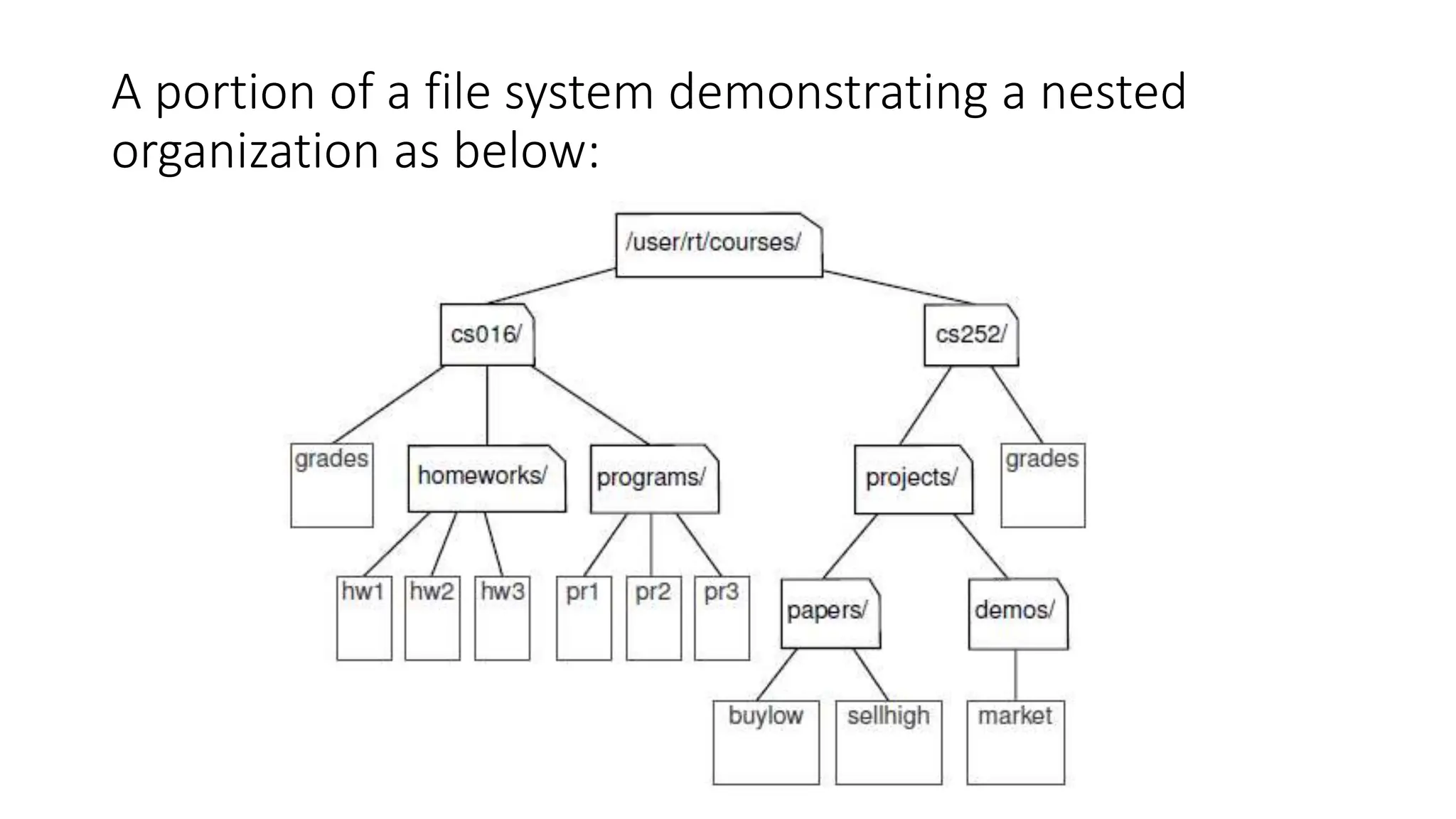

16. A portion of a file system demonstrating a nested
organization as below:

17. Computing the total disk usage for all files and directories nested within a particular directory. In
below example, the cs016 directory uses only 2K of immediate space, but a total of 249K of
cumulative space. The cumulative disk space for an entry can be computed with a simple recursive
algorithm. It is equal to the immediate disk space used by the entry plus the sum of the cumulative
disk space usage of any entries that are stored directly within the entry.

18. A recursive function for reporting disk usage of a file system
1 import os
2
3 def disk usage(path):
4 ”””Return the number of bytes used by a file/folder and any descendents.”””
5 total = os.path.getsize(path) # account for direct usage
6 if os.path.isdir(path): # if this is a directory,
7 for filename in os.listdir(path): # then for each child:
8 childpath = os.path.join(path, filename) # compose full path to child
9 total += disk usage(childpath) # add child’s usage to total
10
11 print ( {0:<7} .format(total), path) # descriptive output (optional)
12 return total # return the grand total

19. Array based sequences:
An array is a data structure that stores a collection of elements of the
same data type. Arrays are typically implemented as contiguous blocks
of memory, which makes them efficient for accessing elements in
random order.
There are two main types of arrays: low-level arrays and dynamic
arrays.
Low-level arrays are arrays in which the size of the array is fixed at
compile time. This means that the programmer must specify the
number of elements that the array will hold when it is created. Low-
level arrays can be efficient for some applications, but they can be
inflexible and difficult to use.

20. Array based sequences:
Dynamic arrays, on the other hand, are arrays in which the size of the
array can be changed at runtime. This makes dynamic arrays more
flexible and easier to use than low-level arrays. However, dynamic
arrays can be less efficient than low-level arrays, because the size of the
array must be changed dynamically.

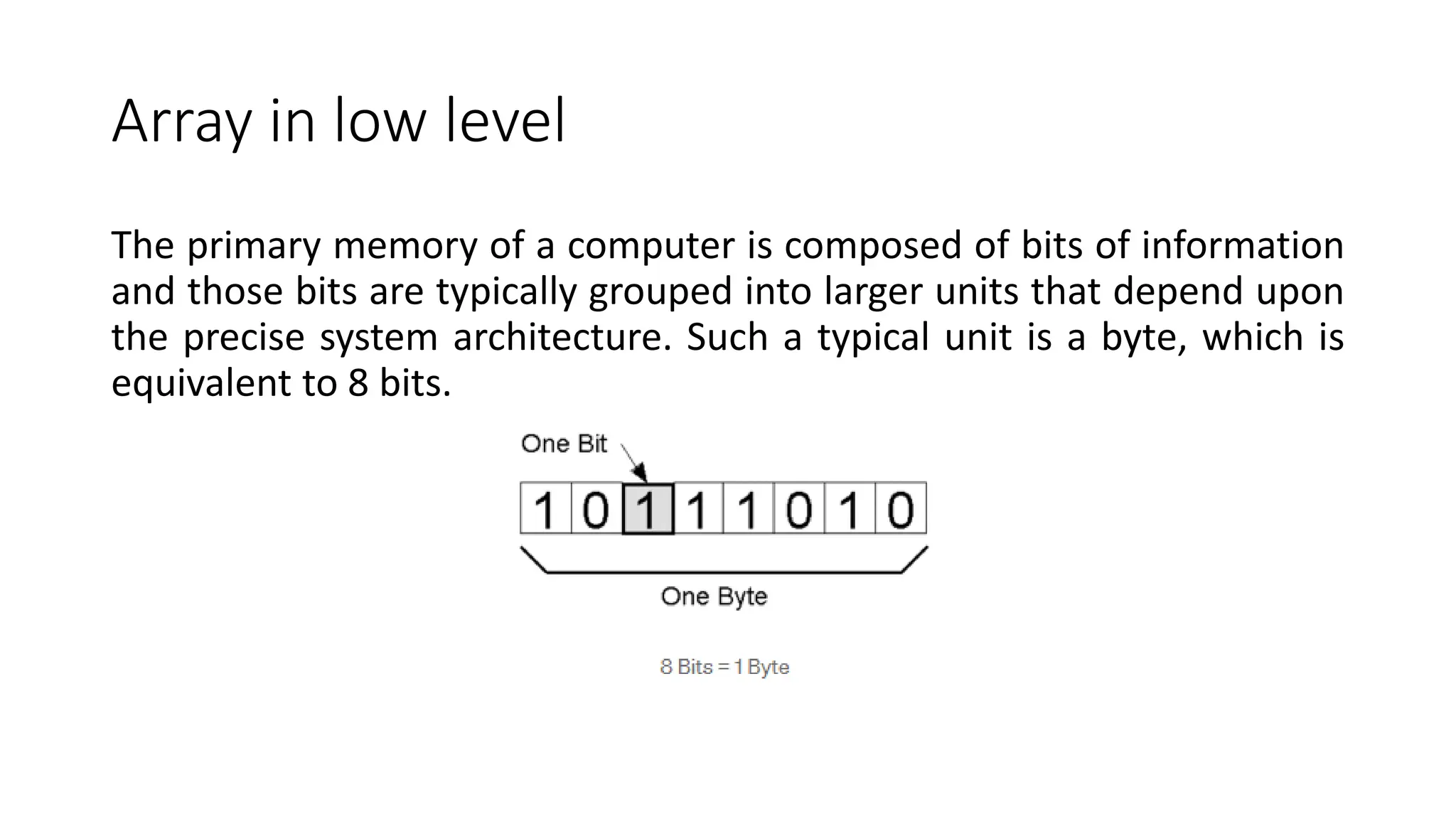

21. Array in low level
The primary memory of a computer is composed of bits of information
and those bits are typically grouped into larger units that depend upon
the precise system architecture. Such a typical unit is a byte, which is
equivalent to 8 bits.

22. A computer system will have a huge number of bytes and memory and
to keep track of what information is stored and what byte the
computer uses in abstraction known as a memory address and in effect
each byte of memory is associated with a unique number that serves as
its address.
any byte of the main memory can be efficiently accessed based upon
its memory address in this sense we can say that a computer’s main
memory performs as a random-access memory. So, each individual
byte of memory can be stored or retrieved in order one-time O(1).

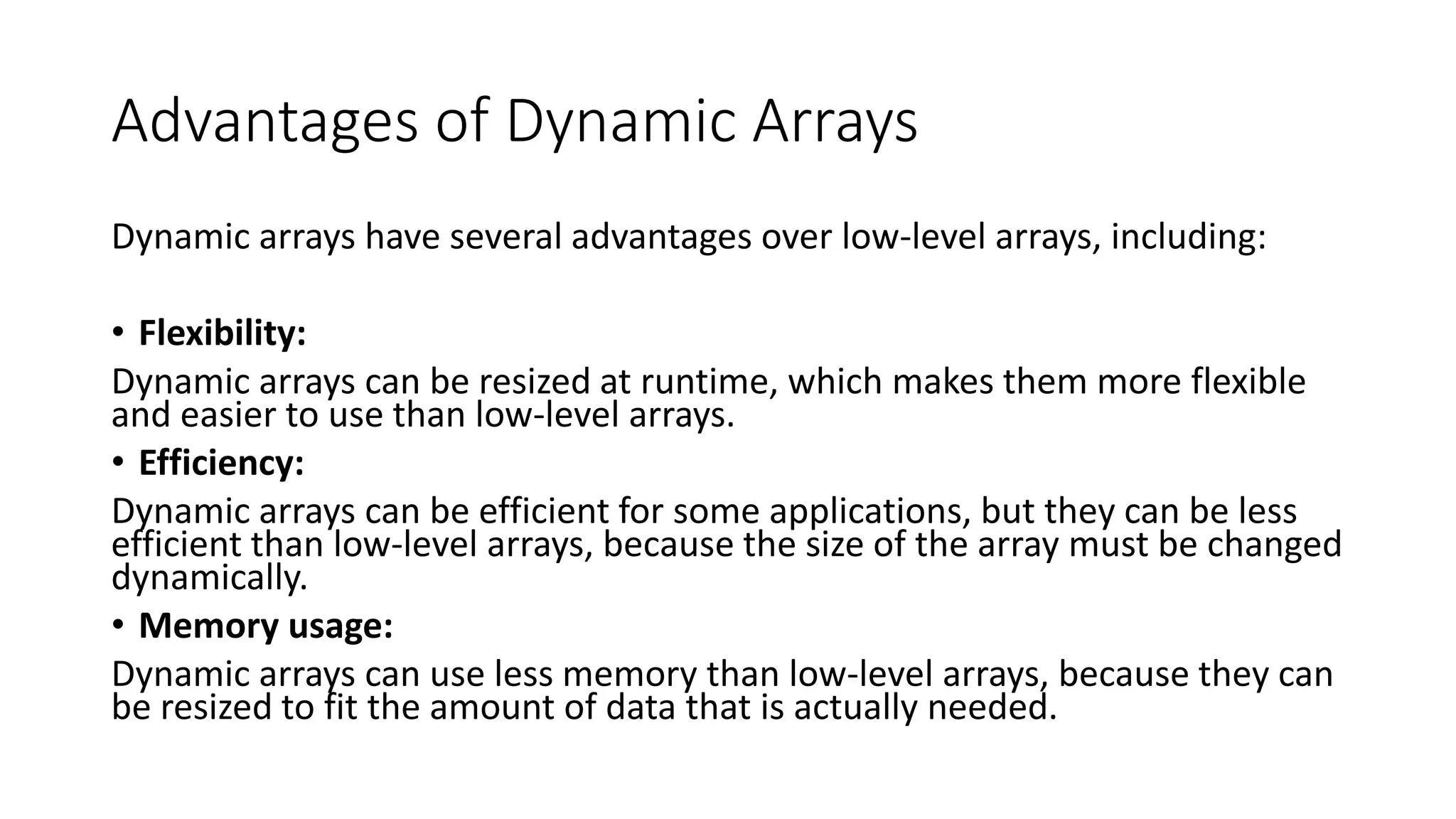

23. Advantages of Dynamic Arrays
Dynamic arrays have several advantages over low-level arrays, including:
• Flexibility:
Dynamic arrays can be resized at runtime, which makes them more flexible
and easier to use than low-level arrays.
• Efficiency:
Dynamic arrays can be efficient for some applications, but they can be less
efficient than low-level arrays, because the size of the array must be changed
dynamically.
• Memory usage:
Dynamic arrays can use less memory than low-level arrays, because they can
be resized to fit the amount of data that is actually needed.

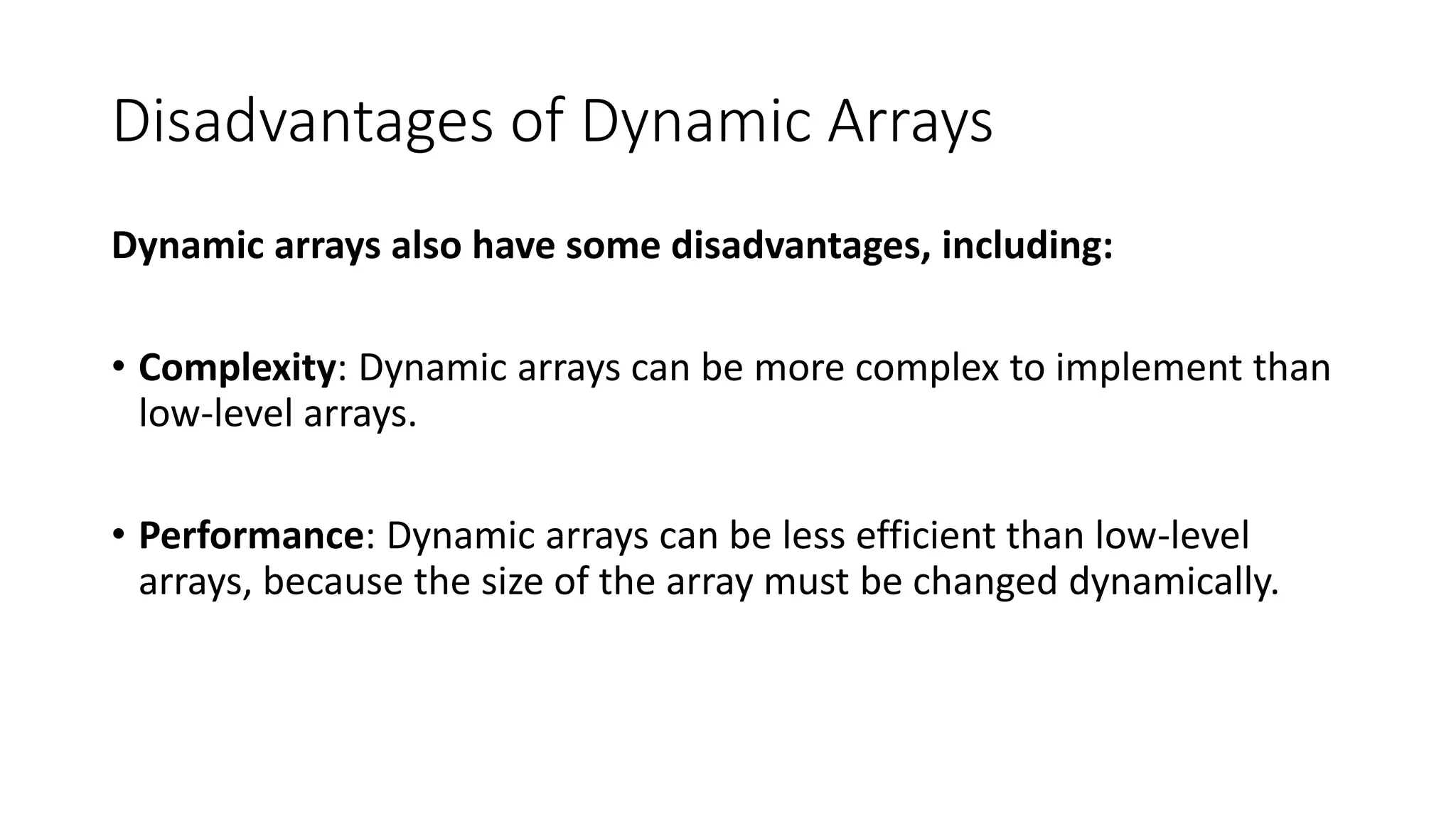

24. Disadvantages of Dynamic Arrays
Dynamic arrays also have some disadvantages, including:
• Complexity: Dynamic arrays can be more complex to implement than
low-level arrays.
• Performance: Dynamic arrays can be less efficient than low-level
arrays, because the size of the array must be changed dynamically.

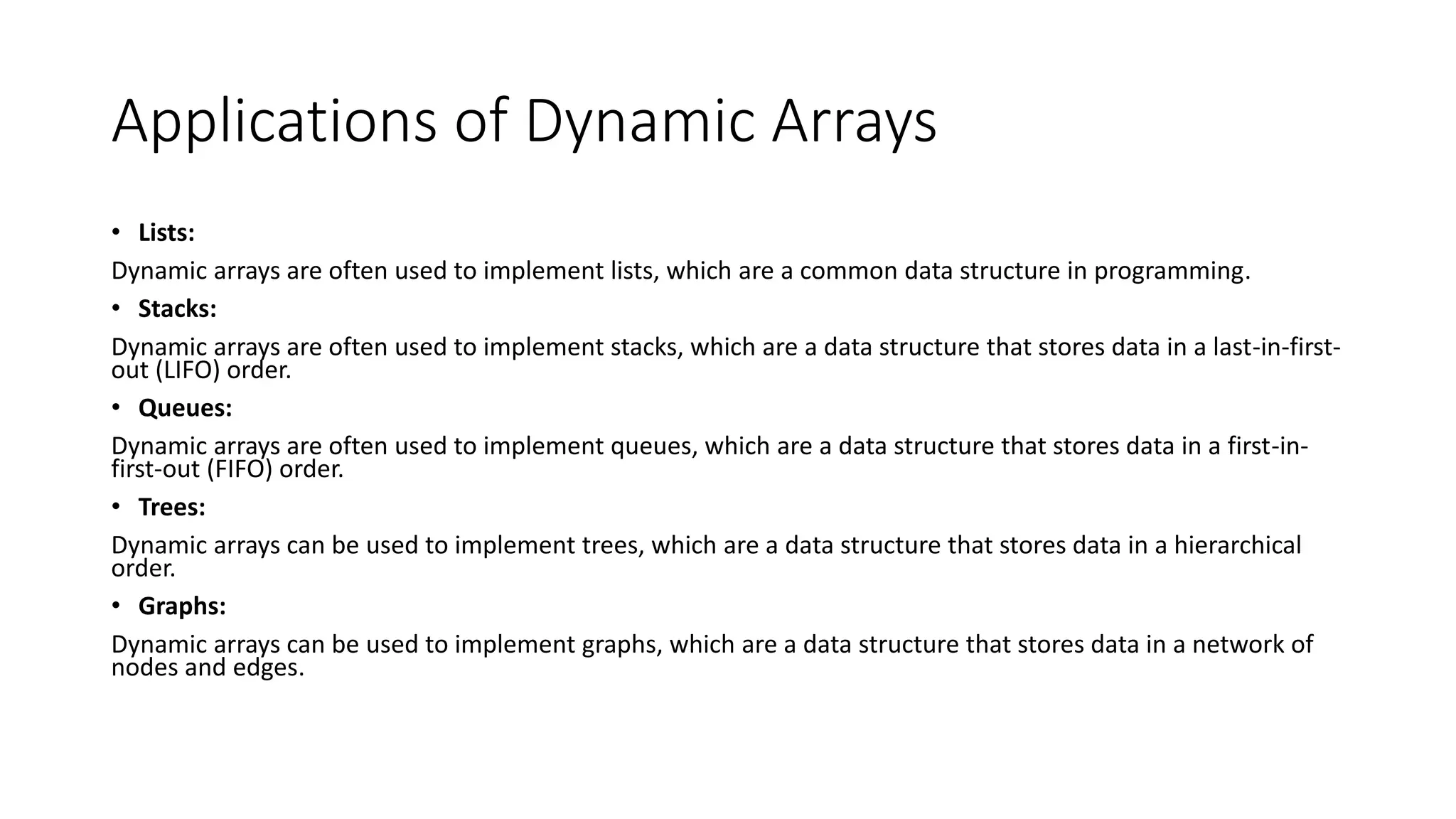

25. Applications of Dynamic Arrays
• Lists:
Dynamic arrays are often used to implement lists, which are a common data structure in programming.
• Stacks:
Dynamic arrays are often used to implement stacks, which are a data structure that stores data in a last-in-first-
out (LIFO) order.
• Queues:
Dynamic arrays are often used to implement queues, which are a data structure that stores data in a first-in-
first-out (FIFO) order.
• Trees:
Dynamic arrays can be used to implement trees, which are a data structure that stores data in a hierarchical
order.
• Graphs:
Dynamic arrays can be used to implement graphs, which are a data structure that stores data in a network of
nodes and edges.

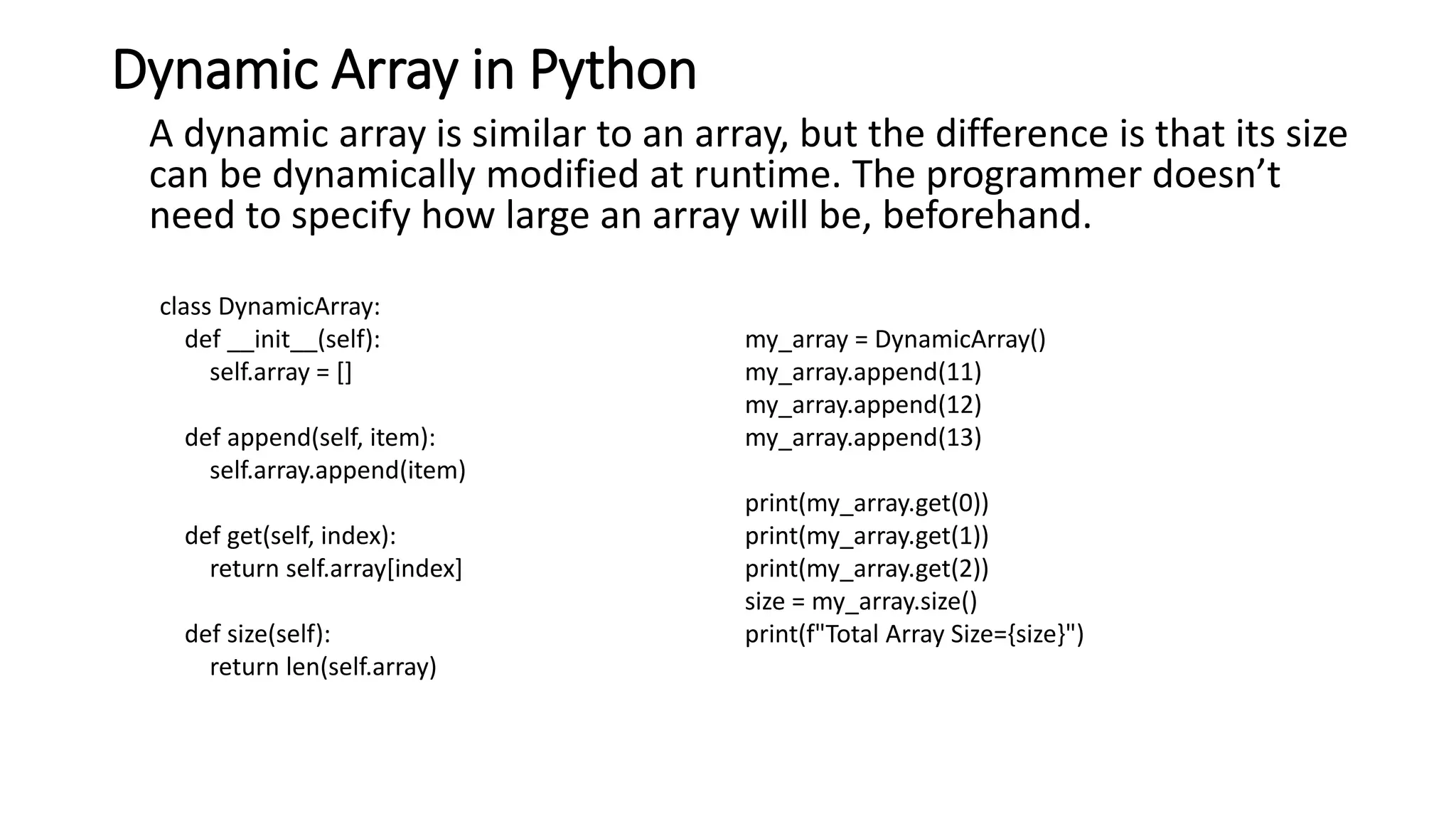

26. Dynamic Array in Python
A dynamic array is similar to an array, but the difference is that its size
can be dynamically modified at runtime. The programmer doesn’t
need to specify how large an array will be, beforehand.
class DynamicArray:
def __init__(self):
self.array = []
def append(self, item):
self.array.append(item)
def get(self, index):
return self.array[index]
def size(self):
return len(self.array)
my_array = DynamicArray()
my_array.append(11)
my_array.append(12)
my_array.append(13)
print(my_array.get(0))
print(my_array.get(1))
print(my_array.get(2))
size = my_array.size()
print(f"Total Array Size={size}")

27. Priority Queues
A priority queue is a type of queue that organizes elements based on their priority
values. Elements with higher priority values are usually retrieved before elements with lower
priority values.
We define the priority queue ADT to support the following methods for a priority queue P:
P.add(k, v): Insert an item with key k and value v into priority queue P.
P.min( ): Return a tuple, (k,v), representing the key and value of an item in priority queue P with
minimum key (but do not rexmove the item); an error occurs if the priority queue is empty.
P.remove min( ): Remove an item with minimum key from priority queue P, and return a tuple, (k,v),
representing the key and value of the removed item; an error occurs if the priority queue is
empty.
P.is empty( ): Return True if priority queue P does not contain any items.
len(P): Return the number of items in priority queue P.

29. The relational property is the following:
Heap-Order Property: In a heap T, for every position p other than the
root, the key stored at p is greater than or equal to the key stored at
p’s parent.
Complete Binary Tree Property: A heap T with height h is a complete
binary tree if levels 0,1,2,...,h− 1 of T have the maximum number of
nodes possible (namely, level i has 2i nodes, for 0 ≤ i ≤ h− 1) and the
remaining nodes at level h reside in the leftmost possible positions at
that level.

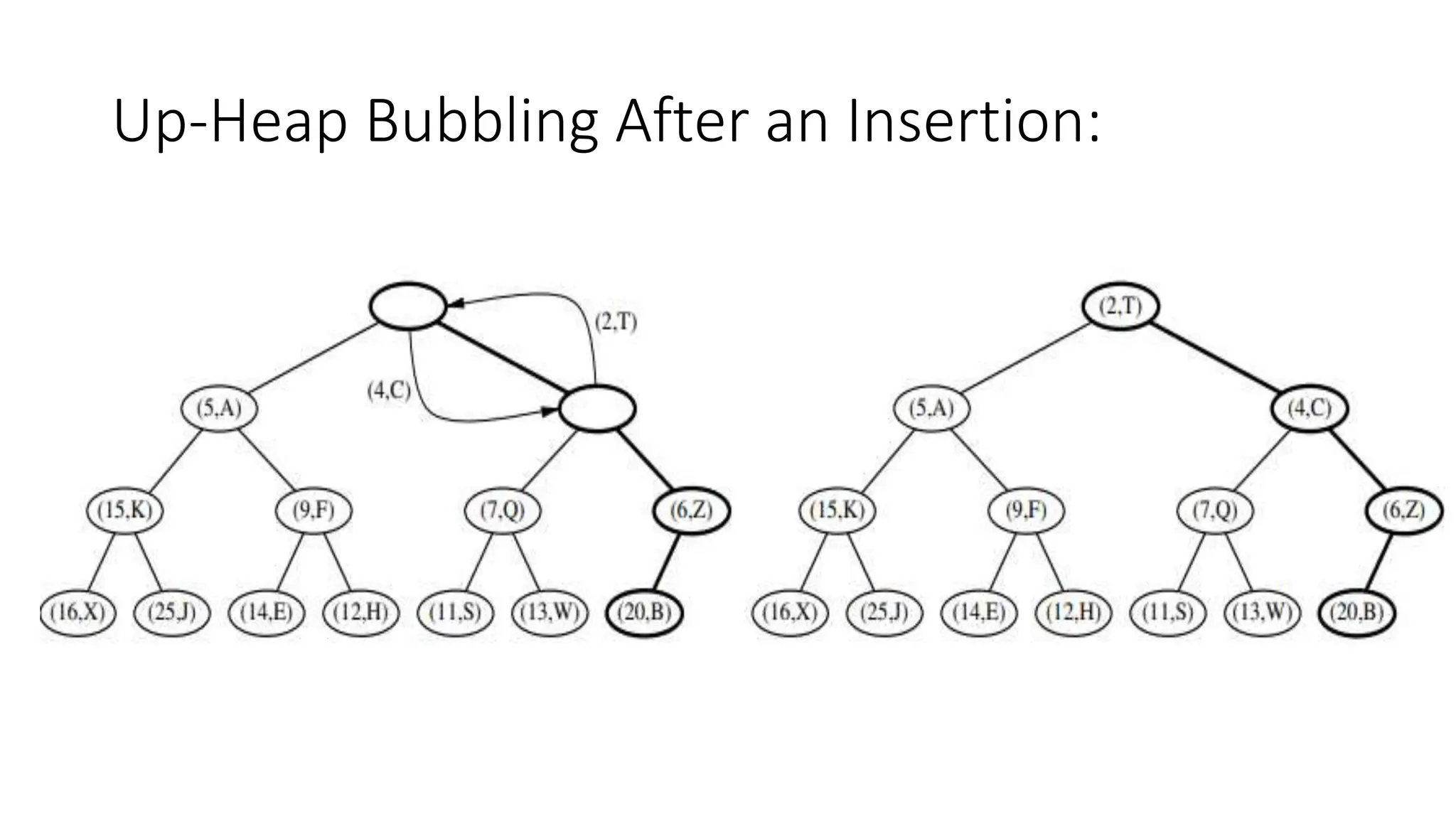

31. Implementing a Priority Queue with a Heap
Adding an Item to the Heap:
To maintain the complete binary tree property, that new node should
be placed at a position p just beyond the rightmost node at the
bottom level of the tree, or as the leftmost position of a new level, if
the bottom level is already full (or if the heap is empty).

32. Up-Heap Bubbling After an Insertion:

33. Removing the Item with Minimum Key
We know that an entry with the smallest key is stored at the root r of T.
We cannot simply delete node r, because this would leave two
disconnected subtrees. Instead, we ensure that the shape of the heap
respects the complete binary tree property

34. Sorting with a Priority Queue
