1. Integrated Data Management
Managing Large Data Sets for Smart Meters
Jacques Roy, IBM
·Click to add text
jacquesr@us.ibm.com
© 2011 IBM Corporation

2. Integrated Data Management
Overview
• How much data do smart meters generate?
• Introducing Informix TimeSeries benefits
• Some technical details
• Proof points
• Solution partners
• Demo
2 © 2011 IBM Corporation

3. Integrated Data Management

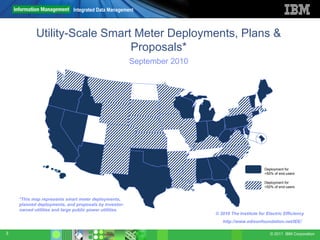

Utility-Scale Smart Meter Deployments, Plans &
Proposals*
September 2010
Deployment for
>50% of end-users
Deployment for
<50% of end-users
*This map represents smart meter deployments,
planned deployments, and proposals by investor-
owned utilities and large public power utilities.
© 2010 The Institute for Electric Efficiency
http://www.edisonfoundation.net/IEE/
3 © 2011 IBM Corporation

4. Integrated Data Management

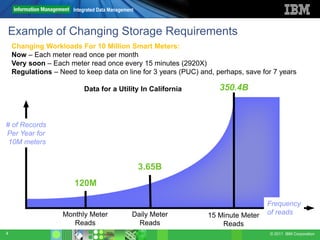

Example of Changing Storage Requirements
Changing Workloads For 10 Million Smart Meters:
Now – Each meter read once per month
Very soon – Each meter read once every 15 minutes (2920X)
Regulations – Need to keep data on line for 3 years (PUC) and, perhaps, save for 7 years
Data for a Utility In California 350.4B
# of Records
Per Year for
10M meters
3.65B
120M
Frequency
Monthly Meter Daily Meter 15 Minute Meter of reads
Reads Reads Reads
4 © 2011 IBM Corporation

5. Integrated Data Management

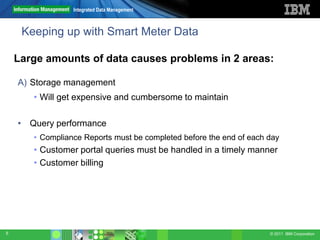

Keeping up with Smart Meter Data
Large amounts of data causes problems in 2 areas:
A) Storage management
• Will get expensive and cumbersome to maintain
• Query performance
• Compliance Reports must be completed before the end of each day
• Customer portal queries must be handled in a timely manner
• Customer billing
5 © 2011 IBM Corporation

6. Integrated Data Management
Introducing IBM Informix Relational Database
• Why IBM Informix?
• Low cost/Low administration
• Manage thousands of servers with one database administrator
• Many installations have no DBA’s
• High performance
• Insert 100’s of thousands of records per second
• Analytic functions not available in other database products
• High Availability
• Scale up, scale out, and disaster recovery
• Native time series data support
• Load and analyze time series data
“The idea was to run the project in three cycles, and use a different type of analysis in each cycle, to see if we
could draw any conclusions in terms of how to promote change in the way people view their energy
consumption. With help from the IBM Hursley team, we quickly found that Informix TimeSeries could deliver
spectacular results.” Clive Eisen, Chief Technology Officer at Hildebrand.
6 © 2011 IBM Corporation

7. Integrated Data Management

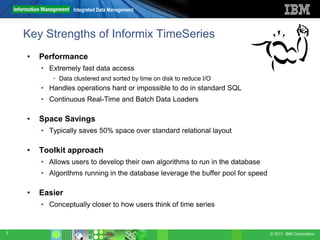

Key Strengths of Informix TimeSeries
• Performance
• Extremely fast data access
• Data clustered and sorted by time on disk to reduce I/O
• Handles operations hard or impossible to do in standard SQL
• Continuous Real-Time and Batch Data Loaders
• Space Savings
• Typically saves 50% space over standard relational layout
• Toolkit approach
• Allows users to develop their own algorithms to run in the database
• Algorithms running in the database leverage the buffer pool for speed
• Easier
• Conceptually closer to how users think of time series
7 © 2011 IBM Corporation

8. Integrated Data Management

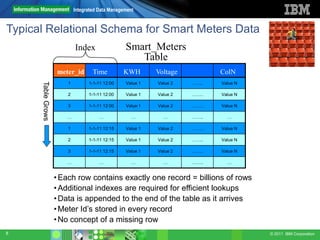

Typical Relational Schema for Smart Meters Data
Index Smart_Meters
Table
meter_id Time KWH Voltage ColN
1 1-1-11 12:00 Value 1 Value 2 …….. Value N
Table Grows
2 1-1-11 12:00 Value 1 Value 2 …….. Value N
3 1-1-11 12:00 Value 1 Value 2 …….. Value N
… … … … …….. …
1 1-1-11 12:15 Value 1 Value 2 …….. Value N
2 1-1-11 12:15 Value 1 Value 2 …….. Value N
3 1-1-11 12:15 Value 1 Value 2 …….. Value N
… … … … …….. …
• Each row contains exactly one record = billions of rows
• Additional indexes are required for efficient lookups
• Data is appended to the end of the table as it arrives
• Meter Id’s stored in every record
• No concept of a missing row
8 © 2011 IBM Corporation

9. Integrated Data Management

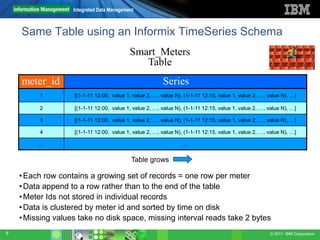

Same Table using an Informix TimeSeries Schema
Smart_Meters
Table
meter_id Series
1 [(1-1-11 12:00, value 1, value 2, …, value N), (1-1-11 12:15, value 1, value 2, …, value N), …]
2 [(1-1-11 12:00, value 1, value 2, …, value N), (1-1-11 12:15, value 1, value 2, …, value N), …]
3 [(1-1-11 12:00, value 1, value 2, …, value N), (1-1-11 12:15, value 1, value 2, …, value N), …]
4 [(1-1-11 12:00, value 1, value 2, …, value N), (1-1-11 12:15, value 1, value 2, …, value N), …]
… …
Table grows
• Each row contains a growing set of records = one row per meter
• Data append to a row rather than to the end of the table
• Meter Ids not stored in individual records
• Data is clustered by meter id and sorted by time on disk
• Missing values take no disk space, missing interval reads take 2 bytes
9 © 2011 IBM Corporation

10. Integrated Data Management

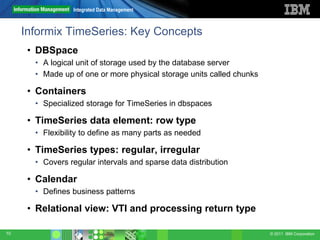

Informix TimeSeries: Key Concepts
• DBSpace
• A logical unit of storage used by the database server
• Made up of one or more physical storage units called chunks
• Containers
• Specialized storage for TimeSeries in dbspaces
• TimeSeries data element: row type
• Flexibility to define as many parts as needed
• TimeSeries types: regular, irregular
• Covers regular intervals and sparse data distribution
• Calendar
• Defines business patterns
• Relational view: VTI and processing return type
10 © 2011 IBM Corporation

11. Integrated Data Management

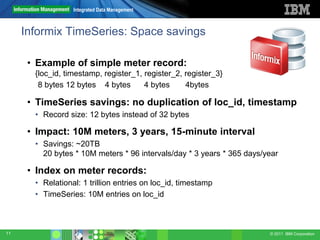

Informix TimeSeries: Space savings
• Example of simple meter record:
{loc_id, timestamp, register_1, register_2, register_3}
8 bytes 12 bytes 4 bytes 4 bytes 4bytes
• TimeSeries savings: no duplication of loc_id, timestamp
• Record size: 12 bytes instead of 32 bytes
• Impact: 10M meters, 3 years, 15-minute interval
• Savings: ~20TB
20 bytes * 10M meters * 96 intervals/day * 3 years * 365 days/year
• Index on meter records:
• Relational: 1 trillion entries on loc_id, timestamp
• TimeSeries: 10M entries on loc_id
11 © 2011 IBM Corporation

12. Integrated Data Management

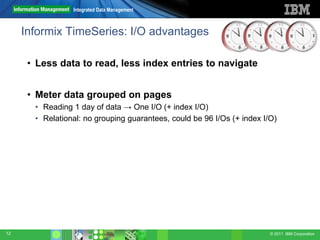

Informix TimeSeries: I/O advantages
• Less data to read, less index entries to navigate
• Meter data grouped on pages
• Reading 1 day of data → One I/O (+ index I/O)
• Relational: no grouping guarantees, could be 96 I/Os (+ index I/O)
12 © 2011 IBM Corporation

13. Integrated Data Management

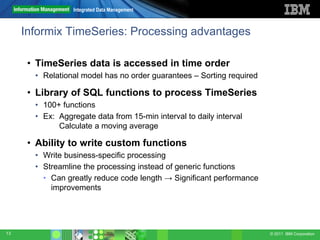

Informix TimeSeries: Processing advantages
• TimeSeries data is accessed in time order
• Relational model has no order guarantees – Sorting required
• Library of SQL functions to process TimeSeries
• 100+ functions
• Ex: Aggregate data from 15-min interval to daily interval
Calculate a moving average
• Ability to write custom functions
• Write business-specific processing
• Streamline the processing instead of generic functions
• Can greatly reduce code length → Significant performance
improvements
13 © 2011 IBM Corporation

14. Integrated Data Management

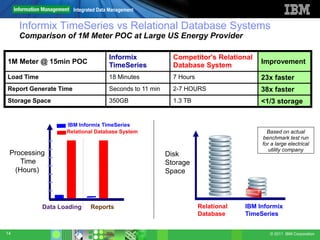

Informix TimeSeries vs Relational Database Systems
Comparison of 1M Meter POC at Large US Energy Provider
Informix Competitor's Relational
1M Meter @ 15min POC Improvement
TimeSeries Database System
Load Time 18 Minutes 7 Hours 23x faster
Report Generate Time Seconds to 11 min 2-7 HOURS 38x faster
Storage Space 350GB 1.3 TB <1/3 storage
IBM Informix TimeSeries
Relational Database System Based on actual
benchmark test run
for a large electrical
utility company
Processing Disk
Time Storage
(Hours) Space
Data Loading Reports Relational IBM Informix
Database TimeSeries
14 © 2011 IBM Corporation

15. Integrated Data Management

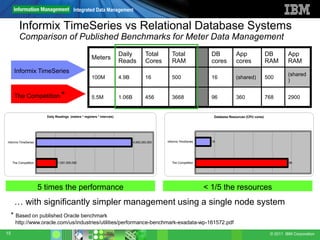

Informix TimeSeries vs Relational Database Systems
Comparison of Published Benchmarks for Meter Data Management
Daily Total Total DB App DB App
Meters
Reads Cores RAM cores cores RAM RAM
Informix TimeSeries (shared
100M 4.9B 16 500 16 (shared) 500
)
The Competition * 5.5M 1.06B 456 3668 96 360 768 2900
Daily Readings (meters * registers * intervals) Database Resources (CPU cores)
Informix TimeSeries 4,900,000,000 Informix TimeSeries 16
The Competition 1,061,500,000 The Competition 96
5 times the performance < 1/5 the resources
… with significantly simpler management using a single node system
* Based on published Oracle benchmark
http://www.oracle.com/us/industries/utilities/performance-benchmark-exadata-wp-161572.pdf
15 © 2011 IBM Corporation

16. Integrated Data Management
Informix TimeSeries – Success with leading MDM providers
http://smart-grid... http://www.metering.com/node/20062
MDM offers scalability to 100 million smart meters
. “We feel that the Informix “Performance testing results of
TimeSeries technology lends AMT-SYBEX’s Affinity Meterflow
itself extremely well to the meter data management (MDM)
performance characteristics, data application using IBM Informix
types and high-volume TimeSeries software has
processing required for the next demonstrated the capability to
generation of smart metering and offer linear scalability up to 100
smart grid applications.” million meters to load and
- David Hubbard, CTO and process meter data at 30-minute
co-founder of Ecologic Analytics intervals in less than 8 hours.”
16 © 2011 IBM Corporation

17. Integrated Data Management

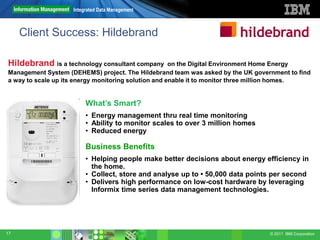

Client Success: Hildebrand
Hildebrand is a technology consultant company on the Digital Environment Home Energy
Management System (DEHEMS) project. The Hildebrand team was asked by the UK government to find
a way to scale up its energy monitoring solution and enable it to monitor three million homes.
What’s Smart?
• Energy management thru real time monitoring
• Ability to monitor scales to over 3 million homes
• Reduced energy
Business Benefits
• Helping people make better decisions about energy efficiency in
the home.
• Collect, store and analyse up to • 50,000 data points per second
• Delivers high performance on low-cost hardware by leveraging
Informix time series data management technologies.
17 © 2011 IBM Corporation

18. Integrated Data Management

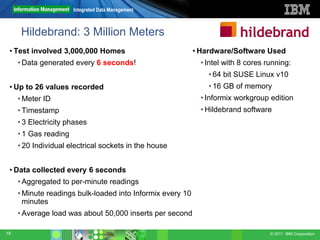

Hildebrand: 3 Million Meters
• Test involved 3,000,000 Homes • Hardware/Software Used
• Data generated every 6 seconds! • Intel with 8 cores running:
• 64 bit SUSE Linux v10
• Up to 26 values recorded • 16 GB of memory
• Meter ID • Informix workgroup edition
• Timestamp • Hildebrand software
• 3 Electricity phases
• 1 Gas reading
• 20 Individual electrical sockets in the house
• Data collected every 6 seconds
• Aggregated to per-minute readings
• Minute readings bulk-loaded into Informix every 10
minutes
• Average load was about 50,000 inserts per second
18 © 2011 IBM Corporation

19. Integrated Data Management

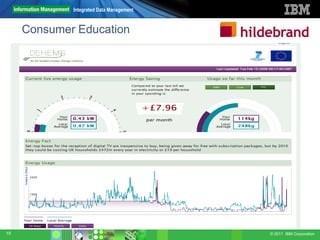

Consumer Education
19 © 2011 IBM Corporation

20. Integrated Data Management

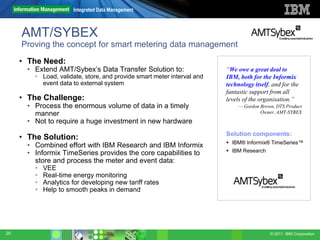

AMT/SYBEX
Proving the concept for smart metering data management
• The Need:
• Extend AMT/Sybex’s Data Transfer Solution to: “We owe a great deal to
• Load, validate, store, and provide smart meter interval and IBM, both for the Informix
event data to external system technology itself, and for the
fantastic support from all
• The Challenge: levels of the organisation.”
• Process the enormous volume of data in a timely — Gordon Brown, DTS Product
manner Owner, AMT-SYBEX
• Not to require a huge investment in new hardware
Solution components:
• The Solution:
 IBM® Informix® TimeSeries™
• Combined effort with IBM Research and IBM Informix
• Informix TimeSeries provides the core capabilities to  IBM Research
store and process the meter and event data:
• VEE
• Real-time energy monitoring
• Analytics for developing new tariff rates
• Help to smooth peaks in demand
20 © 2011 IBM Corporation

21. Integrated Data Management

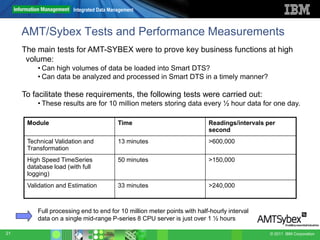

AMT/Sybex Tests and Performance Measurements
The main tests for AMT-SYBEX were to prove key business functions at high
volume:
• Can high volumes of data be loaded into Smart DTS?
• Can data be analyzed and processed in Smart DTS in a timely manner?
To facilitate these requirements, the following tests were carried out:
• These results are for 10 million meters storing data every ½ hour data for one day.
Module Time Readings/intervals per
second
Technical Validation and 13 minutes >600,000
Transformation
High Speed TimeSeries 50 minutes >150,000
database load (with full
logging)
Validation and Estimation 33 minutes >240,000
Full processing end to end for 10 million meter points with half-hourly interval
data on a single mid-range P-series 8 CPU server is just over 1 ½ hours
21 © 2011 IBM Corporation
