High Performance Ultrasonic Pulse Velocity Tester
ULTRAC0N 170 ULTRASONIC PULSE VELOCITY TESTER
FOR TESTING OF CONCRETE, GRAPHITE
ULTRAC0N 170 ULTRASONIC PULSE VELOCITY TESTER
FOR TESTING OF CONCRETE, GRAPHITE

2. ULTRAC0N 170 ULTRASONIC
PULSE VELOCITY TESTER
The Ultracon 170 Ultrasonic Pulse Velocity Tester for concrete
testing is a professional test instrument that measures ultrasonic
transit time with high accuracy & repeatability to evaluate
uniformity, cavities, cracks, delamination, deterioration
and strength of materials such as concrete, refractory bricks,
graphite, plastics & wood.
Ultracon 170 conforms to : EN 12504-4, ASTM C 597-02,
Bs1881 PART 203, IS 1311, CEC 521, ISO 1920-7:2004
Description :
TM
For Concrete Testing
1

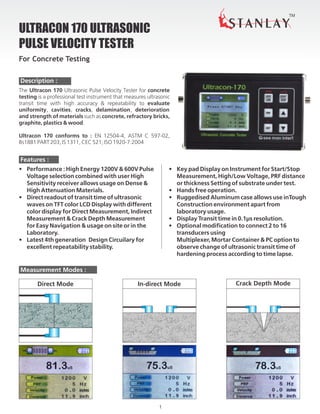

Measurement Modes :
Direct Mode In-direct Mode Crack Depth Mode
• Key pad Display on Instrument for Start/Stop
Measurement, High/Low Voltage, PRF distance
or thickness Setting of substrate under test.
• Hands free operation.
• Ruggedised Aluminum case allows use inTough
Construction environment apart from
laboratory usage.
• Display Transit time in 0.1µs resolution.
• Optional modification to connect 2 to 16
transducers using
Multiplexer, Mortar Container & PC option to
observe change of ultrasonic transit time of
hardening process according to time lapse.
Features :
• Performance : High Energy 1200V & 600V Pulse
Voltage selection combined with user High
Sensitivity receiver allows usage on Dense &
High Attenuation Materials.
• Direct readout of transit time of ultrasonic
waves on TFT color LCD Display with different
color display for Direct Measurement, Indirect
Measurement & Crack Depth Measurement
for Easy Navigation & usage on site or in the
Laboratory.
• Latest 4th generation Design Circuilary for
excellent repeatability stability.

3. Reference Test Block
TM
2

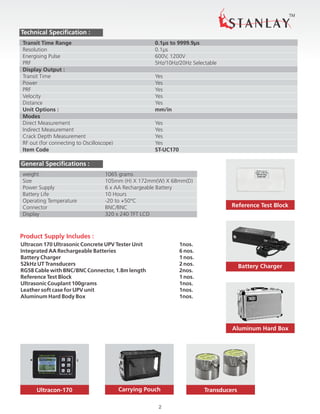

Technical Specification :
Transit Time Range 0.1µs to 9999.9µs
Resolution 0.1µs
Energising Pulse 600V, 1200V
PRF 5Hz/10Hz/20Hz Selectable
Display Output :
Transit Time Yes
Power Yes
PRF Yes
Velocity Yes
Distance Yes
Unit Options : mm/in
Modes
Direct Measurement Yes
Indirect Measurement Yes
Crack Depth Measurement Yes
RF out (for connecting to Oscilloscope) Yes
Item Code ST-UC170
General Specifications :
weight 1065 grams
Size 105mm (H) X 172mm(W) X 68mm(D)
Power Supply 6 x AA Rechargeable Battery
Battery Life 10 Hours
Operating Temperature -20 to +50°C
Connector BNC/BNC
Display 320 x 240 TFT LCD
Product Supply Includes :
Ultracon 170 Ultrasonic Concrete UPV Tester Unit 1nos.
Integrated AA Rechargeable Batteries 6 nos.
Battery Charger 1 nos.
52kHz UT Transducers 2 nos.
RG58 Cable with BNC/BNC Connector, 1.8m length 2nos.
Reference Test Block 1 nos.
Ultrasonic Couplant 100grams 1nos.
Leather soft case for UPV unit 1nos.
Aluminum Hard Body Box 1nos.
Carrying PouchUltracon-170 Transducers
Battery Charger
Aluminum Hard Box

4. TM
ULTRAC0N 170 ULTRASONIC
PULSE VELOCITY TESTER
Regd. Office:
Asian Contec Ltd.
Asian Centre, B-28, Okhla Industrial Area, Phase-1, New Delhi -110020, India.
Contact Nos. : Tel : +91-11-41860000 (100 Lines), Direct Sales Helpline : +91-11-41406926, Fax : +91-11-41860066
Web : www.stanlay.in email: sales@stanlay.com
Works : Asian Contec Ltd. 44A Export Promotion Industrial Park-1, Jharmajari, Baddi, Himachal Pradesh, India
Regional Offices : • Hyderabad • Ahmadabad
TM
Most
Functional
Product
INTER BUILD INDIA
#

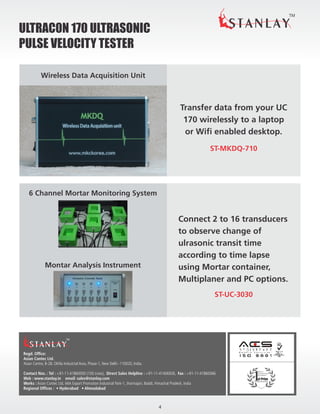

Transfer data from your UC
