TRON FLEX is an acrylic polymer-based membrane that provides waterproofing and vapor permeability for building surfaces like concrete, asbestos cement, roofs and walls. It is flexible to accommodate substrate movement, seamless, and durable. The membrane is applied in multiple coats, with fiber mesh reinforcement between coats, to form a waterproof and breathable barrier that seals cracks and joints.

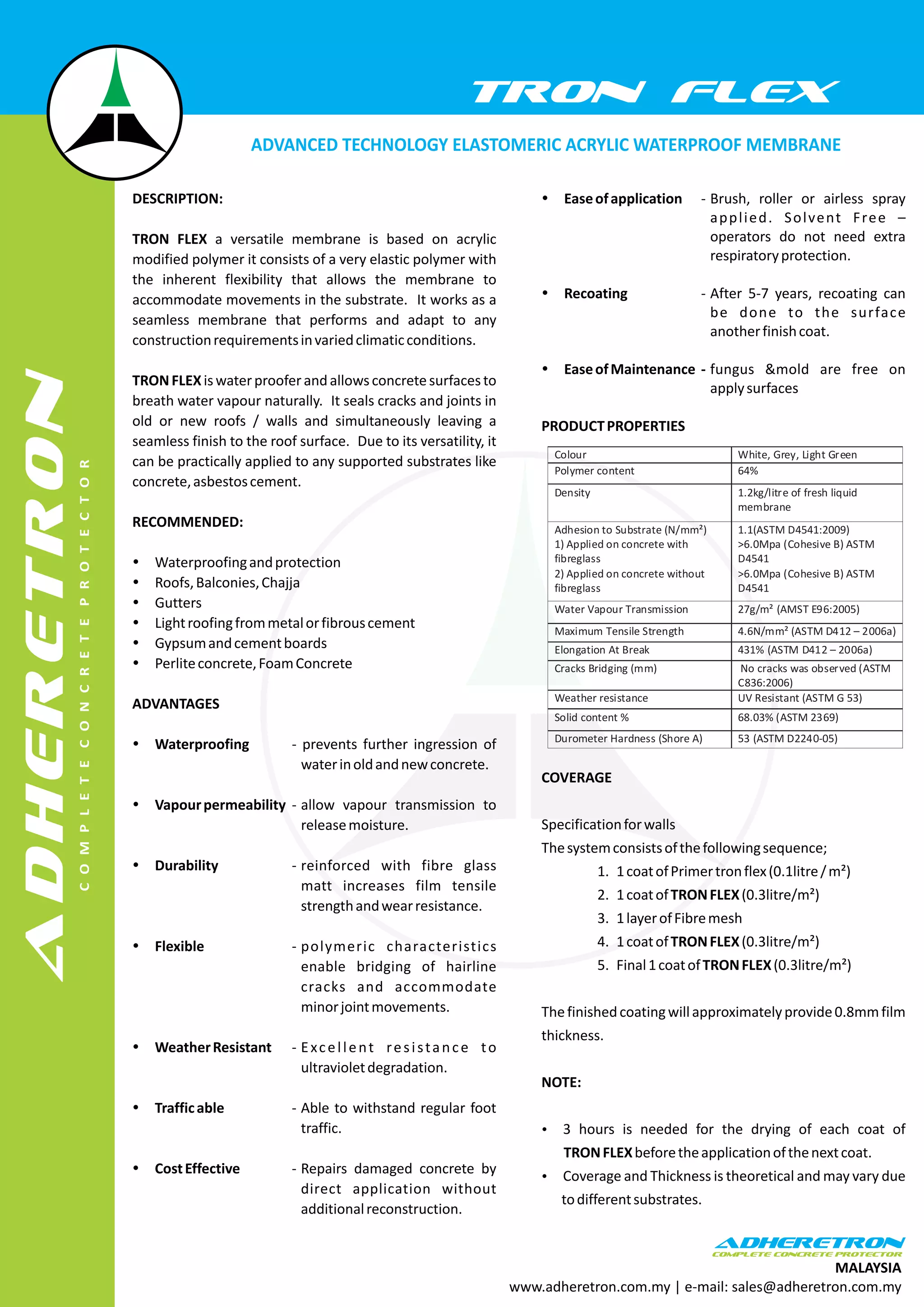

1. DESCRIPTION:
TRON FLEX a versatile membrane is based on acrylic
modified polymer it consists of a very elastic polymer with
the inherent flexibility that allows the membrane to
accommodate movements in the substrate. It works as a
seamless membrane that performs and adapt to any
construction requirements in varied climatic conditions.
TRON FLEX is water proofer and allows concrete surfaces to
breath water vapour naturally. It seals cracks and joints in
old or new roofs / walls and simultaneously leaving a
seamless finish to the roof surface. Due to its versatility, it
can be practically applied to any supported substrates like
concrete, asbestos cement.
ADHERETRON
RECOMMENDED:
?Waterproofing and protection
?Roofs, Balconies, Chajja
?Gutters
?Light roofing from metal or fibrous cement
?Gypsum and cement boards
?Perlite concrete, Foam Concrete
ADVANTAGES
?Waterproofing - prevents further ingression of
water in old and new concrete.
?Vapour permeability - allow vapour transmission to
release moisture.
?Durability - reinforced with fibre glass
matt increases film tensile
strength and wear resistance.
?Flexible - polymeric characteristics
enable bridging of hairline
cracks and accommodate
minor joint movements.
?Weather Resistant - E x c e l l e nt re s i s t a n c e to
ultraviolet degradation.
?Traffic able - Able to withstand regular foot
traffic.
?Cost Effective - Repairs damaged concrete by
direct application without
additional reconstruction.
www.adheretron.com.my | e-mail: sales@adheretron.com.my ?Ease of application - Brush, roller or airless spray
appl ied. Solvent Free –
operators do not need extra
respiratory protection.
?Recoating - After 5-7 years, recoating can
be done to the surface
another finish coat.
?Ease of Maintenance - fungus &mold are free on
apply surfaces
PRODUCT PROPERTIES
COVERAGE
Specification for walls
The system consists of the following sequence;
1. 1 coat of Primer tron flex (0.1litre / m²)
2. 1 coat of TRON FLEX (0.3litre/m²)
3. 1 layer of Fibre mesh
4. 1 coat of TRON FLEX (0.3litre/m²)
5. Final 1 coat of TRON FLEX (0.3litre/m²)
The finished coating will approximately provide 0.8mm film
thickness.
NOTE:
?3 hours is needed for the drying of each coat of
TRON FLEX before the application of the next coat.
?Coverage and Thickness is theoretical and may vary due
to different substrates.
ADHERETRON
COMPLETE CONCRETE PROTECTOR
MALAYSIA
C O M P L E T E C O N C R E T E P R O T E C T O R
TRON FLEX
ADVANCED TECHNOLOGY ELASTOMERIC ACRYLIC WATERPROOF MEMBRANE
Colour White, Grey, Light Green
Polymer content 64%
Density 1.2kg/litre of fresh liquid
membrane
Adhesion to Substrate (N/mm²)
1) Applied on concrete with
fibreglass
2) Applied on concrete without
fibreglass
1.1(ASTM D4541:2009)
>6.0Mpa (Cohesive B) ASTM
D4541
>6.0Mpa (Cohesive B) ASTM
D4541
Water Vapour Transmission 27g/m² (AMST E96:2005)
Maximum Tensile Strength 4.6N/mm² (ASTM D412 – 2006a)
Elongation At Break 431% (ASTM D412 – 2006a)
Cracks Bridging (mm) No cracks was observed (ASTM
C836:2006)
Weather resistance UV Resistant (ASTM G 53)
Solid content % 68.03% (ASTM 2369)
Durometer Hardness (Shore A) 53 (ASTM D2240-05)

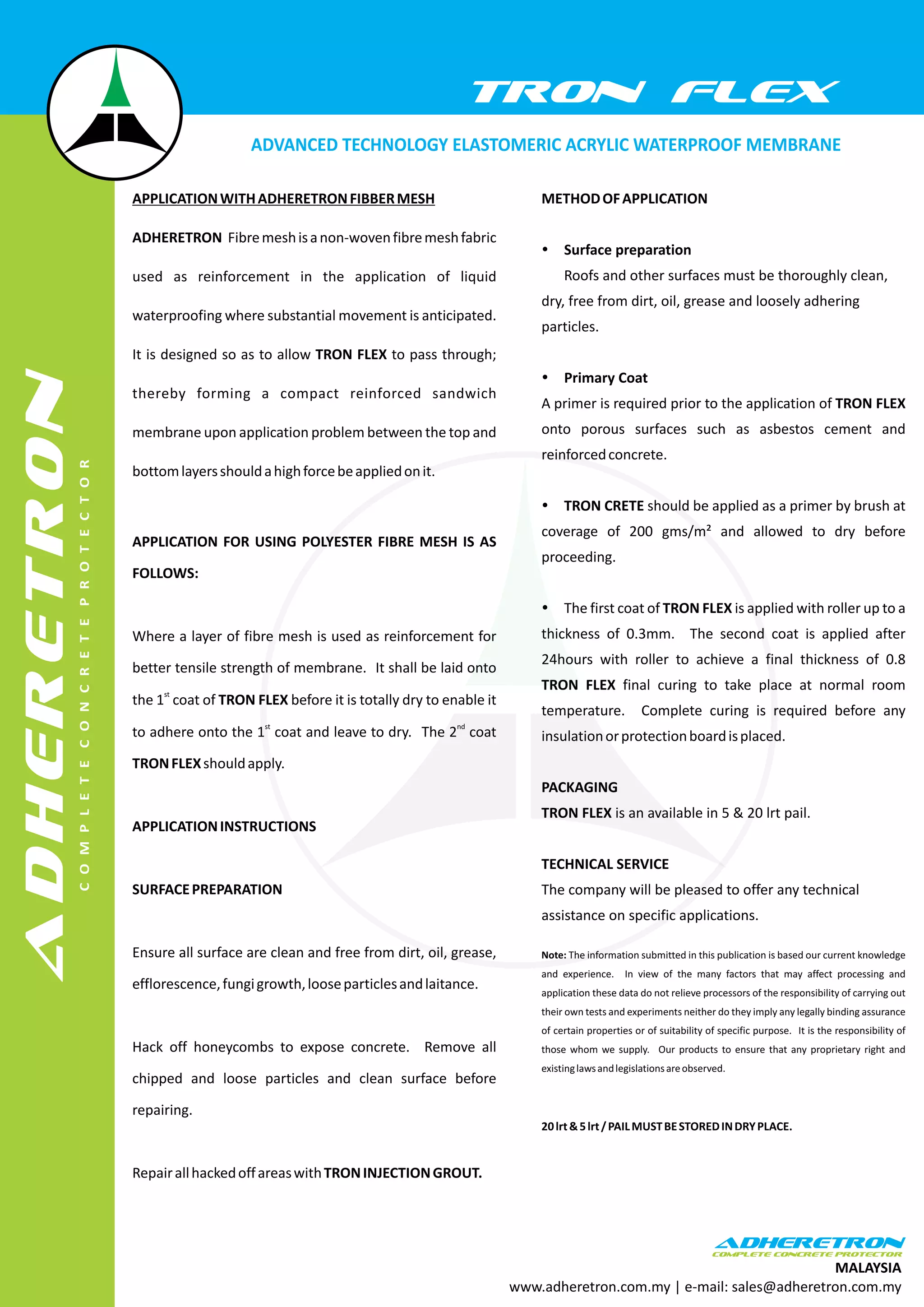

2. APPLICATION WITH ADHERETRON FIBBER MESH
ADHERETRON Fibre mesh is a non-woven fibre mesh fabric
used as reinforcement in the application of liquid
waterproofing where substantial movement is anticipated.
It is designed so as to allow TRON FLEX to pass through;
ADHERETRON
thereby forming a compact reinforced sandwich
membrane upon application problem between the top and
bottom layers should a high force be applied on it.
APPLICATION FOR USING POLYESTER FIBRE MESH IS AS
FOLLOWS:
Where a layer of fibre mesh is used as reinforcement for
better tensile strength of membrane. It shall be laid onto
the 1 st coat of TRON FLEX before it is totally dry to enable it
to adhere onto the 1 st coat and leave to dry. The 2 nd coat
TRON FLEX should apply.
APPLICATION INSTRUCTIONS
SURFACE PREPARATION
Ensure all surface are clean and free from dirt, oil, grease,
efflorescence, fungi growth, loose particles and laitance.
Hack off honeycombs to expose concrete. Remove all
chipped and loose particles and clean surface before
repairing.
Repair all hacked off areas with TRON INJECTION GROUT.
www.adheretron.com.my | e-mail: sales@adheretron.com.my METHOD OF APPLICATION
?Surface preparation
Roofs and other surfaces must be thoroughly clean,
dry, free from dirt, oil, grease and loosely adhering
particles.
?Primary Coat
A primer is required prior to the application of TRON FLEX
onto porous surfaces such as asbestos cement and
reinforced concrete.
?TRON CRETE should be applied as a primer by brush at
coverage of 200 gms/m² and allowed to dry before
proceeding.
?The first coat of TRON FLEX is applied with roller up to a
thickness of 0.3mm. The second coat is applied after
24hours with roller to achieve a final thickness of 0.8
TRON FLEX final curing to take place at normal room
temperature. Complete curing is required before any
insulation or protection board is placed.
PACKAGING
TRON FLEX is an available in 5 & 20 lrt pail.
TECHNICAL SERVICE
The company will be pleased to offer any technical
assistance on specific applications.
Note: The information submitted in this publication is based our current knowledge
and experience. In view of the many factors that may affect processing and
application these data do not relieve processors of the responsibility of carrying out
their own tests and experiments neither do they imply any legally binding assurance
of certain properties or of suitability of specific purpose. It is the responsibility of
those whom we supply. Our products to ensure that any proprietary right and
existing laws and legislations are observed.
20 lrt & 5 lrt / PAIL MUST BE STORED IN DRY PLACE.
ADHERETRON
COMPLETE CONCRETE PROTECTOR
MALAYSIA
C O M P L E T E C O N C R E T E P R O T E C T O R
TRON FLEX
ADVANCED TECHNOLOGY ELASTOMERIC ACRYLIC WATERPROOF MEMBRANE
