1. Electronics 101Omer Kilicomer@tinkersoc.orghttp://flic.kr/p/4aERQW

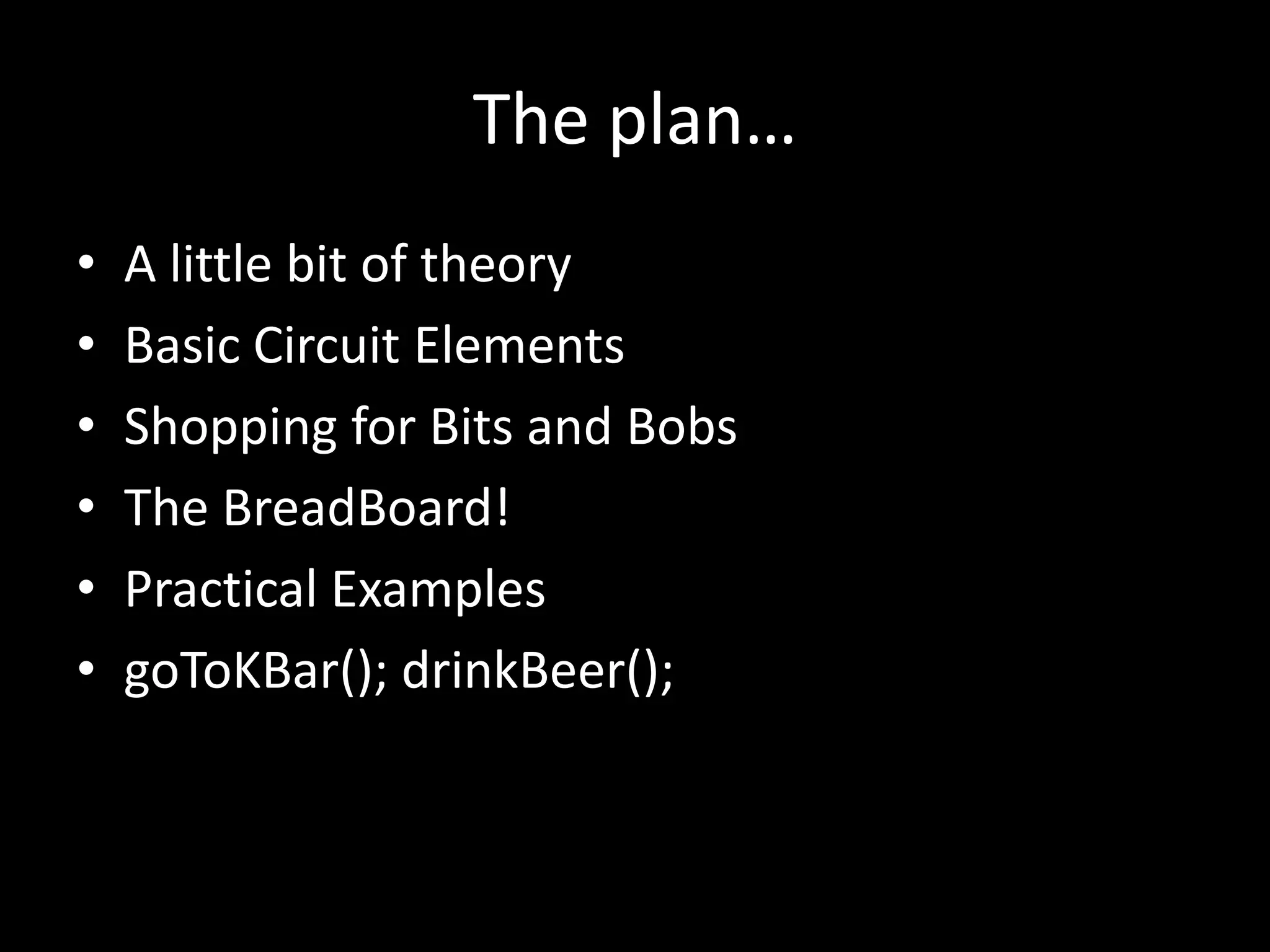

2. The plan…A little bit of theoryBasic Circuit ElementsShopping for Bits and BobsThe BreadBoard!Practical ExamplesgoToKBar(); drinkBeer();

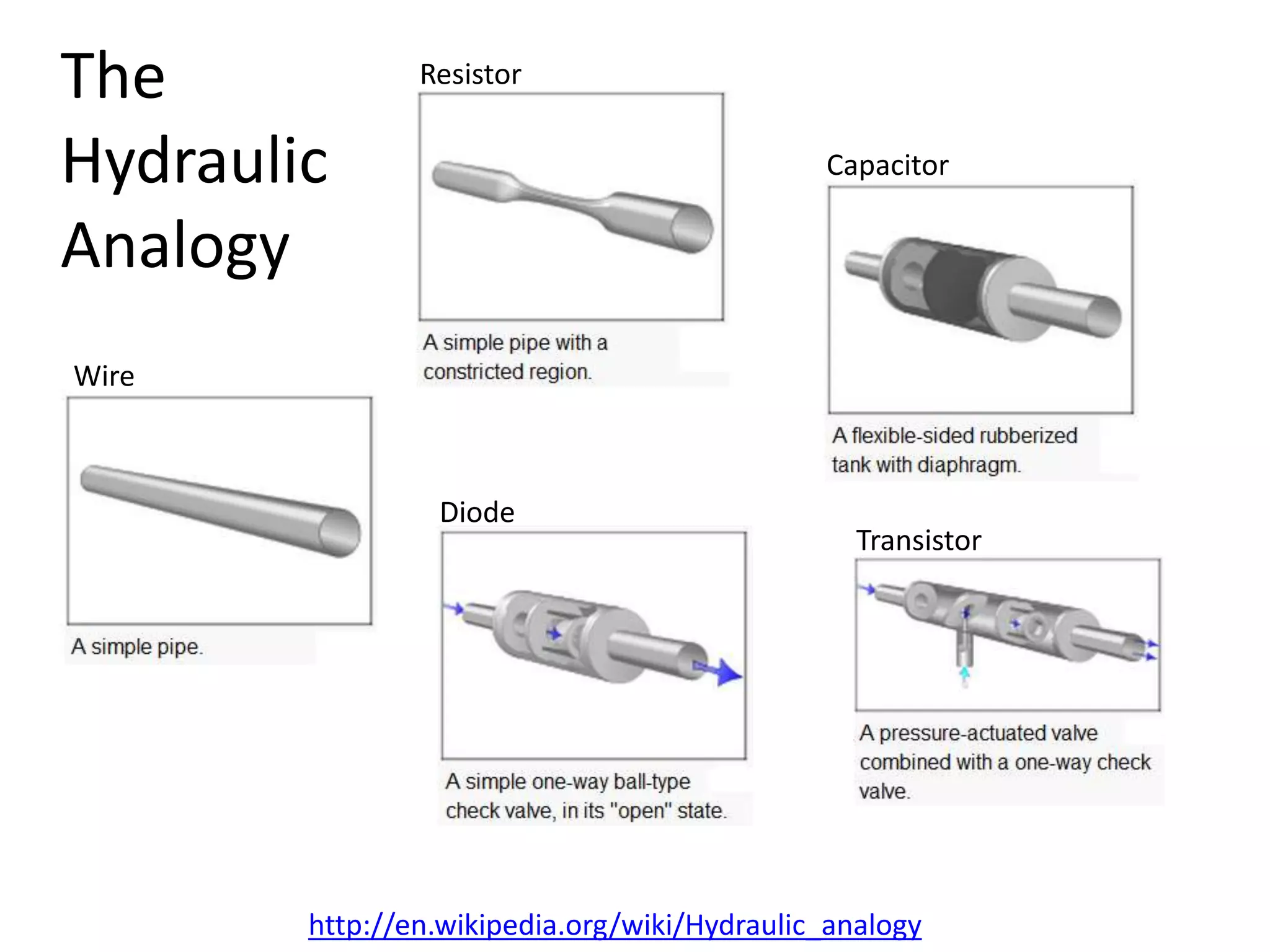

3. ResistorTheHydraulicAnalogyCapacitorWireDiodeTransistorhttp://en.wikipedia.org/wiki/Hydraulic_analogy

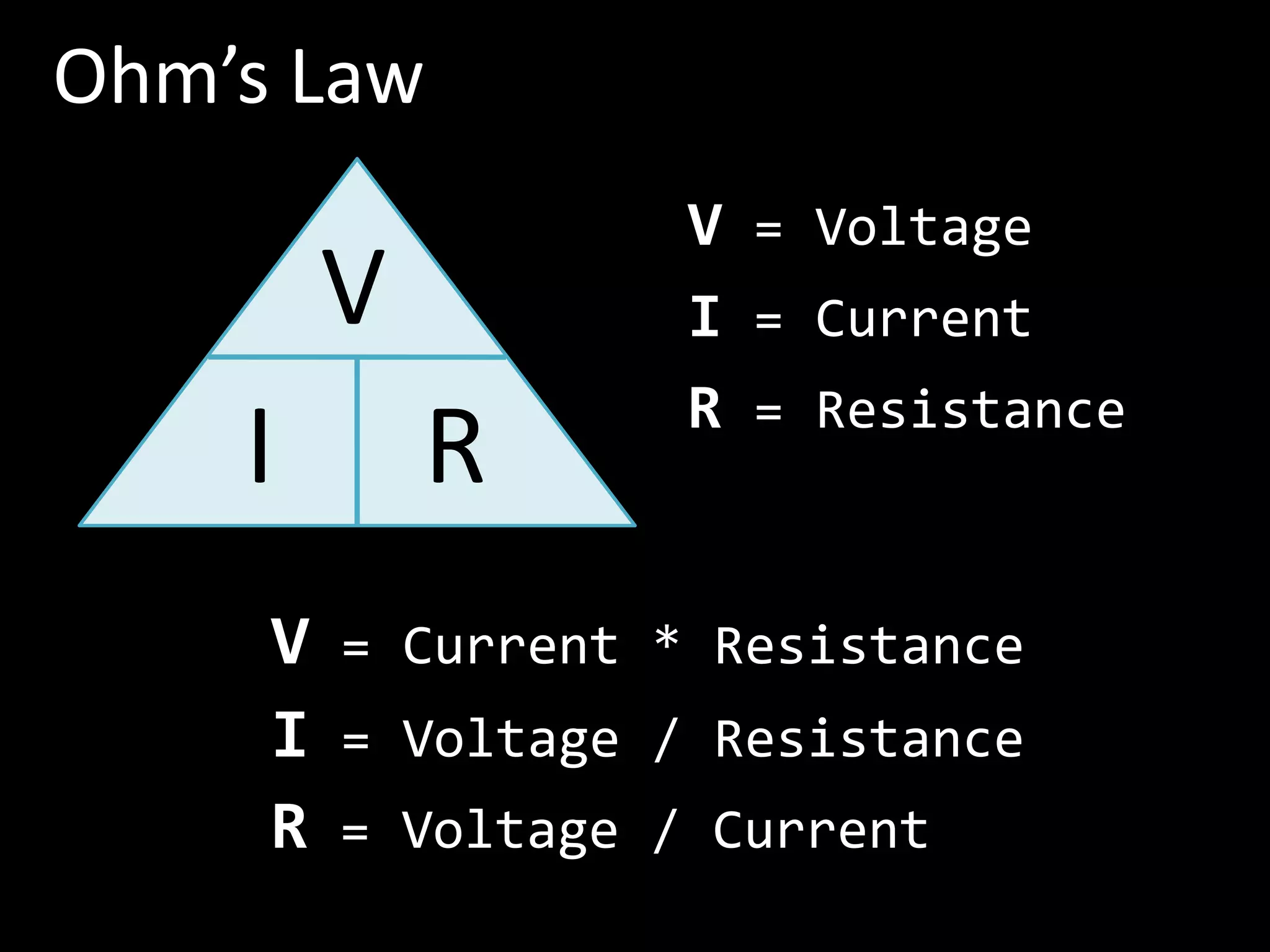

4. Ohm’s LawV = VoltageI = CurrentR = ResistanceVIRV = Current * ResistanceI = Voltage / ResistanceR = Voltage / Current

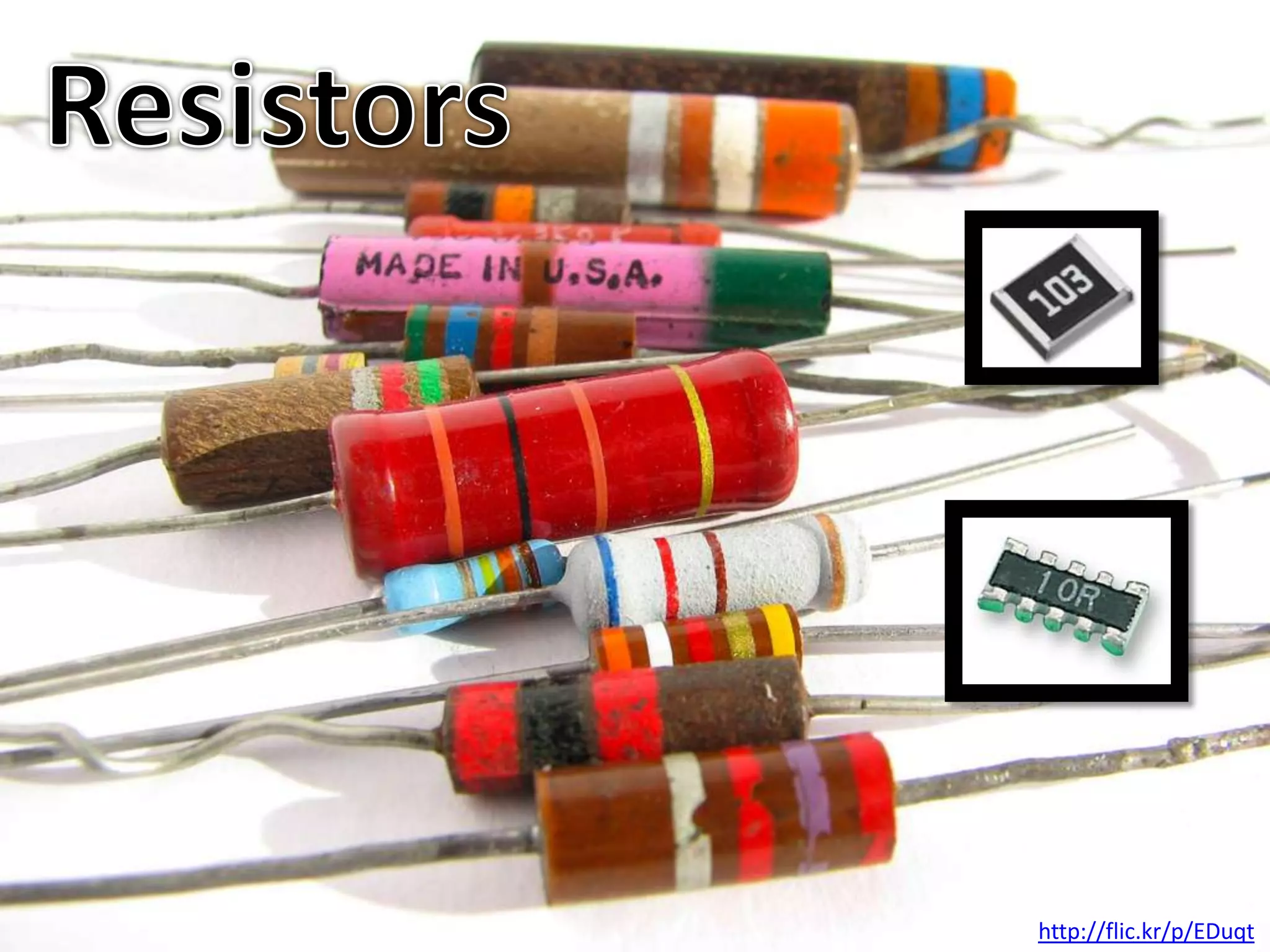

5. Resistorshttp://flic.kr/p/EDuqt

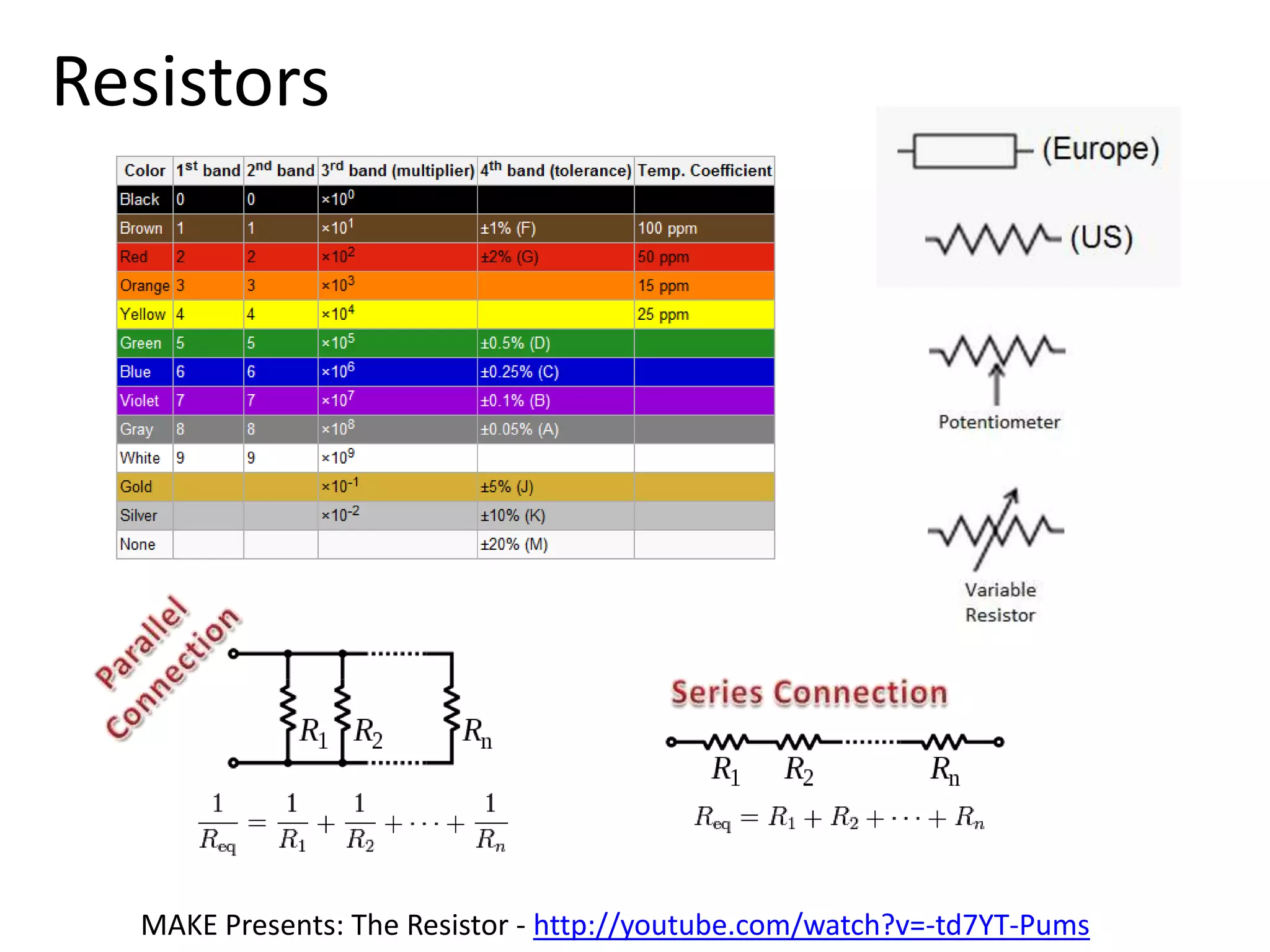

6. ResistorsParallelConnectionSeries ConnectionMAKE Presents: The Resistor - http://youtube.com/watch?v=-td7YT-Pums

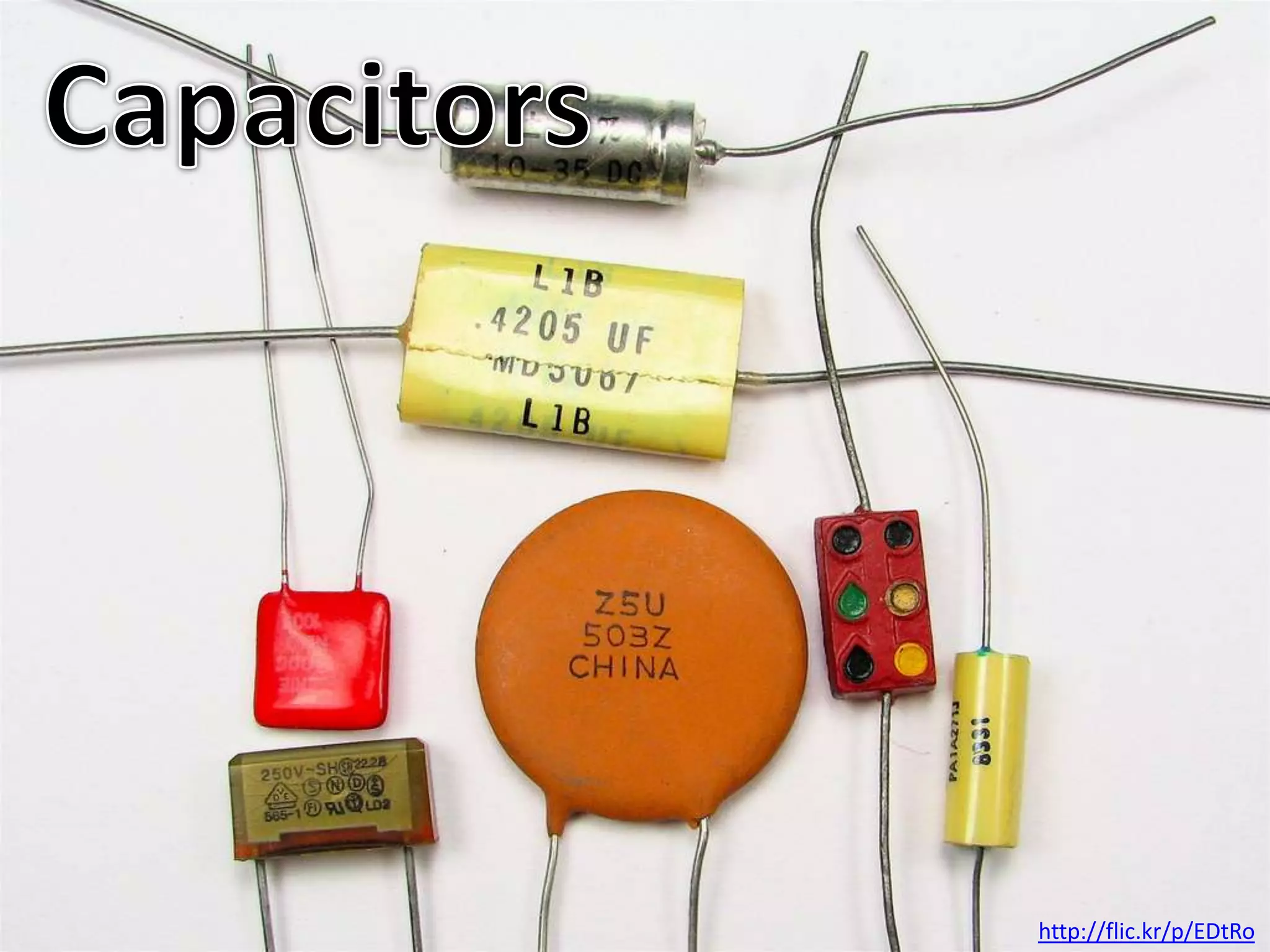

7. Capacitorshttp://flic.kr/p/EDtRo

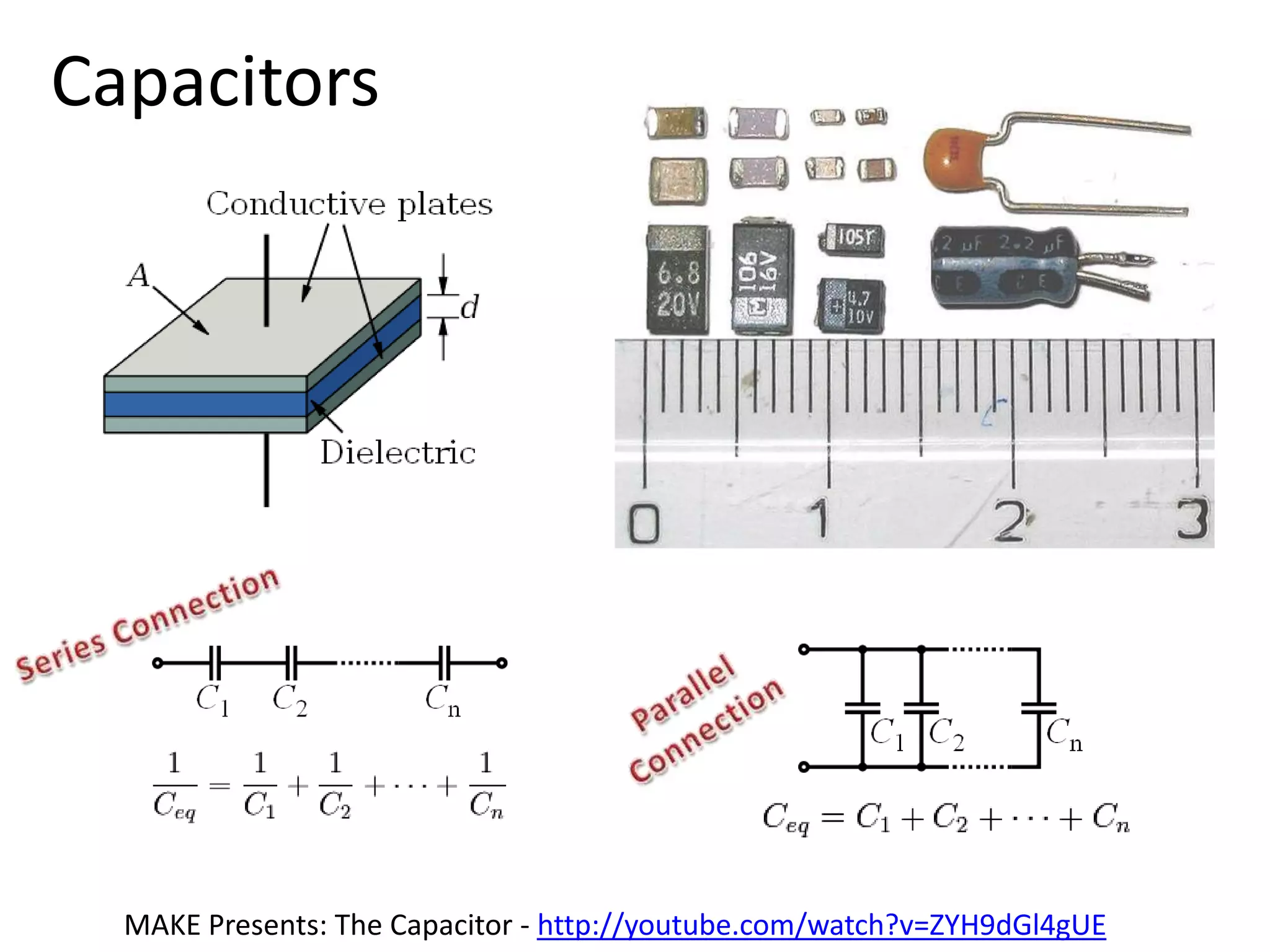

8. CapacitorsSeries ConnectionParallelConnectionMAKE Presents: The Capacitor - http://youtube.com/watch?v=ZYH9dGl4gUE

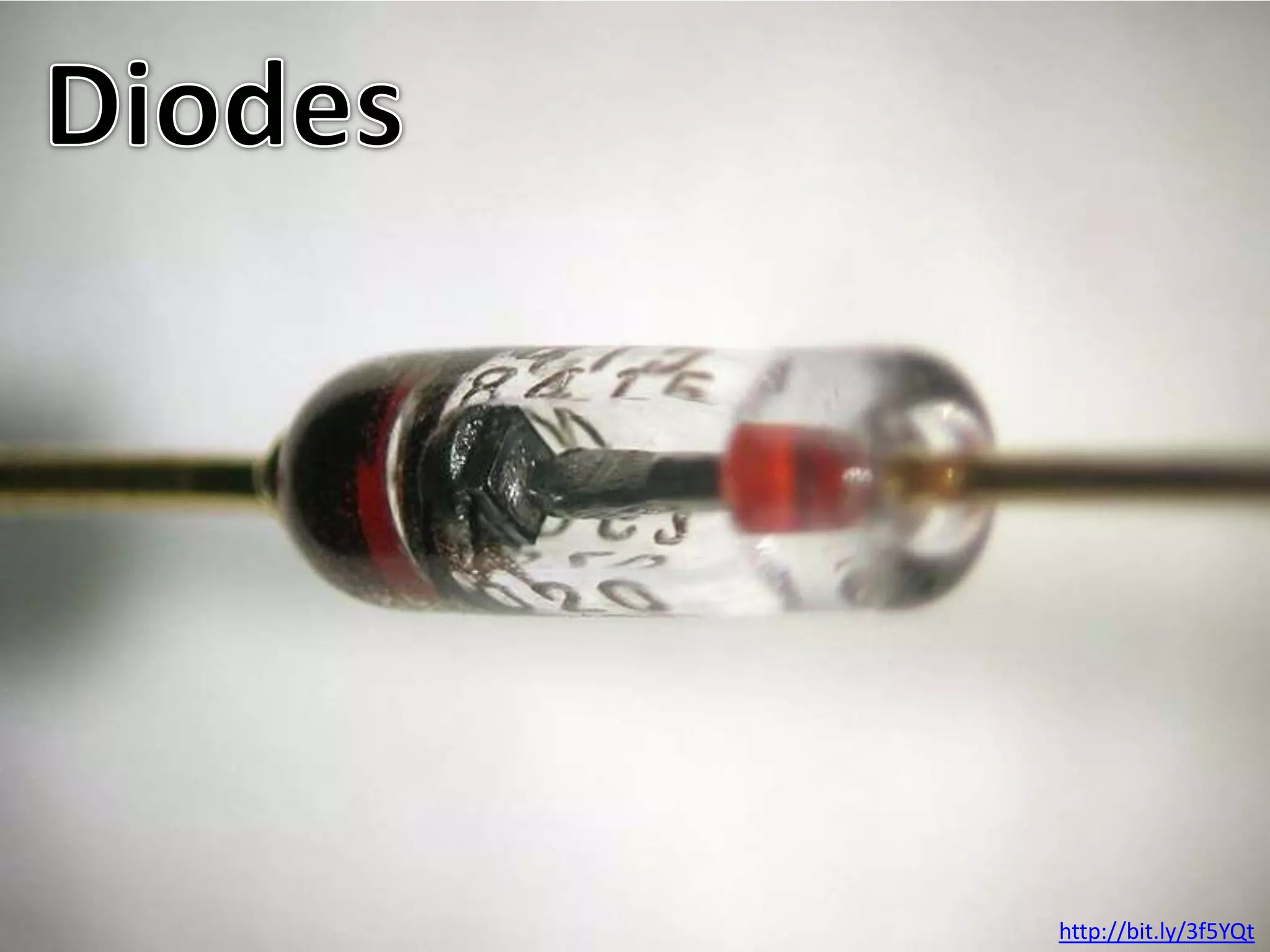

9. Diodeshttp://bit.ly/3f5YQt

10. DiodesMAKE Presents: The Diode - http://youtube.com/watch?v=AqzYsuTRVRc

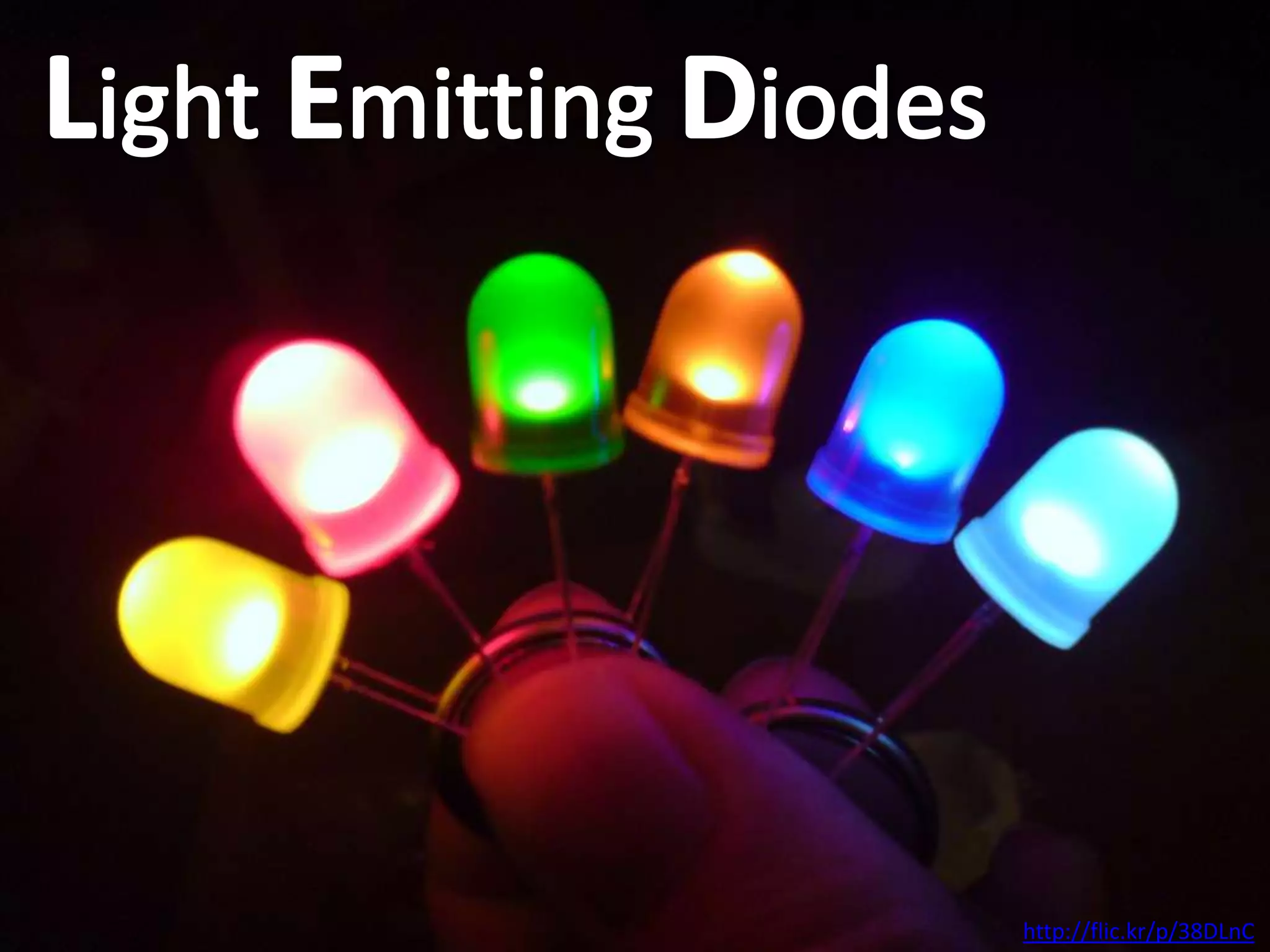

11. Light Emitting Diodeshttp://flic.kr/p/38DLnC

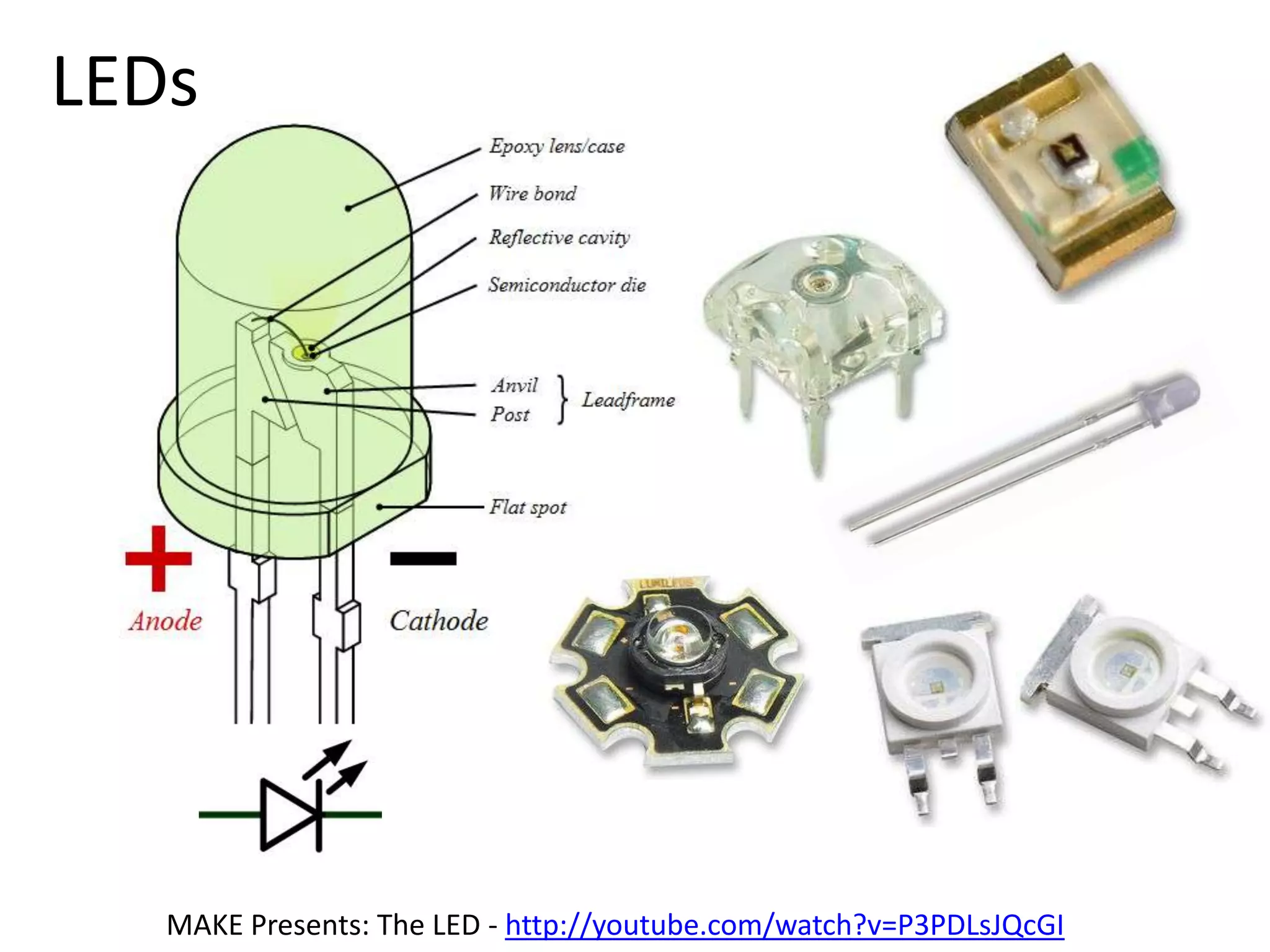

12. LEDsMAKE Presents: The LED - http://youtube.com/watch?v=P3PDLsJQcGI

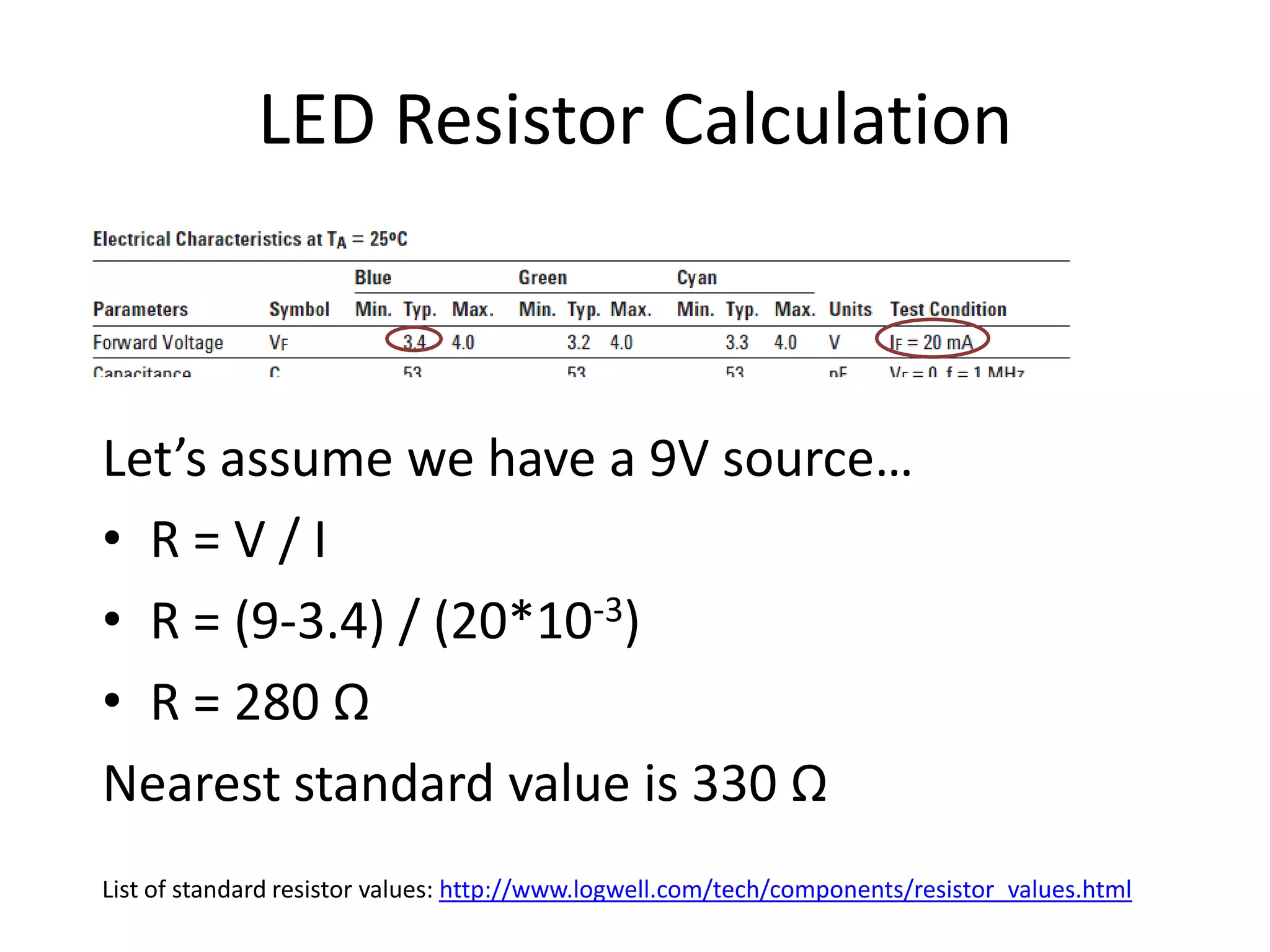

13. LED Resistor CalculationLet’s assume we have a 9V source…R = V / IR = (9-3.4) / (20*10-3)R = 280 ΩNearest standard value is 330 ΩList of standard resistor values: http://www.logwell.com/tech/components/resistor_values.html

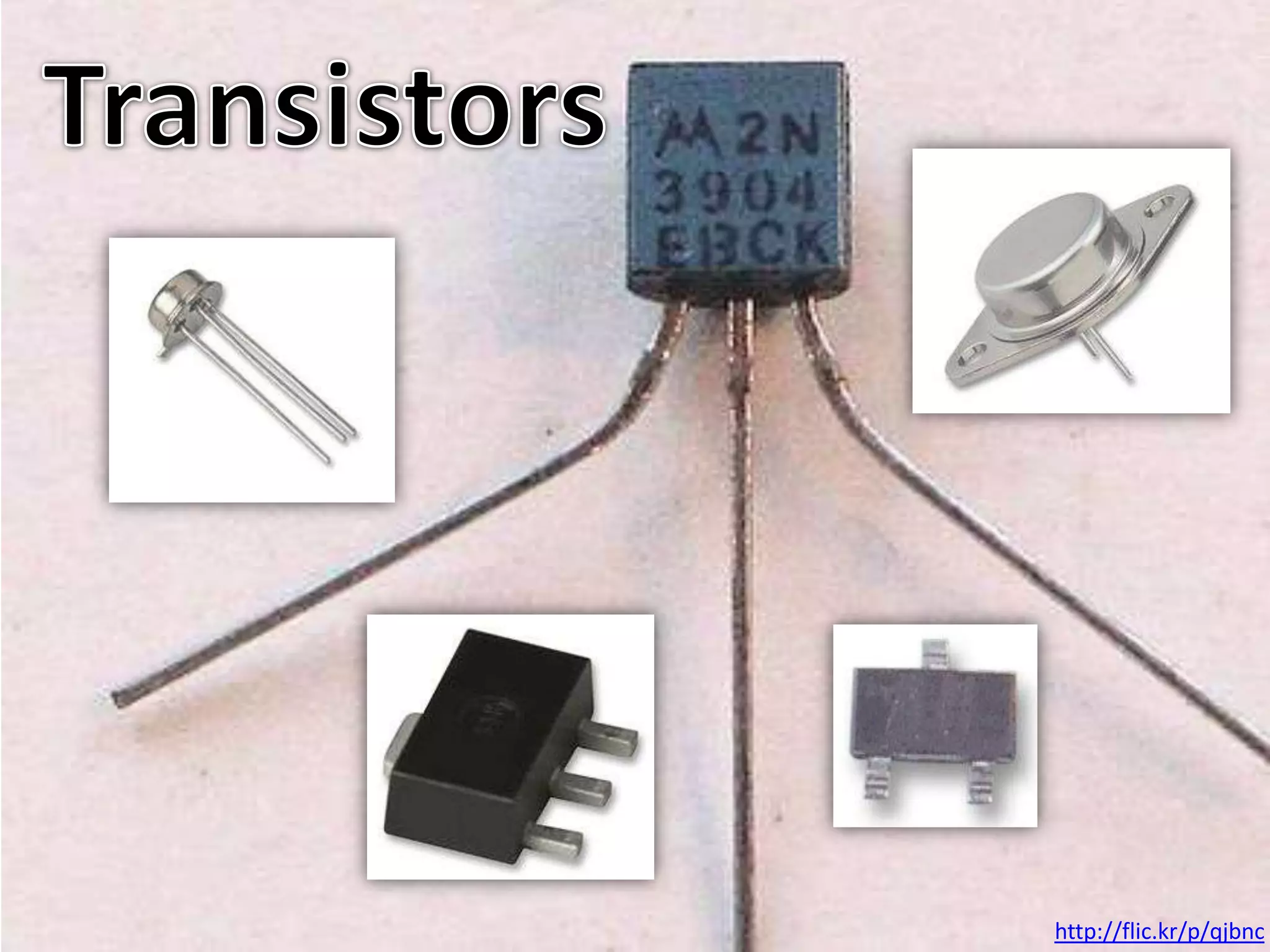

14. Transistorshttp://flic.kr/p/qjbnc

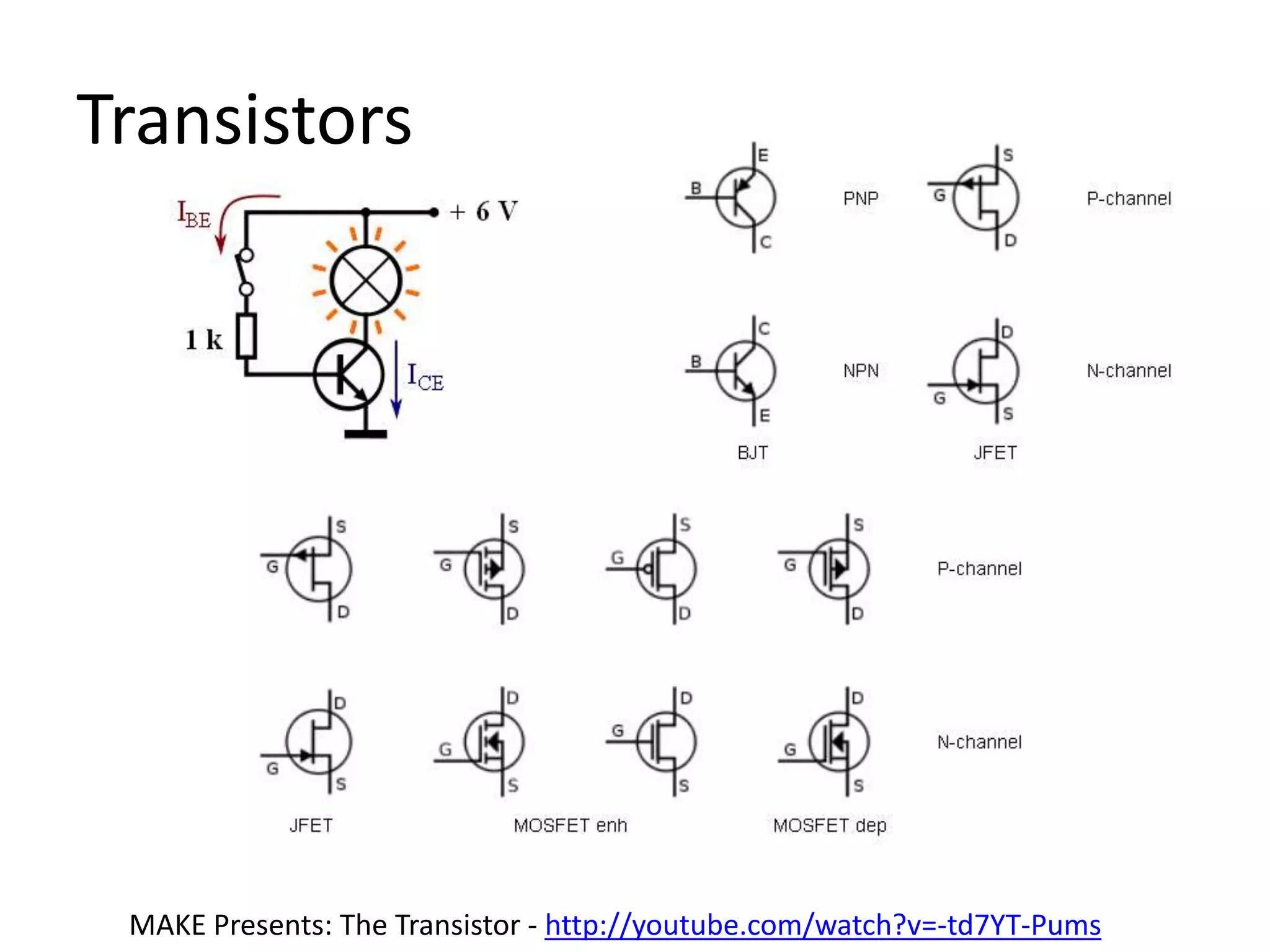

15. TransistorsMAKE Presents: The Transistor - http://youtube.com/watch?v=-td7YT-Pums

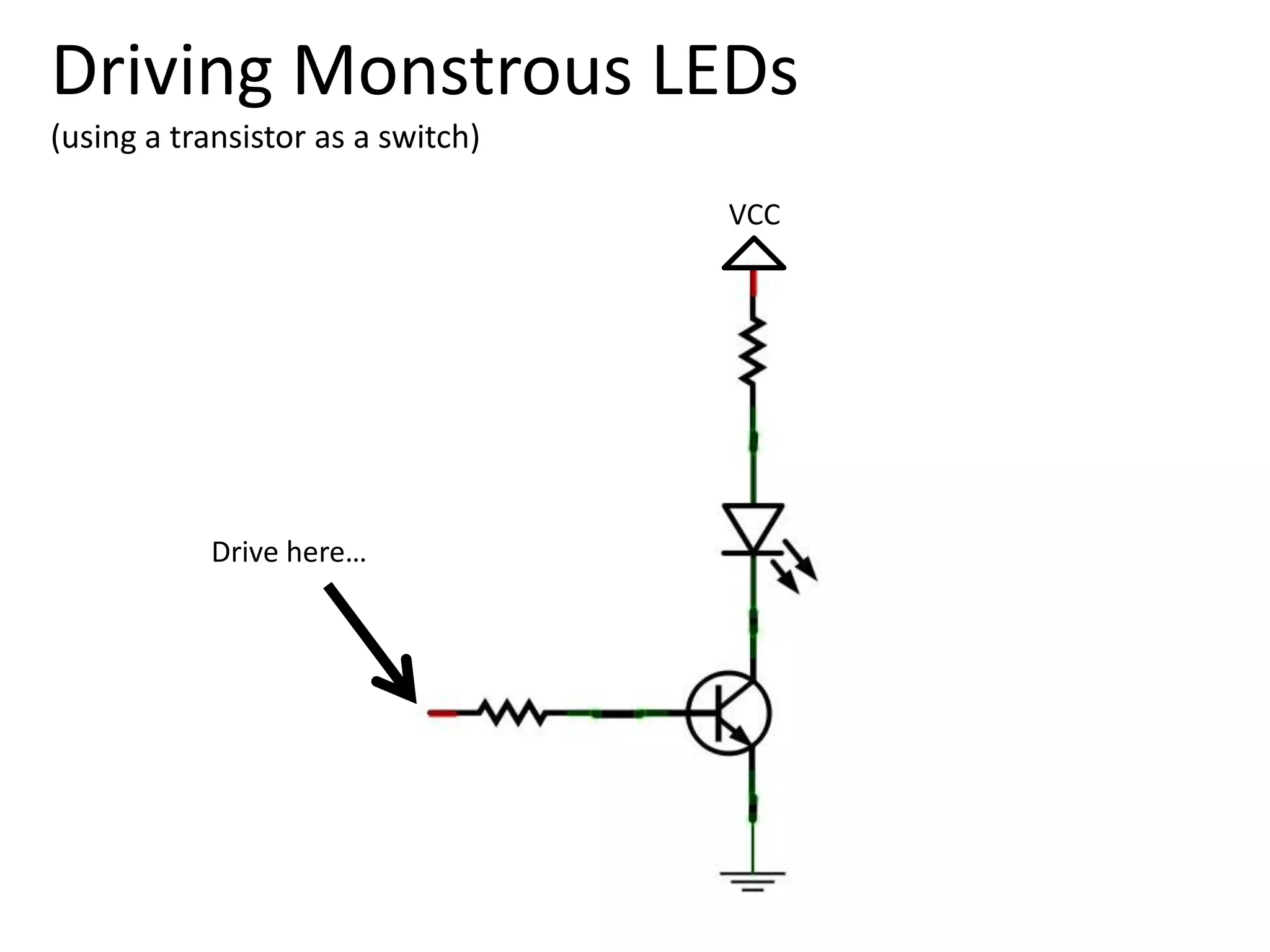

16. Driving Monstrous LEDs(using a transistor as a switch)VCCDrive here…

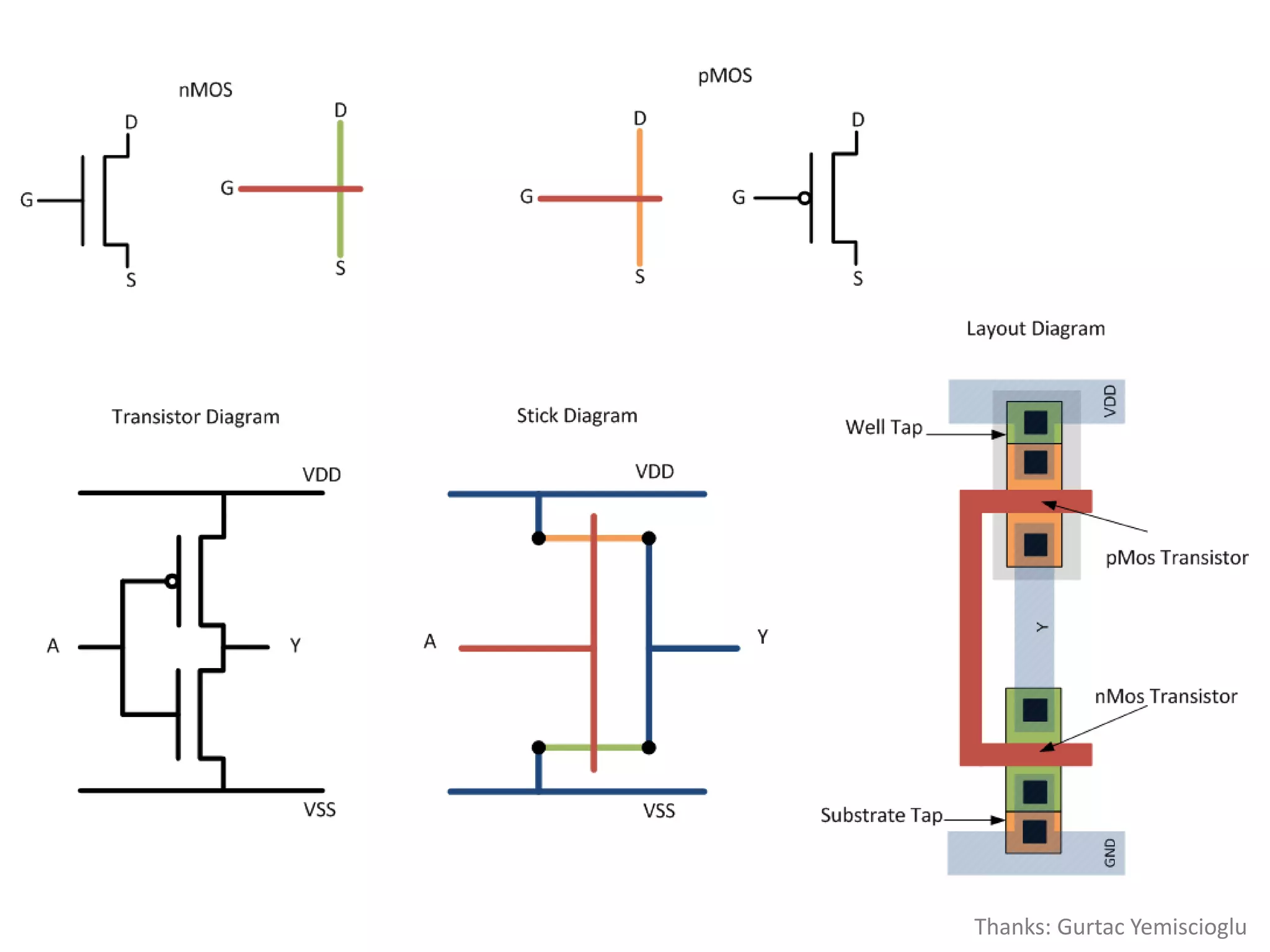

17. Thanks: GurtacYemiscioglu

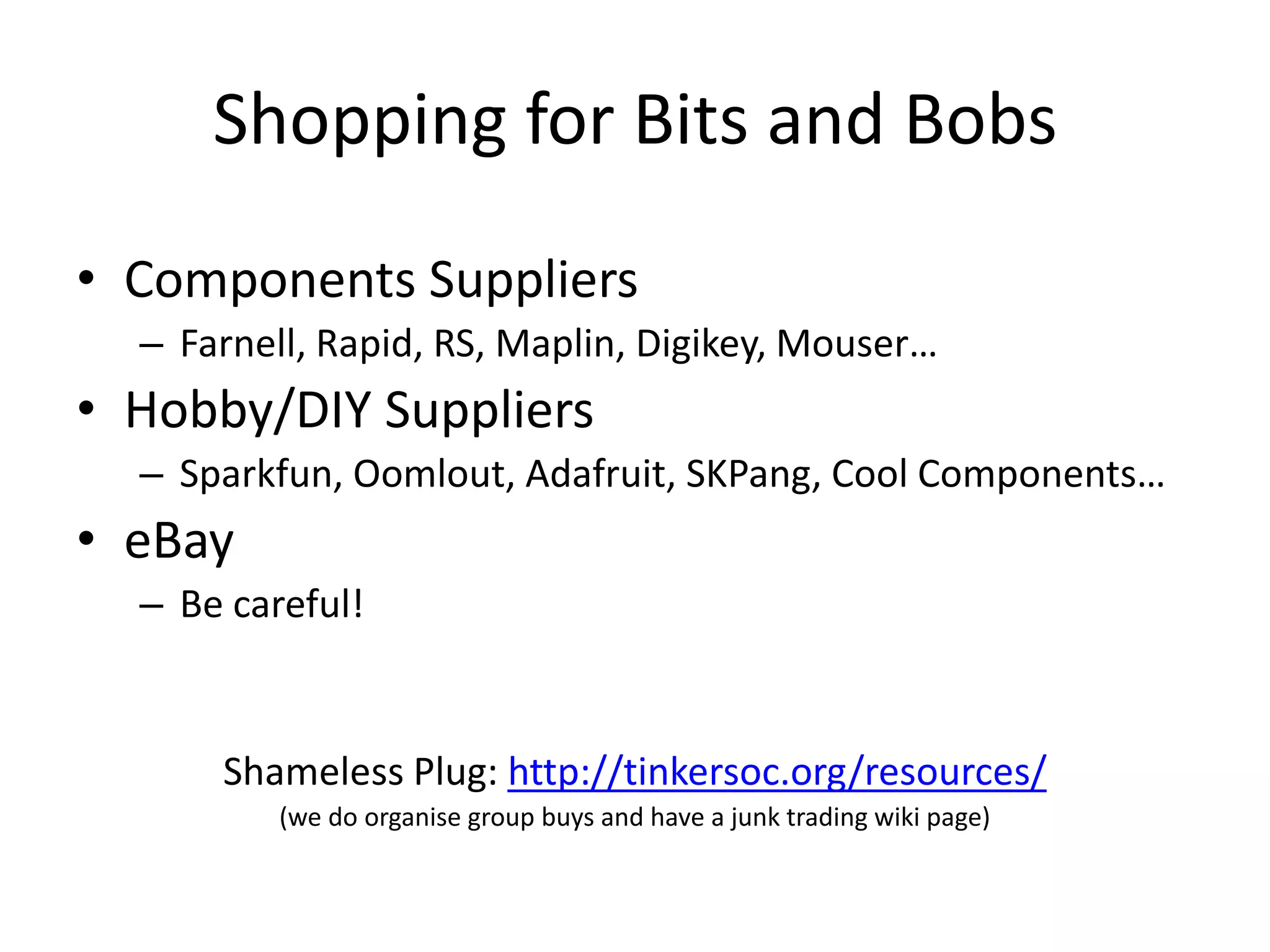

18. Shopping for Bits and BobsComponents SuppliersFarnell, Rapid, RS, Maplin, Digikey, Mouser…Hobby/DIY SuppliersSparkfun, Oomlout, Adafruit, SKPang, Cool Components…eBayBe careful!Shameless Plug: http://tinkersoc.org/resources/(we do organise group buys and have a junk trading wiki page)

19. The BreadBoard!* Drawn using the new Fritzing, which totally rocks!

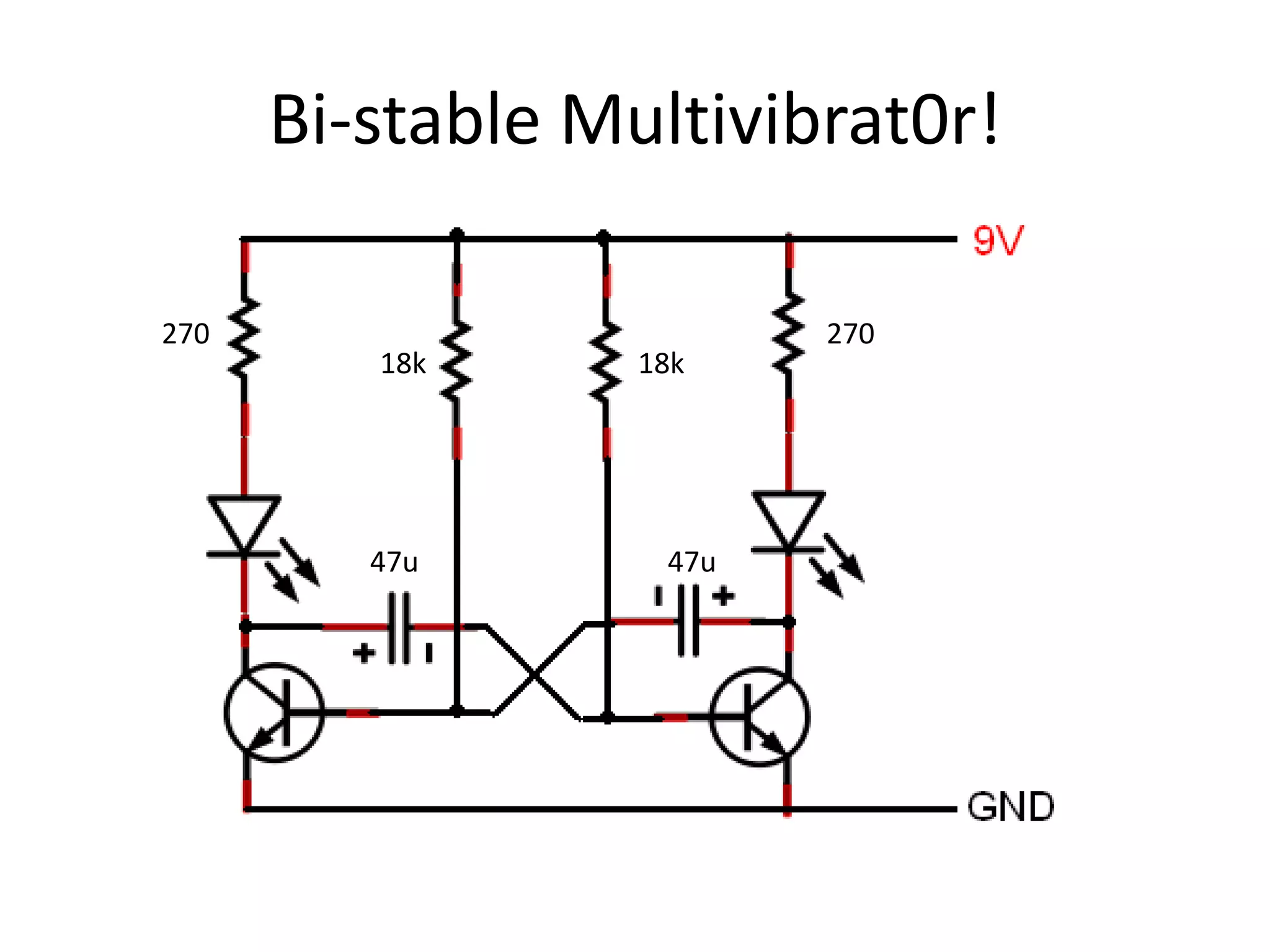

20. Bi-stable Multivibrat0r!27027018k18k47u47u

21. That’s all folks…Thanks for listening, any questions?Further questions/comments to: omer@tinkersoc.orgA special thanks to all the wonderful people who licensed their photos/videos under Creative Commons licenses, without them these slides would be boring as hell ;)
