The document discusses best practices for handling exceptions in TIBCO BW projects including: 1. Standardizing request and response structures, logging, and alerts to improve reliability and enable end-to-end traceability. 2. Using activities like Write to Log, Send Mail, and Checkpoint to log exceptions, send alerts, and save state. 3. Defining a standard request structure with caller ID, method, and unique ID and a response structure with status, error code, description, and common error XSD. 4. Catching exceptions using Catch General and Generate Error activities and converting exceptions to the error structure.

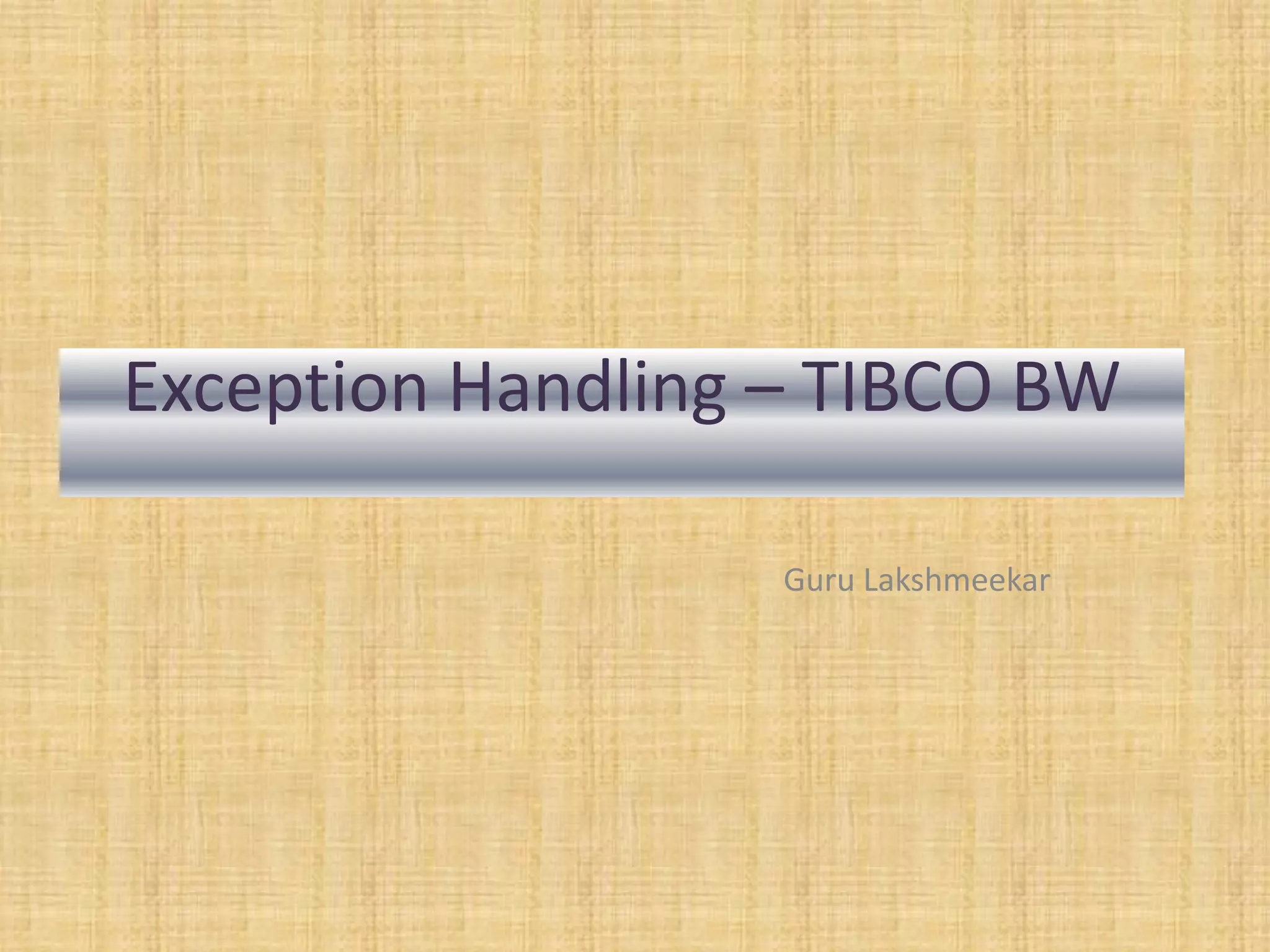

1. Exception Handling – TIBCO BW
Guru Lakshmeekar

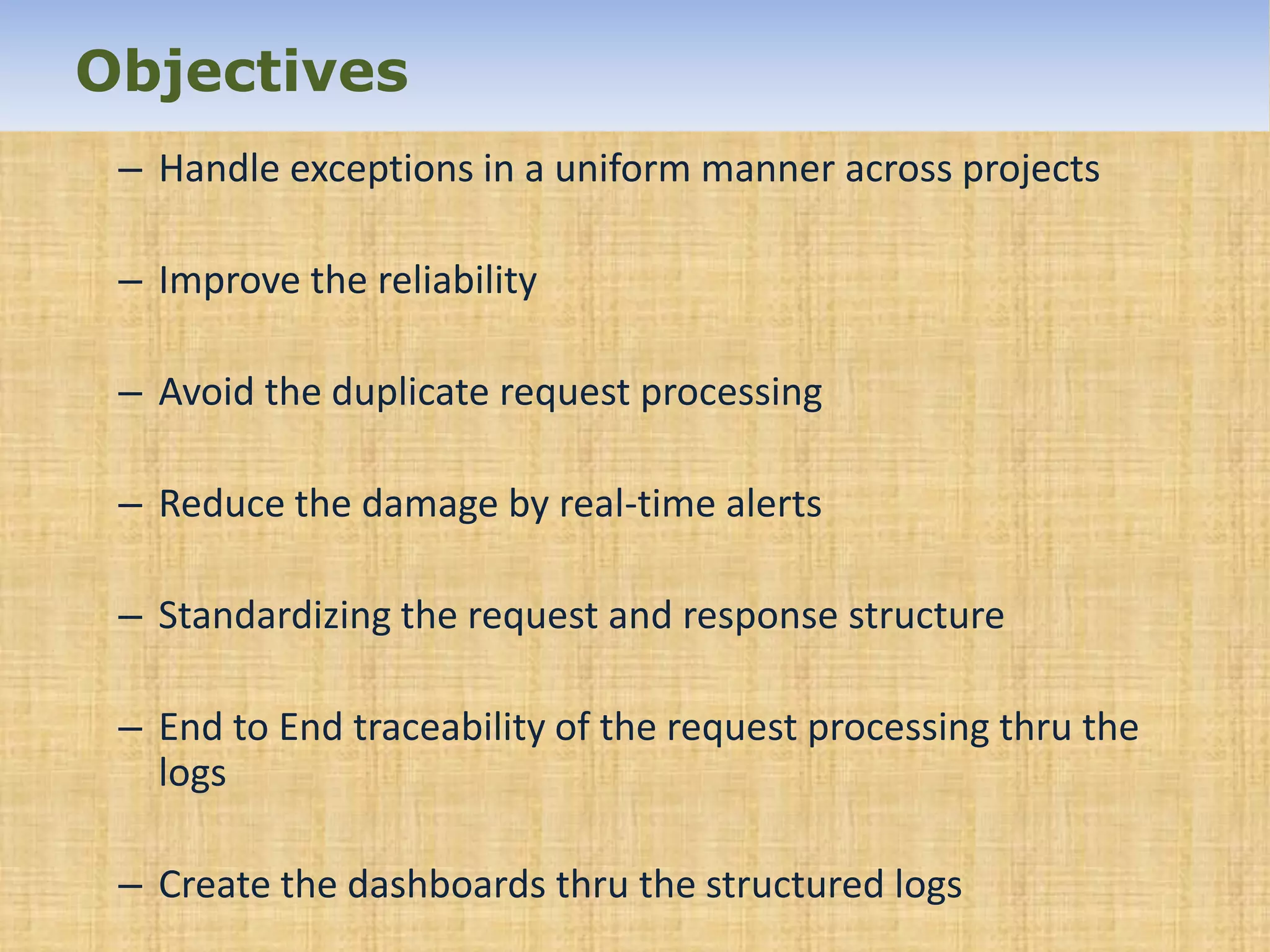

2. Objectives
– Handle exceptions in a uniform manner across projects
– Improve the reliability
– Avoid the duplicate request processing
– Reduce the damage by real-time alerts
– Standardizing the request and response structure
– End to End traceability of the request processing thru the
logs
– Create the dashboards thru the structured logs

3. Generic Standards
• Logging :
– Use Write To Log General Activity to write the exceptions in the log file
– Write the request and response for all the integrations as a standard
practice
• Alert :
– If these application errors are detected on an early stage, it lessens the
effort of reworking. Time, cost and resources can also be saved upon the
detection. Use Send Mail activity to send email notification in the case of
any technical error to the production support team and service manager.
• Performance:
– Use Checkpoint to save the logical state

4. Standard Structure
• Request Structure
– There should be a standard way to identify the Caller (Ex: APP ID) and the
functionality (method) across the web methods.
– There should be a Unique ID to identify each call uniquely (may be
timestamp). This will be helpful in end to end traceability
• Response Structure:
– Every Integration should have both Success and Error structure
– There should be a Unique ID to identify each call uniquely (may be
timestamp). This will be helpful in end to end traceability
– There should be a Status attribute which represents Success / Failure
– Error Structure should have standard attributes like Error Code, Error
Description, Error System across the integrations
– We can have the common error XSD which contains the above attributes.
This XSD should be included in all the response XSDs

5. Handle Exceptions
• Error Handling:
– Every process should have a Catch General Activity and select Catch All
check box to catch any exception. .
– Any exception (functional / technical) in integration should be converted
in to the proper error structure, to make sure that the calling application
get the proper response structure always
– Group the activities and catch the similar exceptions in same catch block
– Use GENERATE ERROR activity in case of the error and throw the error.
Parent process handle the Exception
• Retry :
– In the case of only connection failures, retry option should be present to
retry the connections for defined (ex: 3) times

6. Thank You
Integration, Interaction, Ideation and Innovation
