This document provides specifications for a 6 inch steel thermoflex gathering line with the following key details: - It has a nominal size of 6 inches, maximum operating pressures up to 750 psi, and can operate at temperatures up to 125°F. - The line materials include a nylon liner with aramid fiber reinforcement and a blue polypropylene jacket. - Additional specifications include an outside diameter of 6.05 inches, minimum bend radius of 10 feet, and maximum lengths per reel of 900 feet. - The reels have diameters of 14.5 feet and can hold reel weights of up to 5,900 pounds when full.

1. Thermoflex Gathering Line
Nominal Size Ø6.00" (6" Steel)
(psi) 275 500 750
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17
(°F) 125 90
Max Operating Temperature
(°C) 52 32
Liner Nylon (multilayer w/PP)
Materials Reinforcement Aramid Fiber
Jacket PP (blue, UV stabilized)
(inches) 6.05
Outside Diameter
(mm) 154
(inches) 5.01
Inside Diameter
(mm) 127
(lbs/ft) 3.6 3.7 3.8
Weight
(kg/m) 5.4 5.5 5.7
(ft) 10
Min. Bend Radius (operational)
(m) 3.1
(ft) 900 900 700
Approximate Length/Reel
(m) 274 274 213
(ft) 14.5
Reel Diameter
(m) 4.4
(ft) 8.0
Reel Width
(m) 2.4
(lbs) 5,900 5,900 5,300
Reel Weight - Full
(kg) 2,676 2,676 2,404
(lbs) 2,600
Reel Weight - Empty
(kg) 1179
Splice Coupling Outside (inches) 6.63
Diameter (mm) 168
Splice Coupling Inside Diameter (inches) 4.00
(Le = 3ft / 1m) (mm) 102
(lbs) 7,500
Max Installed Tensile Load
(kg) 3402
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com

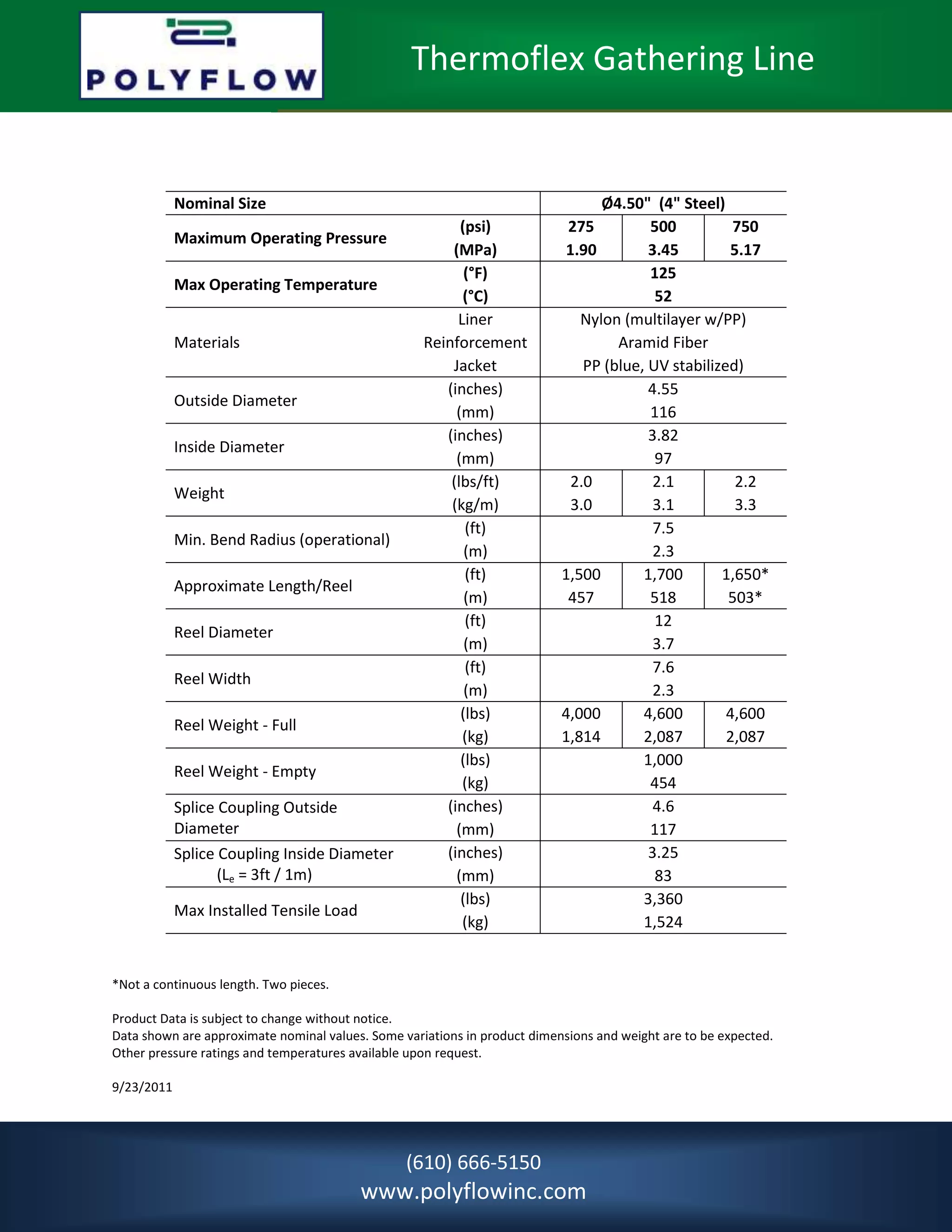

2. Thermoflex Gathering Line
Nominal Size Ø4.50" (4" Steel)
(psi) 275 500 750
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17
(°F) 125
Max Operating Temperature
(°C) 52
Liner Nylon (multilayer w/PP)
Materials Reinforcement Aramid Fiber
Jacket PP (blue, UV stabilized)
(inches) 4.55
Outside Diameter
(mm) 116
(inches) 3.82
Inside Diameter
(mm) 97
(lbs/ft) 2.0 2.1 2.2
Weight
(kg/m) 3.0 3.1 3.3
(ft) 7.5
Min. Bend Radius (operational)
(m) 2.3
(ft) 1,500 1,700 1,650*
Approximate Length/Reel
(m) 457 518 503*
(ft) 12
Reel Diameter
(m) 3.7
(ft) 7.6
Reel Width
(m) 2.3
(lbs) 4,000 4,600 4,600
Reel Weight - Full
(kg) 1,814 2,087 2,087
(lbs) 1,000
Reel Weight - Empty
(kg) 454
Splice Coupling Outside (inches) 4.6
Diameter (mm) 117
Splice Coupling Inside Diameter (inches) 3.25
(Le = 3ft / 1m) (mm) 83
(lbs) 3,360
Max Installed Tensile Load
(kg) 1,524
*Not a continuous length. Two pieces.
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com

3. Thermoflex Gathering Line
Nominal Size Ø3.50" (3" Steel)
(psi) 275 500 750 1000 1450
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17 6.90 10.0
(°F) 125 90
Max Operating Temperature
(°C) 52 32
Liner Nylon (multilayer w/PP)
Materials Reinforcement Aramid Fiber
Jacket PP (blue, UV stabilized)
(inches) 3.50
Outside Diameter
(mm) 89
(inches) 2.92
Inside Diameter
(mm) 74
(lbs/ft) 1.2 1.4 1.5 1.6 1.6
Weight
(kg/m) 1.8 2.1 2.2 2.4 2.4
(ft) 5.8
Min. Bend Radius (operational)
(m) 1.8
(ft) 1,700 2,000 2,000 1,500 2,000*
Approximate Length/Reel
(m) 518 610 610 457 610*
(ft) 10.3
Reel Diameter
(m) 3.1
(ft) 7.6
Reel Width
(m) 2.3
(lbs) 2,900 3,700 3,900 3,300 4,100
Reel Weight - Full
(kg) 1,315 1,678 1,769 1,497 1,860
(lbs) 850
Reel Weight - Empty
(kg) 386
Splice Coupling Outside (inches) 3.6
Diameter (mm) 91
Splice Coupling Inside Diameter (inches) 2.37
(Le = 3ft / 1m) (mm) 60
(lbs) 1,680
Max Installed Tensile Load
(kg) 762
*Not a continuous length. Two pieces.
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com

4. Thermoflex Gathering Line
Nominal Size Ø2.375" (2" Steel)
(psi) 275 500 750 1000 1500
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17 6.90 10.3
(°F) 125
Max Operating Temperature
(°C) 52
Liner Nylon (multilayer w/PP)
Materials Reinforcement Aramid Fiber
Jacket PP (blue, UV stabilized)
(inches) 2.35
Outside Diameter
(mm) 60
(inches) 1.87
Inside Diameter
(mm) 47
(lbs/ft) .7 .7 .7 .8 .8
Weight
(kg/m) 1.0 1.0 1.0 1.2 1.2
(ft) 4.0
Min. Bend Radius (operational)
(m) 1.2
(ft) 4,600 6,600 4,100 6,600* 6,600**
Approximate Length/Reel
(m) 1,402 2,012 1,250 1,012* 1,012**
(ft) 10.3
Reel Diameter
(m) 3.1
(ft) 7.6
Reel Width
(m) 2.3
(lbs) 4,100 4,600 3,700 6,100 6,100
Reel Weight - Full
(kg) 1,860 2,087 1,678 2,767 2,767
(lbs) 850
Reel Weight - Empty
(kg) 386
Splice Coupling Outside (inches) 2.35
Diameter (mm) 60
Splice Coupling Inside Diameter (inches) 1.50
(Le = 3ft / 1m) (mm) 38
(lbs) 1,680
Max Installed Tensile Load
(kg) 762
*Not a continuous length. Two pieces.
**Not a continuous length. Three pieces.
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com

5. Thermoflex Gathering Line
Nominal Size Ø4.50" (4" Steel)
(psi) 275 500 750
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17
(°F) 150
Max Operating Temperature
(°C) 65
Liner Nylon (solid)
Materials Reinforcement Aramid Fiber
Jacket Nylon (blue, UV stabilized)
(inches) 4.55
Outside Diameter
(mm) 116
(inches) 3.82
Inside Diameter
(mm) 97
(lbs/ft) 2.4 2.4 2.5
Weight
(kg/m) 3.6 3.6 3.7
(ft) 7.5
Min. Bend Radius (operational)
(m) 2.3
(ft) 1,350 1,500 1,650*
Approximate Length/Reel
(m) 411 457 503*
(ft) 12
Reel Diameter
(m) 3.7
(ft) 7.6
Reel Width
(m) 2.3
(lbs) 4,200 4,600 5,100
Reel Weight - Full
(kg) 1,905 2,087 2,313
(lbs) 1,000
Reel Weight - Empty
(kg) 454
Splice Coupling Outside (inches) 4.6
Diameter (mm) 117
Splice Coupling Inside Diameter (inches) 3.25
(Le = 3ft / 1m) (mm) 83
(lbs) 3,360
Max Installed Tensile Load
(kg) 1,524
*Not a continuous length. Two pieces.
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com

6. Thermoflex Gathering Line
Nominal Size Ø3.50" (3" Steel)
(psi) 275 500 750 1000 1250
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17 6.90 8.62
(°F) 150
Max Operating Temperature
(°C) 65
Liner Nylon (solid)
Materials Reinforcement Aramid Fiber
Jacket Nylon (blue, UV stabilized)
(inches) 3.50
Outside Diameter
(mm) 89
(inches) 2.92
Inside Diameter
(mm) 74
(lbs/ft) 1.4 1.5 1.6 1.6 1.7
Weight
(kg/m) 2.1 2.2 2.4 2.4 2.5
(ft) 5.8
Min. Bend Radius (operational)
(m) 1.8
(ft) 1,550 2,000 1,800 1,300 2,000*
Approximate Length/Reel
(m) 472 610 549 396 610*
(ft) 10.3
Reel Diameter
(m) 3.1
(ft) 7.6
Reel Width
(m) 2.3
(lbs) 3,000 3,900 3,700 2,900 4,300
Reel Weight - Full
(kg) 1,361 1,769 1,678 1,315 1,950
(lbs) 850
Reel Weight - Empty
(kg) 386
Splice Coupling Outside (inches) 3.6
Diameter (mm) 91
Splice Coupling Inside Diameter (inches) 2.37
(Le = 3ft / 1m) (mm) 60
(lbs) 1,680
Max Installed Tensile Load
(kg) 762
*Not a continuous length. Two pieces.
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com

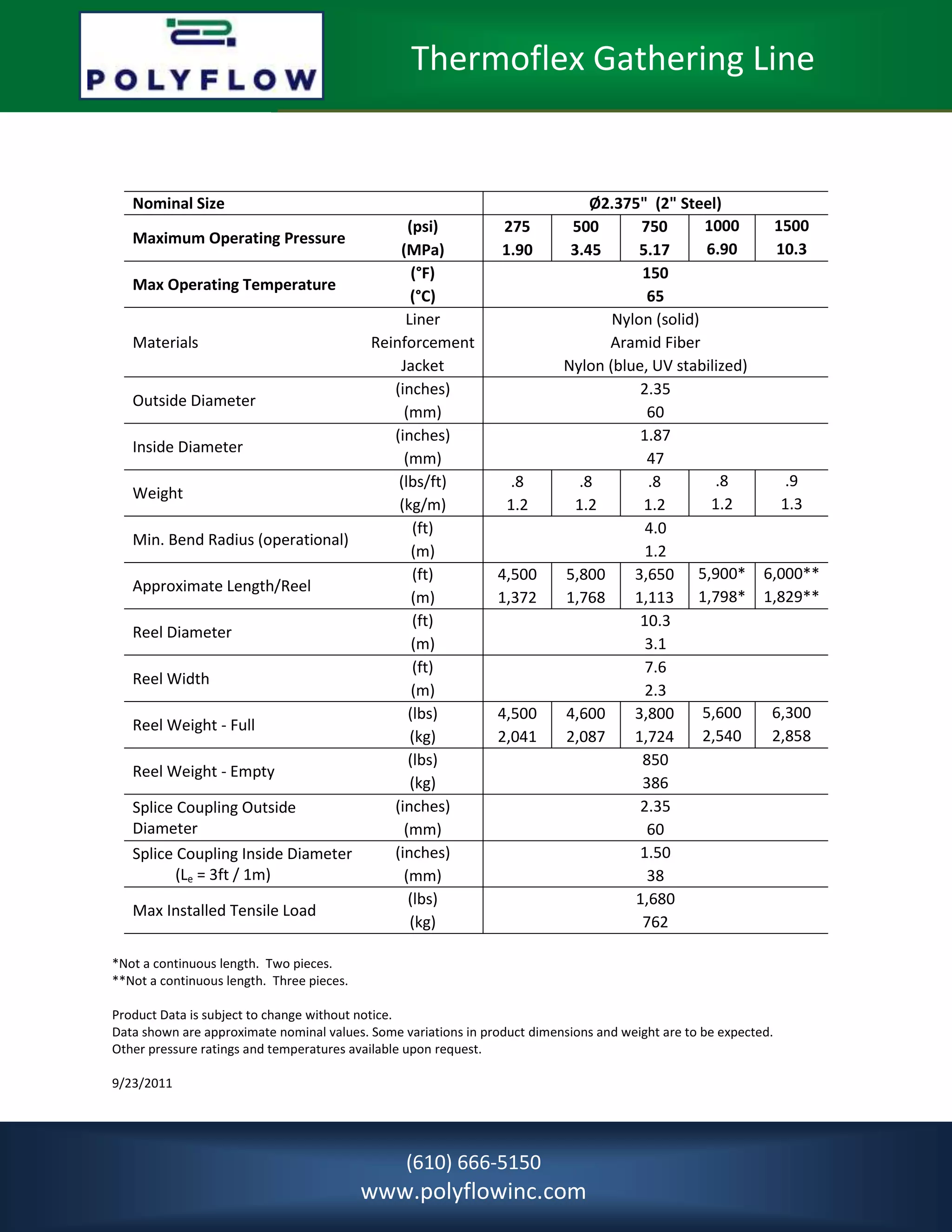

7. Thermoflex Gathering Line
Nominal Size Ø2.375" (2" Steel)
(psi) 275 500 750 1000 1500
Maximum Operating Pressure
(MPa) 1.90 3.45 5.17 6.90 10.3
(°F) 150
Max Operating Temperature
(°C) 65
Liner Nylon (solid)
Materials Reinforcement Aramid Fiber
Jacket Nylon (blue, UV stabilized)
(inches) 2.35
Outside Diameter
(mm) 60
(inches) 1.87
Inside Diameter
(mm) 47
(lbs/ft) .8 .8 .8 .8 .9
Weight
(kg/m) 1.2 1.2 1.2 1.2 1.3
(ft) 4.0
Min. Bend Radius (operational)
(m) 1.2
(ft) 4,500 5,800 3,650 5,900* 6,000**
Approximate Length/Reel
(m) 1,372 1,768 1,113 1,798* 1,829**
(ft) 10.3
Reel Diameter
(m) 3.1
(ft) 7.6
Reel Width
(m) 2.3
(lbs) 4,500 4,600 3,800 5,600 6,300
Reel Weight - Full
(kg) 2,041 2,087 1,724 2,540 2,858
(lbs) 850
Reel Weight - Empty
(kg) 386
Splice Coupling Outside (inches) 2.35
Diameter (mm) 60
Splice Coupling Inside Diameter (inches) 1.50
(Le = 3ft / 1m) (mm) 38
(lbs) 1,680
Max Installed Tensile Load
(kg) 762
*Not a continuous length. Two pieces.
**Not a continuous length. Three pieces.
Product Data is subject to change without notice.
Data shown are approximate nominal values. Some variations in product dimensions and weight are to be expected.
Other pressure ratings and temperatures available upon request.
9/23/2011
(610) 666-5150
www.polyflowinc.com
