1. Ring Documentation, Release 1.9
ring_list_getstringsize(pList,index)
ring_list_getsize(x) (x->nSize)
80.14 Ring API - String Functions
In this section we will learn about the string functions provided by the Ring API to create new string and manipulate
the string content.
String * ring_string_new ( const char *str ) ;
String * ring_string_new2 ( const char *str,int nStrSize ) ;
String * ring_string_delete ( String *pString ) ;
int ring_string_size ( String *pString ) ;
void ring_string_set ( String *pString,const char *str ) ;
void ring_string_set2 ( String *pString,const char *str,int nStrSize ) ;
void ring_string_add ( String *pString,const char *str ) ;
void ring_string_add2 ( String *pString,const char *str,int nStrSize ) ;
void ring_string_print ( String *pString ) ;
void ring_string_setfromint ( String *pString,int x ) ;
char * ring_string_lower ( char *cStr ) ;
char * ring_string_upper ( char *cStr ) ;
char * ring_string_lower2 ( char *cStr,int nStrSize ) ;
char * ring_string_upper2 ( char *cStr,int nStrSize ) ;
char * ring_string_find ( char *cStr1,char *cStr2 ) ;
char * ring_string_find2 ( char *cStr1,int nStrSize1,char *cStr2,int nStrSize2 ) ;
/* Macro */
ring_string_tolower(x)
ring_string_toupper(x)
ring_string_get(x)
80.15 MySQL_Columns() Function Implementation
The next code presents the MySQL_Columns() function implementation.
This function returns table columns information.
void ring_vm_mysql_columns ( void *pPointer )
{
MYSQL *con ;
MYSQL_RES *result ;
int nColumns,x ;
MYSQL_ROW row ;
MYSQL_FIELD *field ;
List *pList, *pList2 ;
if ( RING_API_PARACOUNT != 1 ) {
RING_API_ERROR(RING_API_MISS1PARA);
return ;
}
if ( RING_API_ISPOINTER(1) ) {
con = (MYSQL *) RING_API_GETCPOINTER(1,RING_VM_POINTER_MYSQL) ;
if ( con == NULL ) {
return ;
}
result = mysql_store_result(con);
if ( result == NULL ) {
80.14. Ring API - String Functions 899

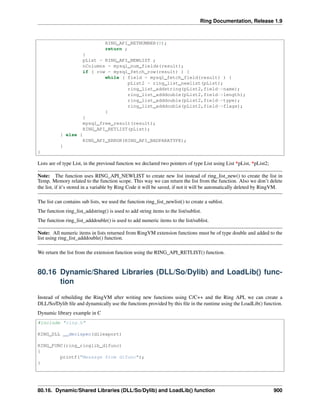

2. Ring Documentation, Release 1.9
RING_API_RETNUMBER(0);
return ;
}
pList = RING_API_NEWLIST ;
nColumns = mysql_num_fields(result);
if ( row = mysql_fetch_row(result) ) {
while ( field = mysql_fetch_field(result) ) {
pList2 = ring_list_newlist(pList);
ring_list_addstring(pList2,field->name);
ring_list_adddouble(pList2,field->length);
ring_list_adddouble(pList2,field->type);
ring_list_adddouble(pList2,field->flags);
}
}
mysql_free_result(result);
RING_API_RETLIST(pList);
} else {
RING_API_ERROR(RING_API_BADPARATYPE);
}
}
Lists are of type List, in the previoud function we declared two pointers of type List using List *pList, *pList2;
Note: The function uses RING_API_NEWLIST to create new list instead of ring_list_new() to create the list in
Temp. Memory related to the function scope. This way we can return the list from the function. Also we don’t delete
the list, if it’s stored in a variable by Ring Code it will be saved, if not it will be automatically deleted by RingVM.
The list can contains sub lists, we used the function ring_list_newlist() to create a sublist.
The function ring_list_addstring() is used to add string items to the list/sublist.
The function ring_list_adddouble() is used to add numeric items to the list/sublist.
Note: All numeric items in lists returned from RingVM extension functions must be of type double and added to the
list using ring_list_adddouble() function.
We return the list from the extension function using the RING_API_RETLIST() function.
80.16 Dynamic/Shared Libraries (DLL/So/Dylib) and LoadLib() func-
tion
Instead of rebuilding the RingVM after writing new functions using C/C++ and the Ring API, we can create a
DLL/So/Dylib file and dynamically use the functions provided by this file in the runtime using the LoadLib() function.
Dynamic library example in C
#include "ring.h"
RING_DLL __declspec(dllexport)
RING_FUNC(ring_ringlib_dlfunc)
{
printf("Message from dlfunc");
}
80.16. Dynamic/Shared Libraries (DLL/So/Dylib) and LoadLib() function 900

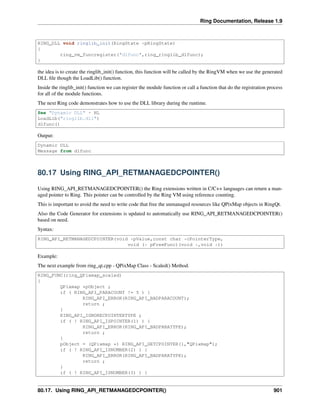

3. Ring Documentation, Release 1.9
RING_DLL void ringlib_init(RingState *pRingState)
{
ring_vm_funcregister("dlfunc",ring_ringlib_dlfunc);
}
the idea is to create the ringlib_init() function, this function will be called by the RingVM when we use the generated
DLL file though the LoadLib() function.
Inside the ringlib_init() function we can register the module function or call a function that do the registration process
for all of the module functions.
The next Ring code demonstrates how to use the DLL library during the runtime.
See "Dynamic DLL" + NL
LoadLib("ringlib.dll")
dlfunc()
Output:
Dynamic DLL
Message from dlfunc
80.17 Using RING_API_RETMANAGEDCPOINTER()
Using RING_API_RETMANAGEDCPOINTER() the Ring extensions written in C/C++ languages can return a man-
aged pointer to Ring. This pointer can be controlled by the Ring VM using reference counting.
This is important to avoid the need to write code that free the unmanaged resources like QPixMap objects in RingQt.
Also the Code Generator for extensions is updated to automatically use RING_API_RETMANAGEDCPOINTER()
based on need.
Syntax:
RING_API_RETMANAGEDCPOINTER(void *pValue,const char *cPointerType,
void (* pFreeFunc)(void *,void *))
Example:
The next example from ring_qt.cpp - QPixMap Class - Scaled() Method.
RING_FUNC(ring_QPixmap_scaled)
{
QPixmap *pObject ;
if ( RING_API_PARACOUNT != 5 ) {
RING_API_ERROR(RING_API_BADPARACOUNT);
return ;
}
RING_API_IGNORECPOINTERTYPE ;
if ( ! RING_API_ISPOINTER(1) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
pObject = (QPixmap *) RING_API_GETCPOINTER(1,"QPixmap");
if ( ! RING_API_ISNUMBER(2) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
if ( ! RING_API_ISNUMBER(3) ) {
80.17. Using RING_API_RETMANAGEDCPOINTER() 901

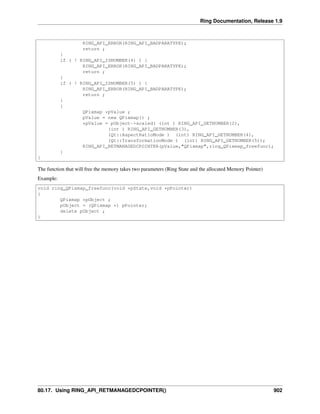

4. Ring Documentation, Release 1.9
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
if ( ! RING_API_ISNUMBER(4) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
if ( ! RING_API_ISNUMBER(5) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
{
QPixmap *pValue ;
pValue = new QPixmap() ;
*pValue = pObject->scaled( (int ) RING_API_GETNUMBER(2),
(int ) RING_API_GETNUMBER(3),
(Qt::AspectRatioMode ) (int) RING_API_GETNUMBER(4),
(Qt::TransformationMode ) (int) RING_API_GETNUMBER(5));
RING_API_RETMANAGEDCPOINTER(pValue,"QPixmap",ring_QPixmap_freefunc);
}
}
The function that will free the memory takes two parameters (Ring State and the allocated Memory Pointer)
Example:
void ring_QPixmap_freefunc(void *pState,void *pPointer)
{
QPixmap *pObject ;
pObject = (QPixmap *) pPointer;
delete pObject ;
}
80.17. Using RING_API_RETMANAGEDCPOINTER() 902

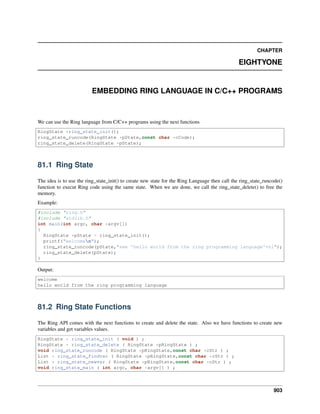

5. CHAPTER
EIGHTYONE
EMBEDDING RING LANGUAGE IN C/C++ PROGRAMS
We can use the Ring language from C/C++ programs using the next functions
RingState *ring_state_init();
ring_state_runcode(RingState *pState,const char *cCode);
ring_state_delete(RingState *pState);
81.1 Ring State
The idea is to use the ring_state_init() to create new state for the Ring Language then call the ring_state_runcode()
function to execut Ring code using the same state. When we are done, we call the ring_state_delete() to free the
memory.
Example:
#include "ring.h"
#include "stdlib.h"
int main(int argc, char *argv[])
{
RingState *pState = ring_state_init();
printf("welcomen");
ring_state_runcode(pState,"see 'hello world from the ring programming language'+nl");
ring_state_delete(pState);
}
Output:
welcome
hello world from the ring programming language
81.2 Ring State Functions
The Ring API comes with the next functions to create and delete the state. Also we have functions to create new
variables and get variables values.
RingState * ring_state_init ( void ) ;
RingState * ring_state_delete ( RingState *pRingState ) ;
void ring_state_runcode ( RingState *pRingState,const char *cStr ) ;
List * ring_state_findvar ( RingState *pRingState,const char *cStr ) ;
List * ring_state_newvar ( RingState *pRingState,const char *cStr ) ;
void ring_state_main ( int argc, char *argv[] ) ;
903

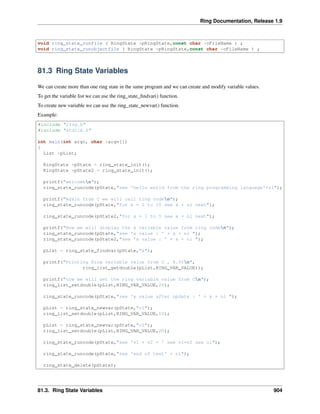

6. Ring Documentation, Release 1.9
void ring_state_runfile ( RingState *pRingState,const char *cFileName ) ;
void ring_state_runobjectfile ( RingState *pRingState,const char *cFileName ) ;
81.3 Ring State Variables
We can create more than one ring state in the same program and we can create and modify variable values.
To get the variable list we can use the ring_state_findvar() function.
To create new variable we can use the ring_state_newvar() function.
Example:
#include "ring.h"
#include "stdlib.h"
int main(int argc, char *argv[])
{
List *pList;
RingState *pState = ring_state_init();
RingState *pState2 = ring_state_init();
printf("welcomen");
ring_state_runcode(pState,"see 'hello world from the ring programming language'+nl");
printf("Again from C we will call ring coden");
ring_state_runcode(pState,"for x = 1 to 10 see x + nl next");
ring_state_runcode(pState2,"for x = 1 to 5 see x + nl next");
printf("Now we will display the x variable value from ring coden");
ring_state_runcode(pState,"see 'x value : ' + x + nl ");
ring_state_runcode(pState2,"see 'x value : ' + x + nl ");
pList = ring_state_findvar(pState,"x");
printf("Printing Ring variable value from C , %.0fn",
ring_list_getdouble(pList,RING_VAR_VALUE));
printf("now we will set the ring variable value from Cn");
ring_list_setdouble(pList,RING_VAR_VALUE,20);
ring_state_runcode(pState,"see 'x value after update : ' + x + nl ");
pList = ring_state_newvar(pState,"v1");
ring_list_setdouble(pList,RING_VAR_VALUE,10);
pList = ring_state_newvar(pState,"v2");
ring_list_setdouble(pList,RING_VAR_VALUE,20);
ring_state_runcode(pState,"see 'v1 + v2 = ' see v1+v2 see nl");
ring_state_runcode(pState,"see 'end of test' + nl");
ring_state_delete(pState);
81.3. Ring State Variables 904

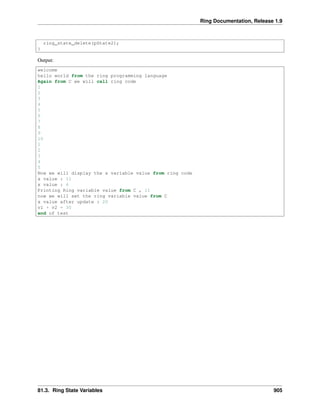

7. Ring Documentation, Release 1.9
ring_state_delete(pState2);
}
Output:
welcome
hello world from the ring programming language
Again from C we will call ring code
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
Now we will display the x variable value from ring code
x value : 11
x value : 6
Printing Ring variable value from C , 11
now we will set the ring variable value from C
x value after update : 20
v1 + v2 = 30
end of test
81.3. Ring State Variables 905

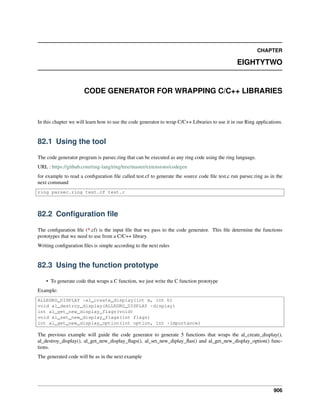

8. CHAPTER
EIGHTYTWO
CODE GENERATOR FOR WRAPPING C/C++ LIBRARIES
In this chapter we will learn how to use the code generator to wrap C/C++ Libraries to use it in our Ring applications.
82.1 Using the tool
The code generator program is parsec.ring that can be executed as any ring code using the ring language.
URL : https://github.com/ring-lang/ring/tree/master/extensions/codegen
for example to read a configuration file called test.cf to generate the source code file test.c run parsec.ring as in the
next command
ring parsec.ring test.cf test.c
82.2 Configuration file
The configuration file (*.cf) is the input file that we pass to the code generator. This file determine the functions
prototypes that we need to use from a C/C++ library.
Writing configuration files is simple according to the next rules
82.3 Using the function prototype
• To generate code that wraps a C function, we just write the C function prototype
Example:
ALLEGRO_DISPLAY *al_create_display(int w, int h)
void al_destroy_display(ALLEGRO_DISPLAY *display)
int al_get_new_display_flags(void)
void al_set_new_display_flags(int flags)
int al_get_new_display_option(int option, int *importance)
The previous example will guide the code generator to generate 5 functions that wraps the al_create_display(),
al_destroy_display(), al_get_new_display_flags(), al_set_new_diplay_flas() and al_get_new_display_option() func-
tions.
The generated code will be as in the next example
906

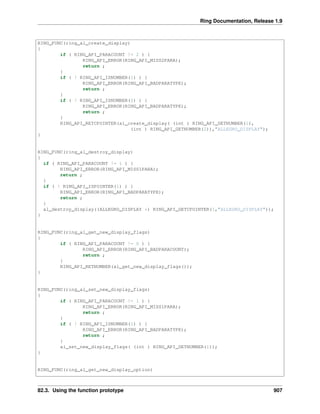

9. Ring Documentation, Release 1.9
RING_FUNC(ring_al_create_display)
{
if ( RING_API_PARACOUNT != 2 ) {
RING_API_ERROR(RING_API_MISS2PARA);
return ;
}
if ( ! RING_API_ISNUMBER(1) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
if ( ! RING_API_ISNUMBER(2) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
RING_API_RETCPOINTER(al_create_display( (int ) RING_API_GETNUMBER(1),
(int ) RING_API_GETNUMBER(2)),"ALLEGRO_DISPLAY");
}
RING_FUNC(ring_al_destroy_display)
{
if ( RING_API_PARACOUNT != 1 ) {
RING_API_ERROR(RING_API_MISS1PARA);
return ;
}
if ( ! RING_API_ISPOINTER(1) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
al_destroy_display((ALLEGRO_DISPLAY *) RING_API_GETCPOINTER(1,"ALLEGRO_DISPLAY"));
}
RING_FUNC(ring_al_get_new_display_flags)
{
if ( RING_API_PARACOUNT != 0 ) {
RING_API_ERROR(RING_API_BADPARACOUNT);
return ;
}
RING_API_RETNUMBER(al_get_new_display_flags());
}
RING_FUNC(ring_al_set_new_display_flags)
{
if ( RING_API_PARACOUNT != 1 ) {
RING_API_ERROR(RING_API_MISS1PARA);
return ;
}
if ( ! RING_API_ISNUMBER(1) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
al_set_new_display_flags( (int ) RING_API_GETNUMBER(1));
}
RING_FUNC(ring_al_get_new_display_option)
82.3. Using the function prototype 907

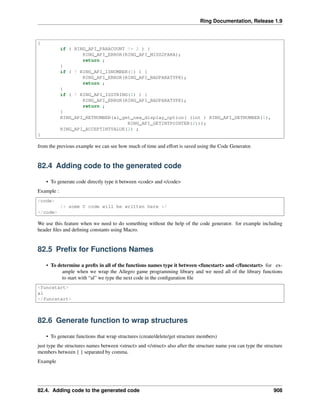

10. Ring Documentation, Release 1.9
{
if ( RING_API_PARACOUNT != 2 ) {
RING_API_ERROR(RING_API_MISS2PARA);
return ;
}
if ( ! RING_API_ISNUMBER(1) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
if ( ! RING_API_ISSTRING(2) ) {
RING_API_ERROR(RING_API_BADPARATYPE);
return ;
}
RING_API_RETNUMBER(al_get_new_display_option( (int ) RING_API_GETNUMBER(1),
RING_API_GETINTPOINTER(2)));
RING_API_ACCEPTINTVALUE(2) ;
}
from the previous example we can see how much of time and effort is saved using the Code Generator.
82.4 Adding code to the generated code
• To generate code directly type it between <code> and </code>
Example :
<code>
/* some C code will be written here */
</code>
We use this feature when we need to do something without the help of the code generator. for example including
header files and defining constants using Macro.
82.5 Prefix for Functions Names
• To determine a prefix in all of the functions names type it between <funcstart> and </funcstart> for ex-
ample when we wrap the Allegro game programming library and we need all of the library functions
to start with “al” we type the next code in the configuration file
<funcstart>
al
</funcstart>
82.6 Generate function to wrap structures
• To generate functions that wrap structures (create/delete/get structure members)
just type the structures names between <struct> and </struct> also after the structure name you can type the structure
members between { } separated by comma.
Example
82.4. Adding code to the generated code 908
