This document discusses using the Enterprise Manager Command Line Interface (EM CLI) to administer Oracle databases. It provides an overview of the EM CLI and important commands, such as getting job information, executing SQL, managing targets, and submitting procedure scripts. The EM CLI allows administrators to simplify management tasks across multiple databases through scripting and automation.

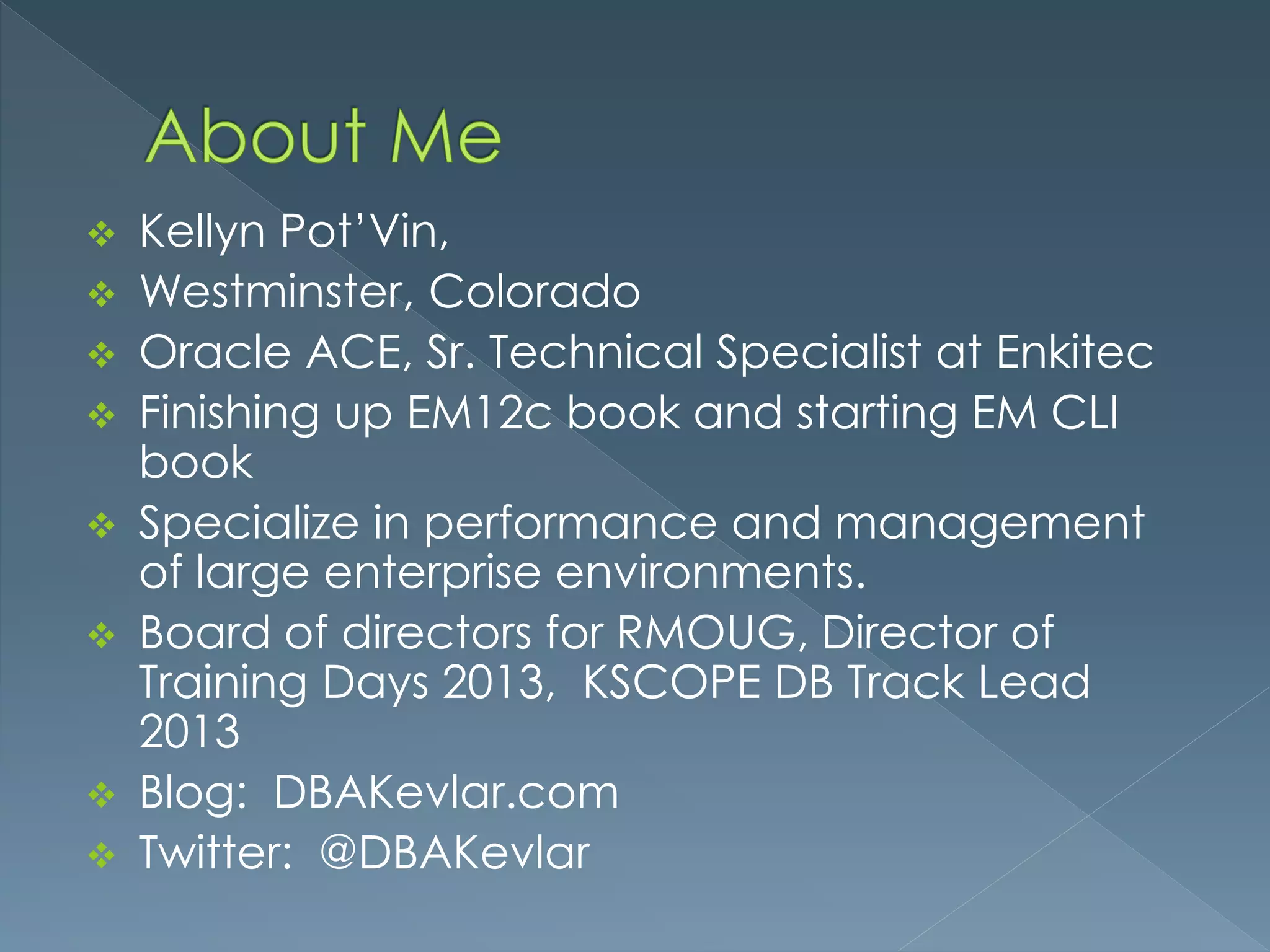

2.  Kellyn Pot’Vin,
 Westminster, Colorado
 Oracle ACE, Sr. Technical Specialist at Enkitec
 Finishing up EM12c book and starting EM CLI
book
 Specialize in performance and management
of large enterprise environments.
 Board of directors for RMOUG, Director of
Training Days 2013, KSCOPE DB Track Lead
2013
 Blog: DBAKevlar.com
 Twitter: @DBAKevlar

3.  What to Include?
 What to Exclude?
 What are the most important areas of
the EM CLI?
 What commands are best covered to
create the best educational introduction
to the topic?

4.  Enterprise Manager Command Line
Interface History
 How EM12c has changed level of
knowledge requirements for the
administrator
 The Command Line Interface Basics
 Enterprise Manager commands
 EM CLI Procedure Scripting

5.  Introduced in Oracle 9i with very limited
use.
 Access to EM functionality from text
based consoles.
 Ability to incorporate scripts, including
SQL*Plus, Perl, Shell, Python, etc.
 Fully integrated as part of the EM
environment, including same security.
 Ability to simplify multi-target tasks
through command line interface.

6.  Create Jobs, schedule jobs, delete jobs
 Administer groups, members, targets
 Administer users and credentials.
 Upload patches, delete patches-create
patch plans.
 Execute host and sql commands.
 Get information about all targets,
monitoring.
 Over 30 verb “groups” and 250 commands
that I have documented “so far”.

7.  EM CLI Login- Online or Offline?
 “Verbs” grant the administrator initial
commands for the interface.
 May Require one or more arguments.
 Can utilize a argument file, aka
properties file.
 Syntax often changes with version of
Enterprise Manager.
 emcli help <verb>

8.  The Command Line must be logged into
for the first time before commands will
be accepted, (login dependent upon
EM security time out feature or
connection mode.)
emcli login –username=<username>
 Syncronize the EMCLI with the OMS:
emcli sync

9.  Check connection mode, if complete,
then offline the EM CLI
emcli get_connection_mode
emcli set_connection_mode -mode="offline“
emcli get_jobs
Set back to online mode if wanting to proceed.

10. emcli
<verb>
1st_argument[-name, -procedure, -
instance, -guid, -argfile, -
input_file, -type, -targets, -
action…] = <value>
2nd_argument [-xml, -tailLength, -
info, -analyze, -grants, -
scheduler, -notification] =
<value>

11.  Redirection example of output, (similar to
Unix):
emcli get_procedure_xml –
procedure=“PROC_GUID” >
test_proc.xml

12.  get_resolution_states - Incident
Information
 stop/start_agent - Manage Agents
 create/stop_blackout - Manage Blackouts
 clone_database_home - Clone home
 execute_sql - Execute SQL
 get_jobs - Get a list of jobs
 clear_stateless_alerts - Clears stateless
alerts
 Argfile: File of verbs to execute from the
emcli.

13.  EM CLI for EM12c support
› Checking Incidents
› Retrieve Targets Monitored
› Retrieve Agent Properties
› Agent Deployment
› Platform support
› Creating/Stopping Blackouts
› Executing Host Commands

14. emcli get_resolution_states

15.  What database targets are being
monitored, both single instance and RAC?
emcli get_targets -targets="%database%"

16. emcli get_supported_platforms

17. emcli get_agentimage -
destination=/home/oracle -
platform="Microsoft Windows x64
(64-bit)" –version="12.1.0.1.0"

18. emcli get_targets
emcli delete_target –name="<trg_nm>“
emcli import_update –file="file_nm" –
omslocal
emcli deploy_plugin_on_server -
plugin=oracle.sysman.db –
sys_password=<passwd>
emcli deploy_plugin_on_agent –
plugin="oracle.sysman.db" –
agent_name="<dbname>:<port>"

19. emcli set_credential -
target_type=oracle_database -
target_name="<preferred_nm>"-
credential_set=DBCredsMonitoring -
user=sysman
-
column="Role:SYSDBA;UserName:sys;pass
word:<passwd>"-monitoring

20.  Save off Templates
 Inventory Existing Jobs
 Create secure credentials for targets
 Create administrator groups to ease
administration.
 Reuse templates, post creating first one,
easy updates!

21. emcli create_blackout -name="Linux
Patch 120612" -reason="Needs to be
Done" -
add_targets="emrep12:oracle_databa
se" -schedule="duration::60“
How fast could you blackout entire
environment for maintenance window with
this scripted?

22. Simply state the name of the blackout and
the agent will issue a stop to the OMS:
emcli stop_blackout
-name="Linux Patch 120612“
How quickly could you end a blackout of
environment post maintenance?

24. emcli execute_hostcmd –cmd=“ls -ltr
/home/oracle”
-credential_set_name=“HostCredsPriv”
-targets=“<host>.com:host”

25.  Simplify management of large number of
targets with simple script vs. multiple
steps through EM12c console.
 This simplicity includes creating,
managing, editing and purging of jobs
and patching job tasks.
 Retain EM12c security and single console
monitoring if required.

26.  Need to verify job information
emcli get_jobs

27. emcli get_job_execution_detail -
execution=C07388B855B44C38B5953B8C
3C7C6A5E -xml

28.  Assumption is that patches are
downloaded via EM12c.
 Process:
› Verify Patch Available.
› Create Patch Plan
› Schedule Patches in Patch Plan
› Deploy Patch Plan

29.  list_aru_languages -- List ARU Language
information.
 list_aru_platforms -- List ARU platform
information.
 list_aru_products -- List ARU Product
information.
 list_aru_releases -- List ARU Release
information.
 list_patch_plans -- List existing Patch Plans.
 search_patches -- Search patches from
ARU site or Software

30. emcli search_patches
-patch_name="patch number"
-platform="platform id“
emcli search_patches
–patch_name=“5875660” (BI
Publisher)
–platform=“233” (Windows 64 bit)

31.  Multi-step, multi-tasked or chained
scripting through the EM CLI.
 Ability to execute SQL, Perl, OS
Commands from one procedure.
 Ability to use properties file to simplify
work and reuse with other procedures.
 EM Console access through Job Activity
Interface.

32. emcli submit_procedure
-name='<Procedure Name>'
-input_file="<data:path to file>"
-instance_name="<Procedure
Instance>"
-schedule=start_time:yyyy/mm/dd
HH:mm;

33. emcli submit_procedure -
input_file=data:data.xml -
procedure=3D7F4D139E70453CB56D7621
BB56D390
-schedule="start_time:2012/12/03
21:00; tz:America/Central" -
grants="KPOTVIN:VIEW_JOB;
SYSMAN:FULL_JOB" -
notification="action required,
failed"

34.  Create a template to use for your new
properties file, sourced from a procedure
definition.
 Fill in all pertinent information for the
target lists.
 Submit the procedure, using the
properties file as part or whole of the
entry at the command line.
 Verify all was successful.

35. emcli get_procedures –type=DBPROV
Example Output
$>BFC71D3485629B93E04014AC08001B7D
, DBPROV, DBREPLAYCLIENTDP_NG,
Provision Oracle Database Client,
6.2, ORACLE
BFC71D3485599B93E04014AC08001B7D,
DBPROV, SIHA_SIDB_PROC, Provision
Oracle Database, 1.1, ORACLE

36. Using the GUID, (or the procedure
<NAME>, we can then generate a
properties file template:
emcli describe_procedure_input –
procedure=
BFC71D3485629B93E04014AC08001B7D >
dbreplay_tst.properties
$> Verifying parameters…
$>

37. Edit the new template properties file and
add the new values for the following:
$ vi dbreplay_tst.properties
 Source and Reference Host Data
 Agent Info
 Oracle Home
 Credentials

39. emcli submit_procedure –name=test_dbrpl_job
-owner=sys_jobs
-procedure= C23E10B1F427B4EEE040578CD74442G4
-
input_file=/u01/emjobs/emcli/dbreplay_tst.pro
perties
-notification="action required, failed"
-grants=“KPOTVIN:VIEW_JOB; SYSMAN:FULL_JOB"
-schedule= "start_time:2012/12/06 01:00:00;
tz:America/Denver"

40. emcli get_instance_status -
instance=C23E10B1F427B4EEE040578CD
74442G4
-details -showJobOutput
Output:
C23E10B1F427B4EEE040578CD74442G4
, test_job, test_job, SUCCESSFUL

41. Rob Zoeteweij, Patching with EM12c
http://oemgc.wordpress.com/tag/oem-gc-
12c/
Laurent Leturgez, Useful EMCLI Commands
http://laurentleturgez.wordpress.com/2012/06
/11/useful-emcli-commands-in-em-cloud-
control-12c/
Laurent Schneider, The EM CLI
http://laurentschneider.com/wordpress/2011/
11/enterprise-manager-command-line-
interface.html

42. http://enkitec.com
http://dbakevlar.com
