The document provides examples of using delegates in C#, illustrating their creation and usage in a program context. It explains how delegates can be used to enable event handling in a car class, such as notifying when the car is about to blow or has exploded, and also demonstrates more complex delegate functionality. The examples include code snippets and details on how to manage delegate invocation lists and methods associated with car events.

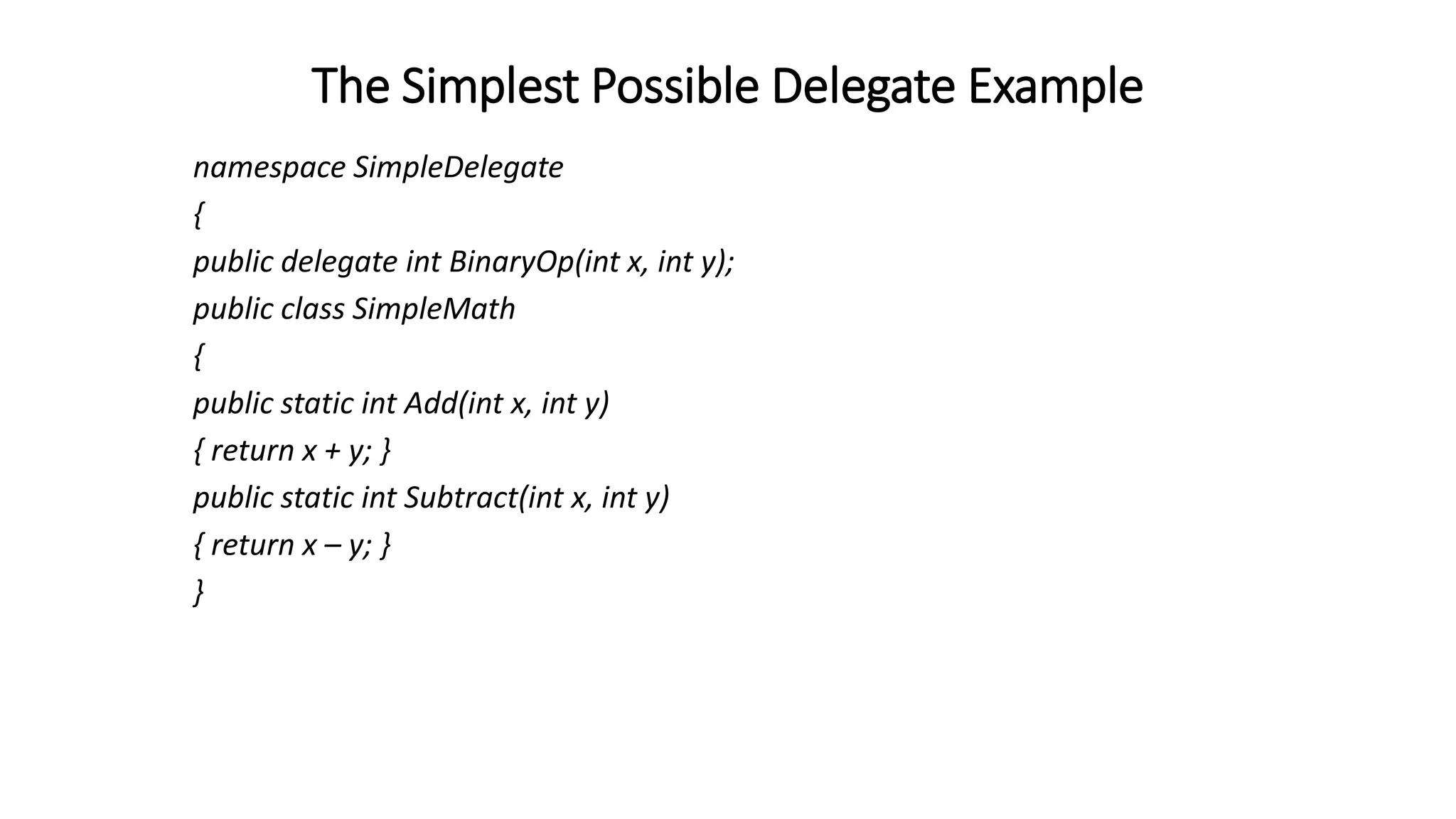

1. The Simplest Possible Delegate Example
namespace SimpleDelegate
{
public delegate int BinaryOp(int x, int y);
public class SimpleMath
{
public static int Add(int x, int y)
{ return x + y; }
public static int Subtract(int x, int y)
{ return x – y; }
}

2. class Program
{
static void Main(string[] args)
{
Console.WriteLine("***** Simple Delegate Example *****n");
// Create a BinaryOp object that
// "points to" SimpleMath.Add().
BinaryOp b = new BinaryOp(SimpleMath.Add);
// Invoke Add() method using delegate.
Console.WriteLine("10 + 10 is {0}", b(10, 10));
BinaryOp b2 = new BinaryOp(SimpleMath. Subtract);
Console.WriteLine("10 - 10 is {0}", b2(10, 10));
Console.ReadLine();
}
}
}

3. Investigating a Delegate Object
• by creating a helper function named DisplayDelegateInfo().
• This method will print out names of the methods maintained by the incoming
System.Delegate derived type as well as the name of the class defining the method.
• To do so, we will iterate over the System.Delegate array returned by GetInvocationList(),
invoking each object’s Target and Method properties:
static void DisplayDelegateInfo(Delegate delObj)
{
// Print the names of each member in the
// delegate's invocation list.
foreach (Delegate d in delObj.GetInvocationList())
{
Console.WriteLine("Method Name: {0}", d.Method);
Console.WriteLine("Type Name: {0}", d.Target);
}
}

4. Car Type with Delegates
• Define the AboutToBlow and Exploded delegates.
• Declare member variables of each delegate type in the Car class.
• Create helper functions on the Car that allow the caller to specify the
methods maintained by the delegate member variables.
• Update the Accelerate() method to invoke the delegate’s invocation
list under the correct circumstances.

5. public class Car
{
// Define the delegate types.
public delegate void AboutToBlow(string msg);
public delegate void Exploded (string msg);
// Define member variables of each delegate type.
private AboutToBlow almostDeadList;
private Exploded explodedList;
// Add members to the invocation lists using helper methods.
public void OnAboutToBlow(AboutToBlow clientMethod)
{ almostDeadList = clientMethod; }
public void OnExploded(Exploded clientMethod)
{ explodedList = clientMethod; }
...
}

6. public void Accelerate(int delta)
{
if (carIsDead){
if (explodedList != null)
explodedList("Sorry, this car is dead...");}
else{
currSpeed += delta;
if (10 == maxSpeed - currSpeed
&& almostDeadList != null){
almostDeadList("Careful buddy! Gonna blow!");}
if (currSpeed >= maxSpeed)
carIsDead = true;
else
Console.WriteLine("->CurrSpeed = {0}", currSpeed);
}
}

7. class Program
{
static void Main(string[] args)
{
Console.WriteLine("***** Delegates as event enablers *****");
// Make a car as usual.
Car c1 = new Car("SlugBug", 100, 10);
// Register event handlers with Car type.
c1.OnAboutToBlow(new Car.AboutToBlow(CarAboutToBlow));
c1.OnExploded(new Car.Exploded(CarExploded));
Console.WriteLine("n***** Speeding up *****");
for (int i = 0; i < 6; i++)
c1.Accelerate(20);
Console.ReadLine();
}

8. // The Car will call these methods.
public static void CarAboutToBlow(string msg)
{ Console.WriteLine(msg); }
public static void CarExploded(string msg)
{ Console.WriteLine(msg); }
}

9. A More Elaborate Delegate Example
// Updated Car class.
public class Car
{
…
// Are we in need of a wash? Need to rotate tires?
private bool isDirty;
private bool shouldRotate;
// Extra params to set bools.
public Car(string name, int max, int curr,
bool washCar, bool rotateTires){
...
isDirty = washCar;
shouldRotate = rotateTires;}
public bool Dirty{
get{ return isDirty; }
set{ isDirty = value; }}

10. }
public bool Rotate
{
get{ return shouldRotate; }
set{ shouldRotate = value; }
}
}
Now, also assume the Car type nests a new delegate, CarDelegate:
// Car defines yet another delegate.
public class Car
{
...
// Can call any method taking a Car as
// a parameter and returning nothing.
public delegate void CarDelegate(Car c);
...
}

11. Delegates As Parameters
Using System.Collections;
...
public class Garage
{
...
// This method takes a Car.CarDelegate as a parameter.
public void ProcessCars(Car.CarDelegate proc)
{
// Where are we forwarding the call?
Console.WriteLine("***** Calling: {0} *****",
proc.Method);
// Are we calling an instance method or a static method?
if(proc.Target != null)
Console.WriteLine("—>Target: {0} ", proc.Target);
else
Console.WriteLine("—>Target is a static method");

12. // Call the method "pointed to," passing in each car.
foreach (Car c in theCars)
{
Console.WriteLine("n-> Processing a Car");
proc(c);
}
}
}
