The document discusses test-driven development for TYPO3 projects. It introduces the concept of unit testing and test-driven development. It describes how the TYPO3 phpunit extension and PHPUnit can be used to write unit tests and run them automatically. It provides examples of different types of tests and how the testing framework can fake database records, frontend pages and other elements to test code in isolation.

1. Test-Driven Development
for TYPO3
Oliver Klee, 2011-12-13 and 2011-12-14
typo3-coding@oliverklee.de

2. Unit
tests?

3. Manual testing is cumbersome

4. Automated
testing is
fast

5. Unit tests for the
Realty Manager
extension

6. more than
1600 tests

7. in less than 60
seconds

8. Verify that your code
does what you expect

9. Make sure that your
changes won‘t break
anything

10. Keep
other coders
from breaking your code

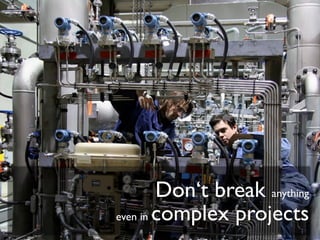

11. Don‘t break anything
even in complex projects

12. Create asafety net
for refactoring

13. Green feels good!

14. Green feels good!

15. Know
your
tools

16. The phpunit extension
has it all

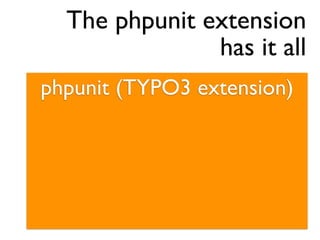

17. The phpunit extension
has it all
phpunit (TYPO3 extension)

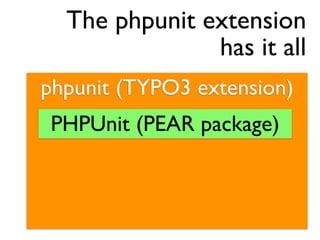

18. The phpunit extension
has it all
phpunit (TYPO3 extension)
PHPUnit (PEAR package)

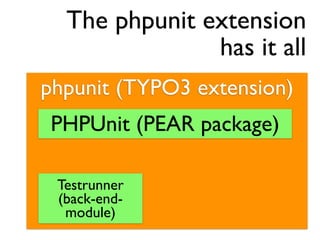

19. The phpunit extension
has it all
phpunit (TYPO3 extension)
PHPUnit (PEAR package)
Testrunner
(back-end-
module)

20. The phpunit extension
has it all
phpunit (TYPO3 extension)
PHPUnit (PEAR package)
Testrunner Testrunner
(back-end-
module) (CLI module)

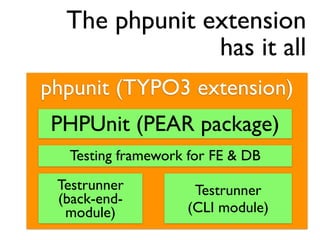

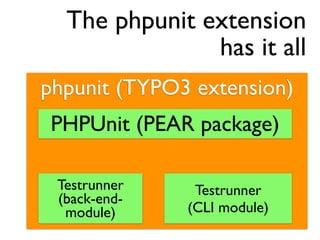

21. The phpunit extension
has it all
phpunit (TYPO3 extension)
PHPUnit (PEAR package)
Testing framework for FE & DB
Testrunner Testrunner
(back-end-
module) (CLI module)

22. Let‘s get
some terms
straight

23. Two tests
meet in a
bar ...

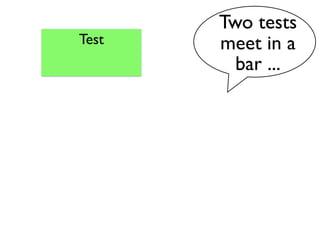

24. Two tests
Test meet in a
bar ...

25. Two tests
Test meet in a
Assertion bar ...

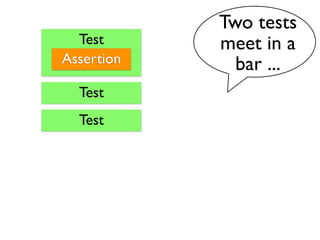

26. Two tests
Test meet in a
Assertion bar ...
Test
Test

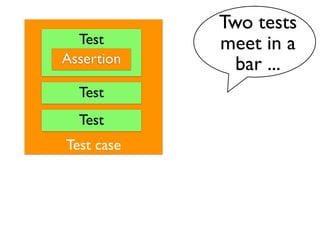

27. Two tests
Test meet in a
Assertion bar ...
Test
Test
Test case

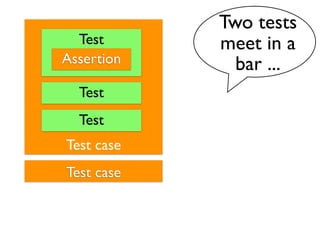

28. Two tests
Test meet in a
Assertion bar ...
Test
Test
Test case
Test case

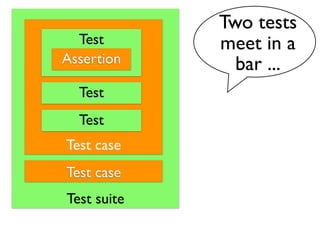

29. Two tests
Test meet in a
Assertion bar ...
Test
Test
Test case
Test case
Test suite

30. Code test-first

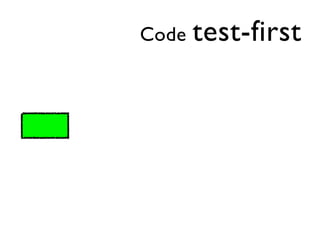

31. Code test-first

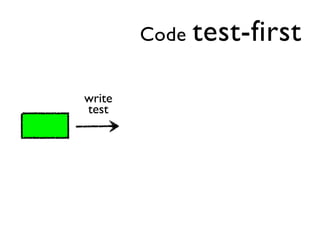

32. Code test-first
write
test

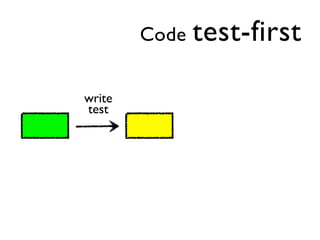

33. Code test-first
write
test

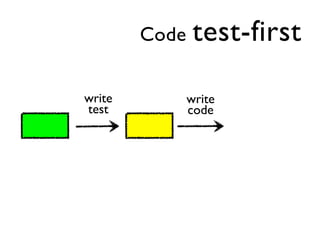

34. Code test-first
write write
test code

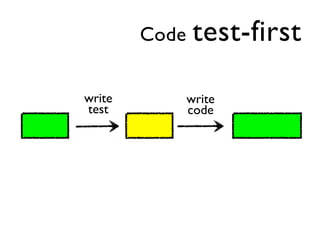

35. Code test-first
write write
test code

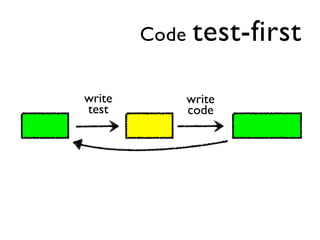

36. Code test-first
write write
test code

37. Code test-first
write write
test code
refactor

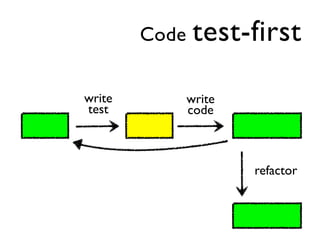

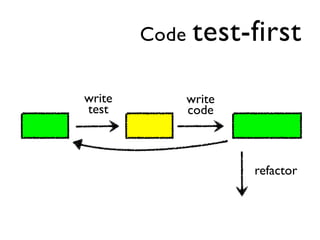

38. Code test-first
write write
test code
refactor

39. The life cycle unit test
of a

40. The life cycle unit test
of a

41. The life cycle unit test
of a
new FooTest();

42. The life cycle unit test
of a
new FooTest();

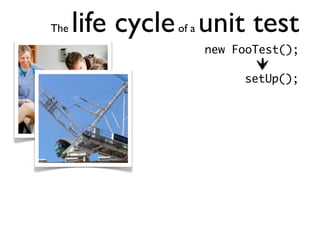

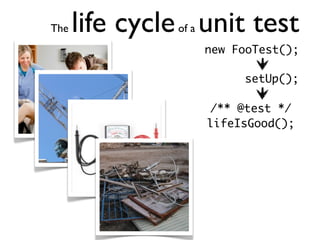

43. The life cycle unit test
of a
new FooTest();
setUp();

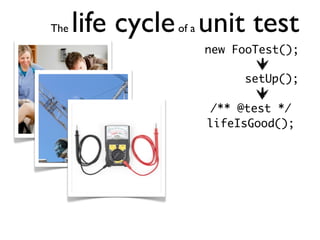

44. The life cycle unit test
of a
new FooTest();
setUp();
/** @test */
lifeIsGood();

45. The life cycle unit test
of a
new FooTest();
setUp();
/** @test */
lifeIsGood();

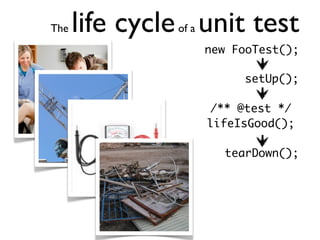

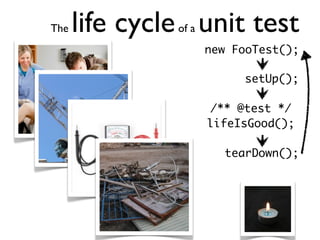

46. The life cycle unit test
of a
new FooTest();
setUp();
/** @test */
lifeIsGood();
tearDown();

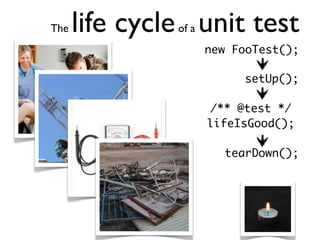

47. The life cycle unit test
of a
new FooTest();
setUp();
/** @test */
lifeIsGood();
tearDown();

48. The life cycle unit test
of a
new FooTest();
setUp();
/** @test */
lifeIsGood();
tearDown();

49. Use meaningful
unit test names

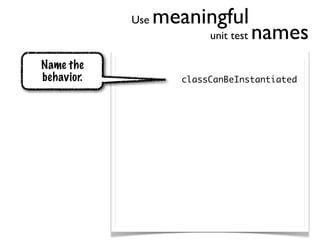

50. Use meaningful
unit test names
Name the
behavior. classCanBeInstantiated

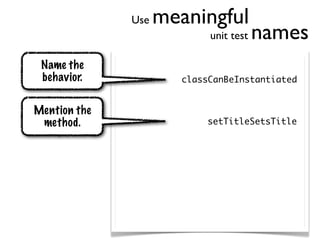

51. Use meaningful
unit test names
Name the
behavior. classCanBeInstantiated
Mention the
method. setTitleSetsTitle

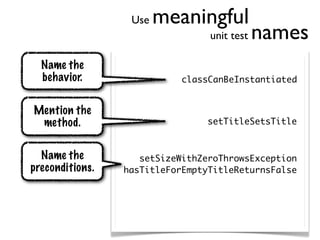

52. Use meaningful
unit test names
Name the
behavior. classCanBeInstantiated
Mention the
method. setTitleSetsTitle
Name the setSizeWithZeroThrowsException
preconditions. hasTitleForEmptyTitleReturnsFalse

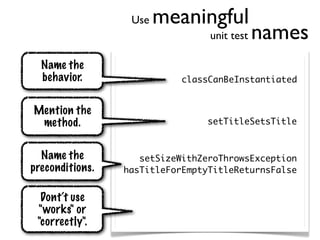

53. Use meaningful
unit test names
Name the
behavior. classCanBeInstantiated
Mention the
method. setTitleSetsTitle
Name the setSizeWithZeroThrowsException
preconditions. hasTitleForEmptyTitleReturnsFalse
Dont‘t use
"works" or
"correctly".

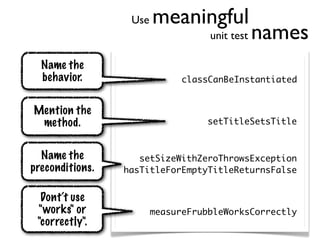

54. Use meaningful
unit test names
Name the
behavior. classCanBeInstantiated
Mention the
method. setTitleSetsTitle
Name the setSizeWithZeroThrowsException
preconditions. hasTitleForEmptyTitleReturnsFalse
Dont‘t use
"works" or measureFrubbleWorksCorrectly
"correctly".

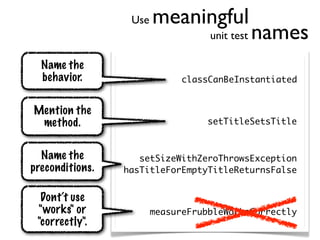

55. Use meaningful
unit test names
Name the
behavior. classCanBeInstantiated
Mention the
method. setTitleSetsTitle
Name the setSizeWithZeroThrowsException
preconditions. hasTitleForEmptyTitleReturnsFalse
Dont‘t use
"works" or measureFrubbleWorksCorrectly
"correctly".

56. Continuous
Integration

57. Continuous
Integration
=

58. Continuous
Integration
=
checking in
more often

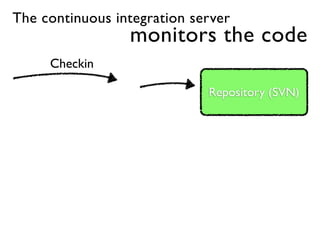

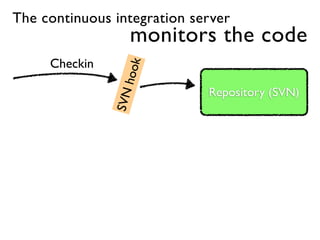

59. The continuous integration server
monitors the code
Checkin
Repository (SVN)

60. The continuous integration server
monitors the code
Checkin
hook
Repository (SVN)
SVN

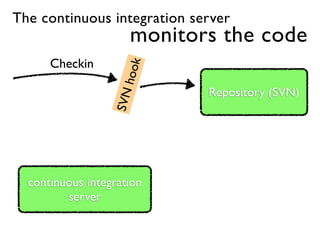

61. The continuous integration server
monitors the code
Checkin
hook
Repository (SVN)
SVN
continuous integration
server

62. The continuous integration server
monitors the code
Checkin
hook
Repository (SVN)
SVN
Hey, a
change!
continuous integration
server

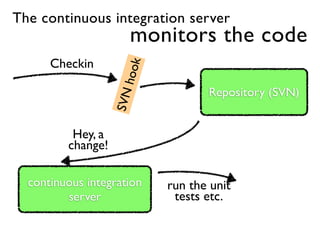

63. The continuous integration server
monitors the code
Checkin
hook
Repository (SVN)
SVN
Hey, a
change!
continuous integration run the unit
server tests etc.

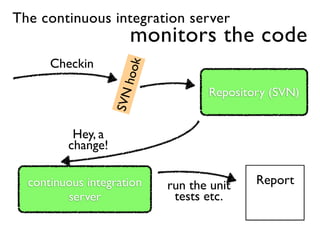

64. The continuous integration server
monitors the code
Checkin
hook
Repository (SVN)
SVN
Hey, a
change!
continuous integration run the unit Report
server tests etc.

65. There are
small and huge
tests

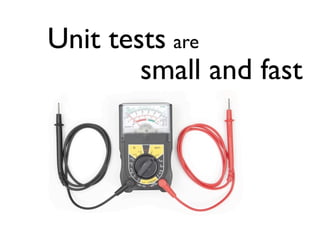

66. Unit tests are
small and fast

67. Integration tests test
the complete thing

68. Automated click tests
test the interface

69. Automated click tests
test the interface
Selenium

70. Blackbox tests
test
the public interface

71. Whitebox tests test the
inner workings

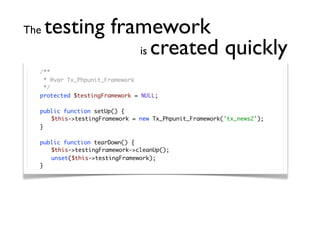

72. The testing framework
is created quickly
/**
* @var Tx_Phpunit_Framework
*/
protected $testingFramework = NULL;
public function setUp() {
$this->testingFramework = new Tx_Phpunit_Framework('tx_news2');
}
public function tearDown() {
$this->testingFramework->cleanUp();
unset($this->testingFramework);
}

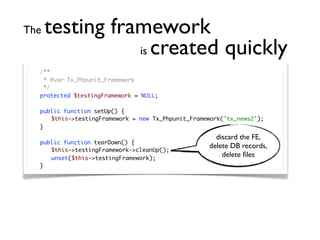

73. The testing framework
is created quickly
/**
* @var Tx_Phpunit_Framework
*/
protected $testingFramework = NULL;
public function setUp() {
$this->testingFramework = new Tx_Phpunit_Framework('tx_news2');
}
discard the FE,
public function tearDown() {
delete DB records,
$this->testingFramework->cleanUp();
unset($this->testingFramework);
delete files
}

74. The testing framework
is created quickly
/**
* @var Tx_Phpunit_Framework
*/
protected $testingFramework = NULL;
public function setUp() {
$this->testingFramework = new Tx_Phpunit_Framework('tx_news2');
}
discard the FE,
public function tearDown() {
delete DB records,
$this->testingFramework->cleanUp();
unset($this->testingFramework);
delete files
}
CREATE TABLE tx_news2_domain_model_news (
…
is_dummy_record tinyint(1) unsigned DEFAULT '0' NOT NULL,
…

75. The testing framework
can fake almost everything

76. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());

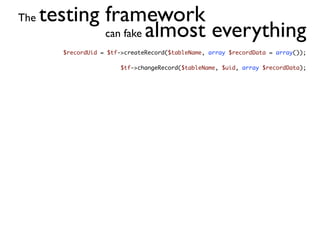

77. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);

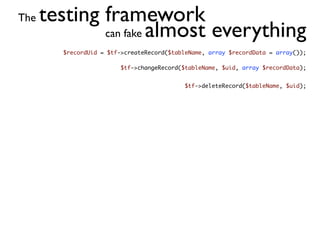

78. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);

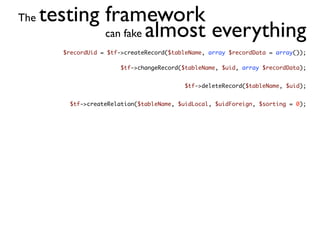

79. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);

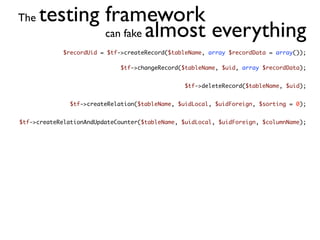

80. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);
$tf->createRelationAndUpdateCounter($tableName, $uidLocal, $uidForeign, $columnName);

81. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);
$tf->createRelationAndUpdateCounter($tableName, $uidLocal, $uidForeign, $columnName);
$tf->removeRelation($tableName, $uidLocal, $uidForeign);

82. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);
$tf->createRelationAndUpdateCounter($tableName, $uidLocal, $uidForeign, $columnName);
$tf->removeRelation($tableName, $uidLocal, $uidForeign);
$numberOfRecords = $tf->countRecords($tableName, $whereClause = '');

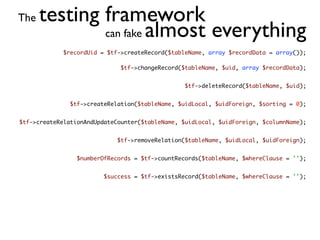

83. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);
$tf->createRelationAndUpdateCounter($tableName, $uidLocal, $uidForeign, $columnName);
$tf->removeRelation($tableName, $uidLocal, $uidForeign);
$numberOfRecords = $tf->countRecords($tableName, $whereClause = '');
$success = $tf->existsRecord($tableName, $whereClause = '');

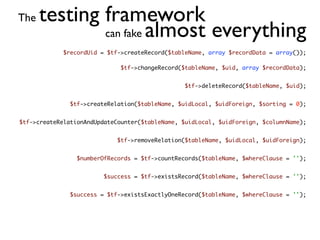

84. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);
$tf->createRelationAndUpdateCounter($tableName, $uidLocal, $uidForeign, $columnName);
$tf->removeRelation($tableName, $uidLocal, $uidForeign);
$numberOfRecords = $tf->countRecords($tableName, $whereClause = '');
$success = $tf->existsRecord($tableName, $whereClause = '');
$success = $tf->existsExactlyOneRecord($tableName, $whereClause = '');

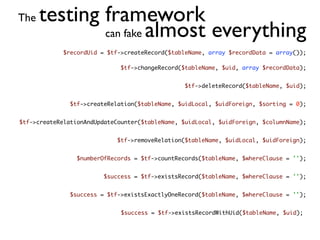

85. The testing framework
can fake almost everything
$recordUid = $tf->createRecord($tableName, array $recordData = array());
$tf->changeRecord($tableName, $uid, array $recordData);
$tf->deleteRecord($tableName, $uid);
$tf->createRelation($tableName, $uidLocal, $uidForeign, $sorting = 0);
$tf->createRelationAndUpdateCounter($tableName, $uidLocal, $uidForeign, $columnName);
$tf->removeRelation($tableName, $uidLocal, $uidForeign);
$numberOfRecords = $tf->countRecords($tableName, $whereClause = '');
$success = $tf->existsRecord($tableName, $whereClause = '');
$success = $tf->existsExactlyOneRecord($tableName, $whereClause = '');
$success = $tf->existsRecordWithUid($tableName, $uid);

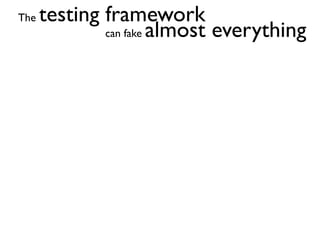

86. The testing framework
can fake almost everything

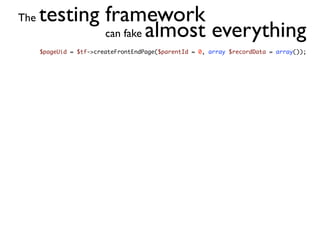

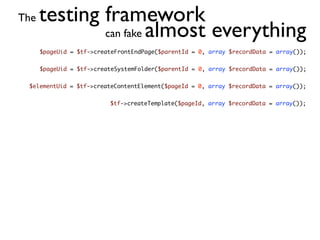

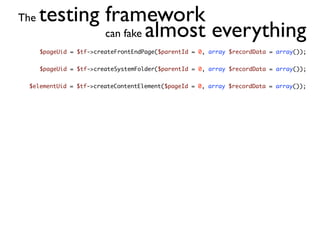

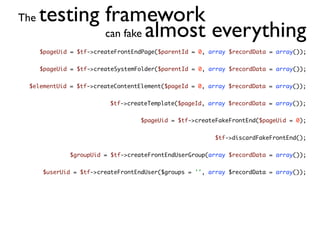

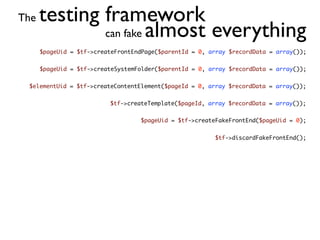

87. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());

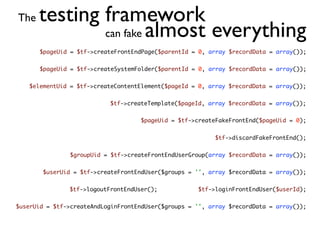

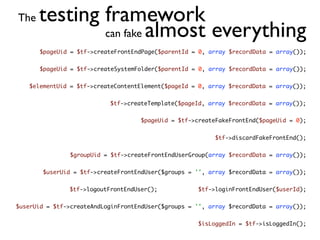

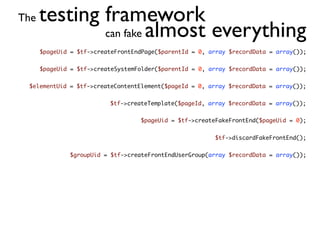

88. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());

89. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());

90. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());

91. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);

92. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();

93. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();
$groupUid = $tf->createFrontEndUserGroup(array $recordData = array());

94. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();
$groupUid = $tf->createFrontEndUserGroup(array $recordData = array());
$userUid = $tf->createFrontEndUser($groups = '', array $recordData = array());

95. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();
$groupUid = $tf->createFrontEndUserGroup(array $recordData = array());
$userUid = $tf->createFrontEndUser($groups = '', array $recordData = array());
$tf->loginFrontEndUser($userId);

96. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();
$groupUid = $tf->createFrontEndUserGroup(array $recordData = array());
$userUid = $tf->createFrontEndUser($groups = '', array $recordData = array());
$tf->logoutFrontEndUser(); $tf->loginFrontEndUser($userId);

97. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();
$groupUid = $tf->createFrontEndUserGroup(array $recordData = array());
$userUid = $tf->createFrontEndUser($groups = '', array $recordData = array());
$tf->logoutFrontEndUser(); $tf->loginFrontEndUser($userId);
$userUid = $tf->createAndLoginFrontEndUser($groups = '', array $recordData = array());

98. The testing framework
can fake almost everything
$pageUid = $tf->createFrontEndPage($parentId = 0, array $recordData = array());
$pageUid = $tf->createSystemFolder($parentId = 0, array $recordData = array());
$elementUid = $tf->createContentElement($pageId = 0, array $recordData = array());
$tf->createTemplate($pageId, array $recordData = array());
$pageUid = $tf->createFakeFrontEnd($pageUid = 0);
$tf->discardFakeFrontEnd();
$groupUid = $tf->createFrontEndUserGroup(array $recordData = array());
$userUid = $tf->createFrontEndUser($groups = '', array $recordData = array());
$tf->logoutFrontEndUser(); $tf->loginFrontEndUser($userId);
$userUid = $tf->createAndLoginFrontEndUser($groups = '', array $recordData = array());
$isLoggedIn = $tf->isLoggedIn();

99. The testing framework
can fake almost everything

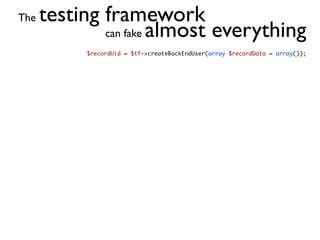

100. The testing framework
can fake almost everything
$recordUid = $tf->createBackEndUser(array $recordData = array());

101. The testing framework
can fake almost everything
$recordUid = $tf->createBackEndUser(array $recordData = array());
$recordUid = $tf->createBackEndUserGroup(array $recordData = array());

102. The testing framework
can fake almost everything

103. The testing framework
can fake almost everything
$path = $tf->createDummyFile($fileName = 'test.txt', $content = '');

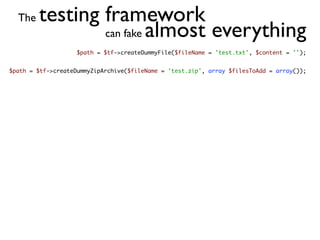

104. The testing framework
can fake almost everything
$path = $tf->createDummyFile($fileName = 'test.txt', $content = '');
$path = $tf->createDummyZipArchive($fileName = 'test.zip', array $filesToAdd = array());

105. The testing framework
can fake almost everything
$path = $tf->createDummyFile($fileName = 'test.txt', $content = '');
$path = $tf->createDummyZipArchive($fileName = 'test.zip', array $filesToAdd = array());
$tf->deleteDummyFile($fileName);

106. The testing framework
can fake almost everything
$path = $tf->createDummyFile($fileName = 'test.txt', $content = '');
$path = $tf->createDummyZipArchive($fileName = 'test.zip', array $filesToAdd = array());
$tf->deleteDummyFile($fileName);
$path = $tf->createDummyFolder($folderName);

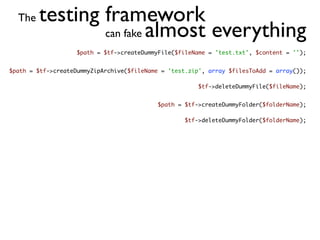

107. The testing framework
can fake almost everything
$path = $tf->createDummyFile($fileName = 'test.txt', $content = '');
$path = $tf->createDummyZipArchive($fileName = 'test.zip', array $filesToAdd = array());
$tf->deleteDummyFile($fileName);
$path = $tf->createDummyFolder($folderName);
$tf->deleteDummyFolder($folderName);

108. How to your test
extbase controllers
class Tx_Coffee_Controller_CoffeeControllerTest extends Tx_Extbase_Tests_Unit_BaseTestCase {
/** @var Tx_Coffee_Controller_CoffeeController */
protected $fixture;
/** @var Tx_Fluid_View_TemplateView */
protected $view = NULL;
/** @var Tx_Coffee_Domain_Repository_CoffeeRepository */
protected $coffeeRepository = NULL;
public function setUp() {
$this->fixture = new Tx_Coffee_Controller_CoffeeController();
$this->view = $this->getMock('Tx_Fluid_View_TemplateView', array(), array(), '', FALSE);
$this->fixture->setView($this->view);
$this->objectManager = $this->getMock('Tx_Extbase_Object_ObjectManagerInterface');
$this->fixture->injectObjectManager($this->objectManager);
$this->coffeeRepository = $this->getMock(
'Tx_Coffee_Domain_Repository_CoffeeRepository',
array('findAll', 'findByBrand'), array($this->objectManager)
);
$this->fixture->injectCoffeeRepository($this->coffeeRepository);
}

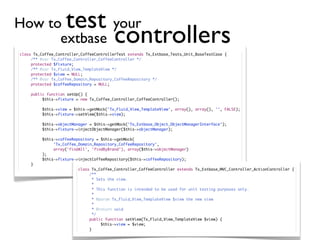

109. How to your test
extbase controllers
class Tx_Coffee_Controller_CoffeeControllerTest extends Tx_Extbase_Tests_Unit_BaseTestCase {
/** @var Tx_Coffee_Controller_CoffeeController */
protected $fixture;
/** @var Tx_Fluid_View_TemplateView */
protected $view = NULL;
/** @var Tx_Coffee_Domain_Repository_CoffeeRepository */
protected $coffeeRepository = NULL;
public function setUp() {
$this->fixture = new Tx_Coffee_Controller_CoffeeController();
$this->view = $this->getMock('Tx_Fluid_View_TemplateView', array(), array(), '', FALSE);
$this->fixture->setView($this->view);
$this->objectManager = $this->getMock('Tx_Extbase_Object_ObjectManagerInterface');
$this->fixture->injectObjectManager($this->objectManager);
$this->coffeeRepository = $this->getMock(
'Tx_Coffee_Domain_Repository_CoffeeRepository',
array('findAll', 'findByBrand'), array($this->objectManager)
);
$this->fixture->injectCoffeeRepository($this->coffeeRepository);
}
class Tx_Coffee_Controller_CoffeeController extends Tx_Extbase_MVC_Controller_ActionController {
/**
* Sets the view.
*
* This function is intended to be used for unit testing purposes only.
*
* @param Tx_Fluid_View_TemplateView $view the new view
*
* @return void
*/
public function setView(Tx_Fluid_View_TemplateView $view) {
$this->view = $view;
}

110. How to test your
extbase controllers

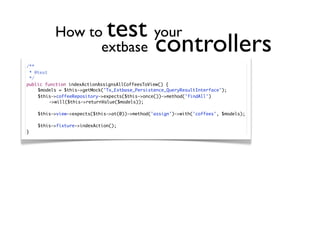

111. How to your test
extbase controllers
/**
* @test
*/
public function indexActionAssignsAllCoffeesToView() {
$models = $this->getMock('Tx_Extbase_Persistence_QueryResultInterface');
$this->coffeeRepository->expects($this->once())->method('findAll')
->will($this->returnValue($models));
$this->view->expects($this->at(0))->method('assign')->with('coffees', $models);
$this->fixture->indexAction();
}

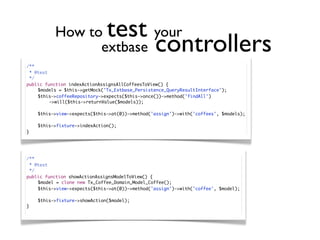

112. How to your test
extbase controllers
/**
* @test
*/
public function indexActionAssignsAllCoffeesToView() {
$models = $this->getMock('Tx_Extbase_Persistence_QueryResultInterface');
$this->coffeeRepository->expects($this->once())->method('findAll')
->will($this->returnValue($models));
$this->view->expects($this->at(0))->method('assign')->with('coffees', $models);
$this->fixture->indexAction();
}
/**
* @test
*/
public function showActionAssignsModelToView() {
$model = clone new Tx_Coffee_Domain_Model_Coffee();
$this->view->expects($this->at(0))->method('assign')->with('coffee', $model);
$this->fixture->showAction($model);
}
