The document discusses test-driven development (TDD) and how it can be used to reduce unnecessary complexity, also known as inventory, in software design. TDD involves writing automated tests before code to articulate requirements and ensure only needed code is written. It promotes designing simple, clear code without duplication through principles like You Aren't Gonna Need It and refactoring code in small, reversible steps. Following TDD principles is claimed to reduce inventory created by excess complexity and allow designs to evolve incrementally based on test feedback.

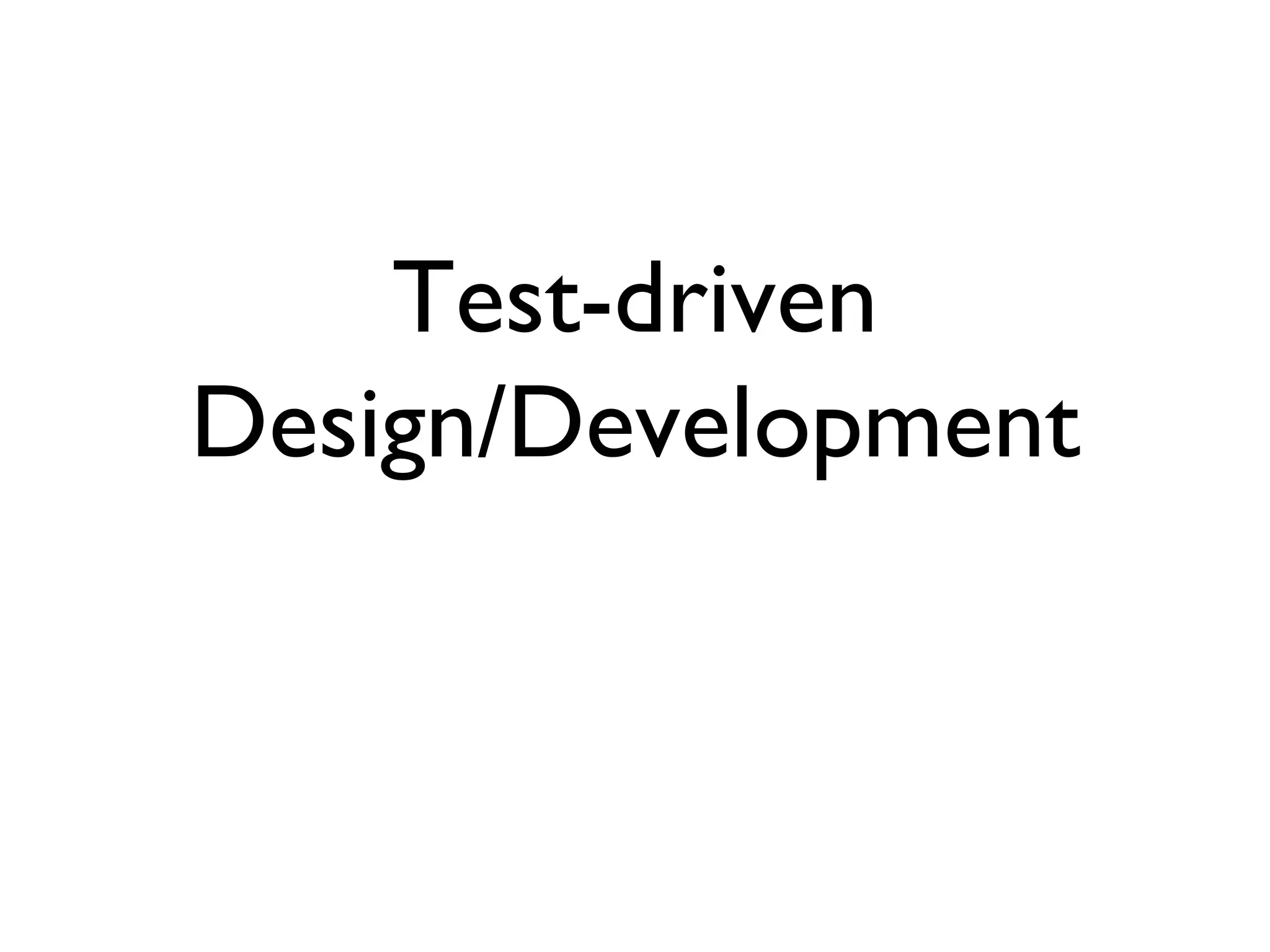

1. Test-driven Design/Development

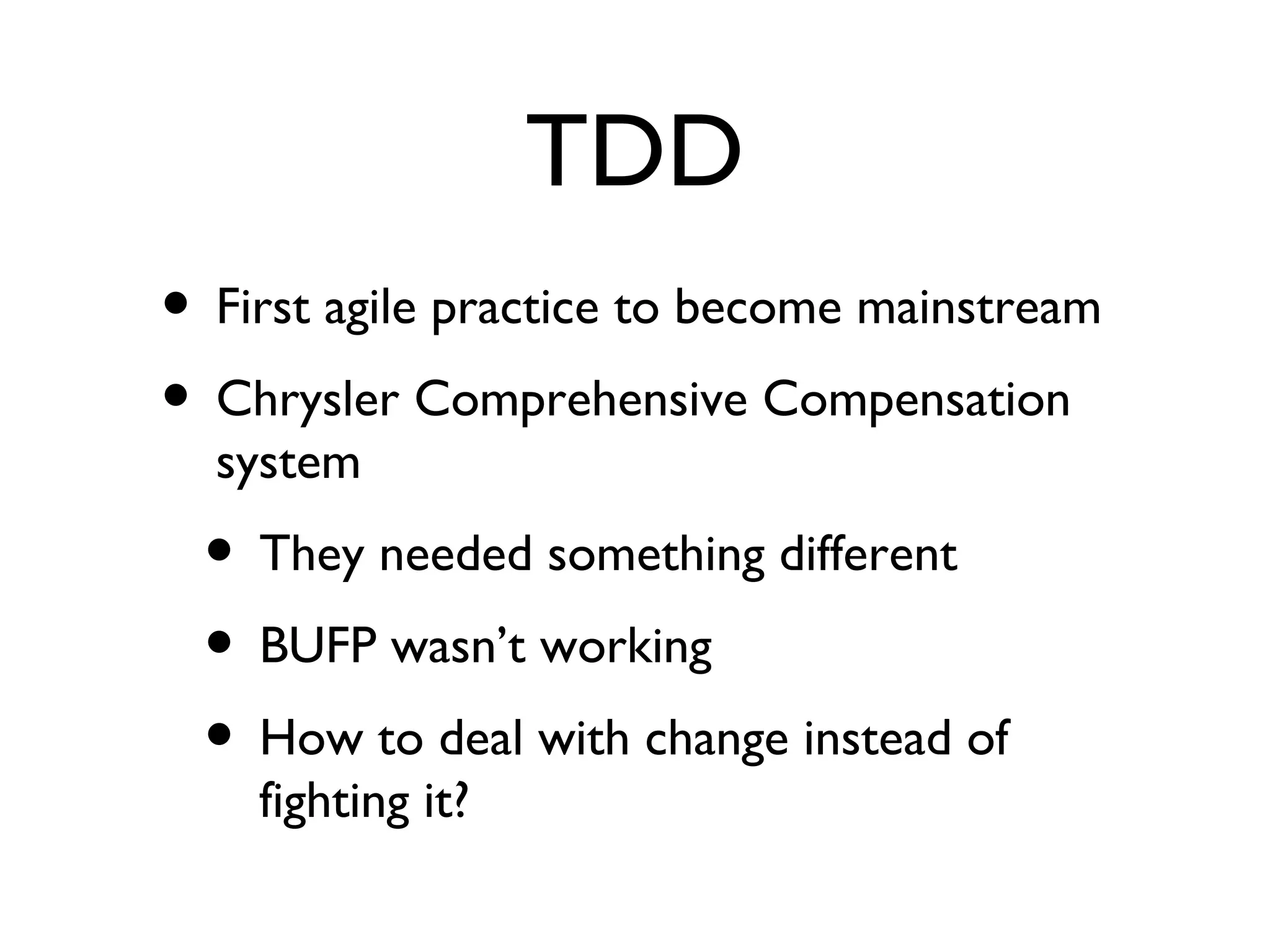

2. TDD First agile practice to become mainstream Chrysler Comprehensive Compensation system They needed something different BUFP wasn’t working How to deal with change instead of fighting it?

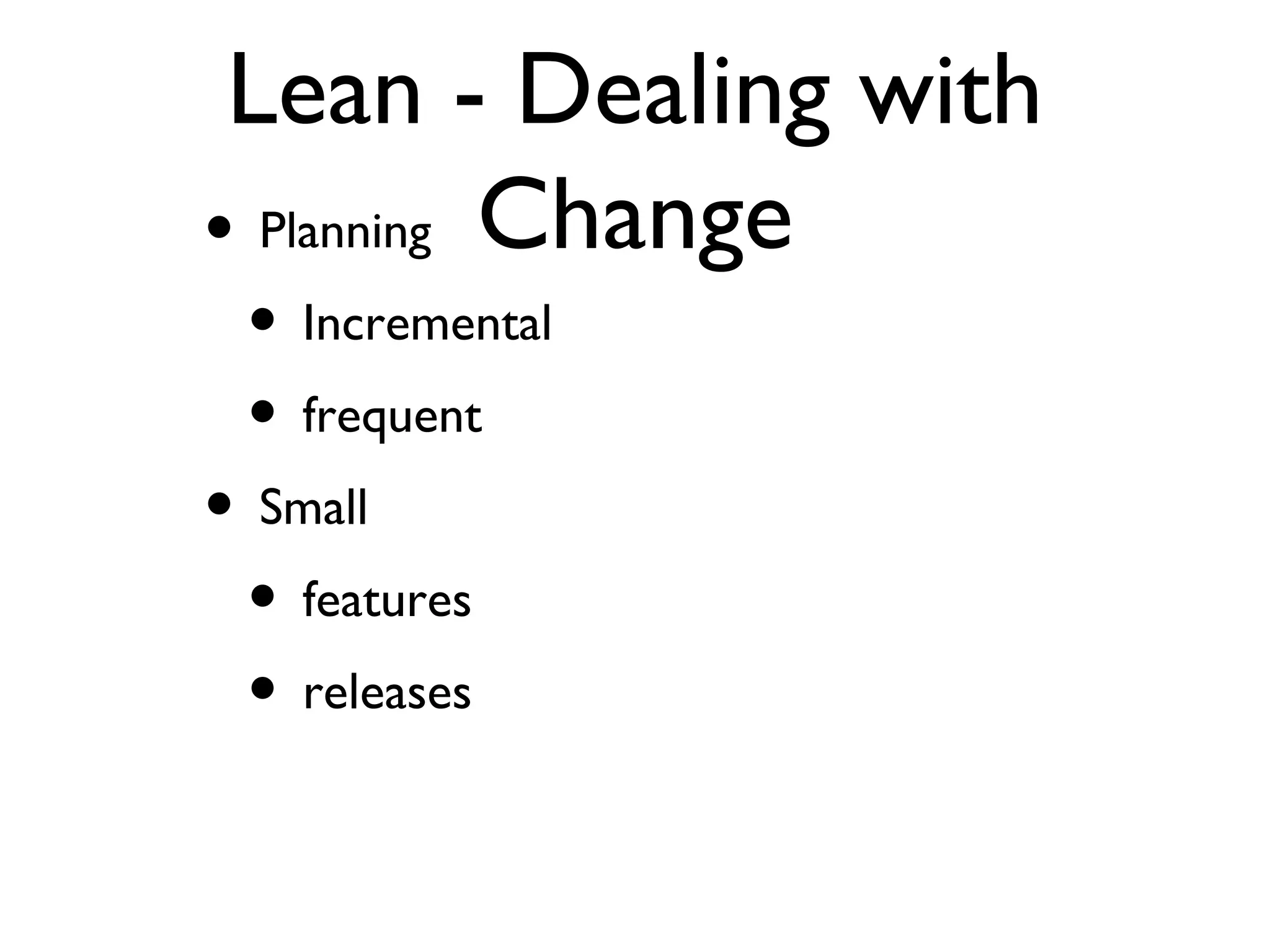

3. Lean - Dealing with Change Planning Incremental frequent Small features releases

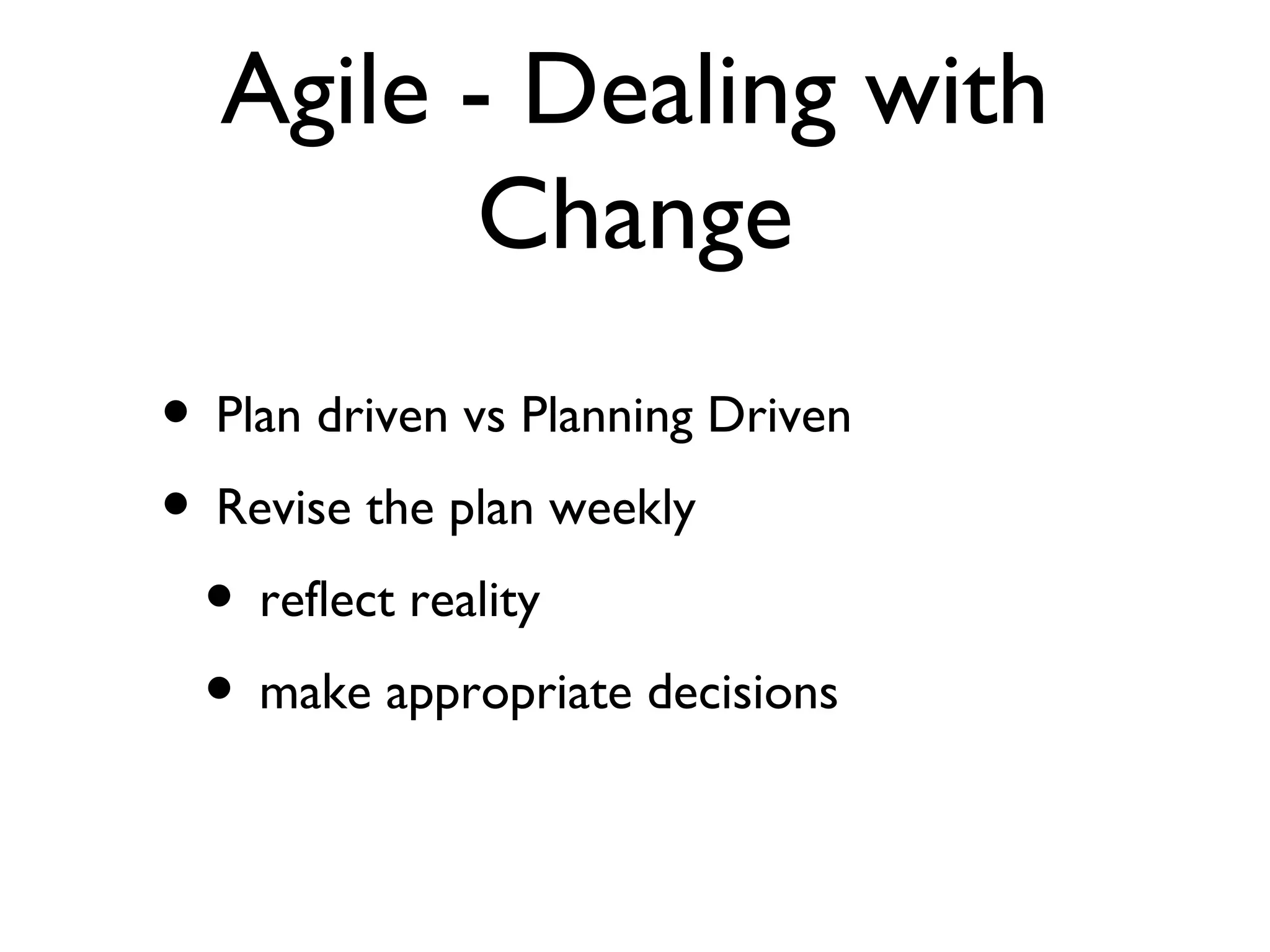

4. Agile - Dealing with Change Plan driven vs Planning Driven Revise the plan weekly reflect reality make appropriate decisions

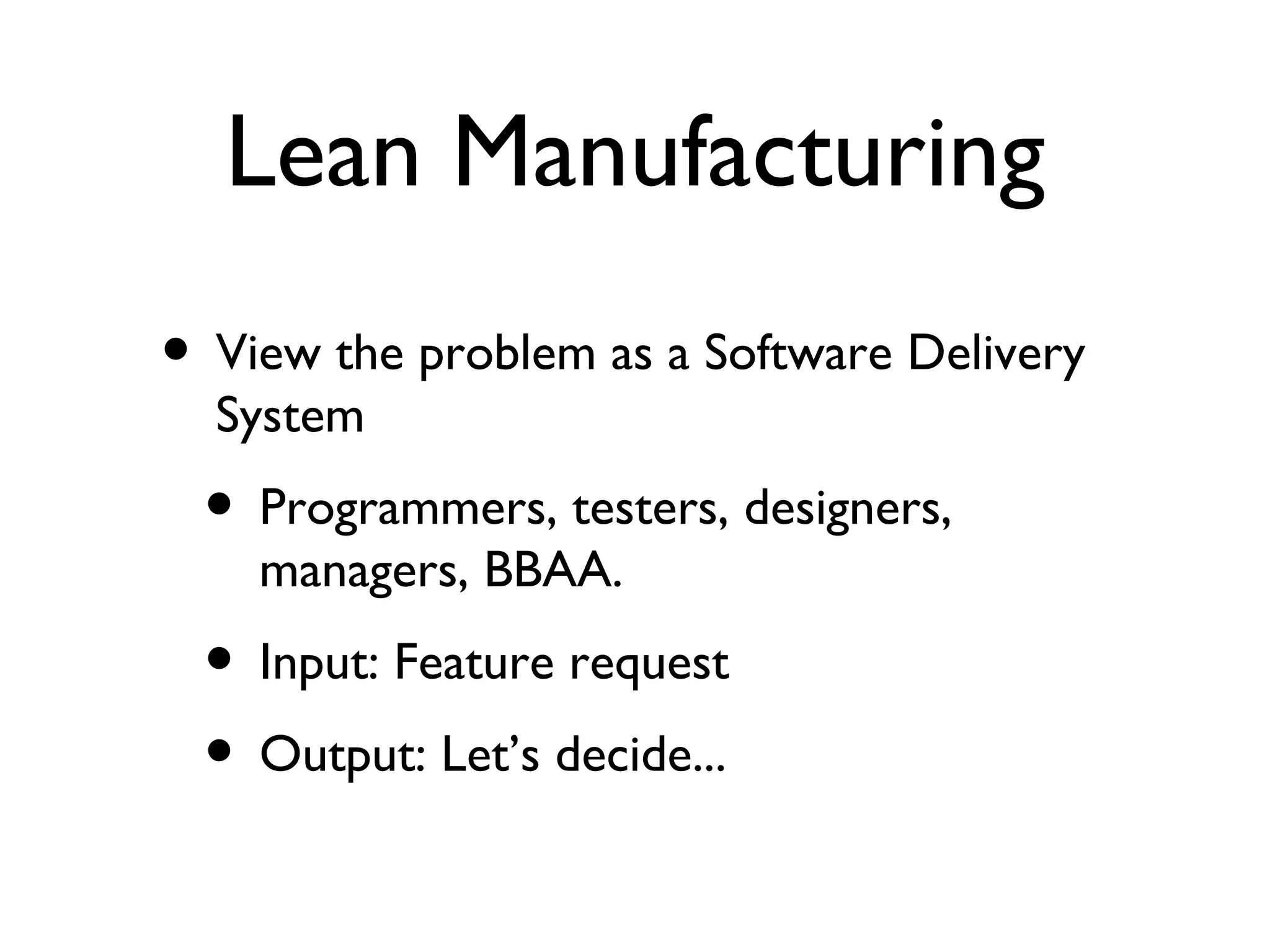

5. Lean Manufacturing View the problem as a Software Delivery System Programmers, testers, designers, managers, BBAA. Input: Feature request Output: Let’s decide...

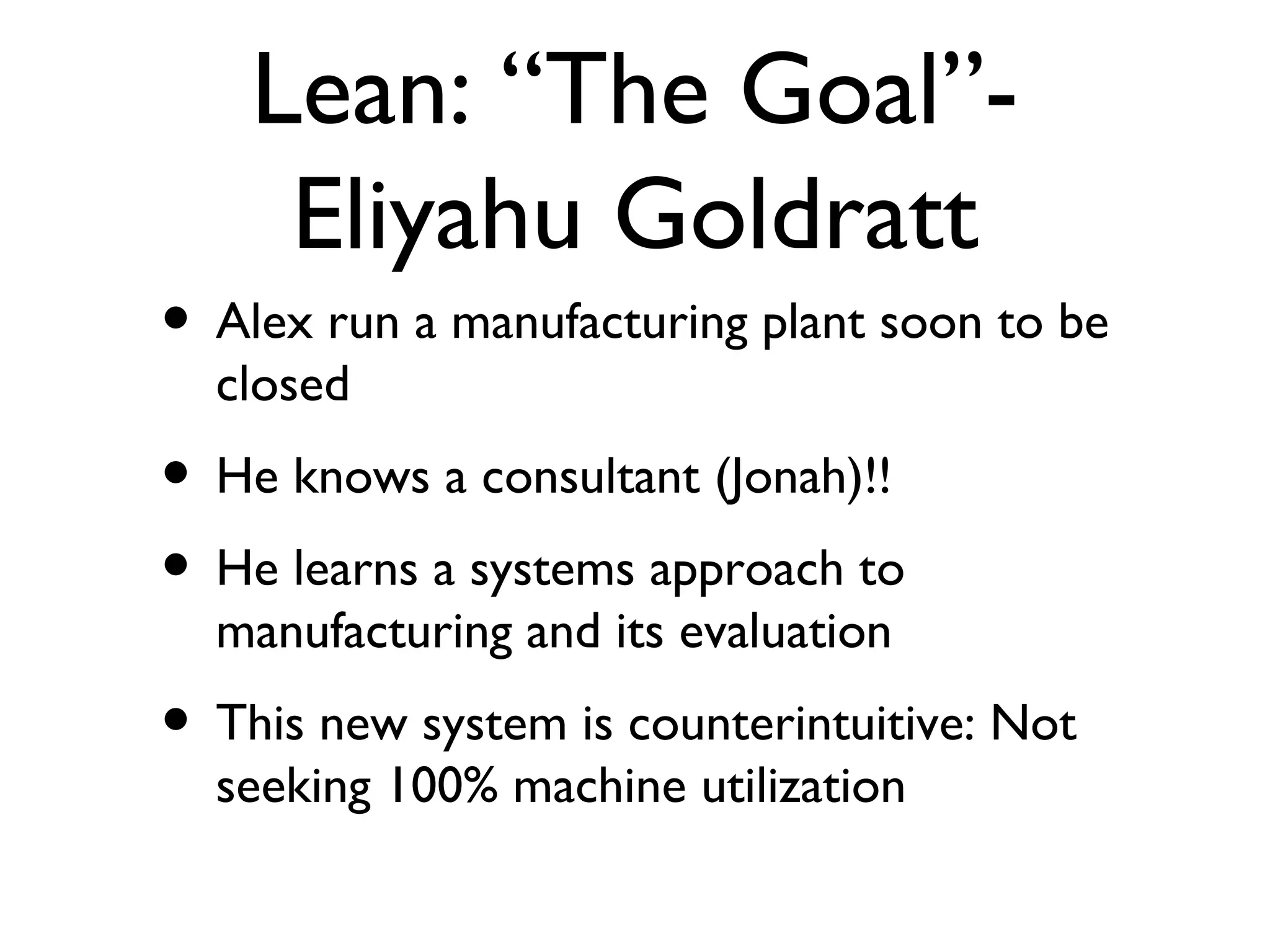

6. Lean: “The Goal”- Eliyahu Goldratt Alex run a manufacturing plant soon to be closed He knows a consultant (Jonah)!! He learns a systems approach to manufacturing and its evaluation This new system is counterintuitive: Not seeking 100% machine utilization

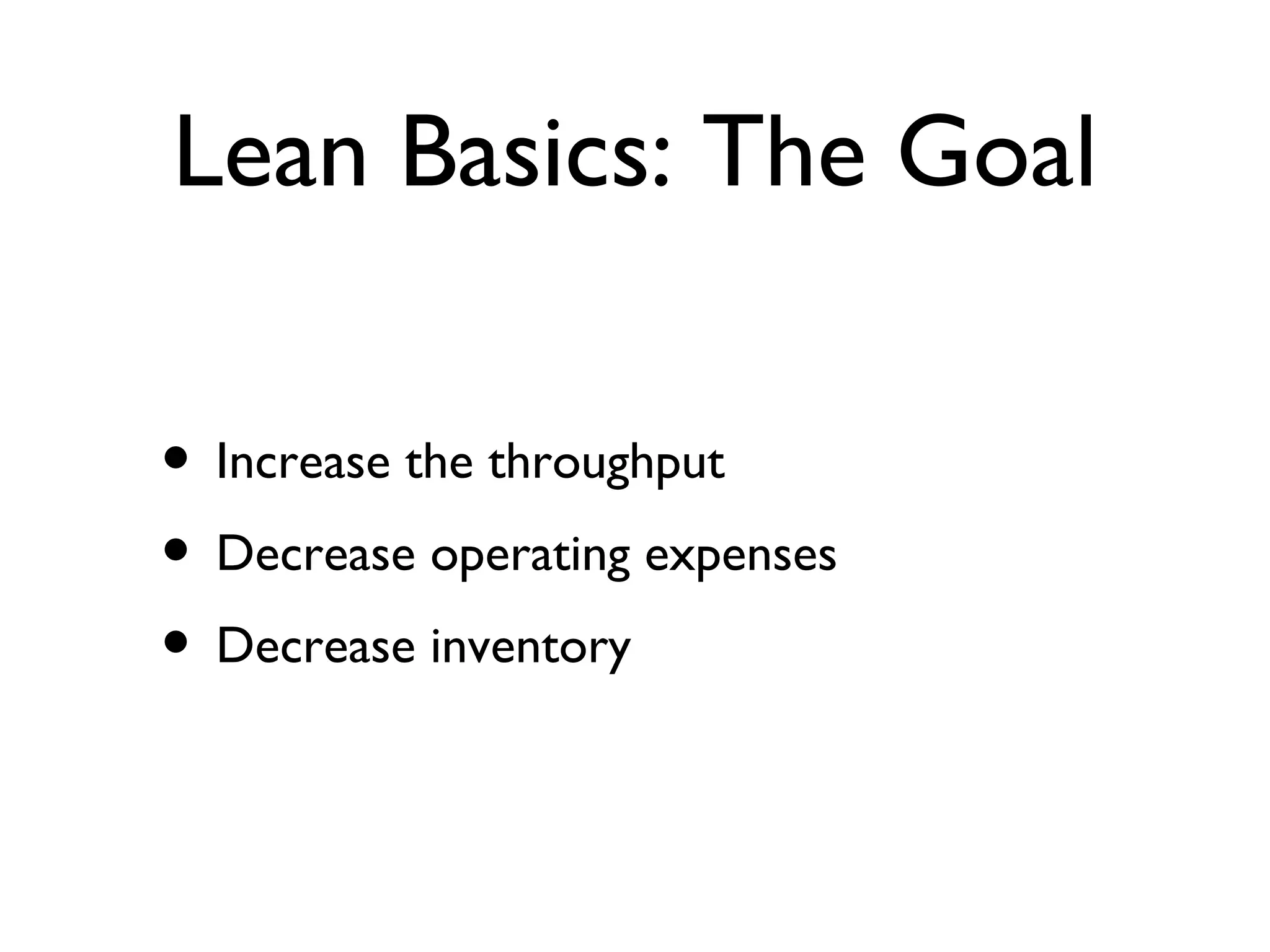

7. Lean Basics: The Goal Increase the throughput Decrease operating expenses Decrease inventory

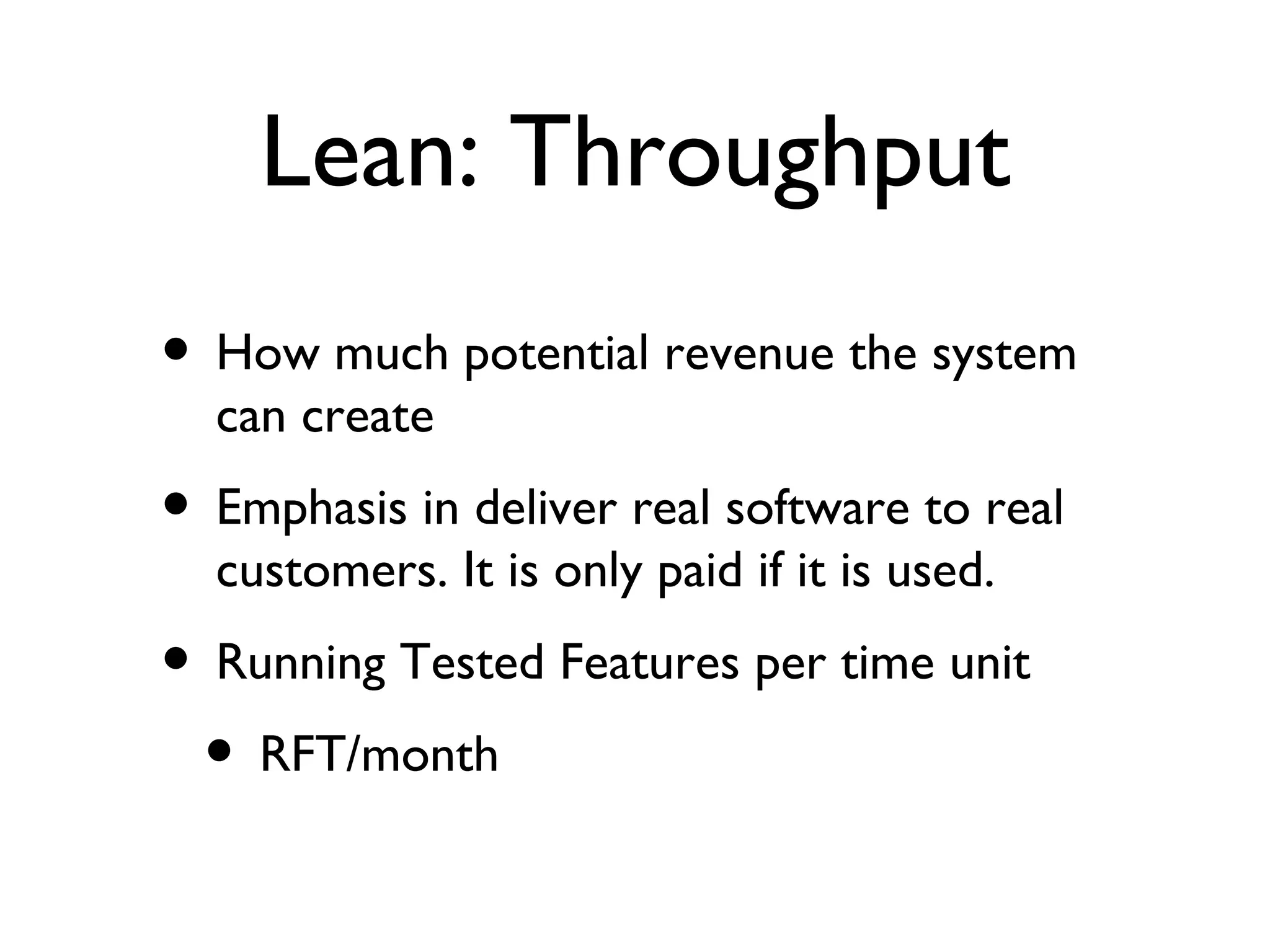

8. Lean: Throughput How much potential revenue the system can create Emphasis in deliver real software to real customers. It is only paid if it is used. Running Tested Features per time unit RFT/month

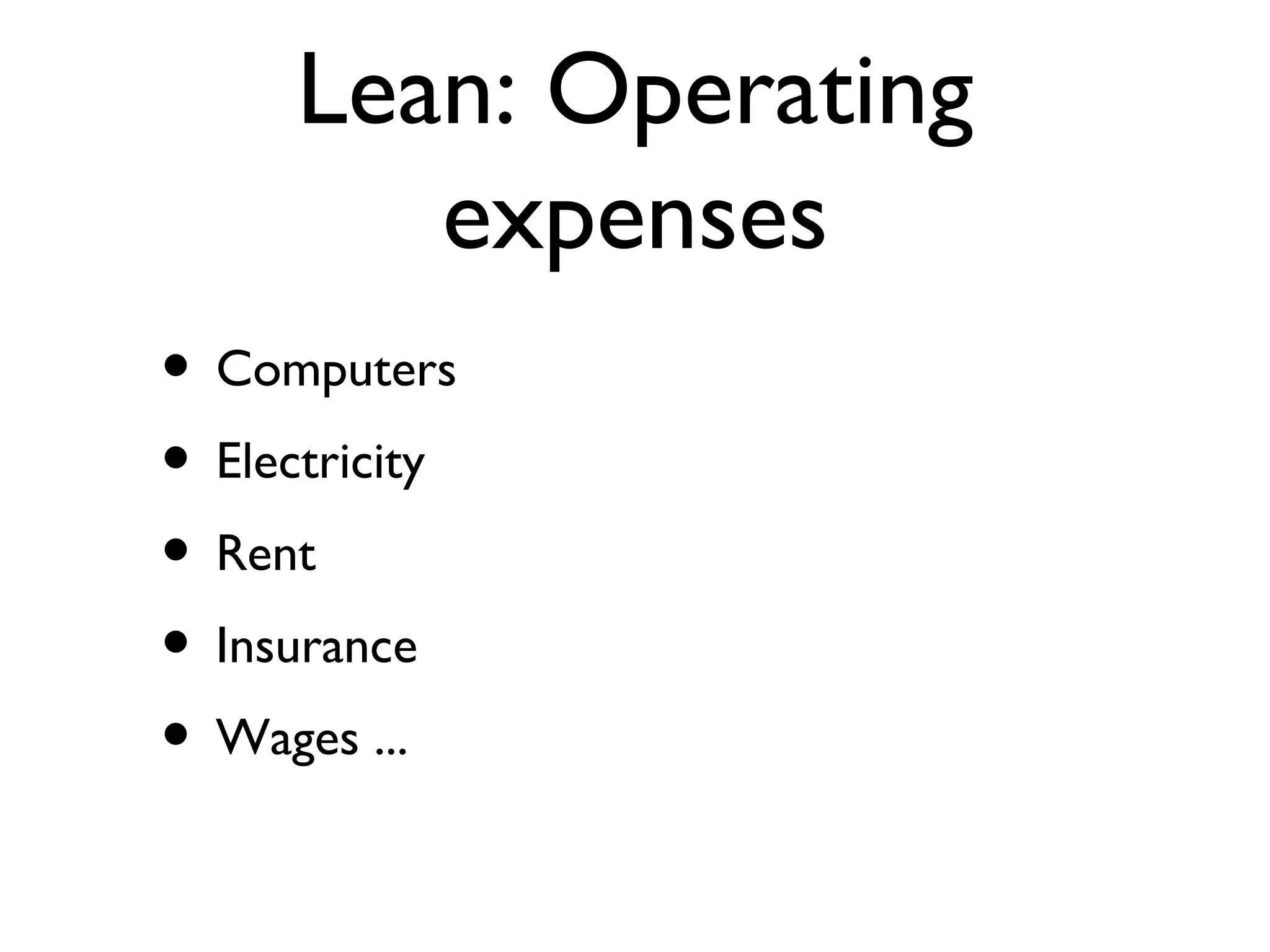

9. Lean: Operating expenses Computers Electricity Rent Insurance Wages ...

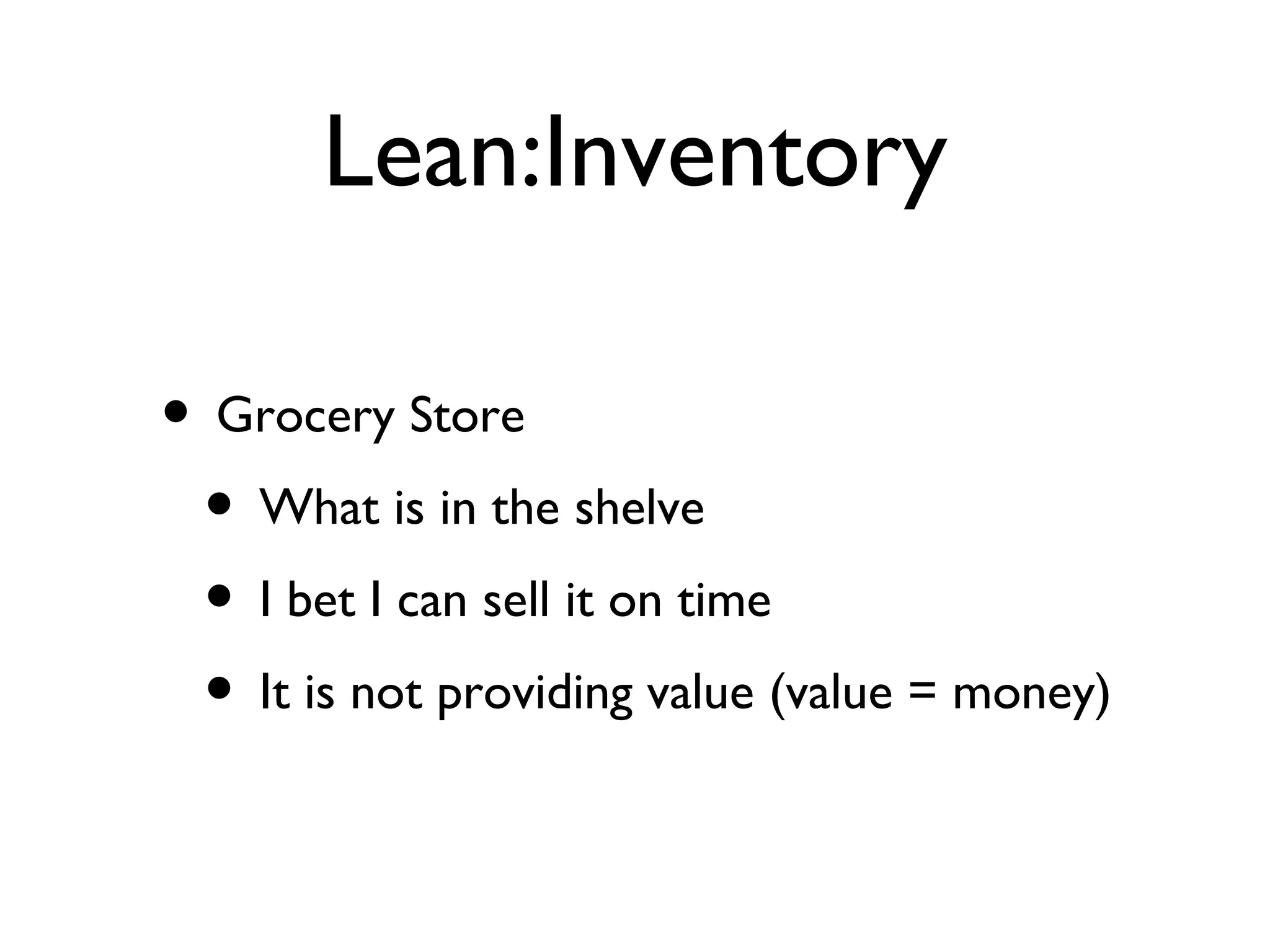

10. Lean:Inventory Grocery Store What is in the shelve I bet I can sell it on time It is not providing value (value = money)

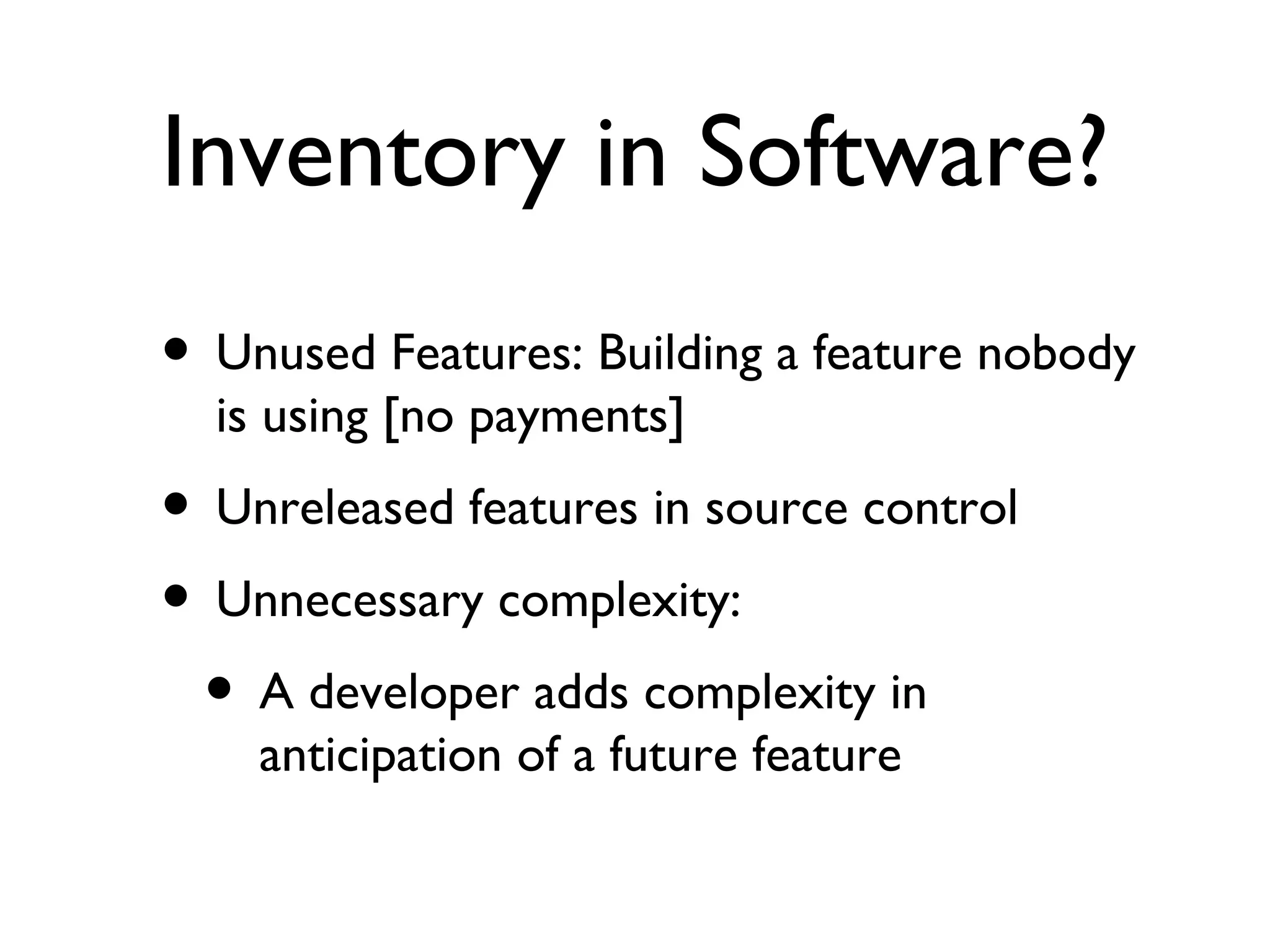

11. Inventory in Software? Unused Features: Building a feature nobody is using [no payments] Unreleased features in source control Unnecessary complexity: A developer adds complexity in anticipation of a future feature

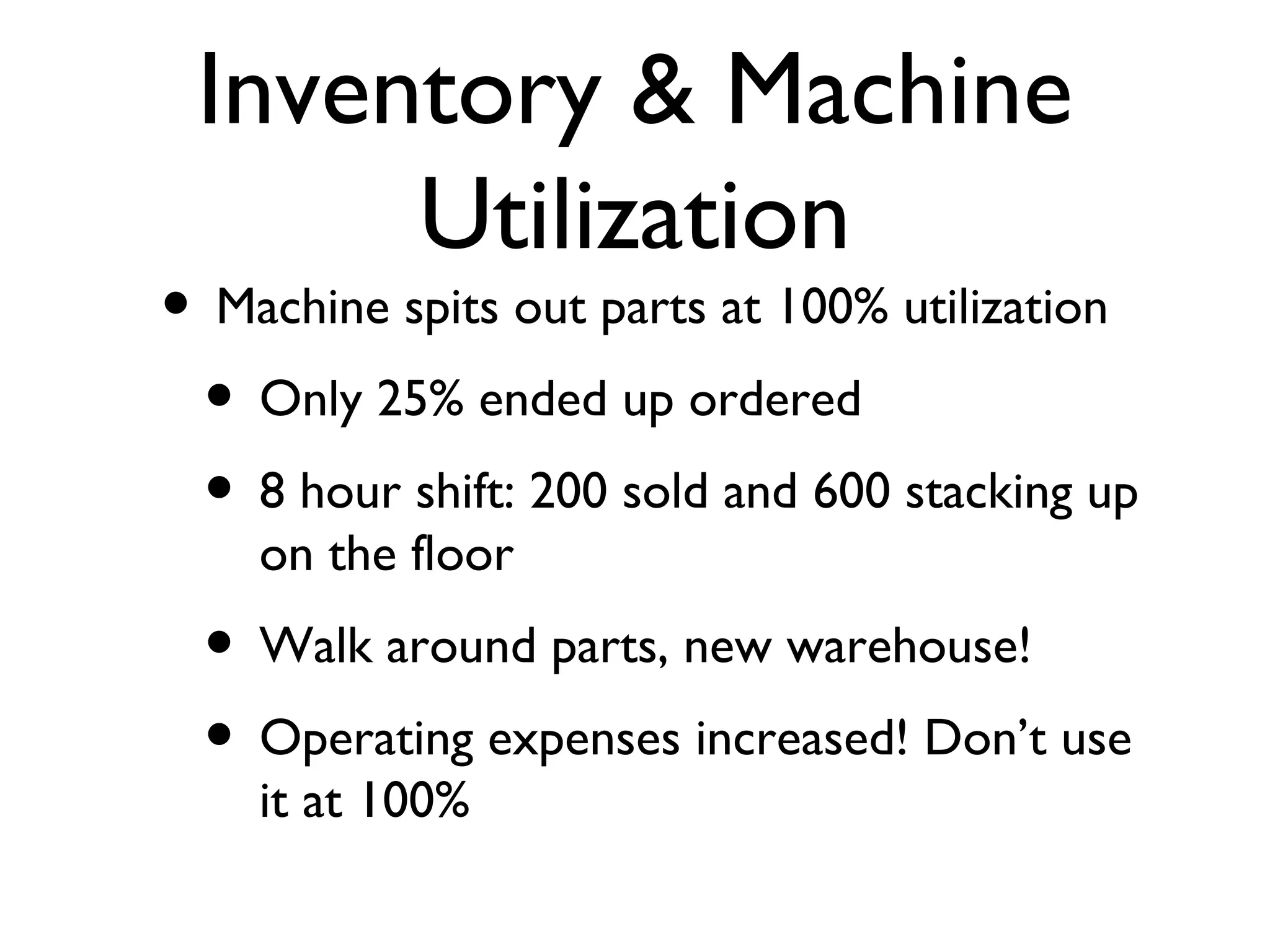

12. Inventory & Machine Utilization Machine spits out parts at 100% utilization Only 25% ended up ordered 8 hour shift: 200 sold and 600 stacking up on the floor Walk around parts, new warehouse! Operating expenses increased! Don’t use it at 100%

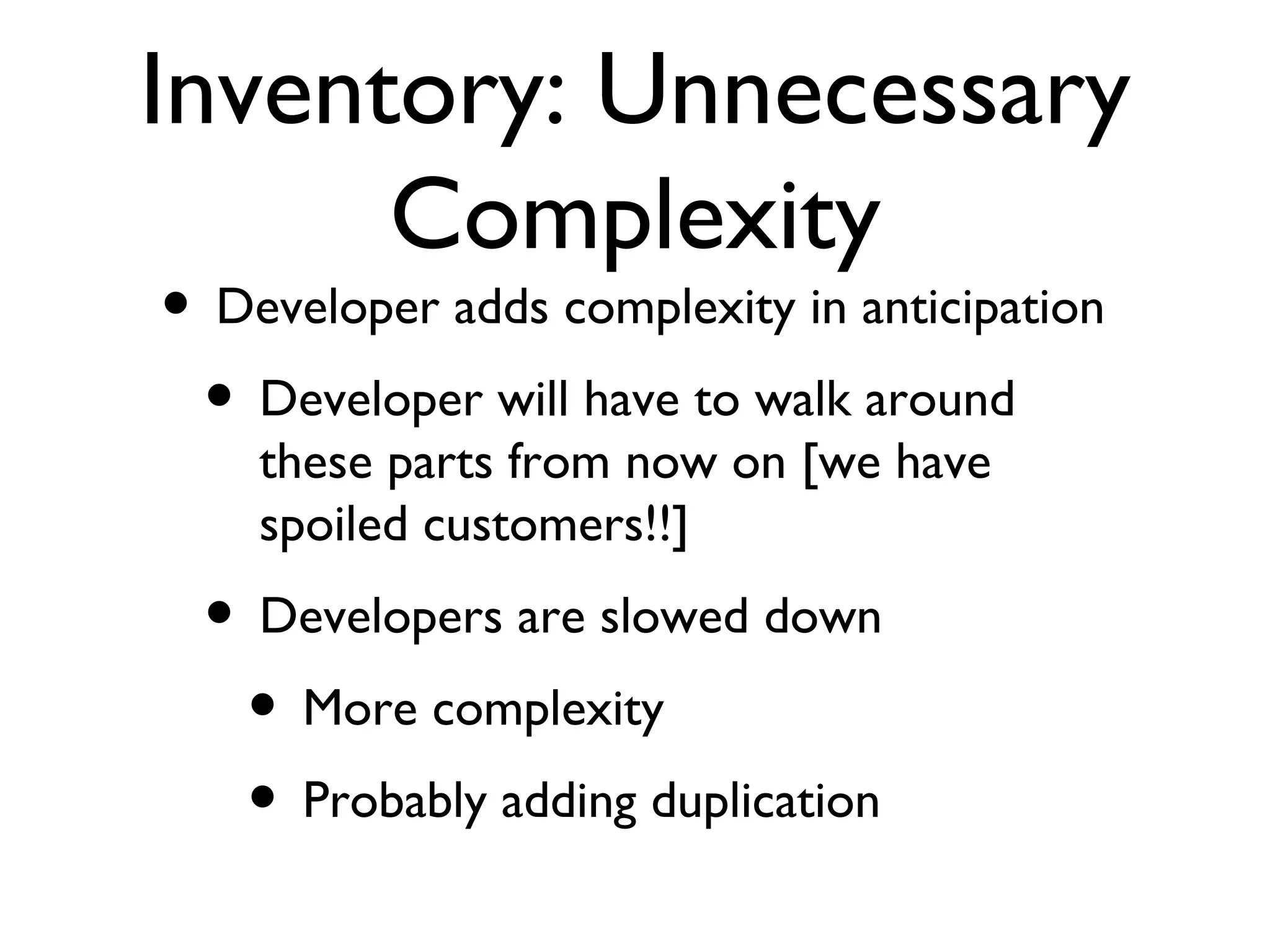

13. Inventory: Unnecessary Complexity Developer adds complexity in anticipation Developer will have to walk around these parts from now on [we have spoiled customers!!] Developers are slowed down More complexity Probably adding duplication

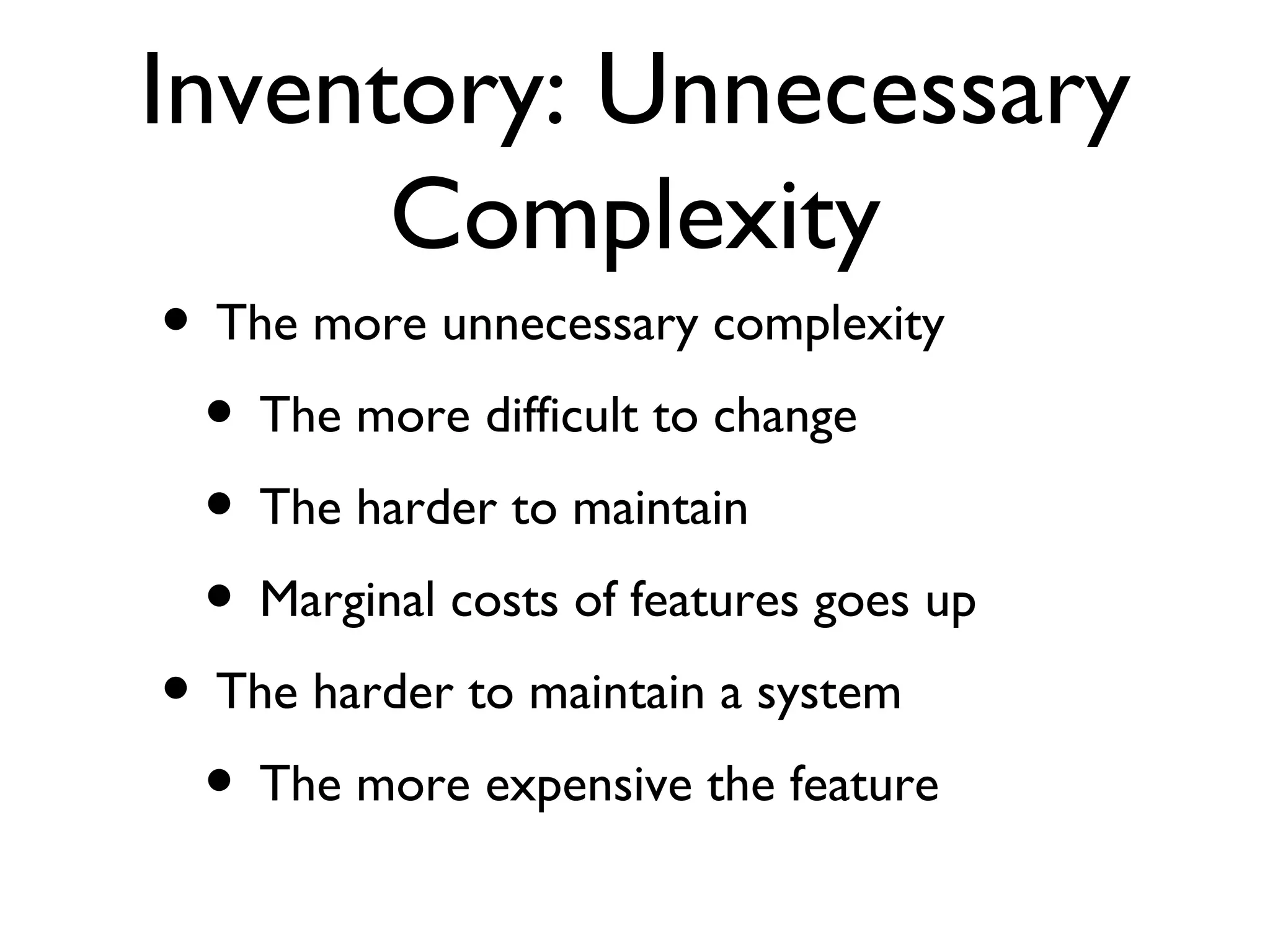

14. Inventory: Unnecessary Complexity The more unnecessary complexity The more difficult to change The harder to maintain Marginal costs of features goes up The harder to maintain a system The more expensive the feature

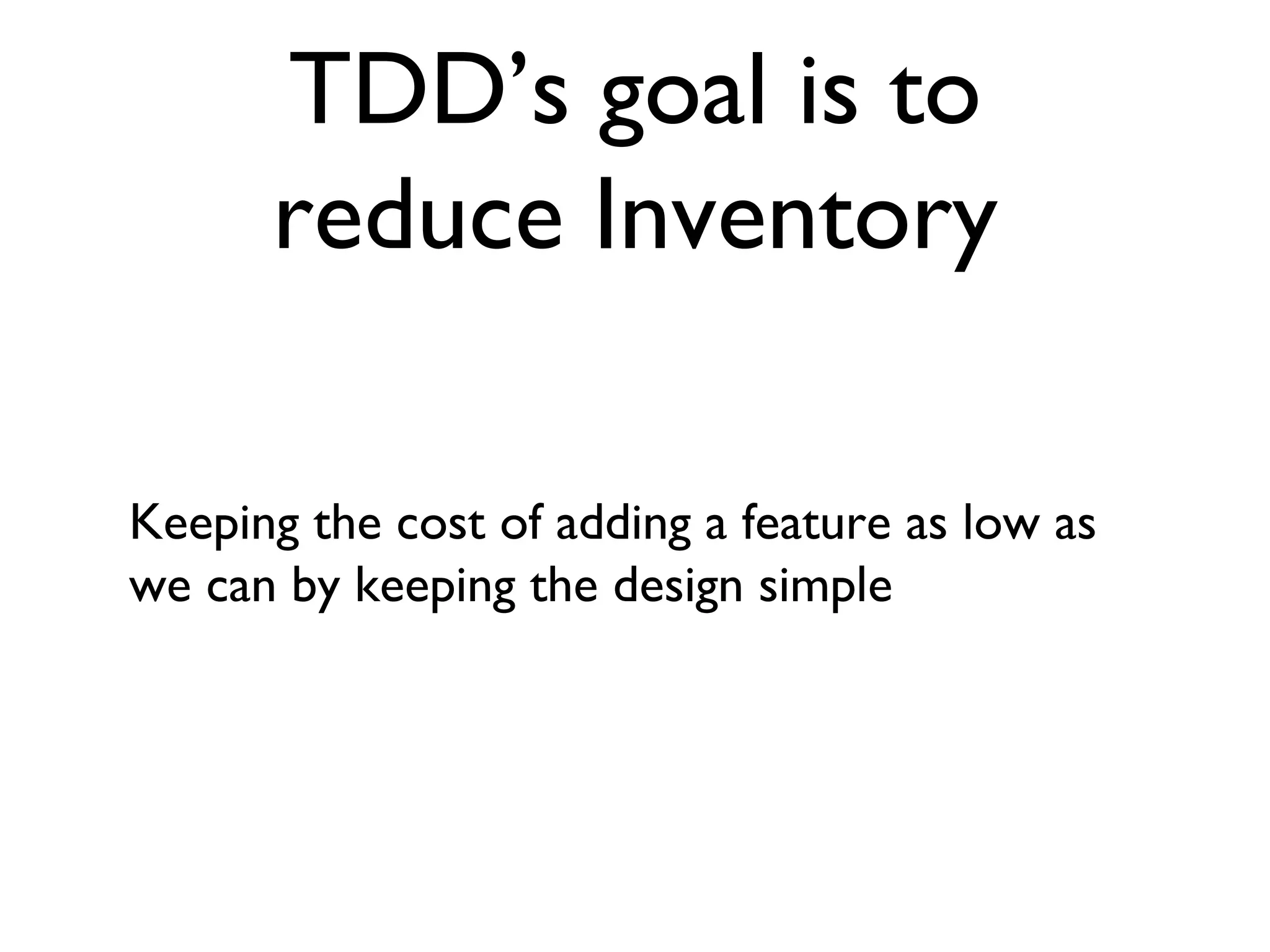

15. TDD’s goal is to reduce Inventory Keeping the cost of adding a feature as low as we can by keeping the design simple

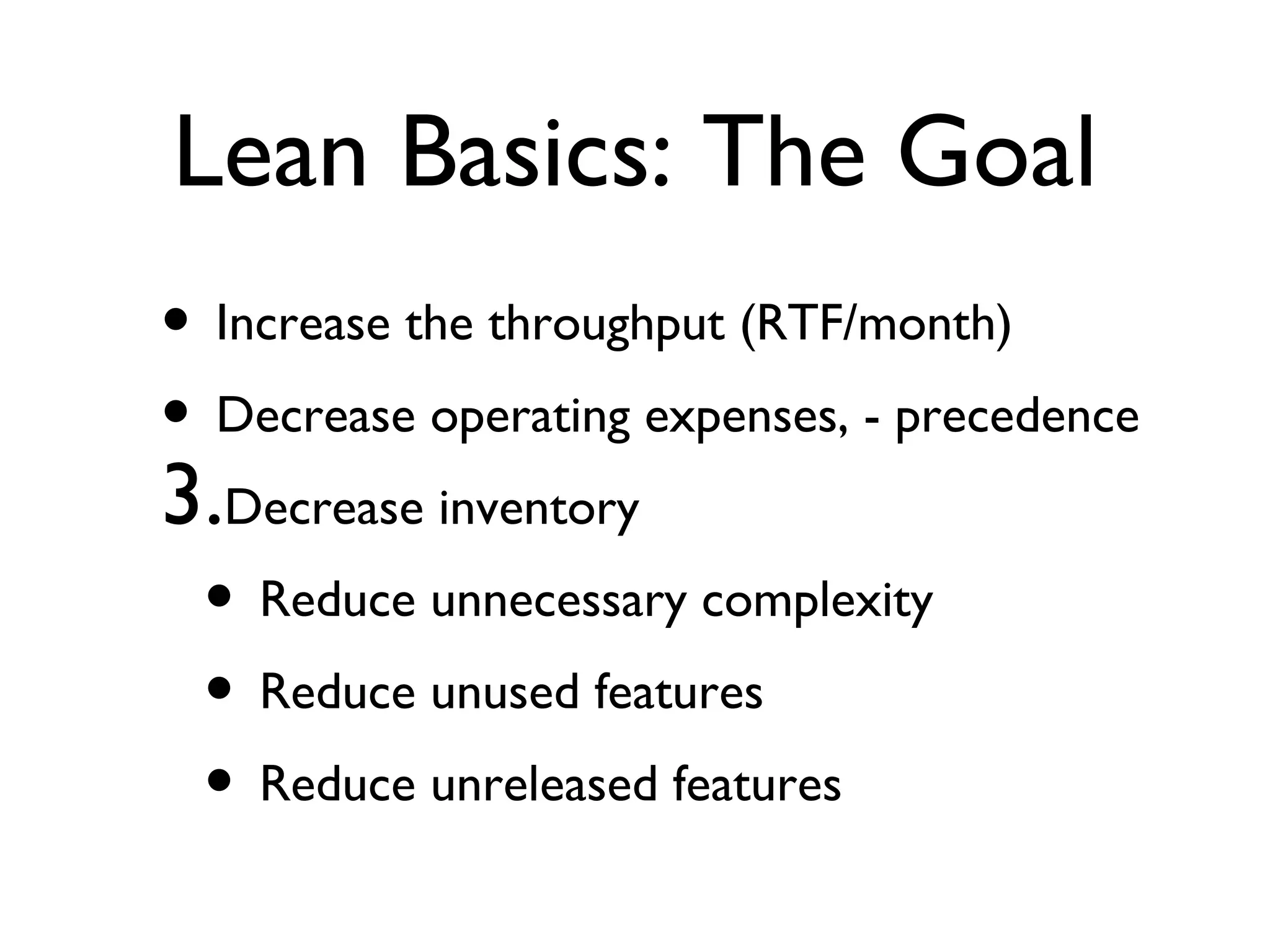

16. Lean Basics: The Goal Increase the throughput (RTF/month) Decrease operating expenses, - precedence Decrease inventory Reduce unnecessary complexity Reduce unused features Reduce unreleased features

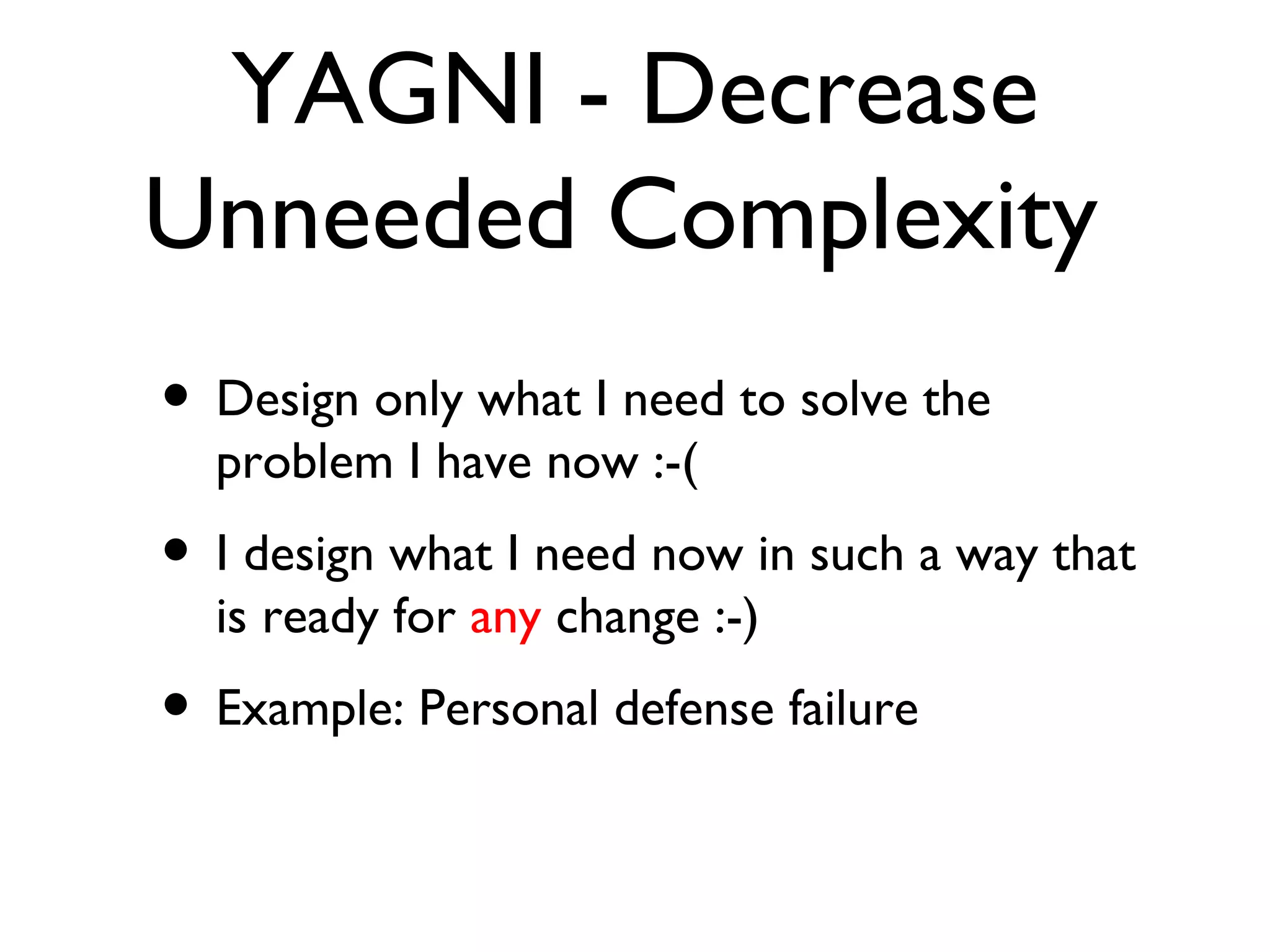

17. YAGNI - Decrease Unneeded Complexity Design only what I need to solve the problem I have now :-( I design what I need now in such a way that is ready for any change :-) Example: Personal defense failure

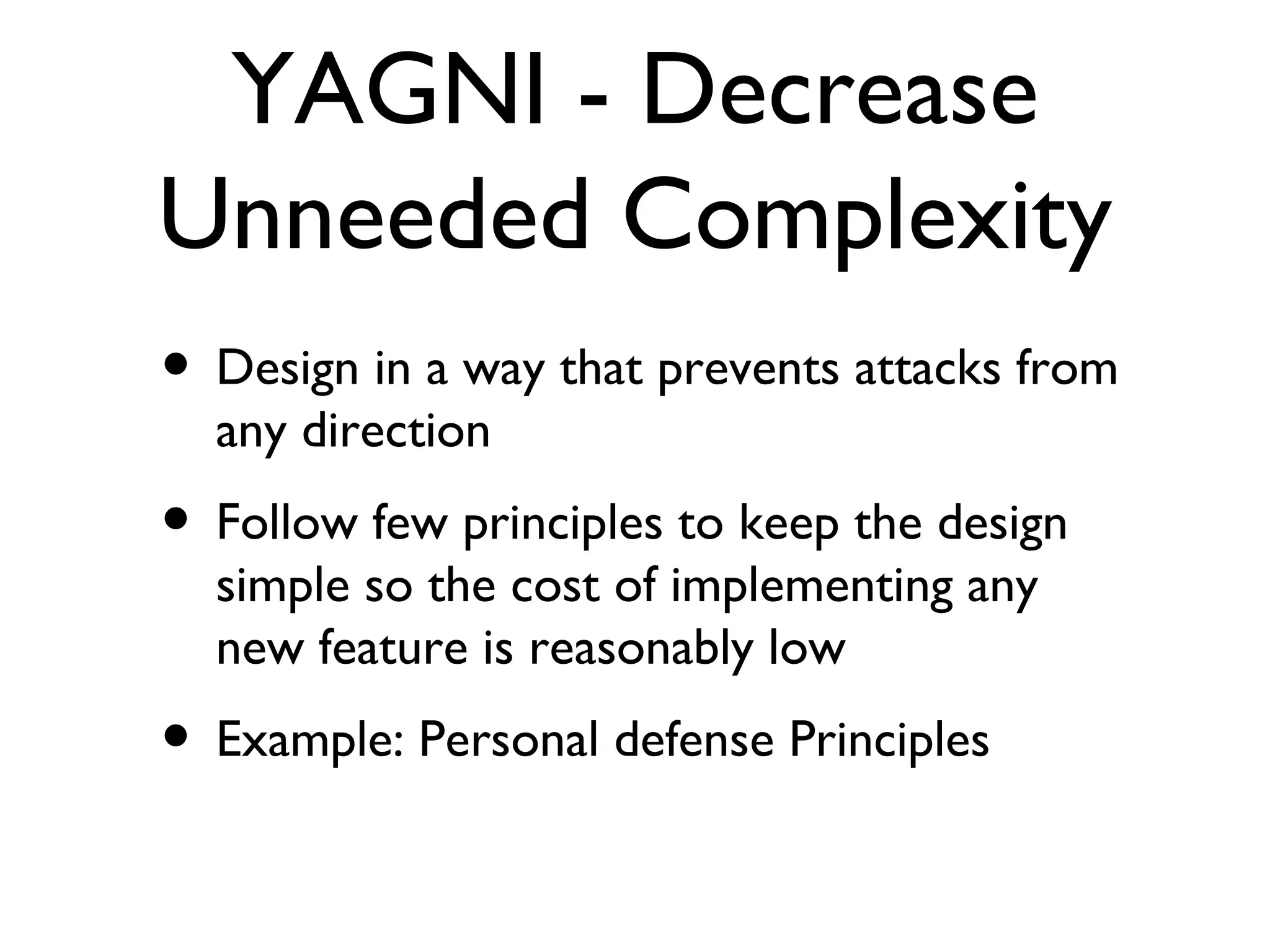

18. YAGNI - Decrease Unneeded Complexity Design in a way that prevents attacks from any direction Follow few principles to keep the design simple so the cost of implementing any new feature is reasonably low Example: Personal defense Principles

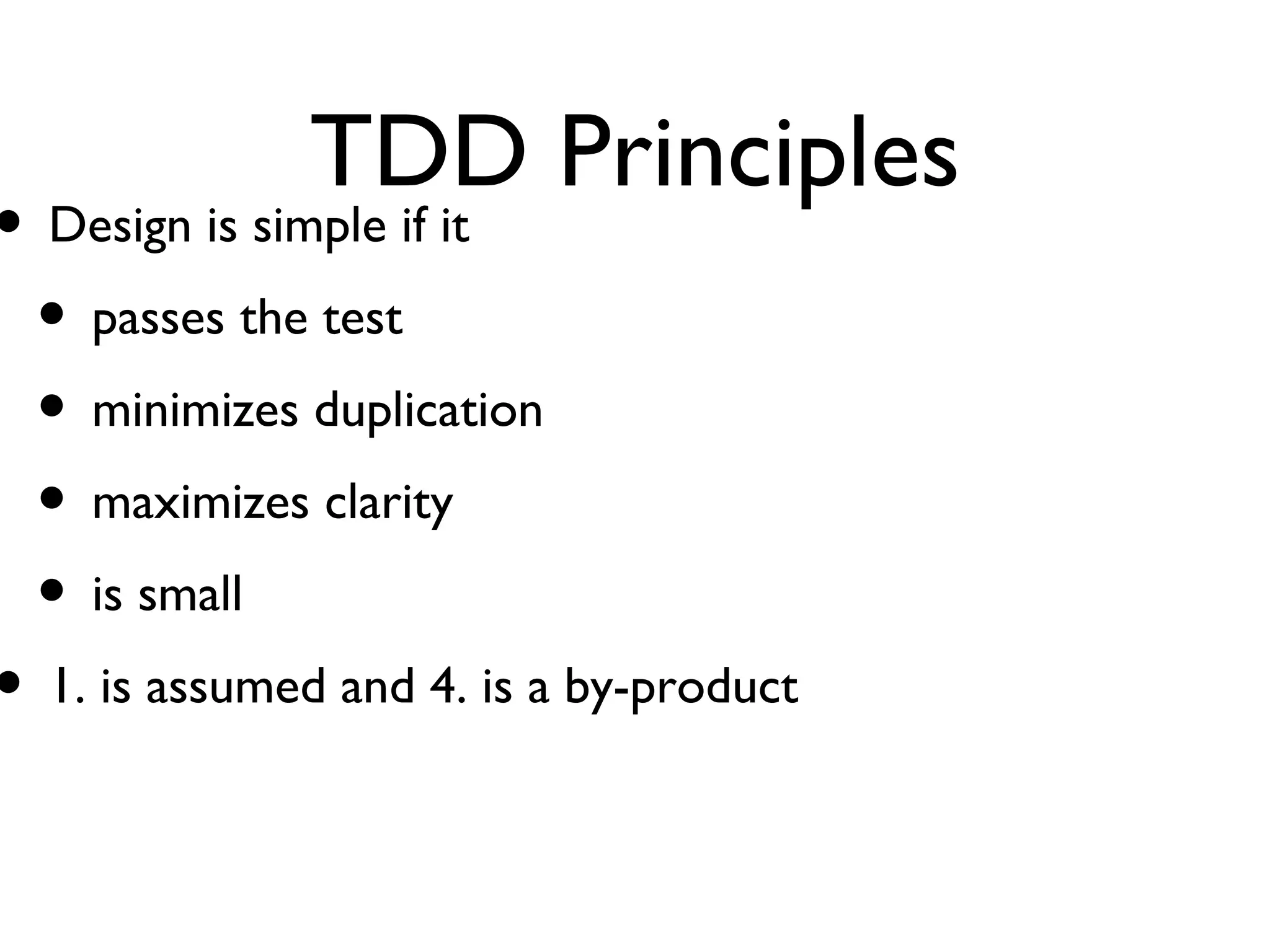

19. TDD Principles Design is simple if it passes the test minimizes duplication maximizes clarity is small 1. is assumed and 4. is a by-product

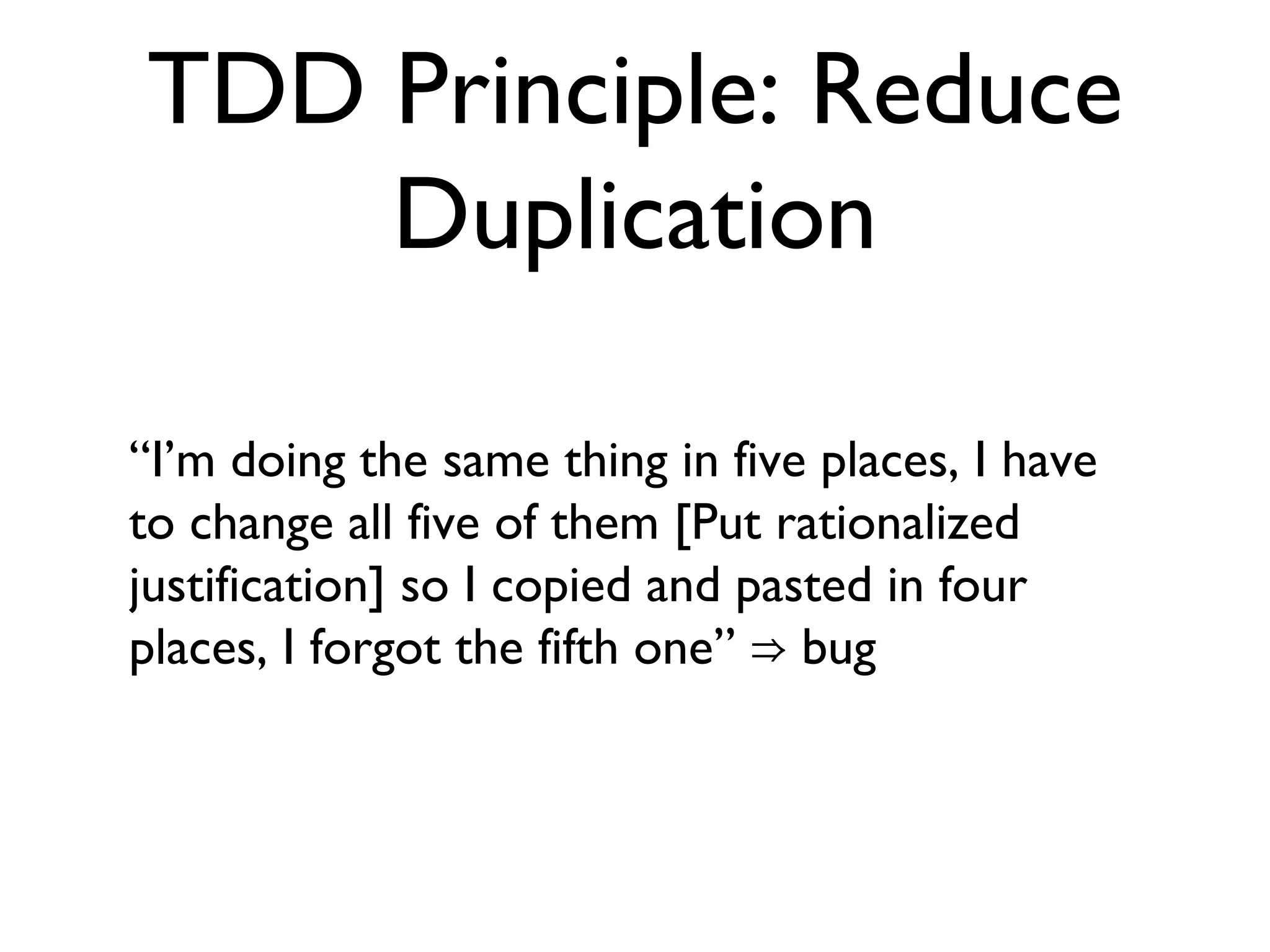

20. TDD Principle: Reduce Duplication “ I’m doing the same thing in five places, I have to change all five of them [Put rationalized justification] so I copied and pasted in four places, I forgot the fifth one” ⇒ bug

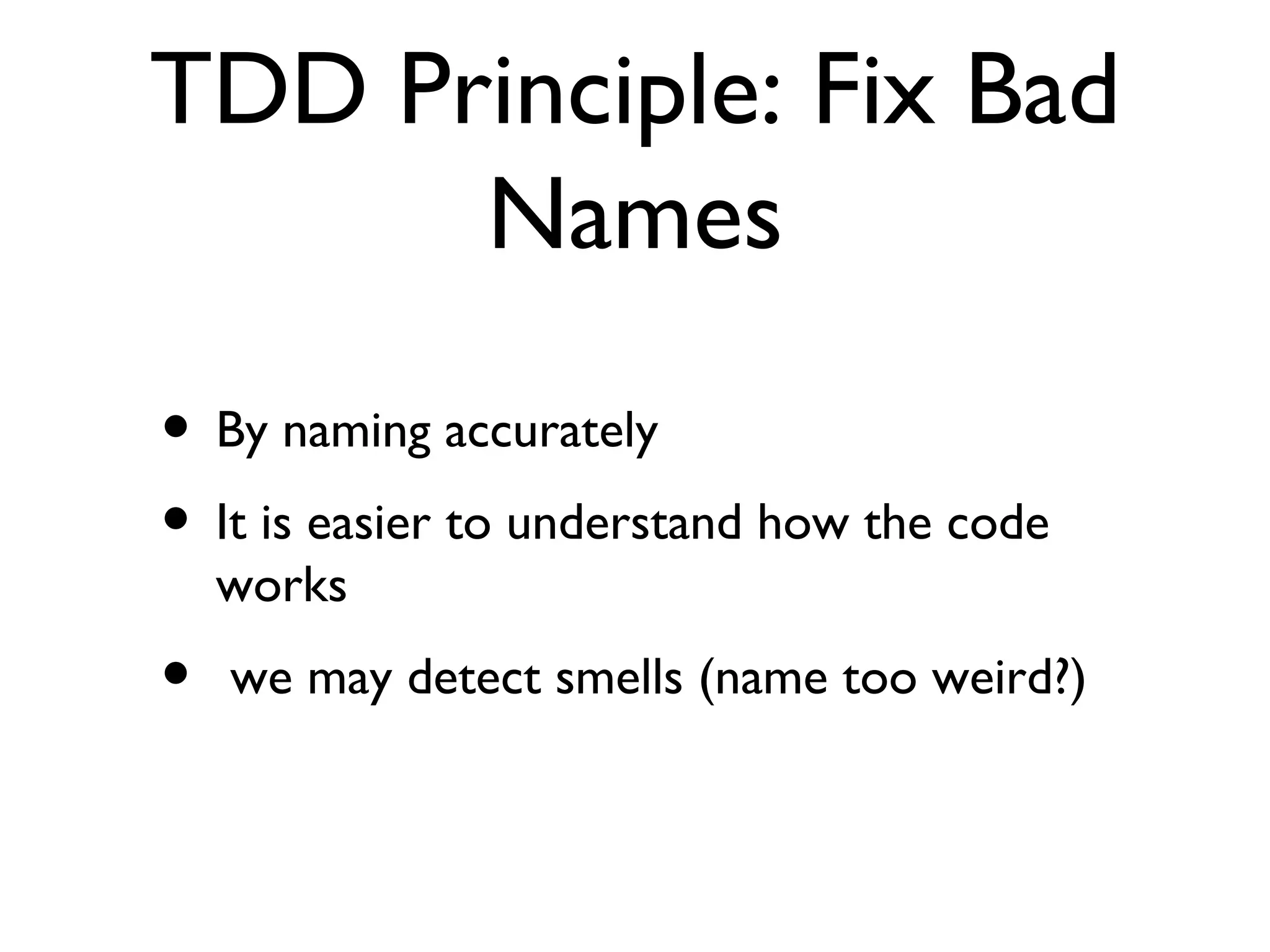

21. TDD Principle: Fix Bad Names By naming accurately It is easier to understand how the code works we may detect smells (name too weird?)

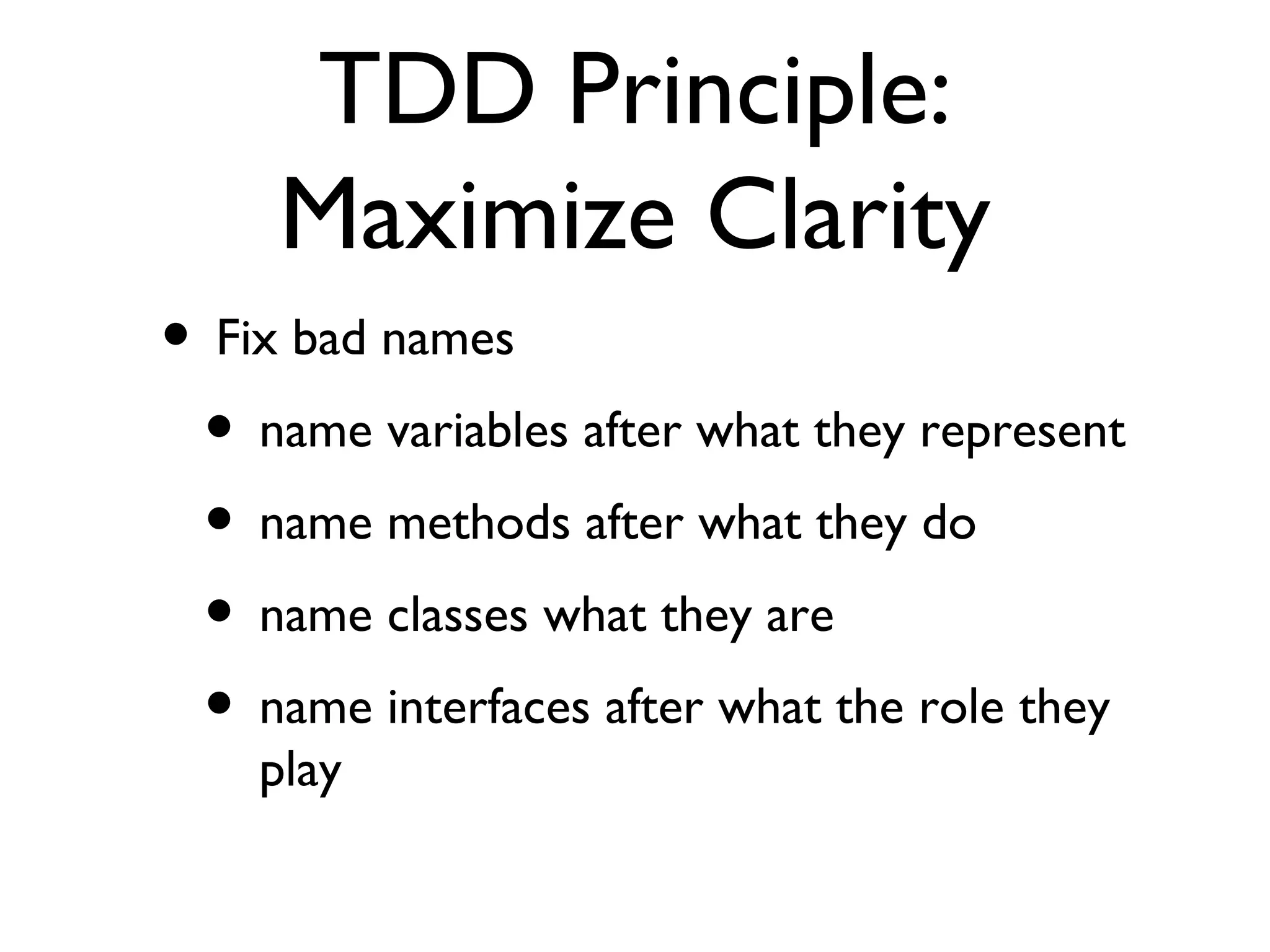

22. TDD Principle: Maximize Clarity Fix bad names name variables after what they represent name methods after what they do name classes what they are name interfaces after what the role they play

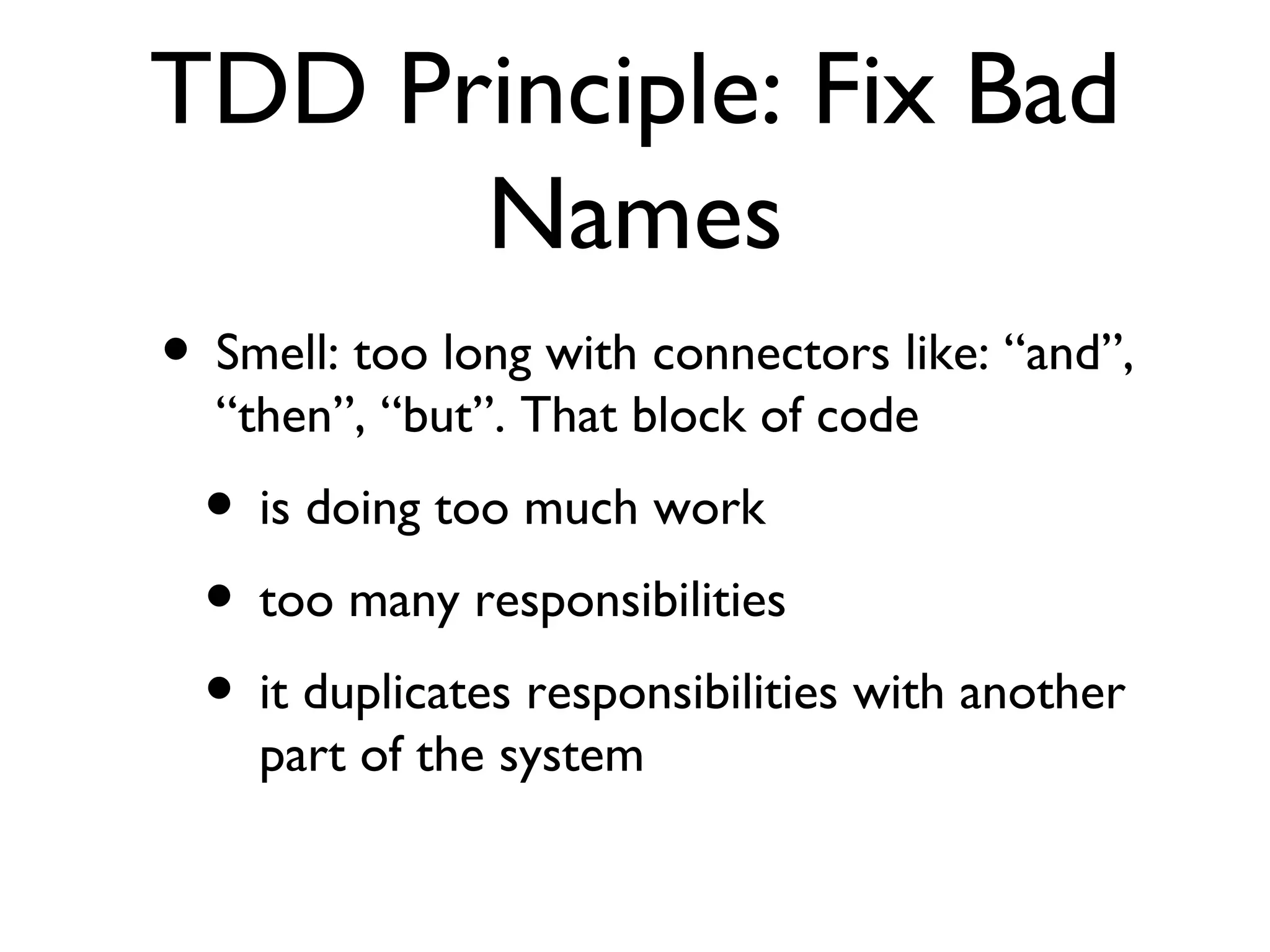

23. TDD Principle: Fix Bad Names Smell: too long with connectors like: “and”, “then”, “but”. That block of code is doing too much work too many responsibilities it duplicates responsibilities with another part of the system

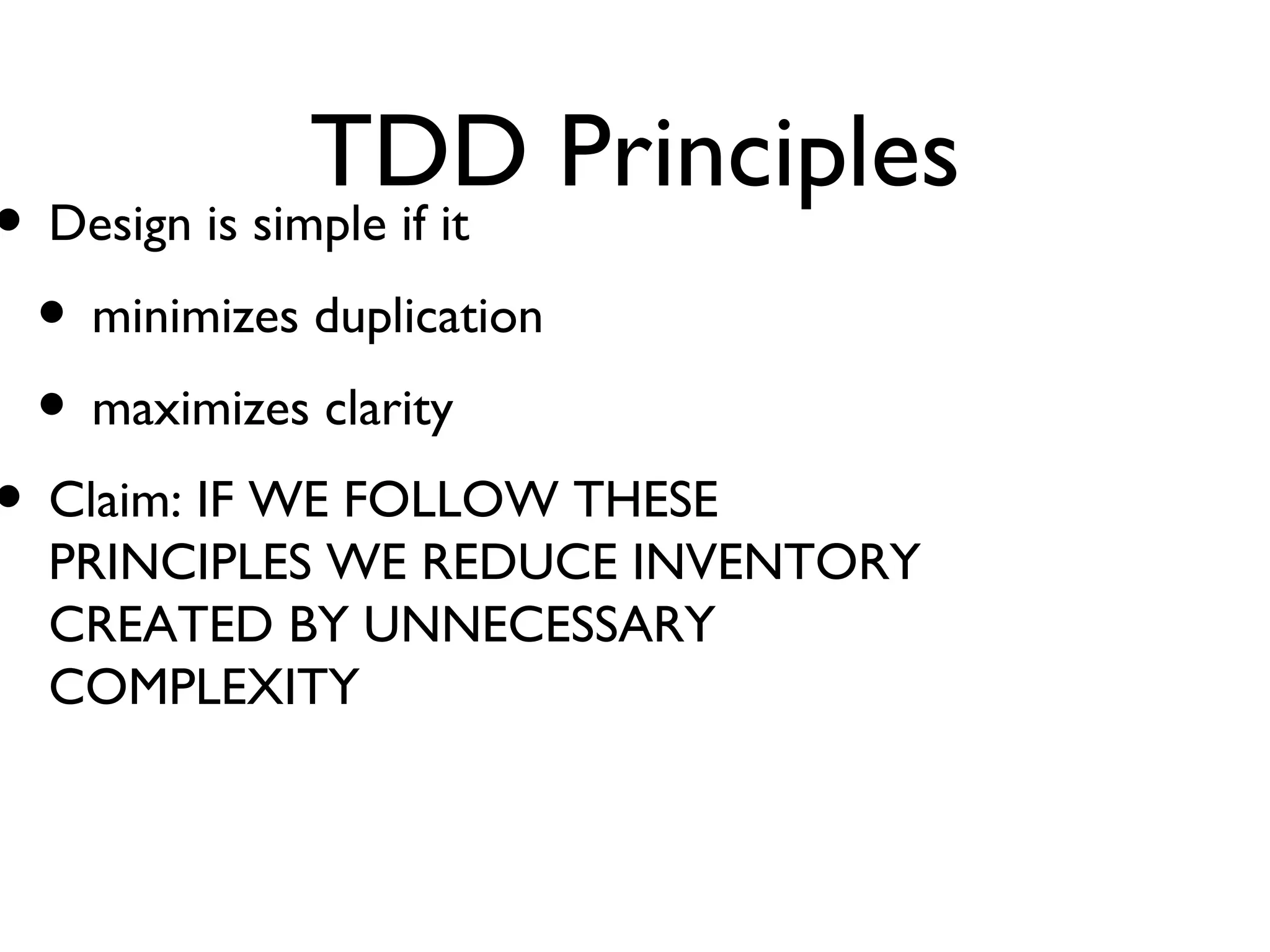

24. TDD Principles Design is simple if it minimizes duplication maximizes clarity Claim: IF WE FOLLOW THESE PRINCIPLES WE REDUCE INVENTORY CREATED BY UNNECESSARY COMPLEXITY

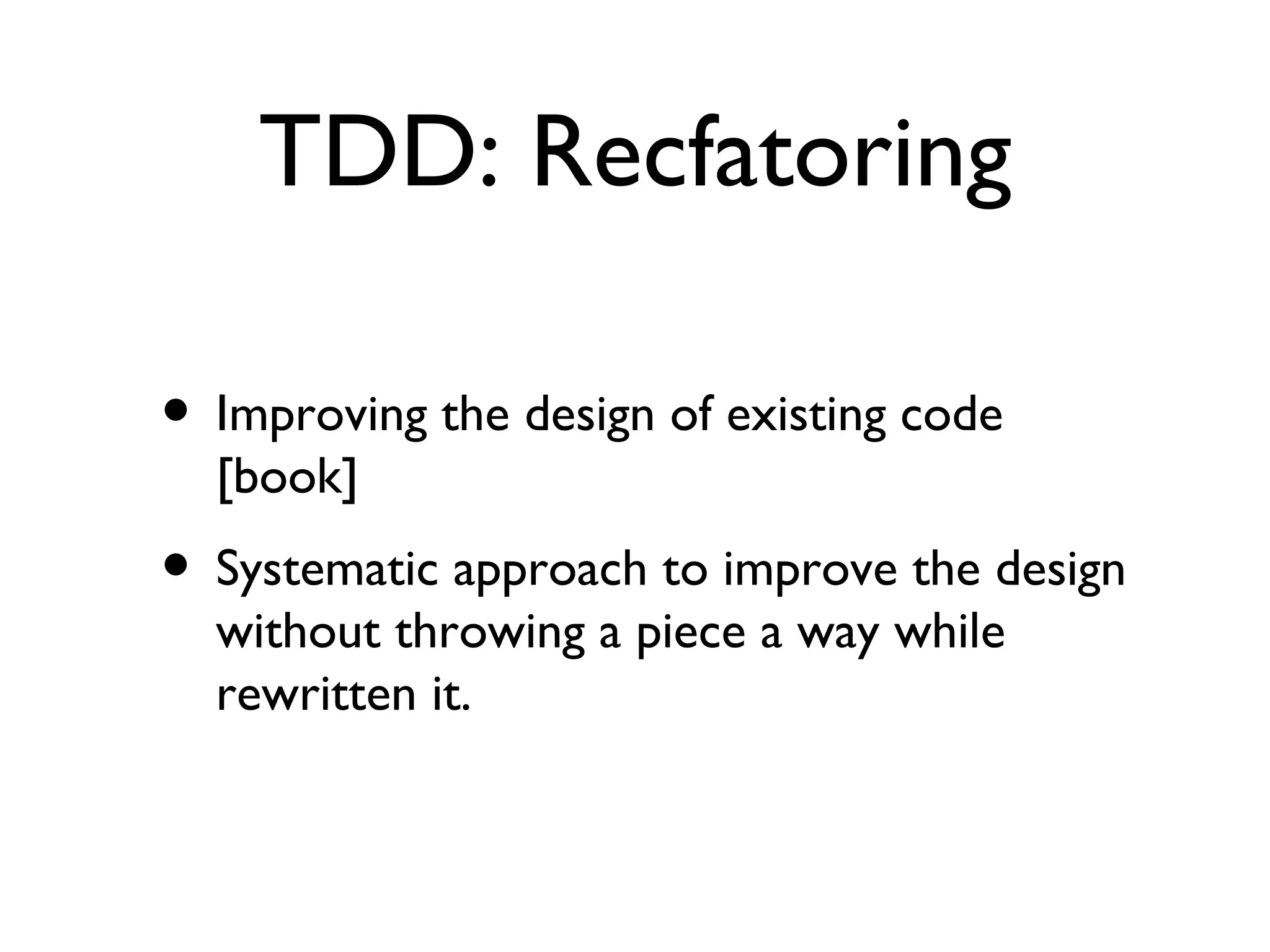

25. TDD: Recfatoring Improving the design of existing code [book] Systematic approach to improve the design without throwing a piece a way while rewritten it.

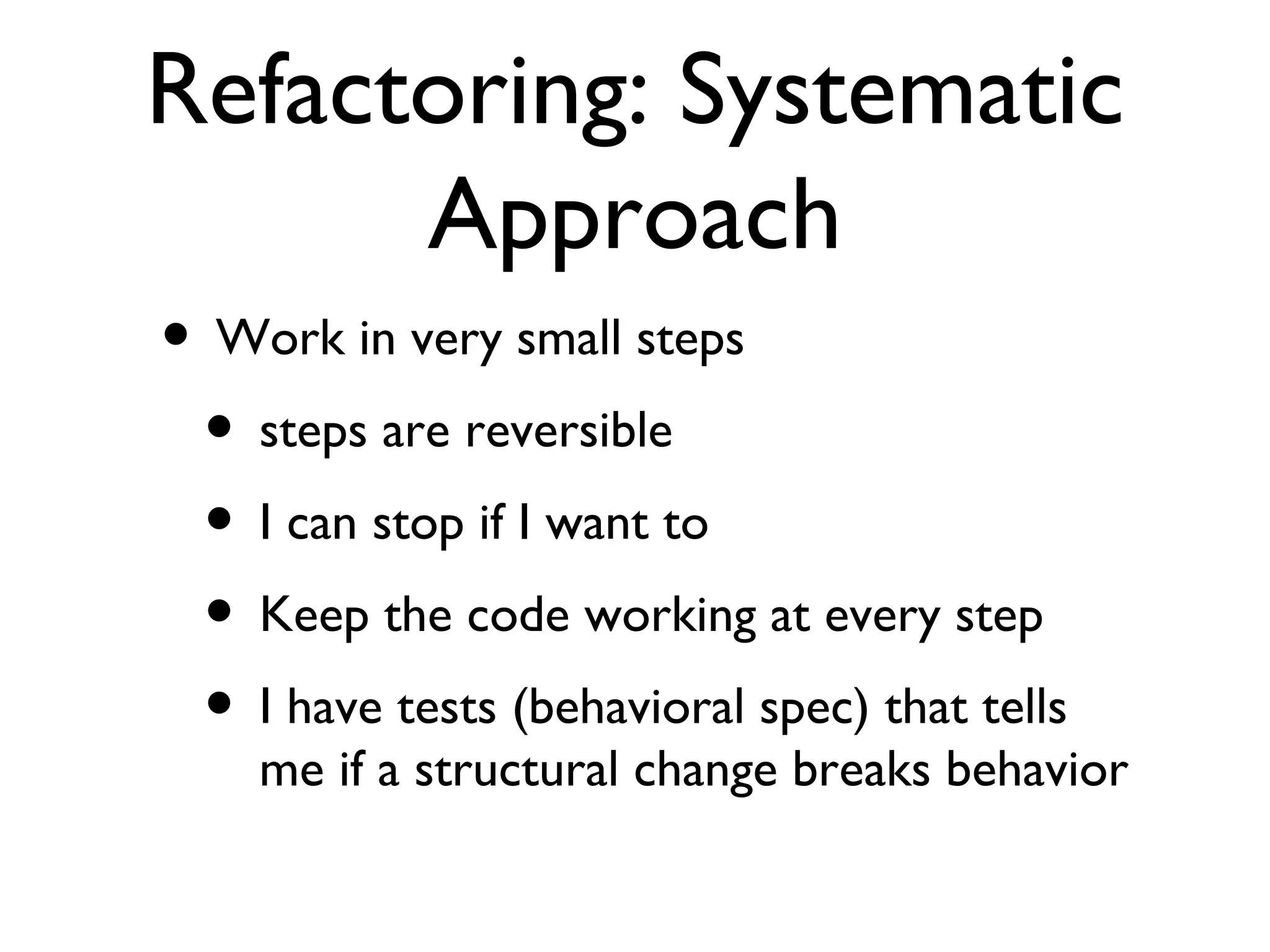

26. Refactoring: Systematic Approach Work in very small steps steps are reversible I can stop if I want to Keep the code working at every step I have tests (behavioral spec) that tells me if a structural change breaks behavior

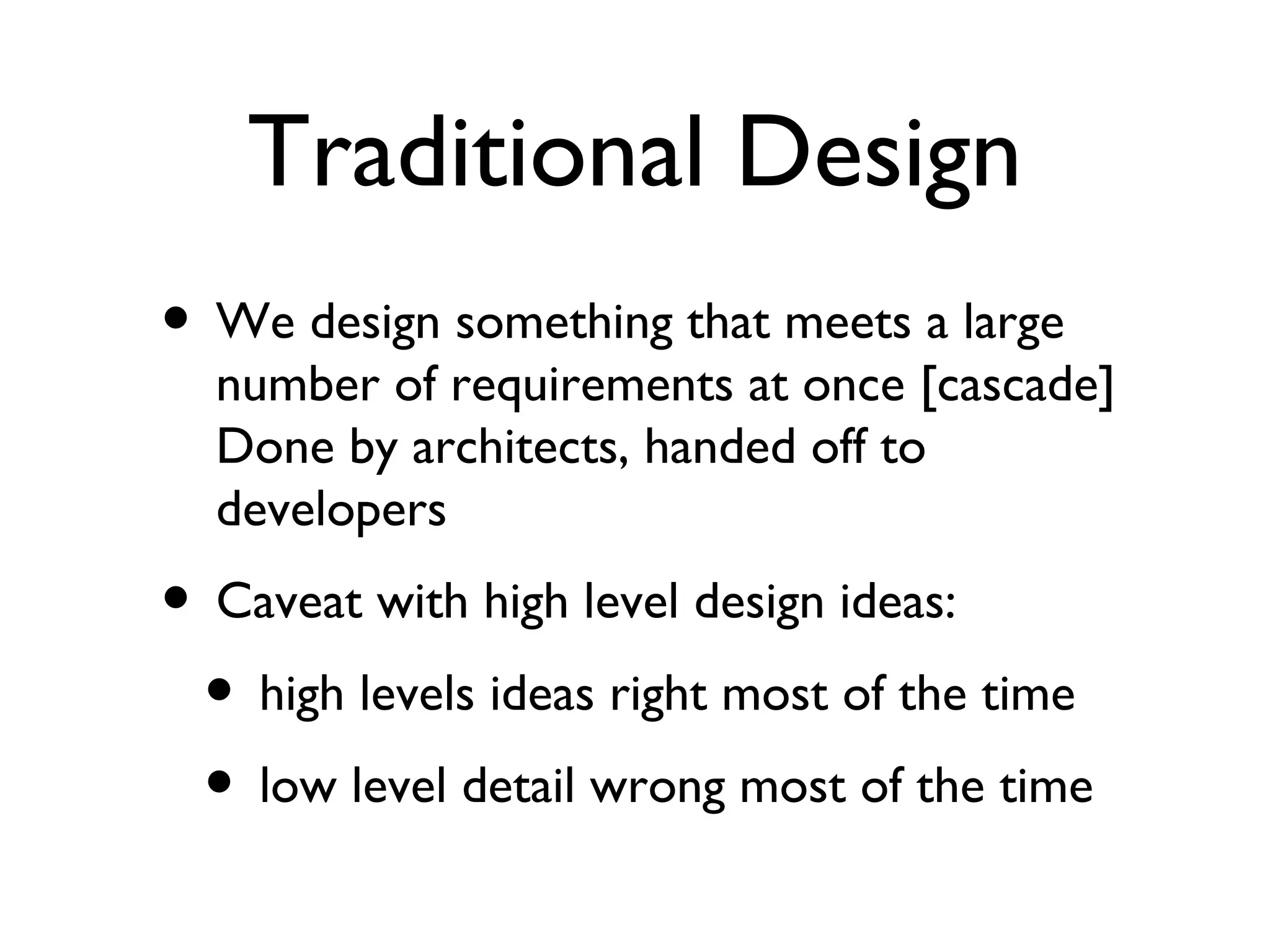

27. Traditional Design We design something that meets a large number of requirements at once [cascade] Done by architects, handed off to developers Caveat with high level design ideas: high levels ideas right most of the time low level detail wrong most of the time

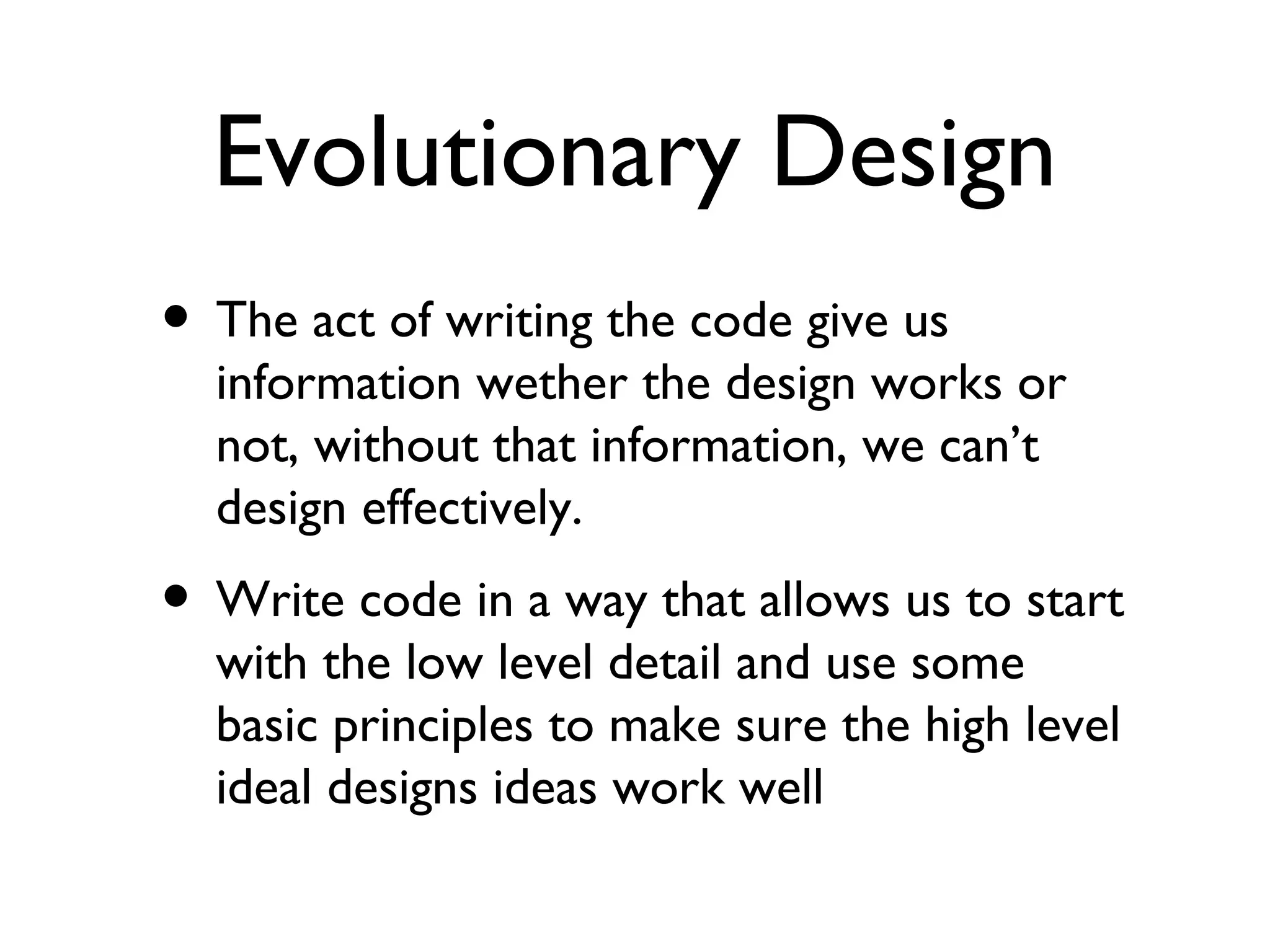

28. Evolutionary Design The act of writing the code give us information wether the design works or not, without that information, we can’t design effectively. Write code in a way that allows us to start with the low level detail and use some basic principles to make sure the high level ideal designs ideas work well

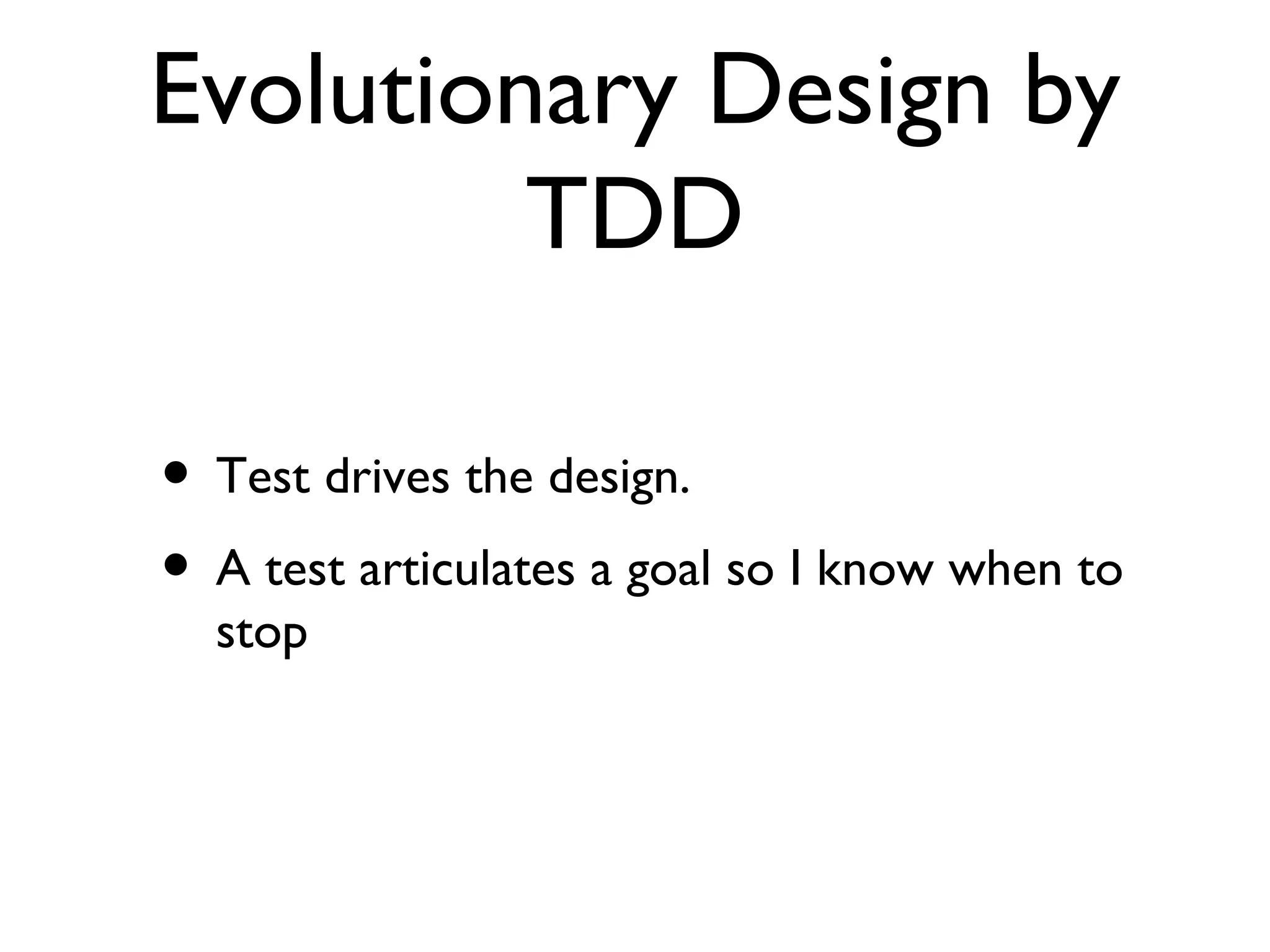

29. Evolutionary Design by TDD Test drives the design. A test articulates a goal so I know when to stop

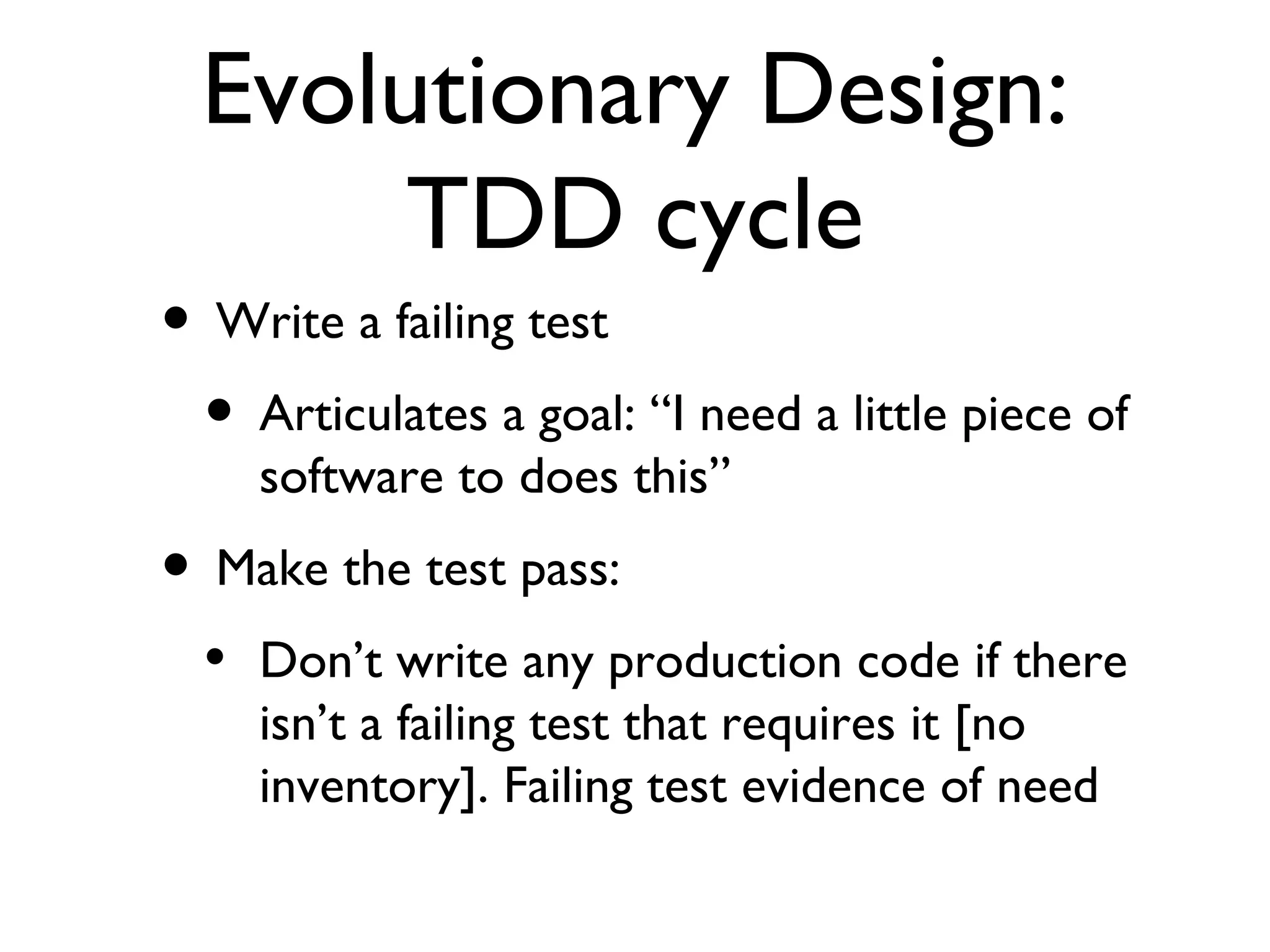

30. Evolutionary Design: TDD cycle Write a failing test Articulates a goal: “I need a little piece of software to does this” Make the test pass: Don’t write any production code if there isn’t a failing test that requires it [no inventory]. Failing test evidence of need

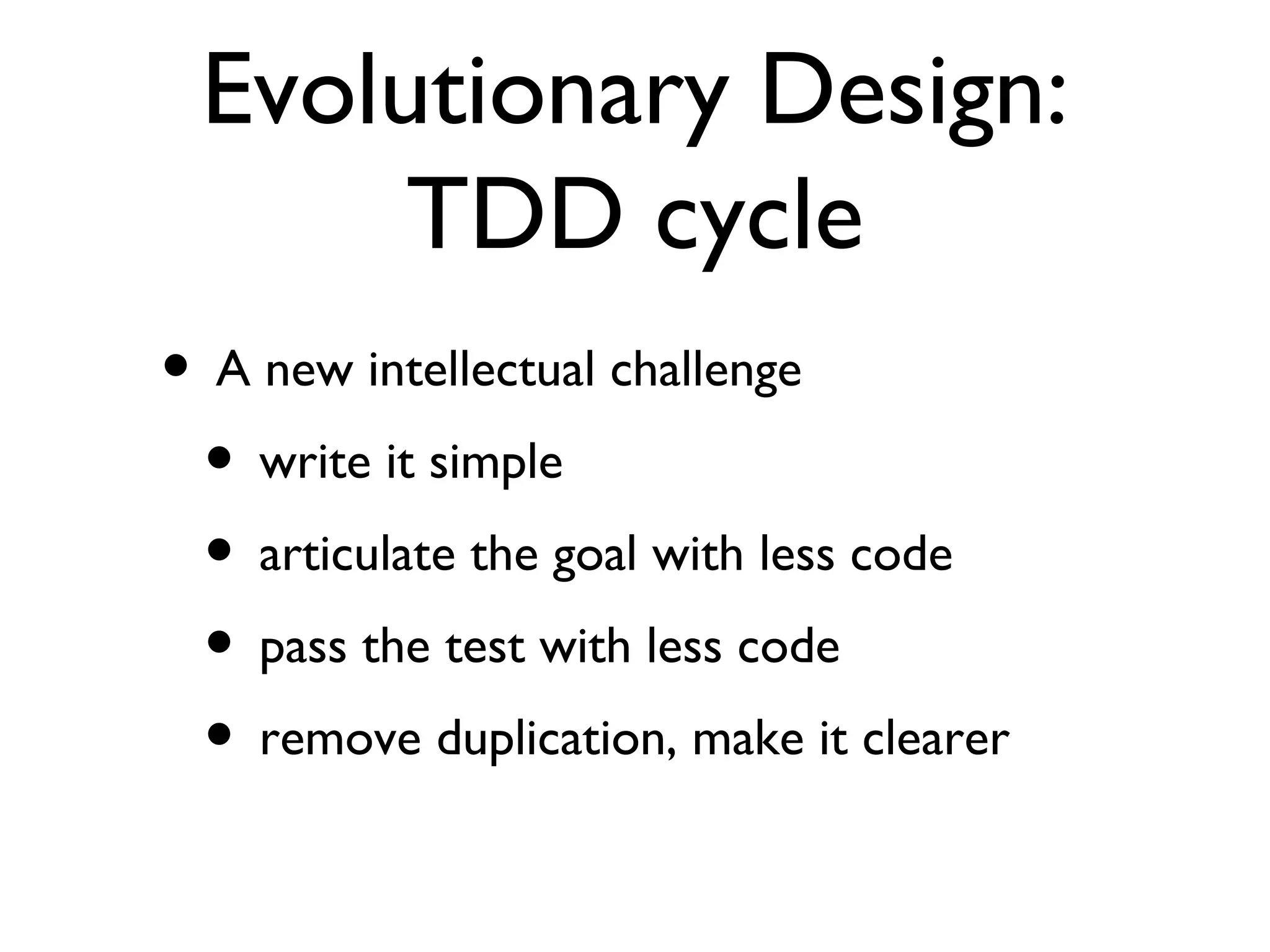

31. Evolutionary Design: TDD cycle A new intellectual challenge write it simple articulate the goal with less code pass the test with less code remove duplication, make it clearer
