1. Swenug 2014-04-23
Alexander Tarnowski 1
Testablity for developers

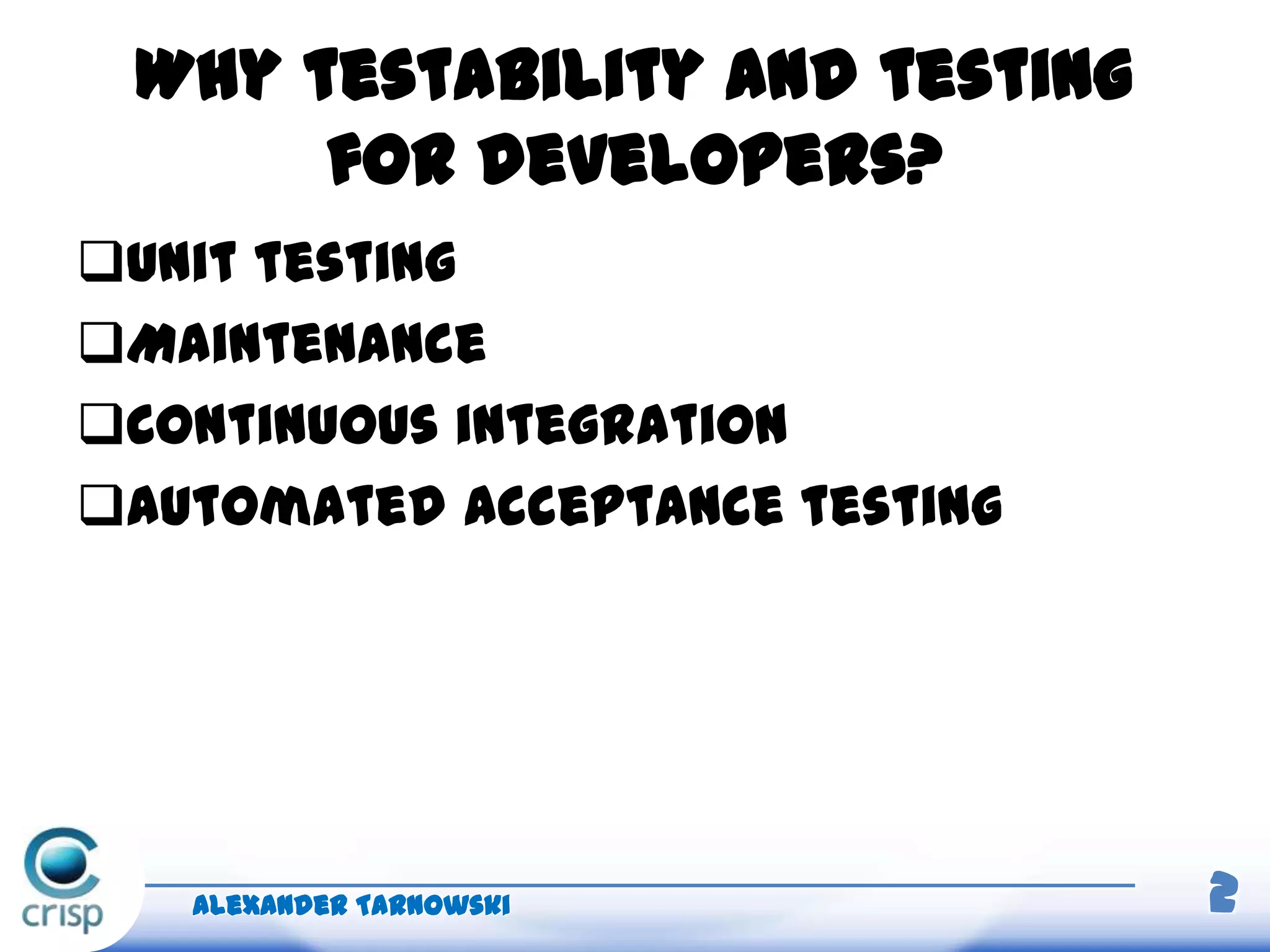

2. Why testability and testing
for developers?
Unit testing
Maintenance
Continuous integration
Automated acceptance testing
Alexander Tarnowski 2

3. But…
Alexander Tarnowski 3

4. Ongoing project
http://leanpub.com/developer_testing
alexander.tarnowski@crisp.se
alexander_tar
blog.crisp.se/author/alexandertarnowskiBlog
www www.techbookreader.com
Blog agilamyter.com

5. Alexander Tarnowski 5
Testability costs money
Misconception

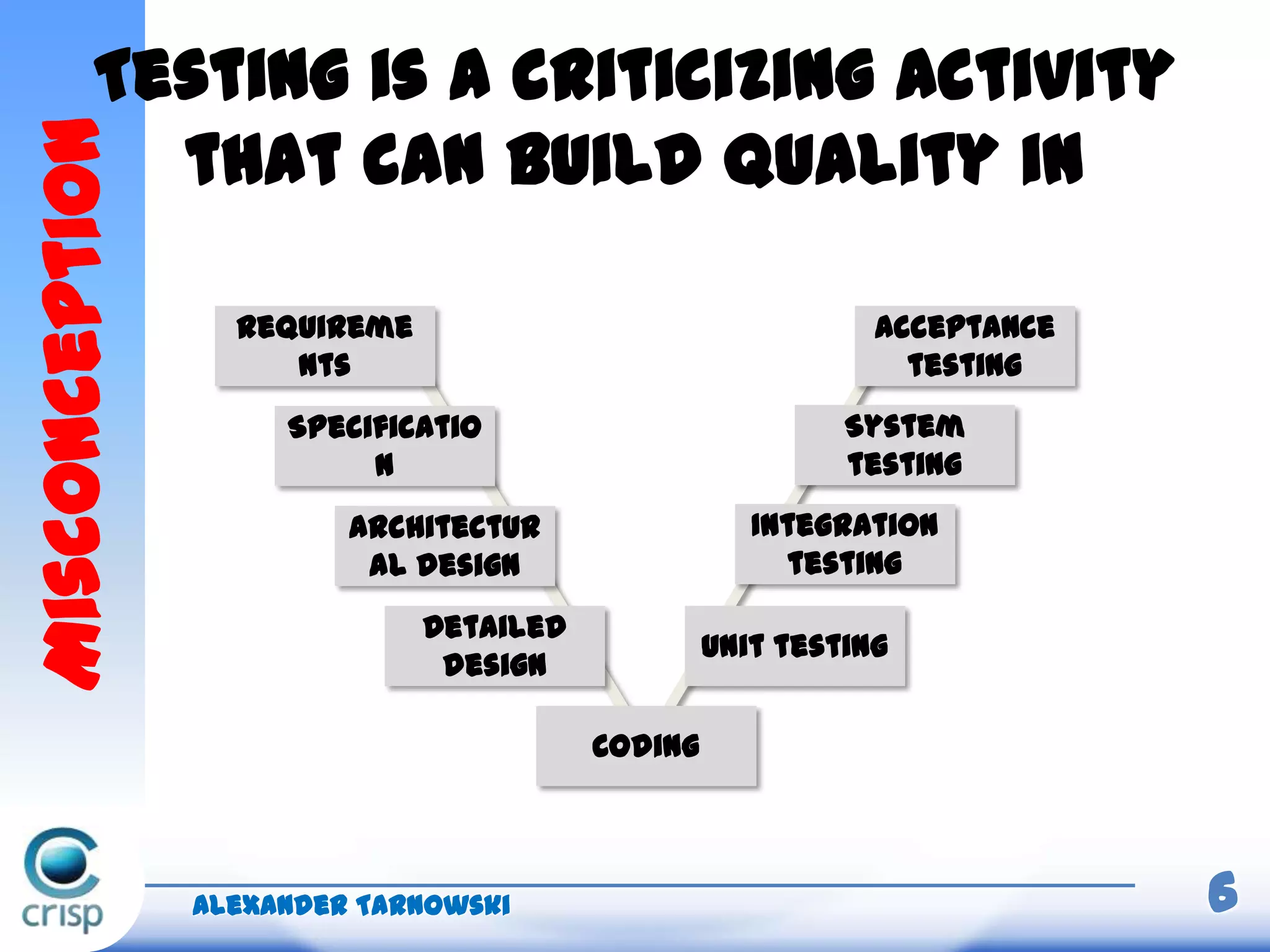

6. Alexander Tarnowski 6
Requireme
nts
Specificatio
n
Architectur
al design
Detailed
design
Coding
Unit testing
Integration
testing
System
testing
Acceptance
testing
MisconceptionTesting is a criticizing activity
that can build quality in

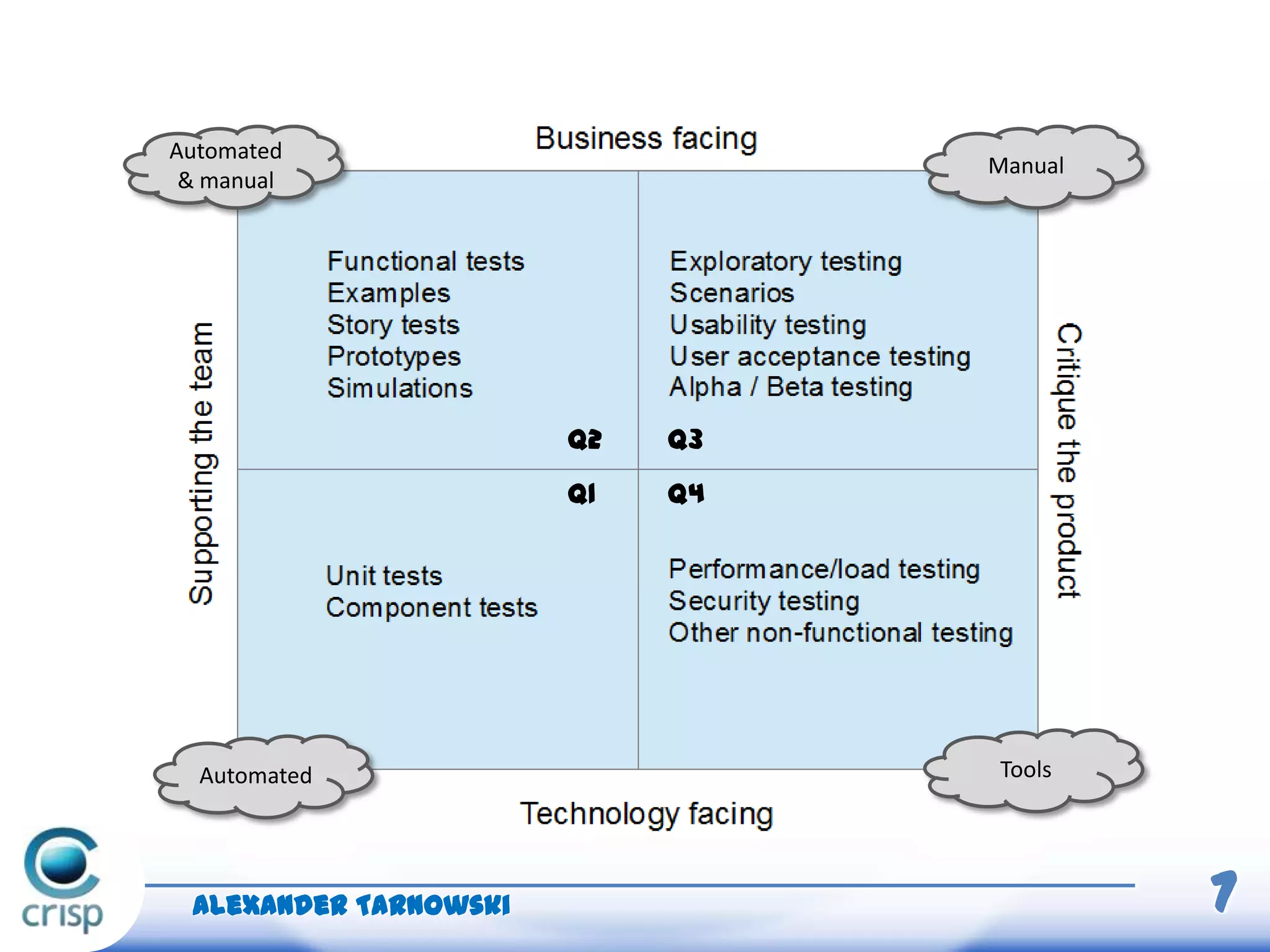

7. Alexander Tarnowski 7
Automated Tools
Manual
Automated
& manual
Q1
Q2 Q3
Q4

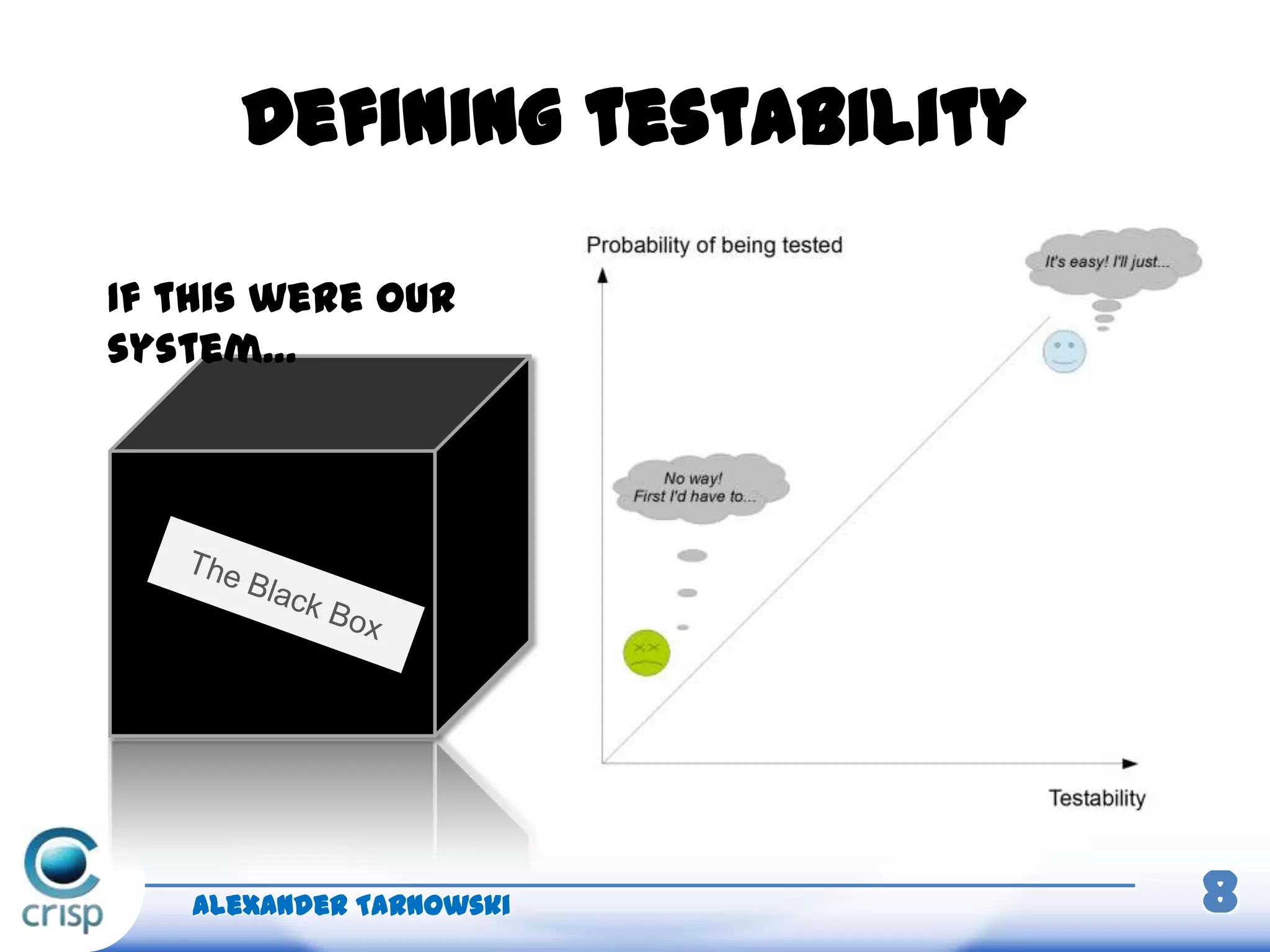

8. Defining testability
Alexander Tarnowski 8
If this were our
system…

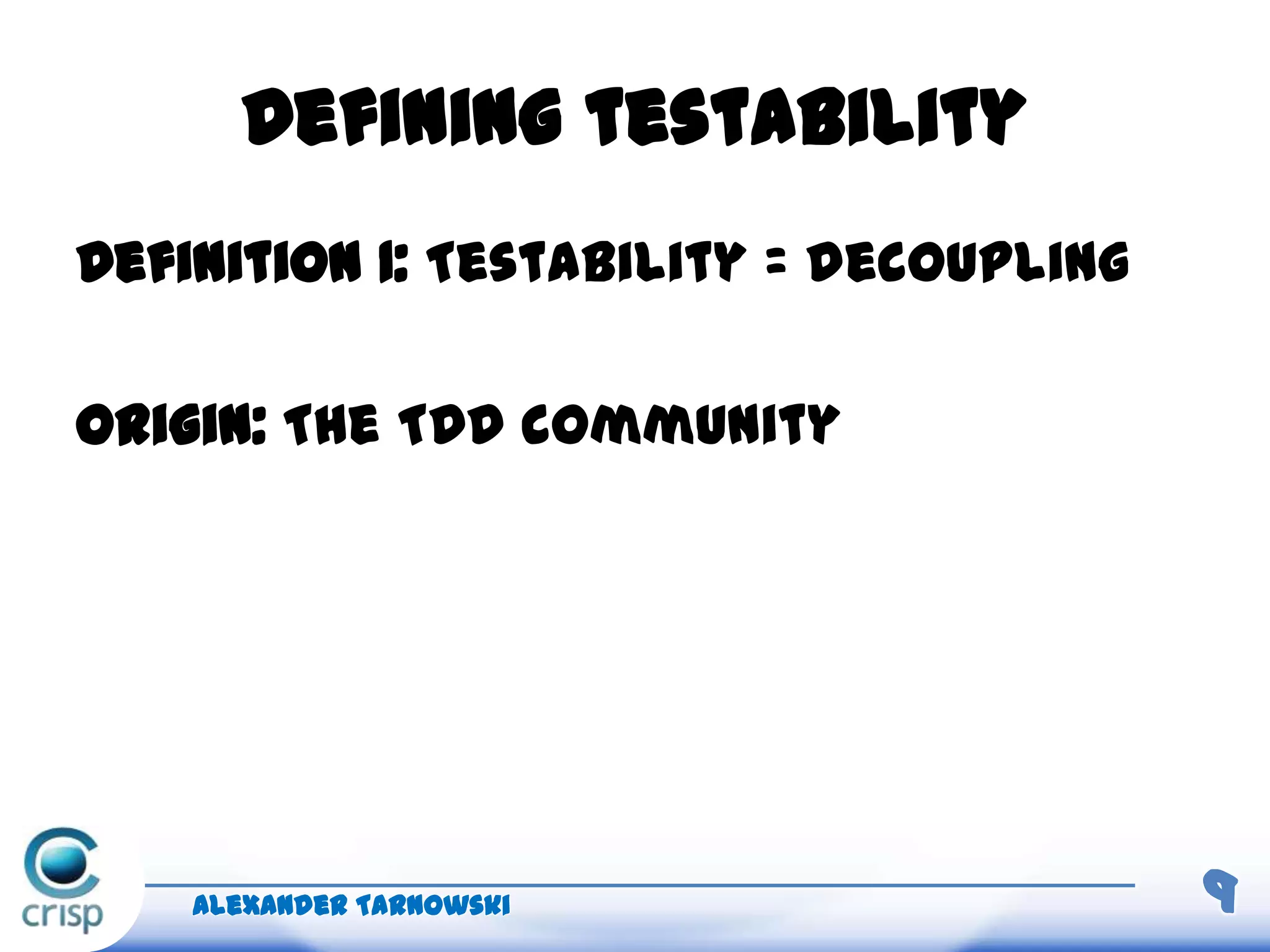

9. Defining testability
Definition 1: Testability = decoupling
Origin: The TDD community
Alexander Tarnowski 9

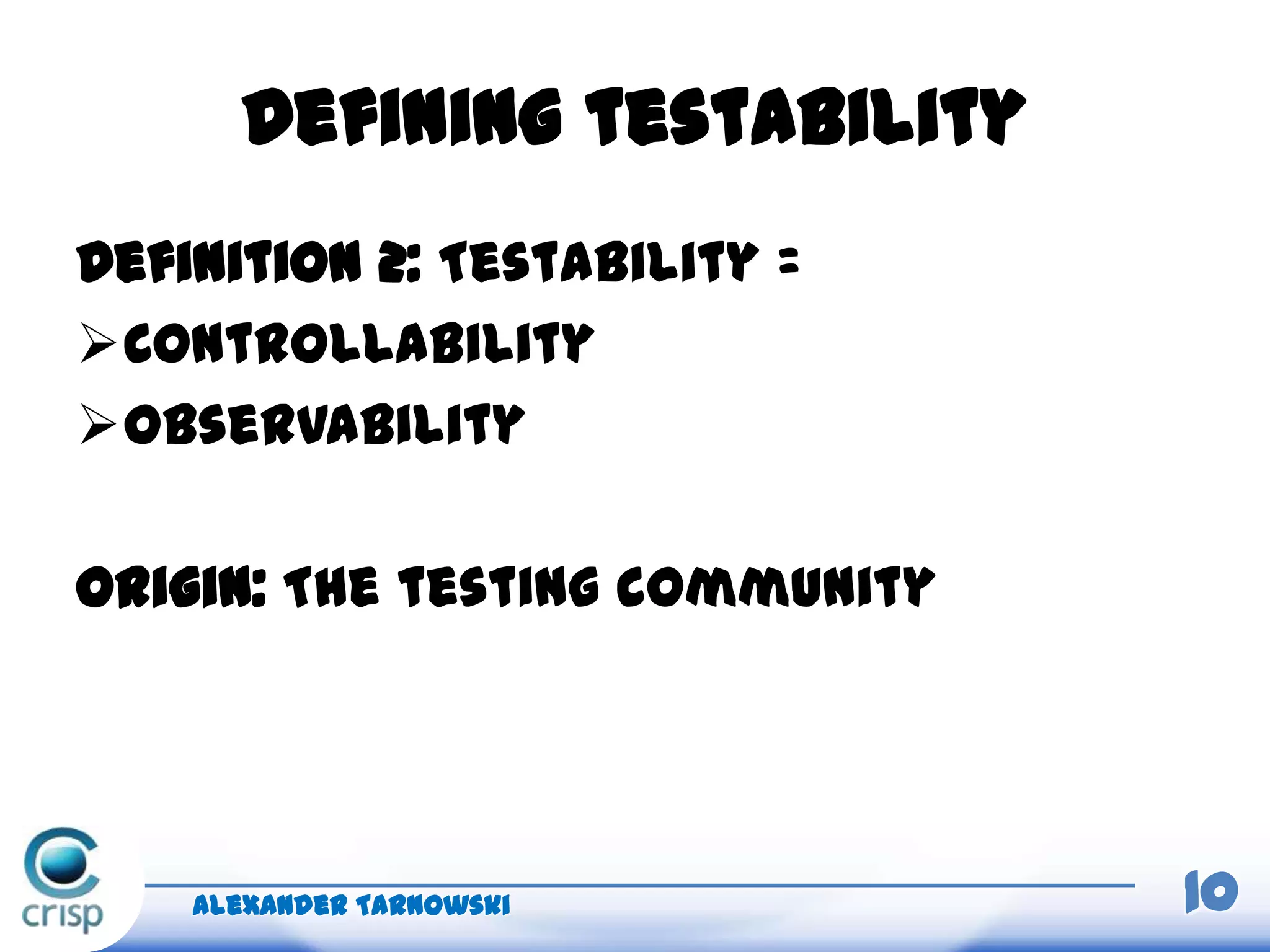

10. Defining testability
Definition 2: Testability =
Controllability
Observability
Origin: The testing community
Alexander Tarnowski 10

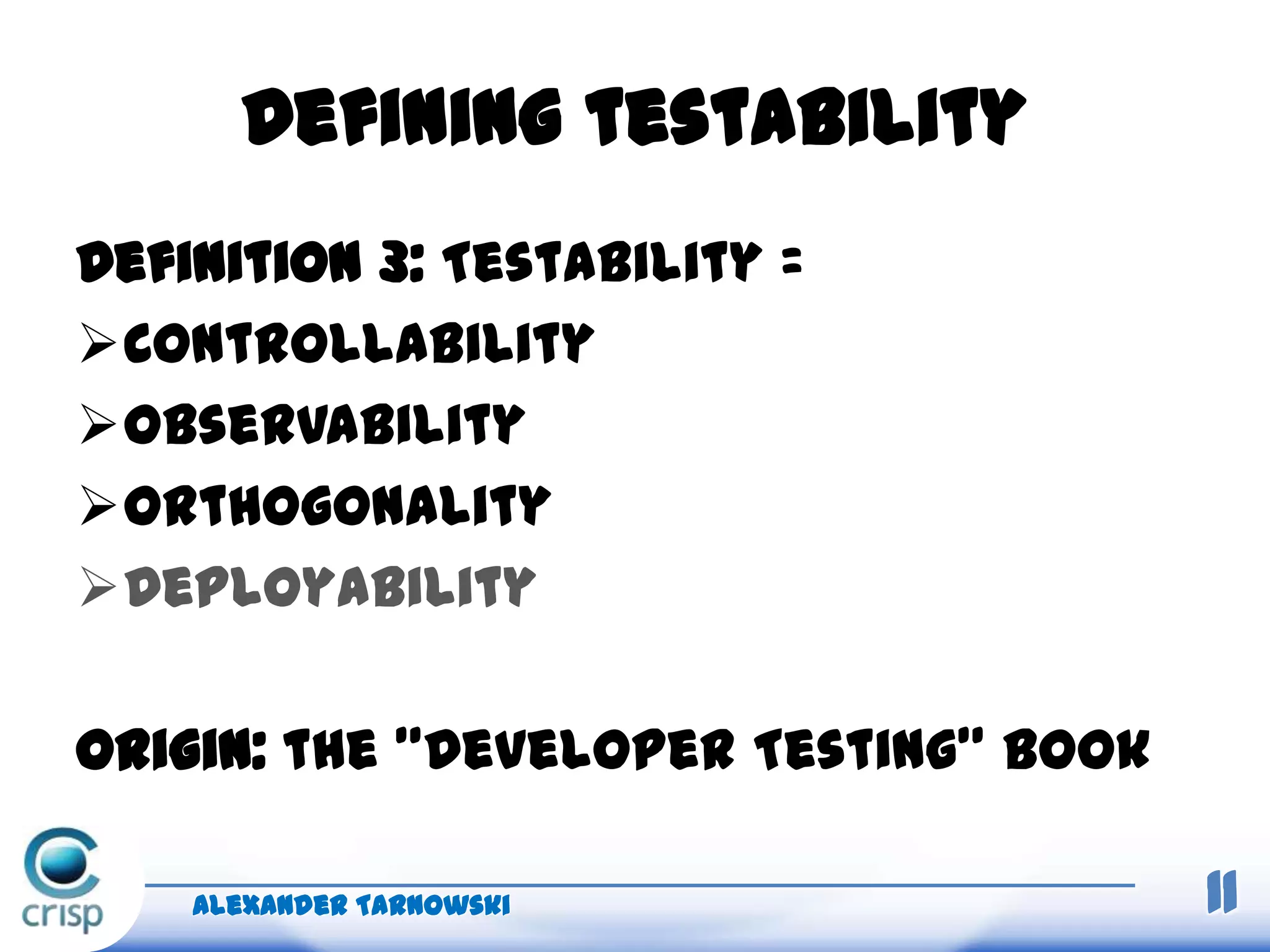

11. Defining testability
Definition 3: Testability =
Controllability
Observability
Orthogonality
Deployability
Origin: the ”Developer Testing” book
Alexander Tarnowski 11

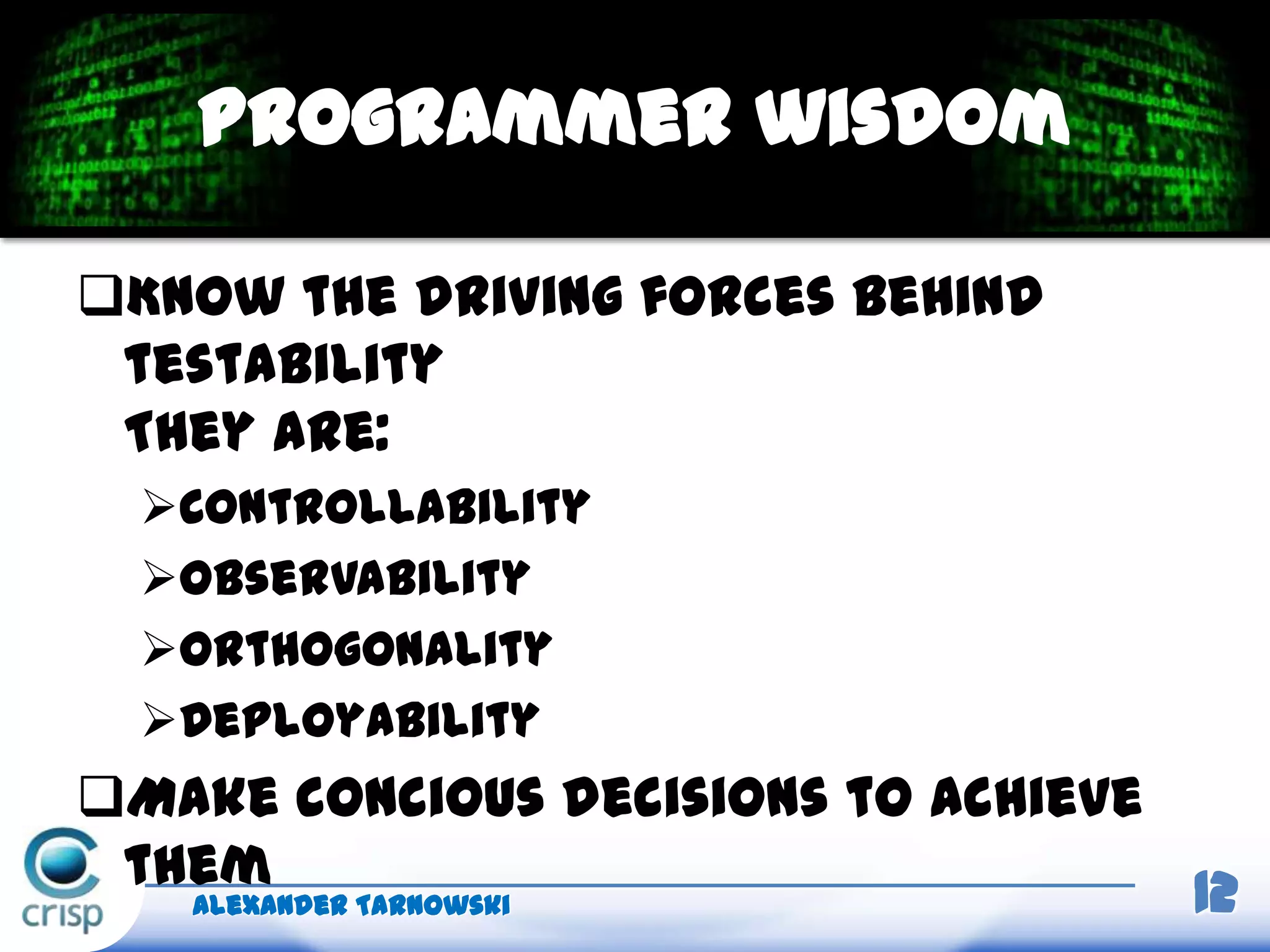

12. Know the driving forces behind
testability
They are:
Controllability
Observability
Orthogonality
Deployability
Make concious decisions to achieve
them
Alexander Tarnowski 12
Programmer wisdom

13. Fundamental testing
techniques
Alexander Tarnowski 13

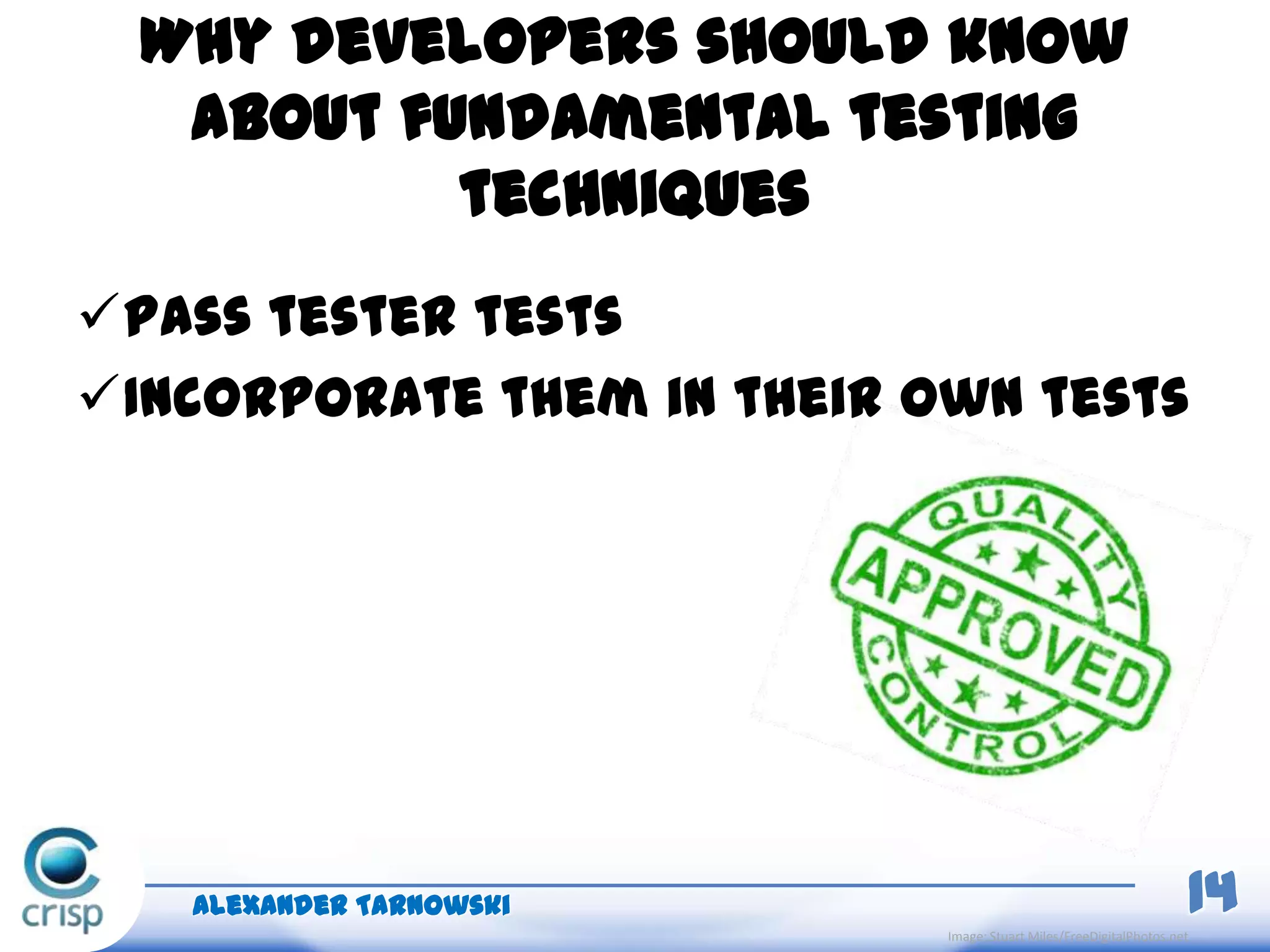

14. Why developers should know
about fundamental testing
techniques
Pass tester tests
Incorporate them in their own tests
Alexander Tarnowski 14
Image: Stuart Miles/FreeDigitalPhotos.net

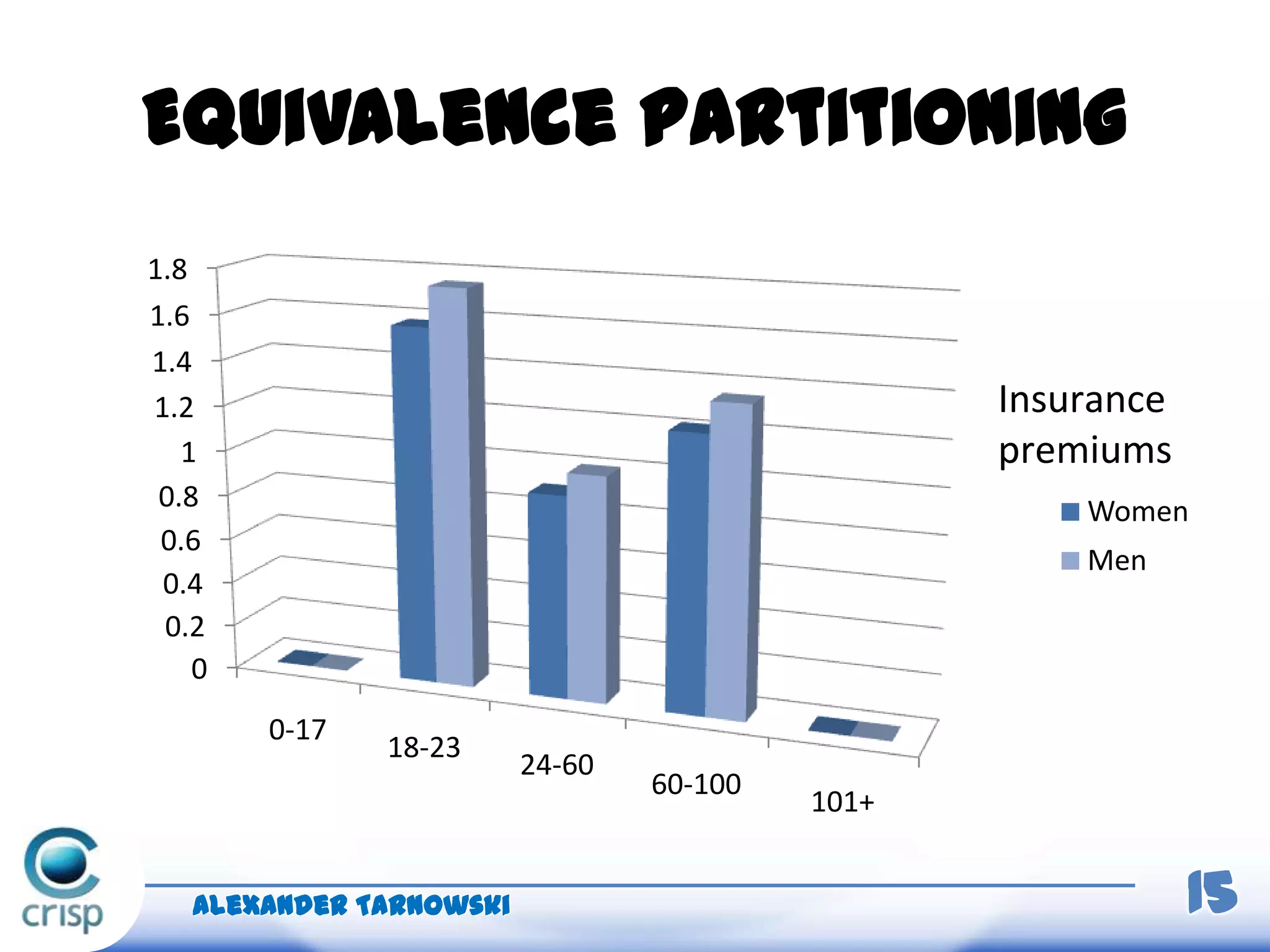

15. Equivalence partitioning
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
0-17
18-23
24-60
60-100
101+
Women
Men
Insurance
premiums
Alexander Tarnowski 15

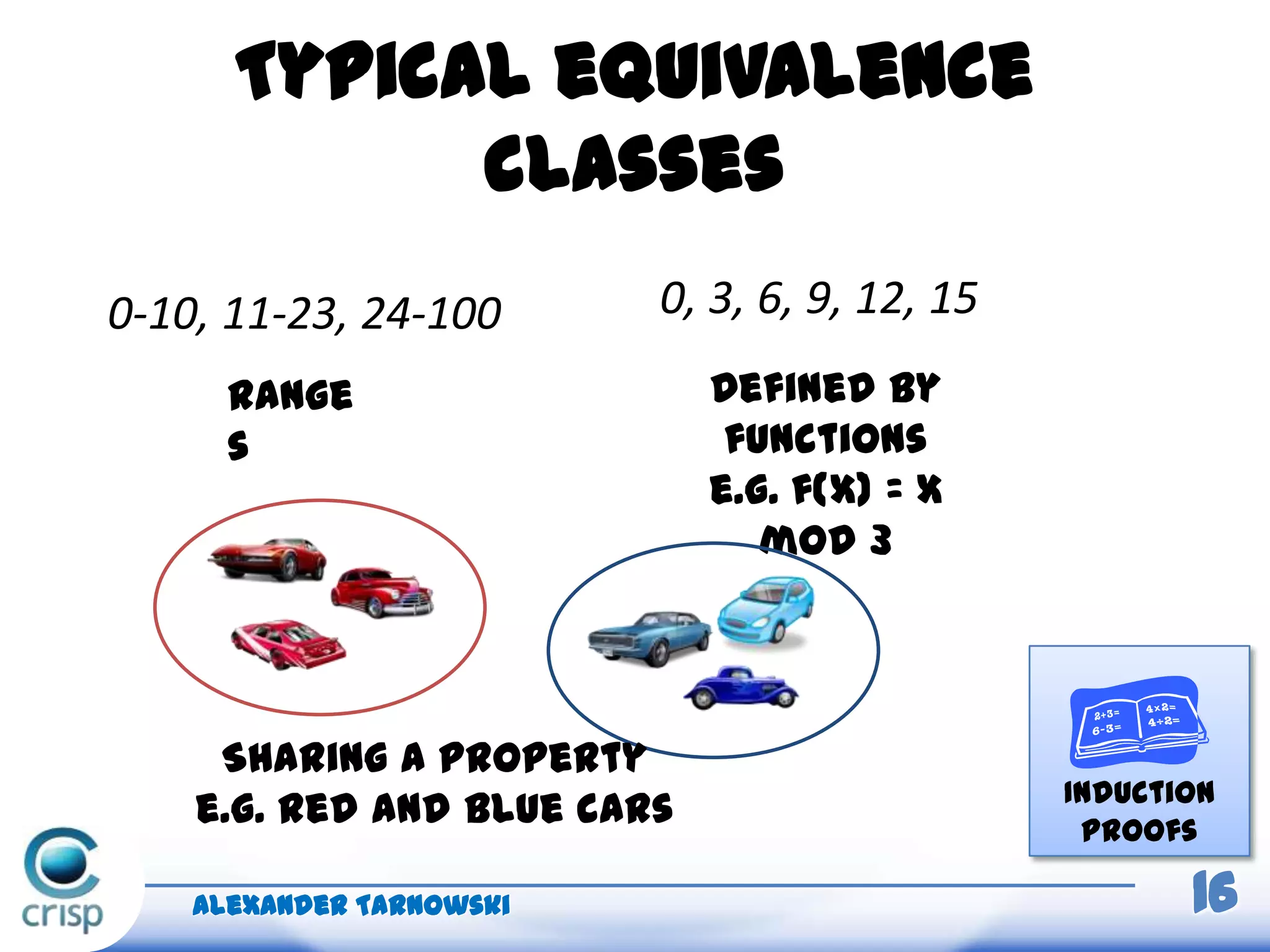

16. Typical equivalence
classes
Alexander Tarnowski 16
0-10, 11-23, 24-100
Range
s
0, 3, 6, 9, 12, 15
Defined by
functions
e.g. f(x) = x
mod 3
Sharing a property
e.g. red and blue cars Induction
proofs

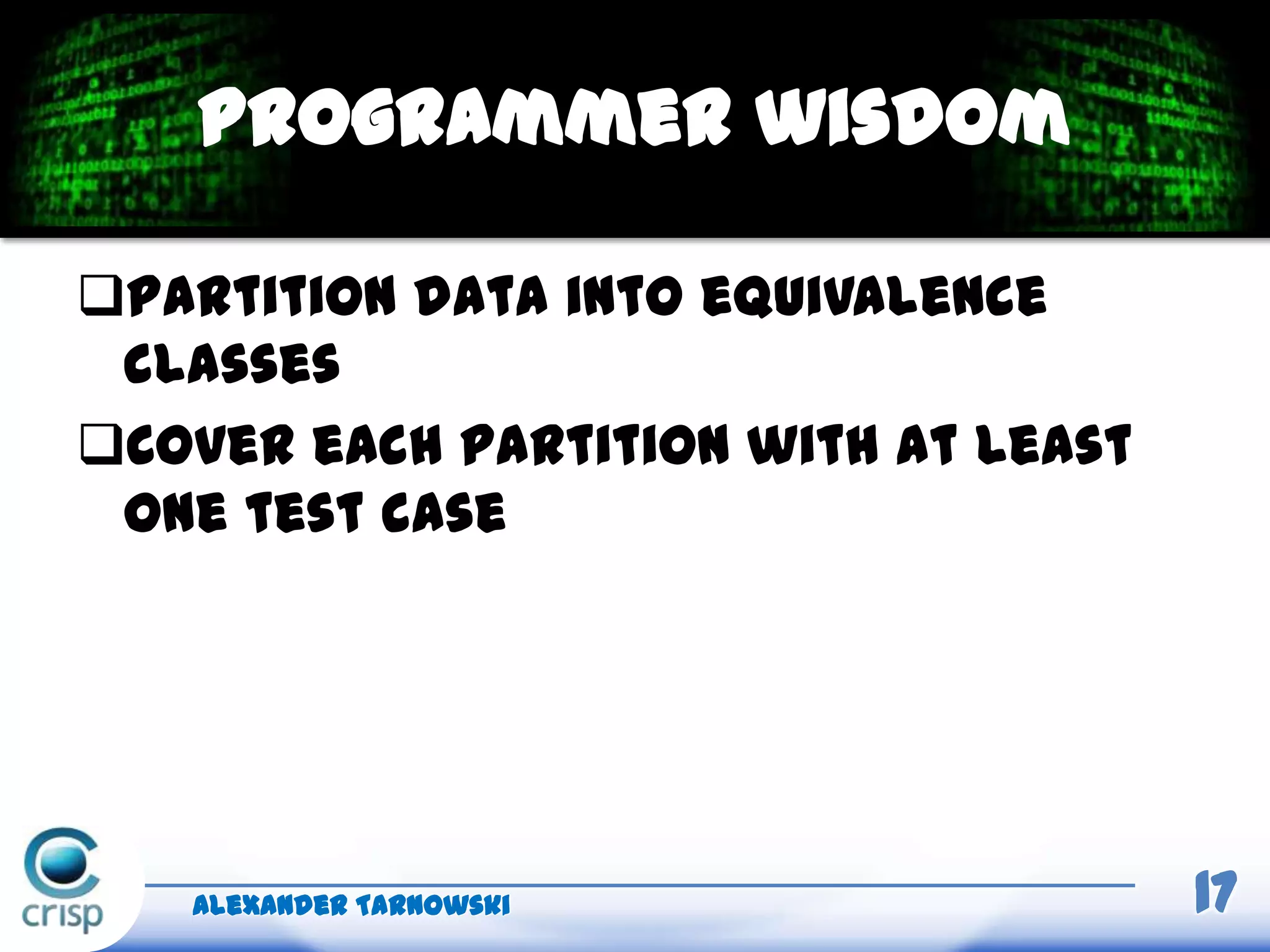

17. Partition data into equivalence
classes
Cover each partition with at least
one test case
Alexander Tarnowski 17
Programmer wisdom

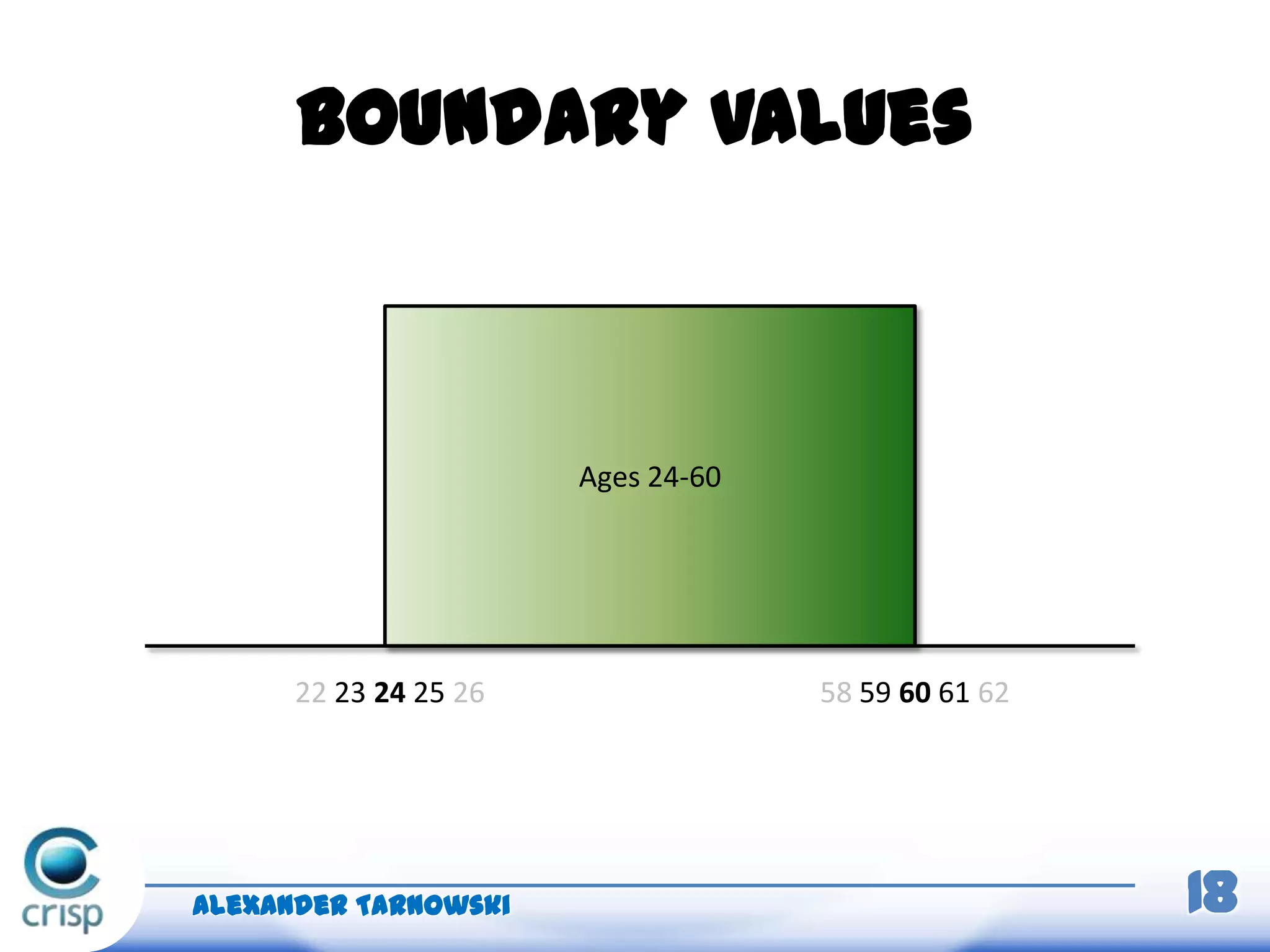

18. Boundary values
Alexander Tarnowski 18
Ages 24-60
22 23 24 25 26 58 59 60 61 62

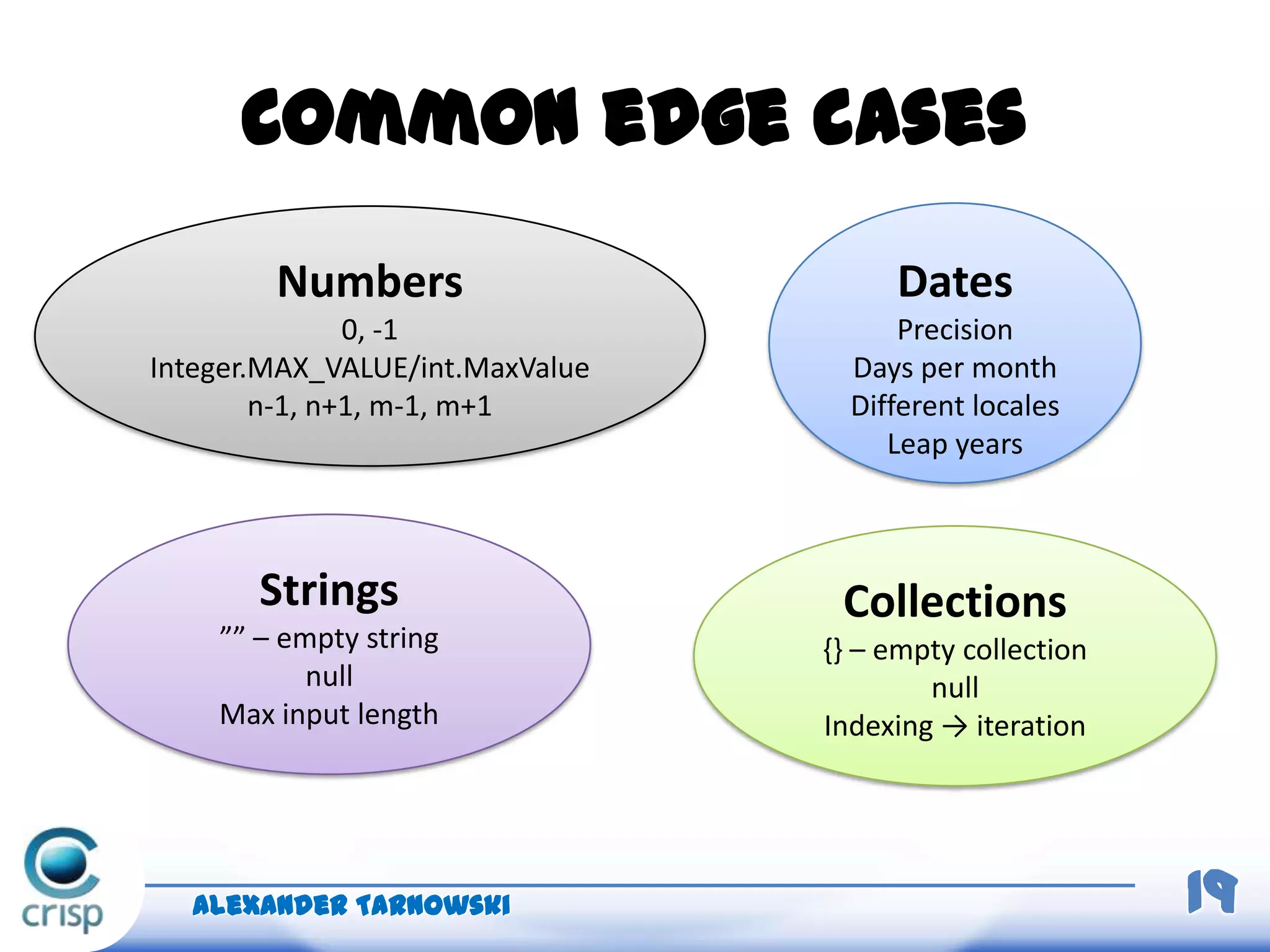

19. Common edge cases
Alexander Tarnowski 19
Numbers
0, -1
Integer.MAX_VALUE/int.MaxValue
n-1, n+1, m-1, m+1
Strings
”” – empty string
null
Max input length
Dates
Precision
Days per month
Different locales
Leap years
Collections
{} – empty collection
null
Indexing → iteration

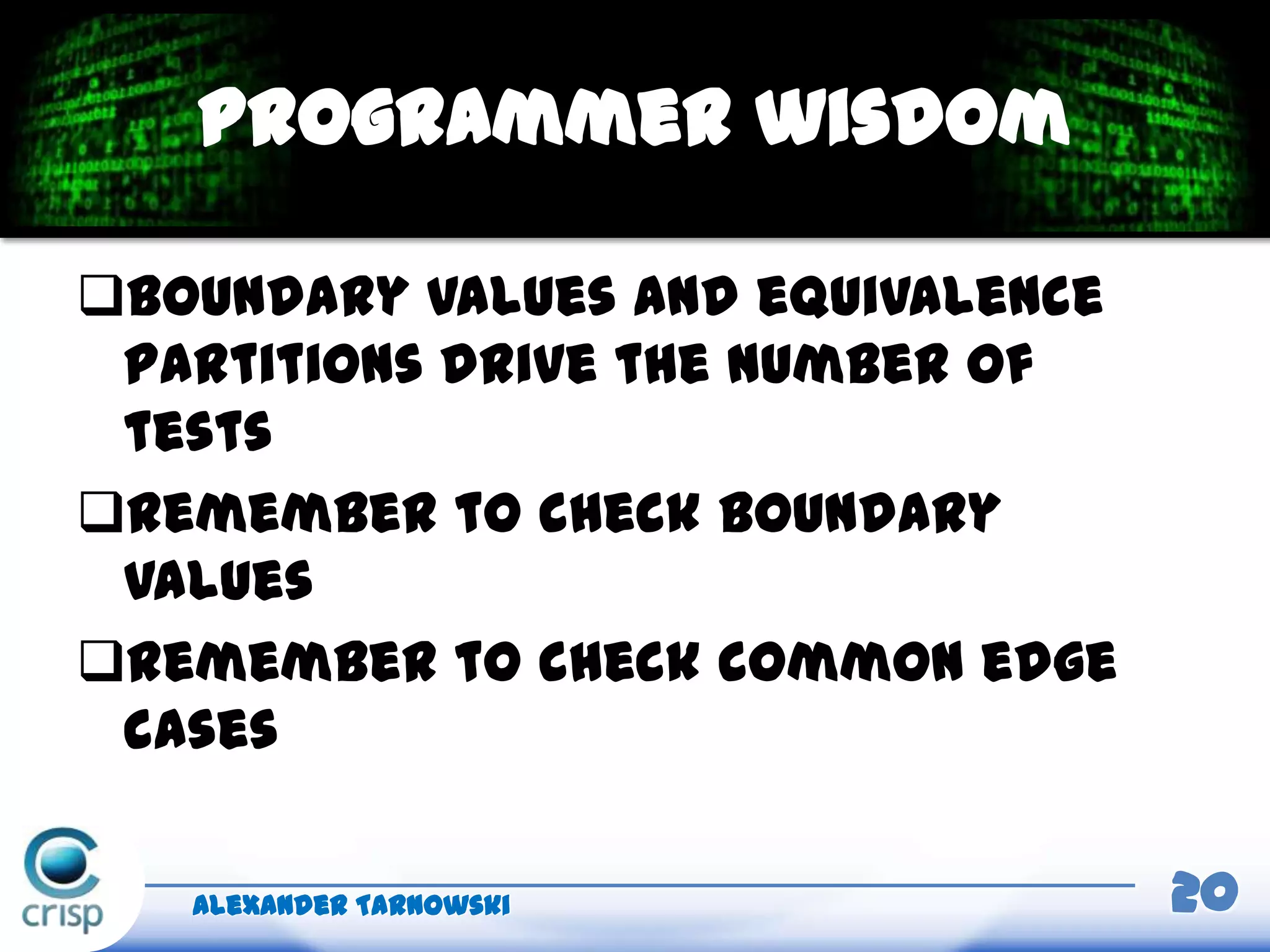

20. Boundary values and equivalence
partitions drive the number of
tests
Remember to check boundary
values
Remember to check common edge
cases
Alexander Tarnowski 20
Programmer wisdom

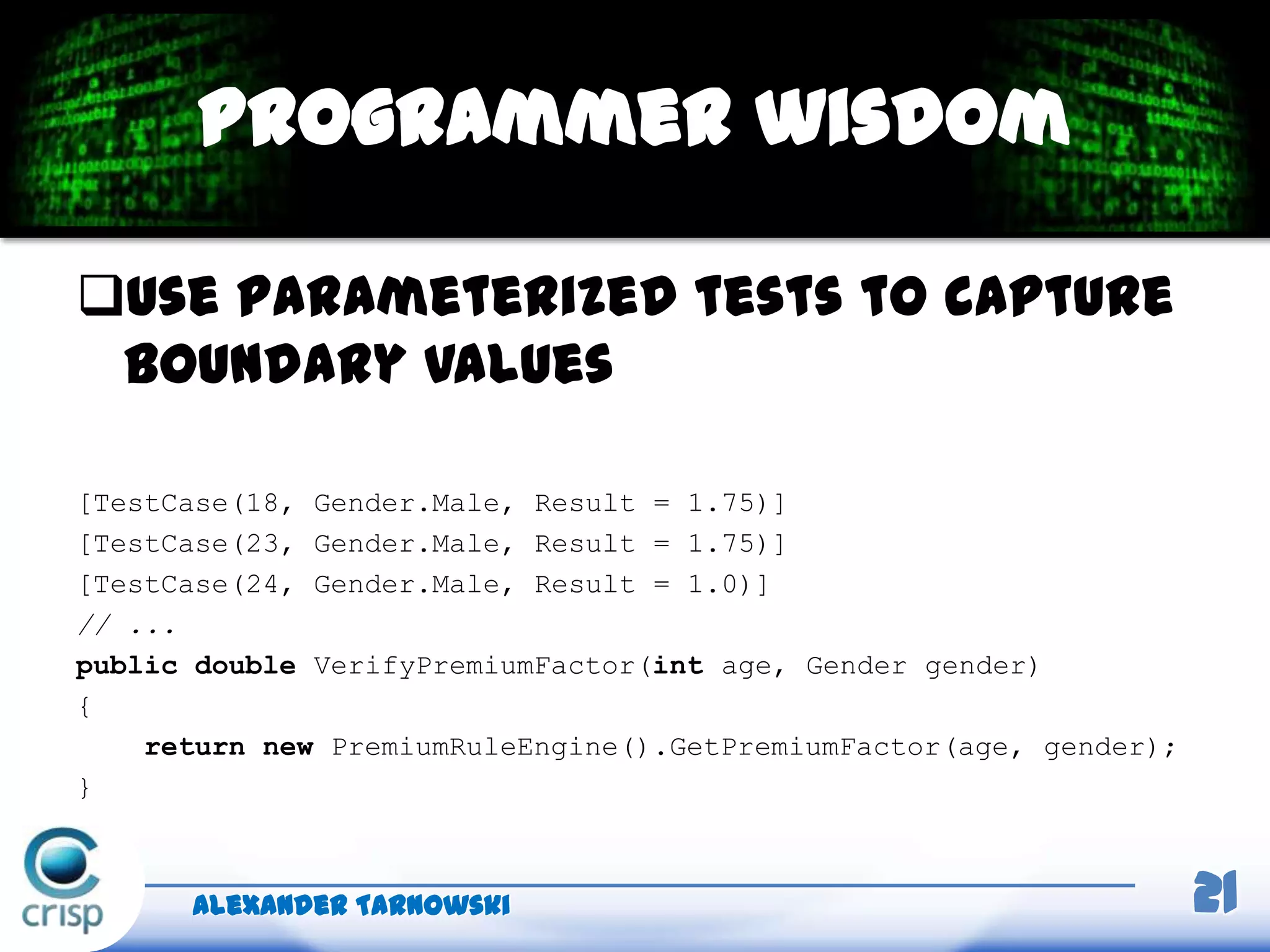

21. Use parameterized tests to capture
boundary values
[TestCase(18, Gender.Male, Result = 1.75)]
[TestCase(23, Gender.Male, Result = 1.75)]
[TestCase(24, Gender.Male, Result = 1.0)]
// ...
public double VerifyPremiumFactor(int age, Gender gender)
{
return new PremiumRuleEngine().GetPremiumFactor(age, gender);
}
Alexander Tarnowski 21
Programmer wisdom

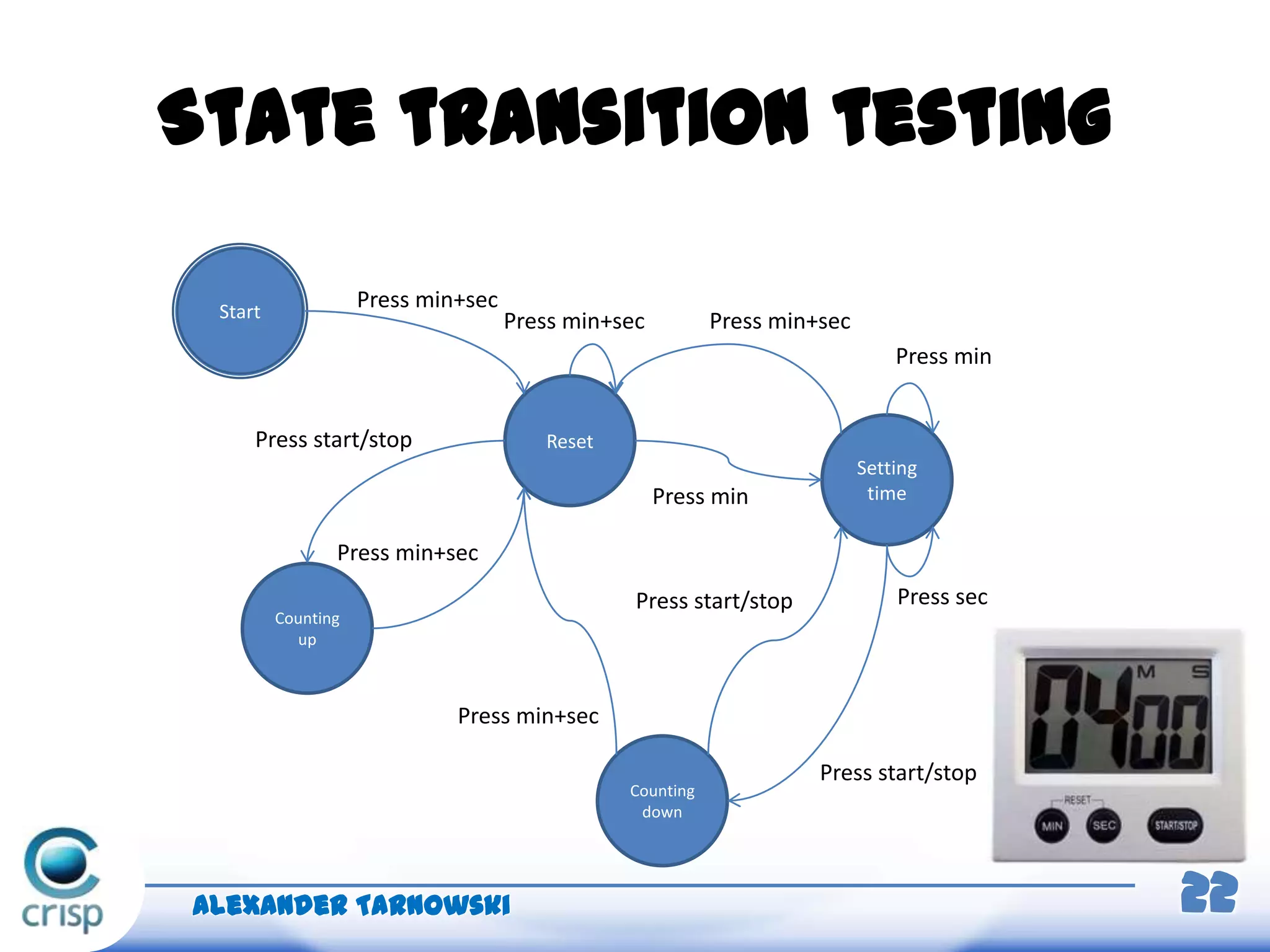

22. State transition testing
Alexander Tarnowski 22
Start
Reset
Press min+sec
Setting
timePress min
Press min
Press sec
Counting
down
Press min+sec
Press start/stop
Press start/stop
Press min+sec
Press min+sec
Counting
up
Press start/stop
Press min+sec

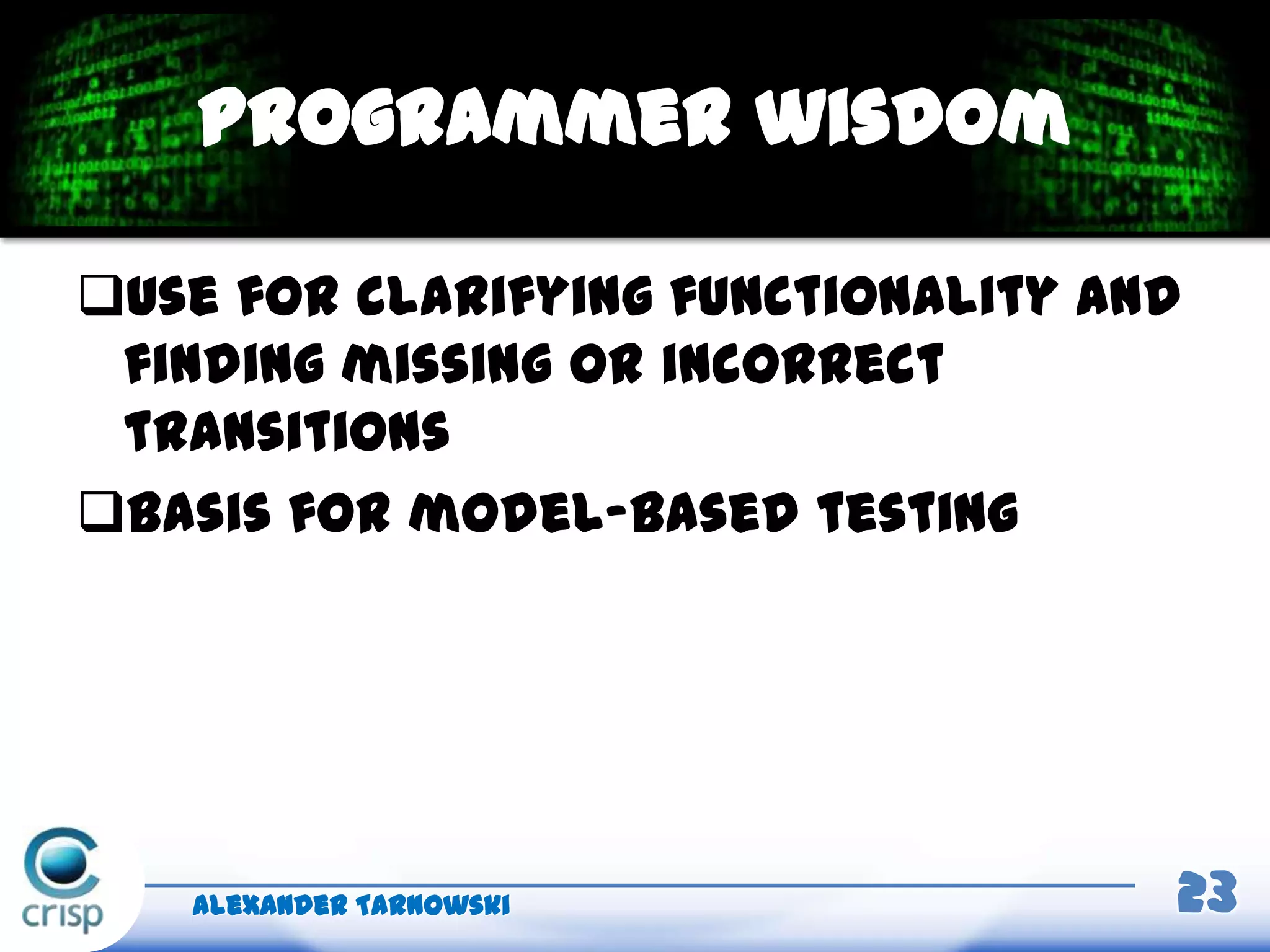

23. Use for clarifying functionality and
finding missing or incorrect
transitions
Basis for model-based testing
Alexander Tarnowski 23
Programmer wisdom

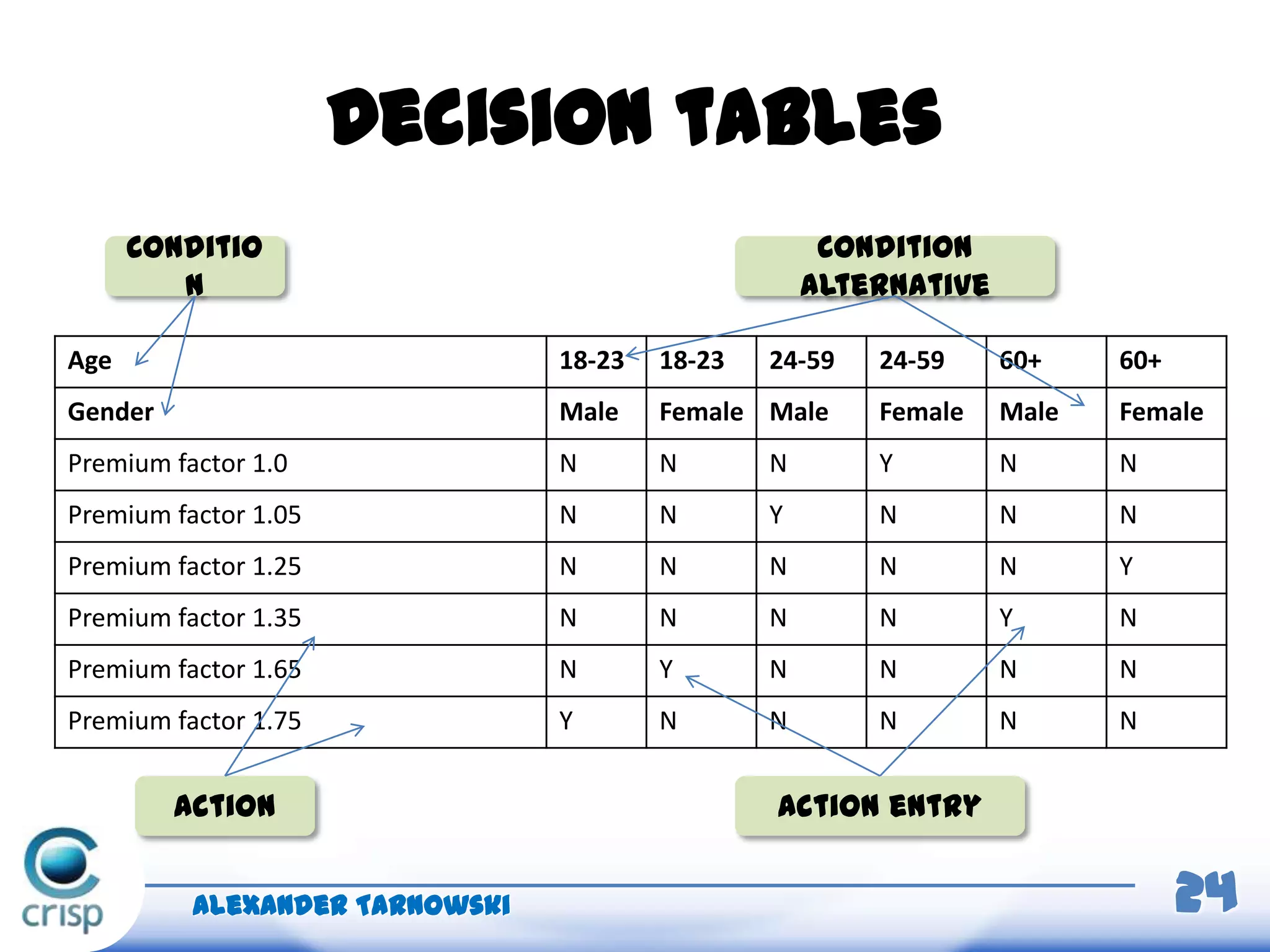

24. Decision tables
Alexander Tarnowski 24
Age 18-23 18-23 24-59 24-59 60+ 60+
Gender Male Female Male Female Male Female
Premium factor 1.0 N N N Y N N
Premium factor 1.05 N N Y N N N
Premium factor 1.25 N N N N N Y
Premium factor 1.35 N N N N Y N
Premium factor 1.65 N Y N N N N
Premium factor 1.75 Y N N N N N
Conditio
n
Condition
alternative
Action Action entry

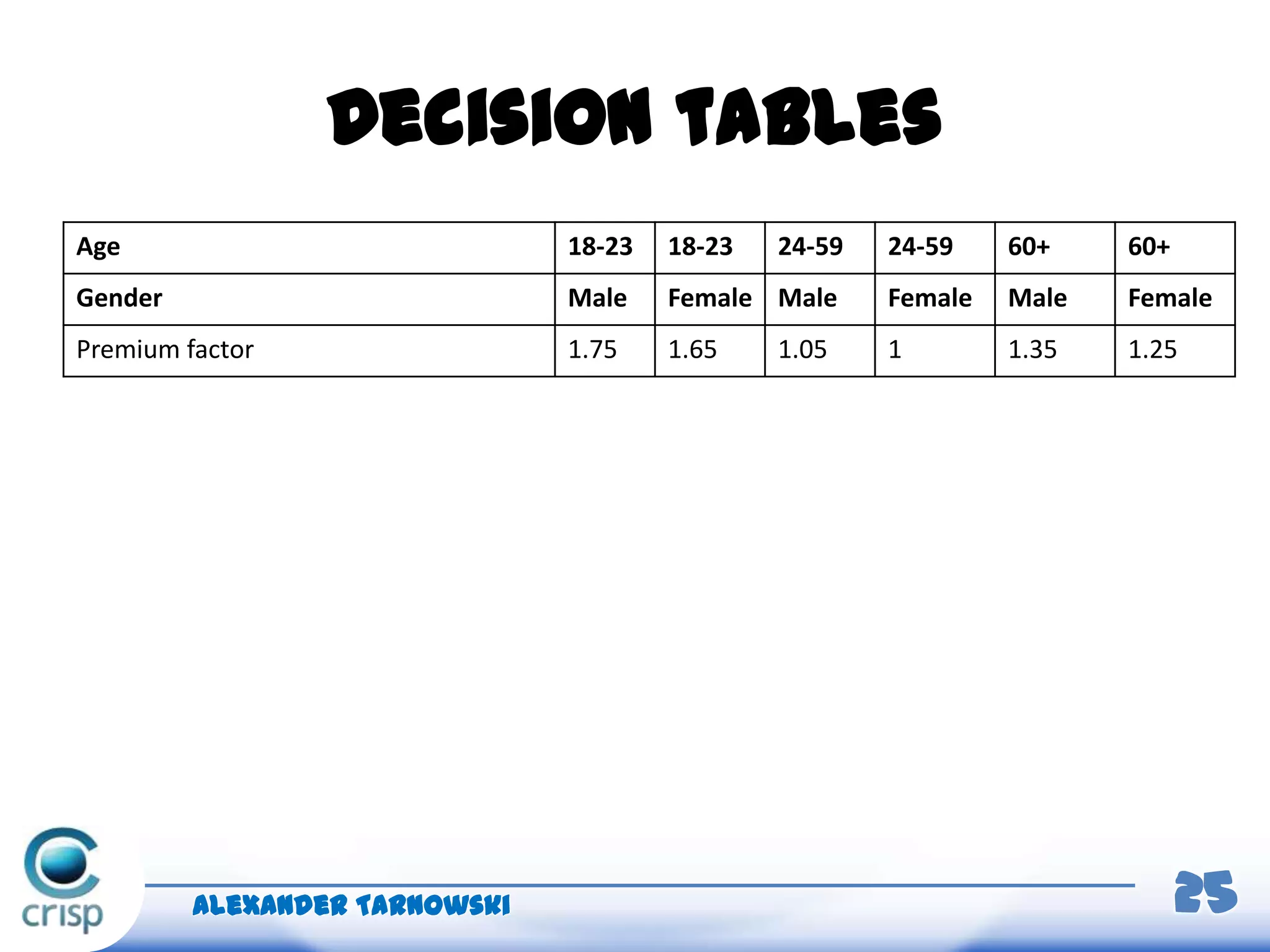

25. Decision tables
Alexander Tarnowski 25
Age 18-23 18-23 24-59 24-59 60+ 60+
Gender Male Female Male Female Male Female
Premium factor 1.75 1.65 1.05 1 1.35 1.25

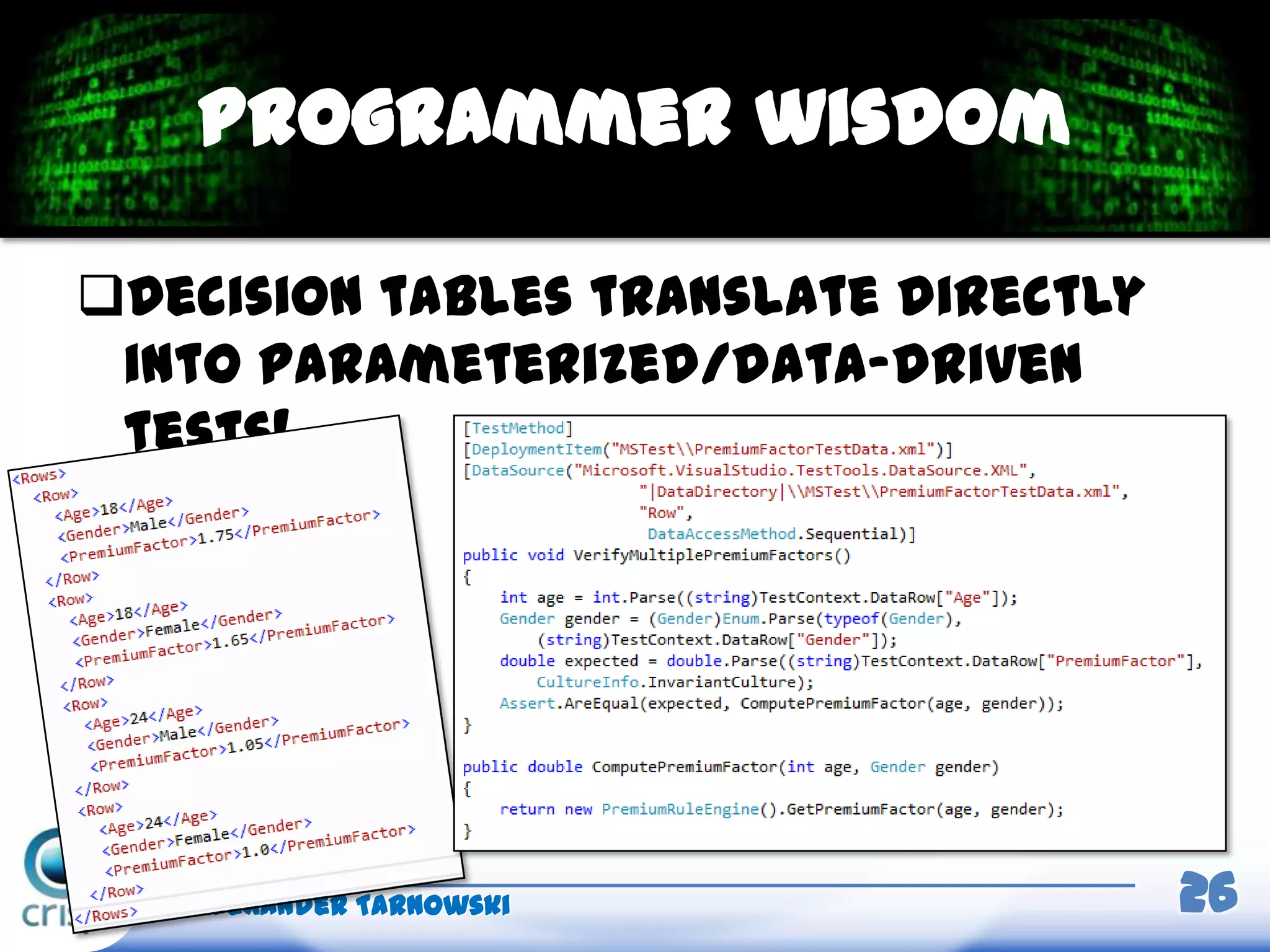

26. Decision tables translate directly
into parameterized/data-driven
tests!
Alexander Tarnowski 26
Programmer wisdom

27. Anti-testability constructs
Alexander Tarnowski 27

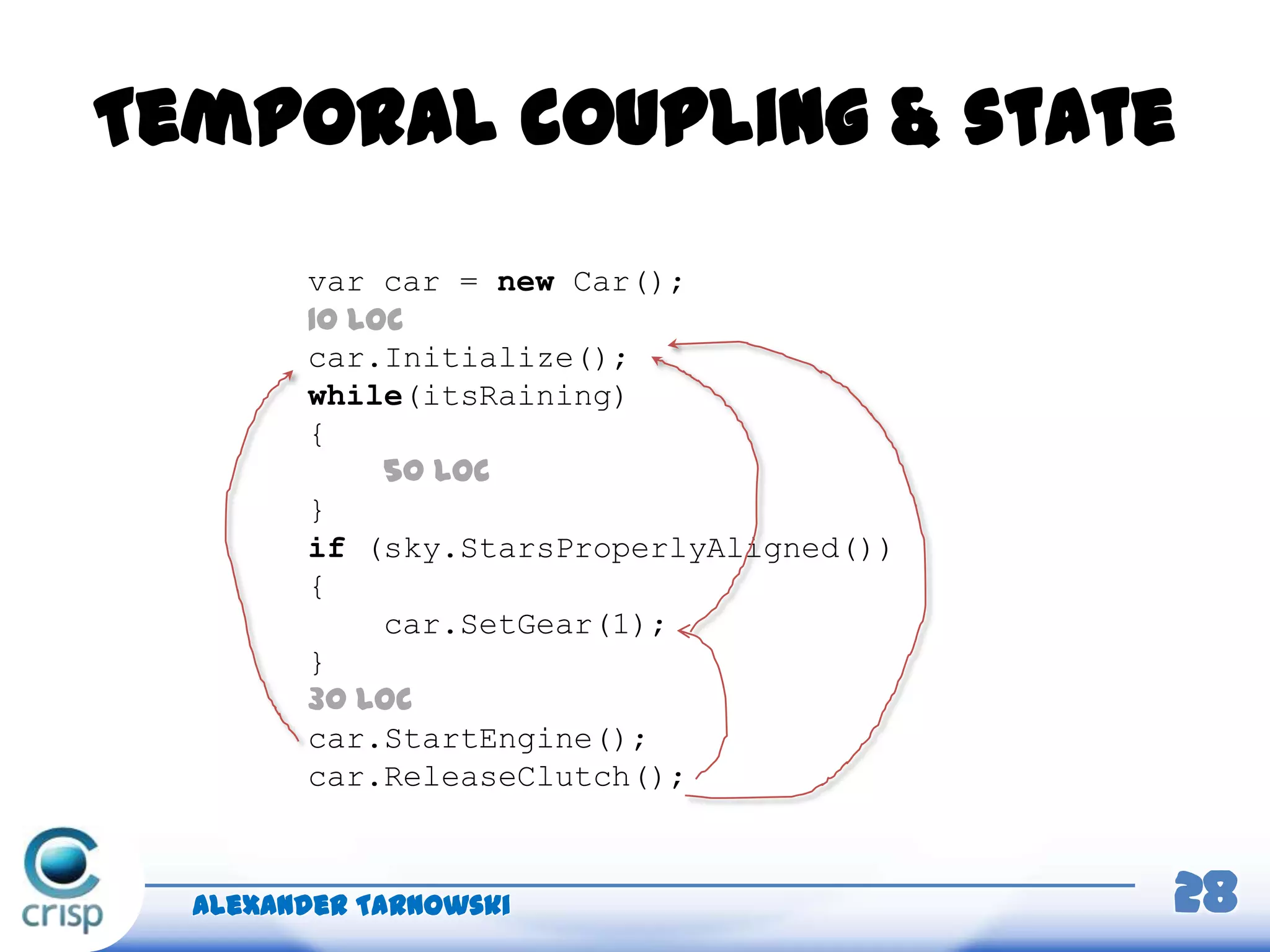

28. Temporal coupling & state
Alexander Tarnowski 28
var car = new Car();
10 LOC
car.Initialize();
while(itsRaining)
{
50 LOC
}
if (sky.StarsProperlyAligned())
{
car.SetGear(1);
}
30 LOC
car.StartEngine();
car.ReleaseClutch();

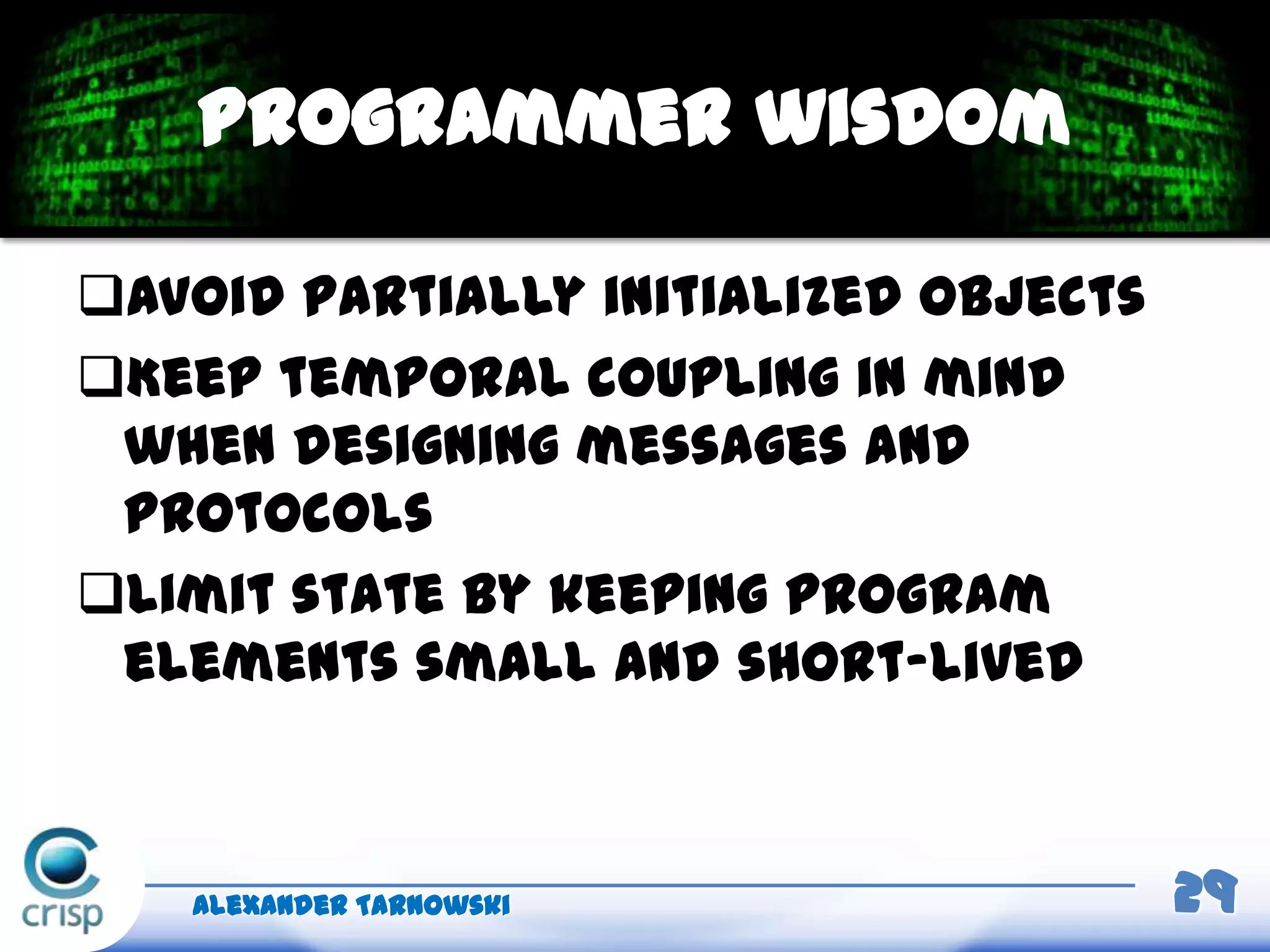

29. Avoid partially initialized objects
Keep temporal coupling in mind
when designing messages and
protocols
Limit state by keeping program
elements small and short-lived
Alexander Tarnowski 29
Programmer wisdom

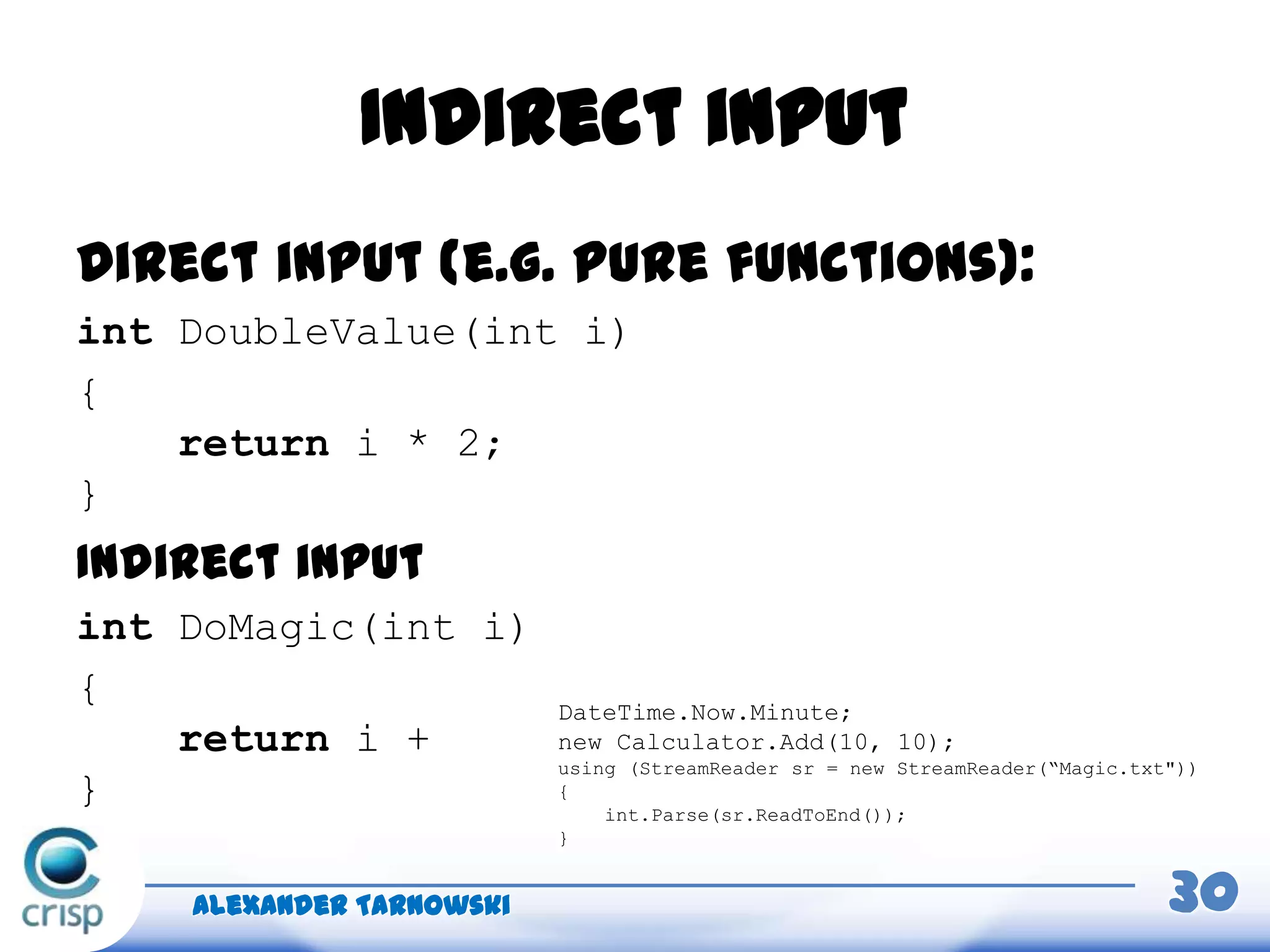

30. Indirect input
Direct input (e.g. pure functions):
int DoubleValue(int i)
{
return i * 2;
}
Alexander Tarnowski 30
DateTime.Now.Minute;
new Calculator.Add(10, 10);
using (StreamReader sr = new StreamReader(“Magic.txt"))
{
int.Parse(sr.ReadToEnd());
}
Indirect input
int DoMagic(int i)
{
return i +
}

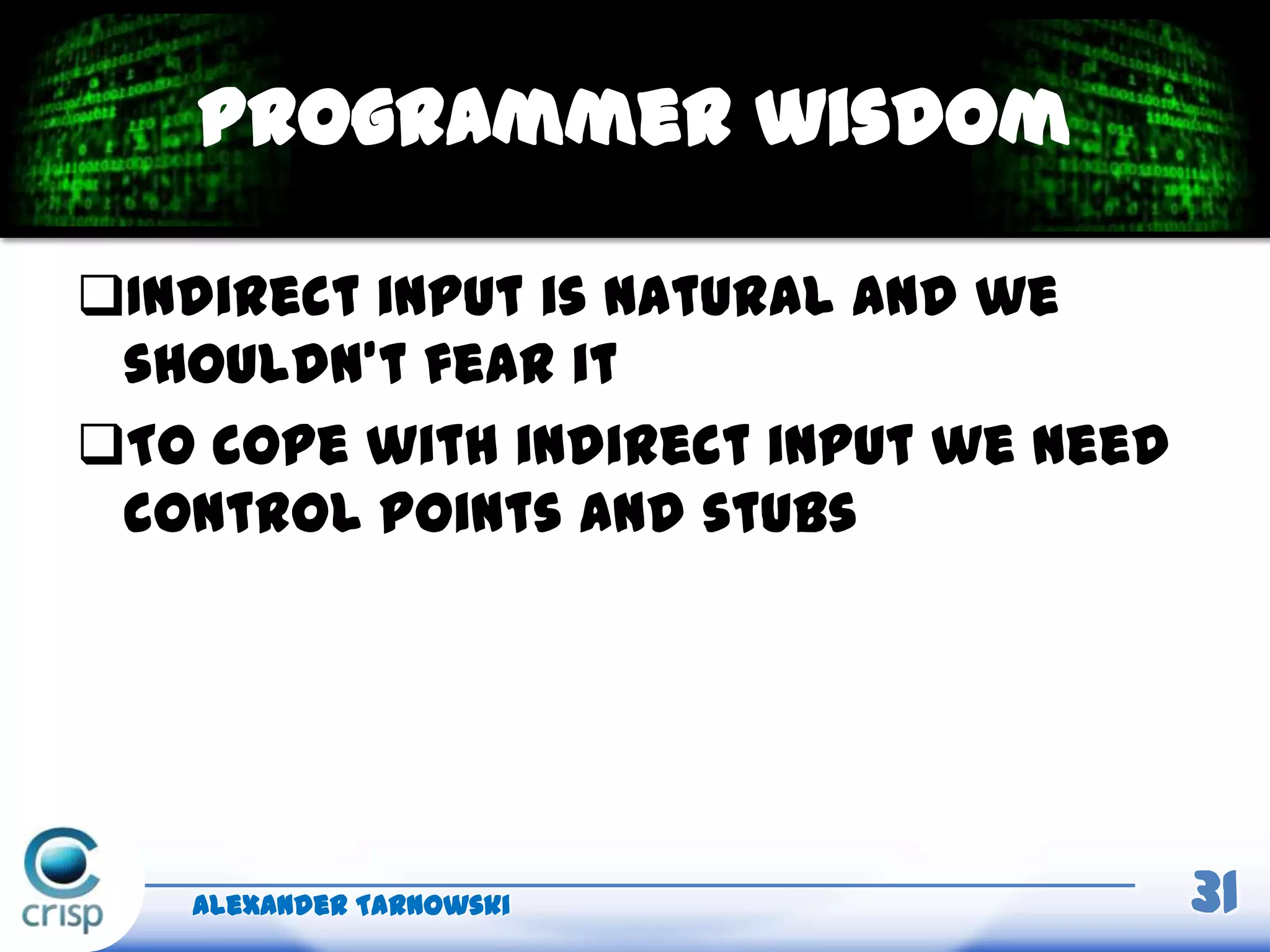

31. Indirect input is natural and we
shouldn’t fear it
To cope with indirect input we need
control points and stubs
Alexander Tarnowski 31
Programmer wisdom

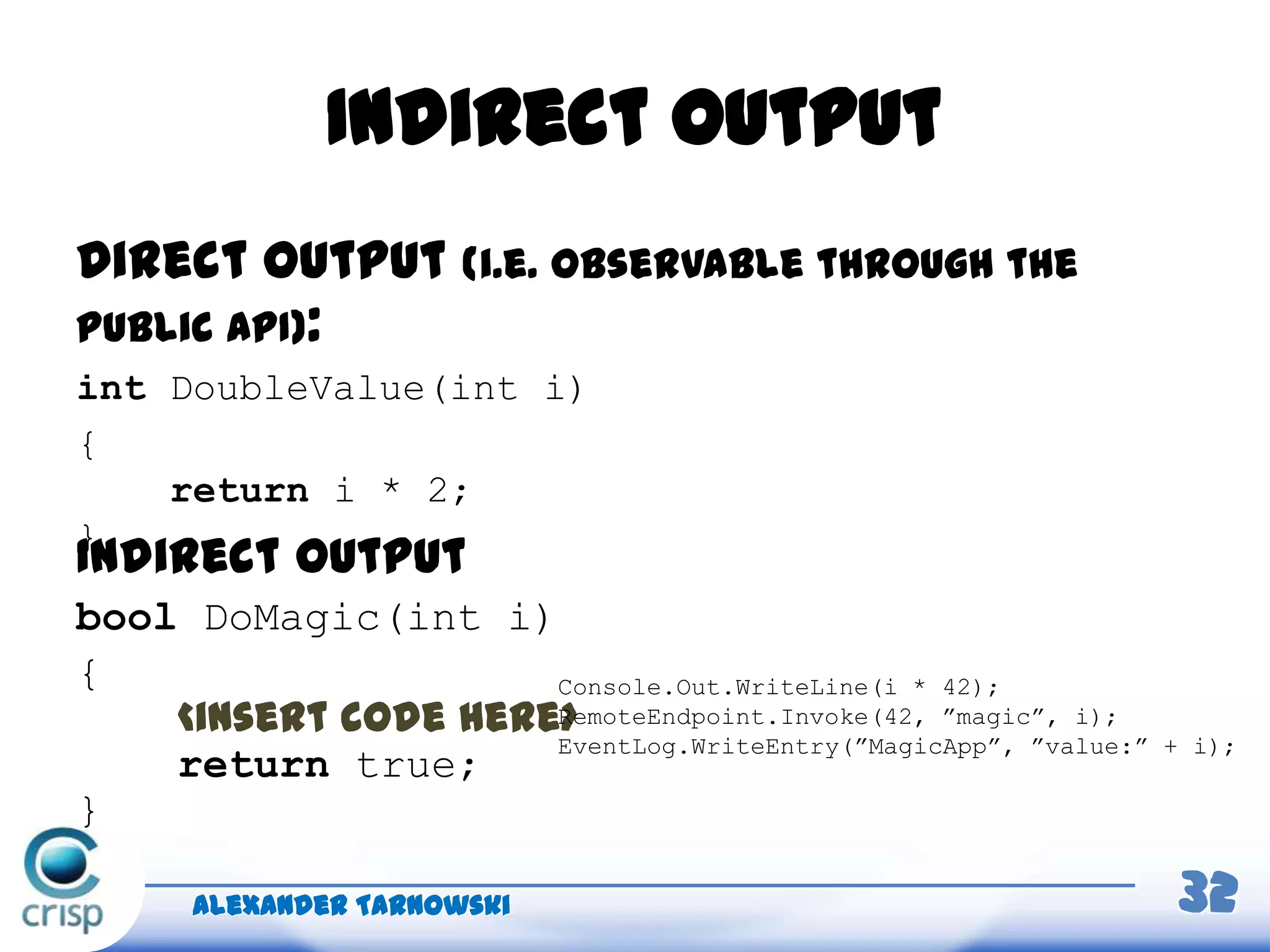

32. Indirect output
Alexander Tarnowski 32
Direct output (i.e. observable through the
public API):
int DoubleValue(int i)
{
return i * 2;
}
Indirect output
bool DoMagic(int i)
{
<insert code here>
return true;
}
Console.Out.WriteLine(i * 42);
RemoteEndpoint.Invoke(42, ”magic”, i);
EventLog.WriteEntry(”MagicApp”, ”value:” + i);

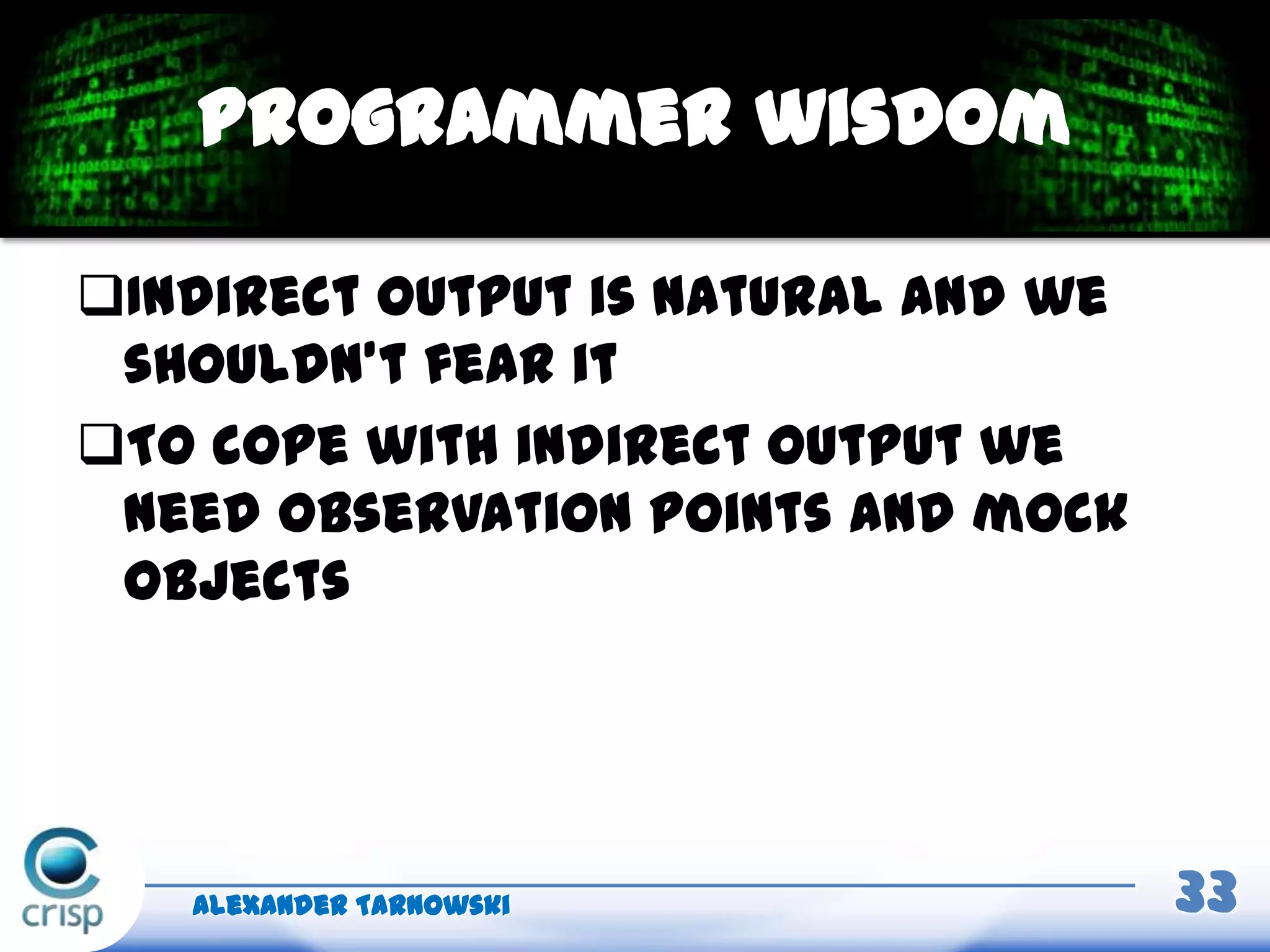

33. Indirect output is natural and we
shouldn’t fear it
To cope with indirect output we
need observation points and mock
objects
Alexander Tarnowski 33
Programmer wisdom

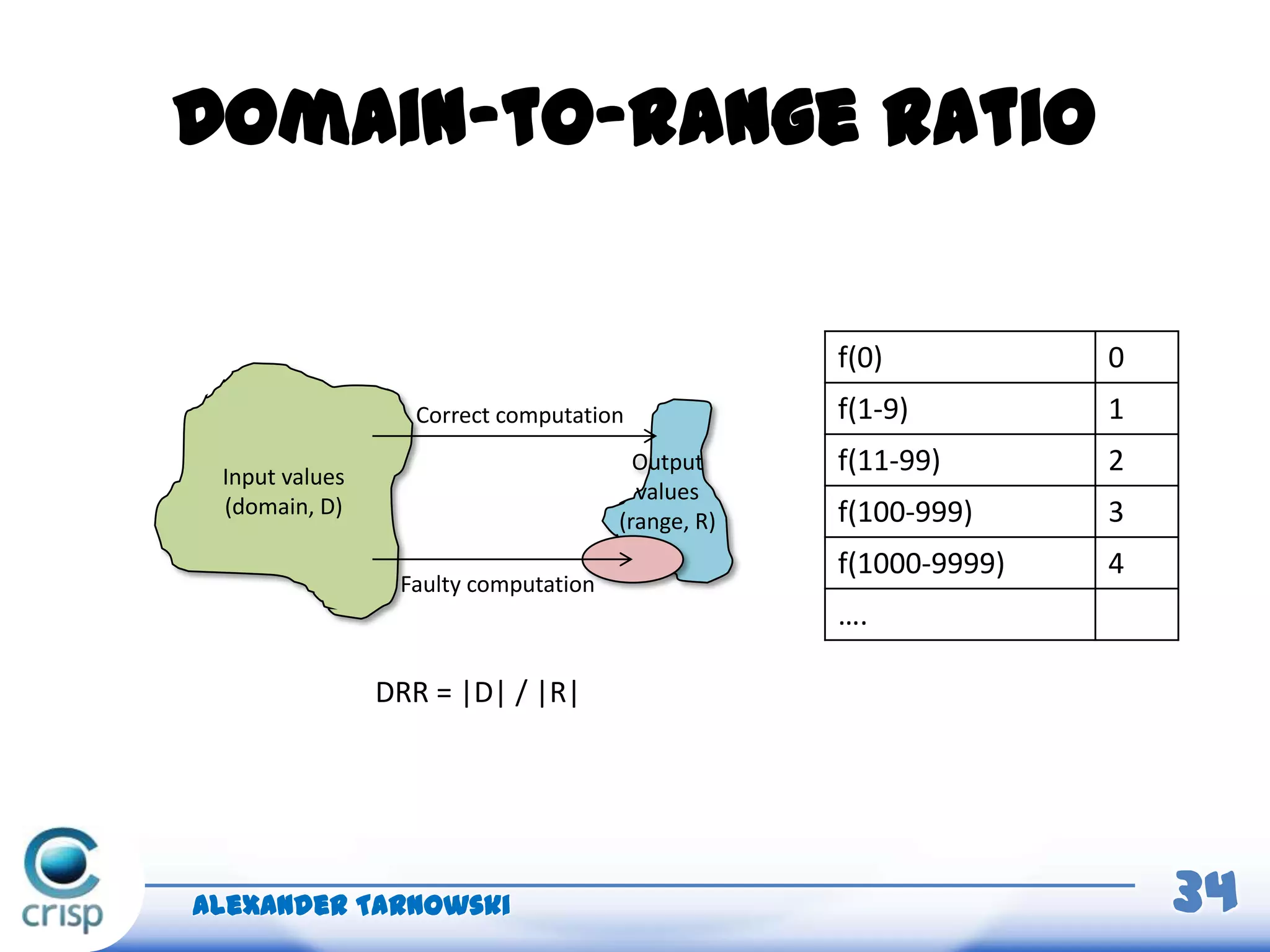

34. Domain-to-range ratio
Alexander Tarnowski 34
Input values
(domain, D)
Output
values
(range, R)
Correct computation
Faulty computation
DRR = |D| / |R|
f(0) 0
f(1-9) 1
f(11-99) 2
f(100-999) 3
f(1000-9999) 4
….

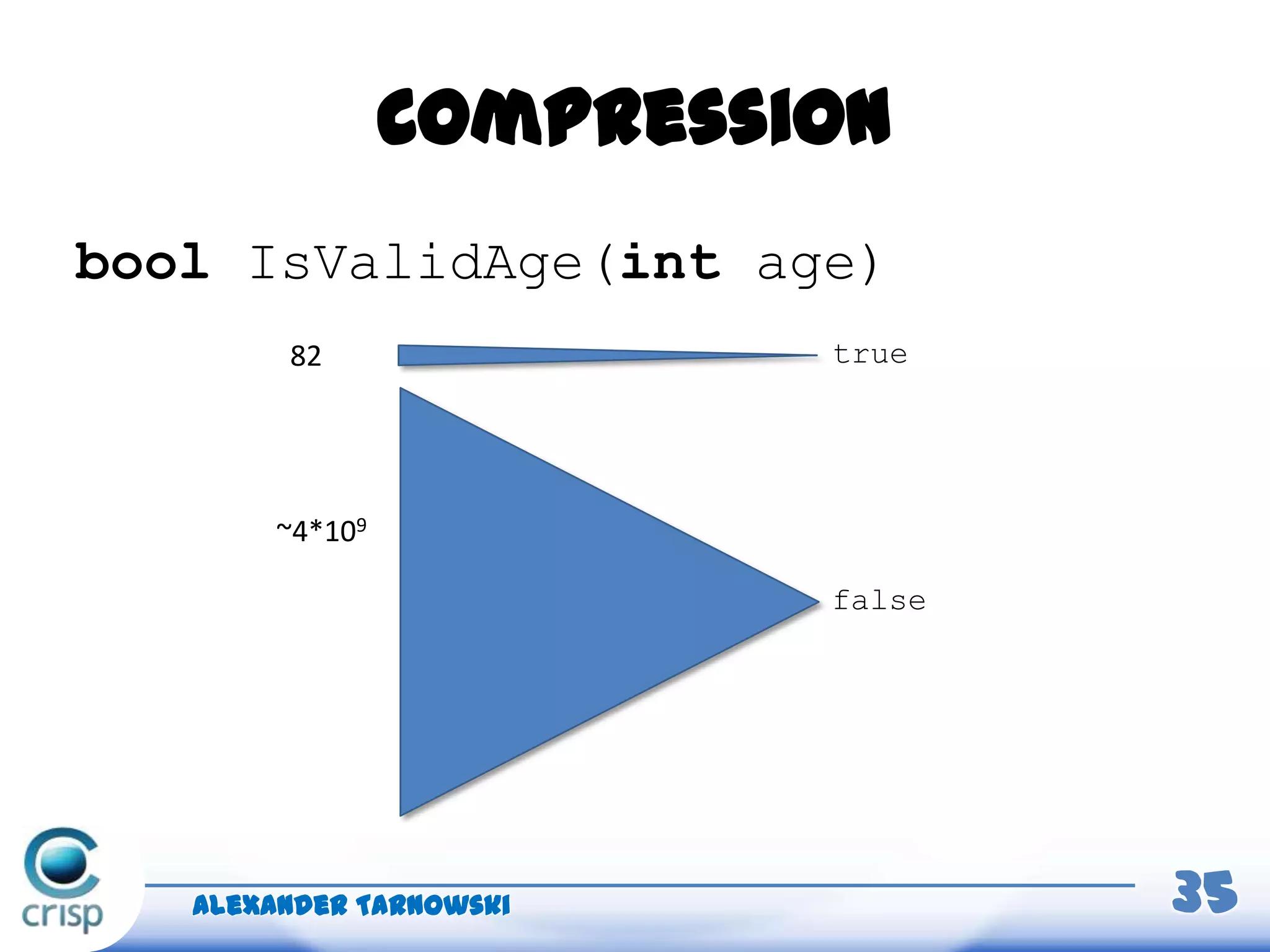

35. Compression
bool IsValidAge(int age)
Alexander Tarnowski 35
82
false
~4*109
true

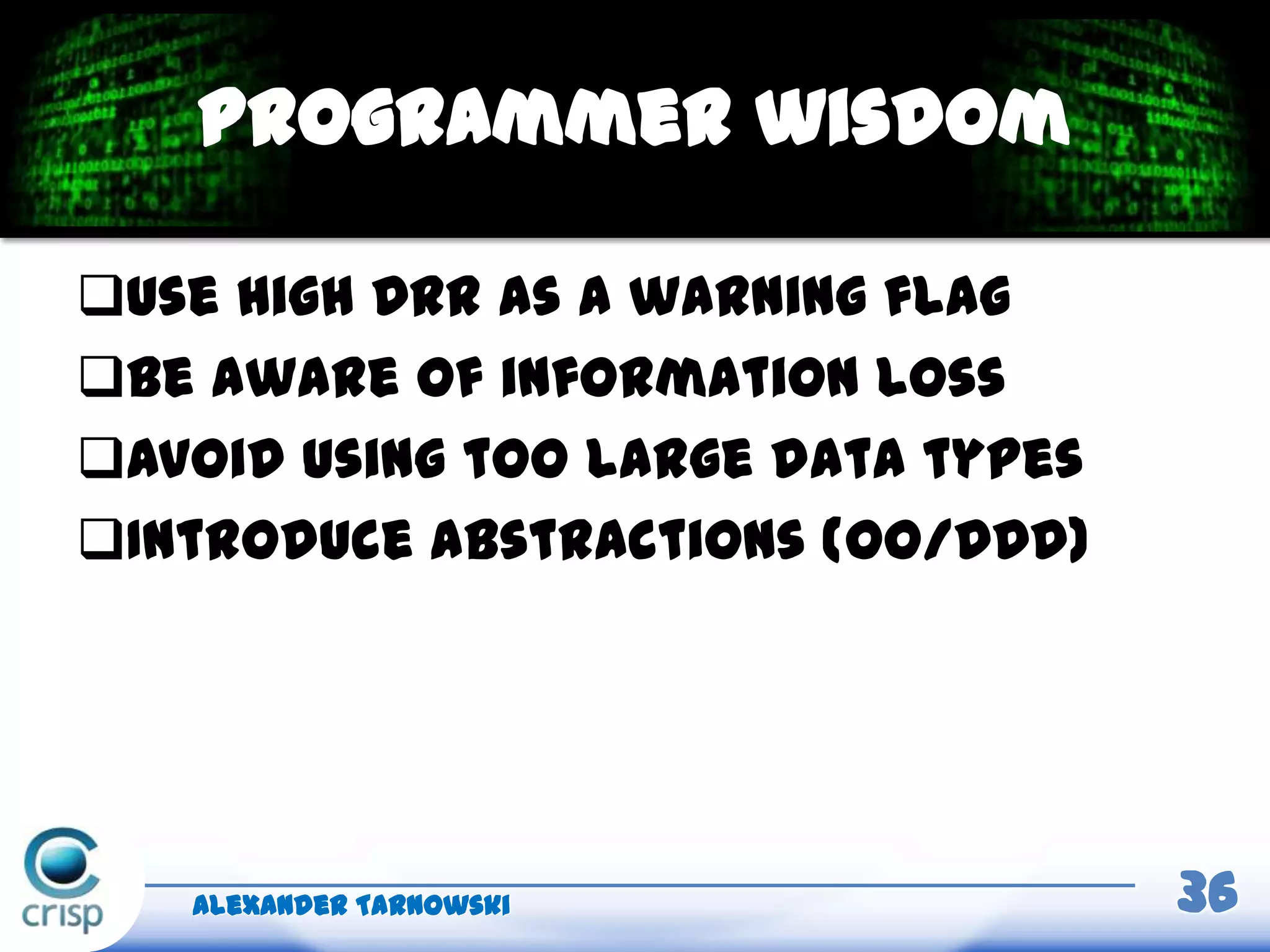

36. Use high DRR as a warning flag
Be aware of information loss
Avoid using too large data types
Introduce abstractions (OO/DDD)
Alexander Tarnowski 36
Programmer wisdom

37. Dependencies
Alexander Tarnowski 37

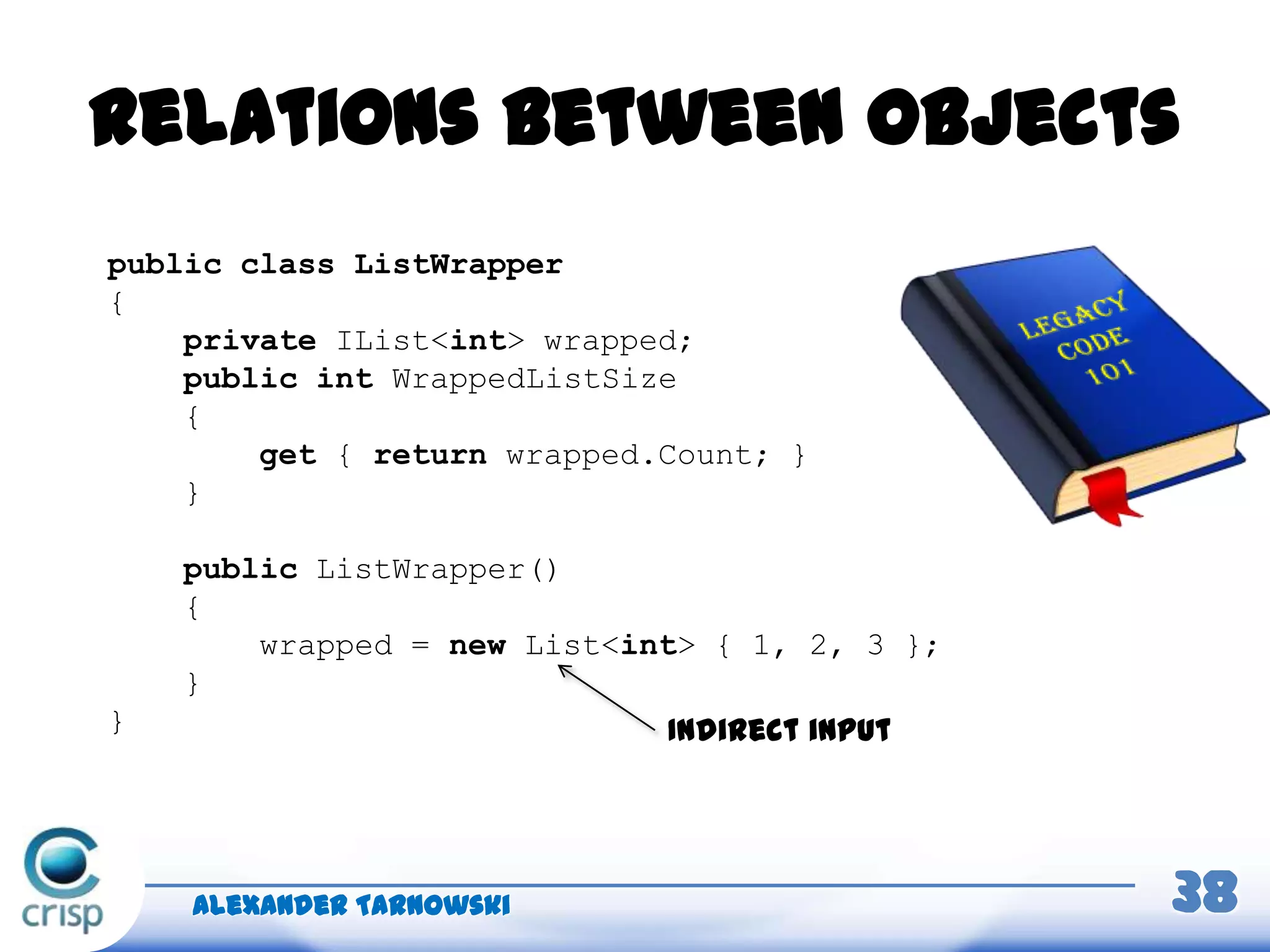

38. Relations between objects
Alexander Tarnowski 38
public class ListWrapper
{
private IList<int> wrapped;
public int WrappedListSize
{
get { return wrapped.Count; }
}
public ListWrapper()
{
wrapped = new List<int> { 1, 2, 3 };
}
} Indirect input

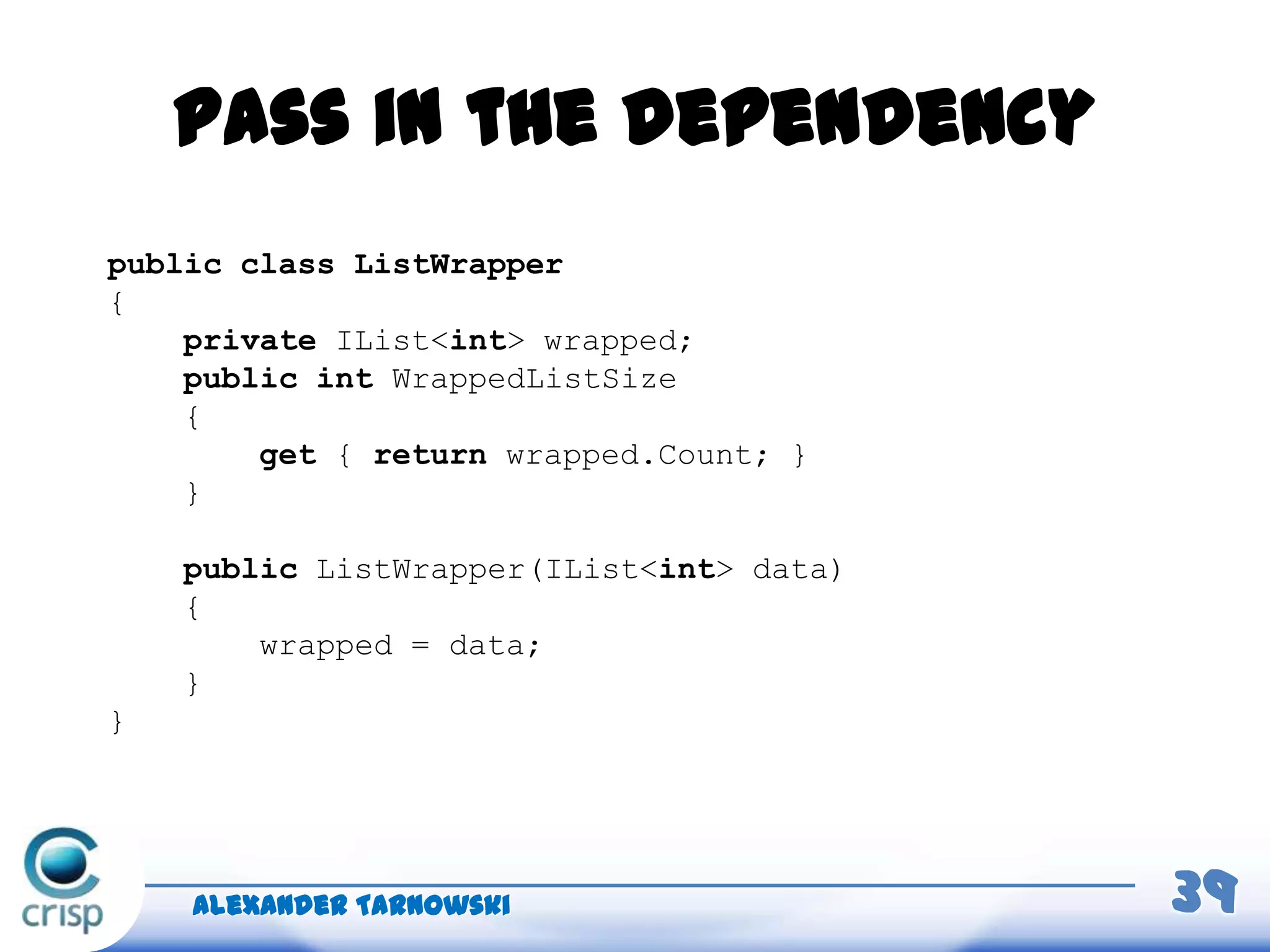

39. Pass in the dependency
Alexander Tarnowski 39
public class ListWrapper
{
private IList<int> wrapped;
public int WrappedListSize
{
get { return wrapped.Count; }
}
public ListWrapper(IList<int> data)
{
wrapped = data;
}
}

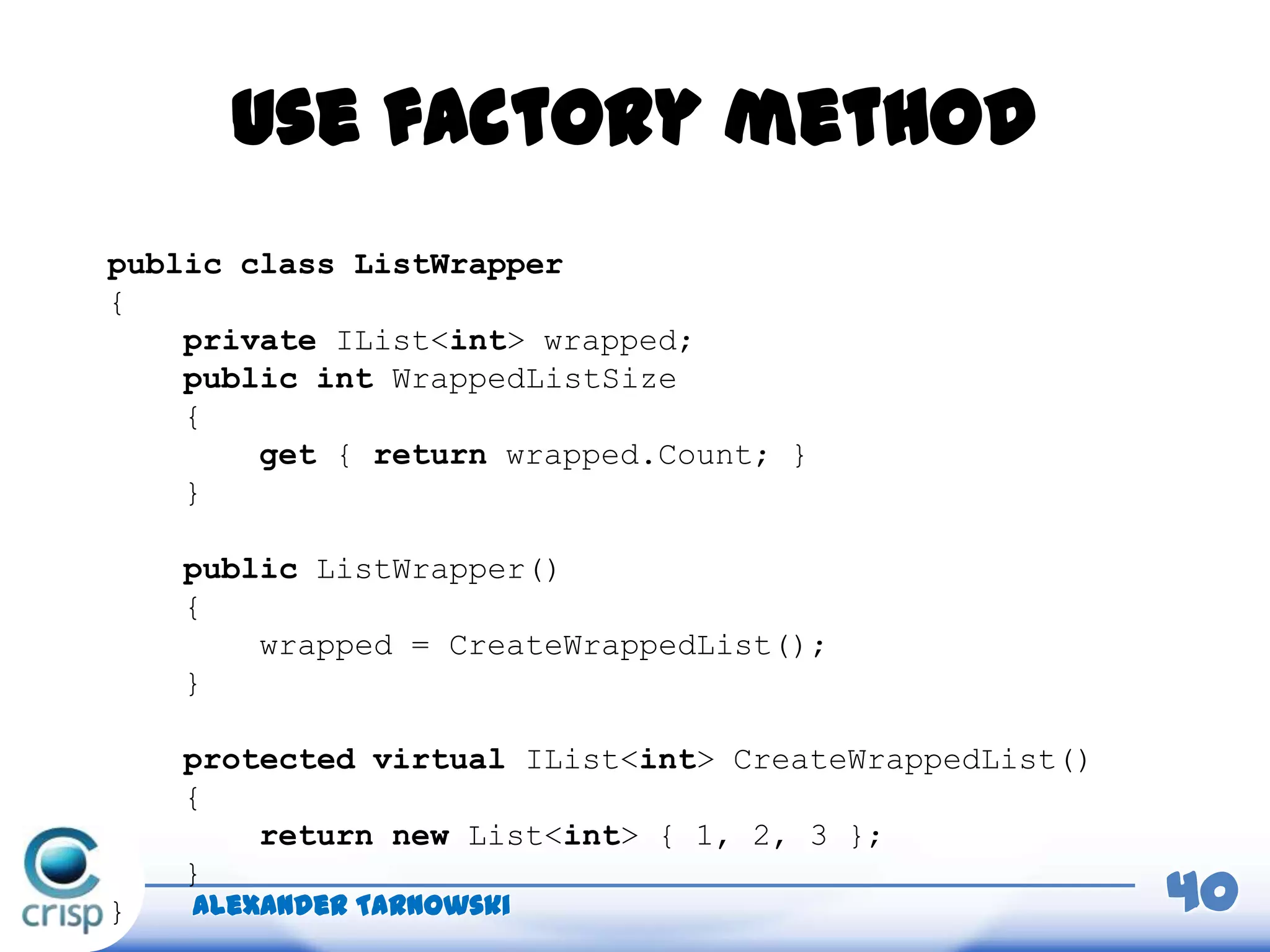

40. Use factory method
Alexander Tarnowski 40
public class ListWrapper
{
private IList<int> wrapped;
public int WrappedListSize
{
get { return wrapped.Count; }
}
public ListWrapper()
{
wrapped = CreateWrappedList();
}
protected virtual IList<int> CreateWrappedList()
{
return new List<int> { 1, 2, 3 };
}
}

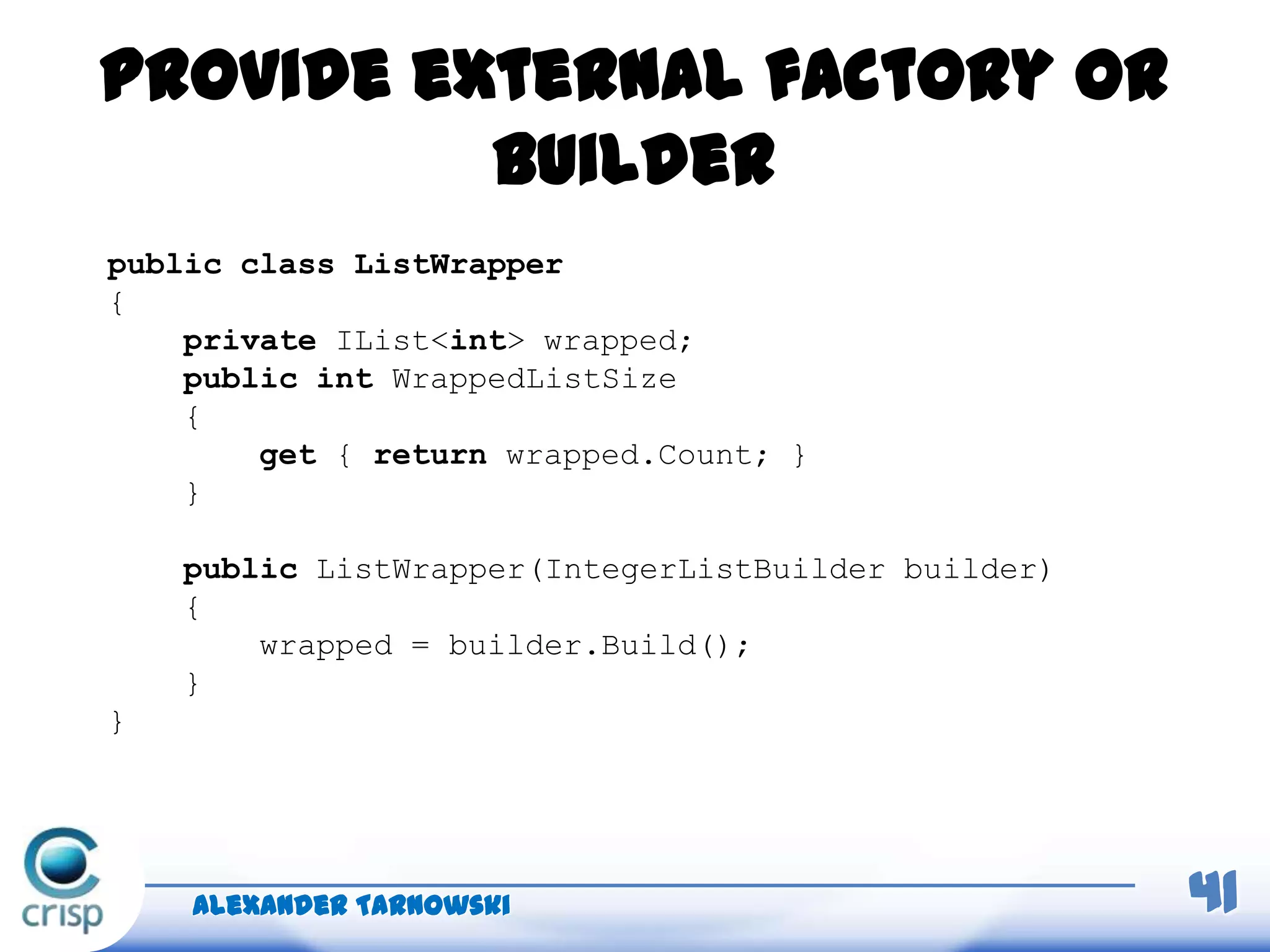

41. Provide external factory or
builder
Alexander Tarnowski 41
public class ListWrapper
{
private IList<int> wrapped;
public int WrappedListSize
{
get { return wrapped.Count; }
}
public ListWrapper(IntegerListBuilder builder)
{
wrapped = builder.Build();
}
}

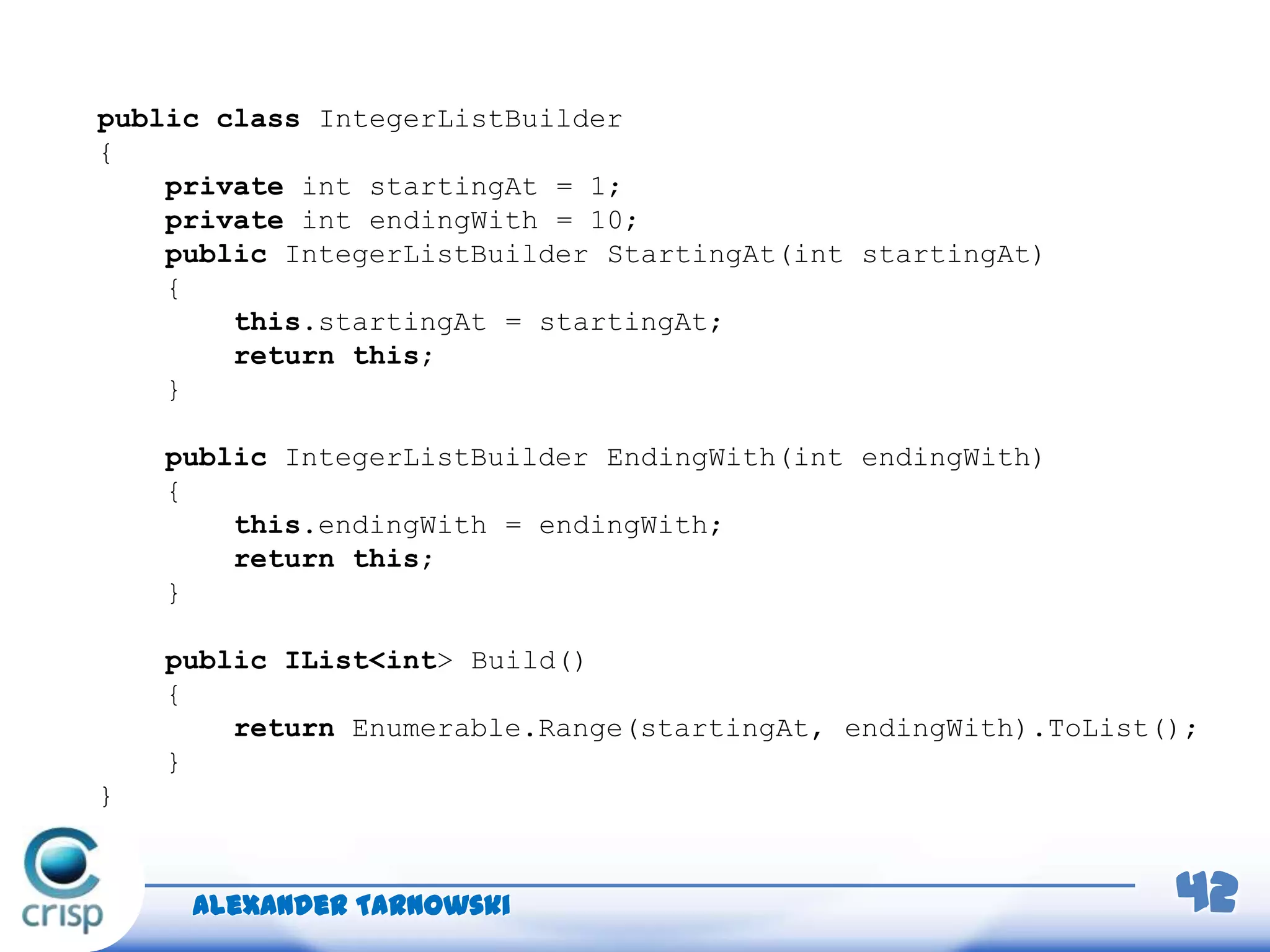

42. Alexander Tarnowski 42
public class IntegerListBuilder
{
private int startingAt = 1;
private int endingWith = 10;
public IntegerListBuilder StartingAt(int startingAt)
{
this.startingAt = startingAt;
return this;
}
public IntegerListBuilder EndingWith(int endingWith)
{
this.endingWith = endingWith;
return this;
}
public IList<int> Build()
{
return Enumerable.Range(startingAt, endingWith).ToList();
}
}

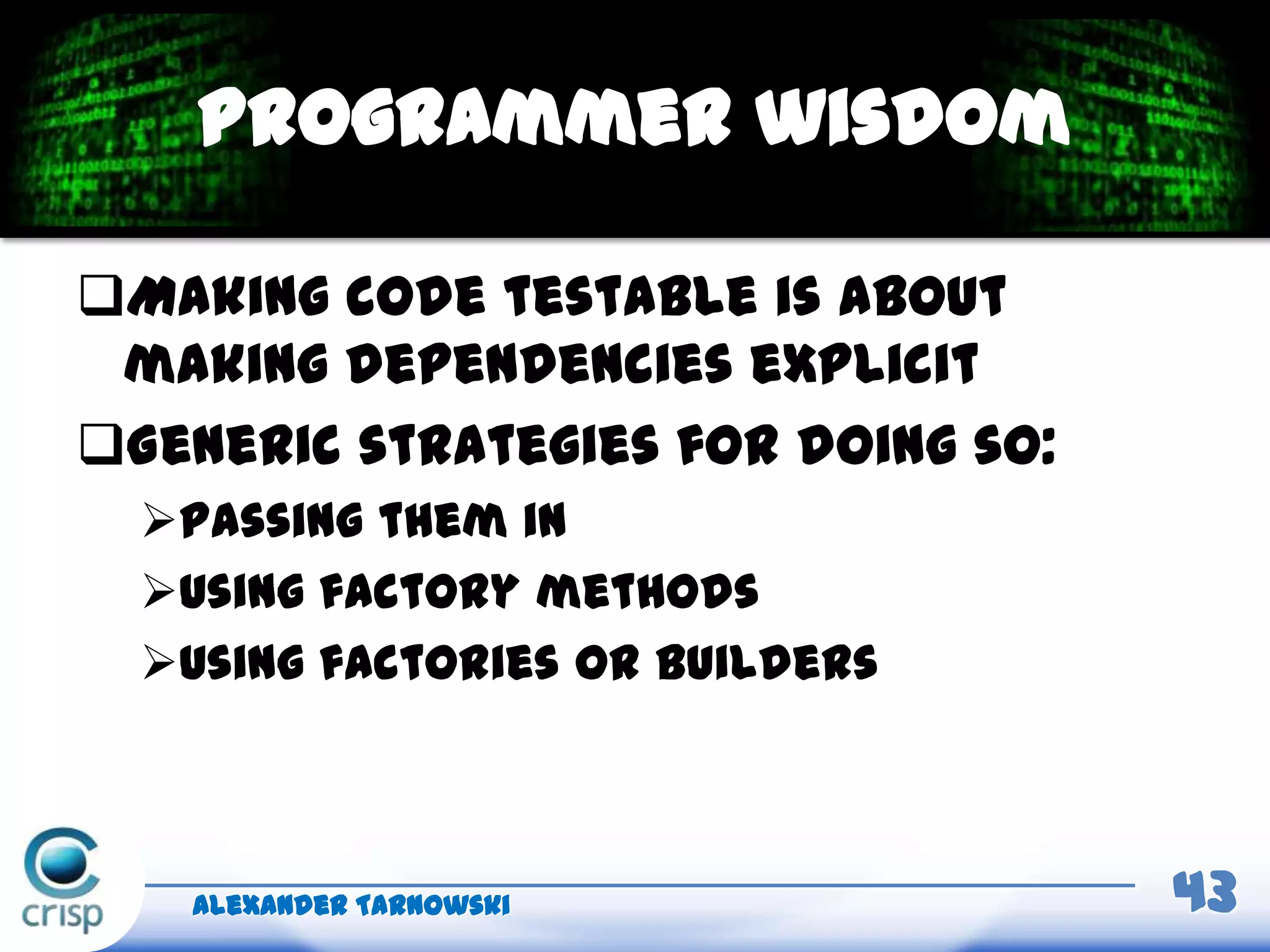

43. Making code testable is about
making dependencies explicit
Generic strategies for doing so:
Passing them in
Using factory methods
Using factories or builders
Alexander Tarnowski 43
Programmer wisdom

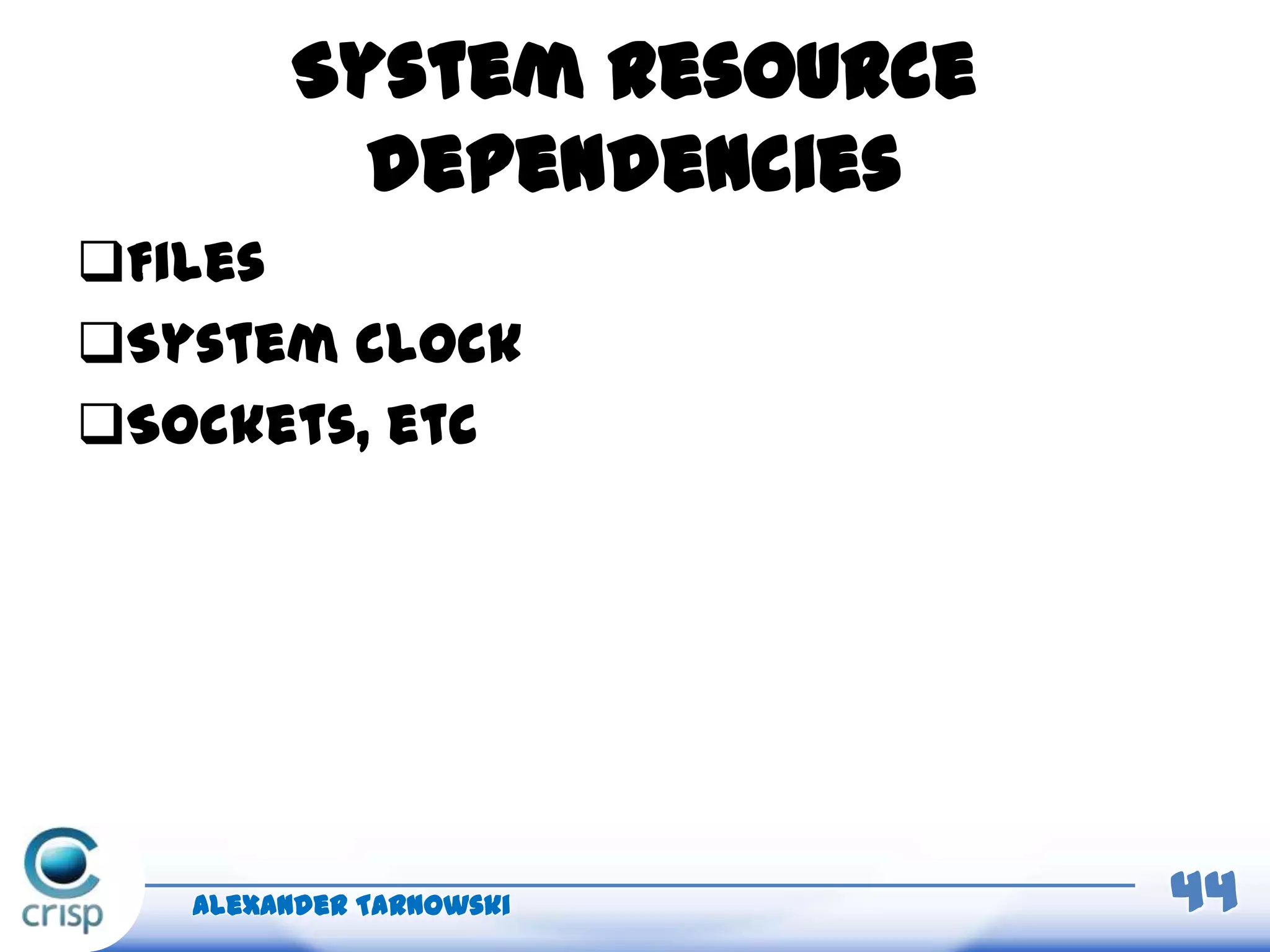

44. System resource
dependencies
Files
System clock
Sockets, etc
Alexander Tarnowski 44

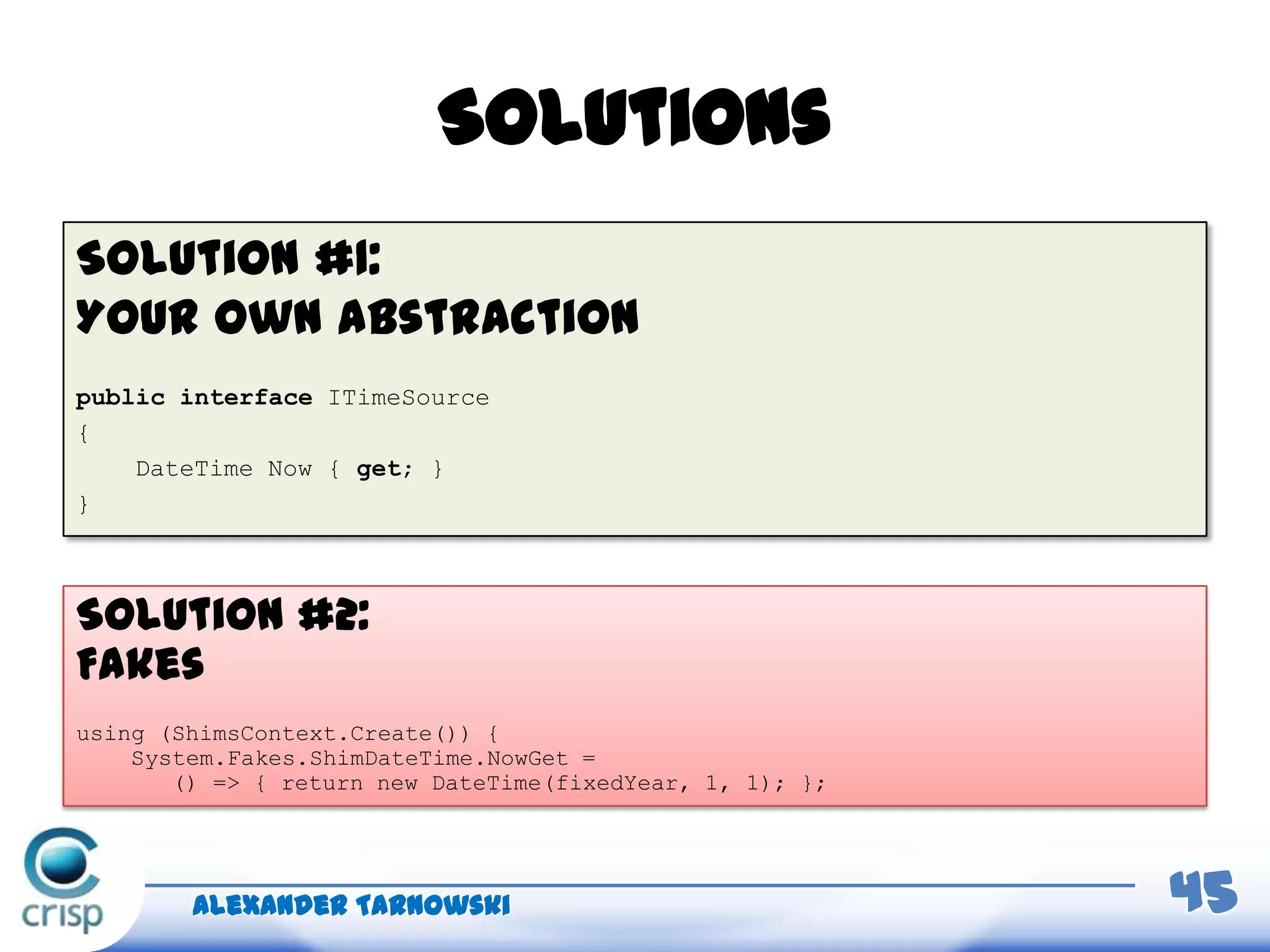

45. Solutions
Solution #1:
Your own abstraction
public interface ITimeSource
{
DateTime Now { get; }
}
Alexander Tarnowski 45
Solution #2:
Fakes
using (ShimsContext.Create()) {
System.Fakes.ShimDateTime.NowGet =
() => { return new DateTime(fixedYear, 1, 1); };

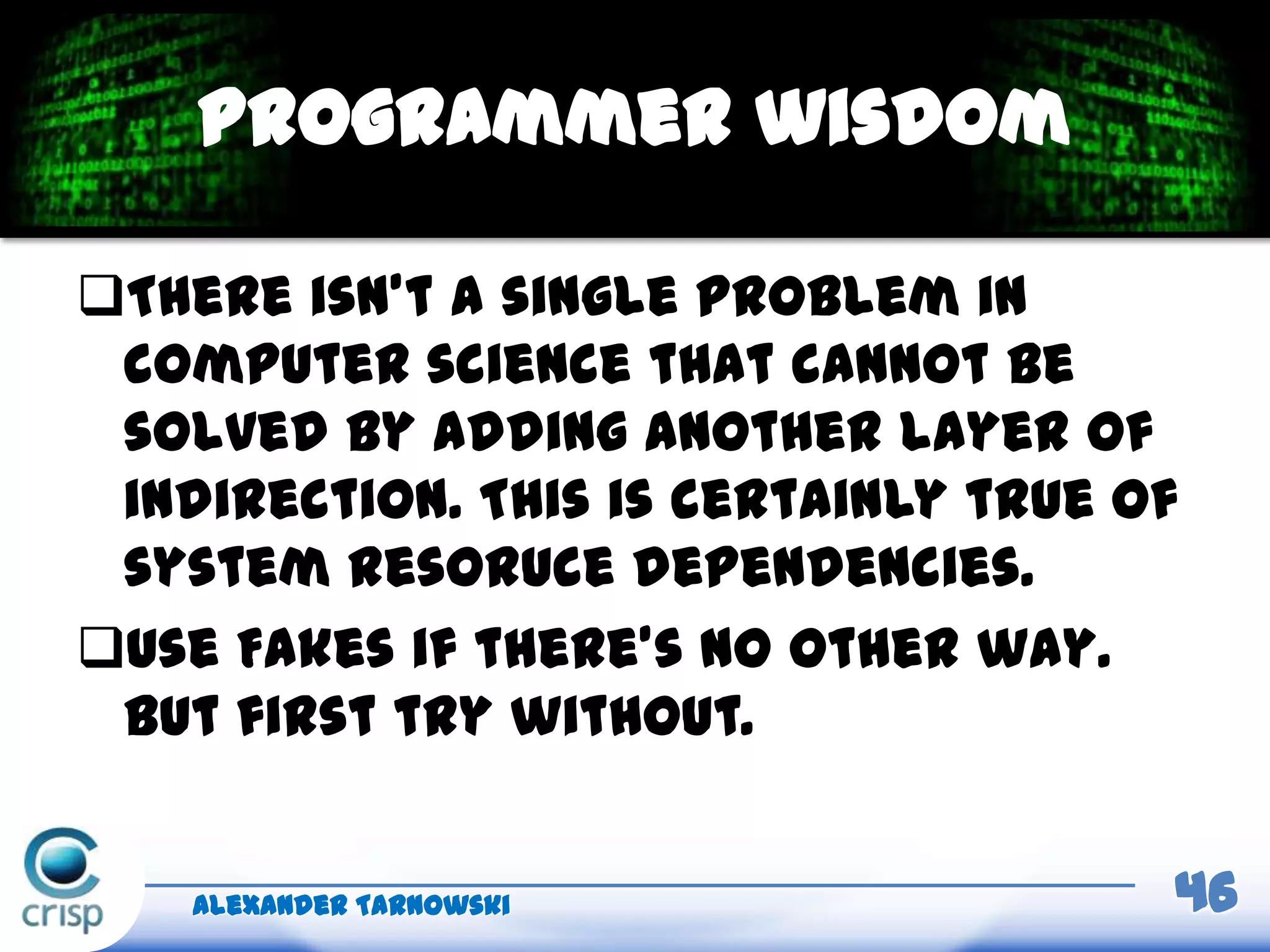

46. There isn’t a single problem in
computer science that cannot be
solved by adding another layer of
indirection. This is certainly true of
system resoruce dependencies.
Use Fakes if there’s no other way.
But first try without.
Alexander Tarnowski 46
Programmer wisdom

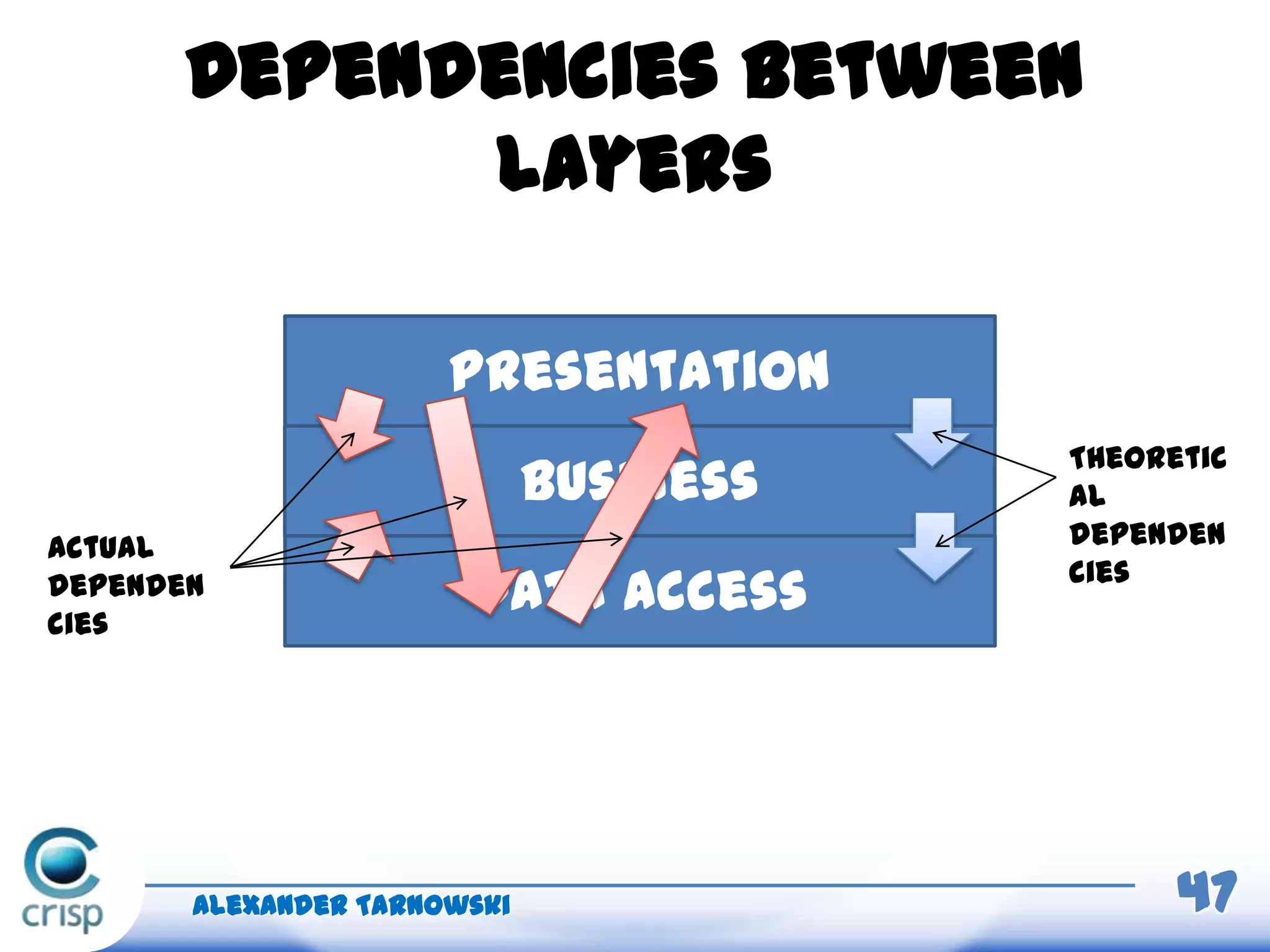

47. Dependencies between
layers
Alexander Tarnowski 47
Presentation
Business
Data access
Theoretic
al
dependen
cies
Actual
dependen
cies

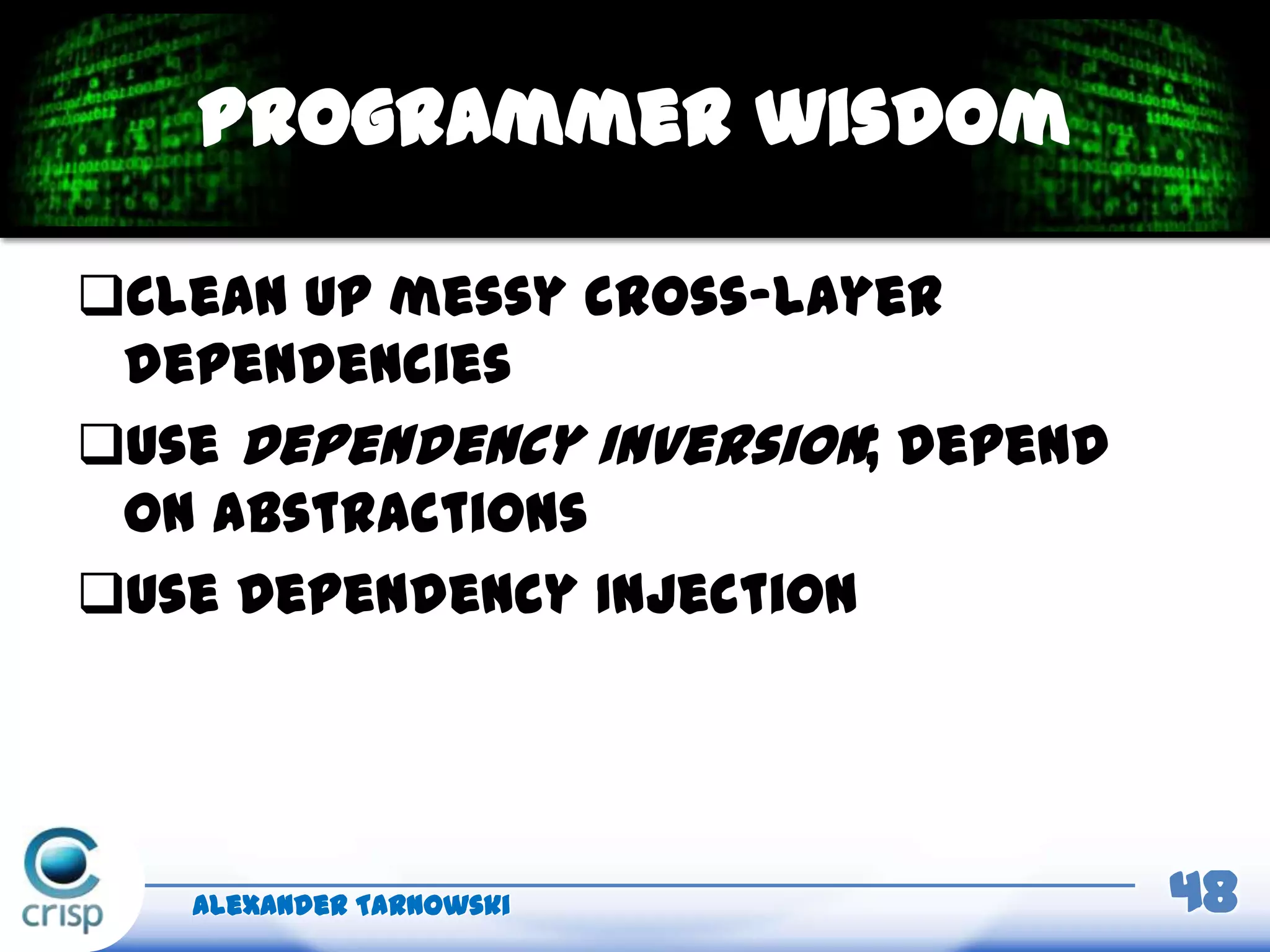

48. Clean up messy cross-layer
dependencies
Use Dependency Inversion; depend
on abstractions
Use Dependency Injection
Alexander Tarnowski 48
Programmer wisdom

49. Duplication
Alexander Tarnowski 49

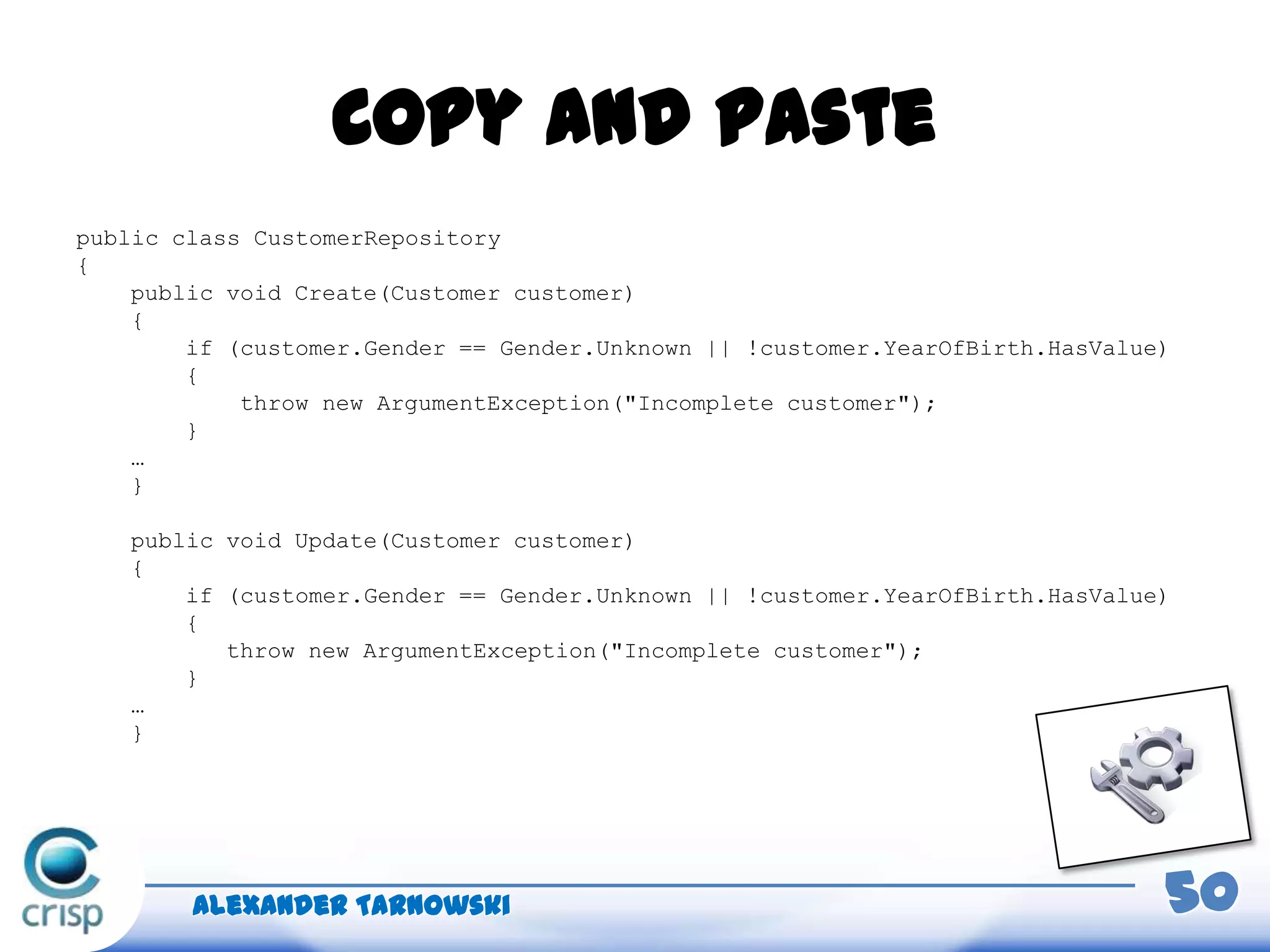

50. Copy and paste
public class CustomerRepository
{
public void Create(Customer customer)
{
if (customer.Gender == Gender.Unknown || !customer.YearOfBirth.HasValue)
{
throw new ArgumentException("Incomplete customer");
}
…
}
public void Update(Customer customer)
{
if (customer.Gender == Gender.Unknown || !customer.YearOfBirth.HasValue)
{
throw new ArgumentException("Incomplete customer");
}
…
}
Alexander Tarnowski 50

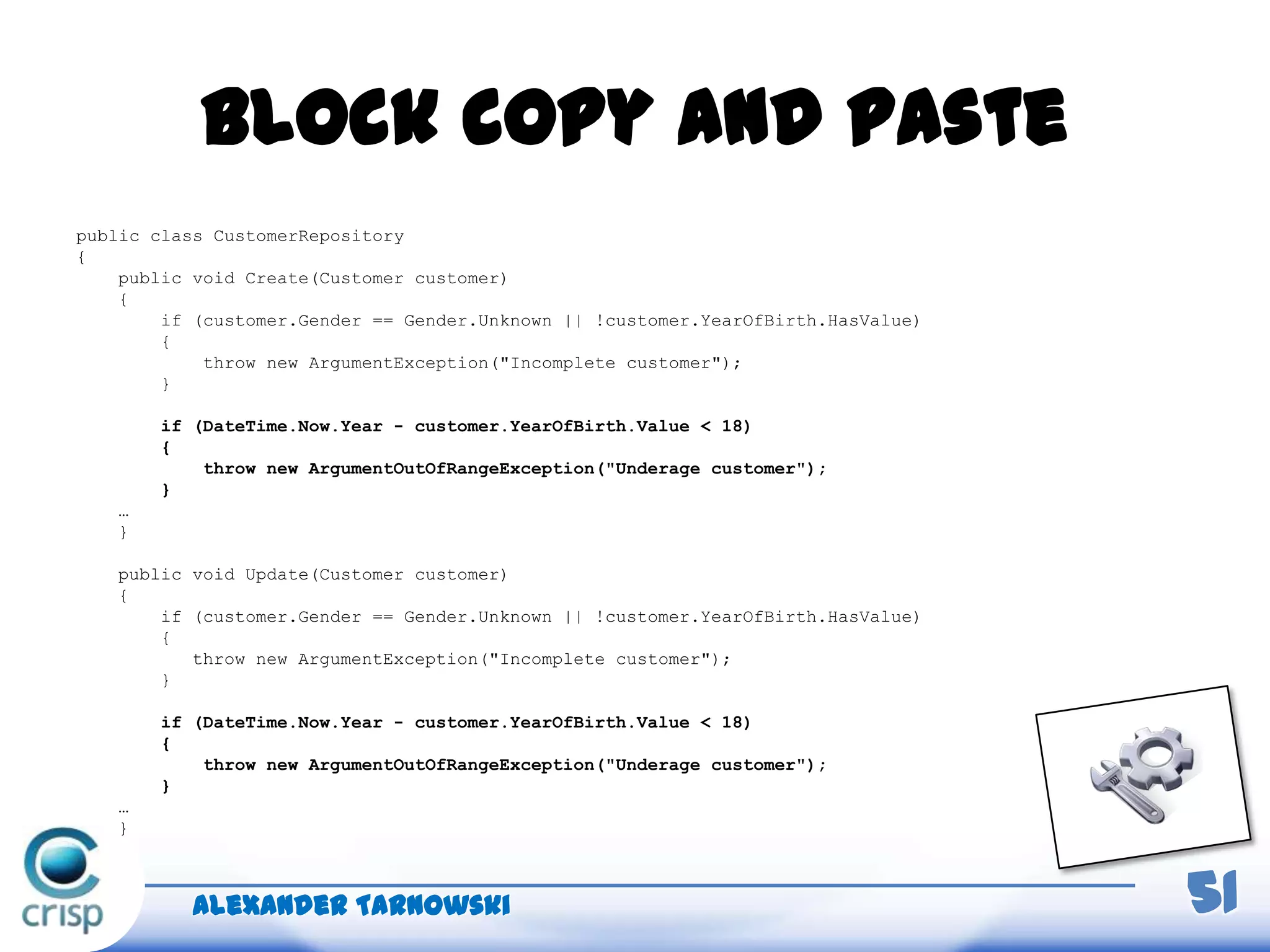

51. Block copy and paste
Alexander Tarnowski 51
public class CustomerRepository
{
public void Create(Customer customer)
{
if (customer.Gender == Gender.Unknown || !customer.YearOfBirth.HasValue)
{
throw new ArgumentException("Incomplete customer");
}
if (DateTime.Now.Year - customer.YearOfBirth.Value < 18)
{
throw new ArgumentOutOfRangeException("Underage customer");
}
…
}
public void Update(Customer customer)
{
if (customer.Gender == Gender.Unknown || !customer.YearOfBirth.HasValue)
{
throw new ArgumentException("Incomplete customer");
}
if (DateTime.Now.Year - customer.YearOfBirth.Value < 18)
{
throw new ArgumentOutOfRangeException("Underage customer");
}
…
}

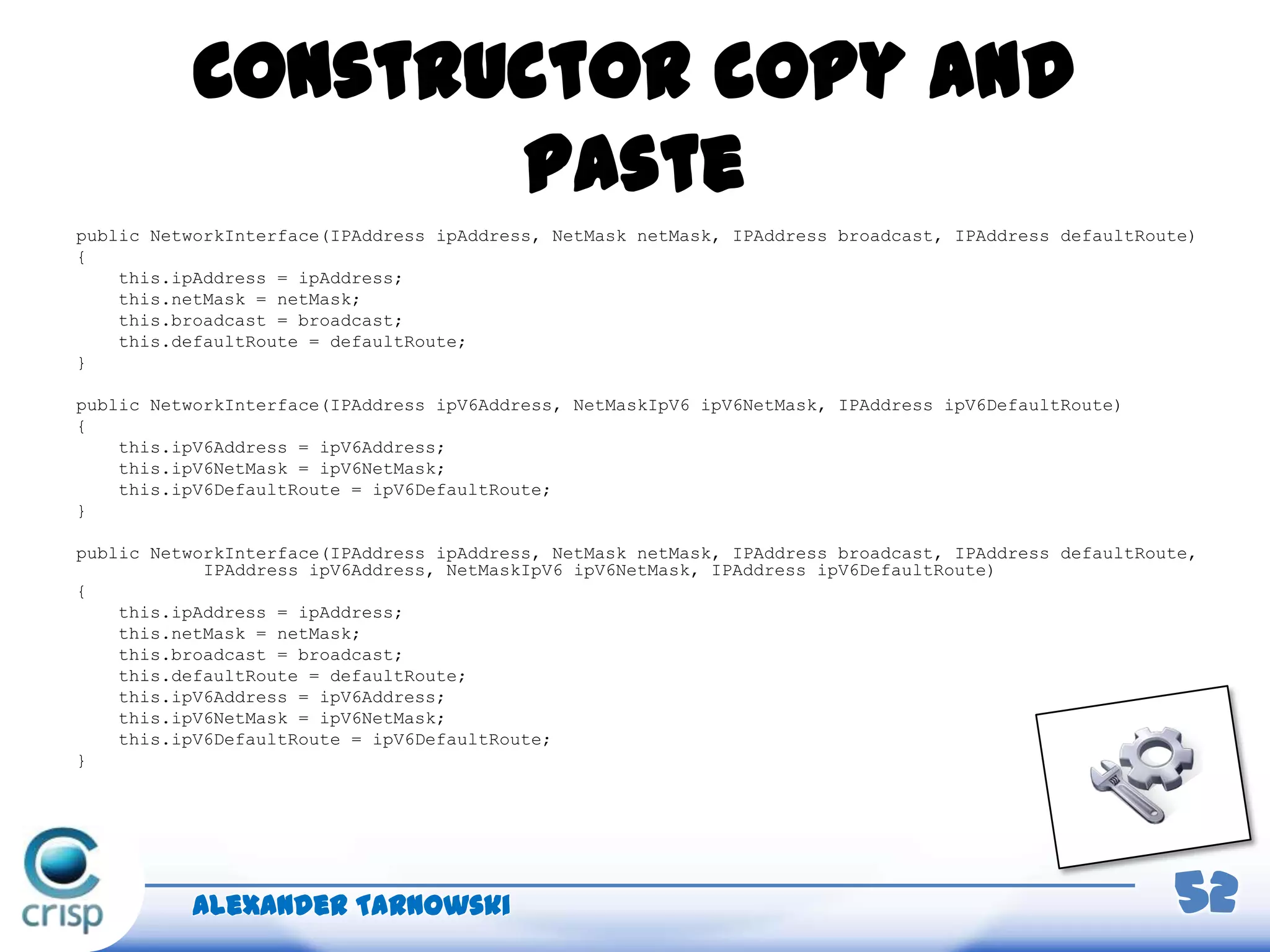

52. Constructor copy and
paste
public NetworkInterface(IPAddress ipAddress, NetMask netMask, IPAddress broadcast, IPAddress defaultRoute)
{
this.ipAddress = ipAddress;
this.netMask = netMask;
this.broadcast = broadcast;
this.defaultRoute = defaultRoute;
}
public NetworkInterface(IPAddress ipV6Address, NetMaskIpV6 ipV6NetMask, IPAddress ipV6DefaultRoute)
{
this.ipV6Address = ipV6Address;
this.ipV6NetMask = ipV6NetMask;
this.ipV6DefaultRoute = ipV6DefaultRoute;
}
public NetworkInterface(IPAddress ipAddress, NetMask netMask, IPAddress broadcast, IPAddress defaultRoute,
IPAddress ipV6Address, NetMaskIpV6 ipV6NetMask, IPAddress ipV6DefaultRoute)
{
this.ipAddress = ipAddress;
this.netMask = netMask;
this.broadcast = broadcast;
this.defaultRoute = defaultRoute;
this.ipV6Address = ipV6Address;
this.ipV6NetMask = ipV6NetMask;
this.ipV6DefaultRoute = ipV6DefaultRoute;
}
Alexander Tarnowski 52

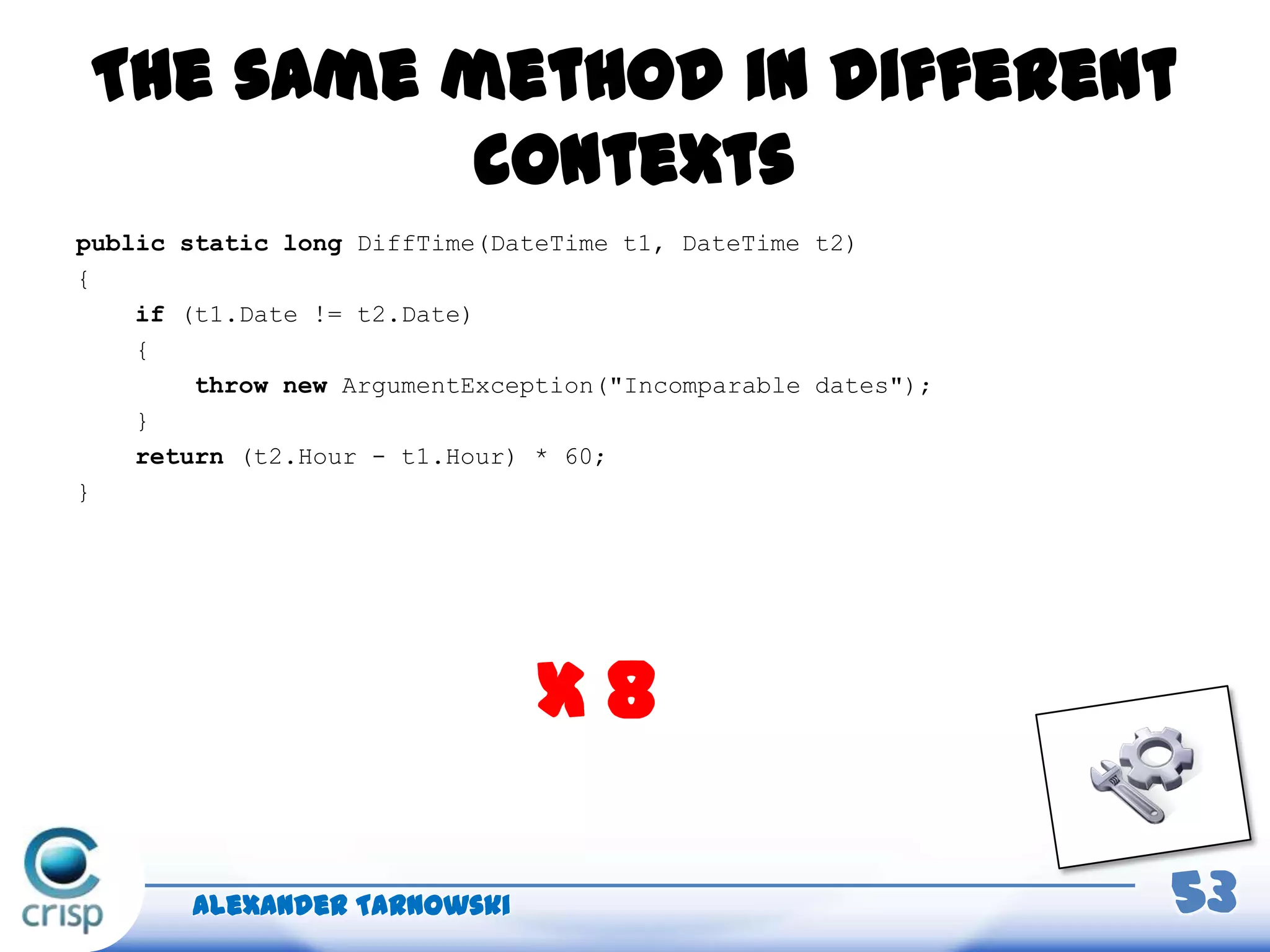

53. The same method in different
contexts
Alexander Tarnowski 53
x 8
public static long DiffTime(DateTime t1, DateTime t2)
{
if (t1.Date != t2.Date)
{
throw new ArgumentException("Incomparable dates");
}
return (t2.Hour - t1.Hour) * 60;
}

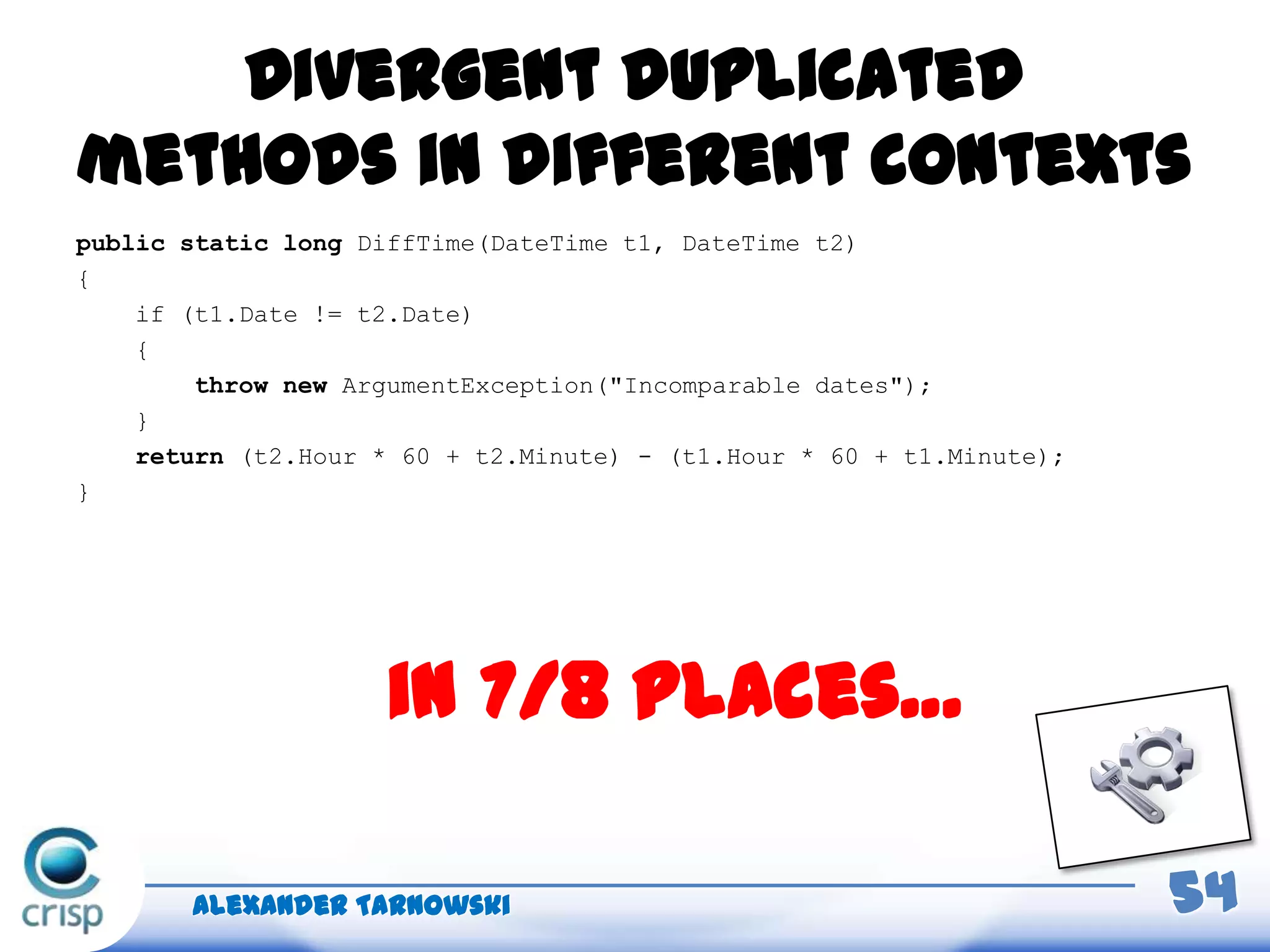

54. Divergent duplicated
methods in different contexts
public static long DiffTime(DateTime t1, DateTime t2)
{
if (t1.Date != t2.Date)
{
throw new ArgumentException("Incomparable dates");
}
return (t2.Hour * 60 + t2.Minute) - (t1.Hour * 60 + t1.Minute);
}
Alexander Tarnowski 54
in 7/8 places…

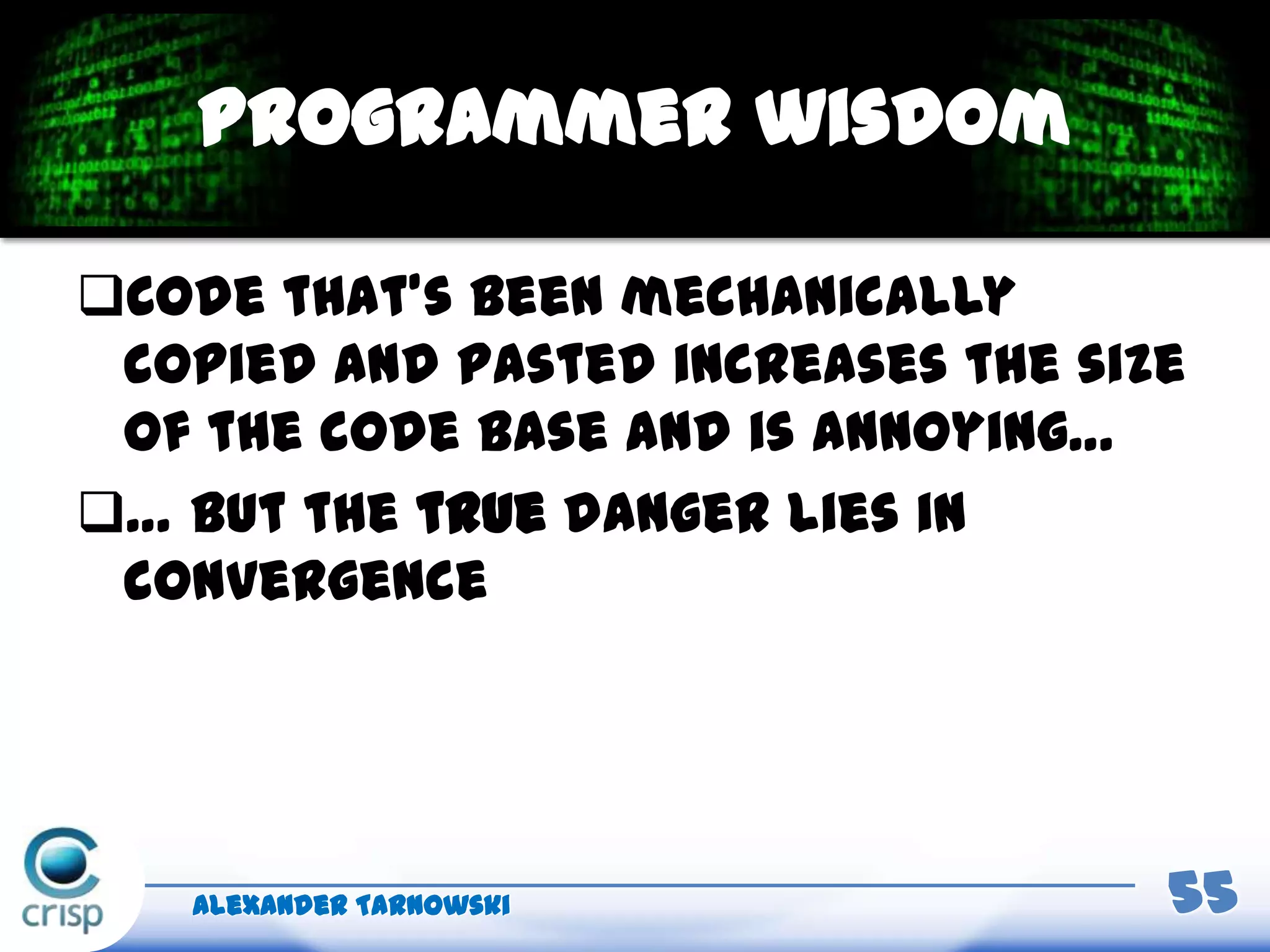

55. Code that’s been mechanically
copied and pasted increases the size
of the code base and is annoying…
… but the true danger lies in
convergence
Alexander Tarnowski 55
Programmer wisdom

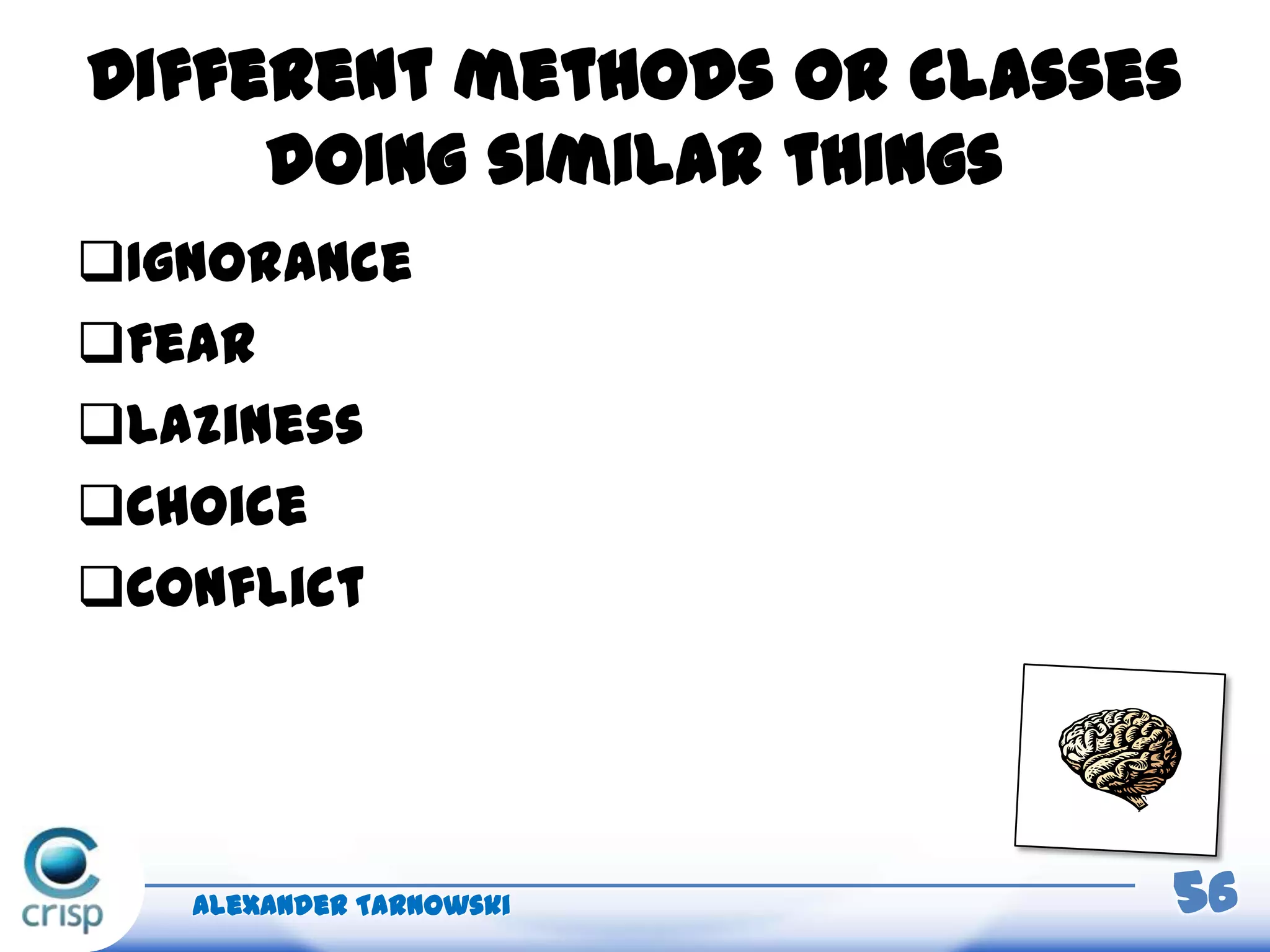

56. Different methods or classes
doing similar things
Ignorance
Fear
Laziness
Choice
Conflict
Alexander Tarnowski 56

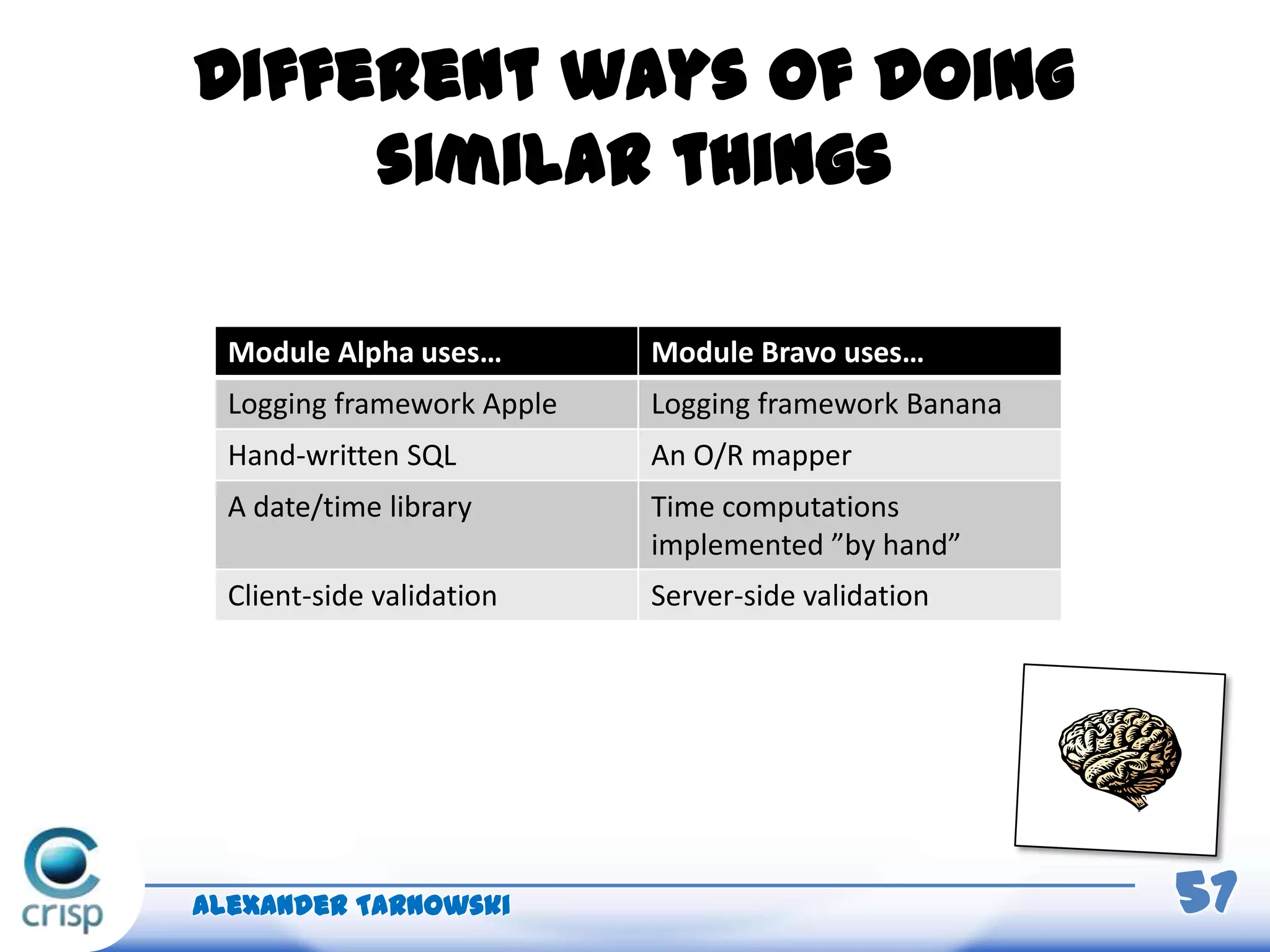

57. Different ways of doing
similar things
Alexander Tarnowski 57
Module Alpha uses… Module Bravo uses…
Logging framework Apple Logging framework Banana
Hand-written SQL An O/R mapper
A date/time library Time computations
implemented ”by hand”
Client-side validation Server-side validation

58. Competing domain models
Alexander Tarnowski 58
Image: vectorolie,Danilo Rizzuti/FreeDigitalPhotos.net

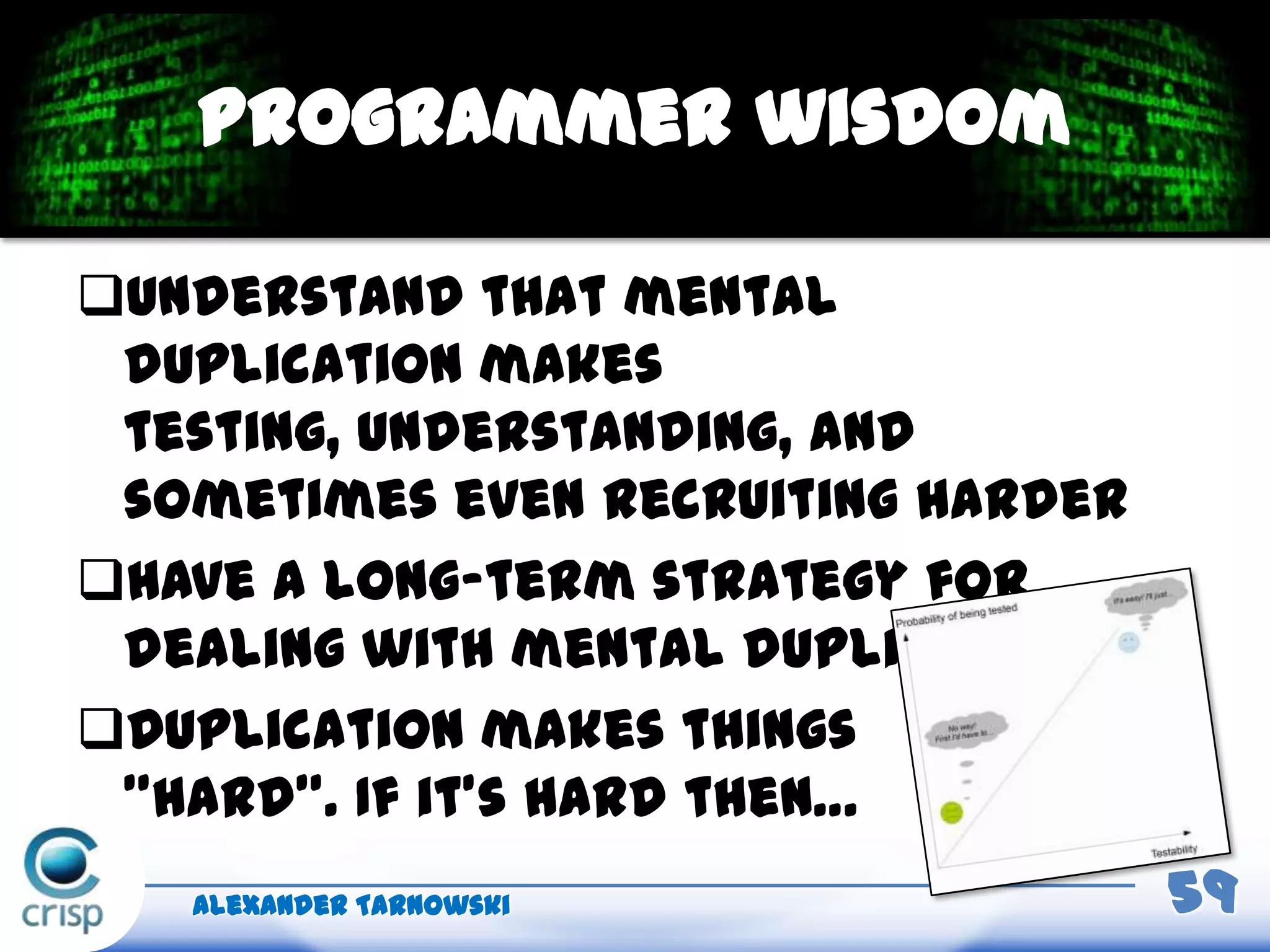

59. Understand that mental
duplication makes
testing, understanding, and
sometimes even recruiting harder
Have a long-term strategy for
dealing with mental duplication
Duplication makes things
”hard”. If it’s hard then…
Alexander Tarnowski 59
Programmer wisdom

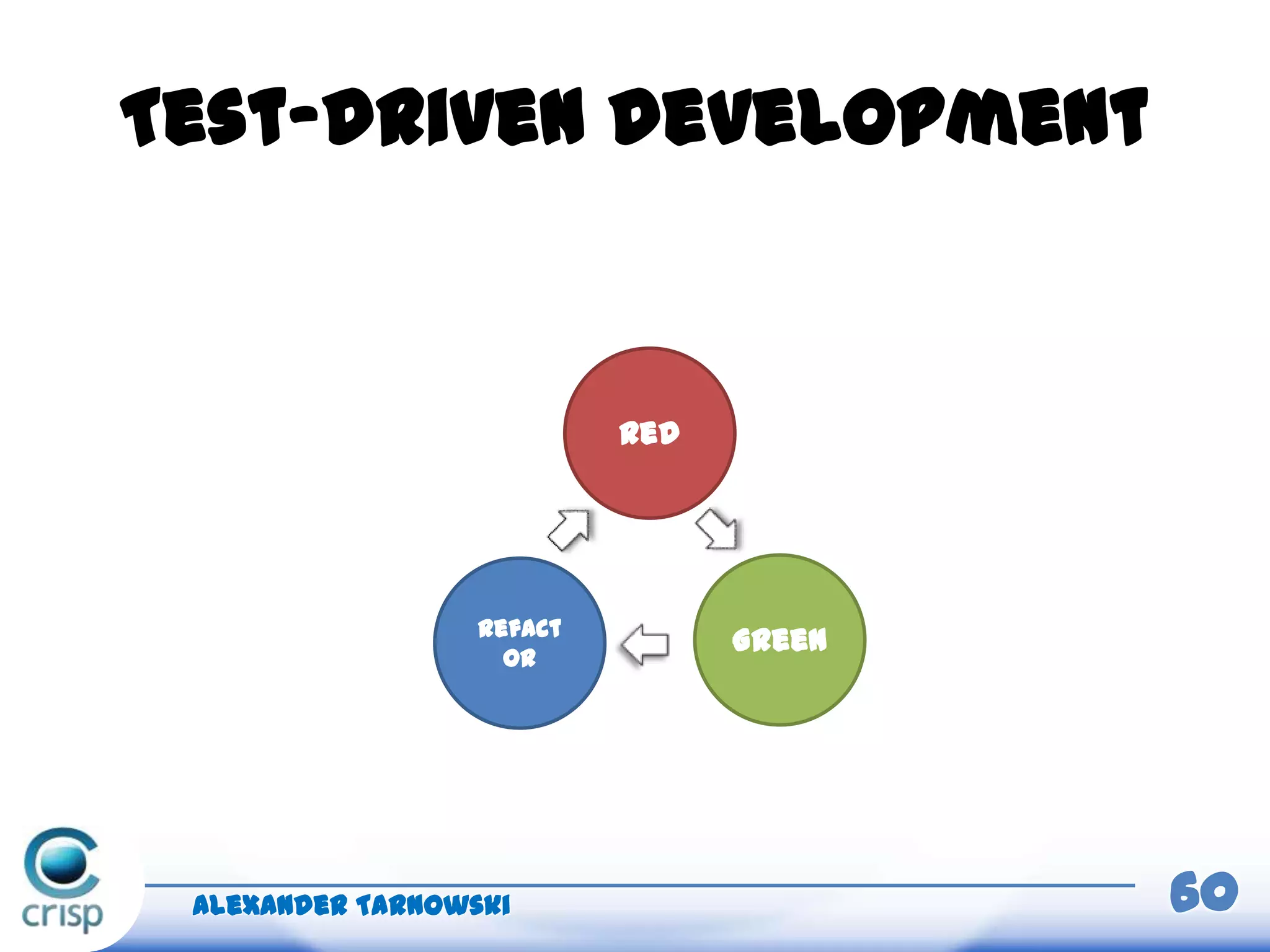

60. Test-driven development
Alexander Tarnowski 60
Refact
or
Green
Red

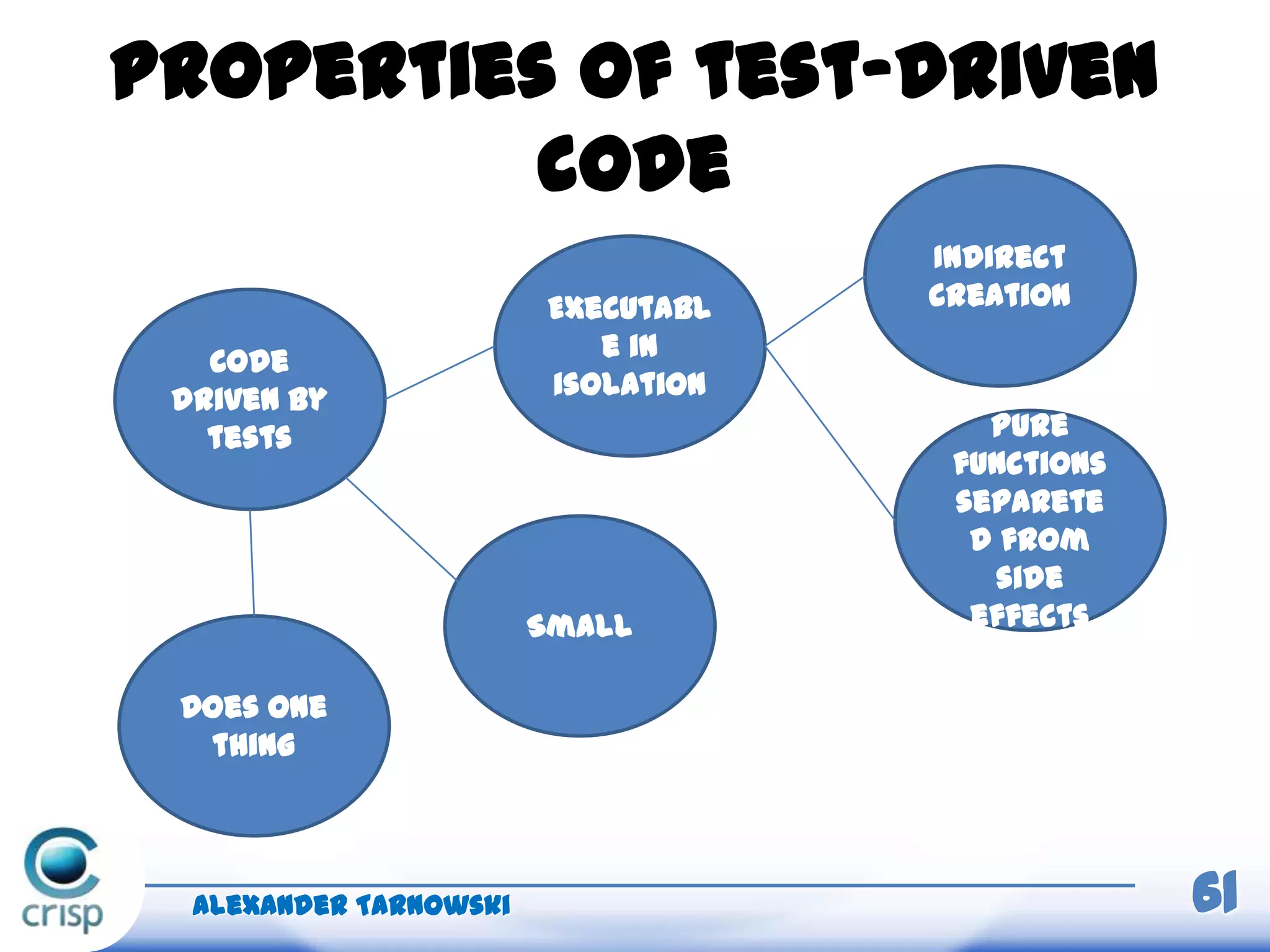

61. Properties of test-driven
code
Alexander Tarnowski 61
Code
driven by
tests
Executabl
e in
isolation
Small
Does one
thing
Indirect
creation
Pure
functions
separete
d from
side
effects

62. • Drives design, not correctness
• Negative tests are not used
• There are two kinds of TDD
Classic TDD London school
TDD and testability
Alexander Tarnowski

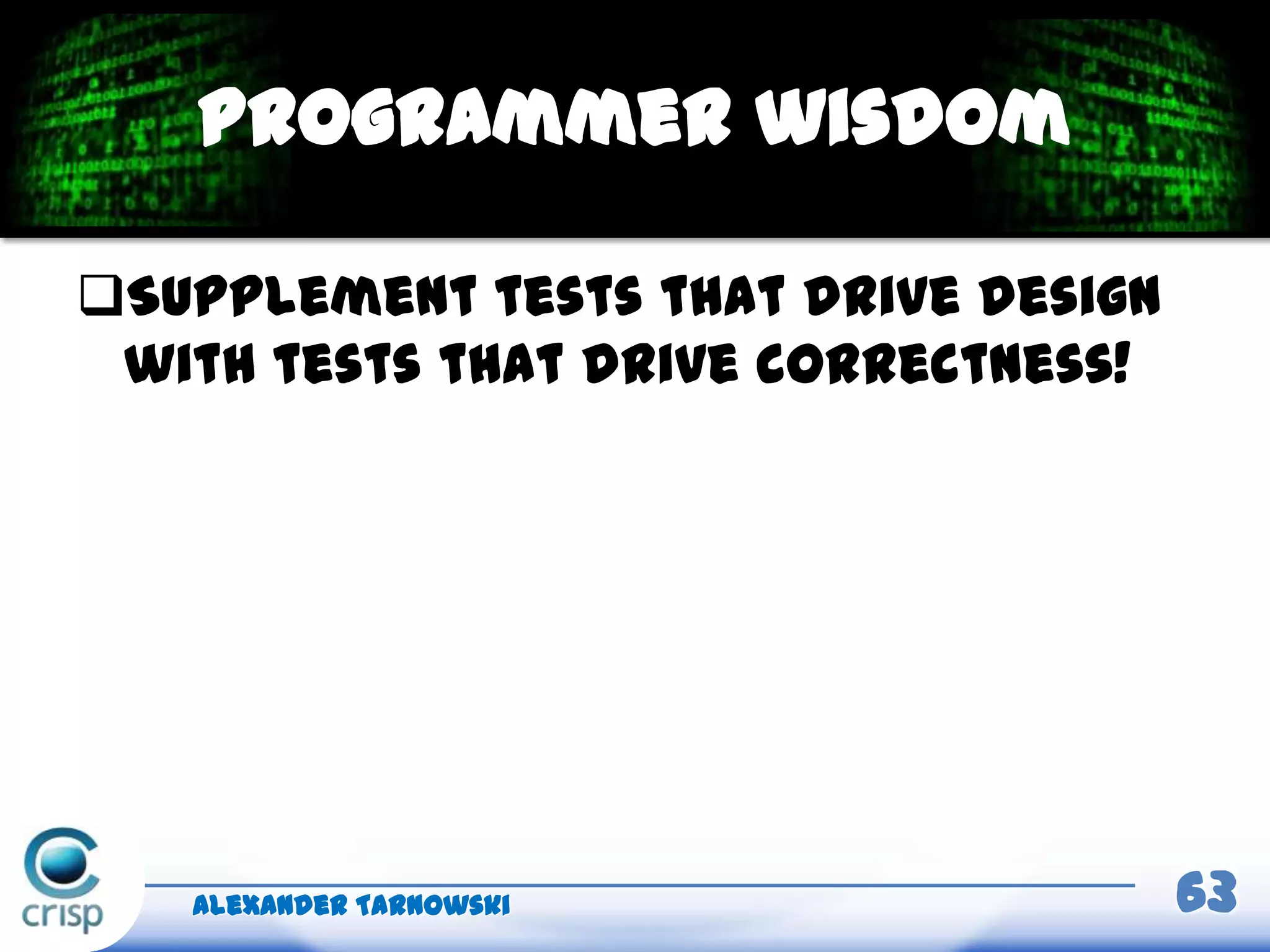

63. Supplement tests that drive design
with tests that drive correctness!
Alexander Tarnowski 63
Programmer wisdom

64. Summary
Alexander Tarnowski 64
Testability is a skill
Developers do supporting
technical testing
Testability:
 Controllability
 Observability
 Orthogonality
 Deployability
Testing techniques
Anti-testability const
 Temporal coupling
 Indirect input
 Indirect output
 High DRR
Duplication:
 Mechanical
 Mental
TDD drives design
not correctness!
Dependencies:
 Pass in
 Factory methods
 Factories/Builders
 Fakes
