Tempesta FW is an open source framework for building high performance intelligent DDoS mitigation systems and web application firewalls. It directly embeds into the Linux TCP/IP stack and uses a just-in-time domain specific language to efficiently process and filter traffic at layers 3 through 7. This allows for fine-grained rule filtering, acceleration of web applications to mitigate DDoS attacks, and caching of content for improved performance. Tempesta aims to overcome limitations of traditional web servers and firewalls through its synchronous socket processing, fast HTTP parsing, generic finite state machine, and in-memory persistent database.

1. Tempesta FW

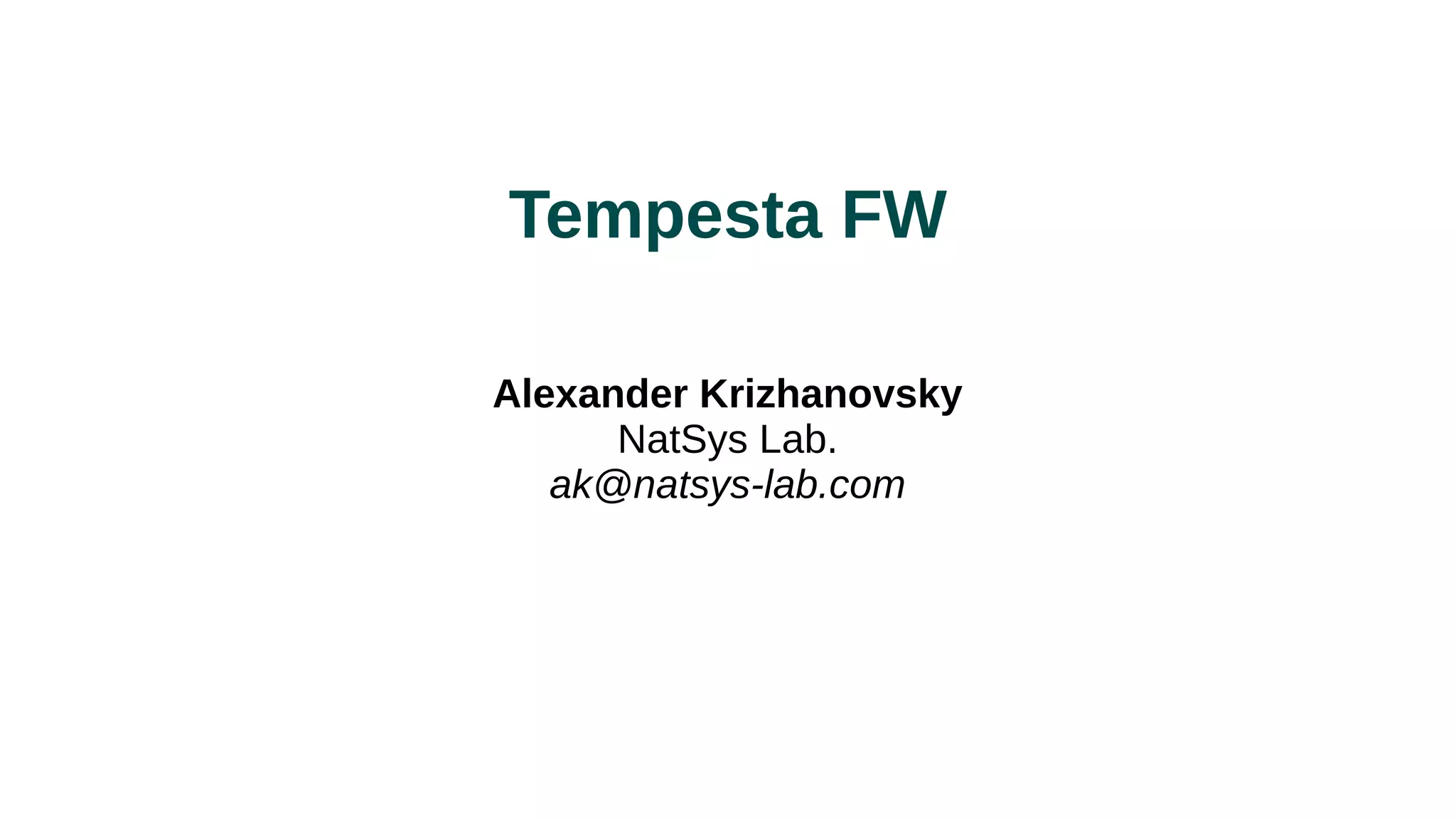

Alexander Krizhanovsky
NatSys Lab.
ak@natsys-lab.com

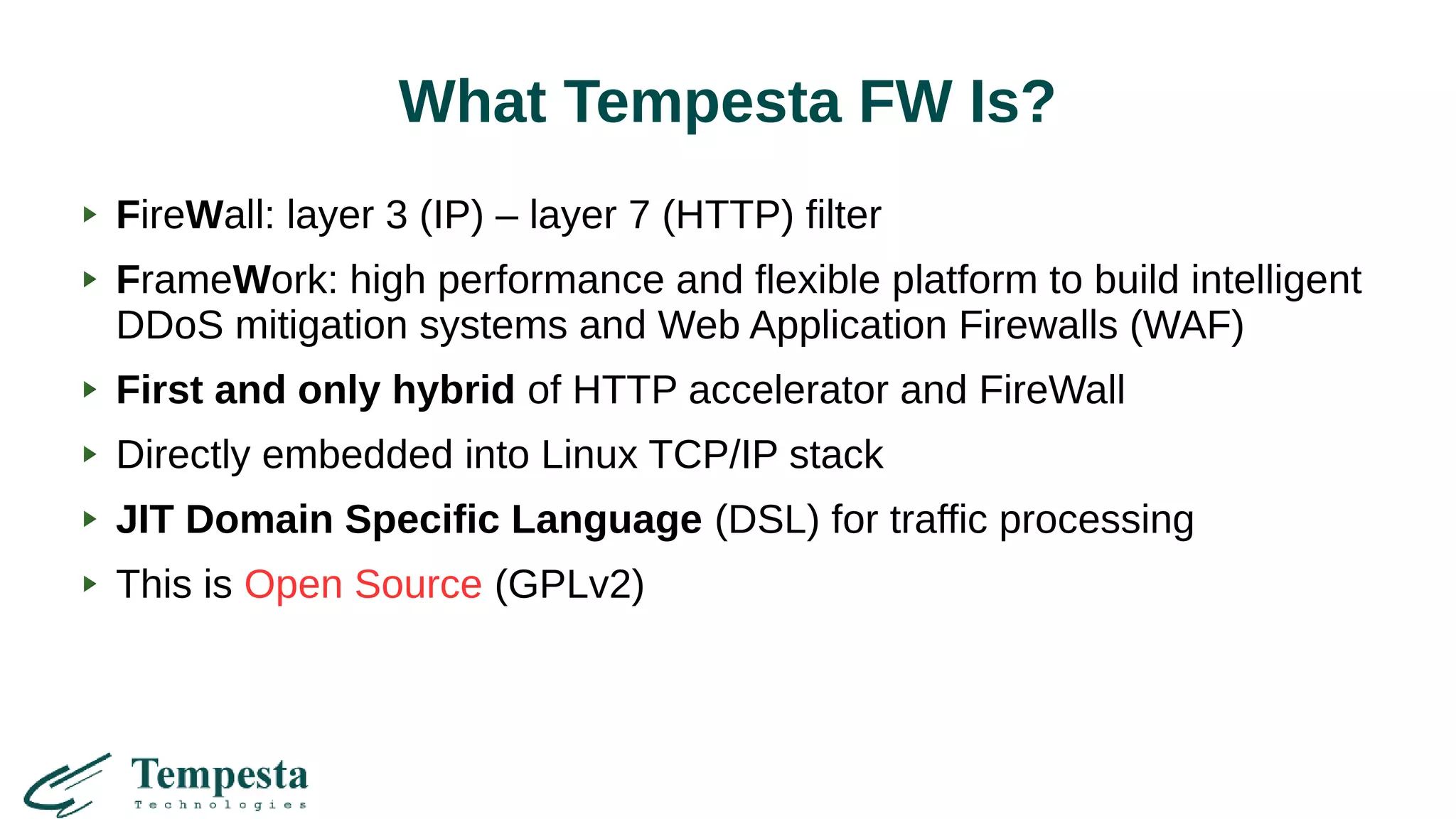

2. What Tempesta FW Is?
FireWall: layer 3 (IP) – layer 7 (HTTP) filter
FrameWork: high performance and flexible platform to build intelligent
DDoS mitigation systems and Web Application Firewalls (WAF)
First and only hybrid of HTTP accelerator and FireWall
Directly embedded into Linux TCP/IP stack
JIT Domain Specific Language (DSL) for traffic processing
This is Open Source (GPLv2)

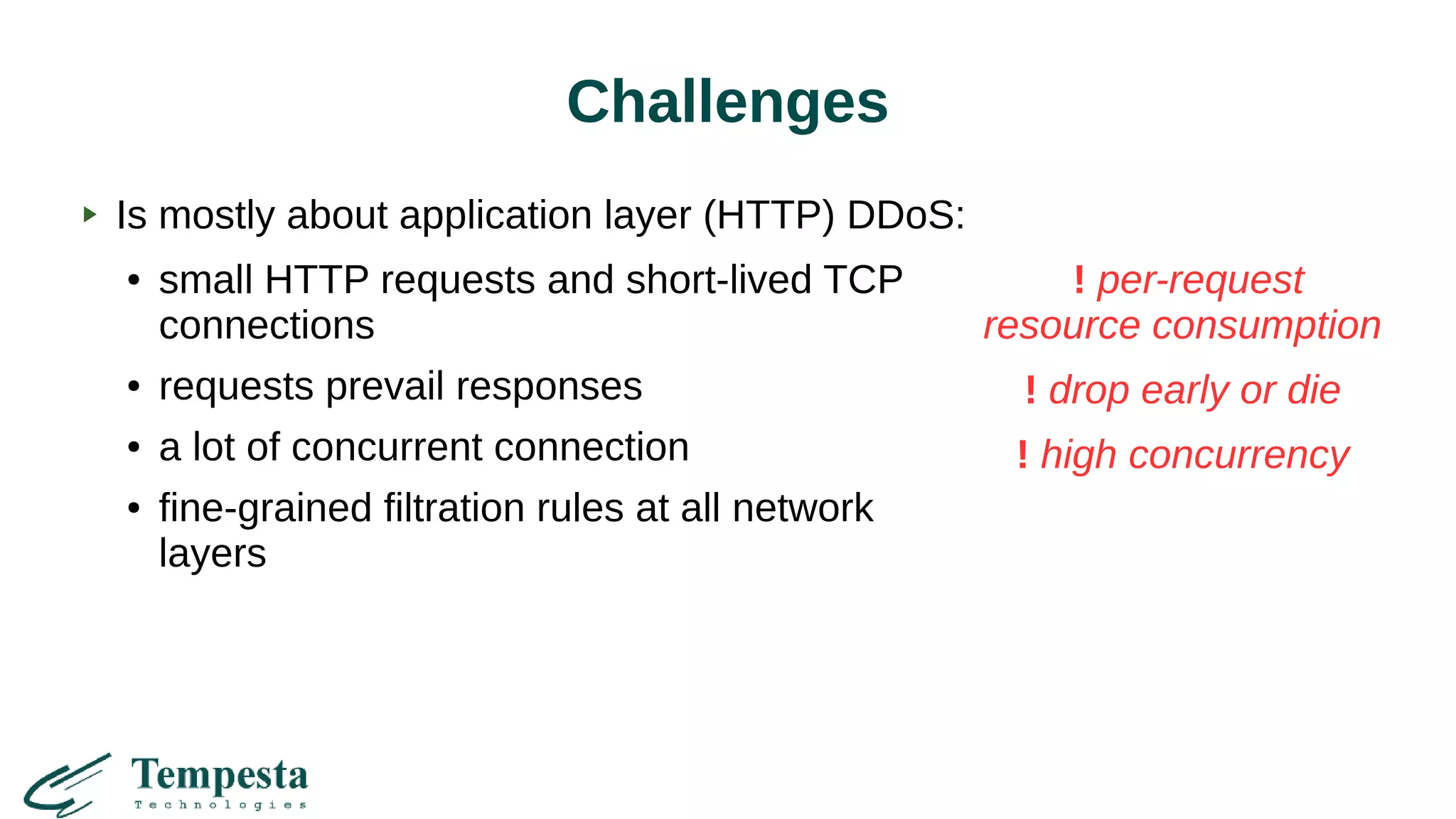

3. Challenges
! per-request
resource consumption
! drop early or die
! high concurrency
Is mostly about application layer (HTTP) DDoS:
● small HTTP requests and short-lived TCP
connections
● requests prevail responses
● a lot of concurrent connection
● fine-grained filtration rules at all network
layers

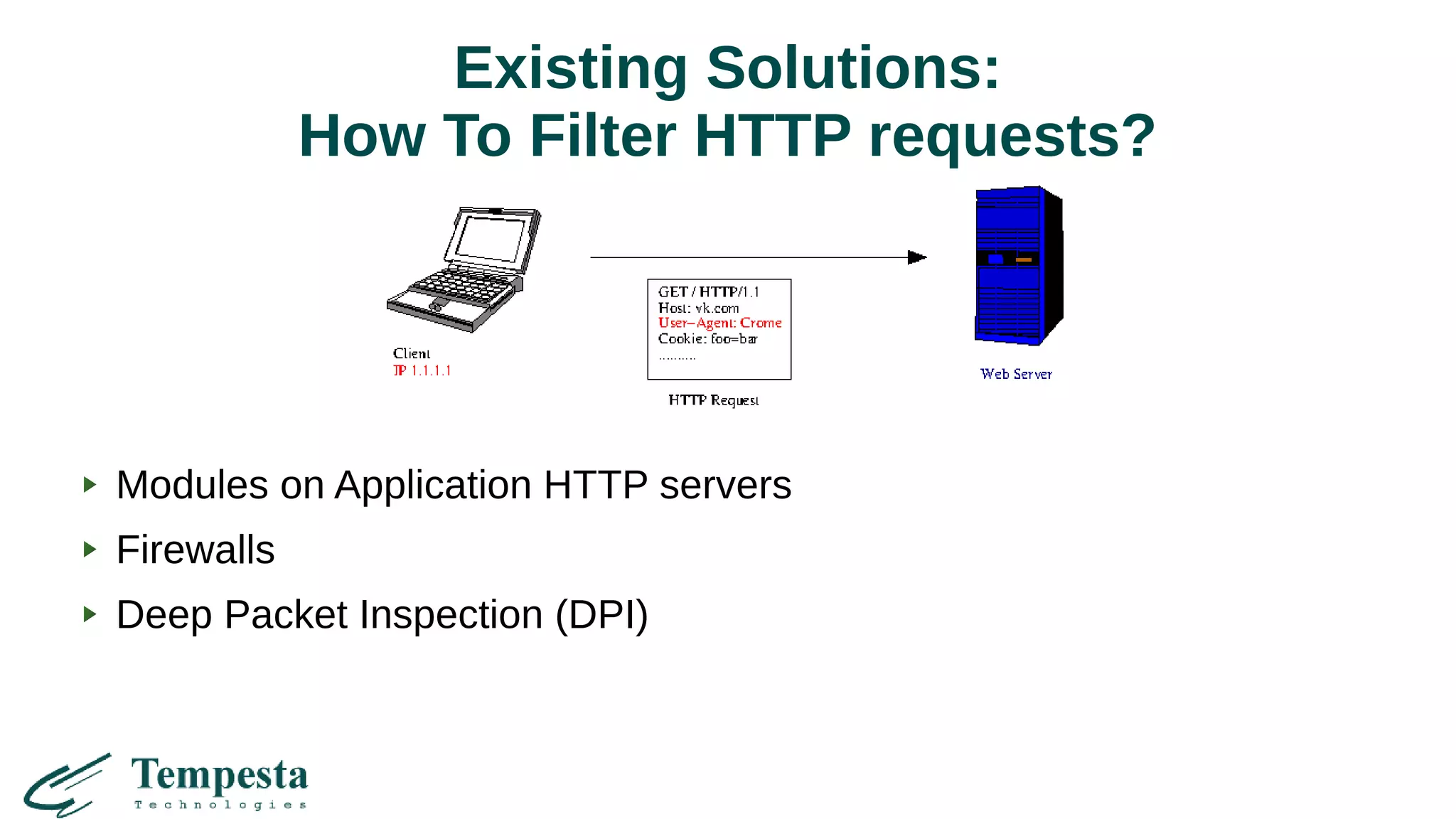

4. Existing Solutions:
How To Filter HTTP requests?
Modules on Application HTTP servers
Firewalls
Deep Packet Inspection (DPI)

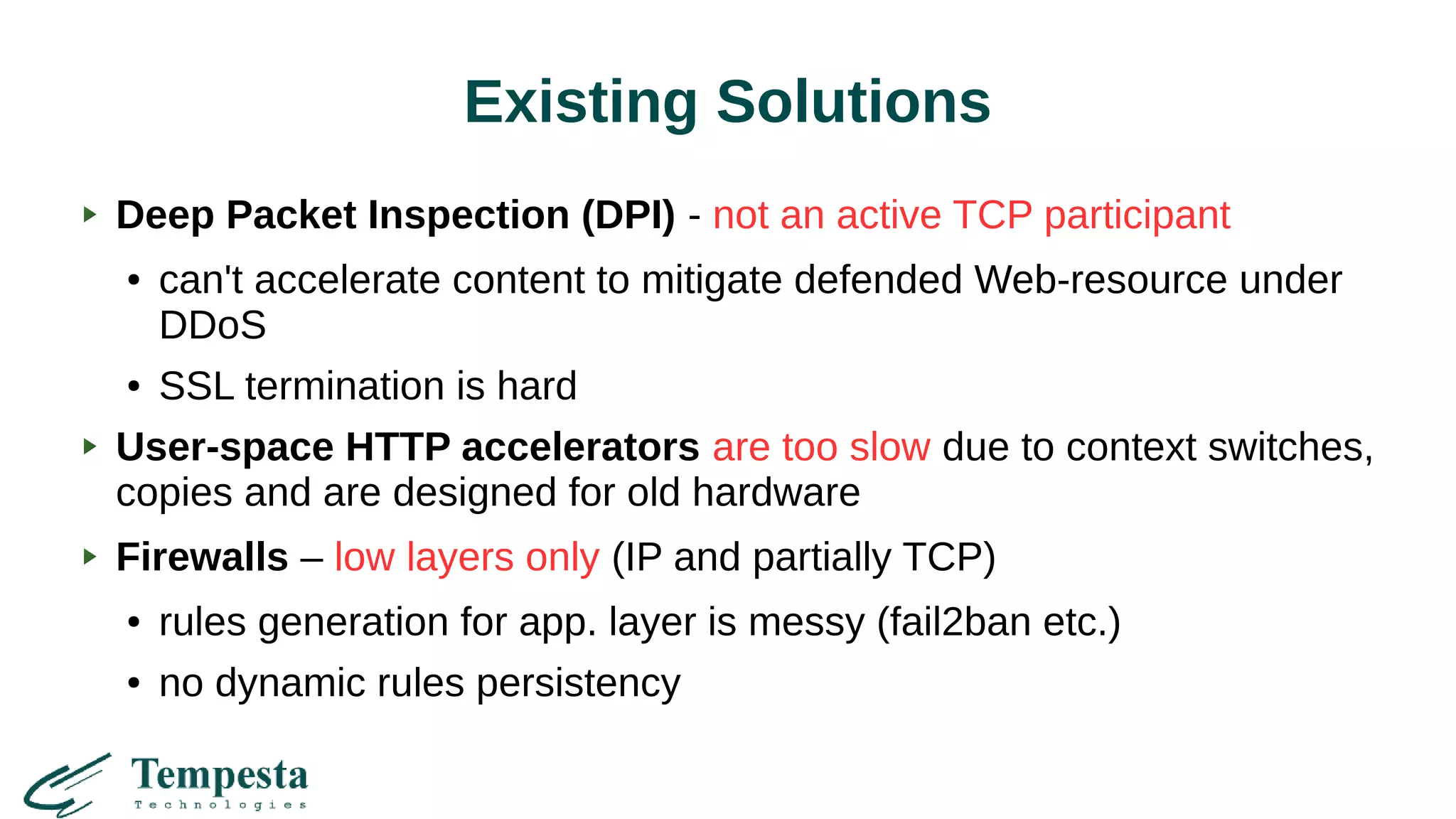

5. Existing Solutions
Deep Packet Inspection (DPI) - not an active TCP participant
● can't accelerate content to mitigate defended Web-resource under
DDoS
● SSL termination is hard
User-space HTTP accelerators are too slow due to context switches,
copies and are designed for old hardware
Firewalls – low layers only (IP and partially TCP)
● rules generation for app. layer is messy (fail2ban etc.)
● no dynamic rules persistency

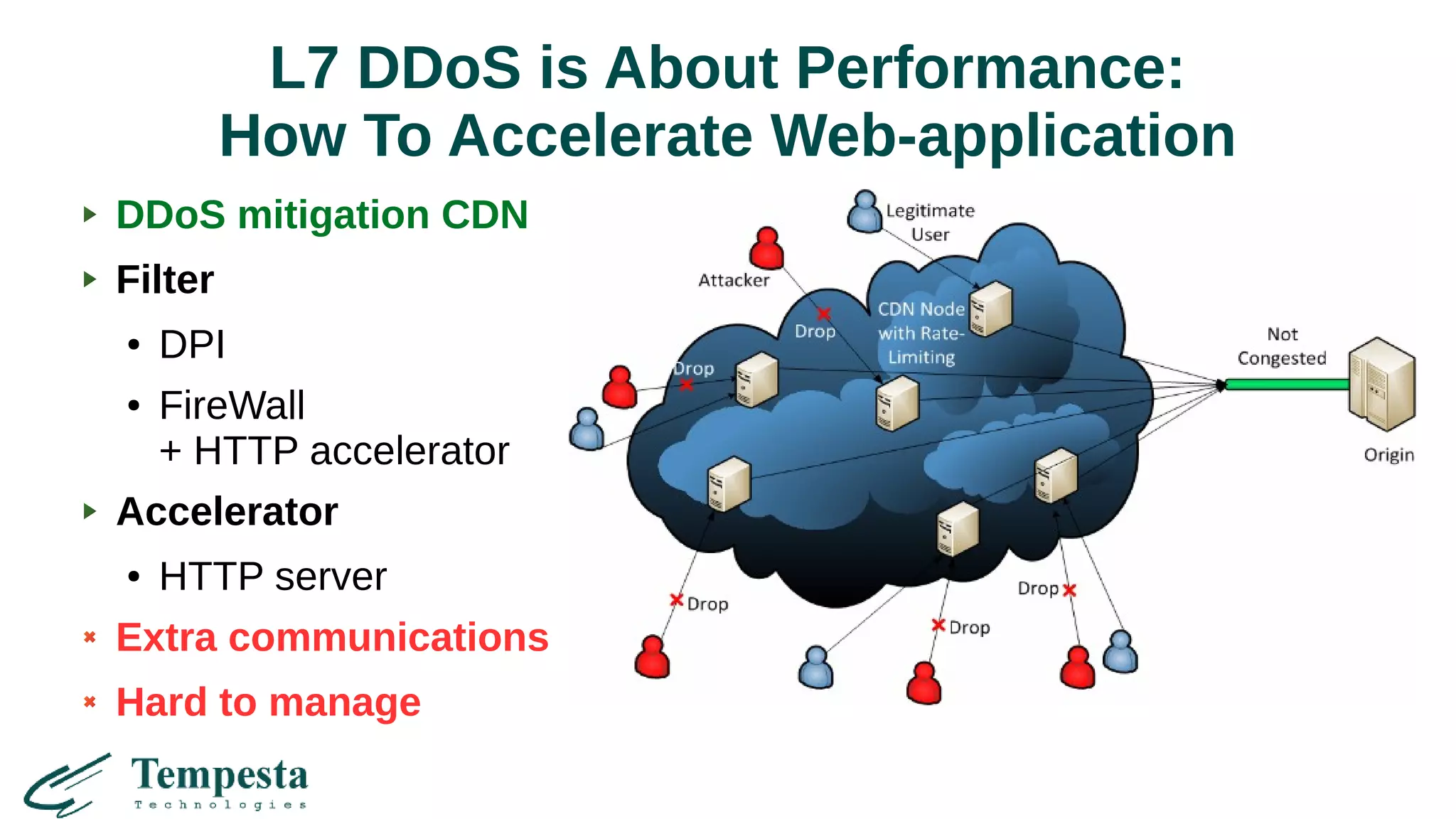

6. L7 DDoS is About Performance:
How To Accelerate Web-application
DDoS mitigation CDN
Filter
● DPI
● FireWall
+ HTTP accelerator
Accelerator
● HTTP server
Extra communications
Hard to manage

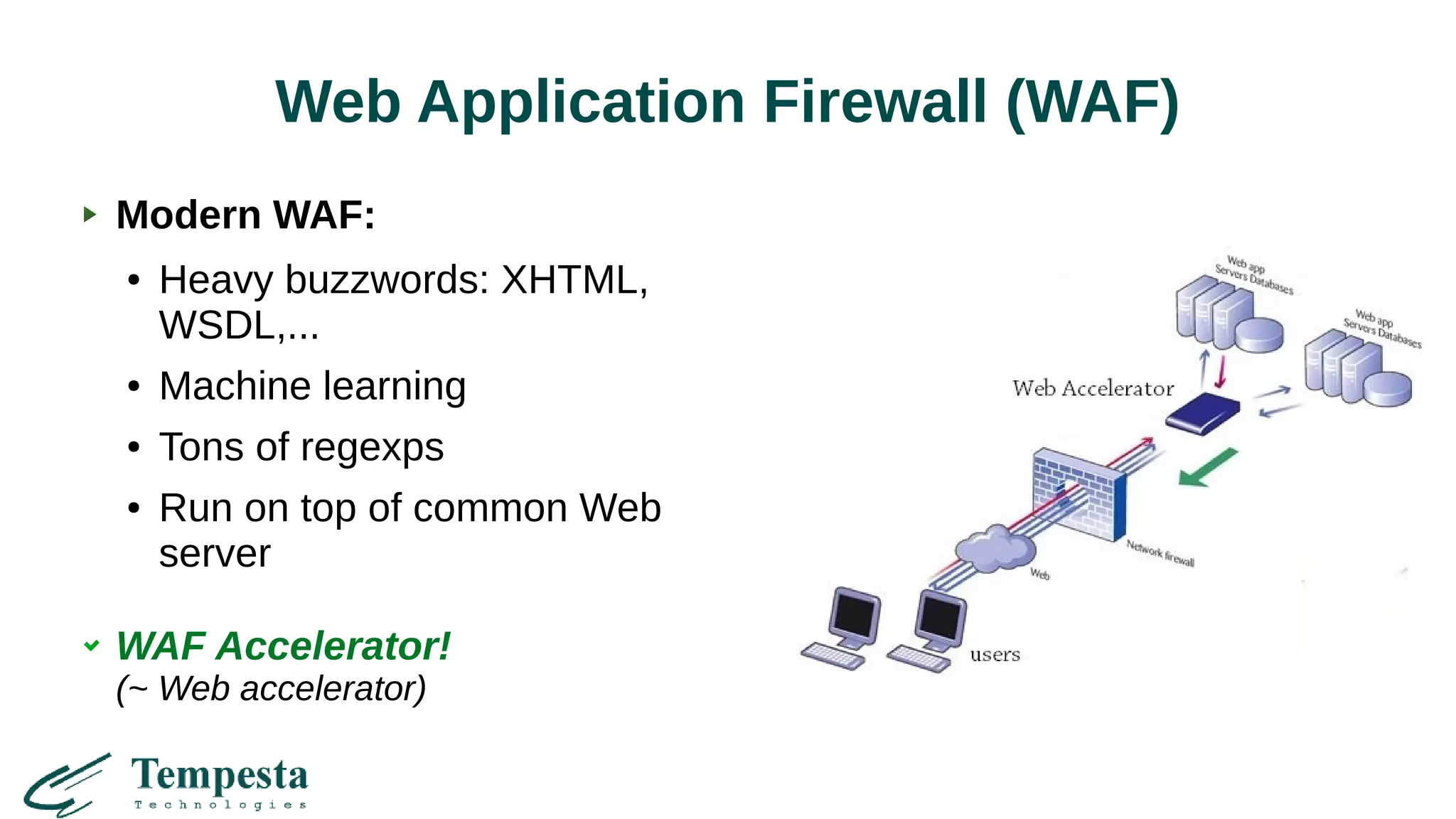

7. Web Application Firewall (WAF)
Modern WAF:
● Heavy buzzwords: XHTML,
WSDL,...
● Machine learning
● Tons of regexps
● Run on top of common Web
server
WAF Accelerator!
(~ Web accelerator)

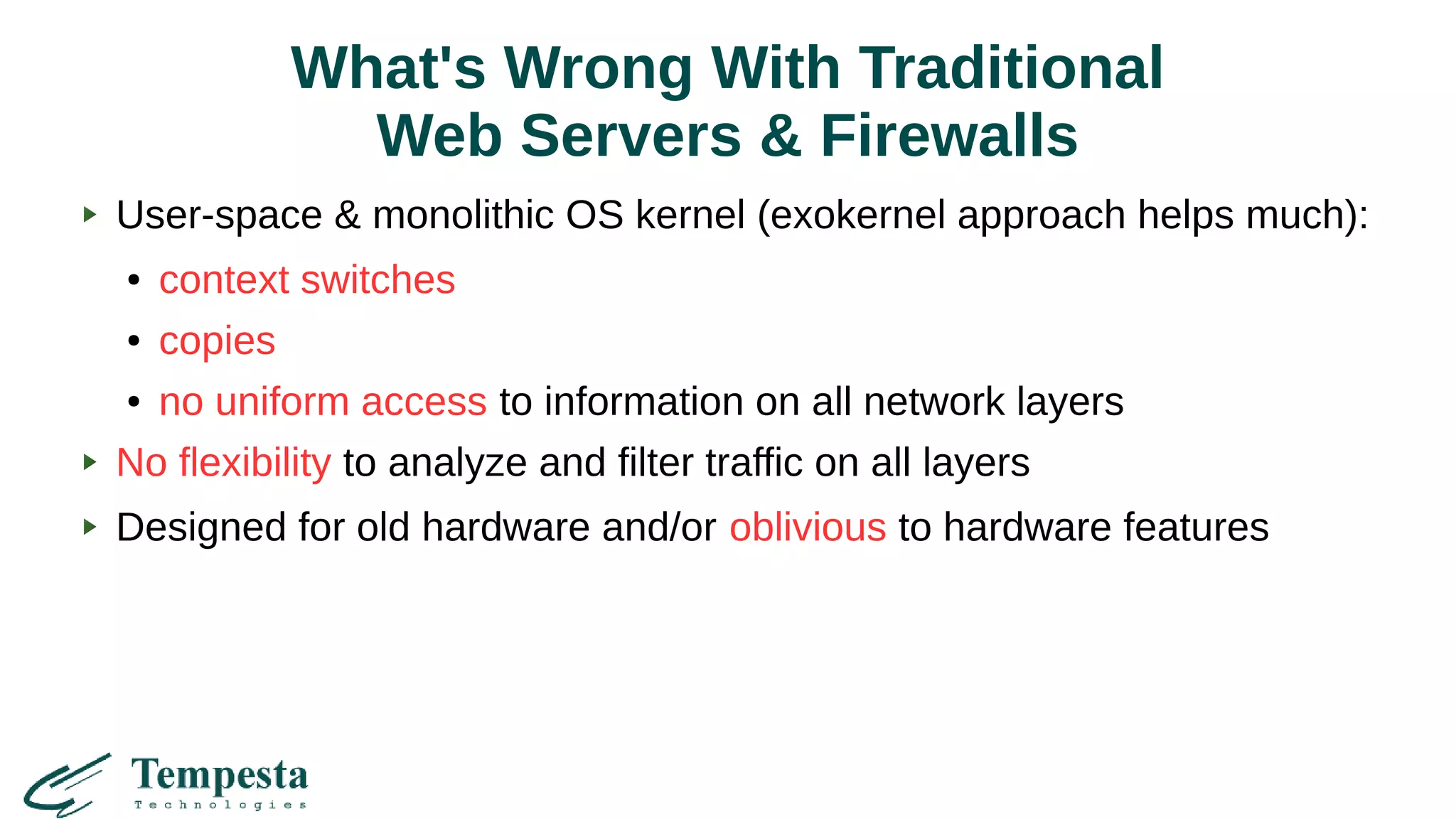

8. What's Wrong With Traditional
Web Servers & Firewalls
User-space & monolithic OS kernel (exokernel approach helps much):
● context switches
● copies
● no uniform access to information on all network layers
No flexibility to analyze and filter traffic on all layers
Designed for old hardware and/or oblivious to hardware features

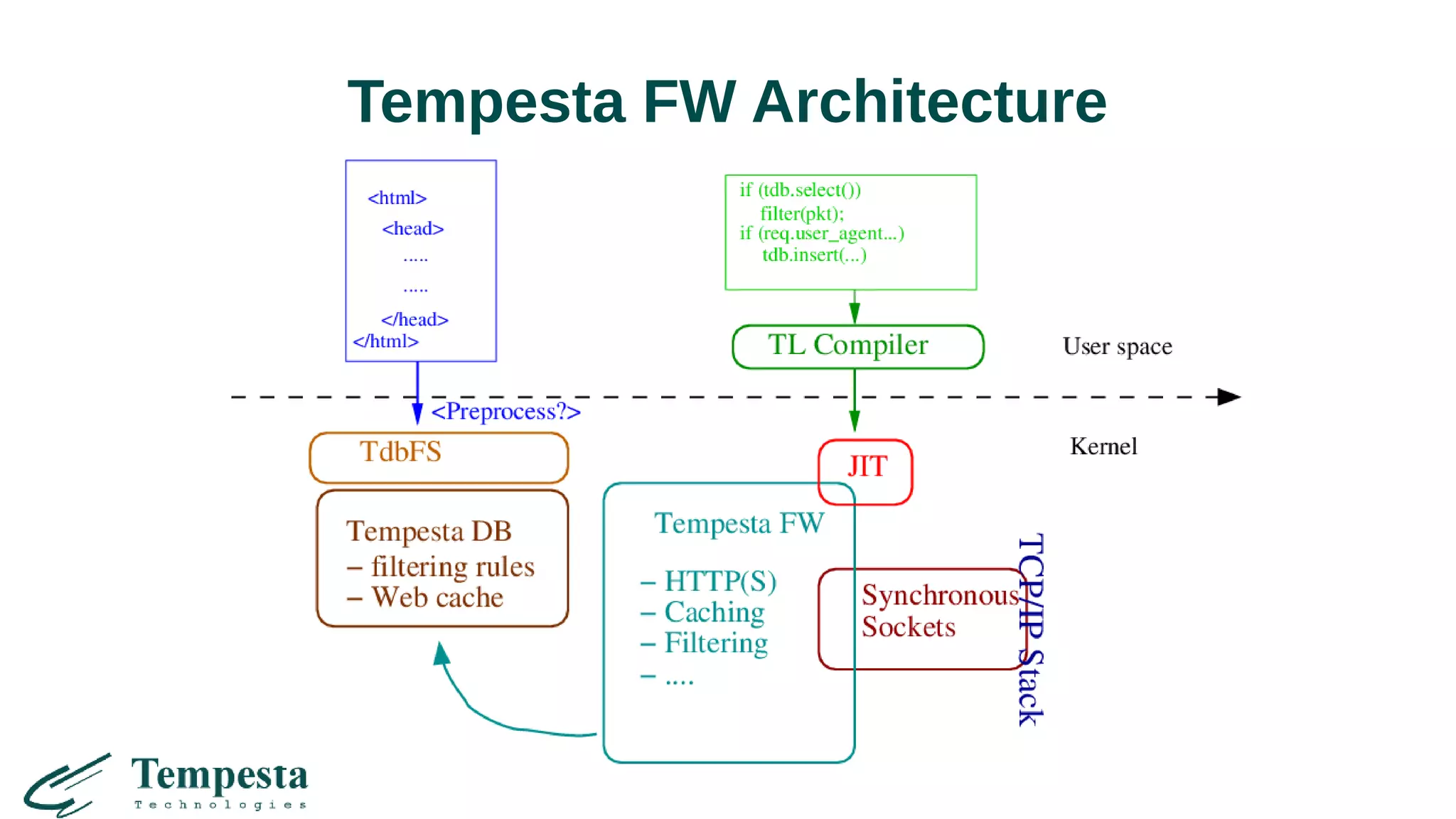

9. Tempesta FW Architecture

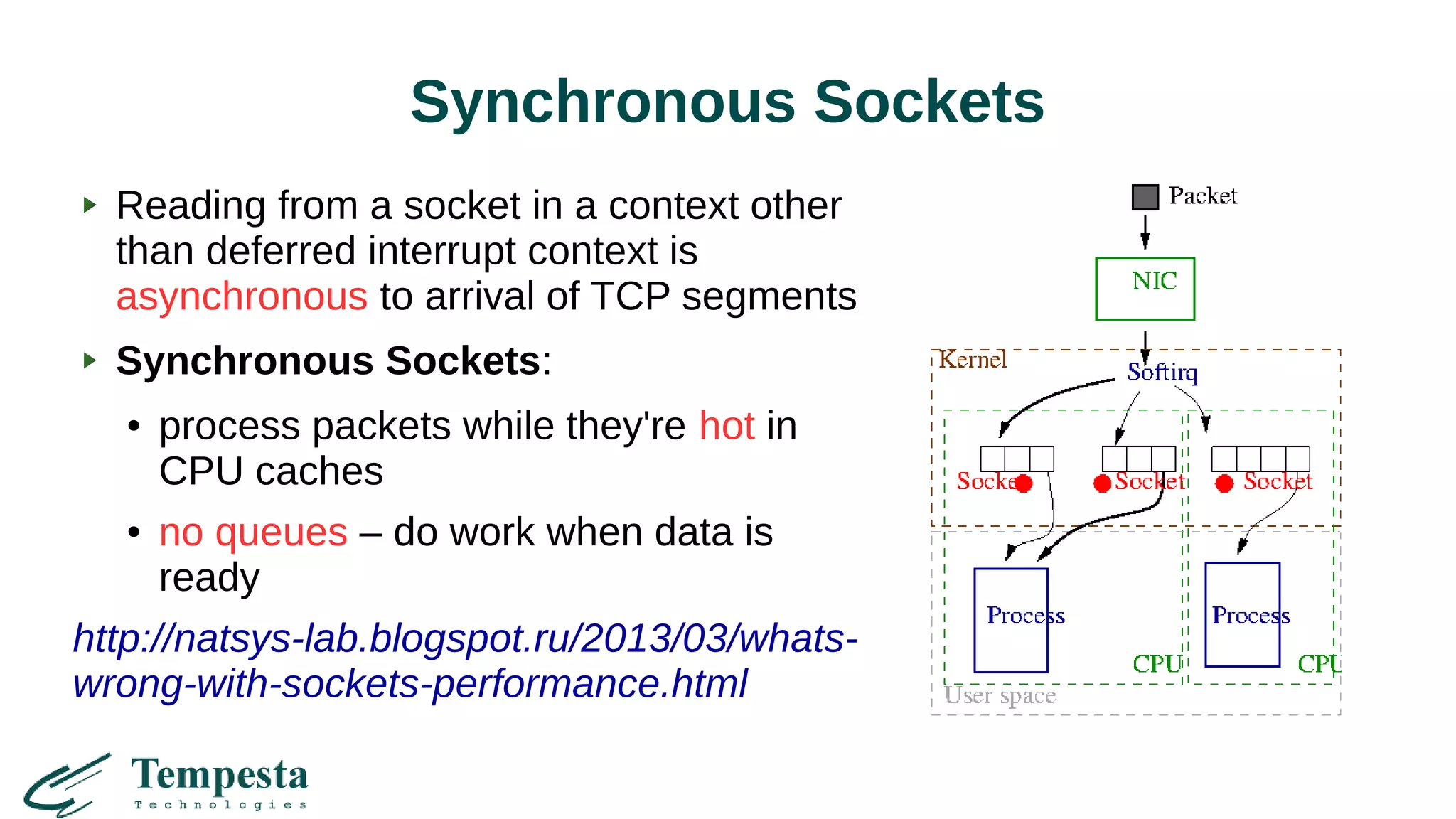

10. Synchronous Sockets
Reading from a socket in a context other
than deferred interrupt context is
asynchronous to arrival of TCP segments
Synchronous Sockets:
● process packets while they're hot in
CPU caches
● no queues – do work when data is
ready
http://natsys-lab.blogspot.ru/2013/03/whats-
wrong-with-sockets-performance.html

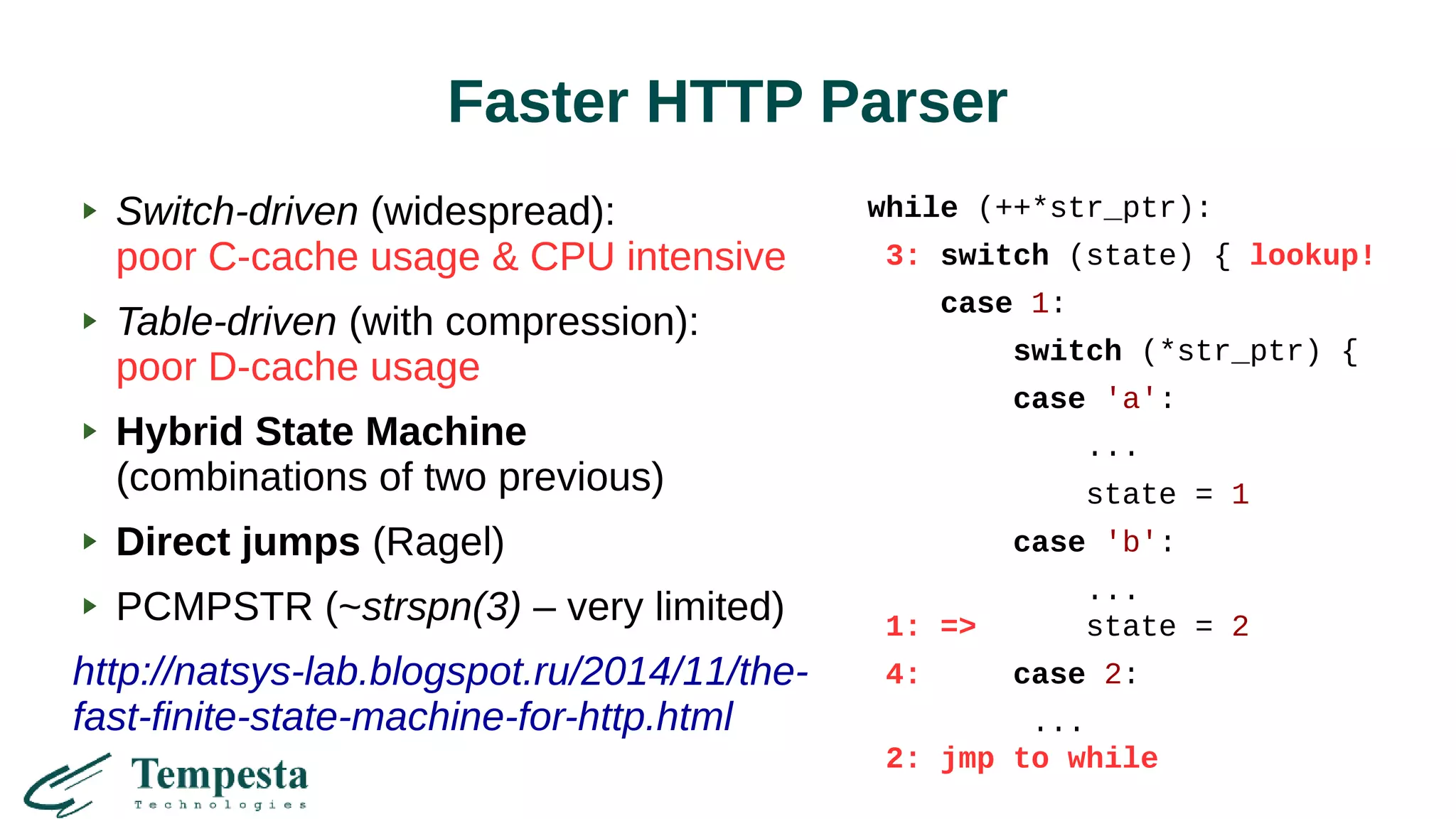

11. Faster HTTP Parser
Switch-driven (widespread):
poor C-cache usage & CPU intensive
Table-driven (with compression):
poor D-cache usage
Hybrid State Machine
(combinations of two previous)
Direct jumps (Ragel)
PCMPSTR (~strspn(3) – very limited)
http://natsys-lab.blogspot.ru/2014/11/the-
fast-finite-state-machine-for-http.html
while (++*str_ptr):
3: switch (state) { lookup!
case 1:
switch (*str_ptr) {
case 'a':
...
state = 1
case 'b':
...
1: => state = 2
4: case 2:
...
2: jmp to while

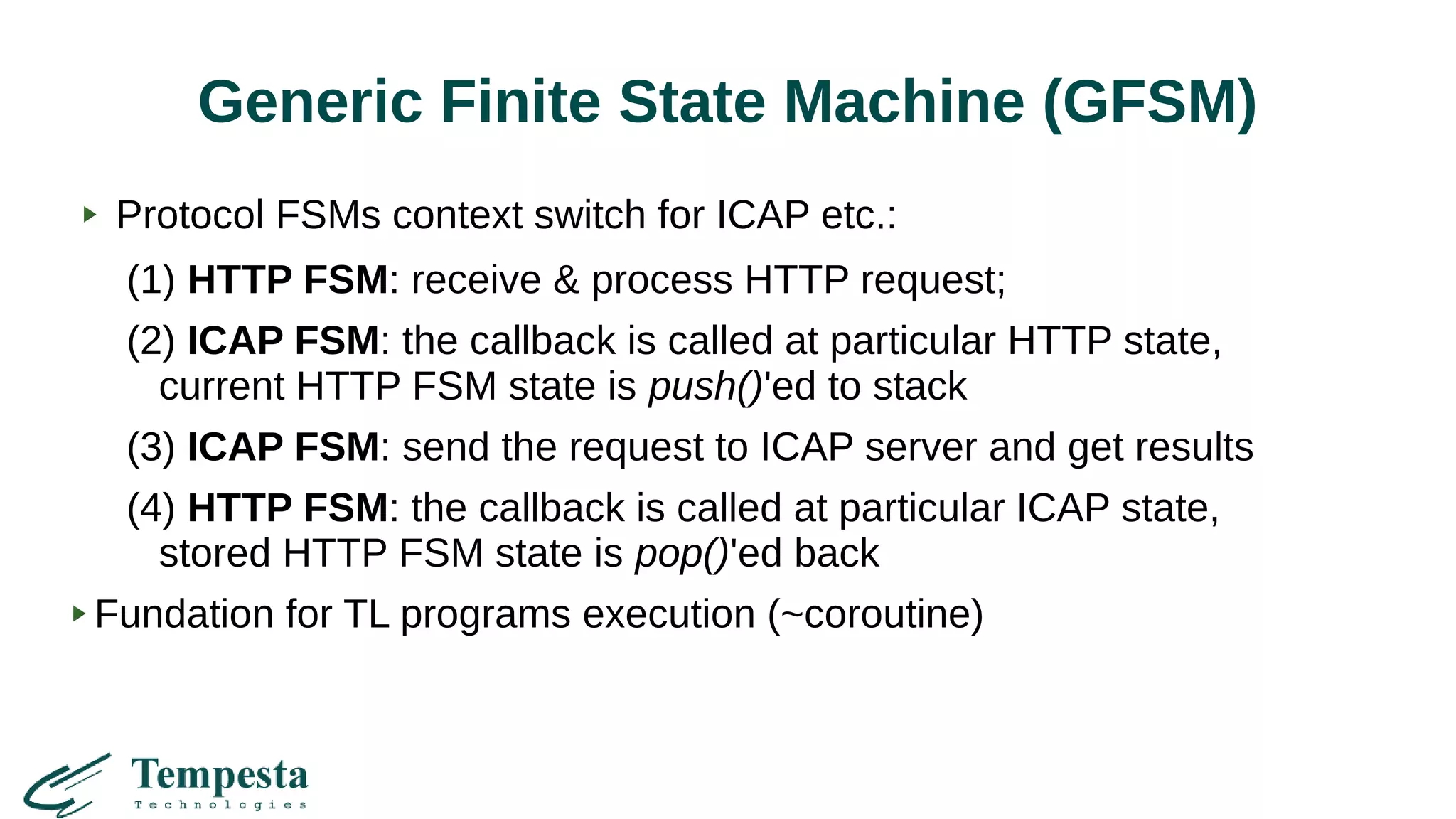

12. Generic Finite State Machine (GFSM)
Protocol FSMs context switch for ICAP etc.:
(1) HTTP FSM: receive & process HTTP request;
(2) ICAP FSM: the callback is called at particular HTTP state,
current HTTP FSM state is push()'ed to stack
(3) ICAP FSM: send the request to ICAP server and get results
(4) HTTP FSM: the callback is called at particular ICAP state,
stored HTTP FSM state is pop()'ed back
Fundation for TL programs execution (~coroutine)

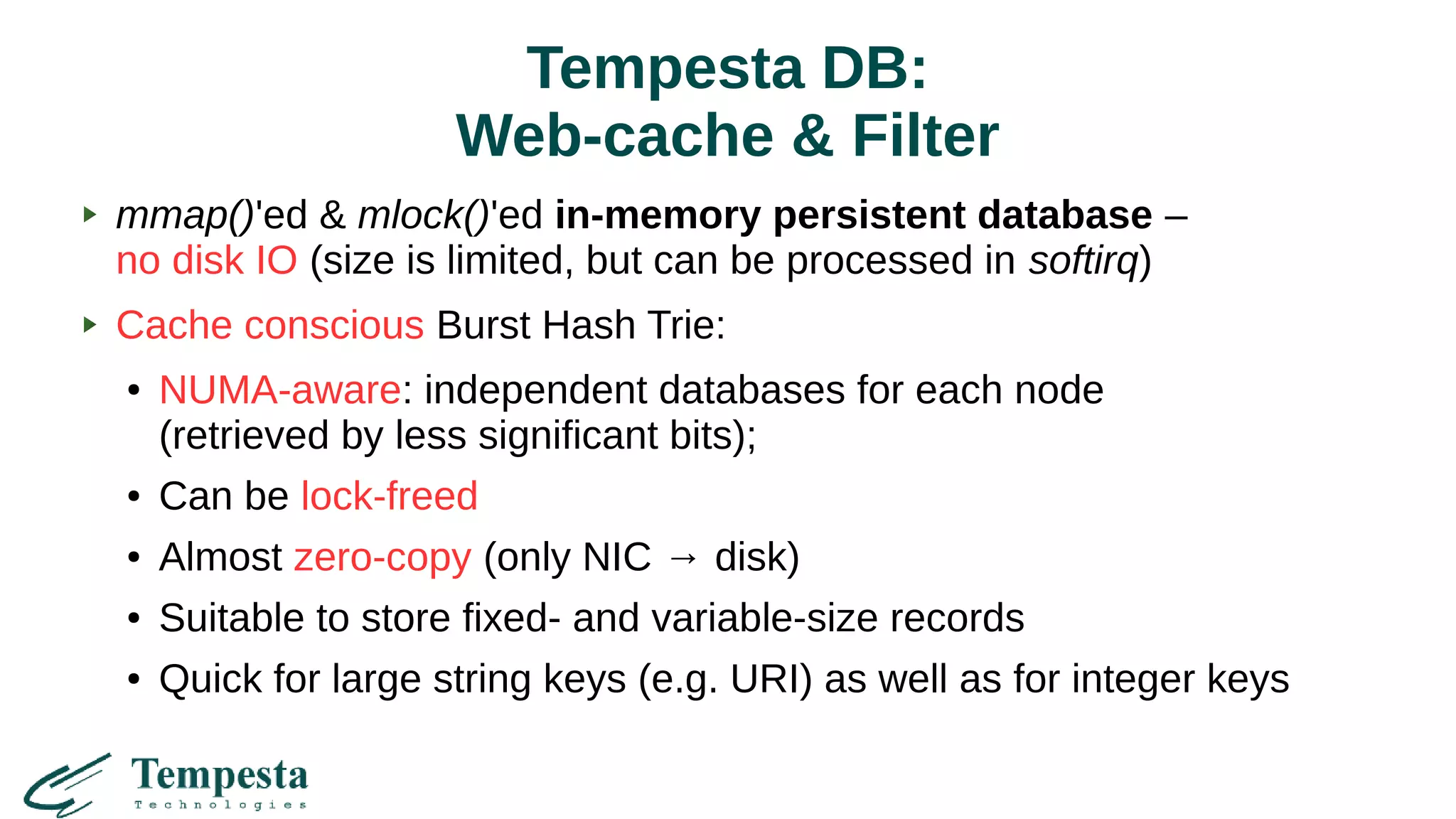

13. Tempesta DB:
Web-cache & Filter
mmap()'ed & mlock()'ed in-memory persistent database –
no disk IO (size is limited, but can be processed in softirq)
Cache conscious Burst Hash Trie:
● NUMA-aware: independent databases for each node
(retrieved by less significant bits);
● Can be lock-freed
● Almost zero-copy (only NIC → disk)
● Suitable to store fixed- and variable-size records
● Quick for large string keys (e.g. URI) as well as for integer keys

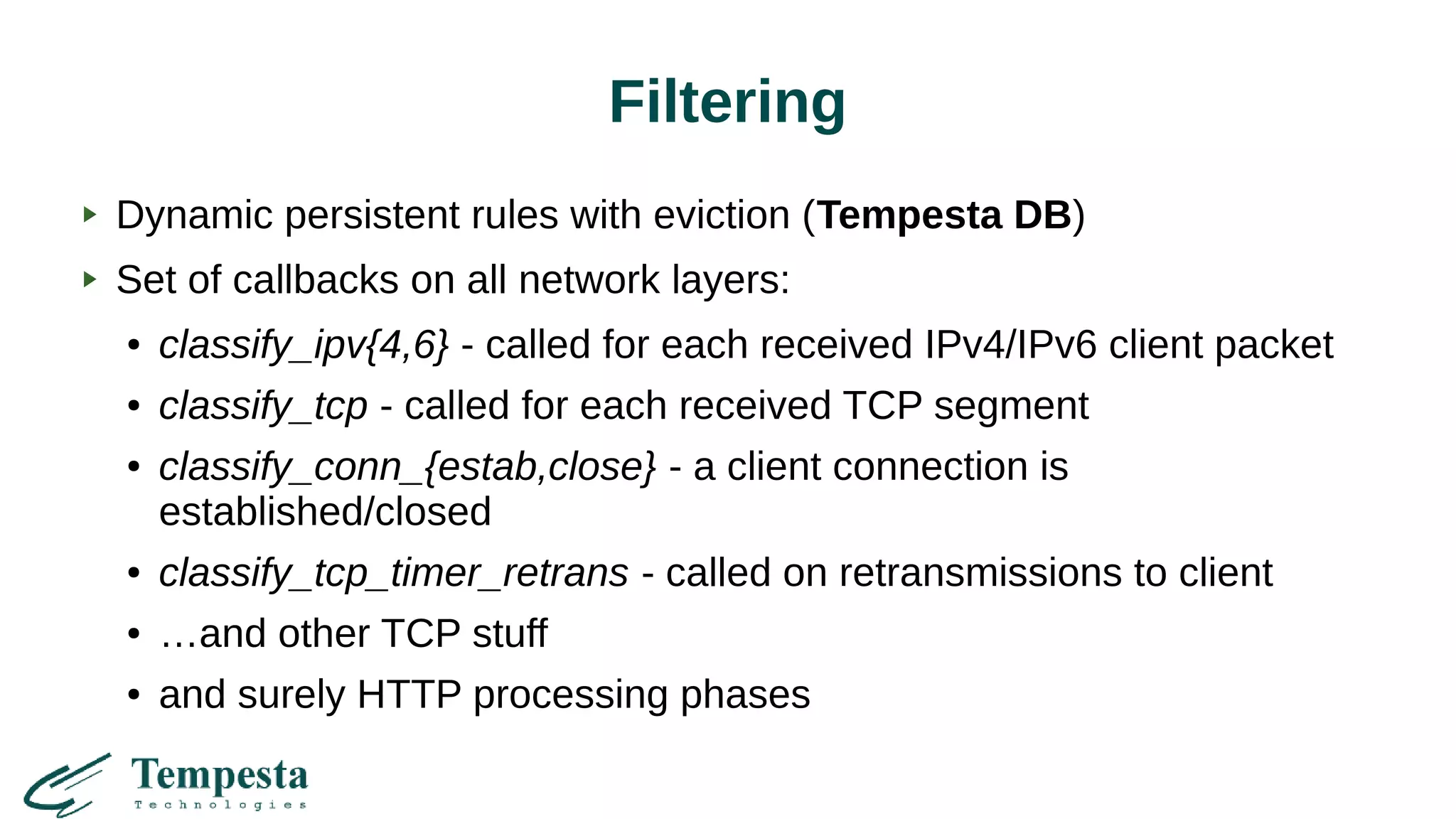

14. Filtering
Dynamic persistent rules with eviction (Tempesta DB)
Set of callbacks on all network layers:
● classify_ipv{4,6} - called for each received IPv4/IPv6 client packet
● classify_tcp - called for each received TCP segment
● classify_conn_{estab,close} - a client connection is
established/closed
● classify_tcp_timer_retrans - called on retransmissions to client
● …and other TCP stuff
● and surely HTTP processing phases

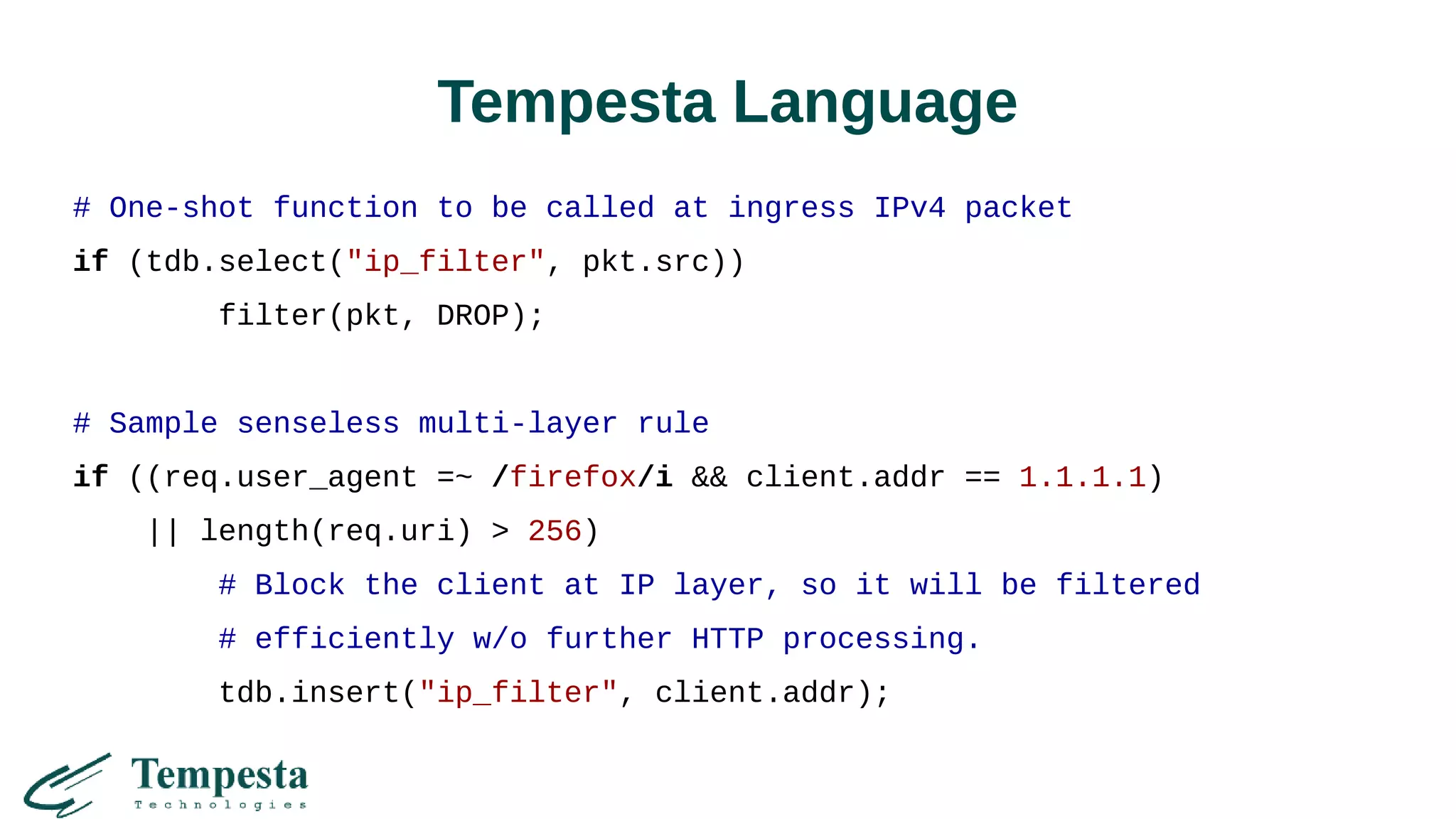

15. Tempesta Language
# One-shot function to be called at ingress IPv4 packet
if (tdb.select("ip_filter", pkt.src))
filter(pkt, DROP);
# Sample senseless multi-layer rule
if ((req.user_agent =~ /firefox/i && client.addr == 1.1.1.1)
|| length(req.uri) > 256)
# Block the client at IP layer, so it will be filtered
# efficiently w/o further HTTP processing.
tdb.insert("ip_filter", client.addr);

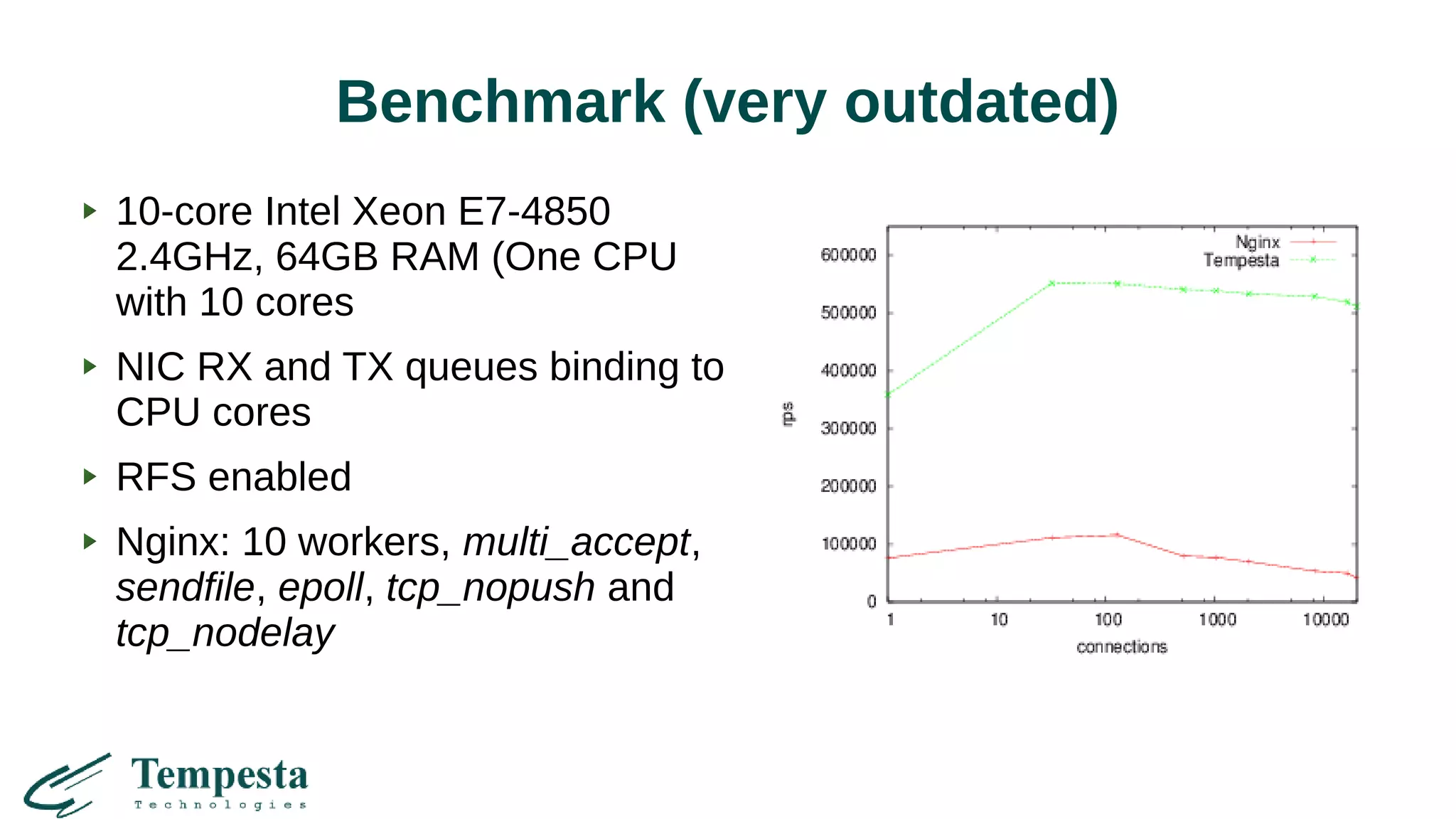

16. Benchmark (very outdated)
10-core Intel Xeon E7-4850
2.4GHz, 64GB RAM (One CPU
with 10 cores
NIC RX and TX queues binding to
CPU cores
RFS enabled
Nginx: 10 workers, multi_accept,
sendfile, epoll, tcp_nopush and
tcp_nodelay

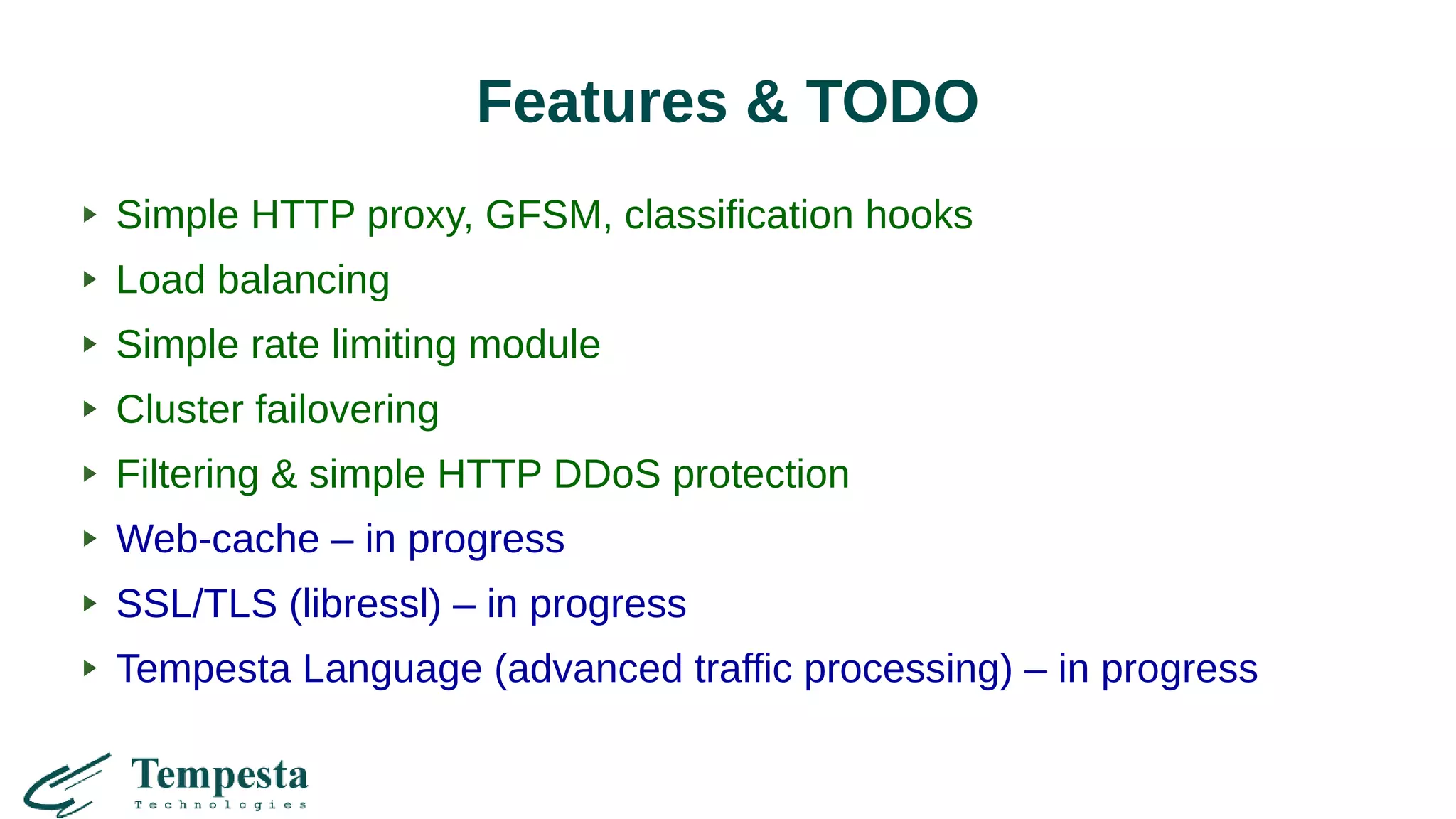

17. Features & TODO
Simple HTTP proxy, GFSM, classification hooks
Load balancing
Simple rate limiting module
Cluster failovering
Filtering & simple HTTP DDoS protection
Web-cache – in progress
SSL/TLS (libressl) – in progress
Tempesta Language (advanced traffic processing) – in progress

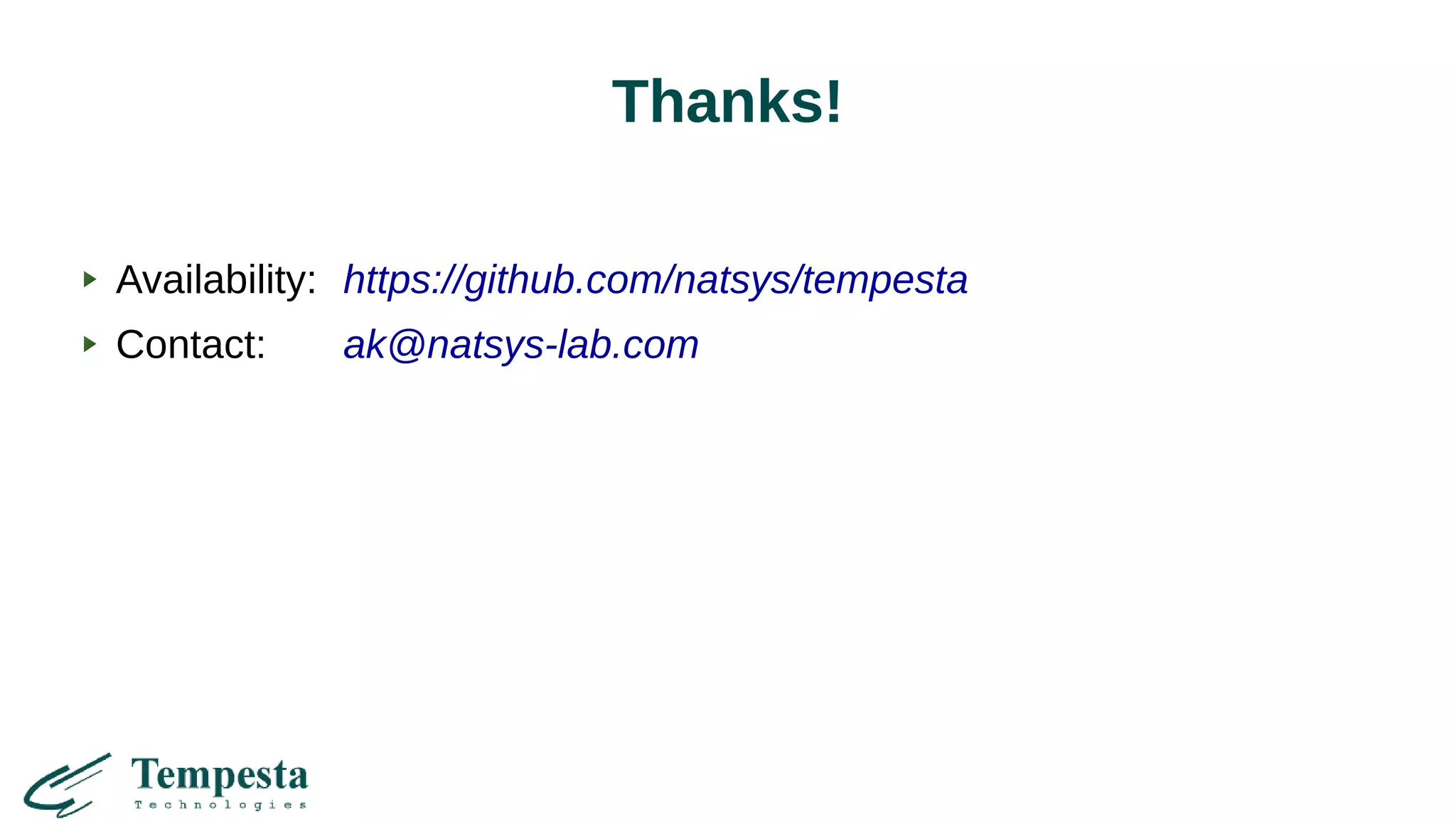

18. Thanks!
Availability: https://github.com/natsys/tempesta
