CARIS Onboard processes sonar and other sensor data in near real-time, applying the same algorithms as CARIS HIPS and SIPS to automatically generate products like DEMs, mosaics, and HIPS projects. It monitors data collection, automatically imports new data, and updates products continuously so processed data is available for quality control while the survey is still underway. The software has three main components - Process Designer to design workflows, Onboard Service to monitor and process data automatically, and Control Centre to manage and monitor processing.

1. Using CARIS Onboard
CARIS Onboard supports the same range
of sonars and acquisition formats as
CARIS HIPS™ and SIPS™. Large volumes
of data are automatically imported and
the trusted HIPS and SIPS algorithms
are applied. CARIS Onboard generates a
HIPS project and can be easily configured
to output other products, such as DEMs
and image mosaics. All of which are kept
up to date as new data is processed.
By the time the survey platform has
completed its mission a fully geo-
referenced DEM and mosaic, along with a
HIPS project, are available for final quality
control and use in survey deliverables.
System Overview
The CARIS Onboard software has three
main components:
Process Designer provides a graphical
interface to design and configure data
processing workflows. It allows users
to add, customize and save a variety
of processing tasks. This includes
data import, tide and sound velocity
corrections, creation of output data
products and automated data cleaning
(e.g. using CUBE). Standard processing
workflow templates are also provided.
Onboard Service is an automated service
that monitors for raw data files from an
acquisition system and batch processes
the acquired survey data. As new data
is detected it is automatically processed
using the workflows defined through
the Process Designer. The output data
products (e.g. HIPS project, DEMs and
mosaics) are also registered for remote
access. Products and quality information
generated by the Onboard Service are
streamed to the dedicated Control Centre
or to desktop applications, such as HIPS
and SIPS. This enables the hydrographer
to view the geo-referenced survey in near
real-time for quality control and decision
support while the survey is underway.
Control Centre provides a single access
point for users to configure, manage
and monitor the Onboard Service.
Status information about the processing
is displayed alongside a map window
showing survey coverage and data
quality. The Control Centre can be used
on a vessel or accessed remotely from an
office location, via an internet connection.
Built on decades of hydrographic data processing expertise and supported by the highly scalable CSAR
framework, CARIS Onboard™ enables users to process data from a range of sensors in near real-time to
minimize data conversion and processing times. Designed with autonomous operations in mind, CARIS
Onboard can also save valuable time and resources when used on survey vessels and launches.
REAL-TIME DATA PROCESSING
www.caris.com
C A R I S™ | M A R I N E G I S E X P E R T S
Product
Creation
Onboard
Service
Process
Designer
Sensor
Data
Control
Centre
CARIS Onboard Workflow

2. Deployment Options
CARIS Onboard can be
installed on a desktop
computer, laptop or directly
on to the computer payload
of your autonomous vehicle.
It is certified on Windows 7
and will soon be available
for Linux operating systems.
Hardware versions are also
available as a rack mount for
dedicated vessel operations
or as a water tight canister
for subsea vehicle use. The
computer specifications for
the hardware versions of
CARIS Onboard have been
designed with tomorrow’s
survey sensors in mind to
provide the processing speed
and disk space needed.
OEM agreements can be
arranged for sensor or vehicle
manufacturers on request.
System Benefits
CARIS Onboard automates
many of the standard pro-
cessing steps required in a
modern sonar survey that
not only reduce subjectivity,
but allow human resources
to work on specialized tasks.
It is especially optimal for
autonomous operations where
traditionally data can only
be processed after vehicle
recovery, which causes a data
processing bottleneck. When
used with survey launches or
unmanned surface vehicles
it becomes a force multiplier
allowing surveys to be con-
ducted more efficiently. With
the ever expanding volume of
data being collected at higher
resolutions CARIS Onboard
can significantly reduce your
Ping-to-Chart™ timeline.
Ping-to-Chart
CARIS Onboard fits seamlessly
into the existing Ping-to-Chart
suite of software, providing
near real-time seafloor map-
ping and dramatically reduc-
ing the overall project time.
Integrating with both autono-
mous and traditional survey
platforms, CARIS Onboard pro-
vides an operational advantage
and allows your highly skilled
workforce to concentrate on
getting the best results.
F O R M O R E I N F O R M AT I O N V I S I T O U R W E B S I T E | W W W. C A R I S . C O M
Connect with Us
CARIS
115 Waggoners Lane
Fredericton NB E3B 2L4
Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
CARIS ONBOARD
www.caris.com
Copyright © 2015 CARIS. All rights reserved.
CARIS, Ping-to-Chart, HIPS and SIPS are registered
trademarks of CARIS (Universal Systems Ltd.) Reg.
USPTO. All other registered trademarks or trademarks
are property of their respective owners.
Raw imagery and co-registered bathymetry
data from Kraken AquaPix®
InSAS

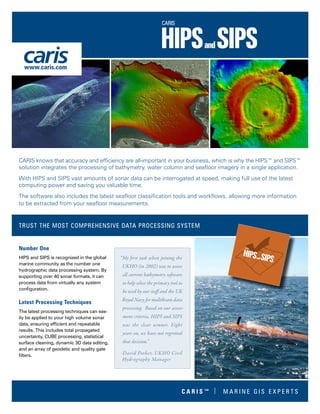

3. Number One
HIPS and SIPS is recognized in the global
marine community as the number one
hydrographic data processing system. By
supporting over 40 sonar formats, it can
process data from virtually any system
configuration.
Latest Processing Techniques
The latest processing techniques can eas-
ily be applied to your high volume sonar
data, ensuring efficient and repeatable
results. This includes total propagated
uncertainty, CUBE processing, statistical
surface cleaning, dynamic 3D data editing,
and an array of geodetic and quality gate
filters.
CARIS knows that accuracy and efficiency are all-important in your business, which is why the HIPS™ and SIPS™
solution integrates the processing of bathymetry, water column and seafloor imagery in a single application.
With HIPS and SIPS vast amounts of sonar data can be interrogated at speed, making full use of the latest
computing power and saving you valuable time.
The software also includes the latest seafloor classification tools and workflows, allowing more information
to be extracted from your seafloor measurements.
TRUST THE MOST COMPREHENSIVE DATA PROCESSING SYSTEM
“My first task when joining the
UKHO (in 2002) was to assess
all current bathymetry software
to help select the primary tool to
be used by our staff and the UK
Royal Navy for multibeam data
processing. Based on our assess-
ment criteria, HIPS and SIPS
was the clear winner. Eight
years on, we have not regretted
that decision.”
-David Parker, UKHO Civil
Hydrography Manager
www.caris.com
C A R I S ™ | M A R I N E G I S E X P E R T S

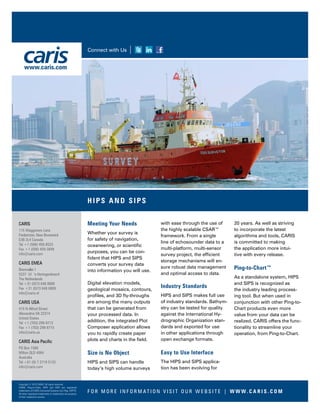

4. Meeting Your Needs
Whether your survey is
for safety of navigation,
oceaneering, or scientific
purposes, you can be con-
fident that HIPS and SIPS
converts your survey data
into information you will use.
Digital elevation models,
geological mosaics, contours,
profiles, and 3D fly-throughs
are among the many outputs
that can be generated from
your processed data. In
addition, the integrated Plot
Composer application allows
you to rapidly create paper
plots and charts in the field.
Size is No Object
HIPS and SIPS can handle
today’s high volume surveys
with ease through the use of
the highly scalable CSAR™
framework. From a single
line of echosounder data to a
multi-platform, multi-sensor
survey project, the efficient
storage mechanisms will en-
sure robust data management
and optimal access to data.
Industry Standards
HIPS and SIPS makes full use
of industry standards. Bathym-
etry can be tested for quality
against the International Hy-
drographic Organization stan-
dards and exported for use
in other applications through
open exchange formats.
Easy to Use Interface
The HIPS and SIPS applica-
tion has been evolving for
20 years. As well as striving
to incorporate the latest
algorithms and tools, CARIS
is committed to making
the application more intui-
tive with every release.
Ping-to-Chart™
As a standalone system, HIPS
and SIPS is recognized as
the industry leading process-
ing tool. But when used in
conjunction with other Ping-to-
Chart products even more
value from your data can be
realized. CARIS offers the func-
tionality to streamline your
operation, from Ping-to-Chart.
F O R M O R E I N F O R M AT I O N V I S I T O U R W E B S I T E | W W W. C A R I S . C O M
Connect with Us
CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
HIPS AND SIPS
www.caris.com
Copyright © 2015 CARIS. All rights reserved.
CARIS, Ping-to-Chart, HIPS and SIPS are registered
trademarks of CARIS (Universal Systems Ltd.) Reg. USPTO.
All other registered trademarks or trademarks are property
of their respective owners.

5. Manage complex marine spatial information, eliminate data redundancy, improve productivity and extend the
use of your data holdings with CARIS’ flagship enterprise GIS solution. Hydrographic Production Database™
(HPD) addresses the data management and cartographic production requirements of the world’s largest and
most advanced hydrographic agencies.
Efficiency is maximized in HPD™ with features being stored only once; this coupled with the ability to
associate multiple cartographic representations for different product types has positioned HPD as the
number one solution.
System Architecture
HPD is comprised of client and server
software. The HPD Server™ stores
source information and derived products
in a seamless database. This allows
for multiple product types to be easily
created from the common source.
Changes between the source data
and products are efficiently tracked
and updates can be easily applied.
The HPD clients facilitate the loading,
compilation and verification of the
source information. They also support
the creation and maintenance of the
Electronic Navigational Chart (ENC),
Additional Military Layer (AML), Inland
ENC (IENC) and paper chart products
from the common verified source data.
Relational Database Support
HPD works with the latest Oracle
versions for data storage and
maintenance. This allows you to
leverage the industry-leading security,
performance and scalability offered
by Oracle in the management
of your spatial information.
Powerful Compilation Tools
Source data compilation is aided by
HPD’s support for a multitude of raster
and vector GIS formats. Data can
be captured directly from these GIS
sources, or used as a basis for manual or
automatic digitizing. Existing paper charts
in digital format and S-57 products can
also be easily loaded into the database.
Sophisticated tools also allow
you to create sounding groups,
collection objects and master and
slave relationships. For paper chart
compilation, you can create symbol
annotations in an automated fashion
and add straight line, curved or
blocks of text using the desired font
and justification. All of which can
dramatically reduce compilation time.
ONE FEATURE, ONE TIME™
www.caris.com
C A R I S ™ | M A R I N E G I S E X P E R T S

6. Efficient Product Creation
and Maintenance
HPD has been designed and
built to allow creation and
updating of multiple kinds
of products from a single
source. Updates to a source
object (e.g. buoy) need to be
completed only once and all
products using the source
object are then flagged for
updating. This provides a
user-friendly process that
minimizes duplication of
effort. For historical purposes,
HPD also tracks changes to
the objects and stores each
version of an issued product.
Quality Control
HPD has a complete set of
embedded validation tools,
including the IHO S-58
standard, to ensure that your
chart products can be used
with confidence. In addition,
user-defined tests can be
created to meet your specific
validation criteria. If any errors
are found, advanced identifica-
tion and repair tools exist to
quickly correct the errors.
Objects stored in HPD also
have a certification status,
which is used in quality assur-
ance workflows. Thanks to the
user access controls offered
by HPD, only users with the
appropriate privileges can
make changes to the certifica-
tion, which ensures product
quality.
Evolution to S-100
Introduction of the S-100
data standard will lead to the
replacement of the existing
S-57 based specifications.
CARIS is intimately involved
in the development of the new
S-100 standards and related
product specifications and is
a key industry contributor. As
such, CARIS is incorporating
the relevant S-100 specifica-
tions into HPD as they become
available. Your investment
in HPD today will provide
you with access to the S-100
capabilities you will need for
tomorrow.
System Extensibility
A series of customizable
programming interfaces are
provided to facilitate the
interaction and integration
of HPD with other external
systems and applications. You
can also extend your applica-
tion of HPD with available
modules to facilitate raster
chart production, creation of
nautical publications (e.g. No-
tices to Mariners and Lists of
Lights) and the calculation and
maintenance of maritime limits
and boundaries; all within the
same database solution.
Ping-to-Chart™
HPD is a comprehensive
system for the storage and
management of marine spatial
data, and efficient production
of multiple product types.
When used in conjunction with
other Ping-to-Chart products,
HPD becomes your enterprise
solution to incorporate new
hydrographic features into
chart production, and the
source for spatial data sharing
and discovery with other
stakeholders. CARIS offers
the functionality to streamline
your operation, from Ping-to-
Chart.
F O R M O R E I N F O R M AT I O N V I S I T O U R W E B S I T E | W W W. C A R I S . C O M
Connect with Us
HPD
CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
www.caris.com
Copyright © 2015 CARIS. All rights reserved.
CARIS, One Feature, One Time and Ping-to-Chart are
registered trademarks of CARIS (Universal Systems
Ltd.) Reg. USPTO. All other registered trademarks or
trademarks are property of their respective owners.

7. The Complete Solution
The LOTS software provides a complete
set of tools to enable coastal states
to submit a claim under UNCLOS
Article 76. This includes the ability to
determine the geomorphological foot
of the continental slope and the ability
to create the constraints and formulae
lines defined in the Scientific and
Technical Guidelines of the Commission
on the Limits of the Continental Shelf. It
is also used extensively in non-Article
76 applications, such as to provide
solutions for maritime boundary
disputes or for building the cadastral
fabric for effective marine management.
Robust Algorithms
The LOTS software contains
sophisticated and robust geodetic
tools allowing the creation of median
and equidistant lines, equiratio lines,
envelope of arcs, bisectors, loxodromes
and geodesics. These capabilities
enable you to carry out your Law of the
Sea work to the highest standards and
with complete geodetic confidence.
Greater Interoperability
LOTS Limits and Boundaries™ as
an add-on in CARIS BASE Editor™
provides users with access to a variety
of new tools for further analysis of
boundaries and baselines, including
the use of the powerful 3D visualization
engine. A variety of industry vector,
cloud and raster formats are accessible
allowing for better interoperability
with other systems and easy product
creation. In addition, the system
provides a platform for working with
IHO S-57 standards and transitioning
to the new S-121 Maritime Limits and
Boundaries product specifications
under S-100.
Developed in close cooperation with government agencies and academic institutions, LOTS™ is the number
one GIS solution for accurately defining your territorial sea or other maritime limits and boundaries.
Over 70 countries have already chosen LOTS to aid in maritime boundary delimitation negotiations or map
their extended marine sovereignty in accordance with United Nation Convention on the Law of the Sea
(UNCLOS) Article 76.
Precise geodetic tools allow for efficient delineation of maritime limits and boundaries, making LOTS a must
have tool for marine spatial planning and mineral and resource management.
MAXIMIZE THE OCEANS’ POTENTIAL
“CARIS LOTS was a breakthrough in the
development of software tools for constructing the
outer limits of extended continental shelves in
accordance with the provisions of UNCLOS Article
76. As such LOTS has gained widespread usage
around the world”
-Ron Macnab, Geological Survey
of Canada (Retired)
www.caris.com
C A R I S ™ | M A R I N E G I S E X P E R T S

8. CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
Copyright © 2015 CARIS. All rights reserved.
CARIS and Ping-to-Chart are registered trademarks
of CARIS (Universal Systems Ltd.) Reg. USPTO.
All other registered trademarks or trademarks are
property of their respective owners.
Database Efficiencies
The LOTS Limits and Boundaries tools
as an add-on in CARIS HPD™ allows
territorial or archipelagic baselines, as well
as maritime limits and boundaries, to be
defined and maintained within a relational
database environment. This can provide
huge efficiencies for organizations that
need to revisit baselines and maritime
zones delineations frequently, or define
new maritime boundaries with neighbours.
Free Digital Data
The LOTS software ships with close to 5GB
of public domain data, including a world
vector shoreline, ETOPO digital elevation
models, a world sediment thickness model
and the Digital Chart of the World. This data
complements data owned by coastal States
and allows the creation of a complete
preliminary desktop study without the
initial constraint of new survey data.
Assisting Universities
Many academic institutions that have
programs relating to maritime law and
marine spatial planning are using the
LOTS software as an integral part of
their curriculum. CARIS encourages
this by making the software available to
universities for a greatly reduced price. The
academic version of the software contains
all the functionality of the full package but
is constrained to a geographical area of
interest.
Ping-to-Chart™
As a standalone system, LOTS has all the
tools required to determine your maritime
limits and boundaries. When used in
conjunction with other Ping-to-Chart
products, it provides enhanced analysis
capabilities and can produce essential
content for map or chart. CARIS offers the
functionality to streamline your operation,
from Ping-to-Chart.
F O R M O R E I N F O R M AT I O N V I S I T O U R W E B S I T E | W W W. C A R I S . C O M
LOTS
Connect with Us
www.caris.com

9. Flexible Product Creation
Creating multiple types of electronic
charts is made easy through a combina-
tion of modern GIS tools, logical work-
flows and pre-defined product templates.
S-57 Composer supports the very latest
Electronic Navigational Chart (ENC), Ad-
ditional Military Layer (AML) and Inland
ENC (IENC) specifications. By adding
your own customized data profiles, you
can support specialized chart products
and overlays such as Marine Information
Overlays (MIO).
S-100 Data
The transition from S-57 based specifica-
tions to the new IHO S-100 standard for
hydrographic data is well underway. As a
committed member of the IHO working
group formed to support the new data
standard, CARIS has expanded the scope
of S-57 Composer to allow for the creation
of S-100 products. Using the same
workflows for creating S-57 and Vector
Product Format (VPF) products you can
now gain familiarity with the new complex
and multiplicity attribute types, work with
information types, assign S-100 portrayal
to features and work with the expanding
registry of S-100 product specifications.
Powerful Compilation Tools
By using the Product Creation Wizard,
your first step in chart compilation could
not be any easier. Chart creation is aided
by S-57 Composer’s support for a mul-
titude of raster and vector GIS formats.
Data can be grabbed directly from these
GIS sources, or used as a basis for
manual or automatic digitizing. Informa-
tion residing in spreadsheets or databases
can be easily imported using dedicated
utilities. Sophisticated tools allow you
to create sounding groups, collection
objects, depth areas and master and slave
relationships. When ready, your final chart
can be automatically exported as a new
exchange set, or as a chart update.
Quality Control
S-57 Composer has a complete set of
embedded validation tools to ensure that
your electronic chart products can be
used with confidence on any chart display
system.
Create, manage and update S-57 and S-100 ENC, AML, IENC, VPF DNC and custom electronic chart
products with this powerful and easy-to-use desktop application.
The same robust tools that are found in CARIS HPD™, a database-driven production system, are also
available in S-57 Composer™ making it the best engineered and most modern chart creation application on
the market.
Ensure that your organization is well placed to meet the International Maritime Organization’s mandatory
carriage requirements for ENCs by making your chart portfolio available for use onboard.
NEXT-GENERATION DESKTOP ELECTRONIC CHART PRODUCTION
www.caris.com
C A R I S ™ | M A R I N E G I S E X P E R T S

10. Quality Control (Continued)
These tools can report errors
on feature geometry or on
attribution. In addition, user-
defined tests can be created to
meet your specific validation
criteria. ENCs can be tested
automatically against the IHO
S-58 specifications to ensure
compliance. If any errors are
found, advanced identification
and repair tools exist to correct
problems prior to export.
DNC®
Creation
The DNC Plugin for S-57 Com-
poser allows you to create,
maintain and export Digital
Nautical Chart (DNC) products
in VPF. The digitization, editing
and validation capabilities
that are available for creating
S-57 and S-100 data are now
available for these navigational
products as well. The plug-in
provides easy and automatic
conversion capabilities from
ENC to DNC and DNC to S-100.
Evolution to HPD
S-57 Composer is the ideal
electronic chart compila-
tion tool for organizations
that manage and maintain a
small number of ENCs. As
your chart portfolio grows,
a defined path exists, allow-
ing you to upgrade your S-57
Composer licenses to HPD
Product Editors. The original
investment in the S-57 Com-
poser software can be put
towards the cost of the HPD
solution. This enables your
organization to migrate from
a desktop production envi-
ronment to a database one
with the added benefits and
efficiencies that HPD brings.
Ping-to-Chart™
As a standalone system, S-57
Composer provides a one
stop shop for the creation and
maintenance of any electronic
chart product. When used
in conjunction with other
Ping-to-Chart products, it
facilitates the rapid creation
of charts from ship to shore.
CARIS offers the functionality
to streamline your operation,
from Ping-to-Chart.
F O R M O R E I N F O R M AT I O N V I S I T O U R W E B S I T E | W W W. C A R I S . C O M
S -57 COMPOSER
Connect with Us
CARIS
115 Waggoners Lane
Fredericton, New Brunswick
E3B 2L4 Canada
Tel +1 (506) 458-8533
Fax +1 (506) 459-3849
info@caris.com
CARIS EMEA
Bremvallei 1
5237 LV ‘s-Hertogenbosch
The Netherlands
Tel +31 (0)73 648 8888
Fax +31 (0)73 648 8889
info@caris.nl
CARIS USA
415 N Alfred Street
Alexandria VA 22314
United States
Tel +1 (703) 299-9712
Fax +1 (703) 299-9715
info@caris.us
CARIS Asia Pacific
PO Box 1580
Milton QLD 4064
Australia
Tel +61 (0) 7 3719 5132
info@caris.com
Copyright © 2015 CARIS. All rights reserved.
CARIS and Ping-to-Chart are registered trademarks
of CARIS (Universal Systems Ltd.) Reg. USPTO.
All other registered trademarks or trademarks are
property of their respective owners.
www.caris.com
