The document discusses the rehabilitation of the lower level deck of the Henry Hudson Bridge in New York. Specifically, it describes the replacement of the lower level deck between 2006-2010 by Judlau Contracting Inc. under the supervision of the New York City Triborough Bridge and Tunnel Authority and engineering consultants. The project involved replacing 76,000 square feet of deck, over 100 tons of steel repair, and rehabilitation of other areas of the bridge over its nearly 4-year duration.

1. LOWER LEVEL DECK REPLACEMENT HENRY HUDSON BRIDGE OCTOBER 4 TH , 2009

2. LOWER LEVEL DECK REPLACEMENT HENRY HUDSON BRIDGE OCTOBER 4 TH , 2009

3. LOWER LEVEL DECK REPLACEMENT HENRY HUDSON BRIDGE BRIDGING THE GAP BETWEEN CONTRACTOR AND AGENCY | OCTOBER 12 TH , 2009 | LOCATION, NEW YORK

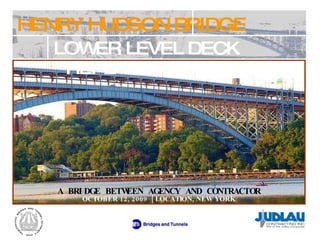

4. A BRIDGE BETWEEN AGENCY AND CONTRACTOR HENRY HUDSON BRIDGE LOWER LEVEL DECK REPLACEMENT OCTOBER 12, 2009 | LOCATION, NEW YORK

5. A BRIDGE BETWEEN AGENCY AND CONTRACTOR HENRY HUDSON BRIDGE LOWER LEVEL DECK REPLACEMENT OCTOBER 12, 2009 | LOCATION, NEW YORK

6. A BRIDGE BETWEEN AGENCY AND CONTRACTOR HENRY HUDSON BRIDGE LOWER LEVEL DECK REPLACEMENT OCTOBER 12, 2009 | LOCATION, NEW YORK

7. HENRY HUDSON BRIDGE LOWER LEVEL DECK REPLACEMENT

8. HENRY HUDSON BRIDGE LOWER LEVEL DECK REPLACEMENT

10. AGENCY AND CONTRACTOR HENRY HUDSON BRIDGE REHABILITATION

11. CONSULTANTS AND SUBS HENRY HUDSON BRIDGE REHABILITATION

12. SITE LOCATION HENRY HUDSON BRIDGE REHABILITATION N MANHATTAN BRONX QUEENS NEW JERSEY GEORGE WASHINGTON BRIDGE HUDSON RIVER

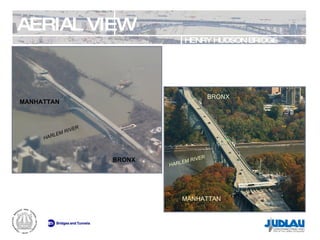

13. AERIAL VIEW HENRY HUDSON BRIDGE REHABILITATION MANHATTAN BRONX MANHATTAN BRONX HARLEM RIVER HARLEM RIVER

14. DESCRIPTION HENRY HUDSON BRIDGE REHABILITATION

15. BRIDGE FACTS HENRY HUDSON BRIDGE REHABILITATION

16. BRIDGE ASSESSMENT & FINDINGS HENRY HUDSON BRIDGE REHABILITATION

17. HISTORY HENRY HUDSON BRIDGE REHABILITATION

18. HISTORY HENRY HUDSON BRIDGE REHABILITATION

19. HISTORY HENRY HUDSON BRIDGE REHABILITATION

20. HISTORY HENRY HUDSON BRIDGE REHABILITATION

21. BRIDGE CONSTRUCTION (1936-1938) HENRY HUDSON BRIDGE REHABILITATION

22. BRIDGE CONSTRUCTION (1936-1938) HENRY HUDSON BRIDGE REHABILITATION

23. BRIDGE CONSTRUCTION (1936-1938) HENRY HUDSON BRIDGE REHABILITATION

24. PAST MAINTENANCE (1936-200?) HENRY HUDSON BRIDGE REHABILITATION

25. PAST REHABILITATION PROJECTS HENRY HUDSON BRIDGE REHABILITATION

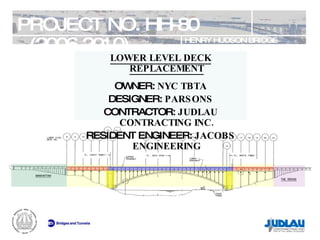

26. PROJECT NO. HH-80 (2006-2010) HENRY HUDSON BRIDGE REHABILITATION LOWER LEVEL DECK REPLACEMENT OWNER: NYC TBTA DESIGNER: PARSONS CONTRACTOR: JUDLAU CONTRACTING INC. RESIDENT ENGINEER: JACOBS ENGINEERING

27. PROJECT NO. HH-80 (2006-2010) HENRY HUDSON BRIDGE REHABILITATION

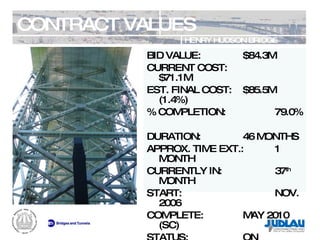

28. CONTRACT VALUES HENRY HUDSON BRIDGE REHABILITATION BID VALUE: $84.3M CURRENT COST: $71.1M EST. FINAL COST: $85.5M (1.4%) % COMPLETION: 79.0% DURATION: 46 MONTHS APPROX. TIME EXT.: 1 MONTH CURRENTLY IN: 37 th MONTH START: NOV. 2006 COMPLETE: MAY 2010 (SC) STATUS: ON SCHEDULE

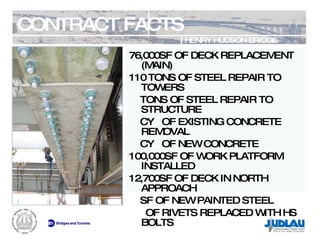

29. CONTRACT FACTS HENRY HUDSON BRIDGE REHABILITATION 76,000SF OF DECK REPLACEMENT (MAIN) 110 TONS OF STEEL REPAIR TO TOWERS TONS OF STEEL REPAIR TO STRUCTURE CY OF EXISTING CONCRETE REMOVAL CY OF NEW CONCRETE 100,000SF OF WORK PLATFORM INSTALLED 12,700SF OF DECK IN NORTH APPROACH SF OF NEW PAINTED STEEL OF RIVETS REPLACED WITH HS BOLTS

30. HENRY HUDSON BRIDGE REHABILITATION

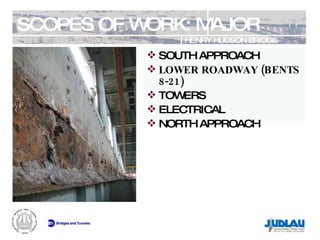

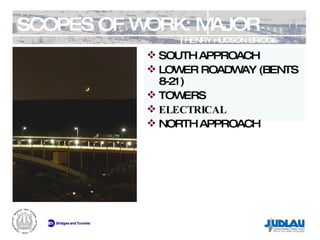

31. SCOPES OF WORK: MAJOR HENRY HUDSON BRIDGE REHABILITATION SOUTH APPROACH LOWER ROADWAY (BENTS 8-21) TOWERS ELECTRICAL NORTH APPROACH

32. SCOPES OF WORK: MAJOR HENRY HUDSON BRIDGE REHABILITATION SOUTH APPROACH LOWER ROADWAY (BENTS 8-21) TOWERS ELECTRICAL NORTH APPROACH

33. SCOPES OF WORK: MAJOR HENRY HUDSON BRIDGE REHABILITATION SOUTH APPROACH LOWER ROADWAY (BENTS 8-21) TOWERS ELECTRICAL NORTH APPROACH

34. SCOPES OF WORK: MAJOR HENRY HUDSON BRIDGE REHABILITATION SOUTH APPROACH LOWER ROADWAY (BENTS 8-21) TOWERS ELECTRICAL NORTH APPROACH

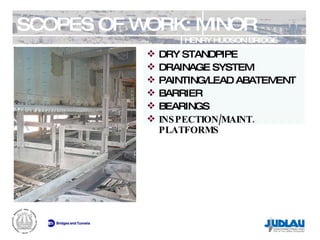

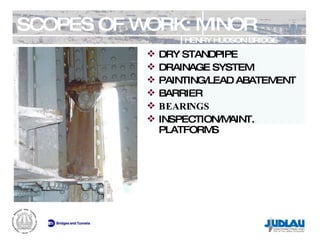

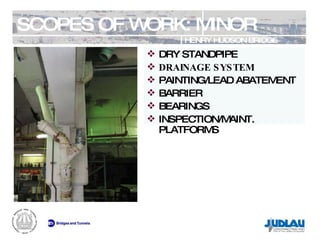

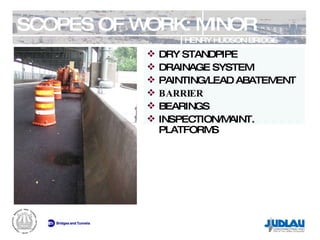

35. SCOPES OF WORK: MINOR HENRY HUDSON BRIDGE REHABILITATION DRY STANDPIPE DRAINAGE SYSTEM PAINTING/LEAD ABATEMENT BARRIER BEARINGS INSPECTION/MAINT. PLATFORMS

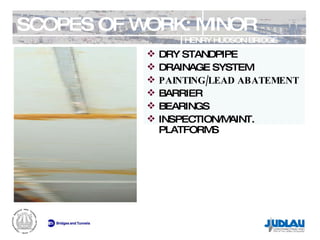

36. SCOPES OF WORK: MINOR HENRY HUDSON BRIDGE REHABILITATION DRY STANDPIPE DRAINAGE SYSTEM PAINTING/LEAD ABATEMENT BARRIER BEARINGS INSPECTION/MAINT. PLATFORMS

37. SCOPES OF WORK: MINOR HENRY HUDSON BRIDGE REHABILITATION DRY STANDPIPE DRAINAGE SYSTEM PAINTING/LEAD ABATEMENT BARRIER BEARINGS INSPECTION/MAINT. PLATFORMS

38. SCOPES OF WORK: MINOR HENRY HUDSON BRIDGE REHABILITATION DRY STANDPIPE DRAINAGE SYSTEM PAINTING/LEAD ABATEMENT BARRIER BEARINGS INSPECTION/MAINT. PLATFORMS

39. SCOPES OF WORK: MINOR HENRY HUDSON BRIDGE REHABILITATION DRY STANDPIPE DRAINAGE SYSTEM PAINTING/LEAD ABATEMENT BARRIER BEARINGS INSPECTION/MAINT. PLATFORMS

40. SCOPES OF WORK: MINOR HENRY HUDSON BRIDGE REHABILITATION DRY STANDPIPE DRAINAGE SYSTEM PAINTING/LEAD ABATEMENT BARRIER BEARINGS INSPECTION/MAINT. PLATFORMS

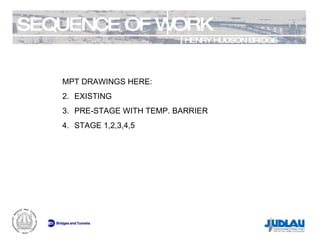

41. SEQUENCE OF WORK HENRY HUDSON BRIDGE REHABILITATION MPT DRAWINGS HERE: EXISTING PRE-STAGE WITH TEMP. BARRIER STAGE 1,2,3,4,5

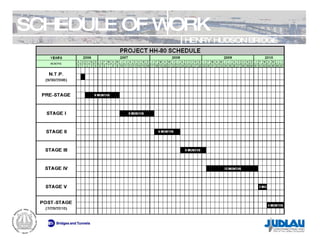

42. SCHEDULE OF WORK HENRY HUDSON BRIDGE REHABILITATION

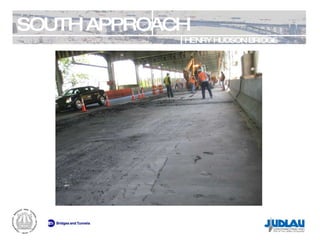

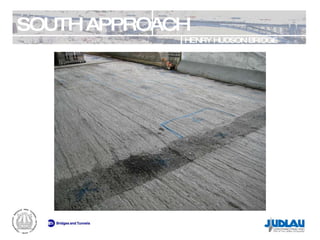

43. SOUTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

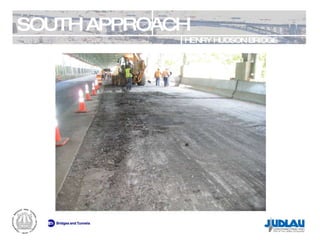

44. SOUTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

45. SOUTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

46. SOUTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

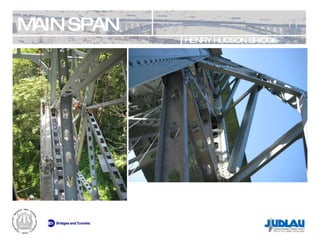

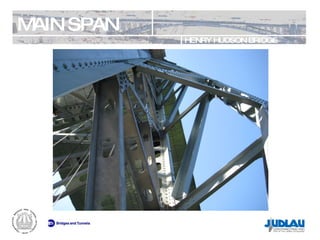

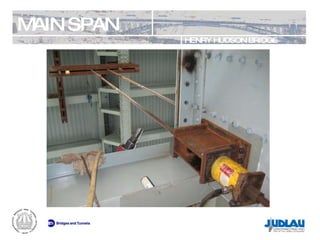

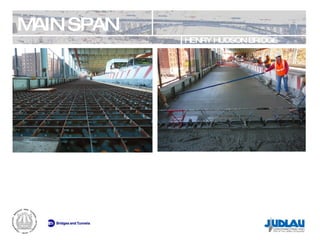

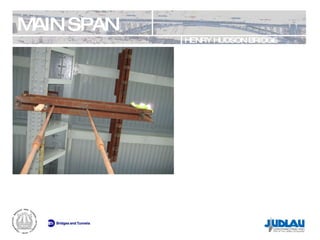

47. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

48. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

49. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

50. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

51. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

52. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

53. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

54. MAIN SPAN HENRY HUDSON BRIDGE REHABILITATION

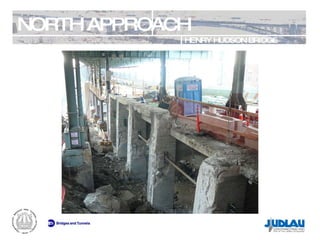

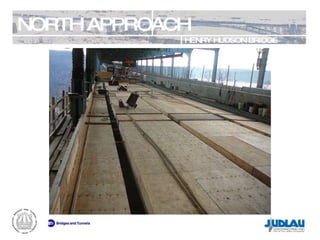

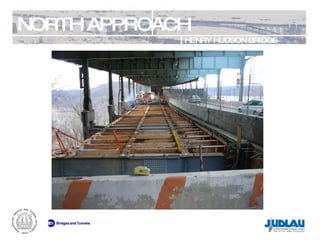

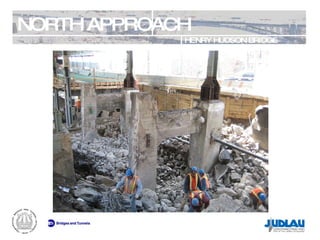

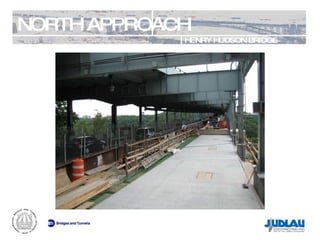

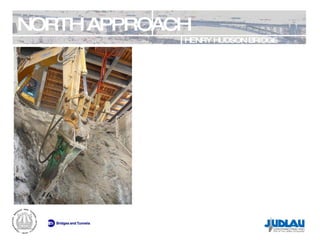

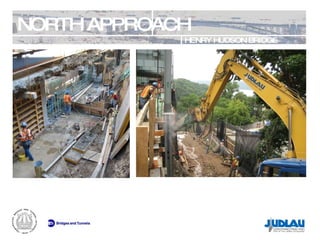

55. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

56. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

57. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

58. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

59. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

60. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

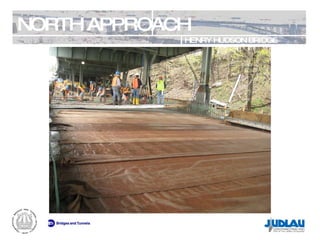

61. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

62. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

63. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

64. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

65. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

66. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

67. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

68. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION

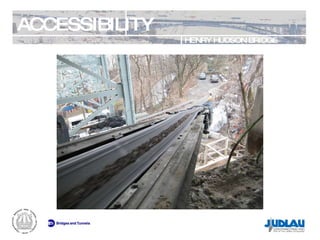

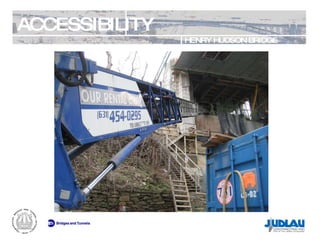

69. ACCESSIBILITY HENRY HUDSON BRIDGE REHABILITATION

70. ACCESSIBILITY HENRY HUDSON BRIDGE REHABILITATION

71. NORTH APPROACH HENRY HUDSON BRIDGE REHABILITATION
