Tamsa (prontuario) mc

PROPÓSITO
Este prontuario proporciona información detallada de gran parte de los
productos tubulares fabricados por TAMSA que son utilizados en la industria
petrolera. Hacemos énfasis en nuestro desarrollo tecnológico para ofrecer aceros
propietarios “TAC” con aplicación para alto colapso y “TRC” para utilización en
ambiente amargo.
En la sección “Lista de Productos” el usuario podrá consultar nuestros
productos OCTG (Revestimiento, Producción y Perforación) seleccionando
espesor y grado de acero conforme a los valores inherentes de Colapso, Presión
Interna y Tensión; Adicionalmente encontrará en la “Tabla de Productos” hojas
individuales por diámetro y espesor con información dimensional y detalle de
valores para roscas API.
La información anterior se complementa con un “Mapa Dimensional” que
muestra los rangos de diámetro y espesor que comúnmente fabricamos, con una
tabla donde se presentan los rangos de fabricación para nuestras conexiones
“Premium” más usuales, con una sección de “Fórmulas de Campo” y un
suplemento para “Tubería de Línea”.
Para referencia rápida de identificación de aceros se incluyen tablas
mostrando los códigos de colores para productos API y PROPIETARIOS.
_____________________________________
Preparado por: E. HERRADOR
Revisado por: M. GÓMEZ
Aprobado por: V. CABRERA
_____________________________________
Para la elaboración de este prontuario se tuvo la colaboración de:
- Ingeniería de Producto
- Laboratorios
- Aseguramiento de la Calidad
- Asistencia Técnica
Revisión 1, Marzo 2001

EspecificacionesEspecificaciones
API
API 5CT Specification for Casing and Tubing, 6
th
edition April 15, 1999
(U.S. Customary Units)
API 5D Specification for Drill Pipe 4
th
edition January 30, 2000
API 5C3 Bulletin on Formulas and Calculations 6
th
edition October 1, 1994
For Casing, Tubing, Drill Pipe, and
Line Pipe Properties.
API 5C2 Bulletin on Performance Properties of 21
st
edition October, 1999
Casing, Tubing, and Drill Pipe
API 5B Specification for Threading, Gauging, 14
th
edition December, 1996
and Thread Inspection of Casing,
Tubing, and Line Pipe Threads
(U.S. Customary Units)
API 5L Specification for Line Pipe 42
nd
edition January, 2000
ANSIANSI
ANSI B36.10-1995 ASME B36.10M 1995
ASTMASTM
ASTM A53/A53M ASTM 2000, Volume 01.01 1999
ASTM A106 ASTM 2000, Volume 01.01 1999
ASTM E 29 Using Significant Digits in Test Data to 1993
Determine Conformance with Specification
ISOISO
ISO 31-0 Quantities and units 3
rd
edition 1992
TAMSATAMSA
EC-005 Spec. for High Collapse Pipes Rev. 5 1999
EC-009 Spec. for Sour Service Pipes Rev. 4 1998
EC-014 Spec. for Sour Service Pipes March, 2000
EC-015 Spec. for High Collapse and Rev. 0 1997
Corrosion Resistance Pipes
NC-027 Acabado de tubería y coples Junio 2000

POLÍTICA DE CALIDADPOLÍTICA DE CALIDAD
Para alcanzar y mantener el liderazgo en el mercado global de
tubos se establece como política la siguiente:
1. La calidad de productos y servicios y la satisfacción del
cliente son indispensables para asegurar la
supervivencia y el crecimiento de las sociedades DST.
2. El cumplimiento consistente de los compromisos y la
superación de las expectativas de los Clientes
constituyen una obligación permanente de todos y cada
uno de los miembros de las Sociedades.
3. La calidad de vida de sus empleados, la comunidad en
la que viven, el resguardo del medio ambiente y las
relaciones con sus proveedores son también prioritarios.
4. La valorización, motivación y capacitación del personal
son objeto de una permanente acción empresarial.
5. La calidad de la gestión de cada sociedad por separado
y del conjunto de las mismas es determinante para
cumplir con la política expresada y retribuir, al mismo
tiempo, a los respectivos accionistas.
Referencia. Manual de Calidad Tubos de Acero de México S.A.

OBJETIVOS DE CALIDADOBJETIVOS DE CALIDAD
Coherente con la política de calidad se establecen los
siguientes objetivos:
• Se promueve que las empresas integrantes de la DST
obtengan y mantengan Sistemas de Gestión de Calidad
Certificados. Se pondrá a disposición de las mismas los
recursos adecuados para alcanzar los objetivos fijados en
la Política de Calidad.
• Se realizan contactos con los Clientes para verificar sus
necesidades y su grado de satisfacción con los productos y
servicios provistos.
• Se desarrollan indicadores y métricas comunes que
indiquen el grado de cumplimiento con los Clientes.
• Se elaboran planes de mejora y desarrollo de los productos
y servicios, de los Sistemas de Calidad y de inversiones en
equipamiento y procesos, basados principalmente en
prevención de las causas que producen No Conformidades.
• Se alientan los intercambios de experiencias entre el
personal de las sociedades para enriquecer el conocimiento
y desarrollar una cultura de calidad única y compartida.
• Se alientan la mejora continua, la capacitación y el trabajo
en equipo en todo el ámbito de las sociedades, alcanzando
a todo el personal y a todas las actividades.
• Se alientan contrataciones comunes y de largo plazo con
proveedores de bienes y servicios que consistentemente
cumplan con los requisitos de calidad establecidos.
• La Política y los Objetivos son difundidos para su
entendimiento, implementación y compromiso de
cumplimiento por parte de todos los niveles de personal de
las empresas.
Referencia. Manual de Calidad Tubos de Acero de México S.A.

OD (mm) 4.00 5.00 6.35 7.50 9.52 11.50 12.70 15.87 19.05 22.22 25.40 28.25 31.75 34.92 38.10 W.T. (mm)
60.3 13.7 13.7 13.7 13.7 13.7 2 3/8"
63.5 13.7 13.7 13.7 13.7 13.7 2 1/2"
69.8 13.7 13.7 13.7 13.7 13.7 13.7 2 3/4"
73.0 13.7 13.7 13.7 13.7 13.7 2 7/8"
76.2 13.7 13.7 13.7 13.7 13.7 13.7 3"
82.5 13.7 13.7 13.7 13.7 13.7 13.7 3 1/4"
88.9 13.7 13.7 13.7 13.7 13.7 13.7 3 1/2"
95.2 13.7 13.7 13.7 13.7 13.7 13.7 13.7 3 3/4"
101.6 13.7 13.7 13.7 13.7 13.7 13.7 13.7 4 "
108.0 13.7 13.7 13.7 13.7 13.7 13.7 13.7 4 1/4"
114.3 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 4 1/2"
127.0 13.7 13.7 13.7 13.7 13.7 13.3 5"
133.3 13.7 13.7 13.7 13.7 13.7 12.5 5 1/4"
139.7 13.7 13.7 13.7 13.7 13.7 11.9 5 1/2"
139.7 13.7 13.7 13.7 13.7 13.7 11.9
141.3 13.7 13.7 13.7 13.7 13.7 11.9 5 9/16"
146.0 13.7 13.7 13.7 13.7 13.7 11.2 5 3/4"
152.4 13.7 13.7 13.7 13.7 13.2 6"
158.8 13.7 13.7 13.7 13.7 12.6 6 1/4"
162.0 13.7 13.7 13.7 13.7 12.3 6 3/8"
165.1 13.7 13.7 13.7 13.3 12.0 6 1/2"
168.3 13.7 13.7 13.7 13.0 12.4 13.7 13.0 13.7 13.7 13.7 6 5/8"
171.4 13.7 13.7 13.7 13.7 13.7 13.3 13.7 13.7 13.7 6 3/4"
177.8 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 7"
184.2 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 7 1/4"
190.5 13.7 13.7 13.7 13.7 13.4 13.7 13.7 13.7 13.7 13.7 13.3 7 1/2"
193.7 13.7 13.7 13.7 13.7 13.1 13.7 13.7 13.7 13.7 13.7 13.0 7 5/8"
196.9 13.7 13.7 13.7 13.7 12.9 13.7 13.7 13.7 13.7 13.7 12.7 7 3/4"
203.0 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.3 12.2 8"
209.6 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.8 11.7 8 1/4"
215.9 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.3 11.3 8 1/2"
219.1 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.4 12.0 11.0 8 5/8"
222.3 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.2 11.8 10.8 8 3/4"
229.0 13.7 13.7 13.7 13.7 13.7 13.7 13.7 9"
235.0 13.7 13.7 13.7 13.7 13.7 13.7 9 1/4"
241.3 13.7 13.7 13.7 13.7 13.7 13.7 9 1/2"
244.5 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 9 5/8"
247.6 13.7 13.7 13.7 13.7 13.3 13.7 13.7 13.7 13.7 13.7 12.8 11.8 9 3/4"
250.8 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.6 11.6 9 7/8"
254.0 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.5 12.4 11.4 10"
260.4 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.1 12.0 11.1 10 1/4"
263.5 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.9 11.8 10.9 10 3/8"
266.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.7 11.6 10.7 10 1/2"
273.0 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.4 11.3 10.4 10 3/4"
279.4 13.7 13.7 13.7 11.6 13.7 13.7 13.7 13.4 12.0 11.0 10.1 11"
285.7 13.7 13.7 13.7 13.7 13.7 13.7 11 1/4"
292.1 13.7 13.7 13.7 13.7 13.7 13.7 11 1/2"
298.5 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 11 3/4"
301.6 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 11 7/8"
304.8 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.4 12"
311.1 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.0 12 1/4"
317.5 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.7 12 1/2"
323.9 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.5 12.4 12 3/4"
330.2 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.2 12.1 13"
339.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.7 13 3/8"
342.9 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.6 13 1/2"
342.9 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 12.6 14 1/2"
346.1 13.7 13.7 13.7 13.3 13.7 13.7 13.7 13.7 13.7 12.4 13 5/8"
349.3 13.7 13.7 13.7 13.7 13.7 13.7 13.5 12.3 13 3/4"
355.6 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.7 13.2 14"
406.4 13.7 13.7 13.7 11.2 9.2 7.7 6.6 16"
431.8 13.7 13.7 10.8 8.8 7.4 6.4 5.3 4.0 17"
457.2 13.7 13.7 13.2 10.8 9.1 7.9 18"
473.0 13.7 13.7 12.6 10.3 8.7 7.5 18 5/8"
498.4 13.7 13.7 12.1 9.9 8.3 7.2 6.1 5.0 19 5/8"
508.0 13.7 13.7 11.6 9.5 8.0 6.8 20"
533.4 6.6 5.3 5.0 21"
WT (in) 0.157 0.197 0.250 0.295 0.375 0.453 0.500 0.625 0.750 0.875 1.000 1.112 1.250 1.375 1.500 OD. (in)
1.- Los números negros dentro de las celdas, indican la máxima longitud de laminación en metros, obteniéndose 2 piezas por billet.
2.- Los números en rojo dentro de las celdas, indican la máxima longitud en metros, pero solo se obtiene una pieza por tocho.
RANGO DIMENSIONAL TAMSA
NOTAS:
Revision 0.
31-January-01
Laminado en el MPM y
Terminado en el Reductor
Estirador en TAMSA 1.
Laminado y Calibrado en
TAMSA 2.
TAMSA 1.
Laminado en el MPM y Calibrado
en TAMSA 1.
TAMSA 2.
Laminado en el MPM y Calibrado en
TAMSA 1.
TAMSA 2.

TAMSA FESF
Cal. 18 / 16 15 14 13 12 11 / 10 9 8 7 / 6 5 4 3 2 / / / / / / / / /
Inches 0.049 0.055 0.065 0.072 0.083 0.095 0.109 0.120 0.125 0.134 0.148 0.165 0.180 0.193 0.203 0.220 0.240 0.260 0.280 0.300 0.315 0.340 0.360 0.380 0.420 0.460 0.440 0.500
mm. 1.24 1.40 1.65 1.83 2.11 2.41 2.77 3.05 3.18 3.40 3.76 4.19 4.57 4.90 5.16 5.59 5.80 6.60 7.11 7.62 8.00 8.64 9.14 9.65 10.67 11.18 11.68 12.70
Inches mm
1/2 12.70 0.35 0.39 0.45 0.49 0.55 0.61 0.68 0.73 0.75 0.78 0.83
5/8 15.88 0.45 0.50 0.58 0.63 0.72 0.80 0.89 0.96 1.00 1.05 1.12 REQUIERE CONSULTA PREVIA
3/4 19.05 0.55 0.61 0.71 0.78 0.88 0.99 1.11 1.20 1.24 1.31 1.42 1.54 1.63 1.71 TO BE ANALIZED CASE BY CASE
7/8 22.23 0.64 0.72 0.84 0.92 1.05 1.18 1.33 1.44 1.49 1.58 1.71 1.86 1.99 2.09 2.17 2.29
1 25.40 0.74 0.83 0.97 1.06 1.21 1.37 1.55 1.68 1.74 1.85 2.01 2.19 2.35 2.48 2.57 2.73 2.80 3.06
1 1/4 31.75 0.94 1.05 1.23 1.35 1.54 1.75 1.98 2.16 2.24 2.38 2.59 2.85 3.06 3.24 3.38 3.61 3.71 4.09 4.32 4.53 4.69
1 3/8 34.93 1.35 1.49 1.71 1.93 2.20 2.40 2.49 2.65 2.89 3.18 3.42 3.63 3.79 4.04 4.17 4.61 4.88 5.13 5.31
1 1/2 38.10 1.48 1.64 1.87 2.12 2.41 2.63 2.74 2.91 3.18 3.50 3.78 4.01 4.19 4.48 4.62 5.13 5.43 5.73 5.94 6.28 6.53
1 3/4 44.45 1.74 1.92 2.20 2.50 2.85 3.11 3.24 3.45 3.77 4.16 4.50 4.78 5.00 5.36 5.53 6.16 6.55 6.92 7.19 7.63 7.96
2 50.80 2.00 2.21 2.53 2.88 3.28 3.59 3.73 3.98 4.36 4.82 5.21 5.55 5.80 6.23 6.44 7.19 7.66 8.11 8.44 8.98 9.39 9.79 10.56 10.92 11.27 11.93
2 1/4 57.15 2.26 2.50 2.86 3.26 3.71 4.07 4.23 4.51 4.95 5.47 5.93 6.31 6.61 7.11 7.34 8.23 8.77 9.31 9.70 10.34 10.82 11.30 12.23 12.67 13.10 13.92
2 3/8 60.33 2.39 2.64 3.03 3.45 3.93 4.31 4.48 4.78 5.24 5.80 6.29 6.70 7.02 7.54 7.80 8.74 9.33 9.90 10.32 11.01 11.54 12.06 13.06 13.55 14.01 14.92
2 1/2 63.50 3.19 3.64 4.15 4.54 4.73 5.04 5.54 6.13 6.64 7.08 7.42 7.98 8.25 9.26 9.89 10.50 10.95 11.69 12.25 12.82 13.90 14.43 14.93 15.91
3 76.20 3.85 4.39 5.01 5.50 5.73 6.11 6.72 7.44 8.08 8.62 9.03 9.73 10.07 11.33 12.11 12.89 13.46 14.40 15.12 15.84 17.24 17.93 18.58 19.89
3 1/4 82.55 5.45 5.98 6.22 6.64 7.30 8.10 8.79 9.38 9.84 10.61 10.98 12.36 13.23 14.08 14.71 15.75 16.55 17.35 18.91 19.68 20.41 21.88
3 1/2 88.90 5.88 6.45 6.72 7.18 7.89 8.76 9.51 10.15 10.65 11.48 11.89 13.40 14.34 15.27 15.96 17.10 17.98 18.86 20.58 21.43 22.24 23.87
4 101.60 7.41 7.72 8.24 9.07 10.07 10.94 11.69 12.26 13.23 13.70 15.46 16.57 17.66 18.47 19.81 20.84 21.88
4 1/2 114.30 11.38 12.37 13.22 13.88 14.98 15.52 17.53 18.80 20.05 20.97 22.51 23.70 24.90
W
.T.
O.D.
O.D. = Diámetro exterior W.t. = Espesor de pared (min). Cal. = Calibre O.D. = Outside diameter W.t. = Wall thickness (min). Cal. = Caliber
Peso métrico nominal - Nominal weight (Kg/m)
RANGO DE PRODUCCIÓN - PRODUCTION RANGE
FABRICA DE ESTIRADO EN FRÍO - COLD DRAWN MILL
TUBOS TÉRMICOS SEGÚN ASTM/ASME - LOW & HIGH TEMPERATURE SERVICE PIPE

APLICACIÓN
APPLICATION
NORMAS
STANDARDS
GRADOS DE ACERO STEEL
GRADES
ASTM A53 Gr: A - B - C
GENERAL ASME SA 53 Gr: A - B - C
GENERAL DIN 1629 St 37.0 - St 44.0 - St 52.0
DIN 1630 St 37.0 - St 44.0 - St 52.0
DIN 17175 I St 35.8 - St 45.8
DIN 17175 III
St 35.8 - St 45.8 - 15 Mo 3 - 13 Cr Mo
44 - 10 Cr Mo 9 10
DIN 17173 I - II TT St 35 N
ASTM A179
ASME SA 179
ASTM A106
ASME SA 106
ASTM A192
TERMICA ASME SA 192
THERMAL ASTM A 209
ASME SA 209
ASTM A210
ASME SA 210
ASTM A213
ASME SA 213
ASTM A333
ASME SA 333
ASTM A334
ASME SA 334
ASTM A335
ASME SA 335
ASTM A106
ASME A106
ASTM A 200 Gr: T11 - T22
ASTM A333
ASME SA 333
ASTM A334
ASME SA 334
ASTM A335
ASME SA 335
BAJO CARBON LOW CARBON
MEDIO CARBON MEDIUM CARBON
MICRO ALEADOS MICRO-ALLOYED
MECÁNICA ESPECIALES SPECIAL GRADES
MECHANICAL Gr A: St 35 - St 45 - St 52
Gr C: RSt 34-2 - RSt 37-2 - St 44-2 -
St 52-3
L.P. AND
PETROLEUM
APPL.
COLD DRAWN PRODUCTS
TAMSA
TUBERIA DE
CONDUCCION -
PARA REFINERIAS
Y
PETROQUÍMICAS
Gr: A1 - C
Gr: 1 - 6
Gr: A - B - C
Gr: T1 - T1a
DIN 2391
Gr: P11 - P22
PRODUCTOS ESTIRADOS EN FRÍO
ASTM A519
Gr: B
Gr: 1 -6
Gr: T2 - T5 - T11 - T12 - T22
Gr: 1 - 6
Gr: 1 - 6
Gr: P11 - P22

LINEA DE ROSCAS PREMIUM
Diametro Exterior 2 3/8" 2 7/8" 3 1/2" 4" 4 1/2" 5" 5 1/2" 6 5/8" 7" 7 5/8" 7 3/4" 8 5/8" 9 5/8" 10 3/4" 11 3/4" 13 3/8" 13 5/8" 14" 16" 18 5/8" 20"
SEC
TUBING ST/FR/GR
CASING ST/FR
ANTARES
ANTARES ER
ANTARES MS
ANTARES MS28
ANTARES PJD
ATLAS BRADFORD
TC-II
STL
FL4S
HDL
RTS-6
RTS-8
ANJO
BTB
BIG NJO
BIG HDL
NKK
NK3SB
NKEL
NKHW
NKFJ1
NKFJ2
HUNTING INTERLOCK
LOCK-IT-EIGHT
HD LOCK-IT
FS-150
IJ NU-LOCK
SEAL LOCK PC
SEAL LOCK HT
SEAL LOCK HC
SEAL LOCK APEX
SEAL LOCK BOSS
SEAL LOCK HW
BIG "O" SEAL LOCK
Departamento de Roscas Especiales. Marzo/2001.

COLORES para identificación
del grado de acero de tubería de
REVESTIMIENTO y PRODUCCIÓN
de acuerdo a
API 5CT
J - 55
Casing
Verde 1 Blanca 1 Verde
K - 55 Verde - - - 2 Verdes
N - 80 Rojo - - - 1 Roja
L - 80 Rojo 1 Café
1 Roja
1 Café
C-90
tipo 1
Púrpura - - - 1 Púrpura
T-95
tipo 1
Plata - - - 1 Plata
C - 95 Café - - - 1 Café
P-110 Blanco - - - 1 Blanca
Q-125
tipo 1
Naranja - - - 1 Naranja
Q-125
tipo 2
Naranja 1 Amarilla
1 Naranja
1 Amarilla
C - 90
tipo 2
Púrpura 1 Amarilla
1 Púrpura
1 Amarilla
T-95
tipo 2
Plata 1 Amarilla
1 Plata
1 Amarilla
Q-125
tipo 3
Naranja 1 Verde
1 Naranja
1 Verde
Q-125
tipo 4
Naranja 1 Café
1 Naranja
1 Café
PREPARADO POR: DAVID HERNÁNDEZ MORALES
REVISADO POR: ERIK HERRADOR PEÑA
*- API 5CT 10.4 .- Para tubería con cople normal del
mismo grado acero, con longitud de 6 pies o mayor; si la
orden de compra no especificara otra cosa; el código de
color a aplicar seria cualquiera de los siguientes o ambos.
1-Pintar en la tubería las bandas correspondientes al grado
de acero a una distancia no mayor de dos pies del extremo
(cople, caja, piñon o liso)
2-Pintar toda la superficie exterior del cople del color
correspondiente al grado de acero, incluyendo las bandas
en el color apropiado del código.
J - 55
Tubing
Verde - - - - 1 Verde
H - 40 - - - - - - - - -
M - 65
1 Verde
1 Azul
** Utiliza
cople en
L-80
- - - - - -
**- API 5CT 8.1.2 .-
El grado de acero M65 debe suministrarse con coples L80
GRADO
DE
ACERO
COPLE TUBO CÓDIGO DE COLORES
COPLE TUBOy / o
*COLOR BANDA BANDA
GRADO
DE
ACERO
COPLE TUBOy / o
*COLOR BANDA BANDA

GRADO
DE
ACERO
BANDA CÓDIGO
DE
COLORES
X - 46 Negro
X - 52 Verde
X - 56 Azul
X - 60 Rojo
X - 65 Blanco
X - 70 Púrpura
X - 80 Amarillo
Aplica en productos con especificación
SR3.3 (Apéndice F) para:
Grados de acero X46 y superiores, en
Diámetros de 4 1/2 y mayores:
del grado de acero de
TUBERÍA DE LÍNEA
Para especificación suplementaria:
API 5L (SR3.3)

DST-140
HC
Blanco 1 Café
1 Blanco
1 Café
DST-100
SS
Café 1 Azul
1 Plata
1 Café
DST-80
HC
Blanco 1 Azul
1 Blanca
1 Azul
PREPARADO POR: ERIK HERRADOR PEÑA
REVISADO POR: MANUEL GÓMEZ DIEGO
para ACEROS PROPIETARIOS
DST
DST-110
SS
Café
1 Rosa
1 Amarillo
1 Rosa
1 Amarillo
1 Café
DST-80
SS
Café 1 Azul
1 Azul
1 Café
Café 1 Púrpura
1 Púrpura
1 Café
DST-90
SS
DST-95
SS
Café
1 Naranja
1 azul cielo
1 Naranja
1 azul cielo
1 Café
DST-95
SS
Blanco
1 Naranja
1 Azul cielo
1 Naranja
1Azul cielo
1 Blanca
DST-110
HC
Blanco
1 Rosa
1 Amarilla
1 Rosa
1 Amarilla
1 Blanca
GRADO
DE
ACERO
COPLE TUBOy / o
*COLOR BANDA BANDA

TRC-90 Café 1 Blanca
1 Café
1 Blanca
TRC-95 Café 1 Rosa
1 Café
1 Rosa
TRC-95HC Café 1 Naranja
1 Café
1 Naranja
TRC-100 Café 1 Verde
1 Café
1 verde
TRC-110 Café 1 Rojo
1 Café
1 Rojo
TAC-80 Blanco 1 Azul
1 Blanca
1 Azul
TAC-95 Blanco 1 Naranja
1 Blanca
1 Naranja
TAC-110 Blanco 1 Verde
1 Blanco
1 Verde
TRC-85 Café 1 Amarillo
1 Café
1 Amarillo
TAC-140 Blanco 1 Café
1 Blanco
1 Café
TRC-80 Café 1 Azul
1 Café
1 Azul
para ACEROS PROPIETARIOS
TAMSA
GRADO
DE
ACERO
COPLE TUBOy / o
*COLOR BANDA BANDA

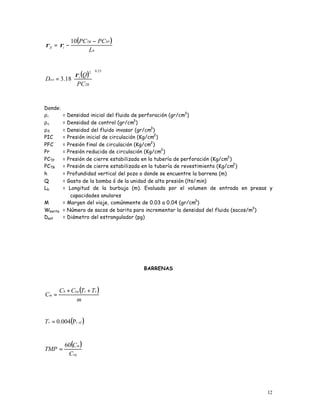

FÓRMULAS DE CAMPO
UTILIZADAS EN LA
PERFORACIÓN DE
POZOS PETROLEROS
enero 2001.
PREPARÓ: DAVID HERNÁNDEZ MORALES

2
PRESIÓN HIDROSTÁTICA
( )( )
10
h
Ph
ρ
=
Donde:
Ph = Presión hidrostática (Kg/cm2
)
ρ = Densidad del fluido (gr/cm3
)
h = Altura de la columna (m)
( )( )hPh ρ052.0=
Donde:
Ph = Presión hidrostática (psi)
ρ = Densidad del fluido (lb/gal)
h = Altura de la columna (pies)
FACTOR DE FLOTACIÓN
a
L
bF
ρ
ρ
−=1
Donde:
Fb = Factor de flotación (adimensional)
ρL = Densidad del fluido de perforación (gr/cm3
) ó (lb/gal)
ρa = Densidad del material (gr/cm3
) ó (lb/gal). Acero = 7.85 gr/cm3
CAPACIDADES ANULARES
( )2
5067.0 dCi =
( )2
2
2
15067.0 DdCa −=

3
Donde:
Ci = Capacidad volumétrica por el interior de la tubería (lts/m)
Ca = Capacidad volumétrica por el espacio anular entre tuberías (lts/m)
d = Diámetro interior de la tubería (pg)
d1 = Diámetro interior de la tubería más grande (pg)
D2 = Diámetro exterior de la tubería más pequeña (pg)
DESPLAZAMIENTO EN BOMBA DE LODOS DUPLEX Y TRIPLEX
( )( ) vsrtpd ELddF 22
20068.0 −=
( )( ) vstpt ELdF 2
0102101.0=
Donde:
Fpd = Desplazamiento volumétrico de la bomba duplex (gal/emb)
Fpt = Desplazamiento volumétrico de la bomba triplex (gal/emb)
dt = Diámetro del pistón (pg)
dr = Diámetro del vástago (pg)
Ls = Longitud de la camisa (pg)
Ev = Eficiencia volumétrica (adimensional)
LONGITUD DE LASTRABARRENAS REQUERIDOS EN EL APAREJO DE FONDO
( )( )( ) αcosbSDC
DC
FFW
PSB
L =
Donde:
LDC = Longitud de los lastrabarrenas (m)
PSB = Peso sobre la barrena a aplicarse (Kg)
WDC = Peso unitario de los lastrabarrenas (Kg/m)
Fs = Factor de seguridad (85%)
α = Ángulo de inclinación del pozo (grados)

4
TUBERÍAS DE PERFORACIÓN
Para el grado de tubería que va inmediatamente arriba de los lastrabarrenas.
( ) ( )
TP
DCDC
bTP
T
TP
W
WL
FW
MOPR
L −
−
=





9.0
Para los subsecuentes grados de tubería de perforación.
( ) ( ) ( ) ( )
n
nn
n
n
n
TP
TPTPTPTPDCDC
bTP
T
TP
W
WLWLWL
FW
MOPR
L 1111
......9.0 −−
+++
−
−
=





Donde:
LTP = Longitud de la tubería de perforación del grado en cálculo (m)
LDC = Longitud de los lastrabarrenas (m)
RT = Resistencia a la tensión de la tubería del grado en cálculo (Kg)
WTP = Peso ajustado de la tubería de perforación del grado en cálculo (Kg/m)
WDC = Peso unitario de los lastrabarrenas (Kg/m)
MOP = Margen adicional para tensión (jalón) (Kg)
TUBERÍAS
• Determinación del peso unitario de una tubería.
( )( ) ( )2
00722.068.10 DttDWU +−=
Donde:
WU = Peso unitario nominal (lb/pie)
D = Diámetro exterior de la tubería (pg)
t = Espesor de la pared del cuerpo del tubo (pg)
• Determinación de la resistencia a la fuerza de tensión de una tubería
( ) ( )222
4
tDtdDF yyT −=−= σπσ
π

5
Donde:
FT = Resistencia a la fuerza de tensión de la tubería (lb-f)
σy = Esfuerzo a la cedencia de la tubería (psi)
• Determinación de la resistencia a la presión interna de una tubería
( )






−==
D
d
D
t
P y
y
i 1875.0
2
875.0 σ
σ
Donde:
Pi = Resistencia a la presión interna de la tubería (psi)
• Determinación de la resistencia al colapso para diferentes modos de deformación
Colapso elástico




















−










−
= 22
1
1
1
2
t
D
t
D
E
Pc
υ
Colapso de Transición












−






= G
t
D
F
P yc σ

6
Colapso Plástico
CB
t
D
A
P yc −












−






=σ
Colapso de Cedencia


















−





= 2
1
2
t
D
t
D
P yc σ
Donde:
Pc = Resistencia al colapso (psi)
E = Módulo de Young para el acero (psi). Para el acero = 30X106
psi
υ = Relación de poisson (adimensional)
t = Espesor de la pared del cuerpo del tubo (pg).
A,B,C,F y G = Coeficientes empíricos, dados por las siguientes ecuaciones (adimensionales)
( ) ( ) ( )3162105
1053132.01021301.01010679.08762.2 yyy XXXA σσσ −−−
−++=
( )yXB σ6
1050609.0026233.0 −
+=
( ) ( ) ( )31327
1036989.01010483.0030867.093.465 yyy XXC σσσ −−
+−+−=

7
2
3
6
2
3
1
2
3
2
3
1095.46


















+






−


















−






+
























+






=
A
B
A
B
A
B
A
B
A
B
A
B
A
B
X
F
yσ
• Determinación de la resistencia de una tubería cuando es sometida a esfuerzos
combinados (esfuerzos biaxiales).
n
y
t
y
t
b PP




















±














−=
σ
σ
σ
σ
5.075.01
2
Donde:
Pb = Resistencia de la tubería al esfuerzo biaxial (psi)
Pn = Resistencia nominal de la tubería (psi)
σt = Esfuerzo al que se encuentra trabajando la tubería dentro del pozo (psi)
Determinación de la tensión requerida en la tubería de revestimiento después de cementarla
en función de la altura de cemento por el espacio anular, cambios de presión, cambios en la
densidad del fluido y cambios de temperatura.
( ) ( )( )
( ) ( )( ) ( )eceiieeiieeu
ssisieseiiceu
AAAgAgAW
FtAEPAPALgAgALW
X
δδδδυδδ
λυδδ
−−∆−∆−−−−
+∆−∆−∆−+−−
=
1
21
( )( )
( )s
s
AE
XLF
e
−
=
12

8
Donde:
X = Altura del cemento (pies)
L = Profundidad del pozo (pies)
Wu = Peso Unitario de la tubería (lb/pie)
Ae = Área exterior de la tubería (pg2
)
Ai = Área interior de la tubería (pg2
)
As = Área de acero de la tubería (pg2
) = Ae – Ai
δc = Gradiente del fluido por el exterior de la tubería (psi/pie)
(cemento de alta densidad + cemento de baja densidad)
δi = Gradiente del fluido por el interior de la tubería (psi/pie)
υ = Relación de Poisson = 0.3 (adimensional)
E = Módulo de elasticidad (psi). Para el acero = 30X106
psi
e = Elongación de la tubería (pg)
λ = Coeficiente de expansión térmica del acero = 6.9X10-6
(pg/pg/°F)
∆T = Variación de la temperatura desde la cima del cemento a la superficie (°F).
∆Pes = Cambio de la presión superficial en el exterior (psi)
∆Pis = Cambio de la presión superficial en el interior (psi)
Fs = Fuerza de tensión durante el anclaje de la tubería para evitar el pandeo (lb-f)
∆δe = Cambio del gradiente de la densidad en la próxima etapa por fuera de la tubería
(psi/pie)
∆δi = Cambio del gradiente la densidad en la próxima etapa por dentro de la tubería
(psi/pie)
Nota: Se recomienda que la tensión de la tubería de revestimiento se realice cuando la
compresibilidad del cemento sea entre 100 a 300 psi.
• Determinación de la profundidad de atrapamiento de la sarta.
( )( )( )
( )P
WeE
L
u
t
8.40
=
Donde:
Lt = Profundidad a donde se encuentra atrapada la tubería (pies)
E = Módulo de elasticidad (psi). Para el acero = 30X106
psi
e =Elongación de la tubería causada por la fuerza de tensión (pg)
Wu = Peso unitario de la tubería (lb/pie)
P = Fuerza de tensión aplicada en la superficie (lb-f)
• Esfuerzos combinados de la tubería con la tensión y torsión.
( )( )
( )44
10000
203.0
dD
LQ
N
QT
−
=

9
Donde:
N = Número de vueltas aplicadas en la superficie para generar torque (adimensional)
QT = Torque aplicado con el número de vueltas aplicadas en la superficie (lb-pie)
LQ = Longitud de la tubería a donde se aplica el torque (pies)
( )
2
2
2096167.0
A
P
D
J
Q yT −= σ
Donde:
QT = Torque combinado con la tensión aplicada en superficie (lb-pie)
J = Momento de inercia polar (pg4
)
P = Tensión aplicada en la superficie (lb-f)
A = Área de la sección transversal (pg2
)
σy = Esfuerzo a la cedencia del material (psi)
( )22
4
dDA −=
π
( )44
32
dDJ −=
π
Donde:
A = Área de la sección transversal de la tubería (pg2
)
J = Momento de inercia polar del elemento cilíndrico hueco (pg4
)
( )
TLT
F
SPPacp
86.381971108000
==
π
Donde:
SPPacp = Severidad de la pata de perro aceptable (grados/30 m)
T = Tensión aplicada a la sarta (lb)
Nota: Esta ecuación es valida para tubería de rango 2 y se considera una máxima carga lateral
de 2,000 lb, de acuerdo con Arthur Lubinski

10
MECANISMOS DE CARGA EN TUBERÍAS
TATEAF sstemp ∆−=∆−=∆ 207α
Donde:
∆Ftemp = Variación de fuerza axial por temperatura (lb)
α = Coeficiente de expansión térmica (1/°F). Para el acero es 6.9 X 10-6
°F-1
E = Módulo de Young (psi). Para el acero es 30 X 10-6
psi
AS = Área de la sección transversal de la tubería (pg2
)
∆Τ = Variación de la temperatura sobre la longitud libre (°F)
ia PdF ∆+=∆ 2
471.0
Donde:
∆Fa = Variación de fuerza axial por variación en la presión interna (lb). El signo + significa
un incremento de la fuerza de tensión generada por la presión interna.
∆Pi = Variación de la presión interna (psi)
ea PDF ∆−=∆ 2
471.0
Donde:
∆Fa = Variación de fuerza axial por variación en la presión externa (lb). El signo - significa
un decremento de la fuerza de tensión generada por la presión externa.
∆Pe = Variación de la presión externa (psi)
PRUEBA INTEGRAL DE PRESIÓN (PRUEBA DE GOTEO O LEAK OFF)
Cálculos Previos:
( )( )
10
h
Ph
ρ
=
( )( )
( )ph dd
h
Pg
−
=
86.1300
γ

11
PgPhPPs TR += −
Después de la prueba
( )
h
Pf
eq
10
+= ρρ
Donde:
Ph = Presión hidrostática (Kg/cm2
)
Pg = Presión requerida para romper la gelatinosidad del fluido (Kg/cm2
)
PTR = Resistencia a la presión interna de la TR (Kg/cm2
)
Ps = Presión superficial máxima para no rebasar la presión interna de la TR (Kg/cm2
)
Pf = Presión de inicio de fractura de la formación (presión registrada y estabilizada en
superficie) (Kg/cm2
)
ρ = Densidad del fluido (gr/cm3
)
ρeq = Densidad equivalente (gr/cm3
)
γ = Gelatinosidad del fluido medido a 10 minutos (lb/100 pies2
)
h = Altura de la columna o profundidad donde se realizó la prueba (m)
dh = Diámetro del agujero ó diámetro interior de la tubería de revestimiento (pg)
dp = Diámetro exterior de la tubería de perforación ó de los lastrabarrenas (pg)
CONTROL DE BROTES
( ) M
h
PCTP
ic ++=
10
ρρ
TPPCPIC += Pr
( ) 





−=





=
i
c
TP
i
c
PCPICPFC
ρ
ρ
ρ
ρ
Pr
( )
c
ic
baritaW
ρ
ρρ
−
−
=
25.4
85

12
( )
b
TPTR
ifi
L
PCPC −
−=
10
ρρ
( )
25.02
18.3 





=
TR
i
est
PC
Q
D
ρ
Donde:
ρi = Densidad inicial del fluido de perforación (gr/cm3
)
ρc = Densidad de control (gr/cm3
)
ρfi = Densidad del fluido invasor (gr/cm3
)
PIC = Presión inicial de circulación (Kg/cm2
)
PFC = Presión final de circulación (Kg/cm2
)
Pr = Presión reducida de circulación (Kg/cm2
)
PCTP = Presión de cierre estabilizada en la tubería de perforación (Kg/cm2
)
PCTR = Presión de cierre estabilizada en la tubería de revestimiento (Kg/cm2
)
h = Profundidad vertical del pozo o donde se encuentre la barrena (m)
Q = Gasto de la bomba ó de la unidad de alta presión (lts/min)
Lb = Longitud de la burbuja (m). Evaluada por el volumen de entrada en presas y
capacidades anulares
M = Margen del viaje, comúnmente de 0.03 a 0.04 (gr/cm3
)
Wbarita = Número de sacos de barita para incrementar la densidad del fluido (sacos/m3
)
Dest = Diámetro del estrangulador (pg)
BARRENAS
( )
m
TTCC
C
vreqb
m
++
=
( )ofvT rP004.0=
( )
eq
m
C
C
TMP
60
=

13
Donde:
Cm = Costo por metro perforado ($/m)
Cb = Costo de la barrena ($)
Ceq = Costo del equipo de perforación ($/hora)
Tr = Tiempo de rotación efectiva de la barrena (horas)
Tv = Tiempo de viaje (horas)
m = Metros perforados (m)
Prof = Profundidad (m)
TMP = Tiempo máximo permisible (min/m)
HIDRAULICA DE PERFORACIÓN
( )
( )22
5.24
ph dd
Q
Va
−
=
( ) ( ) ( )( )
( )ph
pph
DD
YDD
Vc
−
−++
=
ρ
ρµµ
22
469.777791.77791.7
( )82.4
82.182.018.0
71.700 d
LQ
Pi
ρµ
=∆
( ) ( ) 82.13
82.182.018.0
71.700 phph DDDD
LQ
Pa
+−
=∆
ρµ
( )
( )( )22
2
1444 Td
B
AC
Q
P
ρ
=∆
[ ]22
3
2
2
2
1 ......
4
nT jjjjA ++++=
π
T
T
A
Q
V
117.3
=

14
( )( )( ) ( ) ( ) BT PQVQI ∆== ρρ 05.0004298.0
( )
1714
QP
HHP
B∆
=
L
Pa
ec
42.1
∑∆
+= ρρ
1714
PQ
HP =
Donde:
Q = Gasto (gal/min)
P = Presión de bombeo (gal/min)
L = Longitud de la tubería (m)
ρ = Densidad del fluido de perforación (gr/cm3
)
ρec = Densidad equivalente de circulación (gr/cm3
)
µ = Viscosidad plástica (cp)
Yp = Punto de cedencia del fluido de perforación (lb/100 pies2
)
d = Diámetro interior de la tubería de perforación ó de los lastrabarrenas (pg)
dh = Diámetro del agujero ó diámetro interior de la tubería de revestimiento (pg)
dp = Diámetro exterior de la tubería de perforación ó de los lastrabarrenas (pg)
Cd = Coeficiente de descarga en las toberas, depende del tamaño y tipo (Cd = 0.95)
AT = Área total de las toberas (pg2
)
j = Diámetro de las toberas en 32avos
(pg)
Va = Velocidad anular del fluido de perforación (pies/min)
Vc = Velocidad crítica por el espacio anular por el fluido de perforación (pies/min)
VT = Velocidad en las toberas (pies/seg)
∆Pi = Caída de presión por el interior de la tubería (psi)
∆Pa = Caída de presión por el espacio anular (psi)
∆PB = Caída de presión en la barrena (psi)
I = Fuerza de impacto (lb)
HHP = Indice de limpieza en la barrena (HP/pg2
)
HP = Caballaje hidráulico en la bomba (HP)

15
CONTRUCCIÓN POZO DIRECCIONAL (severidad de 1.5°/30 m)
( ) ( )2
12
2
12 YYXXLdz −+−=
Y
X
TanR
∆
∆
= −1
Cálculos para la construcción del ángulo máximo con severidad de 1.5°/30 m.














−












−
−
+





−
−
=
−
−−
IDCO
IDCO
L
Tan
IDC
L
Tan
dz
dz
92.1145
cos92.1145
sen
0
92.1145
1
11
máxθ
( )máx92.1145 θSenPV =
( )máx192.1145 θCosDH −=
( )
2958.57
92.1145 máxθ
=LC
Cálculo de la severidad de la pata de perro.
( ) ( )[ ] ( ){ }212121
1
coscoscossensencos αααα +−= −
RRPP
( )
LC
PP
SPP
30
=

16
Donde:
Ldz = Desplazamiento horizontal (m)
X1, Y1 = Coordenas conductor (m)
X2, Y2 = Coordenas objetivo (m)
R = Rumbo (en la dirección del objetivo a partir del norte ó sur)
ID = Inicio de la desviación (m)
CO = Profundidad a la cima del objetivo (m)
PV = Profundidad vertical (m)
DH = Desplazamiento horizontal (m)
LC = Longitud de curso (m)
PP = Pata de perro (grados)
SPP = Severidad de la pata de perro (grados/30 m)
DENSIDAD DE LA LECHADA DE CEMENTO
lechadaladeVolumen
totalmasa
VV
mm
wc
wc
lechada =
+
+
=ρ
Rendimiento de agua por saco de cemento = 23.03 lts
c
c
c
m
V
ρ
=
b
b
b
m
V
ρ
=
Rendimiento de agua para la bentonita = 2.86 lts/1% de bentonita.
Donde:
Vc = Volumen de cemento (lts/saco)
Vw = Volumen de agua (lts/saco)
Vb = Volumen de bentonita (lts/saco de cemento)
mc = Masa de cemento (kg) = saco de cemento 50 Kg
mw = Masa de agua (kg)
mb = Masa de la bentonita, dependiendo del porcentaje con relación al cemento (kg)
ρlechada = Densidad de la lechada (gr/cm3
)
ρc = Densidad del cemento (gr/cm3
) = 3.15 gr/cm3
ρb = Densidad de la bentonita (gr/cm3
) = 2.65 gr/cm3

17
GRADOS API
5.131
5.141
−=°
γ
API
Donde:
°API = Grados API (adimensional)
γ = Gravedad específica del fluido con relación al agua a 60°F y 760 mm Hg (adim.)

114.30 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE REVESTIMIENTO
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 1/2 ''
VALORES DE COMPORTAMIENTO MÍNIMO POR GRADO DE ACERO
API DST-TAMSA
CUERPO DE TUBO 80 HC 95 HC 110 HC 140 HC 95 HS 80 SS 95 SS 110 SS
TAC 80 TAC 95 TAC-110 TAC 140 TRC-HC TRC 80 TRC 95 TRC 110
Peso Espesor COLAPSO ( psi )
9.50 lb/ft 0.205 in 5.21 mm 2,760 3,310 3,310 3,600 3,900 4,200
10.50 lb/ft 0.224 in 5.69 mm 4,010 4,010 4,430 4,940 5,310
11.60 lb/ft 0.250 in 6.35 mm 4,960 4,960 5,560 6,350 6,350 6,820 7,030 7,030 7,580 6,350 7,030
13.50 lb/ft 0.290 in 7.37 mm 7,310 8,540 8,540 9,300 9,660 9,660 10,690 8,540 9,660
15.10 lb/ft 0.337 in 8.56 mm 14,340 15,830 11,080 12,760
Peso Espesor TENSIÓN ( 1,000 lb )
9.50 lb/ft 0.205 in 5.21 mm 111 152 152 180 221 263
10.50 lb/ft 0.224 in 5.69 mm 166 166 196 241 286
11.60 lb/ft 0.250 in 6.35 mm 184 184 217 267 267 300 317 317 367 267 317
13.50 lb/ft 0.290 in 7.37 mm 249 307 307 345 364 364 422 307 364
15.10 lb/ft 0.337 in 8.56 mm 485 551 353 419
Peso Espesor PRESIÓN INTERNA ( psi )
9.50 lb/ft 0.205 in 5.21 mm 3,190 4,380 4,380 5,180 6,380 7,570
10.50 lb/ft 0.224 in 5.69 mm 4,790 4,790 5,660 6,970 8,280
11.60 lb/ft 0.250 in 6.35 mm 5,350 5,350 6,320 7,780 7,780 8,750 9,240 9,240 10,690 7,780 9,240
13.50 lb/ft 0.290 in 7.37 mm 7,330 9,020 9,020 10,150 10,710 10,710 12,410 9,020 10,710
15.10 lb/ft 0.337 in 8.56 mm 14,420 16,380 10,480 12,450
DICA / REVISIÓN 1 / FEB 2001
C 90 C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80

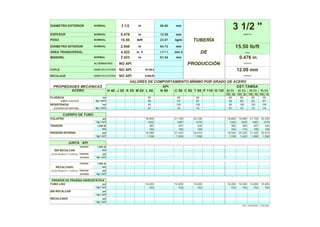

DIÁMETRO EXTERIOR NOMINAL 4 1/2 in 114.30 mm
4 1/2 ''
ESPESOR NOMINAL 0.205 in 5.21 mm
PESO NOMINAL 9.50 lb/ft 14.14 kg/m DIÁMETRO
DIÁMETRO INTERNO NOMINAL 4.090 in 103.89 mm 9.50 lb/ft
ÁREA TRANSVERSAL NOMINAL 2.766 in 2 1,784.6 mm 2 TUBERÍA PESO
MANDRIL NORMAL 3.965 in 100.71 mm DE 0.205 in
ALTERNATIVO NO API REVESTIMIENTO ESPESOR
COPLE DIÁMETRO EXTERIOR NORMAL STC-LC-BC 5.000 in 127.00 mm 5.21 mm
REBAJADO BC NO API ESPESOR
PROPIEDADES MECÁNICAS API DST-TAMSA
ACERO H 40 J 55 K 55 M 65 L 80 N 80 C 90 C 95 T 95 P 110 Q 125 80 HC 95 HC 110 HC 140 HC 95 HS 80 SS 95 SS 110 SS
TAC 80 TAC 95 TAC-110 TAC 140 TRC HC TRC 80 TRC 95 TRC 110
FLUENCIA ksi 40 55 55 65 80 95
(LÍMITE ELÁSTICO) kg / mm² 28 39 39 46 56 67
RESISTENCIA ksi 60 75 95 85 95 105
(ESFUERZA DE RUPTURA) kg / mm² 42 53 67 60 67 74
CUERPO DE TUBO
COLAPSO psi 2,760 3,310 3,310 3,600 3,900 4,200
kg / cm² 194 233 233 253 274 295
TENSIÓN 1,000 lb 111 152 152 180 221 263
ton 50 69 69 82 100 119
PRESIÓN INTERNA psi 3,190 4,380 4,380 5,180 6,380 7,570
kg / cm² 224 308 308 364 449 532
JUNTA API
TENSIÓN 1,000 lb 77 101 112 118
ROSCA ton 35 46 51 54
REDONDA CORTA PRESIÓN
psi 3,190 4,380 4,380 5,180
INTERNA kg / cm² 224 308 308 364
TENSIÓN 1,000 lb
ROSCA ton
REDONDA LARGA PRESIÓN
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
COPLE NORMAL PRESIÓN
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
COPLE REBAJADO PRESIÓN
psi
INTERNA kg / cm²
PRESIÓN DE PRUEBA HIDROSTÁTICA
TUBO LISO psi 2,900 3,000 3,000 4,700 5,800 6,900
kg / cm² 204 211 211 330 408 485
ROSCA REDONDA CORTA psi 2,900 3,000 3,000 4,700
kg / cm² 204 211 211 330
ROSCA REDONDA LARGA psi
kg / cm²
BUTTRESS COPLE NORMAL psi
kg / cm²
BUTTRESS COPLE REBAJADO psi
kg / cm²

4 1/2 ''
REBAJADO BC 4.875 in 123.83 mm ESPESOR
FLUENCIA ksi 55 55 65 80 95
(LÍMITE ELÁSTICO) kg / mm² 39 39 46 56 67
RESISTENCIA ksi 75 95 85 95 105
(ESFUERZA DE RUPTURA) kg / mm² 53 67 60 67 74
CUERPO DE TUBO
COLAPSO psi 4,010 4,010 4,430 4,940 5,310
kg / cm² 282 282 311 347 373
TENSIÓN 1,000 lb 166 166 196 241 286
ton 75 75 89 109 130
PRESIÓN INTERNA psi 4,790 4,790 5,660 6,970 8,280
kg / cm² 337 337 398 490 582
JUNTA API
TENSIÓN 1,000 lb 132 146 154
ROSCA ton 60 66 70
psi 4,790 4,790 5,660
INTERNA kg / cm² 337 337 398
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 166 166 196
BUTTRESS ton 75 75 89
psi 4,790 4,790 5,660
INTERNA kg / cm² 337 337 398
TENSIÓN 1,000 lb 166 166 196
psi 4,790 4,790 5,660
INTERNA kg / cm² 337 337 398
TUBO LISO psi 3,000 3,000 5,200 6,400 7,600
kg / cm² 211 211 366 450 534
ROSCA REDONDA CORTA psi 3,000 3,000 5,200
kg / cm² 211 211 366
kg / cm²
BUTTRESS COPLE NORMAL psi 3,000 3,000 5,200
kg / cm² 211 211 366
BUTTRESS COPLE REBAJADO psi 3,000 3,000 5,200
kg / cm² 211 211 366

4 1/2 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95
(LÍMITE ELÁSTICO) kg / mm² 39 39 46 56 56 63 67 67 77 56 67
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 95 105
(ESFUERZA DE RUPTURA) kg / mm² 53 67 60 67 70 70 74 74 88 67 74
CUERPO DE TUBO
COLAPSO psi 4,960 4,960 5,560 6,350 6,350 6,820 7,030 7,030 7,580 6,350 7,030
kg / cm² 349 349 391 446 446 479 494 494 533 446 494
TENSIÓN 1,000 lb 184 184 217 267 267 300 317 317 367 267 317
ton 83 83 98 121 121 136 144 144 167 121 144
PRESIÓN INTERNA psi 5,350 5,350 6,320 7,780 7,780 8,750 9,240 9,240 10,690 7,780 9,240
kg / cm² 376 376 444 547 547 615 650 650 752 547 650
JUNTA API
TENSIÓN 1,000 lb 154 170
ROSCA ton 70 77
psi 5,350 5,350
INTERNA kg / cm² 376 376
TENSIÓN 1,000 lb 162 180 188 212 223 223 234 234 279 212 234
ROSCA ton 73 81 85 96 101 101 106 106 126 96 106
psi 5,350 5,350 6,320 7,780 7,780 8,750 9,240 9,240 10,690 7,780 9,240
INTERNA kg / cm² 376 376 444 547 547 615 650 650 752 547 650
TENSIÓN 1,000 lb 184 184 217 267 267 300 317 317 367 267 317
BUTTRESS ton 83 83 98 121 121 136 144 144 167 121 144
psi 5,350 5,350 6,320 7,780 7,780 8,750 9,240 9,240 10,690 7,780 9,240
INTERNA kg / cm² 376 376 444 547 547 615 650 650 752 547 650
TENSIÓN 1,000 lb 184 184 217 267 267 300 317 317 367 267 317
BUTTRESS ton 83 83 98 121 121 136 144 144 167 121 144
psi 5,350 5,350 6,320 7,780 7,780 8,750 9,240 9,240 10,690 7,780 9,240
INTERNA kg / cm² 376 376 444 547 547 615 650 650 752 547 650
TUBO LISO psi 3,000 3,000 5,800 7,100 7,100 8,000 8,400 8,400 9,800 7,100 8,400
kg / cm² 211 211 408 499 499 562 591 591 689 499 591
ROSCA REDONDA CORTA psi 3,000 3,000
kg / cm² 211 211
ROSCA REDONDA LARGA psi 3,000 3,000 5,800 7,100 7,100 8,000 8,400 8,400 9,800 7,100 8,400
kg / cm² 211 211 408 499 499 562 591 591 689 499 591
BUTTRESS COPLE NORMAL psi 3,000 3,000 5,800 7,100 7,100 8,000 8,400 8,400 9,800 7,100 8,400
kg / cm² 211 211 408 499 499 562 591 591 689 499 591
BUTTRESS COPLE REBAJADO psi 3,000 3,000 5,800 6,400 6,400 7,200 7,600 7,600 8,800 6,400 7,600
kg / cm² 211 211 408 450 450 506 534 534 619 450 534

4 1/2 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95
(LÍMITE ELÁSTICO) kg / mm² 46 56 56 63 67 67 77 56 67
RESISTENCIA ksi 85 95 100 100 105 105 125 95 105
(ESFUERZA DE RUPTURA) kg / mm² 60 67 70 70 74 74 88 67 74
CUERPO DE TUBO
COLAPSO psi 7,310 8,540 8,540 9,300 9,660 9,660 10,690 8,540 9,660
kg / cm² 514 600 600 654 679 679 752 600 679
TENSIÓN 1,000 lb 249 307 307 345 364 364 422 307 364
ton 113 139 139 157 165 165 191 139 165
PRESIÓN INTERNA psi 7,330 9,020 9,020 10,150 10,710 10,710 12,410 9,020 10,710
kg / cm² 515 634 634 714 753 753 873 634 753
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 228 257 270 270 284 284 338 257 284
ROSCA ton 103 116 123 123 129 129 153 116 129
psi 7,330 9,020 9,020 10,150 10,710 10,710 12,410 9,020 10,710
INTERNA kg / cm² 515 634 634 714 753 753 873 634 753
TENSIÓN 1,000 lb 249 307 307 345 364 364 422 307 364
BUTTRESS ton 113 139 139 157 165 165 191 139 165
psi 7,330 9,020 9,020 10,150 10,710 10,710 12,410 9,020 10,710
INTERNA kg / cm² 515 634 634 714 753 753 873 634 753
TENSIÓN 1,000 lb 249 307 307 337 354 354 421 307 354
BUTTRESS ton 113 139 139 153 160 160 191 139 160
psi 7,330 7,997 7,997 8,997 9,497 9,497 10,996 7,997 9,497
INTERNA kg / cm² 515 562 562 633 668 668 773 562 668
TUBO LISO psi 6,700 8,200 8,200 9,300 9,800 9,800 10,000 8,200 9,800
kg / cm² 471 577 577 654 689 689 703 577 689
ROSCA REDONDA CORTA psi
kg / cm²
ROSCA REDONDA LARGA psi 6,700 8,200 8,200 9,300 9,800 9,800 10,000 8,200 9,800
kg / cm² 471 577 577 654 689 689 703 577 689
BUTTRESS COPLE NORMAL psi 6,700 7,800 7,800 8,800 9,300 9,300 10,000 7,800 9,300
kg / cm² 471 548 548 619 654 654 703 548 654
BUTTRESS COPLE REBAJADO psi 6,400 6,400 6,400 7,200 7,600 7,600 8,800 6,400 7,600
kg / cm² 450 450 450 506 534 534 619 450 534

4 1/2 ''
FLUENCIA ksi 110 125 80 95
(LÍMITE ELÁSTICO) kg / mm² 77 88 56 67
RESISTENCIA ksi 125 135 95 105
(ESFUERZA DE RUPTURA) kg / mm² 88 95 67 74
CUERPO DE TUBO
COLAPSO psi 14,340 15,830 11,080 12,760
kg / cm² 1008 1113 779 897
TENSIÓN 1,000 lb 485 551 353 419
ton 220 250 160 190
PRESIÓN INTERNA psi 14,420 16,380 10,480 12,450
kg / cm² 1,014 1,152 737 875
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 406 438
ROSCA ton 184 199
psi 14,420 16,380
TENSIÓN 1,000 lb 485 551
BUTTRESS ton 220 250
psi 13,472 15,309
TENSIÓN 1,000 lb 421
BUTTRESS ton 191
psi 10,996
INTERNA kg / cm² 773
TUBO LISO psi 10,000 10,000 9,600 10,000
kg / cm² 703 703 675 703
kg / cm²
ROSCA REDONDA LARGA psi 10,000 10,000
kg / cm² 703 703
BUTTRESS COPLE NORMAL psi 10,000 10,000
kg / cm² 703 703
BUTTRESS COPLE REBAJADO psi 8,800
kg / cm² 619

127.00 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 ''
API DST-TAMSA
11.50 lb/ft 0.220 in 5.59 mm 3,060 3,060 3,290 3,560 3,900
13.00 lb/ft 0.253 in 6.43 mm 4,140 4,140 4,590 5,140 5,560
15.00 lb/ft 0.296 in 7.52 mm 5,560 5,560 6,280 7,250 7,250 7,830 8,110 8,110 8,850 8,880 10,020 11,490 12,770 10,020 7,250 8,110
18.00 lb/ft 0.362 in 9.19 mm 8,730 10,490 10,490 11,520 12,030 12,030 13,470 14,820 11,380 13,460 15,550 17,860 13,460 10,490 12,030
21.40 lb/ft 0.437 in 11.10 mm 10,370 12,760 12,760 14,360 15,150 15,150 17,550 19,940 14,060 17,350 19,400 22,270 17,350 12,760 15,150
23.20 lb/ft 0.478 in 12.14 mm 13,830 13,830 15,560 16,430 16,430 19,020 21,620 15,500 19,490 21,510 24,170 19,490 13,830 16,430
24.10 lb/ft 0.500 in 12.70 mm 14,400 14,400 16,200 17,100 17,100 19,800 22,500 16,270 20,630 22,640 25,130 20,630 14,400 17,100
11.50 lb/ft 0.220 in 5.59 mm 182 182 215 264 314
13.00 lb/ft 0.253 in 6.43 mm 208 208 245 302 358
15.00 lb/ft 0.296 in 7.52 mm 241 241 284 350 350 394 416 416 481 350 416 481 612 416 350 416
18.00 lb/ft 0.362 in 9.19 mm 343 422 422 475 501 501 580 659 422 501 580 738 501 422 501
21.40 lb/ft 0.437 in 11.10 mm 407 501 501 564 595 595 689 783 501 595 689 877 595 501 595
23.20 lb/ft 0.478 in 12.14 mm 543 543 611 645 645 747 849 543 645 747 951 645 543 645
24.10 lb/ft 0.500 in 12.70 mm 565 565 636 672 672 778 884 565 672 778 990 672 565 672
11.50 lb/ft 0.220 in 5.59 mm 4,240 4,240 5,010 6,160 7,320
13.00 lb/ft 0.253 in 6.43 mm 4,870 4,870 5,760 7,080 8,410
15.00 lb/ft 0.296 in 7.52 mm 5,700 5,700 6,730 8,290 8,290 9,320 9,840 9,840 11,400 8,290 9,840 11,400 14,500 9,840 8,290 9,840
18.00 lb/ft 0.362 in 9.19 mm 8,240 10,140 10,140 11,400 12,040 12,040 13,940 15,840 10,140 12,040 13,940 17,740 12,040 10,140 12,040
21.40 lb/ft 0.437 in 11.10 mm 9,940 12,240 12,240 13,770 14,530 14,530 16,820 19,120 12,240 14,530 16,820 21,410 14,530 12,240 14,530
23.20 lb/ft 0.478 in 12.14 mm 13,380 13,380 15,060 15,890 15,890 18,400 20,910 13,380 15,890 18,400 23,420 15,890 13,380 15,890
24.10 lb/ft 0.500 in 12.70 mm 14,000 14,000 15,750 16,630 16,630 19,250 21,880 14,000 16,630 19,250 24,500 16,630 14,000 16,630
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

DIÁMETRO EXTERIOR NOMINAL 5 in 127.00 mm
5 ''
CUERPO DE TUBO
COLAPSO psi 3,060 3,060 3,290 3,560 3,900
kg / cm² 215 215 231 250 274
TENSIÓN 1,000 lb 182 182 215 264 314
ton 82 82 97 120 142
kg / cm² 298 298 352 433 515
JUNTA API
TENSIÓN 1,000 lb 133 147 155
ROSCA ton 60 67 70
psi 4,240 4,240 5,010
INTERNA kg / cm² 298 298 352
TENSIÓN 1,000 lb 199 219
ROSCA ton 90 100
psi 6,160 7,320
TENSIÓN 1,000 lb 264 314
psi 6,160 7,320
TENSIÓN 1,000 lb 264 314
psi 6,160 7,320
TUBO LISO psi 3,000 3,000 4,600 5,600 6,700
kg / cm² 211 211 323 394 471
kg / cm² 211 211 323
kg / cm² 394 471
kg / cm² 394 471
BUTTRESS COPLE REBAJADO psi 5,600 6,700
kg / cm² 394 471

5 ''
CUERPO DE TUBO
COLAPSO psi 4,140 4,140 4,590 5,140 5,560
kg / cm² 291 291 323 361 391
TENSIÓN 1,000 lb 208 208 245 302 358
ton 94 94 111 137 163
kg / cm² 342 342 405 498 591
JUNTA API
TENSIÓN 1,000 lb 169 186 196
ROSCA ton 76 84 89
psi 4,870 4,870 5,760
INTERNA kg / cm² 342 342 405
TENSIÓN 1,000 lb 182 201 212 241 266
ROSCA ton 83 91 96 109 121
psi 4,870 4,870 5,760 7,080 8,410
INTERNA kg / cm² 342 342 405 498 591
TENSIÓN 1,000 lb 208 208 245 302 358
BUTTRESS ton 94 94 111 137 163
psi 4,870 4,870 5,760 7,080 8,410
INTERNA kg / cm² 342 342 405 498 591
TENSIÓN 1,000 lb 208 208 245 302 358
BUTTRESS ton 94 94 111 137 163
psi 4,870 4,870 5,760 7,080 8,410
INTERNA kg / cm² 342 342 405 498 591
TUBO LISO psi 3,000 3,000 5,300 6,500 7,700
kg / cm² 211 211 373 457 541
kg / cm² 211 211 373
ROSCA REDONDA LARGA psi 3,000 3,000 5,300 6,500 7,700
kg / cm² 211 211 373 457 541
BUTTRESS COPLE NORMAL psi 3,000 3,000 5,300 6,500 7,700
kg / cm² 211 211 373 457 541
BUTTRESS COPLE REBAJADO psi 3,000 3,000 5,300 6,000 7,100
kg / cm² 211 211 373 422 499

5 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95 110 140 95 80 95
(LÍMITE ELÁSTICO) kg / mm² 39 39 46 56 56 63 67 67 77 56 67 77 98 67 56 67
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 100 110 125 150 105 95 105
(ESFUERZA DE RUPTURA) kg / mm² 53 67 60 67 70 70 74 74 88 70 77 88 105 74 67 74
CUERPO DE TUBO
COLAPSO psi 5,560 5,560 6,280 7,250 7,250 7,830 8,110 8,110 8,850 8,880 10,020 11,490 12,770 10,020 7,250 8,110
kg / cm² 391 391 442 510 510 551 570 570 622 624 704 808 898 704 510 570
TENSIÓN 1,000 lb 241 241 284 350 350 394 416 416 481 350 416 481 612 416 350 416
ton 109 109 129 159 159 179 188 188 218 159 188 218 278 188 159 188
PRESIÓN INTERNA psi 5,700 5,700 6,730 8,290 8,290 9,320 9,840 9,840 11,400 8,290 9,840 11,400 14,500 9,840 8,290 9,840
kg / cm² 401 401 473 583 583 655 692 692 801 583 692 801 1,019 692 583 692
JUNTA API
TENSIÓN 1,000 lb 207 228
ROSCA ton 94 103
psi 5,700 5,700
TENSIÓN 1,000 lb 223 241 259 295 311 311 326 326 388 311 342 388 466 326 295 326
ROSCA ton 101 109 118 134 141 141 148 148 176 141 155 176 211 148 134 148
psi 5,700 5,700 6,730 8,290 8,290 9,320 9,840 9,840 11,400 8,290 9,840 11,400 14,500 9,840 8,290 9,840
INTERNA kg / cm² 401 401 473 583 583 655 692 692 801 583 692 801 1019 692 583 692
TENSIÓN 1,000 lb 241 241 284 350 350 394 416 416 481 350 416 481 610 416 350 416
BUTTRESS ton 109 109 129 159 159 179 188 188 218 159 188 218 277 188 159 188
psi 5,700 5,700 6,730 8,290 8,290 9,320 9,840 9,840 11,400 8,290 9,840 11,400 14,500 9,840 8,290 9,840
INTERNA kg / cm² 401 401 473 583 583 655 692 692 801 583 692 801 1019 692 583 692
TENSIÓN 1,000 lb 241 241 284 350 350 383 403 403 479 350 416 479 403 350 403
BUTTRESS ton 109 109 129 159 159 174 183 183 217 159 188 217 183 159 183
psi 5,131 5,131 6,730 7,463 7,463 8,396 8,862 8,862 10,261 7,463 8,862 10,261 8,862 7,463 8,862
INTERNA kg / cm² 361 361 473 525 525 590 623 623 721 525 623 721 623 525 623
TUBO LISO psi 3,000 3,000 6,200 7,600 7,600 8,500 9,000 9,000 10,000 7,600 9,000 10,000 10,000 9,000 7,600 9,000
kg / cm² 211 211 436 534 534 598 633 633 703 534 633 703 703 633 534 633
kg / cm² 211 211
ROSCA REDONDA LARGA psi 3,000 3,000 6,200 7,600 7,600 8,500 9,000 9,000 10,000 7,600 9,000 10,000 10,000 9,000 7,600 9,000
kg / cm² 211 211 436 534 534 598 633 633 703 534 633 703 703 633 534 633
BUTTRESS COPLE NORMAL psi 3,000 3,000 6,200 7,600 7,600 8,500 9,000 9,000 10,000 7,600 9,000 10,000 10,000 9,000 7,600 9,000
kg / cm² 211 211 436 534 534 598 633 633 703 534 633 703 703 633 534 633
BUTTRESS COPLE REBAJADO psi 3,000 3,000 6,000 6,000 6,000 6,700 7,100 7,100 8,200 6,000 7,100 8,200 7,100 6,000 7,100
kg / cm² 211 211 422 422 422 471 499 499 577 422 499 577 499 422 499

5 ''
FLUENCIA ksi 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95
(LÍMITE ELÁSTICO) kg / mm² 46 56 56 63 67 67 77 88 56 67 77 98 67 56 67
RESISTENCIA ksi 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105
(ESFUERZA DE RUPTURA) kg / mm² 60 67 70 70 74 74 88 95 70 77 88 105 74 67 74
CUERPO DE TUBO
COLAPSO psi 8,730 10,490 10,490 11,520 12,030 12,030 13,470 14,820 11,380 13,460 15,550 17,860 13,460 10,490 12,030
kg / cm² 614 738 738 810 846 846 947 1042 800 946 1093 1256 946 738 846
TENSIÓN 1,000 lb 343 422 422 475 501 501 580 659 422 501 580 738 501 422 501
ton 156 191 191 215 227 227 263 299 191 227 263 335 227 191 227
PRESIÓN INTERNA psi 8,240 10,140 10,140 11,400 12,040 12,040 13,940 15,840 10,140 12,040 13,940 17,740 12,040 10,140 12,040
kg / cm² 579 713 713 801 846 846 980 1,114 713 846 980 1,247 846 713 846
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 331 376 396 396 416 416 495 535 396 436 495 594 416 376 416
ROSCA ton 150 171 180 180 189 189 225 243 180 198 225 270 189 171 189
psi 8,240 10,140 10,140 11,400 12,040 12,040 13,940 15,840 10,140 12,040 13,940 17,740 12,040 10,140 12,040
INTERNA kg / cm² 579 713 713 801 846 846 980 1114 713 846 980 1247 846 713 846
TENSIÓN 1,000 lb 343 422 422 475 501 501 580 659 422 501 580 735 501 422 501
BUTTRESS ton 156 191 191 215 227 227 263 299 191 227 263 334 227 191 227
psi 8,240 9,914 9,914 11,153 11,773 11,773 13,632 15,491 9,914 11,773 13,632 17,350 11,773 9,914 11,773
INTERNA kg / cm² 579 697 697 784 828 828 958 1089 697 828 958 1220 828 697 828
TENSIÓN 1,000 lb 343 364 383 383 403 403 479 383 422 479 403 364 403
BUTTRESS ton 156 165 174 174 183 183 217 174 191 217 183 165 183
psi 7,463 7,463 7,463 8,396 8,862 8,862 10,261 7,463 8,862 10,261 8,862 7,463 8,862
INTERNA kg / cm² 525 525 525 590 623 623 721 525 623 721 623 525 623
TUBO LISO psi 7,500 9,300 9,300 10,000 10,000 10,000 10,000 10,000 9,300 10,000 10,000 10,000 10,000 9,300 10,000
kg / cm² 527 654 654 703 703 703 703 703 654 703 703 703 703 654 703
kg / cm²
ROSCA REDONDA LARGA psi 7,500 8,700 8,700 9,700 10,000 10,000 10,000 10,000 8,700 10,000 10,000 10,000 10,000 8,700 10,000
kg / cm² 527 612 612 682 703 703 703 703 612 703 703 703 703 612 703
BUTTRESS COPLE NORMAL psi 7,500 7,900 7,900 8,900 9,400 9,400 10,000 10,000 7,900 9,400 10,000 10,000 9,400 7,900 9,400
kg / cm² 527 555 555 626 661 661 703 703 555 661 703 703 661 555 661
BUTTRESS COPLE REBAJADO psi 6,000 6,000 6,000 6,700 7,100 7,100 8,200 6,000 7,100 8,200 7,100 6,000 7,100
kg / cm² 422 422 422 471 499 499 577 422 499 577 499 422 499

5 ''
FLUENCIA ksi 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95
RESISTENCIA ksi 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105
CUERPO DE TUBO
COLAPSO psi 10,370 12,760 12,760 14,360 15,150 15,150 17,550 19,940 14,060 17,350 19,400 22,270 17,350 12,760 15,150
kg / cm² 729 897 897 1010 1065 1065 1234 1402 989 1220 1364 1566 1220 897 1065
TENSIÓN 1,000 lb 407 501 501 564 595 595 689 783 501 595 689 877 595 501 595
ton 185 227 227 256 270 270 313 355 227 270 313 398 270 227 270
kg / cm² 699 861 861 968 1,022 1,022 1,183 1,344 861 1,022 1,183 1,505 1,022 861 1,022
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 407 466 490 490 515 515 613 662 490 539 613 735 515 466 515
ROSCA ton 185 211 222 222 234 234 278 300 222 245 278 334 234 211 234
psi 9,940 10,819 10,819 12,171 12,847 12,847 14,876 16,904 10,819 12,847 14,876 18,933 12,847 10,819 12,847
INTERNA kg / cm² 699 761 761 856 903 903 1046 1188 761 903 1046 1331 903 761 903
TENSIÓN 1,000 lb 407 501 501 537 564 564 671 725 501 591 671 805 564 501 564
BUTTRESS ton 185 227 227 244 256 256 304 329 227 268 304 365 256 227 256
psi 9,914 9,914 9,914 11,153 11,773 11,773 13,632 15,491 9,914 11,773 13,632 17,350 11,773 9,914 11,773
INTERNA kg / cm² 697 697 697 784 828 828 958 1089 697 828 958 1220 828 697 828
TENSIÓN 1,000 lb 364 364 383 383 403 403 479 383 422 479 403 364 403
BUTTRESS ton 165 165 174 174 183 183 217 174 191 217 183 165 183
psi 7,463 7,463 7,463 8,396 8,862 8,862 10,261 7,463 8,862 10,261 8,862 7,463 8,862
INTERNA kg / cm² 525 525 525 590 623 623 721 525 623 721 623 525 623
TUBO LISO psi 9,100 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 640 703 703 703 703 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm² 612 612 612 682 703 703 703 703 612 703 703 703 703 612 703
kg / cm² 555 555 555 626 661 661 703 703 555 661 703 703 661 555 661
kg / cm² 422 422 422 471 499 499 577 422 499 577 499 422 499

5 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95
(LÍMITE ELÁSTICO) kg / mm² 56 56 63 67 67 77 88 56 67 77 98 67 56 67
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105
(ESFUERZA DE RUPTURA) kg / mm² 67 70 70 74 74 88 95 70 77 88 105 74 67 74
CUERPO DE TUBO
COLAPSO psi 13,830 13,830 15,560 16,430 16,430 19,020 21,620 15,500 19,490 21,510 24,170 19,490 13,830 16,430
kg / cm² 972 972 1094 1155 1155 1337 1520 1090 1370 1512 1699 1370 972 1155
TENSIÓN 1,000 lb 543 543 611 645 645 747 849 543 645 747 951 645 543 645
ton 246 246 277 293 293 339 385 246 293 339 431 293 246 293
PRESIÓN INTERNA psi 13,380 13,380 15,060 15,890 15,890 18,400 20,910 13,380 15,890 18,400 23,420 15,890 13,380 15,890
kg / cm² 941 941 1,059 1,117 1,117 1,294 1,470 941 1,117 1,294 1,647 1,117 941 1,117
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
RESISTANCE kg / cm²
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 513 540 540 567 567 675 729 540 594 675 810 567 513 567
ROSCA ton 233 245 245 257 257 306 331 245 270 306 368 257 233 257
LEAK psi 10 819 10 819 12 171 12 847 12 847 14 876 15 995 10 819 12 847 14 876 15 995 12 847 10 819 12 847
RESISTANCE kg / cm² 761 761 856 903 903 1046 1125 761 903 1046 1125 903 761 903
psi 10,819 10,819 12,171 12,847 12,847 14,876 16,904 10,819 12,847 14,876 18,933 12,847 10,819 12,847
INTERNA kg / cm² 761 761 856 903 903 1046 1188 761 903 1046 1331 903 761 903
TENSIÓN 1,000 lb 510 537 537 564 564 671 725 537 591 671 805 564 510 564
BUTTRESS ton 231 244 244 256 256 304 329 244 268 304 365 256 231 256
LEAK psi 9 914 9 914 11 153 11 773 11 773 13 632 15 491 9 914 11 773 13 632 17 350 11 773 9 914 11 773
RESISTANCE kg / cm² 697 697 784 828 828 958 1089 697 828 958 1220 828 697 828
psi 9,914 9,914 11,153 11,773 11,773 13,632 15,491 9,914 11,773 13,632 17,350 11,773 9,914 11,773
INTERNA kg / cm² 697 697 784 828 828 958 1089 697 828 958 1220 828 697 828
TENSIÓN 1,000 lb 364 383 383 403 403 479 383 422 479 403 364 403
BUTTRESS ton 165 174 174 183 183 217 174 191 217 183 165 183
LEAK psi 7 463 7 463 8 396 8 862 8 862 10 261 7 463 8 862 10 261 8 862 7 463 8 862
RESISTANCE kg / cm² 525 525 590 623 623 721 525 623 721 623 525 623
psi 7,463 7,463 8,396 8,862 8,862 10,261 7,463 8,862 10,261 8,862 7,463 8,862
INTERNA kg / cm² 525 525 590 623 623 721 525 623 721 623 525 623
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703 703 703 703 703
kg / cm²
ROSCA REDONDA LARGA psi 8,700 8,700 9,700 10,000 10,000 10,000 10,000 8,700 10,000 10,000 10,000 10,000 8,700 10,000
kg / cm² 612 612 682 703 703 703 703 612 703 703 703 703 612 703
BUTTRESS COPLE NORMAL psi 7,900 7,900 8,900 9,400 9,400 10,000 10,000 7,900 9,400 10,000 10,000 9,400 7,900 9,400
kg / cm² 555 555 626 661 661 703 703 555 661 703 703 661 555 661
BUTTRESS COPLE REBAJADO psi 6,000 6,000 6,700 7,100 7,100 8,200 6,000 7,100 8,200 7,100 6,000 7,100
kg / cm² 422 422 471 499 499 577 422 499 577 499 422 499

5 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105
CUERPO DE TUBO
COLAPSO psi 14,400 14,400 16,200 17,100 17,100 19,800 22,500 16,270 20,630 22,640 25,130 20,630 14,400 17,100
kg / cm² 1012 1012 1139 1202 1202 1392 1582 1144 1450 1592 1767 1450 1012 1202
TENSIÓN 1,000 lb 565 565 636 672 672 778 884 565 672 778 990 672 565 672
ton 256 256 289 305 305 353 401 256 305 353 449 305 256 305
kg / cm² 984 984 1,107 1,169 1,169 1,353 1,538 984 1,169 1,353 1,723 1,169 984 1,169
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 538 565 567 595 595 708 765 565 623 708 850 595 538 595
ROSCA ton 244 256 257 270 270 321 347 256 283 321 386 270 244 270
psi 10,819 10,819 12,171 12,847 12,847 14,876 16,904 10,819 12,847 14,876 18,933 12,847 10,819 12,847
INTERNA kg / cm² 761 761 856 903 903 1046 1188 761 903 1046 1331 903 761 903
TENSIÓN 1,000 lb 510 537 537 564 564 671 725 537 591 671 805 564 510 564
BUTTRESS ton 231 244 244 256 256 304 329 244 268 304 365 256 231 256
psi 9,914 9,914 11,153 11,773 11,773 13,632 15,491 9,914 11,773 13,632 17,350 11,773 9,914 11,773
INTERNA kg / cm² 697 697 784 828 828 958 1089 697 828 958 1220 828 697 828
TENSIÓN 1,000 lb 364 383 383 403 403 479 383 422 479 403 364 403
BUTTRESS ton 165 174 174 183 183 217 174 191 217 183 165 183
psi 7,463 7,463 8,396 8,862 8,862 10,261 7,463 8,862 10,261 8,862 7,463 8,862
INTERNA kg / cm² 525 525 590 623 623 721 525 623 721 623 525 623
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm² 612 612 682 703 703 703 703 612 703 703 703 703 612 703
kg / cm² 555 555 626 661 661 703 703 555 661 703 703 661 555 661
kg / cm² 422 422 471 499 499 577 422 499 577 499 422 499

139.70 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 1/2 ''
API DST-TAMSA
14.00 lb/ft 0.244 in 6.20 mm 2,620 3,120 3,120 3,360 3,620 3,970
15.50 lb/ft 0.275 in 6.99 mm 4,040 4,040 4,470 4,990 5,380
17.00 lb/ft 0.304 in 7.72 mm 4,910 4,910 5,500 6,290 6,290 6,740 6,940 6,940 7,480 8,080 8,990 10,040 11,150 8,990 6,290 6,940
20.00 lb/ft 0.361 in 9.17 mm 7,540 8,830 8,830 9,630 10,020 10,020 11,100 10,130 11,700 13,840 15,290 11,700 8,830 10,020
23.00 lb/ft 0.415 in 10.54 mm 9,070 11,160 11,160 12,380 12,930 12,930 14,540 16,060 11,930 14,250 16,330 19,010 14,250 11,160 12,930
14.00 lb/ft 0.244 in 6.20 mm 161 222 222 262 322 383
15.50 lb/ft 0.275 in 6.99 mm 248 248 293 361 429
17.00 lb/ft 0.304 in 7.72 mm 273 273 323 397 397 447 471 471 546 397 471 546 695 471 397 471
20.00 lb/ft 0.361 in 9.17 mm 379 466 466 525 554 554 641 466 554 641 816 554 466 554
23.00 lb/ft 0.415 in 10.54 mm 431 530 530 597 630 630 729 829 530 630 729 928 630 530 630
14.00 lb/ft 0.244 in 6.20 mm 3,110 4,270 4,270 5,050 6,210 7,380
15.50 lb/ft 0.275 in 6.99 mm 4,810 4,810 5,690 7,000 8,310
17.00 lb/ft 0.304 in 7.72 mm 5,320 5,320 6,290 7,740 7,740 8,710 9,190 9,190 10,640 7,740 9,190 10,640 13,540 9,190 7,740 9,190
20.00 lb/ft 0.361 in 9.17 mm 7,470 9,190 9,190 10,340 10,910 10,910 12,640 9,190 10,910 12,640 16,080 10,910 9,190 10,910
23.00 lb/ft 0.415 in 10.54 mm 8,580 10,560 10,560 11,880 12,540 12,540 14,530 16,510 10,560 12,540 14,530 18,490 12,540 10,560 12,540
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

5 1/2 ''
FLUENCIA ksi 40 55 55 65 80 95
CUERPO DE TUBO
COLAPSO psi 2,620 3,120 3,120 3,360 3,620 3,970
kg / cm² 184 219 219 236 255 279
TENSIÓN 1,000 lb 161 222 222 262 322 383
ton 73 101 101 119 146 174
kg / cm² 219 300 300 355 437 519
JUNTA API
TENSIÓN 1,000 lb 130 172 189 200
ROSCA ton 59 78 86 91
psi 3,110 4,270 4,270 5,050
INTERNA kg / cm² 219 300 300 355
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,800 3,000 3,000 4,600 5,700 6,700
kg / cm² 197 211 211 323 401 471
kg / cm² 197 211 211 323
kg / cm²
kg / cm²
kg / cm²

5 1/2 ''
CUERPO DE TUBO
COLAPSO psi 4,040 4,040 4,470 4,990 5,380
kg / cm² 284 284 314 351 378
TENSIÓN 1,000 lb 248 248 293 361 429
ton 113 113 133 164 195
kg / cm² 338 338 400 492 584
JUNTA API
TENSIÓN 1,000 lb 202 222 235
ROSCA ton 91 100 106
psi 4,810 4,810 5,690
INTERNA kg / cm² 338 338 400
TENSIÓN 1,000 lb 217 239 253
ROSCA ton 99 108 115
psi 4,810 4,810 5,690
INTERNA kg / cm² 338 338 400
TENSIÓN 1,000 lb 248 248 293
psi 4,810 4,810 5,690
INTERNA kg / cm² 338 338 400
TENSIÓN 1,000 lb 248 248 293
psi 4,731 4,731 5,690
INTERNA kg / cm² 333 333 400
TUBO LISO psi 3,000 3,000 5,200 6,400 7,600
kg / cm² 211 211 366 450 534
kg / cm² 211 211 366
ROSCA REDONDA LARGA psi 3,000 3,000 5,200
kg / cm² 211 211 366
kg / cm² 211 211 366
kg / cm² 211 211 366

5 1/2 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95 110 140 95 80 95
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 100 110 125 150 105 95 105
CUERPO DE TUBO
COLAPSO psi 4,910 4,910 5,500 6,290 6,290 6,740 6,940 6,940 7,480 8,080 8,990 10,040 11,150 8,990 6,290 6,940
kg / cm² 345 345 387 442 442 474 488 488 526 568 632 706 784 632 442 488
TENSIÓN 1,000 lb 273 273 323 397 397 447 471 471 546 397 471 546 695 471 397 471
ton 124 124 146 180 180 203 214 214 248 180 214 248 315 214 180 214
kg / cm² 374 374 442 544 544 612 646 646 748 544 646 748 952 646 544 646
JUNTA API
TENSIÓN 1,000 lb 229 252
ROSCA ton 104 114
psi 5,320 5,320
TENSIÓN 1,000 lb 247 272 287 338 348 356 374 374 445 348 392 445 534 374 338 374
ROSCA ton 112 123 130 153 158 161 170 170 202 158 178 202 242 170 153 170
psi 5,320 5,320 6,290 7,740 7,740 8,710 9,190 9,190 10,640 7,740 9,190 10,640 13,540 9,190 7,740 9,190
INTERNA kg / cm² 374 374 442 544 544 612 646 646 748 544 646 748 952 646 544 646
TENSIÓN 1,000 lb 273 273 323 397 397 447 471 471 546 397 471 546 690 471 397 471
BUTTRESS ton 124 124 146 180 180 203 214 214 248 180 214 248 313 214 180 214
psi 5,320 5,320 6,290 7,740 7,740 8,710 9,190 9,190 10,640 7,740 9,190 10,640 13,540 9,190 7,740 9,190
INTERNA kg / cm² 374 374 442 544 544 612 646 646 748 544 646 748 952 646 544 646
TENSIÓN 1,000 lb 273 273 323 397 397 424 445 445 530 397 466 530 445 397 445
BUTTRESS ton 124 124 146 180 180 192 202 202 240 180 212 240 202 180 202
psi 4,731 4,731 6,290 6,881 6,881 7,741 8,171 8,171 9,461 6,881 8,171 9,461 8,171 6,881 8,171
INTERNA kg / cm² 333 333 442 484 484 544 574 574 665 484 574 665 574 484 574
TUBO LISO psi 3,000 3,000 5,700 7,100 7,100 8,000 8,400 8,400 9,700 7,100 8,400 9,700 10,000 8,400 7,100 8,400
kg / cm² 211 211 401 499 499 562 591 591 682 499 591 682 703 591 499 591
kg / cm² 211 211
kg / cm² 211 211 401 499 499 562 591 591 682 499 591 682 703 591 499 591
kg / cm² 211 211 401 499 499 562 591 591 682 499 591 682 703 591 499 591
kg / cm² 211 211 387 387 387 436 457 457 534 387 457 534 457 387 457

5 1/2 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105
CUERPO DE TUBO
COLAPSO psi 7,540 8,830 8,830 9,630 10,020 10,020 11,100 10,130 11,700 13,840 15,290 11,700 8,830 10,020
kg / cm² 530 621 621 677 704 704 780 712 823 973 1075 823 621 704
TENSIÓN 1,000 lb 379 466 466 525 554 554 641 466 554 641 816 554 466 554
ton 172 211 211 238 251 251 291 211 251 291 370 251 211 251
kg / cm² 525 646 646 727 767 767 889 646 767 889 1,131 767 646 767
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 353 416 428 438 460 460 548 428 482 548 657 460 416 460
ROSCA ton 160 189 194 199 209 209 248 194 219 248 298 209 189 209
psi 7,470 9,190 9,190 10,340 10,910 10,910 12,640 9,190 10,910 12,640 16,080 10,910 9,190 10,910
INTERNA kg / cm² 525 646 646 727 767 767 889 646 767 889 1131 767 646 767
TENSIÓN 1,000 lb 379 466 466 525 554 554 641 466 554 641 810 554 466 554
BUTTRESS ton 172 211 211 238 251 251 291 211 251 291 367 251 211 251
psi 7,470 8,996 8,996 10,120 10,683 10,683 12,369 8,996 10,683 12,369 15,743 10,683 8,996 10,683
INTERNA kg / cm² 525 632 632 712 751 751 870 632 751 870 1107 751 632 751
TENSIÓN 1,000 lb 379 403 424 424 445 445 530 424 466 530 445 403 445
BUTTRESS ton 172 183 192 192 202 202 240 192 212 240 202 183 202
psi 6,881 6,881 6,881 7,741 8,171 8,171 9,461 6,881 8,171 9,461 8,171 6,881 8,171
INTERNA kg / cm² 484 484 484 544 574 574 665 484 574 665 574 484 574
TUBO LISO psi 6,800 8,400 8,400 9,500 10,000 10,000 10,000 8,400 10,000 10,000 10,000 10,000 8,400 10,000
kg / cm² 478 591 591 668 703 703 703 591 703 703 703 703 591 703
kg / cm²
kg / cm² 478 555 555 626 661 661 703 555 661 703 703 661 555 661
kg / cm² 478 506 506 569 598 598 696 506 598 696 703 598 506 598
kg / cm² 387 387 387 436 457 457 534 387 457 534 457 387 457

5 1/2 ''
FLUENCIA ksi 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95
RESISTENCIA ksi 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105
CUERPO DE TUBO
COLAPSO psi 9,070 11,160 11,160 12,380 12,930 12,930 14,540 16,060 11,930 14,250 16,330 19,010 14,250 11,160 12,930
kg / cm² 638 785 785 870 909 909 1022 1129 839 1002 1148 1337 1002 785 909
TENSIÓN 1,000 lb 431 530 530 597 630 630 729 829 530 630 729 928 630 530 630
ton 195 241 241 271 286 286 331 376 241 286 331 421 286 241 286
kg / cm² 603 742 742 835 882 882 1,022 1,161 742 882 1,022 1,300 882 742 882
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 415 489 502 514 540 540 643 694 502 566 643 772 540 489 540
ROSCA ton 188 222 228 233 245 245 292 315 228 257 292 350 245 222 245
psi 8,580 9,879 9,879 11,114 11,732 11,732 13,584 15,437 9,879 11,732 13,584 17,289 11,732 9,879 11,732
INTERNA kg / cm² 603 695 695 781 825 825 955 1085 695 825 955 1216 825 695 825
TENSIÓN 1,000 lb 431 530 530 580 609 609 725 783 530 630 725 869 609 530 609
BUTTRESS ton 195 241 241 263 276 276 329 355 241 286 329 394 276 241 276
psi 8,580 8,996 8,996 10,120 10,683 10,683 12,369 14,056 8,996 10,683 12,369 15,743 10,683 8,996 10,683
INTERNA kg / cm² 603 632 632 712 751 751 870 988 632 751 870 1107 751 632 751
TENSIÓN 1,000 lb 403 403 424 424 445 445 530 424 466 530 445 403 445
BUTTRESS ton 183 183 192 192 202 202 240 192 212 240 202 183 202
psi 6,881 6,881 6,881 7,741 8,171 8,171 9,461 6,881 8,171 9,461 8,171 6,881 8,171
INTERNA kg / cm² 484 484 484 544 574 574 665 484 574 665 574 484 574
TUBO LISO psi 7,800 9,700 9,700 10,000 10,000 10,000 10,000 10,000 9,700 10,000 10,000 10,000 10,000 9,700 10,000
kg / cm² 548 682 682 703 703 703 703 703 682 703 703 703 703 682 703
kg / cm²
kg / cm² 548 555 555 626 661 661 703 703 555 661 703 703 661 555 661
kg / cm² 506 506 506 569 598 598 696 703 506 598 696 703 598 506 598
kg / cm² 387 387 387 436 457 457 534 387 457 534 457 387 457

5 1/2 ''
DIÁMETRO INTERNO NOMINAL NO API 26.80 lb/ft
ÁREA TRANSVERSAL NOMINAL NO API TUBERÍA PESO
MANDRIL NORMAL NO API DE 0.500 in
COPLE DIÁMETRO EXTERIOR NORMAL STC-LC-BC NO API 12.70 mm
FLUENCIA ksi
(LÍMITE ELÁSTICO) kg / mm²
RESISTENCIA ksi
(ESFUERZA DE RUPTURA) kg / mm²
CUERPO DE TUBO
COLAPSO psi
kg / cm²
TENSIÓN 1,000 lb
ton
PRESIÓN INTERNA psi
kg / cm²
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TUBO LISO psi
kg / cm²
kg / cm²
kg / cm²
kg / cm²
kg / cm²

5 1/2 ''
FLUENCIA ksi
RESISTENCIA ksi
CUERPO DE TUBO
COLAPSO psi
kg / cm²
TENSIÓN 1,000 lb
ton
kg / cm²
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi
kg / cm²
kg / cm²
kg / cm²
kg / cm²
kg / cm²

168.28 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
6 5/8 ''
API DST-TAMSA
20.00 lb/ft 0.288 in 7.32 mm 2,520 2,970 2,970 3,190 3,470 3,790
24.00 lb/ft 0.352 in 8.94 mm 4,560 4,560 5,080 5,760 5,760 6,140 6,310 6,310 6,730 7,600 8,490 9,250 8,490 5,760 6,310
28.00 lb/ft 0.417 in 10.59 mm 7,010 8,170 8,170 8,880 9,220 9,220 10,160 9,600 10,990 12,860 10,990 8,170 9,220
32.00 lb/ft 0.475 in 12.07 mm 10,320 10,320 11,330 11,820 11,820 13,220 14,540 11,250 13,270 15,370 17,590 13,270 10,320 11,820
20.00 lb/ft 0.288 in 7.32 mm 229 315 315 373 459 545
24.00 lb/ft 0.352 in 8.94 mm 382 382 451 555 555 624 659 659 763 555 659 763 659 555 659
28.00 lb/ft 0.417 in 10.59 mm 529 651 651 732 773 773 895 651 773 895 773 651 773
32.00 lb/ft 0.475 in 12.07 mm 734 734 826 872 872 1,010 1,147 734 872 1,010 1,285 872 734 872
20.00 lb/ft 0.288 in 7.32 mm 3,040 4,180 4,180 4,940 6,090 7,230
24.00 lb/ft 0.352 in 8.94 mm 5,110 5,110 6,040 7,440 7,440 8,370 8,830 8,830 10,230 7,440 8,830 10,230 8,830 7,440 8,830
28.00 lb/ft 0.417 in 10.59 mm 7,160 8,810 8,810 9,910 10,460 10,460 12,120 8,810 10,460 12,120 10,460 8,810 10,460
32.00 lb/ft 0.475 in 12.07 mm 10,040 10,040 11,290 11,920 11,920 13,800 15,680 10,040 11,920 13,800 17,570 11,920 10,040 11,920
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

6 5/8 ''
FLUENCIA ksi 40 55 55 65 80 95
CUERPO DE TUBO
COLAPSO psi 2,520 2,970 2,970 3,190 3,470 3,790
kg / cm² 177 209 209 224 244 266
TENSIÓN 1,000 lb 229 315 315 373 459 545
ton 104 143 143 169 208 247
kg / cm² 214 294 294 347 428 508
JUNTA API
TENSIÓN 1,000 lb 184 245 267 285
ROSCA ton 83 111 121 129
psi 3,040 4,180 4,180 4,940
INTERNA kg / cm² 214 294 294 347
TENSIÓN 1,000 lb 266 290 309
ROSCA ton 120 132 140
psi 4,180 4,180 4,940
INTERNA kg / cm² 294 294 347
TENSIÓN 1,000 lb 315 315 373
psi 4,180 4,180 4,940
INTERNA kg / cm² 294 294 347
TENSIÓN 1,000 lb 315 315 373
psi 4,062 4,062 4,940
INTERNA kg / cm² 286 286 347
TUBO LISO psi 2,800 3,000 3,000 4,500 5,600 6,600
kg / cm² 197 211 211 316 394 464
kg / cm² 197 211 211 316
kg / cm² 211 211 316
kg / cm² 211 211 316
kg / cm² 211 211 316

6 5/8 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95 110 95 80 95
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 100 110 125 105 95 105
CUERPO DE TUBO
COLAPSO psi 4,560 4,560 5,080 5,760 5,760 6,140 6,310 6,310 6,730 7,600 8,490 9,250 8,490 5,760 6,310
kg / cm² 321 321 357 405 405 432 444 444 473 534 597 650 597 405 444
TENSIÓN 1,000 lb 382 382 451 555 555 624 659 659 763 555 659 763 659 555 659
ton 173 173 205 252 252 283 299 299 346 252 299 346 299 252 299
kg / cm² 359 359 425 523 523 588 621 621 719 523 621 719 621 523 621
JUNTA API
TENSIÓN 1,000 lb 314 342
ROSCA ton 142 155
psi 5,110 5,110
TENSIÓN 1,000 lb 340 372 396 473 481 520 546 546 641 481 557 641 546 473 546
ROSCA ton 154 169 180 214 218 236 247 247 291 218 253 291 247 214 247
psi 5,110 5,110 6,040 7,440 7,440 8,370 8,830 8,830 10,230 7,440 8,830 10,230 8,830 7,440 8,830
INTERNA kg / cm² 359 359 425 523 523 588 621 621 719 523 621 719 621 523 621
TENSIÓN 1,000 lb 382 382 451 555 555 624 659 659 763 555 659 763 659 555 659
BUTTRESS ton 173 173 205 252 252 283 299 299 346 252 299 346 299 252 299
psi 5,110 5,110 6,040 7,440 7,440 8,370 8,830 8,830 10,230 7,440 8,830 10,230 8,830 7,440 8,830
INTERNA kg / cm² 359 359 425 523 523 588 621 621 719 523 621 719 621 523 621
TENSIÓN 1,000 lb 382 382 451 494 520 520 546 546 650 520 572 650 546 494 546
BUTTRESS ton 173 173 205 224 236 236 248 248 295 236 260 295 248 224 248
psi 4,062 4,062 5,909 5,909 5,909 6,648 7,017 7,017 8,125 5,909 7,017 8,125 7,017 5,909 7,017
INTERNA kg / cm² 286 286 415 415 415 467 493 493 571 415 493 571 493 415 493
TUBO LISO psi 3,000 3,000 5,500 6,800 6,800 7,700 8,100 8,100 9,400 6,800 8,100 9,400 8,100 6,800 8,100
kg / cm² 211 211 387 478 478 541 569 569 661 478 569 661 569 478 569
kg / cm² 211 211
kg / cm² 211 211 387 478 478 541 569 569 661 478 569 661 569 478 569
kg / cm² 211 211 387 478 478 541 569 569 661 478 569 661 569 478 569
kg / cm² 211 211 330 330 330 373 394 394 457 330 394 457 394 330 394

6 5/8 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 95 80 95
(LÍMITE ELÁSTICO) kg / mm² 46 56 56 63 67 67 77 56 67 77 67 56 67
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 105 95 105
(ESFUERZA DE RUPTURA) kg / mm² 60 67 70 70 74 74 88 70 77 88 74 67 74
CUERPO DE TUBO
COLAPSO psi 7,010 8,170 8,170 8,880 9,220 9,220 10,160 9,600 10,990 12,860 10,990 8,170 9,220
kg / cm² 493 574 574 624 648 648 714 675 773 904 773 574 648
TENSIÓN 1,000 lb 529 651 651 732 773 773 895 651 773 895 773 651 773
ton 240 295 295 332 350 350 406 295 350 406 350 295 350
PRESIÓN INTERNA psi 7,160 8,810 8,810 9,910 10,460 10,460 12,120 8,810 10,460 12,120 10,460 8,810 10,460
kg / cm² 503 619 619 697 735 735 852 619 735 852 735 619 735
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 483 576 586 633 665 665 781 586 679 781 665 576 665
ROSCA ton 219 261 266 287 302 302 354 266 308 354 302 261 302
psi 7,160 8,810 8,810 9,910 10,460 10,460 12,120 8,810 10,460 12,120 10,460 8,810 10,460
INTERNA kg / cm² 503 619 619 697 735 735 852 619 735 852 735 619 735
TENSIÓN 1,000 lb 529 651 651 732 773 773 895 651 773 895 773 651 773
BUTTRESS ton 240 295 295 332 350 350 406 295 350 406 350 295 350
psi 7,160 8,810 8,810 9,910 10,460 10,460 12,120 8,810 10,460 12,120 10,460 8,810 10,460
INTERNA kg / cm² 503 619 619 697 735 735 852 619 735 852 735 619 735
TENSIÓN 1,000 lb 494 494 520 520 546 546 650 520 572 650 546 494 546
BUTTRESS ton 224 224 236 236 248 248 295 236 260 295 248 224 248
psi 5,909 5,909 5,909 6,648 7,017 7,017 8,125 5,909 7,017 8,125 7,017 5,909 7,017
INTERNA kg / cm² 415 415 415 467 493 493 571 415 493 571 493 415 493
TUBO LISO psi 6,500 8,100 8,100 9,100 9,600 9,600 10,000 8,100 9,600 10,000 9,600 8,100 9,600
kg / cm² 457 569 569 640 675 675 703 569 675 703 675 569 675
kg / cm²
ROSCA REDONDA LARGA psi 6,500 8,100 8,100 9,100 9,600 9,600 10,000 8,100 9,600 10,000 9,600 8,100 9,600
kg / cm² 457 569 569 640 675 675 703 569 675 703 675 569 675
BUTTRESS COPLE NORMAL psi 6,500 7,900 7,900 8,800 9,300 9,300 10,000 7,900 9,300 10,000 9,300 7,900 9,300
kg / cm² 457 555 555 619 654 654 703 555 654 703 654 555 654
kg / cm² 330 330 330 373 394 394 457 330 394 457 394 330 394

6 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105
CUERPO DE TUBO
COLAPSO psi 10,320 10,320 11,330 11,820 11,820 13,220 14,540 11,250 13,270 15,370 17,590 13,270 10,320 11,820
kg / cm² 726 726 797 831 831 929 1022 791 933 1081 1237 933 726 831
TENSIÓN 1,000 lb 734 734 826 872 872 1,010 1,147 734 872 1,010 1,285 872 734 872
ton 333 333 375 395 395 458 520 333 395 458 583 395 333 395
kg / cm² 706 706 794 838 838 970 1,102 706 838 970 1,235 838 706 838
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 666 678 732 769 769 904 989 678 785 904 1,099 769 666 769
ROSCA ton 302 307 332 349 349 410 449 307 356 410 498 349 302 349
psi 10,040 10,040 11,290 11,920 11,920 13,800 15,680 10,040 11,920 13,800 17,570 11,920 10,040 11,920
INTERNA kg / cm² 706 706 794 838 838 970 1102 706 838 970 1235 838 706 838
TENSIÓN 1,000 lb 734 734 826 872 872 1,010 1,138 734 872 1,010 1,267 872 734 872
BUTTRESS ton 333 333 375 395 395 458 516 333 395 458 575 395 333 395
psi 9,819 9,819 11,046 11,660 11,660 13,501 15,342 9,819 11,660 13,501 17,183 11,660 9,819 11,660
INTERNA kg / cm² 690 690 777 820 820 949 1079 690 820 949 1208 820 690 820
TENSIÓN 1,000 lb 494 520 520 546 546 650 520 572 650 546 494 546
BUTTRESS ton 224 236 236 248 248 295 236 260 295 248 224 248
psi 5,909 5,909 6,648 7,017 7,017 8,125 5,909 7,017 8,125 7,017 5,909 7,017
INTERNA kg / cm² 415 415 467 493 493 571 415 493 571 493 415 493
TUBO LISO psi 9,200 9,200 10,000 10,000 10,000 10,000 10,000 9,200 10,000 10,000 10,000 10,000 9,200 10,000
kg / cm² 647 647 703 703 703 703 703 647 703 703 703 703 647 703
kg / cm²
kg / cm² 598 598 675 703 703 703 703 598 703 703 703 703 598 703
kg / cm² 555 555 619 654 654 703 703 555 654 703 703 654 555 654
kg / cm² 330 330 373 394 394 457 330 394 457 394 330 394

177.80 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
7 ''
API DST-TAMSA
17.00 lb/ft 0.231 in 5.87 mm 1,420
20.00 lb/ft 0.272 in 6.91 mm 1,970 2,270 2,270 2,480
23.00 lb/ft 0.317 in 8.05 mm 3,270 3,270 3,540 3,830 3,830 4,030 4,140 4,140 5,630 5,910 6,410 6,950 5,910 3,830 4,140 4,440
26.00 lb/ft 0.362 in 9.19 mm 4,330 4,330 4,810 5,410 5,410 5,740 5,890 5,890 6,230 7,270 8,110 8,720 9,610 8,110 5,410 5,890 6,230
29.00 lb/ft 0.408 in 10.36 mm 6,100 7,030 7,030 7,580 7,840 7,840 8,530 8,700 9,790 11,150 11,480 9,790 7,030 7,840 8,530
32.00 lb/ft 0.453 in 11.51 mm 7,360 8,600 8,600 9,380 9,740 9,740 10,780 9,950 11,450 13,500 14,930 11,450 8,600 9,740 10,780
35.00 lb/ft 0.498 in 12.65 mm 10,180 10,180 11,170 11,650 11,650 13,030 14,310 11,150 13,120 15,230 17,380 13,120 10,180 11,650 13,030
38.00 lb/ft 0.540 in 13.72 mm 11,390 11,390 12,810 13,430 13,430 15,130 16,740 12,230 14,690 16,770 19,640 14,690 11,390 13,430 15,130
42.70 lb/ft 0.625 in 15.88 mm 14,640 15,450 14,390 17,840 19,890 22,720 17,840 13,010 15,450 17,890
17.00 lb/ft 0.231 in 5.87 mm 196
20.00 lb/ft 0.272 in 6.91 mm 230 316 316 374
23.00 lb/ft 0.317 in 8.05 mm 366 366 433 532 532 599 632 632 532 632 732 932 632 532 632 732
26.00 lb/ft 0.362 in 9.19 mm 415 415 491 604 604 679 717 717 830 604 717 830 1,057 717 604 717 830
29.00 lb/ft 0.408 in 10.36 mm 549 676 676 760 803 803 929 676 803 929 1,183 803 676 803 929
32.00 lb/ft 0.453 in 11.51 mm 606 745 745 839 885 885 1,025 745 885 1,025 1,304 885 745 885 1,025
35.00 lb/ft 0.498 in 12.65 mm 814 814 916 966 966 1,119 1,272 814 966 1,119 1,424 966 814 966 1,119
38.00 lb/ft 0.540 in 13.72 mm 877 877 986 1,041 1,041 1,206 1,370 877 1,041 1,206 1,534 1,041 877 1,041 1,206
42.70 lb/ft 0.625 in 15.88 mm 1,127 1,189 1,001 1,189 1,377 1,752 1,189 1,001 1,189 1,377
17.00 lb/ft 0.231 in 5.87 mm 2,310
20.00 lb/ft 0.272 in 6.91 mm 2,720 3,740 3,740 4,420
23.00 lb/ft 0.317 in 8.05 mm 4,360 4,360 5,150 6,340 6,340 7,130 7,530 7,530 6,340 7,530 8,720 11,100 7,530 6,340 7,530 8,720
26.00 lb/ft 0.362 in 9.19 mm 4,980 4,980 5,880 7,240 7,240 8,150 8,600 8,600 9,960 7,240 8,600 9,960 12,670 8,600 7,240 8,600 9,960
29.00 lb/ft 0.408 in 10.36 mm 6,630 8,160 8,160 9,180 9,690 9,690 11,220 8,160 9,690 11,220 14,280 9,690 8,160 9,690 11,220
32.00 lb/ft 0.453 in 11.51 mm 7,360 9,060 9,060 10,190 10,760 10,760 12,460 9,060 10,760 12,460 15,860 10,760 9,060 10,760 12,460
35.00 lb/ft 0.498 in 12.65 mm 9,960 9,960 11,210 11,830 11,830 13,700 15,560 9,960 11,830 13,700 17,430 11,830 9,960 11,830 13,700
38.00 lb/ft 0.540 in 13.72 mm 10,800 10,800 12,150 12,830 12,830 14,850 16,880 10,800 12,830 14,850 18,900 12,830 10,800 12,830 14,850
42.70 lb/ft 0.625 in 15.88 mm 14,060 14,840 12,500 14,840 17,190 21,880 14,840 12,500 14,840 17,190
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

7 ''
FLUENCIA ksi 40
(LÍMITE ELÁSTICO) kg / mm² 28
RESISTENCIA ksi 60
(ESFUERZA DE RUPTURA) kg / mm² 42
CUERPO DE TUBO
COLAPSO psi 1,420
kg / cm² 100
ton 89
PRESIÓN INTERNA psi 2,310
kg / cm² 162
JUNTA API
ROSCA ton 55
psi 2,310
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,100
kg / cm² 148
ROSCA REDONDA CORTA psi 2,100
kg / cm² 148
kg / cm²
kg / cm²
kg / cm²

7 ''
CUERPO DE TUBO
COLAPSO psi 1,970 2,270 2,270 2,480
kg / cm² 139 160 160 174
TENSIÓN 1,000 lb 230 316 316 374
ton 104 143 143 170
kg / cm² 191 263 263 311
JUNTA API
TENSIÓN 1,000 lb 176 234 254 273
ROSCA ton 80 106 115 124
psi 2,720 3,740 3,740 4,420
INTERNA kg / cm² 191 263 263 311
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,500 3,000 3,000 4,000
kg / cm² 176 211 211 281
kg / cm² 176 211 211 281
kg / cm²
kg / cm²
kg / cm²

7 ''
ALTERNATIVO 6.250 in 158.75 mm REVESTIMIENTO ESPESOR
FLUENCIA ksi 55 55 65 80 80 90 95 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 75 95 85 95 100 100 105 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 3,270 3,270 3,540 3,830 3,830 4,030 4,140 4,140 5,630 5,910 6,410 6,950 5,910 3,830 4,140 4,440
kg / cm² 230 230 249 269 269 283 291 291 396 416 451 489 416 269 291 312
TENSIÓN 1,000 lb 366 366 433 532 532 599 632 632 532 632 732 932 632 532 632 732
ton 166 166 196 242 242 272 287 287 242 287 332 423 287 242 287 332
kg / cm² 307 307 362 446 446 501 529 529 446 529 613 780 529 446 529 613
JUNTA API
TENSIÓN 1,000 lb 284 309
ROSCA ton 129 140
psi 4,360 4,360
TENSIÓN 1,000 lb 313 341 364 435 442 479 505 505 435 505 590
ROSCA ton 142 155 165 197 200 217 229 229 197 229 267
psi 4,360 4,360 5,150 6,340 6,340 7,130 7,530 7,530 6,340 7,530 8,720
INTERNA kg / cm² 307 307 362 446 446 501 529 529 446 529 613
TENSIÓN 1,000 lb 366 366 433 532 532 599 632 632 532 632 732
BUTTRESS ton 166 166 196 242 242 272 287 287 242 287 332
psi 4,360 4,360 5,150 6,340 6,340 7,130 7,530 7,530 6,340 7,530 8,720
INTERNA kg / cm² 307 307 362 446 446 501 529 529 446 529 613
TENSIÓN 1,000 lb 366 366 433 532 532 561 589 589 532 589 701
BUTTRESS ton 166 166 196 242 242 254 267 267 242 267 318
psi 3,943 3,943 5,150 5,736 5,736 6,453 6,811 6,811 5,736 6,811 7,886
INTERNA kg / cm² 277 277 362 403 403 454 479 479 403 479 554
TUBO LISO psi 3,000 3,000 4,700 5,800 5,800 6,500 6,900 6,900 5,800 6,900 8,000 10,000 6,900 5,800 6,900 8,000
kg / cm² 211 211 330 408 408 457 485 485 408 485 562 703 485 408 485 562
kg / cm² 211 211
kg / cm² 211 211 330 408 408 457 485 485 408 485 562
kg / cm² 211 211 330 408 408 457 485 485 408 485 562
BUTTRESS COPLE REBAJADO psi 3,000 3,000 4,600 4,600 4,600 5,200 5,400 5,400 4,600 5,400 6,300
kg / cm² 211 211 323 323 323 366 380 380 323 380 443

7 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 39 39 46 56 56 63 67 67 77 56 67 77 98 67 56 67 77
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 53 67 60 67 70 70 74 74 88 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 4,330 4,330 4,810 5,410 5,410 5,740 5,890 5,890 6,230 7,270 8,110 8,720 9,610 8,110 5,410 5,890 6,230
kg / cm² 304 304 338 380 380 404 414 414 438 511 570 613 676 570 380 414 438
TENSIÓN 1,000 lb 415 415 491 604 604 679 717 717 830 604 717 830 1,057 717 604 717 830
ton 188 188 223 274 274 308 325 325 377 274 325 377 479 325 274 325 377
PRESIÓN INTERNA psi 4,980 4,980 5,880 7,240 7,240 8,150 8,600 8,600 9,960 7,240 8,600 9,960 12,670 8,600 7,240 8,600 9,960
kg / cm² 350 350 413 509 509 573 605 605 700 509 605 700 891 605 509 605 700
JUNTA API
TENSIÓN 1,000 lb 334 364
ROSCA ton 151 165
psi 4,980 4,980
TENSIÓN 1,000 lb 367 401 428 511 519 563 593 593 693 519 602 693 855 593 511 593 693
ROSCA ton 167 182 194 232 235 255 269 269 314 235 273 314 388 269 232 269 314
psi 4,980 4,980 5,880 7,240 7,240 8,150 8,600 8,600 9,960 7,240 8,600 9,960 12,670 8,600 7,240 8,600 9,960
INTERNA kg / cm² 350 350 413 509 509 573 605 605 700 509 605 700 891 605 509 605 700
TENSIÓN 1,000 lb 415 415 491 604 604 679 717 717 830 604 717 830 1,040 717 604 717 830
BUTTRESS ton 188 188 223 274 274 308 325 325 377 274 325 377 472 325 274 325 377
psi 4,980 4,980 5,880 7,240 7,240 8,150 8,600 8,600 9,960 7,240 8,600 9,960 12,670 8,600 7,240 8,600 9,960
INTERNA kg / cm² 350 350 413 509 509 573 605 605 700 509 605 700 891 605 509 605 700
TENSIÓN 1,000 lb 415 415 491 533 561 561 589 589 701 561 617 701 589 533 589 701
BUTTRESS ton 188 188 223 242 254 254 267 267 318 254 280 318 267 242 267 318
psi 3,943 3,943 5,736 5,736 5,736 6,453 6,811 6,811 7,886 5,736 6,811 7,886 6,811 5,736 6,811 7,886
INTERNA kg / cm² 277 277 403 403 403 454 479 479 554 403 479 554 479 403 479 554
TUBO LISO psi 3,000 3,000 5,400 6,600 6,600 7,400 7,900 7,900 9,100 6,600 7,900 9,100 10,000 7,900 6,600 7,900 9,100
kg / cm² 211 211 380 464 464 520 555 555 640 464 555 640 703 555 464 555 640
kg / cm² 211 211
ROSCA REDONDA LARGA psi 3,000 3,000 5,400 6,600 6,600 7,400 7,900 7,900 9,100 6,600 7,900 9,100 9,500 7,900 6,600 7,900 9,100
kg / cm² 211 211 380 464 464 520 555 555 640 464 555 640 668 555 464 555 640
BUTTRESS COPLE NORMAL psi 3,000 3,000 5,400 6,600 6,600 7,400 7,900 7,900 9,100 6,600 7,900 9,100 10,000 7,900 6,600 7,900 9,100
kg / cm² 211 211 380 464 464 520 555 555 640 464 555 640 703 555 464 555 640
BUTTRESS COPLE REBAJADO psi 3,000 3,000 4,600 4,600 4,600 5,200 5,400 5,400 6,300 4,600 5,400 6,300 5,400 4,600 5,400 6,300
kg / cm² 211 211 323 323 323 366 380 380 443 323 380 443 380 323 380 443

7 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 6,100 7,030 7,030 7,580 7,840 7,840 8,530 8,700 9,790 11,150 11,480 9,790 7,030 7,840 8,530
kg / cm² 429 494 494 533 551 551 600 612 688 784 807 688 494 551 600
TENSIÓN 1,000 lb 549 676 676 760 803 803 929 676 803 929 1,183 803 676 803 929
ton 249 307 307 345 364 364 422 307 364 422 537 364 307 364 422
kg / cm² 466 574 574 645 681 681 789 574 681 789 1,004 681 574 681 789
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 492 587 597 648 683 683 797 597 692 797 983 683 587 683 797
ROSCA ton 223 266 271 294 310 310 361 271 314 361 446 310 266 310 361
psi 6,630 8,160 8,160 9,180 9,690 9,690 11,220 8,160 9,690 11,220 14,280 9,690 8,160 9,690 11,220
INTERNA kg / cm² 466 574 574 645 681 681 789 574 681 789 1004 681 574 681 789
TENSIÓN 1,000 lb 549 676 676 760 803 803 929 676 803 929 1,164 803 676 803 929
BUTTRESS ton 249 307 307 345 364 364 422 307 364 422 528 364 307 364 422
psi 6,630 8,160 8,160 9,180 9,690 9,690 11,220 8,160 9,690 11,220 14,280 9,690 8,160 9,690 11,220
INTERNA kg / cm² 466 574 574 645 681 681 789 574 681 789 1004 681 574 681 789
TENSIÓN 1,000 lb 533 533 561 561 589 589 701 561 617 701 589 533 589 701
BUTTRESS ton 242 242 254 254 267 267 318 254 280 318 267 242 267 318
psi 5,736 5,736 5,736 6,453 6,811 6,811 7,886 5,736 6,811 7,886 6,811 5,736 6,811 7,886
INTERNA kg / cm² 403 403 403 454 479 479 554 403 479 554 479 403 479 554
TUBO LISO psi 6,100 7,500 7,500 8,400 8,900 8,900 10,000 7,500 8,900 10,000 10,000 8,900 7,500 8,900 10,000
kg / cm² 429 527 527 591 626 626 703 527 626 703 703 626 527 626 703
kg / cm²
kg / cm² 429 520 520 584 619 619 668 520 619 668 668 619 520 619 668
kg / cm² 429 478 478 534 562 562 654 478 562 654 703 562 478 562 654
BUTTRESS COPLE REBAJADO psi 4,600 4,600 4,600 5,200 5,400 5,400 6,300 4,600 5,400 6,300 5,400 4,600 5,400 6,300
kg / cm² 323 323 323 366 380 380 443 323 380 443 380 323 380 443

7 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 7,360 8,600 8,600 9,380 9,740 9,740 10,780 9,950 11,450 13,500 14,930 11,450 8,600 9,740 10,780
kg / cm² 517 605 605 659 685 685 758 700 805 949 1050 805 605 685 758
TENSIÓN 1,000 lb 606 745 745 839 885 885 1,025 745 885 1,025 1,304 885 745 885 1,025
ton 275 338 338 380 401 401 465 338 401 465 592 401 338 401 465
kg / cm² 517 637 637 716 756 756 876 637 756 876 1,115 756 637 756 876
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 554 661 672 729 768 768 897 672 779 897 1,107 768 661 768 897
ROSCA ton 251 300 305 331 349 349 407 305 353 407 502 349 300 349 407
LEAK psi 7 360 9 060 9 060 9 521 9 521 9 521 9 521 9 060 9 521 9 521 9 521 9 521 9 060 9 521 9 521
RESISTANCE kg / cm² 517 637 637 669 669 669 669 637 669 669 669 669 637 669 669
psi 7,360 9,060 9,060 10,190 10,760 10,760 12,460 9,060 10,760 12,460 15,860 10,760 9,060 10,760 12,460
INTERNA kg / cm² 517 637 637 716 756 756 876 637 756 876 1115 756 637 756 876
TENSIÓN 1,000 lb 606 745 745 839 885 885 1,025 745 885 1,025 1,283 885 745 885 1,025
BUTTRESS ton 275 338 338 380 401 401 465 338 401 465 582 401 338 401 465
LEAK psi 7 360 8 461 8 461 9 519 10 048 10 048 11 634 8 461 10 048 11 634 11 795 10 048 8 461 10 048 11 634
RESISTANCE kg / cm² 517 595 595 669 706 706 818 595 706 818 829 706 595 706 818
psi 7,360 8,461 8,461 9,519 10,048 10,048 11,634 8,461 10,048 11,634 14,807 10,048 8,461 10,048 11,634
INTERNA kg / cm² 517 595 595 669 706 706 818 595 706 818 1041 706 595 706 818
TENSIÓN 1,000 lb 533 533 561 561 589 589 701 561 617 701 589 533 589 701
BUTTRESS ton 242 242 254 254 267 267 318 254 280 318 267 242 267 318
LEAK psi 5 736 5 736 5 736 6 453 6 811 6 811 7 476 5 736 6 811 7 476 6 811 5 736 6 811 7 476
RESISTANCE kg / cm² 403 403 403 454 479 479 526 403 479 526 479 403 479 526
psi 5,736 5,736 5,736 6,453 6,811 6,811 7,886 5,736 6,811 7,886 6,811 5,736 6,811 7,886
INTERNA kg / cm² 403 403 403 454 479 479 554 403 479 554 479 403 479 554
TUBO LISO psi 6,700 8,300 8,300 9,300 9,800 9,800 10,000 8,300 9,800 10,000 10,000 9,800 8,300 9,800 10,000
kg / cm² 471 584 584 654 689 689 703 584 689 703 703 689 584 689 703
kg / cm²
kg / cm² 471 520 520 584 619 619 668 520 619 668 668 619 520 619 668
kg / cm² 471 478 478 534 562 562 654 478 562 654 703 562 478 562 654
kg / cm² 323 323 323 366 380 380 443 323 380 443 380 323 380 443

7 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 10,180 10,180 11,170 11,650 11,650 13,030 14,310 11,150 13,120 15,230 17,380 13,120 10,180 11,650 13,030
kg / cm² 716 716 785 819 819 916 1006 784 922 1071 1222 922 716 819 916
TENSIÓN 1,000 lb 814 814 916 966 966 1,119 1,272 814 966 1,119 1,424 966 814 966 1,119
ton 369 369 415 438 438 508 577 369 438 508 646 438 369 438 508
kg / cm² 700 700 788 832 832 963 1,094 700 832 963 1,225 832 700 832 963
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 734 746 809 853 853 996 1,106 746 865 996 1,229 853 734 853 996
ROSCA ton 333 338 367 387 387 452 502 338 392 452 557 387 333 387 452
psi 9,241 9,241 10,396 10,974 10,974 12,707 14,439 9,241 10,974 12,707 16,172 10,974 9,241 10,974 12,707
INTERNA kg / cm² 650 650 731 772 772 893 1015 650 772 893 1137 772 650 772 893
TENSIÓN 1,000 lb 814 814 876 920 920 1,095 1,183 814 964 1,095 1,314 920 814 920 1,095
BUTTRESS ton 369 369 397 417 417 497 537 369 437 497 596 417 369 417 497
psi 8,461 8,461 9,519 10,048 10,048 11,634 13,221 8,461 10,048 11,634 14,807 10,048 8,461 10,048 11,634
INTERNA kg / cm² 595 595 669 706 706 818 930 595 706 818 1041 706 595 706 818
TENSIÓN 1,000 lb 533 561 561 589 589 701 561 617 701 589 533 589 701
BUTTRESS ton 242 254 254 267 267 318 254 280 318 267 242 267 318
psi 5,736 5,736 6,453 6,811 6,811 7,886 5,736 6,811 7,886 6,811 5,736 6,811 7,886
INTERNA kg / cm² 403 403 454 479 479 554 403 479 554 479 403 479 554
TUBO LISO psi 9,100 9,100 10,000 10,000 10,000 10,000 10,000 9,100 10,000 10,000 10,000 10,000 9,100 10,000 10,000
kg / cm² 640 640 703 703 703 703 703 640 703 703 703 703 640 703 703
kg / cm²
kg / cm² 520 520 584 619 619 668 668 520 619 668 668 619 520 619 668
kg / cm² 478 478 534 562 562 654 703 478 562 654 703 562 478 562 654
kg / cm² 323 323 366 380 380 443 323 380 443 380 323 380 443

7 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 11,390 11,390 12,810 13,430 13,430 15,130 16,740 12,230 14,690 16,770 19,640 14,690 11,390 13,430 15,130
kg / cm² 801 801 901 944 944 1064 1177 860 1033 1179 1381 1033 801 944 1064
TENSIÓN 1,000 lb 877 877 986 1,041 1,041 1,206 1,370 877 1,041 1,206 1,534 1,041 877 1,041 1,206
ton 398 398 447 472 472 547 621 398 472 547 696 472 398 472 547
kg / cm² 759 759 854 902 902 1,044 1,187 759 902 1,044 1,329 902 759 902 1,044
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 801 814 883 931 931 1,087 1,207 814 944 1,087 1,341 931 801 931 1,087
ROSCA ton 363 369 401 422 422 493 547 369 428 493 608 422 363 422 493
psi 9,241 9,241 10,396 10,974 10,974 12,707 14,439 9,241 10,974 12,707 16,172 10,974 9,241 10,974 12,707
INTERNA kg / cm² 650 650 731 772 772 893 1015 650 772 893 1137 772 650 772 893
TENSIÓN 1,000 lb 832 876 876 920 920 1,095 1,183 876 964 1,095 1,314 920 832 920 1,095
BUTTRESS ton 378 397 397 417 417 497 537 397 437 497 596 417 378 417 497
psi 8,461 8,461 9,519 10,048 10,048 11,634 13,221 8,461 10,048 11,634 14,807 10,048 8,461 10,048 11,634
INTERNA kg / cm² 595 595 669 706 706 818 930 595 706 818 1041 706 595 706 818
TENSIÓN 1,000 lb 533 561 561 589 589 701 561 617 701 589 533 589 701
BUTTRESS ton 242 254 254 267 267 318 254 280 318 267 242 267 318
psi 5,736 5,736 6,453 6,811 6,811 7,886 5,736 6,811 7,886 6,811 5,736 6,811 7,886
INTERNA kg / cm² 403 403 454 479 479 554 403 479 554 479 403 479 554
TUBO LISO psi 9,900 9,900 10,000 10,000 10,000 10,000 10,000 9,900 10,000 10,000 10,000 10,000 9,900 10,000 10,000
kg / cm² 696 696 703 703 703 703 703 696 703 703 703 703 696 703 703
kg / cm²
kg / cm² 520 520 584 619 619 668 668 520 619 668 668 619 520 619 668
kg / cm² 478 478 534 562 562 654 703 478 562 654 703 562 478 562 654
kg / cm² 323 323 366 380 380 443 323 380 443 380 323 380 443

7 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 63 67 56 67 77 98 67 56 67 77
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 70 74 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 14,640 15,450 14,390 17,840 19,890 22,720 17,840 13,010 15,450 17,890
kg / cm² 1029 1086 1012 1254 1398 1597 1254 915 1086 1258
TENSIÓN 1,000 lb 1,127 1,189 1,001 1,189 1,377 1,752 1,189 1,001 1,189 1,377
ton 511 539 454 539 625 795 539 454 539 625
PRESIÓN INTERNA psi 14,060 14,840 12,500 14,840 17,190 21,880 14,840 12,500 14,840 17,190
kg / cm² 989 1,043 879 1,043 1,209 1,538 1,043 879 1,043 1,209
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

7 ''
FLUENCIA ksi
RESISTENCIA ksi
CUERPO DE TUBO
COLAPSO psi
kg / cm²
TENSIÓN 1,000 lb
ton
kg / cm²
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi
kg / cm²
kg / cm²
kg / cm²
kg / cm²
kg / cm²

193.68 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
7 5/8 ''
API DST-TAMSA
24.00 lb/ft 0.300 in 7.62 mm 2,030
26.40 lb/ft 0.328 in 8.33 mm 2,900 2,900 3,100 3,400 3,400 3,610 3,710 3,710 4,990 5,230 5,620 6,050 5,230 3,400 3,710 3,920
29.70 lb/ft 0.375 in 9.53 mm 4,310 4,790 4,790 5,030 5,130 5,130 5,350 6,630 7,320 7,800 8,560 7,320 4,790 5,130 5,350
33.70 lb/ft 0.430 in 10.92 mm 5,720 6,560 6,560 7,050 7,280 7,280 7,870 8,320 9,290 10,370 11,620 9,290 6,560 7,280 7,870
39.00 lb/ft 0.500 in 12.70 mm 8,820 8,820 9,620 10,000 10,000 11,080 12,060 10,120 11,680 13,820 15,260 11,680 8,820 10,000 11,080
42.80 lb/ft 0.562 in 14.27 mm 10,810 10,810 11,890 12,410 12,410 13,930 15,350 11,620 13,800 15,890 18,350 13,800 10,810 12,410 13,930
45.30 lb/ft 0.595 in 15.11 mm 11,510 11,510 12,950 13,670 13,670 15,440 17,100 12,390 14,920 16,990 19,970 14,920 11,510 13,670 15,440
47.10 lb/ft 0.625 in 15.88 mm 12,040 12,040 13,540 14,300 14,300 16,550 18,700 13,090 15,930 18,000 20,950 15,930 12,040 14,300 16,550
51.20 lb/ft 0.687 in 17.45 mm 14,760 15,580 14,530 18,050 20,100 22,910 18,050 13,120 15,580 18,040
55.30 lb/ft 0.750 in 19.05 mm 15,960 16,850 15,990 20,200 22,220 24,780 20,200 14,190 16,850 19,510
24.00 lb/ft 0.300 in 7.62 mm 276
26.40 lb/ft 0.328 in 8.33 mm 414 414 489 602 602 677 714 714 602 714 827 1,053 714 602 714 827
29.70 lb/ft 0.375 in 9.53 mm 555 683 683 769 811 811 940 683 811 940 1,196 811 683 811 940
33.70 lb/ft 0.430 in 10.92 mm 632 778 778 875 923 923 1,069 778 923 1,069 1,361 923 778 923 1,069
39.00 lb/ft 0.500 in 12.70 mm 895 895 1,007 1,063 1,063 1,231 1,399 895 1,063 1,231 1,567 1,063 895 1,063 1,231
42.80 lb/ft 0.562 in 14.27 mm 998 998 1,122 1,185 1,185 1,372 1,559 998 1,185 1,372 1,746 1,185 998 1,185 1,372
45.30 lb/ft 0.595 in 15.11 mm 1,051 1,051 1,183 1,248 1,248 1,445 1,643 1,051 1,248 1,445 1,840 1,248 1,051 1,248 1,445
47.10 lb/ft 0.625 in 15.88 mm 1,100 1,100 1,237 1,306 1,306 1,512 1,718 1,100 1,306 1,512 1,924 1,306 1,100 1,306 1,512
51.20 lb/ft 0.687 in 17.45 mm 1,348 1,423 1,198 1,423 1,647 2,096 1,423 1,198 1,423 1,647
55.30 lb/ft 0.750 in 19.05 mm 1,458 1,539 1,296 1,539 1,782 2,268 1,539 1,296 1,539 1,782
24.00 lb/ft 0.300 in 7.62 mm 2,750
26.40 lb/ft 0.328 in 8.33 mm 4,140 4,140 4,890 6,020 6,020 6,780 7,150 7,150 6,020 7,150 8,280 10,540 7,150 6,020 7,150 8,280
29.70 lb/ft 0.375 in 9.53 mm 5,590 6,890 6,890 7,750 8,180 8,180 9,470 6,890 8,180 9,470 12,050 8,180 6,890 8,180 9,470
33.70 lb/ft 0.430 in 10.92 mm 6,410 7,900 7,900 8,880 9,380 9,380 10,860 7,900 9,380 10,860 13,820 9,380 7,900 9,380 10,860
39.00 lb/ft 0.500 in 12.70 mm 9,180 9,180 10,330 10,900 10,900 12,620 14,340 9,180 10,900 12,620 16,070 10,900 9,180 10,900 12,620
42.80 lb/ft 0.562 in 14.27 mm 10,320 10,320 11,610 12,250 12,250 14,190 16,120 10,320 12,250 14,190 18,060 12,250 10,320 12,250 14,190
45.30 lb/ft 0.595 in 15.11 mm 10,920 10,920 12,290 12,970 12,970 15,020 17,070 10,920 12,970 15,020 19,120 12,970 10,920 12,970 15,020
47.10 lb/ft 0.625 in 15.88 mm 11,480 11,480 12,910 13,630 13,630 15,780 17,930 11,480 13,630 15,780 20,080 13,630 11,480 13,630 15,780
51.20 lb/ft 0.687 in 17.45 mm 14,190 14,980 12,610 14,980 17,340 22,070 14,980 12,610 14,980 17,340
55.30 lb/ft 0.750 in 19.05 mm 15,490 16,350 13,770 16,350 18,930 24,100 16,350 13,770 16,350 18,930
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

7 5/8 ''
FLUENCIA ksi 40
RESISTENCIA ksi 60
CUERPO DE TUBO
COLAPSO psi 2,030
kg / cm² 143
ton 125
kg / cm² 193
JUNTA API
ROSCA ton 96
psi 2,750
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,500
kg / cm² 176
kg / cm² 176
kg / cm²
kg / cm²
kg / cm²

7 5/8 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 75 95 85 95 100 100 105 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 2,900 2,900 3,100 3,400 3,400 3,610 3,710 3,710 4,990 5,230 5,620 6,050 5,230 3,400 3,710 3,920
kg / cm² 204 204 218 239 239 254 261 261 351 368 395 425 368 239 261 276
TENSIÓN 1,000 lb 414 414 489 602 602 677 714 714 602 714 827 1,053 714 602 714 827
ton 188 188 222 273 273 307 324 324 273 324 375 477 324 273 324 375
kg / cm² 291 291 344 423 423 477 503 503 423 503 582 741 503 423 503 582
JUNTA API
TENSIÓN 1,000 lb 315 342 368
ROSCA ton 143 155 167
psi 4,140 4,140 4,890
INTERNA kg / cm² 291 291 344
TENSIÓN 1,000 lb 346 377 404 482 490 532 560 560 490 568 654 819 560 482 560 654
ROSCA ton 157 171 183 219 222 241 254 254 222 258 297 371 254 219 254 297
psi 4,140 4,140 4,890 6,020 6,020 6,780 7,150 7,150 6,020 7,150 8,280 10,540 7,150 6,020 7,150 8,280
INTERNA kg / cm² 291 291 344 423 423 477 503 503 423 503 582 741 503 423 503 582
TENSIÓN 1,000 lb 414 414 489 602 602 677 714 714 602 714 827 1,032 714 602 714 827
BUTTRESS ton 188 188 222 273 273 307 324 324 273 324 375 468 324 273 324 375
psi 4,140 4,140 4,890 6,020 6,020 6,780 7,150 7,150 6,020 7,150 8,280 10,540 7,150 6,020 7,150 8,280
INTERNA kg / cm² 291 291 344 423 423 477 503 503 423 503 582 741 503 423 503 582
TENSIÓN 1,000 lb 414 414 489 602 602 677 714 714 602 714 827 714 602 714 827
BUTTRESS ton 188 188 222 273 273 307 324 324 273 324 375 324 273 324 375
psi 4,140 4,140 4,890 6,020 6,020 6,780 7,150 7,150 6,020 7,150 8,280 7,150 6,020 7,150 8,280
INTERNA kg / cm² 291 291 344 423 423 477 503 503 423 503 582 503 423 503 582
TUBO LISO psi 3,000 3,000 4,500 5,500 5,500 6,200 6,500 6,500 5,500 6,500 7,600 9,600 6,500 5,500 6,500 7,600
kg / cm² 211 211 316 387 387 436 457 457 387 457 534 675 457 387 457 534
kg / cm² 211 211 316
kg / cm² 211 211 316 387 387 436 457 457 387 457 534 675 457 387 457 534
kg / cm² 211 211 316 387 387 436 457 457 387 457 534 675 457 387 457 534
kg / cm² 211 211 316 366 366 415 436 436 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 4,310 4,790 4,790 5,030 5,130 5,130 5,350 6,630 7,320 7,800 8,560 7,320 4,790 5,130 5,350
kg / cm² 303 337 337 354 361 361 376 466 515 548 602 515 337 361 376
TENSIÓN 1,000 lb 555 683 683 769 811 811 940 683 811 940 1,196 811 683 811 940
ton 252 310 310 349 368 368 426 310 368 426 542 368 310 368 426
kg / cm² 393 484 484 545 575 575 666 484 575 666 847 575 484 575 666
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 474 567 575 625 659 659 769 575 668 769 962 659 567 659 769
ROSCA ton 215 257 261 284 299 299 349 261 303 349 437 299 257 299 349
psi 5,590 6,890 6,890 7,750 8,180 8,180 9,470 6,890 8,180 9,470 12,050 8,180 6,890 8,180 9,470
INTERNA kg / cm² 393 484 484 545 575 575 666 484 575 666 847 575 484 575 666
TENSIÓN 1,000 lb 555 683 683 769 811 811 940 683 811 940 1,172 811 683 811 940
BUTTRESS ton 252 310 310 349 368 368 426 310 368 426 532 368 310 368 426
psi 5,590 6,890 6,890 7,750 8,180 8,180 9,470 6,890 8,180 9,470 12,050 8,180 6,890 8,180 9,470
INTERNA kg / cm² 393 484 484 545 575 575 666 484 575 666 847 575 484 575 666
TENSIÓN 1,000 lb 555 683 683 769 811 811 940 683 811 940 811 683 811 940
BUTTRESS ton 252 310 310 349 368 368 426 310 368 426 368 310 368 426
psi 5,590 6,552 6,552 7,371 7,781 7,781 9,009 6,552 7,781 9,009 7,781 6,552 7,781 9,009
INTERNA kg / cm² 393 461 461 518 547 547 633 461 547 633 547 461 547 633
TUBO LISO psi 5,100 6,300 6,300 7,100 7,500 7,500 8,700 6,300 7,500 8,700 10,000 7,500 6,300 7,500 8,700
kg / cm² 359 443 443 499 527 527 612 443 527 612 703 527 443 527 612
kg / cm²
kg / cm² 359 443 443 499 527 527 612 443 527 612 703 527 443 527 612
kg / cm² 359 443 443 499 527 527 612 443 527 612 703 527 443 527 612
kg / cm² 359 366 366 415 436 436 506 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 5,720 6,560 6,560 7,050 7,280 7,280 7,870 8,320 9,290 10,370 11,620 9,290 6,560 7,280 7,870
kg / cm² 402 461 461 496 512 512 553 585 653 729 817 653 461 512 553
TENSIÓN 1,000 lb 632 778 778 875 923 923 1,069 778 923 1,069 1,361 923 778 923 1,069
ton 287 353 353 397 419 419 485 353 419 485 617 419 353 419 485
kg / cm² 451 555 555 624 659 659 764 555 659 764 972 659 555 659 764
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 556 664 674 733 772 772 901 674 783 901 1,128 772 664 772 901
ROSCA ton 252 301 306 332 350 350 409 306 355 409 512 350 301 350 409
psi 6,410 7,900 7,900 8,880 9,380 9,380 10,860 7,900 9,380 10,860 13,820 9,380 7,900 9,380 10,860
INTERNA kg / cm² 451 555 555 624 659 659 764 555 659 764 972 659 555 659 764
TENSIÓN 1,000 lb 632 778 778 875 923 923 1,069 778 923 1,069 1,334 923 778 923 1,069
BUTTRESS ton 287 353 353 397 419 419 485 353 419 485 605 419 353 419 485
psi 6,410 7,900 7,900 8,880 9,380 9,380 10,860 7,900 9,380 10,860 13,820 9,380 7,900 9,380 10,860
INTERNA kg / cm² 451 555 555 624 659 659 764 555 659 764 972 659 555 659 764
TENSIÓN 1,000 lb 632 735 774 774 813 813 967 774 851 967 813 735 813 967
BUTTRESS ton 287 333 351 351 369 369 439 351 386 439 369 333 369 439
psi 6,410 6,552 6,552 7,371 7,781 7,781 9,009 6,552 7,781 9,009 7,781 6,552 7,781 9,009
INTERNA kg / cm² 451 461 461 518 547 547 633 461 547 633 547 461 547 633
TUBO LISO psi 5,900 7,200 7,200 8,100 8,600 8,600 9,900 7,200 8,600 9,900 10,000 8,600 7,200 8,600 9,900
kg / cm² 415 506 506 569 605 605 696 506 605 696 703 605 506 605 696
kg / cm²
kg / cm² 415 506 506 569 605 605 696 506 605 696 703 605 506 605 696
kg / cm² 415 506 506 569 605 605 696 506 605 696 703 605 506 605 696
kg / cm² 366 366 366 415 436 436 506 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 8,820 8,820 9,620 10,000 10,000 11,080 12,060 10,120 11,680 13,820 15,260 11,680 8,820 10,000 11,080
kg / cm² 620 620 676 703 703 779 848 712 821 972 1073 821 620 703 779
TENSIÓN 1,000 lb 895 895 1,007 1,063 1,063 1,231 1,399 895 1,063 1,231 1,567 1,063 895 1,063 1,231
ton 406 406 457 482 482 558 635 406 482 558 711 482 406 482 558
kg / cm² 645 645 726 766 766 887 1,008 645 766 887 1,130 766 645 766 887
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 786 798 867 914 914 1,066 1,194 798 926 1,066 1,335 914 786 914 1,066
ROSCA ton 356 362 393 414 414 484 542 362 420 484 605 414 356 414 484
psi 9,180 9,180 10,330 10,900 10,900 12,620 14,340 9,180 10,900 12,620 16,070 10,900 9,180 10,900 12,620
INTERNA kg / cm² 645 645 726 766 766 887 1008 645 766 887 1130 766 645 766 887
TENSIÓN 1,000 lb 895 895 1,007 1,063 1,063 1,231 1,379 895 1,063 1,231 1,536 1,063 895 1,063 1,231
BUTTRESS ton 406 406 457 482 482 558 625 406 482 558 697 482 406 482 558
psi 9,180 9,180 10,330 10,900 10,900 12,620 14,340 9,180 10,900 12,620 16,070 10,900 9,180 10,900 12,620
INTERNA kg / cm² 645 645 726 766 766 887 1008 645 766 887 1130 766 645 766 887
TENSIÓN 1,000 lb 735 774 774 813 813 967 774 851 967 813 735 813 967
BUTTRESS ton 333 351 351 369 369 439 351 386 439 369 333 369 439
psi 6,552 6,552 7,371 7,781 7,781 9,009 6,552 7,781 9,009 7,781 6,552 7,781 9,009
INTERNA kg / cm² 461 461 518 547 547 633 461 547 633 547 461 547 633
TUBO LISO psi 8,400 8,400 9,400 10,000 10,000 10,000 10,000 8,400 10,000 10,000 10,000 10,000 8,400 10,000 10,000
kg / cm² 591 591 661 703 703 703 703 591 703 703 703 703 591 703 703
kg / cm²
kg / cm² 591 591 661 703 703 703 703 591 703 703 703 703 591 703 703
kg / cm² 548 548 619 654 654 703 703 548 654 703 703 654 548 654 703
kg / cm² 366 366 415 436 436 506 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 10,810 10,810 11,890 12,410 12,410 13,930 15,350 11,620 13,800 15,890 18,350 13,800 10,810 12,410 13,930
kg / cm² 760 760 836 873 873 979 1079 817 970 1117 1290 970 760 873 979
TENSIÓN 1,000 lb 998 998 1,122 1,185 1,185 1,372 1,559 998 1,185 1,372 1,746 1,185 998 1,185 1,372
ton 453 453 509 537 537 622 707 453 537 622 792 537 453 537 622
kg / cm² 726 726 816 861 861 998 1,133 726 861 998 1,270 861 726 861 998
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 891 906 984 1,037 1,037 1,210 1,355 906 1,051 1,210 1,514 1,037 891 1,037 1,210
ROSCA ton 404 411 446 470 470 549 615 411 477 549 687 470 404 470 549
LEAK psi 10 320 10 320 11 610 11 798 11 798 11 798 11 798 10 320 11 798 11 798 11 798 11 798 10 320 11 798 11 798
RESISTANCE kg / cm² 726 726 816 829 829 829 829 726 829 829 829 829 726 829 829
psi 10,320 10,320 11,610 12,250 12,250 14,190 16,120 10,320 12,250 14,190 18,060 12,250 10,320 12,250 14,190
INTERNA kg / cm² 726 726 816 861 861 998 1133 726 861 998 1270 861 726 861 998
TENSIÓN 1,000 lb 998 998 1,122 1,185 1,185 1,372 1,536 998 1,185 1,372 1,711 1,185 998 1,185 1,372
BUTTRESS ton 453 453 509 537 537 622 697 453 537 622 776 537 453 537 622
LEAK psi 9 793 9 793 11 017 11 629 11 629 12 677 12 677 9 793 11 629 12 677 12 677 11 629 9 793 11 629 12 677
RESISTANCE kg / cm² 688 688 775 818 818 891 891 688 818 891 891 818 688 818 891
psi 9,793 9,793 11,017 11,629 11,629 13,465 15,301 9,793 11,629 13,465 17,137 11,629 9,793 11,629 13,465
INTERNA kg / cm² 688 688 775 818 818 947 1076 688 818 947 1205 818 688 818 947
TENSIÓN 1,000 lb 735 774 774 813 813 967 774 851 967 813 735 813 967
BUTTRESS ton 333 351 351 369 369 439 351 386 439 369 333 369 439
LEAK psi 6 552 6 552 7 371 7 781 7 781 8 033 6 552 7 781 8 033 7 781 6 552 7 781 8 033
RESISTANCE kg / cm² 461 461 518 547 547 565 461 547 565 547 461 547 565
psi 6,552 6,552 7,371 7,781 7,781 9,009 6,552 7,781 9,009 7,781 6,552 7,781 9,009
INTERNA kg / cm² 461 461 518 547 547 633 461 547 633 547 461 547 633
TUBO LISO psi 9,400 9,400 10,000 10,000 10,000 10,000 10,000 9,400 10,000 10,000 10,000 10,000 9,400 10,000 10,000
kg / cm² 661 661 703 703 703 703 703 661 703 703 703 703 661 703 703
kg / cm²
kg / cm² 591 591 661 703 703 703 703 591 703 703 703 703 591 703 703
kg / cm² 548 548 619 654 654 703 703 548 654 703 703 654 548 654 703
kg / cm² 366 366 415 436 436 506 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 11,510 11,510 12,950 13,670 13,670 15,440 17,100 12,390 14,920 16,990 19,970 14,920 11,510 13,670 15,440
kg / cm² 809 809 910 961 961 1086 1202 871 1049 1195 1404 1049 809 961 1086
TENSIÓN 1,000 lb 1,051 1,051 1,183 1,248 1,248 1,445 1,643 1,051 1,248 1,445 1,840 1,248 1,051 1,248 1,445
ton 477 477 536 566 566 656 745 477 566 656 834 566 477 566 656
kg / cm² 768 768 864 912 912 1,056 1,200 768 912 1,056 1,344 912 768 912 1,056
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 947 962 1,045 1,101 1,101 1,285 1,439 962 1,116 1,285 1,609 1,101 947 1,101 1,285
ROSCA ton 430 436 474 499 499 583 653 436 506 583 730 499 430 499 583
psi 10,495 10,495 11,807 12,463 12,463 14,431 16,399 10,495 12,463 14,431 18,366 12,463 10,495 12,463 14,431
INTERNA kg / cm² 738 738 830 876 876 1015 1153 738 876 1015 1291 876 738 876 1015
TENSIÓN 1,000 lb 1,051 1,051 1,183 1,248 1,248 1,445 1,619 1,051 1,248 1,445 1,803 1,248 1,051 1,248 1,445
BUTTRESS ton 477 477 536 566 566 656 734 477 566 656 818 566 477 566 656
psi 9,793 9,793 11,017 11,629 11,629 13,465 15,301 9,793 11,629 13,465 17,137 11,629 9,793 11,629 13,465
INTERNA kg / cm² 688 688 775 818 818 947 1076 688 818 947 1205 818 688 818 947
TENSIÓN 1,000 lb 735 774 774 813 813 967 774 851 967 813 735 813 967
BUTTRESS ton 333 351 351 369 369 439 351 386 439 369 333 369 439
psi 6,552 6,552 7,371 7,781 7,781 9,009 6,552 7,781 9,009 7,781 6,552 7,781 9,009
INTERNA kg / cm² 461 461 518 547 547 633 461 547 633 547 461 547 633
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm² 591 591 661 703 703 703 703 591 703 703 703 703 591 703 703
kg / cm² 548 548 619 654 654 703 703 548 654 703 703 654 548 654 703
kg / cm² 366 366 415 436 436 506 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 12,040 12,040 13,540 14,300 14,300 16,550 18,700 13,090 15,930 18,000 20,950 15,930 12,040 14,300 16,550
kg / cm² 846 846 952 1005 1005 1164 1315 920 1120 1266 1473 1120 846 1005 1164
TENSIÓN 1,000 lb 1,100 1,100 1,237 1,306 1,306 1,512 1,718 1,100 1,306 1,512 1,924 1,306 1,100 1,306 1,512
ton 499 499 561 592 592 686 779 499 592 686 873 592 499 592 686
kg / cm² 807 807 908 958 958 1,109 1,261 807 958 1,109 1,412 958 807 958 1,109
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 997 1,013 1,100 1,159 1,159 1,353 1,515 1,013 1,175 1,353 1,693 1,159 997 1,159 1,353
ROSCA ton 452 459 499 526 526 614 687 459 533 614 768 526 452 526 614
psi 10,495 10,495 11,807 12,463 12,463 14,431 16,399 10,495 12,463 14,431 18,366 12,463 10,495 12,463 14,431
INTERNA kg / cm² 738 738 830 876 876 1015 1153 738 876 1015 1291 876 738 876 1015
TENSIÓN 1,000 lb 1,100 1,100 1,237 1,301 1,301 1,512 1,673 1,100 1,306 1,512 1,858 1,301 1,100 1,301 1,512
BUTTRESS ton 499 499 561 590 590 686 759 499 592 686 843 590 499 590 686
psi 9,793 9,793 11,017 11,629 11,629 13,465 15,301 9,793 11,629 13,465 17,137 11,629 9,793 11,629 13,465
INTERNA kg / cm² 688 688 775 818 818 947 1076 688 818 947 1205 818 688 818 947
TENSIÓN 1,000 lb 735 774 774 813 813 967 774 851 967 813 735 813 967
BUTTRESS ton 333 351 351 369 369 439 351 386 439 369 333 369 439
psi 6,552 6,552 7,371 7,781 7,781 9,009 6,552 7,781 9,009 7,781 6,552 7,781 9,009
INTERNA kg / cm² 461 461 518 547 547 633 461 547 633 547 461 547 633
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm² 591 591 661 703 703 703 703 591 703 703 703 703 591 703 703
kg / cm² 548 548 619 654 654 703 703 548 654 703 703 654 548 654 703
kg / cm² 366 366 415 436 436 506 366 436 506 436 366 436 506

7 5/8 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 14,760 15,580 14,530 18,050 20,100 22,910 18,050 13,120 15,580 18,040
kg / cm² 1038 1095 1022 1269 1413 1611 1269 922 1095 1268
TENSIÓN 1,000 lb 1,348 1,423 1,198 1,423 1,647 2,096 1,423 1,198 1,423 1,647
ton 611 645 543 645 747 951 645 543 645 747
kg / cm² 998 1,053 887 1,053 1,219 1,552 1,053 887 1,053 1,219
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

7 5/8 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 15,960 16,850 15,990 20,200 22,220 24,780 20,200 14,190 16,850 19,510
kg / cm² 1122 1185 1124 1420 1562 1742 1420 998 1185 1372
TENSIÓN 1,000 lb 1,458 1,539 1,296 1,539 1,782 2,268 1,539 1,296 1,539 1,782
ton 661 698 588 698 808 1029 698 588 698 808
kg / cm² 1,089 1,150 968 1,150 1,331 1,694 1,150 968 1,150 1,331
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

196.85 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
7 3/4 ''
API DST-TAMSA
46.10 lb/ft 0.595 in 15.11 mm 11,340 11,340 12,750 13,320 13,320 15,000 16,590 12,170 14,600 16,670 19,500 14,600 11,340 13,320 15,000
46.10 lb/ft 0.595 in 15.11 mm 1,070 1,070 1,204 1,271 1,271 1,471 1,672 1,070 1,271 1,471 1,872 1,271 1,070 1,271 1,471
46.10 lb/ft 0.595 in 15.11 mm 10,750 10,750 12,090 12,760 12,760 14,780 16,790 10,750 12,760 14,780 18,810 12,760 10,750 12,760 14,780
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

7 3/4 ''
COPLE DIÁMETRO EXTERIOR NORMAL STC-LC-BC NO API NO API 15.11 mm
EL COPLE CORRESPONDERÍA A TUBO DE 7.625 VALORES DE COMPORTAMIENTO MÍNIMO POR GRADO DE ACERO
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 11,340 11,340 12,750 13,320 13,320 15,000 16,590 12,170 14,600 16,670 19,500 14,600 11,340 13,320 15,000
kg / cm² 797 797 896 936 936 1055 1166 856 1026 1172 1371 1026 797 936 1055
TENSIÓN 1,000 lb 1,070 1,070 1,204 1,271 1,271 1,471 1,672 1,070 1,271 1,471 1,872 1,271 1,070 1,271 1,471
ton 485 485 546 576 576 667 758 485 576 667 849 576 485 576 667
kg / cm² 756 756 850 897 897 1,039 1,180 756 897 1,039 1,322 897 756 897 1,039
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 9,800 9,800 10,000 10,000 10,000 10,000 10,000 9,800 10,000 10,000 10,000 10,000 9,800 10,000 10,000
kg / cm² 689 689 703 703 703 703 703 689 703 703 703 703 689 703 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

219.08 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
8 5/8 ''
API DST-TAMSA
24.00 lb/ft 0.264 in 6.71 mm 1,370 1,370 1,420 1,430 1,430 1,430
28.00 lb/ft 0.304 in 7.72 mm 1,610 2,020 2,160 2,210 2,210
32.00 lb/ft 0.352 in 8.94 mm 2,200 2,530 2,530 2,740 3,050 3,280 3,420
36.00 lb/ft 0.400 in 10.16 mm 3,450 3,450 3,760 4,100 4,100 4,250 4,350 4,350 4,100 4,350 4,690
40.00 lb/ft 0.450 in 11.43 mm 4,900 5,520 5,520 5,870 6,020 6,020 6,390 7,380 8,240 8,890 9,760 8,240 5,520 6,020 6,390
44.00 lb/ft 0.500 in 12.70 mm 6,950 6,950 7,490 7,740 7,740 8,420 8,640 9,700 11,030 12,270 9,700 6,950 7,740 8,420
49.00 lb/ft 0.557 in 14.15 mm 8,570 8,570 9,340 9,700 9,700 10,730 11,660 9,920 11,420 13,460 14,880 11,420 8,570 9,700 10,730
24.00 lb/ft 0.264 in 6.71 mm 381 381 451 555 659 763
28.00 lb/ft 0.304 in 7.72 mm 318 517 636 755 874
32.00 lb/ft 0.352 in 8.94 mm 366 503 503 595 732 869 1,006
36.00 lb/ft 0.400 in 10.16 mm 568 568 672 827 827 930 982 982 827 982 1,137
40.00 lb/ft 0.450 in 11.43 mm 751 925 925 1,040 1,098 1,098 1,271 925 1,098 1,271 1,618 1,098 925 1,098 1,271
44.00 lb/ft 0.500 in 12.70 mm 1,021 1,021 1,149 1,212 1,212 1,404 1,021 1,212 1,404 1,787 1,212 1,021 1,212 1,404
49.00 lb/ft 0.557 in 14.15 mm 1,129 1,129 1,271 1,341 1,341 1,553 1,765 1,129 1,341 1,553 1,977 1,341 1,129 1,341 1,553
24.00 lb/ft 0.264 in 6.71 mm 2,950 2,950 3,480 4,290 5,090 5,890
28.00 lb/ft 0.304 in 7.72 mm 2,470 4,010 4,930 5,860 6,780
32.00 lb/ft 0.352 in 8.94 mm 2,860 3,930 3,930 4,640 5,710 6,780 7,860
36.00 lb/ft 0.400 in 10.16 mm 4,460 4,460 5,280 6,490 6,490 7,300 7,710 7,710 6,490 7,710 8,930
40.00 lb/ft 0.450 in 11.43 mm 5,930 7,300 7,300 8,220 8,670 8,670 10,040 7,300 8,670 10,040 12,780 8,670 7,300 8,670 10,040
44.00 lb/ft 0.500 in 12.70 mm 8,120 8,120 9,130 9,640 9,640 11,160 8,120 9,640 11,160 14,200 9,640 8,120 9,640 11,160
49.00 lb/ft 0.557 in 14.15 mm 9,040 9,040 10,170 10,740 10,740 12,430 14,130 9,040 10,740 12,430 15,820 10,740 9,040 10,740 12,430
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

8 5/8 ''
FLUENCIA ksi 55 55 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 1,370 1,370 1,420 1,430 1,430 1,430
kg / cm² 96 96 100 101 101 101
TENSIÓN 1,000 lb 381 381 451 555 659 763
ton 173 173 204 252 299 346
kg / cm² 207 207 245 302 358 414
JUNTA API
TENSIÓN 1,000 lb 244 263 285
ROSCA ton 111 119 129
psi 2,950 2,950 3,480
INTERNA kg / cm² 207 207 245
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,700 2,700 3,200 3,900 4,700 5,400
kg / cm² 190 190 225 274 330 380
kg / cm² 190 190 225
kg / cm²
kg / cm²
kg / cm²

8 5/8 ''
FLUENCIA ksi 40 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 1,610 2,020 2,160 2,210 2,210
kg / cm² 113 142 152 155 155
TENSIÓN 1,000 lb 318 517 636 755 874
ton 144 234 288 342 397
kg / cm² 174 282 347 412 477
JUNTA API
TENSIÓN 1,000 lb 233 362
ROSCA ton 106 164
psi 2,470 4,010
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,300 3,700 4,500 5,400 6,200
kg / cm² 162 260 316 380 436
kg / cm² 162 260
kg / cm²
kg / cm²
kg / cm²

8 5/8 ''
FLUENCIA ksi 40 55 55 65 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 28 39 39 46 56 67 77
RESISTENCIA ksi 60 75 95 85 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 42 53 67 60 67 74 88
CUERPO DE TUBO
COLAPSO psi 2,200 2,530 2,530 2,740 3,050 3,280 3,420
kg / cm² 155 178 178 193 214 231 240
TENSIÓN 1,000 lb 366 503 503 595 732 869 1,006
ton 166 228 228 270 332 394 456
PRESIÓN INTERNA psi 2,860 3,930 3,930 4,640 5,710 6,780 7,860
kg / cm² 201 276 276 326 401 477 553
JUNTA API
TENSIÓN 1,000 lb 279 372 402 435
ROSCA ton 127 169 183 197
psi 2,860 3,930 3,930 4,640
INTERNA kg / cm² 201 276 276 326
TENSIÓN 1,000 lb 417 452 487
ROSCA ton 189 205 221
psi 3,930 3,930 4,640
INTERNA kg / cm² 276 276 326
TENSIÓN 1,000 lb 503 503 595
psi 3,930 3,930 4,640
INTERNA kg / cm² 276 276 326
TENSIÓN 1,000 lb 503 503
psi 3,930 3,930
TUBO LISO psi 2,600 3,000 3,000 4,200 5,200 6,200 7,200
kg / cm² 183 211 211 295 366 436 506
kg / cm² 183 211 211 295
kg / cm² 211 211 295
kg / cm² 211 211 295
BUTTRESS COPLE REBAJADO psi 3,000 3,000
kg / cm² 211 211

8 5/8 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 80 95 110
RESISTENCIA ksi 75 95 85 95 100 100 105 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 53 67 60 67 70 70 74 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 3,450 3,450 3,760 4,100 4,100 4,250 4,350 4,350 4,100 4,350 4,690
kg / cm² 243 243 264 288 288 299 306 306 288 306 330
TENSIÓN 1,000 lb 568 568 672 827 827 930 982 982 827 982 1,137
ton 258 258 305 375 375 422 445 445 375 445 516
kg / cm² 314 314 371 456 456 513 542 542 456 542 628
JUNTA API
TENSIÓN 1,000 lb 434 468 506
ROSCA ton 197 212 230
psi 4,460 4,460 5,280
INTERNA kg / cm² 314 314 371
TENSIÓN 1,000 lb 486 526 567 678 688 749 789 789 678 789 921
ROSCA ton 220 239 257 308 312 340 358 358 308 358 418
psi 4,460 4,460 5,280 6,490 6,490 7,300 7,710 7,710 6,490 7,710 8,930
INTERNA kg / cm² 314 314 371 456 456 513 542 542 456 542 628
TENSIÓN 1,000 lb 568 568 672 827 827 928 976 976 827 976 1,137
BUTTRESS ton 258 258 305 375 375 421 443 443 375 443 516
psi 4,460 4,460 5,280 6,490 6,490 7,300 7,710 7,710 6,490 7,710 8,930
INTERNA kg / cm² 314 314 371 456 456 513 542 542 456 542 628
TENSIÓN 1,000 lb 568 568 827 827 883 927 927 827 927 1,104
BUTTRESS ton 258 258 375 375 401 421 421 375 421 501
psi 4,058 4,058 5,903 5,903 6,641 7,010 7,010 5,903 7,010 8,116
INTERNA kg / cm² 285 285 415 415 467 493 493 415 493 571
TUBO LISO psi 3,000 3,000 4,800 5,900 5,900 6,700 7,000 7,000 5,900 7,000 8,200
kg / cm² 211 211 337 415 415 471 492 492 415 492 577
kg / cm² 211 211 337
kg / cm² 211 211 337 415 415 471 492 492 415 492 577
kg / cm² 211 211 337 415 415 471 492 492 415 492 577
BUTTRESS COPLE REBAJADO psi 3,000 3,000 4,700 4,700 5,300 5,600 5,600 4,700 5,600 6,300
kg / cm² 211 211 330 330 373 394 394 330 394 443

8 5/8 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 4,900 5,520 5,520 5,870 6,020 6,020 6,390 7,380 8,240 8,890 9,760 8,240 5,520 6,020 6,390
kg / cm² 345 388 388 413 423 423 449 519 579 625 686 579 388 423 449
TENSIÓN 1,000 lb 751 925 925 1,040 1,098 1,098 1,271 925 1,098 1,271 1,618 1,098 925 1,098 1,271
ton 341 419 419 472 498 498 577 419 498 577 734 498 419 498 577
kg / cm² 417 513 513 578 610 610 706 513 610 706 899 610 513 610 706
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 649 776 788 858 904 904 1,055 788 916 1,055 1,321 904 776 904 1,055
ROSCA ton 294 352 357 389 410 410 478 357 415 478 599 410 352 410 478
psi 5,930 7,300 7,300 8,220 8,670 8,670 10,040 7,300 8,670 10,040 12,780 8,670 7,300 8,670 10,040
INTERNA kg / cm² 417 513 513 578 610 610 706 513 610 706 899 610 513 610 706
TENSIÓN 1,000 lb 751 925 925 1,038 1,092 1,092 1,271 925 1,098 1,271 1,576 1,092 925 1,092 1,271
BUTTRESS ton 341 419 419 471 495 495 577 419 498 577 715 495 419 495 577
psi 5,930 7,300 7,300 8,220 8,670 8,670 10,040 7,300 8,670 10,040 12,780 8,670 7,300 8,670 10,040
INTERNA kg / cm² 417 513 513 578 610 610 706 513 610 706 899 610 513 610 706
TENSIÓN 1,000 lb 839 883 883 927 927 1,104 883 971 1,104 927 839 927 1,104
BUTTRESS ton 380 401 401 421 421 501 401 441 501 421 380 421 501
psi 5,903 5,903 6,641 7,010 7,010 8,116 5,903 7,010 8,116 7,010 5,903 7,010 8,116
INTERNA kg / cm² 415 415 467 493 493 571 415 493 571 493 415 493 571
TUBO LISO psi 5,400 6,700 6,700 7,500 7,900 7,900 9,200 6,700 7,900 9,200 10,000 7,900 6,700 7,900 9,200
kg / cm² 380 471 471 527 555 555 647 471 555 647 703 555 471 555 647
kg / cm²
kg / cm² 380 471 471 527 555 555 647 471 555 647 703 555 471 555 647
kg / cm² 380 471 471 527 555 555 647 471 555 647 703 555 471 555 647
kg / cm² 330 330 373 394 394 443 330 394 443 394 330 394 443

8 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 6,950 6,950 7,490 7,740 7,740 8,420 8,640 9,700 11,030 12,270 9,700 6,950 7,740 8,420
kg / cm² 489 489 527 544 544 592 607 682 775 863 682 489 544 592
TENSIÓN 1,000 lb 1,021 1,021 1,149 1,212 1,212 1,404 1,021 1,212 1,404 1,787 1,212 1,021 1,212 1,404
ton 463 463 521 550 550 637 463 550 637 810 550 463 550 637
kg / cm² 571 571 642 678 678 785 571 678 785 998 678 571 678 785
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 874 887 965 1,017 1,017 1,186 887 1,030 1,186 1,486 1,017 874 1,017 1,186
ROSCA ton 396 402 438 461 461 538 402 467 538 674 461 396 461 538
LEAK psi 8 120 8 120 9 130 9 640 9 640 10 377 8 120 9 640 10 377 10 377 9 640 8 120 9 640 10 377
RESISTANCE kg / cm² 571 571 642 678 678 730 571 678 730 730 678 571 678 730
psi 8,120 8,120 9,130 9,640 9,640 11,160 8,120 9,640 11,160 14,200 9,640 8,120 9,640 11,160
INTERNA kg / cm² 571 571 642 678 678 785 571 678 785 998 678 571 678 785
TENSIÓN 1,000 lb 1,021 1,021 1,146 1,206 1,206 1,404 1,021 1,212 1,404 1,740 1,206 1,021 1,206 1,404
BUTTRESS ton 463 463 520 547 547 637 463 550 637 789 547 463 547 637
LEAK psi 8 120 8 120 9 130 9 640 9 640 11 160 8 120 9 640 11 160 11 231 9 640 8 120 9 640 11 160
RESISTANCE kg / cm² 571 571 642 678 678 785 571 678 785 790 678 571 678 785
psi 8,120 8,120 9,130 9,640 9,640 11,160 8,120 9,640 11,160 14,200 9,640 8,120 9,640 11,160
INTERNA kg / cm² 571 571 642 678 678 785 571 678 785 998 678 571 678 785
TENSIÓN 1,000 lb 839 883 883 927 927 1,104 883 971 1,104 927 839 927 1,104
BUTTRESS ton 380 401 401 421 421 501 401 441 501 421 380 421 501
LEAK psi 5 903 5 903 6 343 6 343 6 343 6 343 5 903 6 343 6 343 6 343 5 903 6 343 6 343
RESISTANCE kg / cm² 415 415 446 446 446 446 415 446 446 446 415 446 446
psi 5,903 5,903 6,641 7,010 7,010 8,116 5,903 7,010 8,116 7,010 5,903 7,010 8,116
INTERNA kg / cm² 415 415 467 493 493 571 415 493 571 493 415 493 571
TUBO LISO psi 7,400 7,400 8,300 8,800 8,800 10,000 7,400 8,800 10,000 10,000 8,800 7,400 8,800 10,000
kg / cm² 520 520 584 619 619 703 520 619 703 703 619 520 619 703
kg / cm²
kg / cm² 520 520 584 619 619 703 520 619 703 703 619 520 619 703
kg / cm² 520 520 584 619 619 703 520 619 703 703 619 520 619 703
kg / cm² 330 330 373 394 394 443 330 394 443 394 330 394 443

8 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 8,570 8,570 9,340 9,700 9,700 10,730 11,660 9,920 11,420 13,460 14,880 11,420 8,570 9,700 10,730
kg / cm² 603 603 657 682 682 754 820 697 803 946 1046 803 603 682 754
TENSIÓN 1,000 lb 1,129 1,129 1,271 1,341 1,341 1,553 1,765 1,129 1,341 1,553 1,977 1,341 1,129 1,341 1,553
ton 512 512 576 608 608 704 800 512 608 704 897 608 512 608 704
kg / cm² 636 636 715 755 755 874 993 636 755 874 1,112 755 636 755 874
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 983 997 1,085 1,144 1,144 1,335 1,496 997 1,159 1,335 1,672 1,144 983 1,144 1,335
ROSCA ton 446 452 492 519 519 605 679 452 526 605 758 519 446 519 605
psi 9,040 9,040 10,170 10,740 10,740 12,430 14,130 9,040 10,740 12,430 15,820 10,740 9,040 10,740 12,430
INTERNA kg / cm² 636 636 715 755 755 874 993 636 755 874 1112 755 636 755 874
TENSIÓN 1,000 lb 1,129 1,129 1,268 1,334 1,334 1,553 1,728 1,129 1,341 1,553 1,925 1,334 1,129 1,334 1,553
BUTTRESS ton 512 512 575 605 605 704 784 512 608 704 873 605 512 605 704
psi 9,040 9,040 10,170 10,740 10,740 12,430 14,130 9,040 10,740 12,430 15,820 10,740 9,040 10,740 12,430
INTERNA kg / cm² 636 636 715 755 755 874 993 636 755 874 1112 755 636 755 874
TENSIÓN 1,000 lb 839 883 883 927 927 1,104 883 971 1,104 927 839 927 1,104
BUTTRESS ton 380 401 401 421 421 501 401 441 501 421 380 421 501
psi 5,903 5,903 6,641 7,010 7,010 8,116 5,903 7,010 8,116 7,010 5,903 7,010 8,116
INTERNA kg / cm² 415 415 467 493 493 571 415 493 571 493 415 493 571
TUBO LISO psi 8,300 8,300 9,300 9,800 9,800 10,000 10,000 8,300 9,800 10,000 10,000 9,800 8,300 9,800 10,000
kg / cm² 584 584 654 689 689 703 703 584 689 703 703 689 584 689 703
kg / cm²
kg / cm² 584 584 654 689 689 703 703 584 689 703 703 689 584 689 703
kg / cm² 548 548 619 654 654 703 703 548 654 703 703 654 548 654 703
kg / cm² 330 330 373 394 394 443 330 394 443 394 330 394 443

244.48 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
9 5/8 ''
API DST-TAMSA
32.30 lb/ft 0.312 in 7.92 mm 1,370
36.00 lb/ft 0.352 in 8.94 mm 1,720 2,020 2,020 2,190 2,370 2,460 2,470
40.00 lb/ft 0.395 in 10.03 mm 2,570 2,570 2,770 3,090 3,090 3,260 3,330 3,330 4,330 4,560 4,950 5,290 4,560 3,090 3,330 3,470
43.50 lb/ft 0.435 in 11.05 mm 3,530 3,810 3,810 4,010 4,130 4,130 4,420 5,610 5,880 6,370 6,920 5,880 3,810 4,130 4,420
47.00 lb/ft 0.472 in 11.99 mm 4,280 4,750 4,750 4,990 5,090 5,090 5,300 5,630 6,600 7,270 7,750 8,500 7,270 4,750 5,090 5,300
53.50 lb/ft 0.545 in 13.84 mm 6,620 6,620 7,110 7,340 7,340 7,950 8,440 8,360 8,850 10,200 11,400 9,350 6,620 7,340 7,950
58.40 lb/ft 0.595 in 15.11 mm 7,890 7,890 8,570 8,890 8,890 9,770 10,540 9,380 10,700 12,450 13,810 10,700 7,890 8,890 9,770
59.40 lb/ft 0.609 in 15.47 mm 8,970 9,320 9,660 11,070 12,980 14,370 11,070 8,250 9,320 10,280
64.90 lb/ft 0.672 in 17.07 mm 10,800 11,260 10,910 12,820 14,890 16,880 12,820 9,860 11,260 12,570
32.30 lb/ft 0.312 in 7.92 mm 365
36.00 lb/ft 0.352 in 8.94 mm 410 564 564 667 820 974 1,128
40.00 lb/ft 0.395 in 10.03 mm 630 630 744 916 916 1,031 1,088 1,088 916 1,088 1,260 1,604 1,088 916 1,088 1,260
43.50 lb/ft 0.435 in 11.05 mm 816 1,005 1,005 1,130 1,193 1,193 1,381 1,005 1,193 1,381 1,758 1,193 1,005 1,193 1,381
47.00 lb/ft 0.472 in 11.99 mm 882 1,086 1,086 1,222 1,289 1,289 1,493 1,697 1,086 1,289 1,493 1,900 1,289 1,086 1,289 1,493
53.50 lb/ft 0.545 in 13.84 mm 1,244 1,244 1,399 1,477 1,477 1,710 1,943 1,244 1,477 1,710 2,177 1,477 1,244 1,477 1,710
58.40 lb/ft 0.595 in 15.11 mm 1,350 1,350 1,519 1,604 1,604 1,857 2,110 1,350 1,604 1,857 2,363 1,604 1,350 1,604 1,857
59.40 lb/ft 0.609 in 15.47 mm 1,552 1,639 1,380 1,639 1,897 2,415 1,639 1,380 1,639 1,897
64.90 lb/ft 0.672 in 17.07 mm 1,701 1,796 1,512 1,796 2,079 2,646 1,796 1,512 1,796 2,079
32.30 lb/ft 0.312 in 7.92 mm 2,270
36.00 lb/ft 0.352 in 8.94 mm 2,560 3,520 3,520 4,160 5,120 6,080 7,040
40.00 lb/ft 0.395 in 10.03 mm 3,950 3,950 4,670 5,750 5,750 6,460 6,820 6,820 5,750 6,820 7,900 10,050 6,820 5,750 6,820 7,900
43.50 lb/ft 0.435 in 11.05 mm 5,140 6,330 6,330 7,120 7,510 7,510 8,700 6,330 7,510 8,700 11,070 7,510 6,330 7,510 8,700
47.00 lb/ft 0.472 in 11.99 mm 5,580 6,870 6,870 7,720 8,150 8,150 9,440 10,730 6,870 8,150 9,440 12,010 8,150 6,870 8,150 9,440
53.50 lb/ft 0.545 in 13.84 mm 7,930 7,930 8,920 9,410 9,410 10,900 12,390 7,930 9,410 10,900 13,870 9,410 7,930 9,410 10,900
58.40 lb/ft 0.595 in 15.11 mm 8,650 8,650 9,740 10,280 10,280 11,900 13,520 8,650 10,280 11,900 15,150 10,280 8,650 10,280 11,900
59.40 lb/ft 0.609 in 15.47 mm 9,970 10,520 8,860 10,520 12,180 15,500 10,520 8,860 10,520 12,180
64.90 lb/ft 0.672 in 17.07 mm 11,000 11,610 9,770 11,610 13,440 17,110 11,610 9,770 11,610 13,440
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

9 5/8 ''
FLUENCIA ksi 40
RESISTENCIA ksi 60
CUERPO DE TUBO
COLAPSO psi 1,370
kg / cm² 96
ton 166
kg / cm² 160
JUNTA API
ROSCA ton 115
psi 2,270
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,100
kg / cm² 148
kg / cm² 148
kg / cm²
kg / cm²
kg / cm²

9 5/8 ''
FLUENCIA ksi 40 55 55 65 80 95 110
RESISTENCIA ksi 60 75 95 85 95 105 125
CUERPO DE TUBO
COLAPSO psi 1,720 2,020 2,020 2,190 2,370 2,460 2,470
kg / cm² 121 142 142 154 167 173 174
TENSIÓN 1,000 lb 410 564 564 667 820 974 1,128
ton 186 256 256 302 372 442 512
kg / cm² 180 247 247 292 360 427 495
JUNTA API
TENSIÓN 1,000 lb 294 394 423 460
ROSCA ton 134 179 192 209
psi 2,560 3,520 3,520 4,160
INTERNA kg / cm² 180 247 247 292
TENSIÓN 1,000 lb 453 489 529 634 738 861
ROSCA ton 205 222 240 287 335 390
psi 3,520 3,520 4,160 5,120 6,080 7,040
INTERNA kg / cm² 247 247 292 360 427 495
TENSIÓN 1,000 lb 564 564 667 820 962 1,128
BUTTRESS ton 256 256 302 372 436 512
psi 3,520 3,520 4,160 5,120 6,080 7,040
INTERNA kg / cm² 247 247 292 360 427 495
TENSIÓN 1,000 lb 564 564 667 820 962 1,128
BUTTRESS ton 256 256 302 372 436 512
psi 3,520 3,520 4,160 5,120 6,080 7,040
INTERNA kg / cm² 247 247 292 360 427 495
TUBO LISO psi 2,300 3,000 3,000 3,800 4,700 5,600 6,400
kg / cm² 162 211 211 267 330 394 450
kg / cm² 162 211 211 267
ROSCA REDONDA LARGA psi 3,000 3,000 3,800 4,700 5,600 6,400
kg / cm² 211 211 267 330 394 450
BUTTRESS COPLE NORMAL psi 3,000 3,000 3,800 4,700 5,600 6,400
kg / cm² 211 211 267 330 394 450
BUTTRESS COPLE REBAJADO psi 2,900 2,900 3,800 4,300 5,100 5,100
kg / cm² 204 204 267 302 359 359

9 5/8 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 3,530 3,810 3,810 4,010 4,130 4,130 4,420 5,610 5,880 6,370 6,920 5,880 3,810 4,130 4,420
kg / cm² 248 268 268 282 290 290 311 394 413 448 487 413 268 290 311
TENSIÓN 1,000 lb 816 1,005 1,005 1,130 1,193 1,193 1,381 1,005 1,193 1,381 1,758 1,193 1,005 1,193 1,381
ton 370 456 456 513 541 541 627 456 541 627 798 541 456 541 627
kg / cm² 361 445 445 501 528 528 612 445 528 612 778 528 445 528 612
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 679 813 825 899 948 948 1,105 825 959 1,105 1,386 948 813 948 1,105
ROSCA ton 308 369 374 408 430 430 501 374 435 501 628 430 369 430 501
psi 5,140 6,330 6,330 7,120 7,510 7,510 8,700 6,330 7,510 8,700 11,070 7,510 6,330 7,510 8,700
INTERNA kg / cm² 361 445 445 501 528 528 612 445 528 612 778 528 445 528 612
TENSIÓN 1,000 lb 816 1,005 1,005 1,119 1,178 1,178 1,381 1,005 1,193 1,381 1,702 1,178 1,005 1,178 1,381
BUTTRESS ton 370 456 456 508 534 534 627 456 541 627 772 534 456 534 627
psi 5,140 6,330 6,330 7,120 7,510 7,510 8,700 6,330 7,510 8,700 11,070 7,510 6,330 7,510 8,700
INTERNA kg / cm² 361 445 445 501 528 528 612 445 528 612 778 528 445 528 612
TENSIÓN 1,000 lb 816 934 983 983 1,033 1,033 1,229 983 1,082 1,229 1,033 934 1,033 1,229
BUTTRESS ton 370 424 446 446 468 468 558 446 491 558 468 424 468 558
psi 5,140 5,320 5,320 5,985 6,317 6,317 7,315 5,320 6,317 7,315 6,317 5,320 6,317 7,315
INTERNA kg / cm² 361 374 374 421 444 444 514 374 444 514 444 374 444 514
TUBO LISO psi 4,700 5,800 5,800 6,500 6,900 6,900 8,000 5,800 6,900 8,000 10,000 6,900 5,800 6,900 8,000
kg / cm² 330 408 408 457 485 485 562 408 485 562 703 485 408 485 562
kg / cm²
kg / cm² 330 408 408 457 485 485 562 408 485 562 682 485 408 485 562
kg / cm² 330 408 408 457 485 485 562 408 485 562 647 485 408 485 562
kg / cm² 302 302 302 337 359 359 359 302 359 359 359 302 359 359

9 5/8 ''
FLUENCIA ksi 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 4,280 4,750 4,750 4,990 5,090 5,090 5,300 5,630 6,600 7,270 7,750 8,500 7,270 4,750 5,090 5,300
kg / cm² 301 334 334 351 358 358 373 396 464 511 545 598 511 334 358 373
TENSIÓN 1,000 lb 882 1,086 1,086 1,222 1,289 1,289 1,493 1,697 1,086 1,289 1,493 1,900 1,289 1,086 1,289 1,493
ton 400 493 493 554 585 585 677 770 493 585 677 862 585 493 585 677
kg / cm² 392 483 483 543 573 573 664 754 483 573 664 844 573 483 573 664
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 745 893 905 987 1,040 1,040 1,213 1,360 905 1,053 1,213 1,520 1,040 893 1,040 1,213
ROSCA ton 338 405 411 448 472 472 550 617 411 478 550 690 472 405 472 550
psi 5,580 6,870 6,870 7,720 8,150 8,150 9,440 10,730 6,870 8,150 9,440 12,010 8,150 6,870 8,150 9,440
INTERNA kg / cm² 392 483 483 543 573 573 664 754 483 573 664 844 573 483 573 664
TENSIÓN 1,000 lb 882 1,086 1,086 1,210 1,273 1,273 1,493 1,650 1,086 1,289 1,493 1,839 1,273 1,086 1,273 1,493
BUTTRESS ton 400 493 493 549 577 577 677 749 493 585 677 834 577 493 577 677
psi 5,580 6,870 6,870 7,720 8,150 8,150 9,440 10,730 6,870 8,150 9,440 12,010 8,150 6,870 8,150 9,440
INTERNA kg / cm² 392 483 483 543 573 573 664 754 483 573 664 844 573 483 573 664
TENSIÓN 1,000 lb 882 934 983 983 1,033 1,033 1,229 983 1,082 1,229 1,033 934 1,033 1,229
BUTTRESS ton 400 424 446 446 468 468 558 446 491 558 468 424 468 558
psi 5,320 5,320 5,320 5,985 6,317 6,317 7,315 5,320 6,317 7,315 6,317 5,320 6,317 7,315
INTERNA kg / cm² 374 374 374 421 444 444 514 374 444 514 444 374 444 514
TUBO LISO psi 5,100 6,300 6,300 7,100 7,500 7,500 8,600 9,800 6,300 7,500 8,600 10,000 7,500 6,300 7,500 8,600
kg / cm² 359 443 443 499 527 527 605 689 443 527 605 703 527 443 527 605
kg / cm²
kg / cm² 359 443 443 499 527 527 605 682 443 527 605 682 527 443 527 605
kg / cm² 359 443 443 499 527 527 605 647 443 527 605 647 527 443 527 605
kg / cm² 302 302 302 337 359 359 359 302 359 359 359 302 359 359

9 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 6,620 6,620 7,110 7,340 7,340 7,950 8,440 8,360 8,850 10,200 11,400 9,350 6,620 7,340 7,950
kg / cm² 465 465 500 516 516 559 593 588 622 717 801 657 465 516 559
TENSIÓN 1,000 lb 1,244 1,244 1,399 1,477 1,477 1,710 1,943 1,244 1,477 1,710 2,177 1,477 1,244 1,477 1,710
ton 564 564 635 670 670 776 881 564 670 776 987 670 564 670 776
kg / cm² 558 558 627 662 662 766 871 558 662 766 975 662 558 662 766
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,047 1,062 1,157 1,220 1,220 1,422 1,595 1,062 1,235 1,422 1,783 1,220 1,047 1,220 1,422
ROSCA ton 475 481 525 553 553 645 723 481 560 645 809 553 475 553 645
LEAK psi 7 930 7 930 8 461 8 461 8 461 9 709 9 709 7 930 8 461 9 709 9 709 8 461 7 930 8 461 9 709
RESISTANCE kg / cm² 558 558 595 595 595 683 683 558 595 683 683 595 558 595 683
psi 7,930 7,930 8,920 9,410 9,410 10,900 12,390 7,930 9,410 10,900 13,870 9,410 7,930 9,410 10,900
INTERNA kg / cm² 558 558 627 662 662 766 871 558 662 766 975 662 558 662 766
TENSIÓN 1,000 lb 1,244 1,244 1,386 1,458 1,458 1,710 1,890 1,244 1,477 1,710 2,107 1,458 1,244 1,458 1,710
BUTTRESS ton 564 564 629 661 661 776 857 564 670 776 956 661 564 661 776
LEAK psi 7 930 7 930 8 920 9 161 9 161 9 161 9 161 7 930 9 161 9 161 9 161 9 161 7 930 9 161 9 161
RESISTANCE kg / cm² 558 558 627 644 644 644 644 558 644 644 644 644 558 644 644
psi 7,930 7,930 8,920 9,410 9,410 10,900 12,390 7,930 9,410 10,900 13,870 9,410 7,930 9,410 10,900
INTERNA kg / cm² 558 558 627 662 662 766 871 558 662 766 975 662 558 662 766
TENSIÓN 1,000 lb 934 983 983 1,033 1,033 1,229 983 1,082 1,229 1,033 934 1,033 1,229
BUTTRESS ton 424 446 446 468 468 558 446 491 558 468 424 468 558
LEAK psi 5 135 5 135 5 135 5 135 5 135 5 135 5 135 5 135 5 135 5 135 5 135 5 135 5 135
RESISTANCE kg / cm² 361 361 361 361 361 361 361 361 361 361 361 361 361
psi 5,320 5,320 5,985 6,317 6,317 7,315 5,320 6,317 7,315 6,317 5,320 6,317 7,315
INTERNA kg / cm² 374 374 421 444 444 514 374 444 514 444 374 444 514
TUBO LISO psi 7,200 7,200 8,200 8,600 8,600 10,000 10,000 7,200 8,600 10,000 10,000 8,600 7,200 8,600 10,000
kg / cm² 506 506 577 605 605 703 703 506 605 703 703 605 506 605 703
kg / cm²
kg / cm² 506 506 577 598 598 682 682 506 598 682 682 598 506 598 682
kg / cm² 499 499 562 591 591 647 647 499 591 647 647 591 499 591 647
kg / cm² 302 302 337 359 359 359 302 359 359 359 302 359 359

9 5/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 7,890 7,890 8,570 8,890 8,890 9,770 10,540 9,380 10,700 12,450 13,810 10,700 7,890 8,890 9,770
kg / cm² 555 555 603 625 625 687 741 659 752 875 971 752 555 625 687
TENSIÓN 1,000 lb 1,350 1,350 1,519 1,604 1,604 1,857 2,110 1,350 1,604 1,857 2,363 1,604 1,350 1,604 1,857
ton 613 613 689 727 727 842 957 613 727 842 1072 727 613 727 842
kg / cm² 608 608 685 723 723 837 951 608 723 837 1,065 723 608 723 837
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,151 1,167 1,272 1,341 1,341 1,563 1,754 1,167 1,357 1,563 1,960 1,341 1,151 1,341 1,563
ROSCA ton 522 529 577 608 608 709 795 529 616 709 889 608 522 608 709
psi 8,650 8,650 9,740 10,280 10,280 11,900 13,520 8,650 10,280 11,900 15,150 10,280 8,650 10,280 11,900
INTERNA kg / cm² 608 608 685 723 723 837 951 608 723 837 1065 723 608 723 837
TENSIÓN 1,000 lb 1,350 1,350 1,505 1,583 1,583 1,857 2,052 1,350 1,604 1,857 2,287 1,583 1,350 1,583 1,857
BUTTRESS ton 613 613 682 718 718 842 931 613 727 842 1,038 718 613 718 842
psi 8,650 8,650 9,740 10,280 10,280 11,900 13,520 8,650 10,280 11,900 15,150 10,280 8,650 10,280 11,900
INTERNA kg / cm² 608 608 685 723 723 837 951 608 723 837 1065 723 608 723 837
TENSIÓN 1,000 lb 934 983 983 1,033 1,033 1,229 983 1,082 1,229 1,033 934 1,033 1,229
BUTTRESS ton 424 446 446 468 468 558 446 491 558 468 424 468 558
psi 5,320 5,320 5,985 6,317 6,317 7,315 5,320 6,317 7,315 6,317 5,320 6,317 7,315
INTERNA kg / cm² 374 374 421 444 444 514 374 444 514 444 374 444 514
TUBO LISO psi 7,900 7,900 8,900 9,400 9,400 10,000 10,000 7,900 9,400 10,000 10,000 9,400 7,900 9,400 10,000
kg / cm² 555 555 626 661 661 703 703 555 661 703 703 661 555 661 703
kg / cm²
kg / cm² 541 541 598 598 598 682 682 541 598 682 682 598 541 598 682
kg / cm² 499 499 562 591 591 647 647 499 591 647 647 591 499 591 647
kg / cm² 302 302 337 359 359 359 302 359 359 359 302 359 359

9 5/8 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 8,970 9,320 9,660 11,070 12,980 14,370 11,070 8,250 9,320 10,280
kg / cm² 631 655 679 778 913 1010 778 580 655 723
TENSIÓN 1,000 lb 1,552 1,639 1,380 1,639 1,897 2,415 1,639 1,380 1,639 1,897
ton 704 743 626 743 861 1095 743 626 743 861
kg / cm² 701 740 623 740 856 1,090 740 623 740 856
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 9,100 9,600 8,100 9,600 10,000 10,000 9,600 8,100 9,600 10,000
kg / cm² 640 675 569 675 703 703 675 569 675 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

9 5/8 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 10,800 11,260 10,910 12,820 14,890 16,880 12,820 9,860 11,260 12,570
kg / cm² 759 792 767 901 1047 1187 901 693 792 884
TENSIÓN 1,000 lb 1,701 1,796 1,512 1,796 2,079 2,646 1,796 1,512 1,796 2,079
ton 772 814 686 814 943 1200 814 686 814 943
kg / cm² 773 816 687 816 945 1,203 816 687 816 945
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 8,900 10,000 10,000 10,000 10,000 8,900 10,000 10,000
kg / cm² 703 703 626 703 703 703 703 626 703 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

9 5/8 ''
FLUENCIA ksi
RESISTENCIA ksi
CUERPO DE TUBO
COLAPSO psi
kg / cm²
TENSIÓN 1,000 lb
ton
kg / cm²
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi
kg / cm²
kg / cm²
kg / cm²
kg / cm²
kg / cm²

247.65 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
9 3/4 ''
API DST-TAMSA
59.20 lb/ft 0.595 in 15.11 mm 7,700 7,700 8,350 8,650 8,650 9,490 10,220 9,230 10,490 12,160 13,500 10,490 7,700 8,650 9,490
59.20 lb/ft 0.595 in 15.11 mm 1,369 1,369 1,540 1,626 1,626 1,882 2,139 1,369 1,626 1,882 2,396 1,626 1,369 1,626 1,882
59.20 lb/ft 0.595 in 15.11 mm 8,540 8,540 9,610 10,150 10,150 11,750 13,350 8,540 10,150 11,750 14,950 10,150 8,540 10,150 11,750
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

9 3/4 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 7,700 7,700 8,350 8,650 8,650 9,490 10,220 9,230 10,490 12,160 13,500 10,490 7,700 8,650 9,490
kg / cm² 541 541 587 608 608 667 719 649 738 855 949 738 541 608 667
TENSIÓN 1,000 lb 1,369 1,369 1,540 1,626 1,626 1,882 2,139 1,369 1,626 1,882 2,396 1,626 1,369 1,626 1,882
ton 621 621 699 737 737 854 970 621 737 854 1087 737 621 737 854
kg / cm² 600 600 676 714 714 826 939 600 714 826 1,051 714 600 714 826
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 7,800 7,800 8,800 9,300 9,300 10,000 10,000 7,800 9,300 10,000 10,000 9,300 7,800 9,300 10,000
kg / cm² 548 548 619 654 654 703 703 548 654 703 703 654 548 654 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

250.83 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
9 7/8 ''
API DST-TAMSA
62.80 lb/ft 0.625 in 15.88 mm 8,260 8,260 8,980 9,320 9,320 10,280 11,140 9,670 11,080 12,990 14,380 11,080 8,260 9,320 10,280
62.80 lb/ft 0.625 in 15.88 mm 1,453 1,453 1,635 1,725 1,725 1,998 2,270 1,453 1,725 1,998 2,543 1,725 1,453 1,725 1,998
62.80 lb/ft 0.625 in 15.88 mm 8,860 8,860 9,970 10,520 10,520 12,180 13,840 8,860 10,520 12,180 15,510 10,520 8,860 10,520 12,180
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

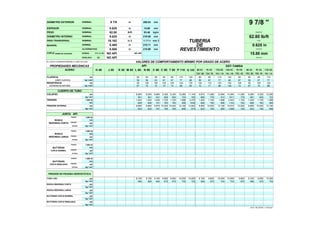

9 7/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 8,260 8,260 8,980 9,320 9,320 10,280 11,140 9,670 11,080 12,990 14,380 11,080 8,260 9,320 10,280
kg / cm² 581 581 631 655 655 723 783 680 779 913 1011 779 581 655 723
TENSIÓN 1,000 lb 1,453 1,453 1,635 1,725 1,725 1,998 2,270 1,453 1,725 1,998 2,543 1,725 1,453 1,725 1,998
ton 659 659 741 783 783 906 1030 659 783 906 1153 783 659 783 906
kg / cm² 623 623 701 740 740 856 973 623 740 856 1,090 740 623 740 856
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 8,100 8,100 9,100 9,600 9,600 10,000 10,000 8,100 9,600 10,000 10,000 9,600 8,100 9,600 10,000
kg / cm² 569 569 640 675 675 703 703 569 675 703 703 675 569 675 703
kg / cm²
kg / cm²
kg / cm²
kg / cm²

273.05 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
10 3/4 ''
API DST-TAMSA
32.75 lb/ft 0.279 in 7.09 mm 840
40.50 lb/ft 0.350 in 8.89 mm 1,390 1,580 1,580 1,670 1,730 1,730 1,730
45.50 lb/ft 0.400 in 10.16 mm 2,090 2,090 2,270 2,470 2,590 2,610
51.00 lb/ft 0.450 in 11.43 mm 2,710 2,710 2,870 3,220 3,220 3,400 3,480 3,480 3,660 4,620 4,830 5,230 5,600 4,830 3,220 3,480 3,660
55.50 lb/ft 0.495 in 12.57 mm 3,690 4,020 4,020 4,160 4,290 4,290 4,610 5,830 6,200 6,670 7,260 6,200 4,020 4,290 4,610
60.70 lb/ft 0.545 in 13.84 mm 5,460 5,580 5,880 6,070 7,020 7,810 8,350 9,190 7,810 5,160 5,580 5,880
65.70 lb/ft 0.595 in 15.11 mm 6,760 6,970 7,500 7,920 8,100 9,020 10,060 11,180 9,020 6,300 6,970 7,500
73.20 lb/ft 0.672 in 17.07 mm 8,760 9,090 9,520 10,880 12,700 14,080 10,880 8,060 9,090 10,010
79.20 lb/ft 0.734 in 18.64 mm 10,370 10,800 10,630 12,400 14,490 16,300 12,400 9,480 10,800 12,030
85.30 lb/ft 0.797 in 20.24 mm 12,010 12,540 11,690 13,910 16,000 18,510 13,910 10,920 12,540 14,080
32.75 lb/ft 0.279 in 7.09 mm 367
40.50 lb/ft 0.350 in 8.89 mm 457 629 629 743 915 1,086 1,258
45.50 lb/ft 0.400 in 10.16 mm 715 715 845 1,040 1,236 1,431
51.00 lb/ft 0.450 in 11.43 mm 801 801 946 1,165 1,165 1,311 1,383 1,383 1,602 1,165 1,383 1,602 2,039 1,383 1,165 1,383 1,602
55.50 lb/ft 0.495 in 12.57 mm 1,037 1,276 1,276 1,435 1,515 1,515 1,754 1,276 1,515 1,754 2,233 1,515 1,276 1,515 1,754
60.70 lb/ft 0.545 in 13.84 mm 1,573 1,660 1,922 2,184 1,398 1,660 1,922 2,446 1,660 1,398 1,660 1,922
65.70 lb/ft 0.595 in 15.11 mm 1,708 1,803 2,088 2,373 1,519 1,803 2,088 2,658 1,803 1,519 1,803 2,088
73.20 lb/ft 0.672 in 17.07 mm 1,915 2,021 1,702 2,021 2,340 2,979 2,021 1,702 2,021 2,340
79.20 lb/ft 0.734 in 18.64 mm 2,079 2,194 1,848 2,194 2,541 3,233 2,194 1,848 2,194 2,541
85.30 lb/ft 0.797 in 20.24 mm 2,243 2,367 1,994 2,367 2,741 3,489 2,367 1,994 2,367 2,741
32.75 lb/ft 0.279 in 7.09 mm 1,820
40.50 lb/ft 0.350 in 8.89 mm 2,280 3,130 3,130 3,700 4,560 5,410 6,270
45.50 lb/ft 0.400 in 10.16 mm 3,580 3,580 4,230 5,210 6,190 7,160
51.00 lb/ft 0.450 in 11.43 mm 4,030 4,030 4,760 5,860 5,860 6,590 6,960 6,960 8,060 5,860 6,960 8,060 10,260 6,960 5,860 6,960 8,060
55.50 lb/ft 0.495 in 12.57 mm 5,240 6,450 6,450 7,250 7,660 7,660 8,860 6,450 7,660 8,860 11,280 7,660 6,450 7,660 8,860
60.70 lb/ft 0.545 in 13.84 mm 7,980 8,430 9,760 11,090 7,100 8,430 9,760 12,420 8,430 7,100 8,430 9,760
65.70 lb/ft 0.595 in 15.11 mm 8,720 9,200 10,650 12,110 7,750 9,200 10,650 13,560 9,200 7,750 9,200 10,650
73.20 lb/ft 0.672 in 17.07 mm 9,850 10,390 8,750 10,390 12,030 15,320 10,390 8,750 10,390 12,030
79.20 lb/ft 0.734 in 18.64 mm 10,750 11,350 9,560 11,350 13,140 16,730 11,350 9,560 11,350 13,140
85.30 lb/ft 0.797 in 20.24 mm 11,680 12,330 10,380 12,330 14,270 18,160 12,330 10,380 12,330 14,270
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

10 3/4 ''
FLUENCIA ksi 40
RESISTENCIA ksi 60
CUERPO DE TUBO
COLAPSO psi 840
kg / cm² 59
ton 167
kg / cm² 128
JUNTA API
ROSCA ton 93
psi 1,820
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,200
kg / cm² 84
kg / cm² 84
kg / cm²
kg / cm²
kg / cm²

10 3/4 ''
FLUENCIA ksi 40 55 55 65 80 95 110
RESISTENCIA ksi 60 75 95 85 95 105 125
CUERPO DE TUBO
COLAPSO psi 1,390 1,580 1,580 1,670 1,730 1,730 1,730
kg / cm² 98 111 111 117 122 122 122
TENSIÓN 1,000 lb 457 629 629 743 915 1,086 1,258
ton 207 285 285 337 415 493 571
kg / cm² 160 220 220 260 321 380 441
JUNTA API
TENSIÓN 1,000 lb 314 420 450 491
ROSCA ton 142 191 204 223
psi 2,280 3,130 3,130 3,700
INTERNA kg / cm² 160 220 220 260
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 629 629 743
psi 3,130 3,130 3,700
INTERNA kg / cm² 220 220 260
TENSIÓN 1,000 lb 629 629 743
psi 3,130 3,130 3,700
INTERNA kg / cm² 220 220 260
TUBO LISO psi 1,600 2,100 2,100 3,400 4,200 4,900 5,700
kg / cm² 112 148 148 239 295 345 401
kg / cm² 112 148 148 239
kg / cm²
kg / cm² 148 148 239
kg / cm² 148 148 239

10 3/4 ''
FLUENCIA ksi 55 55 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 2,090 2,090 2,270 2,470 2,590 2,610
kg / cm² 147 147 160 174 182 184
TENSIÓN 1,000 lb 715 715 845 1,040 1,236 1,431
ton 324 324 383 472 560 649
kg / cm² 252 252 297 366 435 503
JUNTA API
TENSIÓN 1,000 lb 493 528 576
ROSCA ton 224 240 261
psi 3,580 3,580 4,230
INTERNA kg / cm² 252 252 297
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 715 715 845
psi 3,580 3,580 4,230
INTERNA kg / cm² 252 252 297
TENSIÓN 1,000 lb 715 715 845
psi 3,292 3,292 4,230
INTERNA kg / cm² 231 231 297
TUBO LISO psi 2,500 2,500 3,900 4,800 5,700 6,500
kg / cm² 176 176 274 337 401 457
kg / cm² 176 176 274
kg / cm²
kg / cm² 176 176 274
kg / cm² 176 176 267

10 3/4 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 2,710 2,710 2,870 3,220 3,220 3,400 3,480 3,480 3,660 4,620 4,830 5,230 5,600 4,830 3,220 3,480 3,660
kg / cm² 191 191 202 226 226 239 245 245 257 325 340 368 394 340 226 245 257
TENSIÓN 1,000 lb 801 801 946 1,165 1,165 1,311 1,383 1,383 1,602 1,165 1,383 1,602 2,039 1,383 1,165 1,383 1,602
ton 363 363 429 528 528 594 627 627 727 528 627 727 925 627 528 627 727
kg / cm² 283 283 335 412 412 463 489 489 567 412 489 567 721 489 412 489 567
JUNTA API
TENSIÓN 1,000 lb 565 606 661 794 804 879 927 927 1,079 804 937 1,079 1,355 927 794 927 1,079
ROSCA ton 256 275 300 360 365 399 420 420 490 365 425 490 615 420 360 420 490
psi 4,030 4,030 4,760 5,860 5,860 6,590 6,960 6,960 8,060 5,860 6,960 8,060 10,260 6,960 5,860 6,960 8,060
INTERNA kg / cm² 283 283 335 412 412 463 489 489 567 412 489 567 721 489 412 489 567
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 801 801 946 1,165 1,165 1,287 1,354 1,354 1,594 1,165 1,383 1,594 1,959 1,354 1,165 1,354 1,594
BUTTRESS ton 363 363 429 528 528 584 614 614 723 528 627 723 889 614 528 614 723
psi 4,030 4,030 4,760 5,860 5,860 6,590 6,960 6,960 8,060 5,860 6,960 8,060 10,260 6,960 5,860 6,960 8,060
INTERNA kg / cm² 283 283 335 412 412 463 489 489 567 412 489 567 721 489 412 489 567
TENSIÓN 1,000 lb 801 801 946 1,042 1,096 1,096 1,151 1,151 1,371 1,096 1,206 1,371 1,151 1,042 1,151 1,371
BUTTRESS ton 363 363 429 472 497 497 522 522 622 497 547 622 522 472 522 622
psi 3,292 3,292 4,760 4,788 4,788 5,386 5,685 5,685 6,583 4,788 5,685 6,583 5,685 4,788 5,685 6,583
INTERNA kg / cm² 231 231 335 337 337 379 400 400 463 337 400 463 400 337 400 463
TUBO LISO psi 2,800 2,800 4,400 5,400 5,400 6,000 6,400 6,400 7,400 5,400 6,400 7,400 9,400 6,400 5,400 6,400 7,400
kg / cm² 197 197 309 380 380 422 450 450 520 380 450 520 661 450 380 450 520
ROSCA REDONDA CORTA psi 2,800 2,800 4,400 5,400 5,400 6,000 6,400 6,400 7,400 5,400 6,400 7,400 7,900 6,400 5,400 6,400 7,400
kg / cm² 197 197 309 380 380 422 450 450 520 380 450 520 555 450 380 450 520
kg / cm²
BUTTRESS COPLE NORMAL psi 2,800 2,800 4,400 5,400 5,400 6,000 6,400 6,400 7,400 5,400 6,400 7,400 7,400 6,400 5,400 6,400 7,400
kg / cm² 197 197 309 380 380 422 450 450 520 380 450 520 520 450 380 450 520
BUTTRESS COPLE REBAJADO psi 2,600 2,600 3,800 3,800 3,800 4,100 4,100 4,100 4,100 3,800 4,100 4,100 4,100 3,800 4,100 4,100
kg / cm² 183 183 267 267 267 288 288 288 288 267 288 288 288 267 288 288

10 3/4 ''
FLUENCIA ksi 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 3,690 4,020 4,020 4,160 4,290 4,290 4,610 5,830 6,200 6,670 7,260 6,200 4,020 4,290 4,610
kg / cm² 259 283 283 292 302 302 324 410 436 469 510 436 283 302 324
TENSIÓN 1,000 lb 1,037 1,276 1,276 1,435 1,515 1,515 1,754 1,276 1,515 1,754 2,233 1,515 1,276 1,515 1,754
ton 470 579 579 651 687 687 796 579 687 796 1013 687 579 687 796
kg / cm² 368 453 453 510 539 539 623 453 539 623 793 539 453 539 623
JUNTA API
TENSIÓN 1,000 lb 736 884 895 979 1,032 1,032 1,202 895 1,043 1,202 1,509 1,032 884 1,032 1,202
ROSCA ton 334 401 406 444 468 468 545 406 473 545 685 468 401 468 545
psi 5,240 6,450 6,450 7,250 7,660 7,660 8,860 6,450 7,660 8,860 11,280 7,660 6,450 7,660 8,860
INTERNA kg / cm² 368 453 453 510 539 539 623 453 539 623 793 539 453 539 623
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,037 1,276 1,276 1,409 1,483 1,483 1,745 1,276 1,515 1,745 2,146 1,483 1,276 1,483 1,745
BUTTRESS ton 470 579 579 639 673 673 792 579 687 792 973 673 579 673 792
psi 5,240 6,450 6,450 7,250 7,660 7,660 8,860 6,450 7,660 8,860 11,280 7,660 6,450 7,660 8,860
INTERNA kg / cm² 368 453 453 510 539 539 623 453 539 623 793 539 453 539 623
TENSIÓN 1,000 lb 1,037 1,042 1,096 1,096 1,151 1,151 1,371 1,096 1,206 1,371 1,151 1,042 1,151 1,371
BUTTRESS ton 470 472 497 497 522 522 622 497 547 622 522 472 522 622
psi 4,788 4,788 4,788 5,386 5,685 5,685 6,583 4,788 5,685 6,583 5,685 4,788 5,685 6,583
INTERNA kg / cm² 337 337 337 379 400 400 463 337 400 463 400 337 400 463
TUBO LISO psi 4,800 5,900 5,900 6,600 7,000 7,000 8,100 5,900 7,000 8,100 9,700 7,000 5,900 7,000 8,100
kg / cm² 337 415 415 464 492 492 569 415 492 569 682 492 415 492 569
ROSCA REDONDA CORTA psi 4,800 5,900 5,900 6,600 6,900 6,900 7,900 5,900 6,900 7,900 7,900 6,900 5,900 6,900 7,900
kg / cm² 337 415 415 464 485 485 555 415 485 555 555 485 415 485 555
kg / cm²
kg / cm² 337 415 415 464 492 492 520 415 492 520 520 492 415 492 520
kg / cm² 267 267 267 288 288 288 288 267 288 288 288 267 288 288

10 3/4 ''
FLUENCIA ksi 90 95 110 125 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 63 67 77 88 56 67 77 98 67 56 67 77
RESISTENCIA ksi 100 105 125 135 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 70 74 88 95 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 5,460 5,580 5,880 6,070 7,020 7,810 8,350 9,190 7,810 5,160 5,580 5,880
kg / cm² 384 392 413 427 494 549 587 646 549 363 392 413
TENSIÓN 1,000 lb 1,573 1,660 1,922 2,184 1,398 1,660 1,922 2,446 1,660 1,398 1,660 1,922
ton 713 753 872 991 634 753 872 1110 753 634 753 872
PRESIÓN INTERNA psi 7,980 8,430 9,760 11,090 7,100 8,430 9,760 12,420 8,430 7,100 8,430 9,760
kg / cm² 561 593 686 780 499 593 686 873 593 499 593 686
JUNTA API
TENSIÓN 1,000 lb 1,089 1,148 1,337 1,502 996 1,161 1,337 1,679 1,148 983 1,148 1,337
ROSCA ton 494 521 607 681 452 527 607 762 521 446 521 607
LEAK psi 6 879 6 879 7 893 7 893 6 879 6 879 7 893 7 893 6 879 6 879 6 879 7 893
RESISTANCE kg / cm² 484 484 555 555 484 484 555 555 484 484 484 555
psi 7,980 8,430 9,760 11,090 7,100 8,430 9,760 12,420 8,430 7,100 8,430 9,760
INTERNA kg / cm² 561 593 686 780 499 593 686 873 593 499 593 686
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,544 1,625 1,912 2,109 1,398 1,660 1,912 2,351 1,625 1,398 1,625 1,912
BUTTRESS ton 700 737 867 957 634 753 867 1,066 737 634 737 867
LEAK psi 7 450 7 450 7 450 7 450 7 100 7 450 7 450 7 450 7 450 7 100 7 450 7 450
RESISTANCE kg / cm² 524 524 524 524 499 524 524 524 524 499 524 524
psi 7,980 8,430 9,760 11,090 7,100 8,430 9,760 12,420 8,430 7,100 8,430 9,760
INTERNA kg / cm² 561 593 686 780 499 593 686 873 593 499 593 686
TENSIÓN 1,000 lb 1,096 1,151 1,371 1,096 1,206 1,371 1,151 1,042 1,151 1,371
BUTTRESS ton 497 522 622 497 547 622 522 472 522 622
LEAK psi 4 148 4 148 4 148 4 148 4 148 4 148 4 148 4 148 4 148 4 148
RESISTANCE kg / cm² 292 292 292 292 292 292 292 292 292 292
psi 5,386 5,685 6,583 4,788 5,685 6,583 5,685 4,788 5,685 6,583
INTERNA kg / cm² 379 400 463 337 400 463 400 337 400 463
TUBO LISO psi 7,300 7,700 8,900 9,700 6,500 7,700 8,900 9,700 7,700 6,500 7,700 8,900
kg / cm² 513 541 626 682 457 541 626 682 541 457 541 626
ROSCA REDONDA CORTA psi 6,900 6,900 7,900 7,900 6,500 6,900 7,900 7,900 6,900 6,500 6,900 7,900
kg / cm² 485 485 555 555 457 485 555 555 485 457 485 555
kg / cm²
BUTTRESS COPLE NORMAL psi 7,200 7,400 7,400 7,400 6,400 7,400 7,400 7,400 7,400 6,400 7,400 7,400
kg / cm² 506 520 520 520 450 520 520 520 520 450 520 520
kg / cm² 288 288 288 267 288 288 288 267 288 288

10 3/4 ''
FLUENCIA ksi 90 95 110 125 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 63 67 77 88 56 67 77 98 67 56 67 77
RESISTENCIA ksi 100 105 125 135 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 70 74 88 95 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 6,760 6,970 7,500 7,920 8,100 9,020 10,060 11,180 9,020 6,300 6,970 7,500
kg / cm² 475 490 527 557 569 634 707 786 634 443 490 527
TENSIÓN 1,000 lb 1,708 1,803 2,088 2,373 1,519 1,803 2,088 2,658 1,803 1,519 1,803 2,088
ton 775 818 947 1076 689 818 947 1205 818 689 818 947
PRESIÓN INTERNA psi 8,720 9,200 10,650 12,110 7,750 9,200 10,650 13,560 9,200 7,750 9,200 10,650
kg / cm² 613 647 749 851 545 647 749 953 647 545 647 749
JUNTA API
TENSIÓN 1,000 lb 1,198 1,263 1,471 1,652 1,096 1,277 1,471 1,847 1,263 1,082 1,263 1,471
ROSCA ton 543 573 667 749 497 579 667 838 573 491 573 667
psi 8,720 9,200 10,650 12,110 7,750 9,200 10,650 13,560 9,200 7,750 9,200 10,650
INTERNA kg / cm² 613 647 749 851 545 647 749 953 647 545 647 749
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,677 1,765 2,077 2,291 1,519 1,803 2,077 2,554 1,765 1,519 1,765 2,077
BUTTRESS ton 761 801 942 1,039 689 818 942 1,159 801 689 801 942
psi 8,720 9,200 10,650 12,110 7,750 9,200 10,650 13,560 9,200 7,750 9,200 10,650
INTERNA kg / cm² 613 647 749 851 545 647 749 953 647 545 647 749
TENSIÓN 1,000 lb 1,096 1,151 1,371 1,096 1,206 1,371 1,151 1,042 1,151 1,371
BUTTRESS ton 497 522 622 497 547 622 522 472 522 622
psi 5,386 5,685 6,583 4,788 5,685 6,583 5,685 4,788 5,685 6,583
INTERNA kg / cm² 379 400 463 337 400 463 400 337 400 463
TUBO LISO psi 8,000 8,400 9,700 9,700 7,100 8,400 9,700 9,700 8,400 7,100 8,400 9,700
kg / cm² 562 591 682 682 499 591 682 682 591 499 591 682
ROSCA REDONDA CORTA psi 6,900 6,900 7,900 7,900 6,500 6,900 7,900 7,900 6,900 6,500 6,900 7,900
kg / cm² 485 485 555 555 457 485 555 555 485 457 485 555
kg / cm²
BUTTRESS COPLE NORMAL psi 7,200 7,400 7,400 7,400 6,400 7,400 7,400 7,400 7,400 6,400 7,400 7,400
kg / cm² 506 520 520 520 450 520 520 520 520 450 520 520
kg / cm² 288 288 288 267 288 288 288 267 288 288

10 3/4 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 8,760 9,090 9,520 10,880 12,700 14,080 10,880 8,060 9,090 10,010
kg / cm² 616 639 669 765 893 990 765 567 639 704
TENSIÓN 1,000 lb 1,915 2,021 1,702 2,021 2,340 2,979 2,021 1,702 2,021 2,340
ton 869 917 772 917 1062 1351 917 772 917 1062
kg / cm² 693 730 615 730 846 1,077 730 615 730 846
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 9,000 9,500 8,000 9,500 9,700 9,700 9,500 8,000 9,500 9,700
kg / cm² 633 668 562 668 682 682 668 562 668 682
kg / cm²
kg / cm²
kg / cm²
kg / cm²

10 3/4 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 10,370 10,800 10,630 12,400 14,490 16,300 12,400 9,480 10,800 12,030
kg / cm² 729 759 747 872 1019 1146 872 667 759 846
TENSIÓN 1,000 lb 2,079 2,194 1,848 2,194 2,541 3,233 2,194 1,848 2,194 2,541
ton 943 995 838 995 1152 1467 995 838 995 1152
kg / cm² 756 798 672 798 924 1,176 798 672 798 924
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 9,700 9,700 8,700 9,700 9,700 9,700 9,700 8,700 9,700 9,700
kg / cm² 682 682 612 682 682 682 682 612 682 682
kg / cm²
kg / cm²
kg / cm²
kg / cm²

10 3/4 ''
FLUENCIA ksi 90 95 80 95 110 140 95 80 95 110
RESISTENCIA ksi 100 105 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 12,010 12,540 11,690 13,910 16,000 18,510 13,910 10,920 12,540 14,080
kg / cm² 844 882 822 978 1125 1301 978 768 882 990
TENSIÓN 1,000 lb 2,243 2,367 1,994 2,367 2,741 3,489 2,367 1,994 2,367 2,741
ton 1017 1074 904 1074 1243 1583 1074 904 1074 1243
kg / cm² 821 867 730 867 1,003 1,277 867 730 867 1,003
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 9,700 9,700 9,500 9,700 9,700 9,700 9,700 9,500 9,700 9,700
kg / cm² 682 682 668 682 682 682 682 668 682 682
kg / cm²
kg / cm²
kg / cm²
kg / cm²

298.45 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
11 3/4 ''
API DST-TAMSA
42.00 lb/ft 0.333 in 8.46 mm 1,040
47.00 lb/ft 0.375 in 9.53 mm 1,510 1,510 1,590 1,630 1,630 1,630
54.00 lb/ft 0.435 in 11.05 mm 2,070 2,070 2,250 2,440 2,550 2,570
60.00 lb/ft 0.489 in 12.42 mm 2,670 2,670 2,840 3,180 3,180 3,360 3,440 3,440 3,610 3,680 4,530 4,750 5,150 5,510 4,750 3,180 3,440 3,610
65.00 lb/ft 0.534 in 13.56 mm 3,870 3,870 4,060 4,170 4,170 4,480 4,690 5,670 5,970 6,460 7,020 5,970 3,870 4,170 4,480
71.00 lb/ft 0.582 in 14.78 mm 4,880 4,880 5,130 5,240 5,240 5,470 5,760 6,720 7,440 7,930 8,700 7,440 4,880 5,240 5,470
42.00 lb/ft 0.333 in 8.46 mm 478
47.00 lb/ft 0.375 in 9.53 mm 737 737 871 1,072 1,273 1,474
54.00 lb/ft 0.435 in 11.05 mm 850 850 1,005 1,237 1,469 1,701
60.00 lb/ft 0.489 in 12.42 mm 951 951 1,124 1,384 1,384 1,557 1,643 1,643 1,903 2,162 1,384 1,643 1,903 2,422 1,643 1,384 1,643 1,903
65.00 lb/ft 0.534 in 13.56 mm 1,505 1,505 1,693 1,788 1,788 2,070 2,352 1,505 1,788 2,070 2,634 1,788 1,505 1,788 2,070
71.00 lb/ft 0.582 in 14.78 mm 1,634 1,634 1,838 1,940 1,940 2,246 2,552 1,634 1,940 2,246 2,859 1,940 1,634 1,940 2,246
42.00 lb/ft 0.333 in 8.46 mm 1,980
47.00 lb/ft 0.375 in 9.53 mm 3,070 3,070 3,630 4,470 5,310 6,140
54.00 lb/ft 0.435 in 11.05 mm 3,560 3,560 4,210 5,180 6,150 7,130
60.00 lb/ft 0.489 in 12.42 mm 4,010 4,010 4,730 5,830 5,830 6,550 6,920 6,920 8,010 9,100 5,830 6,920 8,010 10,200 6,920 5,830 6,920 8,010
65.00 lb/ft 0.534 in 13.56 mm 6,360 6,360 7,160 7,560 7,560 8,750 9,940 6,360 7,560 8,750 11,130 7,560 6,360 7,560 8,750
71.00 lb/ft 0.582 in 14.78 mm 6,930 6,930 7,800 8,230 8,230 9,530 10,840 6,930 8,230 9,530 12,140 8,230 6,930 8,230 9,530
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

11 3/4 ''
FLUENCIA ksi 40
RESISTENCIA ksi 60
CUERPO DE TUBO
COLAPSO psi 1,040
kg / cm² 73
ton 217
kg / cm² 139
JUNTA API
ROSCA ton 139
psi 1,980
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,400
kg / cm² 98
kg / cm² 98
kg / cm²
kg / cm²
kg / cm²

11 3/4 ''
FLUENCIA ksi 55 55 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 1,510 1,510 1,590 1,630 1,630 1,630
kg / cm² 106 106 112 115 115 115
TENSIÓN 1,000 lb 737 737 871 1,072 1,273 1,474
ton 334 334 395 486 577 669
kg / cm² 216 216 255 314 373 432
JUNTA API
TENSIÓN 1,000 lb 477 509 557
ROSCA ton 216 231 253
psi 3,070 3,070 3,630
INTERNA kg / cm² 216 216 255
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 737 737 871
psi 3,070 3,070 3,630
INTERNA kg / cm² 216 216 255
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,100 2,100 3,300 4,100 4,900 5,600
kg / cm² 148 148 232 288 345 394
kg / cm² 148 148 232
kg / cm²
kg / cm² 148 148 232
kg / cm²

11 3/4 ''
FLUENCIA ksi 55 55 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 2,070 2,070 2,250 2,440 2,550 2,570
kg / cm² 146 146 158 172 179 181
TENSIÓN 1,000 lb 850 850 1,005 1,237 1,469 1,701
ton 386 386 456 561 666 772
kg / cm² 250 250 296 364 432 501
JUNTA API
TENSIÓN 1,000 lb 568 606 664
ROSCA ton 258 275 301
psi 3,560 3,560 4,210
INTERNA kg / cm² 250 250 296
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 850 850 1,005
psi 3,560 3,560 4,210
INTERNA kg / cm² 250 250 296
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,400 2,400 3,900 4,700 5,600 6,500
kg / cm² 169 169 274 330 394 457
kg / cm² 169 169 274
kg / cm²
kg / cm² 169 169 274
kg / cm²

11 3/4 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 39 39 46 56 56 63 67 67 77 88 56 67 77 98 67 56 67 77
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 53 67 60 67 70 70 74 74 88 95 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 2,670 2,670 2,840 3,180 3,180 3,360 3,440 3,440 3,610 3,680 4,530 4,750 5,150 5,510 4,750 3,180 3,440 3,610
kg / cm² 188 188 200 224 224 236 242 242 254 259 318 334 362 387 334 224 242 254
TENSIÓN 1,000 lb 951 951 1,124 1,384 1,384 1,557 1,643 1,643 1,903 2,162 1,384 1,643 1,903 2,422 1,643 1,384 1,643 1,903
ton 432 432 510 628 628 706 745 745 863 981 628 745 863 1099 745 628 745 863
PRESIÓN INTERNA psi 4,010 4,010 4,730 5,830 5,830 6,550 6,920 6,920 8,010 9,100 5,830 6,920 8,010 10,200 6,920 5,830 6,920 8,010
kg / cm² 282 282 333 410 410 461 487 487 563 640 410 487 563 717 487 410 487 563
JUNTA API
TENSIÓN 1,000 lb 649 693 759 913 924 1,011 1,066 1,066 1,242 1,395 924 1,078 1,242 1,560 1,066 913 1,066 1,242
ROSCA ton 294 314 344 414 419 459 484 484 563 633 419 489 563 708 484 414 484 563
psi 4,010 4,010 4,730 5,830 5,830 6,550 6,920 6,920 8,010 9,100 5,830 6,920 8,010 10,200 6,920 5,830 6,920 8,010
INTERNA kg / cm² 282 282 333 410 410 461 487 487 563 640 410 487 563 717 487 410 487 563
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 951 951 1,124 1,384 1,384 1,517 1,596 1,596 1,877 2,074 1,384 1,638 1,877 2,313 1,596 1,384 1,596 1,877
BUTTRESS ton 432 432 510 628 628 688 724 724 851 941 628 743 851 1,049 724 628 724 851
psi 4,010 4,010 4,730 5,830 5,830 6,550 6,920 6,920 8,010 9,100 5,830 6,920 8,010 10,200 6,920 5,830 6,920 8,010
INTERNA kg / cm² 282 282 333 410 410 461 487 487 563 640 410 487 563 717 487 410 487 563
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,700 2,700 4,300 5,300 5,300 6,000 6,300 6,300 7,300 8,100 5,300 6,300 7,300 8,100 6,300 5,300 6,300 7,300
kg / cm² 190 190 302 373 373 422 443 443 513 569 373 443 513 569 443 373 443 513
ROSCA REDONDA CORTA psi 2,700 2,700 4,300 5,300 5,300 5,800 5,800 5,800 6,700 6,700 5,300 5,800 6,700 6,700 5,800 5,300 5,800 6,700
kg / cm² 190 190 302 373 373 408 408 408 471 471 373 408 471 471 408 373 408 471
kg / cm²
BUTTRESS COPLE NORMAL psi 2,700 2,700 4,300 5,300 5,300 6,000 6,300 6,300 6,300 6,300 5,300 6,300 6,300 6,300 6,300 5,300 6,300 6,300
kg / cm² 190 190 302 373 373 422 443 443 443 443 373 443 443 443 443 373 443 443
kg / cm²

11 3/4 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 3,870 3,870 4,060 4,170 4,170 4,480 4,690 5,670 5,970 6,460 7,020 5,970 3,870 4,170 4,480
kg / cm² 272 272 285 293 293 315 330 399 420 454 494 420 272 293 315
TENSIÓN 1,000 lb 1,505 1,505 1,693 1,788 1,788 2,070 2,352 1,505 1,788 2,070 2,634 1,788 1,505 1,788 2,070
ton 683 683 768 811 811 939 1067 683 811 939 1195 811 683 811 939
kg / cm² 447 447 503 532 532 615 699 447 532 615 783 532 447 532 615
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 5,800 5,800 6,500 6,900 6,900 8,000 8,100 5,800 6,900 8,000 8,100 6,900 5,800 6,900 8,000
kg / cm² 408 408 457 485 485 562 569 408 485 562 569 485 408 485 562
kg / cm²
kg / cm²
kg / cm²
kg / cm²

11 3/4 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 4,880 4,880 5,130 5,240 5,240 5,470 5,760 6,720 7,440 7,930 8,700 7,440 4,880 5,240 5,470
kg / cm² 343 343 361 368 368 385 405 472 523 558 612 523 343 368 385
TENSIÓN 1,000 lb 1,634 1,634 1,838 1,940 1,940 2,246 2,552 1,634 1,940 2,246 2,859 1,940 1,634 1,940 2,246
ton 741 741 834 880 880 1019 1158 741 880 1019 1297 880 741 880 1019
kg / cm² 487 487 548 579 579 670 762 487 579 670 854 579 487 579 670
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TUBO LISO psi 6,300 6,300 7,100 7,500 7,500 8,100 8,100 6,300 7,500 8,100 8,100 7,500 6,300 7,500 8,100
kg / cm² 443 443 499 527 527 569 569 443 527 569 569 527 443 527 569
kg / cm²
kg / cm²
kg / cm²
kg / cm²

301.63 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
11 7/8 ''
API DST-TAMSA
71.80 lb/ft 0.582 in 14.78 mm 3,170 3,880 3,880 4,270 4,750 4,750 4,990 5,080 5,080 5,290 5,630 6,590 7,260 7,580 8,490 7,260 4,750 5,080 5,290
71.80 lb/ft 0.582 in 14.78 mm 826 1,136 1,136 1,342 1,652 1,652 1,858 1,962 1,962 2,271 2,581 1,652 1,962 2,271 2,891 1,962 1,652 1,962 2,271
71.80 lb/ft 0.582 in 14.78 mm 3,430 4,720 4,720 5,570 6,860 6,860 7,720 8,150 8,150 9,430 10,720 6,860 8,150 9,430 12,010 8,150 6,860 8,150 9,430
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

11 7/8 ''
FLUENCIA ksi 40 55 55 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 28 39 39 46 56 56 63 67 67 77 88 56 67 77 98 67 56 67 77
RESISTENCIA ksi 60 75 95 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 42 53 67 60 67 70 70 74 74 88 95 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 3,170 3,880 3,880 4,270 4,750 4,750 4,990 5,080 5,080 5,290 5,630 6,590 7,260 7,580 8,490 7,260 4,750 5,080 5,290
kg / cm² 223 273 273 300 334 334 351 357 357 372 396 463 510 533 597 510 334 357 372
TENSIÓN 1,000 lb 826 1,136 1,136 1,342 1,652 1,652 1,858 1,962 1,962 2,271 2,581 1,652 1,962 2,271 2,891 1,962 1,652 1,962 2,271
ton 375 515 515 609 749 749 843 890 890 1030 1171 749 890 1030 1311 890 749 890 1030
PRESIÓN INTERNA psi 3,430 4,720 4,720 5,570 6,860 6,860 7,720 8,150 8,150 9,430 10,720 6,860 8,150 9,430 12,010 8,150 6,860 8,150 9,430
kg / cm² 241 332 332 392 482 482 543 573 573 663 754 482 573 663 844 573 482 573 663
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,400 3,000 3,000 5,100 6,300 6,300 7,100 7,400 7,400 7,900 7,900 6,300 7,400 7,900 7,900 7,400 6,300 7,400 7,900
kg / cm² 169 211 211 359 443 443 499 520 520 555 555 443 520 555 555 520 443 520 555
kg / cm²
kg / cm²
kg / cm²
kg / cm²

339.73 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
13 3/8 ''
API DST-TAMSA
48.00 lb/ft 0.330 in 8.38 mm 740
54.50 lb/ft 0.380 in 9.65 mm 1,130 1,130 1,140 1,140 1,140 1,140
61.00 lb/ft 0.430 in 10.92 mm 1,540 1,540 1,620 1,670 1,670 1,670
68.00 lb/ft 0.480 in 12.19 mm 1,950 1,950 2,100 2,260 2,260 2,320 2,330 2,330 2,330 2,930 2,990 3,280 3,540 2,990 2,260 2,330 2,330
72.00 lb/ft 0.514 in 13.06 mm 2,670 2,670 2,780 2,820 2,820 2,880 2,880 3,660 3,720 4,110 4,350 3,720 2,670 2,820 2,880
77.00 lb/ft 0.550 in 13.97 mm 3,100 3,100 3,270 3,340 3,340 3,490 3,550 4,360 4,580 4,980 5,320 4,580 3,100 3,340 3,490
85.00 lb/ft 0.608 in 15.44 mm 3,870 3,870 4,060 4,180 4,180 4,480 4,690 5,680 5,980 6,470 7,020 5,980 3,870 4,180 4,480
48.00 lb/ft 0.330 in 8.38 mm 541
54.50 lb/ft 0.380 in 9.65 mm 853 853 1,008 1,241 1,474 1,706
61.00 lb/ft 0.430 in 10.92 mm 962 962 1,137 1,399 1,661 1,924
68.00 lb/ft 0.480 in 12.19 mm 1,069 1,069 1,264 1,556 1,556 1,750 1,847 1,847 2,139 1,556 1,847 2,139 2,722 1,847 1,556 1,847 2,139
72.00 lb/ft 0.514 in 13.06 mm 1,661 1,661 1,869 1,973 1,973 2,284 2,596 1,661 1,973 2,284 2,907 1,973 1,661 1,973 2,284
77.00 lb/ft 0.550 in 13.97 mm 1,773 1,773 1,994 2,105 2,105 2,438 2,770 1,773 2,105 2,438 3,102 2,105 1,773 2,105 2,438
85.00 lb/ft 0.608 in 15.44 mm 1,951 1,951 2,195 2,317 2,317 2,682 3,048 1,951 2,317 2,682 3,414 2,317 1,951 2,317 2,682
48.00 lb/ft 0.330 in 8.38 mm 1,730
54.50 lb/ft 0.380 in 9.65 mm 2,730 2,730 3,230 3,980 4,720 5,470
61.00 lb/ft 0.430 in 10.92 mm 3,090 3,090 3,660 4,500 5,340 6,190
68.00 lb/ft 0.480 in 12.19 mm 3,450 3,450 4,080 5,020 5,020 5,650 5,970 5,970 6,910 5,020 5,970 6,910 8,790 5,970 5,020 5,970 6,910
72.00 lb/ft 0.514 in 13.06 mm 5,380 5,380 6,050 6,390 6,390 7,400 8,410 5,380 6,390 7,400 9,420 6,390 5,380 6,390 7,400
77.00 lb/ft 0.550 in 13.97 mm 5,760 5,760 6,480 6,840 6,840 7,920 9,000 5,760 6,840 7,920 10,070 6,840 5,760 6,840 7,920
85.00 lb/ft 0.608 in 15.44 mm 6,360 6,360 7,160 7,560 7,560 8,750 9,940 6,360 7,560 8,750 11,140 7,560 6,360 7,560 8,750
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

13 3/8 ''
FLUENCIA ksi 40
RESISTENCIA ksi 60
CUERPO DE TUBO
COLAPSO psi 740
kg / cm² 52
ton 245
kg / cm² 122
JUNTA API
ROSCA ton 146
psi 1,730
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,200
kg / cm² 84
kg / cm² 84
kg / cm²
kg / cm²
kg / cm²

13 3/8 ''
FLUENCIA ksi 55 55 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 1,130 1,130 1,140 1,140 1,140 1,140
kg / cm² 79 79 80 80 80 80
TENSIÓN 1,000 lb 853 853 1,008 1,241 1,474 1,706
ton 387 387 457 563 668 774
kg / cm² 192 192 227 280 332 385
JUNTA API
TENSIÓN 1,000 lb 514 547
ROSCA ton 233 248
psi 2,730 2,730
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 853 853
psi 2,730 2,730
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,900 1,900 3,000 3,600 4,300 5,000
kg / cm² 134 134 211 253 302 352
kg / cm² 134 134
kg / cm²
kg / cm² 134 134
kg / cm²

13 3/8 ''
FLUENCIA ksi 55 55 65 80 95 110
CUERPO DE TUBO
COLAPSO psi 1,540 1,540 1,620 1,670 1,670 1,670
kg / cm² 108 108 114 117 117 117
TENSIÓN 1,000 lb 962 962 1,137 1,399 1,661 1,924
ton 436 436 516 635 754 873
kg / cm² 217 217 257 316 375 435
JUNTA API
TENSIÓN 1,000 lb 595 633
ROSCA ton 270 287
psi 3,090 3,090
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 962 962
psi 3,090 3,090
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,100 2,100 3,300 4,100 4,900 5,700
kg / cm² 148 148 232 288 345 401
kg / cm² 148 148
kg / cm²
kg / cm² 148 148
kg / cm²

13 3/8 ''
FLUENCIA ksi 55 55 65 80 80 90 95 95 110 80 95 110 140 95 80 95 110
RESISTENCIA ksi 75 95 85 95 100 100 105 105 125 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 1,950 1,950 2,100 2,260 2,260 2,320 2,330 2,330 2,330 2,930 2,990 3,280 3,540 2,990 2,260 2,330 2,330
kg / cm² 137 137 148 159 159 163 164 164 164 206 210 231 249 210 159 164 164
TENSIÓN 1,000 lb 1,069 1,069 1,264 1,556 1,556 1,750 1,847 1,847 2,139 1,556 1,847 2,139 2,722 1,847 1,556 1,847 2,139
ton 485 485 573 706 706 794 838 838 970 706 838 970 1235 838 706 838 970
kg / cm² 243 243 287 353 353 397 420 420 486 353 420 486 618 420 353 420 486
JUNTA API
TENSIÓN 1,000 lb 675 718 952 963 1,114 1,297
ROSCA ton 306 326 432 437 505 588
psi 3,450 3,450 5,020 5,020 5,970 6,910
INTERNA kg / cm² 243 243 353 353 420 486
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,069 1,069 1,545 1,556 1,772 2,079
BUTTRESS ton 485 485 701 706 804 943
psi 3,450 3,450 5,020 5,020 5,970 6,910
INTERNA kg / cm² 243 243 353 353 420 486
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,400 2,400 3,700 4,600 4,600 5,200 5,500 5,500 6,300 4,600 5,500 6,300 6,300 5,500 4,600 5,500 6,300
kg / cm² 169 169 260 323 323 366 387 387 443 323 387 443 443 387 323 387 443
ROSCA REDONDA CORTA psi 2,400 2,400 4,600 4,600 4,600 5,200
kg / cm² 169 169 323 323 323 366
kg / cm²
kg / cm² 169 169 323 323 345 345
kg / cm²

13 3/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 2,670 2,670 2,780 2,820 2,820 2,880 2,880 3,660 3,720 4,110 4,350 3,720 2,670 2,820 2,880
kg / cm² 188 188 195 198 198 202 202 257 262 289 306 262 188 198 202
TENSIÓN 1,000 lb 1,661 1,661 1,869 1,973 1,973 2,284 2,596 1,661 1,973 2,284 2,907 1,973 1,661 1,973 2,284
ton 754 754 848 895 895 1036 1178 754 895 1036 1319 895 754 895 1036
kg / cm² 378 378 425 449 449 520 591 378 449 520 662 449 378 449 520
JUNTA API
TENSIÓN 1,000 lb 1,029 1,040 1,204 1,401
ROSCA ton 467 472 546 635
psi 5,380 5,380 6,390 7,400
INTERNA kg / cm² 378 378 449 520
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,650 1,661 1,893 2,221
BUTTRESS ton 748 754 858 1,007
psi 5,380 5,380 6,390 7,400
INTERNA kg / cm² 378 378 449 520
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 4,900 4,900 5,500 5,800 5,800 6,300 6,300 4,900 5,800 6,300 6,300 5,800 4,900 5,800 6,300
kg / cm² 345 345 387 408 408 443 443 345 408 443 443 408 345 408 443
kg / cm² 323 323 323 366
kg / cm²
BUTTRESS COPLE NORMAL psi 4,900 4,900 4,900 4,900
kg / cm² 345 345 345 345
kg / cm²

13 3/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 3,100 3,100 3,270 3,340 3,340 3,490 3,550 4,360 4,580 4,980 5,320 4,580 3,100 3,340 3,490
kg / cm² 218 218 230 235 235 245 250 307 322 350 374 322 218 235 245
TENSIÓN 1,000 lb 1,773 1,773 1,994 2,105 2,105 2,438 2,770 1,773 2,105 2,438 3,102 2,105 1,773 2,105 2,438
ton 804 804 905 955 955 1106 1256 804 955 1106 1407 955 804 955 1106
kg / cm² 405 405 456 481 481 557 633 405 481 557 708 481 405 481 557
JUNTA API
TENSIÓN 1,000 lb 1,109 1,122 1,298 1,510
ROSCA ton 503 509 589 685
LEAK psi 4 551 4 551 4 551 5 222
RESISTANCE kg / cm² 320 320 320 367
psi 5,760 5,760 6,840 7,920
INTERNA kg / cm² 405 405 481 557
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,761 1,773 2,019 2,370
BUTTRESS ton 799 804 916 1,075
LEAK psi 4 932 4 932 4 932 4 932
RESISTANCE kg / cm² 347 347 347 347
psi 5,760 5,760 6,840 7,920
INTERNA kg / cm² 405 405 481 557
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TUBO LISO psi 5,300 5,300 5,900 6,300 6,300 6,300 6,300 5,300 6,300 6,300 6,300 6,300 5,300 6,300 6,300
kg / cm² 373 373 415 443 443 443 443 373 443 443 443 443 373 443 443
kg / cm² 323 323 323 366
kg / cm²
kg / cm² 345 345 345 345
kg / cm²

13 3/8 ''
FLUENCIA ksi 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
RESISTENCIA ksi 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
CUERPO DE TUBO
COLAPSO psi 3,870 3,870 4,060 4,180 4,180 4,480 4,690 5,680 5,980 6,470 7,020 5,980 3,870 4,180 4,480
kg / cm² 272 272 285 294 294 315 330 399 420 455 494 420 272 294 315
TENSIÓN 1,000 lb 1,951 1,951 2,195 2,317 2,317 2,682 3,048 1,951 2,317 2,682 3,414 2,317 1,951 2,317 2,682
ton 885 885 996 1051 1051 1217 1383 885 1051 1217 1549 1051 885 1051 1217
kg / cm² 447 447 503 532 532 615 699 447 532 615 783 532 447 532 615
JUNTA API
TENSIÓN 1,000 lb 1,238 1,252 1,449 1,686
ROSCA ton 562 568 657 765
psi 6,360 6,360 7,560 8,750
INTERNA kg / cm² 447 447 532 615
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,938 1,951 2,222 2,608
BUTTRESS ton 879 885 1,008 1,183
psi 6,360 6,360 7,560 8,750
INTERNA kg / cm² 447 447 532 615
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 5,800 5,800 6,300 6,300 6,300 6,300 6,300 5,800 6,300 6,300 6,300 6,300 5,800 6,300 6,300
kg / cm² 408 408 443 443 443 443 443 408 443 443 443 443 408 443 443
kg / cm² 323 323 323 366
kg / cm²
kg / cm² 345 345 345 345
kg / cm²

346.08 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
13 5/8 ''
API DST-TAMSA
88.20 lb/ft 0.625 in 15.88 mm 2,800 3,360 3,360 3,660 3,980 3,980 4,130 4,260 4,260 4,570 4,800 5,790 6,130 6,610 7,190 6,130 3,980 4,260 4,570
88.20 lb/ft 0.625 in 15.88 mm 1,021 1,404 1,404 1,659 2,042 2,042 2,297 2,425 2,425 2,808 3,191 2,042 2,425 2,808 3,574 2,425 2,042 2,425 2,808
88.20 lb/ft 0.625 in 15.88 mm 3,210 4,420 4,420 5,220 6,420 6,420 7,220 7,630 7,630 8,830 10,030 6,420 7,630 8,830 11,240 7,630 6,420 7,630 8,830
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

13 5/8 ''
COPLE DIÁMETRO EXTERIOR NORMAL STC-LC-BC 14.375 in NO API 365.13 mm 15.88 mm
FLUENCIA ksi 40 55 55 65 80 80 90 95 95 110 125 80 95 110 140 95 80 95 110
(LÍMITE ELÁSTICO) kg / mm² 28 39 39 46 56 56 63 67 67 77 88 56 67 77 98 67 56 67 77
RESISTENCIA ksi 60 75 95 85 95 100 100 105 105 125 135 100 110 125 150 105 95 105 125
(ESFUERZA DE RUPTURA) kg / mm² 42 53 67 60 67 70 70 74 74 88 95 70 77 88 105 74 67 74 88
CUERPO DE TUBO
COLAPSO psi 2,800 3,360 3,360 3,660 3,980 3,980 4,130 4,260 4,260 4,570 4,800 5,790 6,130 6,610 7,190 6,130 3,980 4,260 4,570
kg / cm² 197 236 236 257 280 280 290 300 300 321 337 407 431 465 506 431 280 300 321
TENSIÓN 1,000 lb 1,021 1,404 1,404 1,659 2,042 2,042 2,297 2,425 2,425 2,808 3,191 2,042 2,425 2,808 3,574 2,425 2,042 2,425 2,808
ton 463 637 637 753 926 926 1042 1100 1100 1274 1447 926 1100 1274 1621 1100 926 1100 1274
PRESIÓN INTERNA psi 3,210 4,420 4,420 5,220 6,420 6,420 7,220 7,630 7,630 8,830 10,030 6,420 7,630 8,830 11,240 7,630 6,420 7,630 8,830
kg / cm² 226 311 311 367 451 451 508 536 536 621 705 451 536 621 790 536 451 536 621
JUNTA API
TENSIÓN 1,000 lb 679 913 970 1,287 1,302 1,506 1,753
ROSCA ton 308 414 440 584 590 683 795
psi 3,210 4,420 4,420 6,420 6,420 7,630 8,830
INTERNA kg / cm² 226 311 311 451 451 536 621
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,404 1,404 2,023 2,042 2,322 2,723
BUTTRESS ton 637 637 917 926 1,053 1,235
psi 4,420 4,420 6,420 6,420 7,630 8,830
INTERNA kg / cm² 311 311 451 451 536 621
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,200 3,000 3,000 4,800 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700 5,700
kg / cm² 155 211 211 337 401 401 401 401 401 401 401 401 401 401 401 401 401 401 401
ROSCA REDONDA CORTA psi 2,200 3,000 3,000 4,600 4,600 4,600 5,200
kg / cm² 155 211 211 323 323 323 366
kg / cm²
kg / cm² 211 211 345 345 345 345
kg / cm²

406.40 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
16 ''
API DST-TAMSA
65.00 lb/ft 0.375 in 9.53 mm 630
75.00 lb/ft 0.438 in 11.13 mm 1,020 1,020 1,020 1,020 1,020 1,020
84.00 lb/ft 0.495 in 12.57 mm 1,410 1,410 1,460 1,480 1,480 1,480
95.00 lb/ft 0.566 in 14.38 mm 1,890 1,890
109.00 lb/ft 0.656 in 16.66 mm 2,560 2,560 3,080 3,080 3,470
137.90 lb/ft 0.843 in 21.41 mm 4,490 4,490 5,650 5,650
65.00 lb/ft 0.375 in 9.53 mm 736
75.00 lb/ft 0.438 in 11.13 mm 1,178 1,178 1,392 1,713 1,713 2,355
84.00 lb/ft 0.495 in 12.57 mm 1,326 1,326 1,567 1,929 1,929 2,652
95.00 lb/ft 0.566 in 14.38 mm 1,509 1,509
109.00 lb/ft 0.656 in 16.66 mm 1,739 1,739 2,530 2,530 3,478
137.90 lb/ft 0.843 in 21.41 mm 2,208 2,208 3,211 3,211
65.00 lb/ft 0.375 in 9.53 mm 1,640
75.00 lb/ft 0.438 in 11.13 mm 2,630 2,630 3,110 3,830 3,830 5,270
84.00 lb/ft 0.495 in 12.57 mm 2,980 2,980 3,520 4,330 4,330 5,960
95.00 lb/ft 0.566 in 14.38 mm 3,400 3,400
109.00 lb/ft 0.656 in 16.66 mm 3,950 3,950 5,740 5,740 7,890
137.90 lb/ft 0.843 in 21.41 mm 5,070 5,070 7,380 7,380
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

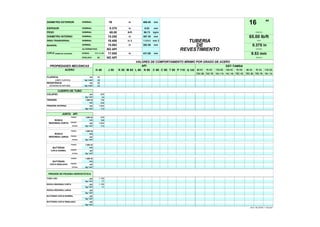

16 ''
FLUENCIA ksi 40
RESISTENCIA ksi 60
CUERPO DE TUBO
COLAPSO psi 630
kg / cm² 44
ton 334
kg / cm² 115
JUNTA API
ROSCA ton 199
psi 1,640
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,100
kg / cm² 77
kg / cm² 77
kg / cm²
kg / cm²
kg / cm²

16 ''
FLUENCIA ksi 55 55 65 80 80 110
CUERPO DE TUBO
COLAPSO psi 1,020 1,020 1,020 1,020 1,020 1,020
kg / cm² 72 72 72 72 72 72
TENSIÓN 1,000 lb 1,178 1,178 1,392 1,713 1,713 2,355
ton 534 534 631 777 777 1068
kg / cm² 185 185 219 269 269 371
JUNTA API
TENSIÓN 1,000 lb 710 752 832
ROSCA ton 322 341 377
psi 2,630 2,630 3,110
INTERNA kg / cm² 185 185 219
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,178 1,178 1,392
psi 2,630 2,630 3,110
INTERNA kg / cm² 185 185 219
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,800 1,800 2,800 3,500 3,500 4,800
kg / cm² 127 127 197 246 246 337
kg / cm² 127 127 197
kg / cm²
kg / cm² 127 127 197
kg / cm²

16 ''
FLUENCIA ksi 55 55 65 80 80 110
CUERPO DE TUBO
COLAPSO psi 1,410 1,410 1,460 1,480 1,480 1,480
kg / cm² 99 99 103 104 104 104
TENSIÓN 1,000 lb 1,326 1,326 1,567 1,929 1,929 2,652
ton 602 602 711 875 875 1203
kg / cm² 210 210 247 304 304 419
JUNTA API
TENSIÓN 1,000 lb 817 865 957
ROSCA ton 371 392 434
psi 2,980 2,980 3,520
INTERNA kg / cm² 210 210 247
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,326 1,326 1,567
psi 2,980 2,980 3,520
INTERNA kg / cm² 210 210 247
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,000 2,000 3,200 4,000 4,000 5,400
kg / cm² 141 141 225 281 281 380
kg / cm² 141 141 225
kg / cm²
kg / cm² 141 141 225
kg / cm²

16 ''
FLUENCIA ksi 55 55
(LÍMITE ELÁSTICO) kg / mm² 39 39
RESISTENCIA ksi 75 95
(ESFUERZA DE RUPTURA) kg / mm² 53 67
CUERPO DE TUBO
COLAPSO psi 1,890 1,890
kg / cm² 133 133
TENSIÓN 1,000 lb 1,509 1,509
ton 685 685
PRESIÓN INTERNA psi 3,400 3,400
kg / cm² 239 239
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,300 2,300
kg / cm² 162 162
kg / cm²
kg / cm²
kg / cm²
kg / cm²

16 ''
FLUENCIA ksi 55 55 80 80 110
CUERPO DE TUBO
COLAPSO psi 2,560 2,560 3,080 3,080 3,470
kg / cm² 180 180 217 217 244
TENSIÓN 1,000 lb 1,739 1,739 2,530 2,530 3,478
ton 789 789 1147 1147 1578
kg / cm² 278 278 404 404 555
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 2,700 2,700 5,200 5,200 5,400
kg / cm² 190 190 366 366 380
kg / cm²
kg / cm²
kg / cm²
kg / cm²

16 ''
CUERPO DE TUBO
COLAPSO psi 4,490 4,490 5,650 5,650
kg / cm² 316 316 397 397
TENSIÓN 1,000 lb 2,208 2,208 3,211 3,211
ton 1001 1001 1457 1457
kg / cm² 356 356 519 519
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
LEAK psi
psi
INTERNA kg / cm²
TUBO LISO psi 3,000 3,000 5,400 5,400
kg / cm² 211 211 380 380
kg / cm²
kg / cm²
kg / cm²
kg / cm²

473.08 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
18 5/8 ''
API DST-TAMSA
87.50 lb/ft 0.435 in 11.05 mm 630 630 630
121.00 lb/ft 0.745 in 18.92 mm 2,110 2,400 2,400
87.50 lb/ft 0.435 in 11.05 mm 994 1,367 1,367
121.00 lb/ft 0.745 in 18.92 mm 1,674 2,302 2,302
87.50 lb/ft 0.435 in 11.05 mm 1,630 2,250 2,250
121.00 lb/ft 0.745 in 18.92 mm 2,800 3,850 3,850
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

18 5/8 ''
FLUENCIA ksi 40 55 55
(LÍMITE ELÁSTICO) kg / mm² 28 39 39
RESISTENCIA ksi 60 75 95
(ESFUERZA DE RUPTURA) kg / mm² 42 53 67
CUERPO DE TUBO
COLAPSO psi 630 630 630
kg / cm² 44 44 44
TENSIÓN 1,000 lb 994 1,367 1,367
ton 451 620 620
PRESIÓN INTERNA psi 1,630 2,250 2,250
kg / cm² 115 158 158
JUNTA API
TENSIÓN 1,000 lb 559 754 794
ROSCA ton 254 342 360
psi 1,630 2,250 2,250
INTERNA kg / cm² 115 158 158
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb 1,329 1,367
psi 2,250 2,250
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,100 1,500 1,500
kg / cm² 77 105 105
kg / cm² 77 105 105
kg / cm²
kg / cm² 105 105
kg / cm²

18 5/8 ''
CUERPO DE TUBO
COLAPSO psi 2,110 2,400 2,400
kg / cm² 148 169 169
TENSIÓN 1,000 lb 1,674 2,302 2,302
ton 759 1044 1044
kg / cm² 197 271 271
JUNTA API
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
ROSCA ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,900 2,600 2,600
kg / cm² 134 183 183
kg / cm²
kg / cm²
kg / cm²
kg / cm²

508.00 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
20 ''
API DST-TAMSA
94.00 lb/ft 0.438 in 11.13 mm 520 520 520
106.50 lb/ft 0.500 in 12.70 mm 770 770
133.00 lb/ft 0.635 in 16.13 mm 1,500 1,500
94.00 lb/ft 0.438 in 11.13 mm 1,077 1,480 1,480
106.50 lb/ft 0.500 in 12.70 mm 1,685 1,685
133.00 lb/ft 0.635 in 16.13 mm 2,125 2,125
94.00 lb/ft 0.438 in 11.13 mm 1,530 2,110 2,110
106.50 lb/ft 0.500 in 12.70 mm 2,410 2,410
133.00 lb/ft 0.635 in 16.13 mm 3,060 3,060
C 95 T 95H 40 Q 125P 110J 55 K 55 M 65 N 80L 80 C 90

20 ''
CUERPO DE TUBO
COLAPSO psi 520 520 520
kg / cm² 37 37 37
TENSIÓN 1,000 lb 1,077 1,480 1,480
ton 488 672 672
kg / cm² 108 148 148
JUNTA API
TENSIÓN 1,000 lb 581 783 823
ROSCA ton 263 355 373
psi 1,530 2,110 2,110
INTERNA kg / cm² 108 148 148
TENSIÓN 1,000 lb 673 907 955
ROSCA ton 305 411 433
psi 1,530 2,110 2,110
INTERNA kg / cm² 108 148 148
TENSIÓN 1,000 lb 1,402 1,479
psi 2,110 2,110
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
TUBO LISO psi 1,100 1,400 1,400
kg / cm² 77 98 98
kg / cm² 77 98 98
kg / cm² 77 98 98
kg / cm² 98 98
kg / cm²

20 ''
FLUENCIA ksi 55 55
CUERPO DE TUBO
COLAPSO psi 770 770
kg / cm² 54 54
TENSIÓN 1,000 lb 1,685 1,685
ton 764 764
kg / cm² 169 169
JUNTA API
TENSIÓN 1,000 lb 913 959
ROSCA ton 414 435
psi 2,410 2,410
TENSIÓN 1,000 lb 1,056 1,113
ROSCA ton 479 505
psi 2,410 2,410
TENSIÓN 1,000 lb 1,595 1,683
psi 2,410 2,410
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
kg / cm² 120 120
kg / cm² 120 120
kg / cm² 120 120
kg / cm² 120 120
kg / cm²

20 ''
FLUENCIA ksi 55 55
CUERPO DE TUBO
COLAPSO psi 1,500 1,500
kg / cm² 105 105
TENSIÓN 1,000 lb 2,125 2,125
ton 964 964
kg / cm² 215 215
JUNTA API
TENSIÓN 1,000 lb 1,192 1,252
ROSCA ton 541 568
psi 3,060 3,060
TENSIÓN 1,000 lb 1,379 1,453
ROSCA ton 626 659
psi 3,060 3,060
TENSIÓN 1,000 lb 2,012 2,123
psi 3,060 3,060
TENSIÓN 1,000 lb
BUTTRESS ton
psi
INTERNA kg / cm²
kg / cm² 148 148
kg / cm² 148 148
kg / cm² 148 148
kg / cm² 148 148
kg / cm²

60.33 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PRODUCCIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
2 3/8 ''
API DST-TAMSA
CUERPO DE TUBO 80 SS 85 SS 90 SS 95 SS
TRC 80 TRC 85 TRC 90 TRC 95
4.00 lb/ft 0.167 in 4.24 mm 5,230 7,190 9,980 9,980 10,940 11,410 9,980 10,470 10,940 11,410
4.60 lb/ft 0.190 in 4.83 mm 5,890 8,100 11,780 11,780 13,250 13,980 16,130 11,780 12,510 13,250 13,980
5.80 lb/ft 0.254 in 6.45 mm 15,280 15,280 17,190 18,150 21,010 15,280 16,240 17,190 18,150
6.60 lb/ft 0.295 in 7.49 mm 17,410 19,580 20,670 17,410 18,490 19,580 20,670
7.35 lb/ft 0.336 in 8.53 mm 19,430 21,860 23,080 19,430 20,650 21,860 23,080
4.00 lb/ft 0.167 in 4.24 mm 46 64 93 93 104 110 93 98 104 110
4.60 lb/ft 0.190 in 4.83 mm 52 72 104 104 117 124 143 104 111 117 124
5.80 lb/ft 0.254 in 6.45 mm 135 135 152 161 186 135 144 152 161
6.60 lb/ft 0.295 in 7.49 mm 154 173 183 154 164 173 183
7.35 lb/ft 0.336 in 8.53 mm 172 194 204 172 183 194 204
4.00 lb/ft 0.167 in 4.24 mm 4,920 6,770 9,840 9,840 11,070 11,690 9,840 10,460 11,070 11,690
4.60 lb/ft 0.190 in 4.83 mm 5,600 7,700 11,200 11,200 12,600 13,300 15,400 11,200 11,900 12,600 13,300
5.80 lb/ft 0.254 in 6.45 mm 14,970 14,970 16,840 17,780 20,590 14,970 15,910 16,840 17,780
6.60 lb/ft 0.295 in 7.49 mm 17,390 19,560 20,650 17,390 18,480 19,560 20,650
7.35 lb/ft 0.336 in 8.53 mm 19,810 22,280 23,520 19,810 21,040 22,280 23,520
C 90H 40 J 55 K 55 M 65 N 80L 80 Q 125P 110C 95 T 95

2 3/8 ''
ESPESOR NOMINAL 0.167 in 4.24 mm DIÁMETRO
PESO NOMINAL 4.00 lb/ft 5.95 kg/m TUBERÍA
DIÁMETRO INTERIOR NOMINAL 2.041 in 51.84 mm 4.00 lb/ft
ÁREA TRANSVERSAL 1.158 in 2 747.4 mm 2 DE PESO
MANDRIL NORMAL 1.947 in 49.46 mm 0.167 in
ALTERNATIVO NO API PRODUCCIÓN ESPESOR
COPLE DIÁMETRO EXTERIOR 2.875 in 10 HILOS 73.03 mm 4.24 mm
RECALQUE DIÁMETRO EXTERIOR NO API 8 HILOS ESPESOR
ACERO H 40 J 55 K 55 M 65 L 80 N 80 C 90 C 95 T 95 P 110 Q 125 80 SS 85 SS 90 SS 95 SS
FLUENCIA ksi 40 55 80 80 90 95 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 95 100 100 105
(ESFUERZO DE RUPTURA) kg / mm² 42 53 67 70 70 74 67 70 70 74
CUERPO DE TUBO
COLAPSO psi 5,230 7,190 9,980 9,980 10,940 11,410 9,980 10,470 10,940 11,410
kg / cm² 368 506 702 702 769 802 702 736 769 802
TENSIÓN 1,000 lb 46 64 93 93 104 110 93 98 104 110
ton 21 29 42 42 47 50 42 45 47 50
kg / cm² 346 476 692 692 778 822 692 735 778 822
JUNTA API
TENSIÓN 1,000 lb 30 41 60 60 68 72 60 64 68 72
SIN RECALCAR ton 14 19 27 27 31 32 27 29 31 32
(CON ROSCA Y COPLE) PRESIÓN psi 4,920 6,770 9,840 9,840 11,070 11,690 9,840 10,460 11,070 11,690
INTERNA kg / cm² 346 476 692 692 778 822 692 735 778 822
TENSIÓN 1,000 lb
RECALCADO ton
(CON ROSCA Y COPLE) PRESIÓN psi
INTERNA kg / cm²
TUBO LISO psi 3,000 3,000 9,000 9,000 10,000 10,000 9,000 9,600 10,000 10,000
kg / cm² 211 211 633 633 703 703 633 675 703 703
SIN RECALCAR psi 3,000 3,000 9,000 9,000 10,000 10,000 9,000 9,600 10,000 10,000
kg / cm² 211 211 633 633 703 703 633 675 703 703
RECALCADO psi
kg / cm²

2 3/8 ''
ÁREA TRANSVERSAL 1.304 in 2 841.4 mm 2 DE PESO
RECALQUE DIÁMETRO EXTERIOR 3.063 in 8 HILOS 77.80 mm ESPESOR
FLUENCIA ksi 40 55 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 125 95 100 100 105
(ESFUERZO DE RUPTURA) kg / mm² 42 53 67 70 70 74 88 67 70 70 74
CUERPO DE TUBO
COLAPSO psi 5,890 8,100 11,780 11,780 13,250 13,980 16,130 11,780 12,510 13,250 13,980
kg / cm² 414 569 828 828 932 983 1134 828 880 932 983
TENSIÓN 1,000 lb 52 72 104 104 117 124 143 104 111 117 124
ton 24 33 47 47 53 56 65 47 50 53 56
kg / cm² 394 541 787 787 886 935 1,083 787 837 886 935
JUNTA API
TENSIÓN 1,000 lb 36 49 72 72 81 85 99 72 76 81 85
SIN RECALCAR ton 16 22 33 33 37 39 45 33 35 37 39
(CON ROSCA Y COPLE) PRESIÓN psi 5,600 7,700 11,200 11,200 12,600 13,300 15,400 11,200 11,900 12,600 13,300
INTERNA kg / cm² 394 541 787 787 886 935 1083 787 837 886 935
TENSIÓN 1,000 lb 52 72 104 104 117 124 143 104 111 117 124
RECALCADO ton 24 33 47 47 53 56 65 47 50 53 56
INTERNA kg / cm² 394 541 787 787 886 935 1083 787 837 886 935
TUBO LISO psi 3,000 3,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 211 211 703 703 703 703 703 703 703 703 703
SIN RECALCAR psi 3,000 3,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 211 211 703 703 703 703 703 703 703 703 703
RECALCADO psi 3,000 3,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 211 211 703 703 703 703 703 703 703 703 703

2 3/8 ''
ÁREA TRANSVERSAL 1.692 in 2 1,091.9 mm 2 DE PESO
FLUENCIA ksi 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 95 100 100 105 125 95 100 100 105
(ESFUERZO DE RUPTURA) kg / mm² 67 70 70 74 88 67 70 70 74
CUERPO DE TUBO
COLAPSO psi 15,280 15,280 17,190 18,150 21,010 15,280 16,240 17,190 18,150
kg / cm² 1074 1074 1209 1276 1477 1074 1142 1209 1276
TENSIÓN 1,000 lb 135 135 152 161 186 135 144 152 161
ton 61 61 69 73 84 61 65 69 73
kg / cm² 1,052 1,052 1,184 1,250 1,448 1,052 1,119 1,184 1,250
JUNTA API
TENSIÓN 1,000 lb 103 103 116 122 142 103 109 116 122
SIN RECALCAR ton 47 47 53 55 64 47 50 53 55
(CON ROSCA Y COPLE) PRESIÓN psi 14,970 14,970 16,840 17,780 20,590 14,970 15,910 16,840 17,780
INTERNA kg / cm² 1052 1052 1184 1250 1448 1052 1119 1184 1250
TENSIÓN 1,000 lb 135 135 152 161 186 135 144 152 161
RECALCADO ton 61 61 69 73 84 61 65 69 73
INTERNA kg / cm² 1044 1044 1175 1240 1436 1044 1110 1175 1240
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
SIN RECALCAR psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
RECALCADO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703

2 3/8 ''
COPLE DIÁMETRO EXTERIOR NO API 10 HILOS 7.49 mm
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
(ESFUERZO DE RUPTURA) kg / mm² 67 70 74 67 70 70 74
CUERPO DE TUBO
COLAPSO psi 17,410 19,580 20,670 17,410 18,490 19,580 20,670
kg / cm² 1224 1377 1453 1224 1300 1377 1453
TENSIÓN 1,000 lb 154 173 183 154 164 173 183
ton 70 79 83 70 74 79 83
kg / cm² 1,223 1,375 1,452 1,223 1,299 1,375 1,452
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

2 3/8 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 19,430 21,860 23,080 19,430 20,650 21,860 23,080
kg / cm² 1366 1537 1623 1366 1452 1537 1623
TENSIÓN 1,000 lb 172 194 204 172 183 194 204
ton 78 88 93 78 83 88 93
kg / cm² 1,393 1,566 1,654 1,393 1,479 1,566 1,654
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb 172 194 204 172 183 194 204
RECALCADO ton 78 88 93 78 83 88 93
(CON ROSCA Y COPLE) PRESIÓN psi 14,855 16,712 17,640 14,855 15,783 16,712 17,640
INTERNA kg / cm² 1044 1175 1240 1044 1110 1175 1240
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703

73.03 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PRODUCCIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
2 7/8 ''
API DST-TAMSA
6.40 lb/ft 0.217 in 5.51 mm 5,580 7,680 11,170 11,170 12,390 12,940 14,550 11,170 11,820 12,390 12,940
7.80 lb/ft 0.276 in 7.01 mm 13,890 13,890 15,620 16,490 19,090 13,890 14,750 15,620 16,490
8.60 lb/ft 0.308 in 7.82 mm 15,300 15,300 17,220 18,170 21,040 15,300 16,260 17,220 18,170
9.35 lb/ft 0.340 in 8.64 mm 16,680 18,770 19,810 16,680 17,730 18,770 19,810
10.50 lb/ft 0.392 in 9.96 mm 18,840 21,200 22,370 18,840 20,020 21,200 22,370
11.50 lb/ft 0.440 in 11.18 mm 20,740 23,330 24,630 20,740 22,040 23,330 24,630
6.40 lb/ft 0.217 in 5.51 mm 72 100 145 145 163 172 199 145 154 163 172
7.80 lb/ft 0.276 in 7.01 mm 180 180 203 214 248 180 192 203 214
8.60 lb/ft 0.308 in 7.82 mm 199 199 224 236 273 199 211 224 236
9.35 lb/ft 0.340 in 8.64 mm 217 244 257 217 230 244 257
10.50 lb/ft 0.392 in 9.96 mm 245 275 290 245 260 275 290
11.50 lb/ft 0.440 in 11.18 mm 269 303 320 269 286 303 320
6.40 lb/ft 0.217 in 5.51 mm 5,280 7,260 10,570 10,570 11,890 12,550 14,530 10,570 11,230 11,890 12,550
7.80 lb/ft 0.276 in 7.01 mm 13,440 13,440 15,120 15,960 18,480 13,440 14,280 15,120 15,960
8.60 lb/ft 0.308 in 7.82 mm 15,000 15,000 16,870 17,810 20,620 15,000 15,940 16,870 17,810
9.35 lb/ft 0.340 in 8.64 mm 16,560 18,630 19,660 16,560 17,590 18,630 19,660
10.50 lb/ft 0.392 in 9.96 mm 19,090 21,470 22,670 19,090 20,280 21,470 22,670
11.50 lb/ft 0.440 in 11.18 mm 21,430 24,100 25,440 21,430 22,770 24,100 25,440
C 90H 40 J 55 K 55 M 65 N 80L 80 Q 125P 110C 95 T 95

2 7/8 ''
FLUENCIA ksi 40 55 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 125 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 5,580 7,680 11,170 11,170 12,390 12,940 14,550 11,170 11,820 12,390 12,940
kg / cm² 392 540 785 785 871 910 1023 785 831 871 910
TENSIÓN 1,000 lb 72 100 145 145 163 172 199 145 154 163 172
ton 33 45 66 66 74 78 90 66 70 74 78
kg / cm² 371 510 743 743 836 882 1,022 743 790 836 882
JUNTA API
TENSIÓN 1,000 lb 53 73 106 106 119 125 145 106 112 119 125
SIN RECALCAR ton 24 33 48 48 54 57 66 48 51 54 57
INTERNA kg / cm² 371 510 743 743 836 882 1022 743 790 836 882
TENSIÓN 1,000 lb 72 100 145 145 163 172 199 145 154 163 172
RECALCADO ton 33 45 66 66 74 78 90 66 70 74 78
INTERNA kg / cm² 371 510 743 743 836 882 1022 743 790 836 882
TUBO LISO psi 3,000 3,000 9,700 9,700 10,000 10,000 10,000 9,700 10,000 10,000 10,000
kg / cm² 211 211 682 682 703 703 703 682 703 703 703
SIN RECALCAR psi 3,000 3,000 9,700 9,700 10,000 10,000 10,000 9,700 10,000 10,000 10,000
kg / cm² 211 211 682 682 703 703 703 682 703 703 703
RECALCADO psi 3,000 3,000 9,700 9,700 10,000 10,000 10,000 9,700 10,000 10,000 10,000
kg / cm² 211 211 682 682 703 703 703 682 703 703 703

2 7/8 ''
FLUENCIA ksi 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 95 100 100 105 125 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 13,890 13,890 15,620 16,490 19,090 13,890 14,750 15,620 16,490
kg / cm² 977 977 1098 1159 1342 977 1037 1098 1159
TENSIÓN 1,000 lb 180 180 203 214 248 180 192 203 214
ton 82 82 92 97 112 82 87 92 97
kg / cm² 945 945 1,063 1,122 1,299 945 1,004 1,063 1,122
JUNTA API
TENSIÓN 1,000 lb 141 141 158 167 194 141 150 158 167
SIN RECALCAR ton 64 64 72 76 88 64 68 72 76
INTERNA kg / cm² 945 945 1063 1122 1299 945 1004 1063 1122
TENSIÓN 1,000 lb 180 180 203 214 248 180 192 203 214
RECALCADO ton 82 82 92 97 112 82 87 92 97
INTERNA kg / cm² 945 945 1063 1122 1299 945 1004 1063 1122
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
SIN RECALCAR psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
RECALCADO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703

2 7/8 ''
FLUENCIA ksi 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 95 100 100 105 125 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 15,300 15,300 17,220 18,170 21,040 15,300 16,260 17,220 18,170
kg / cm² 1076 1076 1211 1277 1479 1076 1143 1211 1277
TENSIÓN 1,000 lb 199 199 224 236 273 199 211 224 236
ton 90 90 101 107 124 90 96 101 107
kg / cm² 1,055 1,055 1,186 1,252 1,450 1,055 1,121 1,186 1,252
JUNTA API
TENSIÓN 1,000 lb 159 159 179 189 219 159 169 179 189
SIN RECALCAR ton 72 72 81 86 99 72 77 81 86
INTERNA kg / cm² 1055 1055 1186 1252 1450 1055 1121 1186 1252
TENSIÓN 1,000 lb 199 199 224 236 273 199 211 224 236
RECALCADO ton 90 90 101 107 124 90 96 101 107
INTERNA kg / cm² 1051 1051 1182 1248 1445 1051 1117 1182 1248
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
SIN RECALCAR psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
RECALCADO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703

2 7/8 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 16,680 18,770 19,810 16,680 17,730 18,770 19,810
kg / cm² 1173 1320 1393 1173 1247 1320 1393
TENSIÓN 1,000 lb 217 244 257 217 230 244 257
ton 98 111 117 98 104 111 117
kg / cm² 1,164 1,310 1,382 1,164 1,237 1,310 1,382
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb 217 244 257 217 230 244 257
RECALCADO ton 98 111 117 98 104 111 117
(CON ROSCA Y COPLE) PRESIÓN psi 14,950 16,818 17,753 14,950 15,884 16,818 17,753
INTERNA kg / cm² 1051 1182 1248 1051 1117 1182 1248
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703

2 7/8 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 18,840 21,200 22,370 18,840 20,020 21,200 22,370
kg / cm² 1325 1490 1573 1325 1408 1490 1573
TENSIÓN 1,000 lb 245 275 290 245 260 275 290
ton 111 125 132 111 118 125 132
kg / cm² 1,342 1,509 1,594 1,342 1,426 1,509 1,594
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

2 7/8 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 20,740 23,330 24,630 20,740 22,040 23,330 24,630
kg / cm² 1458 1640 1732 1458 1550 1640 1732
TENSIÓN 1,000 lb 269 303 320 269 286 303 320
ton 122 137 145 122 130 137 145
kg / cm² 1,507 1,694 1,789 1,507 1,601 1,694 1,789
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

88.90 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PRODUCCIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
3 1/2 ''
API DST-TAMSA
7.70 lb/ft 0.216 in 5.49 mm 4,630 5,970 7,870 7,870 8,540 8,850 7,870 8,210 8,540 8,850
9.20 lb/ft 0.254 in 6.45 mm 5,380 7,400 10,540 10,540 11,570 12,080 13,530 10,540 11,060 11,570 12,080
10.20 lb/ft 0.289 in 7.34 mm 6,060 8,330 12,120 12,120 13,640 14,390 12,120 12,880 13,640 14,390
12.70 lb/ft 0.375 in 9.53 mm 15,310 15,310 17,220 18,180 21,050 15,310 16,260 17,220 18,180
14.30 lb/ft 0.430 in 10.92 mm 17,240 19,400 20,480 17,240 18,320 19,400 20,480
15.50 lb/ft 0.476 in 12.09 mm 18,800 21,150 22,330 18,800 19,980 21,150 22,330
17.00 lb/ft 0.530 in 13.46 mm 20,560 23,130 24,410 20,560 21,840 23,130 24,410
7.70 lb/ft 0.216 in 5.49 mm 89 123 178 178 201 212 178 189 201 212
9.20 lb/ft 0.254 in 6.45 mm 104 142 207 207 233 246 285 207 220 233 246
10.20 lb/ft 0.289 in 7.34 mm 117 160 233 233 262 277 233 248 262 277
12.70 lb/ft 0.375 in 9.53 mm 295 295 331 350 405 295 313 331 350
14.30 lb/ft 0.430 in 10.92 mm 332 373 394 332 353 373 394
15.50 lb/ft 0.476 in 12.09 mm 362 407 430 362 384 407 430
17.00 lb/ft 0.530 in 13.46 mm 396 445 470 396 420 445 470
7.70 lb/ft 0.216 in 5.49 mm 4,320 5,940 8,640 8,640 9,720 10,260 8,640 9,180 9,720 10,260
9.20 lb/ft 0.254 in 6.45 mm 5,080 6,990 10,160 10,160 11,430 12,070 13,970 10,160 10,800 11,430 12,070
10.20 lb/ft 0.289 in 7.34 mm 5,780 7,950 11,560 11,560 13,010 13,730 11,560 12,280 13,010 13,730
12.70 lb/ft 0.375 in 9.53 mm 15,000 15,000 16,880 17,810 20,630 15,000 15,940 16,880 17,810
14.30 lb/ft 0.430 in 10.92 mm 17,200 19,350 20,430 17,200 18,280 19,350 20,430
15.50 lb/ft 0.476 in 12.09 mm 19,040 21,420 22,610 19,040 20,230 21,420 22,610
17.00 lb/ft 0.530 in 13.46 mm 21,200 23,850 25,180 21,200 22,530 23,850 25,180
C 90H 40 J 55 K 55 M 65 N 80L 80 Q 125P 110C 95 T 95

3 1/2 ''
FLUENCIA ksi 40 55 80 80 90 95 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 4,630 5,970 7,870 7,870 8,540 8,850 7,870 8,210 8,540 8,850
kg / cm² 326 420 553 553 600 622 553 577 600 622
TENSIÓN 1,000 lb 89 123 178 178 201 212 178 189 201 212
ton 40 56 81 81 91 96 81 86 91 96
kg / cm² 304 418 607 607 683 721 607 645 683 721
JUNTA API
TENSIÓN 1,000 lb 65 89 130 130 146 155 130 138 146 155
SIN RECALCAR ton 30 41 59 59 66 70 59 63 66 70
INTERNA kg / cm² 304 418 607 607 683 721 607 645 683 721
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 3,000 3,000 7,900 7,900 8,900 9,400 7,900 8,400 8,900 9,400
kg / cm² 211 211 555 555 626 661 555 591 626 661
SIN RECALCAR psi 3,000 3,000 7,900 7,900 8,900 9,400 7,900 8,400 8,900 9,400
kg / cm² 211 211 555 555 626 661 555 591 626 661
RECALCADO psi
kg / cm²

3 1/2 ''
FLUENCIA ksi 40 55 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 125 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 5,380 7,400 10,540 10,540 11,570 12,080 13,530 10,540 11,060 11,570 12,080
kg / cm² 378 520 741 741 813 849 951 741 778 813 849
TENSIÓN 1,000 lb 104 142 207 207 233 246 285 207 220 233 246
ton 47 65 94 94 106 112 129 94 100 106 112
kg / cm² 357 491 714 714 804 849 982 714 759 804 849
JUNTA API
TENSIÓN 1,000 lb 80 109 159 159 179 189 219 159 169 179 189
SIN RECALCAR ton 36 50 72 72 81 86 99 72 77 81 86
INTERNA kg / cm² 357 491 714 714 804 849 982 714 759 804 849
TENSIÓN 1,000 lb 104 142 207 207 233 246 285 207 220 233 246
RECALCADO ton 47 65 94 94 106 112 129 94 100 106 112
INTERNA kg / cm² 357 491 714 714 804 849 982 714 759 804 849
TUBO LISO psi 3,000 3,000 9,300 9,300 10,000 10,000 10,000 9,300 9,900 10,000 10,000
kg / cm² 211 211 654 654 703 703 703 654 696 703 703
SIN RECALCAR psi 3,000 3,000 9,300 9,300 10,000 10,000 10,000 9,300 9,900 10,000 10,000
kg / cm² 211 211 654 654 703 703 703 654 696 703 703
RECALCADO psi 3,000 3,000 9,300 9,300 10,000 10,000 10,000 9,300 9,900 10,000 10,000
kg / cm² 211 211 654 654 703 703 703 654 696 703 703

3 1/2 ''
FLUENCIA ksi 40 55 80 80 90 95 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 6,060 8,330 12,120 12,120 13,640 14,390 12,120 12,880 13,640 14,390
kg / cm² 426 586 852 852 959 1012 852 906 959 1012
TENSIÓN 1,000 lb 117 160 233 233 262 277 233 248 262 277
ton 53 73 106 106 119 126 106 112 119 126
kg / cm² 406 559 813 813 915 965 813 863 915 965
JUNTA API
TENSIÓN 1,000 lb 93 127 185 185 208 220 185 197 208 220
SIN RECALCAR ton 42 58 84 84 94 100 84 89 94 100
INTERNA kg / cm² 406 559 813 813 915 965 813 863 915 965
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 3,000 3,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 211 211 703 703 703 703 703 703 703 703
SIN RECALCAR psi 3,000 3,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 211 211 703 703 703 703 703 703 703 703
RECALCADO psi
kg / cm²

3 1/2 ''
FLUENCIA ksi 80 80 90 95 110 80 85 90 95
RESISTENCIA ksi 95 100 100 105 125 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 15,310 15,310 17,220 18,180 21,050 15,310 16,260 17,220 18,180
kg / cm² 1076 1076 1211 1278 1480 1076 1143 1211 1278
TENSIÓN 1,000 lb 295 295 331 350 405 295 313 331 350
ton 134 134 150 159 184 134 142 150 159
kg / cm² 1,055 1,055 1,187 1,252 1,450 1,055 1,121 1,187 1,252
JUNTA API
TENSIÓN 1,000 lb 246 246 277 293 339 246 262 277 293
SIN RECALCAR ton 112 112 126 133 154 112 119 126 133
INTERNA kg / cm² 1055 1055 1187 1252 1450 1055 1121 1187 1252
TENSIÓN 1,000 lb 295 295 331 350 405 295 313 331 350
RECALCADO ton 134 134 150 159 184 134 142 150 159
INTERNA kg / cm² 1055 1055 1187 1252 1450 1055 1121 1187 1252
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
SIN RECALCAR psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703
RECALCADO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703 703 703

3 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 17,240 19,400 20,480 17,240 18,320 19,400 20,480
kg / cm² 1212 1364 1440 1212 1288 1364 1440
TENSIÓN 1,000 lb 332 373 394 332 353 373 394
ton 150 169 179 150 160 169 179
kg / cm² 1,209 1,360 1,436 1,209 1,285 1,360 1,436
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

3 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 18,800 21,150 22,330 18,800 19,980 21,150 22,330
kg / cm² 1322 1487 1570 1322 1405 1487 1570
TENSIÓN 1,000 lb 362 407 430 362 384 407 430
ton 164 185 195 164 174 185 195
kg / cm² 1,339 1,506 1,590 1,339 1,422 1,506 1,590
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

3 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 20,560 23,130 24,410 20,560 21,840 23,130 24,410
kg / cm² 1446 1626 1716 1446 1535 1626 1716
TENSIÓN 1,000 lb 396 445 470 396 420 445 470
ton 179 202 213 179 191 202 213
kg / cm² 1,490 1,677 1,770 1,490 1,584 1,677 1,770
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

101.60 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PRODUCCIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 ''
API DST-TAMSA
9.50 lb/ft 0.226 in 5.74 mm 4,050 5,110 6,590 6,590 7,080 7,310 6,590 6,840 7,080 7,310
11.00 lb/ft 0.262 in 6.65 mm 4,900 6,590 8,800 8,800 9,600 9,980 8,800 9,200 9,600 9,980
13.20 lb/ft 0.330 in 8.38 mm 12,110 13,620 14,380 12,110 12,870 13,620 14,380
16.10 lb/ft 0.415 in 10.54 mm 14,880 16,740 17,670 14,880 15,810 16,740 17,670
18.90 lb/ft 0.500 in 12.70 mm 17,500 19,690 20,780 17,500 18,590 19,690 20,780
22.20 lb/ft 0.610 in 15.49 mm 20,680 23,260 24,560 20,680 21,970 23,260 24,560
9.50 lb/ft 0.226 in 5.74 mm 107 147 214 214 241 255 214 228 241 255
11.00 lb/ft 0.262 in 6.65 mm 123 169 246 246 277 292 246 262 277 292
13.20 lb/ft 0.330 in 8.38 mm 304 342 361 304 323 342 361
16.10 lb/ft 0.415 in 10.54 mm 374 421 444 374 397 421 444
18.90 lb/ft 0.500 in 12.70 mm 440 495 522 440 467 495 522
22.20 lb/ft 0.610 in 15.49 mm 520 585 617 520 552 585 617
9.50 lb/ft 0.226 in 5.74 mm 3,960 5,440 7,910 7,910 8,900 9,390 7,910 8,400 8,900 9,390
11.00 lb/ft 0.262 in 6.65 mm 4,590 6,300 9,170 9,170 10,320 10,890 9,170 9,740 10,320 10,890
13.20 lb/ft 0.330 in 8.38 mm 11,550 12,990 13,720 11,550 12,270 12,990 13,720
16.10 lb/ft 0.415 in 10.54 mm 14,530 16,340 17,250 14,530 15,430 16,340 17,250
18.90 lb/ft 0.500 in 12.70 mm 17,500 19,690 20,780 17,500 18,590 19,690 20,780
22.20 lb/ft 0.610 in 15.49 mm 21,350 24,020 25,350 21,350 22,680 24,020 25,350
C 90H 40 J 55 K 55 M 65 N 80L 80 Q 125P 110C 95 T 95

4 ''
FLUENCIA ksi 40 55 80 80 90 95 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 4,050 5,110 6,590 6,590 7,080 7,310 6,590 6,840 7,080 7,310
kg / cm² 285 359 463 463 498 514 463 481 498 514
TENSIÓN 1,000 lb 107 147 214 214 241 255 214 228 241 255
ton 49 67 97 97 109 115 97 103 109 115
kg / cm² 278 382 556 556 626 660 556 591 626 660
JUNTA API
TENSIÓN 1,000 lb 72 99 144 144 162 171 144 153 162 171
SIN RECALCAR ton 33 45 65 65 73 78 65 69 73 78
INTERNA kg / cm² 278 382 556 556 626 660 556 591 626 660
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 3,000 3,000 7,200 7,200 8,100 8,600 7,200 7,700 8,100 8,600
kg / cm² 211 211 506 506 569 605 506 541 569 605
SIN RECALCAR psi 3,000 3,000 7,200 7,200 8,100 8,600 7,200 7,700 8,100 8,600
kg / cm² 211 211 506 506 569 605 506 541 569 605
RECALCADO psi
kg / cm²

4 ''
FLUENCIA ksi 40 55 80 80 90 95 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 4,900 6,590 8,800 8,800 9,600 9,980 8,800 9,200 9,600 9,980
kg / cm² 345 463 619 619 675 702 619 647 675 702
TENSIÓN 1,000 lb 123 169 246 246 277 292 246 262 277 292
ton 56 77 112 112 126 133 112 119 126 133
kg / cm² 323 443 645 645 726 766 645 685 726 766
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb 123 169 246 246 277 292 246 262 277 292
RECALCADO ton 56 77 112 112 126 133 112 119 126 133
INTERNA kg / cm² 323 443 645 645 726 766 645 685 726 766
TUBO LISO psi 3,000 3,000 8,400 8,400 9,400 10,000 8,400 8,900 9,400 10,000
kg / cm² 211 211 591 591 661 703 591 626 661 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi 3,000 3,000 8,400 8,400 9,400 10,000 8,400 8,900 9,400 10,000
kg / cm² 211 211 591 591 661 703 591 626 661 703

4 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 12,110 13,620 14,380 12,110 12,870 13,620 14,380
kg / cm² 851 958 1011 851 905 958 1011
TENSIÓN 1,000 lb 304 342 361 304 323 342 361
ton 138 155 164 138 147 155 164
kg / cm² 812 913 965 812 863 913 965
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 14,880 16,740 17,670 14,880 15,810 16,740 17,670
kg / cm² 1046 1177 1242 1046 1112 1177 1242
TENSIÓN 1,000 lb 374 421 444 374 397 421 444
ton 170 191 201 170 180 191 201
kg / cm² 1,022 1,149 1,213 1,022 1,085 1,149 1,213
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 17,500 19,690 20,780 17,500 18,590 19,690 20,780
kg / cm² 1230 1384 1461 1230 1307 1384 1461
TENSIÓN 1,000 lb 440 495 522 440 467 495 522
ton 199 224 237 199 212 224 237
kg / cm² 1,230 1,384 1,461 1,230 1,307 1,384 1,461
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 20,680 23,260 24,560 20,680 21,970 23,260 24,560
kg / cm² 1454 1635 1727 1454 1545 1635 1727
TENSIÓN 1,000 lb 520 585 617 520 552 585 617
ton 236 265 280 236 250 265 280
kg / cm² 1,501 1,689 1,782 1,501 1,595 1,689 1,782
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

114.30 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PRODUCCIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 1/2 ''
API DST-TAMSA
12.60 lb/ft 0.271 in 6.88 mm 4,490 5,730 7,500 7,500 8,120 8,410 7,500 7,820 8,120 8,410
15.20 lb/ft 0.337 in 8.56 mm 11,080 12,220 12,760 11,080 11,670 12,220 12,760
17.00 lb/ft 0.380 in 9.65 mm 12,370 13,920 14,690 12,370 13,140 13,920 14,690
18.90 lb/ft 0.430 in 10.92 mm 13,830 15,560 16,420 13,830 14,690 15,560 16,420
21.50 lb/ft 0.500 in 12.70 mm 15,800 17,780 18,770 15,800 16,790 17,780 18,770
23.70 lb/ft 0.560 in 14.22 mm 17,430 19,610 20,700 17,430 18,520 19,610 20,700
26.10 lb/ft 0.630 in 16.00 mm 19,260 21,670 22,880 19,260 20,470 21,670 22,880
12.60 lb/ft 0.271 in 6.88 mm 144 198 288 288 324 342 288 306 324 342
15.20 lb/ft 0.337 in 8.56 mm 353 397 419 353 375 397 419
17.00 lb/ft 0.380 in 9.65 mm 393 443 467 393 418 443 467
18.90 lb/ft 0.430 in 10.92 mm 440 495 522 440 467 495 522
21.50 lb/ft 0.500 in 12.70 mm 503 565 597 503 534 565 597
23.70 lb/ft 0.560 in 14.22 mm 555 624 659 555 589 624 659
26.10 lb/ft 0.630 in 16.00 mm 613 689 728 613 651 689 728
12.60 lb/ft 0.271 in 6.88 mm 4,220 5,800 8,430 8,430 9,490 10,010 8,430 8,960 9,490 10,010
15.20 lb/ft 0.337 in 8.56 mm 10,480 11,800 12,450 10,480 11,140 11,800 12,450
17.00 lb/ft 0.380 in 9.65 mm 11,820 13,300 14,040 11,820 12,560 13,300 14,040
18.90 lb/ft 0.430 in 10.92 mm 13,380 15,050 15,890 13,380 14,210 15,050 15,890
21.50 lb/ft 0.500 in 12.70 mm 15,560 17,500 18,470 15,560 16,530 17,500 18,470
23.70 lb/ft 0.560 in 14.22 mm 17,420 19,600 20,690 17,420 18,510 19,600 20,690
26.10 lb/ft 0.630 in 16.00 mm 19,600 22,050 23,280 19,600 20,830 22,050 23,280
C 90H 40 J 55 K 55 M 65 N 80L 80 Q 125P 110C 95 T 95

4 1/2 ''
FLUENCIA ksi 40 55 80 80 90 95 80 85 90 95
RESISTENCIA ksi 60 75 95 100 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 4,490 5,730 7,500 7,500 8,120 8,410 7,500 7,820 8,120 8,410
kg / cm² 316 403 527 527 571 591 527 550 571 591
TENSIÓN 1,000 lb 144 198 288 288 324 342 288 306 324 342
ton 65 90 131 131 147 155 131 139 147 155
kg / cm² 297 408 593 593 667 704 593 630 667 704
JUNTA API
TENSIÓN 1,000 lb 104 144 209 209 235 248 209 222 235 248
SIN RECALCAR ton 47 65 95 95 107 112 95 101 107 112
INTERNA kg / cm² 297 408 593 593 667 704 593 630 667 704
TENSIÓN 1,000 lb 144 198 288 288 324 342 288 306 324 342
RECALCADO ton 65 90 131 131 147 155 131 139 147 155
INTERNA kg / cm² 297 408 593 593 667 704 593 630 667 704
TUBO LISO psi 3,000 3,000 7,700 7,700 8,700 9,200 7,700 8,200 8,700 9,200
kg / cm² 211 211 541 541 612 647 541 577 612 647
SIN RECALCAR psi 3,000 3,000 7,700 7,700 8,700 9,200 7,700 8,200 8,700 9,200
kg / cm² 211 211 541 541 612 647 541 577 612 647
RECALCADO psi 3,000 3,000 7,700 7,700 8,700 9,200 7,700 8,200 8,700 9,200
kg / cm² 211 211 541 541 612 647 541 577 612 647

4 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 11,080 12,220 12,760 11,080 11,670 12,220 12,760
kg / cm² 779 859 897 779 820 859 897
TENSIÓN 1,000 lb 353 397 419 353 375 397 419
ton 160 180 190 160 170 180 190
kg / cm² 737 830 875 737 783 830 875
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 9,600 10,000 10,000 9,600 10,000 10,000 10,000
kg / cm² 675 703 703 675 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 12,370 13,920 14,690 12,370 13,140 13,920 14,690
kg / cm² 870 979 1033 870 924 979 1033
TENSIÓN 1,000 lb 393 443 467 393 418 443 467
ton 178 201 212 178 190 201 212
kg / cm² 831 935 987 831 883 935 987
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 13,830 15,560 16,420 13,830 14,690 15,560 16,420
kg / cm² 972 1094 1154 972 1033 1094 1154
TENSIÓN 1,000 lb 440 495 522 440 467 495 522
ton 200 224 237 200 212 224 237
kg / cm² 941 1,058 1,117 941 999 1,058 1,117
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 15,800 17,780 18,770 15,800 16,790 17,780 18,770
kg / cm² 1111 1250 1320 1111 1180 1250 1320
TENSIÓN 1,000 lb 503 565 597 503 534 565 597
ton 228 256 271 228 242 256 271
kg / cm² 1,094 1,230 1,299 1,094 1,162 1,230 1,299
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 17,430 19,610 20,700 17,430 18,520 19,610 20,700
kg / cm² 1225 1379 1455 1225 1302 1379 1455
TENSIÓN 1,000 lb 555 624 659 555 589 624 659
ton 252 283 299 252 267 283 299
kg / cm² 1,225 1,378 1,455 1,225 1,301 1,378 1,455
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

4 1/2 ''
FLUENCIA ksi 80 90 95 80 85 90 95
RESISTENCIA ksi 95 100 105 95 100 100 105
CUERPO DE TUBO
COLAPSO psi 19,260 21,670 22,880 19,260 20,470 21,670 22,880
kg / cm² 1354 1524 1609 1354 1439 1524 1609
TENSIÓN 1,000 lb 613 689 728 613 651 689 728
ton 278 313 330 278 295 313 330
kg / cm² 1,378 1,550 1,637 1,378 1,464 1,550 1,637
JUNTA API
TENSIÓN 1,000 lb
SIN RECALCAR ton
INTERNA kg / cm²
TENSIÓN 1,000 lb
RECALCADO ton
INTERNA kg / cm²
TUBO LISO psi 10,000 10,000 10,000 10,000 10,000 10,000 10,000
kg / cm² 703 703 703 703 703 703 703
SIN RECALCAR psi
kg / cm²
RECALCADO psi
kg / cm²

60.33 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
2 3/8 ''
CUERPO DE TUBO API DST-TAMSA
E-75 X-95 G-105 S-135 X-95 SA
6.65 lb/ft 0.280 in 7.11 mm 15,600 19,760 21,840 28,080 19,760
6.65 lb/ft 0.280 in 7.11 mm 138 175 194 249 175
6.65 lb/ft 0.280 in 7.11 mm 15,470 19,600 21,660 27,850 19,600

60.33 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
2 3/8 ''
DIÁMETRO EXTERIOR NOMINAL 2 3/8 in 60.33 mm 6.65 lb/ft
ESPESOR NOMINAL 0.280 in 7.11 mm PESO
PESO NOMINAL 6.65 lb/ft 9.90 kg/m 0.280 in
DIÁMETRO INTERIOR NOMINAL 1.815 in 46.10 mm ESPESOR
ÁREA TRANSVERSAL NOMINAL 1.843 in 2 1,188.9 mm 2 7.11 mm
MANDRIL NORMAL 1.628 in 41.34 mm ESPESOR
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
(ESFUERZO DE RUPTURA) kg / mm² 70 74 81 102 74
CUERPO DE TUBO
psi 15,600 19,760 21,840 28,080 19,760
kg / cm² 1097 1389 1535 1974 1389
lb x 1,000 138 175 194 249 175
ton 63 79 88 113 79
psi 15,470 19,600 21,660 27,850 19,600
kg / cm² 1,088 1,378 1,523 1,958 1,378
TENSIÓN
PRESIÓN INTERNA
COLAPSO

73.03 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
2 7/8 ''
E-75 X-95 G-105 S-135 X-95 SA
10.40 lb/ft 0.362 in 9.19 mm 16,510 20,910 23,110 29,720 20,910
10.40 lb/ft 0.362 in 9.19 mm 214 272 300 386 272
10.40 lb/ft 0.362 in 9.19 mm 16,530 20,930 23,140 29,750 20,930

73.03 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
2 7/8 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 16,510 20,910 23,110 29,720 20,910
kg / cm² 1161 1470 1625 2090 1470
lb x 1,000 214 272 300 386 272
ton 97 123 136 175 123
psi 16,530 20,930 23,140 29,750 20,930
kg / cm² 1,162 1,472 1,627 2,092 1,472
TENSIÓN
PRESIÓN INTERNA
COLAPSO

88.90 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
3 1/2 ''
E-75 X-95 G-105 S-135 X-95 SA
9.50 lb/ft 0.254 in 6.45 mm 10,000
13.30 lb/ft 0.368 in 9.35 mm 14,110 17,880 19,760 25,400 17,880
15.50 lb/ft 0.449 in 11.40 mm 16,770 21,250 23,480 30,190 21,250
9.50 lb/ft 0.254 in 6.45 mm 194
13.30 lb/ft 0.368 in 9.35 mm 272 344 380 489 344
15.50 lb/ft 0.449 in 11.40 mm 323 409 452 581 409
9.50 lb/ft 0.254 in 6.45 mm 9,530
13.30 lb/ft 0.368 in 9.35 mm 13,800 17,480 19,320 24,840 17,480
15.50 lb/ft 0.449 in 11.40 mm 16,840 21,330 23,570 30,310 21,330

88.90 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
3 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75
RESISTENCIA ksi 100
(ESFUERZO DE RUPTURA) kg / mm² 70
CUERPO DE TUBO
psi 10,000
kg / cm² 703
lb x 1,000 194
ton 88
psi 9,530
kg / cm² 670
TENSIÓN
PRESIÓN INTERNA
COLAPSO

88.90 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
3 1/2 ''
MANDRIL NORMAL ESPESOR
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 14,110 17,880 19,760 25,400 17,880
kg / cm² 992 1257 1389 1786 1257
lb x 1,000 272 344 380 489 344
ton 123 156 172 222 156
psi 13,800 17,480 19,320 24,840 17,480
kg / cm² 970 1,229 1,358 1,746 1,229
TENSIÓN
PRESIÓN INTERNA
COLAPSO

88.90 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
3 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 16,770 21,250 23,480 30,190 21,250
kg / cm² 1179 1494 1651 2123 1494
lb x 1,000 323 409 452 581 409
ton 146 185 205 264 185
psi 16,840 21,330 23,570 30,310 21,330
kg / cm² 1,184 1,500 1,657 2,131 1,500
TENSIÓN
PRESIÓN INTERNA
COLAPSO

101.60 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 ''
E-75 X-95 G-105 S-135 X-95 SA
11.85 lb/ft 0.262 in 6.65 mm 8,380
14.00 lb/ft 0.330 in 8.38 mm 11,350 14,380 15,900 20,140 14,380
11.85 lb/ft 0.262 in 6.65 mm 231
14.00 lb/ft 0.330 in 8.38 mm 285 361 400 514 361
11.85 lb/ft 0.262 in 6.65 mm 8,600
14.00 lb/ft 0.330 in 8.38 mm 10,830 13,720 15,160 19,490 13,720

101.60 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 ''
DIÁMETRO EXTERIOR NOMINAL 4 in 101.60 mm 11.85 lb/ft
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75
RESISTENCIA ksi 100
CUERPO DE TUBO
psi 8,380
kg / cm² 589
lb x 1,000 231
ton 105
psi 8,600
kg / cm² 605
TENSIÓN
PRESIÓN INTERNA
COLAPSO

101.60 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 11,350 14,380 15,900 20,140 14,380
kg / cm² 798 1011 1118 1416 1011
lb x 1,000 285 361 400 514 361
ton 129 164 181 233 164
psi 10,830 13,720 15,160 19,490 13,720
kg / cm² 761 965 1,066 1,370 965
TENSIÓN
PRESIÓN INTERNA
COLAPSO

114.30 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 1/2 ''
E-75 X-95 G-105 S-135 X-95 SA
13.75 lb/ft 0.271 in 6.88 mm 7,170
16.60 lb/ft 0.337 in 8.56 mm 10,390 12,760 13,820 16,770 12,760
20.00 lb/ft 0.430 in 10.92 mm 12,960 16,420 18,150 23,330 16,420
13.75 lb/ft 0.271 in 6.88 mm 270
16.60 lb/ft 0.337 in 8.56 mm 331 419 463 595 419
20.00 lb/ft 0.430 in 10.92 mm 412 522 577 742 522
13.75 lb/ft 0.271 in 6.88 mm 7,900
16.60 lb/ft 0.337 in 8.56 mm 9,830 12,450 13,760 17,690 12,450
20.00 lb/ft 0.430 in 10.92 mm 12,540 15,890 17,560 22,580 15,890

114.30 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75
RESISTENCIA ksi 100
CUERPO DE TUBO
psi 7,170
kg / cm² 504
lb x 1,000 270
ton 122
psi 7,900
kg / cm² 555
TENSIÓN
PRESIÓN INTERNA
COLAPSO

114.30 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 10,390 12,760 13,820 16,770 12,760
kg / cm² 730 897 972 1179 897
lb x 1,000 331 419 463 595 419
ton 150 190 210 270 190
psi 9,830 12,450 13,760 17,690 12,450
kg / cm² 691 875 967 1,244 875
TENSIÓN
PRESIÓN INTERNA
COLAPSO

114.30 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
4 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 12,960 16,420 18,150 23,330 16,420
kg / cm² 911 1154 1276 1640 1154
lb x 1,000 412 522 577 742 522
ton 187 237 262 337 237
psi 12,540 15,890 17,560 22,580 15,890
kg / cm² 882 1,117 1,235 1,588 1,117
TENSIÓN
PRESIÓN INTERNA
COLAPSO

127.00 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 ''
E-75 X-95 G-105 S-135 X-95 SA
16.25 lb/ft 0.296 in 7.52 mm 8,110 8,620 9,830 8,110
19.50 lb/ft 0.362 in 9.19 mm 9,960 12,030 13,000 15,670 12,030
25.60 lb/ft 0.500 in 12.70 mm 13,500 17,100 18,900 24,300 17,100
16.25 lb/ft 0.296 in 7.52 mm 416 459 591 416
19.50 lb/ft 0.362 in 9.19 mm 396 501 554 712 501
25.60 lb/ft 0.500 in 12.70 mm 530 672 742 954 672
16.25 lb/ft 0.296 in 7.52 mm 9,840 10,880 13,990 9,840
19.50 lb/ft 0.362 in 9.19 mm 9,500 12,040 13,300 17,100 12,040
25.60 lb/ft 0.500 in 12.70 mm 13,130 16,630 18,380 23,630 16,630

127.00 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
(ESFUERZO DE RUPTURA) kg / mm² 74 81 102 74
CUERPO DE TUBO
psi 8,110 8,620 9,830 8,110
kg / cm² 570 606 691 570
lb x 1,000 416 459 591 416
ton 188 208 268 188
psi 9,840 10,880 13,990 9,840
kg / cm² 692 765 984 692
TENSIÓN
PRESIÓN INTERNA
COLAPSO

127.00 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 9,960 12,030 13,000 15,670 12,030
kg / cm² 700 846 914 1102 846
lb x 1,000 396 501 554 712 501
ton 179 227 251 323 227
psi 9,500 12,040 13,300 17,100 12,040
kg / cm² 668 846 935 1,202 846
TENSIÓN
PRESIÓN INTERNA
COLAPSO

127.00 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 13,500 17,100 18,900 24,300 17,100
kg / cm² 949 1202 1329 1708 1202
lb x 1,000 530 672 742 954 672
ton 240 305 337 433 305
psi 13,130 16,630 18,380 23,630 16,630
kg / cm² 923 1,169 1,292 1,661 1,169
TENSIÓN
PRESIÓN INTERNA
COLAPSO

139.70 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 1/2 ''
E-75 X-95 G-105 S-135 X-95 SA
21.90 lb/ft 0.361 in 9.17 mm 8,410 10,020 10,750 12,680 10,020
24.70 lb/ft 0.415 in 10.54 mm 10,460 12,930 14,010 17,020 12,930
21.90 lb/ft 0.361 in 9.17 mm 437 554 612 787 554
24.70 lb/ft 0.415 in 10.54 mm 497 630 696 895 630
21.90 lb/ft 0.361 in 9.17 mm 8,610 10,910 12,060 15,510 10,910
24.70 lb/ft 0.415 in 10.54 mm 9,900 12,540 13,860 17,830 12,540

139.70 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 8,410 10,020 10,750 12,680 10,020
kg / cm² 591 704 756 891 704
lb x 1,000 437 554 612 787 554
ton 198 251 278 357 251
psi 8,610 10,910 12,060 15,510 10,910
kg / cm² 605 767 848 1,090 767
TENSIÓN
PRESIÓN INTERNA
COLAPSO

139.70 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
5 1/2 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 10,460 12,930 14,010 17,020 12,930
kg / cm² 735 909 985 1197 909
lb x 1,000 497 630 696 895 630
ton 226 286 316 406 286
psi 9,900 12,540 13,860 17,830 12,540
kg / cm² 696 882 974 1,254 882
TENSIÓN
PRESIÓN INTERNA
COLAPSO

168.28 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
6 5/8 ''
E-75 X-95 G-105 S-135 X-95 SA
25.20 lb/ft 0.330 in 8.38 mm 4,790 5,320 5,500 6,040 5,320
27.70 lb/ft 0.362 in 9.19 mm 5,890 6,760 7,100 7,810 6,760
25.20 lb/ft 0.330 in 8.38 mm 489 620 685 881 620
27.70 lb/ft 0.362 in 9.19 mm 534 677 748 962 677
25.20 lb/ft 0.330 in 8.38 mm 6,540 8,280 9,150 11,770 8,280
27.70 lb/ft 0.362 in 9.19 mm 7,170 9,080 10,040 12,910 9,080

168.28 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
6 5/8 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 4,790 5,320 5,500 6,040 5,320
kg / cm² 337 374 387 425 374
lb x 1,000 489 620 685 881 620
ton 222 281 311 400 281
psi 6,540 8,280 9,150 11,770 8,280
kg / cm² 460 582 643 828 582
TENSIÓN
PRESIÓN INTERNA
COLAPSO

168.28 mm
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
TUBERÍA DE
PERFORACIÓN
D
I
Á
M
E
T
R
O
N
O
M
I
N
A
L
6 5/8 ''
ACERO E-75 X-95 G-105 S-135 X-95 SA
FLUENCIA ksi 75 95 105 135 95
CUERPO DE TUBO
psi 5,890 6,760 7,100 7,810 6,760
kg / cm² 414 475 499 549 475
lb x 1,000 534 677 748 962 677
ton 242 307 339 436 307
psi 7,170 9,080 10,040 12,910 9,080
kg / cm² 504 638 706 908 638
TENSIÓN
PRESIÓN INTERNA
COLAPSO

TUBERÍA DE LÍNEA PRESIÓN DE PRUEBA HIDROSTÁTICA (psi)
DIÁMETRO EXTERIOR ESPESOR PESO DIAMETRO INTERIOR
API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
0.154 3.91 3.66 5.45 2.067 52.50 STD 40 2,330 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.172 4.37 4.05 6.03 2.031 51.59 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.188 4.78 4.40 6.55 1.999 50.77 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.218 5.54 5.03 7.49 1.939 49.25 XS 80 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 5.68 8.46 1.875 47.63 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.281 7.14 6.29 9.37 1.813 46.05 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.344 8.74 7.46 11.11 1.687 42.85 160 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.156 3.96 4.53 6.75 2.563 65.10 1,950 2,280 2,730 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.172 4.37 4.97 7.40 2.531 64.29 2,150 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.188 4.78 5.40 8.04 2.499 63.47 30 2,350 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.203 5.16 5.80 8.64 2.469 62.71 STD 40 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.216 5.49 6.14 9.15 2.443 62.05 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 7.02 10.46 2.375 60.33 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.276 7.01 7.67 11.42 2.323 59.00 XS 80 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.375 9.53 10.01 14.91 2.125 53.98 160 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.188 4.78 6.66 9.92 3.124 79.35 30 1,930 2,260 2,710 2,970 3,000 3,000 3,000 3,000 3,000 3,000
0.216 5.49 7.58 11.29 3.068 77.93 STD 40 2,220 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 8.69 12.94 3.000 76.20 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.281 7.14 9.67 14.40 2.938 74.63 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.300 7.62 10.26 15.28 2.900 73.66 XS 80 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.438 11.13 14.32 21.33 2.624 66.65 160 2,500 2,500 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.226 5.74 9.12 13.58 3.548 90.12 STD 40 2,030 2,370 2,850 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 10.02 14.92 3.500 88.90 2,250 2,630 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.281 7.14 11.17 16.64 3.438 87.33 2,530 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.318 8.08 12.52 18.65 3.364 85.45 XS 80 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.219 5.56 10.02 14.92 4.062 103.17 1,750 2,040 2,450 2,690 3,000 3,000 3,000 3,000 3,000 3,000
0.237 6.02 10.80 16.09 4.026 102.26 STD 40 1,900 2,210 2,650 2,910 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 11.36 16.92 4.000 101.60 2,000 2,330 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.281 7.14 12.67 18.87 3.938 100.03 2,250 2,620 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.312 7.92 13.97 20.81 3.876 98.45 2,500 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.337 8.56 15.00 22.34 3.826 97.18 XS 80 2,700 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.438 11.13 19.02 28.33 3.624 92.05 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.531 13.49 22.53 33.56 3.438 87.33 160 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.674 17.12 27.57 41.07 3.152 80.06 XXS 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.219 5.56 12.51 18.63 5.125 130.16 1,420 1,650 1,980 2,170 2,460 2,650 2,830 3,000 3,000 3,000
0.258 6.55 14.63 21.79 5.047 128.18 STD 40 1,670 1,950 2,340 2,560 2,890 3,000 3,000 3,000 3,000 3,000
0.281 7.14 15.87 23.64 5.001 127.01 1,820 2,120 2,550 2,790 3,000 3,000 3,000 3,000 3,000 3,000
0.312 7.92 17.51 26.08 4.939 125.44 2,020 2,360 2,830 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.344 8.74 19.19 28.58 4.875 123.81 2,230 2,600 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.375 9.53 20.8 30.98 4.813 122.24 XS 80 2,430 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.500 12.70 27.06 40.31 4.563 115.89 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.625 15.88 32.99 49.14 4.313 109.54 160 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X56 X65X46
Kg/m
A B X42 X52
2 1/2 2 7/8 73.03
2 2 3/8 60.33
ASTM Lb/ftin
3 1/2 4 101.60
4 4 1/2 114.30
mm
5 5 9/16 141.29
3 3 1/2 88.90

API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X56 X65X46
Kg/m
A B X42 X52
ASTM Lb/ftin mm
0.250 6.35 17.04 25.38 6.125 155.58 1,360 1,580 2,380 2,600 2,940 3,000 3,000 3,000 3,000 3,000
0.280 7.11 18.99 28.29 6.065 154.05 STD 40 1,520 1,780 2,660 2,920 3,000 3,000 3,000 3,000 3,000 3,000
0.312 7.92 21.06 31.37 6.001 152.43 1,700 1,980 2,970 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.344 8.74 23.1 34.41 5.937 150.80 1,870 2,180 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.375 9.53 25.05 37.31 5.875 149.23 2,040 2,380 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.432 10.97 28.6 42.60 5.761 146.33 XS 80 2,350 2,740 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.500 12.70 32.74 48.77 5.625 142.88 2,720 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.562 14.27 36.43 54.26 5.501 139.73 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.625 15.88 40.09 59.71 5.375 136.53 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.719 18.26 45.39 67.61 5.187 131.75 160 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.750 19.05 47.10 70.16 5.125 130.18 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.864 21.95 53.21 79.26 4.897 124.38 XXS 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.875 22.23 53.78 80.11 4.875 123.83 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 22.38 33.34 8.125 206.38 20 1,040 1,220 1,830 2,000 2,260 2,430 2,610 2,830 3,000 3,000
0.277 7.04 24.72 36.82 8.071 205.00 30 1,160 1,350 2,020 2,220 2,510 2,700 2,890 3,000 3,000 3,000
0.312 7.92 27.73 41.30 8.001 203.23 1,300 1,520 2,280 2,500 2,820 3,000 3,000 3,000 3,000 3,000
0.322 8.18 28.58 42.57 7.981 202.72 STD 40 1,340 1,570 2,350 2,580 2,910 3,000 3,000 3,000 3,000 3,000
0.344 8.74 30.45 45.36 7.937 201.60 1,440 1,680 2,510 2,750 3,000 3,000 3,000 3,000 3,000 3,000
0.375 9.53 33.07 49.26 7.875 200.03 1,570 1,830 2,740 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.406 10.31 35.64 53.09 7.813 198.45 60 1,690 1,980 2,970 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.438 11.13 38.33 57.09 7.749 196.82 1,830 2,130 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.500 12.70 43.43 64.69 7.625 193.68 XS 80 2,090 2,430 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.562 14.27 48.44 72.15 7.501 190.53 2,350 2,740 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.594 15.09 50.95 75.89 7.437 188.90 100 2,480 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.625 15.88 53.45 79.61 7.375 187.33 2,610 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.719 18.26 60.77 90.52 7.187 182.55 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.750 19.05 63.14 94.05 7.125 180.98 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.812 20.62 67.82 101.02 7.001 177.83 140 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.875 22.23 72.49 107.97 6.875 174.63 XXS 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.906 23.01 74.69 111.25 6.813 173.05 160 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.000 25.40 81.51 121.41 6.625 168.28 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.250 6.35 28.06 41.80 10.250 260.35 20 840 980 1,660 1,820 2,060 2,210 2,370 2,570 2,770 3,000
0.279 7.09 31.23 46.52 10.192 258.88 930 1,090 1,850 2,030 2,290 2,470 2,650 2,870 3,000 3,000
0.307 7.80 34.27 51.05 10.136 257.45 30 1,030 1,200 2,040 2,230 2,520 2,720 2,910 3,000 3,000 3,000
0.344 8.74 38.27 57.00 10.062 255.57 1,150 1,340 2,280 2,500 2,830 3,000 3,000 3,000 3,000 3,000
0.365 9.27 40.52 60.35 10.020 254.51 STD 40 1,220 1,430 2,420 2,660 3,000 3,000 3,000 3,000 3,000 3,000
0.438 11.13 48.28 71.91 9.874 250.80 1,470 1,710 2,910 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.500 12.70 54.79 81.61 9.750 247.65 XS 60 1,670 1,950 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.562 14.27 61.21 91.17 9.626 244.50 1,880 2,200 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.594 15.09 64.43 95.97 9.562 242.87 80 1,990 2,320 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.625 15.88 67.65 100.76 9.500 241.30 2,090 2,440 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.719 18.26 77.1 114.84 9.312 236.52 100 2,410 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.812 20.62 86.26 128.48 9.126 231.80 2,720 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.844 21.44 89.29 133.00 9.062 230.17 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.875 22.23 92.37 137.59 9.000 228.60 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.938 23.83 98.39 146.55 8.874 225.40 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.000 25.40 104.23 155.25 8.750 222.25 XXS 140 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.125 28.58 115.64 172.25 8.500 215.90 160 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.250 31.75 126.94 189.08 8.250 209.55 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
6 6 5/8 168.28
8
10 3/4 273.05
8 5/8
10
219.08

API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X56 X65X46
Kg/m
A B X42 X52
ASTM Lb/ftin mm
0.375 9.53 49.61 73.89 12.000 304.80 STD 1,060 1,240 2,100 2,300 2,600 2,800 3,000 3,000 3,000 3,000
0.406 10.31 53.57 79.79 11.938 303.23 40 1,150 1,340 2,270 2,490 2,810 3,000 3,000 3,000 3,000 3,000
0.438 11.13 57.65 85.87 11.874 301.60 1,240 1,440 2,450 2,690 3,000 3,000 3,000 3,000 3,000 3,000
0.500 12.70 65.48 97.53 11.750 298.45 XS 1,410 1,650 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.562 14.27 73.22 109.06 11.626 295.30 60 1,590 1,850 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.625 15.88 81.01 120.66 11.500 292.10 1,760 2,060 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.688 17.48 88.71 132.13 11.374 288.90 80 1,940 2,270 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.750 19.05 96.21 143.30 11.250 285.75 2,120 2,470 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.812 20.62 103.63 154.36 11.126 282.60 2,290 2,670 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.844 21.44 107.32 159.85 11.062 280.97 100 2,380 2,780 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.875 22.23 111.08 165.45 11.000 279.40 2,470 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.938 23.83 118.44 176.42 10.874 276.20 2,650 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.000 25.40 125.61 187.10 10.750 273.05 XXS 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.062 26.97 132.69 197.64 10.626 269.90 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.125 28.58 139.81 208.25 10.500 266.70 140 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.250 31.75 153.67 228.89 10.250 260.35 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.375 9.53 54.62 81.36 13.250 336.55 STD 30 960 1,130 1,910 2,090 2,370 2,550 2,730 2,960 3,000 3,000
0.406 10.31 59 87.88 13.188 334.98 1,040 1,220 2,070 2,270 2,560 2,760 2,960 3,000 3,000 3,000
0.438 11.13 63.5 94.58 13.124 333.35 40 1,130 1,310 2,230 2,450 2,770 2,980 3,000 3,000 3,000 3,000
0.469 11.91 67.84 101.05 13.062 331.77 1,210 1,410 2,390 2,620 2,960 3,000 3,000 3,000 3,000 3,000
0.500 12.70 72.16 107.48 13.000 330.20 XS 1,290 1,500 2,550 2,790 3,000 3,000 3,000 3,000 3,000 3,000
0.562 14.27 80.73 120.25 12.876 327.05 1,450 1,690 2,870 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.594 15.09 85.05 126.68 12.812 325.42 60 1,530 1,780 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.625 15.88 89.36 133.10 12.750 323.85 1,610 1,880 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.688 17.48 97.91 145.84 12.624 320.65 1,770 2,060 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.750 19.05 106.23 158.23 12.500 317.50 80 1,930 2,250 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.812 20.62 114.48 170.52 12.376 314.35 2,090 2,440 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.875 22.23 122.77 182.87 12.250 311.15 2,250 2,630 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.938 23.83 130.98 195.09 12.124 307.95 100 2,410 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.000 25.40 138.97 207.00 12.000 304.80 2,570 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.062 26.97 146.88 218.78 11.876 301.65 2,730 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.094 27.79 150.79 224.60 11.812 300.02 120 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.125 28.58 154.84 230.63 11.750 298.45 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
1.250 31.75 170.37 253.77 11.500 292.10 2,800 2,800 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000
0.375 9.53 62.64 93.30 15.250 387.35 STD 30 840 980 1,670 1,830
0.406 10.31 67.68 100.81 15.188 385.78 910 1,070 1,810 1,980
0.438 11.13 72.86 108.52 15.124 384.15 990 1,150 1,950 2,140
0.469 11.91 77.87 115.99 15.062 382.57 1,060 1,230 2,090 2,290
0.500 12.70 82.85 123.41 15.000 381.00 XS 40 1,130 1,310 2,230 2,440
0.562 14.27 92.75 138.15 14.876 377.85 1,260 1,480 2,510 2,750
0.625 15.88 102.72 153.00 14.750 374.65 1,410 1,640 2,790 3,000
0.656 16.66 107.5 160.12 14.688 373.08 60 1,480 1,720 2,930 3,000
0.688 17.48 112.62 167.75 14.624 371.45 1,550 1,810 3,000 3,000
0.750 19.05 122.27 182.12 14.500 368.30 1,690 1,970 3,000 3,000
0.812 20.62 131.84 196.38 14.376 365.15 1,830 2,130 3,000 3,000
0.844 21.44 136.61 203.48 14.312 363.52 80 1,900 2,220 3,000 3,000
0.875 22.23 141.48 210.73 14.250 361.95 1,970 2,300 3,000 3,000
1.000 25.40 160.35 238.84 14.000 355.60 2,250 2,630 3,000 3,000
12 12 3/4 323.85
14
16 406.40
14 355.60
16

API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X56 X65X46
Kg/m
A B X42 X52
ASTM Lb/ftin mm
0.406 10.31 76.36 113.74 17.188 436.58 810 950 1,610 1,760
0.438 11.13 82.23 122.48 17.124 434.95 30 880 1,020 1,740 1,900
0.469 11.91 87.89 130.91 17.062 433.37 940 1,090 1,860 2,040
0.500 12.70 93.54 139.33 17.000 431.80 XS 1,000 1,170 1,980 2,170
0.562 14.27 104.76 156.04 16.876 428.65 40 1,120 1,310 2,230 2,440
0.625 15.88 116.09 172.92 16.750 425.45 1,250 1,460 2,480 2,720
0.688 17.48 127.32 189.64 16.624 422.25 1,380 1,610 2,730 2,990
0.750 19.05 138.30 206.00 16.500 419.10 60 1,500 1,750 2,980 3,000
0.812 20.62 149.20 222.23 16.376 415.95 1,620 1,890 3,000 3,000
0.875 22.23 160.18 238.59 16.250 412.75 1,750 2,040 3,000 3,000
0.938 23.83 171.08 254.82 16.124 409.55 80 1,880 2,190 3,000 3,000
1.000 25.40 181.73 270.69 16.000 406.40 2,000 2,330 3,000 3,000
0.438 11.13 91.59 136.42 19.124 485.75 790 920 1,660 1,660
0.469 11.91 97.92 145.85 19.062 484.17 840 980 1,770 1,770
0.500 12.70 104.23 155.25 19.000 482.60 XS 30 900 1,050 1,890 1,890
0.562 14.27 116.78 173.94 18.876 479.45 1,010 1,180 2,120 2,120
0.594 15.09 123.11 183.37 18.812 477.82 40 1,070 1,250 2,250 2,250
0.625 15.88 129.45 192.82 18.750 476.25 1,130 1,310 2,360 2,360
0.688 17.48 142.03 211.55 18.624 473.05 1,240 1,440 2,600 2,600
0.750 19.05 154.34 229.89 18.500 469.90 1,350 1,580 2,840 2,840
0.812 20.62 166.56 248.09 18.376 466.75 60 1,460 1,710 3,000 3,000
0.875 22.23 178.89 266.46 18.250 463.55 1,580 1,840 3,000 3,000
0.938 23.83 191.14 284.70 18.124 460.35 1,690 1,970 3,000 3,000
1.000 25.40 203.11 302.53 18.000 457.20 1,800 2,100 3,000 3,000
Notas.-
* : El valor mínimo de Fluencia especificado para cada grado de acero se indica en psi, como se ilustra: 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
TIPO:
STD.- Pared "standard"
XS .- Pared "extra strong"
XXS.- Pared "doble extra strong"
"in" : pulgada
"mm": milímetro
"psi": libras por pulgada cuadrada
"lb/ft" Peso en libras por pie
"kg/m" Peso en kilogramos por metro
GRADOS DE ACERO A25 y X90: Disponibles previa confirmación de factibilidad
GRADOS DE ACERO PARA SERVICIO AMARGO: Hasta X52 disponibles en todos los diámetros; Hasta X70 disponibles para diámetros menores o iguales a 14"
API: API 5L, Ed. 2000 Indicados en fuente normal
ASTM: ASME B36-10M, Ed. 1995 Indicados en fuente cursiva DICA / REVISIÓN 1 / FEB 2001
20 20 508.00
18 18 457.20
X70 X80A B X42 X46 X52 X56 X60 X65

TUBERÍA DE LÍNEA RESISTENCIA A LA PRESIÓN INTERNA (psi)
API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
0.154 3.91 3.66 5.45 2.067 52.50 STD 40 3,400 3,970 4,770 5,220 5,900 6,350 6,810 7,380 7,940 9,080
0.172 4.37 4.05 6.03 2.031 51.59 3,800 4,440 5,320 5,830 6,590 7,100 7,600 8,240 8,870 10,140
0.188 4.78 4.40 6.55 1.999 50.77 4,160 4,850 5,820 6,370 7,200 7,760 8,310 9,000 9,700 11,080
0.218 5.54 5.03 7.49 1.939 49.25 XS 80 4,820 5,620 6,750 7,390 8,350 9,000 9,640 10,440 11,240 12,850
0.250 6.35 5.68 8.46 1.875 47.63 5,530 6,450 7,740 8,470 9,580 10,320 11,050 11,970 12,890 14,740
0.281 7.14 6.29 9.37 1.813 46.05 6,210 7,250 8,700 9,520 10,770 11,590 12,420 13,460 14,490 16,560
0.344 8.74 7.46 11.11 1.687 42.85 160 7,600 8,870 10,650 11,660 13,180 14,190 15,210 16,480 17,740 20,280
0.156 3.96 4.53 6.75 2.563 65.10 2,850 3,320 3,990 4,370 4,940 5,320 5,700 6,170 6,650 7,600
0.172 4.37 4.97 7.40 2.531 64.29 3,140 3,660 4,400 4,820 5,440 5,860 6,280 6,810 7,330 8,380
0.188 4.78 5.40 8.04 2.499 63.47 30 3,430 4,010 4,810 5,260 5,950 6,410 6,870 7,440 8,010 9,150
0.203 5.16 5.80 8.64 2.469 62.71 STD 40 3,710 4,320 5,190 5,680 6,430 6,920 7,410 8,030 8,650 9,890
0.216 5.49 6.14 9.15 2.443 62.05 3,940 4,600 5,520 6,050 6,840 7,360 7,890 8,550 9,200 10,520
0.250 6.35 7.02 10.46 2.375 60.33 4,570 5,330 6,390 7,000 7,910 8,520 9,130 9,890 10,650 12,170
0.276 7.01 7.67 11.42 2.323 59.00 XS 80 5,040 5,880 7,060 7,730 8,740 9,410 10,080 10,920 11,760 13,440
0.375 9.53 10.01 14.91 2.125 53.98 160 6,850 7,990 9,590 10,500 11,870 12,780 13,700 14,840 15,980 18,260
0.188 4.78 6.66 9.92 3.124 79.35 30 2,820 3,290 3,950 4,320 4,890 5,260 5,640 6,110 6,580 7,520
0.216 5.49 7.58 11.29 3.068 77.93 STD 40 3,240 3,780 4,540 4,970 5,620 6,050 6,480 7,020 7,560 8,640
0.250 6.35 8.69 12.94 3.000 76.20 3,750 4,380 5,250 5,750 6,500 7,000 7,500 8,130 8,750 10,000
0.281 7.14 9.67 14.40 2.938 74.63 4,220 4,920 5,900 6,460 7,310 7,870 8,430 9,130 9,840 11,240
0.300 7.62 10.26 15.28 2.900 73.66 XS 80 4,500 5,250 6,300 6,900 7,800 8,400 9,000 9,750 10,500 12,000
0.438 11.13 14.32 21.33 2.624 66.65 160 6,570 7,670 9,200 10,070 11,390 12,260 13,140 14,240 15,330 17,520
0.226 5.74 9.12 13.58 3.548 90.12 STD 40 2,970 3,460 4,150 4,550 5,140 5,540 5,930 6,430 6,920 7,910
0.250 6.35 10.02 14.92 3.500 88.90 3,280 3,830 4,590 5,030 5,690 6,130 6,560 7,110 7,660 8,750
0.281 7.14 11.17 16.64 3.438 87.33 3,690 4,300 5,160 5,660 6,390 6,880 7,380 7,990 8,610 9,840
0.318 8.08 12.52 18.65 3.364 85.45 XS 80 4,170 4,870 5,840 6,400 7,230 7,790 8,350 9,040 9,740 11,130
0.219 5.56 10.02 14.92 4.062 103.17 2,560 2,980 3,580 3,920 4,430 4,770 5,110 5,540 5,960 6,810
0.237 6.02 10.80 16.09 4.026 102.26 STD 40 2,770 3,230 3,870 4,240 4,790 5,160 5,530 5,990 6,450 7,370
0.250 6.35 11.36 16.92 4.000 101.60 2,920 3,400 4,080 4,470 5,060 5,440 5,830 6,320 6,810 7,780
0.281 7.14 12.67 18.87 3.938 100.03 3,280 3,820 4,590 5,030 5,680 6,120 6,560 7,100 7,650 8,740
0.312 7.92 13.97 20.81 3.876 98.45 3,640 4,250 5,100 5,580 6,310 6,790 7,280 7,890 8,490 9,710
0.337 8.56 15.00 22.34 3.826 97.18 XS 80 3,930 4,590 5,500 6,030 6,810 7,340 7,860 8,520 9,170 10,480
0.438 11.13 19.02 28.33 3.624 92.05 120 5,110 5,960 7,150 7,840 8,860 9,540 10,220 11,070 11,920 13,630
0.531 13.49 22.53 33.56 3.438 87.33 160 6,200 7,230 8,670 9,500 10,740 11,560 12,390 13,420 14,460 16,520
0.674 17.12 27.57 41.07 3.152 80.06 XXS 7,860 9,170 11,010 12,060 13,630 14,680 15,730 17,040 18,350 20,970
0.219 5.56 12.51 18.63 5.125 130.16 2,070 2,410 2,890 3,170 3,580 3,860 4,130 4,480 4,820 5,510
0.258 6.55 14.63 21.79 5.047 128.18 STD 40 2,440 2,840 3,410 3,730 4,220 4,550 4,870 5,280 5,680 6,490
0.281 7.14 15.87 23.64 5.001 127.01 2,650 3,090 3,710 4,070 4,600 4,950 5,300 5,750 6,190 7,070
0.312 7.92 17.51 26.08 4.939 125.44 2,940 3,440 4,120 4,520 5,100 5,500 5,890 6,380 6,870 7,850
0.344 8.74 19.19 28.58 4.875 123.81 3,250 3,790 4,550 4,980 5,630 6,060 6,490 7,030 7,580 8,660
0.375 9.53 20.8 30.98 4.813 122.24 XS 80 3,540 4,130 4,960 5,430 6,130 6,610 7,080 7,670 8,260 9,440
0.500 12.70 27.06 40.31 4.563 115.89 120 4,720 5,510 6,610 7,240 8,180 8,810 9,440 10,220 11,010 12,580
0.625 15.88 32.99 49.14 4.313 109.54 160 5,900 6,880 8,260 9,040 10,220 11,010 11,800 12,780 13,760 15,730
114.30
in mm
3 3 1/2 88.90
4 1/24
3 1/2 4 101.60
2 1/2 2 7/8 73.03
2 2 3/8 60.33
X65
kg/m
A B X42
ASTM lb/ft
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X46 X52 X56
5 5 9/16 141.29

API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
in mm
X65
kg/m
A B X42
ASTM lb/ft
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X46 X52 X56
0.250 6.35 17.04 25.38 6.125 155.58 1,980 2,310 2,770 3,040 3,430 3,700 3,960 4,290 4,620 5,280
0.280 7.11 18.99 28.29 6.065 154.05 STD 40 2,220 2,590 3,110 3,400 3,850 4,140 4,440 4,810 5,180 5,920
0.312 7.92 21.06 31.37 6.001 152.43 2,470 2,880 3,460 3,790 4,290 4,620 4,940 5,360 5,770 6,590
0.344 8.74 23.1 34.41 5.937 150.80 2,730 3,180 3,820 4,180 4,730 5,090 5,450 5,910 6,360 7,270
0.375 9.53 25.05 37.31 5.875 149.23 2,970 3,470 4,160 4,560 5,150 5,550 5,940 6,440 6,930 7,920
0.432 10.97 28.6 42.60 5.761 146.33 XS 80 3,420 3,990 4,790 5,250 5,930 6,390 6,850 7,420 7,990 9,130
0.500 12.70 32.74 48.77 5.625 142.88 3,960 4,620 5,550 6,080 6,870 7,400 7,920 8,580 9,250 10,570
0.562 14.27 36.43 54.26 5.501 139.73 120 4,450 5,200 6,240 6,830 7,720 8,310 8,910 9,650 10,390 11,880
0.625 15.88 40.09 59.71 5.375 136.53 4,950 5,780 6,930 7,590 8,580 9,250 9,910 10,730 11,560 13,210
0.719 18.26 45.39 67.61 5.187 131.75 160 5,700 6,650 7,980 8,740 9,880 10,640 11,400 12,350 13,290 15,190
0.750 19.05 47.10 70.16 5.125 130.18 5,940 6,930 8,320 9,110 10,300 11,090 11,890 12,880 13,870 15,850
0.864 21.95 53.21 79.26 4.897 124.38 XXS 6,850 7,990 9,590 10,500 11,870 12,780 13,690 14,830 15,980 18,260
0.875 22.23 53.78 80.11 4.875 123.83 6,930 8,090 9,710 10,630 12,020 12,940 13,870 15,020 16,180 18,490
0.250 6.35 22.38 33.34 8.125 206.38 20 1,520 1,780 2,130 2,330 2,640 2,840 3,040 3,300 3,550 4,060
0.277 7.04 24.72 36.82 8.071 205.00 30 1,690 1,970 2,360 2,590 2,920 3,150 3,370 3,650 3,930 4,500
0.312 7.92 27.73 41.30 8.001 203.23 1,900 2,220 2,660 2,910 3,290 3,550 3,800 4,110 4,430 5,060
0.322 8.18 28.58 42.57 7.981 202.72 STD 40 1,960 2,290 2,740 3,010 3,400 3,660 3,920 4,250 4,570 5,230
0.344 8.74 30.45 45.36 7.937 201.60 2,090 2,440 2,930 3,210 3,630 3,910 4,190 4,540 4,890 5,580
0.375 9.53 33.07 49.26 7.875 200.03 2,280 2,660 3,200 3,500 3,960 4,260 4,570 4,950 5,330 6,090
0.406 10.31 35.64 53.09 7.813 198.45 60 2,470 2,880 3,460 3,790 4,280 4,610 4,940 5,350 5,770 6,590
0.438 11.13 38.33 57.09 7.749 196.82 2,670 3,110 3,730 4,090 4,620 4,980 5,330 5,780 6,220 7,110
0.500 12.70 43.43 64.69 7.625 193.68 XS 80 3,040 3,550 4,260 4,670 5,280 5,680 6,090 6,590 7,100 8,120
0.562 14.27 48.44 72.15 7.501 190.53 3,420 3,990 4,790 5,250 5,930 6,390 6,840 7,410 7,980 9,120
0.594 15.09 50.95 75.89 7.437 188.90 100 3,620 4,220 5,060 5,540 6,270 6,750 7,230 7,830 8,440 9,640
0.625 15.88 53.45 79.61 7.375 187.33 3,800 4,440 5,330 5,830 6,590 7,100 7,610 8,240 8,880 10,140
0.719 18.26 60.77 90.52 7.187 182.55 120 4,380 5,110 6,130 6,710 7,590 8,170 8,750 9,480 10,210 11,670
0.750 19.05 63.14 94.05 7.125 180.98 4,570 5,330 6,390 7,000 7,910 8,520 9,130 9,890 10,650 12,170
0.812 20.62 67.82 101.02 7.001 177.83 140 4,940 5,770 6,920 7,580 8,570 9,230 9,890 10,710 11,530 13,180
0.875 22.23 72.49 107.97 6.875 174.63 XXS 5,330 6,210 7,460 8,170 9,230 9,940 10,650 11,540 12,430 14,200
0.906 23.01 74.69 111.25 6.813 173.05 160 5,510 6,430 7,720 8,460 9,560 10,290 11,030 11,950 12,870 14,710
1.000 25.40 81.51 121.41 6.625 168.28 6,090 7,100 8,520 9,330 10,550 11,360 12,170 13,190 14,200 16,230
0.250 6.35 28.06 41.80 10.250 260.35 20 1,220 1,420 1,710 1,870 2,120 2,280 2,440 2,650 2,850 3,260
0.279 7.09 31.23 46.52 10.192 258.88 1,360 1,590 1,910 2,090 2,360 2,540 2,730 2,950 3,180 3,630
0.307 7.80 34.27 51.05 10.136 257.45 30 1,500 1,750 2,100 2,300 2,600 2,800 3,000 3,250 3,500 4,000
0.344 8.74 38.27 57.00 10.062 255.57 1,680 1,960 2,350 2,580 2,910 3,140 3,360 3,640 3,920 4,480
0.365 9.27 40.52 60.35 10.020 254.51 STD 40 1,780 2,080 2,500 2,730 3,090 3,330 3,570 3,860 4,160 4,750
0.438 11.13 48.28 71.91 9.874 250.80 2,140 2,500 2,990 3,280 3,710 3,990 4,280 4,630 4,990 5,700
0.500 12.70 54.79 81.61 9.750 247.65 XS 60 2,440 2,850 3,420 3,740 4,230 4,560 4,880 5,290 5,700 6,510
0.562 14.27 61.21 91.17 9.626 244.50 2,740 3,200 3,840 4,210 4,760 5,120 5,490 5,950 6,400 7,320
0.594 15.09 64.43 95.97 9.562 242.87 80 2,900 3,380 4,060 4,450 5,030 5,420 5,800 6,290 6,770 7,740
0.625 15.88 67.65 100.76 9.500 241.30 3,050 3,560 4,270 4,680 5,290 5,700 6,100 6,610 7,120 8,140
0.719 18.26 77.1 114.84 9.312 236.52 100 3,510 4,100 4,920 5,380 6,090 6,550 7,020 7,610 8,190 9,360
0.812 20.62 86.26 128.48 9.126 231.80 3,970 4,630 5,550 6,080 6,870 7,400 7,930 8,590 9,250 10,570
0.844 21.44 89.29 133.00 9.062 230.17 120 4,120 4,810 5,770 6,320 7,140 7,690 8,240 8,930 9,620 10,990
0.875 22.23 92.37 137.59 9.000 228.60 4,270 4,990 5,980 6,550 7,410 7,980 8,550 9,260 9,970 11,400
0.938 23.83 98.39 146.55 8.874 225.40 4,580 5,340 6,410 7,020 7,940 8,550 9,160 9,930 10,690 12,220
1.000 25.40 104.23 155.25 8.750 222.25 XXS 140 4,880 5,700 6,840 7,490 8,470 9,120 9,770 10,580 11,400 13,020
1.125 28.58 115.64 172.25 8.500 215.90 160 5,490 6,410 7,690 8,420 9,520 10,260 10,990 11,900 12,820 14,650
1.250 31.75 126.94 189.08 8.250 209.55 6,100 7,120 8,550 9,360 10,580 11,400 12,210 13,230 14,240 16,280
168.28
8 8 5/8 219.08
10 10 3/4 273.05
6 6 5/8

API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
in mm
X65
kg/m
A B X42
ASTM lb/ft
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X46 X52 X56
0.375 9.53 49.61 73.89 12.000 304.80 STD 1,540 1,800 2,160 2,370 2,680 2,880 3,090 3,350 3,600 4,120
0.406 10.31 53.57 79.79 11.938 303.23 40 1,670 1,950 2,340 2,560 2,900 3,120 3,340 3,620 3,900 4,460
0.438 11.13 57.65 85.87 11.874 301.60 1,800 2,100 2,520 2,770 3,130 3,370 3,610 3,910 4,210 4,810
0.500 12.70 65.48 97.53 11.750 298.45 XS 2,060 2,400 2,880 3,160 3,570 3,840 4,120 4,460 4,800 5,490
0.562 14.27 73.22 109.06 11.626 295.30 60 2,310 2,700 3,240 3,550 4,010 4,320 4,630 5,010 5,400 6,170
0.625 15.88 81.01 120.66 11.500 292.10 2,570 3,000 3,600 3,950 4,460 4,800 5,150 5,580 6,000 6,860
0.688 17.48 88.71 132.13 11.374 288.90 80 2,830 3,310 3,970 4,340 4,910 5,290 5,670 6,140 6,610 7,550
0.750 19.05 96.21 143.30 11.250 285.75 3,090 3,600 4,320 4,740 5,350 5,760 6,180 6,690 7,210 8,240
0.812 20.62 103.63 154.36 11.126 282.60 3,340 3,900 4,680 5,130 5,800 6,240 6,690 7,240 7,800 8,920
0.844 21.44 107.32 159.85 11.062 280.97 100 3,480 4,050 4,870 5,330 6,020 6,490 6,950 7,530 8,110 9,270
0.875 22.23 111.08 165.45 11.000 279.40 3,600 4,200 5,040 5,520 6,250 6,730 7,210 7,810 8,410 9,610
0.938 23.83 118.44 176.42 10.874 276.20 3,860 4,510 5,410 5,920 6,690 7,210 7,720 8,370 9,010 10,300
1.000 25.40 125.61 187.10 10.750 273.05 XXS 120 4,120 4,800 5,760 6,310 7,140 7,690 8,240 8,920 9,610 10,980
1.062 26.97 132.69 197.64 10.626 269.90 4,370 5,100 6,120 6,710 7,580 8,160 8,750 9,470 10,200 11,660
1.125 28.58 139.81 208.25 10.500 266.70 140 4,630 5,400 6,490 7,100 8,030 8,650 9,260 10,040 10,810 12,350
1.250 31.75 153.67 228.89 10.250 260.35 5,150 6,000 7,210 7,890 8,920 9,610 10,290 11,150 12,010 13,730
0.375 9.53 54.62 81.36 13.250 336.55 STD 30 1,410 1,640 1,970 2,160 2,440 2,630 2,810 3,050 3,280 3,750
0.406 10.31 59 87.88 13.188 334.98 1,520 1,780 2,130 2,330 2,640 2,840 3,050 3,300 3,550 4,060
0.438 11.13 63.5 94.58 13.124 333.35 40 1,640 1,920 2,300 2,520 2,850 3,070 3,290 3,560 3,830 4,380
0.469 11.91 67.84 101.05 13.062 331.77 1,760 2,050 2,460 2,700 3,050 3,280 3,520 3,810 4,100 4,690
0.500 12.70 72.16 107.48 13.000 330.20 XS 1,880 2,190 2,630 2,880 3,250 3,500 3,750 4,060 4,380 5,000
0.562 14.27 80.73 120.25 12.876 327.05 2,110 2,460 2,950 3,230 3,650 3,930 4,220 4,570 4,920 5,620
0.594 15.09 85.05 126.68 12.812 325.42 60 2,230 2,600 3,120 3,420 3,860 4,160 4,460 4,830 5,200 5,940
0.625 15.88 89.36 133.10 12.750 323.85 2,340 2,730 3,280 3,590 4,060 4,380 4,690 5,080 5,470 6,250
0.688 17.48 97.91 145.84 12.624 320.65 2,580 3,010 3,610 3,960 4,470 4,820 5,160 5,590 6,020 6,880
0.750 19.05 106.23 158.23 12.500 317.50 80 2,810 3,280 3,940 4,310 4,880 5,250 5,630 6,090 6,560 7,500
0.812 20.62 114.48 170.52 12.376 314.35 3,050 3,550 4,260 4,670 5,280 5,680 6,090 6,600 7,110 8,120
0.875 22.23 122.77 182.87 12.250 311.15 3,280 3,830 4,590 5,030 5,690 6,130 6,560 7,110 7,660 8,750
0.938 23.83 130.98 195.09 12.124 307.95 100 3,520 4,100 4,920 5,390 6,100 6,570 7,040 7,620 8,210 9,380
1.000 25.40 138.97 207.00 12.000 304.80 3,750 4,380 5,250 5,750 6,500 7,000 7,500 8,130 8,750 10,000
1.062 26.97 146.88 218.78 11.876 301.65 3,980 4,650 5,580 6,110 6,900 7,430 7,970 8,630 9,290 10,620
1.094 27.79 150.79 224.60 11.812 300.02 120 4,100 4,790 5,740 6,290 7,110 7,660 8,210 8,890 9,570 10,940
1.125 28.58 154.84 230.63 11.750 298.45 4,220 4,920 5,910 6,470 7,310 7,880 8,440 9,140 9,840 11,250
1.250 31.75 170.37 253.77 11.500 292.10 4,690 5,470 6,560 7,190 8,130 8,750 9,380 10,160 10,940 12,500
0.375 9.53 62.64 93.30 15.250 387.35 STD 30 1,230 1,440 1,720 1,890
0.406 10.31 67.68 100.81 15.188 385.78 1,330 1,550 1,870 2,040
0.438 11.13 72.86 108.52 15.124 384.15 1,440 1,680 2,010 2,200
0.469 11.91 77.87 115.99 15.062 382.57 1,540 1,800 2,150 2,360
0.500 12.70 82.85 123.41 15.000 381.00 XS 40 1,640 1,910 2,300 2,520
0.562 14.27 92.75 138.15 14.876 377.85 1,840 2,150 2,580 2,830
0.625 15.88 102.72 153.00 14.750 374.65 2,050 2,390 2,870 3,140
0.656 16.66 107.5 160.12 14.688 373.08 60 2,150 2,510 3,010 3,300
0.688 17.48 112.62 167.75 14.624 371.45 2,260 2,630 3,160 3,460
0.750 19.05 122.27 182.12 14.500 368.30 2,460 2,870 3,450 3,770
0.812 20.62 131.84 196.38 14.376 365.15 2,660 3,110 3,730 4,090
0.844 21.44 136.61 203.48 14.312 363.52 80 2,770 3,230 3,880 4,250
0.875 22.23 141.48 210.73 14.250 361.95 2,870 3,350 4,020 4,400
1.000 25.40 160.35 238.84 14.000 355.60 3,280 3,830 4,590 5,030
14 14 355.60
16
12 12 3/4 323.85
16 406.40

API
in mm 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
in mm
X65
kg/m
A B X42
ASTM lb/ft
X70 X80
in mm
X60
TT
II
PP
OO
C
É
D
U
L
A
X46 X52 X56
0.406 10.31 76.36 113.74 17.188 436.58 1,180 1,380 1,660 1,820
0.438 11.13 82.23 122.48 17.124 434.95 30 1,280 1,490 1,790 1,960
0.469 11.91 87.89 130.91 17.062 433.37 1,370 1,600 1,920 2,100
0.500 12.70 93.54 139.33 17.000 431.80 XS 1,460 1,700 2,040 2,240
0.562 14.27 104.76 156.04 16.876 428.65 40 1,640 1,910 2,290 2,510
0.625 15.88 116.09 172.92 16.750 425.45 1,820 2,130 2,550 2,800
0.688 17.48 127.32 189.64 16.624 422.25 2,010 2,340 2,810 3,080
0.750 19.05 138.30 206.00 16.500 419.10 60 2,190 2,550 3,060 3,350
0.812 20.62 149.20 222.23 16.376 415.95 2,370 2,760 3,320 3,630
0.875 22.23 160.18 238.59 16.250 412.75 2,550 2,980 3,570 3,910
0.938 23.83 171.08 254.82 16.124 409.55 80 2,740 3,190 3,830 4,190
1.000 25.40 181.73 270.69 16.000 406.40 2,920 3,400 4,080 4,470
0.438 11.13 91.59 136.42 19.124 485.75 1,150 1,340 1,610 1,760
0.469 11.91 97.92 145.85 19.062 484.17 1,230 1,440 1,720 1,890
0.500 12.70 104.23 155.25 19.000 482.60 XS 30 1,310 1,530 1,840 2,010
0.562 14.27 116.78 173.94 18.876 479.45 1,480 1,720 2,070 2,260
0.594 15.09 123.11 183.37 18.812 477.82 40 1,560 1,820 2,180 2,390
0.625 15.88 129.45 192.82 18.750 476.25 1,640 1,910 2,300 2,520
0.688 17.48 142.03 211.55 18.624 473.05 1,810 2,110 2,530 2,770
0.750 19.05 154.34 229.89 18.500 469.90 1,970 2,300 2,760 3,020
0.812 20.62 166.56 248.09 18.376 466.75 60 2,130 2,490 2,980 3,270
0.875 22.23 178.89 266.46 18.250 463.55 2,300 2,680 3,220 3,520
0.938 23.83 191.14 284.70 18.124 460.35 2,460 2,870 3,450 3,780
1.000 25.40 203.11 302.53 18.000 457.20 2,630 3,060 3,680 4,030
Notas.-
* : El valor mínimo de Fluencia especificado para cada grado de acero se indica en psi, como se ilustra: 30,000 * 35,000 * 42,000 * 46,000 * 52,000 * 56,000 * 60,000 * 65,000 * 70,000 * 80,000 *
TIPO:
STD.- Pared "standard"
XS .- Pared "extra strong"
XXS.- Pared "doble extra strong"
"in" : pulgada
"mm": milímetro
"psi": libras por pulgada cuadrada
"lb/ft" Peso en libras por pie
"kg/m" Peso en kilogramos por metro
GRADOS DE ACERO A25 y X90: Disponibles previa confirmación de factibilidad
GRADOS DE ACERO PARA SERVICIO AMARGO: Hasta X52 disponibles en todos los diámetros; Hasta X70 disponibles para diámetros menores o iguales a 14"
API: API 5L, Ed. 2000 Indicados en fuente normal
ASTM: ASME B36-10M, Ed. 1995 Indicados en fuente cursiva DICA / REVISIÓN 1 / FEB 2001
20 20 508.00
18 18 457.20
X70 X80A B X42 X46 X52 X56 X60 X65

TUBERÍA DE LÍNEA DE ESTIRADO EN FRÍO RESISTENCIA A LA PRESIÓN INTERNA (psi)
ASME 36.10
in mm 30,000 35,000 42,000 46,000 52,000 56,000 60,000 65,000 70,000 80,000
0.065 1.65 0.33 0.49 0.410 10.41 10 6,319 7,372 8,847 9,689 10,953 11,796 12,638 13,692 14,745 16,851
0.073 1.85 0.36 0.54 0.394 10.01 30 7,097 8,280 9,936 10,882 12,301 13,248 14,194 15,377 16,560 18,925
0.088 2.24 0.42 0.63 0.364 9.25 STD 40 8,555 9,981 11,977 13,118 14,829 15,970 17,111 18,537 19,962 22,814
0.119 3.02 0.53 0.80 0.302 7.67 XS 80 11,569 13,497 16,197 17,739 20,053 21,596 23,138 25,067 26,995 30,851
0.065 1.65 0.42 0.63 0.545 13.84 10 5,055 5,898 7,077 7,751 8,762 9,437 10,111 10,953 11,796 13,481
0.073 1.85 0.47 0.70 0.529 13.44 30 5,677 6,624 7,948 8,705 9,841 10,598 11,355 12,301 13,248 15,140
0.091 2.31 0.57 0.84 0.493 12.52 STD 40 7,077 8,257 9,908 10,852 12,268 13,211 14,155 15,335 16,514 18,874
0.126 3.20 0.74 1.10 0.423 10.74 XS 80 9,800 11,433 13,720 15,026 16,986 18,293 19,600 21,233 22,866 26,133
0.065 1.65 0.54 0.80 0.710 18.03 10 4,062 4,739 5,687 6,229 7,041 7,583 8,125 8,802 9,479 10,833
0.083 2.11 0.67 1.00 0.674 17.12 30 5,187 6,052 7,262 7,954 8,991 9,683 10,375 11,239 12,104 13,833
0.095 2.41 0.76 1.12 0.650 16.51 STD 40 5,937 6,927 8,312 9,104 10,291 11,083 11,875 12,864 13,854 15,833
0.109 2.77 0.85 1.27 0.622 15.80 XS 80 6,812 7,947 9,537 10,445 11,808 12,716 13,625 14,760 15,895 18,166
0.147 3.73 1.09 1.62 0.546 13.87 XS 80 9,187 10,718 12,862 14,087 15,925 17,150 18,375 19,906 21,437 24,500
0.188 4.78 1.31 1.95 0.464 11.79 XS 80 11,750 13,708 16,450 18,016 20,366 21,933 23,500 25,458 27,416 31,333
0.065 1.65 0.68 1.02 0.920 23.37 5 3,250 3,791 4,550 4,983 5,633 6,066 6,500 7,041 7,583 8,666
0.083 2.11 0.86 1.28 0.884 22.45 10 4,150 4,841 5,810 6,363 7,193 7,746 8,300 8,991 9,683 11,066
0.095 2.41 0.97 1.44 0.860 21.84 30 4,750 5,541 6,650 7,283 8,233 8,866 9,500 10,291 11,083 12,666
0.113 2.87 1.13 1.68 0.824 20.93 STD 40 5,650 6,591 7,910 8,663 9,793 10,546 11,300 12,241 13,183 15,066
0.154 3.91 1.47 2.19 0.742 18.85 XS 80 7,700 8,983 10,780 11,806 13,346 14,373 15,400 16,683 17,966 20,533
0.219 5.56 1.94 2.89 0.612 15.54 160 10,950 12,775 15,330 16,790 18,980 20,440 21,900 23,725 25,550 29,200
0.065 1.65 0.87 1.29 1.185 30.10 5 2,595 3,027 3,633 3,979 4,498 4,844 5,190 5,622 6,055 6,920
0.109 2.77 1.40 2.09 1.097 27.86 10 4,351 5,076 6,092 6,672 7,542 8,123 8,703 9,428 10,153 11,604
0.114 2.90 1.46 2.18 1.087 27.61 30 4,551 5,309 6,371 6,978 7,888 8,495 9,102 9,861 10,619 12,136
0.133 3.38 1.68 2.50 1.049 26.64 STD 40 5,309 6,194 7,433 8,141 9,203 9,911 10,619 11,504 12,389 14,159
0.179 4.55 2.17 3.23 0.957 24.31 XS 80 7,146 8,337 10,004 10,957 12,387 13,339 14,292 15,483 16,674 19,057
0.250 6.35 2.84 4.23 0.815 20.70 160 9,980 11,644 13,973 15,304 17,300 18,631 19,961 21,625 23,288 26,615
0.065 1.65 1.11 1.65 1.530 38.86 5 2,055 2,398 2,878 3,152 3,563 3,837 4,111 4,454 4,796 5,481
0.109 2.77 1.80 2.69 1.442 36.63 10 3,447 4,021 4,826 5,285 5,975 6,434 6,894 7,469 8,043 9,192
0.117 2.97 1.93 2.87 1.426 36.22 30 3,700 4,317 5,180 5,673 6,413 6,907 7,400 8,017 8,634 9,867
0.140 3.56 2.27 3.38 1.380 35.05 STD 40 4,427 5,165 6,198 6,789 7,674 8,265 8,855 9,593 10,331 11,807
0.191 4.85 2.99 4.46 1.278 32.46 XS 80 6,040 7,047 8,456 9,262 10,470 11,275 12,081 13,088 14,094 16,108
0.250 6.35 3.76 5.60 1.160 29.46 160 7,906 9,224 11,069 12,123 13,704 14,759 15,813 17,131 18,448 21,084
0.065 1.65 1.27 1.90 1.770 44.96 5 1,796 2,095 2,514 2,753 3,113 3,352 3,592 3,891 4,190 4,789
0.109 2.77 2.08 3.10 1.682 42.72 10 3,011 3,513 4,216 4,618 5,220 5,622 6,023 6,525 7,027 8,031
0.125 3.18 2.37 3.53 1.650 41.91 30 3,453 4,029 4,835 5,296 5,986 6,447 6,907 7,483 8,059 9,210
0.145 3.68 2.72 4.04 1.610 40.89 STD 40 4,006 4,674 5,609 6,143 6,944 7,478 8,013 8,680 9,348 10,684
0.200 5.08 3.63 5.40 1.500 38.10 XS 80 5,526 6,447 7,736 8,473 9,578 10,315 11,052 11,973 12,894 14,736
0.281 7.14 4.85 7.23 1.338 33.99 160 7,764 9,058 10,870 11,905 13,458 14,493 15,528 16,823 18,117 20,705
1 1/4 1 2/3
1 8/9 48.3
42.2
0.84 21.3
3/4 1.05 26.7
1 1.315 33.4
0.541/4 13.7
3/8 0.675 17.1
1/2
Kg/m in mm
1 1/2
ASTM in mm Lb/ft
X60 X65 X70 X80X42 X46 X52 X56
TT
II
PP
OO
C
É
D
U
L
A
A B

TUBERÍA DE LÍNEA DE ESTIRADO EN FRÍO RESISTENCIA A LA PRESIÓN INTERNA (psi)
ASME 36.10
in mm 30,000 35,000 42,000 46,000 52,000 56,000 60,000 65,000 70,000 80,000
Kg/m in mmASTM in mm Lb/ft
X60 X65 X70 X80X42 X46 X52 X56
TT
II
PP
OO
C
É
D
U
L
A
A B
0.065 1.65 1.60 2.39 2.245 57.02 5 1,436 1,676 2,011 2,203 2,490 2,682 2,873 3,113 3,352 3,831
0.083 2.11 2.03 3.02 2.209 56.11 --- 1,834 2,140 2,568 2,813 3,180 3,424 3,669 3,975 4,281 4,892
0.109 2.77 2.64 3.93 2.157 54.79 10 2,409 2,811 3,373 3,694 4,176 4,497 4,818 5,220 5,622 6,425
0.125 3.18 3.00 4.47 2.125 53.98 30 2,763 3,223 3,868 4,236 4,789 5,157 5,526 5,986 6,447 7,368
0.141 3.58 3.36 5.01 2.093 53.16 --- 3,116 3,636 4,363 4,779 5,402 5,818 6,233 6,753 7,272 8,311
0.154 3.91 3.65 5.44 2.067 52.50 STD 40 3,404 3,971 4,765 5,219 5,900 6,354 6,808 7,375 7,943 9,077
0.172 4.37 4.04 6.02 2.031 51.59 --- 3,802 4,435 5,322 5,829 6,590 7,097 7,604 8,237 8,871 10,138
0.188 4.78 4.39 6.53 1.999 50.77 --- 4,155 4,848 5,818 6,372 7,203 7,757 8,311 9,004 9,696 11,082
0.218 5.54 5.02 7.47 1.939 49.25 XS 80 4,818 5,622 6,746 7,389 8,352 8,995 9,637 10,441 11,244 12,850
0.250 6.35 5.67 8.44 1.875 47.63 --- 5,526 6,447 7,736 8,473 9,578 10,315 11,052 11,973 12,894 14,736
0.281 7.14 6.28 9.35 1.813 46.05 ---- 6,211 7,246 8,696 9,524 10,766 11,594 12,423 13,458 14,493 16,564
0.344 8.74 7.45 11.10 1.687 42.85 160 7,604 8,871 10,645 11,659 13,180 14,194 15,208 16,475 17,743 20,277
0.436 11.07 9.02 13.44 1.503 38.18 XXS --- 9,637 11,244 13,493 14,778 16,705 17,990 19,275 20,882 22,488 25,701
0.156 3.96 4.53 6.74 2.563 65.10 2,850 3,320 3,990 4,370 4,940 5,320 5,700 6,170 6,650 7,600
0.172 4.37 4.96 7.39 2.531 64.29 3,140 3,660 4,400 4,820 5,440 5,860 6,280 6,810 7,330 8,380
0.188 4.78 5.39 8.03 2.499 63.47 30 3,430 4,010 4,810 5,260 5,950 6,410 6,870 7,440 8,010 9,150
0.203 5.16 5.79 8.63 2.469 62.71 STD 40 3,710 4,320 5,190 5,680 6,430 6,920 7,410 8,030 8,650 9,890
0.216 5.49 6.13 9.13 2.443 62.05 3,940 4,600 5,520 6,050 6,840 7,360 7,890 8,550 9,200 10,520
0.250 6.35 7.00 10.43 2.375 60.33 4,570 5,330 6,390 7,000 7,910 8,520 9,130 9,890 10,650 12,170
0.276 7.01 7.65 11.41 2.323 59.00 XS 80 5,040 5,880 7,060 7,730 8,740 9,410 10,080 10,920 11,760 13,440
0.375 9.53 10.00 14.92 2.125 53.98 160 6,850 7,990 9,590 10,500 11,870 12,780 13,700 14,840 15,980 18,260
0.109 2.77 3.94 5.87 3.28 83.36 1,635 1,907 2,289 2,507 2,834 3,052 3,270 3,542 3,815 4,360
0.120 3.05 4.33 6.45 3.3 82.8 10 1,800 2,100 2,520 2,760 3,120 3,360 3,600 3,900 4,200 4,800
0.125 3.18 4.50 6.70 3.3 82.6 1,875 2,187 2,625 2,875 3,250 3,500 3,750 4,062 4,375 5,000
0.141 3.58 5.05 7.53 3.2 81.7 2,115 2,467 2,961 3,243 3,666 3,948 4,230 4,582 4,935 5,640
0.156 3.96 5.57 8.29 3.2 81.0 2,340 2,730 3,276 3,588 4,056 4,368 4,680 5,070 5,460 6,240
0.172 4.37 6.11 9.10 3.2 80.2 2,580 3,010 3,612 3,956 4,472 4,816 5,160 5,590 6,020 6,880
0.188 4.78 6.64 9.90 3.1 79.3 30 2,820 3,290 3,948 4,324 4,888 5,264 5,640 6,110 6,580 7,520
0.216 5.49 7.57 11.27 3.1 77.9 STD 40 3,240 3,780 4,536 4,968 5,616 6,048 6,480 7,020 7,560 8,640
0.250 6.35 8.67 12.93 3.000 76.20 3,750 4,375 5,250 5,750 6,500 7,000 7,500 8,125 8,750 10,000
0.281 7.14 9.67 14.40 2.938 74.63 4,215 4,917 5,900 6,463 7,306 7,868 8,430 9,132 9,835 11,240
0.300 7.62 10.26 15.28 2.900 73.66 XS 80 4,500 5,250 6,300 6,900 7,800 8,400 9,000 9,750 10,500 12,000
0.438 11.13 14.32 21.33 2.624 66.65 160 6,570 7,670 9,200 10,074 11,388 12,264 13,140 14,235 15,330 17,520
3 3.5 88.9
2 1/2 2 7/8 73.0
2 2 3/8 60.3

Tamsa (prontuario) mc

More Related Content

What's hot

Similar to Tamsa (prontuario) mc

Recently uploaded

Tamsa (prontuario) mc
