2. YUPP Trading Co. Ltd., is a company focused on delivering solutions. We
understand the needs of our clients by providing a professional service with
great human capital.
We seek technical innovation; helping human development and progress of
a better world, emphasizing quality and drive ability of our equipment and
services; addition to provide a great value to our customers and the
environment.
YUPP currently present in major markets such as Houston, Dubai,
Venezuela, Colombia, South Africa and China.
We have an innovative team of skilled professionals in the technical area
and the area of international business which allows us to deliver solutions
basing our principles of efficiency and innovation.
Our company offers our customers the highest quality standards with
appropriate certifications global high (API 5L and API 5CT, ISO 9001, ISO
14001 and OSHA), giving the best delivery times and exchange of
technology transfer in our products.
Submitted YUPP TRADING CO.LTD
1

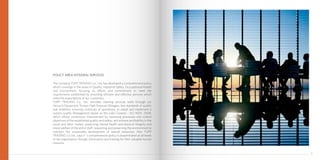

3. The company YUPP TRADING Co., Ltd, has developed a comprehensive policy
which converge in the areas of Quality, Industrial Safety, Occupational Health
and Environment, focusing its efforts and commitment to meet the
requirements established by providing efficient and effective services which
meet the expectations of our customers.
YUPP TRADING Co., Ltd., provides cleaning services wells through our
Vacuum Equipment, Pumps High Pressure Nitrogen, low standards of quality
and reliability, ensuring continuity of operations, to adopt and implement a
system quality Management based on the rules Covenin - ISO 9001: 2008,
which allows continuous improvement by reviewing processes and control
objectives of the established quality and safety; and achieve profitability in the
social and labor market, preserving mental health and physical integrity and
moral welfare of the entire staff; respecting and preserving the environment to
maintain the sustainable development of natural resources. Also YUPP
TRADING Co Ltd., says it´s comprehensive policy is disseminated at all levels
of the organization through information and training for their valuable human
resource.
POLICY AREA INTEGRAL SERVICES
3
4. We produce over 30 models of tubing. Our tubing
production is equipped with a full suite of digital-controlled
lathe, hydraulic machine with advanced digital-torsion
meter; four-channel intelligent eddy current detector,
magnetic particle detector, portable thickness tester, and
single thread measuring instrument, etc.. The testing device
for tubing hydrostatic pressure is controlled by computer
and has advanced monitoring capacity (equipped with
auto- coating device, auto-weighting length testing and
stencil marking integral device, etc.) to ensure the quality of
the final
products.
We possesses two advanced tubing assembly lines, which can be used to shape plain-end tubing (with material
grade J55, N80 and L80). This production line is fully automatic and capable to produce high-quality
TUBING
OD of Pipe
Wall
Thickness
Nominal
Linear Mass
Mpa kN N.m
L80 53.0 51.71 928.34
2437.5-
4062.5
P110 69.0 -- -- --
Specs.No. Grade Mpa
58.12
Colapse
Resistance
Ultimate
Tension of
Thread
Recommeded
Tighten
Torque
--
mm mm mm Kg/m
Internal Yield Pressure
Strength
OD of Pipe
Wall
Thickness
OD of
Coupling
Nomina l
Linear Mass
Grade
Hydrostatic
Test Pressure
Internal
Yield
Pressure
Strength
Collapse
Resistance
Ultimate
Tension of
Thread
Recommende
d Tighten
Torque
mm mm mm Kg/m Mpa Mpa Mpa kN N.m
J55 46.0 50.68 53.43 195.59 2280-3800
N80 67.5 73.64 77.77 284.51 2310-3850
P110 69.0 -- -- -- --
J55 48.5 53.09 55.85 319.82 1050-1730
N80 69.0 77.22 81.22 463.94 1830-3050
P110 69.0 101.4 106.6 609.09 2310-3850
J55 46.0 50.06 52.95 469.73 1500-2490
N80 66.5 72.88 76.95 644.99 2350-3900
P110 69.0 95.6 96.6 846.68 2955-4925
J55 44.0 48.19 51.02 707.71 2100-3510
N80 64.0 70.05 72.60 921.67 3260-5420
P110 69.0 92.0 90.0 1210.18
41170.5-
6862.5
J55 39.5 43.4 45.4 752.805 2603-4337
1094.94
P110 69.0 -- -- -- --
J55 36.5 40.0 39.4 880.942 2903-4837
N80 53.0 58.1 51.7 1281.37 4088-6812
P110 69.0 -- -- -- --
1281.37 4005-6675
18.97
N80 58.0 63.2 60.7
3 02/07/2008
3660-6100
6 04/01/2002
3
6.88
0
141.3
5 4
6
6.65
0
16.37
51.7
2 02/03/2008
60.3
4.83 77.8
4 03/01/2002
L80 53.0 58.1
L80 64.0 70.05
114.3 13.84
101. 127.0
114.
8
L80 58.0 63.2 60.7
1094.94
3180-5300
88.9 6.45
3585-5975
8
72.88 76.95 644.99
72.60 921.67
2287.5-
3812.5
2
L80 69.0 77.22 81.22 463.94
1792.5-
2987.5
2
6.99
73.0
5.51 93.17 9.67
L80 66.5
1207.5-
2012.5
6
Specs.No.
48.2
L80 67.5 73.64 77.77 284.51
1 1.9 3.68 63.50 4.32
54

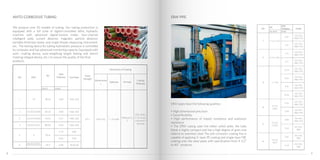

6. We produce over 30 models of tubing. Our tubing production is
equipped with a full suite of digital-controlled lathe, hydraulic
machine with advanced digital-torsion meter; four-channel
intelligent eddy current detector, magnetic particle detector,
portable thickness tester, and single thread measuring instrument,
etc.. The testing device for tubing hydrostatic pressure is controlled
by computer and has advanced monitoring capacity (equipped with
auto- coating device, auto-weighting length testing and stencil
marking integral device, etc.) to ensure the quality of the final
products.
ERW pipes have the following qualities:
• High dimensional precision
• Good flexibility
• High performance of impact resistance and explosion
resistance
• The ERW casing uses hot-rolled coiled plate, the tube
blank is highly compact and has a high degree of grain size
relative to seamless steel The anti-corrosion coating line is
capable of applying 3- layer PE coating and single-layer FBE
coating onto the steel pipes with specification from 4 1/2”
to 40”. products.
ANTO-CORROSIVE TUBING ERW PIPE
(mm) (mm)
04/01/2002
End-finish
Wall
Thickness
OD
Parameters of Coating
Shock
Strength
≤1piece/m
2
200~300u
m Or as per
customer’s
demand
Abrasivenes
s
Adhesion Pin-hole
Coating
Thickness
≤20 mg 1 - 3 Grade
NUE, EUE
NUE, EUE
NUE, EUE
NUE, EUE
NUE
EUE6.65
6.88
101.6
NUE,EUE
≥11 J
3.68
4.83
5.51
6.45
5.74
48.26
60.32
73.02
88.90
114.3
4
6
45
03/01/2002
NO SPEC
1
2
3 02/07/2008
02/03/2008
1.9
OD
Wall
Thickness
(in, mm) (mm)
8.89
J55, K55,
N80, P110
11.43
J55, K55,
N80
6
13-3/8,
399.7
9.65
12.19
J55, K55,
N80
J55, K55,
N80
5
10-3/4,
273.05
10.54
J55, K55,
N80, P110
8.05
J55, K55,
N80, P110
4
11.05
J55, K55,
N80, P110
11.99
J55, K55,
N80, P110
9.19
J55, K55,
N80, P110
10.36
J55, K55,
N80, P110
9-5/8,
244.5
3
NO Grade
6.35
J55, K55,
N80, P110
7.37
J55, K55,
N80, P110
1 4-1/2, 114.3
2 5-1/2, 139.7
7.72
9.17
J55, K55,
N80, P110
J55, K55,
N80, P110
7, 177.8
98

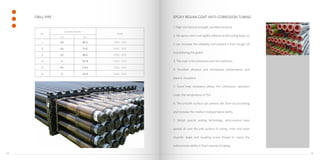

9. 1. High mechanical strength, excellent tenacity.
2. the epoxy resin coat tightly adheres to the tubing body, so
it can increase the reliability and prevent it from slough off
and polluting the grand.
3. The coat is not poisonous and non-pollution,
4. Excellent physical and mechanical performance, and
electric insulation.
5. Good heat resistance allows the continuous operation
under the temperature of 150 .
6. The smooth surface can prevent dirt from accumulating
and increase the medium transportation ability.
7. Adopt special sealing technology, anticorrosive layer
spread all over the end surface of tubing, inner and outer
chamfer angle and coupling screw thread to insure the
anticorrosive ability in fluid channel of tubing.
DRILL PIPE EPOXY RESIAN COAT ANTI-CORROSION TUBING
No.
Outside diameter
Grade
inch mm
1 2⅜ 60.3 G105、S135
2 2⅞ 73.0 G105、S135
3 3½ 88.9 G105、S135
4 4 101.6 G105、S135
5 4½ 114.3 G105、S135
6 5 127.0 G105、S135
1514

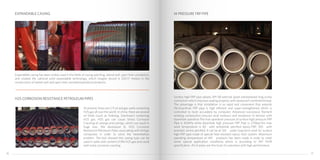

10. Expandable casing has been widely used in the fields of casing patching，lateral well, open hole completion,
and created the national solid expandable technology, which longest record is 520.17 meters in the
construction of lateral well and open hole completionproducts.products.
Surface high FRP pipe adopts API 5B external upset standardized long screw
connection which improves sealing property with wearproof combined thread.
The advantage is that installation is so rapid and convenient that extends
life.Downhole FRP pipe is high efficient and super-strengthened which is
controlled to twist accurately by computer. Advanced successive filament
winding composition ensures axial modulus and resistance to tension with
downhole operation.The max operation pressure of surface high pressure FRP
Pipe is 40MPa while downhole high pressure FRP Pipe is 27Mpa.The max
work temperature is 82 with anhydride petrified epoxy-FRP, 100 with
aromatic amine petrified. It can be at 120 under long-term work for surface
high FRP pipe made of special heat-resistant epoxy resin system. Maximum
operating temperature of 149 products has been made in order to meet
some special application conditions which is according to API 15HR
specification. All of pipes win the trust of customers with high performance.
At present, there are 1/3 oil and gas wells containing
H2S gas all over the world. In china, there are several
oil fields (such as Sinkiang, Szechwan) containing
H2S gas. H2S gas can cause Stress Corrosion
Cracking of casings and tubings, which can result in
huge loss. We developed SL H2S Corrosion
Resistance Petroleum Pipes associating with foreign
companies in order to solve the hereinbefore
problem. The test showed this casing type can be
used in wells with content of 8% H2S gas and could
well-solve corrosion cracking.
EXPANDABLE CASING HI PRESSURE FRP PIPE
H2S CORROSION RESISTANCE PETROLEUM PIPES
1716

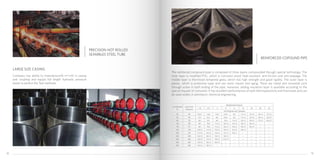

11. Company has ability to manufacture16 in∼20 in casing
and coupling and equips full length hydraulic pressure
tester to perfect the Test methods.
The reinforced compound pipe is composed of three layers compounded through special technology. The
inner layer is modified PVC, which is corrosion proof, heat-resistant, anti-friction and anti-seepage. The
middle layer is thermoset tempered glass, which has high strength and good rigidity. The outer layer is
plastic, which is protective layer and can resist impact and aging. There are metal and nonmetal joint
through screw in both ending of the pipe, moreover, adding insulation layer is available according to the
special request of consumer. It has excellent performances of both thermoplasticity and thermoset and can
be used widely in petroleum, chemical engineering,
LARGE SIZE CASING
PRECISION HOT ROLLED
SEAMBLES STEEL TUBE
REINFORCED COPOUND PIPE
mm Nominal
ID
mm ID and
Tolerance
MpaNominal Pressure
1.6 2.5 4 6 8 16 20 25 32
mmThickness and Tolerance
50 48 6.5±1 7.5±1 7.5±1 8.5±1 9±1 11±1.5 13±1.5 14±1.5 17±1.5
65 65 7±1 8±1 8±1 8.5±1 9±1 11±1.5 13±1.5 15±1.5 18±1.5
80 78 8±1 9±1 9±1 10±1 11±1.5 13±1.5 16±1.5 17±1.5 20±1.5
125 125 9±1 10±1 11±1.5 12±1.5 13±1.5 16±1.5 18±1.5 --- ---
100 97 9±1 10±1 11±1.5 12±1.5 13±1.5 16±1.5 18±1.5 --- ---
150 148 10±1.5 11±1.5 12±1.5 13±1.5 14±1.5 18±1.5 --- --- ---
200 197 11±1.5 13±1.5 15±1.5 17±1.5 18±1.5 --- --- --- ---
250 248 12±1.5 16±1.5 18±1.5 19±1.5 --- --- --- --- ---
300 300 13±1.5 17±1.5 19±1.5 21±1.5 --- --- --- --- ---
350 350 14±1.5 18±1.5 20±1.5 --- --- --- --- --- ---
400 400 14±1.5 18±1.5 --- --- --- --- --- --- ---
1918

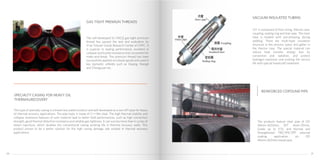

12. The self-developed SL-110CQ gas-tight premium
thread has passed the test and evaluation by
Xi’an Tubular Goods Research Center of CNPC. It
is superior in sealing performance, excellent in
collapse and buckle resistance and convenient for
make-and-break. The premium thread has been
successfully applied on tubular goods and used in
key domestic oilfields such as Daqing, Shengli
and Zhongyuan etc.
This type of specialty casing is a brand new patent product and self-developed as a non-API pipe for heavy
oil thermal recovery applications. The pipe body is made of Cr−Mo steel. The high thermal stability and
collapse resistance features of such material lead to better field performances, such as high connection
strength, good thermal distortion resistance and reliable gas tightness. It can survive more than 6 cycles of
steam injections, which doubles the conventional casing working life in thermal recovery wells. This
product proves to be a better solution for the high casing damage rate existed in thermal recovery
applications.
The products feature steel pipe of OD
48mm-1620mm, WT 4mm-20mm,
Grade up to X70, and Normal and
Strengthened FBE/3PE/3PP external
coating application on OD
48mm-820mm bared pipe.
GAS TIGHT PREMIUN THREADS
SPECIALTY CASING FOR HEAVY OIL
THERMALRECOVERY
REINFORCED COPOUND PIPE
VIT is composed of host string, thermo case,
coupling, sealing ring and liner pipe. The inner
tube is treated with pre-stressing during
welding. There are multi-layer insulation
structure in the annulus space and getter in
the thermo case. The special material can
reduce heat transfer, energy loss by
convection and radiation, and protect
hydrogen explosion and prolong the service
life with special handicraft treatment.
VACUUM INSULATED TUBING
2120
13. Function: During drilling operation, casing head
is an important equipment for controlling
wellhead pressure.
Raw Material: Carbon steel or low alloy steel
comply with API Spec.6A.
Bottom Connection: welded type, slips type,
thread type.
Outlet connection: thread type, flange
type(c/w VR plug thread).
The secondary seal of casing
spool adopts BT type seal
structure to ensure the safe
and reliable seal.
Users have a choice between
slip type and mandrel type
casing hanger as their actual
requirements. Can connect
various of sizes casing.
CASING HEAD CASING SPOOL
Technical Specifications
Nominal Dimension of Top Flange (in) 11,13-5/8,20-3/4,21-1/4
Working Pressure of Top Flange (MPsi) 2,3,5,10
Surface Casing Dimension(in) 20,13-3/8,9-5/8,7
Nominal Diameter of Side Outlet (in) 2-1/16,2-9/16,3-1/8
Nominal Dimension of Top Flange (in) 13, 11, 9 5/8, 7
Working Pressure of Top Flange (MPsi) 2,3,5,10,15
Nominal Diameter of Bottom Flange (in) 11, 13-5/8, 20-3/4, 21-1/4
Working Pressure of Bottom Flange (MPsi) 2,3,5,10
Nominal Diameter of Side Outlet (in) 2-1/16,2-9/16
2322

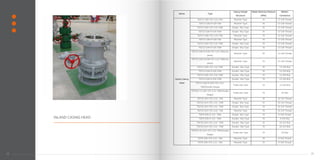

14. INLAND CASING HEAD
Name Type
Casing Hanger
Structure
Rated Working Pressure
(MPa)
Bottom
Connection
Inland Casing
Head
TGT13-3/8×7(5-1/2)-35A Mandrel Type 35 13-3/8 Thread
TGT13-3/8×9-5/8-35A Mandrel Type 35 13-3/8 Thread
TGT13-3/8×7(5-1/2)-35W Single- Slip Type 35 13-3/8 Thread
TGT13-3/8×9-5/8-35W Single- Slip Type 35 13-3/8 Thread
TGT13-3/8×7(5-1/2)-70A Mandrel Type 70 13-3/8 Thread
TGT13-3/8×9-5/8-70A Mandrel Type 70 13-3/8 Thread
TGT13-3/8×7(5-1/2)-70W Single- Slip Type 70 13-3/8 Thread
TGT13-3/8×9-5/8-70W Single- Slip Type 70 13-3/8 Thread
TGT13-3/8×9-5/8×7(5-1/2)-35A(one
piece)
Mandrel Type 35 13-3/8 Thread
TGT13-3/8×9-5/8×7(5-1/2)-70A(one
piece)
Mandrel Type 70 13-3/8 Thread
TGT13-3/8×7(5-1/2)-35W Double- Slip Type 35 13-3/8 Slip
TGT13-3/8×9-5/8-35W Double- Slip Type 35 13-3/8 Slip
TGT13-3/8×7(5-1/2)-70W Double- Slip Type 70 13-3/8 Slip
TGT13-3/8×9-5/8-70W Double- Slip Type 70 13-3/8 Slip
TGT13-3/8×9-5/8×7(5-1/2)-
70W(Double Stage)
Triple-slip Type 70 13-3/8 Slip
TGT20×13-3/8×7(5-1/2)-70W(Double
Stage)
Triple-slip Type 70 20 Slip
TGT10-3/4×7(5-1/2) -35A Mandrel Type 35 10-3/4 Thread
TGT10-3/4×7(5-1/2) -35W Single- Slip Type 35 10-3/4 Thread
TGT10-3/4×7(5-1/2) -70W Single- Slip Type 70 10-3/4 Thread
TGT10-3/4×7(5-1/2) -70A Mandrel Type 70 10-3/4 Thread
TGT9-5/8×5-1/2 -70W Single- Slip Type 70 9-5/8 Thread
TGT9-5/8×5-1/2 -70W Double- Slip Type 70 9-5/8 Slip
TGT10-3/4×7(5-1/2) -35W Double- Slip Type 35 10-3/4 Slip
TGT10-3/4×7(5-1/2) -70W Double- Slip Type 70 10-3/4 Slip
TGT20×10-3/4×7(5-1/2)-70W(Double
Stage)
Triple-slip Type 70 20 Slip
TGT9-5/8×7(5-1/2) -70A Mandrel Type 70 9-5/8 Thread
TGT9-5/8×7(5-1/2) -35A Mandrel Type 35 9-5/8 Thread
2524

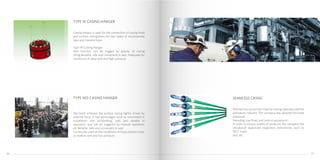

15. Casing hanger is used for the connection of casing head
and surface casing,there are two types of structure:slip
type and mandrel type.
Type W Casing Hanger
Seal function can be trigged by gravity of casing
string.Reliable, safe and convenient in seal. Adequate for
conditions of deep well and high pressure.
Slip teeth embrace the surface casing tightly driven by
external force. It has advantages such as convenient in
installation and dismantling, safe and reliable in
operation, seal can be triggered by manual operation,
etc.Reliable, safe and convenient in seal.
Commonly used on the conditions of heavy bottom tube,
or shallow well and low pressure.
TYPE W CASING HANGER
We has four production lines for casing specially used for
petroleum industry. The company has adopted the most
advanced
threading machines and control equipment.
In order to ensure quality of products, the company has
introduced digitalized inspection instruments, such as
NDT, hydro
test, etc.
SEAMLESS CASNGTYPE WD CASING HANGER
2726

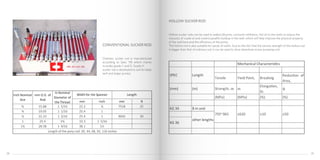

16. Ordinary sucker rod is manufactured
according to Spec 11B which mainly
includes grade C and D. Grade H
sucker rod is developed to suit for deep
well and larger pumps.
Hollow sucker rods can be used to added diluents, corrosion inhibitors, hot oil to the wells to reduce the
viscosity of crude oil and control paraffin buildup in the well, which will help improve the physical property
of the well bore and the efficiency of the pump.
The hollow rod is also suitable for sandy oil wells. Due to the fact that the torsion strength of the hollow rod
is bigger than that of ordinary rod, it can be used to drive downhole screw pumping unit.
CONVENTIONAL SUCKER ROD
HOLLOW SUCKER ROD
mm Inch mm ft
⅝ 15.88 1 5/16 22.2 ⅞ 7518 25
¾ 19.05 1 1/16 25.4 1
⅞ 22.23 1 3/16 25.4 1 9042 30
1 25.4 1⅜ 33.3 1 5/16
1⅛ 28.58 1 9/16 38.1 1½
Length of the pony rod: 20, 44, 68, 92, 116 inches
Inch Nominal
Size
mm O.D. of
Rod
In Nominal
Diameter of
the Thread
Width for the Spanner Length
Tensile Yield Point, Breaking
Reduction of
Area,
(mm) (m) Strength, σb σs
Elongation,
δ5
ψ
(MPa) (MPa) (%) (%)
KG 34 8 m and
Mechanical Characteristics
SPEC Length
793~965 ≥620 ≥10 ≥50
other lengths
KG 36
2928

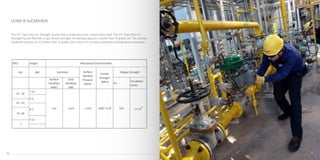

17. The HY Type Ultra Hi- Strength Sucker Rod is made from low-carbon alloy steel. The HY Type Ultra Hi-
Strength Sucker Rod has a high tensile strength, its bearing capacity is better than D-grade rod. The rod has
hardened surface, so it is better than D-grade rod in terms of corrosion resistance and abrasion resistance.
ULTRA HI SUCKER ROD
SPEC Length
(in) (M)
Surface
Hardness
(HRC)
Core
Hardness
(HB)
σ0.1
Circulation
Cycles
7.62,
05 - 08
03 - 04
≥1×10
6
8.5,
9.14
8.0,
1
≥42 ≥224 ≥-220 540≥980~1176
07 -08
Mechanical Characteristics
Hardness Fatigue StrengthSurface
Residual
Pressure
(MPa)
Tensile
Strength
(MPa)
3130

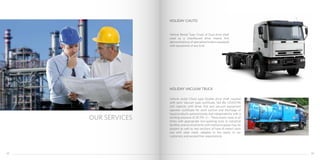

18. Vehicle Rental Type Chuto of Dual drive shaft
used as a chauffeured drive means first
demonstrations of specialized trailers equipped
with equipment of any kind.
Vehicle rental Chuto type Double drive shaft coupled
with semi Vaccum type certificate, 160 Bls (25437.96
Lts) capacity with driver first and vacuum equipment
operator certificate for work suction and discharge of
liquid products autonomously and independently with a
working pressure of 30 PSI +/-. These teams have at all
times with appropriate non-sparking tools to industrial
facilities and environments with explosive gases may be
present as well as two sections of hose 8 meters each
one with steel mesh, adapted to the needs of our
customers and exceed their expectations.
OUR SERVICES
HOLIDAY CHUTO
HOLIDAY VACUUM TRUCK
3332

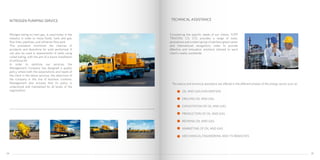

19. Nitrogen being an inert gas, is used today in the
industry in order to move fluids, fuels and gas,
flow lines, pipelines, and refineries flow park.
This procedure minimizes the chances of
accidents and downtime for work performed. It
can also be used in assessments of wells using
coiled tubing, with the aim of a future installation
of artificial lift.
In order to optimize our services, the
Management Company has designed a quality
policy where both the expectations and needs of
the client in the above services, the objectives of
the company in this line of business combine.
Management also ensures that its policy is
understood and maintained by all levels of the
organization.
Considering the specific needs of our clients, YUPP
TRADING CO, LTD, provides a range of tools,
procedures and a select group of advisors great career
and international recognition; order to provide
effective and innovative solutions tailored to each
client's reality worldwide.
The advice and technical assistance are offered in the different phases of the energy sector such as:
OIL AND GAS EXPLORATION
DRILLING OIL AND GAS
EXPLOITATION OF OIL AND GAS
PRODUCTION OF OIL AND GAS
REFINING OIL AND GAS
MARKETING OF OIL AND GAS
MECHANICAL ENGINEERING AND ITS BRANCHES
NITROGEN PUMPING SERVICE TECHNICAL ASSISTANCE
3534
20. In our supplier factories innovation translates into equipment, tools, processes,
methods, methodologies, simulation models, industrial processes, products, software
and know-how, which is characterized by some innovative component that responds
to the needs of each client .
YUPP TRADING Co,. Ltd., gives added value to their products and services by providing
the know-how to our customers directly from factories in the People's Republic China
to the place where our customers consider, in the fact that our company has a select
staff of technicians and engineers, to cover different technology transfer services in the
Oil and Gas Industry.
The results come from agreements, research projects, or specific developments,
through which equipment or adapt technologies, improvements that increase the
effectiveness and efficiency of processes and infrastructure or completely new
products and services that put within reach of our customers are generated are
introduced.
TRANSFER OF KNOWLEDGE
(KNOW-HOW)
3736
