![www.seoulsemicon.com
Copyright ⓒ Seoul Semiconductor Co., Ltd. 4
Introduction (660nm RED)
Size: 3.5 x 3.5
Thickness: 2.3 mm
Features & Benefits
Binning (Tj=25℃, 350mA condition)
Enhanced High Luminous Flux (5%↑ than SZDR5A0C)
Excellent performance in sulfur test
LM80
LM80 : End of July. ~ 6Khr
Tj=25℃
LMP 660nm
Power [W] 0.71
Current [mA] 350
VF [V] 2.05
Radiant Power [mW]
500
( estimated typical )
PPF 2.73
SZDR5A0D
Electrical Optical Characteristics](https://image.slidesharecdn.com/z5ddatapackrev12200423out-210521074003/85/SZDR5A0D-4-320.jpg)

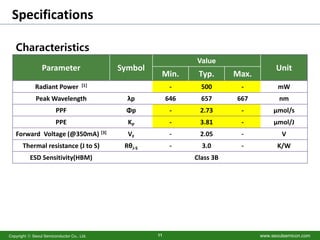

![www.seoulsemicon.com
Copyright ⓒ Seoul Semiconductor Co., Ltd. 11
Specifications
Characteristics
Parameter Symbol
Value
Unit
Min. Typ. Max.
Radiant Power [1] - 500 - mW
Peak Wavelength λp 646 657 667 nm
PPF Φp - 2.73 - µmol/s
PPE KP - 3.81 - µmol/J
Forward Voltage (@350mA) [3] VF - 2.05 - V
Thermal resistance (J to S) RθJ-S - 3.0 - K/W
ESD Sensitivity(HBM) Class 3B](https://image.slidesharecdn.com/z5ddatapackrev12200423out-210521074003/85/SZDR5A0D-11-320.jpg)
Uploaded bySEA Company
SZDR5A0D
The document is a data pack for the SZDR5A0D 660nm red LED from Seoul Semiconductor, highlighting its specifications, performance, and product roadmap. It outlines features such as improved luminous flux and details on radiant power performance under various conditions. Additionally, it includes a roadmap for future products and guidance on mechanical dimensions and soldering recommendations.
SZDR5A0D
- 1. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 1 DATA PACK Seoul Semiconductor March, 2021 SZDR5A0D (660nm RED)
- 2. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 2 Introduction SZDR5A0D Data Pack Rev 1.0 01 Specification summary 03 Roadmap 02
- 3. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 3 01 Introduction Performance Product Portfolio of 660nm RED Comparison of SSC and O**
- 4. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 4 Introduction (660nm RED) Size: 3.5 x 3.5 Thickness: 2.3 mm Features & Benefits Binning (Tj=25℃, 350mA condition) Enhanced High Luminous Flux (5%↑ than SZDR5A0C) Excellent performance in sulfur test LM80 LM80 : End of July. ~ 6Khr Tj=25℃ LMP 660nm Power [W] 0.71 Current [mA] 350 VF [V] 2.05 Radiant Power [mW] 500 ( estimated typical ) PPF 2.73 SZDR5A0D Electrical Optical Characteristics
- 5. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 5 Comparison of SSC and O** “SSC” Z5D “O” GH 3.24 Radiant Power (mW) 420 460 440 480 500 520 580 540 J33 SZDR5A0D J34 J41 “O” GH 4.24 V5 V7 V4 J24 J31 SZDR5A0C J32 @ 350mA Tj=25 °C V6 V7 V9 V6 V8 J33 Typical Typical “SSC” Z5C
- 6. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 6 Product Portfolio of 660nm RED 40% 60% 80% 100% 120% 140% 430 450 470 490 510 530 Relative $/mW Radiant Power (mW) 350mA Tj=25 °C “O” Highest Radiant power & high reliability & robustness We need to find the position of Z5D regarding price and direction “O” “SSC” “SSC” “O” New One MP : April “SSC”
- 7. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 7 02 Roadmap & LM80 Z5C, Z5D LM80 new plan
- 8. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 8 Z5D Roadmap Z5B 800mW Z5C 890mW ( 11% ) Z5D 950mW ( 19% ) Z5D 1000mW ( 25% ) Z5D 1050mW ( 31% ) Q1 2021 Q2 2021 Q3 2021 Q4 2021 420mW @ 350mA 500mW @ 350mA 520mW @ 350mA 470mW @ 350mA 540mW @ 350mA SSC Product Roadmap

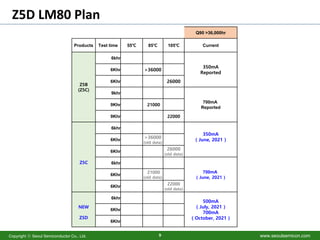

- 9. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 9 Z5D LM80 Plan Q90 >36,000hr Products Test time 55℃ 85℃ 105℃ Current Z5B (Z5C) 6khr 350mA Reported 6Khr >36000 6Khr 26000 9khr 700mA Reported 9Khr 21000 9Khr 22000 Z5C 6khr 350mA ( June, 2021 ) 6Khr >36000 (old data) 6Khr 26000 (old data) 6khr 700mA ( June, 2021 ) 6Khr 21000 (old data) 6Khr 22000 (old data) NEW Z5D 6khr 500mA ( July, 2021 ) 700mA ( October, 2021 ) 6Khr 6Khr
- 10. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 10 03 Specifications Characteristics Radiant Power Rank Distribution Mechanical Dimensions Recommended Solder Pad
- 11. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 11 Specifications Characteristics Parameter Symbol Value Unit Min. Typ. Max. Radiant Power [1] - 500 - mW Peak Wavelength λp 646 657 667 nm PPF Φp - 2.73 - µmol/s PPE KP - 3.81 - µmol/J Forward Voltage (@350mA) [3] VF - 2.05 - V Thermal resistance (J to S) RθJ-S - 3.0 - K/W ESD Sensitivity(HBM) Class 3B
- 12. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 12 Specifications Radiant Power Rank Distribution Bin Code Radiant Power (mW) @ IF = 350mA Peak Wavelength (nm) @ IF = 350mA Forward Voltage (V) @ IF = 350mA J3, J4 RR5 C, D Radiant Power (mW) @ IF = 350mA Bin Code Min. Max. J33 480 500 J34 500 520 J41 520 540 Peak Wavelength (nm) @ IF = 350mA Bin Code Min. Max. RR5 646 667 Forward Voltage (V) @ IF = 350mA Bin Code Min. Max. C 1.75 2.1 D 2.1 2.2
- 13. www.seoulsemicon.com Copyright ⓒ SeoulSemiconductor Co., Ltd. 13 Specifications Mechanical Dimensions Recommended Solder Pad Same PAD as O*** Company
