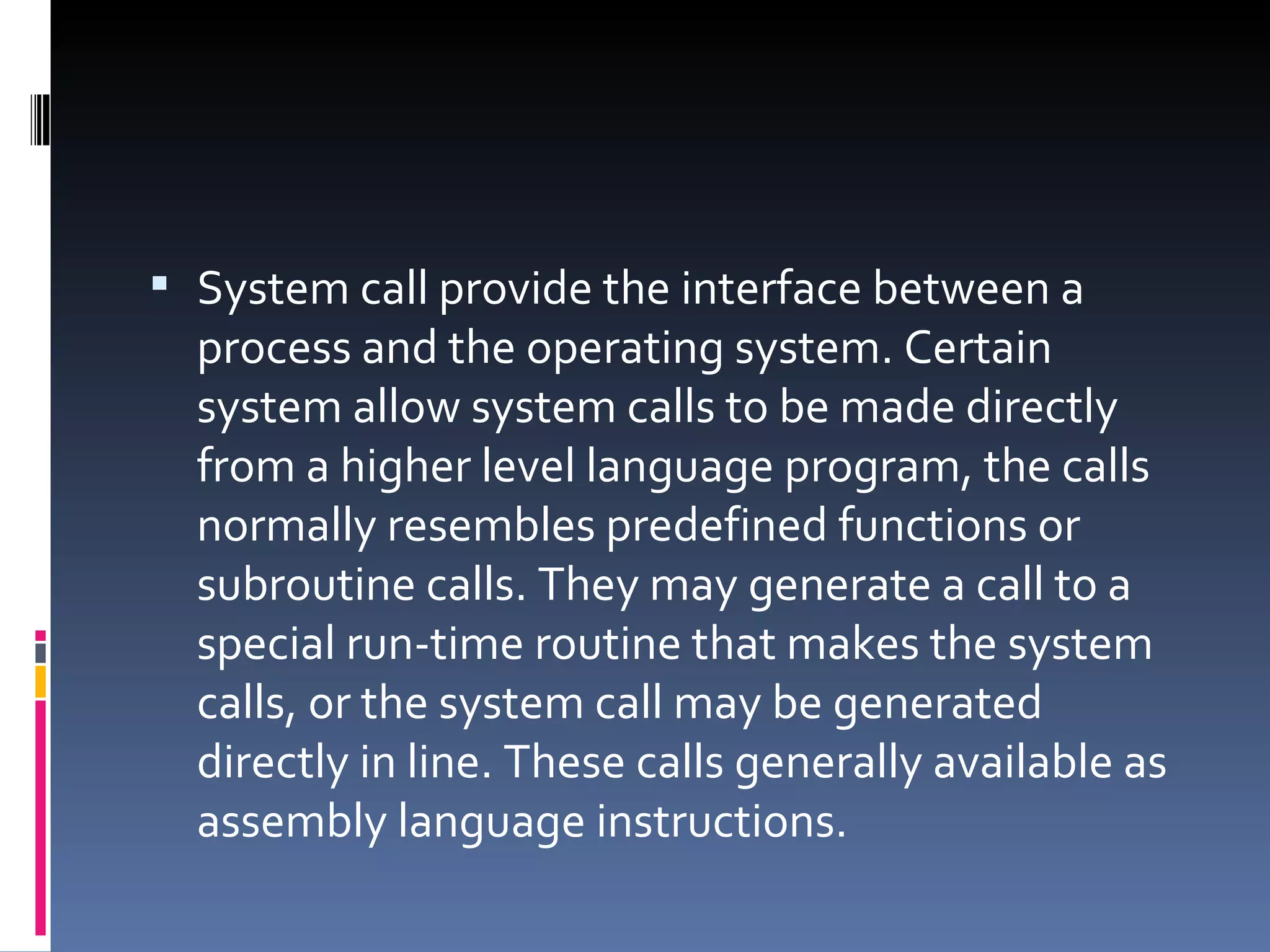

System call provide the interface between a process and the operating system. Certain system allow system calls to be made directly from a higher level language program, the calls normally resembles predefined functions or subroutine calls. They may generate a call to a special run-time routine that makes the system calls, or the system call may be generated directly in line. These calls generally available as assembly language instructions.

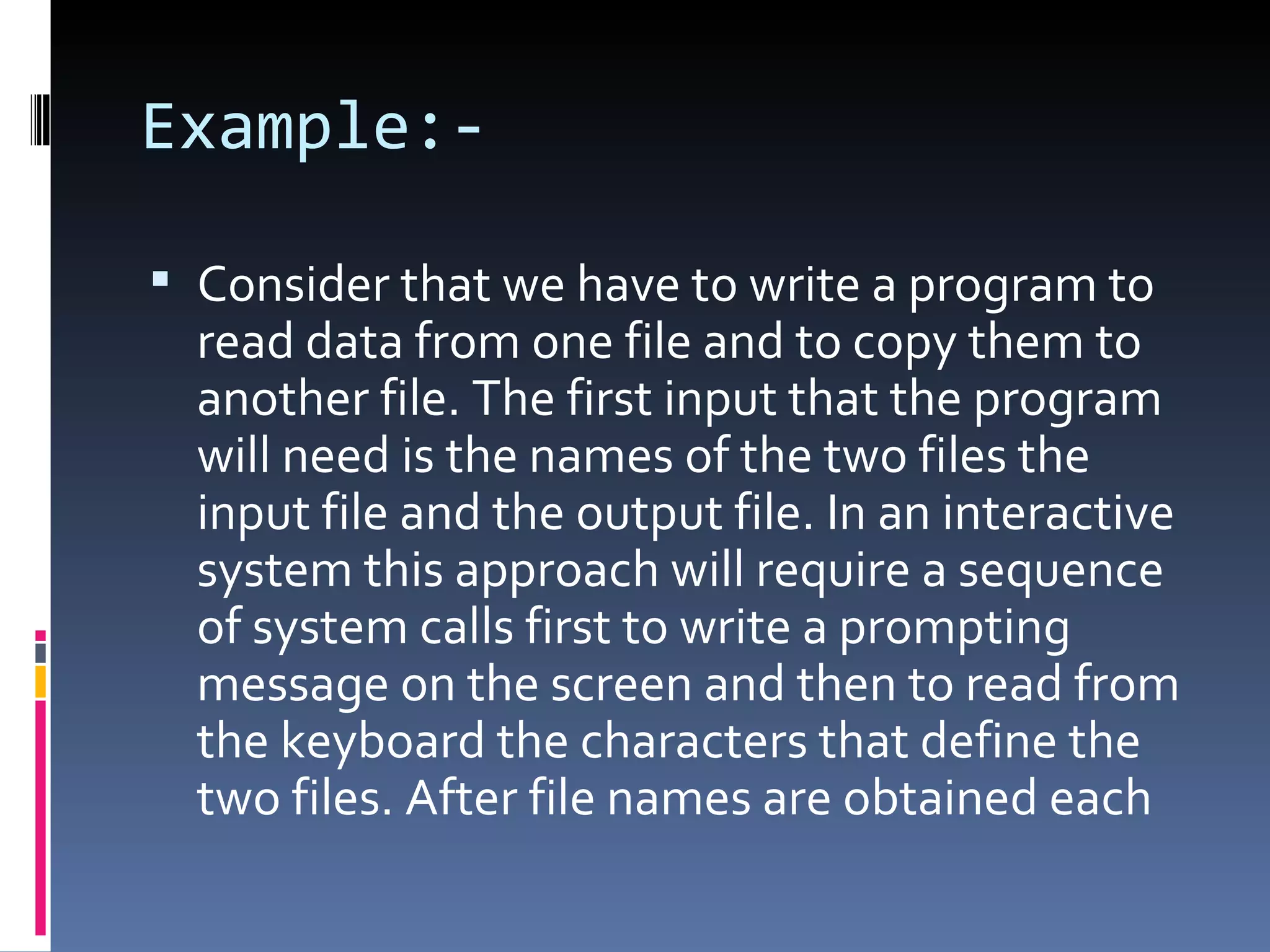

Example:- Consider that we have to write a program to read data from one file and to copy them to another file. The first input that the program will need is the names of the two files the input file and the output file. In an interactive system this approach will require a sequence of system calls first to write a prompting message on the screen and then to read from the keyboard the characters that define the two files. After file names are obtained each

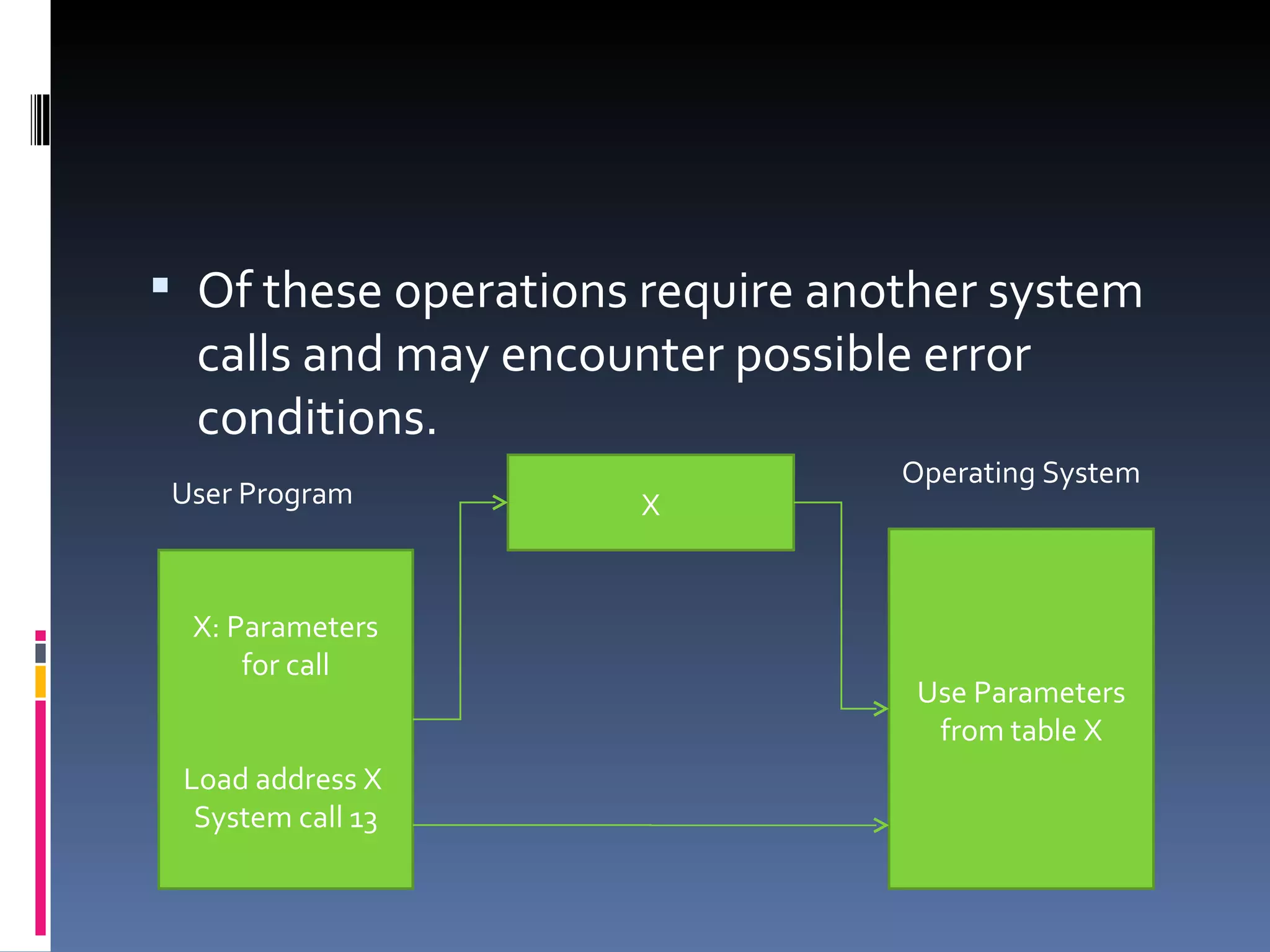

Of these operations require another system calls and may encounter possible error conditions. X: Parameters for call Load address X  System call 13 Use Parameters from table X X User Program Operating System

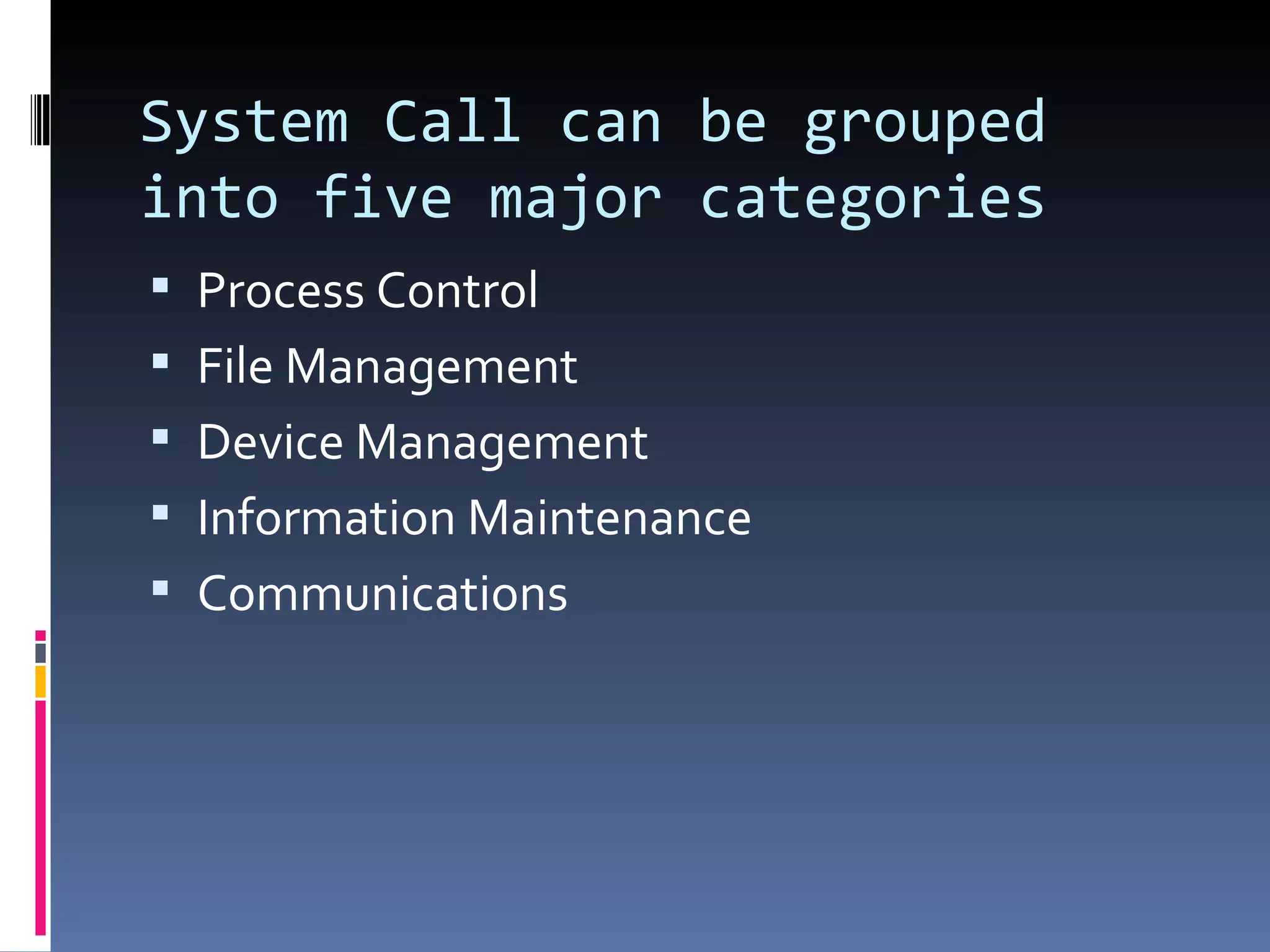

System Call can be grouped into five major categories Process Control File Management Device Management Information Maintenance Communications

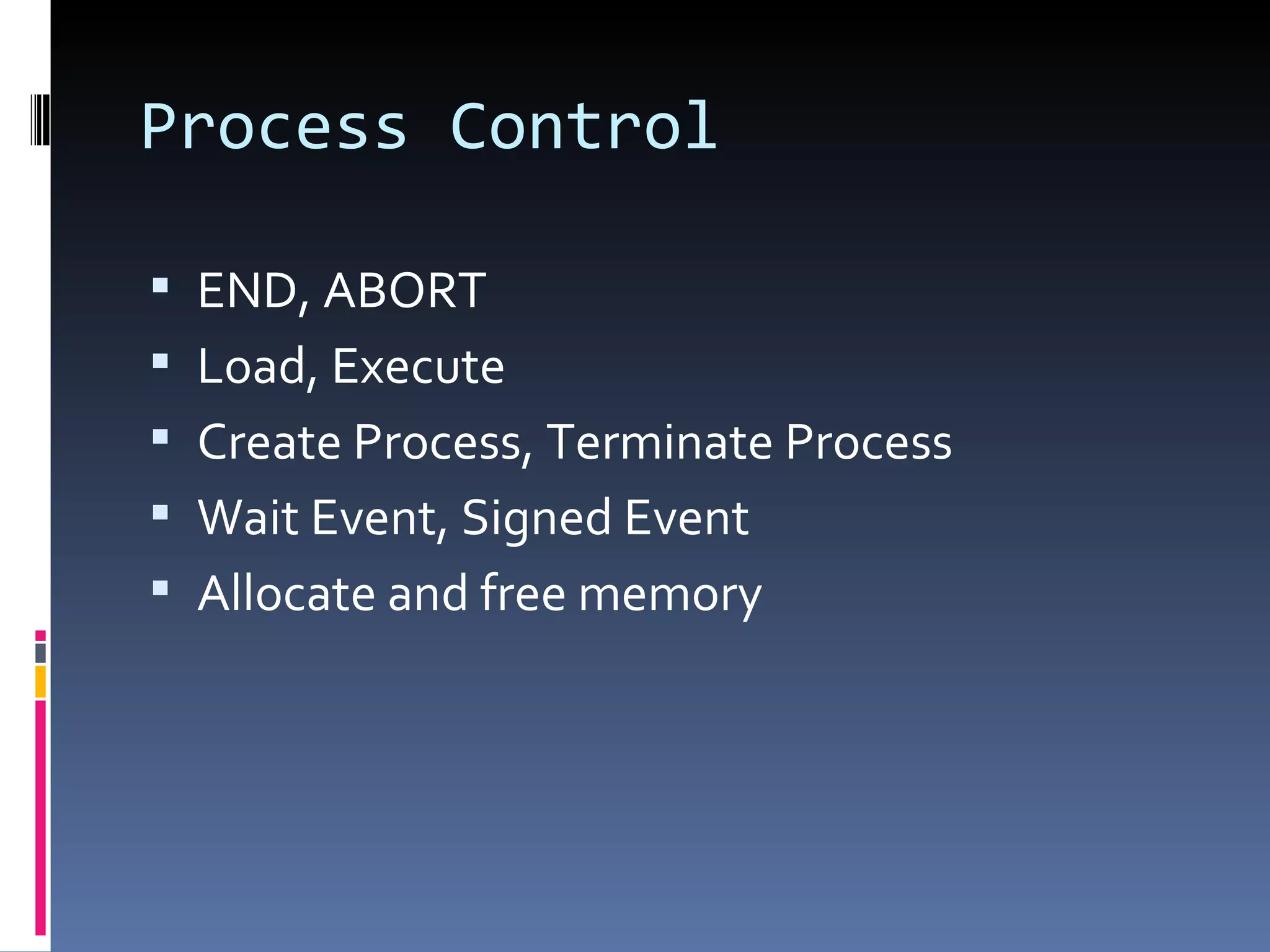

Process Control END, ABORT Load, Execute Create Process, Terminate Process Wait Event, Signed Event Allocate and free memory

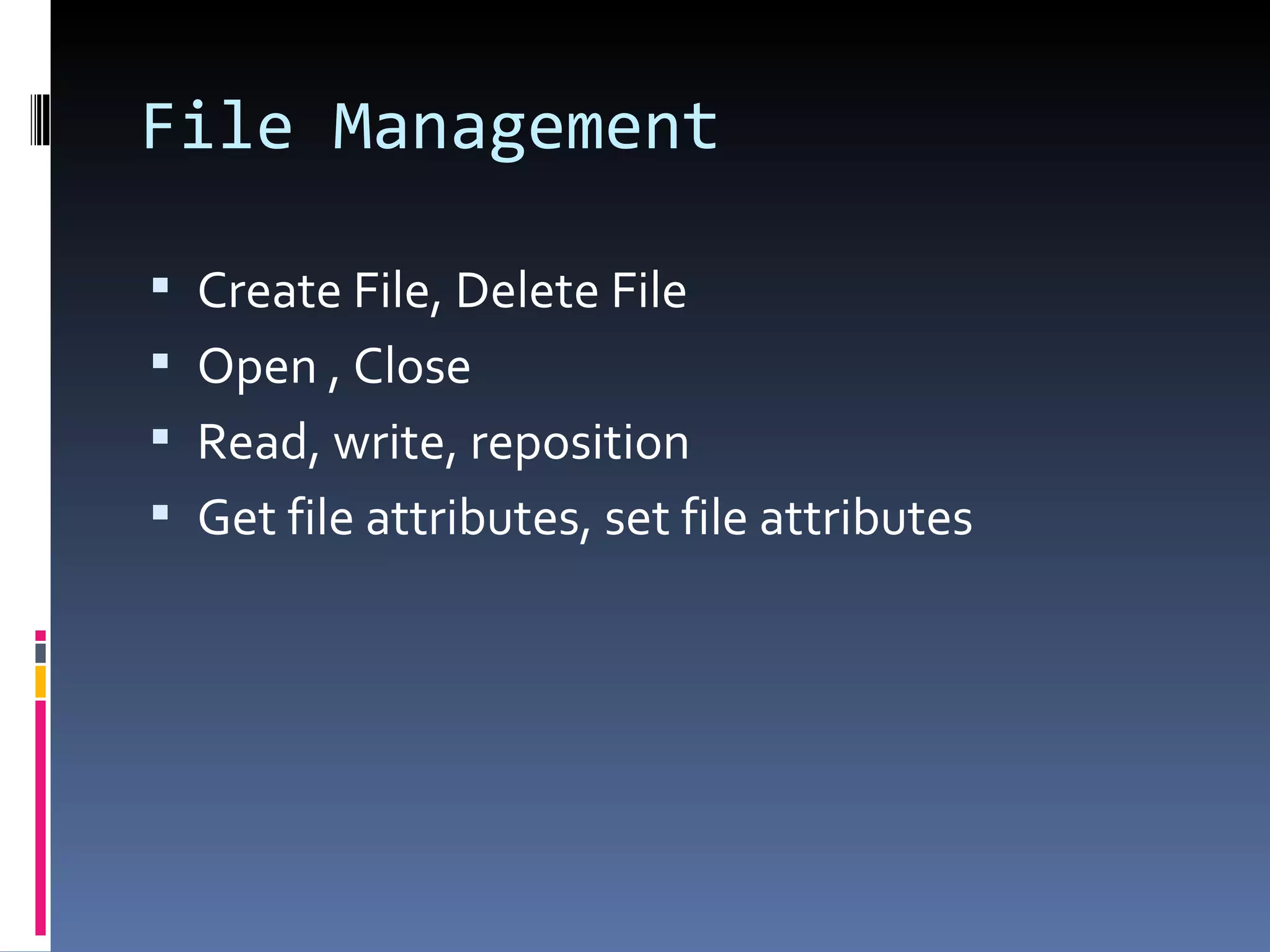

File Management Create File, Delete File Open , Close Read, write, reposition Get file attributes, set file attributes

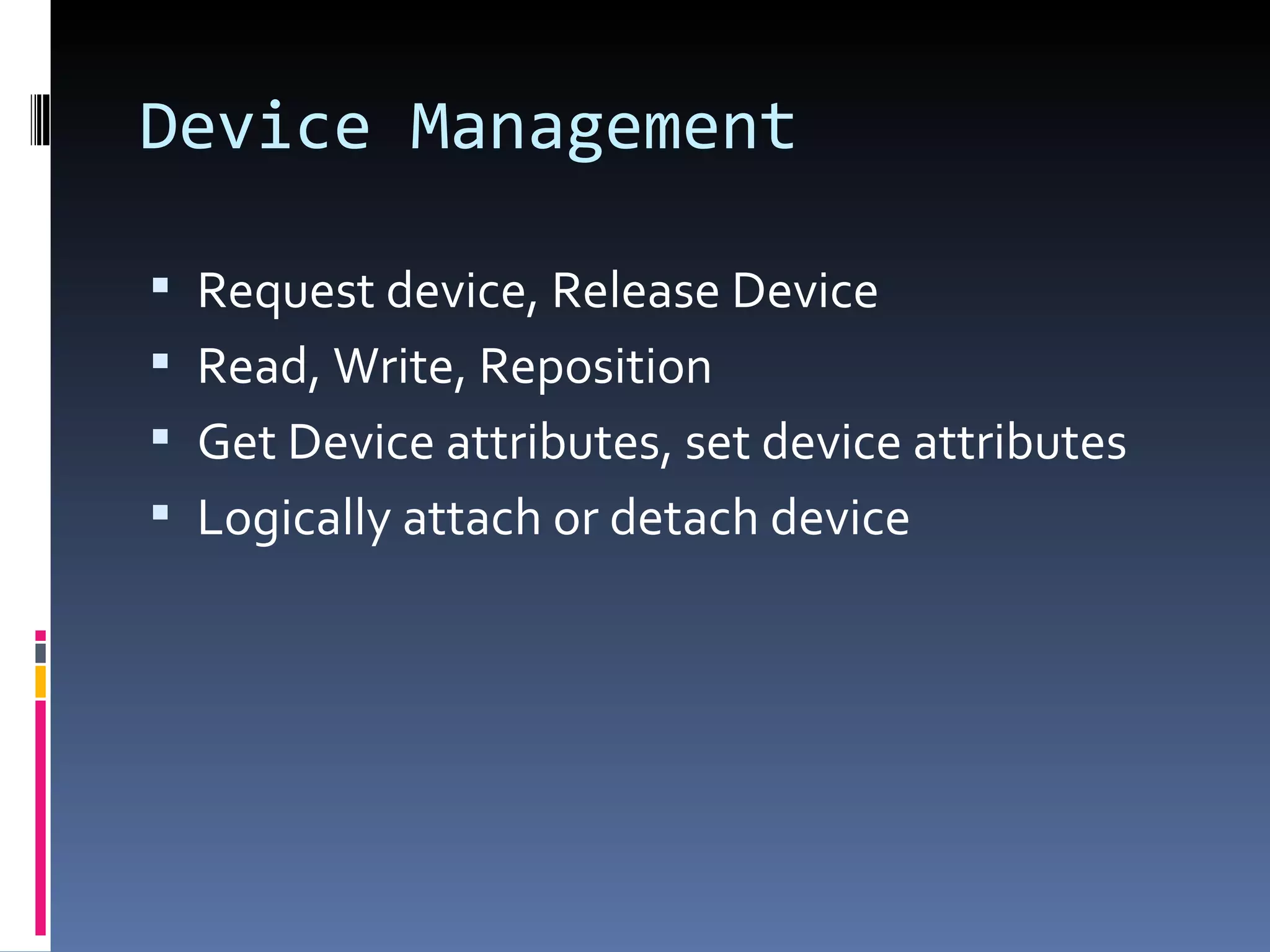

Device Management Request device, Release Device Read, Write, Reposition Get Device attributes, set device attributes Logically attach or detach device

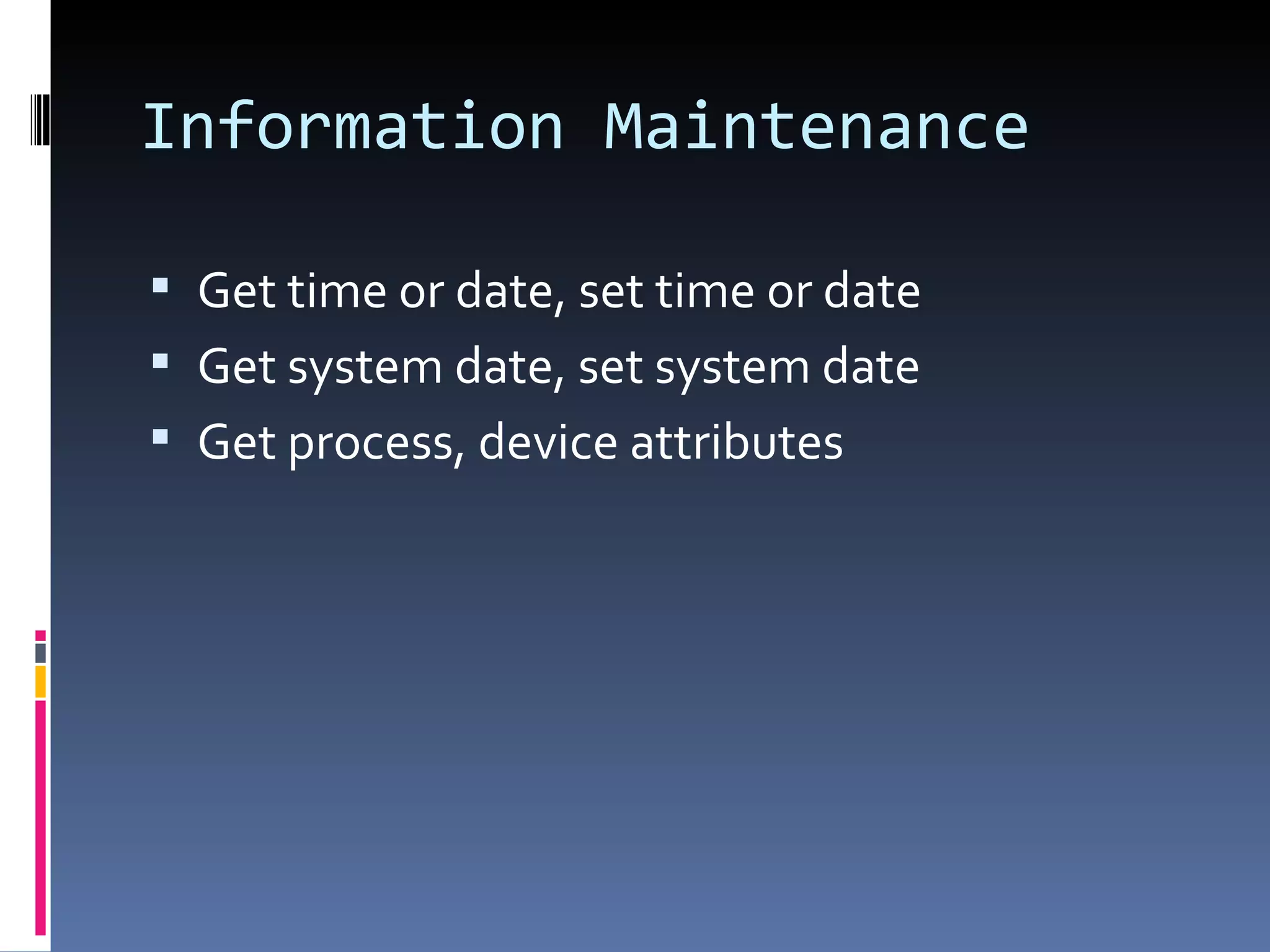

Information Maintenance Get time or date, set time or date Get system date, set system date Get process, device attributes

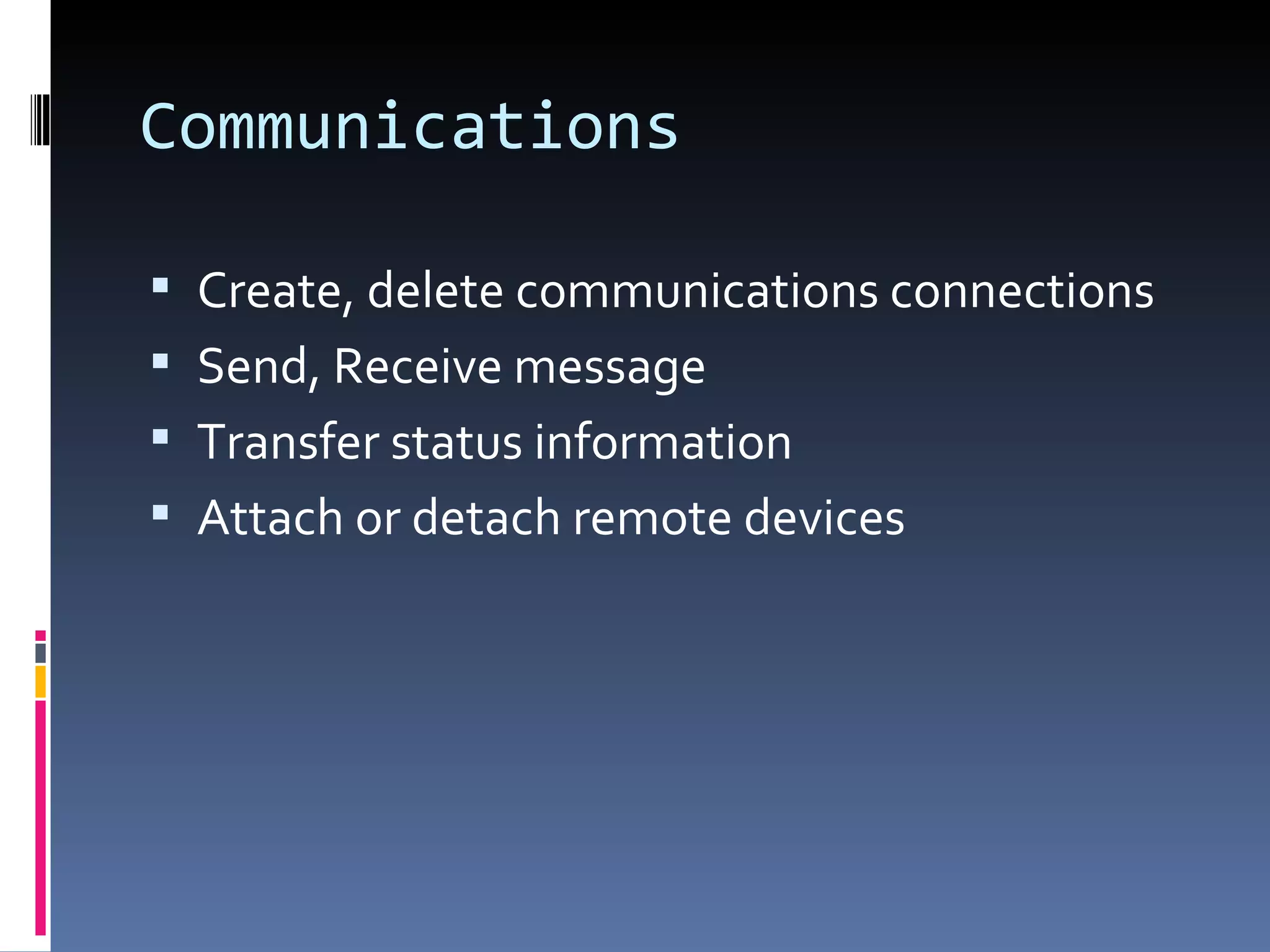

Communications Create, delete communications connections Send, Receive message Transfer status information Attach or detach remote devices
Sumant Kumar Diwakar Web Designer

System call

  • 1.
  • 2.
    System call providethe interface between a process and the operating system. Certain system allow system calls to be made directly from a higher level language program, the calls normally resembles predefined functions or subroutine calls. They may generate a call to a special run-time routine that makes the system calls, or the system call may be generated directly in line. These calls generally available as assembly language instructions.
  • 3.
    Example:- Consider thatwe have to write a program to read data from one file and to copy them to another file. The first input that the program will need is the names of the two files the input file and the output file. In an interactive system this approach will require a sequence of system calls first to write a prompting message on the screen and then to read from the keyboard the characters that define the two files. After file names are obtained each
  • 4.
    Of these operationsrequire another system calls and may encounter possible error conditions. X: Parameters for call Load address X System call 13 Use Parameters from table X X User Program Operating System
  • 5.
    System Call canbe grouped into five major categories Process Control File Management Device Management Information Maintenance Communications
  • 6.
    Process Control END,ABORT Load, Execute Create Process, Terminate Process Wait Event, Signed Event Allocate and free memory
  • 7.
    File Management CreateFile, Delete File Open , Close Read, write, reposition Get file attributes, set file attributes
  • 8.
    Device Management Requestdevice, Release Device Read, Write, Reposition Get Device attributes, set device attributes Logically attach or detach device
  • 9.
    Information Maintenance Gettime or date, set time or date Get system date, set system date Get process, device attributes
  • 10.
    Communications Create, deletecommunications connections Send, Receive message Transfer status information Attach or detach remote devices
  • 11.
