Swim Spas Guide & Review
Page1
SWIM SPAS
GUIDE & REVIEW

Page2
Why Buy Swim Spas?
A swim spa brings the freedom and enjoyment of open-water swimming right
to your home. With standard-sized models that are only 15 feet in length and
less than 8 feet wide, they're designed to fit into any backyard, patio or
recreational area and can be used indoors or outdoors. They also feature a
wide selection of optional molded shells and attractive cabinets that enable
you to install them in a custom deck or leave them as a freestanding unit above
ground or in-ground.
Used for a variety of purposes, including swimming, exercise, rehabilitation and
relaxation, modern swim spas generate a steady water current that creates a
set level of directional resistance. This is achieved by pushing or pulling water
from the front to the back of the tub.
The Basic Features
Swim spas are powered using one of three types of water flow or current: jet
propulsion, rotating paddlewheels and a propeller. Each type provides unique
benefits, but depending on your intended use – and whether you're a serious
athlete or someone who's just looking for some casual exercise and fun – one
type of water flow may work better for you than another. Each type of water
flow is covered in detail below in the Swim Current section.
Though each brand offers its own range of types and sizes, you'll usually find
spas that fit into one of four categories based on length. Again, depending on
your intended use and the number of people you want to accommodate, size
influences the functionality of your tub. In fact, one type of swim spa (the 10 to
11-foot length) is actually not designed for swimming at all, but more about
that in the Types & Uses section below.
Featuring foam insulation, swim spas are also popular for their cost-effective
operation, especially when compared to a full swimming pool or hot tub. In
fact, some brands report operational costs as low as $2 a day. And though we
delve into detailed pricing info later on, it's worth noting that the cost of a
swim spa is often half that of a standard swimming pool. On average, you can
expect to pay $8,900 to $23,000 for a swim spa versus $21,000 to $45,000 for a
swimming pool (not including the deck).

Page3
This Buyer's Guide covers everything you need to know about swim spas,
including:
 The types of swim spas and their intended use
 Individual spa components and how they're constructed
 Popular brands
 What you can expect to pay

Page4
Types & Uses of Swim Spas
Swim spas can be installed in nearly any location (given minimum space
requirements) and nearby access to an electrical connection (50 to 60 amps is
a common requirement). Spa manufacturers produce different types of spas
designed for varying levels of physical activity, hydrotherapy, light exercise, or
swimming, but most spas fit into one of four categories based on the length of
the pool itself. This length limits certain activities in some situations; therefore,
it's important to have a firm understanding of your expectations and needs
before settling on a particular pool length to prevent over or underbuying.
Before You Buy: Take a closer look at some of the standard and optional
features available in our article, "Swim Spa Accessories Elevate User
Experience & Value."
The Four Categories of Swim Spas
In general, swim spas that fit into three of the four categories can be used for
continuous swimming (sometimes referred to as open-water swimming). They
offer varying depths to provide comfort, easily accommodate more people if
desired, and are built to accept the full range of exercise equipment currently
available. These spas measure at least 12 feet long and extend up to 21 feet
long.
The only swim spas not designed for swimming are those measuring 10 to 11
feet. These are mainly intended to provide various forms of exercise and are
built to accommodate an extensive array of equipment, specifically underwater
treadmills, rowing machines, pull bars and resistance bands.
With these uses in mind, here's a rundown on how the four different lengths
compare, including primary strengths inherent in each as well as individual
features that enhance the experience and extend usability:
10 to 11 Feet
Models falling within this range represent the smallest swim spas available. In
fact, they're often "swim spas" in name only as they typically do not allow
enough room for swimming. Instead, these models are designed for aquatic
therapy. Using the resistance available through water, pools are heated up to
90 degrees to allow for muscle relaxation and the targeting of specific muscle
groups.

Page5
These types of spas are ideal for those with muscle tears, arthritis, back pain,
and a range of additional chronic or short-term pain.
These swim spas offer all the health benefits of exercise, including weight
management and strength training, through low-impact movement. Similar to
a hot tub, these units also offer hydrotherapy through powerful jets that
provide a relaxing massage.
Standard specs for models that fall within this range include:
Dimensions: Lengths range from 10 to 11 feet; widths from 7 to 8 feet; depths
from 4 to 5 feet
Jet Seat: Designed for hydrotherapy, models typically include six to 12
dedicated jets
Current: Provides optional resistance but not enough for swimming
Capacity: Holds 900 to 1,100 gallons of water
12 to 16 Feet
These swim spas are sometimes referred to as trainers or fitness models, and
they represent a big step up from the smaller variety. Most notably, swim spas
at this level and beyond allow for continuous swimming through a current
generated by jet propulsion, rotating paddlewheels or a propeller.
Designed to accommodate any type of exercise, these models are one of the
most popular choices among buyers looking for a combination of fitness and
fun with their spa. Many models within this range offer hydrotherapy jets,
allowing the spa to double as a jacuzzi. Some can be further customized with
the addition of optional exercise equipment (an underwater treadmill, rowing
machine or similar resistance-based add-ons).
When they're not being used for exercise, swim spas can play host to a range
of parties and leisure activities. Encased in any number of high-quality cabinets,
they can be upgraded with fountains, specialized lighting and waterproof
sound systems.

Page6
from 4 to 5 feet
Jet Seat: Swim spas in this range may include up to two jet seats, each with six
to 12 dedicated jets
Current: Allows for open-water swimming through directional resistance
Capacity: Holds 1,200 to 2,100 gallons
17 to 18 Feet
Similar to the models available in the 12- to 16-foot range, these swim spas add
a little extra length to improve comfort for swimming and exercise. Within this
range, you'll also find alternative means of water flow, including paddlewheels
and propellers, like those offered through SwimEx or the Michael Phelps
Signature Swim Spa.
Designed more for the serious user, these enhanced water propulsion systems
reportedly provide a smoother, more consistent current that spans the width
of the pool. Also, as the jets are not active when a person is swimming, spas
featuring this type of water flow are able to provide a more realistic feel,
mimicking that of an actual pool or fixed body of water. Plus, depending on the
model selected, these swim spas can be more energy efficient compared to jet-
based models.
Though largely intended for swimming and exercise, these pools also offer
optional upgrades that facilitate entertainment. They come with sound
systems, advanced water management, Wi-Fi and even a built-in underwater
camera.
Dimensions: Lengths fluctuate from 17 to 18 feet; widths from 7 to 8 feet;
depths from 4 to 5 feet
Jet Seat: Swim spas in this range typically include two jet seats, each with six to
12 dedicated jets and have at least two standard seats/steps that allow for
acclimating or cool down

Page7
Current: Provides directional resistance through all three types of water flow,
with paddlewheel and propeller varieties designed for a more realistic feel.
These spas are capable of moving up to 30,000 gallons per minute
19 to 21 Feet
The final category is often referred to as an Olympic or dual-temperature
model. These spas provide the longest length of any other swim spa and
usually have a dedicated hydrotherapy pool or hot tub that is separate from
the swimming area.
You'll find all of the functionalities designed for swimming and exercise
available with any of the smaller models: deluxe LED lighting, body-massage
functions and enhanced tiling that delineates a swim lane.
The spa side includes a fully functional hot tub with 30 to 60 individual
hydrotherapy jets. They are capable of seating four to six people and come
with design enhancements such as sound systems and spillover waterfalls.
In some cases, models within this range may require separate power setups,
with 60 amps being almost universally common for the pool and 40 amps
common to the spa.
from 4 to 5 feet
Jet Seat: In the spa section, models may include four to five jet seats, each with
four to six dedicated jets
Current: In the pool, current provides directional resistance through all three
types of water flow, with paddlewheel and propeller varieties facilitating swim
speeds ranging from 0.6 to 8 mph
It's worth noting that some of the models profiled above are available in both
standard and deep versions. The deep version adds anywhere from 9 inches to
a foot of depth and is ideal for entertainment purposes and accommodating a
number of bathers at one time.

Page8
Spa Components
When comparing swim spas, pay attention to the parts and components – the
type of filter, the swim current, and the shell, for instance. These factors are
going to influence how much money you ultimately spend on your swim spa,
how much you and others enjoy it as well as how much time and effort you'll
spend maintaining it once you've bought it.
Here are some items to look for:
Purification & Filtration System
Swim spas require a reliable system to filter out contaminants and provide a
germ-free environment for bathing, just like in a standard swimming pool or
hot tub. Depending on how often you plan to use your spa, the average
number of bathers and your level of comfort with the use of chemicals, you'll
choose one of the following two filtration systems:
Filter: These systems use a physical filter that removes germs, body oil and
bacteria though a series of media (filtration surfaces), pleats (the amount of
media condensed into a single filter) and a band (separating the pleats to
ensure consistent exposure to surface area). Two types are available: standard
and antimicrobial. Antimicrobial is often preferred as it is reportedly easier to
service and clean and less likely to develop an odor. Most filters, regardless of
the type, typically last for about a year if the filters are cleaned regularly (about
once a month). Some filter cartridges may last two years or more.
Ultraviolet: Other spas use ultraviolet light to control the formation and spread
of bacteria, algae and waterborne pathogens. Ultraviolet purifying systems are
a chemical-free way of keeping your spa clean without leaving an odor.
Ultraviolet bulbs typically last one year.
Estimated Costs: $28 to $60 per filter; $300 to $1,500 for ultraviolet.
Swim Current
The swim current travels from the front of the spa to the rear, pushing an
average of 5,000 to 30,000 gallons of water each minute. This allows you swim
at speeds of 0.6 to 8 mph. The type you of current you select can have a
substantial impact on the spa's performance, not to mention your performance
in it. Here are three types of current generators:

Page9
Jet Propulsion: Sometimes referred to as a pressure-driven system, this type
uses several jets, which are built into the head of the spa, to push water toward
the swimmer. Select models feature adjustable jets to allow for customized
performance.
Paddlewheel: Capable of creating a smoother rate of water flow that closely
resembles an actual pool, the paddle is mounted at the head of the unit and
creates a consistent flow by pushing water 3 feet deep and across the entire
width of the pool.
Propeller: Combining the smoothness of the paddlewheel flow with the
narrower swim lane common with jet-propulsion models, propeller-style spas
are suited for more advanced swimmers and athletes. Unlike the above two
models, a propeller-driven water flow system pulls water through the pool
rather than pushing it at the swimmer.
It's worth noting that each type of current generator mentioned above
includes a motor capable of outputs ranging from 4 to 7 hp.
Shell
Shells range anywhere from 12 to 24 feet in length and can be installed a
number of different ways: in ground below decking or paved surfaces or above
ground. More elaborate designs allow you to place support systems, such as
the pump, heater, and filtration system, outside the spa frame, opening up an
almost limitless range of installation possibilities.
Average Cost: $1,800 to $5,000.
Cabinet
The opposite of a shell, cabinets are designed to dress up the exterior of the
swim spa while adding a finished look to the unit. Most manufacturers offer
anywhere from three to six different styles, including those that mimic the look
of layered stone or natural wood. Quality models feature a reinforced structure
constructed from treated lumber to reliably support the weight of the spa
while resisting mold, mildew and rot. Built-in air vents help keep the motor
cool.
Average Cost: $1,000 to $2,000.
Buying Tip: Look for cabinets with access panels that are conveniently located
to allow for easy service and maintenance.

Page10
Cover
Swim spa covers keep the elements out to preserve the spa's filter and trap
heat to reduce heating costs. Covers come in standard sizes and are often fully
framed, which if your spa is outside, allows them to with withstand the build-
up of snow or rainwater. Many covers consist of a roll-away design, which can
be folded in either direction, exposing only part of the spa. These types of
covers can be especially useful with dual-temperature models.
Average Cost: $400
Heater
The heater is usually installed in close proximity to the spa itself, not to
mention decking or other structures. For this reason, many heaters feature
advanced levels of heat dissipation; some even providing cool-to-the-touch
exteriors.
Though some models are powered by propane or natural gas, newer designs
feature an electronic, direct-spark ignition that does not rely on a pilot light –
another safety feature. These units are growing in popularity as they also tend
to produce lower emissions.
Average Cost: $900 to $1,500.

Page11
BRANDS OF SWIM SPAS
Every manufacturer is different. Some offer a wide selection of swim spas
in a variety of lengths and depths while others specialize in a particular
type or application. Below are 10 of the industry's leading brands with a
quick synopsis of their selling points. For a more detailed look at each spa,
follow the hyperlink embedded in each brand name:
THERMOSPAS:
This manufacturer combines the functionalities of a whirlpool spa,
swimming pool and gym. It offers three specialized models. Focused
mainly around exercise, its jet-stream tubs are designed to accommodate
a range of equipment, including rowing machines and grab bars.

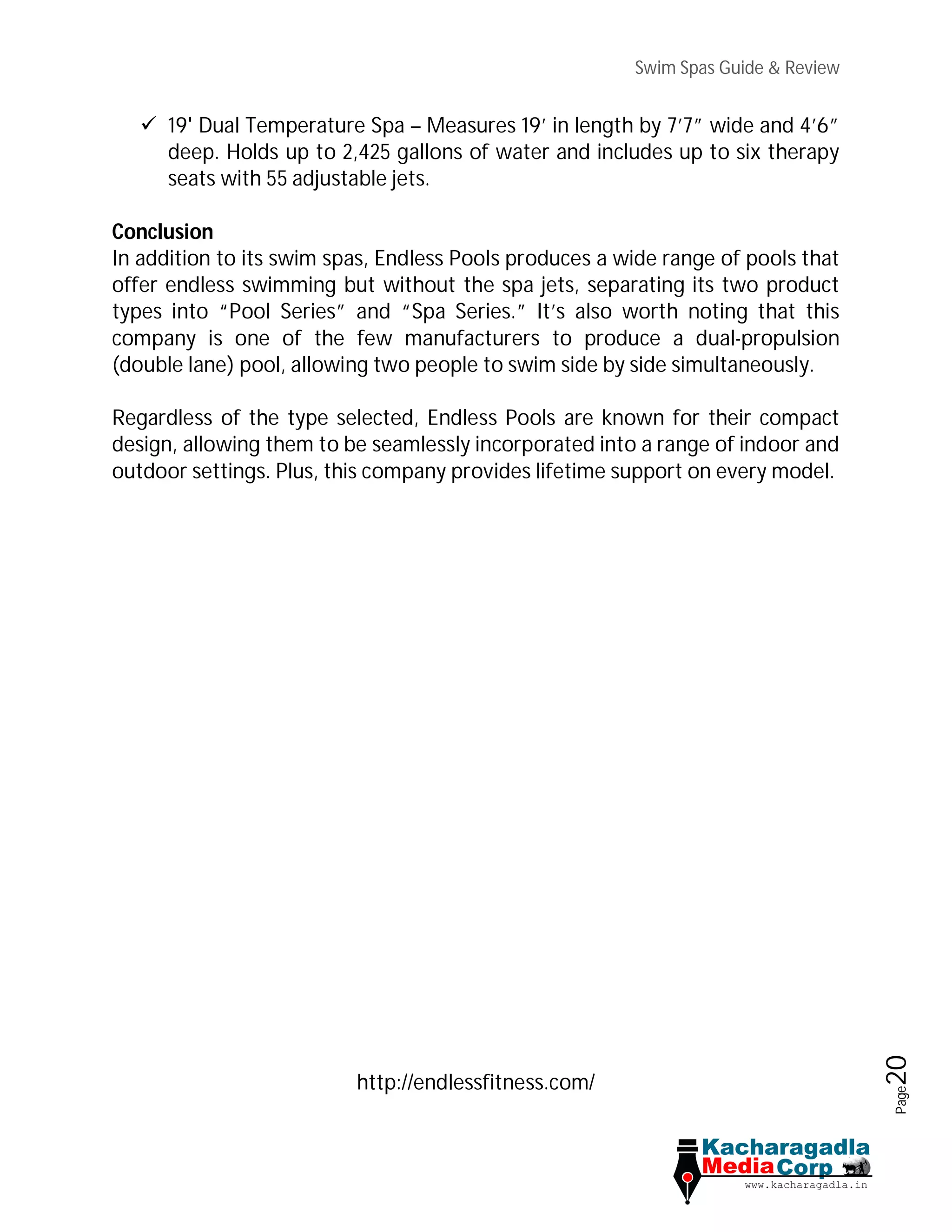

ENDLESS POOLS:
In business since 1988, Endless Pools has sold more than 20,000 pools to
buyers in more than 100 countries. It offers swim spas with the propeller-
style setup. The company has in-house professionals, including architects
and engineers, that can provide additional assistance with design and
installation.

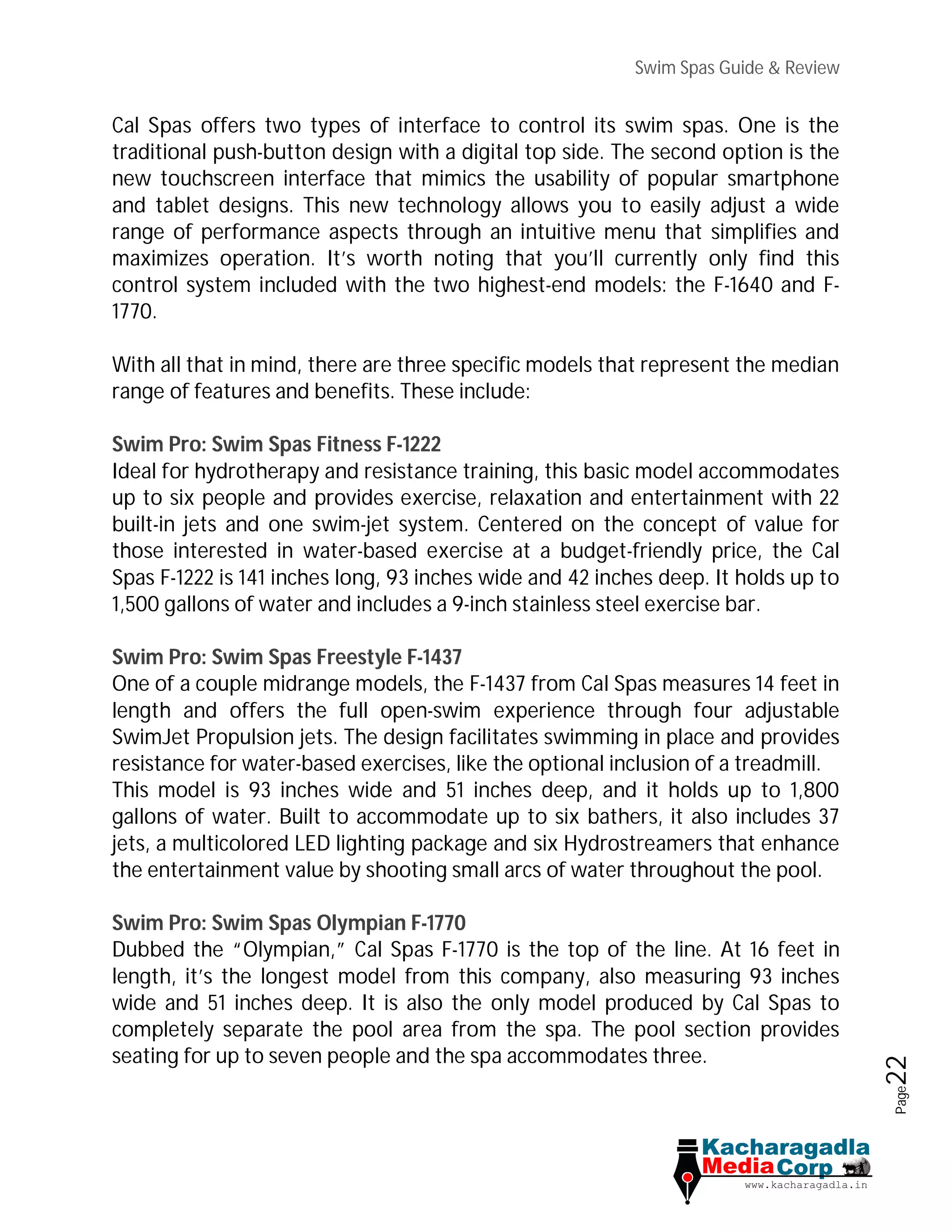

CAL SPAS:
Holding 28 trademarks and 48 design patents, Cal Spas has been in
business for more than 30 years. Its jet-powered fitness tubs are
engineered for resistance training and can be customized to target
specific muscle groups.

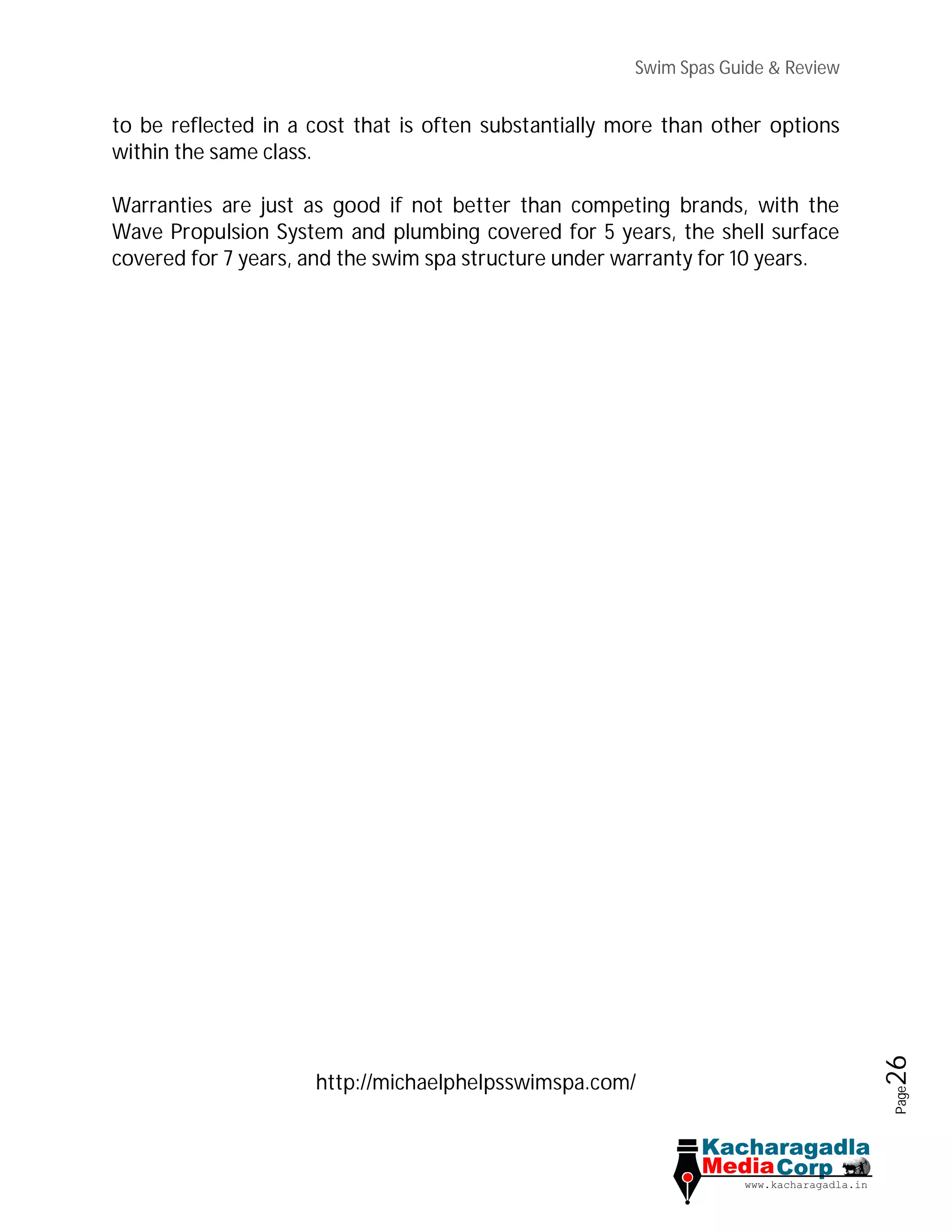

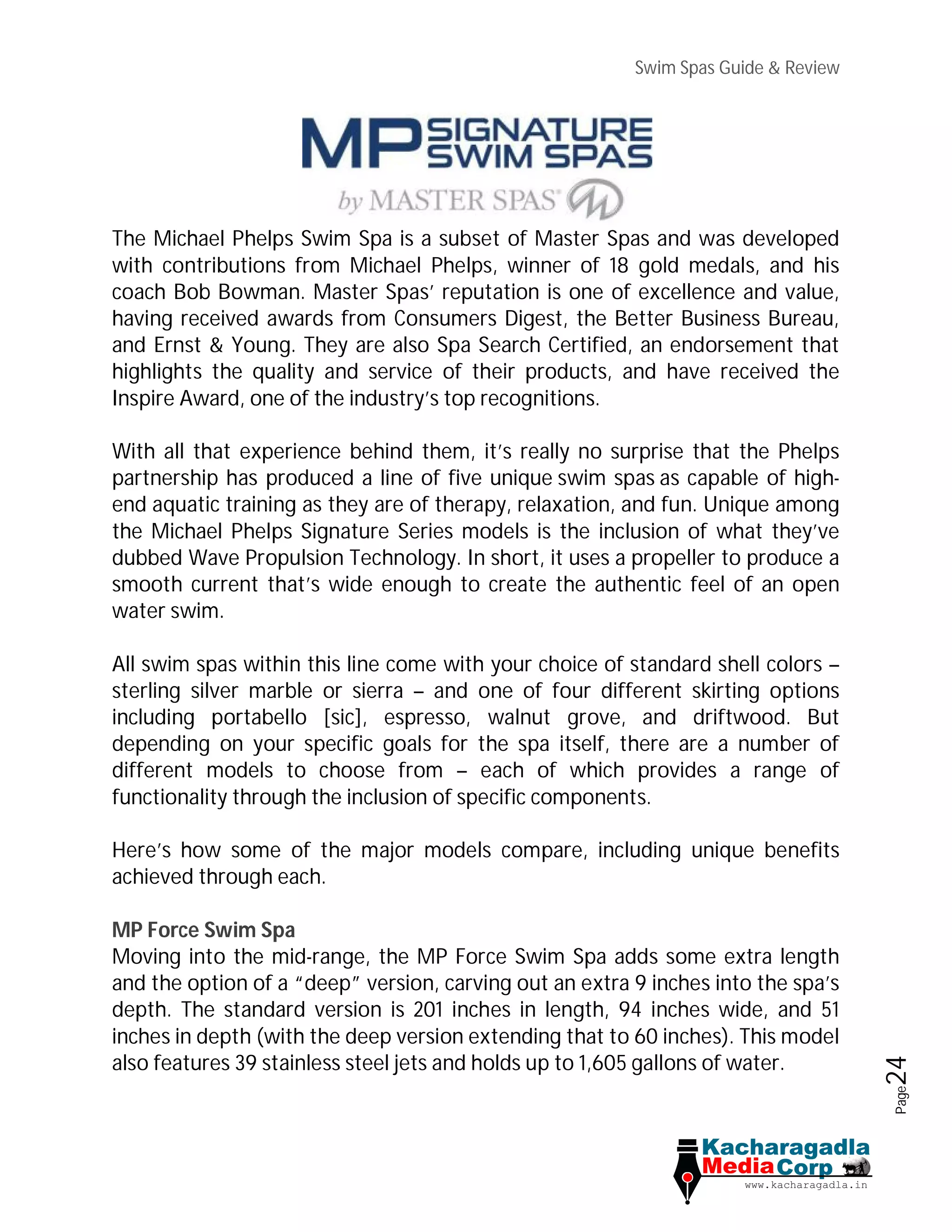

MICHAEL PHELPS SIGNATURE SWIM SPAS:
A subset of Master Spas, this brand was produced with input from the
gold medalist himself and his coach Bob Bowman. These spas feature the
propeller water-flow design that creates a wide, deep current.

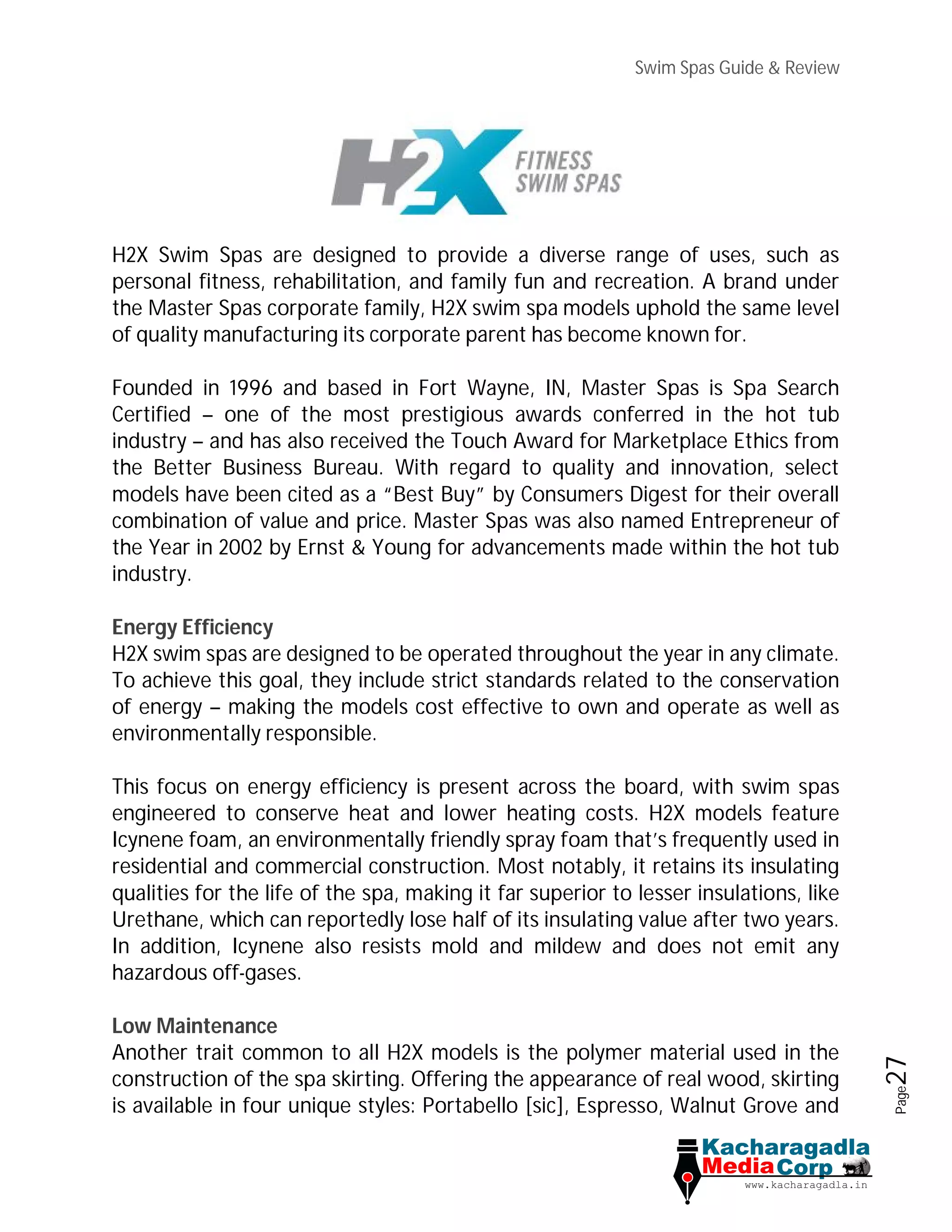

H2X SWIM SPAS:
Another subset of Master Spas, H2X models offer a jet-driven water
current. In addition, its tubs are insulated with Icynene insulation, which,

Page12
according to the company, allows its spas to be used throughout the year
in any climate.
DYNASTY SPAS:
During the manufacturing process, Dynasty Spas' jet-powered tubs
undergo a 140-point quality control inspection. Plus, these spas feature
maintenance-free skirting and a sculptured extended spa lip, which
according to the company, helps minimize maintenance and keeps the
surrounding decking and areas looking clean and new.

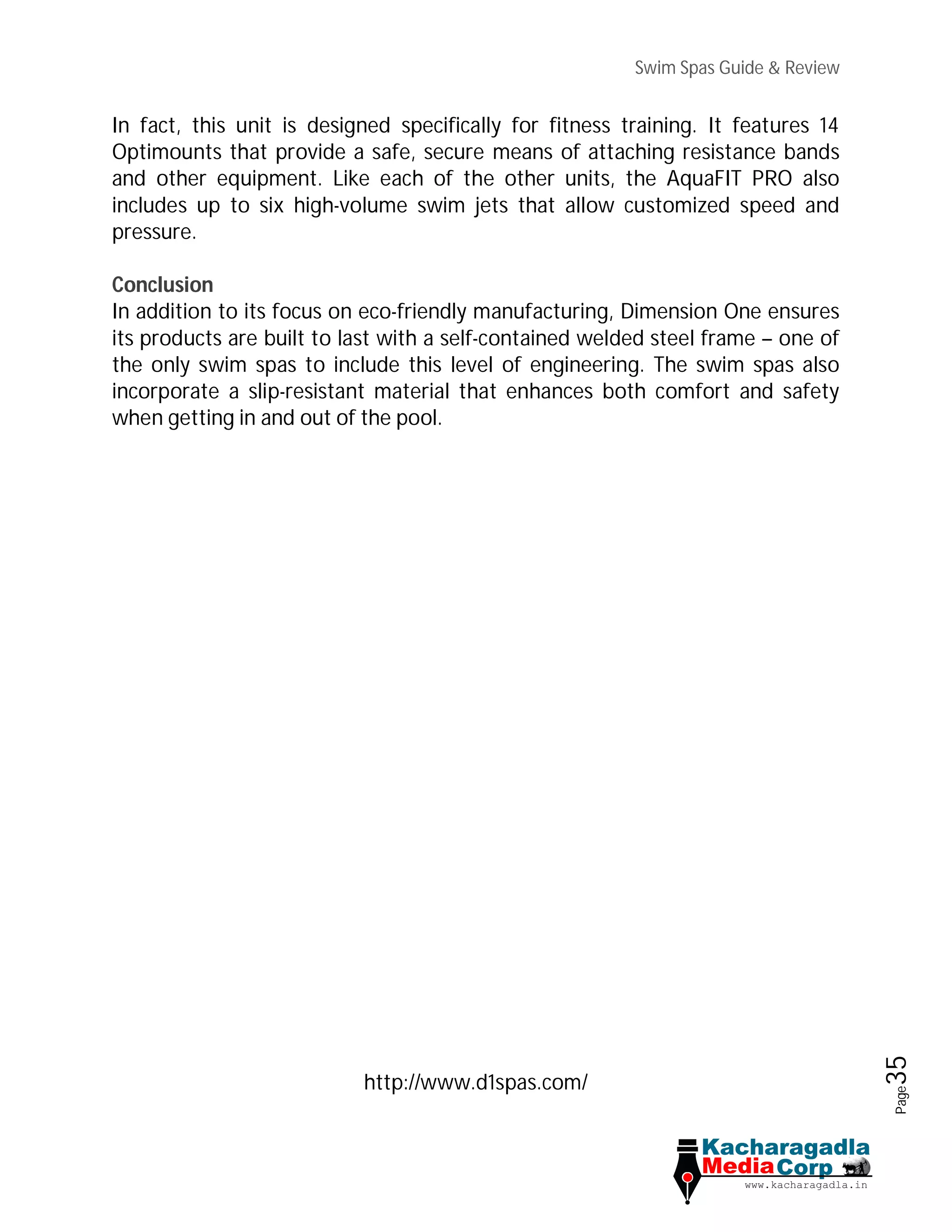

DIMENSION ONE SPAS:
Featuring models that provide a large swim lane, Dimension One Spas
provide extra room for relaxed flexibility. Resistance bands and bars are
included with certain models, allowing its jet-driven tubs to be used for a
variety of strength-training applications.

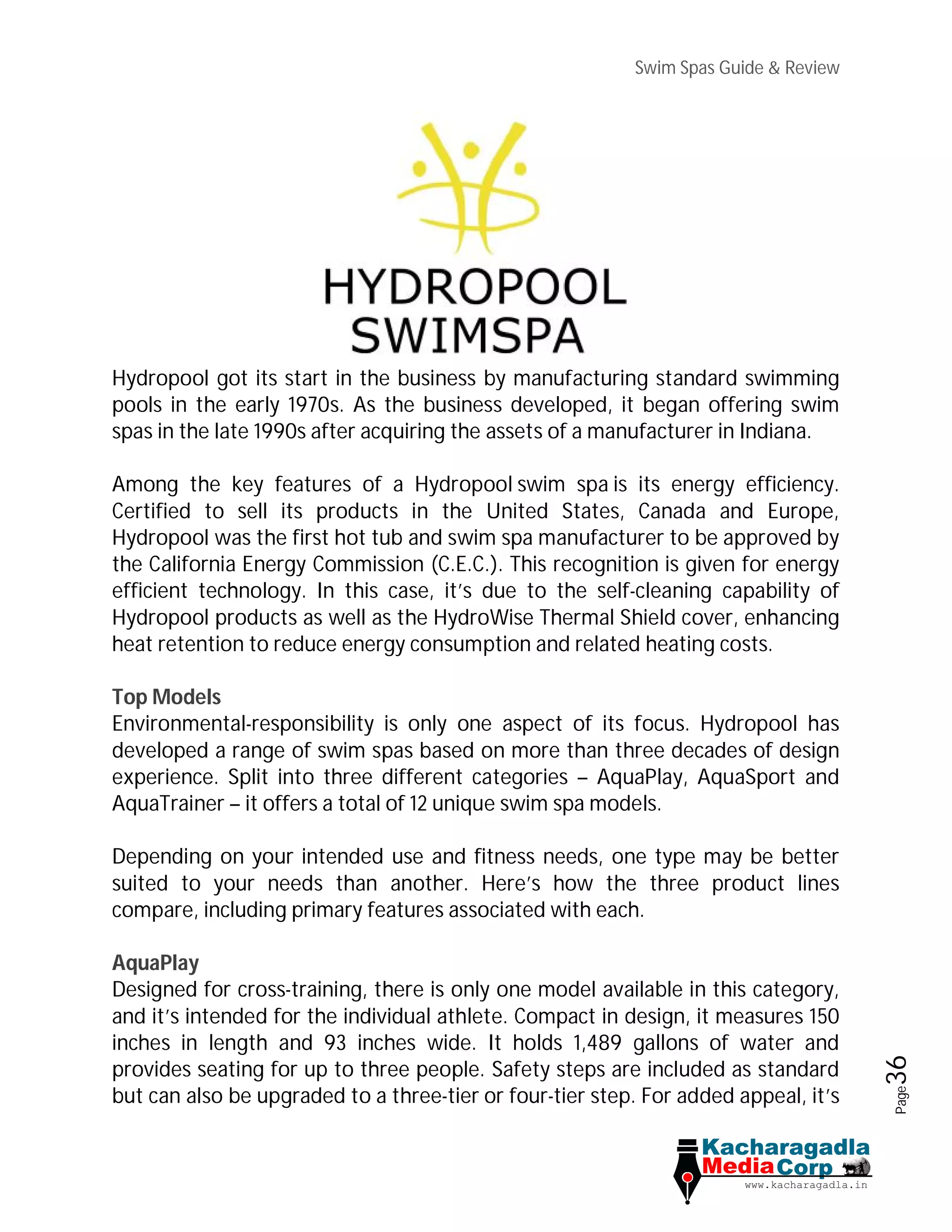

HYDROPOOL:
With three unique varieties of jet-driven swim spas available, Hydropool
dates back to 1970. It also provides a range of shells and cabinets to
conceal or dress up the tub in any environment. The company's website
has an extensive range of actual installations pictured – great for
brainstorming design ideas of your own.

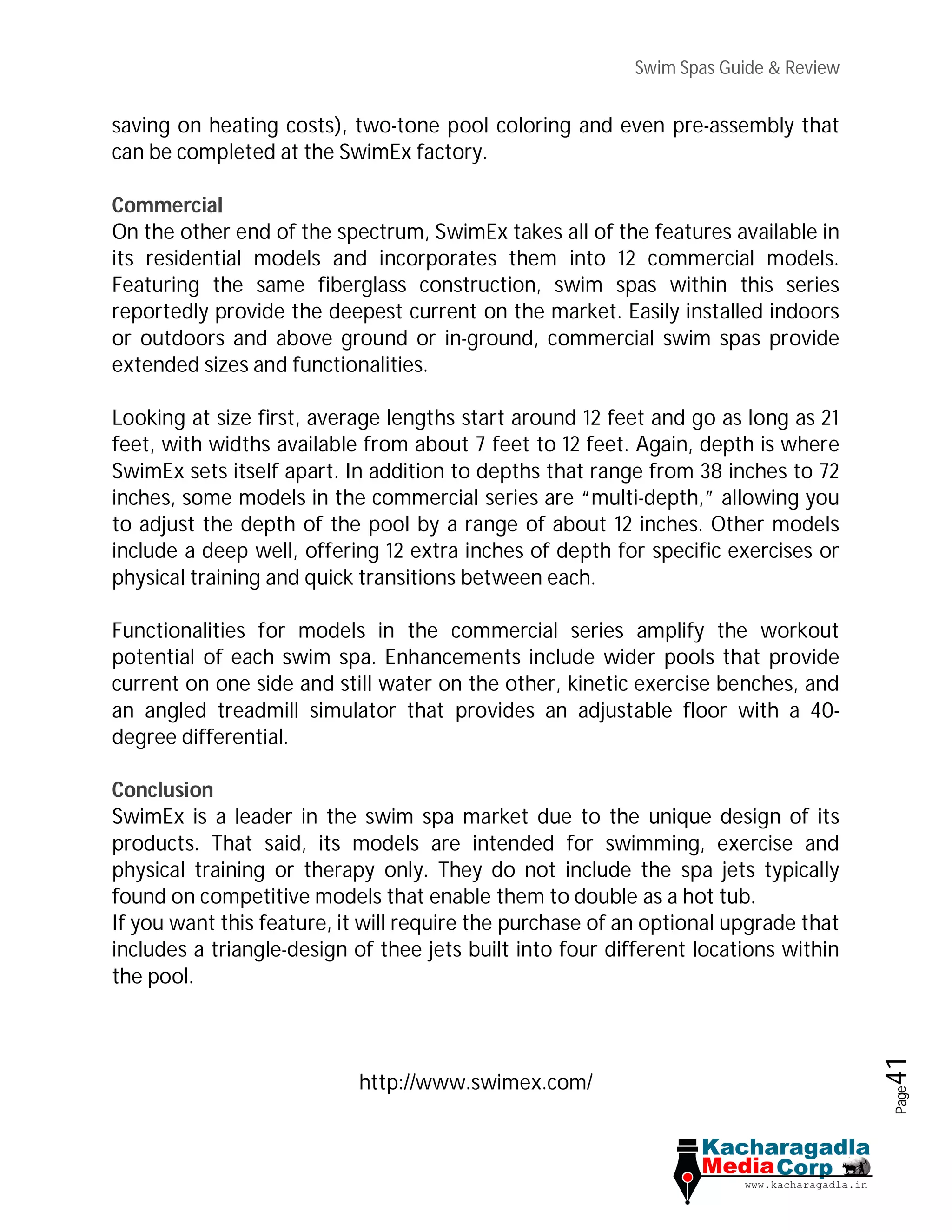

SWIMEx:
Of the vendors profiled on our buying guide, SwimEx is the only one to
offer a spa using paddlewheel water propulsion. It offers just one home
model, but it varies by depth to accommodate different uses and can be
installed practically anywhere.
ARCTIC SPAS:
This swim spa company's jet-powered models are engineered for
installation in regions with extreme temperatures – particularly snow and
ice, hence the name. It features a unique insulation setup that retains
heat and makes them highly cost effective. According to the company,
they cost less than $2 per day to operate.

Page13
What You Can Expect to Spend to Buy and Install a Swim Spa
As mentioned in the introduction, a swim spa can cost less than half that of a
standard swimming pool. But the length, type and installation you select have a
definite impact on the price tag.
Keep the following items in mind when comparing models and dealers:
Swim Spa
Prices for the spa itself tend to range between $8,900 and $23,000, with a
median cost of about $15,000. Broken down even further, you can expect to
pay $8,900 to $12,000 for models in the 10- to 16-foot range, $12,000 to $19,000
for those in the 17- to 18-foot range, and $17,000 to $40,000 for dual-
temperature models up to 21 feet. These prices are simply estimates. Most
swim spa manufacturers provide individualized quotes based on your specific
needs.
Installation
When installing your swim spa, most units typically require a concrete pad and
a standard power supply. Assuming complete installation is required, expect to
pay $1,500 to $2,000 for an above-ground setup and $2,000 to $4,500 for in-
ground installation. This covers costs to prepare the pad and the services of an
electrician. Swim spas also require either forklift placement, costing around
$200, or installation by crane, which can cost up to $1,200.
Operating Costs
Some manufacturers, Arctic Spas in particular, boast what may seem like
extremely low operating costs – just a couple dollars a day. Due to the size of
the pool, this is pretty standard. Depending on your locale and the average
year-round temperature, most swim spas cost $2 to $3 per day or $80 to $100
per month to operate. This is in contrast to a full-sized swimming pool that can
run $8 per day and $250 per month.
An additional allowance of $10 per month should be factored in for swim spa
supplies and maintenance.

Page14

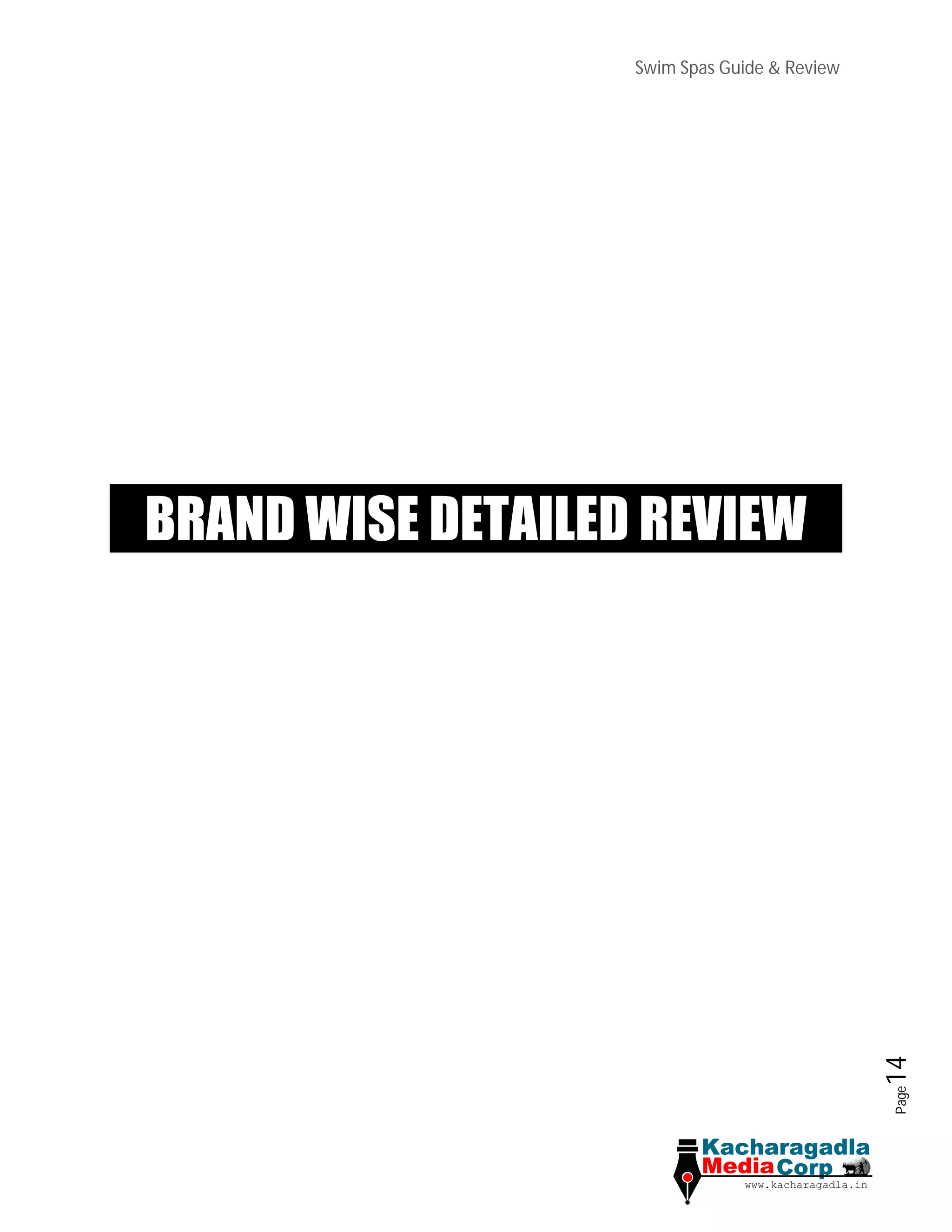

BRAND WISE DETAILED REVIEW

Page15
In business since 1983, ThermoSpas entered the consumer market in 1995 and
has since received a number of awards for its line of swim spas. In particular, it
has been recognized by the Association of Pool & Spa Professionals, the
National Spa & Pool Institute and the Better Business Bureau.
Most notably, this company has been awarded the Ease-of-Use Commendation
by the National Arthritis Foundation. This recognition results from the
simplicity its products provide to those with arthritis and other physical
restrictions. ThermoSpas is the only spa manufacturer to have been awarded
this commendation, according to information available through the
manufacturer.
Of the qualifying features that have factored into its awards, one of the most
outstanding is the standard inclusion of an adjustable seat on certain models.
This enables comfortable repositioning and customization for any user, easily
adjusting the seat for the most effective workout or spa session by targeting
specific muscle groups.
Swim Spa Models
ThermoSpas splits its product line into three different types of swim spas,
referred to as the Fitness Series. Incorporating design recommendations from
a combination of physical therapists, doctors and focus group feedback, its
spas tend to focus more on low-impact exercise and full-body fitness training.
In fact, two of the three models this company offers are limited only to
resistance-based exercise.
Here’s a summary of each model, some of their primary features and benefits.
Spa Trainer
The largest of the three models and the only one that allows swimming in
place, the Spa Trainer measures 174 inches in length by 88 inches wide and
holds up to 1,200 gallons of water. Depending on your preference, it may
include 21 to 85 jets that provide a smooth, open-water feel during swimming

Page16

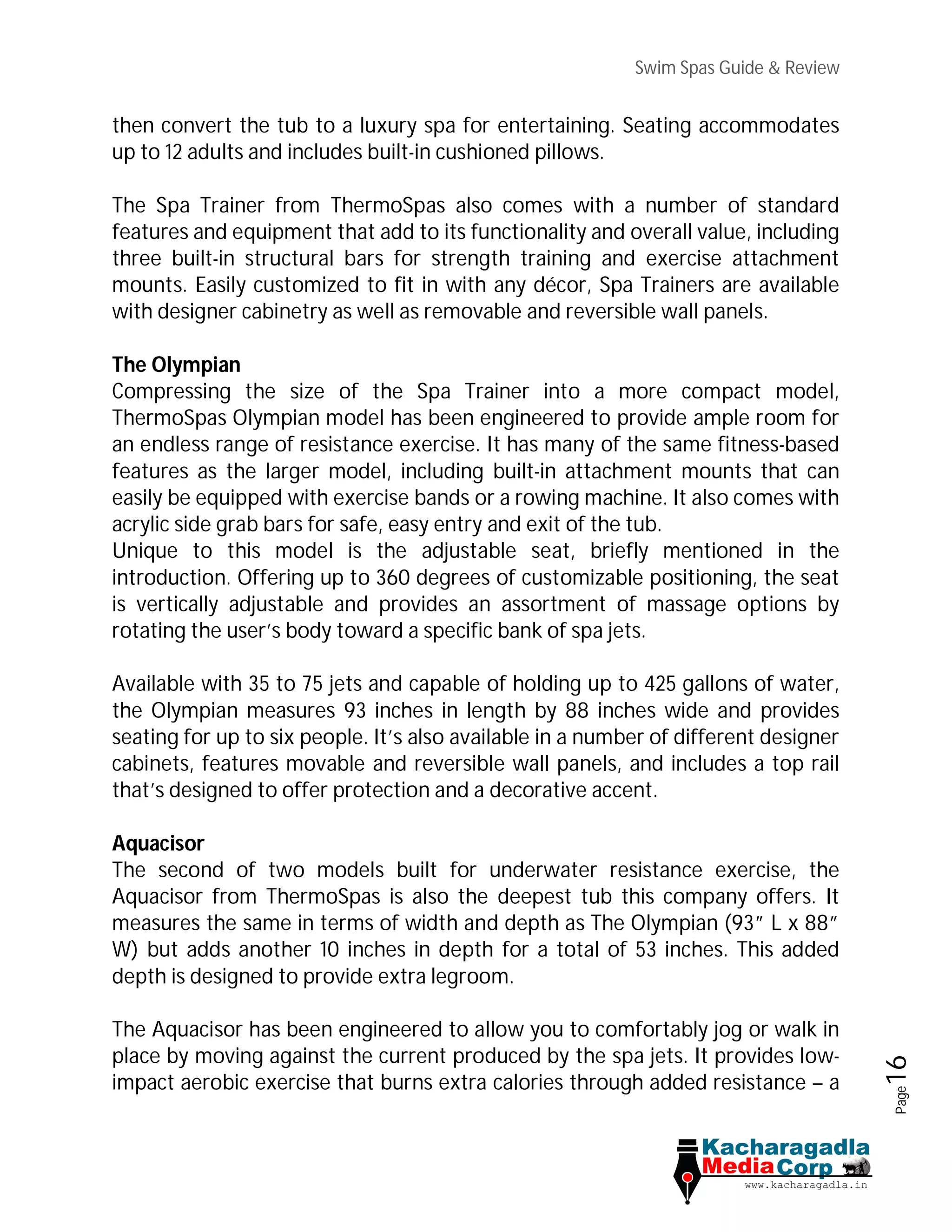

then convert the tub to a luxury spa for entertaining. Seating accommodates
up to 12 adults and includes built-in cushioned pillows.
The Spa Trainer from ThermoSpas also comes with a number of standard
features and equipment that add to its functionality and overall value, including
three built-in structural bars for strength training and exercise attachment
mounts. Easily customized to fit in with any décor, Spa Trainers are available
with designer cabinetry as well as removable and reversible wall panels.
The Olympian
Compressing the size of the Spa Trainer into a more compact model,
ThermoSpas Olympian model has been engineered to provide ample room for
an endless range of resistance exercise. It has many of the same fitness-based
features as the larger model, including built-in attachment mounts that can
easily be equipped with exercise bands or a rowing machine. It also comes with
acrylic side grab bars for safe, easy entry and exit of the tub.
Unique to this model is the adjustable seat, briefly mentioned in the
introduction. Offering up to 360 degrees of customizable positioning, the seat
is vertically adjustable and provides an assortment of massage options by
rotating the user’s body toward a specific bank of spa jets.
Available with 35 to 75 jets and capable of holding up to 425 gallons of water,
the Olympian measures 93 inches in length by 88 inches wide and provides
seating for up to six people. It’s also available in a number of different designer
cabinets, features movable and reversible wall panels, and includes a top rail
that’s designed to offer protection and a decorative accent.
Aquacisor
The second of two models built for underwater resistance exercise, the
Aquacisor from ThermoSpas is also the deepest tub this company offers. It
measures the same in terms of width and depth as The Olympian (93” L x 88”
W) but adds another 10 inches in depth for a total of 53 inches. This added
depth is designed to provide extra legroom.
The Aquacisor has been engineered to allow you to comfortably jog or walk in
place by moving against the current produced by the spa jets. It provides low-
impact aerobic exercise that burns extra calories through added resistance – a

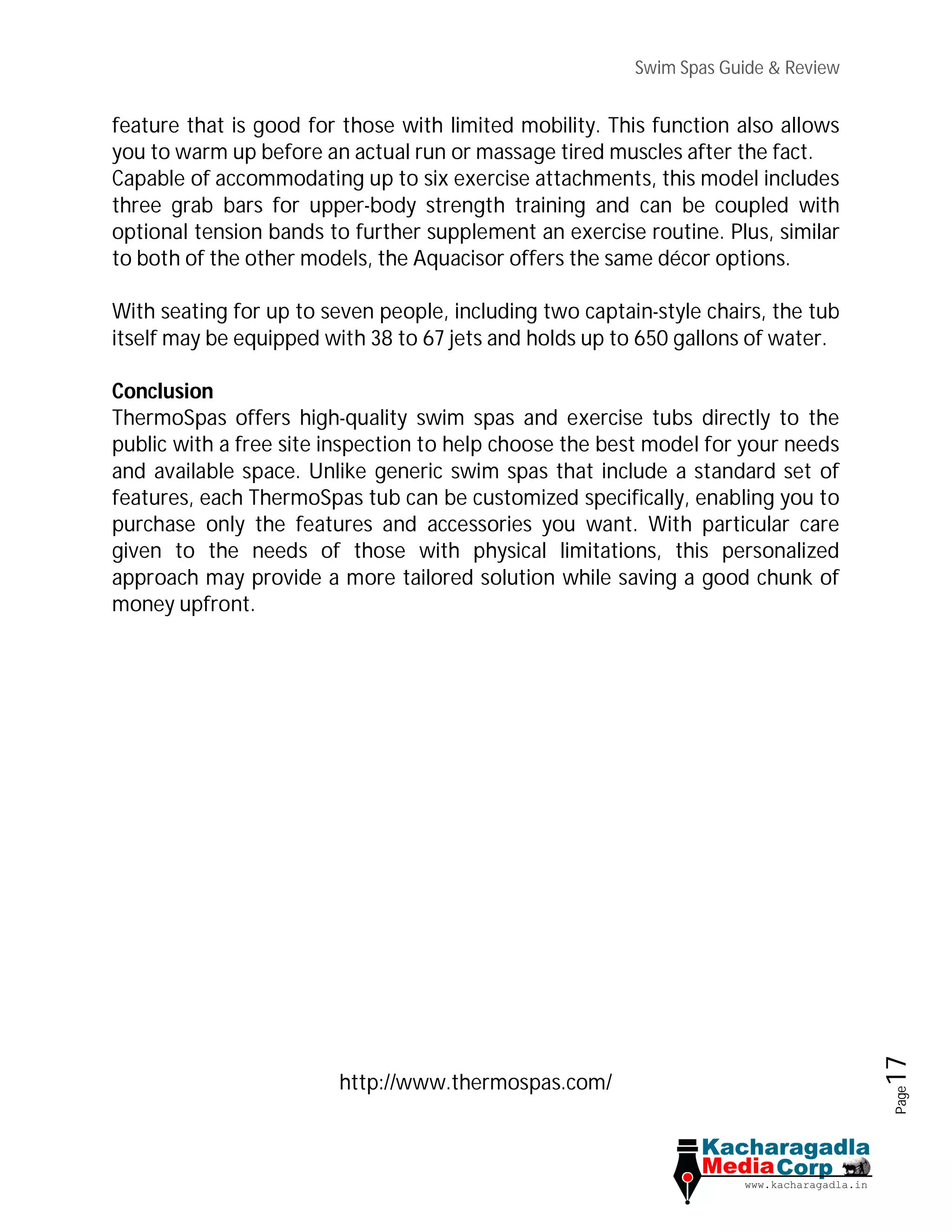

Page17
feature that is good for those with limited mobility. This function also allows
you to warm up before an actual run or massage tired muscles after the fact.
Capable of accommodating up to six exercise attachments, this model includes
three grab bars for upper-body strength training and can be coupled with
optional tension bands to further supplement an exercise routine. Plus, similar
to both of the other models, the Aquacisor offers the same décor options.
With seating for up to seven people, including two captain-style chairs, the tub
itself may be equipped with 38 to 67 jets and holds up to 650 gallons of water.
Conclusion
ThermoSpas offers high-quality swim spas and exercise tubs directly to the
public with a free site inspection to help choose the best model for your needs
and available space. Unlike generic swim spas that include a standard set of
features, each ThermoSpas tub can be customized specifically, enabling you to
purchase only the features and accessories you want. With particular care
given to the needs of those with physical limitations, this personalized
approach may provide a more tailored solution while saving a good chunk of
money upfront.
http://www.thermospas.com/

Page18
Endless Pools has more than 25 years in the industry. During that time, it has
sold more than 20,000 pools to a variety of serious athletes and casual users.
One of its key benefits is the level of service it provides in relation to planning,
design and installation. With more than 100 qualified professionals under one
roof, Endless Pools is fully capable of providing the expertise of architects,
engineers and a range of other experts to simplify the planning and installation
of a swim spa.
With four “spa” models available, this company has engineered its products for
various activities, such as athletic training, aquatic therapy, leisure and
entertainment. Depending on your intended use, these pools are also highly
customizable, enabling you to avoid paying extra for features you don’t need.
Swim Spa Models
Offering one of the most realistic swimming experiences available, three out of
four Endless Pools swim spas deliver a smooth current that is ideal for those
seeking an open-water feel. In fact, it’s reportedly similar to the experience of
swimming in a river – one that never bends. This design is achieved through a
16-inch propeller that’s easily adjusted to fit the needs of an individual
swimmer.
The fourth model this company offers is a little different. Not designed for
swimming, the Exercise Spa from Endless Pools includes a range of features
designed around therapy and relaxation.
Here’s a quick rundown on each of the four models available, including what
you can expect to get out of each.
Entry Model 10' Exercise Spa
Intended primarily for resistance training and physical rehabilitation, the 10’
Exercise Spa features a minimal design that allows it to fit into almost any

Page19
spare corner. Capable of temperatures up to 90 degrees, it’s an easy way to
boost blood flow to sore or injured muscles and provide relief to those who
suffer from chronic pain, such as arthritis or lower back pain. The Entry Model
also reduces an individual’s weight by 90%, providing a safer environment for
rehabilitation and exercises designed to increase flexibility, strength and agility.
Created largely for individual use, the spa itself measures 120 inches long by
91.5 inches wide and includes only one seat with six built-in hydrotherapy jets.
Total water capacity is 1,100 gallons.
Endless Pools Swim Spas
Stepping up from the therapy spa, Endless Pools also offers three models
designed for open-water swimming. Each of the three swim spas features
many of the same functionalities and customizations. For example, Endless
Pools Spas come in 15-foot, 17-foot and 19-foot lengths. Jets range from 24 to
55, depending on the model selected, and are commonly used for
hydrotherapy. They are also paired with optional equipment, like the
underwater treadmill, which provides speeds anywhere between 0.6 and 4
miles per hour.
For open water swimming, these models use the Endless Pool swim current to
create the feel of open-water swimming. It’s worth noting that the endless
current is actually an optional upgrade from the standard jet-based system. The
16-inch propeller allows you to adjust the rate of current up to a 1:08 hundred-
yard pace and from 0 to 5,000 gallons per minute, making it easily suited to
casual exercise or competitive training.
All models are available in the same colors and can be paired with one of two
cabinet finishes: slate gray or mahogany permawood. Where you’ll find the
difference is in their length and the number of therapy seats.
QUICK COMPARISON:
 15’ Endless Pool Spa – Measures 15’ in length by 7’7” wide and 4’6” deep.
Holding up to 2,140 gallons of water, it includes two seats and 24
adjustable therapy jets.
 17' Endless Pool Spa – Measures 17’ in length by 7’7” wide and 4’6” deep.
Holding up to 2,420 gallons of water, it includes two built-in therapy
seats and 24 adjustable jets.

Page20
 19' Dual Temperature Spa – Measures 19’ in length by 7’7” wide and 4’6”
deep. Holds up to 2,425 gallons of water and includes up to six therapy
seats with 55 adjustable jets.
Conclusion
In addition to its swim spas, Endless Pools produces a wide range of pools that
offer endless swimming but without the spa jets, separating its two product
types into “Pool Series” and “Spa Series.” It’s also worth noting that this
company is one of the few manufacturers to produce a dual-propulsion
(double lane) pool, allowing two people to swim side by side simultaneously.
Regardless of the type selected, Endless Pools are known for their compact
design, allowing them to be seamlessly incorporated into a range of indoor and
outdoor settings. Plus, this company provides lifetime support on every model.
http://endlessfitness.com/

Page21
Cal Spas 35-year history actually began at a country fair in a once-rural area of
southern California. Starting out as a full-size pool manufacturer, the company
had a booth at the fair but was struggling for a way to display their pool
designs in the limited space available. To solve the problem, this company
created miniature acrylic versions of its large-scale designs. But these small
scale mockups became so popular that in less than a year, Cal Spas had
abandoned the pool business to manufacture spas full time.
Cal Spas' business has continued to develop over the years, now centered out
of a 40,000 square-foot campus in Pomona, CA. In addition to hot tubs, it also
produces a range of home resort products, including gazebos, barbecue
islands, fire pits and saunas.
Despite its expanding focus, Cal Spas continues to be dedicated to the quality
of its core business. In particular, it remains highly competitive with the
technology and design incorporated into its swim spas.
Here’s how some of its standout models compare, the key features included
with each.
Swim Pro Swim Spas
Cal Spas manufactures its swim spa models under a single banner: Swim Pro.
Within this subset, you’ll find five unique models that vary by length (11 to 16
feet), jets (19 to 39) and the number of people they accommodate (six to
seven).
All Swim Pro models feature the same 6.0 BHP high-performance pump,
stainless steel jet design and bacteria-fighting antimicrobial filter. However,
depending on the model selected, you may receive a different method of
control.

Page22
Cal Spas offers two types of interface to control its swim spas. One is the
traditional push-button design with a digital top side. The second option is the
new touchscreen interface that mimics the usability of popular smartphone
and tablet designs. This new technology allows you to easily adjust a wide
range of performance aspects through an intuitive menu that simplifies and
maximizes operation. It’s worth noting that you’ll currently only find this
control system included with the two highest-end models: the F-1640 and F-
1770.
With all that in mind, there are three specific models that represent the median
range of features and benefits. These include:
Swim Pro: Swim Spas Fitness F-1222
Ideal for hydrotherapy and resistance training, this basic model accommodates
up to six people and provides exercise, relaxation and entertainment with 22
built-in jets and one swim-jet system. Centered on the concept of value for
those interested in water-based exercise at a budget-friendly price, the Cal
Spas F-1222 is 141 inches long, 93 inches wide and 42 inches deep. It holds up to
1,500 gallons of water and includes a 9-inch stainless steel exercise bar.
Swim Pro: Swim Spas Freestyle F-1437
One of a couple midrange models, the F-1437 from Cal Spas measures 14 feet in
length and offers the full open-swim experience through four adjustable
SwimJet Propulsion jets. The design facilitates swimming in place and provides
resistance for water-based exercises, like the optional inclusion of a treadmill.
This model is 93 inches wide and 51 inches deep, and it holds up to 1,800
gallons of water. Built to accommodate up to six bathers, it also includes 37
jets, a multicolored LED lighting package and six Hydrostreamers that enhance
the entertainment value by shooting small arcs of water throughout the pool.
Swim Pro: Swim Spas Olympian F-1770
Dubbed the “Olympian,” Cal Spas F-1770 is the top of the line. At 16 feet in
length, it’s the longest model from this company, also measuring 93 inches
wide and 51 inches deep. It is also the only model produced by Cal Spas to
completely separate the pool area from the spa. The pool section provides
seating for up to seven people and the spa accommodates three.

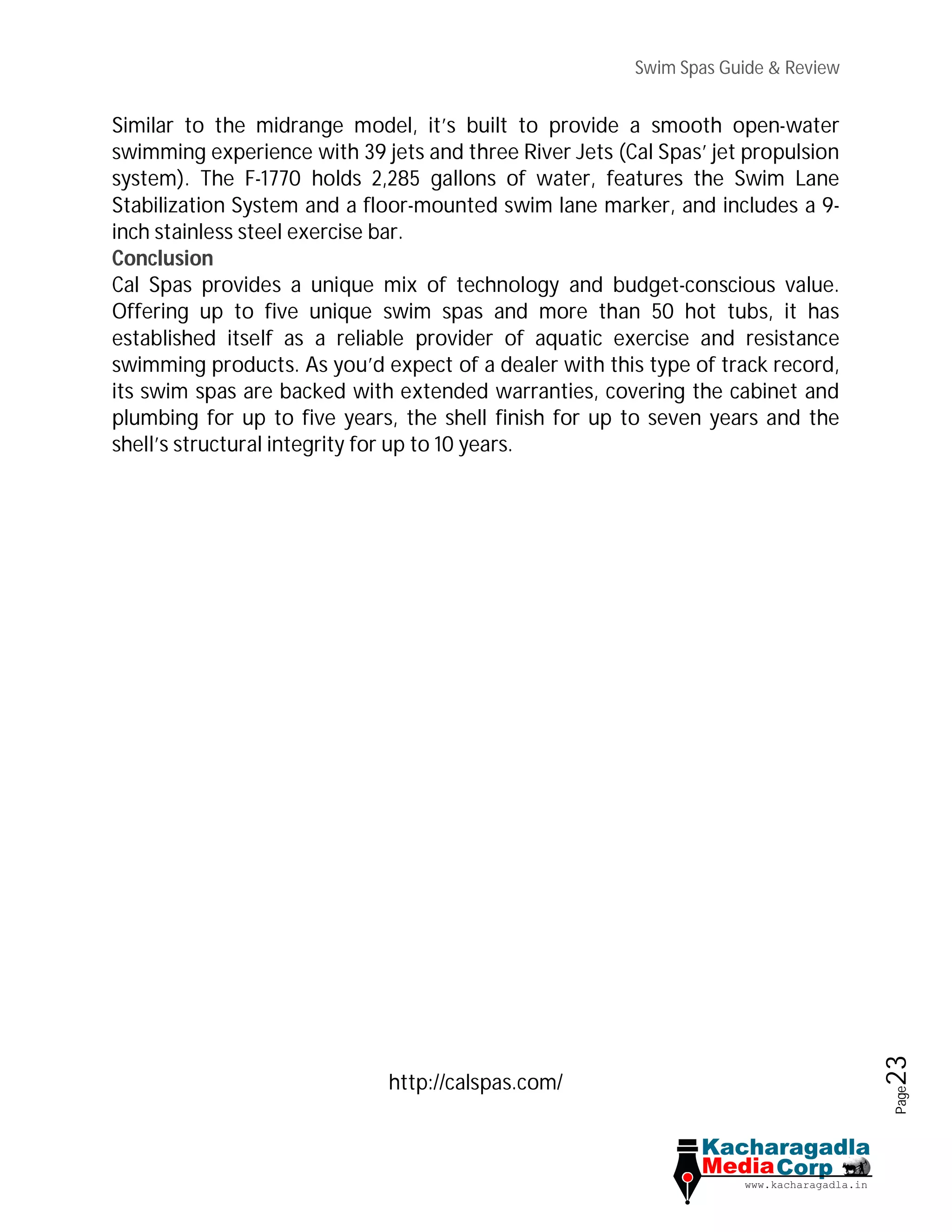

Page23
Similar to the midrange model, it’s built to provide a smooth open-water
swimming experience with 39 jets and three River Jets (Cal Spas’ jet propulsion
system). The F-1770 holds 2,285 gallons of water, features the Swim Lane
Stabilization System and a floor-mounted swim lane marker, and includes a 9-
inch stainless steel exercise bar.
Conclusion
Cal Spas provides a unique mix of technology and budget-conscious value.
Offering up to five unique swim spas and more than 50 hot tubs, it has
established itself as a reliable provider of aquatic exercise and resistance
swimming products. As you’d expect of a dealer with this type of track record,
its swim spas are backed with extended warranties, covering the cabinet and
plumbing for up to five years, the shell finish for up to seven years and the
shell’s structural integrity for up to 10 years.
http://calspas.com/

Page24
The Michael Phelps Swim Spa is a subset of Master Spas and was developed
with contributions from Michael Phelps, winner of 18 gold medals, and his
coach Bob Bowman. Master Spas’ reputation is one of excellence and value,
having received awards from Consumers Digest, the Better Business Bureau,
and Ernst & Young. They are also Spa Search Certified, an endorsement that
highlights the quality and service of their products, and have received the
Inspire Award, one of the industry’s top recognitions.
With all that experience behind them, it’s really no surprise that the Phelps
partnership has produced a line of five unique swim spas as capable of high-
end aquatic training as they are of therapy, relaxation, and fun. Unique among
the Michael Phelps Signature Series models is the inclusion of what they’ve
dubbed Wave Propulsion Technology. In short, it uses a propeller to produce a
smooth current that’s wide enough to create the authentic feel of an open
water swim.
All swim spas within this line come with your choice of standard shell colors –
sterling silver marble or sierra – and one of four different skirting options
including portabello [sic], espresso, walnut grove, and driftwood. But
depending on your specific goals for the spa itself, there are a number of
different models to choose from – each of which provides a range of
functionality through the inclusion of specific components.
Here’s how some of the major models compare, including unique benefits
achieved through each.
MP Force Swim Spa
Moving into the mid-range, the MP Force Swim Spa adds some extra length
and the option of a “deep” version, carving out an extra 9 inches into the spa’s
depth. The standard version is 201 inches in length, 94 inches wide, and 51
inches in depth (with the deep version extending that to 60 inches). This model
also features 39 stainless steel jets and holds up to 1,605 gallons of water.

Page25
Designed for serious users, it includes the same Wave Technology Propulsion
System as other models that can be upgraded to Wave XP for stronger
swimmers. Similar to other models in this line, it also includes enhanced noise
reduction that reportedly reduces pump and motor vibration by up to 150%.
This engineering feature creates a quieter and more relaxing experience.
Optional upgrades on this model and its deep counterpart include sound
system, Wi-Fi, and a water management system. This approach to water
management is another unique feature with these spas. It uses an advanced
oxidation process and a combination of natural water sanitizers to produce
water that feels silkier and looks and smells cleaner.
MP Momentum Swim Spa
Top of the line for this series is the MP Momentum and MP Momentum Deep.
As with mid-range models, the deep version adds another 9 inches onto the
spa’s depth. The Momentum models are the largest available, measuring 231
inches in length, 94 inches wide, and 51 inches or 60 inches deep depending on
your preference.
Holding 2,050 gallons of water, this model includes 45 stainless steel jets and
five water features that send fun arcs of water throughout the pool area. As
with other models, both Momentum spas can be upgraded with the Wave XP
or Wave XP Pro to boost the water flow for more experienced swimmers. They
also include the full range of standard features and offer the same potential
upgrades as all lower swim spas.
Unlike other models however, the Momentum is the only Phelps design to
completely divide the spa from the pool area. Providing two separate bodies of
water, this enables a variety of users to use the entire unit simultaneously by
customizing the water temperature in each section – swimming in a pool that’s
heated to the high 70s while others luxuriate in the spa set to over 100
degrees.
Conclusion
Few are in a better position to help design an effective swim spa for the serious
swimmer than Michael Phelps. However, this level of quality and design tends

Page26
to be reflected in a cost that is often substantially more than other options
within the same class.
Warranties are just as good if not better than competing brands, with the
Wave Propulsion System and plumbing covered for 5 years, the shell surface
covered for 7 years, and the swim spa structure under warranty for 10 years.
http://michaelphelpsswimspa.com/

Page27
H2X Swim Spas are designed to provide a diverse range of uses, such as
personal fitness, rehabilitation, and family fun and recreation. A brand under
the Master Spas corporate family, H2X swim spa models uphold the same level
of quality manufacturing its corporate parent has become known for.
Founded in 1996 and based in Fort Wayne, IN, Master Spas is Spa Search
Certified – one of the most prestigious awards conferred in the hot tub
industry – and has also received the Touch Award for Marketplace Ethics from
the Better Business Bureau. With regard to quality and innovation, select
models have been cited as a “Best Buy” by Consumers Digest for their overall
combination of value and price. Master Spas was also named Entrepreneur of
the Year in 2002 by Ernst & Young for advancements made within the hot tub
industry.
Energy Efficiency
H2X swim spas are designed to be operated throughout the year in any climate.
To achieve this goal, they include strict standards related to the conservation
of energy – making the models cost effective to own and operate as well as
environmentally responsible.
This focus on energy efficiency is present across the board, with swim spas
engineered to conserve heat and lower heating costs. H2X models feature
Icynene foam, an environmentally friendly spray foam that’s frequently used in
residential and commercial construction. Most notably, it retains its insulating
qualities for the life of the spa, making it far superior to lesser insulations, like
Urethane, which can reportedly lose half of its insulating value after two years.
In addition, Icynene also resists mold and mildew and does not emit any
hazardous off-gases.
Low Maintenance
Another trait common to all H2X models is the polymer material used in the
construction of the spa skirting. Offering the appearance of real wood, skirting
is available in four unique styles: Portabello [sic], Espresso, Walnut Grove and

Page28
Driftwood. Each offers an authentic-looking wood grain that is easily cleaned
with a rag and garden hose, making it practically maintenance free.
Top Models
Here’s how some of H2X's major models compare, including unique benefits
and customizations available for each.
Therapool D
Starting out small, the Therapool D is H2X’s jetted swim and fitness spa. It
includes 54 stainless steel jets and three Flow Stream Swim Jets. Relatively
compact in terms of overall size, it holds 1,060 gallons of water and measures 8
feet by 11 feet, which allows it to easily fit into most recreation areas, indoors
or outdoors. This model is designed primarily for resistance exercise, offering a
notable 60-inch depth. It’s ideally suited to rowing and strength training and
comes complete with an exercise kit and built-in stainless steel exercise bar.
Optional upgrades include the Deluxe Fusion BT Sound System that features a
docking station for your iPod or other digital music player, as well as a built-in
FM radio and USB port for connecting other media devices. In addition to
entertainment options, Wi-Fi can be added to remotely control spa functions
through a dedicated app. Finally, advanced water management options can
sanitize the spa while leaving the water feeling cleaner and silkier than
standard filtration.
Trainer 15
The midrange of H2X products is represented by the Trainer 15. Measuring 180
inches in length and 94 inches wide, standard models come in depths of 51
inches. A “deep version” adds another 9 inches onto that for a total of 60
inches in depth. It holds up to 1,620 gallons of water and includes 43 stainless
steel jets and five waterfalls.
Designed to provide things as various as total fitness and family entertainment,
the Trainer 15 is unique in that it includes Velocity Injector Plate technology.
This advancement reportedly improves performance related to swim jets by
45% when compared to standard models by introducing negative pressure
around the jet face, pulling water through the system more effectively.

Page29
As with the Therapool D, available upgrades include deluxe sound system, Wi-Fi
control and advanced water management. Bonus equipment can be added,
including a stainless steel exercise bike or treadmill.
Trainer 19
Top of the line by any standard, the Trainer 19 from H2X is the ultimate
combination of fitness and leisure in a swim spa. It is the only model in this line
that separates the spa from the swimming area, allowing you to maintain two
different water temperatures for each.
Measuring 231 inches long by 94 inches wide, it’s also available in two different
depths: 51 inches standard and a 60-inch deep version. The Trainer 19 holds
2,010 gallons of water and features 48 stainless steel hydrotherapy jets and five
waterfalls.
Similar to all other units, this model can be upgraded with premium options
that include deluxe sound system, Wi-Fi control and Mast3rPur Water
Management. Bonus equipment is also available, including a stainless steel
exercise bike, treadmill and deluxe covers.
Conclusion
With performance-enhancing technologies, built-in energy efficiency, low
maintenance and deep versions available for two of its four swim spa models,
Master Spas continues to provide a unique combination of affordability and
high-end physical fitness with the H2X product line.
http://www.h2xswimspa.com

Page30
Founded in 1995, Dynasty Spas has risen to national prominence within
the swim spa industry largely due to customized designs and innovative
features unavailable in most mass-produced models. Operating out of a
300,000 square foot facility in east Tennessee, Dynasty Spas manufactures its
products within close proximity of 70 percent of the U.S. population. This
locale allows it to include a wider range of features while remaining
competitive in cost.
Producing both hot tubs and swim spas, Dynasty offers three specific swim spa
models. All are intended for either swimming or resistance exercise. Varying by
size and design, each includes a number of standard features that add to the
value and cost effectiveness of the unit. One example is the sculptured
extended spa lip. This design enhancement prevents water damage and keeps
the unit looking new by channeling water away from the cabinet.
In addition, Dynasty swim spas include reverse pull technology. By re-
engineering the hydro-massage jets, the power of the jets themselves is
increased while minimizing the amount of splash they create. This conserves
water and further prevents water damage to cabinet and any surrounding
decking.
Top Models
Here’s a comparison of the three Dynasty swim spa designs, including unique
features for each.
Aquex Pro Series 13
The smallest of the three, the Aquex Pro Series 13 is ideal for those with limited
space as well as those who are mainly interested in using the unit as a strength
training tool. That said, it can just as easily provide a comfortable swim for a
single swimmer while three people enjoy the spa features.
The unit measures 160 inches long by 92 inches wide and 54 inches deep – an
inch or two deeper than comparative models within this range. Holding up to

Page31

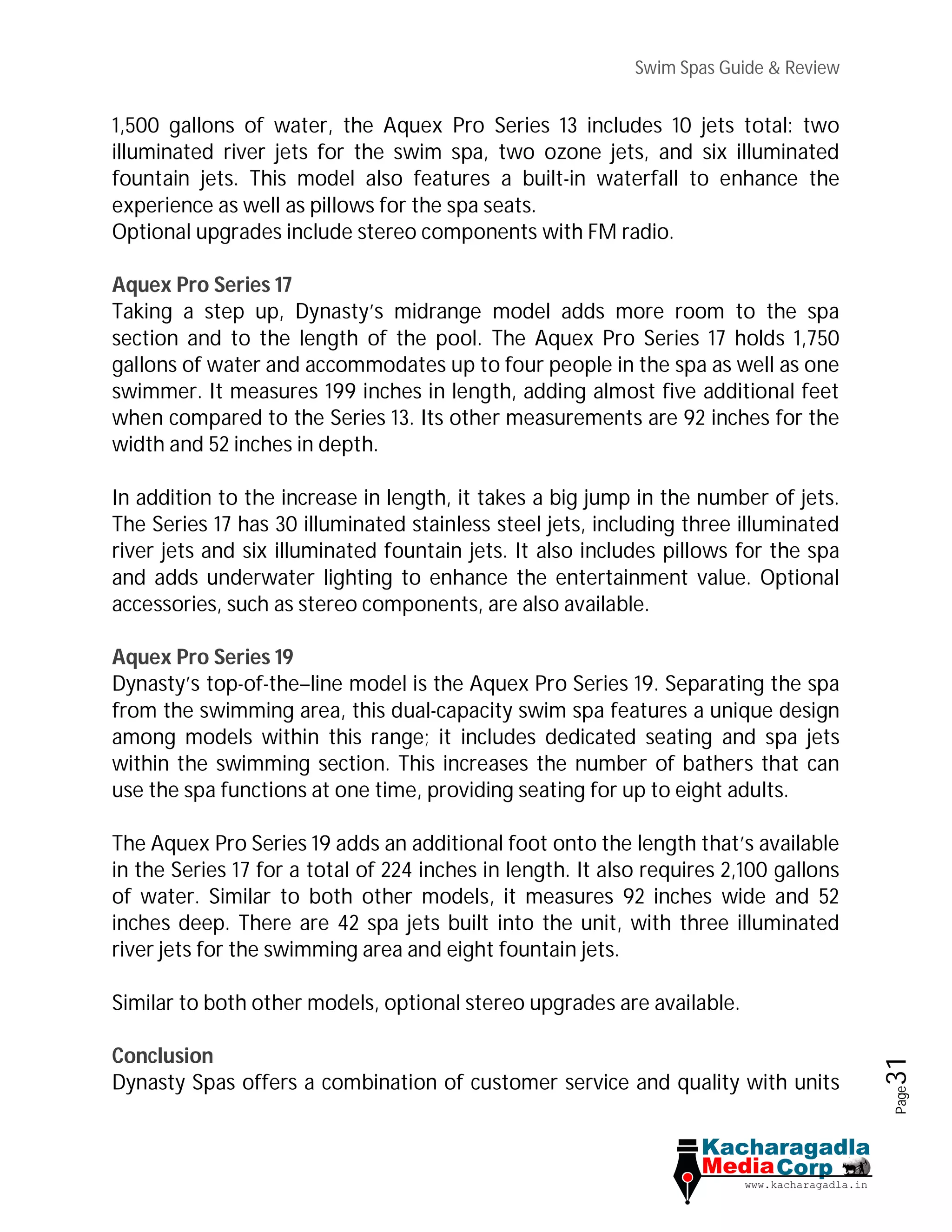

1,500 gallons of water, the Aquex Pro Series 13 includes 10 jets total: two
illuminated river jets for the swim spa, two ozone jets, and six illuminated
fountain jets. This model also features a built-in waterfall to enhance the
experience as well as pillows for the spa seats.
Optional upgrades include stereo components with FM radio.
Aquex Pro Series 17
Taking a step up, Dynasty’s midrange model adds more room to the spa
section and to the length of the pool. The Aquex Pro Series 17 holds 1,750
gallons of water and accommodates up to four people in the spa as well as one
swimmer. It measures 199 inches in length, adding almost five additional feet
when compared to the Series 13. Its other measurements are 92 inches for the
width and 52 inches in depth.
In addition to the increase in length, it takes a big jump in the number of jets.
The Series 17 has 30 illuminated stainless steel jets, including three illuminated
river jets and six illuminated fountain jets. It also includes pillows for the spa
and adds underwater lighting to enhance the entertainment value. Optional
accessories, such as stereo components, are also available.
Aquex Pro Series 19
Dynasty’s top-of-the–line model is the Aquex Pro Series 19. Separating the spa
from the swimming area, this dual-capacity swim spa features a unique design
among models within this range; it includes dedicated seating and spa jets
within the swimming section. This increases the number of bathers that can
use the spa functions at one time, providing seating for up to eight adults.
The Aquex Pro Series 19 adds an additional foot onto the length that’s available
in the Series 17 for a total of 224 inches in length. It also requires 2,100 gallons
of water. Similar to both other models, it measures 92 inches wide and 52
inches deep. There are 42 spa jets built into the unit, with three illuminated
river jets for the swimming area and eight fountain jets.
Similar to both other models, optional stereo upgrades are available.
Conclusion
Dynasty Spas offers a combination of customer service and quality with units

Page32
that remain highly cost competitive among similar models. This company also
provides an in-house warranty program that eliminates the hassles included
with a third-party provider.
Also notable is the quality control. Dynasty swim spas are thoroughly tested
before installation and subjected to a rigorous 140-point quality control
inspection – reportedly one of the most comprehensive in the industry.
http://www.dynastyspas.com/

Page33
Since 1977, Dimension One Spas has been manufacturing a wide variety of
leading hot tubs and swim spas. It now holds more than 30 patents throughout
both product lines. Research and development is focused on a combination of
lasting quality and environmental sustainability, enabling this company to
provide swim spas that are equally durable and cost effective to operate.
Based out of Carlsbad, CA, Dimension One Spas is the first hot tub
manufacturer to be awarded the Silver Medal Shingo Prize (2007) – the most
distinguished recognition for quality manufacturing in the United States is
known among industry professionals as the ‘Nobel of Manufacturing’.
Dimension One has also received recognition for innovation and customer
service from Ernst & Young, the Society of Plastic Engineers and the American
Business Awards.
Environmental Responsibility
Dimension One swim spas are designed to be energy efficient and minimize
consumption and impact on the environment through the inclusion of recycled
components. Producing the first fully insulated spa, Dimension One uses
urethane foam in the manufacture of its products. Shown to effectively retain
heat, this type of insulation requires up to 85 percent less energy to operate
than a standard in-ground swimming pool.
This company's corporate commitment to the preservation of natural
resources is also seen in the raw materials it uses to create the skirting for its
swim spas. Using high-density polyethylene, swim spa skirts are essentially
constructed from recycled milk cartons. In addition to conserving resources,
the material is also considered to be a healthier alternative by the Health
Building Network as it does not emit unsafe fumes.
Top Models
Dimension One produces four unique swim spas in three different lengths.
Here’s a quick look at the three main configurations, including features for
each.

Page34
AquaFIT SPORT
Offering both a smooth swimming experience and cross-training exercise
capabilities, the AquaFIT SPORT is the shortest model available from Dimension
One. Measuring a compact 156 inches in length, it’s also 92 inches wide and 52
inches deep. It holds 1,350 gallons of water, includes four high-volume swim
jets (upgrading to six if desired) and comes with a swim lane on the floor of the
tub to aid with performance and training.
One of the unique aspects of the Dimension One models is its inclusion of an
advanced water-management system. Capable of processing 10,000 gallons
each day, it blends ozone into the water three times. This process results in a
cleaner pool as the ozone is able to kill more bacteria with each successive
exposure to the water.
AquaFIT PLAY
Stepping up into the midrange, the AquaFIT PLAY adds two hydrotherapy seats
into one end of the pool and an additional three feet onto the length. This
model measures 192 inches in length, 90.25 inches wide and 52 inches deep. It
holds 1,700 gallons of water and comes with up to six high-volume swim jets
that enable customized speed and pressure.
Incorporating the same water filtration system as the AquaFIT SPORT, the
swim spa shell is reportedly one of the most durable available, resisting cracks
and blisters that result from the sun in warmer climates. Plus, the shell on the
AquaFIT PLAY (and all other three models) is covered by a lifetime warranty.
This unit also offers optional extras that include a stereo system and additional
lighting.
AquaFIT PRO
This model is tied for top of the line, with only one other swim spa (the
AquaFIT PLUS) providing the same length. Holding 2,400 gallons of water, it
measures 228 inches in length, 90.25 inches wide and 62 inches deep – and it’s
the depth that separates the two models. The AquaFIT PRO is a full 10 inches
deeper than the AquaFIT PLUS, providing a wider range of capabilities for
resistance exercise.

Page35
In fact, this unit is designed specifically for fitness training. It features 14
Optimounts that provide a safe, secure means of attaching resistance bands
and other equipment. Like each of the other units, the AquaFIT PRO also
includes up to six high-volume swim jets that allow customized speed and
pressure.
Conclusion
In addition to its focus on eco-friendly manufacturing, Dimension One ensures
its products are built to last with a self-contained welded steel frame – one of
the only swim spas to include this level of engineering. The swim spas also
incorporate a slip-resistant material that enhances both comfort and safety
when getting in and out of the pool.
http://www.d1spas.com/

Page36
Hydropool got its start in the business by manufacturing standard swimming
pools in the early 1970s. As the business developed, it began offering swim
spas in the late 1990s after acquiring the assets of a manufacturer in Indiana.
Among the key features of a Hydropool swim spa is its energy efficiency.
Certified to sell its products in the United States, Canada and Europe,
Hydropool was the first hot tub and swim spa manufacturer to be approved by
the California Energy Commission (C.E.C.). This recognition is given for energy
efficient technology. In this case, it’s due to the self-cleaning capability of
Hydropool products as well as the HydroWise Thermal Shield cover, enhancing
heat retention to reduce energy consumption and related heating costs.
Top Models
Environmental-responsibility is only one aspect of its focus. Hydropool has
developed a range of swim spas based on more than three decades of design
experience. Split into three different categories – AquaPlay, AquaSport and
AquaTrainer – it offers a total of 12 unique swim spa models.
Depending on your intended use and fitness needs, one type may be better
suited to your needs than another. Here’s how the three product lines
compare, including primary features associated with each.
AquaPlay
Designed for cross-training, there is only one model available in this category,
and it’s intended for the individual athlete. Compact in design, it measures 150
inches in length and 93 inches wide. It holds 1,489 gallons of water and
provides seating for up to three people. Safety steps are included as standard
but can also be upgraded to a three-tier or four-tier step. For added appeal, it’s

Page37
worth noting that the three-tier step is constructed from attractive cedar
planks.
As this model is created for resistance exercise, it is fully compatible with an
extensive range of equipment. This includes the Aqua Rowing Machine, the
Aqua Fitness Kit (resistance bands), and a 24- or 48-inch stainless steel exercise
bar. A smartphone app can also be used as a wireless hot tub control, enabling
you to customize filtration, temperature and other water-care settings while
away from home – guaranteeing the spa will be ready when you need it.
AquaSport
With seven total models available in this line, the AquaSport series is
comparable to most midrange swim spas. It’s designed to provide a range of
exercise, swimming and family entertainment with seating that ranges from
three to seven people, depending on the model selected.
Lengths start around 150 inches and go up to 226 inches, with the top model in
this category (the 19 DTfx) offering self-enclosed sections both for spa and
pool. Widths remain standard at 93 inches as do shell depths that are built to
just under 53 inches high. Water capacities range from 1,489 gallons on the
small end to 2,077 gallons for the 19-foot model.
All upgrades found in the AquaPlay are available for models in the AquaSport
line, as well as a number of other upgrades. These include LED lighting
packages, an automated cover removal system powered by hydraulic pistons
and a wider range of cabinet finishes, including Cedar, Driftwood and Espresso.
AquaTrainer
The AquaTrainer swim spa series from Hydropool offers six unique models that
are geared to a higher-end training experience. As with all other units, it adds
value to the purchase through its self-cleaning capability.
AquaTrainer models have been designed for the individual athlete who wants
to combine fitness with family activity or leisure entertainment. To achieve this
balance, AquaTrainer models offer seating for three to seven people, with all
units in this series providing hydrotherapy jets for at least two seats in every
tub. Swim spa lengths range from 174 inches to 220 inches, with widths that

Page38
measure 93 inches wide and heights that measure 53 inches. Water capacity is
from 1,726 gallons up to 2,077 gallons.
Another notable feature for models in the AquaTrainer line is the recessed
positioning of the therapy jets. By setting the jets within the frame of the shell,
they are better able to provide unencumbered flow as well as maximum
movement and rotation. With this design, jets can provide everything from a
gentle body massage to a rigorous, high-velocity stream that soothes sore
muscles.
Optional upgrades vary based on the length of the model selected, increasing
in their inclusiveness with longer models.
Conclusion
Hydropool sells its spas throughout the world, offering a unique level of value
through quality components and extreme energy efficiency. Warranties may
vary by country, but most include 10-year coverage for the structure, five-year
coverage for surface and five years for all parts and labor.
https://www.hydropoolhottubs.com/

Page39
When comparing swim spa models, many seem almost identical. But with little
more than a glance at some of the primary features of a SwimEx swim spa, it
becomes almost immediately apparent what has led this company to the level
of success it has achieved in the past three decades.
SwimEx models are the brainchild of Everett Pearson, a fiberglass pioneer who
was responsible for producing the world’s first fiberglass production sailboat.
Pearson took this experience and integrated it into swim spa manufacturing,
crafting tubs through a fiberglass composite construction that is comparable
to the same materials used in the building of yachts and airplanes.
In addition to the durable shell, all units feature components that are
constructed from gelcoat backed by a vinylester resin, locking out moisture to
prevent absorption, corruption and eventual deterioration. This gelcoat
prevents the growth of algae and simplifies cleaning.
Paddlewheel Technology
In addition to the robust nature of the swim spa components, SwimEx also
includes a highly specialized technology for the swim current. Pearson
discovered two MIT engineers who had devised their own version of a swim-in-
place pool that used a paddlewheel similar to those found on an old steam
boat. This approach reportedly creates a current that is wider, smoother,
stronger and deeper than comparable models, according to the manufacturer.
Hidden beneath the decking, the paddlewheel is powered by a 5-hp or 7.5-hp,
variable-speed gearmotor.
This technology is unique, especially when compared to jet-based swim spas, as
it pulls the water through the length of the pool rather than pushing it from

Page40
front to back. The pull effect creates a smooth flow up to 30 inches in depth
and offers up to 99 different water speeds.
Paddlewheel technology and the smooth nature of the current it creates also
provide another unique opportunity for design. In addition to their use for a
wide range of athletic training and physical therapy applications, SwimEx swim
spas are also frequently integrated into senior centers and veterinary clinics. In
these settings, the deep, consistent water flow is able to provide gentle, even
resistance for a wide range of rehabilitation, including treatments for arthritis
and related forms of chronic pain.
Two Types
SwimEx separates its swim spas into two main categories: residential and
commercial. Most individuals are primarily concerned with the residential
models, but given that the commercial model offers a unique size range and
some additional design enhancements, people readily consider them for home
installation.
Here’s how the two types compare, including primary features you’ll find in
each.
Residential
Residential swim spas from SwimEx are available in seven unique models.
Lengths range from 17 feet to 20 feet, with standard widths that run about 8
feet to 11 feet. Depths also provide another unique feature for SwimEx, ranging
between 4-feet and 7-feet deep, with large models providing varying depths
and multiple workout stations, depending on individual need.
On average, SwimEx residential swim spas hold between 2,600 and 7,700
gallons of water. They also come in pool constructions that range from a one-
piece design to those that are assembled with four fiberglass components.
Standard features include built-in stainless steel handrails, recessed steps, rear
emergency shut-off bar and a non-skid floor surface. A wide selection of colors,
tiles and lighting is also available. Customizable options include a propane or
natural gas heater that allows you to get away from electric power (potentially

Page41
saving on heating costs), two-tone pool coloring and even pre-assembly that
can be completed at the SwimEx factory.
Commercial
On the other end of the spectrum, SwimEx takes all of the features available in
its residential models and incorporates them into 12 commercial models.
Featuring the same fiberglass construction, swim spas within this series
reportedly provide the deepest current on the market. Easily installed indoors
or outdoors and above ground or in-ground, commercial swim spas provide
extended sizes and functionalities.
Looking at size first, average lengths start around 12 feet and go as long as 21
feet, with widths available from about 7 feet to 12 feet. Again, depth is where
SwimEx sets itself apart. In addition to depths that range from 38 inches to 72
inches, some models in the commercial series are “multi-depth,” allowing you
to adjust the depth of the pool by a range of about 12 inches. Other models
include a deep well, offering 12 extra inches of depth for specific exercises or
physical training and quick transitions between each.
Functionalities for models in the commercial series amplify the workout
potential of each swim spa. Enhancements include wider pools that provide
current on one side and still water on the other, kinetic exercise benches, and
an angled treadmill simulator that provides an adjustable floor with a 40-
degree differential.
Conclusion
SwimEx is a leader in the swim spa market due to the unique design of its
products. That said, its models are intended for swimming, exercise and
physical training or therapy only. They do not include the spa jets typically
found on competitive models that enable them to double as a hot tub.
If you want this feature, it will require the purchase of an optional upgrade that
includes a triangle-design of thee jets built into four different locations within
the pool.
http://www.swimex.com/

Page42
Established in 1994, Arctic Spas offers a unique type of swim spa – one
designed for extreme climates. This company combines sophisticated
technology related to heating elements and heat recovery with an advanced
system of insulation. In doing so, Arctic Spas was able to produce the industry’s
first all-weather swim spa, one of many achievements that have provided the
foundation for a successful 20-year history.
Some of Arctic Spas' most notable achievements include:
 First heat-recovery system for acrylic spas
 First weatherproof foundation
 First solid state water cooling system
 First swim spa controlled via smartphone app, with real-time monitoring
of electricity use
The above examples are just a few of the technological advancements that go
into an Arctic Spa swim spa. And they definitely add value and longevity to the
units they’re incorporated into. But two additional design elements enable an
Arctic Spa to operate in extreme environments while remaining cost effective
well into the future: the FreeHeat Insulation System and the Total Access
design.
FreeHeat Insulation System
Insulation provides one of the most important features on a swim spa,
especially when the unit is installed in an area that routinely experiences cold
temperatures. The FreeHeat Insulation System by Arctic Spas was inspired by
the style and practice of insulating a Canadian home – all six sides receive a
solid layer of insulation, including sidewalls, floor and ceiling. In short, this
represents the idea behind the FreeHeat system.

Page43
A 5-inch thick Mylovac cover serves as the roof and includes a full-length baffle.
Cabinet walls are insulated with high-density polyurethane foam up to the lip.
This same foam is also used to insulate the floor, creating a self-encased
cushion that traps heat and reduces operating costs. In fact, depending on the
model selected, many are capable of delivering an operating cost that is less
than $2 per day, according to the manufacturer.
It’s worth noting that units are equipped with a specialized exhaust system
that monitors the temperature of the cabinet to ensure it achieves the desired
temperature and does not exceed it.
Total Access
Access panels are the other notable feature on an Arctic Spas swim spa.
Insulated to further improve heat retention and electricity savings, the real
benefit they provide is related to service. Depending on design, some
manufacturers have a tendency to seal connections and other components in
foam. While this may improve the efficiency of their unit, it’s a costly hassle if
the swim spa needs a part replacement.
Arctic Spas has designed its units with an easily removable side panel that
provides immediate access to all critical components and serviceable items.
Better still, this engineering improvement allows an Arctic spa to be upgraded
well after installation if desired, adding more jets, a stronger pump or more
efficient filtration system, and even wow-factor upgrades like LED lights or
stereo components.
Top Models
Arctic Spas currently manufactures eight unique swim spas, all of which
provide swim-in-place functionality, therapy seats for 2 to 8 people and 1 to 61
therapy jets. Another design aspect that is unique to this vendor is that all of
the eight models it produces are exactly the same size and available with cedar
cabinets. Measuring 171 inches long by 92 inches wide and 50 inches deep, they
hold 1,559 gallons of water.
Though size is uniform, you’ll find differences in their intended use. Here’s how
three of Arctic Spas' models compare, including unique aspects for each.

Page44
Juneau
Created for advanced swimming while providing intermediate therapeutic
benefits, the Juneau model from Arctic Spas includes two lounger seats at one
end of the pool and 14 therapy jets. More focused on athletic performance and
training than leisure activities and entertainment, the Juneau includes the
Niagara Counter Current Swim System, a jet-based flow system capable of
moving water up to 27 feet per second. It also includes the SwimAlign LED,
allowing you to focus your direction without glancing up.
Hudson
Taking a step up, the Hudson swim spa from Arctic Spas is also designed for a
higher level of fitness training. Geared to intermediate swimmers, this model
ups the number of hydrotherapy jets to 24 and provides seating for two
people. The Hudson incorporates the Monsoon Counter Current Swim System,
a water flow design created for swimmers of any skill level. It also includes a
tether resistance system to provide a steady, even swim.
Ocean
If your intended use is leisure, relaxation and entertainment, this is the top of
the line for Arctic Spas. The Ocean swim spa includes 45 or 61 therapy jets and
seating for up to eight people. Like the Hudson, it uses the Monsoon Counter
Current Swim System, a jet-powered setup that creates water flow for basic
swimming. It’s worth noting that lighting packages do not come standard with
this model but are provided as optional. And with the heavy focus on features
more commonly associated with a hot tub, this model is probably not suited to
those interested in athletic training or advanced swimming functionalities.
Conclusion
Adding a swim spa to your home with an operating cost of $2 per day could
very easily be more cost-effective than commuting to a local pool and paying
membership dues. In addition, Arctic Spas swim spas are low maintenance and
extremely easy to install – they’re simply craned into the spot you select and
filled with water. Plus, the shell is backed by a lifetime warranty with
equipment, plumbing, lights and other components typically covered for five
years.
https://www.arcticspas.com/

Page45
Reference
www.toptenreviews.com

Swim spas review - 2017

More Related Content

Similar to Swim spas review - 2017

More from KACHARAGADLA MEDIA CORP

Recently uploaded

Swim spas review - 2017
