swift-nio のアーキテクチャーと RxHttpClient
The document discusses the Swift-NIO and RxHTTPClient frameworks, focusing on their functionalities for non-blocking I/O operations and HTTP client implementation. It covers various event-driven programming concepts, event loops, channels, and handlers in the context of Swift programming. Additionally, it includes references to further resources and GitHub repositories for additional learning on the mentioned technologies.
More Related Content
Similar to swift-nio のアーキテクチャーと RxHttpClient
swift-nio のアーキテクチャーと RxHttpClient
- 1.

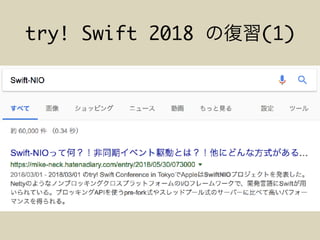

- 2. • try! Swift2018 (1) - • try! Swift 2018 (2) - Swift-NIO • Swift-NIO RxHttpClient
- 3.

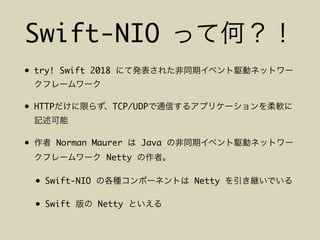

- 4. Swift-NIO • try! Swift2018 • HTTP TCP/UDP • Norman Maurer Java Netty • Swift-NIO Netty • Swift Netty

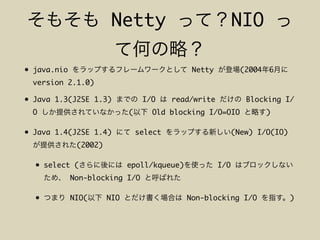

- 5. Netty NIO • java.nioNetty (2004 6 version 2.1.0) • Java 1.3(J2SE 1.3) I/O read/write Blocking I/ O ( Old blocking I/O=OIO ) • Java 1.4(J2SE 1.4) select (New) I/O(IO) (2002) • select ( epoll/kqueue) I/O Non-blocking I/O • NIO( NIO Non-blocking I/O )

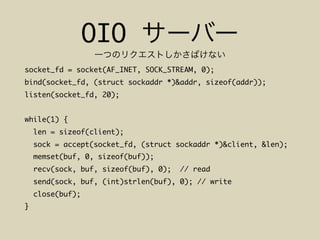

- 6. OIO socket_fd = socket(AF_INET,SOCK_STREAM, 0); bind(socket_fd, (struct sockaddr *)&addr, sizeof(addr)); listen(socket_fd, 20); while(1) { len = sizeof(client); sock = accept(socket_fd, (struct sockaddr *)&client, &len); memset(buf, 0, sizeof(buf)); recv(sock, buf, sizeof(buf), 0); // read send(sock, buf, (int)strlen(buf), 0); // write close(buf); }
- 7. fork/ socket_fd = socket(AF_INET,SOCK_STREAM, 0); bind(socket_fd, (struct sockaddr *)&addr, sizeof(addr)); listen(socket_fd, 20); while(1) { len = sizeof(client); sock = accept(socket_fd, (struct sockaddr *)&client, &len); memset(buf, 0, sizeof(buf)); recv(sock, buf, sizeof(buf), 0); // read send(sock, buf, (int)strlen(buf), 0); // write close(buf); } /

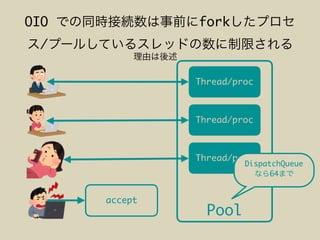

- 8.
- 9. OIO recv/ write I/O recvwrite recv write write recv write recv write recv block block block block block block OIO CPU I/O
- 10. OIO • CPU • • () • • AWS/Azure/GCP
- 11.

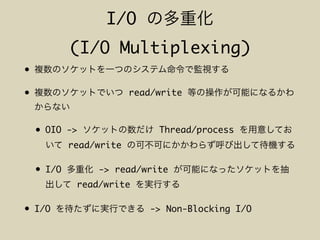

- 12. I/O (I/O Multiplexing) • • read/write •OIO -> Thread/process read/write • I/O -> read/write read/write • I/O -> Non-Blocking I/O

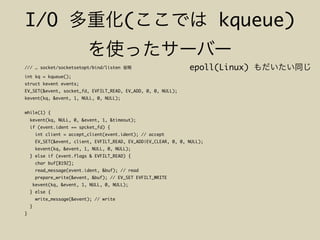

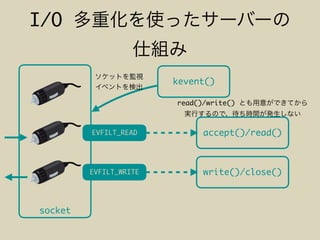

- 13. I/O ( kqueue) ///… socket/socketsetopt/bind/listen int kq = kqueue(); struct kevent events; EV_SET(&event, socket_fd, EVFILT_READ, EV_ADD, 0, 0, NULL); kevent(kq, &event, 1, NULL, 0, NULL); while(1) { kevent(kq, NULL, 0, &event, 1, &timeout); if (event.ident == spcket_fd) { int client = accept_client(event.ident); // accept EV_SET(&event, client, EVFILT_READ, EV_ADD|EV_CLEAR, 0, 0, NULL); kevent(kq, &event, 1, NULL, 0, NULL); } else if (event.flags & EVFILT_READ) { char buf[8192]; read_message(event.ident, &buf); // read prepare_write(&event, &buf); // EV_SET EVFILT_WRITE kevent(kq, &event, 1, NULL, 0, NULL); } else { write_message(&event); // write } } epoll(Linux)
- 14.

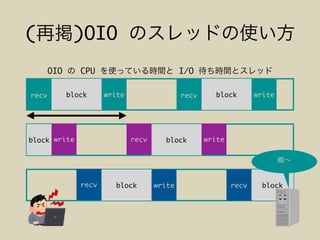

- 15. ( )OIO recv writerecv write write recv write recv write recv block block block block block block OIO CPU I/O
- 16. I/O recv write recvwritewrite recv writerecv write recv I/O • • CPU • 1
- 17.

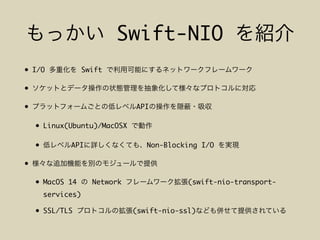

- 19. Swift-NIO • I/O Swift • •API • Linux(Ubuntu)/MacOSX • API Non-Blocking I/O • • MacOS 14 Network (swift-nio-transport- services) • SSL/TLS (swift-nio-ssl)
- 20.
- 21.

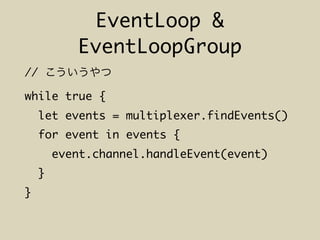

- 22. EventLoop & EventLoopGroup // while true{ let events = multiplexer.findEvents() for event in events { event.channel.handleEvent(event) } }

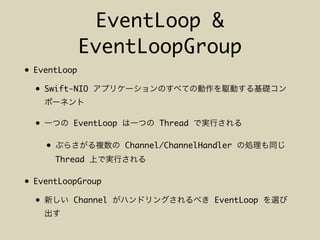

- 23. EventLoop & EventLoopGroup • EventLoop •Swift-NIO • EventLoop Thread • Channel/ChannelHandler Thread • EventLoopGroup • Channel EventLoop

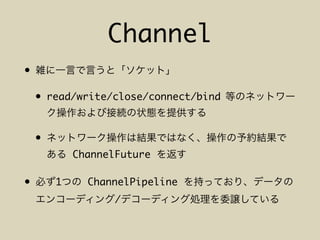

- 24. Channel • • read/write/close/connect/bind • ChannelFuture • 1ChannelPipeline /
- 25.

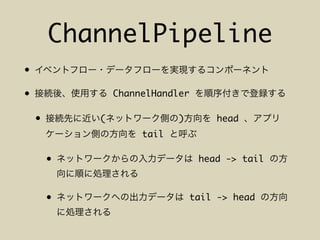

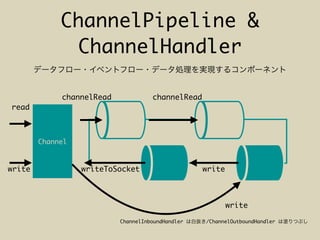

- 26. ChannelPipeline • • ChannelHandler • () head tail • head -> tail • tail -> head

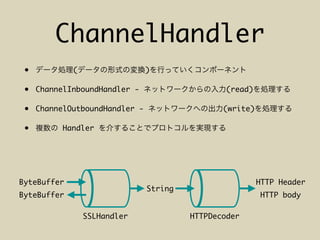

- 27. ChannelHandler • ( ) •ChannelInboundHandler - (read) • ChannelOutboundHandler - (write) • Handler ByteBuffer String HTTP Header HTTP bodyByteBuffer SSLHandler HTTPDecoder

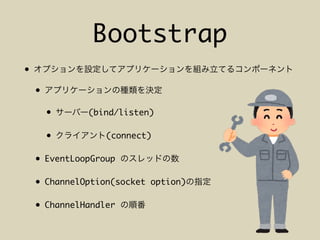

- 28. Bootstrap • • • (bind/listen) • (connect) •EventLoopGroup • ChannelOption(socket option) • ChannelHandler
- 29.
- 30.
- 32.

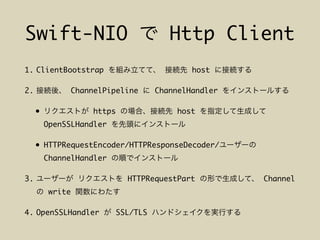

- 33. Swift-NIO Http Client 1.ClientBootstrap host 2. ChannelPipeline ChannelHandler • https host OpenSSLHandler • HTTPRequestEncoder/HTTPResponseDecoder/ ChannelHandler 3. HTTPRequestPart Channel write 4. OpenSSLHandler SSL/TLS

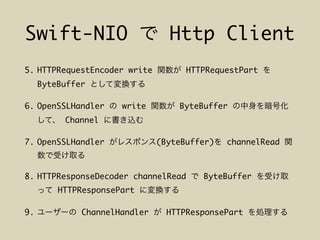

- 34. Swift-NIO Http Client 5.HTTPRequestEncoder write HTTPRequestPart ByteBuffer 6. OpenSSLHandler write ByteBuffer Channel 7. OpenSSLHandler (ByteBuffer) channelRead 8. HTTPResponseDecoder channelRead ByteBuffer HTTPResponsePart 9. ChannelHandler HTTPResponsePart

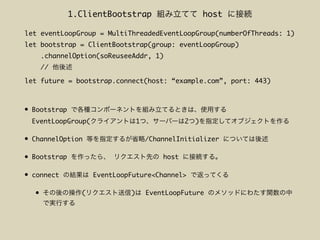

- 35. • Bootstrap EventLoopGroup( 12 ) • ChannelOption /ChannelInitializer • Bootstrap host • connect EventLoopFuture<Channel> • ( ) EventLoopFuture let eventLoopGroup = MultiThreadedEventLoopGroup(numberOfThreads: 1) let bootstrap = ClientBootstrap(group: eventLoopGroup) .channelOption(soReuseeAddr, 1) // let future = bootstrap.connect(host: “example.com”, port: 443) 1.ClientBootstrap host
- 36. • ClientBootstrap channelInitializerChannelHandler ChannelPipeline • ChannelPipeline (head) (tail) • HttpClient • https OpenSSLHandler • HttpRequestEncoder/HttpResponseDecoder • ChannelInboundHandler .channelInitializer { channel in if https { let openSslHandler = OpenSSLHandler( context: sslContext, serverHostname: “example.com”) channel.pipeline.add(handler: openSslHandler) } _ = channel.pipeline.addHTTPClientHandlers() return channel.pipeline.add(handler: HttpResponseHandler()) } 2. ChannelPipeline

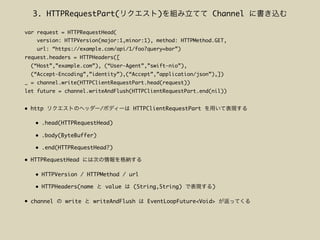

- 37. • http /HTTPClientRequestPart • .head(HTTPRequestHead) • .body(ByteBuffer) • .end(HTTPRequestHead?) • HTTPRequestHead • HTTPVersion / HTTPMethod / url • HTTPHeaders(name value (String,String) ) • channel write writeAndFlush EventLoopFuture<Void> var request = HTTPRequestHead( version: HTTPVersion(major:1,minor:1), method: HTTPMethod.GET, url: “https://example.com/api/1/foo?query=bar”) request.headers = HTTPHeaders([ (“Host”,”example.com”), (“User-Agent”,”swift-nio”), (“Accept-Encoding”,”identity”),(“Accept”,”application/json”),]) _ = channel.write(HTTPClientRequestPart.head(request)) let future = channel.writeAndFlush(HTTPClientRequestPart.end(nil)) 3. HTTPRequestPart( ) Channel

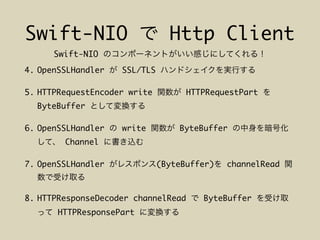

- 38. Swift-NIO Http Client 4.OpenSSLHandler SSL/TLS 5. HTTPRequestEncoder write HTTPRequestPart ByteBuffer 6. OpenSSLHandler write ByteBuffer Channel 7. OpenSSLHandler (ByteBuffer) channelRead 8. HTTPResponseDecoder channelRead ByteBuffer HTTPResponsePart Swift-NIO

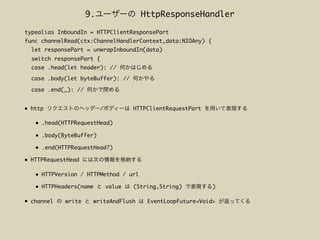

- 39. • http /HTTPClientRequestPart • .head(HTTPRequestHead) • .body(ByteBuffer) • .end(HTTPRequestHead?) • HTTPRequestHead • HTTPVersion / HTTPMethod / url • HTTPHeaders(name value (String,String) ) • channel write writeAndFlush EventLoopFuture<Void> typealias InboundIn = HTTPClientResponsePart func channelRead(ctx:ChannelHandlerContext,data:NIOAny) { let responsePart = unwrapInboundIn(data) switch responsePart { case .head(let header): // case .body(let byteBuffer): // case .end(_): // 9. HttpResponseHandler
- 41. Swift-NIO • • ChannelHandler • channelRead-> channelReadComplete -> channelRead • ChannelOption

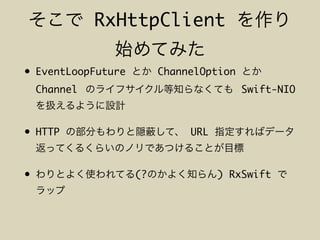

- 42. RxHttpClient • EventLoopFuture ChannelOption ChannelSwift-NIO • HTTP URL • (? ) RxSwift

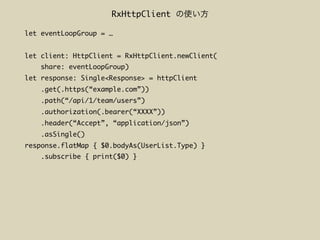

- 43. let eventLoopGroup =… let client: HttpClient = RxHttpClient.newClient( share: eventLoopGroup) let response: Single<Response> = httpClient .get(.https(“example.com”)) .path(“/api/1/team/users”) .authorization(.bearer(“XXXX”)) .header(“Accept”, “application/json”) .asSingle() response.flatMap { $0.bodyAs(UserList.Type) } .subscribe { print($0) } RxHttpClient
- 44.

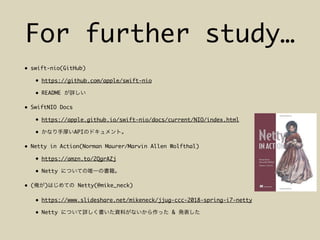

- 45. For further study… •swift-nio(GitHub) • https://github.com/apple/swift-nio • README • SwiftNIO Docs • https://apple.github.io/swift-nio/docs/current/NIO/index.html • API • Netty in Action(Norman Maurer/Marvin Allen Wolfthal) • https://amzn.to/2QgrAZj • Netty • ( ) Netty(@mike_neck) • https://www.slideshare.net/mikeneck/jjug-ccc-2018-spring-i7-netty • Netty &
