Saltwater Disposal, Tank Battery, Gathering System design, construction, automation and filtration with NO FILTER SOCKS!

1. .
SWD Systems, LLC provides permitting, drilling,
design, construction, filtration and operational
management of saltwater disposal facilities. As
prior owners of SWD's, we understand first hand
the challenges facing SWD Owners/Operators in
today's everchanging market. We offer our
preferred design that has been proven to provide
one of the industry's highest overall performance
outputs per CAPEX dollars invested and have
created a series of advanced patent-pending
products that are expected to revolutionize the
saltwater disposal industry. We will also be happy
to provide bids for your project using your own
preferred designs.

2. From permitting, design, drilling,
construction, complete automation,
filtration and management, we have
constructed and operated facilities in the
harsh conditions of the Bakken and are
currently constructing facilities in Eastern
New Mexico and West Texas.
CONSTRUCTION

4. FULL SITE AUTOMATION
We pride ourselves on top tier automated systems. All of our panels are manufactured in Texas and shipped
to your facility for integration. We have standardized on Allen Bradley PLCs, as they are not only the industry
leader in automation hardware, but they are the most dependable equipment on the market. This hardware
is coupled with our user interface software - SWDView. SWDView is a product we developed in-house to
cover every aspect of operating a disposal well: driver ticket entry, injection pump operation, alarms,
reports, tank battery management, remote accessibility, etc.
TANK BATTERY/INJECTION
•Triplex, Quintiplex, or Multistage Horizontal pump control
•Staging of pumps to prevent excessive starting/stopping
•Tracking of runtime hours on injection pumps for preventative maintenance
•Cyclonic backpressure valve control for multistage pumps
•Water and oil tank level control via setpoints
•Ability to interface any type of level transmitters (guided wave, non-contact radar, tank sticks, level switches, etc.
•Trending, monitoring, remote alarms
TICKETING SOFTWARE
Driver offload ticketing system. Completely cloud-based. We send you a driver touchscreen and printer
and you can be operational in minutes! This system also ties in to our automated offload system, opening
a valve and running offload pumps with a valid driver code. No more illegible paper tickets - all
information is entered correctly the first time. Want to stick with paper tickets and have your corporate
office personnel enter tickets? No problem! This system can be used anywhere, by anyone. All
transactions are recorded and available for transaction reports for billing and transaction modification.

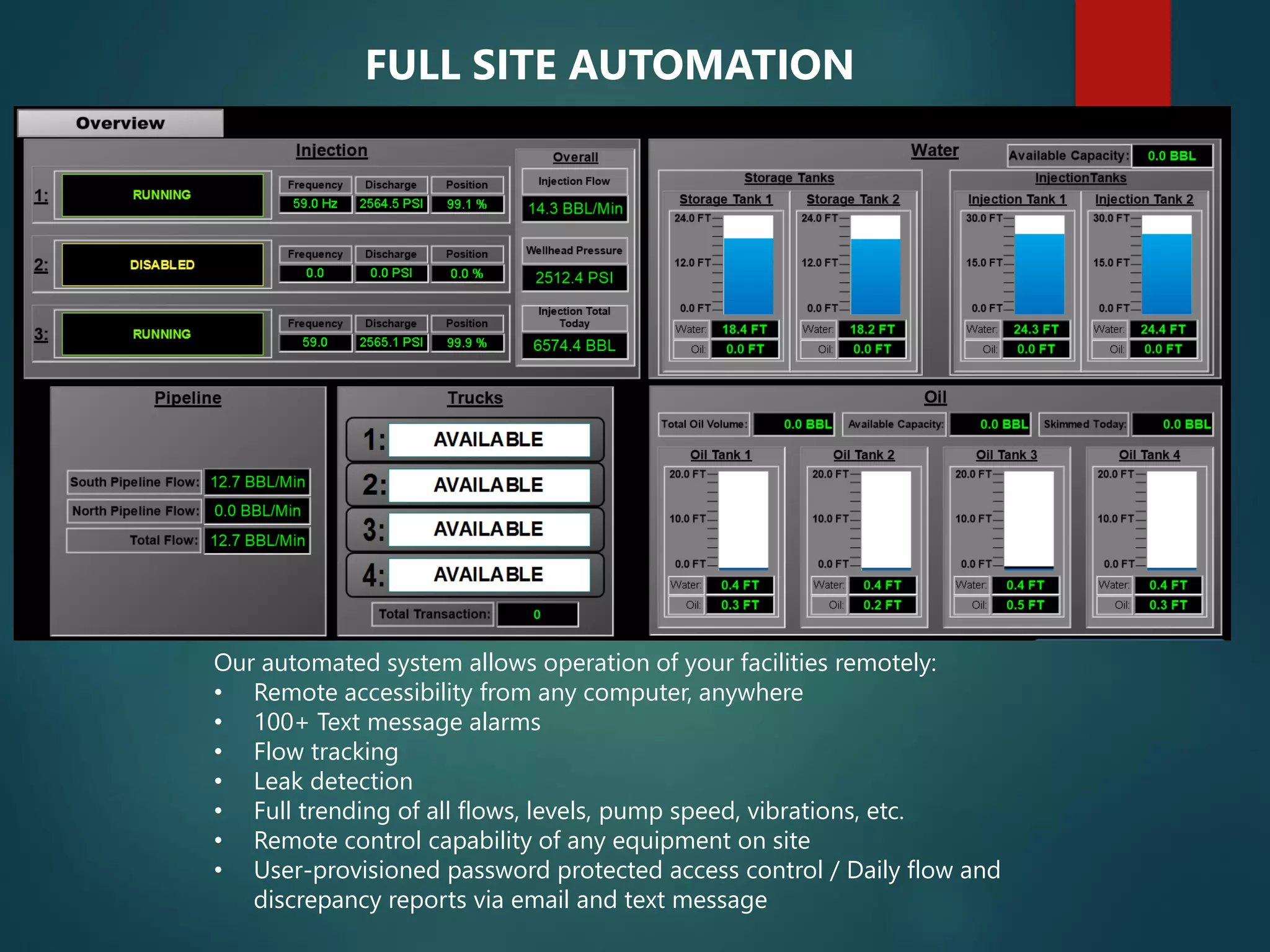

5. Our automated system allows operation of your facilities remotely:
• Remote accessibility from any computer, anywhere
• 100+ Text message alarms
• Flow tracking
• Leak detection
• Full trending of all flows, levels, pump speed, vibrations, etc.
• Remote control capability of any equipment on site
• User-provisioned password protected access control / Daily flow and
discrepancy reports via email and text message
FULL SITE AUTOMATION

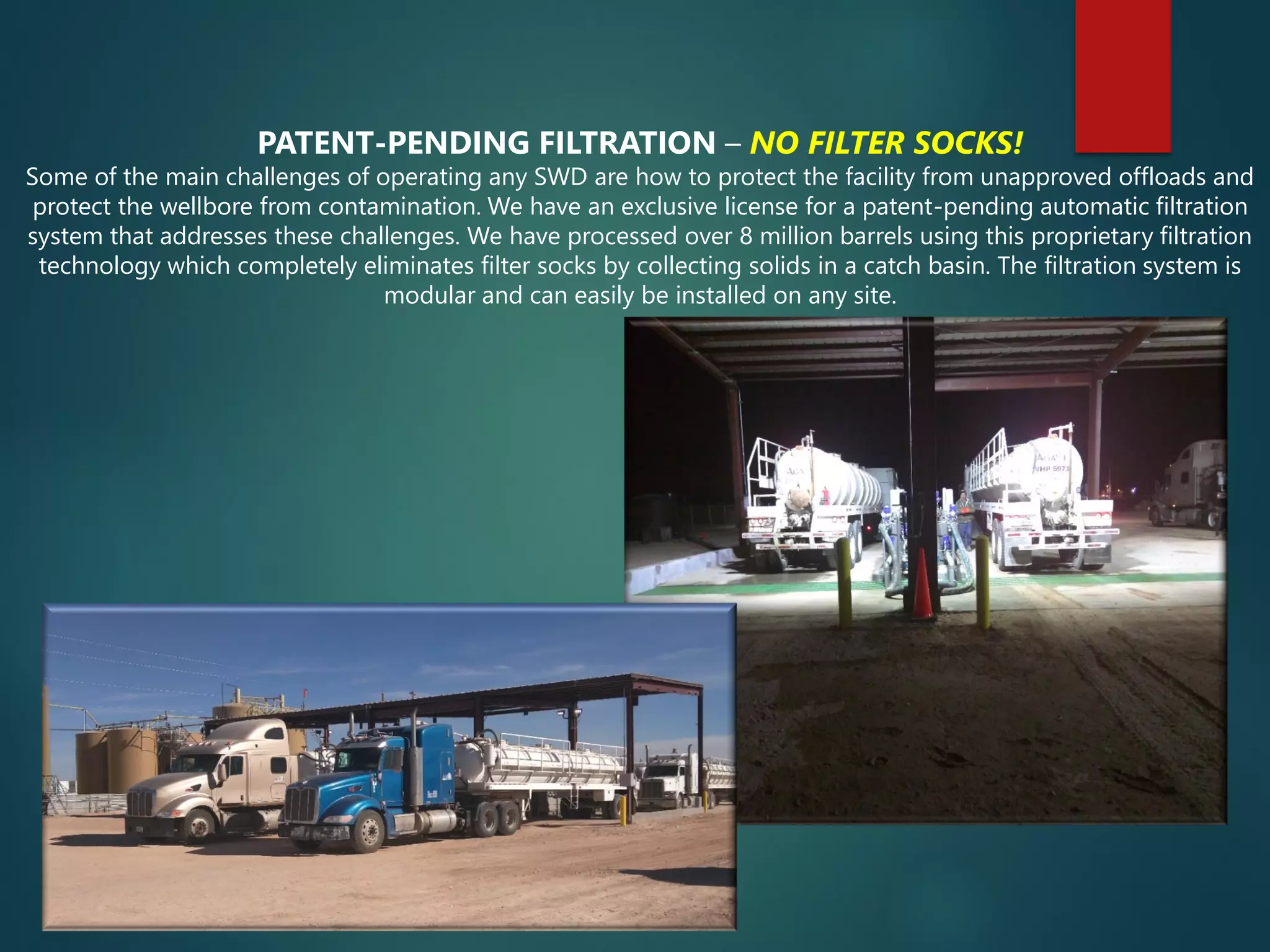

6. PATENT-PENDING FILTRATION – NO FILTER SOCKS!
Some of the main challenges of operating any SWD are how to protect the facility from unapproved offloads and
protect the wellbore from contamination. We have an exclusive license for a patent-pending automatic filtration
system that addresses these challenges. We have processed over 8 million barrels using this proprietary filtration
technology which completely eliminates filter socks by collecting solids in a catch basin. The filtration system is
modular and can easily be installed on any site.

7. Kim Reister
Sales/account manager
SWD Systems, LLC
701-609-2248
kim@saltwaterdisposalsystems.com
We look forward to bidding your SWD
construction and to help you save money with
operations. Please contact me to get the bid
process started! I am happy to provide more
information, visit your existing facility or give an
online presentation. I look forward to introducing
you to our amazing team and system that can
assist with all your facility needs.
