The document describes a large-scale unified control system called ECS-700 that provides integration, reliability, scalability, availability, and efficiency. It features a hierarchical architecture with four layers - basic control, supervisory control, operations management, and enterprise system. The system uses standard protocols like OPC, Profibus, Modbus, HART, Ethernet, and RS485 and can interface with various hardware including PLCs, controllers, I/O modules, and field devices. It provides centralized monitoring and management of industrial control systems across multiple areas.

1. The Key to An Extended Intelligent Age
Webfield
­700
Large­Scale United Control System
®

3. ADVANTAGES
01 / 02
ECS-700 Features
Integration Reliability
Scalability Availability Industry Standard
Efficiency

4. Firewall
Management
Terminal
OA
Terminall
Financial
Terminal
Internet
Mobile Access Client
Remote Access Client ODS Client
Remote Access ODS Server PIMS Server Mobile Monitoring Server
L3 Switch
Clock Sync Server
Global EWS Global OWS
Central AMS Server Central HIS Data Server Central OPC Server
Online/Offline (Optional)
Internet
Server
MCU Simulator Trainee Station Trainee Station
Model Server
L2 Switch
Region OPC Server HIS Data Server
Region AMS Server EWS OWS OWS
OWS &
Region AMS Server
OWS &
Region OPC Server
OWS &
HIS Data Server EWS
L2 Switch
L2 Switch
EWS OWS OWS AMS Client
L2 Switch
OWS
Controller Controller Controller Controller Controller Controller Controller
I/O Bus（L-Bus） I/O Bus（E-Bus）
I/O Modules FF Interface Power Supply
Terminal Box
Profibus-DP
Interface
Serial Communication
Interface
SUPCON System
Link Module
I/O Linker
Wireless Instruments
I/O Modules
ECS-100
JX-300XP/
JX-300X
Ex I/O SIS PLC
Operation Domain
Control Domain
OTS
L3.5 DMZ
Control Domain
FCR 1 FCR n
03 / 04
L4 Enterprise System
L3 Operations Management
L2 Supervisory Control
L1 Basic Control

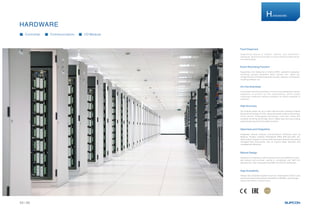

5. HARDWARE
05 / 06

6. 07 / 08

7. Protocols
Interfaces
OPC
PROFIBUS
MODBUS
HART FF
ETHERNET
RS485
OPC
A&E/
DA/UA
TCP
DP/PA
RTU
HART
FF
ECS-700 Interfacing Options
HARDWARE
09 / 10
PROFINET EtherNet/IP
FF PROFINET EtherNet/IP

8. HARDWARE
11 / 12

9. SOFTWARE
13 / 14

11. SOLUTIONS
SOLUTIONS
17 / 18
Central Server
SAMS Client
Area Workstation
SAMS area server
HART MUX
RS485/Ethernet
SAMS area server
SAMS area server
SAMS area server
SAMS area server
SAMS area server
Area Server
Built-in Firewall
SAMS workstation

12. Operator Station
Engineer Station Operator Station Operator Station SAMS Station
Extended I/O Bus (E-BUS)
Controller
PROFIBUS Module
(COM721)
Serial Module
(COM741)
I/O Linking Module
(COM711)
PLC SIS FF H1 Module
AM712
FF H1 Module
AM712
I/O Module
Field Devices Field Devices FF Devices FF Devices FF Devices Field Devices
ZONE 0 ZONE 1 ZONE 2
19 / 20
SUPCON Cyber Security Solution
SCSS

13. SERVICE
21 / 22
