Sumit Gulwani
Microsoft
Programming by Examples
AI Frontiers Conference
Nov 2018
=MID(B1,5,2)

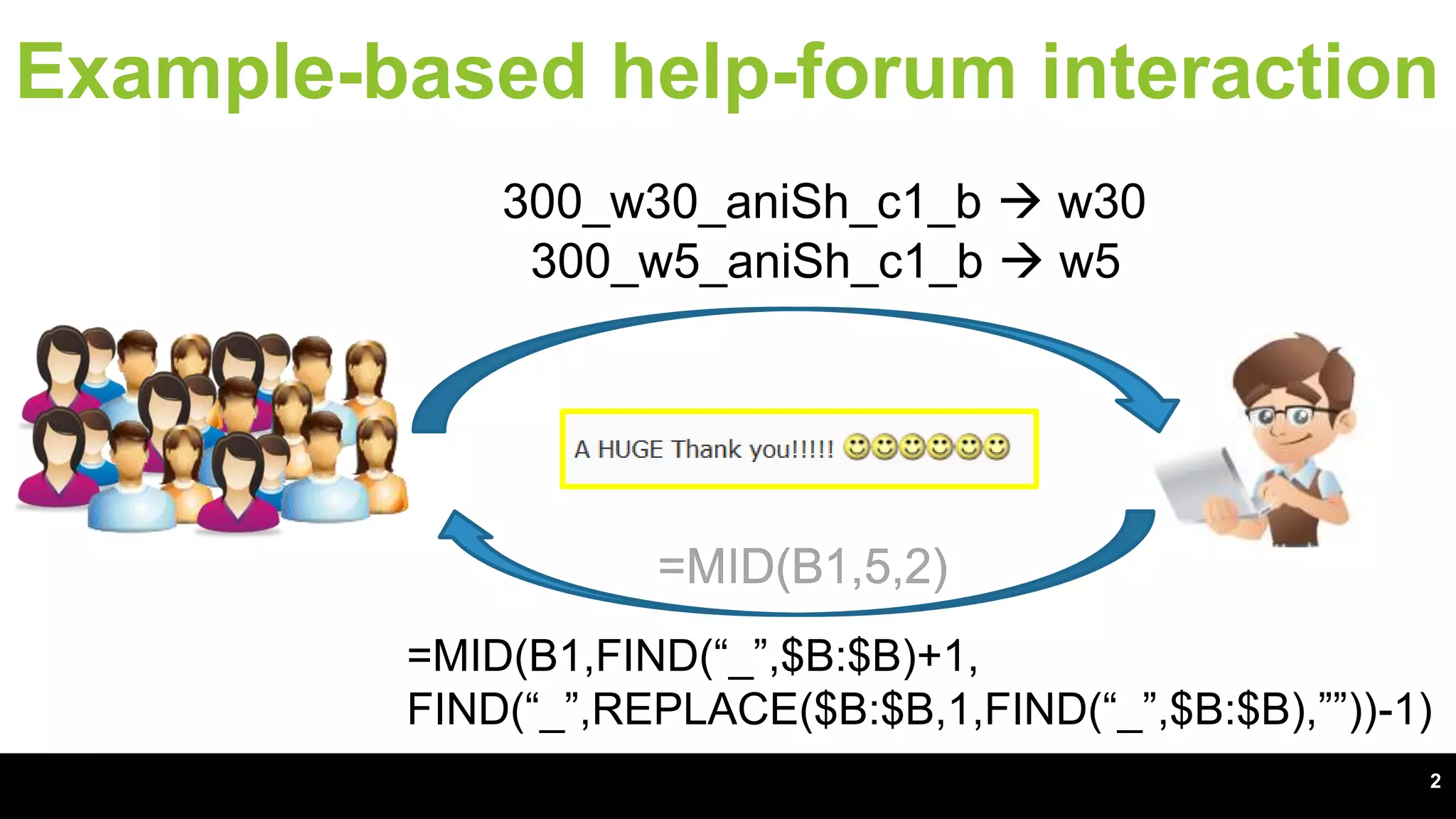

Example-based help-forum interaction
2
300_w5_aniSh_c1_b  w5
300_w30_aniSh_c1_b  w30
=MID(B1,5,2)
=MID(B1,FIND(“_”,$B:$B)+1,
FIND(“_”,REPLACE($B:$B,1,FIND(“_”,$B:$B),””))-1)
Flash Fill (Excel feature)
3“Automating string processing in spreadsheets using input-output examples”
[POPL 2011] Sumit Gulwani
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Number, DateTime Transformations
39
Input Output (round to 2 decimal places)
123.4567 123.46
123.4 123.40
78.234 78.23
Excel/C#:
Python/C:
Java:
#.00
.2f
#.##
Input Output (3-hour weekday bucket)
CEDAR AVE & COTTAGE AVE; HORSHAM;
2015-12-11 @ 13:34:52;
Fri, 12PM - 3PM
RT202 PKWY; MONTGOMERY; 2016-01-13
@ 09:05:41-Station:STA18;
Wed, 9AM - 12PM
; UPPER GWYNEDD; 2015-12-11 @ 21:11:18; Fri, 9PM - 12AM
“Synthesizing Number Transformations from Input-Output Examples”
[CAV 2012] Rishabh Singh, Sumit Gulwani
Table Extraction
40“FlashExtract: A Framework for data extraction by examples”
[PLDI 2014] Vu Le, Sumit Gulwani
41
42
43
44
45
46
47
48
49
50
Table Reshaping
51
50% spreadsheets are semi-structured.
KPMG, Deloitte budget millions of dollars for normalization.
“FlashRelate: Extracting Relational Data from Semi-Structured Spreadsheets Using Examples”
[PLDI 2015] Dan Barowy, Sumit Gulwani, Ted Hart, Ben Zorn
Bureau of I.A.
Regional Dir. Numbers
Niles C. Tel: (800)645-8397
Fax: (907)586-7252
Jean H. Tel: (918)781-4600
Fax: (918)781-4604
Frank K. Tel: (615)564-6500
Fax: (615)564-6701
Tel Fax
Niles C. (800)645-8397 (907)586-7252
Jean H. (918)781-4600 (918)781-4604
Frank K. (615)564-6500 (615)564-6701
FlashRelate
From few
examples
of rows in
output table
52
53
54
55
56
57
58
59
60
61
62
63
64
Disambiguator
More Examples
Intended
Program in D
PBE Architecture
65
Examples
Program set
Test inputs
Ranked
Program set
DSL D
Program
Ranker
“Programming by Examples: PL meets ML”
[APLAS 2017] Sumit Gulwani, Prateek Jain
Search
Engine
Search
• Logical Deduction: [OOPSLA '15] FlashMeta: A framework for inductive program synthesis
• Machine Learning: [ICLR '18] Neural-guided deductive search for real-time program synthesis from examples
Ranking
• Program Features: [CAV '15] Predicting a correct program in programming by example
• Output Features: [IJCAI '17] Learning to learn programs from examples: going beyond program structure
Disambiguation
• Distinguishing Inputs: [UIST '15] User Interaction Models for Disambiguation in Programming by Example
• Clustering: [OOPSLA '18] FlashProfile: A Framework for Synthesizing Data Profiles
New Frontiers
Predictive Synthesis
Synthesis of intended programs from just the input.
• Tabular data extraction, Sort, Join
Synthesis of readable/modifiable code
Synthesis in target language of choice.
• Scala, R, PySpark
Code-first experience in existing workflows.
• IDE, Notebook
66“Automated Data Extraction using Predictive Program Synthesis”
[AAAI 2017] Mohammad Raza, Sumit Gulwani
67
68
69
70
71
72
Code Transformations by Examples
• Code refactoring consumes 40% time in migration.
– Old version to new version
– On-prem to cloud
– One framework to another
• Custom formatting
• Performance enhancements
• Repetitive bug fixes
– Feedback generation for programming education
73“Learning syntactic program transformations from examples”
[ICSE 2017] Reudismam Rolim, Gustavo Soares, et.al.
Programming by examples is a new frontier in AI.
• 10-100x productivity increase in some domains.
– Data Wrangling: Data scientists spend 80% time.
– Code Refactoring: Developers spend 40% time in migration.
• 99% of end users are non-programmers.
Next-generational AI techniques under the hood
• Logical Reasoning + Machine Learning
The Future: Multi-modal programming with Examples and NL
Questions/Feedback: Contact me at sumitg@microsoft.com
Conclusion
74Microsoft PROSE (PROgram Synthesis by Examples) Framework
Available for non-commercial use : https://microsoft.github.io/prose/
