- 1. DRIVING INNOVATION Style Partitions Innovation Seminar 28th January 2014

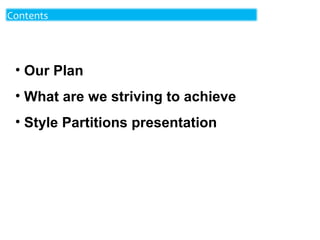

- 2. Contents • Our Plan • What are we striving to achieve • Style Partitions presentation

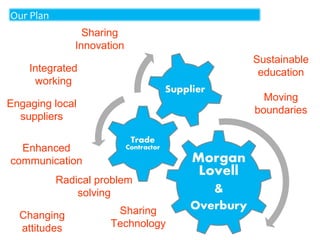

- 3. Our Plan Sharing Innovation Sustainable education Integrated working Moving boundaries Engaging local suppliers Enhanced communication Radical problem solving Changing attitudes Sharing Technology
- 4. So we achieve…… • • • • • Competitive Advantage Up Skilling Internal Staff & Trade Contractors Added Value from Supply Chain i.e. Extended Warranties, V/E Sustainable credentials Innovation and continuous improvement

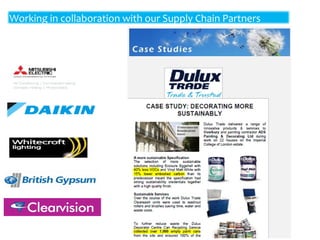

- 5. Working in collaboration with our Supply Chain Partners

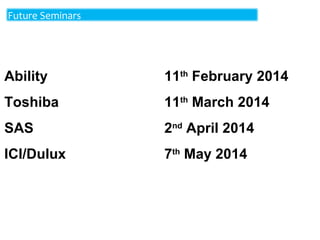

- 6. Future Seminars Ability 11th February 2014 Toshiba 11th March 2014 SAS 2nd April 2014 ICI/Dulux 7th May 2014

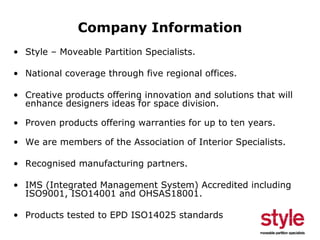

- 9. Company Information • Style – Moveable Partition Specialists. • National coverage through five regional offices. • Creative products offering innovation and solutions that will enhance designers ideas for space division. • Proven products offering warranties for up to ten years. • We are members of the Association of Interior Specialists. • Recognised manufacturing partners. • IMS (Integrated Management System) Accredited including ISO9001, ISO14001 and OHSAS18001. • Products tested to EPD ISO14025 standards

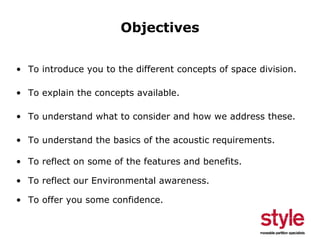

- 10. Objectives • To introduce you to the different concepts of space division. • To explain the concepts available. • To understand what to consider and how we address these. • To understand the basics of the acoustic requirements. • To reflect on some of the features and benefits. • To reflect our Environmental awareness. • To offer you some confidence.
- 11. Market Sectors • Corporate • Education • Hospitality • Religion • Healthcare • Retail
- 13. Hinged Folding Wall Systems

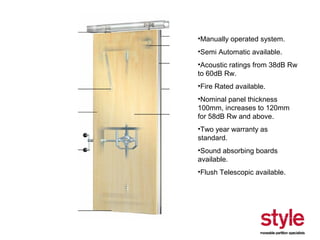

- 52. •Manually operated system. •Semi Automatic available. •Acoustic ratings from 38dB Rw to 60dB Rw. •Fire Rated available. •Nominal panel thickness 100mm, increases to 120mm for 58dB Rw and above. •Two year warranty as standard. •Sound absorbing boards available. •Flush Telescopic available.

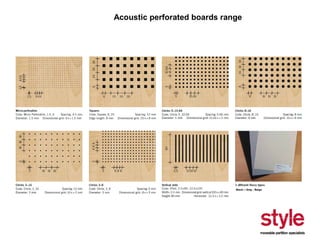

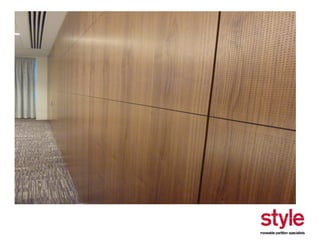

- 53. Acoustic perforated boards range Black – Gray - Beige

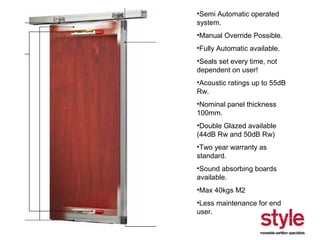

- 59. •Semi Automatic operated system. •Manual Override Possible. •Fully Automatic available. •Seals set every time, not dependent on user! •Acoustic ratings up to 55dB Rw. •Nominal panel thickness 100mm. •Double Glazed available (44dB Rw and 50dB Rw) •Two year warranty as standard. •Sound absorbing boards available. •Max 40kgs M2 •Less maintenance for end user.

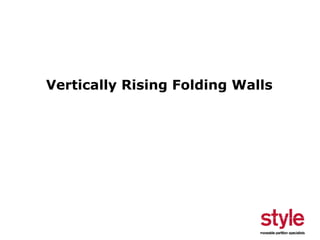

- 69. Vertically Rising Folding Walls

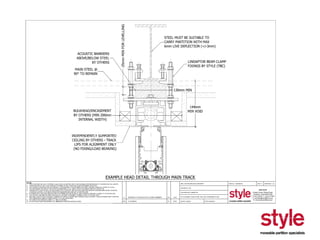

- 76. Insert CAD detail of head section stacked and picture

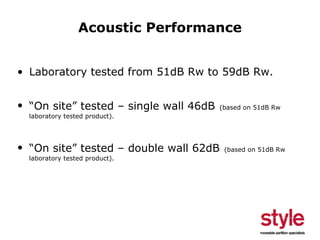

- 77. Acoustic Performance • Laboratory tested from 51dB Rw to 59dB Rw. • “On site” tested – single wall 46dB (based on 51dB Rw laboratory tested product). • “On site” tested – double wall 62dB laboratory tested product). (based on 51dB Rw
- 90. Unique Project ExCeL – London Docklands

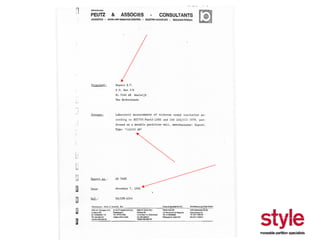

- 93. Rw [dB] R´w [dB] Sound insulation without flanking transmission Sound insulation with flanking transmission

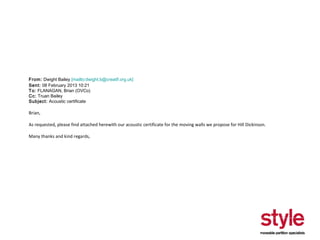

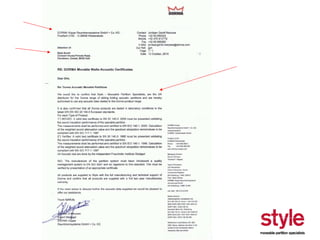

- 105. From: Dwight Bailey [mailto:dwight.b@creatif.org.uk] Sent: 08 February 2013 10:21 To: FLANAGAN, Brian (OVCo) Cc: Truan Bailey Subject: Acoustic certificate Brian, As requested, please find attached herewith our acoustic certificate for the moving walls we propose for Hill Dickinson. Many thanks and kind regards,

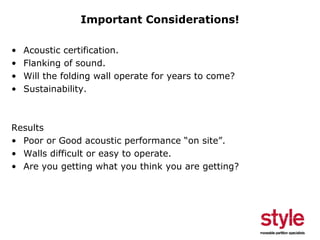

- 110. Important Considerations! • • • • Acoustic certification. Flanking of sound. Will the folding wall operate for years to come? Sustainability. Results • Poor or Good acoustic performance “on site”. • Walls difficult or easy to operate. • Are you getting what you think you are getting?
- 118. Thank you for valuable time in attending and we hope that you have found our information of benefit and relative to your activities? Julian Sargent julian@style-partitions.co.uk Mobile: 07803 192992 www.style-partitions.co.uk Q&A
Editor's Notes
- Good Morning / Afternoon and thank you for attending
- Good Morning / Afternoon and thank you for attending
- Starting with a brief overview of Style Partitions. We are specialist suppliers of Sliding Folding Acoustic and Glazed moveable partitioning systems. Style is a privately owned company established in 1999. We offer Nation-wide coverage through our five regional offices in Scotland, Bolton, Leicester, Essex and our head office near Bournemouth. All the products that we offer are proven in the market place throughout the world, having been installed in many of the world’s leading venues, for instance Sydney Olympic Stadium, Excel Arena in Docklands etc - We have also installed for many of the worlds largest companies. To support the products that we supply, we not only offer a local service but a full after sales service that provide warranties for up to 10 years. We are proud to be members of the AIS (Association of Interior Specialists) and for the past six consecutive years we have been rewarded for installations that have been completed and recognised with an award. The awards are presented to represent quality and innovation. For the last three consecutive years Style was awarded the prestigious “Gold” award. We don’t hide our manufacturing partners, these companies are leaders in the industry and are always striving to offer innovation and solutions for all space division requirements – basically products to suit all applications and budgets. The Style group have been recognised through its five regional offices and accredited with an IMS system through Bureau Veritas (External Auditors) and recognised with ISO9001 (Quality), ISO14001 (Environmental) and OHSAS18001 (Health & Safety)
- The objective of this course, is to introduce you to different concept of space division. I am sure that most of you within this room have used or worked on projects that have used traditional folding walls in the past that slide and fold to the side, hopefully we will now offer alternative ideas and solutions. CLICK The concepts that we will introduce you too are product that sub divide space whether they slide to the side or rise vertically, solid panels and glass. CLICK There are many considerations that we need to highlight to you and we will demonstrate how we address these issues. Click Acoustics are very important and whilst this really is a specialist subject, the information that we provide will hopefully allow you to understand what to look for! CLICK We will reflect on the real features and benefits of these products, including the associated works and other implications involved. CLICK As mentioned previously, Style has ISO14001 (Environmental) accreditation however we can also confirm that all our manufacturing partners work to strict environment policies and FSC certificates as well as LEED certificates are available upon request, in addition all manufacturing partners operate with ISO9001 accreditation. CLICK And just as importantly, we will concentrate on the areas and factors to consider throughout the design process, with an aim of gaining some confidence.
- The diversity of market sectors that we have supplied our products too is varied however the main industries that we operate in today are: We like challenges therefore if you have any other market sectors where you think you can use this type of product we would be pleased to work with you.
- From this picture – can you establish which car has the 2Lt engine and which one has the 3Lt engine? No – please hold this thought as like folding walls – you cannot determine what is inside!!!
- The first product that we would like to introduce you to is our Hinged Folding Wall System All products are supported with FSC certification (Copies are available upon request) The product is constructed with a timber frame with a face material bonded to the frame to provide the required finish. This type of product is used in various applications and uses and is robust yet being economical. We would expect the product to continue to operate effectively and efficiently for a period of at least 20 years based on the understanding that routine maintenance is undertaken. Our product range is offered as standard with a full two year manufacturers warranty.

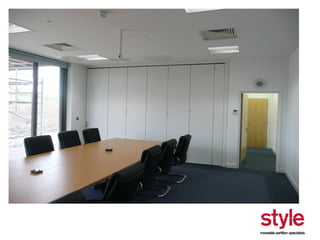

- Basically a continuously hinged set of panels anchored to the jamb. Acoustic performance up to 48dB possible with sweep strip seals that make contact with the underside of track and floor.
- Basically a continuously hinged set of panels anchored to the jamb. Acoustic performance up to 48dB possible with sweep strip seals that make contact with the underside of track and floor.
- Basically a continuously hinged set of panels anchored to the jamb. Acoustic performance up to 48dB possible with sweep strip seals that make contact with the underside of track and floor.

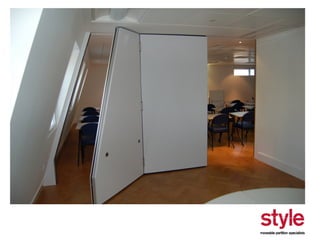

- When in position, it provides a flat and solid surface

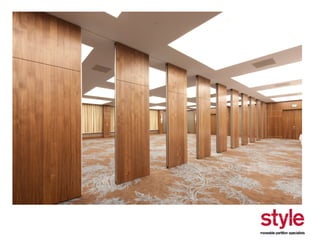

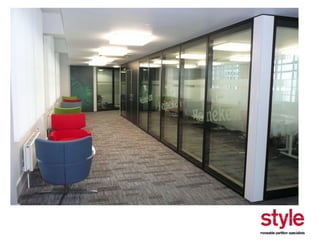

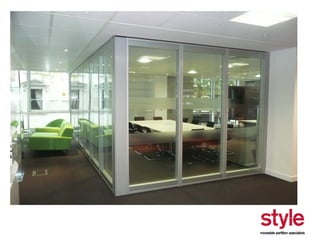

- Various finish options available, this installation reflects a Formica HPL finish.
- The end panel as standard acts as a full height access door, ideal product for simple room division especially if the budget is tight.

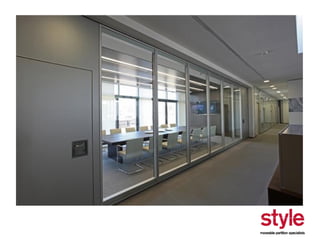

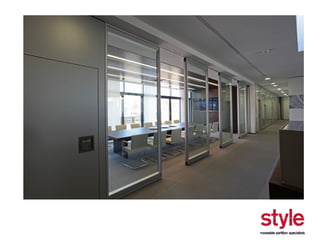

- Or a fully glazed system is possible
- Here we reflect two alternatives of head track fixing, with a suspended ceiling or with down stand pelmets.
- This system can also be supplied with a floor track were there is inadequate head support, basically all the weight it transferred to the floor however be mindful the floor level needs to be +/- 3mm!

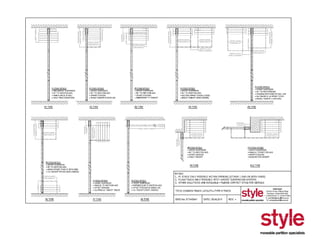

- A typical drawing that we would produce reflecting the system

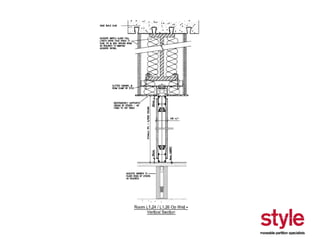

- Another typical project drawing, this time with a floor track, note the floor track is DDA compliant.
- Traditional folding walls are the next range of partitions and probably the most common within the market place This type of product is also used in various applications and uses and is very robust. We would expect the product to continue to operate effectively and efficiently for a period of at least 25 years based on the understanding that routine maintenance is undertaken. Our product range is offered as standard with a full two year manufacturers warranty. Within the industry today, this is certainly the most common however we will introduce you today to modifications that we have introduced to address H&S (Weight) & Maintenance (No moving parts) benefits.

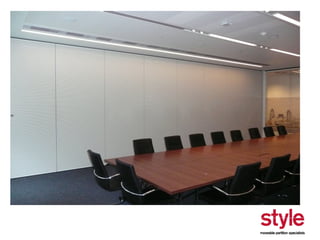

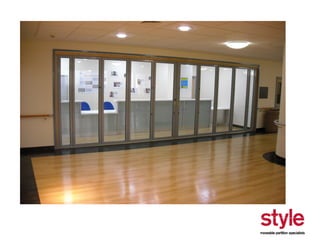

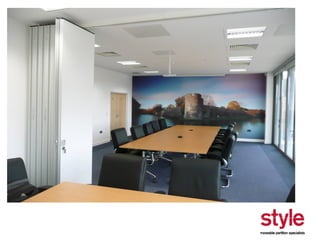

- Here we see a classroom with the panels parked to the side offering one large class
- Now the wall is closed offering two separate teaching areas.
- Typically these systems offer a typical 1000mm wide panel that slides and folds to the sides, either as we refer to single point or two point, these are options available. Be mindful on two point that wherever the tracks run a supporting structure above the track line is required.
- These details are available in PDF or DWG format if required or can be down loaded from our web site.
- This installation is within a school dining area with main hall on the other side.
- A stage area within a school
- A school gymnasium area, this installation has edge protection trims
- A school gymnasium area, this installation has edge protection trims
- A school gymnasium area, this installation has edge protection trims
- A school gymnasium area, this installation has edge protection trims
- A school gymnasium area, this installation has edge protection trims

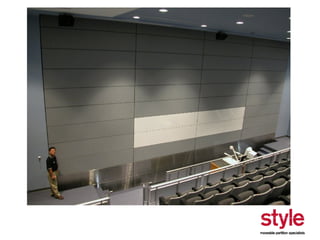

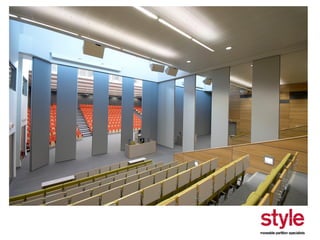

- Here we have a lecture theatre that can be sub divided into three separate teaching areas, complete flexibility with ease of operation and acoustic separation essential.

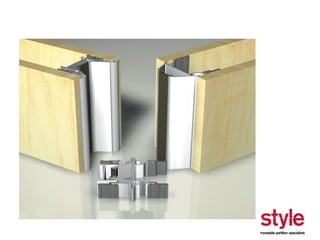

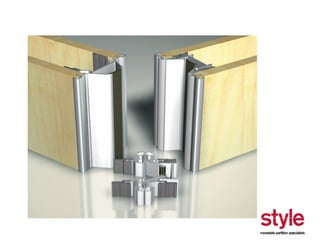

- At this point we would like just like to explain the difference between the “concealed” and “exposed” edges This detail reflects the “concealed” trims, basically all you see is a shadow gap between the panels.
- This detail reflects the “exposed” trims, basically an edge protection trim on the verticals of the panel edges, unless care is taken with moving the panels, the edges could become damaged and unsightly.

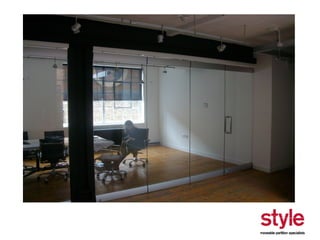

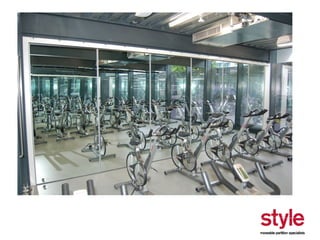

- And even mirrored finish if required!

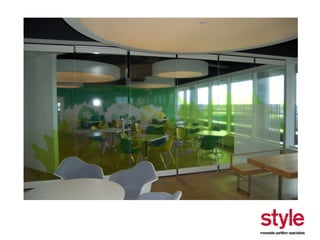

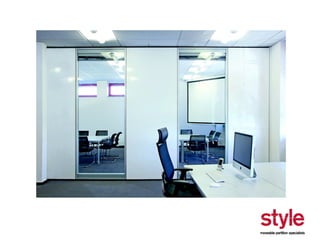

- We are also able to offer solid panels in combination with glass!

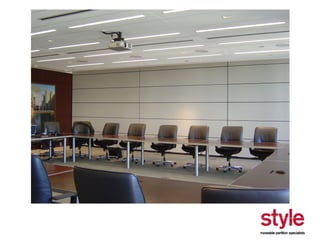

- Corporate boardrooms are a bigger user of glass however acoustics are essential and 50dB Rw is possible now!

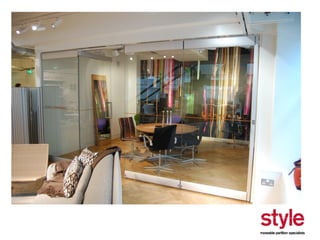

- Just in case anyone thought that this was a fixed wall, the same boardroom with the panels being moved.

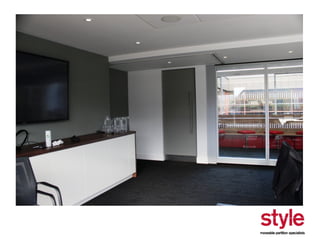

- Hospitals are also using the combination of panels, this installation is within an ICU unit where the nurses are able to control the electrically controlled blinds and raise or tilt as required.
- Hospitals are also using the combination of panels, this installation is within an ICU unit where the nurses are able to control the electrically controlled blinds and raise or tilt as required.
- Hospitals are also using the combination of panels, this installation is within an ICU unit where the nurses are able to control the electrically controlled blinds and raise or tilt as required.
- Hospitals are also using the combination of panels, this installation is within an ICU unit where the nurses are able to control the electrically controlled blinds and raise or tilt as required.
- Hospitals are also using the combination of panels, this installation is within an ICU unit where the nurses are able to control the electrically controlled blinds and raise or tilt as required.

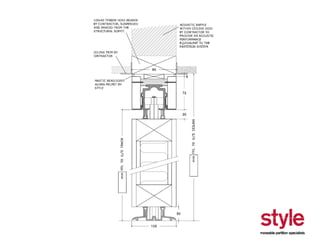

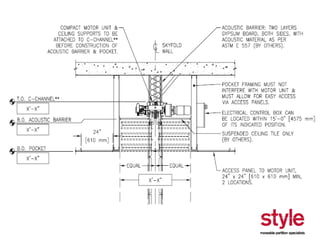

- This is a top hung system, here we are reflecting a typical head detail using beam clamps to a steel support.

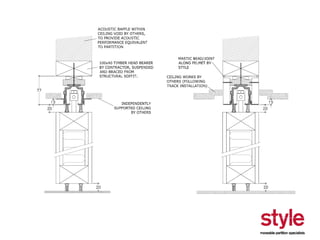

- This time we are reflecting the ceiling relationship, either with the track flush with the ceiling or up stood by 20mm for single point applications.
- One area that we will cover further on is acoustics and you will see from this photo that the head track is encased with a plasterboard baffle completely sealing the ceiling void area.
- Up until recently the manually operated system was the most common product, basically a winding mechanism within the panel itself as demonstrated, typical features are as follows

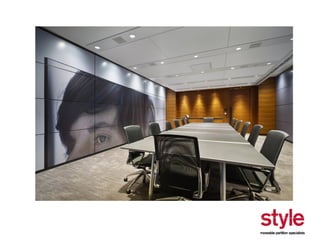

- Sound absorption improves the room efficiency, these are just some of the options available to you.
- A typical classroom with single point stacking walls.
- A typical classroom with single point stacking walls.
- Laminates and Melamine finishes are available, these are just some of the standard colours.

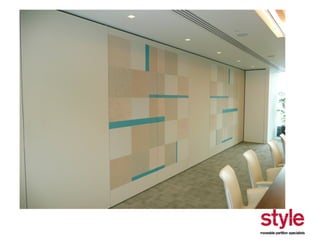

- Natural wood veneers are also desirable
- Working walls are a real benefit, these are just some additional finishes available.
- New technology comes in the form of “semi automatic”
- Seals are retracted when the panels are moving and they expand to the floor and underside of the track when in position
- This short video will hopefully answer all your questions related to the ease of use using “semi automatic” walls!

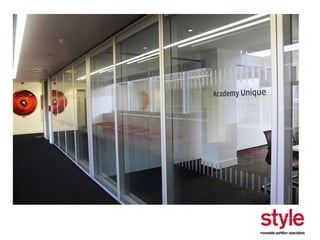

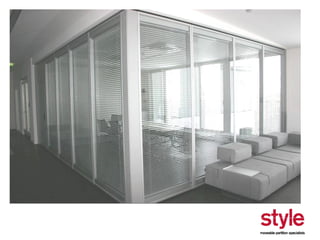

- Glass is so popular now, this system is a non-acoustic system however offers some excellent opportunities

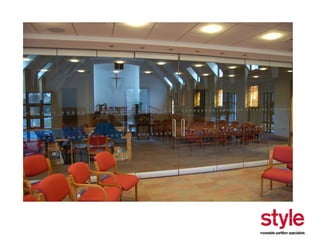

- Here the product is installed within a church building where visual appearance is essential but acoustics are not so important.

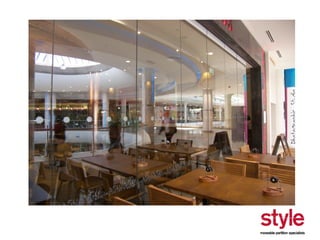

- Restaurants within shopping malls, simply fold the wall back and double the size off the restaurant!

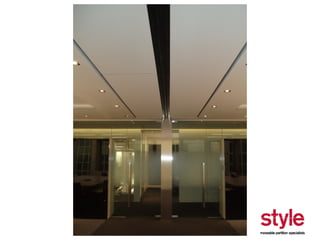

- Even offices use the product as whilst the product is not acoustically rated it will offer a form of privacy
- A similar office installation, this time within a canteen area, film manifestations can make the wall look even more attractive
- A similar office installation, this time within a canteen area, film manifestations can make the wall look even more attractive
- A similar office installation, this time within a canteen area, film manifestations can make the wall look even more attractive
- This product is a new concept of space division offering many benefits This type of product has now been used in various applications and uses and is very robust mainly as no one ever touches the product!. We would expect the product to continue to operate effectively and efficiently for a period of at least 30 years based on the understanding that routine maintenance is undertaken. Our product range is offered as standard with a full ten year manufacturers warranty.

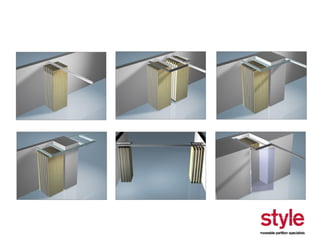

- The following three slides will reflect to you the concept. This first slide reflects the product in the closed position, the panels are flat, rigid and solid – there are no signs of hinges or escutcheons or operating handles, in fact we have heard on many occasions individuals actually stating that they never realised that this was a folding wall!

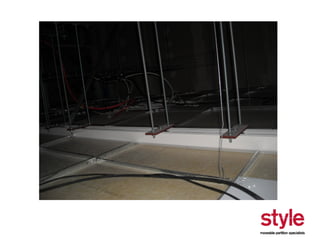

- This picture reflects the product rising vertically into the ceiling by simply turning a key

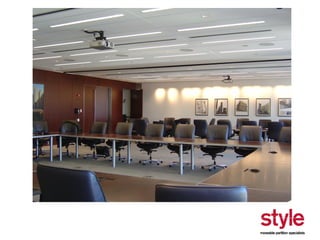

- And finally fully open in the stacked position within the ceiling. Not sure, if any one has noticed, however there are no side guides!
- This slide reflects the major interfaces to consider when using this product. Services Most services can be accommodated, it is a mistaken pre-conception to assume services cannot be run through the area above the stacking recess. Obviously the pocket area where the panels stack must remain clear, however services can be passed above this zone and easily accommodated around the fixing points. Where the pantograph assemblies fix to the hanger points, this area must remain clear, this occurs typically every 3.5 meters, with an additional fixing point approximately 750mm in from each end. This product is a modular system and the maximum panel width is 3650mm, therefore on a 5000mm wide opening, there would be three fixing points as reflected on this detail. 2. Motor At the position of the motor and at every hanging point we will require an access panel each side of the opening for future maintenance works, the product operates using a motor drive that in turn lifts cables that are fitted to the bottom rail therefore the inspection points are purely to ensure that the cables are lifting correctly on the cable drums and alignment is ensured. We would suggest a maintenance visit at least once every 12 months but this is dependant on usage. Our control panel will identify the amount of operations and also has a sophisticated fault reporting system that can be identified by our field engineers using a hand held control unit. 3. Ceilings Consideration must be given particularly within the pocket recess area, down lights can be considered and used to maximise the impact of the partition. 4. Safety The product has two safety features as standard. The first is a spring loaded (constant pressure) key switch that should be positioned adjacent to the wall position and in sight of the opening that will ensure that the operator can see any potential hazards. On a public space (i.e. school) we would recommend that a key switch is positioned either side of the opening that requires both keys to be turned simultaneously. The second feature is a pneumatic safety edge running along the entire bottom rail that when coming into contact with any obstruction will stop the wall immediately.
- Like previously, this is a video to allow you to understand how the wall actually operates.
- This picture reflects what it actually looks like on a site with the panels sat within the ceiling

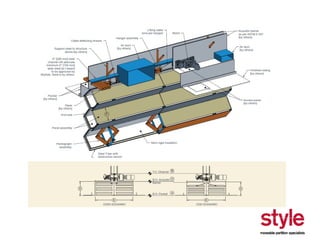

- This is a typical detail reflecting the panels stacked within the ceiling void. For your information, the system when in the closed position is 300mm wide, basically when the panels are stacked up within the ceiling you see the bottom panel from each side as it concertinas up into the fully open position.

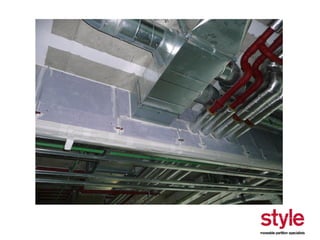

- Acoustic performance is achieved by utilising an anechoic or dead chamber of air between each panel skin of the partition rather than adding density and weight. CLICK The product has been laboratory tested and can achieve a rating of 51dB or 56dB in accordance with BS EN ISO 717-1, the product tested was a fully automated product and as far as we are aware this is the only automated product tested in a laboratory! CLICK With the construction of the product and materials used, the on site performance is reflected with a test of 46dB based on a 51dB Rw product CLICK Two walls side by side achieved 62dB using two 51dB Rw products
- This picture reflects a fabric wrapped panel with a stainless steel skirting panel to each side. Remember the bottom panel from each side will be what is visually seen from the floor when the partition is fully opened and stacked within the ceiling.
- Stainless steel panels can be supplied, these can be polished or plain galvanised panels can be supplied. We have recently installed two wall within the O2 arena, the sides that face the main arena have a stainless finish, the other side has a galvanised finish.
- Anything can be added to the face – max thickness of 3mm
- Not only can we accommodate a myriad of finishes, this is a lecture theatre that is also used with a projection surface
- We can totally revolutionise the way space is used and areas are designed.
- A view from the other side, two auditoriums or one??

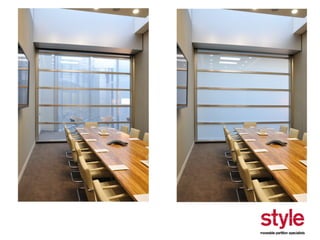

- Glass is also an option with this vertically rising system, with either solid panels incorporated or not. This is the first moving wall in the world that has used the Privalite glass system

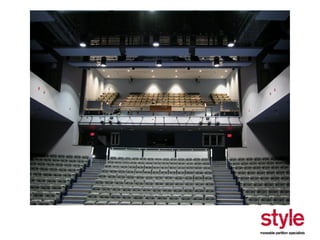

- Auditoriums have always caused problems, not anymore!

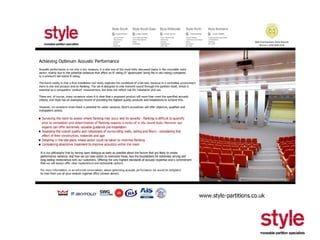

- We will leave you today three handout sheets that will offer you some key information specifically related to Acoustics. The Acoustic Check List is what we demonstrated to you earlier within this presentation, it will provide the pointers you should be looking out for when a supplier is put in front of you however, like mentioned earlier, its not always what it appears to be! Be careful! The other two documents are standard documents related to the use of folding walls, we can forward these to you as PDF documents if required and provide a simple introduction to terminology and what we should all be looking out for.
- We will leave you today three handout sheets that will offer you some key information specifically related to Acoustics. The Acoustic Check List is what we demonstrated to you earlier within this presentation, it will provide the pointers you should be looking out for when a supplier is put in front of you however, like mentioned earlier, its not always what it appears to be! Be careful! The other two documents are standard documents related to the use of folding walls, we can forward these to you as PDF documents if required and provide a simple introduction to terminology and what we should all be looking out for.
- This product is a new concept of space division offering many benefits This type of product has now been used in various applications and uses and is very robust mainly as no one ever touches the product!. We would expect the product to continue to operate effectively and efficiently for a period of at least 30 years based on the understanding that routine maintenance is undertaken. Our product range is offered as standard with a full ten year manufacturers warranty.

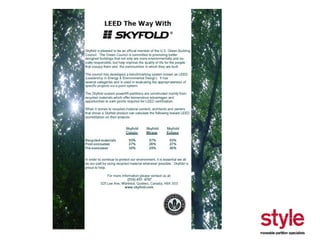

- This vertically rising system is manufactured in Canada and is regularly used in the US therefore we are pleased to confirm that this product has recyclable content up to 97%!
- Has anyone been to Excel before??

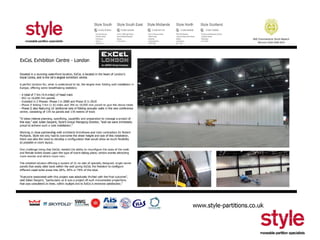

- 4.4 miles of folding wall track has been installed – each hall can be subdivided into many different sizes to allow complete flexibility We can provide more information if required however these panels are 10000mm high however a current project is being looked at that requires a 21000mm height!

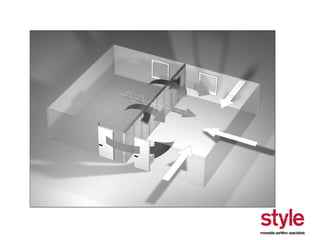

- Acoustics!!!! Don’t be fooled – the “on site” performance will be only as good as the surrounding structure – “flanking” has to be understood

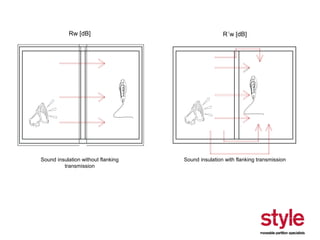

- Rw or R’w – explain the difference between laboratory test standards

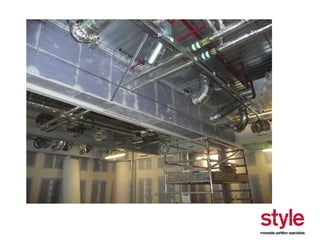

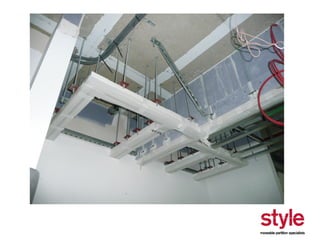

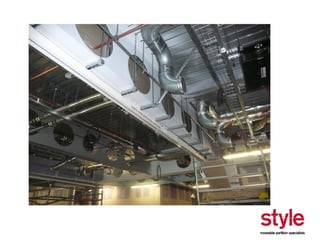

- This photo reflects a head track that has been fixed around a structural steel
- The same installation, now clad in plasterboard (2 layers with a Rockwool infill) including sealing around penetrations
- The same installation, now clad in plasterboard (2 layers with a Rockwool infill) including sealing around penetrations
- The same installation, now clad in plasterboard (2 layers with a Rockwool infill) including sealing around penetrations
- The same installation, now clad in plasterboard (2 layers with a Rockwool infill) including sealing around penetrations
- The same installation, now clad in plasterboard (2 layers with a Rockwool infill) including sealing around penetrations

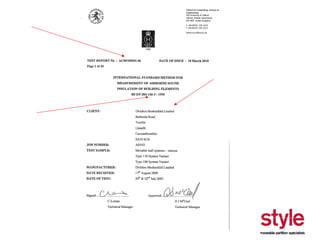

- The graph is important, it is supplied with any test to as standard This is a summary, to support any summary is a full test, any company should be able to supply the full test data, any resistance possibly reflects a problem!!! If in doubt ask for a letter of authority from the Applicant that the supplier is allowed to use the certificate.
- Here is a checklist, this forms part of the hand out at the end of this presentation.
- Here is a checklist, this forms part of the hand out at the end of this presentation.
- Here is a checklist, this forms part of the hand out at the end of this presentation.
- Here is a checklist, this forms part of the hand out at the end of this presentation.
- Here is a checklist, this forms part of the hand out at the end of this presentation.
- The graph is important, it is supplied with any test to as standard This is a summary, to support any summary is a full test, any company should be able to supply the full test data, any resistance possibly reflects a problem!!! If in doubt ask for a letter of authority from the Applicant that the supplier is allowed to use the certificate.
- From this picture – can you establish which car has the 2Lt engine and which one has the 3Lt engine? No – please hold this thought as like folding walls – you cannot determine what is inside!!!
- The graph is important, it is supplied with any test to as standard This is a summary, to support any summary is a full test, any company should be able to supply the full test data, any resistance possibly reflects a problem!!! If in doubt ask for a letter of authority from the Applicant that the supplier is allowed to use the certificate.
- Here is a checklist, this forms part of the hand out at the end of this presentation.
- It is vitally important that consideration is given to these areas that hopefully we have demonstrated in this short period today. If consideration is not given, then the results could be:

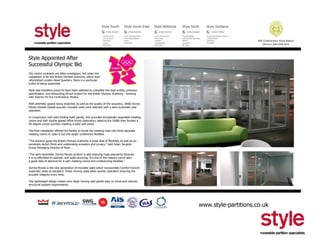

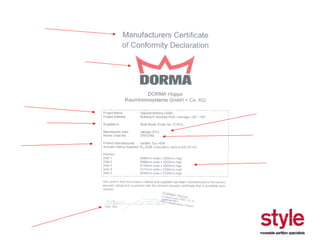

- AIS – Association of Interior Specialists – Gold award winners for the last three consecutive years.

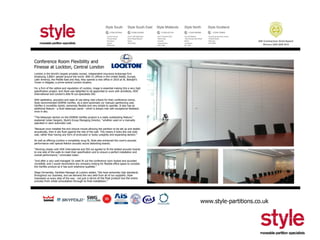

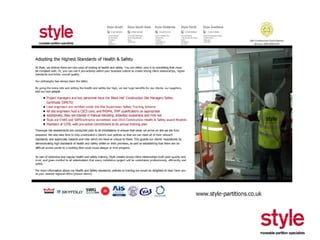

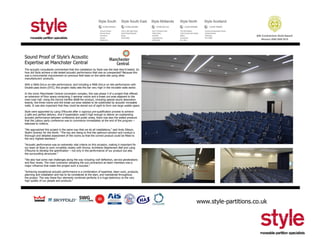

- Case Studies are also available, these can be downloaded from our web site or we can send these in PDF format Case Studies are provided and they not only reflect product related issues, this particular case study reflects H&S issues! Style are proud of our approach along with our manufacturing partners towards H&S, Products have been re-designed (Moveo Semi Automatic) to reduce weights and we are always reviewing our working practices including allowing for fork lift off loads on vehicles to provide assistance on lifting heavy panels from large vehicles. Thought must be given at design stage on how heavy panels will be distributed throughout buildings, its not easy to bend a 5000mm high panel that is 1000mm wide and weighs approximately 250kgs up a staircase! Please talk to us as early as possible as we have solutions, detachable panel faces, frames built on site etc, there will be in most instances a solution, we just need to work on it!
- Case Studies are also available, these can be downloaded from our web site or we can send these in PDF format
- Another case study
- And another
- Acoustics as well
- At the beginning we reflected we have five regional offices, we operate within geographical areas to offer local service
