1. Student Resource Planner
Keyur Shah
Lyon Pinto
Nikita Ahuja
Tejal Kanase
D
December 8, 2014 11 am
Client: Center of Health, Information and Decision
System (CHIDS) in Robert H Smith School of Business

2. Mission Statement & Objectives

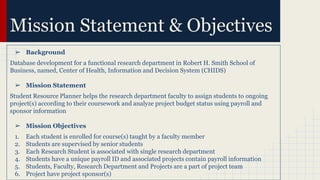

➢ Background
Database development for a functional research department in Robert H. Smith School of
Business, named, Center of Health, Information and Decision System (CHIDS)
➢ Mission Statement
Student Resource Planner helps the research department faculty to assign students to ongoing
project(s) according to their coursework and analyze project budget status using payroll and
sponsor information
➢ Mission Objectives
1. Each student is enrolled for course(s) taught by a faculty member
2. Students are supervised by senior students
3. Each Research Student is associated with single research department
4. Students have a unique payroll ID and associated projects contain payroll information
5. Students, Faculty, Research Department and Projects are a part of project team
6. Project have project sponsor(s)

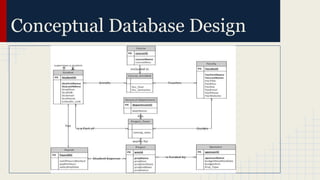

3. Conceptual Database Design

4. Logical Database Design

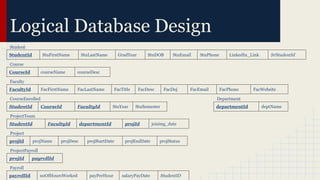

Student
StudentId StuFirstName StuLastName GradYear StuDOB StuEmail StuPhone LinkedIn_Link SrStudentId
CourseId courseName courseDesc
Course
FacultyId FacFirstName FacLastName FacTitle FacDesc FacDoj FacEmail FacPhone FacWebsite
Faculty
StudentId CourseId FacultyId StuYear StuSemester
CourseEnrolled
departmentId deptName
Department
StudentId FacultyId departmentId projId joining_date
ProjectTeam
projId projName projDesc projStartDate projEndDate projStatus
Project
projId payrollId
ProjectPayroll
Payroll
payrollId noOfHoursWorked payPerHour salaryPayDate StudentID

5. Physical Database Design

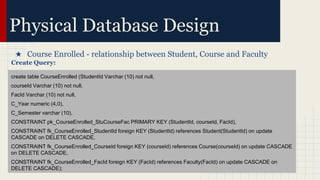

★ Course Enrolled - relationship between Student, Course and Faculty
Create Query:
create table CourseEnrolled (StudentId Varchar (10) not null,
courseId Varchar (10) not null,
FacId Varchar (10) not null,
C_Year numeric (4,0),
C_Semester varchar (10),
CONSTRAINT pk_CourseEnrolled_StuCourseFac PRIMARY KEY (StudentId, courseId, FacId),
CONSTRAINT fk_CourseEnrolled_StudentId foreign KEY (StudentId) references Student(StudentId) on update
CASCADE on DELETE CASCADE,
CONSTRAINT fk_CourseEnrolled_CourseId foreign KEY (courseId) references Course(courseId) on update CASCADE
on DELETE CASCADE,
CONSTRAINT fk_CourseEnrolled_FacId foreign KEY (FacId) references Faculty(FacId) on update CASCADE on
DELETE CASCADE);

6. Physical Database Design

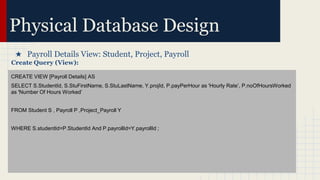

★ Payroll Details View: Student, Project, Payroll
Create Query (View):
CREATE VIEW [Payroll Details] AS
SELECT S.StudentId, S.StuFirstName, S.StuLastName, Y.projId, P.payPerHour as 'Hourly Rate’, P.noOfHoursWorked
as 'Number Of Hours Worked’
FROM Student S , Payroll P ,Project_Payroll Y
WHERE S.studentId=P.StudentId And P.payrollId=Y.payrollId ;

7. Use Case

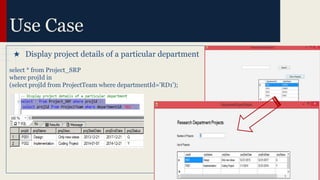

★ Display project details of a particular department
select * from Project_SRP
where projId in
(select projId from ProjectTeam where departmentId='RD1');

8. Use Case

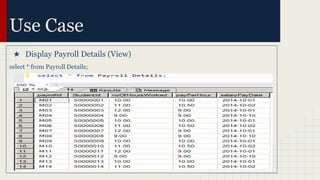

★ Display Payroll Details (View)
select * from Payroll Details;

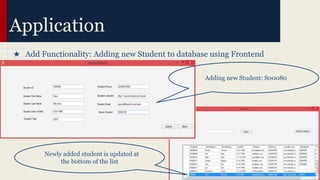

9. ★ Add Functionality: Adding new Student to database using Frontend
Application
Newly added student is updated at
the bottom of the list
Adding new Student: S00080

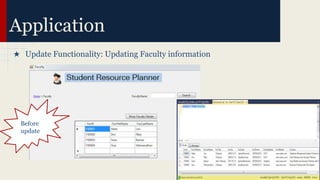

10. ★ Update Functionality: Updating Faculty information
Before
update
Application

11. ★ Update Functionality: Updating Faculty information
While
updating
Application

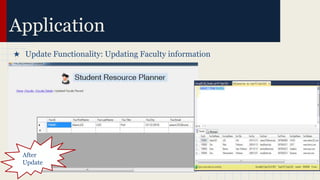

12. ★ Update Functionality: Updating Faculty information
After
Update
Application
