This document discusses using Vagrant and provisioning tools like Puppet, Ansible, and PuPHPet.com to configure and provision virtual machines for local development. Vagrant provides a layer on top of virtual machine providers like VirtualBox to manage virtual machines via commands and configuration files. Provisioning tools like Puppet, Ansible, and PuPHPet.com can be used to automate the installation and configuration of software on Vagrant virtual machines. PuPHPet.com is a web interface that generates Puppet manifests and Vagrant configurations for common LAMP stack configurations.

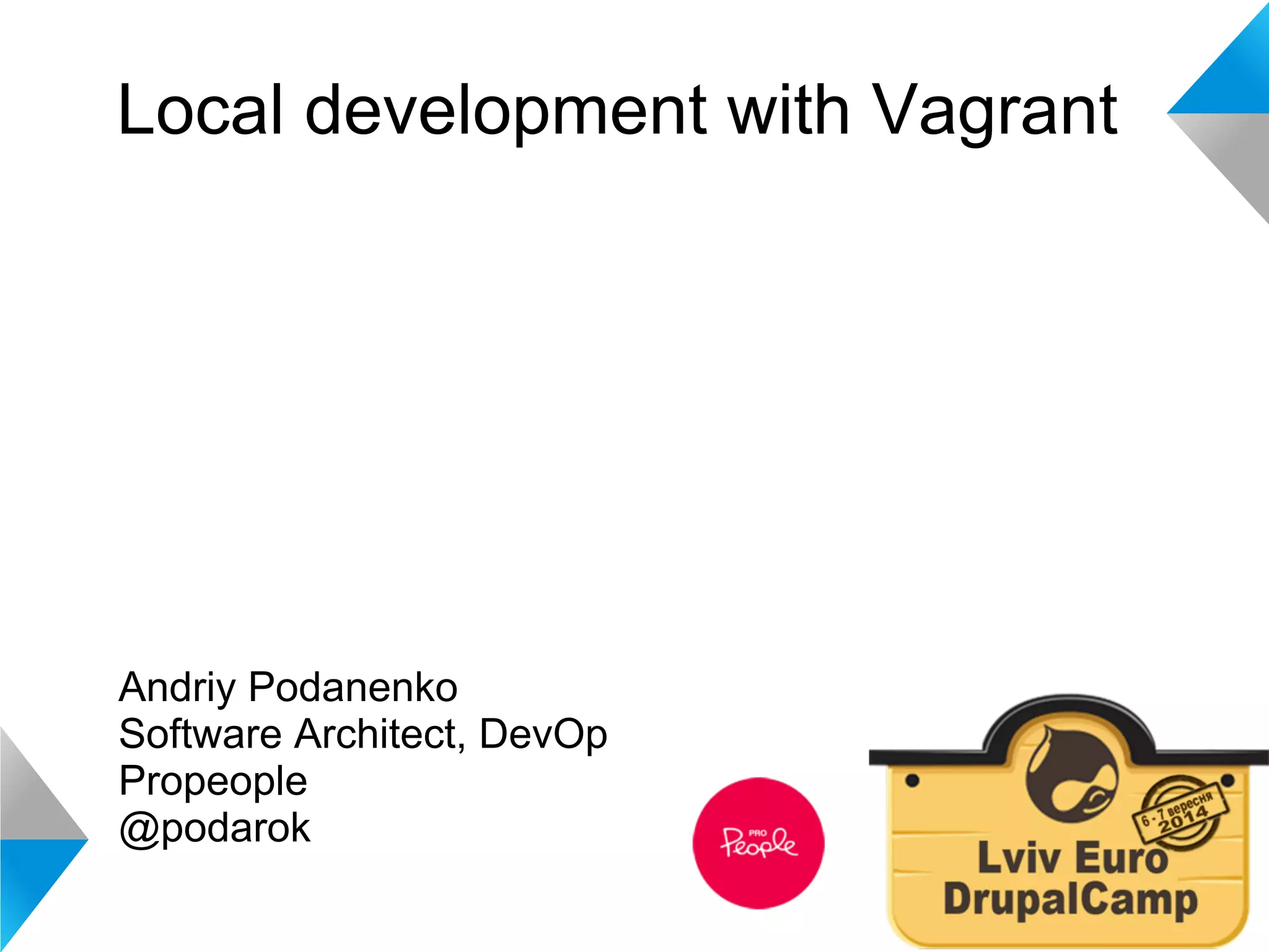

1. Local development with Vagrant
Andriy Podanenko
Software Architect, DevOp
Propeople
@podarok

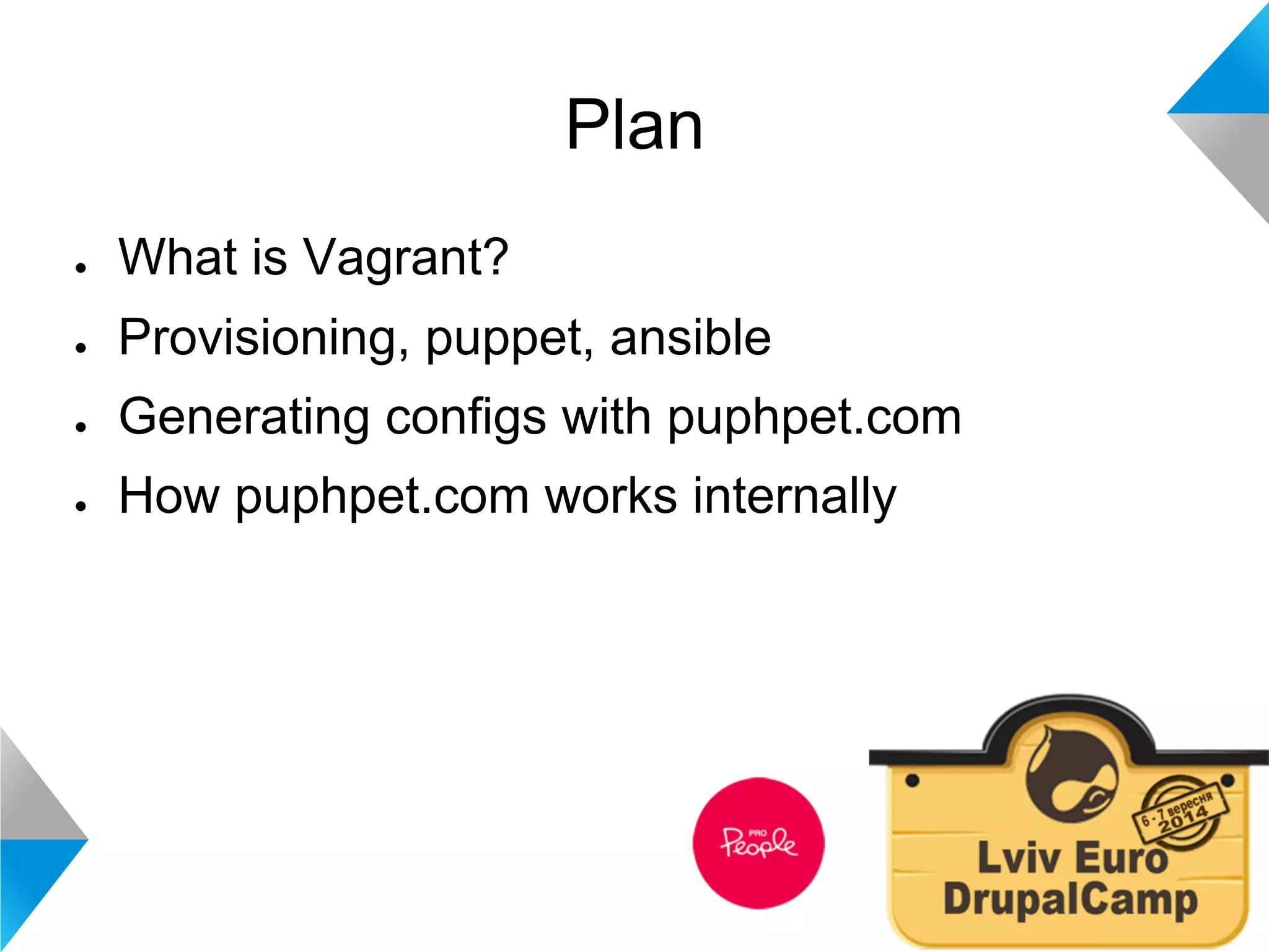

2. Plan
● What is Vagrant?
● Provisioning, puppet, ansible
● Generating configs with puphpet.com
● How puphpet.com works internally

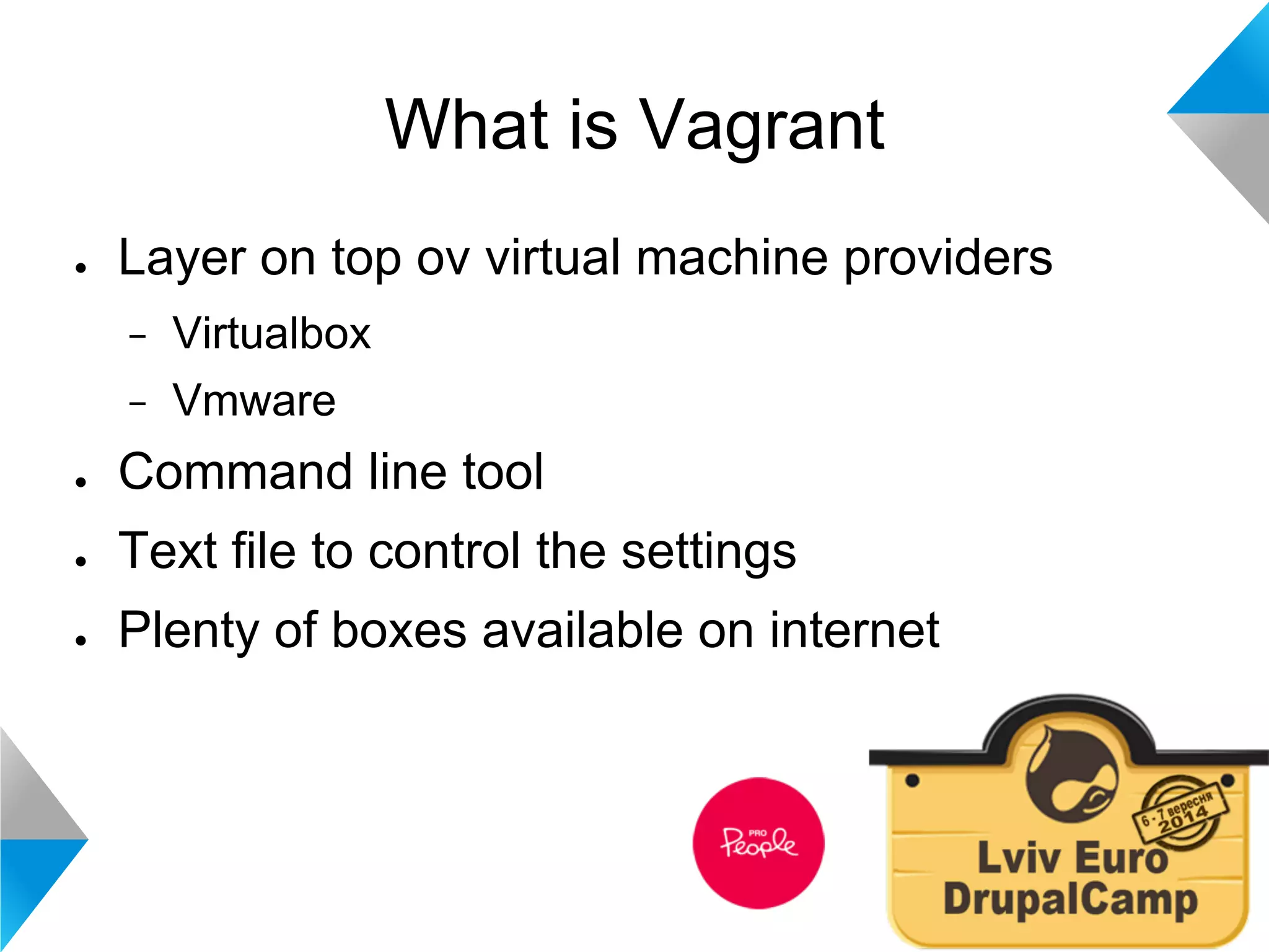

3. What is Vagrant
● Layer on top ov virtual machine providers
− Virtualbox
− Vmware
● Command line tool
● Text file to control the settings
● Plenty of boxes available on internet

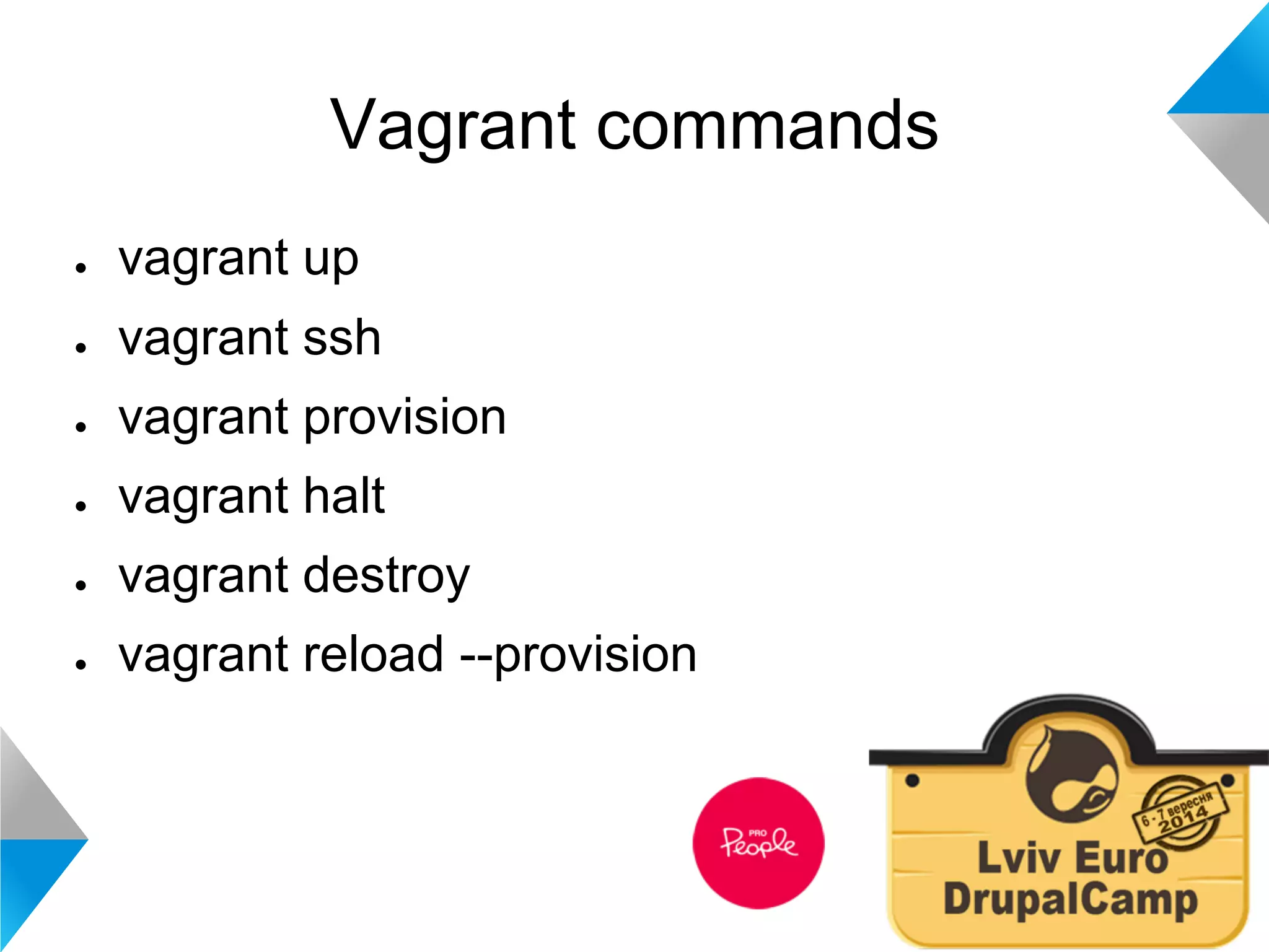

4. Vagrant commands
● vagrant up
● vagrant ssh
● vagrant provision
● vagrant halt
● vagrant destroy
● vagrant reload --provision

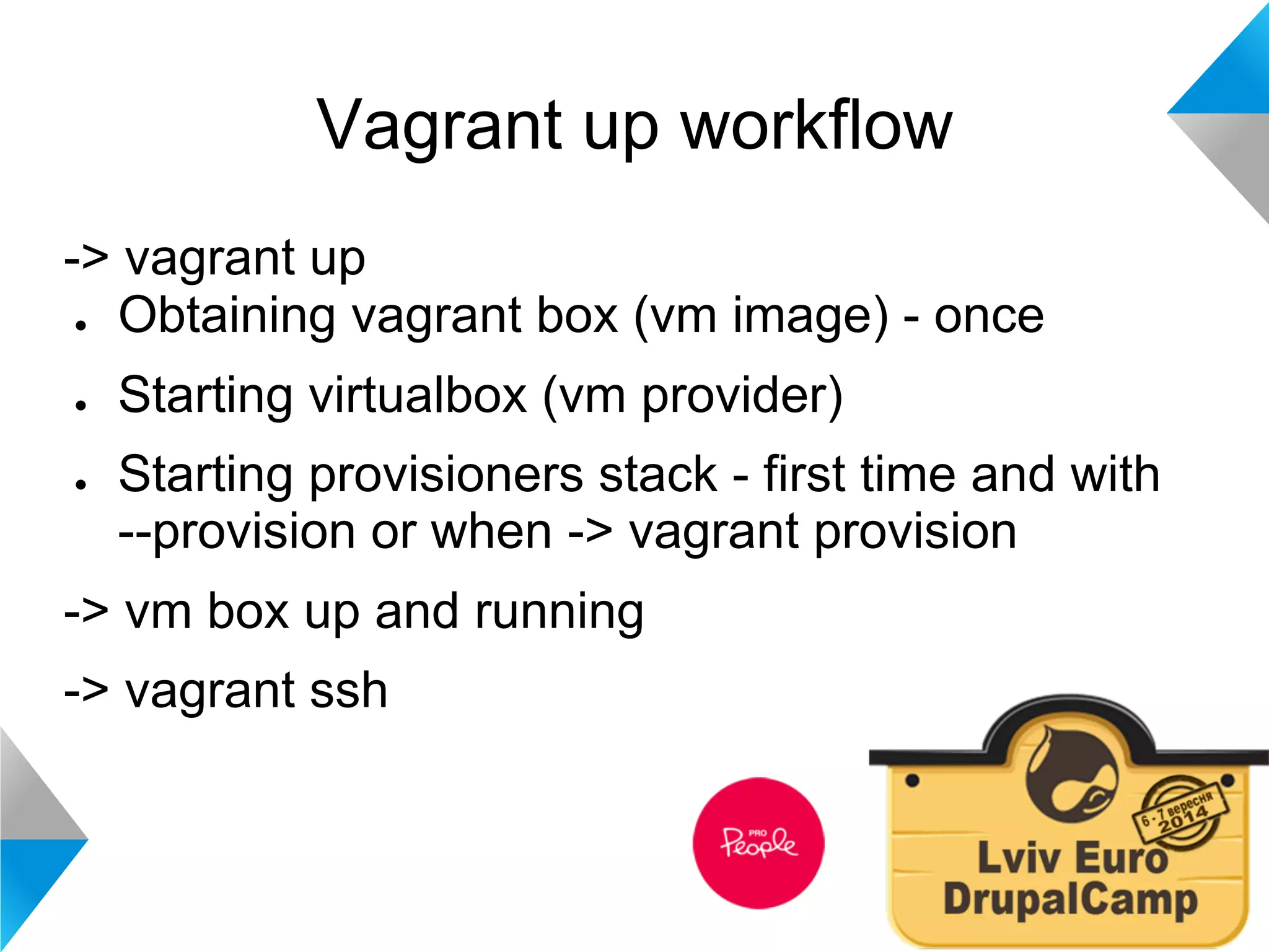

5. Vagrant up workflow
-> vagrant up
● Obtaining vagrant box (vm image) - once
● Starting virtualbox (vm provider)
● Starting provisioners stack - first time and with
--provision or when -> vagrant provision
-> vm box up and running
-> vagrant ssh

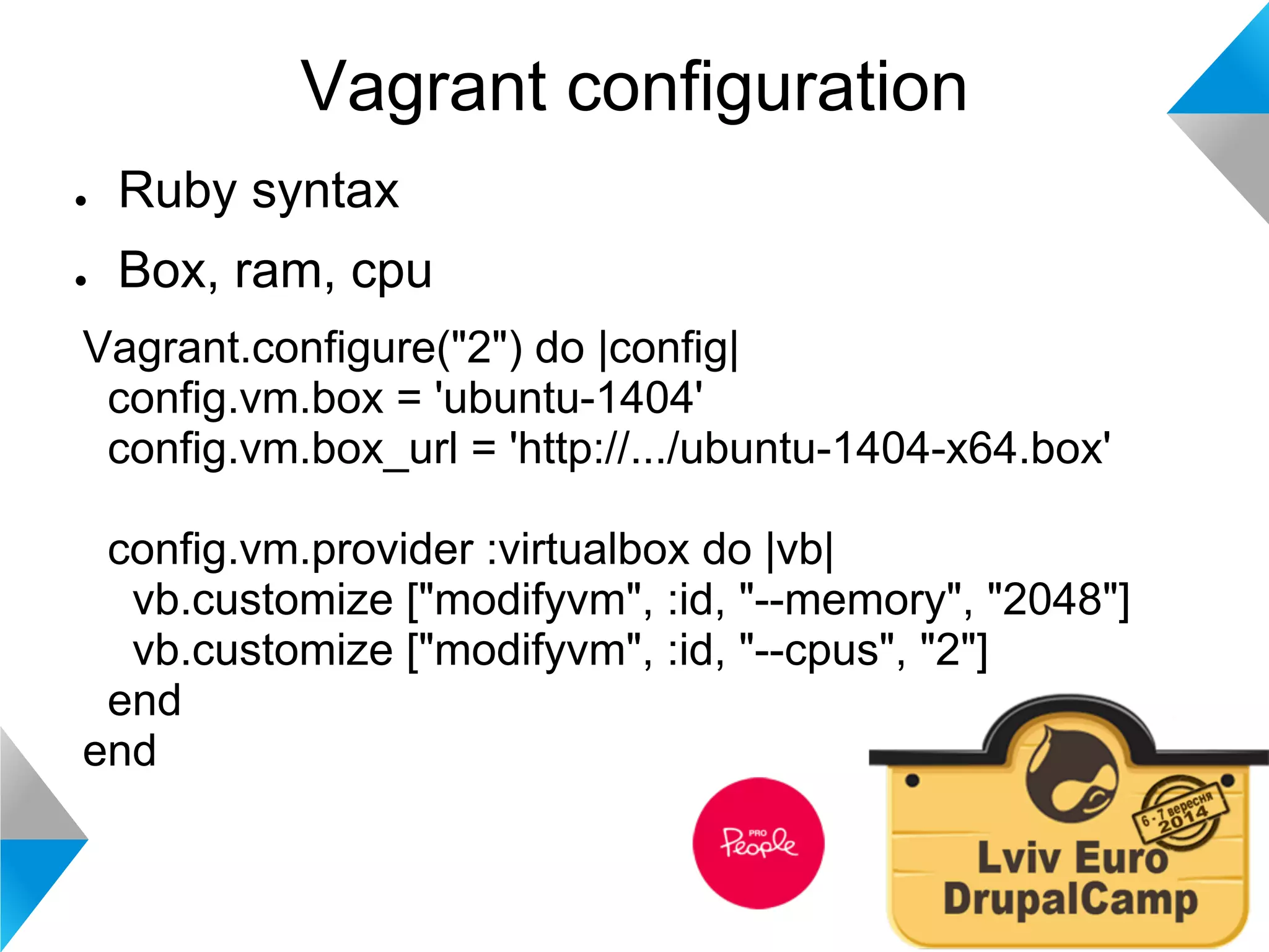

6. Vagrant configuration
● Ruby syntax
● Box, ram, cpu
Vagrant.configure("2") do |config|
config.vm.box = 'ubuntu-1404'
config.vm.box_url = 'http://.../ubuntu-1404-x64.box'
config.vm.provider :virtualbox do |vb|
vb.customize ["modifyvm", :id, "--memory", "2048"]
vb.customize ["modifyvm", :id, "--cpus", "2"]
end
end

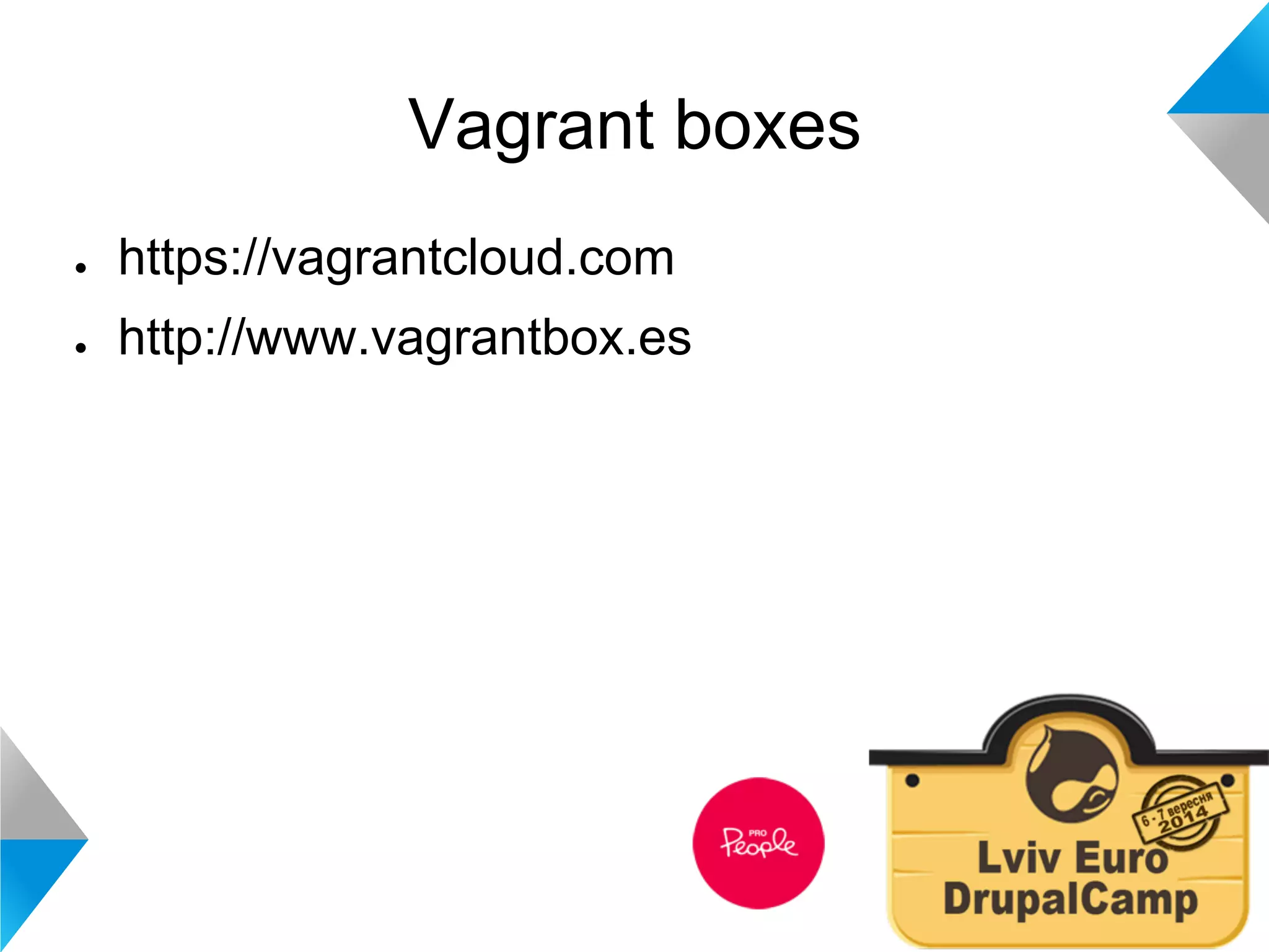

7. Vagrant boxes
● https://vagrantcloud.com
● http://www.vagrantbox.es

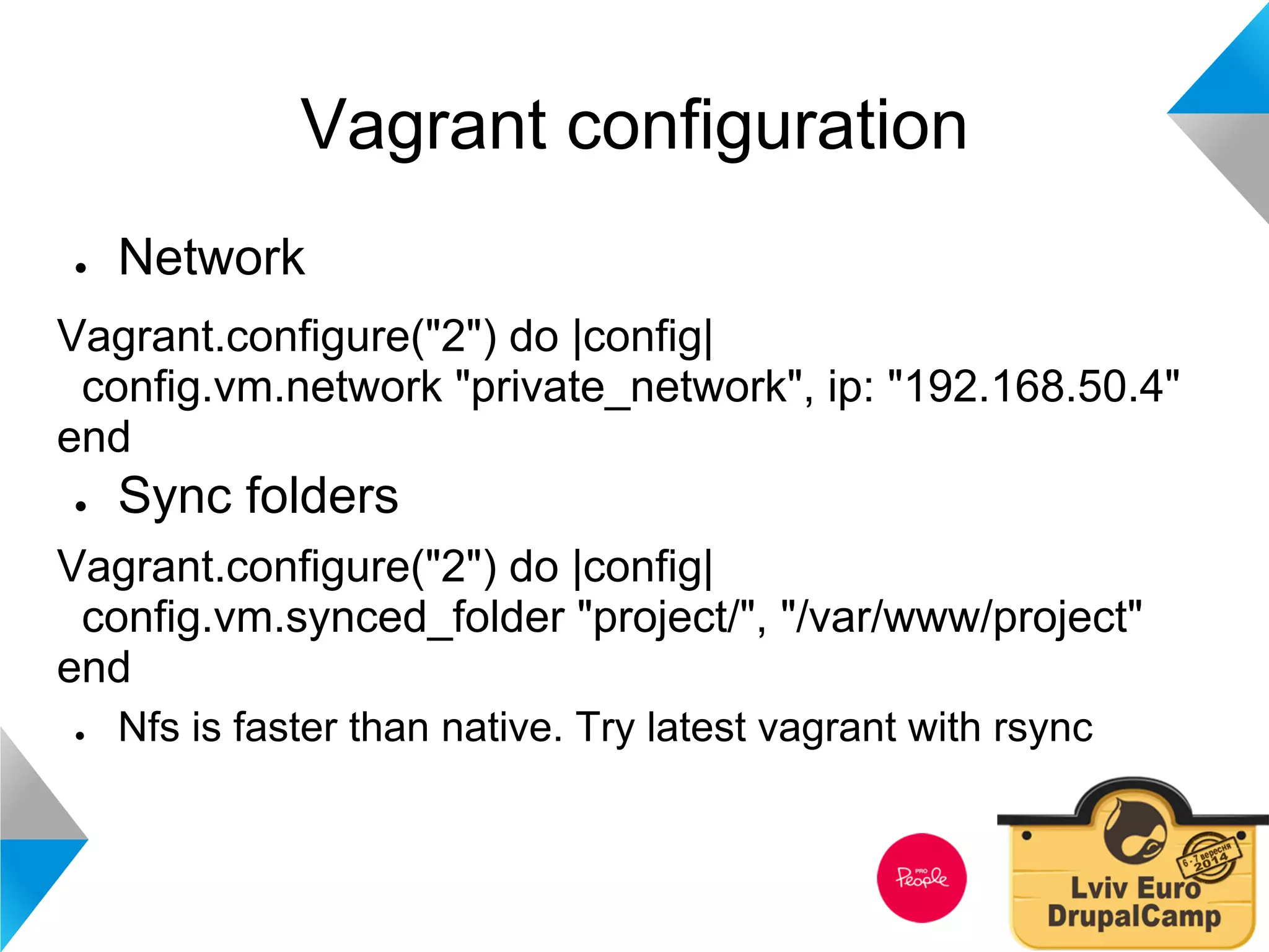

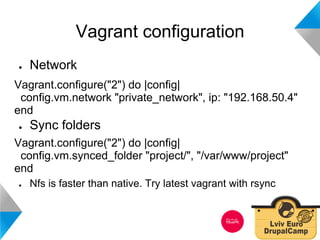

8. Vagrant configuration
● Network
Vagrant.configure("2") do |config|
config.vm.network "private_network", ip: "192.168.50.4"
end
● Sync folders
Vagrant.configure("2") do |config|
config.vm.synced_folder "project/", "/var/www/project"
end
● Nfs is faster than native. Try latest vagrant with rsync

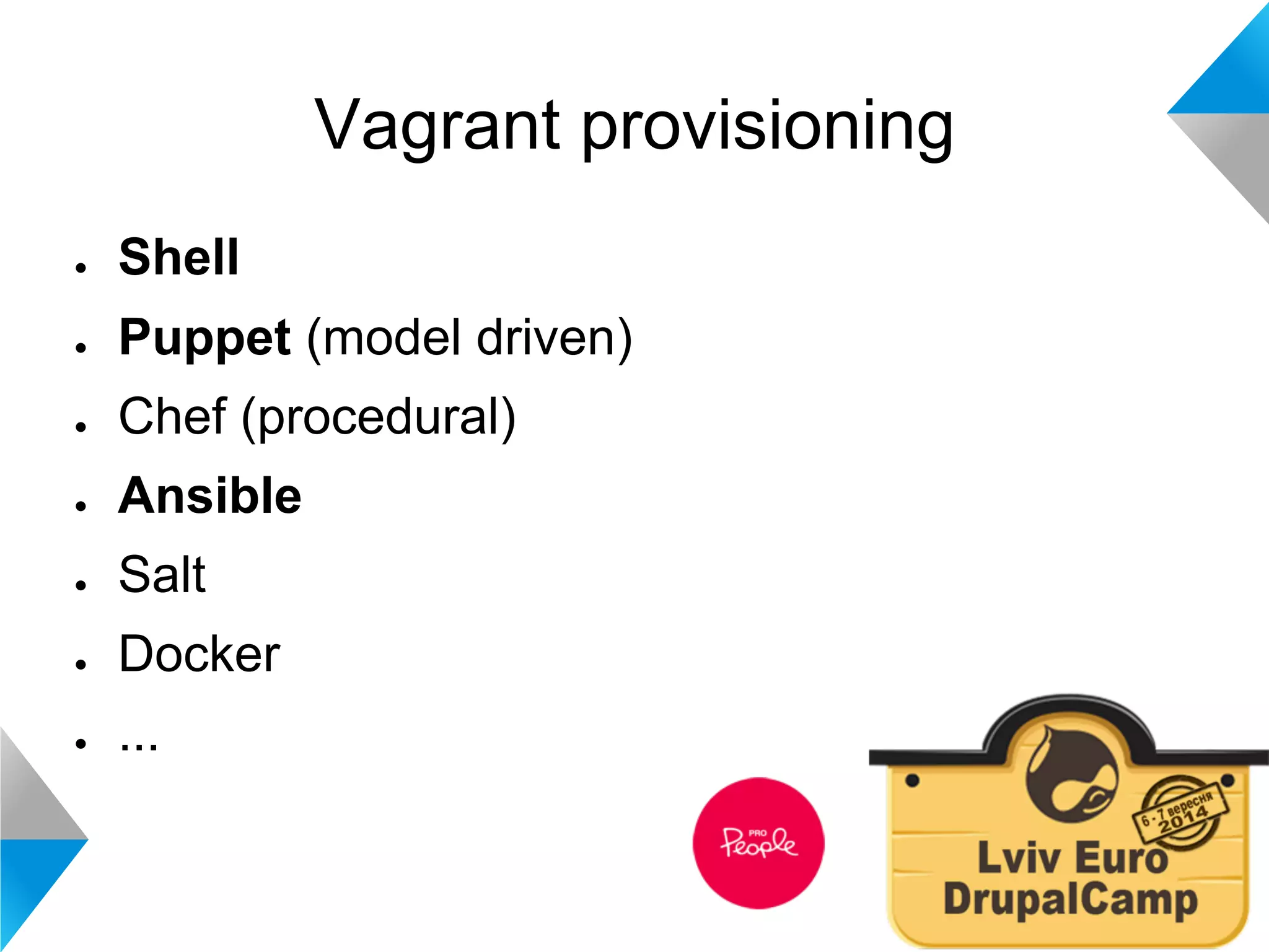

9. Vagrant provisioning
● Shell
● Puppet (model driven)
● Chef (procedural)
● Ansible
● Salt
● Docker
● ...

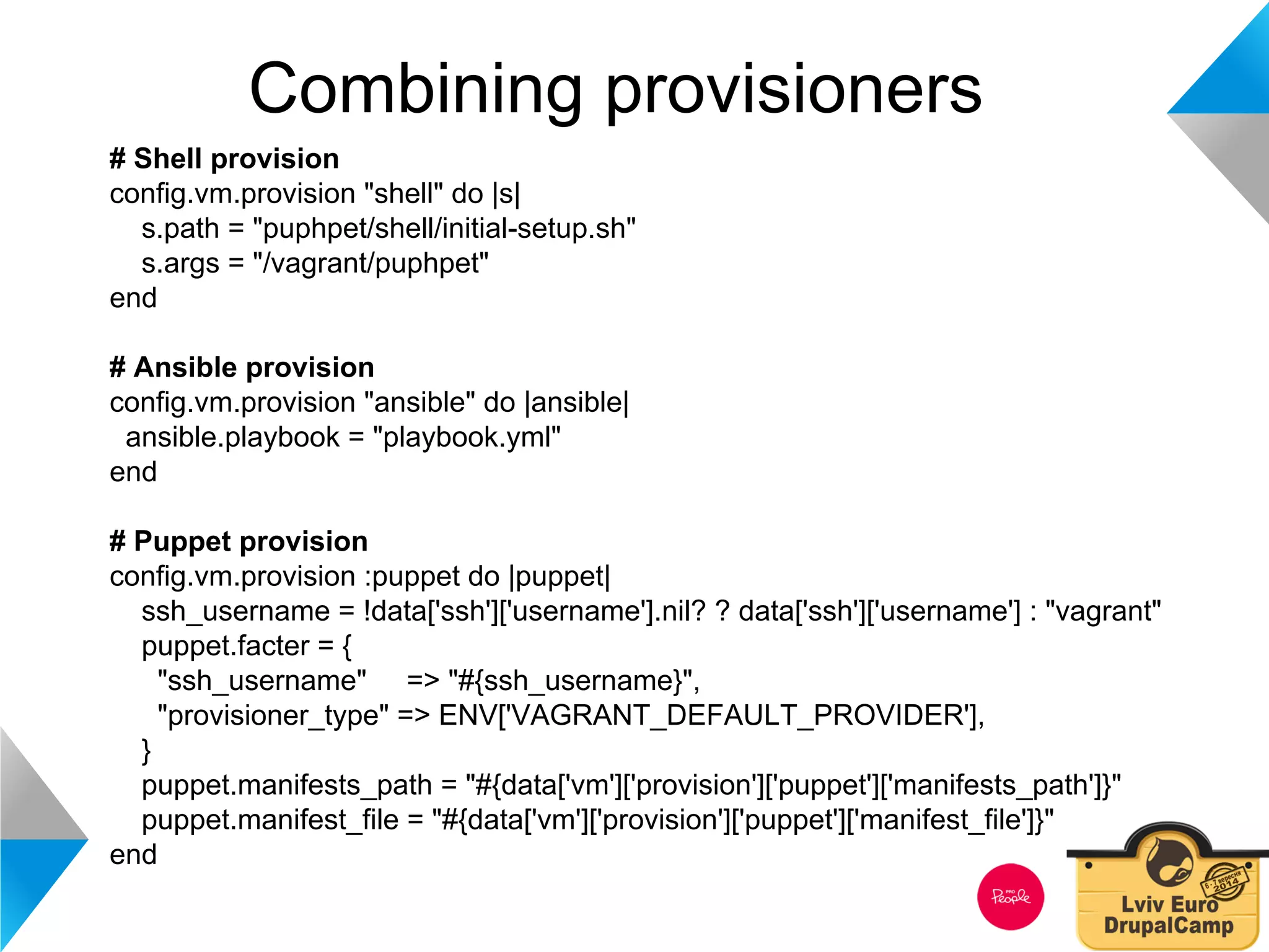

10. Combining provisioners
# Shell provision
config.vm.provision "shell" do |s|
s.path = "puphpet/shell/initial-setup.sh"
s.args = "/vagrant/puphpet"
end
# Ansible provision
config.vm.provision "ansible" do |ansible|
ansible.playbook = "playbook.yml"
end
# Puppet provision
config.vm.provision :puppet do |puppet|
ssh_username = !data['ssh']['username'].nil? ? data['ssh']['username'] : "vagrant"
puppet.facter = {
"ssh_username" => "#{ssh_username}",
"provisioner_type" => ENV['VAGRANT_DEFAULT_PROVIDER'],
}
puppet.manifests_path = "#{data['vm']['provision']['puppet']['manifests_path']}"
puppet.manifest_file = "#{data['vm']['provision']['puppet']['manifest_file']}"
end

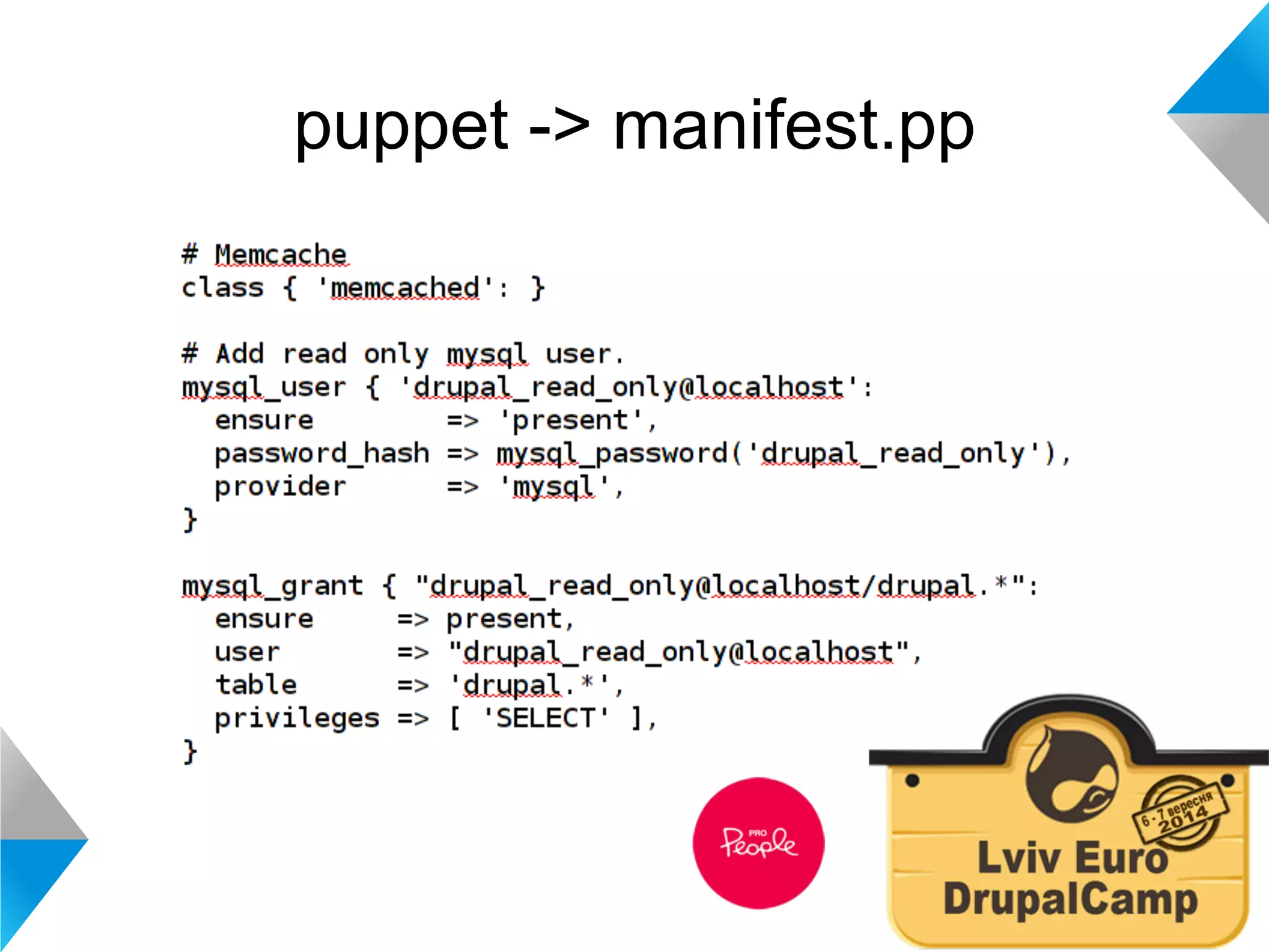

11. puppet -> manifest.pp

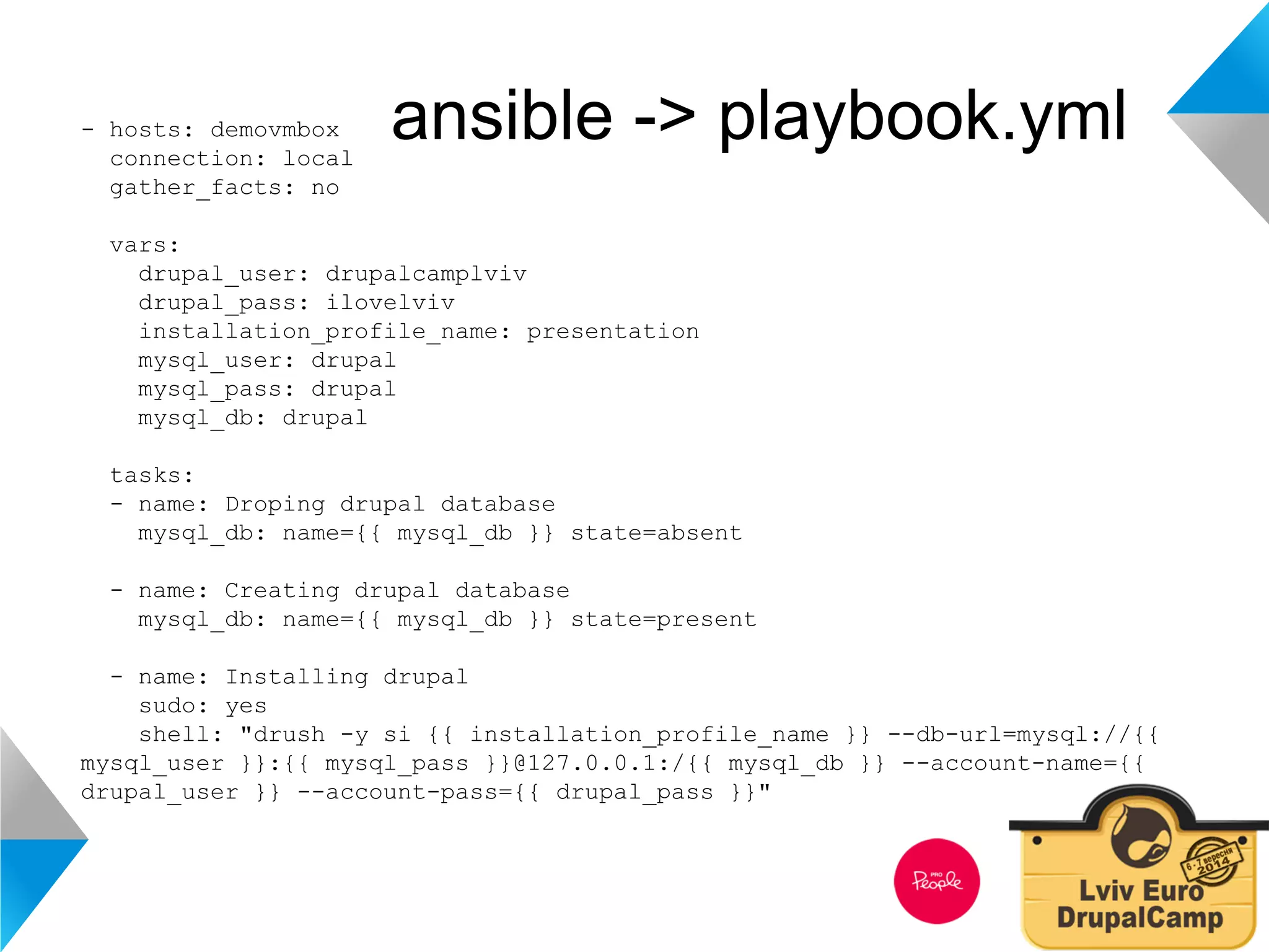

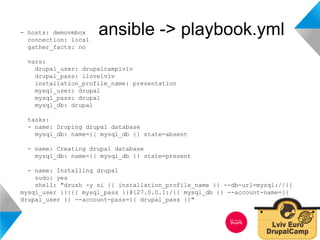

12. - hosts: demovmbox ansible -> playbook.yml
connection: local
gather_facts: no
vars:
drupal_user: drupalcamplviv
drupal_pass: ilovelviv
installation_profile_name: presentation
mysql_user: drupal
mysql_pass: drupal
mysql_db: drupal
tasks:
- name: Droping drupal database
mysql_db: name={{ mysql_db }} state=absent
- name: Creating drupal database
mysql_db: name={{ mysql_db }} state=present
- name: Installing drupal
sudo: yes
shell: "drush -y si {{ installation_profile_name }} --db-url=mysql://{{
mysql_user }}:{{ mysql_pass }}@127.0.0.1:/{{ mysql_db }} --account-name={{
drupal_user }} --account-pass={{ drupal_pass }}"

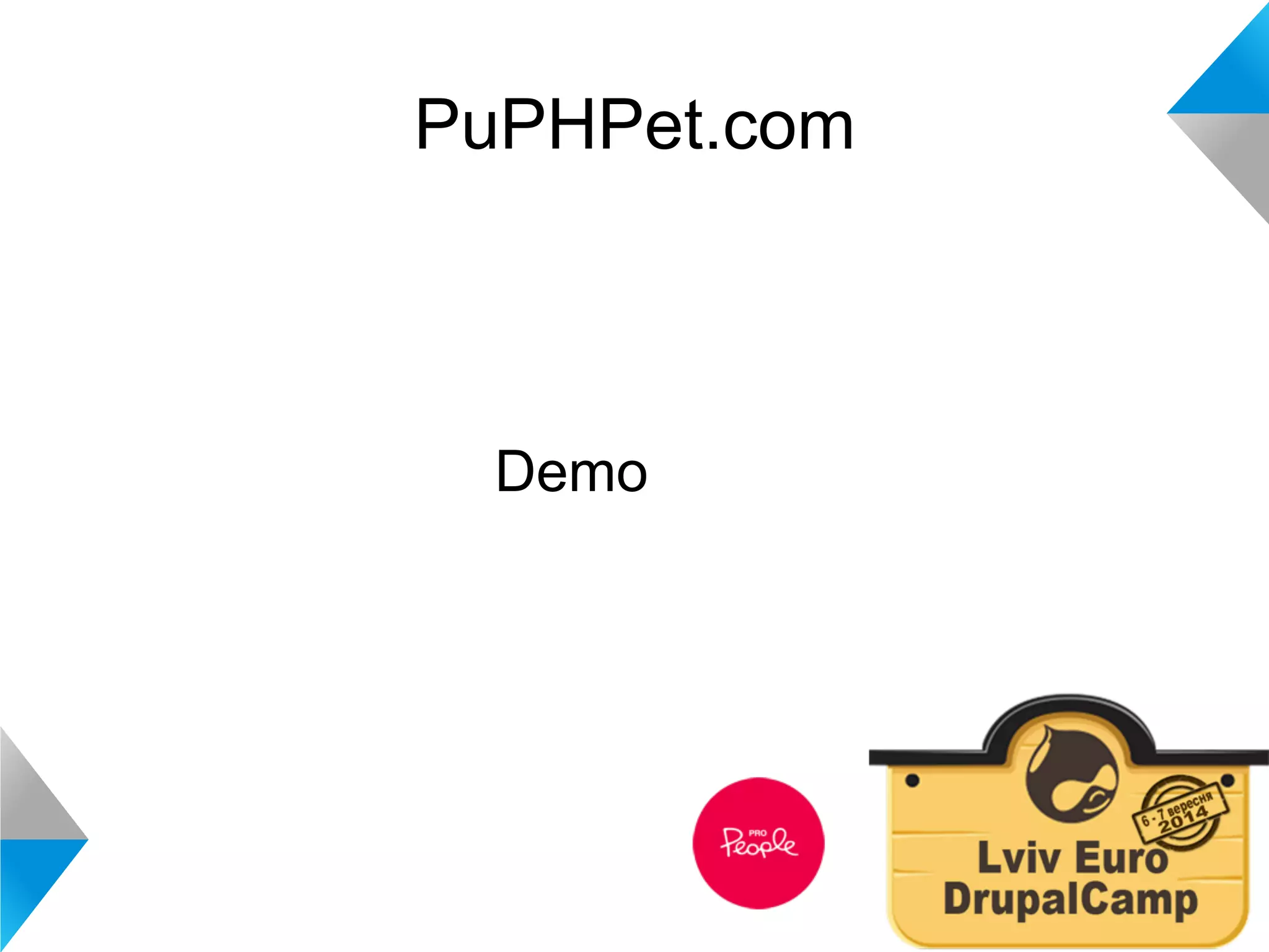

13. PuPHPet.com
Demo

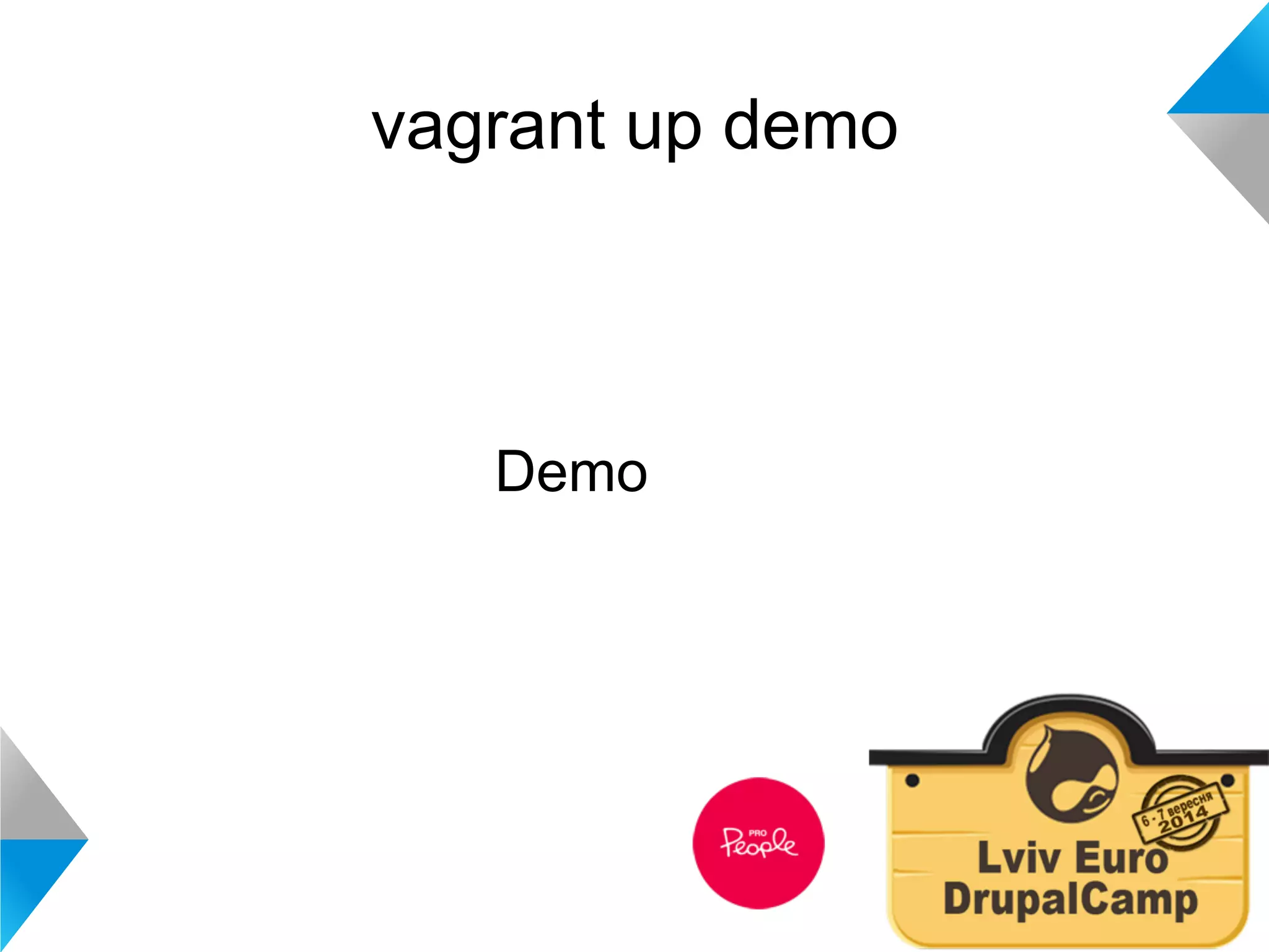

14. vagrant up demo
Demo

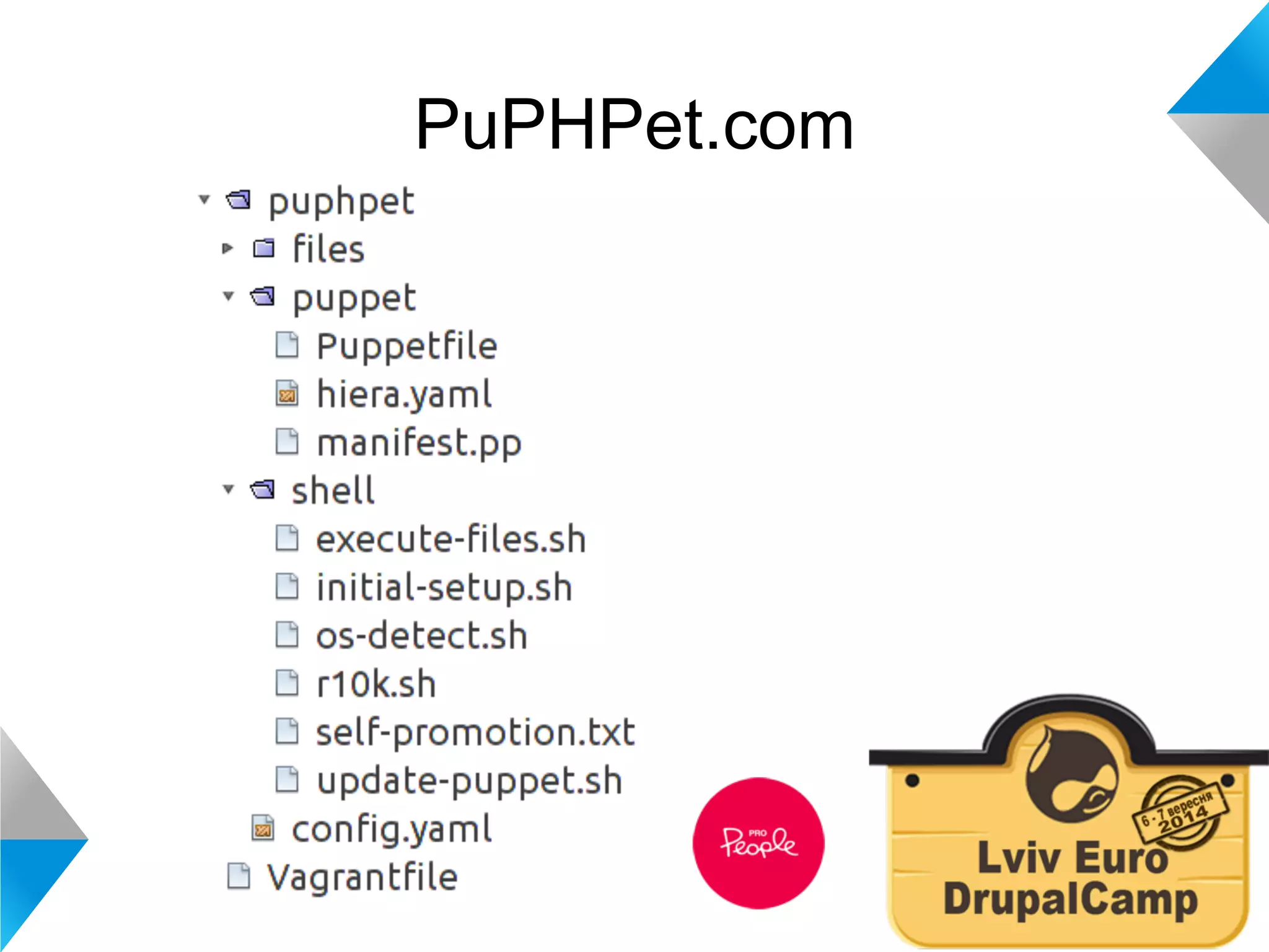

15. PuPHPet.com

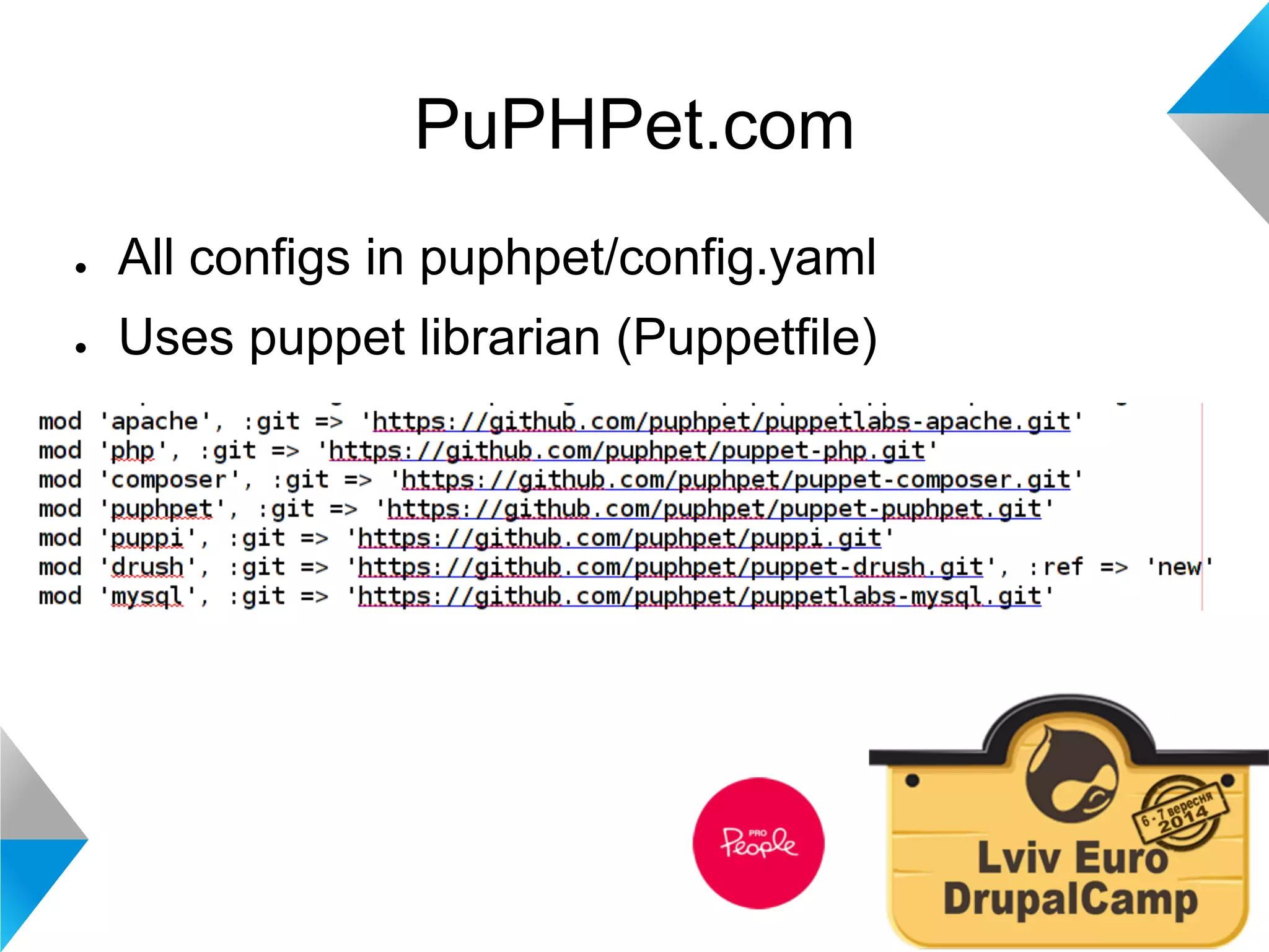

16. PuPHPet.com
● All configs in puphpet/config.yaml
● Uses puppet librarian (Puppetfile)

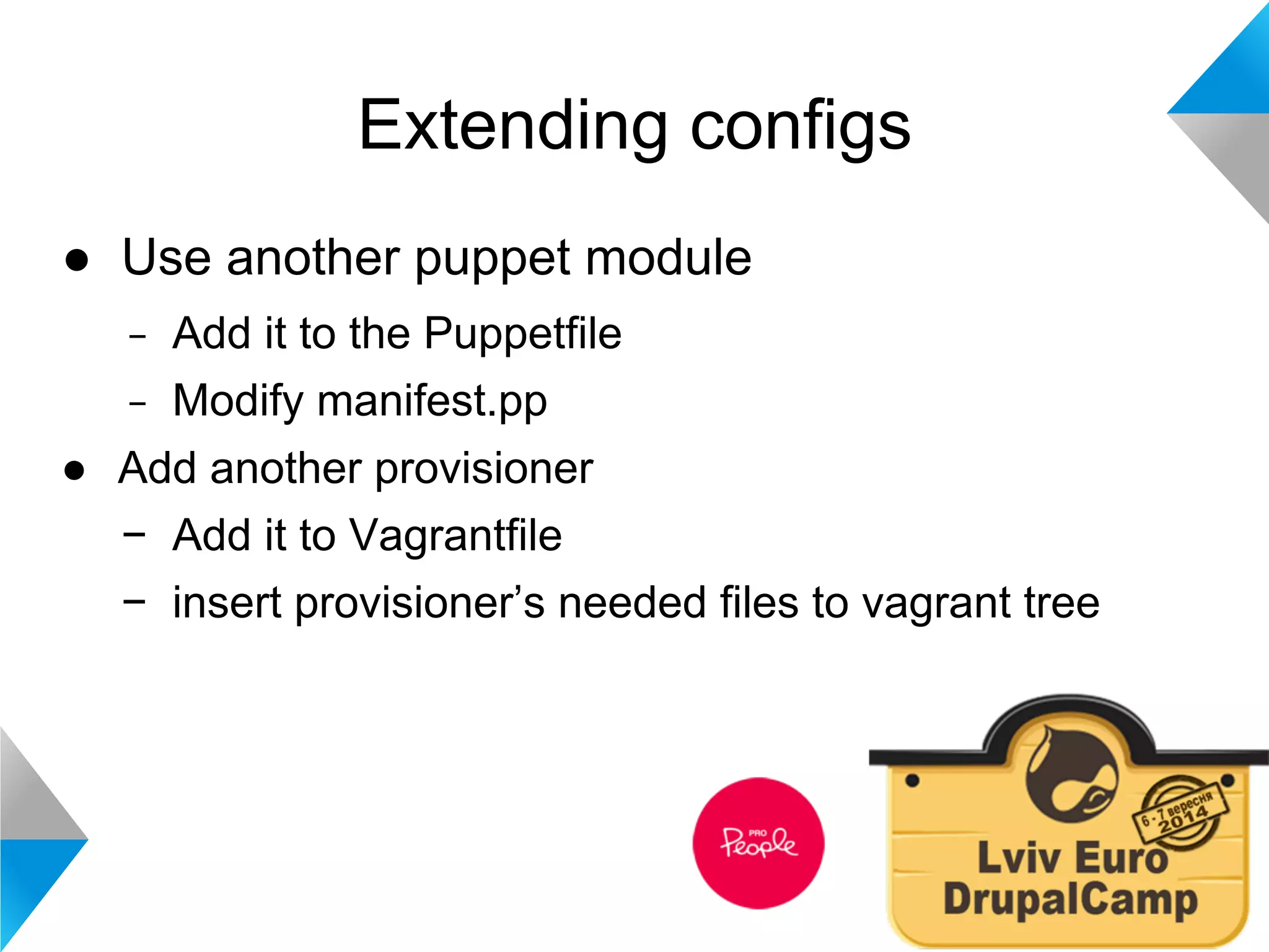

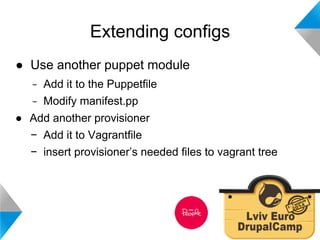

17. Extending configs
● Use another puppet module
− Add it to the Puppetfile
− Modify manifest.pp
● Add another provisioner
− Add it to Vagrantfile
− insert provisioner’s needed files to vagrant tree

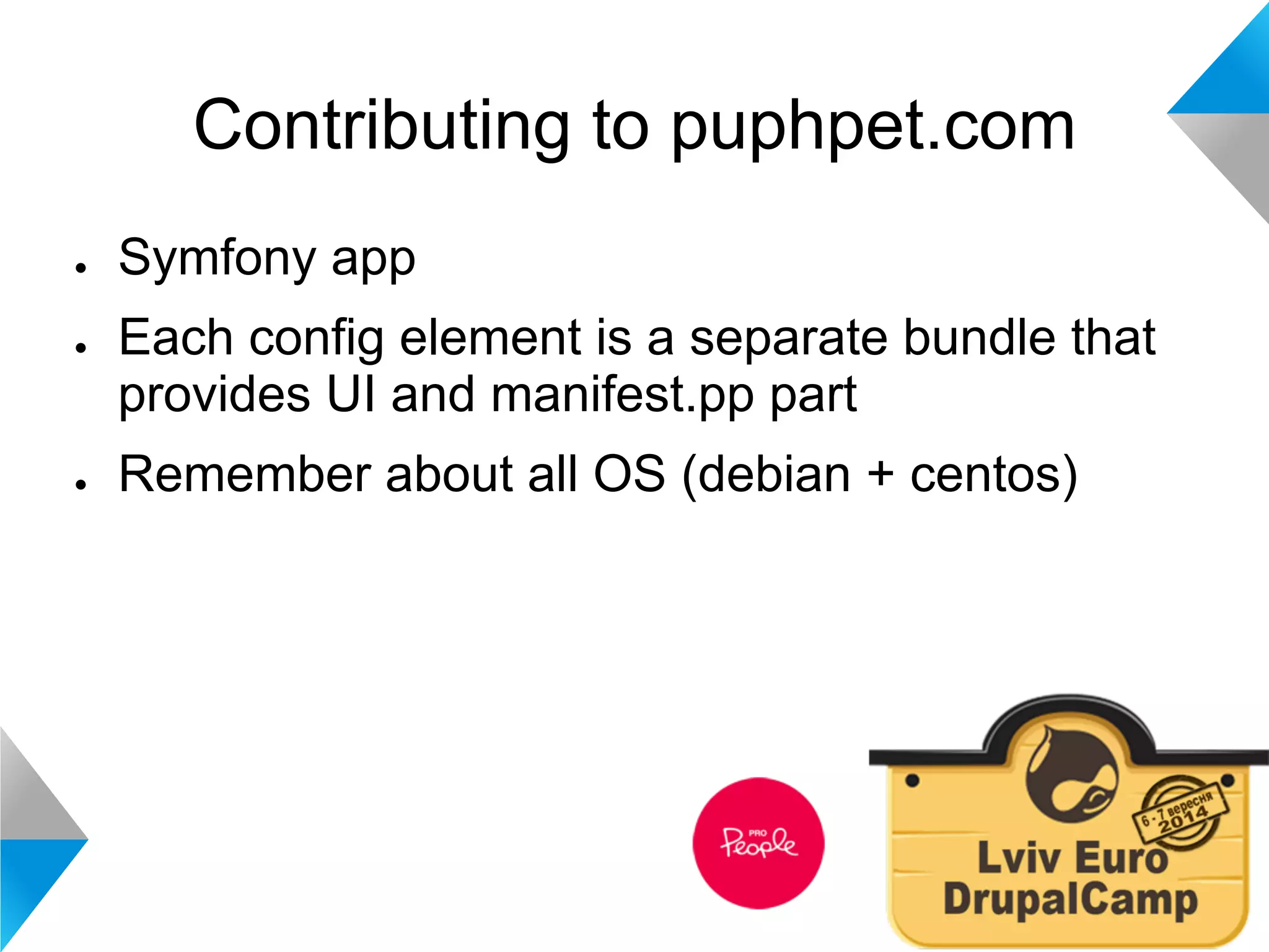

18. Contributing to puphpet.com
● Symfony app
● Each config element is a separate bundle that
provides UI and manifest.pp part
● Remember about all OS (debian + centos)

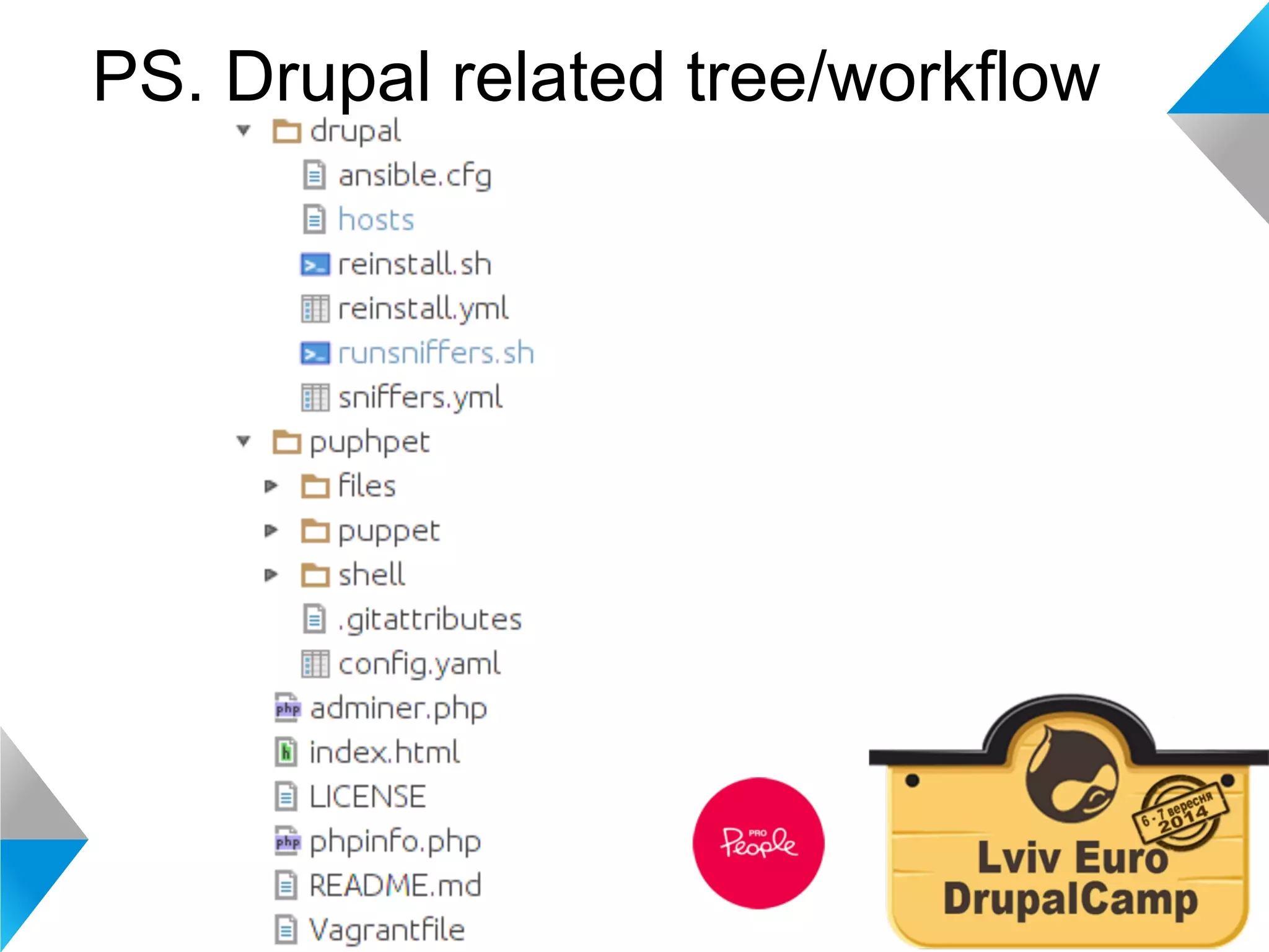

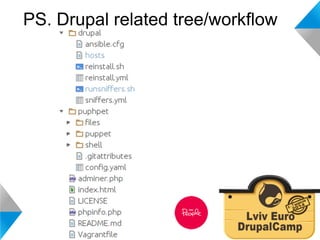

19. PS. Drupal related tree/workflow

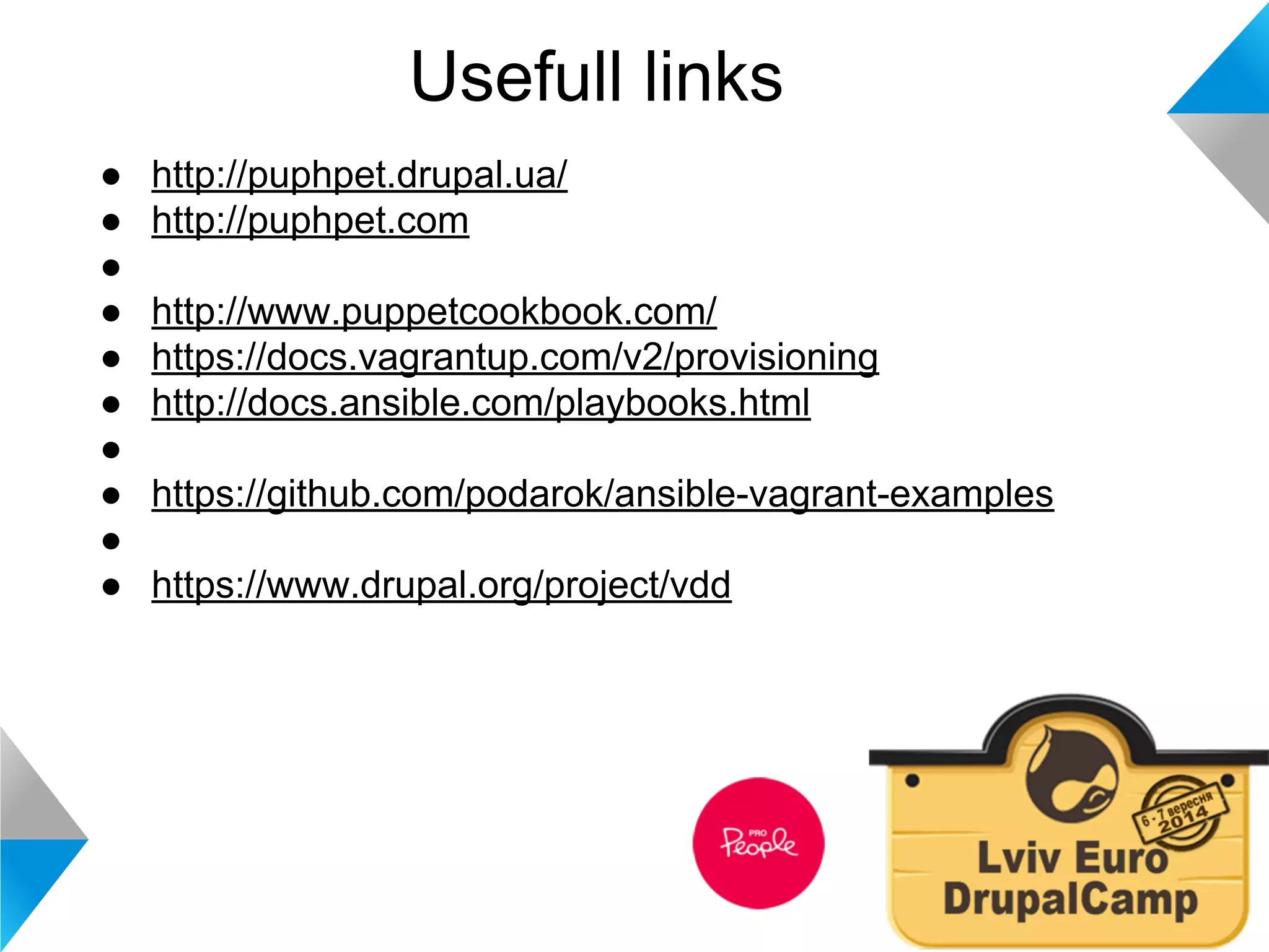

20. Usefull links
● http://puphpet.drupal.ua/
● http://puphpet.com
●●
http://www.puppetcookbook.com/
● https://docs.vagrantup.com/v2/provisioning
● http://docs.ansible.com/playbooks.html
●●
https://github.com/podarok/ansible-vagrant-examples
●●
https://www.drupal.org/project/vdd

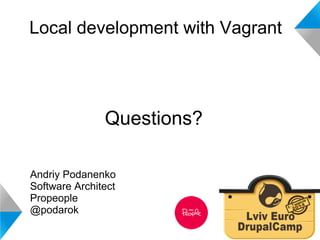

21. Local development with Vagrant
Questions?
Andriy Podanenko
Software Architect
Propeople
@podarok
