This document discusses performance testing with SharePoint. It covers identifying the test environment and performance criteria, designing tests, configuring the test environment, constructing and running tests, and analyzing results. Specific topics include using Visual Studio 2008 for load testing, SharePoint considerations like timers jobs and SQL Server, and lessons learned like the importance of planning tests thoroughly and allowing time for issues.

1. Performance Testing w/ SharePointSharePoint Saturday CharlotteJeff DaltonTwitter.com/jefferydaltonSharepoint.nailhead.net

2. About Me6/20/20092SharePoint Saturday Charlotte / Performance Testing with SharePoint

3. AgendaFoundationPerformance Testing w/ Visual Studio 2008SharePoint ConsiderationLessons Learned6/20/20093SharePoint Saturday Charlotte / Performance Testing with SharePoint

4. Performance Testing BasicsIdentify Environment - Capture Application and Infrastructure architectureIdentify Performance Acceptance Criteria - RequirementsDesign Tests – Capture Scenarios, Navigation Paths, Workload ModelConfigure Test EnvironmentConstruct TestsRun Tests / Analyze Results / Create Test ReportsRinse / Repeat as Needed6/20/20094SharePoint Saturday Charlotte / Performance Testing with SharePoint

5. Identify EnvironmentArchitectureLogical PhysicalSystemCore Functions / Business ProcessWhat happens if this system is down?User ActivitesHow do people use this system?6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint5

6. Identify Performance Acceptance CriteriaEstablish RequirementsSLA / OLA, Regulations, ContractsRequest X must respond < 5 secondsPress Releases must be available with 2 minutes of releaseApplication RequirementsApplication must support 5 orders per second.Determine ThresholdsProcessor Utilization should not exceed 80% for 5 consecutive seconds.Establish Goals95% of page requests should execute in less than 2 seconds.6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint6

7. Design TestsDefine usage scenarios (web transactions)Requirements and Goals.Common Usage ScenariosBusiness Critical ScenariosTechnical ConcernsStakeholder ConcernsHigh Visibility usage.Strive for real word usageUser delays / think timesUser abandonmentCommon user errorsWork Load models6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint7

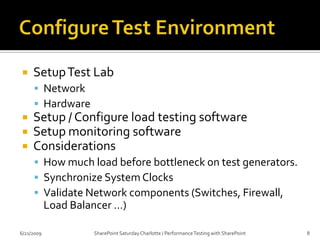

8. Configure Test EnvironmentSetup Test LabNetworkHardwareSetup / Configure load testing softwareSetup monitoring softwareConsiderationsHow much load before bottleneck on test generators.Synchronize System ClocksValidate Network components (Switches, Firewall, Load Balancer …)6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint8

9. Construct TestsPlan on this taking longer than expectedBuild scripts to create simulated data SharePoint Test Data Population Tool (CodePlex)SharePoint Site Builder (CodePlex)Ensure validation rules are working correctlyPlan on issues (usually test tools lag behind technology)6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint9

10. Run Tests / Analyze Results / Create Test ReportsMake sure proper people are in place when running tests.Collect / Analyze data as soon as tests are finished (everything is fresh in memory)Meticulous documenting start / stop times, special circumstance with test.Archive Test ResultsRun Tests Multiple times (to reduce chance of anomalies) Stakeholder Reports / Technical Reports Content is tailored to audience6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint10

11. AgendaFoundationPerformance Testing w/ Visual Studio 2008SharePoint ConsiderationLessons Learned6/20/200911SharePoint Saturday Charlotte / Performance Testing with SharePoint

12. Performance Testing w/ Visual Studio 2008Visual Studio 2005 or 2008 Team Test or Team SuiteVisual Studio Team System 2008 Test Load Agent Now let’s get out of slides6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint12

13. AgendaFoundationPerformance Testing w/ Visual Studio 2008SharePoint ConsiderationLessons Learned6/20/200913SharePoint Saturday Charlotte / Performance Testing with SharePoint

14. SharePoint ConsiderationsWeb Front EndsCaching Enabled / Content DB Size / Site Collection SizeIs Security included?SQL ServerDo Not IgnoreTimer JobsHow will these impact your operations? Have you included these in your tests?SSPSearch, BDC, User Profiles, Session State, Excel Services,…Solution Deployments6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint14

15. AgendaFoundationPerformance Testing w/ Visual Studio 2008SharePoint ConsiderationLessons Learned6/20/200915SharePoint Saturday Charlotte / Performance Testing with SharePoint

16. Lessons LearnedPlan, Plan, Plan Know your environmentEstablish your goals Know your tests Know your toolsTest, Test, Test (or search / destroy bottlenecks)Leave plenty of time to shake out the testsSize Matters (when Testing SharePoint)Witnessed 100% performance degradation between empty site collection and one with 22k webs.6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint16

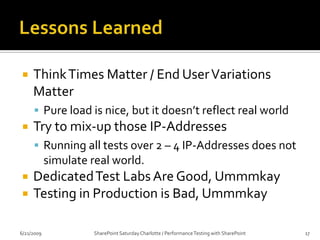

17. Lessons LearnedThink Times Matter / End User Variations MatterPure load is nice, but it doesn’t reflect real worldTry to mix-up those IP-AddressesRunning all tests over 2 – 4 IP-Addresses does not simulate real world.Dedicated Test Labs Are Good, UmmmkayTesting in Production is Bad, Ummmkay6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint17

18. Lessons LearnedLoad Agents can max out quickly (do not want to over stress those machines)Over worked Load Agent will skew test results.Testing for under 30 minutes may cause you to miss out on major problems.Rule of thumb is about 1000 concurrent users for 1 VSTS Load Agent (most I’ve been able to run is around 300)6/20/2009SharePoint Saturday Charlotte / Performance Testing with SharePoint18
