- 1. SoRtINg techNology SoRtINg SolUtIoNSto IMPRoVe yoUR logIStIcS PRoceSS

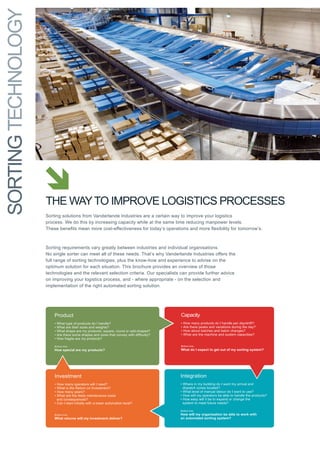

- 2. SoRtINg techNology Product Capacity • What type of products do I handle? • How many products do I handle per day/shift? the Way to IMPRoVe logIStIcS PRoceSSeS • What are their sizes and weights? • Are there peaks and variations during the day? • What shape are my products: square, round or odd-shaped? • How about batches and batch changes? • Are there some shapes and sizes that convey with difficulty? • What are the machine and system capacities? • How fragile are my products? Sorting solutions from Vanderlande Industries are a certain way to improve your logistics Bottom line: Bottom line: How special are my products? What do I expect to get out of my sorting system? process. We do this by increasing capacity while at the same time reducing manpower levels. These benefits mean more cost-effectiveness for today’s operations and more flexibility for tomorrow’s. Investment Integration Sorting requirements vary greatly between industries and individual organisations. No singlemany operators meet all of these needs. That’s why Vanderlande Industries offers the arrival and • How sorter can will I need? • Where in my building do I want my • What is the Return on Investment? dispatch zones located? full rangemany years? technologies, plus the know-how and experience level of manual labour do I want to use? • How of sorting • What to advise on the • What are the likely maintenance costs • How will my operators be able to handle the products? optimumconsequences? each situation. this brochure provides an overview of those expand or change the and solution for • How easy will it be to technologies and the relevant selection criteria. our specialists can provide further advice • Can I start initially with a lower automation level? system to meet future needs? on improving your logistics process, and - where appropriate - on the selection and Bottom line: How will my organisation be able to work with implementationwill my investment deliver? sorting solution. Bottom line: What returns of the right automated an automated sorting system?
- 3. chooSINg a looPoR lINe SoRteR loop sorters loop sorters consist of an endless loop of segmented carriers. after induction onto the sorter, products circulate until they are sorted at the right destination. If this is full or otherwise not available, the products will continue to circulate. Recirculation is therefore achieved constantly and automatically. To increase capacity and maximise usage of the available carriers, additional induction positions can be placed at various locations around the loop. Loop sorters require more floor space than line sorters, but allow higher capacities to be achieved. line sorters line sorters have a straightforward linear layout: products are placed on the sorter at the beginning of the line. If not sorted they will arrive at the end of the line, where they will leave the system. alternatively they can automatically be returned to the beginning of the sorter to pass through the sorting process again, turning the line sorter into a loop configuration. Line sorters have a relatively small footprint and require a low investment. Loop sorters Baggage Cartons Totes Trays Sacks Rolls Envelopes Media Parcels helIXoRteR™ • • eXPReXoRteR™ • • • • • cRoSSoRteR™ • • • • • • • Line sorters VIPeR™ • VeRtIBelt / PUSheR • • • • DIStRISoRteR™ 45°/90° • • • ShoeBoXoRteR™ • VeRtISoRteR™ • • • • PoSISoRteR™ • • • • PaXoRteR™ • • • tRUXoRteR™ • • •

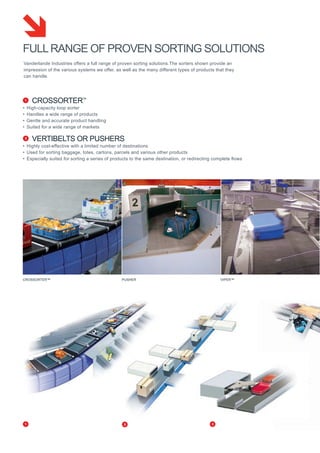

- 4. FUll RaNge oFPRoVeN SoRtINg SolUtIoNS Vanderlande Industries offers a full range of proven sorting solutions.the sorters shown provide an impression of the various systems we offer, as well as the many different types of products that they can handle. cRoSSoRteR tM • High-capacity loop sorter • Handles a wide range of products • Gentle and accurate product handling • Suited for a wide range of markets VeRtIBeltS oR PUSheRS • Highly cost-effective with a limited number of destinations • Used for sorting baggage, totes, cartons, parcels and various other products • Especially suited for sorting a series of products to the same destination, or redirecting complete flows cRoSSoRteR™ PUSheR VIPeR™
- 5. VIPeR tM • High capacity paddle pusher for baggage sorting • Triangular movement of the paddle achieves a smooth diverting motion helIXoRteR tM • Tilt-tray loop sorter with a unique closed deck concept • Significantly higher conveyability than traditional tilt-tray sorters • Used mainly for high-capacity baggage sorting eXPReXoRteR tM • High-capacity tilt-tray loop sorter with a unique deck construction • Designed specifically for sorting parcels and other courier express products • Allocation of trays determined by product length/size • Gentle handling of products PaXoRteR tM • Low-capacity line sorter • Used in Express Parcel and distribution environments • Payback time less than two years helIXoRteR™ eXPReXoRteR™ PaXoRteR™

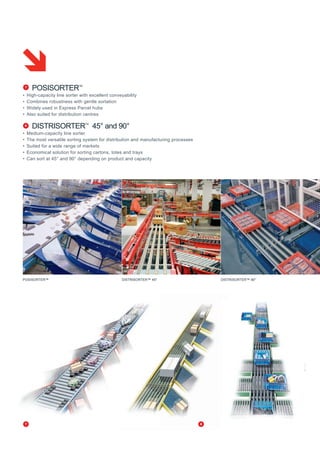

- 6. PoSISoRteR tM • High-capacity line sorter with excellent conveyability • Combines robustness with gentle sortation • Widely used in Express Parcel hubs • Also suited for distribution centres DIStRISoRteR 45° and 90° tM • Medium-capacity line sorter • The most versatile sorting system for distribution and manufacturing processes • Suited for a wide range of markets • Economical solution for sorting cartons, totes and trays • Can sort at 45° and 90° depending on product and capacity PoSISoRteR™ DIStRISoRteR™ 45° DIStRISoRteR™ 90°

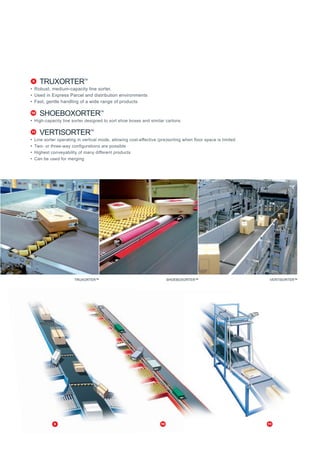

- 7. tRUXoRteR tM • Robust, medium-capacity line sorter, • Used in Express Parcel and distribution environments • Fast, gentle handling of a wide range of products ShoeBoXoRteR tM • High-capacity line sorter designed to sort shoe boxes and similar cartons VeRtISoRteR tM • Line sorter operating in vertical mode, allowing cost-effective (pre)sorting when floor space is limited • Two- or three-way configurations are possible • highest conveyability of many different products • Can be used for merging tRUXoRteR™ ShoeBoXoRteR™ VeRtISoRteR™

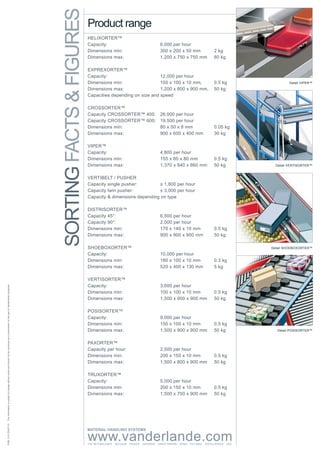

- 8. SoRtINg FactS &FIgUReS Product range helIXoRteR™ capacity: 6,000 per hour Dimensions min: 300 x 200 x 50 mm 2 kg Dimensions max: 1,200 x 750 x 750 mm 60 kg eXPReXoRteR™ capacity: 12,000 per hour Dimensions min: 150 x 100 x 10 mm, 0.5 kg Detail VIPeR™ Dimensions max: 1,200 x 800 x 900 mm, 50 kg Capacities depending on size and speed cRoSSoRteR™ capacity cRoSSoRteR™ 400: 26,000 per hour capacity cRoSSoRteR™ 600: 19,500 per hour Dimensions min: 80 x 50 x 8 mm 0.05 kg Dimensions max: 900 x 600 x 400 mm 30 kg VIPeR™ Capacity: 4,800 per hour Dimensions min: 155 x 80 x 80 mm 0.5 kg Dimensions max: 1,370 x 840 x 860 mm 50 kg Detail VeRtISoRteR™ VeRtIBelt / PUSheR Capacity single pusher: ± 1,800 per hour capacity twin pusher: ± 3,000 per hour capacity & dimensions depending on type DIStRISoRteR™ capacity 45°: 6,500 per hour capacity 90°: 2,000 per hour Dimensions min: 170 x 140 x 10 mm 0.5 kg Dimensions max: 900 x 900 x 900 mm 50 kg ShoeBoXoRteR™ Detail ShoeBoXoRteR™ capacity: 10,000 per hour Dimensions min: 180 x 100 x 10 mm 0.3 kg Dimensions max: 520 x 400 x 130 mm 5 kg VeRtISoRteR™ capacity: 3,000 per hour This information is subject to change without notice and should not be construed as a commitment on the part of Vanderlande Industries. Dimensions min: 100 x 100 x 10 mm 0.5 kg Dimensions max: 1,500 x 900 x 900 mm 50 kg PoSISoRteR™ capacity: 9,000 per hour Dimensions min: 150 x 100 x 10 mm 0.5 kg Dimensions max: 1,500 x 900 x 900 mm 50 kg Detail PoSISoRteR™ PaXoRteR™ capacity per hour: 2,500 per hour Dimensions min: 200 x 150 x 10 mm 0.5 kg Dimensions max: 1,500 x 800 x 900 mm 50 kg tRUXoRteR™ capacity: 5,000 per hour Dimensions min: 200 x 150 x 10 mm 0.5 kg Dimensions max: 1,500 x 700 x 900 mm 50 kg PUBL 2131 EN/07-10
