SMI Graphics SoC
The document outlines the features and capabilities of SMI's graphics System on Chip (SoC), the SM768, which provides high-performance, low-power 4K UHD graphics with advanced display technology. It includes dual display channels, various connectivity options, and utilizes Content Adaptive Technology (CAT) for efficient content compression. The SM768 also enables wireless docking and high-bandwidth video transfer, making it suitable for commercial use in diverse environments.
SMI Graphics SoC
- 1. SMI Confidential 0 SMI GraphicsSoC unleashs digital display possibility
- 2. SMI Confidential SMI Graphics SoC CompetitiveAdvantages SMI Graphics SoC offers an improved combination of high graphics capability, low latency, efficient data compression and low power consumption.
- 3. SMI Confidential SM768 enables HighPerformance and Low Power 4K UHD Graphics Display SoCs. • Dual Display Channels in Single Chip • Support: HDMI, DisplayPort, DVI, VGA, LVDS, RGB • Build-in ARM CPU and USB connectivity • Ultra Low Power (1-2W) • Commercial and Industrial Temp Grade (-40 to +85C)
- 4. SMI Confidential SM768 offers AdvancedDisplay Technology: CAT (Content Adaptive Technology) CAT technology will process desktop contents adaptively: • Graphics/3D Image will be processed by high compression ratio MJPEG codec. • Text will be compressed by lossless proprietary protocol. • Video will be transferred in original compressed formats. SMI's CAT will compress display content to minimize the bandwidth needed to transmit content.

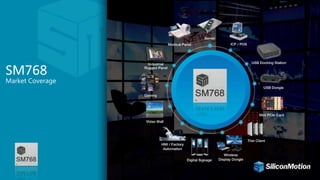

- 5.
- 6. SMI Confidential SM768 enables theWireless Docking for Office, Conference Room or Commercial Broadcast Use • WiGig 11ad or 802.11ac/WiFi 6 wireless to transfer screen content. • SMI CAT’s high compression ratio (20:1) makes 4K video stream to take only 100-250 Mbps bandwidth. • Wi-Fi will adapt to work under interference by switching Wi-Fi channels or adjusting Tx power. • Hybrid Design. Also support USB-C PD to charge laptop. Display will switch from Wi-Fi to USB if USB-C cable connected.
