SmartUnity Building Automation is automation middleware for Beckhoff PLC-based building automation systems. It allows visual programming of Beckhoff PLCs for HVAC, lighting, energy management, security, and other automation using a configuration software. The configuration software lets you program actions, triggers, conditions, and scenarios visually without traditional IEC 61131 languages. SmartUnityBAS supports many common building automation protocols and can integrate with SCADA systems. It provides benefits like less programming effort, easier debugging and maintenance compared to traditional PLC programming.

1. Automation Middleware
for BECKHOFF based solutions
Building Automation System

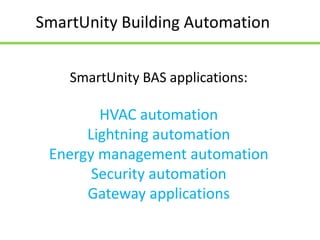

2. SmartUnity Building Automation
SmartUnity BAS applications:
HVAC automation
Lightning automation
Energy management automation
Security automation
Gateway applicationa

3. SmartUnity vs TwinCat
SmartUnity BAS lets you
visual program any
Beckhoff PLC instead of FBD, ST or any
other IEC 61131 language

4. SmartUnity vs TwinCat
Creating the PLC program with
autonomous intelligence for the
building with 1000 signals takes just
several hours

5. SmartUnity Configuration
SmartUnityBAS configuration software lets
you visual program:
Actions
Triggers
Conditions
Scenarios
Times and schedules
Alarms and Logs

6. Configuration software

7. SmartUnityBAS firmware
TwinCat runtime
SmartUnityBAS firmware
Beckhoff I/O
SmartUnityBAS ProjectBuilder
(Visual Configuration Software)
Configuration file
Beckhoff CX1000, CX5000,
CX8000 series PLC

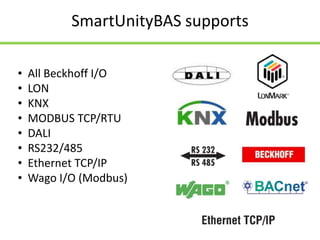

8. SmartUnityBAS supports
• All Beckhoff I/O
• LON
• KNX
• MODBUS TCP/RTU
• DALI
• RS232/485
• Ethernet TCP/IP
• Wago I/O (Modbus)

9. SCADA/HMI
Create HMI using any SCADA software (over OPC) or
develop own HMI with Microsoft Blend Studio

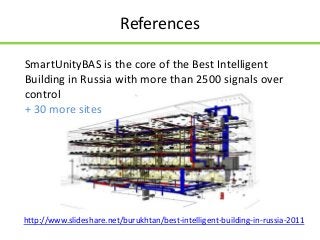

10. References
SmartUnityBAS is the core of the Best Intelligent
Building in Russia with more than 2500 signals over
control
http://www.slideshare.net/burukhtan/best-intelligent-building-in-russia-2011

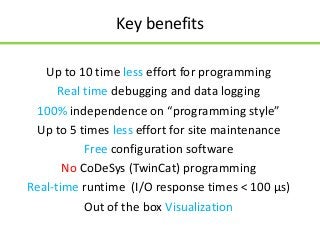

11. Key benefits
Up to 10 time less effort for programming
Real time debugging and data logging
100% independence on “programming style”
Up to 5 times less effort for code maintenance
Free configuration software

12. www.smartunityBAS.com
Building Automation System
Where to download?
Questions?
