This document contains symbols and their meanings related to vehicle systems. It includes symbols for oil and coolant temperatures, pressures, and levels for the engine, transmission, hydraulic, and other systems. Electrical, air, fuel, brake, and other vehicle systems are represented. The symbols provide information on filters, sensors, and indicators for many components to monitor the vehicle's functions and detect any issues that may require attention.

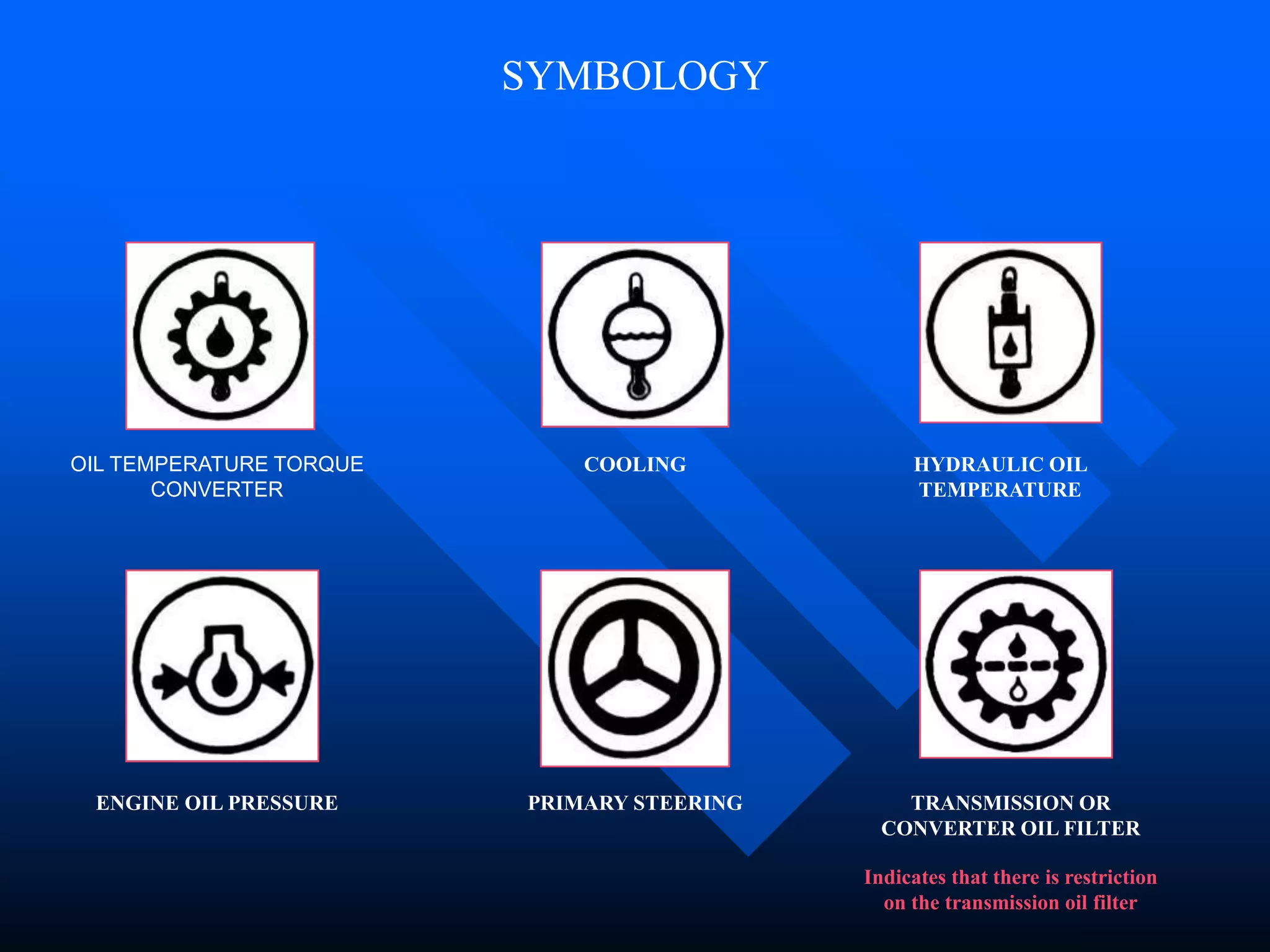

1. SYMBOLOGY
OIL TEMPERATURE TORQUE
CONVERTER
COOLING HYDRAULIC OIL
TEMPERATURE
ENGINE OIL PRESSURE PRIMARY STEERING TRANSMISSION OR
CONVERTER OIL FILTER
Indicates that there is restriction
on the transmission oil filter

2. SYMBOLOGY
ELECTRICAL SYSTEM
PARKING BRAKE OIL PRESSURE
FLOW COOLING HOROMETRY TEMPERATURE CONTROL
Indicates serious damage to the
electrical system Indicates low brake oil pressure
Indicates no coolant flow in the
engine
Indicates the time of operation of
the engine
Air conditioner

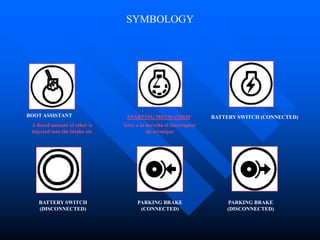

3. SYMBOLOGY
BOOT ASSISTANT STARTING MECHANISM BATTERY SWITCH (CONNECTED)
PARKING BRAKE
(CONNECTED)
PARKING BRAKE
(DISCONNECTED)
A dosed amount of ether is
injected into the intake air
Gire a la derecha el interruptor
de arranque
BATTERY SWITCH
(DISCONNECTED)

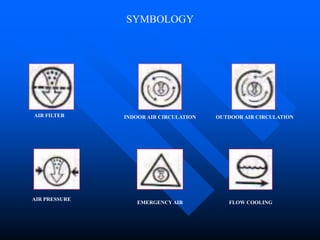

4. SYMBOLOGY
AIR FILTER INDOOR AIR CIRCULATION OUTDOOR AIR CIRCULATION
EMERGENCY AIR FLOW COOLING
AIR PRESSURE

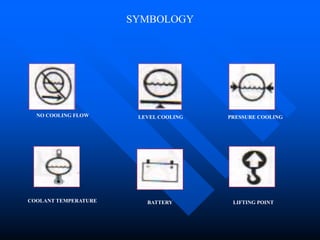

5. SYMBOLOGY
NO COOLING FLOW LEVEL COOLING PRESSURE COOLING
BATTERY LIFTING POINT
COOLANT TEMPERATURE

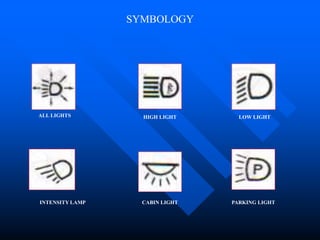

6. SYMBOLOGY
ALL LIGHTS HIGH LIGHT LOW LIGHT
CABIN LIGHT PARKING LIGHT
INTENSITY LAMP

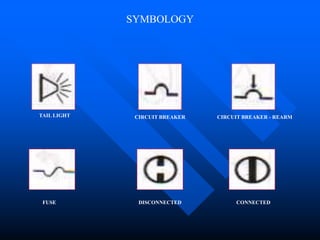

7. SYMBOLOGY
TAIL LIGHT CIRCUIT BREAKER CIRCUIT BREAKER - REARM
DISCONNECTED CONNECTED
FUSE

8. SYMBOLOGY
HOURS TEST HORN CONTROL
TRANSMISSION OR
CONVERTER
TRANSMISSION OR
CONVERTER OIL
TRANSMISSION OR CONVERTER
OIL LEVEL

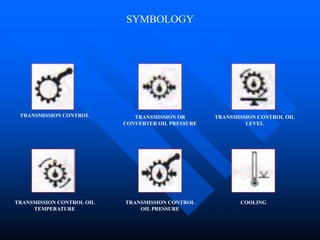

9. SYMBOLOGY
TRANSMISSION CONTROL TRANSMISSION OR
CONVERTER OIL PRESSURE
TRANSMISSION CONTROL OIL
LEVEL
TRANSMISSION CONTROL
OIL PRESSURE
COOLING
TRANSMISSION CONTROL OIL
TEMPERATURE

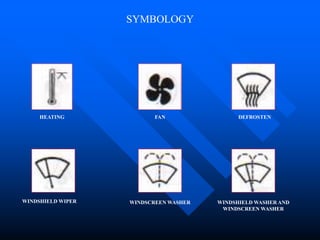

10. SYMBOLOGY
HEATING FAN DEFROSTEN
WINDSCREEN WASHER WINDSHIELD WASHER AND
WINDSCREEN WASHER
WINDSHIELD WIPER

11. SYMBOLOGY
TIRE PRESSURE NEGATIVE LEFT TURN
LEVER - MOVIMENT FAST
RIGHT TURN

12. SYMBOLOGY
SLOW NEUTRAL ENGINE OVERHEATING
ENGINE STOPPED ENGINE OIL
ENGINE HOURS

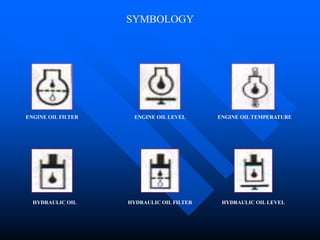

13. SYMBOLOGY
ENGINE OIL FILTER ENGINE OIL LEVEL ENGINE OIL TEMPERATURE
HYDRAULIC OIL FILTER HYDRAULIC OIL LEVEL
HYDRAULIC OIL

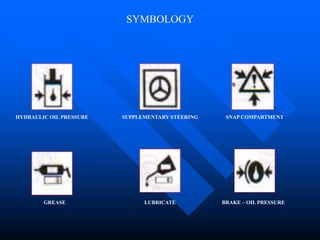

14. SYMBOLOGY
HYDRAULIC OIL PRESSURE SUPPLEMENTARY STEERING SNAP COMPARTMENT
LUBRICATE BRAKE – OIL PRESSURE
GREASE

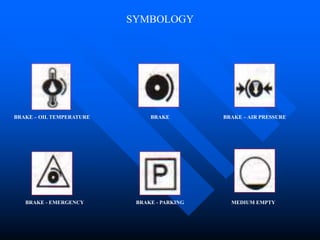

15. SYMBOLOGY
BRAKE – OIL TEMPERATURE BRAKE BRAKE – AIR PRESSURE
BRAKE - PARKING MEDIUM EMPTY
BRAKE - EMERGENCY

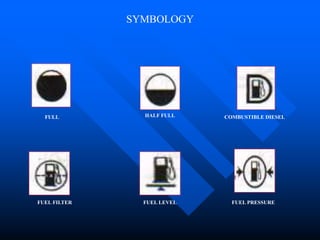

16. SYMBOLOGY
FULL HALF FULL COMBUSTIBLE DIESEL
FUEL LEVEL FUEL PRESSURE
FUEL FILTER

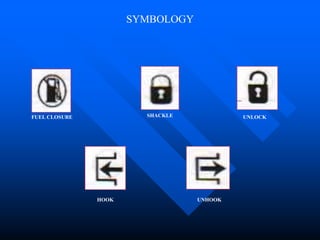

17. SYMBOLOGY
FUEL CLOSURE SHACKLE UNLOCK
UNHOOK
HOOK

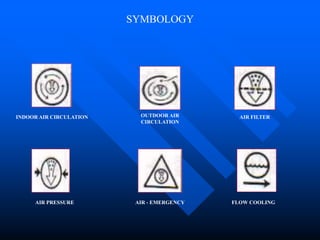

18. SYMBOLOGY
INDOOR AIR CIRCULATION OUTDOOR AIR
CIRCULATION
AIR FILTER
AIR - EMERGENCY FLOW COOLING
AIR PRESSURE

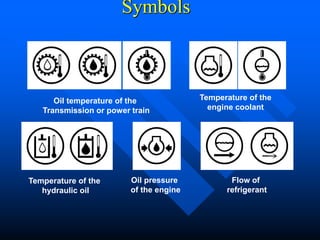

19. Symbols
Oil temperature of the
Transmission or power train
Temperature of the
engine coolant
Temperature of the
hydraulic oil
Oil pressure
of the engine
Flow of
refrigerant

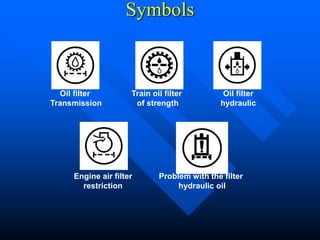

20. Symbols
Train oil filter
of strength
Oil filter
hydraulic
Oil filter
Transmission
Engine air filter
restriction
Problem with the filter
hydraulic oil

21. Symbols
Brake
of
parking
Overspeed
of the engine
Fuel level
System of
Transmission
Check
The engine
Brake
temperature
Brake
system
Brake oil
pressure

22. Symbols
General switch
CONNECTED
Interrupt. Engine starter
Rear lights
and sides
System
electric
Alternator
DISCONNECTED OUTBURST
CONNECTED
General switch OFF

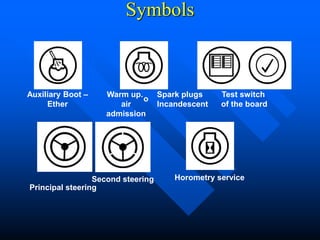

23. Symbols
Auxiliary Boot –
Ether
Horometry service
Warm up.
air
admission
Test switch
of the board
o
Spark plugs
Incandescent
Principal steering
Second steering

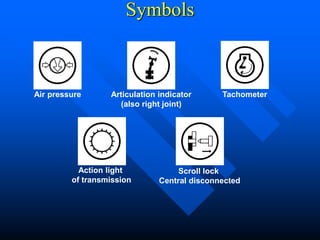

24. Symbols
Air pressure Articulation indicator
(also right joint)
Tachometer
Action light
of transmission
Scroll lock
Central disconnected

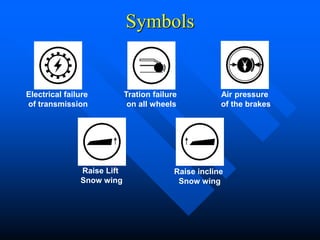

25. Symbols
Electrical failure
of transmission
Tration failure
on all wheels
Air pressure
of the brakes
Raise Lift
Snow wing
Raise incline
Snow wing

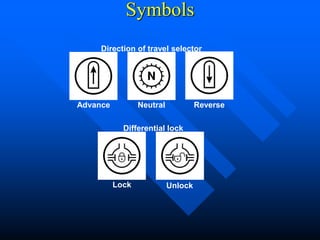

26. Symbols
Advance Neutral Reverse
Lock Unlock
Direction of travel selector
Differential lock

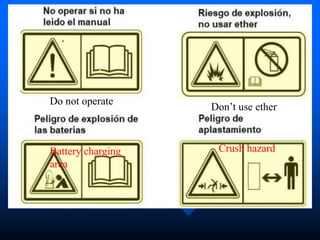

27. Do not operate
Don’t use ether
Battery charging
area
Crush hazard

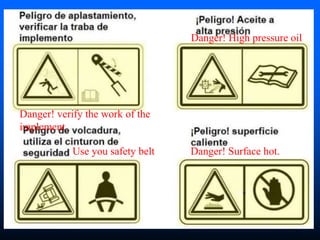

28. Use you safety belt
Danger! High pressure oil
Danger! Surface hot.
Danger! verify the work of the
implement

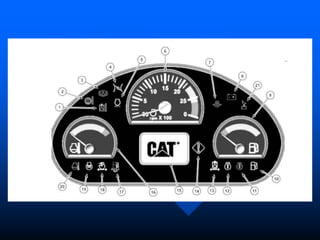

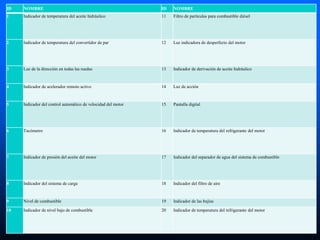

30. ID NOMBRE ID NOMBRE
1 Indicador de temperatura del aceite hidráulico 11 Filtro de partículas para combustible diésel
2 Indicador de temperatura del convertidor de par 12 Luz indicadora de desperfecto del motor
3 Luz de la dirección en todas las ruedas 13 Indicador de derivación de aceite hidráulico
4 Indicador de acelerador remoto activo 14 Luz de acción
5 Indicador del control automático de velocidad del motor 15 Pantalla digital
6 Tacómetro 16 Indicador de temperatura del refrigerante del motor
7 Indicador de presión del aceite del motor 17 Indicador del separador de agua del sistema de combustible
8 Indicador del sistema de carga 18 Indicador del filtro de aire
9 Nivel de combustible 19 Indicador de las bujías
10 Indicador de nivel bajo de combustible 20 Indicador de temperatura del refrigerante del motor
